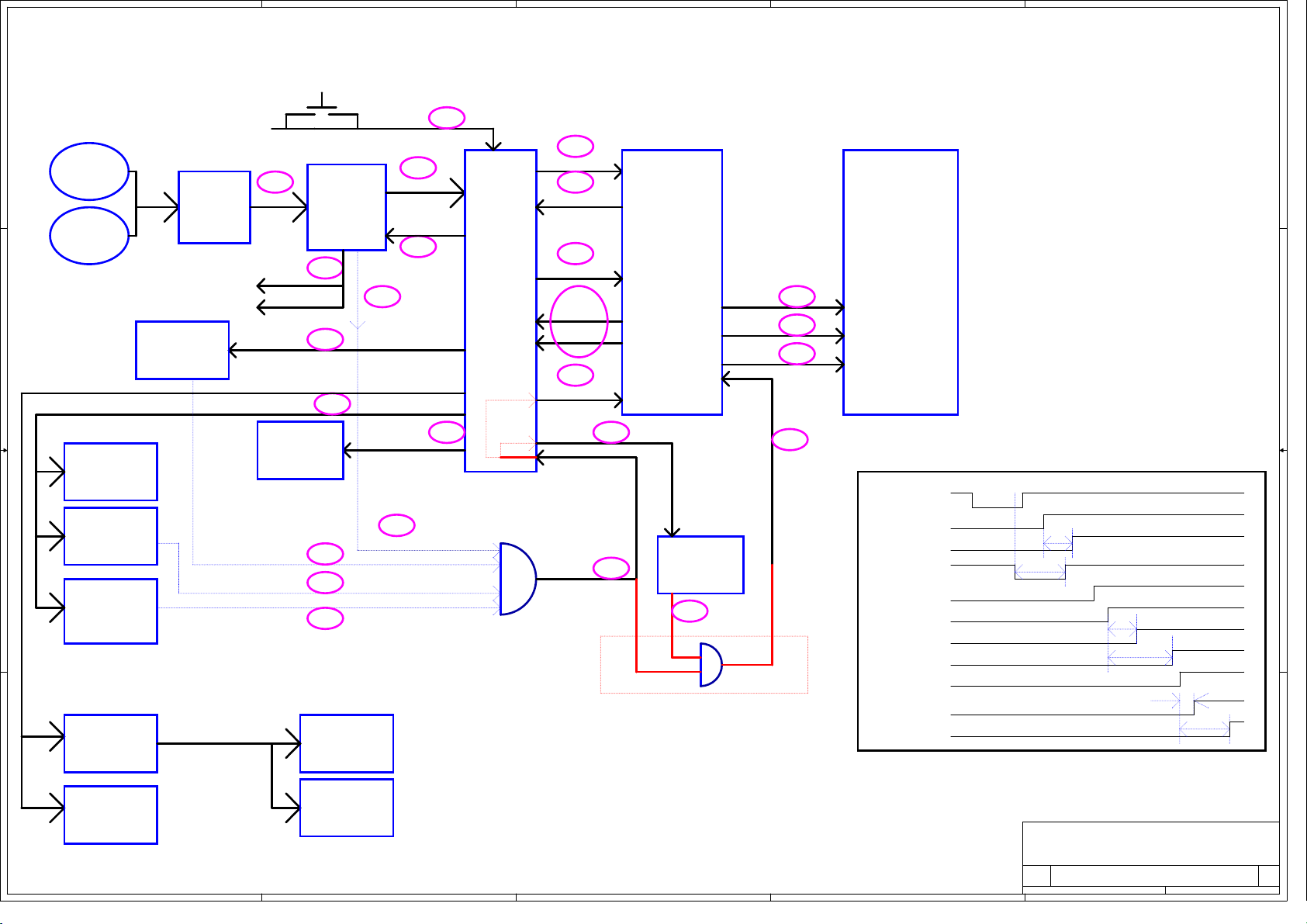

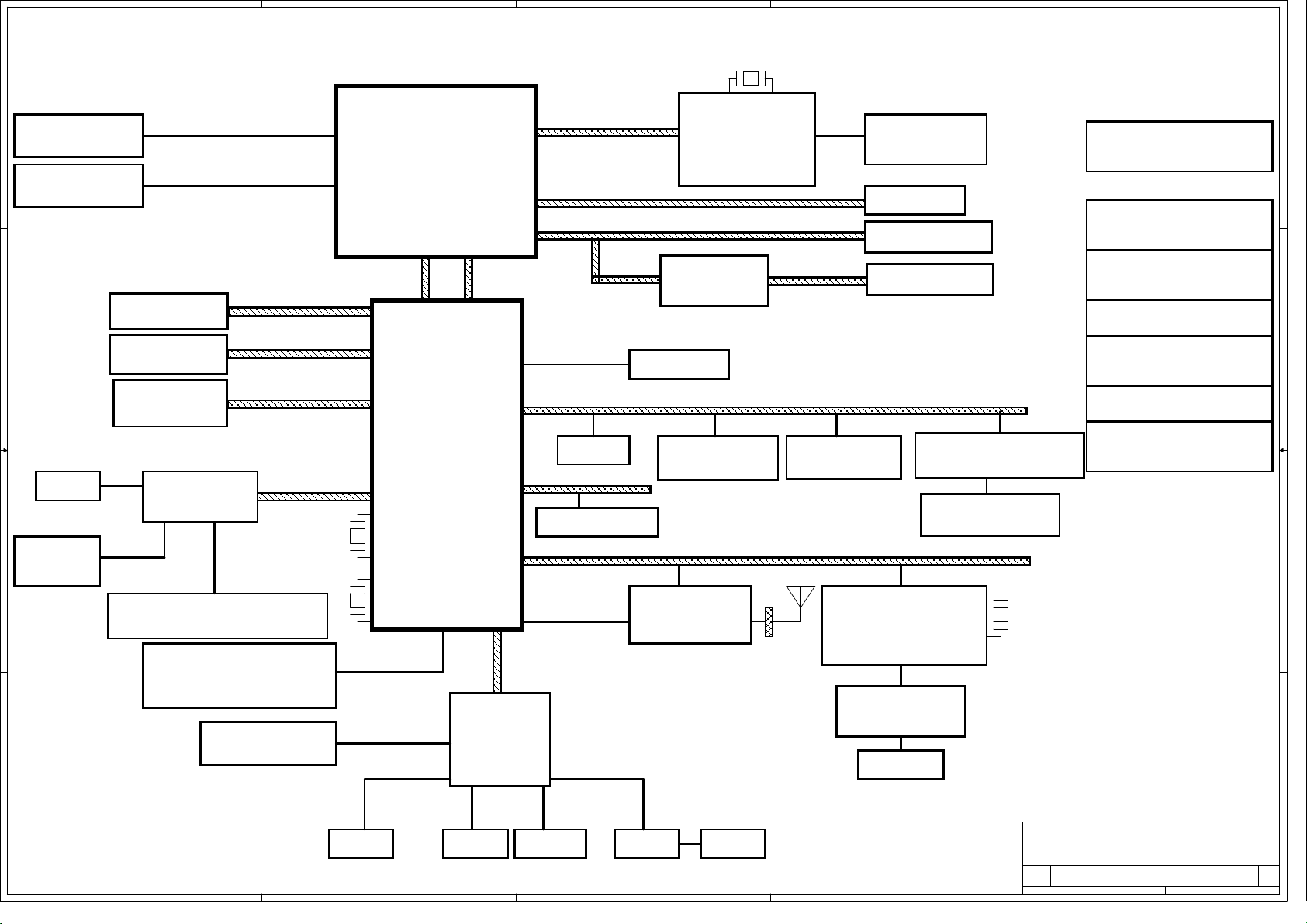

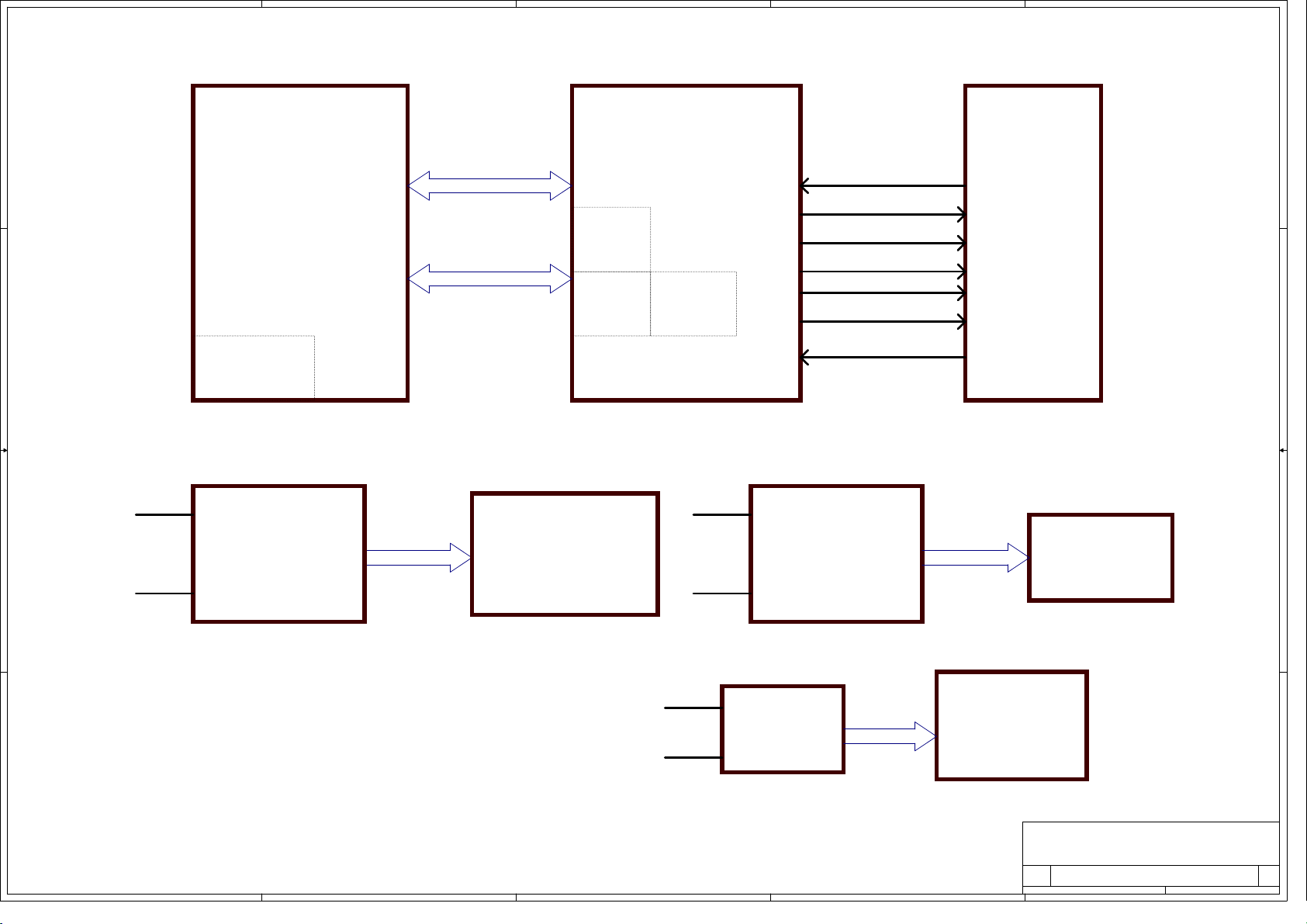

M/B Note Intel Shark Bay Platform (Optimus) Block Diagram
27MHz
1
D D
DDR3L-SODIMM1
Max. 8GB
Dual Channel DDR3L
DDR3L-SODIMM2
1333/1600 1.35V
Max. 8GB
SATA Gen3 (6Gb/s)
SATA - HDD
C C
SATA Gen1 (1.5Gb/s)
SATA - CD-ROM
mSATA SSD
for M note
NGFF-type B 2242
SATA Gen3 (6Gb/s)
Intel Proccesor
Haswell
Processor : Daul Core
Power : 37 (Watt)
Package : rPGA947
DDR SYSTEM MEMORY
Size : 37.5 x 37.5 (mm)
DMI
FDI
DMIFDI
Intel PCH
Lynx Point
DMIX4
PCI-Express 3.0 (8Gb/s)
HDMI (2.97Gb/s)
1-lane (1.62Gb/s, 2.7Gb/s)
Graphics Interfaces
INT_CRT
USB2.0 (480Mb/s)
X1 X1
Camera
eDP to LVDS
converter
Parade PS8622
CRT
USB2.0 Ports X1
with AOU4
AUDIO CODECSpeaker
Reltek ALC283
IHDA
Platform Controller Hub
Power : 3.5 Watt
Package : FCBGA695
Size : 20 x 20 (mm)
Audio Jack
B B
Combo Jack
HP/MIC
32.768KHz25MHz
Dual Digital Array Mic for M note
Analog Mic for B note
SPI Flash 8MB x 1
SPI Flash 4MB x 1
8MB for For Intel BIOS+ME
4MB for INTEL SBA (For M note)
SPI LPC
USB3.0 (6Gb/s)
X2
USB 3.0 Ports X2
PCIE Gen2 (5Gb/s)
USB2.0 (480Mb/s)
X1
Mini PCI-E Card
Combo Card
WLAN / BT
EC
SPI Flash 512K x 1
(Reserved)
A A
SPI
IT8587 CX
SMBusSCAN MATRIX
Nvidia
N14M-GL
N14M-GE
N14P-GV2
LVDS (1.05Gb/s)
X1
FingerPrint
VFS5011 For M note
VRAM x4pcs
Max. 2GB
HDMI
HD eDP Panel
HD LVDS Panel
Card Reader Controller
Card Reader CONN
X1
LAN
RTL8111GUS
Transformer
10/100/1G
RJ45
X1
RTS5176E-GRT
4-IN-1 SD/MMC
25MHz
FAN / THERMAL
NCT7718W
& W83L771AWG-3
Charger
REGULATOR (DDR3)
1.35VSUS, 0.675VSMDDR_VTERM,1.5V
1.5V_GPU,1.35V_CPU
REGULATOR
1.05V_VTT
DC/DC
3VPCU, 5VPCU, 15V
CPU Core
VGA Core
Discrete
SMBusPS2
PROJECT : M Note
PROJECT : M Note
K/B T/P
5
4
Thermal
Battery
3
Charger
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
1
161, 25, 2013
161, 25, 2013
161, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of

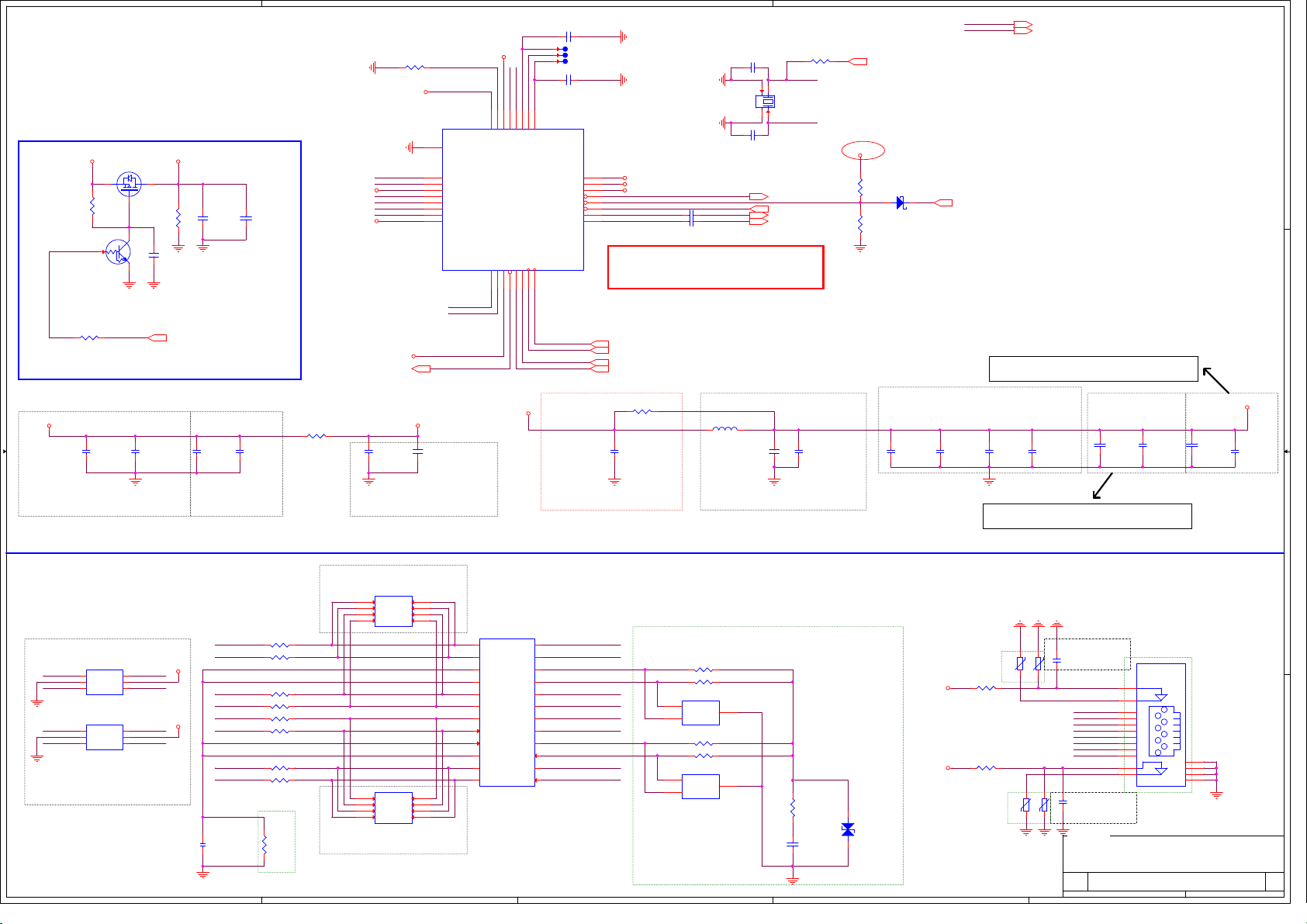

Page 2
5

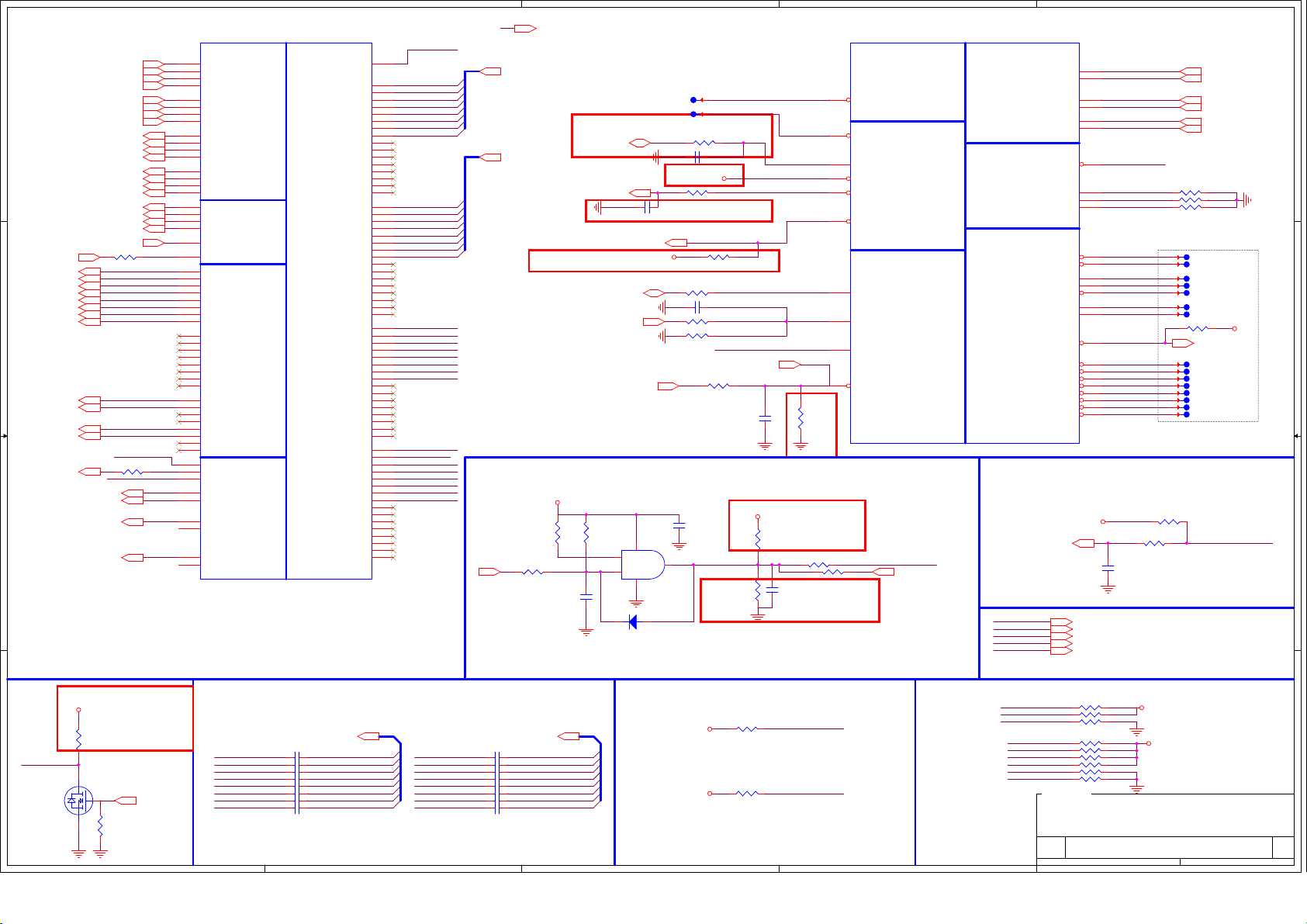

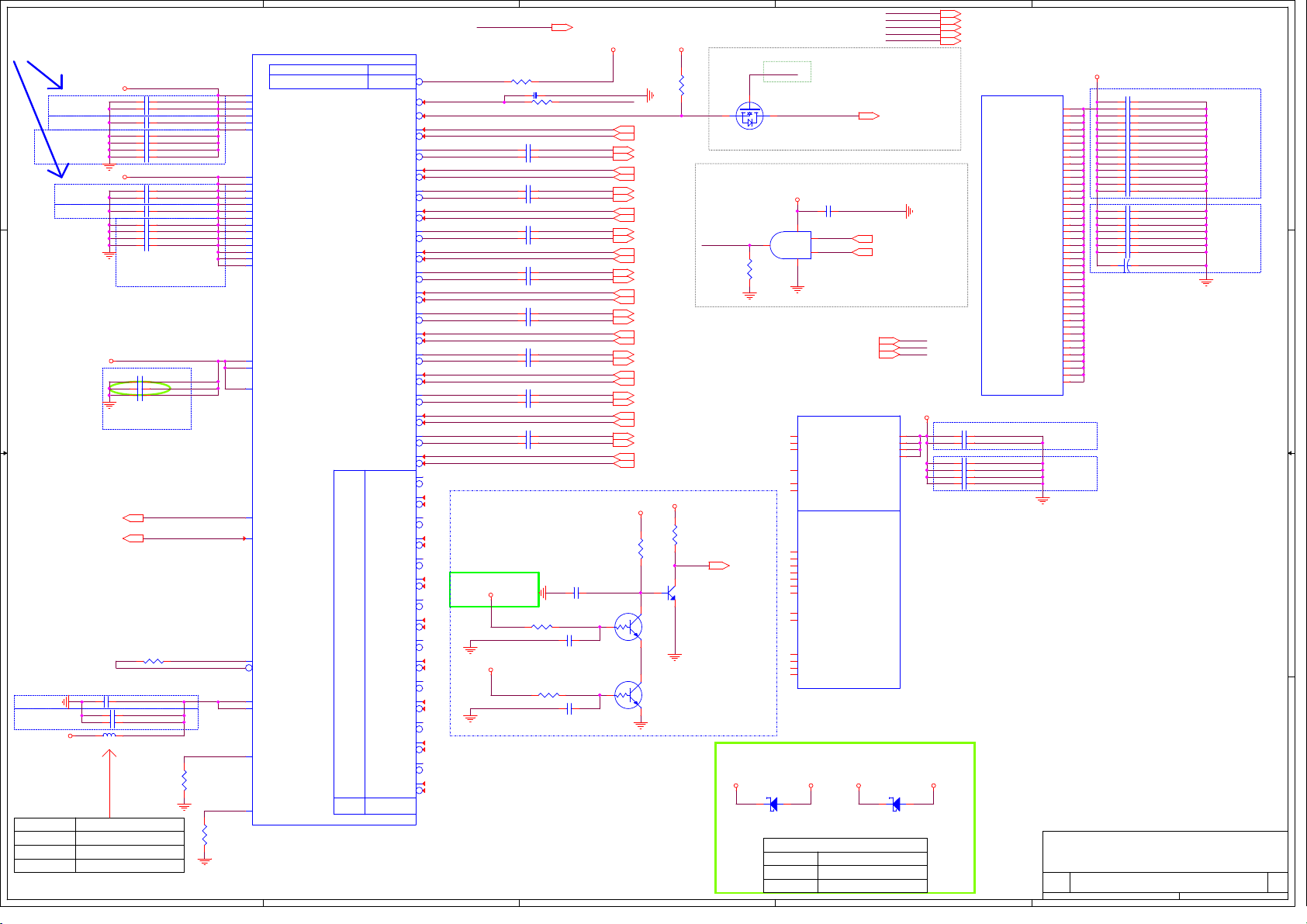

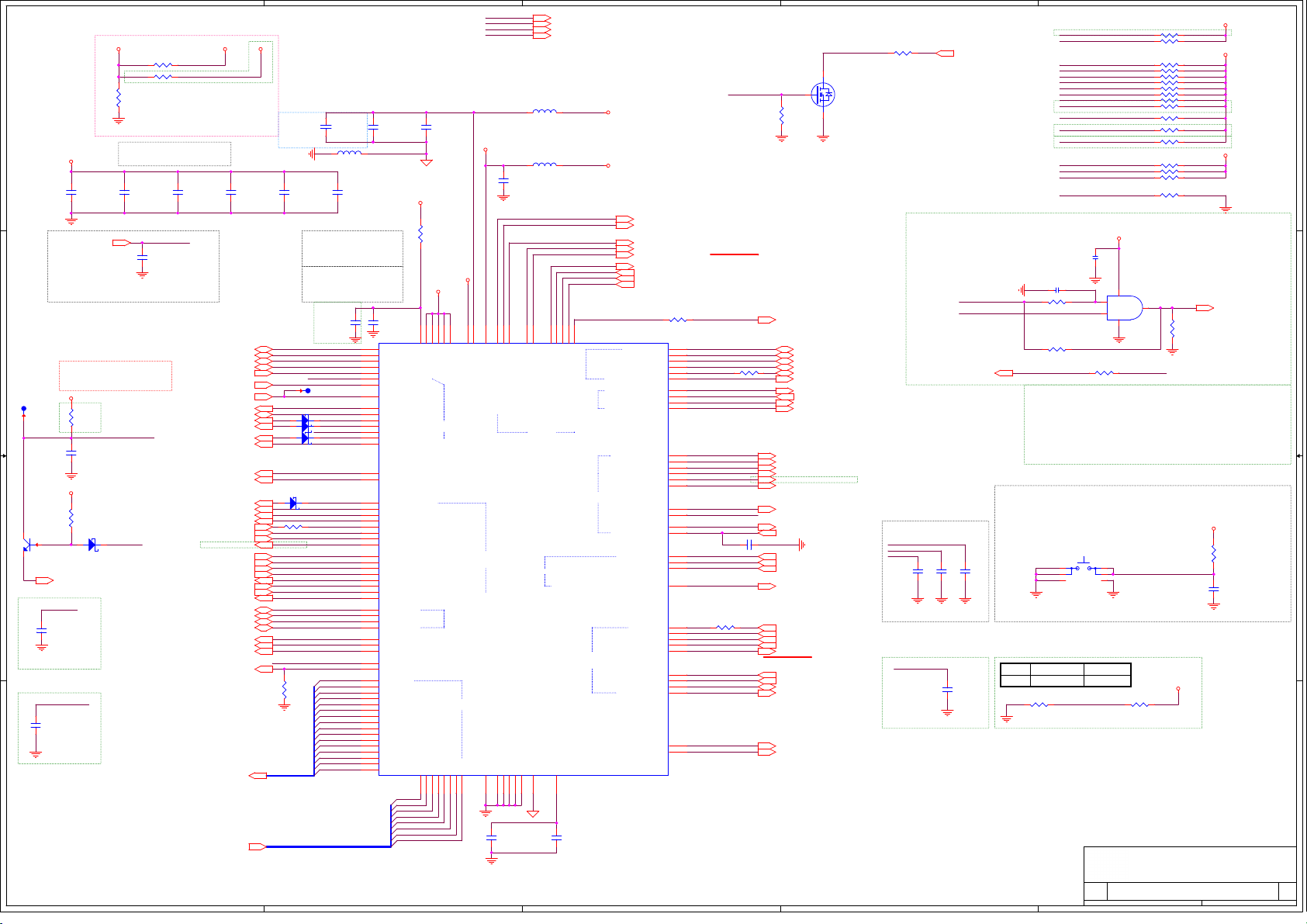

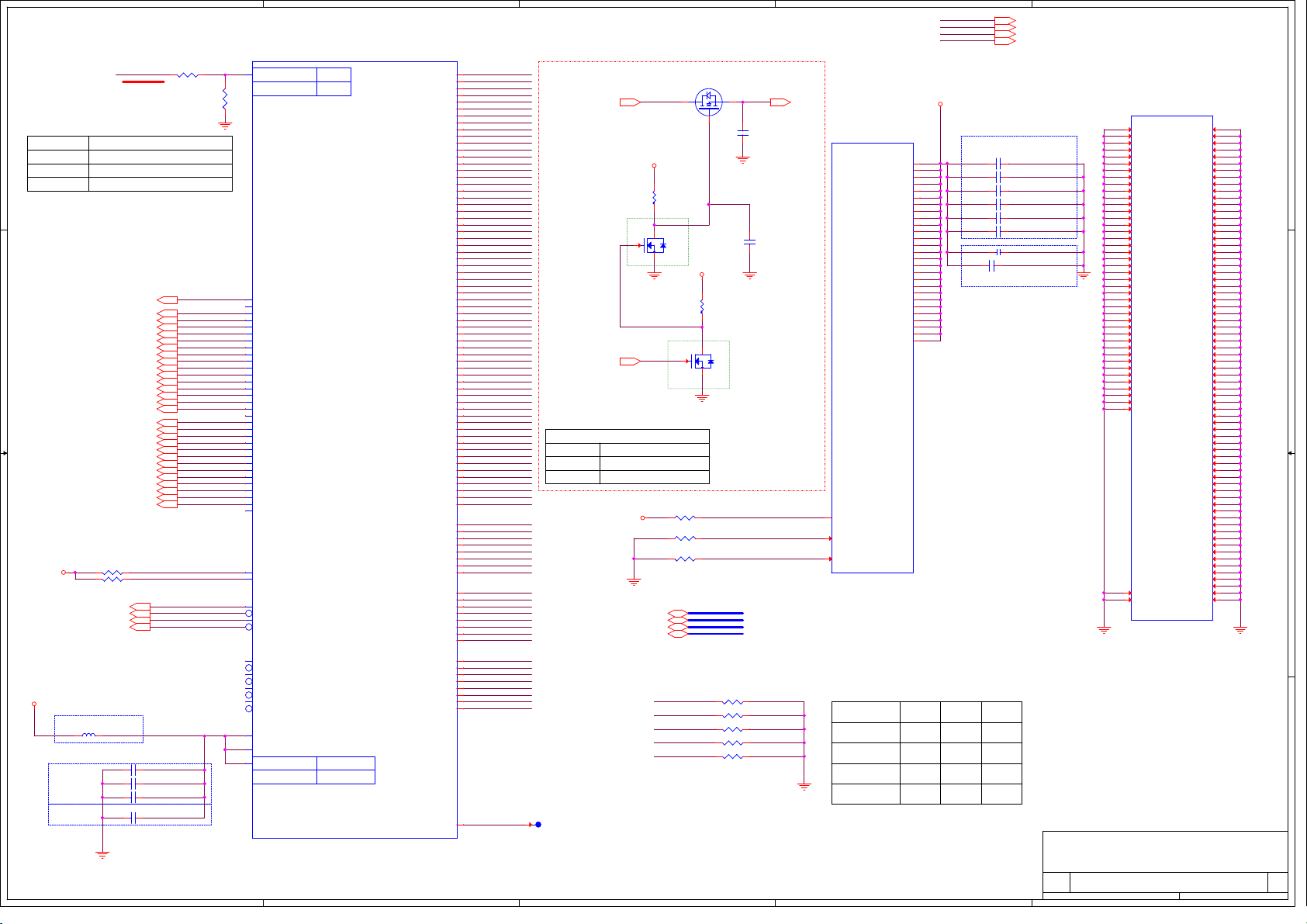

Haswell Processor (DMI,PEG,FDI) Haswell Processor (CLK,MISC,JTAG)
U21A
FDI_CSYNC_R
EDP_AUXP
EDP_AUXN
EDP_TXP0
EDP_TXN0
D21
DMI_RX#[0]
C21
DMI_RX#[1]
B21
DMI_RX#[2]
A21
DMI_RX#[3]
D20
DMI_RX[0]
C20
DMI_RX[1]
B20
DMI_RX[2]
A20
DMI_RX[3]
D18
DMI_TX#[0]
C17
DMI_TX#[1]
B17
DMI_TX#[2]
A17
DMI_TX#[3]
D17
DMI_TX[0]
C18
DMI_TX[1]
B18
DMI_TX[2]
A18
DMI_TX[3]
P33
FDI_TX#[0]
N32
FDI_TX#[1]
R33
FDI_TX[0]
P32
FDI_TX[1]
J29
FDI_INT
H29
FDI_CSYNC
T28
DDIB_TX#[0]
T30
DDIB_TX#[1]
U29
DDIB_TX#[2]
U31
DDIB_TX#[3]
U28
DDIB_TX[0]
U30
DDIB_TX[1]
V29
DDIB_TX[2]
V31
DDIB_TX[3]
T34
DDIC_TX#[0]
U35
DDIC_TX#[1]
U32
DDIC_TX#[2]
U33
DDIC_TX#[3]
U34
DDIC_TX[0]
V35
DDIC_TX[1]
T32
DDIC_TX[2]
V33
DDIC_TX[3]
P29
DDID_TX#[0]
N28
DDID_TX#[1]
P31
DDID_TX#[2]
N30
DDID_TX#[3]
R29
DDID_TX[0]
P28
DDID_TX[1]
R31
DDID_TX[2]
P30
DDID_TX[3]
E24
eDP_RC OMP
R27
EDP_DISP_UTIL
P27
eDP_HP D
N27
eDP_AU X
M27
eDP_AU X#
R35
eDP_TX [0]
P34
eDP_TX [1]
P35
eDP_TX #[0]
N34
eDP_TX #[1]
HSW_RPGA_EDS_PGA
PEG_RCOMPO
PEG_RX#[0]
PEG_RX#[1]
PEG_RX#[2]
PEG_RX#[3]
PEG_RX#[4]
PEG_RX#[5]
PEG_RX#[6]
PEG_RX#[7]
PEG_RX#[8]
DMI
Intel(R) DDI FDI
eDP
PEG_RX#[9]
PEG_RX#[10]
PEG_RX#[11]
PEG_RX#[12]
PEG_RX#[13]
PEG_RX#[14]
PEG_RX#[15]
PEG_RX[0]
PEG_RX[1]
PEG_RX[2]
PEG_RX[3]
PEG_RX[4]
PEG_RX[5]
PEG_RX[6]
PEG_RX[7]
PEG_RX[8]
PEG_RX[9]
PEG_RX[10]
PEG_RX[11]
PEG_RX[12]
PEG_RX[13]
PEG_RX[14]
PEG_RX[15]
PEG_TX#[0]
PEG_TX#[1]
PEG_TX#[2]
PEG_TX#[3]
PEG_TX#[4]
PEG_TX#[5]
PEG_TX#[6]
PEG_TX#[7]
PEG_TX#[8]
PEG_TX#[9]
PEG_TX#[10]
PEG_TX#[11]
PEG_TX#[12]
PEG_TX#[13]
PEG_TX#[14]
PEG_TX#[15]
PEG_TX[0]
PEG_TX[1]
PEG_TX[2]
PEG_TX[3]
PEG_TX[4]
PCI EXPRESS* - GRAPHICS
PEG_TX[5]
PEG_TX[6]
PEG_TX[7]
PEG_TX[8]
PEG_TX[9]
PEG_TX[10]
PEG_TX[11]
PEG_TX[12]
PEG_TX[13]
PEG_TX[14]
PEG_TX[15]
DMI_TXN0(6)
DMI_TXN1(6)
DMI_TXN2(6)
DMI_TXN3(6)
DMI_TXP0(6)
DMI_TXP1(6)
D D
FDI_CSYNC(6)
IN_D2#(22)
IN_D1#(22)
IN_D0#(22)
IN_CLK#(22)
IN_D2(22)
IN_D1(22)
IN_D0(22)
C C
IN_CLK(22)
FDI_CSYNC & FDI_INT
Trace length < 10000 Mils
Impendance = 50 ohm
DMI_TXP2(6)
DMI_TXP3(6)
DMI_RXN0(6)
DMI_RXN1(6)
DMI_RXN2(6)
DMI_RXN3(6)
DMI_RXP0(6)
DMI_RXP1(6)
DMI_RXP2(6)
DMI_RXP3(6)
FDI_TXN0(6)
FDI_TXN1(6)
FDI_TXP0(6)
FDI_TXP1(6)
FDI_INT(6)
R427 *0_4S
DP Port for Docking
ExDPP0_N(37)
ExDPP1_N(37)
ExDPP0_P(37)
ExDPP1_P(37)
eDP_RC OMP
EDP_AUXP(19)
EDP_AUXN(19)
EDP_TXP0(19)
EDP_TXN0(19)
R72 *0_4
INT_eDP_HP D_Q
EDP_DISP_UTIL(6,19)
B B
E23
M29
K28
M31
L30
M33
L32
M35
L34
E29
D28
E31
D30
E35
D34
E33
E32
L29
L28
L31
K30
L33
K32
L35
K34
F29
E28
F31
E30
F35
E34
F33
D32
H35
H34
J33
H32
J31
G30
C33
B32
B31
A30
B29
A28
B27
A26
B25
A24
J35
G34
H33
G32
H31
H30
B33
A32
C31
B30
C29
B28
C27
B26
C25
B24
4
PEG_RXN0
PEG_RXN1
PEG_RXN2
PEG_RXN3
PEG_RXN4
PEG_RXN5
PEG_RXN6
PEG_RXN7
PEG_RXP0
PEG_RXP1
PEG_RXP2
PEG_RXP3
PEG_RXP4
PEG_RXP5
PEG_RXP6
PEG_RXP7
C_PEG_TX#0
C_PEG_TX#1
C_PEG_TX#2
C_PEG_TX#3
C_PEG_TX#4
C_PEG_TX#5
C_PEG_TX#6
C_PEG_TX#7
C_PEG_TX0
C_PEG_TX1
C_PEG_TX2
C_PEG_TX3
C_PEG_TX4
C_PEG_TX5
C_PEG_TX6
C_PEG_TX7
PEG_COMP
3
+3V (6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
PEG_RXN[0..7] (14)
H_PECI (50ohm)
Route on micro strip only
Spacing > 18 mils
Trace Length: 15 inch
HPECI Ra,Ca n eed placement close to EC.
PEG_RXP[0..7] (14)
THERMTRIP# (50ohm)
Trace Length: 1.1~12 inches
Rb need placment near PCH
4/30 CRB 1.0 Add
PM_SYNC (50ohm)
Trace Length: 1~11.25 inches
H_PWRGOOD (50ohm)
Trace Length: 1~11.25 inches
EC_PECI(9 ,32)
PROCHOT# (50ohm)
Trace Length <11 inches
H_PROCHOT#(32,39,42)
C254
Cb
47P/50V_4
PM_THRMTRIP#R(9)
PM_SYNC(6)
H_PWRGOOD(9)
+1.05V
CPU RESET#
PLTRST#(8,14,23,27,28,30,34)
CPU_PLTRST# ( 50ohm)
Trace Length: 10~17 inches
SM_DRAMPWROK Processor Input.
+3VS5
R135 *0_4S
0.047U/10V_4
R146
100K_4
C260
PM_DRAM_PWRGD_C (50ohm)
Trace Length: < 1 inches
R138
100K_4
U8
1
2
74AHC1G09GW
3 5
D16 *RB500V-40
21
2
U21B
AP32
AN32
AR27
AK31
AM30
AM35
AT28
AL34
AC10
AT26
R141
*1.5K/F_4
R136 *0_4S
R148 *0_4
DG 498556 -> 3.3K
PM_DRAM_PWRGD_R (50ohm)
Trace Length: 0.5~1 inches
PM_DRAM_PWRGD (50ohm)
Trace Length: 2~7 inches
SKTOCC#
CATERR#
PECI
FC_AK31
PROCHOT#
THERMTRIP#
PM_SYNC
UNCOREPWRGOOD
SM_DRAMPWROK
RESET#
HSW_RPGA_EDS_PGA
PM_DRAM_PWRGD_R
PM_DRAM_PWRGD (6)DDR_VR_PWRGD(41)
Ra
Ca
+VCCST
SKTOCC#
TP_CATERR#
H_PECI
H_PROCHOT#_R
TP61
TP60
R476 43_4
C555 *47P/50V_4
4/30 CRB 1.0 Add
R142 56.2/F_4
Cb need placment near VR
PM_THRMTRIP#_R
R145 *1K_4
R483 *0_4S
C203 *0.1U/10V_4
R117 *0_4/S
R114 10K_4
R150 *750/F_4
To change the resistor values in the DRAMPWROK logic to reduce the
leakage on VDDPWRGOOD
C255
0.1U/10V_4
4
PM_DRAM_PWRGD_C
Rb
PM_SYNC_R
H_PWRGOOD_R
PM_DRAM_PWRGD_R
CPU_PLTRST#R(9)
CPU_PLTRST#R
C249
*330P/50V_4
+1.35VSUS
R143
1.8K/F_4
R154
3.3K_4
DG 498556 -> 1.8K
C259
*0.047U/10V_4
BCLK
BCLK#
SSC_DPLL_REF_CLK
MISC
THERMALPWR MANAGEMENT
SSC_DPLL_REF_CLK#
DPLL_REF_CLK
DPLL_REF_CLK#
CLOCKS
SM_DRAMRST#
SM_RCOMP[0]
SM_RCOMP[1]
SM_RCOMP[2]
DDR3
MISC
PRDY#
PREQ#
TCK
TMS
TRST#
TDI
TDO
DBR#
BPM#[0]
BPM#[1]
BPM#[2]
BPM#[3]
BPM#[4]
JTAG & BPM
BPM#[5]
BPM#[6]
BPM#[7]
DDR3 DRAM RESET
DDR3_DRAMRST#_R (50ohm)
Trace Length < 6 inches
+1.35VSUS
DDR3_DRAMRST#(12,13)
+3VS5 (6,7,9,10,15,17,20,23,24,25,28,32,37,40,44,47,53)
+1.35VSUS (4,12,13,38,41,49)
+1.05V (4,9,10,35,43,48,49,53)
+VCCIO_OUT (4,42)
+VCCIOA_OUT (4)
1
Host CLK:
Trace length < 11000 MILS
Trace spacing = 15 ,20 MILS, Impendence 90 ohm
E26
CLK_CPU_BCLKP
D26
CLK_CPU_BCLKN
E27
CLK_DPLL_SSCLKP
F27
CLK_DPLL_SSCLKN
H28
CLK_DPLL_NSCCLKP
G28
CLK_DPLL_NSCCLKN
AN3
CPU_DRAMRST#
AP3
SM_RCOMP_0
AR3
SM_RCOMP_1
AP2
SM_RCOMP_2
SM_RCOMP[0] W:12mils/S:15mils/L: 500mils,
SM_RCOMP[1] W:12mils/S:15mils/L: 500mils,
SM_RCOMP[2] W:12mils/S:15mils/L: 500mils,
AR29
XDP_PRDY#
AT29
XDP_PREQ#
AM34
XDP_TCLK
AN33
XDP_TMS
AM33
XDP_TRST#
AM31
XDP_TDI_R
AL33
XDP_TDO
AP33
XDP_DBRST#
AR30
XDP_BPM0
AN31
XDP_BPM1
AN29
XDP_BPM2
AP31
XDP_BPM3
AP30
XDP_BPM4
AN28
XDP_BPM5
AP29
XDP_BPM6
AP28
XDP_BPM7
C256
*0.1U/10V_4
R113 100/F_4
R153 75/F_4
R158 100/F_4
R462 *1K_4
R144 *1K_4
R149 *0_4S
02
CLK_CPU_BCLKP (8)
CLK_CPU_BCLKN (8)
CLK_DPLL_SSCLKP (8)
CLK_DPLL_SSCLKN (8)
CLK_DPLL_NSCCLKP (8)
CLK_DPLL_NSCCLKN (8)
TP22
CPU XDP
TP67
TP11
TP15
TP12
TP18
TP14
+3V
XDP_DBRST# (6)
TP24
TP62
TP23
TP13
TP16
TP20
TP19
TP25
CPU_DRAMRST#
4/30 CRB V1.0 -> 10K
+VCCIO_OUT
R101
10K_4
A A
INT_eDP_HP D_Q
Q25
2N7002BK
3
2
EDP_HPD (19)
R63
1
100K_4
5
PEG x8 disable (UMA only remove)
PEG_TXP[0..7](14) PEG_TXN[0..7](14)
C_PEG_TX0
C_PEG_TX1
C_PEG_TX2
C_PEG_TX3
C_PEG_TX4
C_PEG_TX5
C_PEG_TX6
C_PEG_TX7
C458 0.22U/10V_4
C460 0.22U/10V_4
C462 0.22U/10V_4
C464 0.22U/10V_4
C466 0.22U/10V_4
C468 0.22U/10V_4
C472 0.22U/10V_4
C477 0.22U/10V_4
0.22uF AC coupli ng Caps for PCIE GEN1/2/3 0.22uF AC coupli ng Caps for PCIE GEN1/2/3
PEG_TXP0
PEG_TXP1
PEG_TXP2
PEG_TXP3
PEG_TXP4
PEG_TXP5
PEG_TXP6
PEG_TXP7
C_PEG_TX#0
C_PEG_TX#1
C_PEG_TX#2
C_PEG_TX#3
C_PEG_TX#4
C_PEG_TX#5
C_PEG_TX#6
C_PEG_TX#7
4
C459 0.22U/10V_4
C461 0.22U/10V_4
C463 0.22U/10V_4
C465 0.22U/10V_4
C467 0.22U/10V_4
C470 0.22U/10V_4
C476 0.22U/10V_4
C480 0.22U/10V_4
PEG_TXN0
PEG_TXN1
PEG_TXN2
PEG_TXN3
PEG_TXN4
PEG_TXN5
PEG_TXN6
PEG_TXN7
DP & PEG Compensation
+VCCIOA_OUT
+VCCIOA_OUT
3
R37 24.9/F_4
eDP_RCOMP
Trace length < 100 Mils
Trace Width 20 Mils Trace Spacing 25 Mils
R42 24.9/F_4
PEG_RCOMP
Trace length < 400 MILS
Trace width = 12 MILS
Trace spacing = 15 MILS
eDP_RC OMP
PEG_COMP
Processor pull-up (CPU)
H_PROCHOT#
CLK_DPLL_SSCLKP
CLK_DPLL_SSCLKN
XDP_TDO
XDP_TMS
XDP_TDI_R
XDP_PREQ#
XDP_TCLK
XDP_TRST#
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
R152 62_4
R34 *10K_4
R35 *10K_4
R128 51_4
R131 *51_4
R133 *51_4
R485 *51_4
R119 51_4
R122 51_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
+VCCIO_OUT
+1.05V
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
HAS 1/4 (PCIE&DMI&FDI)
HAS 1/4 (PCIE&DMI&FDI)
HAS 1/4 (PCIE&DMI&FDI)
1
261, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of
261, 25, 2013
261, 25, 2013
Page 3
5
4
3
2
1

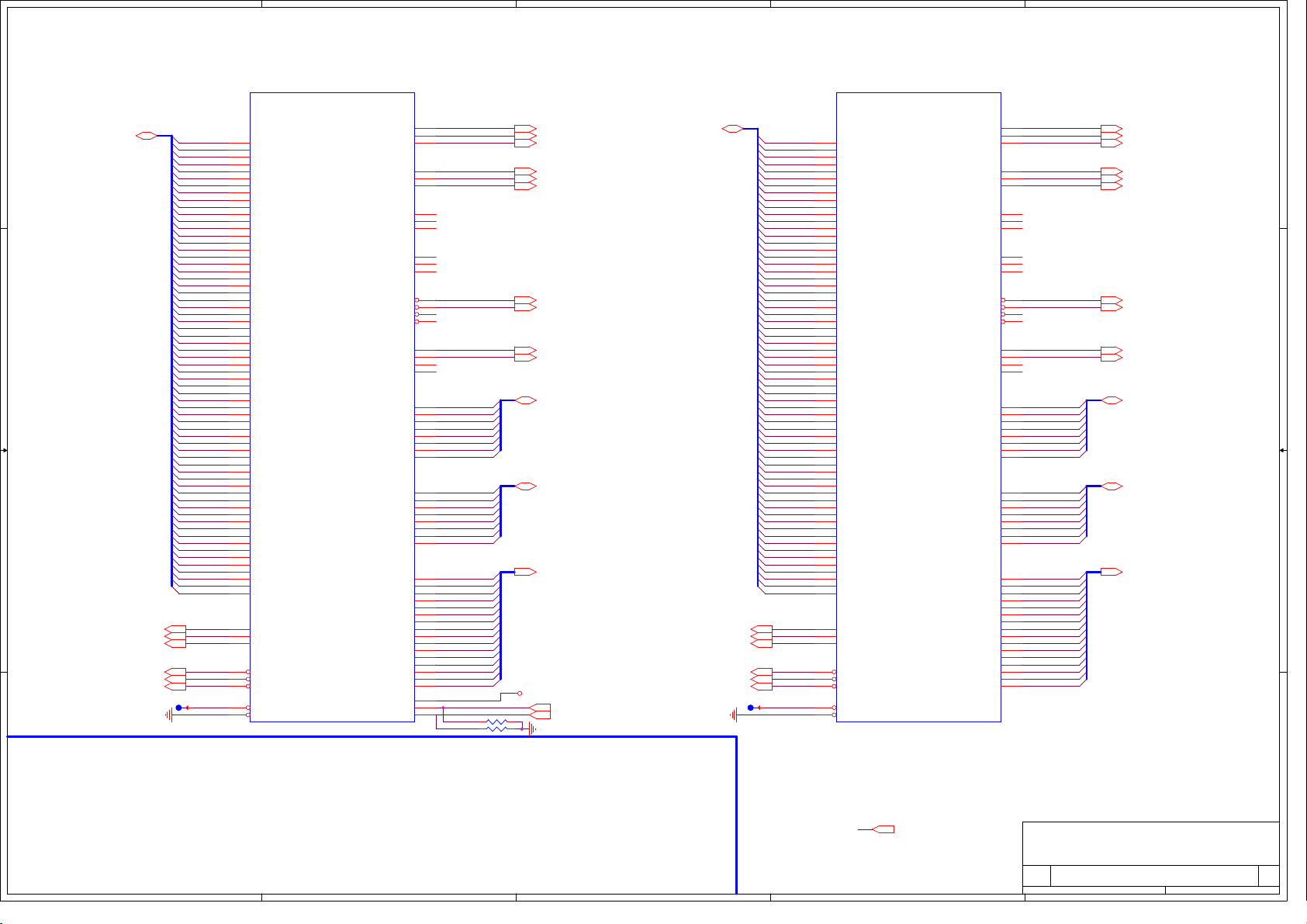

Haswell Processor (DDR3)
U21C
D D
M_A_DQ[63:0](12)
C C
B B
M_A_BS#0(12)
M_A_BS#1(12)
M_A_BS#2(12)
M_A_CAS#(12)
M_A_RAS#(12)
M_A_WE#(12)
TP10
RSVD_V10 must be grounde d
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
AR15
SA_DQ[0]
AT14
SA_DQ[1]
AM14
SA_DQ[2]
AN14
SA_DQ[3]
AT15
SA_DQ[4]
AR14
SA_DQ[5]
AN15
SA_DQ[6]
AM15
SA_DQ[7]
AM9
SA_DQ[8]
AN9
SA_DQ[9]
AM8
SA_DQ[10]
AN8
SA_DQ[11]
AR9
SA_DQ[12]
AT9
SA_DQ[13]
AR8
SA_DQ[14]
AT8
SA_DQ[15]
AJ9
SA_DQ[16]
AK9
SA_DQ[17]
AJ6
SA_DQ[18]
AK6
SA_DQ[19]
AJ10
SA_DQ[20]
AK10
SA_DQ[21]
AJ7
SA_DQ[22]
AK7
SA_DQ[23]
AF4
SA_DQ[24]
AF5
SA_DQ[25]
AF1
SA_DQ[26]
AF2
SA_DQ[27]
AG4
SA_DQ[28]
AG5
SA_DQ[29]
AG1
SA_DQ[30]
AG2
SA_DQ[31]
J1
SA_DQ[32]
J2
SA_DQ[33]
J5
SA_DQ[34]
H5
SA_DQ[35]
H2
SA_DQ[36]
H1
SA_DQ[37]
J4
SA_DQ[38]
H4
SA_DQ[39]
F2
SA_DQ[40]
F1
SA_DQ[41]
D2
SA_DQ[42]
D3
SA_DQ[43]
D1
SA_DQ[44]
F3
SA_DQ[45]
C3
SA_DQ[46]
B3
SA_DQ[47]
B5
SA_DQ[48]
E6
SA_DQ[49]
A5
SA_DQ[50]
D6
SA_DQ[51]
D5
SA_DQ[52]
E5
SA_DQ[53]
B6
SA_DQ[54]
A6
SA_DQ[55]
E12
SA_DQ[56]
D12
SA_DQ[57]
B11
SA_DQ[58]
A11
SA_DQ[59]
E11
SA_DQ[60]
D11
SA_DQ[61]
B12
SA_DQ[62]
A12
SA_DQ[63]
V5
SA_BS[0]
U5
SA_BS[1]
AD1
SA_BS[2]
U8
SA_CAS#
U6
SA_RAS#
U7
SA_WE#
AC7
RSCD_AC7
V10
RSCD_V10
HSW_RPGA_EDS_PGA
DDR SYSTEM MEMORY A
SA_DIMM_VREFDQ
SB_DIMM_VREFDQ
SA_CLK[0]
SA_CLK#[0]
SA_CKE[0]
SA_CLK[1]
SA_CLK#[1]
SA_CKE[1]
SA_CLK[2]
SA_CLK#[2]
SA_CKE[2]
SA_CLK[3]
SA_CLK#[3]
SA_CKE[3]
SA_CS#[0]
SA_CS#[1]
SA_CS#[2]
SA_CS#[3]
SA_ODT[0]
SA_ODT[1]
SA_ODT[2]
SA_ODT[3]
SA_DQS#[0]
SA_DQS#[1]
SA_DQS#[2]
SA_DQS#[3]
SA_DQS#[4]
SA_DQS#[5]
SA_DQS#[6]
SA_DQS#[7]
SA_DQS[0]
SA_DQS[1]
SA_DQS[2]
SA_DQS[3]
SA_DQS[4]
SA_DQS[5]
SA_DQS[6]
SA_DQS[7]
SA_MA[0]
SA_MA[1]
SA_MA[2]
SA_MA[3]
SA_MA[4]
SA_MA[5]
SA_MA[6]
SA_MA[7]
SA_MA[8]
SA_MA[9]
SA_MA[10]
SA_MA[11]
SA_MA[12]
SA_MA[13]
SA_MA[14]
SA_MA[15]
SM_VREF
V4
U4
AD9
V3
U3
AC9
V2
U2
AD8
V1
U1
AC8
M7
L9
M9
M10
M8
L7
L8
L10
AP15
M_A_DQSN0
AP8
M_A_DQSN1
AJ8
M_A_DQSN2
AF3
M_A_DQSN3
J3
M_A_DQSN4
E2
M_A_DQSN5
C5
M_A_DQSN6
C11
M_A_DQSN7
AP14
M_A_DQSP0
AP9
M_A_DQSP1
AK8
M_A_DQSP2
AG3
M_A_DQSP3
H3
M_A_DQSP4
E3
M_A_DQSP5
C6
M_A_DQSP6
C12
M_A_DQSP7
V8
M_A_A0
AC6
M_A_A1
V9
M_A_A2
U9
M_A_A3
AC5
M_A_A4
AC4
M_A_A5
AD6
M_A_A6
AC3
M_A_A7
AD5
M_A_A8
AC2
M_A_A9
V6
M_A_A10
AC1
M_A_A11
AD4
M_A_A12
V7
M_A_A13
AD3
M_A_A14
AD2
M_A_A15
AM3
F16
SMDDR_VREF_DQ0_M3
F13
SMDDR_VREF_DQ1_M3
R425*1 K_4
R426*1 K_4
M_A_CLKP0 (12)
M_A_CLKN0 (12)
M_A_CKE0 (12)
M_A_CLKP1 (12)
M_A_CLKN1 (12)
M_A_CKE1 (12)
M_A_CS#0 (12)
M_A_CS#1 (12)
M_A_ODT0 (12)
M_A_ODT1 (12)
M_A_DQSN[7:0] (12)
M_A_DQSP[7:0] (12)
M_A_A[15:0] (12)
+VREF_CA_CPU
SMDDR_VREF_DQ0_M3 (12)
SMDDR_VREF_DQ1_M3 (13)
M_B_DQ[63:0](13)
M_B_BS#0(13)
M_B_BS#1(13)
M_B_BS#2(13)
M_B_CAS#(13)
M_B_RAS#(13)
M_B_WE#(13)
TP9
RSVD_R10 must be grounded
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
U21D
AR18
SB_DQ[0]
AT18
SB_DQ[1]
AM17
SB_DQ[2]
AM18
SB_DQ[3]
AR17
SB_DQ[4]
AT17
SB_DQ[5]
AN17
SB_DQ[6]
AN18
SB_DQ[7]
AT12
SB_DQ[8]
AR12
SB_DQ[9]
AN12
SB_DQ[10]
AM11
SB_DQ[11]
AT11
SB_DQ[12]
AR11
SB_DQ[13]
AM12
SB_DQ[14]
AN11
SB_DQ[15]
AR5
SB_DQ[16]
AR6
SB_DQ[17]
AM5
SB_DQ[18]
AM6
SB_DQ[19]
AT5
SB_DQ[20]
AT6
SB_DQ[21]
AN5
SB_DQ[22]
AN6
SB_DQ[23]
AJ4
SB_DQ[24]
AK4
SB_DQ[25]
AJ1
SB_DQ[26]
AJ2
SB_DQ[27]
AM1
SB_DQ[28]
AN1
SB_DQ[29]
AK2
SB_DQ[30]
AK1
SB_DQ[31]
L2
SB_DQ[32]
M2
SB_DQ[33]
L4
SB_DQ[34]
M4
SB_DQ[35]
L1
SB_DQ[36]
M1
SB_DQ[37]
L5
SB_DQ[38]
M5
SB_DQ[39]
G7
SB_DQ[40]
J8
SB_DQ[41]
G8
SB_DQ[42]
G9
SB_DQ[43]
J7
SB_DQ[44]
J9
SB_DQ[45]
G10
SB_DQ[46]
J10
SB_DQ[47]
A8
SB_DQ[48]
B8
SB_DQ[49]
A9
SB_DQ[50]
B9
SB_DQ[51]
D8
SB_DQ[52]
E8
SB_DQ[53]
D9
SB_DQ[54]
E9
SB_DQ[55]
E15
SB_DQ[56]
D15
SB_DQ[57]
A15
SB_DQ[58]
B15
SB_DQ[59]
E14
SB_DQ[60]
D14
SB_DQ[61]
A14
SB_DQ[62]
B14
SB_DQ[63]
R7
SB_BS[0]
P8
SB_BS[1]
AA9
SB_BS[2]
P7
SB_CAS#
R6
SB_RAS#
P6
SB_WE#
AG8
RSVD_AG8
R10
RSVD_R10
HSW_RPGA_EDS_PGA
AA4
SB_CLK[0]
Y4
SB_CLK#[0]
AF10
SB_CKE[0]
AA3
SB_CLK[1]
Y3
SB_CLK#[1]
AG10
SB_CKE[1]
AA2
SB_CLK[2]
Y2
SB_CLK#[2]
AG9
SB_CKE[2]
AA1
SB_CLK[3]
Y1
SB_CLK#[3]
AF9
SB_CKE[3]
P4
SB_CS#[0]
R2
SB_CS#[1]
P3
SB_CS#[2]
P1
SB_CS#[3]
R4
SB_ODT[0]
R3
SB_ODT[1]
R1
SB_ODT[2]
P2
SB_ODT[3]
AP18
AP11
AP5
AJ3
L3
H9
C8
C14
AP17
AP12
AP6
AK3
M3
H8
C9
C15
R8
Y5
Y10
AA5
Y7
AA6
Y6
AA7
Y8
AA10
R9
Y9
AF7
P9
AA8
AG7
M_B_DQSN0
M_B_DQSN1
M_B_DQSN2
M_B_DQSN3
M_B_DQSN4
M_B_DQSN5
M_B_DQSN6
M_B_DQSN7
M_B_DQSP0
M_B_DQSP1
M_B_DQSP2
M_B_DQSP3
M_B_DQSP4
M_B_DQSP5
M_B_DQSP6
M_B_DQSP7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
SB_DQS#[0]
SB_DQS#[1]
SB_DQS#[2]
SB_DQS#[3]
SB_DQS#[4]
SB_DQS#[5]
SB_DQS#[6]
SB_DQS#[7]
SB_DQS[0]
SB_DQS[1]
SB_DQS[2]
SB_DQS[3]
SB_DQS[4]
SB_DQS[5]
SB_DQS[6]
SB_DQS[7]
DDR SYSTEM MEMORY B
SB_MA[0]
SB_MA[1]
SB_MA[2]
SB_MA[3]
SB_MA[4]
SB_MA[5]
SB_MA[6]
SB_MA[7]
SB_MA[8]
SB_MA[9]
SB_MA[10]
SB_MA[11]
SB_MA[12]
SB_MA[13]
SB_MA[14]
SB_MA[15]
M_B_CLKP0 (13)
M_B_CLKN0 (13)
M_B_CKE0 (13)
M_B_CLKP1 (13)
M_B_CLKN1 (13)
M_B_CKE1 (13)
M_B_CS#0 (13)
M_B_CS#1 (13)
M_B_ODT0 (13)
M_B_ODT1 (13)
M_B_DQSN[7:0] (13)
M_B_DQSP[7:0] (13)
M_B_A[15:0] (13)
03
CPU SM_VREF
A A
+VREF_CA_CPU (12)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
HAS 2/4 (DDR3 I/F)
HAS 2/4 (DDR3 I/F)
HAS 2/4 (DDR3 I/F)
1
361, 25, 2013
361, 25, 2013
361, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of
Page 4
5
4
3
2
1
Haswell Processor (POWER)
+VCCIN 95A
+VCC_CORE
C504
D D
C C
B B
22U/6.3V_8
C502
22U/6.3V_8
C492
22U/6.3V_8
C474
22U/6.3V_8
C475
22U/6.3V_8
C493
22U/6.3V_8
C534
10U/6.3V_6
C535
10U/6.3V_6
C490
10U/6.3V_6
C491
10U/6.3V_6
C503
22U/6.3V_8
C186
22U/6.3V_8
C157
22U/6.3V_8
C138
22U/6.3V_8
C155
22U/6.3V_8
C156
22U/6.3V_8
C531
10U/6.3V_6
C530
10U/6.3V_6
C533
10U/6.3V_6
C520
10U/6.3V_6
C481
22U/6.3V_8
C523
22U/6.3V_8
C126
22U/6.3V_8
C473
22U/6.3V_8
C522
22U/6.3V_8
C125
22U/6.3V_8
C105
22U/6.3V_8
C471
10U/6.3V_6
C532
10U/6.3V_6
C521
10U/6.3V_6
VCC Output Decoupling Recommendations
470uFx4 7343
22uFx8
22uFx11
10uFx11
A A
TOP socket side
4 on TOP, 4 on BOT near socket edge
0805
0805
TOP, inside socket cavity
0805
BOT, inside socket cavity
CPU rPGA Socket P/N
Vender
LTS
Used
V
P/N
DGG^7000001
U21F
AA26
VCC1
AA28
VCC2
AA34
VCC3
AA30
VCC4
AA32
VCC5
AB26
VCC6
AB29
VCC7
AB25
VCC8
AB27
VCC9
AB28
VCC10
AB30
VCC11
AB31
VCC12
AB33
VCC13
AB34
VCC14
AB32
VCC15
AC26
VCC16
AB35
VCC17
AC28
VCC18
AD25
VCC19
AC30
VCC20
AD28
VCC21
AC32
VCC22
AD31
VCC23
AC34
VCC24
AD34
VCC25
AD26
VCC26
AD27
VCC27
AD29
VCC28
AD30
VCC29
AD32
VCC30
AD33
VCC31
AD35
VCC32
AE26
VCC33
AE32
VCC34
AE28
VCC35
AE30
VCC36
AG28
VCC37
AG34
VCC38
AE34
VCC39
AF25
VCC40
AF26
VCC41
AF27
VCC42
AF28
VCC43
AF29
VCC44
AF30
VCC45
AF31
VCC46
AF32
VCC47
AF33
VCC48
AF34
VCC49
AF35
VCC50
AG26
VCC51
AH26
VCC52
AH29
VCC53
AG30
VCC54
AG32
VCC55
AH32
VCC56
AH35
VCC57
AH25
VCC58
AH27
VCC59
AH28
VCC60
AH30
VCC61
AH31
VCC62
AH33
VCC63
AH34
VCC64
AJ25
VCC65
AJ26
VCC66
AJ27
VCC67
AJ28
VCC68
AJ29
VCC69
AJ30
VCC70
AJ31
VCC71
AJ32
VCC72
AJ33
VCC73
AJ34
VCC74
AJ35
VCC75
G25
VCC76
H25
VCC77
J25
VCC78
K25
VCC79
L25
VCC80
M25
VCC81
N25
VCC82
P25
VCC83
R25
VCC84
T25
VCC85
U25
VCC86
U26
VCC87
V25
VCC88
V26
VCC89
W26
VCC90
W27
VCC91
Y25
VCC92
Y26
VCC93
Y27
VCC94
Y28
VCC95
Y29
VCC96
Y30
VCC97
Y31
VCC98
Y32
VCC99
Y33
VCC100
Y34
VCC101
Y35
VCC102
K26
VCC103
F25
VCC104
HSW_RPGA_EDS_PGA
POWER
PEG AND DDR
CORE SUPPLY
SENSE LINES SVID
AB11
VDDQ1
AB2
VDDQ2
AB5
VDDQ3
AB8
VDDQ4
AE11
VDDQ5
AE2
VDDQ6
AE5
VDDQ7
AE8
VDDQ8
AH11
VDDQ9
K11
VDDQ10
N11
VDDQ11
N8
VDDQ12
T11
VDDQ13
T2
VDDQ14
T5
VDDQ15
T8
VDDQ16
W11
VDDQ17
W2
VDDQ18
W5
VDDQ19
W8
VDDQ20
K27
RSVD
L27
RSVD
T27
RSVD
V27
RSVD
N26
RSVD
AL27
RSVD
AK27
RSVD
E17
RSVD
W32
RSVD
AL16
RSVD
AL13
RSVD
J27
RSVD
AN35
VCCIO_OUT
A23
VCCIO2PCH
VCOMP_OUT
VSS_AP35
VIDALERT#
VIDSCLK
VIDSOUT
PWR_DEBUG
RSVD_TP
RSVD_TP
RSVD_TP
RSVD_TP
VCC_SENSE
VSS_SENSE
+VCCIO_PCH_R
F22
AP35
AM28
H_CPU_SVIDALRT#
AM29
VR_SVID_CLK
AL28
VR_SVID_DATA
H27
PWR_DEBUG_R
AP34
VSS
AT34
VSS
AL22
VSS
AT33
VSS
AM21
VSS
AM25
VSS
AM22
VSS
AM20
VSS
AM24
VSS
AL19
VSS
AM23
VSS
AT32
VSS
AT35
AR35
AR32
AL26
R445 100_4
AL35
AK35
R444 100_4
Sense resistor should be placed within 2
inches (50.8 mm) of the processor socket
Trace Impendence 50 ohm
C496
22U/6.3V_8
C153
22U/6.3V_8
C478
22U/6.3V_8
C174
22U/6.3V_8
C501
10U/6.3V_6
C525
10U/6.3V_6
C515
10U/6.3V_6
+1.35VSUS 4.2A
C129
22U/6.3V_8
C150
22U/6.3V_8
C118
22U/6.3V_8
C137
22U/6.3V_8
C519
10U/6.3V_6
C511
10U/6.3V_6
C500
10U/6.3V_6
TP1
R458*0_4S
+VCC_CORE
VCC_SENSE (42)
VSS_SENSE (42)
180mil
+1.35VSUS
C485
22U/6.3V_8
C482
22U/6.3V_8
C469
22U/6.3V_8
C527
10U/6.3V_6
C538
10U/6.3V_6
C189
10U/6.3V_6
C529
10U/6.3V_6
R439*0/F_1206S
R423*0/F_1206
R424*0/F_1206S
Layout note: It is recommended to shield VIDSOUT signal by
routing it in between the VIDSCLK and VIDALERT# signals.
Place PU resistor
close to CPU
Place PU resistor close to CPU
The VIDALERT# signal must have a damping resistor to prevent
overshoot
DGG^9000058FOX
5
4
3

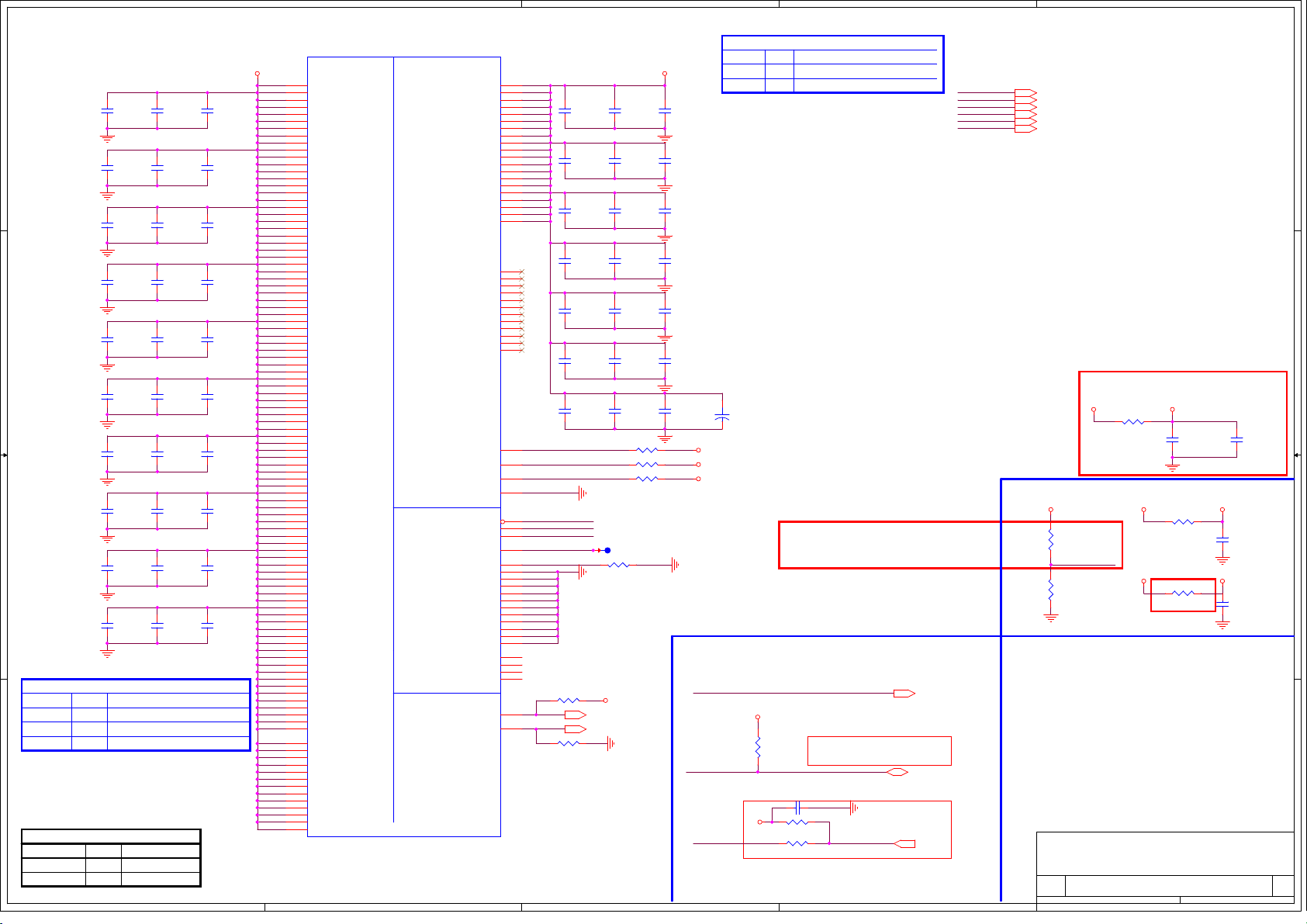

VDDQ Output Decoupling Recommendations
BOT socket side
5 onTOP, 6 on BO T inside socket cavity
0805
5 onTOP, 5 on BO T inside socket cavity0805
300mA
300mA
DG 498550
Haswell PWR_DEBUG requires a 150-Ohm pull-up resistor to PCH 1.05-V VCC
Core when routed to XDP
R140
130/F_4
C559 0.1U/10V_4
R147 75/F_4
R139 43_4
+
+VCCIO_OUT
+VCCIO_PCH
+VCCIOA_OUT
VR_SVID_CLK
VR_SVID_DATA
+VCCIO_OUT
H_CPU_SVIDALRT#
330uFx2 7343
22uFx11
10uFx10
C114
*330U/2V_7343
+VCCIO_OUT
SVID CLK
VR_SVID_CLK (42)
SVID DATA
DG V0.7 -> 1 10 Ohm
SCH V0.7 -> 130 Ohm
VR_SVID_DATA (42)
DG V0.7 -> 4 4 Ohm
SCH V0.7 -> 43 Ohm
SVID ALERT
VR_SVID_ALERT# (42)
2
04
+1.35VSUS (2,12,13,38,41,49)
+VCC_CORE (42,49)
+1.05V (2,9,10,35,43,48,49,53)
+VCCIO_OUT (2,42)
+VCCIO_PCH (10)
+VCCIOA_OUT (2)
CRB 1.0 add
+VCCST+1.05V
R456 *0_8
C547
*22U/6.3VS_8
Power Test Propose
+1.05V +VCCIO_OUT+1.05V
R41
150/F_4
PWR_DEBUG_R
R40
*10K_4
R503 *0_8
R422 *0_6S
CRB 1.0 stuff
CPU VDDQ
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Quanta Computer Inc.
HAS 3/4 (POWER)
HAS 3/4 (POWER)
HAS 3/4 (POWER)
1
C549
*22U/6.3VS_8
C558
*4.7U/6.3V_6
+VCCIO_PCH+1.05V
C457
*4.7U/6.3V_6
of
of
of
461, 25, 2013
461, 25, 2013
461, 25, 2013
1ACustom
1ACustom
1ACustom
Page 5
5
4
3
2
1

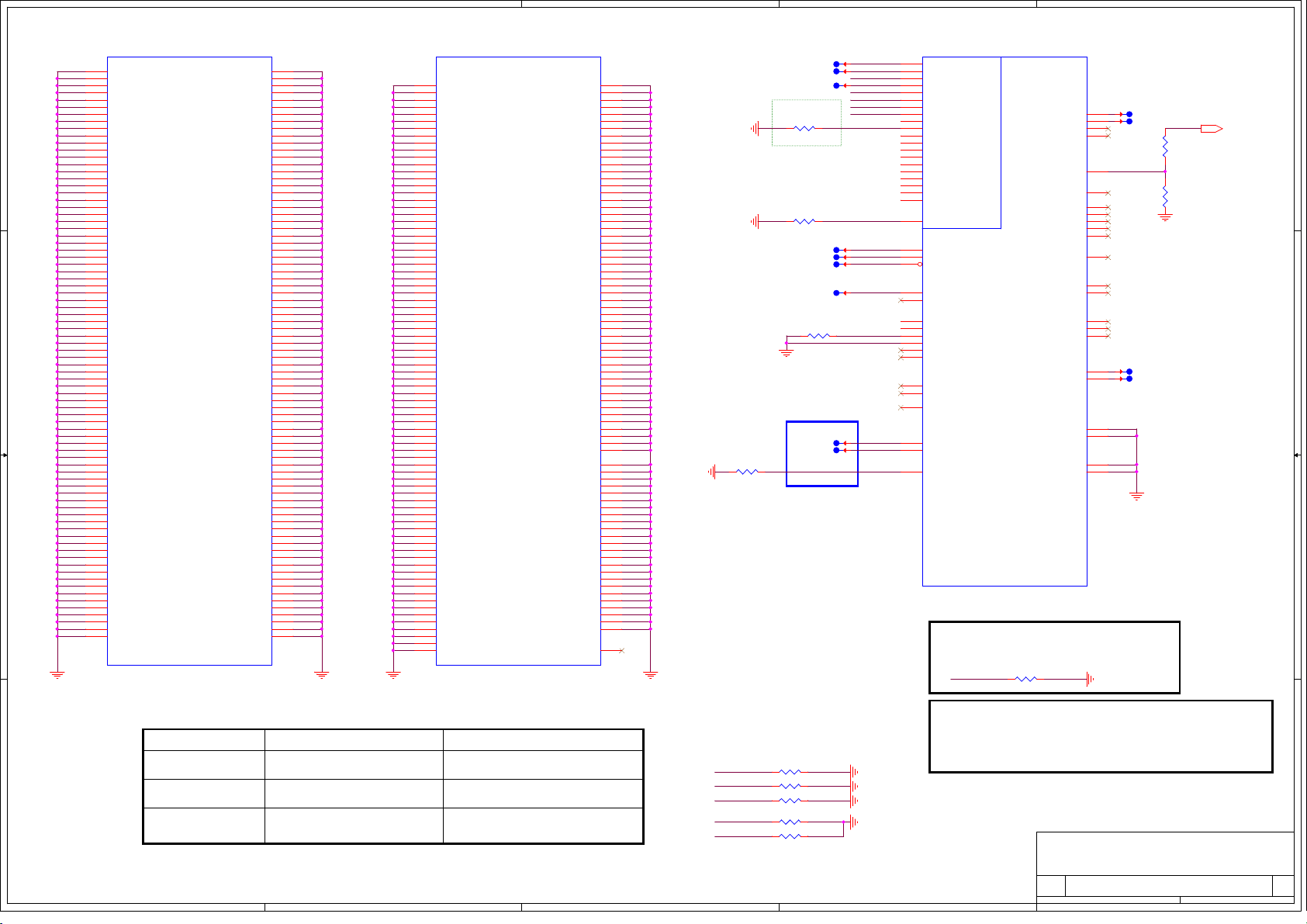

Haswell Processor (GND)
U21G
A10
VSS1
A13
VSS2
A16
VSS3
A19
VSS4
A22
VSS5
A25
VSS6
A27
VSS7
D D
C C
B B
A29
VSS8
A3
VSS9
A31
VSS10
A33
VSS11
A4
VSS12
A7
VSS13
AA11
VSS14
AA25
VSS15
AA27
VSS16
AA31
VSS17
AA29
VSS18
AB1
VSS19
AB10
VSS20
AA33
VSS21
AA35
VSS22
AB3
VSS23
AC25
VSS24
AC27
VSS25
AB4
VSS26
AB6
VSS27
AB7
VSS28
AB9
VSS29
AC11
VSS30
AD11
VSS31
AC29
VSS32
AC31
VSS33
AC33
VSS34
AC35
VSS35
AD7
VSS36
AE1
VSS37
AE10
VSS38
AE25
VSS39
AE29
VSS40
AE3
VSS41
AE27
VSS42
AE35
VSS43
AE4
VSS44
AE6
VSS45
AE7
VSS46
AE9
VSS47
AF11
VSS48
AF6
VSS49
AF8
VSS50
AG11
VSS51
AG25
VSS52
AE31
VSS53
AG31
VSS54
AE33
VSS55
AG6
VSS56
AH1
VSS57
AH10
VSS58
AH2
VSS59
AG27
VSS60
AG29
VSS61
AH3
VSS62
AG33
VSS63
AG35
VSS64
AH4
VSS65
AH5
VSS66
AH6
VSS67
AH7
VSS68
AH8
VSS69
AH9
VSS70
AJ11
VSS71
AJ5
VSS72
AK11
VSS73
AK25
VSS74
AK26
VSS75
AK28
VSS76
AK29
VSS77
AK30
VSS78
AK32
VSS79
E19
VSS80
HSW_RPGA_EDS_PGA
VSS
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS97
VSS98
VSS99
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS127
VSS128
VSS129
VSS130
VSS131
VSS132
VSS133
VSS134
VSS135
VSS136
VSS137
VSS138
VSS139
VSS140
VSS141
VSS142
VSS143
VSS144
VSS145
VSS146
VSS147
VSS148
VSS149
VSS150
VSS151
VSS152
VSS153
VSS154
VSS155
VSS156
VSS157
VSS158
VSS159
VSS160
AK34
AK5
AL1
AL10
AL11
AL12
AL14
AL15
AL17
AL18
AL2
AL20
AL21
AL23
E22
AL3
W9
AL4
AL5
AL6
AL7
AL8
AL9
AM10
AM13
AM16
AM19
E25
AM32
AM4
AM7
AN10
AN13
AN16
AN19
AN2
AN21
AN24
AN27
AN30
AN34
AN4
AN7
AP1
AP10
AP13
AP16
AP19
AP4
AP7
W25
Y11
AR13
AR16
AR19
AR2
AR22
AR25
AR28
AR31
AR34
AR4
AR7
AT10
AT13
AT16
AT19
AT21
AT24
AT27
AT3
AT30
AT4
AT7
B10
B13
B16
B19
B2
B22
U21H
B34
VSS161
B4
VSS162
B7
VSS163
C1
VSS164
C10
VSS165
C13
VSS166
C16
VSS167
C19
VSS168
C2
VSS169
C22
VSS170
C24
VSS171
C26
VSS172
C28
VSS173
C30
VSS174
C32
VSS175
C34
VSS176
C4
VSS177
C7
VSS178
D10
VSS179
D13
VSS180
D16
VSS181
D19
VSS182
D22
VSS183
D25
VSS184
D27
VSS185
D29
VSS186
D31
VSS187
D33
VSS188
D35
VSS189
D4
VSS190
D7
VSS191
E1
VSS192
E10
VSS193
E13
VSS194
E16
VSS195
E4
VSS196
E7
VSS197
F10
VSS198
F11
VSS199
F12
VSS200
F14
VSS201
F15
VSS202
F17
VSS203
F18
VSS204
F20
VSS205
F21
VSS206
F23
VSS207
F24
VSS208
F26
VSS209
F28
VSS210
F30
VSS211
F32
VSS212
F34
VSS213
F4
VSS214
F6
VSS215
F7
VSS216
F8
VSS217
F9
VSS218
G1
VSS219
G11
VSS220
G2
VSS221
G27
VSS222
G29
VSS223
G3
VSS224
G31
VSS225
G33
VSS226
G35
VSS227
G4
VSS228
G5
VSS229
H10
VSS230
H26
VSS231
H6
VSS232
H7
VSS233
J11
VSS286
J26
VSS287
J30
VSS288
J32
VSS289
J34
VSS290
J6
VSS291
K1
VSS292
HSW_RPGA_EDS_PGA
VSS
VSS234
VSS235
VSS236
VSS237
VSS238
VSS239
VSS240
VSS241
VSS242
VSS243
VSS244
VSS245
VSS246
VSS247
VSS248
VSS249
VSS250
VSS251
VSS252
VSS253
VSS254
VSS255
VSS256
VSS257
VSS258
VSS259
VSS260
VSS261
VSS262
VSS263
VSS264
VSS265
VSS266
VSS267
VSS268
VSS269
VSS270
VSS271
VSS272
VSS273
VSS274
VSS275
VSS276
VSS277
VSS278
VSS279
VSS280
VSS281
VSS282
VSS283
VSS284
VSS285
VSS293
VSS294
VSS295
VSS296
VSS297
VSS298
VSS299
VSS300
VSS301
VSS302
VSS303
VSS304
VSS305
VSS306
VSS307
VSS308
VSS309
VSS310
VSS311
VSS312
VSS313
VSS314
VSS315
VSS316
RSVD
K10
K2
K29
K3
K31
K33
K35
K4
K5
K7
K8
K9
L11
L26
L6
M11
M26
M28
M30
M32
M34
M6
N1
N10
N2
N29
N3
N31
N33
N35
N4
N5
N6
N7
N9
P11
P26
P5
R11
R26
R28
R30
R32
R34
R5
T1
T10
T29
T3
T31
T33
T35
T4
T6
T7
T9
U11
U27
V11
V28
V30
V32
V34
W1
W10
W3
W35
W4
W6
W7
AR10
J28
H11
AL24
F19
T26
AK33
R433 49.9/F_4
Haswell Processor (RESERVED, CFG)
U21E
AT20
R47449.9/F_4
CFG0
CFG1
CFG2
CFG3
CFG4
CFG5
CFG6
CFG7
CFG9
CFG_RCOMP
RSVD30
RSVD38
RSVD39
TESTLO
CFG[0]
AR20
CFG[1]
AP20
CFG[2]
AP22
CFG[3]
AT22
CFG[4]
AN22
CFG[5]
AT25
CFG[6]
AN23
CFG[7]
AR24
CFG[8]
AT23
CFG[9]
AN20
CFG[10]
AP24
CFG[11]
AP26
CFG[12]
AN25
CFG[13]
AN26
CFG[14]
AP25
CFG[15]
AR21
CFG[16]
AP21
CFG[17]
AR23
CFG[18]
AP23
CFG[19]
AT31
CFG_RCOMP
AT1
RSVD_TP
AT2
RSVD_TP
AD10
RSVD_TP
A34
RSVD_TP
A35
RSVD_TP
W29
RSVD_TP
W28
RSVD_TP
G26
TESTLO_G26
W33
RSVD
AL30
RSVD
AL29
RSVD
C35
RSVD_TP
B35
RSVD_TP
AL25
RSVD_TP
W30
RSVD_TP
W31
RSVD_TP
W34
TESTLO
HSW_RPGA_EDS_PGA
CFG
RSVD_TP
RSVD_TP
RSVD_TP
RSVD_TP
FC_G6
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD_TP
RSVD_TP
RSVD_TP
RESERVED
RSVD
RSVD
RSVD
RSVD
CFG[3] (PHYSICAL_DEBUG_E NABLED (DFX PRIVACY))
0 Enable; SET DFX ENABLED BIT IN DEBUG
1 , Disable;
CFG3
R481 *1K_4
TP63
TP64
TP66
Intel suggestion
R480 *1K_4
EC-SIT-01
TP59
TP65
TP8
TP2
R36 49.9/F_4
For CPU debug.
TP7
TP57
05
C23
B23
D24
D23
G6
AR33
AM27
AM26
F5
AM2
K6
E18
U10
P10
B1
NC
A2
AR1
E21
E20
AP27
AR26
AL31
AL32
TP53
TP54
TP55
TP56
R178
*6.04K_4
R183
*2.67K_4
EC_PWROK (6,32)
Processor Strapping
The CFG signals have a default value of '1' if not terminated on the board.
1 0
CFG2
(PEG Static Lane Reversal)
A A
CFG4
(DP Presence Strap)
CFG7
(PEG Defer Training)
5
Normal Operation Lane Reversed
Disable; No physical DP attached to eDP
PEG train immediately following
xxRESETB de assertion
4
Enable; An ext DP device is connected to eDP
PEG wait for BIOS training
CFG2
R468 *1K_4
CFG4
R482 1K_4
CFG7
R478 *1K_4
CFG5
R479 1K_4
CFG6
R477 *1K_4
3
CFG[6:5] (PCIE Port Bifurcation Straps)
11: (Default) x16 - Device 1 functions 1 and 2 disabled
10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled
01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
Quanta Computer Inc.
HAS 4/4 (GND)
HAS 4/4 (GND)
HAS 4/4 (GND)
1
1ACustom
1ACustom
1ACustom
of
of
of
561, 25, 2013
561, 25, 2013
561, 25, 2013

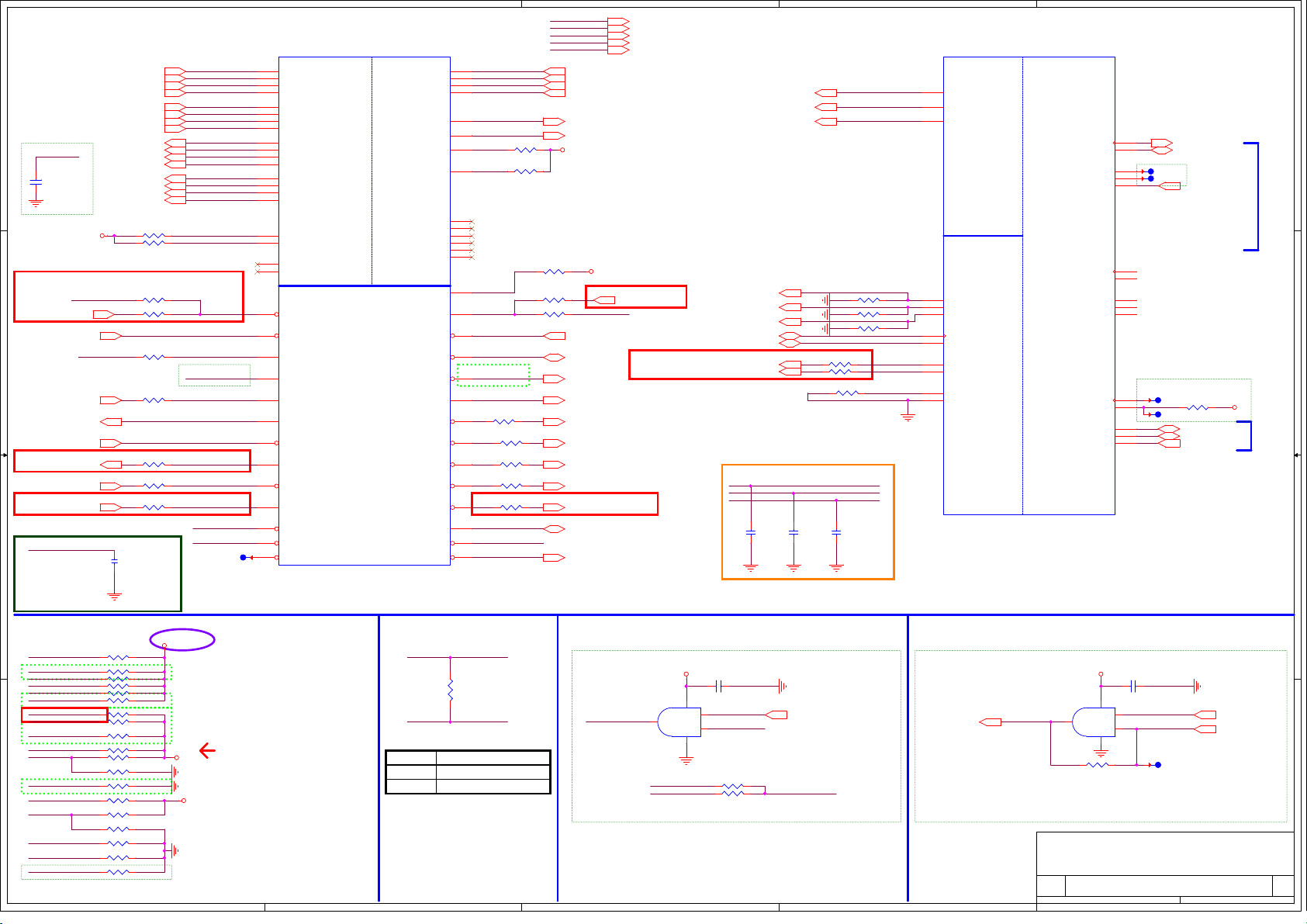

Page 6
5
Lynx Point (DMI,FDI,PM)
U40C
TP40
AW22
DMI0RXN
AR20
DMI1RXN
AP17
DMI2RXN
AV20
DMI3RXN
AY22
DMI0RXP
AP20
DMI1RXP
AR17
DMI2RXP
AW20
DMI3RXP
BD21
DMI0TXN
BE20
DMI1TXN
BD17
DMI2TXN
BE18
DMI3TXN
BB21
DMI0TXP
BC20
DMI1TXP
BB17
DMI2TXP
BC18
DMI3TXP
BE16
DMI_IREF
AY17
DMI_IRCOMP
AW17
TP12
AV17
TP7
R6
SUSACK#
AM1
SYS_RESET#
AD7
SYS_PWROK
F10
PWROK
AB7
APWROK
H3
DRAMPWROK
J2
RSMRST#
J4
SUSWARN#/SUSPW RDNACK/GPIO30 (SUS)
(+3VS5)
K1
PWRBTN#
E6
ACPRESENT / GPIO31(DSW)
(DSW)
K7
BATLOW# / GPIO72 (SUS)
(DSW)
N4
RI#
AB10
TP21
LPT_PCH_HM87_EDS/BGA
DMI_RXN0(2)
DMI_RXN1(2)
DMI_RXN2(2)
DMI_RXN3(2)
DMI_RXP0(2)
DMI_RXP1(2)
D D
RSMRST#
C586
*0.1U/10V_4
EC-SIT-14
+1.5V
DMI_RXP2(2)
DMI_RXP3(2)
DMI_TXN0(2)
DMI_TXN1(2)
DMI_TXN2(2)
DMI_TXN3(2)
DMI_TXP0(2)
DMI_TXP1(2)
DMI_TXP2(2)
DMI_TXP3(2)
R646 *0_4S
R645 7.5K/F_4
DMI_IREF
DMI_COMP
for DS3
SUSWARN#
SUSACK#EC(32)
C C
XDP_DBRST#(2)
SYS_PWROK
APWROK(53)
PM_DRAM_PWRGD(2)
for DS3
for DS3 5/16 for DS3
B B
RSMRST#(32)
SUSWARN#EC(32)
SIO_PWRBTN#(32)
AC_PRESENT(17,32)
SYS_PWROK_R
R281 *0_4S
EC-DV-04
R201 0_4
R564 *0_4S
R569 *0_4S
R202 *0_4S
C318
*0.1U/10V_4
R243*0_4
R250*0_4S
SUSACK#
XDP_DBRST#
SYS_PWROK_R
EC_PWROK_R
APWROK_R
PM_DRAM_PWRGD
RSMRST#
SUSWARN#
DNBSWON#_R
AC_PRESENT_R
PM_BATLOW#
PM_RI#
4
AJ35
FDI_RXN0
AL35
FDI_RXN1
AJ36
FDI_RXP0
AL36
FDI_RXP1
AL39
FDI_CSYNC
AL40
FDI_INT
AT45
TP16
TP15
TP10
TP17
TP13
FDI_IREF
R620 *0_4S
AR44
FDI_RCOMP
AV43
AY45
TP5
AV45
AW44
AU42
AU44
C8
DSWVREN
L13
DPWROK
K3
PCIE_WAKE#
AN7
CLKRUN#
U7
SUS_STAT#
Y6
PCH_SUSCLK_L
Y7
R273 *0_4S
C6
R547 *0_4S
H1
R568 *0_4S
F3
R227 *0_4S
F1
R562 *0_4S
AY3
G5
SLP_LAN#
D2
WLAN_AOAC_ON
FDI_IREF
FDI_RCOMP
DMI
FDI
DSWVRMEN
DPWROK
WAKE#
(DSW)
CLKRUN#
SUS_STAT# / GPIO61 (SUS)
System Power Management
SLP_WLAN#/ GPIO29 ( DSW )
(+3VS5)
(+3VS5)
SUSCLK / GPIO62 (SUS)
(+3VS5)
SLP_S5# / GPIO63 ( SUS)
SLP_S4#
SLP_S3#
SLP_A#
SLP_SUS#
PMSYNCH
(+3VS5)
SLP_LAN#
R625
7.5K/F_4
R214 330K_4
R220 *0_4S
R204 *0_4
FDI_TXN0 (2)
FDI_TXN1 (2)
FDI_TXP0 (2)
FDI_TXP1 (2)
FDI_CSYNC (2)
FDI_INT (2)
+1.5V
+3V_RTC
for DS3
DPWROK_EC (32)
RSMRST#
PCIE_WAKE# (23,28)
CLKRUN# (32)
SUS_STAT# (32)
PCH_SUSCLK_L (7)
SIO_SLP_S5# (32)
SLP_S4# (32)
SIO_SLP_S3# (32)
PM_SLP_M# (32)
SLP_SUS# (32)
PM_SYNC (2)
WLAN_AOAC_ON (28)
3
+3V_RTC (7,10,24,32,35)
+3VS5 (2,7,9,10,15,17,20,23,24,25,28,32,37,40,44,47,53)
+3V_DEEP_SUS (7,8,9,10,53)
+3V (2,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
+1.5V (7,8,10,19,24,28,46,48,49)
INT_LVDS_ BLON(19)
INT_DISP_ON(19)
INT_DPST_ PWM(2,19 )
2
PD Res place close to PCH
PCH to Res routeing 37.5 ohm Impedance.
Res to connector filter routeing 50ohm Imped ance.
DG V0.7 -> 33 ohm
SCH V0.7 -> 0 ohm
CRT_B(31)
CRT_G(31)
CRT_R(31)
DDCCLK(31)
DDCDATA(31)
HSYNC_COM(31)
VSYNC_COM(31)
DAC_IREF (50ohm)
Trace length < 500 MILS
Trace spacing = 30 MILS
R266 150/F_4
R271 150/F_4
R274 150/F_4
R579 33_4
R578 33_4
R269 649/F_4 R691
PCH_HSYNC_R
PCH_VSYNC_R
DAC_IREF
Reserve from EMI request
CRT_B
CRT_G
CRT_R
EC6
EC7
*5.6P/16V_4
EC8
*5.6P/16V_4
*5.6P/16V_4
Lynx Point ( DDI)
U40D
K36
EDP_BKLTEN
G36
EDP_VDD_EN
N36
EDP_BKLTCTL
DDPB_CTRLCLK
DDPB_CTRLDATA
DDPB_AUXN
DDPB_AUXP
DDPB_HPD
LVDS
DDPC_CTRLCLK
DDPC_CTRLDATA
T45
CRT_BLUE
U44
CRT_GREEN
V45
CRT_RED
M43
CRT_DDC_CLK
M45
CRT_DDC_DATA
N42
CRT_HSYNC
N44
CRT_VSYNC
U40
DAC_IREF
U39
CRT_IRTN
LPT_PCH_HM87_EDS/BGA
CRT
DDPC_AUXN
DDPC_AUXP
DDPC_HPD
DDPD_CTRLCLK
DDPD_CTRLDATA
DDPD_AUXN
Digital Display Interface
DDPD_AUXP
DDPD_HPD
R40
R39
H45
H43
K40
R35
R36
K43
K45
K38
N40
N38
J42
J44
H39
1
TP79
TP80
EC-DV-26
SDVO_CLK (22)
SDVO_DATA (22)
EC-DV-26
HDMI_HPD_CON (22)
2.2K_4
TP81
TP82
ExDP_AUXN (37)
ExDP_AUXP (37)
ExDP_HPD (37)
06
Cable Docking
+3V
INT. HDMI
Reserve for power on sequence
PCH Pull-high/low(CLG)
PM_RI#
SLP_LAN#
SUSACK#
SUSWARN#
PM_DRAM_PWRGD
SUS_STAT#
WLAN_AOAC_ON
PM_BATLOW#
PCIE_WAKE#
DNBSWON#_R
AC_PRESENT_R
DPWROK
A A
CLKRUN#
XDP_DBRST#
RSMRST#
SYS_PWROK_R
EC_PWROK_R
R572 10K_4
R549 *10K_4
R247 *10K_4
R565 *10K_4
R560 *10K_4
R267 *10K_4
R198 10K_4
R225 8.2K_4
R571 1K_4
R566 *10K_4
R188 10K_4
R192 *100K_4
R213 100K/F_4
R299 8.2K_4
R615 1K_4
R614 *1K_4
R206 10K_4
R280 10K_4
R686 10K_4
+3V_DEEP_SUS
for DS3
EDS V0.7 -> BATLOW# is in SUS well
SCH V0.7 -> BATLOW# pull up to DS3 power
Follow CRB @1224
DG V0.7 say that P WRBTN# is internal
pulled-up in PCH to 3.3 V DSW through
+3VS5
a weak pull-u p resistor (24 kΩ nominal)
10/16 add
+3V
12/02 add
SBA Support
Non-SBA
SBA
R191/Stuff,R201/ Un-Stuff
R191/Un-Stuff,R201/Stuff
APWROK_R
R191
*0/J_4
EC_PWROK_R
R
EC-DV-04
EC_PWROK_R
Status
Follow Intel schematic review suggestion
EC-DV-04
5
4
PCH Nut: QCI P/N: MBUL1001010 (Location:H13,H14)
PCH_PWROK_OK(CLG)
C643 0.1U/10V_4
4
TC7SH08FU
IMVP_PW RGD
EC_PWROK
3
2
1
3 5
IMVP_PW RGD
R186 *0_4
R187 *0_4
U49
HWPG (19,30,32,39,40,41,43,46) IMVP_PW RGD (4 2)
EC_PWROK_R
EC-DV-04
2
System PWR_OK(CLG)
+3VS5+3VS5
C274 *0.1U/10V_4
2
SYS_PWROK(41)
SYS_PWROK
4
U36
*TC7SH08FU
R185 *0_4S
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
IMVP_PW RGD
1
EC_PWROK
3 5
TP26
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PCH 1/6 (DMI/FDI/VIDEO)
PCH 1/6 (DMI/FDI/VIDEO)
PCH 1/6 (DMI/FDI/VIDEO)
1
EC_PWROK (5,32)
661, 25, 2013
661, 25, 2013
661, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of

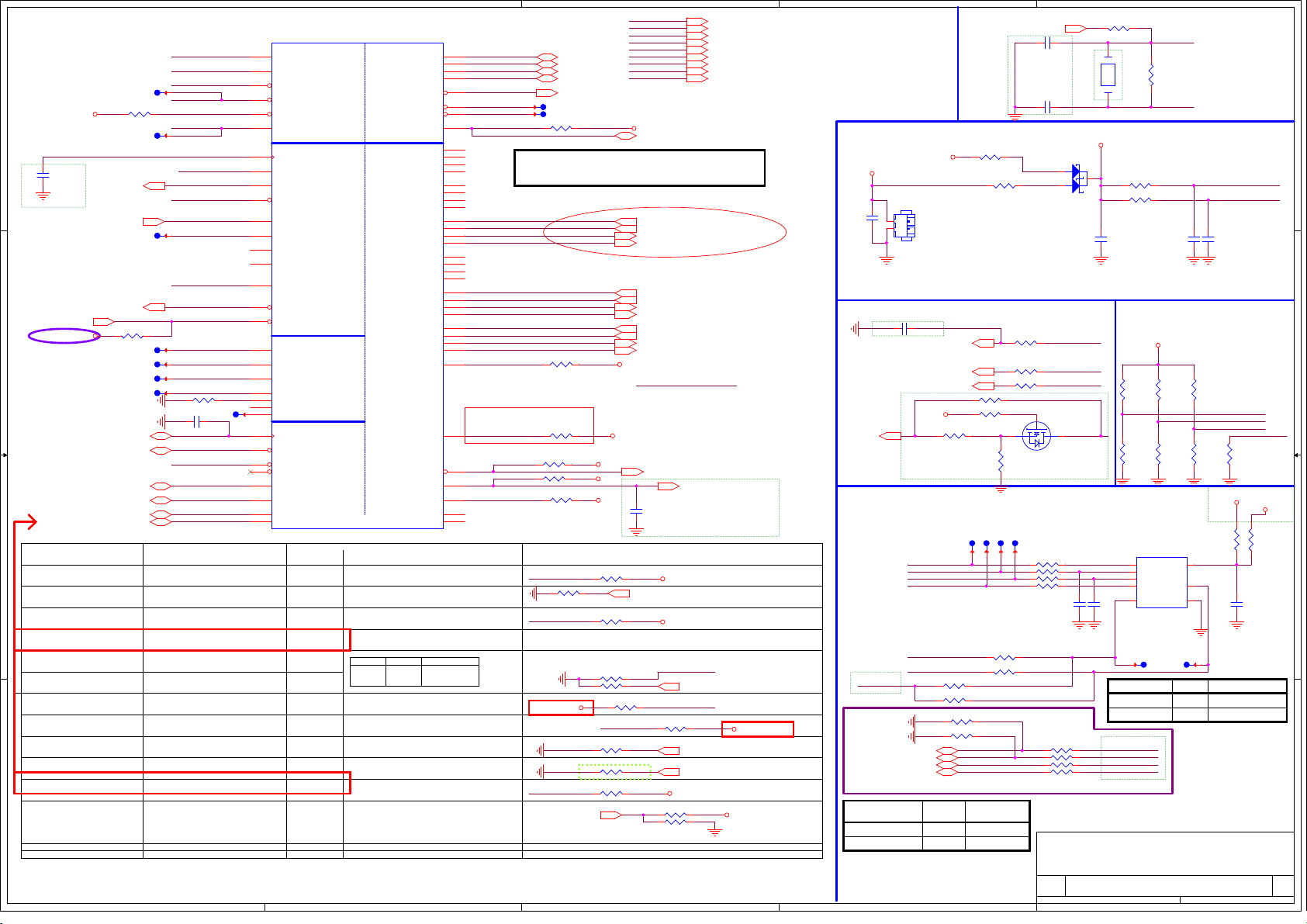

Page 7
5
Lynx Point (HDA,JTAG,SATA)
RTC_X1
RTC_X2
TP69
R222 1M_4
EC19
10P/50V_4
EC-SIT-07
SIO_EXT_SCI#(32)
+3V_DEEP_SUS
check
+3V_RTC
for DS3
TP31
ACZ_SPKR(24)
ACZ_SDIN0(24)
TP28
ODD_PWR(25 )
SIO_EXT_SCI#
R552 10K_4
TP74
TP73
TP76
TP72
SPI_CLK(53)
PCH_SPI_CS0#(53)
SPI_SI(53)
SPI_SO(53)
PCH_SPI_IO2(53)
PCH_SPI_IO3(53)
D D
C C
PCH Strap Table
RTC_RST#
SRTC_RST#
SM_INTRUDER#
PCH_INVRMEN
ACZ_BCLK
ACZ_SYNC
ACZ_SPKR
ACZ_RST#
ACZ_SDOUT
PCH_JTAG_TCK_R
PCH_JTAG_TMS
PCH_JTAG_TDI_R
PCH_JTAG_TDO_R
R236 *0_4S
TP39
C340 *22P/50V_4
SPI_CLK
PCH_SPI_CS0#
PCH_SPI_CS1#
SPI_SI
SPI_SO
PCH_SPI_IO2
PCH_SPI_IO3
U40A
B5
RTCX1
B4
RTCX2
D9
RTCRST#
B9
SRTCRST#
A8
INTRUDER #
G10
INTVRMEN
B25
HDA_BCLK
A22
HDA_SYNC
AL10
SPKR
C24
HDA_RST#
L22
HDA_SDIN0
K22
HDA_SDIN1
G22
HDA_SDIN2
F22
HDA_SDIN3
A24
HDA_SDO
(+3V)
B17
HDA_DOCK_EN# / GPIO33
(+3VS5)
C22
HDA_DOCK_RST# / GPIO13
AB3
JTAG_TCK
AD1
JTAG_TMS
AE2
JTAG_TDI
AD3
JTAG_TDO
F8
TP25
C26
TP22
AB6
TP20
AJ11
SPI_CLK
AJ7
SPI_CS0#
AL7
SPI_CS1#
AJ10
SPI_CS2#
AH1
SPI_MOSI
AH3
SPI_MISO
AJ4
SPI_IO2
AJ2
SPI_IO3
LPT_PCH_HM87_EDS/BGA
Pin Name Strap description Sampled Configuration
B B
SPKR
GNT3# / GPIO55 Top-Block Swap Override
No reboot mode setting PWROK
PWROK
INTVRMEN Integrated 1.05V VRM enable ALWAYS
HDA_DOCK_EN#/GPIO33
GNT1# / GPIO51
GPIO19
Flash Descriptor Security
Only for Interposer
Boot BIOS Selection 1 [bit-1]
Boot BIOS Selection 0 [bit-0]
PWROK
PWROK
PWROK
HDA_SYNC On-Die PLL VR Voltage Select RSMRST
HDA_SDO PWROKFlash Descriptor Security
GPIO8
GPIO28 0 = Disable
SPI_MOSI iTPM function Disable APWRO K 0 = Default (weak pull-down 20K)
A A
SUSCLK / GPIO62
RSVD Internel PURSMRST#
On-die PLL Voltage Regulator RSMRST#
On-die PLL Voltage Regulator PWROK
5
4
A20
LAD0
C20
LAD1
A18
LAD2
C18
LAD3
B21
LFRAME#
D21
LDRQ0#
RTCIHDA
LDRQ1# / GPIO23
SATA 6G LPC
SATA4RXN / PERN1
SATA4RXP / PERP1
SATA4TXN / PETN1
SATA4TXP / PETP1
SATA5RXN / PERN2
SATA5RXP / PERP2
SATA5TXN / PETN2
SATA5TXP / PETP2
SATA_RCOMP
SATA0GP / GPIO21
SATA1GP / GPIO19
SPI JTAG
0 = Default (weak pull-down 20K)
1 = Setting to No-Reboot mode
0 = "top-block swap" mode
1 = Default (Int P U)
0 = Disable
1 = Enable
0 = Override
1 = Default (weak pull-up 20K)
GNT0#GNT1#
11
00
0 = Support by 1.8V (weak pull-down)
1 = Support by 1.5V
0 = Security Effect (Int PD)
1 = Can be Overridden
(+3V)
SERIRQ
SATA0RXN
SATA0RXP
SATA0TXN
SATA0TXP
SATA1RXN
SATA1RXP
SATA1TXN
SATA1TXP
SATA2RXN
SATA2RXP
SATA2TXN
SATA2TXP
SATA3RXN
SATA3RXP
SATA3TXN
SATA3TXP
SATA_IREF
SATALED#
(+3V)
(+3V)
TP9
TP8
G20
AL11
BC8
BE8
AW8
AY8
BC10
BE10
AV10
AW10
BB9
BD9
AY13
AW13
BC12
BE12
AR13
AT13
BD13
BB13
AV15
AW15
BC14
BE14
AP15
AR15
AY5
SATA_RCOMP
Impedance = 50 ohm
Trace length < 500 mils
Trace spacing = 15 mils
DG V0.7 -> 7 50 ohm
SCH V0.7 -> 0 ohm
BD4
AP3
AT1
AU2
BA2
BB2
Boot Location
SPI
LPC
1 = Enable (Int PU)
1 = Enable
0 = Disable
1 = Enable (Int PU)
4
3
+3V_RTC_0 (32,35)
+3V_RTC (6,10,24,32,35)
3.3V_ALW (29,32,33,35,39,40)
+3VS5 (2,6,9,10,15,17,20,23,24,25,28,32,37,40,44,47,53)
LAD0 (28,32)
LAD1 (28,32)
LAD2 (28,32)
LAD3 (28,32)
PCH_DRQ#0
PCH_DRQ#1
SERIRQ
SATA_RCOMP
SATA_IREF
BBS_BIT0
LFRAME# (28,32)
TP71
TP34
R295 8.2K_4
DG recommended that AC coupling capacitors should be
close to the connector (<100 mils) for optimal signal quality.
Changed to SATA port 4,
purpose it is compatiable with HM87/86@1126--ALF@1126
R307 7.5K/F_4
R320 *0_4S
R306 10K_4
R630 10K_4
R634 *10K_4
+3V
+3V
+3V
+1.5V
+1.5V
+3V
SERIRQ (28,32)
SATA_RXN4 (25)
SATA_RXP4 (25)
SATA_TXN4 (25)
SATA_TXP4 (25)
SATA_RXN0 (25)
SATA_RXP0 (25)
SATA_TXN0 (25)
SATA_TXP0 (25)
SATA_RXN1 (27)
SATA_RXP1 (27)
SATA_TXN1 (27)
SATA_TXP1 (27)
SATA_LED# (33)
C654
0.47UF/10V_X5R_4
+3V_DEEP_SUS (6,8,9,10,53)
+3V_M3 (10,44,47,49,53)
+5V (22,24,25,31,33,34,39,47,49)
+3V (2,6,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
+1.5V (6,8,10,19,24,28,46,48,49)
ODD (SATA1 1.5Gb/s)
HDD0 (SATA3 6.0Gb/s)
mSATA (SATA3 6.0Gb/s)
TOUCH_PANEL_RST# (20)
Circuit
ACZ_SPKR
PCH_INVRMEN
[Need external pull-down for LPC BIOS]
Default weak pull -up on GNT0/1#
+VCC_HDA_IO
SPI_SI
R286 *1K_4
PCH_SUSCLK_L(6)
R292 *1K_4
PCI_GNT3# (8)
R240 330K_4
R633 *1K_4
R550 *1K_4
R539 1K_4
ACZ_SDOUT
R583 *1K_4
R577 *1K_4
R291 *1K_4
+3V
+3V_RTC
BBS_BIT0
BBS_BIT1 (8)
ACZ_SYNC
R551 *1K_4
BT_OFF# (9,28)
PLL_ODVR_EN (9)
+3V
R256 *1K_4
R262 *1K_4
3
EC-SIT2-06
+VCC_HDA_IO
+3V
2
EC-SIT-32
RTC Circuitry(RTC)
RTC Power trace width 20mils.
+3V_RTC_0
+3V_RTC_0
BAT CONN
C585
0.1U/10V_4
1
2
BT1
EMI
EC18 5P/50V_4
EC-DV-27
EC-SIT-07
ACZ_SDOUT_AUDIO(24)
ACZ_SYNC_AUDIO(24)
ACZ_RST#_AUDIO(24 )
3.3V_ALW
BIT_CLK_AUDIO(2 4)
+5V
R253 *0_6S
R557 1K_4
BIT_CLK_AUDIO
R531 *33_4
R527 10K_4
R205 33_4
EC-SIT-29
PCH SPI ROM(CLG) -- BIOS ROM
TP49
TP45
PCH_SPI_CS1#
SPI_CLK SPI_CLK_R
SPI_SI
SPI_SO
EC-DV-14
VCC_SPI
PCH_SPI_IO2
PCH_SPI_IO3
R80 10K_4
R81 10K_4
8512_SI(32)
8512_SO(32)
8512_SCK(32)
8512_SCE#(32,53)
For EC(IT8587 e-flash) load code from BIOS flash ROM
BIOS = 4MB_CS1
ME = 8MB_CS0
SBA Stuff
2
R339 *33_4
R336 *33_4
R338 1K_4
R337 1K_4
8512_SI
8512_SO
8512_SCK
8512_SCE#
R
Status
R79Un-SBA Un-Stuff
R79
1
Y4
32.768KHZ
D8
BAT54C
ACZ_BCLK
ACZ_RST#
ACZ_SDOUT
3
ACZ_SYNC
Q38
2N7002BK
R221 *0_4
12
30mils
+3V_RTC
C275
1U/6.3V_4
RTC_X1
R226
10M_4
RTC_X2
EC-DV-10
R182 20K/F_4
R181 20K/F_4
1U/6.3V_4
C271
PCH JTAG Debug(CLG)
+3VS5
R597
R593
*210/F_4
*210/F_4
R592
R596
*100/F_4
*100/F_4
CLKGEN_RTC_X1(35)
C277 15P/50V/_4
C280 15P/50V/_4
+3V_RTC_2
+3V_RTC_1 RTC_RST#
HDA Bus(CLG)
R548 33_4
R538 33_4
R540 33_4
2
1
R194
1M_4
EC-DV-14
TP50
TP48
R341 *0_4S
R335 33_4
R342 33_4
R330 33_4
PCH_SPI_IO2_R
PCH_SPI_IO3_R
R99 *0_4S
R100 *0_4S
R75 *0_4S
R79 0_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
BOM P/N Okay @1227
U44
1
C337
*22P/50V_4
SPI_CS1#_R
SPI_SI_R
SPI_SO_R
C344
*22P/50V_4
CE#
6
SCK
5
SI
2
SO
3
WP#
W25Q32FVSSIQ
TP47
Vender
Winbond
SPI_SI
SPI_SO
SPI_CLK
SPI_CS1#_R
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PCH 2/6 (SATA/HDA/SPI)
PCH 2/6 (SATA/HDA/SPI)
PCH 2/6 (SATA/HDA/SPI)
HOLD#
TP46
V
1
VDD
VSS
Size
4MB
4MB
EC-DV-14
C270
1U/6.3V_4
R590
*210/F_4
PCH_JTAG_TMS
PCH_JTAG_TDI_R
PCH_JTAG_TDO_R
R588
*100/F_4
R688
*0_4
8
VCC_SPI
7
4
P/N
AKE39FN0N01
AKE39ZN0Z01MXIC
761, 25, 2013
761, 25, 2013
761, 25, 2013
07
SRTC_RST#
PCH_JTAG_TCK_R
R585
*51_4
+3V_M3
+3V_DEEP_SUS
R689
*0_4S
C612
0.1U/10V_4
of
of
of
1ACustom
1ACustom
1ACustom

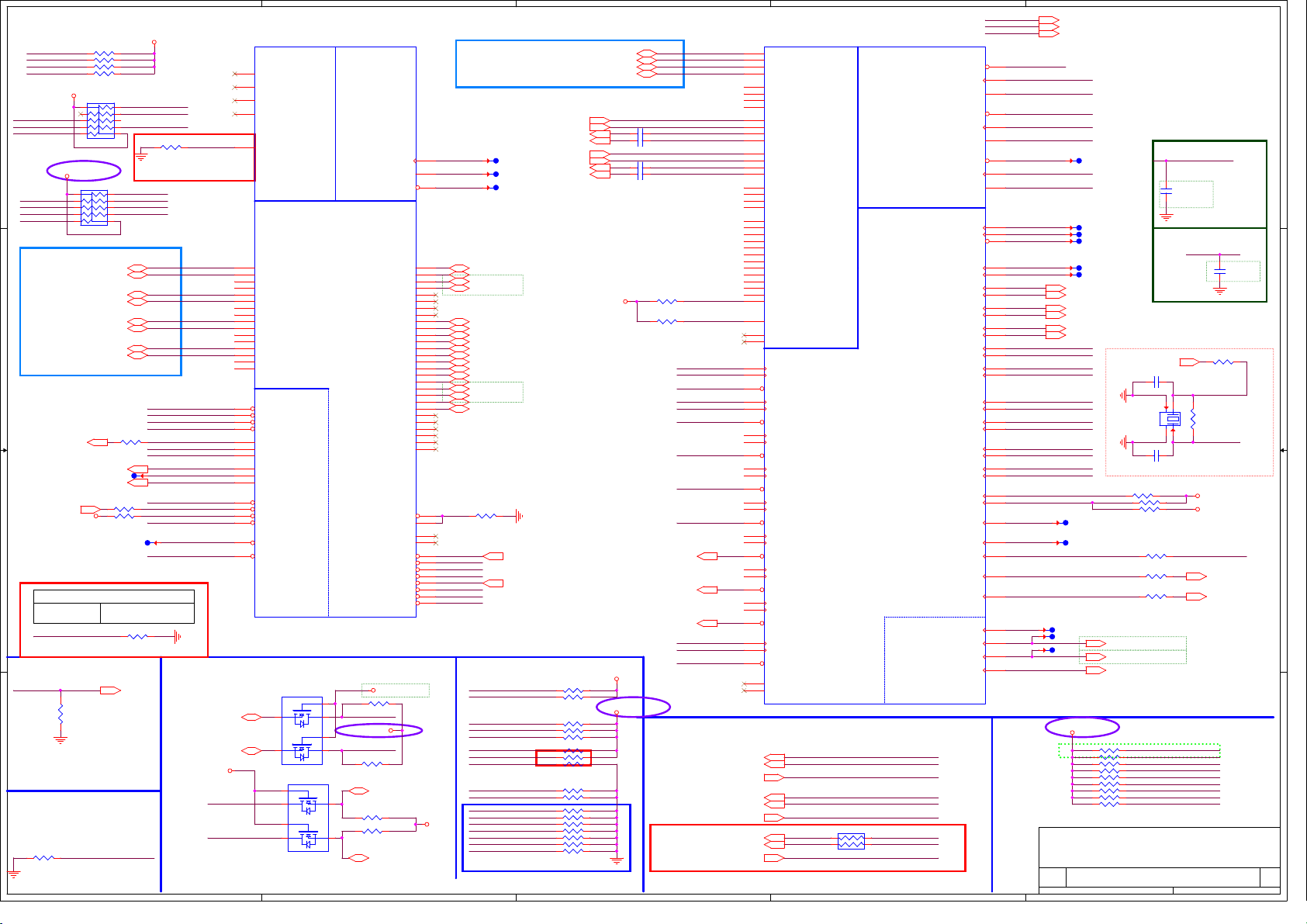

Page 8
5
(2,6,7,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
PCI/USBOC# Pull-up(CLG)
PCI_PIRQA#
R217 8.2K_4
PCI_PIRQB#
R207 8.2K_4
PCI_PIRQC#
R208 8.2K_4
PCI_PIRQD#
R215 8.2K_4
+3V
RP8
10
9
for DS3
ODD_MDDA#(25,32)
8
7 4
10K_10P8R_6
+3V_DEEP_SUS
RP6
10
9
8
7 4
10K_10P8R_6
USB30_RX1-(26)
USB30_RX2-(26)
USB30_RX1+(26)
USB30_RX2+(26)
USB30_TX1-(26)
USB30_TX2-(26)
USB30_TX1+(26)
USB30_TX2+(26)
+3V
BBS_BIT1(7)
PCI_GNT3#(7)
R195 *0_4
R216 10K_4
ACCEL_INTH#
D D
MPC_PWR_CTRL#
DGPU_SELECT#
USB_OC4#
USB_OC1#
USB_OC3#
Compatible with HM86
USB3.0
C C
DGPU_HOLD_RST#(14)
B B
+3V
1
ACC_LED#
2
EDID_SELECT#
3
ODD_MDDA_R#
56
CRB 1.0 =>rename PCH_TP26
1
USB_OC6#
2
USB_OC0#
3
USB_OC7#
USB_OC5#USB_OC2#
56
R535 *0_4S
TP68
TP41
check
MPC Switch Control
MPC_PWR_CTRL#
MPC_PWR_CTRL#
Low = MPC ON
High = MPC OFF (Def ault)
R197 *1K_4
PLTRST#(CLG)
PCI_PLTRST#
R263
100K_4
A A
PLTRST# (2,14,23,27,2 8,30,34)
GPIO50
DGPU_HOLD_RST#_R
R545 100K_4
DGPU_HOLD_RST#_R
5
Lynx Point (PCI,USB,NVRAM)
U40E
BA45
TP1
BC45
TP2
BE44
TP3
BE43
TP4
AY43
PCH_TP26
R2988.2K_4
PCI_PIRQA#
PCI_PIRQB#
PCI_PIRQC#
PCI_PIRQD#
DGPU_HOLD_RST#_R
DGPU_SELECT#
EDID_SELECT#
BBS_BIT1
ACC_LED#
PCI_GNT3#
MPC_PWR_CTRL#
ODD_MDDA_R#
ACCEL_INTH#
PCI_PME#
PCI_PLTRST#
MBCLK_THRM(17,19,32,34)
MBDATA_THRM(17,19,32,34)
SMB_PCH_DAT
SMB_PCH_CLK
TD_IREF
AR26
USB3RXN1
AW26
USB3RXN2
AW29
USB3RXN5
AR29
USB3RXN6
AP26
USB3RXP1
AV26
USB3RXP2
AV29
USB3RXP5
AP29
USB3RXP6
BE24
USB3TXN1
BD25
USB3TXN2
BE26
USB3TXN5
BD27
USB3TXN6
BD23
USB3TXP1
BC24
USB3TXP2
BC26
USB3TXP5
BE28
USB3TXP6
H20
PIRQA#
L20
PIRQB#
K17
PIRQC#
M20
PIRQD#
A12
GPIO50
B13
GPIO52
C12
GPIO54
C10
GPIO51
A10
GPIO53
AL6
GPIO55
G17
PIRQE# / GPIO2
F17
PIRQF# / GPIO3
L15
PIRQG# / GPIO4
M15
PIRQH# / GPIO5
AD10
PME#
Y11
PLTRST#
LPT_PCH_HM87_EDS/BGA
SMBus/Pull-up(CLG)
+3V
Thermal
(+3V)
(+3V)
(+3V)
(+3V)
(+3V)
(+3V)
(+3V)
(+3V)
(+3V)
(+3V)
Q41
4 3
1
*2N7002DW
5
2
6
2N7002BKS
PCI
5
2
6
Q40
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
+3V_DEEP_SUS
43
1
4
C- Link
CL_CLK1
CL_DATA1
CL_RST1#
USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N
USBP9P
USBP10N
USBP10P
USBP11N
USBP11P
USBP12N
USBP12P
USBP13N
USBP13P
USB
USBRBIAS#
USBRBIAS
TP24
TP23
OC0# / GPIO59
OC1# / GPIO40
OC2# / GPIO41
OC3# / GPIO42
OC4# / GPIO43
OC5# / GPIO9
OC6# / GPIO10
OC7# / GPIO14
EC-DV-03
+3V_DEEP_SUS
R237 2.2K_4
SMB_ME1_CLK
SMB_ME1_DAT
R232 2.2K_4
R189 4.7K_4
R190 4.7K_4
for DS3
SMB_RUN_DAT (12,13,20,30 ,33)
SMB_RUN_CLK (12,13,2 0,30,33)
4
Compatible with HM86
AF11
CL_CLK_R
AF10
CL_DAT_R
AF7
CL_RST#_R
B37
D37
A38
C38
A36
C36
A34
C34
B33
D33
F31
G31
K31
L31
G29
H29
A32
C32
A30
C30
B29
D29
A28
C28
G26
F26
F24
G24
K24
USB_BIAS
K26
M33
L33
P3
USB_OC0#
V1
USB_OC1#
U2
USB_OC2#
P1
USB_OC3#
M3
USB_OC4#
T1
USB_OC5#
N2
USB_OC6#
M1
USB_OC7#
+3V
USB3.0 for Docking
PCIE_RXN1(28)
WLAN
TP43
TP44
TP42
USBP0- (29)
USBP0+ (29)
USBP2- (26)
USBP2+ (26)
USBP4- (21)
USBP4+ (21)
USBP5- (33)
USBP5+ (33)
USBP6- (20)
USBP6+ (20)
USBP7- (37)
USBP7+ (37)
USBP8- (29)
USBP8+ (29)
USBP3- (26)
USBP3+ (26)
USBP10- (28)
USBP10+ (28)
R244
22.6/F_4
USB_OC0# (26,29)
USB_OC4# (26)
PCIE_RXP1(28)
PCIE_TXN1(28)
PCIE_TXP1(28)
PCIE_RXN2_LAN(23)
PCIE_RXP2_LAN(23)
PCIE_TXN2_LAN(23)
PCIE_TXP2_LAN(23)
LAN
Right_USB
Left_USB_down
Webcam
Fingerprint
Touch Screen (Option)
Cable Docking
Card Reader
Left_USB_up
Bluetooth
CLK_REQ/Strap Pin(CLG)
PCIE_CLKREQ_LAN#
PCIE_CLK_REQ2#
PCIE_CLKREQ_WL AN#
CLK_PCIE_REQ3#
CLK_PCIE_REQ4#
CLK_PEGB_REQ#
CLK_PEGA_REQ#
CLK_PEGA_REQ#
CLK_BUF_BCLK_N
CLK_BUF_BCLK_P
CLK_BUF_PCIE_3GPLL#
CLK_BUF_PCIE_3GPLL
CLK_BUF_DREFCLK#
CLK_BUF_DREFCLK
CLK_BUF_DREFSSCLK#
CLK_BUF_DREFSSCLK
CLK_PCH_14M
CLOCK TERMINATION for FCIM
R600 10K_4
R599 10K_4
R285 10K_4
R574 10K_4
R576 10K_4
R257 10K_4
R290 10K_4
Ra
R289 *10K_4
Rb
SG : Rb ; UMA : Ra
R293 10K_4
R297 10K_4
R314 10K_4
R310 10K_4
R229 10K_4
R228 10K_4
R324 10K_4
R323 10K_4
R241 10K_4
3
Lynx Point (PCI-E,SMBUS,CLK)
USB30_RX3-(37)
USB30_RX3+(37)
USB30_TX3-(37)
USB30_TX3+(37)
C609 0.1U/10V_4
C608 0.1U/10V_4
C606 0.1U/10V_4
C607 0.1U/10V_4
EC-DV-11
+1.5V
EC-DV-11
Card reader cha nged to USB I/F
+3V
+3V_DEEP_SUS
PCIE_TXN1_C
PCIE_TXP1_C
PCIE_TXN2_LAN_C
PCIE_TXP2_LAN_C
R643 *0_4S
R644 7.5K/F_4
CLK_PCIE_WLAN#
CLK_PCIE_WLAN
WLAN
PCIE_CLKREQ_WL AN#
CLK_PCIE_LANN
CLK_PCIE_LANP
LAN
PCIE_CLKREQ_LAN#
PCIE_CLK_REQ2#
CLK_PCIE_REQ3#
CLK_PCIE_REQ4#
BOARD_ID0(9)
BOARD_ID1(9)
BOARD_ID2(9)
CLK_PCIE_VGA#_R
CLK_PCIE_VGA_R
GPU
CLK_PEGA_REQ#
for DS3
PCIE Clock
WLAN
LAN
GPU
Remove for UMA only.
3
PCIE_CLKREQ_WL AN#(28)
CLK_PEGA_REQ#(14)
PCIE_IREF
PCIE_RCOMP
CLK_PCIE_WLAN#(28)
CLK_PCIE_WLAN(28)
CLK_PCIE_LANP(23)
CLK_PCIE_LANN(23)
PCIE_CLKREQ_LAN#(23)
CLK_PCIE_VGA#(14)
CLK_PCIE_VGA(14)
U40B
AW31
PERN1 / USB3RN3
AY31
PERP1 / USB3RP3
BE32
PETN1 / USB3TN3
BC32
PETP1 / USB3TP3
AT31
PERN2/ USB3RN4
AR31
PERP2/ USB3RP4
BD33
PETN2/ USB3TN4
BB33
PETP2/ USB3TP4
AW33
PERN3
AY33
PERP3
BE34
PETN3
BC34
PETP3
AT33
PERN4
AR33
PERP4
BE36
PETN4
BC36
PETP4
AW36
PERN5
AV36
PERP5
BD37
PETN5
BB37
PETP5
AY38
PERN6
AW38
PERP6
BC38
PETN6
BE38
PETP6
AT40
PERN7
AT39
PERP7
BE40
PETN7
BC40
PETP7
AN38
PERN8
AN39
PERP8
BD42
PETN8
BD41
PETP8
BE30
PCIE_IREF
BD29
PCIE_RCOMP
BC30
TP11
BB29
TP6
Y43
CLKOUT_PCIE0N
Y45
CLKOUT_PCIE0P
AB1
PCIECLKRQ0# / GPIO7 3
AA44
CLKOUT_PCIE1N
AA42
CLKOUT_PCIE1P
AF1
PCIECLKRQ1# / GPIO1 8
AB43
CLKOUT_PCIE2N
AB45
CLKOUT_PCIE2P
AF3
PCIECLKRQ2# / GPIO2 0/ SMI#
AD43
CLKOUT_PCIE3N
AD45
CLKOUT_PCIE3P
T3
PCIECLKRQ3# / GPIO2 5
AF43
CLKOUT_PCIE4N
AF45
CLKOUT_PCIE4P
V3
PCIECLKRQ4# / GPIO2 6
AE44
CLKOUT_PCIE5N
AE42
CLKOUT_PCIE5P
AA2
PCIECLKRQ5# / GPIO4 4
AB40
CLKOUT_PCIE6N
AB39
CLKOUT_PCIE6P
AE4
PCIECLKRQ6# / GPIO4 5
AJ44
CLKOUT_PCIE7N
AJ42
CLKOUT_PCIE7P
Y3
PCIECLKRQ7# / GPIO4 6
AB35
CLKOUT_PEG_A_N
AB36
CLKOUT_PEG_A_P
AF6
PEG_A_CLKRQ# / GPIO 47
AD39
TP19
AD38
TP18
LPT_PCH_HM87_EDS/BGA
SML1ALERT# / PCHHOT# / GPIO74
SMBUS
PCI-E*
(+3VS5)
(+3V)
(+3V)
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
(+3VS5)
2
4
RP7 0_4P2R_4
CLOCKS
CLK_PCIE_WLAN#
CLK_PCIE_WLAN
PCIE_CLKREQ_WL AN#
CLK_PCIE_LANP
CLK_PCIE_LANN
PCIE_CLKREQ_LAN#
1
CLK_PCIE_VGA#_R
3
CLK_PCIE_VGA_R
CLK_PEGA_REQ#
2
SMBALERT# / GPIO11
SML0ALERT# / GPIO6 0
SML1CLK / GPIO58
SML1DATA / GPIO75
CLKOUT_PEG_B_N
CLKOUT_PEG_B_P
PEG_B_CLKRQ# / GPIO 56
(+3VS5)
CLKOUT_ITPXDP_N
CLKOUT_ITPXDP_P
CLKOUT_DPNS_N
CLKOUT_DPNS_P
CLKOUT_DP_N
CLKOUT_DP_P
CLKOUT_DMI_N
CLKOUT_DMI_P
CLKIN_DMI_N
CLKIN_DMI_P
CLKIN_GND1_N
CLKIN_GND1_P
CLKIN_DOT_96N
CLKIN_DOT_96P
CLKIN_SATA_N
CLKIN_SATA_P
REFCLK14IN
CLKIN_PCILOOPBACK
XTAL25_OUT
DIFFCLK_BIASREF
CLKOUT_33MHZ0
CLKOUT_33MHZ1
CLKOUT_33MHZ2
CLKOUT_33MHZ3
CLKOUT_33MHZ4
CLKOUTFLEX0 / GPIO64
CLKOUTFLEX1 / GPIO65
CLKOUTFLEX2 / GPIO66
CLKOUTFLEX3 / GPIO67
FLEX CLOCKS
2
(+3VS5)
SMBCLK
SMBDATA
(+3VS5)
SML0CLK
SML0DATA
(+3VS5)
(+3VS5)
(+3VS5)
XTAL25_IN
ICLK_IREF
(+3V)
(+3V)
(+3V)
(+3V)
1
+3V_DEEP_SUS (6,7,9,10,53)
+3V
+1.5V (6,7,10,19,24,28,46,48,49)
N7
SMBALERT#
R10
SMB_PCH_CLK
U11
SMB_PCH_DAT
N8
DRAMRST_CNTRL_PCH
U8
SMB_ME0_CLK
R7
SMB_ME0_DAT
H6
SML1ALERT#_R
K6
SMB_ME1_CLK
N11
SMB_ME1_DAT
Y39
Y38
U4
CLK_PEGB_REQ#
AH43
CLK_PCH_ITPN
AH45
CLK_PCH_ITPP
AF35
AF36
AJ40
AJ39
AF39
AF40
AY24
CLK_BUF_PCIE_3GPLL#
AW24
CLK_BUF_PCIE_3GPLL
AR24
CLK_BUF_BCLK_N
AT24
CLK_BUF_BCLK_P
H33
CLK_BUF_DREFCLK#
G33
CLK_BUF_DREFCLK
BE6
CLK_BUF_DREFSSCLK#
BC6
CLK_BUF_DREFSSCLK
F45
CLK_PCH_14M
D17
CLK_PCI_FB
AM43
XTAL25_IN
AL44
XTAL25_OUT
AM45
ICLK_IREF
AN44
ICLK_BIAS
D44
CLK_PCI_TPM_R
E44
CLK_PCI_CARD_R
B42
CLK_PCH_PCI2 CLK_PCI_FB
F41
CLK_PCH_PCI3
A40
CLK_PCH_PCI4
C40
CLK_FLEX0
F38
F36
F39
for DS3
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet of
TP70
TP37
TP36
TP38
TP75
TP77
CLK_DPLL_NSCCLKN (2)
CLK_DPLL_NSCCLKP (2)
CLK_DPLL_SSCLKN (2)
CLK_DPLL_SSCLKP (2)
CLK_CPU_BCLKN (2)
CLK_CPU_BCLKP (2)
25MHZ +-30PPM
TP33
TP27
TP29
TP32
TP30
HDD_DEVSLP (25)
SSD_DEVSLP (27)
DGPU_PRSNT# (9)
+3V_DEEP_SUS
R543 *2.2K_4
R537 *2.2K_4
R238 1K_4
R246 10K_4
R231 2.2K_4
R230 2.2K_4
R268 2.2K_4
R260 2.2K_4
R546 10K_4
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PCH 3/6 (PCIE/USB/CLK )
PCH 3/6 (PCIE/USB/CLK )
PCH 3/6 (PCIE/USB/CLK )
CLK_PCH_14M
EC-DV-28
PCH_XTAL25_IN(35)
C595 12P/50V_4
2
Y5
4
C592
12P/50V_4
R612 *0_4S
R623 *7.5K/F_4
R616 7.5K/F_4
R56122_4
R24922_4
R55622_4
SMB_ME1_CLK
SMB_ME1_DAT
DRAMRST_CNTRL_PCH
SMBALERT#
SMB_PCH_CLK
SMB_PCH_DAT
SMB_ME0_CLK
SMB_ME0_DAT
SML1ALERT#_R
1
EC5
15P/50V_4
CLK_33M_KBC
1
3
New Adding @1219
EC-SIT-28
EC-SIT-10
SMBus/Pull-up(CLG)
08
RF
EC-DV-28
EC20
15P/50V_4
R611*0_4
XTAL25_IN
R598
1M_4
XTAL25_OUT
+1.5V
+VCCAXCK_VRM
CLK_33M_DEBUG (28)
CLK_33M_KBC (32)
861, 25, 2013
861, 25, 2013
861, 25, 2013
1ACustom
1ACustom
1ACustom

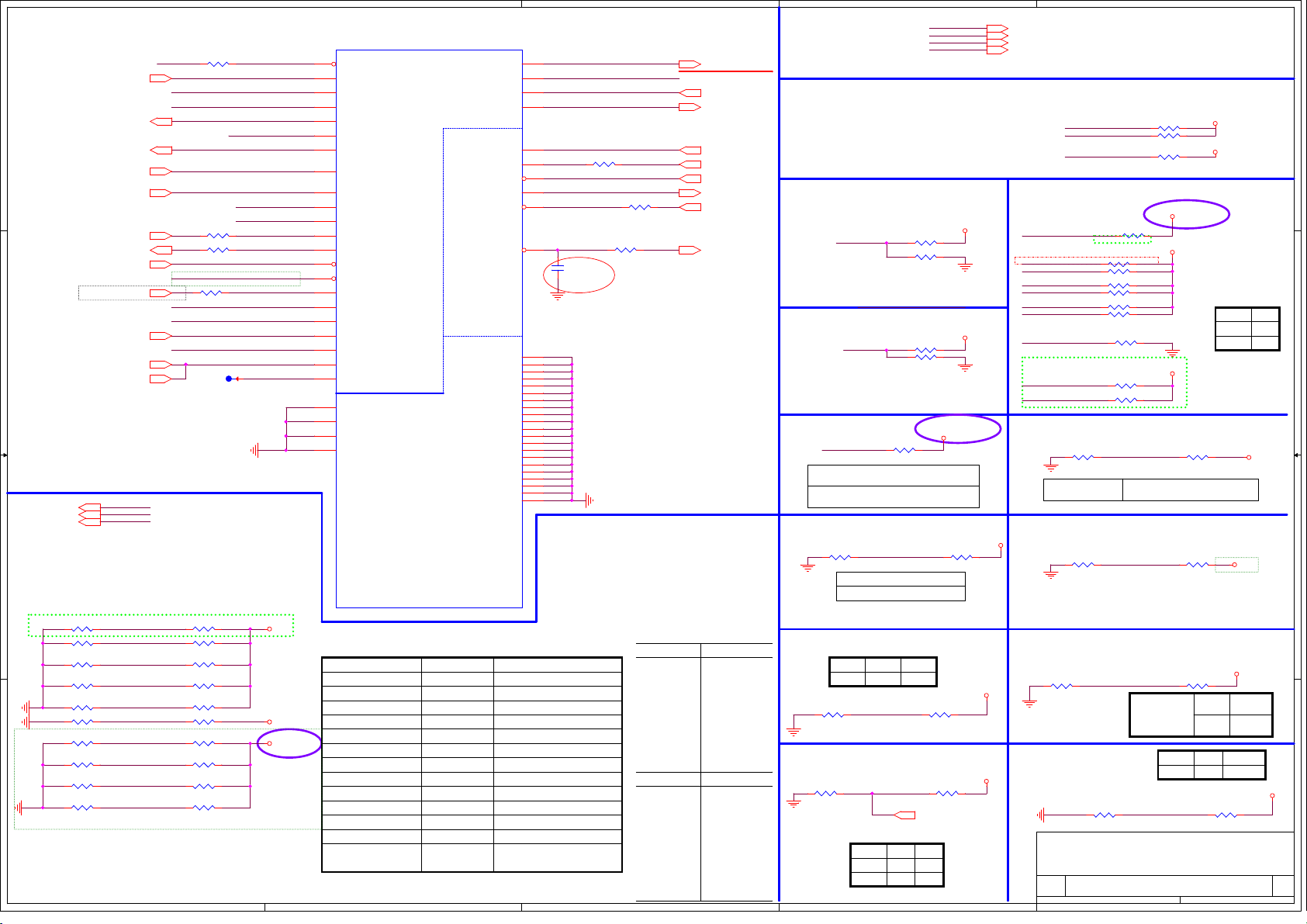

Page 9
5
Lynx Point (GPIO,VSS_NCTF,RSVD)
Lynx Point (GPIO,VSS_NCTF,RSVD)
Lynx Point (GPIO,VSS_NCTF,RSVD)Lynx Point (GPIO,VSS_NCTF,RSVD)
U40F
S_GPIO
R318 100_4
SIO_EXT_SMI#(32)
D D
Reserve
C C
BOARD_ID0(8)
BOARD_ID1(8)
BOARD_ID2(8)
B B
WLAN_ON/OFF#(2 8)
SIO_WAKE_SCI#(28,32)
ODD_PRSN T#(25)
TEMP_ALERT#(17,34)
BT_OFF#(7,28)
ADP_TYPE_0(39)
PLL_ODVR_EN(7)
ADP_TYPE_1(39)
EC-SIT2-11
TS_I2C_INT(20)
VGA_OVT#(17,34)
BOARD_ID0
BOARD_ID1
BOARD_ID2
GFXPG(14)
R235 *0_4S
R582 *0_4S
R629 *0_4S
TP35
S_GPIO_R
SIO_EXT_SMI#
GPU_GL/GE
SBA
BT_OFF#
LAN_DISABLE#_R
WLAN_ON/OFF#
ADP_TYPE_0
GFXPG
BIOS_REC
BOARD_ID3
GPIO27
PLL_ODVR_EN_R
ADP_TYPE_1
AOAC_EN
ODD_PRSN T#_R
FDI_OVRVLTG
MFG_MODE
TS_I2C_INT
TEST_SET_UP
TEMP_ALERT#
GPIO57
Reserve it for Touch Screen I2C I/F
R609 *10K_4
R219 *10K_4
R617 *10K_4
R606 *10K_4
R532 *10K_4
R261 *10K_4
RD0
R586 *10K_4
RD1
R283 *10K_4
RD2
A A
R575 10K_4
RD3
R278 *10K_4
TS_I2C_INT
CCD_ON
AOAC_EN
TEMP_ALERT#
LCD_BK_OFF
GPIO57
BOARD_ID0
BOARD_ID1
BOARD_ID2
BOARD_ID3
R610 *10K_4
R210 10K_4
R621 10K_4
R607 10K_4
R544 10K_4
R255 *10K_4
RU0
R589 10K_4
RU1
R284 10K_4
RU2
R573 *10K_4
RU3
R275 10K_4
+3V
+3V_DEEP_SUS
+3V_DEEP_SUS
for DS3
AT8
BMBUSY# / GPIO0
(+3V)
F13
TACH1 / GPIO1
(+3V)
A14
TACH2 / GPIO6
(+3V)
G15
TACH3 / GPIO7
(+3V)
Y1
GPIO8
(+3VS5)
K13
LAN_PHY_PW R_CTRL / GPIO12
(+3VS5)
AB11
GPIO15
(+3VS5)
AN2
SATA4GP / GPIO16
(+3V)
C14
TACH0 / GPIO17
(+3V)
BB4
SCLOCK / GPIO22
(+3V)
Y10
GPIO24
(+3VS5)
R11
GPIO27
(DSW)
AD11
GPIO28
(+3VS5)
AN6
GPIO34
(+3V)
AP1
GPIO35 / NMI#
(+3V)
AT3
SATA2GP / GPIO36
(+3V)
AK1
SATA3GP / GPIO37
(+3V)
AT7
SLOAD / GPIO38
(+3V)
AM3
SDATAOUT0 / GPIO39
(+3V)
AN4
SDATAOUT1 / GPIO48
(+3V)
AK3
SATA5GP / GPIO49
(+3V)
U12
GPIO57
(+3VS5)
BE41
VSS_NCTF_1
BE5
VSS_NCTF_2
C45
VSS_NCTF_3
A5
VSS_NCTF_4
LPT_PCH_HM87_EDS/BGA
SharkBay BOARD ID SETTING
BOARD_ID0
BOARD_ID2
BOARD_ID3
SBA setting
GPU GE/GL setting
GPIO71
GPIO35
GPIO49
GPIO68
GPIO69
GPIO39 GPIO39
EC-DV-35
EC-SIT-36
EC-SIT2-17
5
GPIO70 GPIO70
AOAC_EN GPIO35
4
C16
TACH4 / GPIO68
(+3V)
TACH5 / GPIO69
(+3V)
TACH6 / GPIO70
(+3V)
TACH7 / GPIO71
(+3V)
TP14
PECI
RCIN#
PROCPWRGD
THRMTRIP#
D13
G13
H15
AN10
AY1
AT6
AV3
AV1
LCD_BK_OFF
SV_DET
VGA_ALERT#
CCD_ON
R649 *0_4
EC_RCIN#
PCH_THRMTRIP#
GPIO
AU4
PLTRST_PROC#
CPU/MISC
NCTF
VSS_NCTF_5
VSS_NCTF_6
VSS_NCTF_7
VSS_NCTF_9
VSS_NCTF_10
VSS_NCTF_11
VSS_NCTF_13
VSS_NCTF_14
VSS_NCTF_16
VSS_NCTF_17
VSS_NCTF_18
VSS_NCTF_19
VSS_NCTF_20
VSS_NCTF_21
VSS_NCTF_22
VSS_NCTF_23
VSS_NCTF_24
VSS_NTCF_25
VSS_NCTF_8
VSS_NCTF_12
VSS_NCTF_15
A2
A41
A43
B1
B2
B44
BA1
BC1
BD2
BD44
BD45
BE2
BE3
D1
E1
E45
A4
N10
A44
B45
BD1
CPU_PLTRST#
R635 *0_4S
C600
*330P/50V_4
ESD Suggestion@1128 -- ALF
3
R641 390_4
LCD_BK_OFF (20)
VGA_ALERT# (17)
CCD_ON (21)
EC_A20GATE (32)
EC_PECI (2,32)
EC_RCIN# (32)
H_PWRGOOD (2)
PM_THRMTRIP#R (2)
CPU_PLTRST#R (2)
2
MFG-TEST
MFG_MODE
Intel CRB
Swap GPIO
S_GPIO
Intel CRB
WLAN_ON/OFF#
Intel ME Crypto Transport Layer
Security (TLS) cipher suite
Low = Disable (Default)
High = Enable
BIOS_RESP
R626 *0_4
SV_SET_UP
High = Strong (Default)
R317 10K_4
R305 *0_4
0 = SGPIO
1 = Default
R322 1K_4
R319 *0_4
R580 1K_4
TEST_SET_UP
+3V
+3V
for DS3
+3V_DEEP_SUS
R622 10K_4
1
+3VS5 (2,6,7,10,15,17,20,23,24,25,28,32,37,40,44,47,53)
+3V_DEEP_SUS (6,7,8,10,53)
+3V (2,6,7,8,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
+1.05V (2,4,10,35,43,48,49,53)
PCH MISC PU /PD
+3V
+3VS5
R647 10K_4
0 = SV Detect
1 = Default
R542
10K_4
+3V
+1.05V
for DS3
UMA
DIS
+3V
+3V
EC-SIT-05
EC_A20GATE
EC_RCIN#
PCH_THRMTRIP#
GPIO Pull-up/Pull-down(CLG)
BT_OFF#
Reserve it for GPU's GPIO9
VGA_ALERT#
SIO_EXT_SMI#
ADP_TYPE_0
ADP_TYPE_1
ODD_PRSN T#_R
GFXPG
GFXPG
10/2 modify
GPIO27
LAN_DISABLE#_R
Intel CRB
+3V
R581 *10K_4
R212 *10K_4
R196 10K_4
R618 10K_4
R300 10K_4
R627 10K_4
R553 *10K_4
R541 *10K_4
R234 10K_4
R239 10K_4
R648 *0_4
BIOS RECOVERY High = Disable (Default)
SV Detect
R554
*100K_4
Rb
BIOS_REC
Low = Enable
SV_DET
R321 10K_4
R316 10K_4
R640 *1K_4
+3V_DEEP_SUS
Rb
Stuff
NC
09
Intel CRBIntel CRB
BOARD_ID[3:0]
GPIO44
GPIO45
GPIO46 MODEL BIT2
GPIO24 B = 0 / M = 1
GPIO6
GPIO7
GPIO71
GPIO35
GPIO49
GPIO68
GPIO69
MODEL BIT0
MODEL BIT1BOARD_ID1
GL=0 / GE=1
RESERVE
RESERVE
TEMP_ALERT#
RESERVE
RESERVE
RESERVE
RESERVE
for BM6/ AOAC Support
AOAC=1/Non AOAC=0
0000
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
4
1111
3
Model Name
B Note
A
A2
SIT
SIT2
M Note
A
A2
SIT
SIT2
B Note GPU GL/GE Select setting
GL
GE
Rb (Lo)
Ra (Hi)Stuff
Rb Ra
R533 10K_4
GPU_GL/GE
R534 *10K_4
+3V
GFX Present
+3V
R567 *100K_4
for BM Note
DGPU_PRSNT#
Stuff
Level
DIS
Ra
Hi
2
RaRb
R563 10K_4
DGPU_PRSNT# (8)
UMA
Rb
Lo
SATA3GP/GPIO37
0 = TLS no conf identiality (Int PD)
1 = TLS with c onfidentiali ty
R601 *10K_4
Intel CRB
TLS Confidentiality
FDI_OVRVLTG
GPIO37
PCH STRAPING
R602 1K_4
Low
Hight SBA
SBA
1
RaStuff
RaRb
R218 10K_4
961, 25, 2013
961, 25, 2013
961, 25, 2013
SBA setting
R209 *10K_4
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Quanta Computer Inc.
SBA
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
PCH 4/6 (GPIO/MISC)
PCH 4/6 (GPIO/MISC)
PCH 4/6 (GPIO/MISC)
+3V
N.A
No-SBA
Rb
of
of
of
+3V
1ACustom
1ACustom
1ACustom
Page 10

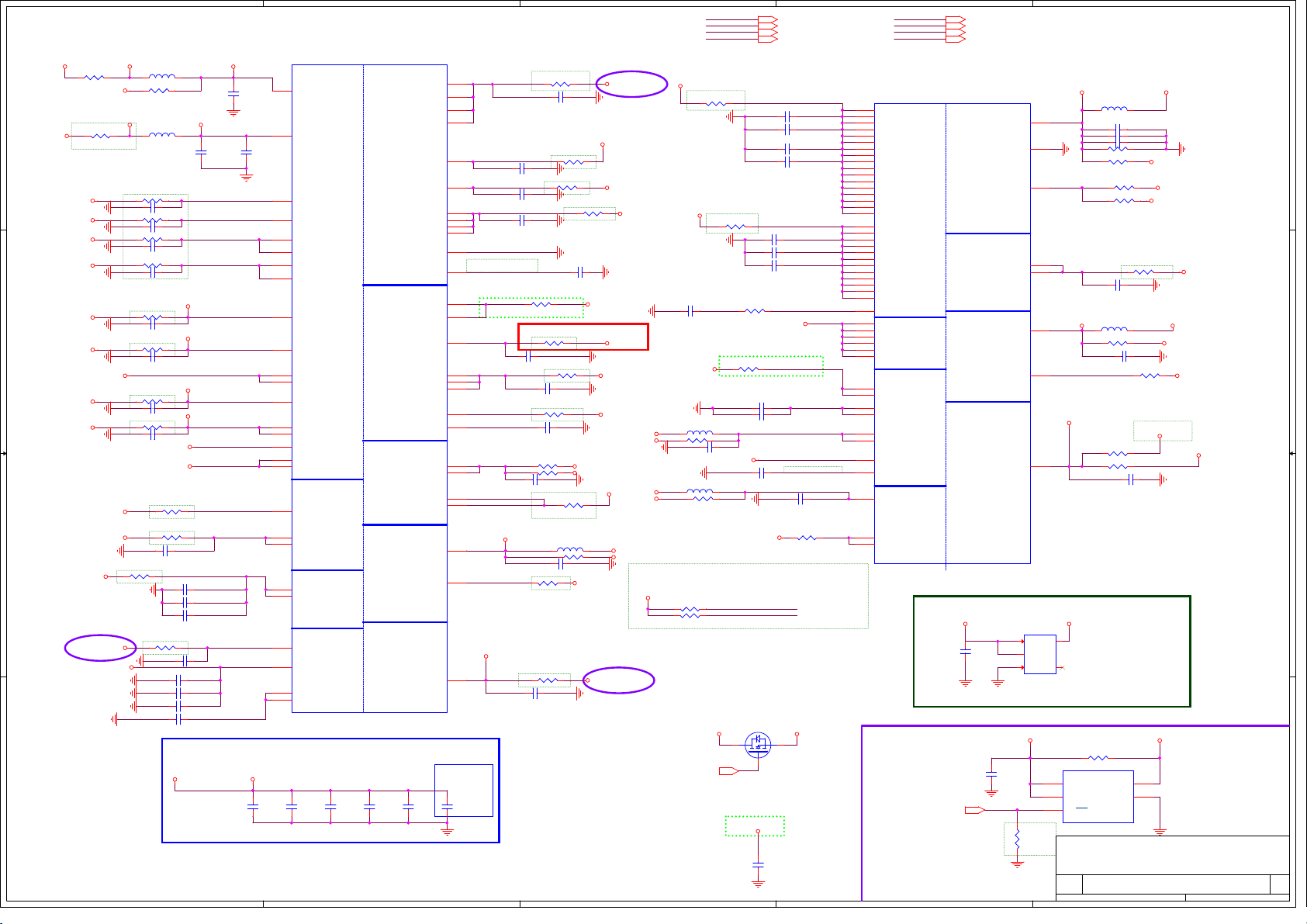

5
Lynx Point (POWER)
POWER
AF34
C599
10U/6.3V_6
AP45
C328
1U/6.3V_4
AD34
AA30
AA32
AD35
AG30
AG32
AD36
AE30
AE32
0.15A (20mils)
AW40
0.13A (20mils)
AK30
AK32
4mA (10mils)
AJ12
AJ14
U40J
VCCVRM[5]
VCC[3]
M29
VCCCLK3_3[1]
L29
VCCCLK3_3[2]
L26
VCCCLK3_3[3]
M26
VCCCLK3_3[4]
U32
VCCCLK3_3[5]
V32
VCCCLK3_3[6]
Y32
VCCCLK[1]
VCCCLK[2]
VCCCLK[3]
VCCCLK[4]
VCCCLK[5]
VCCCLK[6]
VCCCLK[7]
VCCCLK[8]
VCCCLK[9]
VCCCLK[10]
VCCVRM[6]
VCC3_3[7]
VCC3_3[8]
V_PROC_IO[1]
V_PROC_IO[2]
K8
VCCSUS3_3[9]
A6
VCCRTC
P14
DCPRTC[1]
P16
DCPRTC[2]
LPT_PCH_HM87_EDS/B GA
C332
*10U/6.3V_6
+V3.3S_VCC_FLEX0
+V3.3S_VCC_FLEX1
+V3.3S_VCC_FLEX23
+V3.3S_VCC_ASEPCI
+V1.05S_VCC_SSCFF
0.3A (20mils)
+VCCCLKF135
+V1.05S_VCCCLKF100
+V1.05S_VCCSSCF100
C3240.1U/10V_4
+V1.05S_VCCPCPU
C343 0.1U/10V_4
C342 0.1U/10V_4
C341 1U/6.3V_4
0.261A (40mils)
C2951U/6.3V_4
C2810.1U/ 10V_4
C2820.1U/ 10V_4
C2781U/6. 3V_4
+VCCRTCEXT
C2970.1U/ 10V_4
0.15A (20mils)
+V1.5S_VCCATS
+V3.3S_VCCPTS
+VCCPRTCSUS_3P3
+VCCAXCK_VRM_R +VCCAXCK_VRM+1.05V
R639 *1/F_4
D D
C C
B B
+1.05V
+1.05V
+1.05V
+V1.05S_VCC_SSCFF
+1.05V
+1.05V
+VCCIO_PCH
R304 *0_6S
+3V
+3V
+3V
+3V
L31 *10uH/100MA_8
R631 *0_8S
+1.5V
+VCC_AXCK_DCB +V1.05S_VCC_AXCK_DCB
L11 *0_6S
1.09A (40mils)
50mA (10mils)
R259 *0_4S
C2891U/6. 3V_4
R242 *0_4S
C2881U/6. 3V_4
R265 *0_4S
C2981U/6. 3V_4
R251 *0_4S
C2961U/6. 3V_4
R277 *0_4S
C3061U/6. 3V_4
R311 *0_4S
C3331U/6. 3V_4
R287 *0_4S
C3161U/6. 3V_4
R288 *0_4S
C3201U/6. 3V_4
+V1.05S_VCCCLKF100
+V1.05S_VCCSSCF100 +3V
R309 *0_4S
+1.5V
R312 *0_4S
+3V
R340 *0_4S
for DS3
+3V_DEEP_SUS
R270 *0_4S
+3V_RTC
PCH VCCIO Power
C331
10U/6.3V_6
3.629A (160mils)
C326
1U/6.3V_4
C322
1U/6.3V_4
+V1.05S_VCC_EXP+1.05V
A A
5
4
0.26A (40mils)
R24
VSS
Near Pin
AN34,AN35
R26
R28
U26
U35
L24
U30
V28
V30
Y30
M24
Y35
R20
R22
A16
AE14
AF12
AG14
U36
AA14
P18
P20
L17
R18
AN11
AK22
A26
+V3.3A_VCCPUSB
+V1.05S_VCCAUSB
+V3.3S_VCCAUBG
+V1.05S_VCCUSBCORE
3.629A (160mils)
+V1.05M_VCCDUSBSUS
28mA (10mils)
0.26A (40mils)
15mA (10mils)
+VCCPDSW
+V3.3S_VCCPCORE
+V1.05S_VCCAUX
+VCCSST
+V3.3S_VCCPFUSE
PCH_VCC_1_1_20
PCH_VCC_1_1_21
+V1.05S_VCCAPLL_SATA3
+V1.05S_VCC_EXP_16
10mA (10mils)
+VCC_HDA_IO
C325
1U/6.3V_4
VCCSUS3_3[3]
VCCSUS3_3[4]
VCCSUS3_3[5]
VCCSUS3_3[6]
VCCUSBPLL
VCC3_3[3]
VCCIO[11]
VCCIO[12]
VCCIO[13]
VCCIO[14]
DCPSUS2
VCCSUS3_3[7]
VCCSUS3_3[8]
VCCDSW3_3
VCC3_3[4]
VCC3_3[5]
VCC3_3[6]
GPIO/LPCFUSE
SATA USB
HDA
C312
1U/6.3V_4
4
VCCIO[15]
DCPSST
VCC[1]
VCC[2]
VCCASW[12]
VCCASW[13]
VCCVRM[7]
VCCIO[16]
VCCSUSHDA
C319
1U/6.3V_4
Clock and Miscellaneous
THERMAL
CPURTC
R558 *0_6S
R245 *0_6S
C2860.1U/10V_4
R264 *0_4S
C2910.1U/10V_4
C3001U/6.3V_4
R258 *0_4S
for DS3
R233 *0_4S
C284 0.1U/10V _4
R343 *0_4S
C3450.01U/16V_4
R248 *0_4S
R211 *0_8S
R223 *0_6
C2921U/6.3V_4
R301 *0_4S
EC-DV-01
PCH VRM Power
R282 *0_6S
3.629A (160mils)
R224 *0_4S
C2760.1U/10V_4
C3030.1U/10V_4
R570 *0_8S
C3140.1U/10V_4
+1.05V
R331*0_8S
C336*10U/6.3V_6
+V1.05S_VCC_EXP
for DS3
+1.05V
C299*1U/ 6.3V_4
+3V_DEEP_SUS
+3V
+1.05V
+1.05V_M3
L12*10uH/100MA_8
+3V_DEEP_SUS
+3V_DEEP_SUS
for DS3
+3V
+1.05V
+3VS5
PCH VRM Power
+1.05V
+1.5V
PCH VRM Power
+1.05V
+1.5V
+1.05V
+1.5V
12/03 For SBA
+1.05V_M3
3
+1.05V
12/03 For SBA
+1.05V_M3
+3V_DEEP_SUS
L14 *10uH/100mA_8
R346 *0_8S
L32 *1uH/25mA_6
R632 *0_8S
R308 *0_6
R294 *0_6
MAINON_15V(47)
3
R279 *0_6S
C3081U/6. 3V_4
3.629A (160mils)
R313 *0_4S
C348*10U/6.3V_6
+V1.05S_VCC_EXP
+V1.05S_VCC_EXP
3.629A (160mils)
+V1.05M_VCCSUS
+V1.05M_VCCDUSBSUS
1.29A (60mils)
0.67A (40mils)
R619*0_8S
C301 1U/6.3V_4
C304 1U/6.3V_4
C305 10U/6.3V_6
R276 5.11/F_4
+V1.05S_VCC_EXP
C329*1U/6.3V_4
C330*10U/6.3V_6
+VCCAPLL_USB3
0.476A (30mils)
C302*1U/ 6.3V_4
+V1.05S_VCCAPLL_FDI
Layout Notes:
R5477 close to Y12
R5478 close to Y35
PCH band gap Power
Q39
*ME2N7002D
3
2
PCH VCCSUS
+3V_DEEP_SUS
C584
0.1U/10V_4
+3V_RTC (6,7,24,32,35)
+1.5V (6,7,8,19,24,28,46,48,49)
+1.05V (2,4,9,35,43,48,49,53)
+V1.05S_PCH_VCC
C3111U/6. 3V_4
C3151U/6. 3V_4
C3091U/6. 3V_4
C31710U/6.3V/X5R_6
+V1.05M_VCCASW
+PCH_VCCDSW
0.261A (40mils)
+3V_DEEP_SUS_R
0.098A (20mils)
+VCCA_USBSUS
+V1.05M_VCCSUS
98mA (15mils)
C602*10U/6.3V_6
0.179A (20mils)
R296 *0_6S
Y12 -- DCPSUS1
Y35 -- DCPSUS2
+3V_BG+3VS5
1
2
+3VS5 (2,6,7,9,15,17,20,23,24,25,28,32,37,40,44,47,53)
+3V_DEEP_SUS (6,7,8,9,53)
+3V_M3 (7,44,47,49,53)
+3V (2,6,7,8,9,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)+VCCIO_PCH (4)
Lynx Point (POWER)
RESERVE IT
SLP_SUS_ON_GPG2(32)
2
POWER
VCCADAC1_5
VCCADACBG3_3
CRT
VCC CORE
VCCMPHY
DMI / PCIE
USB3
SPI HVCMOS
FDI
If have power noise issue then stuff it.
+3V +1.5V_LDO
C596
*1U/6.3V_4
SLP_SUS_ON_GPG2
EC-DV-15
U40G
AA24
VCCCORE[1]
AA26
VCCCORE[2]
AD20
VCCCORE[3]
AD22
VCCCORE[4]
AD24
VCCCORE[5]
AD26
VCCCORE[6]
AD28
VCCCORE[7]
AE18
VCCCORE[8]
AE20
VCCCORE[9]
AE22
VCCCORE[10]
AE24
VCCCORE[11]
AE26
VCCCORE[12]
AG18
VCCCORE[13]
AG20
VCCCORE[14]
AG22
VCCCORE[15]
AG24
VCCCORE[16]
Y26
VCCCORE[17]
AA18
VCCASW[1]
U18
VCCASW[2]
U20
VCCASW[3]
U22
VCCASW[4]
U24
VCCASW[5]
V18
VCCASW[6]
V20
VCCASW[7]
V24
VCCASW[8]
Y18
VCCASW[9]
Y20
VCCASW[10]
Y22
VCCASW[11]
V22
VCCASW[12]
U14
DCPSUSBYP
AM18
VCCIO[1]
AM20
VCCIO[2]
AM22
VCCIO[3]
AP22
VCCIO[4]
AR22
VCCIO[5]
AT22
VCCIO[6]
AJ30
VCCSUS3_3[1]
AJ32
VCCSUS3_3[2]
AJ26
DCPSUS3_3[1]
AJ28
DCPSUS3_3[2]
AK26
VCCVRM[1]
AK28
VCCVRM[2]
AK20
VCCIO[7]
Y12
DCPSUS1
BB44
VCCVRM[3]
AN34
VCCIO[8]
AN35
VCCIO[9]
LPT_PCH_HM87_EDS/B GA
PCH DS3 PWR
VSS
VCC3_3[1]
VCC3_3[2]
VCCVRM[4]
VCCIO[10]
VCCSPI
C582
1U/6.3V_4
1
+VCCA_DAC_1_2
P45
P43
13mA (10mils)
M31
+V3.3S_ADACBG
133mA (20mils)
R30
R32
+V3.3S_VCC_GIO
PCH VRM Power
BE22
AK18
+V1.05S_VCC_EXP_10
+V3.3M_VCCPSPI
AD12
70mA (15 mils)
L30
BLM18PG181SN1D_1.5A_6
C587 10U/6.3V_6
C589 0.1U/10V_4
C588 0.01U/16V_4
R584 *0_6
R587 *0_8
R530 *0_8S
R529 *0_8
L13 *1uH/25mA_6
R344 *0_8S
3.629A (160mils)
R690 *0_6S
R272 *0_6
+1.5V
+1.5V_LDO
+3V
+3V_BG
R252 *0_4S
C2930.1U/ 10V_4
C347*10U/6.3V_6
R315 *0_8S
EC-DV-14
+3V_DEEP_SUS
C3101U/6. 3V_4
+3V
+1.05V+V1.05S_VCCAPLL_EX P
+1.5V
+V1.05S_VCC_EXP
+3V_M3
22mA (10mils)
If EC support embedded flash , SPI
power must be used S5_0N power rail
for EC load code.
U39
1
VOUT5VIN
3
EN
2
NC4GND
* G9090-150T11U
+3V_DEEP_SUS+3VS5
R536 *0_8
U38
5
IN
4
IN
3
ON/OFF
AP2821KTR-G1
R555
*100K/F_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
1
OUT
2
GND
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PCH 5/6 (POWER)
PCH 5/6 (POWER)
PCH 5/6 (POWER)
1
10
10 61, 25, 2013
10 61, 25, 2013
10 61, 25, 2013
of
of
of
1ACustom
1ACustom
1ACustom
Page 11

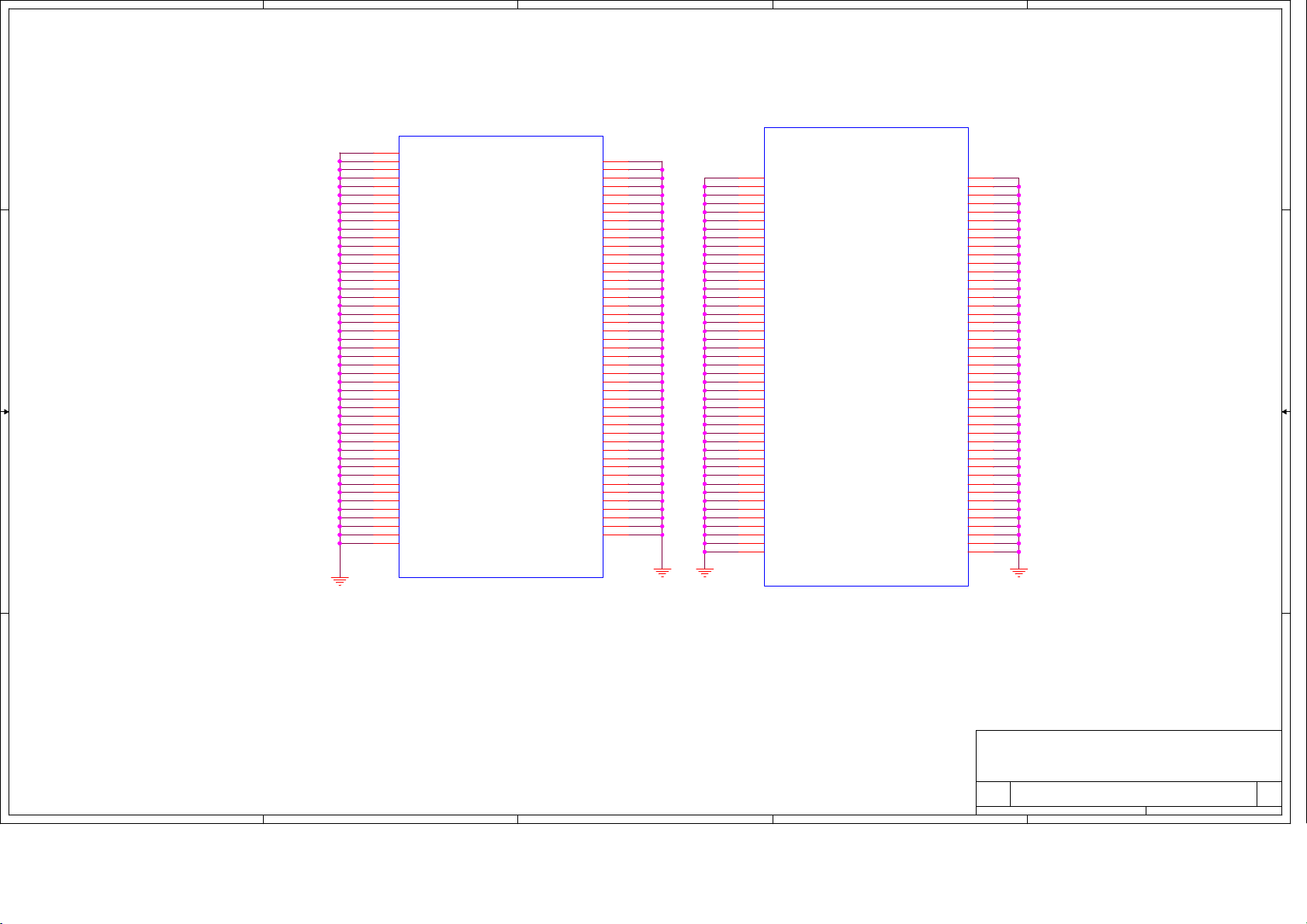

5
4
3
2
1
11
D D
U40H
AL34
VSS[0]
AL38
VSS[1]
AL8
VSS[2]
AM14
VSS[3]
AM24
VSS[4]
AM26
VSS[5]
AM28
VSS[6]
AM30
VSS[7]
AM32
VSS[8]
AM16
VSS[9]
AN36
VSS[10]
AN40
VSS[11]
AN42
VSS[12]
AN8
VSS[13]
AP13
VSS[14]
AP24
VSS[15]
AP31
VSS[16]
AP43
VSS[17]
AR2
VSS[18]
C C
B B
AK16
AT10
AT15
AT17
AT20
AT26
AT29
AT36
AT38
D42
AV13
AV22
AV24
AV31
AV33
BB25
AV40
AV6
AW2
AY10
AY15
AY20
AY26
AY29
AY7
B11
B15
F43
VSS[19]
VSS[20]
VSS[21]
VSS[22]
VSS[23]
VSS[24]
VSS[25]
VSS[26]
VSS[27]
VSS[28]
VSS[29]
VSS[30]
VSS[31]
VSS[32]
VSS[33]
VSS[34]
VSS[35]
VSS[36]
VSS[37]
VSS[38]
VSS[39]
VSS[40]
VSS[41]
VSS[42]
VSS[43]
VSS[44]
VSS[45]
VSS[46]
Lynx Point (GND)
K39
VSS[47]
L2
VSS[48]
L44
VSS[49]
M17
VSS[50]
M22
VSS[51]
N12
VSS[52]
N35
VSS[53]
N39
VSS[54]
N6
VSS[55]
P22
VSS[56]
P24
VSS[57]
P26
VSS[58]
P28
VSS[59]
P30
VSS[60]
P32
VSS[61]
R12
VSS[62]
R14
VSS[63]
R16
VSS[64]
R2
VSS[65]
R34
VSS[66]
R38
VSS[67]
R44
VSS[68]
R8
VSS[69]
T43
VSS[70]
U10
VSS[71]
U16
VSS[72]
U28
VSS[73]
U34
VSS[74]
U38
VSS[75]
U42
VSS[76]
U6
VSS[77]
V14
VSS[78]
V16
VSS[79]
V26
VSS[80]
V43
VSS[81]
W2
VSS[82]
W44
VSS[83]
Y14
VSS[84]
Y16
VSS[85]
Y24
VSS[86]
Y28
VSS[87]
Y34
VSS[88]
Y36
VSS[89]
Y40
VSS[90]
Y8
VSS[91]
AA16
AA20
AA22
AA28
AA4
AB12
AB34
AB38
AB8
AC2
AC44
AD14
AD16
AD18
AD30
AD32
AD40
AD6
AD8
AE16
AE28
AF38
AF8
AG16
AG2
AG26
AG28
AG44
AJ16
AJ18
AJ20
AJ22
AJ24
AJ34
AJ38
AK14
AK24
AK43
AK45
AL12
BC22
BB42
AJ6
AJ8
AL2
U40I
VSS[92]
VSS[93]
VSS[94]
VSS[95]
VSS[96]
VSS[97]
VSS[98]
VSS[99]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
B19
B23
B27
B31
B35
B39
B7
BA40
BD11
BD15
BD19
AY36
AT43
BD31
BD35
BD39
BD7
D25
AV7
F15
F20
F29
F33
BC16
D4
G2
G38
G44
G8
H10
H13
H17
H22
H24
H26
H31
H36
H40
H7
K10
K15
K20
K29
K33
BC28
LPT_PCH_HM87_EDS/BGA
A A
5
4
3
LPT_PCH_HM87_EDS/BGA
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
PCH 6/6 (GND)
PCH 6/6 (GND)
PCH 6/6 (GND)
of
of
of
11 61, 25, 2013
11 61, 25, 2013
11 61, 25, 2013
1
1AB
1AB
1AB
Page 12

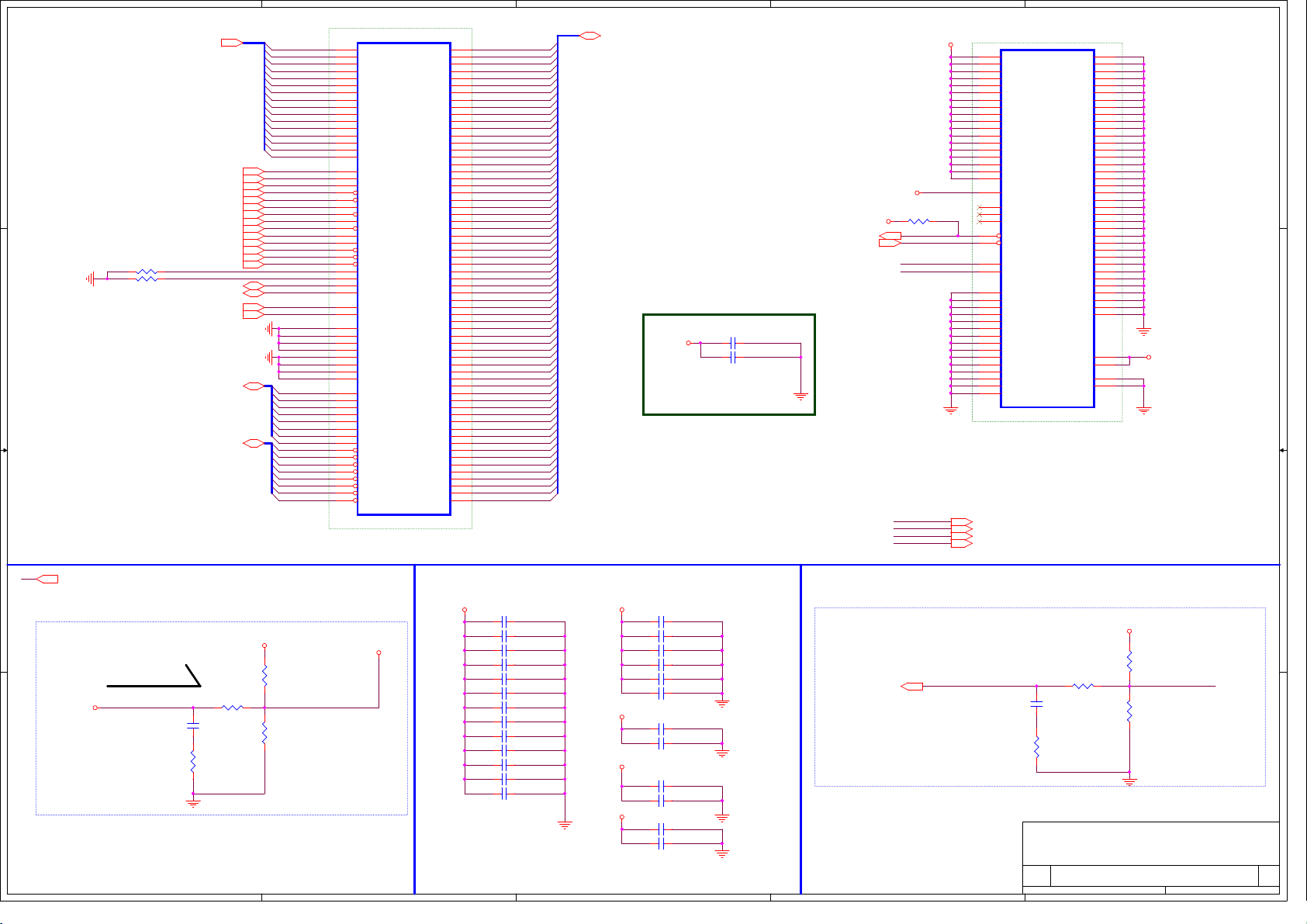

5
4
3
2
1
M_A_A[15:0](3)
D D
M_A_BS#0(3)
M_A_BS#1(3)
M_A_BS#2(3)
M_A_CS#0(3)
M_A_CS#1(3)
M_A_CLKP0(3)
M_A_CLKN0(3)
M_A_CLKP1(3)
M_A_CLKN1(3)
M_A_CKE0(3)
M_A_CKE1(3)
M_A_CAS#(3)
M_A_RAS#(3)
R23 10K_4
R24 10K_4
C C
M_A_WE#(3)
SMB_RUN_CLK(8,13,20,30,33)
SMB_RUN_DAT(8,13,20,30,33)
M_A_ODT0(3)
M_A_ODT1(3)
M_A_DQSP[7:0](3)
M_A_DQSN[7:0](3)
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15
DIMM0_SA0
DIMM0_SA1
SMB_RUN_CLK
SMB_RUN_DAT
M_A_DM1
M_A_DM2
M_A_DQSP0
M_A_DQSP1
M_A_DQSP2
M_A_DQSP3
M_A_DQSP4
M_A_DQSP5
M_A_DQSP6
M_A_DQSP7
M_A_DQSN0
M_A_DQSN1
M_A_DQSN2
M_A_DQSN3
M_A_DQSN4
M_A_DQSN5
M_A_DQSN6
M_A_DQSN7
JDIM2A
98
A0
97
A1
96
A2
95
A3
92
A4
91
A5
90
A6
86
A7
89
A8
85
A9
107
A10/AP
84
A11
83
A12/BC#
119
A13
80
A14
78
A15
109
BA0
108
BA1
79
BA2
114
S0#
121
S1#
101
CK0
103
CK0#
102
CK1
104
CK1#
73
CKE0
74
CKE1
115
CAS#
110
RAS#
113
WE#
197
SA0
201
SA1
202
SCL
200
SDA
116
ODT0
120
ODT1
11
DM0
28
DM1
46
DM2
63
DM3
136
DM4
153
DM5
170
DM6
187
DM7
12
DQS0
29
DQS1
47
DQS2
64
DQS3
137
DQS4
154
DQS5
171
DQS6
188
DQS7
10
DQS#0
27
DQS#1
45
DQS#2
62
DQS#3
135
DQS#4
152
DQS#5
169
DQS#6
186
DQS#7
DDR3-DIMM0_H=4.0_STD
5
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
(204P)
PC2100 DDR3 SDRAM SO-DIMM
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
M_A_DQ4
7
M_A_DQ5
15
M_A_DQ7
17
M_A_DQ6
4
M_A_DQ1
6
M_A_DQ0
16
M_A_DQ3
18
M_A_DQ2
21
M_A_DQ9
23
M_A_DQ8
33
M_A_DQ15
35
M_A_DQ10
22
M_A_DQ12
24
M_A_DQ13
34
M_A_DQ14
36
M_A_DQ11
39
M_A_DQ21
41
M_A_DQ16
51
M_A_DQ19
53
M_A_DQ18
40
M_A_DQ20
42
M_A_DQ17
50
M_A_DQ23
52
M_A_DQ22
57
M_A_DQ25
59
M_A_DQ24
67
M_A_DQ30
69
M_A_DQ26
56
M_A_DQ28
58
M_A_DQ29
68
M_A_DQ31
70
M_A_DQ27
129
M_A_DQ36
131
M_A_DQ37
141
M_A_DQ34
143
M_A_DQ38
130
M_A_DQ32
132
M_A_DQ33
140
M_A_DQ35
142
M_A_DQ39
147
M_A_DQ41
149
M_A_DQ45
157
M_A_DQ47
159
M_A_DQ46
146
M_A_DQ40
148
M_A_DQ44
158
M_A_DQ42
160
M_A_DQ43
163
M_A_DQ49
165
M_A_DQ48
175
M_A_DQ54
177
M_A_DQ55
164
M_A_DQ53
166
M_A_DQ52
174
M_A_DQ50
176
M_A_DQ51
181
M_A_DQ61
183
M_A_DQ60
191
M_A_DQ62
193
M_A_DQ63
180
M_A_DQ56
182
M_A_DQ57
192
M_A_DQ59
194
M_A_DQ58
M_A_DQ[63:0] (3)
Reseve for RF
+1.35VSUS
C188 *2.2U/6.3V_6
C199 *2.2U/6.3V_6
+3V
PM_EXTTS#0(1 3)
DDR3_DRAMRST#(2,13)
EC-SIT-33
B B
+VREF_CA_CPU (3)
INTEL sugg estion
+1.35VSUS
R50
1K/F_4
+VREF_CA_CPU
A A
5
R125 *0_6S
C238
0.022U/16V_4
R132
24.9/F_4
R46
1K/F_4
+SMDDR_VREF_DIMM
+SMDDR_VREF_DIMM
4
+1.35VSUS +0.675V_DDR_VTT
C79 1U/6.3V_4
C106 1U/6.3V_4
C116 1U/6.3V_4
C112 1U/6.3V_4
C109 10U/6.3V_6
C132 10U/6.3V_6
C78 10U/6.3V_6
C120 10U/6.3V_6
C98 10U/6.3V_6
C87 10U/6.3V_6
C136 10U/6.3V_6
C70 10U/6.3V/X5R_8
C130 10U/6.3V/X5R_8
+SMDDR_VREF_DIMM
+SMDDR_VREF_DQ0
4/27: layout modify
C61 1U/6.3V_4
C45 1U/6.3V_4
C57 1U/6.3V_4
C65 1U/6.3V_4
C43 10U/6.3V_6
C56 *10U/6.3V_6
C63 0.1U/10V_4
C220 2.2U/6.3V_6
C264 0.1U/10V_4
C257 2.2U/6.3V_6
+3V
C47 0.1U/10V_4
C48 2.2U/6.3V_6
3
Place these Caps near So-Dimm0.
INTEL sugg estion
SMDDR_VREF_DQ0_M3(3)
2.48A
+3V
R19 10K_4
PM_EXTTS#0
+SMDDR_VREF_DQ0
+SMDDR_VREF_DIMM
SMDDR_VREF_DQ0_M3
2
+1.35VSUS
JDIM2B
75
VDD1
76
VDD2
81
VDD3
82
VDD4
87
VDD5
88
VDD6
93
VDD7
94
VDD8
99
VDD9
100
VDD10
105
VDD11
106
VDD12
111
VDD13
112
VDD14
117
VDD15
118
VDD16
123
VDD17
124
VDD18
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS1
3
VSS2
8
VSS3
9
VSS4
13
VSS5
14
VSS6
19
VSS7
20
VSS8
25
VSS9
26
VSS10
31
VSS11
32
VSS12
37
VSS13
38
VSS14
43
VSS15
DDR3-DIMM0_H=4.0_STD
44
VSS16
48
VSS17
49
VSS18
54
VSS19
55
VSS20
60
VSS21
61
VSS22
65
VSS23
66
VSS24
71
VSS25
72
VSS26
127
VSS27
128
VSS28
133
VSS29
134
VSS30
138
VSS31
139
VSS32
144
VSS33
145
VSS34
150
VSS35
151
VSS36
155
VSS37
156
VSS38
161
VSS39
162
VSS40
167
VSS41
168
VSS42
172
VSS43
173
VSS44
178
VSS45
179
VSS46
184
VSS47
185
VSS48
189
VSS49
190
VSS50
195
VSS51
196
VSS52
(204P)
PC2100 DDR3 SDRAM SO-DIMM
VTT1
VTT2
GND
GND
203
204
205
206
+0.675V_DDR_VTT
EC-SIT-33
+3V (2,6,7,8,9,10,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
+1.35VSUS (2,4,13,38,41,49)
+0.675V_DDR_VTT (13,41,49)
+SMDDR_VREF_DIMM (13,41)
VREF DQ0 M1 SolutionPlace these Caps near So-Dimm0.
+1.35VSUS
R159
1K/F_4
R162 *0_6S
C265
0.022U/16V_4
R164
24.9/F_4
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Quanta Computer Inc.
+SMDDR_VREF_DQ0
R163
1K/F_4
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
DDR3 DIMM0-RVS (4.0H)
DDR3 DIMM0-RVS (4.0H)
DDR3 DIMM0-RVS (4.0H)
1
12 61, 25, 2013
12 61, 25, 2013
12 61, 25, 2013
12
of
of
of
1ACustom
1ACustom
1ACustom

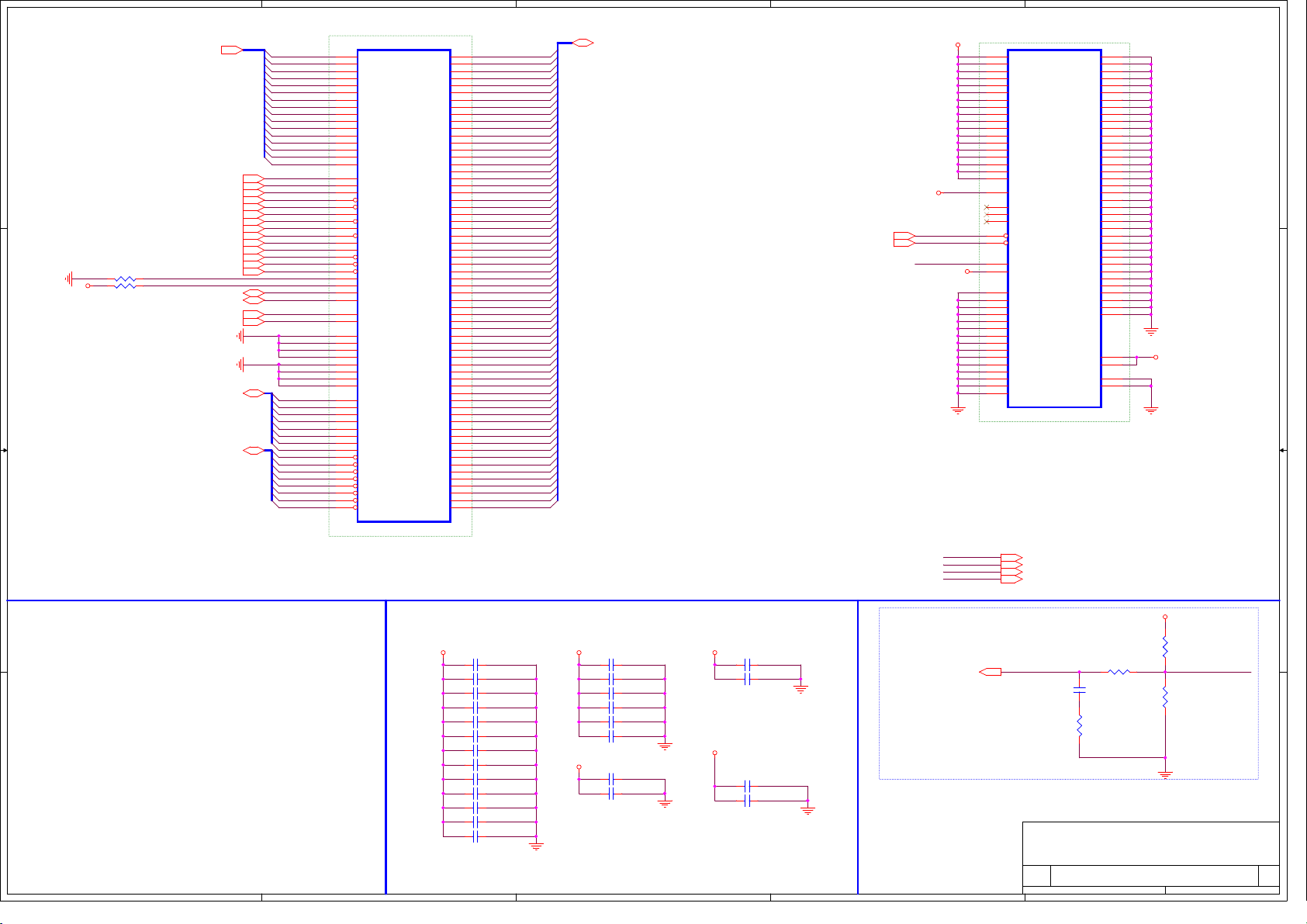

Page 13
5
(2,6,7,8,9,10,12,14,19,20,21 ,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
4
3
2
1
2.48A
+3V
PM_EXTTS#0
+SMDDR_VREF_DQ1
+1.35VSUS
JDIM1B
75
VDD1
76
VDD2
81
VDD3
82
VDD4
87
VDD5
88
VDD6
93
VDD7
94
VDD8
99
VDD9
100
VDD10
105
VDD11
106
VDD12
111
VDD13
112
VDD14
117
VDD15
118
VDD16
123
VDD17
124
VDD18
199
VDDSPD
77
NC1
122
NC2
125
NCTEST
198
EVENT#
30
RESET#
1
VREF_DQ
126
VREF_CA
2
VSS1
3
VSS2
8
VSS3
9
VSS4
13
VSS5
14
VSS6
19
VSS7
20
VSS8
25
VSS9
26
VSS10
31
VSS11
32
VSS12
37
VSS13
38
VSS14
43
VSS15
DDR3-DIMM1_H=8.0_STD
+3V
+1.35VSUS (2,4,12,38,41,49)
+0.675V_DDR_VTT (12,41,49)
+SMDDR_VREF_DIMM (12,41)
PC2100 DDR3 SDRAM SO-DIMM
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
(204P)
VTT1
VTT2
GND
GND
EC-SIT-33
44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196
203
204
205
206
+0.675V_DDR_VTT
13
M_B_A[15:0](3)
D D
M_B_BS#0(3)
M_B_BS#1(3)
M_B_BS#2(3)
M_B_CS#0(3)
M_B_CS#1(3)
M_B_CLKP0(3)
M_B_CLKN0(3)
M_B_CLKP1(3)
M_B_CLKN1(3)
M_B_CKE0(3)
M_B_CKE1(3)
M_B_CAS#(3)
M_B_RAS#(3)
R421 10K_4
R420 10K_4
+3V
C C
B B
M_B_WE#(3)
SMB_RUN_CLK(8,12,20,30,33)
SMB_RUN_DAT(8,12,20,30,33)
M_B_ODT0(3)
M_B_ODT1(3)
M_B_DQSP[7:0](3)
M_B_DQSN[7:0](3)
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15
DIMM1_SA0
DIMM1_SA1
M_B_DM1
M_B_DM2
M_B_DQSP0
M_B_DQSP1
M_B_DQSP2
M_B_DQSP3
M_B_DQSP4
M_B_DQSP5
M_B_DQSP6
M_B_DQSP7
M_B_DQSN0
M_B_DQSN1
M_B_DQSN2
M_B_DQSN3
M_B_DQSN4
M_B_DQSN5
M_B_DQSN6
M_B_DQSN7
JDIM1A
98
A0
97
A1
96
A2
95
A3
92
A4
91
A5
90
A6
86
A7
89
A8
85
A9
107
A10/AP
84
A11
83
A12/BC#
119
A13
80
A14
78
A15
109
BA0
108
BA1
79
BA2
114
S0#
121
S1#
101
CK0
103
CK0#
102
CK1
104
CK1#
73
CKE0
74
CKE1
115
CAS#
110
RAS#
113
WE#
197
SA0
201
SA1
202
SCL
200
SDA
116
ODT0
120
ODT1
11
DM0
28
DM1
46
DM2
63
DM3
136
DM4
153
DM5
170
DM6
187
DM7
12
DQS0
29
DQS1
47
DQS2
64
DQS3
137
DQS4
154
DQS5
171
DQS6
188
DQS7
10
DQS#0
27
DQS#1
45
DQS#2
62
DQS#3
135
DQS#4
152
DQS#5
169
DQS#6
186
DQS#7
DDR3-DIMM1_H=8.0_STD
PC2100 DDR3 SDRAM SO-DIMM
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
(204P)
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
EC-SIT-33
5
M_B_DQ5
7
M_B_DQ4
15
M_B_DQ3
17
M_B_DQ2
4
M_B_DQ0
6
M_B_DQ1
16
M_B_DQ6
18
M_B_DQ7
21
M_B_DQ12
23
M_B_DQ13
33
M_B_DQ14
35
M_B_DQ10
22
M_B_DQ8
24
M_B_DQ9
34
M_B_DQ11
36
M_B_DQ15
39
M_B_DQ20
41
M_B_DQ21
51
M_B_DQ18
53
M_B_DQ22
40
M_B_DQ17
42
M_B_DQ16
50
M_B_DQ19
52
M_B_DQ23
57
M_B_DQ25
59
M_B_DQ29
67
M_B_DQ27
69
M_B_DQ26
56
M_B_DQ28
58
M_B_DQ24
68
M_B_DQ31
70
M_B_DQ30
129
M_B_DQ36
131
M_B_DQ37
141
M_B_DQ35
143
M_B_DQ34
130
M_B_DQ33
132
M_B_DQ32
140
M_B_DQ39
142
M_B_DQ38
147
M_B_DQ44
149
M_B_DQ40
157
M_B_DQ42
159
M_B_DQ43
146
M_B_DQ45
148
M_B_DQ41
158
M_B_DQ46
160
M_B_DQ47
163
M_B_DQ49
165
M_B_DQ48
175
M_B_DQ54
177
M_B_DQ55
164
M_B_DQ52
166
M_B_DQ53
174
M_B_DQ50
176
M_B_DQ51
181
M_B_DQ61
183
M_B_DQ56
191
M_B_DQ62
193
M_B_DQ63
180
M_B_DQ57
182
M_B_DQ60
192
M_B_DQ59
194
M_B_DQ58
M_B_DQ[63:0] (3)
Footprint & P/N = okay @1216 -- ALF
DDR3_DRAMRST#(2,12)
PM_EXTTS#0(12)
+SMDDR_VREF_DIMM
Place these Caps near So-Dimm1.
+1.35VSUS
C110 1U/6.3V_4
C121 1U/6.3V_4
C115 1U/6.3V_4
C89 1U/6.3V_4
C96 10U/6.3V_6
C104 10U/6.3V_6
C95 10U/6.3V_6
C90 10U/6.3V_6
A A
5
4
C143 10U/6.3V_6
C102 10U/6.3V_6
C128 10U/6.3V_6
C202 10U/6.3V/X5R_8
C77 10U/6.3V/X5R_8
+0.675V_DDR_VTT
C447 1U/6.3V_4
C449 1U/6.3V_4
C448 1U/6.3V_4
C44 1U/6.3V_4
C46 10U/6.3V_6 R156
C453 *10U/6.3V_6
+3V
C455 0.1U/10V_4
C456 2.2U/6.3V_6
+SMDDR_VREF_DIMM
C62 0.1U/10V_4
C88 2.2U/6.3V_6
+SMDDR_VREF_DQ1
C253 0.1U/10V_4
C250 2.2U/6.3V_6
3
VREF DQ1 M1 Solution
Place these Caps near So-Dimm1.
INTEL sugg estion
SMDDR_VREF_DQ1_M3(3)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
R137 *0_6S
C252
0.022U/16V_4
24.9/F_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
+1.35VSUS
R157
1K/F_4
+SMDDR_VREF_DQ1
R155
1K/F_4
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
DDR3 DIMM1-RVS (8.0H)
DDR3 DIMM1-RVS (8.0H)
DDR3 DIMM1-RVS (8.0H)
1
13 61, 25, 2013
13 61, 25, 2013
13 61, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of
Page 14
5
<VGA>
3300mA
GK208/GF117/GF119
+1.05V_GFX_PCIE
Under GPU
D D
Near GPU
Midway between
GPU and power
supply
+1.05V_GFX_PCIE
Under GPU
Near GPU
C C
+3V_GPU
C233 [email protected]/6.3V/X5R_6
C236 [email protected]/6.3V/X5R_6
C173 [email protected]/10V/X7R_4
C180 DIS@1U/6.3V/X5R_4
C181 DIS@1U/6.3V/X5R_4
C168 [email protected]/6.3V/X5R_6
C94 DIS@10U/6.3V/X5R_8
C100 DIS@10U/6.3V/X5R_8
C484 DIS@22U/6.3V/X5R_8
C108 DIS@22U/6.3V/X5R_8
C179 DIS@1U/6.3V/X5R_4
C178 DIS@1U/6.3V/X5R_4
C167 [email protected]/6.3V/X5R_6
C111 DIS@10U/6.3V/X5R_8
C489 DIS@10U/6.3V/X5R_8
C479 DIS@22U/6.3V/X5R_8
C93 DIS@22U/6.3V/X5R_8
Midway between
GPU and power
supply
210mA
Near GPU
GPUCORE_VCCSENSE(45)
GPUCORE_VSSSENSE(45)
B B
12~16 mils
Under GPU
Near GPU
+1.05V_GFX_PCIE
C487 [email protected]/10V/X7R_4
C486 DIS@1U/10V/X7R_6
C483 [email protected]/6.3V/X5R_6
L26 DIS@BLM18AG121SN1D(120,200MA)
GPUCORE_VCCSENSE
GPUCORE_VSSSENSE
R430 *DIS@200/F_4
+PEX_PLLVDD
150mA
A A
PEX_PLLVDD 120 ohm @100MHz bead
N14P-GV2
N14M-GE
N14M-GL
0 ohm
Stuff
Stuff
5
R57
DIS@10K/F_4
R431
AA22
AB23
AC24
AD25
AE26
AE27
AA10
AA12
AA13
AA16
AA18
AA19
AA20
AA21
AB22
AC23
AD24
AE25
AF26
AF27
AA8
AA9
AB8
AF22
AE22
AA14
AA15
AD9
AF25
F2
F1
PEX_IOVDD
PEX_IOVDD
PEX_IOVDD
PEX_IOVDD
PEX_IOVDD
PEX_IOVDD
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_IOVDDQ
PEX_PLL_HVDD
PEX_PLL_HVDD
PEX_SVDD_3V3
VDD_SENSE
GND_SENSE
PEX_TSTCLK_OUT
PEX_TSTCLK_OUT
PEX_PLLVDD
PEX_PLLVDD
TESTMODE
PEX_TERMP
U_GPU_GV2_64
bga595-nvidia-n13m-gs-s-a2
1/14 PCI_EXPRESS
PEX_WAKE
NC
PEX_CLKREQ
PEX_REFCLK
PEX_REFCLK
NC
NC
NC
NC
NC
NC
NC
NC
PEX_TX10
NC
PEX_TX10
NC
PEX_RX10
NC
PEX_RX10
NC
PEX_TX11
NC
PEX_TX11
NC
PEX_RX11
NC
PEX_RX11
NC
PEX_TX12
NC
PEX_TX12
NC
PEX_RX12
NC
PEX_RX12
NC
PEX_TX13
NC
PEX_TX13
NC
PEX_RX13
NC
PEX_RX13
NC
PEX_TX14
NC
PEX_TX14
NC
PEX_RX14
NC
PEX_RX14
NC
PEX_TX15
NC
PEX_TX15
NC
PEX_RX15
NC
PEX_RX15
NC
GF117 GF119
GK208
4
COMMON
PEX_RST
PEX_TX0
PEX_TX0
PEX_RX0
PEX_RX0
PEX_TX1
PEX_TX1
PEX_RX1
PEX_RX1
PEX_TX2
PEX_TX2
PEX_RX2
PEX_RX2
PEX_TX3
PEX_TX3
PEX_RX3
PEX_RX3
PEX_TX4
PEX_TX4
PEX_RX4
PEX_RX4
PEX_TX5
PEX_TX5
PEX_RX5
PEX_RX5
PEX_TX6
PEX_TX6
PEX_RX6
PEX_RX6
PEX_TX7
PEX_TX7
PEX_RX7
PEX_RX7
PEX_TX8
PEX_TX8
PEX_RX8
PEX_RX8
PEX_TX9
PEX_TX9
PEX_RX9
PEX_RX9
4
U25A
VGA_PLTRST#
AB6
AC7
AC6
AE8
AD8
AC9
AB9
AG6
AG7
AB10
AC10
AF7
AE7
AD11
AC11
AE9
AF9
AC12
AB12
AG9
AG10
AB13
AC13
AF10
AE10
AD14
AC14
AE12
AF12
AC15
AB15
AG12
AG13
AB16
AC16
AF13
AE13
AD17
AC17
AE15
AF15
AC18
AB18
AG15
AG16
AB19
AC19
AF16
AE16
AD20
AC20
AE18
AF18
AC21
AB21
AG18
AG19
AD23
AE23
AF19
AE19
AF24
AE24
AE21
AF21
AG24
AG25
AG21
AG22
R77 *DIS@10K_4
PEX_WAKE#
VGA_RST#
PEX_CLKREQ#
PEG_RXP0_C
PEG_RXN0_C
PEG_TXP0
PEG_TXN0
PEG_RXP1_C
PEG_RXN1_C
PEG_TXP1
PEG_TXN1
PEG_RXP2_C
PEG_RXN2_C
PEG_TXP2
PEG_TXN2
PEG_RXP3_C
PEG_RXN3_C
PEG_TXP3
PEG_TXN3
PEG_RXP4_C
PEG_RXN4_C
PEG_TXP4
PEG_TXN4
PEG_RXP5_C
PEG_RXN5_C
PEG_TXP5
PEG_TXN5
PEG_RXP6_C
PEG_RXN6_C
PEG_TXP6
PEG_TXN6
PEG_RXP7_C
PEG_RXN7_C
PEG_TXP7
PEG_TXN7
new adding @1201 ALF
+1.05V_GFX_PCIE
+1.5V_GPU
GPU Power Seqence:
+3V > GPU_CORE > +1.5 > +1.05V
VGA_PLTRST# (17)
C127 *[email protected]/10V/X7R_4
R58 *0_4/S
C66 [email protected]/10V/X5R_4
1 2
1 2
C64 [email protected]/10V/X5R_4
1 2
1 2
C74 [email protected]/10V/X5R_4
1 2
1 2
C75 [email protected]/10V/X5R_4
1 2
1 2
C84 [email protected]/10V/X5R_4
1 2
C76 [email protected]/10V/X5R_4
1 2
C86 [email protected]/10V/X5R_4
1 2
1 2
C91 [email protected]/10V/X5R_4
1 2
1 2
C99 [email protected]/10V/X5R_4
1 2
1 2
C103 [email protected]/10V/X5R_4
R89 DIS@10K/F_4
R109 DIS@10K/F_4
VGA_PLTRST#
C131 2200P/50V/X7R_4
C152*DIS@1000P/50V/X7R_4 @NC
C175*DIS@1000P/50V/X7R_4 @NC
+3V_GPU
2
2
3
+3V_GPU
CLK_PCIE_VGA (8)
CLK_PCIE_VGA# (8)
PEG_RXP0 (2)
PEG_RXN0 ( 2)
PEG_TXP0 (2)
PEG_TXN0 (2)
PEG_RXP1 (2)
PEG_RXN1 ( 2)
PEG_TXP1 (2)
PEG_TXN1 (2)
PEG_RXP2 (2)
PEG_RXN2 ( 2)
PEG_TXP2 (2)
PEG_TXN2 (2)
PEG_RXP3 (2)
PEG_RXN3 ( 2)
PEG_TXP3 (2)
PEG_TXN3 (2)
PEG_RXP4 (2)
PEG_RXN4 ( 2)
PEG_TXP4 (2)
PEG_TXN4 (2)
PEG_RXP5 (2)
PEG_RXN5 ( 2)
PEG_TXP5 (2)
PEG_TXN5 (2)
PEG_RXP6 (2)
PEG_RXN6 ( 2)
PEG_TXP6 (2)
PEG_TXN6 (2)
PEG_RXP7 (2)
PEG_RXN7 ( 2)
PEG_TXP7 (2)
PEG_TXN7 (2)
+3V_GPU
+3V
R68 DIS@10K/F_4
R59
DIS@10K/F_4
GFXPG
Q2
2
1 3
Q5
DIS@DTC143TKAT146
1 3
Q7
DIS@DTC143TKAT146
1 3
3
PEG CLK detect
2
Q6
DIS@2N7002BK
GFXPG
EC-SIT-06
3
R98
DIS@10K_4
1
GPU RST#(CLG)
+3V
U5
VGA_PLTRST#
DIS@100K/F_4
4
R76
AD10
AD7
B19
F11
V5
V6
G1
G2
GFXPG (9)
DIS@PMBT3904
G3
G4
G5
G6
G7
V1
V2
W1
W2
W3
W4
For Power Down Sequence
+3V_GPU +3V_GPU
+1.5V_GPU
D19
*DIS@RB500V-4 0
NV's Suggestion @1218 ALF
N14P-GV2 Group C - Un-Stuff
N14M-GE
N14M-GL Group C - Stuff
C149 [email protected]/10V/X7R_4
2
1
DIS@TC7SH08FU(F)
3 5
+3V_GPU(14,17,35,38,45,48,50)
+1.05V_GFX_PCIE(14,15,16,48,50)
+VGPU_CORE(14,45,50)
U25C
bga595-nvidia-n13m-gs-s-a2
COMMON
14/14 XVDD/VDD33
NC
NC
NC
3V3AUX_NC
FERMI_RSVD1_NC
FERMI_RSVD2_NC
CONFIGURABLE
POWER CHANNELS
* nc on substrate
XPWR_G1
XPWR_G2
XPWR_G3
XPWR_G4
XPWR_G5
XPWR_G6
XPWR_G7
XPWR_V1
XPWR_V2
XPWR_W 1
XPWR_W 2
XPWR_W 3
XPWR_W 4
U_GPU_GV2_64
Group C
Group C - Stuff
2
CLK_PEGA_REQ# (8)
DGPU_HOLD_RST# (8)
PLTRST# (2,8,23 ,27,28,30,34)
+3V_GPU
G10
VDD33
VDD33
VDD33
VDD33
C242 [email protected]/6.3V/X5R_6
G12
C234 DIS@1U/10V/X7R_6
G8
G9
C244 [email protected]/10V/X7R_4
C172 [email protected]/10V/X7R_4
C227 [email protected]/10V/X7R_4
C171 [email protected]/10V/X7R_4
(Group C)
+VGPU_CORE
D6
*DIS@RB500V-4 0
2
+3V (2,6,7,8,9,10,12,13,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
+3V_GPU (14,17,35,38,45,48,50)
+1.5V_GPU (15,18,38,48,50)
+1.05V_GFX_PCIE (14,15,16,48,50)
+VGPU_CORE (14,45,50)
+VGPU_CORE
bga595-nvi dia-n13m-gs- s-a2
U_GPU_GV2_64
COMMON
11/14 NVVDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
U25E
C193 [email protected]/6.3V/X5R_6
K10
C194 [email protected]/6.3V/X5R_6
K12
C210 [email protected]/6.3V/X5R_6
K14
C221 [email protected]/6.3V/X5R_6
K16
C209 [email protected]/6.3V/X5R_6
K18
C191 [email protected]/6.3V/X5R_6
L11
C196 [email protected]/6.3V/X5R_6
L13
C169 [email protected]/6.3V/X5R_6
L15
C205 [email protected]/6.3V/X5R_6
L17
C192 [email protected]/6.3V/X5R_6
M10
M12
M14
C216 [email protected]/10V/X7R_4
M16
C165 [email protected]/10V/X7R_4
M18
N11
N13
C497 DIS@47U/6.3V/X5R_8
N15
C543 DIS@22U/6.3V/X5R_8
N17
C499 [email protected]/6.3V/X5R_6
P10
C498 [email protected]/6.3V/X5R_6
P12
C548 [email protected]/6.3V/X5R_6
P14
C550 [email protected]/6.3V/X5R_6
P16
C537 [email protected]/6.3V/X5R_6
P18
R11
C200 *220U/2.5V_3216
R13
R15
R17
T10
T12
T14
T16
T18
U11
U13
U15
U17
V10
V12
V14
V16
V18
1
20A
PLACE UNDER BALLS
Under GPU
Near GPU
+
Near GPU
Under GPU
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Quanta Computer Inc.
N14M-GL (PCIE I/F) 1/5
N14M-GL (PCIE I/F) 1/5
N14M-GL (PCIE I/F) 1/5
1
14 61, 25, 2013
14 61, 25, 2013
14 61, 25, 2013
14
of
of
of
1ACustom
1ACustom
1ACustom
Page 15
5
<VGA>
Ra
R168 0_4
FB_CLAMP
for GC6 support
D D
for GC6 @1218 ALF
DIS@10K/F_4
GPIO0 For GC6 function
N14P-GV2
N14M-GE
N14M-GL
C C
B B
+1.5V_GPU
+1.05V_GFX_PCIE
30ohm/100MHz
ESR=0.01ohm
A A
Ra - Stuff / Rb - Stuff
Ra - Un-Stuff/Rb - Stuff
Ra - Un-Stuff/Rb - Stuff
FBA_CMD0(18)
FBA_CMD2(18)
FBA_CMD3(18)
FBA_CMD4(18)
FBA_CMD5(18)
FBA_CMD6(18)
FBA_CMD7(18)
FBA_CMD8(18)
FBA_CMD9(18)
FBA_CMD10(18)
FBA_CMD11(18)
FBA_CMD12(18)
FBA_CMD13(18)
FBA_CMD14(18)
FBA_CMD15(18)
FBA_CMD16(18)
FBA_CMD18(18)
FBA_CMD19(18)
FBA_CMD20(18)
FBA_CMD21(18)
FBA_CMD22(18)
FBA_CMD23(18)
FBA_CMD24(18)
FBA_CMD25(18)
FBA_CMD26(18)
FBA_CMD27(18)
FBA_CMD28(18)
FBA_CMD29(18)
FBA_CMD30(18)
For debug only
VMA_CLK0(18)
VMA_CLK0#(18)
VMA_CLK1(18)
VMA_CLK1#(18)
15mils width
Near GPU
L29 DIS@BLM18PG300SN1D_1A_6
Under GPU
Near GPU
10mA
200mA
C241 [email protected]/10V/X7R_4
C564 [email protected]/10V/X7R_4
C232 [email protected]/10V/X7R_4
C571 DIS@22U/6.3V/X5R_8
5
FBA_DEBUG0
FBA_DEBUG1
VMA_CLK0
VMA_CLK0#
VMA_CLK1
VMA_CLK1#
+FB_PLLAVDD
FBA_CMD0
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD29
FBA_CMD30
R127
F3
Rb
C27
C26
E24
F24
D27
D26
F25
F26
F23
G22
G23
G24
F27
G25
G27
G26
M24
M23
K24
K23
M27
M26
M25
K26
K22
J23
J25
J24
K27
K25
J27
J26
F22
J22
D24
D25
N22
M22
D18
C18
D17
D16
T24
U24
V24
V25
F16
P22
H22
FB_CLAMP
FBA_CMD0
FBA_CMD1
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD17
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD29
FBA_CMD30
FBA_CMD31
FBA_DEBUG0
FBA_DEBUG1
FBA_CLK0
FBA_CLK0
FBA_CLK1
FBA_CLK1
FBA_WCK01
FBA_WCK01
FBA_WCK23
FBA_WCK23
FBA_WCK45
FBA_WCK45
FBA_WCK67
FBA_WCK67
FB_PLLAVDD
FB_PLLAVDD
FB_DLLAVDD
U_GPU_GV2_64
NC
GF119GF117/GK208
FB_PLLAVDD
GF117GF119/GK208
4
bga595-nvidia-n13m-gs-s-a2
FBA_DQS_WP0
FBA_DQS_WP1
FBA_DQS_WP2
FBA_DQS_WP3
FBA_DQS_WP4
FBA_DQS_WP5
FBA_DQS_WP6
FBA_DQS_WP7
FBA_DQS_RN0
FBA_DQS_RN1
FBA_DQS_RN2
FBA_DQS_RN3
FBA_DQS_RN4
FBA_DQS_RN5
FBA_DQS_RN6
FBA_DQS_RN7
FB_VREF_PROBE
4
COMMON
2/14 FBA
FBA_D0
FBA_D1
FBA_D2
FBA_D3
FBA_D4
FBA_D5
FBA_D6
FBA_D7
FBA_D8
FBA_D9
FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15
FBA_D16
FBA_D17
FBA_D18
FBA_D19
FBA_D20
FBA_D21
FBA_D22
FBA_D23
FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D37
FBA_D38
FBA_D39
FBA_D40
FBA_D41
FBA_D42
FBA_D43
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D53
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D63
FBA_DQM0
FBA_DQM1
FBA_DQM2
FBA_DQM3
FBA_DQM4
FBA_DQM5
FBA_DQM6
FBA_DQM7
U25B
E18
F18
E16
F17
D20
D21
F20
E21
E15
D15
F15
F13
C13
B13
E13
D13
B15
C16
A13
A15
B18
A18
A19
C19
B24
C23
A25
A24
A21
B21
C20
C21
R22
R24
T22
R23
N25
N26
N23
N24
V23
V22
T23
U22
Y24
AA24
Y22
AA23
AD27
AB25
AD26
AC25
AA27
AA26
W26
Y25
R26
T25
N27
R27
V26
V27
W27
W25
D19
D14
C17
C22
P24
W24
AA25
U25
E19
C15
B16
B22
R25
W23
AB26
T26
F19
C14
A16
A22
P25
W22
AB27
T27
D23
VMA_DQ0
VMA_DQ1
VMA_DQ2
VMA_DQ3
VMA_DQ4
VMA_DQ5
VMA_DQ6
VMA_DQ7
VMA_DQ8
VMA_DQ9
VMA_DQ10
VMA_DQ11
VMA_DQ12
VMA_DQ13
VMA_DQ14
VMA_DQ15
VMA_DQ16
VMA_DQ17
VMA_DQ18
VMA_DQ19
VMA_DQ20
VMA_DQ21
VMA_DQ22
VMA_DQ23
VMA_DQ24
VMA_DQ25
VMA_DQ26
VMA_DQ27
VMA_DQ28
VMA_DQ29
VMA_DQ30
VMA_DQ31
VMA_DQ32
VMA_DQ33
VMA_DQ34
VMA_DQ35
VMA_DQ36
VMA_DQ37
VMA_DQ38
VMA_DQ39
VMA_DQ40
VMA_DQ41
VMA_DQ42
VMA_DQ43
VMA_DQ44
VMA_DQ45
VMA_DQ46
VMA_DQ47
VMA_DQ48
VMA_DQ49
VMA_DQ50
VMA_DQ51
VMA_DQ52
VMA_DQ53
VMA_DQ54
VMA_DQ55
VMA_DQ56
VMA_DQ57
VMA_DQ58
VMA_DQ59
VMA_DQ60
VMA_DQ61
VMA_DQ62
VMA_DQ63
VMA_DM0
VMA_DM1
VMA_DM2
VMA_DM3
VMA_DM4
VMA_DM5
VMA_DM6
VMA_DM7
VMA_WDQS0
VMA_WDQS1
VMA_WDQS2
VMA_WDQS3
VMA_WDQS4
VMA_WDQS5
VMA_WDQS6
VMA_WDQS7
VMA_RDQS0
VMA_RDQS1
VMA_RDQS2
VMA_RDQS3
VMA_RDQS4
VMA_RDQS5
VMA_RDQS6
VMA_RDQS7
+FB_VREF1
3
GC6 feature for
N14p-GV2
FB_CLAMP(32,48)
EC-SIT2-08
GFXON(32,45,48)
FB_CLAMP
5
+5VS5
R528
DIS@10K/F_4
34
Q35A
DIS@2N7002BKS
(Group B)
NV's Suggestion @1218 ALF
GC6 -- Group B
N14P-GV2 Group B - Stuff
N14M-GE
N14M-GL Group B - Un-Stuff
TP21
Group B - Un-Stuff
VMA_DQ[63..0](18)
VMA_DM[7..0](18)
VMA_WDQS[7.. 0](18)
VMA_RDQS[7..0](18)
3
R519 [email protected]/F_4
R506 [email protected]/F_4
R513 [email protected]/F_4
FBA_CMD2
FBA_CMD3
FBA_CMD5
FBA_CMD18
FBA_CMD19
+1.5V_GPU
new adding @1201 ALF
Q37
DIS@2N7002BK
3
2
1
2
C575
*DIS@10U/6.3 V/X5R_6
C580
*DIS@10U/6.3 V/X5R_6
+3VS5
R526
DIS@10K/F_4
61
Q35B
DIS@2N7002BKS
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
VMA_DQ[63..0]
VMA_DM[7..0]
VMA_WDQS[7.. 0]
VMA_RDQS[7..0]
R487 DIS@10K/F_4
R493 DIS@10K/F_4
R120 DIS@10K/F_4
R438 DIS@10K/F_4
R441 DIS@10K/F_4
FB_CLAMP_MON (17)
D22
FB_CAL_PD_VDDQ
C24
FB_CAL_PU_GND
B25
FB_CALTERM_GND
U_GPU_GV2_64
DDR3 Command Bit
bga595-nvidia-n13m-gs-s-a2
12/14 FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ
ODTx
CKEx
RST
CS*
2
2.16A
+1.5V_GPU
U25D
COMMON
B26
C25
E23
E26
F14
F21
G13
G14
G15
G16
G18
G19
G20
G21
H24
H26
J21
K21
L22
L24
L26
M21
N21
R21
T21
V21
W21
Data[31..0] Data[63..32] PD 10K
FBA_CMD2
FBA_CMD3
FBA_CMD5 FBA_CMD5
FBA_CMD0 FBA_CMD16
2
C243 [email protected]/10V/X7R_4
C231 [email protected]/10V/X7R_4
C258 [email protected]/6.3V/X5R_6
C198 DIS@1U/10V/X7R_6
C226 DIS@1U/10V/X7R_6
C170 [email protected]/6.3V/X5R_6
C536 DIS@10U/6.3V/X5R_8
C542 DIS@22U/6.3V/X5R_8
FBA_CMD18
FBA_CMD19
+5VS5 (19,26,29,37,38,40,41,42,43,45,46,47,48,49)
+3VS5 (2,6,7,9,10,17,20,23,24,25,28,32,37,40,44,47,53)
+1.5V_GPU (14,18,38,48,50)
+1.05V_GFX_PCIE (14,16,48,50)
Under GPU
Near GPU
Yes
Yes
Yes
No
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
1
U25F
bga595-nvidia-n13m-gs-s-a2
COMMON
M13
GND
M15
GND
M17
GND
N10
GND
N12
GND
N14
GND
N16
GND
N18
GND
P11
GND
P13
GND
P15
GND
P17
GND
P2
GND
P23
GND
P26
GND
P5
GND
R10
GND
R12
GND
R14
GND
R16
GND
R18
GND
T11
GND
T13
GND
T15
GND
T17
GND
U10
GND
U12
GND
U14
GND
U16
GND
U18
GND
U2
GND
U23
GND
U26
GND
U5
GND
V11
GND
V13
GND
V15
GND
V17
GND
Y2
GND
Y23
GND
Y26
GND
Y5
GND
AA7
GND
AB7
GND
U_GPU_GV2_64
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
N14M-GL (MEMORY/GND) 2/5
N14M-GL (MEMORY/GND) 2/5
N14M-GL (MEMORY/GND) 2/5
13/14 GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
15 61, 25, 2013
15 61, 25, 2013
1
15 61, 25, 2013
15
A2
AB17
AB20
AB24
AC2
AC22
AC26
AC5
AC8
AD12
AD13
A26
AD15
AD16
AD18
AD19
AD21
AD22
AE11
AE14
AE17
AE20
AB11
AF1
AF11
AF14
AF17
AF20
AF23
AF5
AF8
AG2
AG26
AB14
B1
B11
B14
B17
B20
B23
B27
B5
B8
E11
E14
E17
E2
E20
E22
E25
E5
E8
H2
H23
H25
H5
K11
K13
K15
K17
L10
L12
L14
L16
L18
L2
L23
L25
L5
M11
of
of
of
1ACustom
1ACustom
1ACustom
Page 16

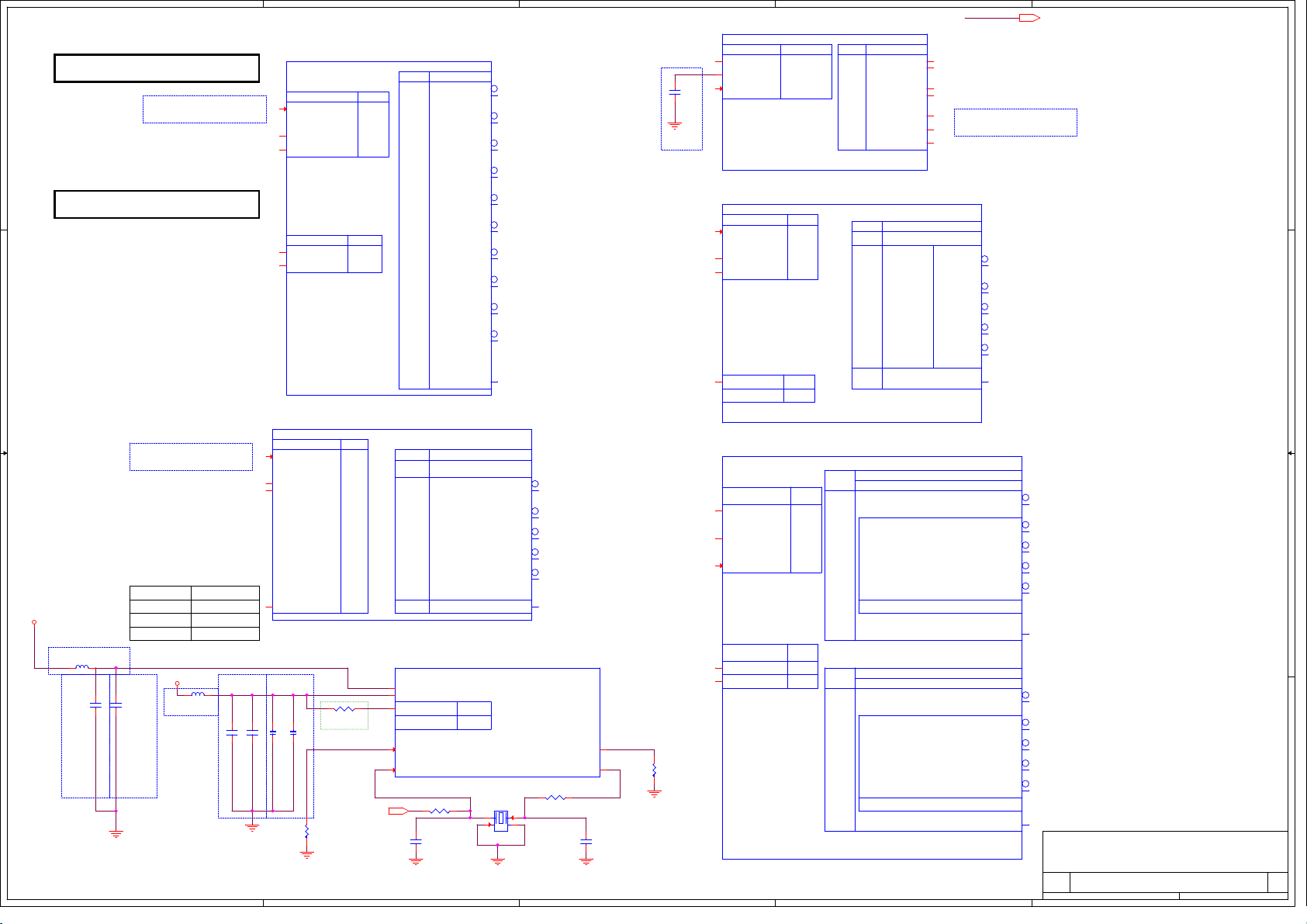

5
<VGA> <HDM> <CRT>
U25G
bga595-nvidia-n13m-gs-s-a2
AA6
V7
W7
W6
Y6
U25H
bga595-nvidia-n13m-gs-s-a2
COMMON
5/14 IFPC
GF119/GK208
T6
IFPC_RS ET
M7
IFPC_PL LVDD
N7
IFPC_PL LVDD
P6
IFPC_IO VDD
U_GPU_GV2_64
Under GPUNear GPU
C206[email protected]/10 V/X7R_4
C201[email protected]/6.3V/X5R_6
COMMON
4/14 IFPAB
GF119/GK208
IFPAB_R SET
IFPAB_PL LVDD
IFPAB_PL LVDD
GF119/GK208
IFPA_IOV DD
IFPB_IOV DD
IFPAB
U_GPU_GV2_64
+NV_PLLVDD
+SP_PLLVDD
C213[email protected]/10 V/X7R_4
XTAL_SSIN
R497
DIS@10K/F_4
GF117
R115 0_4
EC-DV-23
GPU_XTAL27_IN(35)
Optimus:
All unstuff , one Cap stuff 10K ohm
D D
Optimus:
All unstuff , one Cap stuff 10K ohm
C C
B B
+1.05V_GFX_PCIE
12~16mils
EC-DV-23
VID_PLLVDD R115
N14P-GV2
N14M-GE
Stuff
Un-Stuff
N14M-GL Un-Stuff
Near GPU
L8 DIS@BLM18PG300SN1D_1A_6
C217[email protected]/10V/X7R_4
A A
Under GPU Near GPU
C553DIS@22U/6.3V/X5R_8
+1.05V_GFX_PCIE
5
L6 DIS@BLM18PG181SN1D
Near GPU
12~16mils
C224DIS@22U/6.3 V/X5R_8
4
GF117
NC
NC
NC
GF117
NC
NC
NC
NC NC
NC
NC
GF117
U25M
bga595-nvidia-n13m-gs-s-a2
COMMON
L6
PLLVDD
M6
SP_PLLVDD
N6
VID_PLLVDD
GF119/GK208
A10
XTALSSIN
C11
XTALIN
U_GPU_GV2_64
4
GF117
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
9/14 XTAL_PLL
XTALIN
R524 *0_4
GF119/GK208
IFPA_T XC
IFPA_T XC
IFPA_T XD0
IFPA_T XD0
IFPA_T XD1
IFPA_T XD1
IFPA_T XD2
IFPA_T XD2
IFPA_T XD3
IFPA_T XD3
IFPB_T XC
IFPB_T XC
IFPB_T XD4
IFPB_T XD4
IFPB_T XD5
IFPB_T XD5
IFPB_T XD6
IFPB_T XD6
IFPB_T XD7
IFPB_T XD7
GPIO14
GF119/GK208
DVI/HDMI
I2CW _SDA
I2CW _SCL
TXC
TXC
TXD0
TXD0
TXD1
TXD1
TXD2
TXD2
NC
GF117
C570
DIS@10P/50V/C0G_4
IFPC
Y3
1
2
DIS@27MHz
AC4
AC3
Y3
Y4
AA2
AA3
AA1
AB1
AA5
AA4
AB4
AB5
AB2
AB3
AD2
AD3
AD1
AE1
AD5
AD4
B3
DP
IFPC_AU X
IFPC_AU X
IFPC_L3
IFPC_L3
IFPC_L2
IFPC_L2
IFPC_L1
IFPC_L1
IFPC_L0
IFPC_L0
GPIO15
R500 *0_4S
3
4
N5
N4
N3
N2
R3
R2
R1
T1
T3
T2
C3
XTALOUTBUF F
XTALOUT_R
XTALOUT
XTALOUT
C10
BXTALOUT
B10
C569
DIS@10P/50V/C0G_4
3
3
C488
0.01U/16V/X7R_4
R496
DIS@10K/F_4
U25K
bga595-nvidia-n13m-gs-s-a2
COMMON
3/14 DACA
GF119/GK208
W5
DACA_VDD
AE2
DACA_VREF
AF2
DACA_RSET
U_GPU_GV2_64
U25I
bga595-nvidia-n13m-gs-s-a2
COMMON
6/14 IFPD
GF119/GK208
U6
IFPD_RS ET
T7
IFPD_PL LVDD
R7
IFPD_PL LVDD
R6
IFPD_IO VDD
GF119/GK208
U_GPU_GV2_64
U25J
bga595-nvidia-n13m-gs-s-a2
COMMON
J7
IFPEF_P LLVDD
K7
IFPEF_P LLVDD
K6
IFPEF_R SET
H6
IFPE_IOV DD
J6
IFPF_IO VDD
U_GPU_GV2_64
IFPD
7/14 IFPEF
GF119
GF117 GF119/GK208
NC
TSEN_VREF
NC NC
GF117
NC
NC
NC
NC
GF117
GF117
GK208
GF119
NC
NC
NC
IFPE
GF117
GK208
NC
NC
IFPF
2
GF117
NC
NC
NC
NC
NC
NC
GF117
NC
NC
NC
NC
NC TXD0
NC
NC
NC
NC
NC
GF117
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
I2CA_SC L
I2CA_SD A
DACA_HSYNC
DACA_VSYNC
DACA_RED
DACA_GREEN
DACA_BLUE
GF117
GF119/GK208
DVI/HDMI
I2CX_SD A
NC
I2CX_SC L
NC
TXD3
TXD3
TXD4
TXD4
TXD5NC
TXD5
TXC
TXC
TXD0
TXD0
TXD1
TXD1
TXD2
TXD2
GF119/GK208
I2CY_SD A
I2CY_SC L
TXC
TXCTXC
TXD0
TXD0
TXD1NC
TXD1
TXD2
TXD2
NC FOR GK208
HPD_E
GF119/GK208
DVI-SL/HDMI
I2CZ_SD A
I2CZ_SC L
TXC
TXC
TXD0
TXD0
TXD1
TXD1
TXD2
TXD2
NC FOR GK208
HPD_F
2
NC
NC
NC
NC
NC
NC
NC
NC
NC
DVI-DL
I2CY_SD A
I2CY_SC L
TXC
TXD0
TXD1
TXD1
TXD2
TXD2
HPD_E
DVI-DL DP
+1.05V_GFX_PCIE (14,15,48,50)
1
B7
A7
AE3
AE4
16
AG3
AF4
AF3
DP
P4
IFPD_AU X
P3
IFPD_AU X
R5
IFPD_L3
R4
IFPD_L3
T5
IFPD_L2
T4
IFPD_L2
U4
IFPD_L1
U3
IFPD_L1
V4
IFPD_L0
V3
IFPD_L0
D4
GPIO17
DPDVI-SL/HDMI
J3
IFPE_AU X
J2
IFPE_AU X
J1
IFPE_L3
K1
IFPE_L3
K3
IFPE_L2
K2
IFPE_L2
M3
IFPE_L1
M2
IFPE_L1
M1
IFPE_L0
N1
IFPE_L0
C2
GPIO18
H4
IFPF_AU X
H3
IFPF_AU X
J5
IFPF_L3
J4
IFPF_L3
K5
IFPF_L2
K4
IFPF_L2
L4
IFPF_L1
L3
IFPF_L1
M5
IFPF_L0
M4
IFPF_L0
F7
GPIO19
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Quanta Computer Inc.
N14M-GL (DISPLAY) 3/5
N14M-GL (DISPLAY) 3/5
N14M-GL (DISPLAY) 3/5
1
16 61, 25, 2013
16 61, 25, 2013
16 61, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of
Page 17

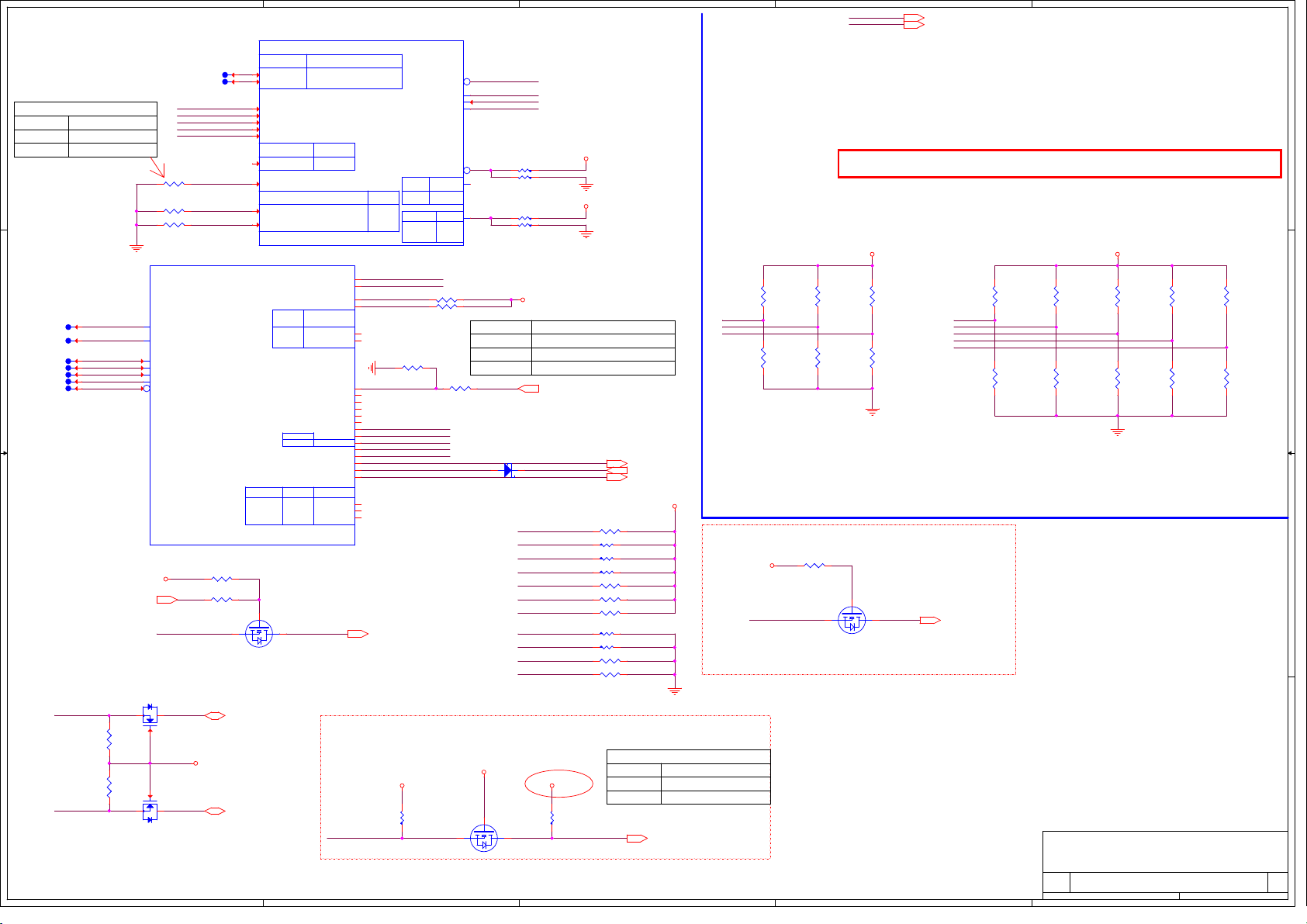

5
<VGA>
T3
NV's Suggestion @1218 ALF
MULTI_STRAP_REF0_GND
D D
N14P-GV2 Ra - Stuff
N14M-GE
N14M-GL
C C
B B
T5
T6
T8
T1
T2
T9
T7
Ra - Un-Stuff
Ra - Un-Stuff
E12
F12
AE5
JTAG_TCK
AD6
JTAG_TMS
AE6
JTAG_TDI
AF6
JTAG_TDO
AG4
JTAG_TRST#
+3V_GPU
VGA_PLTRST#(14)
R121 [email protected]/F_4
R460 *[email protected]/F_4
R124 *[email protected]/F_4
U25N
bga595-nvidia-n13m-gs-s-a2
COMMON
THERMDN
THERMDP
JTAG_TCK
JTAG_TMS
JTAG_TDI
JTAG_TDO
JTAG_TRST
U_GPU_GV2_64
T4
STRAP0 ROM_SCLK
STRAP1
STRAP2
STRAP3
STRAP4
Ra
8/14 MISC1
R512 *DIS@0_4
R511 *DIS@0_4S
DGPU_GPIO8
E10
F10
D1
D2
E4
E3
D3
C1
F6
F4
F5
GPIO16
GPIO20
1
U25L
bga595-nvidia-n13m-gs-s-a2
COMMON
10/14 MISC2
VMON_IN0
VMON_IN1
STRAP0
STRAP1
STRAP2
STRAP3
STRAP4
GF119
STRAP5_NC
MULTIS TRAP_R EF0_GN D
GF119
MULTIS TRAP_R EF1_GN D
MULTIS TRAP_R EF2_GN D
U_GPU_GV2_64
GF117
NC
NC
GK208
OVERT
GF117GK208
NC
NC
GPIO8
NC
2
3
Q34
DIS@2N7002BK
GF117/GF119/GK208
NC
NC
GF117
GK208
NC
I2CS_SC L
I2CS_SD A
I2CC_SC L
I2CC_SD A
GF119
GK208
I2CB_SC L
I2CB_SD A
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GF119
GPIO16
GPIO20
GPIO21
4
GF117
GK208
NC
NC
D9
DGPU_I2CS_SCL
D8
DGPU_I2CS_SDA
A9
I2CC_SCL_G
B9
I2CC_SDA_G
C9
C8
C6
FB_CLAMP_MON_L
B2
D6
C7
F9
A3
A4
FB_CLAMP_TGL_REQ#
B6
3D_STEREO
A6
DGPU_GPIO8
F8
ALERT#
C5
MEM_VREF_CTL
E7
PWM-VID
D7
AC_BATT_DEC_R
B4
PSI_GPU
D5
E6
C4
VGA_OVT# (9, 34)
ROM_CS
ROM_SI
ROM_SO
ROM_SCLK
BUFRST
PGOOD
NC
GF117
GF119
GK208
CEC
NC
GF117
GK208
GF119
R521
DIS@10K/F_4
Rb
R522
Ra
for GC6 @1201 ALF
D12
ROM_CS
B12
ROM_SI
A12
ROM_SO
C12
D11
R166 *DIS@10K/F_4
R171 *DIS@10K/F_4
D10
E9
R165 *DIS@10K/F_4
R170 *DIS@10K/F_4
+3V_GPU
+3V_GPU
+3V_GPU
for GC6 @1218 ALF
GPIO0 For GC6 function
N14P-GV2
N14M-GE
N14M-GL
DIS@0_4
D17 DIS@DB2J40600L
2 1
Ra - Stuff / Rb - Stuff
Ra - Un-Stuff/Rb - Stuff
Ra - Un-Stuff/Rb - Stuff
FB_CLAMP_MON (15)
AC_BATT_DEC_R
ROM_CS
JTAG_TMS
JTAG_TDI
DGPU_GPIO8
ALERT#
PSI_GPU
JTAG_TRST#
JTAG_TCK
3D_STEREO
MEM_VREF_CTL
R160 DIS@100K/F_4
R169 *DIS@10K/F_4
R67 *DIS@10K/F_4
R64 *DIS@10K/F_4
R508 DIS@100K/F_4
R177 DIS@100K/F_4
R70 DIS@100K/F_4
R428 DIS@10K/F_4
R429 DIS@10K/F_4
R509 DIS@100K/F_4
R167 DIS@100K/F_4
3
PWM-VID (45)
AC_PRESENT (6,32 )
PSI_GPU (45)
+3V_GPU
R510
R517
*DIS@10K/F_4
ROM_SI
ROM_SO
ROM_SCLK
R504
*DIS@10K/F_4
R499
DIS@20K/F_4
Reserve it for GPIO9 @1222 ALF
+3V_GPU
R184 *DIS@0_4S
ALERT#
2
1
+3V_GPU
R523
R520
*DIS@10K/F_4
3
Q8
*DIS@ME2N700 2D
2
+3VS5 (2,6,7,9,10,15,20,23,24,25,28,32,37,40,44,47,53)
+3V_GPU (14,35,38,45,48,50)
R466
STRAP0
STRAP1
STRAP2
STRAP3
STRAP4
R463
*DIS@10K/F_4
VGA_ALERT# (9)
R473
*DIS@10K/F_4
R465
+3V_GPU
R484
*DIS@10K/F_4
R472
DIS@15K/F_4
1
R464
*DIS@10K/F_4
R459
17
R502
*DIS@10K/F_4
R498
2N7002BKS
Q30A
Q30B
2N7002BKS
5
34
5
2
61
MBCLK_THRM (8,19,32,34)
+3V_GPU
MBDATA_THRM (8,19,32,34)
DGPU_I2CS_SCL
R488
R516
A A
DGPU_I2CS_SDA
Del PSI control for 1 phase DEM Mode @ 1130
GC6 feature for N14P-GV2
Low Power State on Idle
+3V_GPU +3VS5
R518
DIS@10K/F_4
FB_CLAMP_TGL_REQ#
4
1
Q31
2N7002BK
(Group A)
+3V_GPU
2
3
new adding @1201 ALF
NV's Suggestion @1218 ALF
GC6 -- Group A
N14P-GV2 Group A - Stuff
N14M-GE
N14M-GL Group A - Un-Stuff
R494
DIS@10K/F_4
Group A - Un-Stuff
FB_CLAMP_TGL_REQ_EC# (32)
3
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
Quanta Computer Inc.
N14M-GL (GPIO/STRAPS) 4/5
N14M-GL (GPIO/STRAPS) 4/5
N14M-GL (GPIO/STRAPS) 4/5
1
17 61, 25, 2013
17 61, 25, 2013
17 61, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of

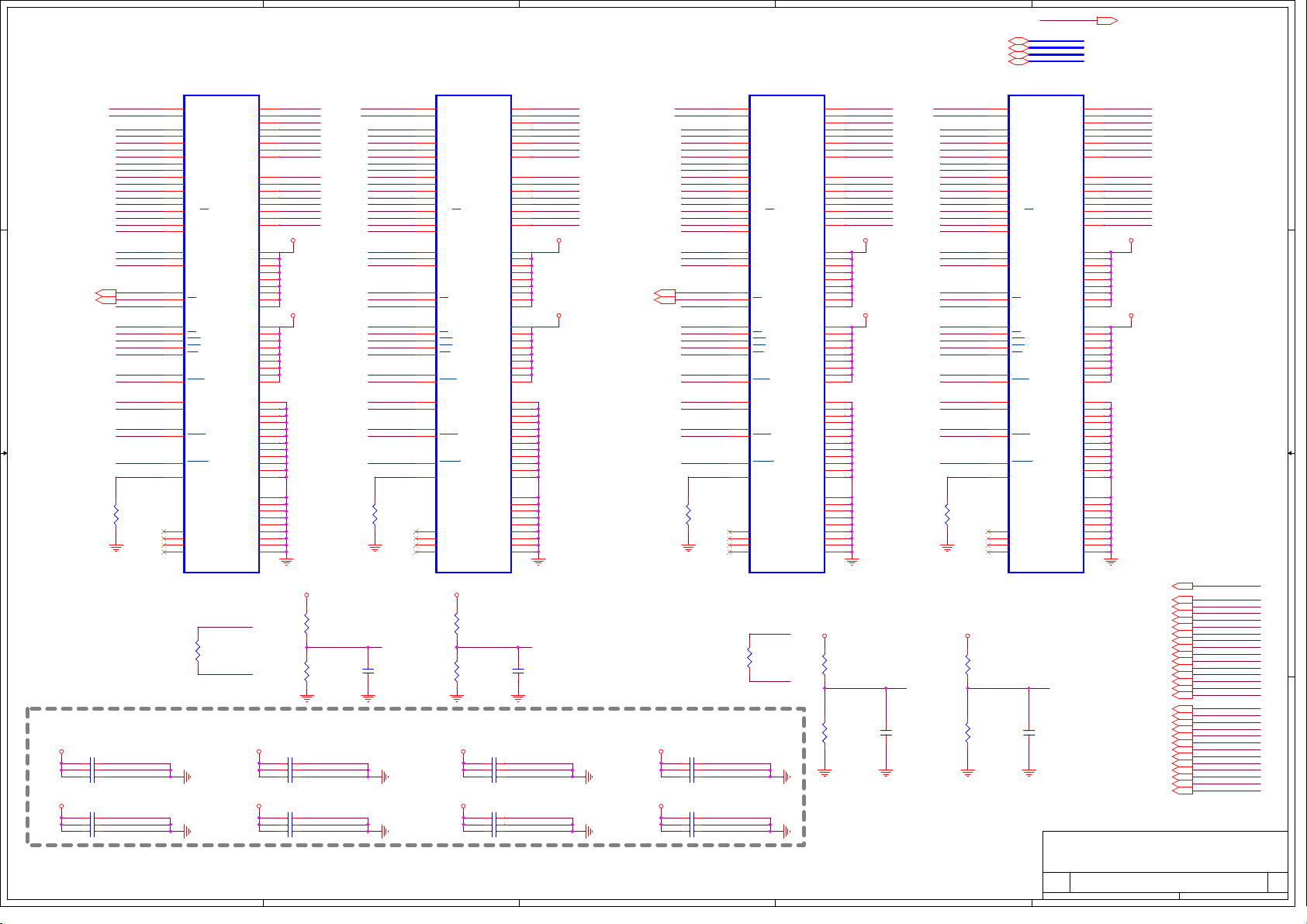

Page 18
5
<VGA>
U9
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
FBA_CMD3
FBA_CMD2
FBA_CMD0
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_RDQS2
VMA_DM2
VMA_DM0
VMA_RDQS0
FBA_CMD5
VMA_ZQ1
R151
DIS@240/F_4
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
SDRAM DDR3
DIS@VRAM _DDR3
VMA_CLK0
R467
DIS@162/F_4
VMA_CLK0#
VREFC_VMA1
D D
VMA_CLK0(15)
VMA_CLK0#(15) VMA_CLK1#(15)
C C
B B
VREFD_VMA1
VMA_WDQS2
VMA_WDQS0
REV-00 change R3086 and R3091 from 240/F_4 to160 Ohms
+1.5V_GPU
A A
+1.5V_GPU
C267 [email protected]/10V/X7R_4
C222 DIS@1U/10V/X7R_6
C211 DIS@1U/10V/X7R_6 C266 DIS@1U/10V/X7R_6C578 DIS@1U/10V/X7R_6
5
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
B2
VDD#B2
D9
VDD#D9
G7
VDD#G7
K2
VDD#K2
K8
VDD#K8
N1
VDD#N1
N9
VDD#N9
R1
VDD#R1
R9
VDD#R9
A1
VDDQ#A1
A8
VDDQ#A8
C1
VDDQ#C1
C9
VDDQ#C9
D2
VDDQ#D2
E9
VDDQ#E9
F1
VDDQ#F1
H2
VDDQ#H2
H9
VDDQ#H9
A9
VSS#A9
B3
VSS#B3
E1
VSS#E1
G8
VSS#G8
J2
VSS#J2
J8
VSS#J8
M1
VSS#M1
M9
VSS#M9
P1
VSS#P1
P9
VSS#P9
T1
VSS#T1
T9
VSS#T9
B1
VSSQ#B1
B9
VSSQ#B9
D1
VSSQ#D1
D8
VSSQ#D8
E2
VSSQ#E2
E8
VSSQ#E8
F9
VSSQ#F9
G1
VSSQ#G1
G9
VSSQ#G9
+1.5V_GPU
+1.5V_GPU
VMA_DQ19 VREFC_VMA1
VMA_DQ16
VMA_DQ20
VMA_DQ17
VMA_DQ22
VMA_DQ18
VMA_DQ23
VMA_DQ6
VMA_DQ0
VMA_DQ5
VMA_DQ3
VMA_DQ4
VMA_DQ2
VMA_DQ7
VMA_DQ1
+1.5V_GPU +1.5V_GPU
+1.5V_GPU +1.5V_GPU +1.5V_GPU
+1.5V_GPU +1.5V_GPU
R454
VREFC_VMA1 VREFD_VMA1
R457
4
VREFD_VMA1VMA_DQ21
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
VMA_CLK0
VMA_CLK0#
FBA_CMD3
FBA_CMD2
FBA_CMD0
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_WDQS1
VMA_RDQS1
VMA_DM1
VMA_DM3
VMA_WDQS3
VMA_RDQS3
FBA_CMD5
VMA_ZQ2
R461
DIS@240/F_4
C552
[email protected]/16V/X7R_4
Close to DRAM
4
3
CHANNEL A: DDR3 4Gb x4 = 2GB
Double T Topology for DDR3 Memory
U32
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
SDRAM DDR3
DIS@VRAM _DDR3
+1.5V_GPU
+1.5V_GPU
E3
DQL0
F7
DQL1
F2
DQL2
F8
DQL3
H3
DQL4
H8
DQL5
G2
DQL6
H7
DQL7
D7
DQU0
C3
DQU1
C8
DQU2
C2
DQU3
A7
DQU4
A2
DQU5
B8
DQU6
A3
DQU7
B2
VDD#B2
D9
VDD#D9
G7
VDD#G7
K2
VDD#K2
K8
VDD#K8
N1
VDD#N1
N9
VDD#N9
R1
VDD#R1
R9
VDD#R9
A1
VDDQ#A1
A8
VDDQ#A8
C1
VDDQ#C1
C9
VDDQ#C9
D2
VDDQ#D2
E9
VDDQ#E9
F1
VDDQ#F1
H2
VDDQ#H2
H9
VDDQ#H9
A9
VSS#A9
B3
VSS#B3
E1
VSS#E1
G8
VSS#G8
J2
VSS#J2
J8
VSS#J8
M1
VSS#M1
M9
VSS#M9
P1
VSS#P1
P9
VSS#P9
T1
VSS#T1
T9
VSS#T9
B1
VSSQ#B1
B9
VSSQ#B9
D1
VSSQ#D1
D8
VSSQ#D8
E2
VSSQ#E2
E8
VSSQ#E8
F9
VSSQ#F9
G1
VSSQ#G1
G9
VSSQ#G9
EC-DV-18 EC-DV-18 EC-DV-18EC-DV-18
R475
R486
C251
[email protected]/16V/X7R_4
VMA_DQ9
VMA_DQ14
VMA_DQ13
VMA_DQ15
VMA_DQ8
VMA_DQ12
VMA_DQ10
VMA_DQ11
VMA_DQ31
VMA_DQ26
VMA_DQ30
VMA_DQ24
VMA_DQ28
VMA_DQ27
VMA_DQ29
VMA_DQ25
+1.5V_GPU
+1.5V_GPU
VREFC_VMA3
VREFD_VMA3
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
VMA_CLK1(15)
FBA_CMD19
FBA_CMD18
FBA_CMD16
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_WDQS5
VMA_RDQS5
VMA_DM5
VMA_DM4
VMA_WDQS4
VMA_RDQS4
FBA_CMD5
VMA_ZQ3
R107
DIS@240/F_4
+1.5V_GPU
+1.5V_GPU
3
U6
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
SDRAM DDR3
DIS@VRAM _DDR3
VMA_CLK1
R87
DIS@162/F_4
VMA_CLK1#
2
E3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
VMA_DQ40
F7
VMA_DQ44
F2
VMA_DQ43
F8
VMA_DQ45
H3
VMA_DQ41
H8
VMA_DQ47
G2
VMA_DQ42
H7
VMA_DQ46
D7
VMA_DQ35
C3
VMA_DQ36
C8
VMA_DQ34
C2
VMA_DQ38
A7
VMA_DQ33
A2
VMA_DQ39
B8
VMA_DQ32
A3
VMA_DQ37
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
+1.5V_GPU +1.5V_GPU
R112
VREFC_VMA3 VREFD_VMA3
R110
C187
[email protected]/16V/X7R_4
2
VMA_WDQS[7.. 0](15)
VMA_RDQS[7..0](15)
VREFC_VMA3
VREFD_VMA3
FBA_CMD9
FBA_CMD11
FBA_CMD8
FBA_CMD25
FBA_CMD10
FBA_CMD24
FBA_CMD22
FBA_CMD7
FBA_CMD21
FBA_CMD6
FBA_CMD29
FBA_CMD23
FBA_CMD28
FBA_CMD20
FBA_CMD4
FBA_CMD14
FBA_CMD12
FBA_CMD27
FBA_CMD26
VMA_CLK1
VMA_CLK1#
FBA_CMD19
FBA_CMD18
FBA_CMD16
FBA_CMD30
FBA_CMD15
FBA_CMD13
VMA_WDQS7
VMA_RDQS7
VMA_DM7
VMA_DM6
VMA_WDQS6
VMA_RDQS6
FBA_CMD5
VMA_ZQ4
R440
DIS@240/F_4
VMA_DQ[63..0](15)
VMA_DM[7..0](15)
R432
R434
1
+1.5V_GPU (14,15,38,48,50)
VMA_DQ[63..0]
VMA_DM[7..0]
VMA_WDQS[7.. 0]
VMA_RDQS[7..0]
U22
M8
VREFCA
H1
VREFDQ
N3
A0
P7
A1
P3
A2
N2
A3
P8
A4
P2
A5
R8
A6
R2
A7
T8
A8
R3
A9
L7
A10/AP
R7
A11
N7
A12/BC
T3
A13
T7
A14
M7
A15
M2
BA0
N8
BA1
M3
BA2
J7
CK
K7
CK
K9
CKE
K1
ODT
L2
CS
J3
RAS
K3
CAS
L3
WE
F3
DQSL
G3
DQSL
E7
DML
D3
DMU
C7
DQSU
B7
DQSU
T2
RESET
L8
ZQ
J1
NC#J1
L1
NC#L1
J9
NC#J9
L9
NC#L9
96-BALL
SDRAM DDR3
DIS@VRAM _DDR3
C512
[email protected]/16V/X7R_4
E3
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9
VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9
VSS#A9
VSS#B3
VSS#E1
VSS#G8
VSS#J2
VSS#J8
VSS#M1
VSS#M9
VSS#P1
VSS#P9
VSS#T1
VSS#T9
VSSQ#B1
VSSQ#B9
VSSQ#D1
VSSQ#D8
VSSQ#E2
VSSQ#E8
VSSQ#F9
VSSQ#G1
VSSQ#G9
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
VMA_DQ61
F7
VMA_DQ57
F2
VMA_DQ63
F8
VMA_DQ58
H3
VMA_DQ62
H8
VMA_DQ56
G2
VMA_DQ60
H7
VMA_DQ59
D7
VMA_DQ54
C3
VMA_DQ49
C8
VMA_DQ55
C2
VMA_DQ48
A7
VMA_DQ52
A2
VMA_DQ51
B8
VMA_DQ53
A3
VMA_DQ50
+1.5V_GPU
B2
D9
G7
K2
K8
N1
N9
R1
R9
A1
A8
C1
C9
D2
E9
F1
H2
H9
A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9
B1
B9
D1
D8
E2
E8
F9
G1
G9
FBA_CMD0(15)
FBA_CMD2(15)
FBA_CMD3(15)
FBA_CMD4(15)
FBA_CMD5(15)
FBA_CMD6(15)
FBA_CMD7(15)
FBA_CMD8(15)
FBA_CMD9(15)
FBA_CMD10(15)
FBA_CMD11(15)
FBA_CMD12(15)
FBA_CMD13(15)
FBA_CMD14(15)
FBA_CMD15(15)
FBA_CMD16(15)
FBA_CMD18(15)
FBA_CMD19(15)
FBA_CMD20(15)
FBA_CMD21(15)
FBA_CMD22(15)
FBA_CMD23(15)
FBA_CMD24(15)
FBA_CMD25(15)
FBA_CMD26(15)
FBA_CMD27(15)
FBA_CMD28(15)
FBA_CMD29(15)
FBA_CMD30(15)
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
DDR3 VRAM (BGA96) 5/5
DDR3 VRAM (BGA96) 5/5
DDR3 VRAM (BGA96) 5/5
1
FBA_CMD0
FBA_CMD2
FBA_CMD3
FBA_CMD4
FBA_CMD5
FBA_CMD6
FBA_CMD7
FBA_CMD8
FBA_CMD9
FBA_CMD10
FBA_CMD11
FBA_CMD12
FBA_CMD13
FBA_CMD14
FBA_CMD15
FBA_CMD16
FBA_CMD18
FBA_CMD19
FBA_CMD20
FBA_CMD21
FBA_CMD22
FBA_CMD23
FBA_CMD24
FBA_CMD25
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD29
FBA_CMD30
18 61, 25, 2013
18 61, 25, 2013
18 61, 25, 2013
18
of
of
of
1ACustom
1ACustom
1ACustom

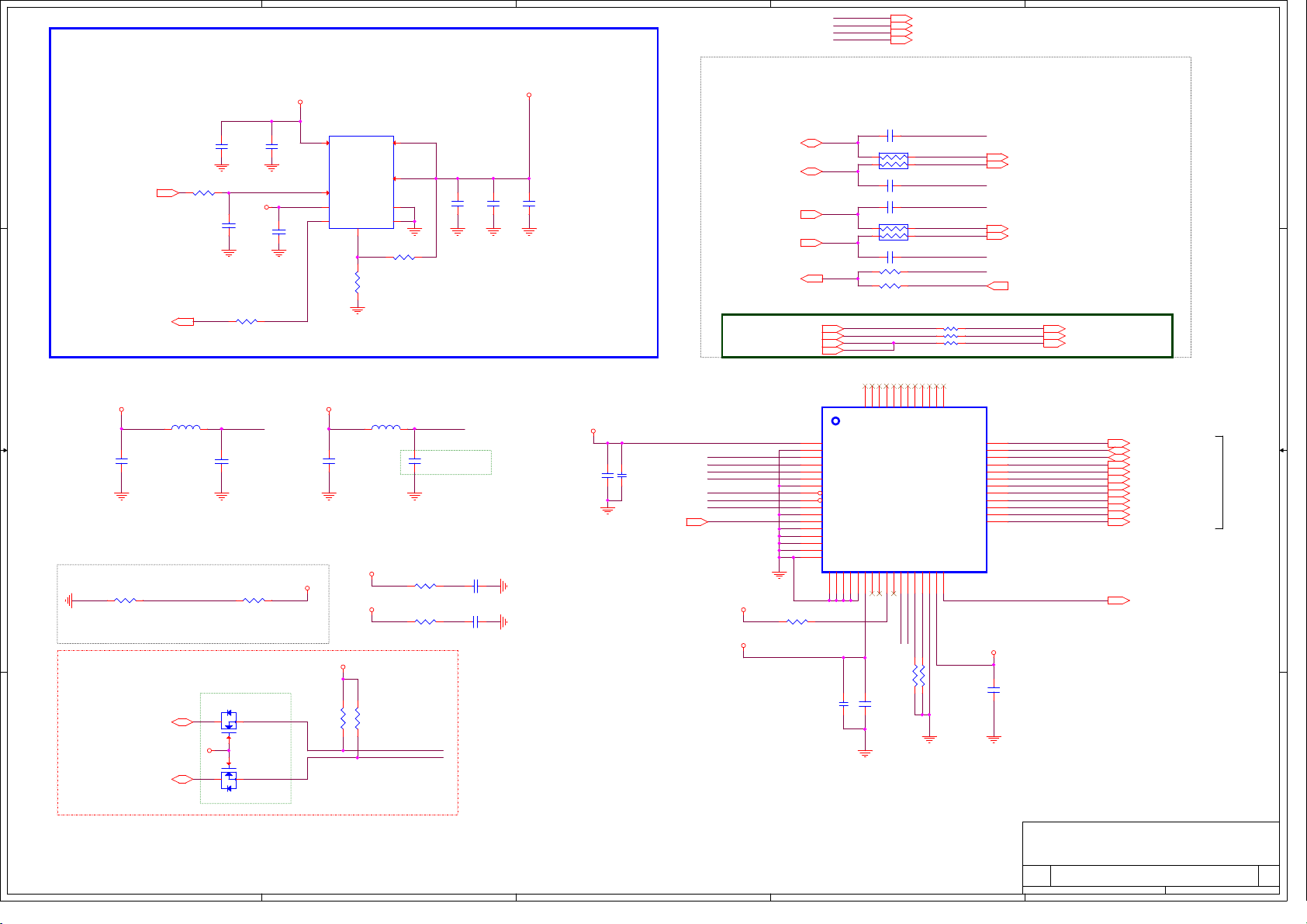

Page 19
5
1.2V Power Source
+1.5V
D D
MAINON(32,41,43,46,49)
HWPG(6,30,32,39,40,41,43,46)
C C
R397
*0_4S
C415
10U/6.3V/X5R_6
C423
+5VS5
0.33U/6.3V/X5R_4
C419
0.1U/10V/X7R_4
12
C427
1U/10V/X5R_4
3
VIN
2
EN
VDD4GND
1
PGOOD
R2
R390
*0_4S
VO=(0.8(R1+R2)/R2)
R2<120Kohm
U17
RT9025
ADJ
7
1.1VS5_ADJ
R389
100K/F_4
1 2
VOUT
GND1
R1
NC
4
5
6
8
9
51K/F_4
R388
1.2 V +/- 5%
TDC:0.3A(max)
+1.2V
C424
C418
*10U/6.3V/X5R_6
10U/6.3V/X5R_6
C414
0.1U/10V/X7R_4
3
2
+5VS5 (15,26,29,37,38,40,41,42,43,45,46,47,48,49)
+3V (2,6,7,8,9,10,12,13,14,20,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
+1.5V (6,7,8,10,24,28,46,48,49)
+1.2V
1
19
New Adding for eDP and LVDS Panel @1128 -- ALF
For BOM Control:
1. LVDS Panel : Stuff "To LVDS Converter. (Default)
2. eDP Panel : Stuff " To Panel Conn.
eDP_AU XN(2 )
eDP_AU XP(2)
eDP_TX P0(2)
eDP_TX N0(2 )
eDP_HP D(2)
C417 0.1U/10V_4
R391
2
4
*0_4P2R_4
C413 0.1U/10V_4
C409 0.1U/10V_4
R387
2
4
*0_4P2R_4
C402 0.1U/10V_4
R380 0_4
R379 *0_4
1
3
1
3
eDP_AU XN_B
eDP_AU XP_B
eDP_TX P0_B
eDP_TX N0_B
eDP_HP D_B
To LVDS Converter
eDP_AU XN_C (20)
eDP_AU XP_C ( 20)
To LVDS Converter
To LVDS Converter
eDP_TX P0_C (20)
eDP_TX N0_C (20 )
To LVDS Converter
To LVDS Converter
eDP_HP D_C (20)
To Panel Conn.
To Panel Conn.
To Panel Conn.
For eDP, Stuff
INT_LVDS_ BLON(6)
INT_DISP_ON(6)
INT_DPST_ PWM(2,6,19)
EDP_DISP_UTIL(2,6)
R400 *0_4
R408 *0_4
R410 *0_4
New Adding @1218 -- ALF
8620_LVDS_BLON (19,20)
8620_DISP_ON (19,20)
8620_DPST_PWM (19,20)
34
33
28
47
7
VDDIO
+1.2V
L22
BLM18KG221SN1D
C396
0.47UF/10V_X5R_4
+3V
R3944.7K_4
U16
C397
0.1U/10V/X5R_4
VDDRX
C405
0.01U/16V/X7R_4
INT_DPST_ PWM(2,6,19)
3
eDP_AU XP_B
eDP_AU XN_B
eDP_TX P0_B
eDP_TX N0_B
RST#
PD#
eDP_HP D_B
VDDIO
+1.2V
5
2
1
48
3
4
11
8
9
10
13
37
49
50
51
52
53
R398 4.7K_4
VDDRX
GND
DAUXp
DAUXn
DRX0p
DRX0n
GND
RST#
PD#
HPD
GND
PWMI
Epad
G1
G2
G3
G4
G554G655G756G857G9
RLV_CFG
C4120.01U/16V/X7R_4
VDDRX
C406
4.7U/6.3V/X5R_6
EC-DV-22
VDDIO
VDDIO
R4054.7K_4
4
10K_4
R383
10K_4
R381
8620_CLK
8620_DATA
1U/10V/X5R_4
PD#
C398
2.2U/10V/X5R_6
RST#
C403
Switching Regulator Layout Guideline
1. Place the switching regulator inductor (L3) close to SW_OUT Pin (Pin13).
2. The SW_OUT output traces should be as wide as possible.
3. The GNDX pin (Pin14) should be connected to the main PCB ground plane, with the device
GND pins of the PS8622 connected to separate GND island (GNDA) for the device.
The GND island (GNDA) should be connected to the main GND plane (GND) with a single-point
connection by use of a wide PCB trace.
4. Place the 4.7uF decoupling Capacitor (C4) for VDDIOX close to VDDIOX pin.
5. The GND of the 4.7uF capacitor (C4) for VDDIOX should be placed close to the GND of 4.7uF
capacitor (C5) behind Inductor.
6. Place the bead (L2) for VDDIOX close to PS8622.
+3V
L24
BLM18KG221SN1D
C429
0.47UF/10V_X5R_4
B B
VDDIO
C428
1U/10V/X5R_4
Power On Configuration
R384 *4.7K_4
I2C_ADDR: I2 C Slave address selection, internal pull-down ~80K
L: 0x10h~0x1Fh
H: 0x90h~0x9Fh
INT_DISP_ON
R382 4.7K_4
EC-SIT2-07
2N7002KDW
Q22A
MBCLK_THRM(8,17,32 ,34)
A A
MBDATA_THRM(8,17,32 ,34)
5
3 4
5
+3V
2
6 1
Q22B
2N7002KDW
58
C4110.1U/10V/X5R_4
6
NC
NC
NC
NC
PS8620
VDD1214TESTMODE15GPIO016RLV_CFG17RESERVED
18
NC36NC35NC
NC
CSDA20CSCL21REXT22BLV_AMP23GND
8620_CLK
8620_DATA
REXT
R401 4.99K/F_4
2
BOM P/N Okay @1227
29
46
NC31NC30NC
NC
ENPVCC/I2C_ADDR
DDC_SDA
DDC_SCL
TCK0n
TCK0p
PWMO
ENBLT
VDDIO
19
24
32
RLV_AMP
R404 4.99K/F_4
27
26
25
45
TA0n
44
TA0p
43
TB0n
42
TB0p
41
TC0n
40
TC0p
39
38
12
Note:
R14: LVDS output swing control
4.99K for default swing, change the value for swing adjust
VDDIO
C437
0.1U/10V/X5R_4
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Quanta Computer Inc.
8620_DISP_ON (19,20)
LVDS_DDC_SDA_C (20)
LVDS_DDC_SCL_C (20)
INT_TXLOUT N0 (20 )
INT_TXLOUT P0 (20)
INT_TXLOUT N1 (20 )
INT_TXLOUT P1 (20)
INT_TXLOUT N2 (20 )
INT_TXLOUT P2 (20)
INT_TXLCL KN (20)
INT_TXLCL KP (20)
8620_DPST_PWM (19,20)
8620_LVDS_BLON (19,20)
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
PS8620
PS8620
PS8620
1
19 61, 25, 2013
19 61, 25, 2013
19 61, 25, 2013
Single link
LVDS
of
of
of
1ACustom
1ACustom
1ACustom
Page 20

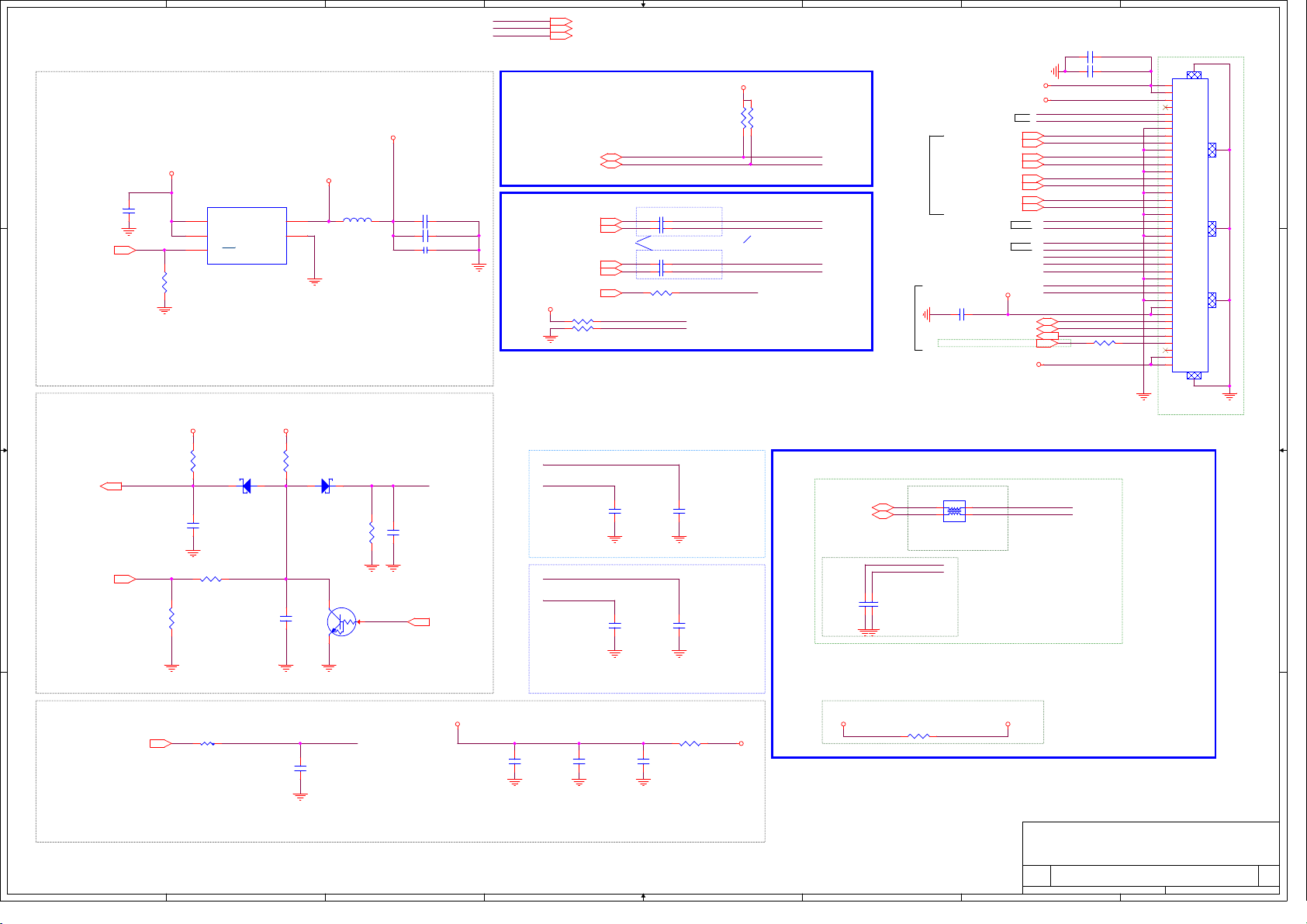

1
LCDVCC
A A
+3V
C430
1U/6.3V_4
8620_DISP_ON(19 )
R403
100K/F_4
B B
U19
5
IN
4
IN
3
ON/OFF
IC(5P) G5243AT 11U
2
+LCDVCC_1
OUT
GND
1
2
L25
PBY160808T-600Y-N
3
4
VIN (38,39,40,41,42,43,45,46,51)
+3VS5 (2,6,7,9,10,15,17,23,24,25,28,32,37,40,44,47,53)
+3V (2,6,7,8,9,10,12,13,14,19,21,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
For LVDS only : stuff
+LCDVCC
LVDS_DDC_SCL_C(19 )
LVDS_DDC_SDA_C(19)
C431 10U/6.3V_6 C408 *0.1U/10V/X7R_4
C433 *0.01U/16V_4
C439 0.1U/10V_4
For EDP Only: stuff
eDP_TX P0_C(1 9)
eDP_TX N0_C(19)
Place close to Connector
eDP_AU XP_C(1 9)
eDP_AU XN_C(19)
eDP_HP D_C(19)
+3V
R8 *100K_4
R9 *100K_4
C401 *0.1U/10V/X7R_4
C39 *0.1U/10V/X7R_4
C38 *0.1U/10V/X7R_4
R378 *0_4S
eDP_AU XN_C1
eDP_AU XP_C1
5
+3V
R417
R415
4.7K/F_4
4.7K/F_4
LVDS_DDC_SCL_C
LVDS_DDC_SDA_C
eDP_TX P0_C_1
eDP_TX N0_C_1
Place close to Connector
EDP_HPD_R
eDP_AU XP_C1
eDP_AU XN_C1
6
LVDS
for Touch
LVDS
INT_TXLOUT N0(19 )
INT_TXLOUT P0(19)
INT_TXLOUT N1(19 )
INT_TXLOUT P1(19)
INT_TXLOUT N2(19 )
INT_TXLOUT P2(19)
INT_TXLCL KN(19 )
INT_TXLCL KP(19)
eDP / DATA
eDP / AUX
+V3_TCH_PNL
EC4 0.1U/10V_4
SMB_RUN_CLK(8,12,13,30,3 3)
SMB_RUN_DAT(8,12,13,30,33)
TOUCH_PANEL_RST#(7)
EC-SIT2-06
GFX_PWR _SRC
TS_I2C_INT(9)
+LCDVCC
+3V
7
SC11 *0.1U/10V/X7R_4
C432 *2.2U/6.3V/X5R_6
LVDS_DDC_SCL_C
LVDS_DDC_SDA_C
INT_TXLOUT N0
INT_TXLOUT P0
INT_TXLOUT N1
INT_TXLOUT P1
INT_TXLOUT N2
INT_TXLOUT P2
INT_TXLCL KN
INT_TXLCL KP
eDP_TX P0_C_1
eDP_TX N0_C_1
eDP_AU XP_C1
eDP_AU XN_C1
EDP_HPD_R
VADJ_PWM
DISPON
USBP6-_R
USBP6+_R
SMB_RUN_CLK
SMB_RUN_DAT
R402 *0_4S
8
CML1
111H40-100000-G4-R
G_0
1
2
3
4
5
6
7
8
9
10
G_1
11
12
13
14
15
16
17
18
19
20
21
G_2
22
23
24
25
26
27
28
29
30
G_4
31
32
33
34
35
36
37
38
39
40
G_5
20
Back light
+3VS5 +3V
EC-SIT-22
EC-SIT2-13
R419
10K_4
LID#(2 9,32)
C C
8620_LVDS_BLON(19)
DB2J40600L
C450
0.1U/10V/X7R_4
R413 2.2K_4
R416
10K_4
*1U/10V/X7R_6
R411
*4.7K_4
D12
D13
C446
DB2J40600L
R412
100K_4
Q24
LTC044EUBFS8TL
1 3
DISPON
C438
*47P/50V/NPO_4
2
LCD_BK_OFF (9)
INT_TXLCL KN
INT_TXLCL KP
LVDS_DDC_SCL_C
LVDS_DDC_SDA_C
C426
12
*6.8P/50V/NPO_4
C441
12
*2200P/50V/X7R_4
For ESD
For EMI
EC-DV-05
EC-SIT-21
C425
12
*6.8P/50V/NPO_4
C445
12
USBP6-(8)
USBP6+(8)
C5
33P/50V_4
SMB_RUN_CLK
SMB_RUN_DAT
C4
33P/50V_4
L23
DLW21HN900SQ2L
2
EC-SIT-26
EC-SIT2-12
1
USBP6-_R
43
USBP6+_R
EC-SIT-25
*2200P/50V/X7R_4
For EMI
Touch Panel VCC Control
+3V_TOUCH_PANEL
Max Current : 800mA
GFX_PWR _SRC
8620_DPST_PWM(19)
D D
1
R409*0 _4S
2
VADJ_PWM
C436
*47P/50V/NPO_4
3
Close to Conn.
GFX_PWR _SRC
C434
0.1U/25V/X7R_6
4
C435
0.1U/25V/X7R_6
R414 *0_8S
C442
*10U/25V/X6S_12
VIN
5
R14 *0_6S
6
+V3_TCH_PNL+3V
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
Quanta Computer Inc.
LCD CONN / Touch Panel
LCD CONN / Touch Panel
LCD CONN / Touch Panel
7
1ACustom
1ACustom
1ACustom
of
of
of
20 61, 25, 2013
20 61, 25, 2013
20 61, 25, 2013
8
Page 21

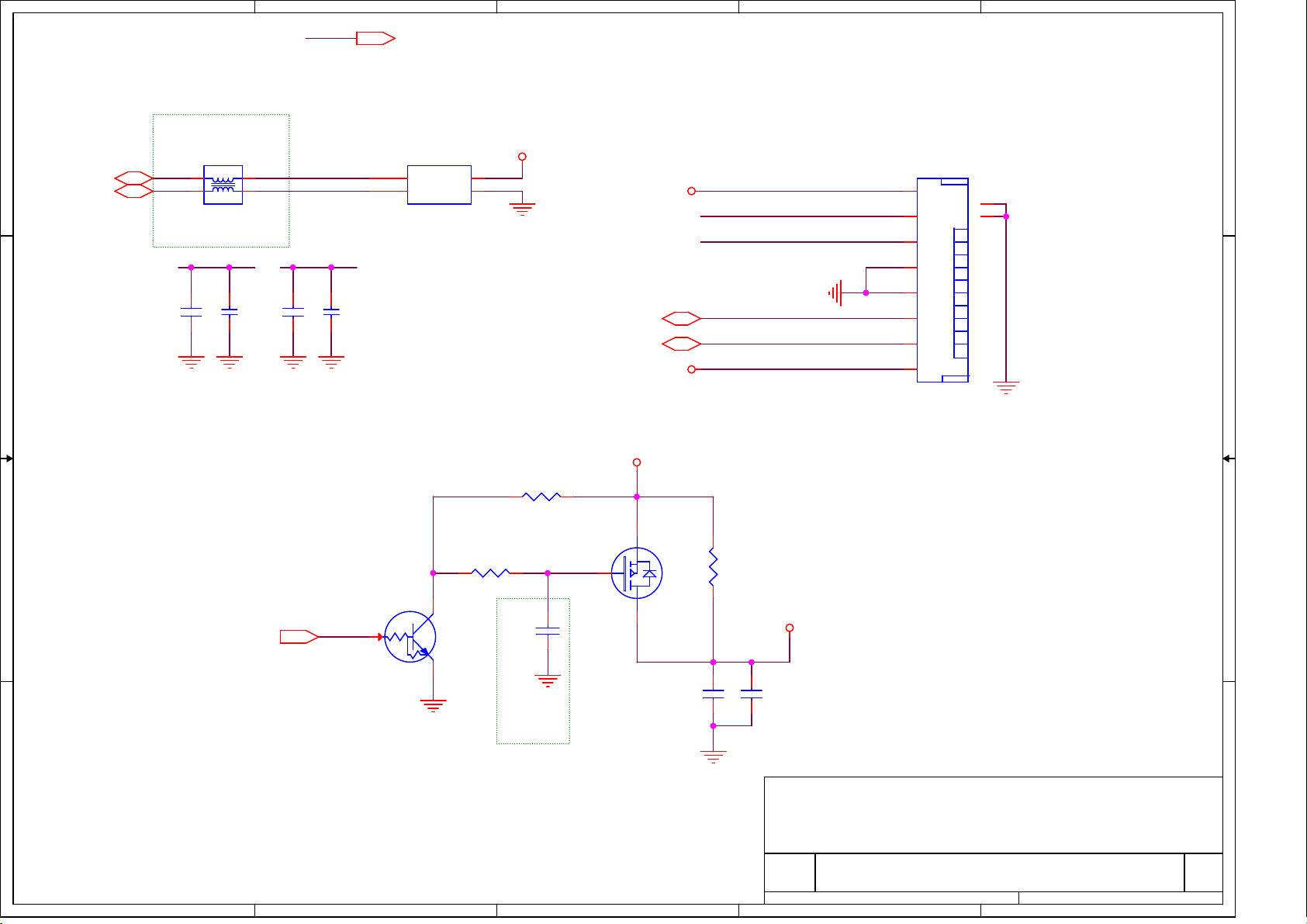

5
4
3
2
1
CAMERA CONN
+3V (2,6,7,8,9,10,12,13,14,19,20,22,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
EC-SIT2-12
21
EC-SIT-24
D D
CML6
USBP4+(8)
USBP4-(8)
C C
For EMI
1
4 3
DLW21HN900SQ2L
2
USBP4+_R
USBP4-_R
DMIC_CLKDMIC_DATA
SC1
C7*33P/50V/NPO_4
*SURGE SUP
SC2
C8*33P/50V/NPO_4
CAMERA VCC Control
FOR ESD
2
3
*SURGE SUP
U18
IO1
GND
IO2
*PJSR05
VIN
+CAM_VCC
4
1
R386
10K_4
+CAM_VCC
DMIC_CLK(24)
DMIC_DATA(24)
+3V
+3V
USBP4-_R
USBP4+_R
DMIC_CLK
DMIC_DATA
CN3
8
7
6
5
4
3
2
1
CCD
GND1
GND
9
10
1
R385
10K_4
B B
CCD_ON(9)
LTC044EUBFS8TL
2
Q21
1 3
C399
2200P/50V/X7R_4
2
Q23
AOS3413
3
C2
1U/6.3V/X5R_4
R1
*0_6
+CAM_VCC
C1
0.1U/10V/X7R_4
Close to Conn.
EC-DV-21
A A
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
Date: Sheet
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
CAMERA
CAMERA
CAMERA
21 61, 25, 2013
21 61, 25, 2013
2
21 61, 25, 2013
1AA
1AA
1AA
of
of
of
1
Page 22

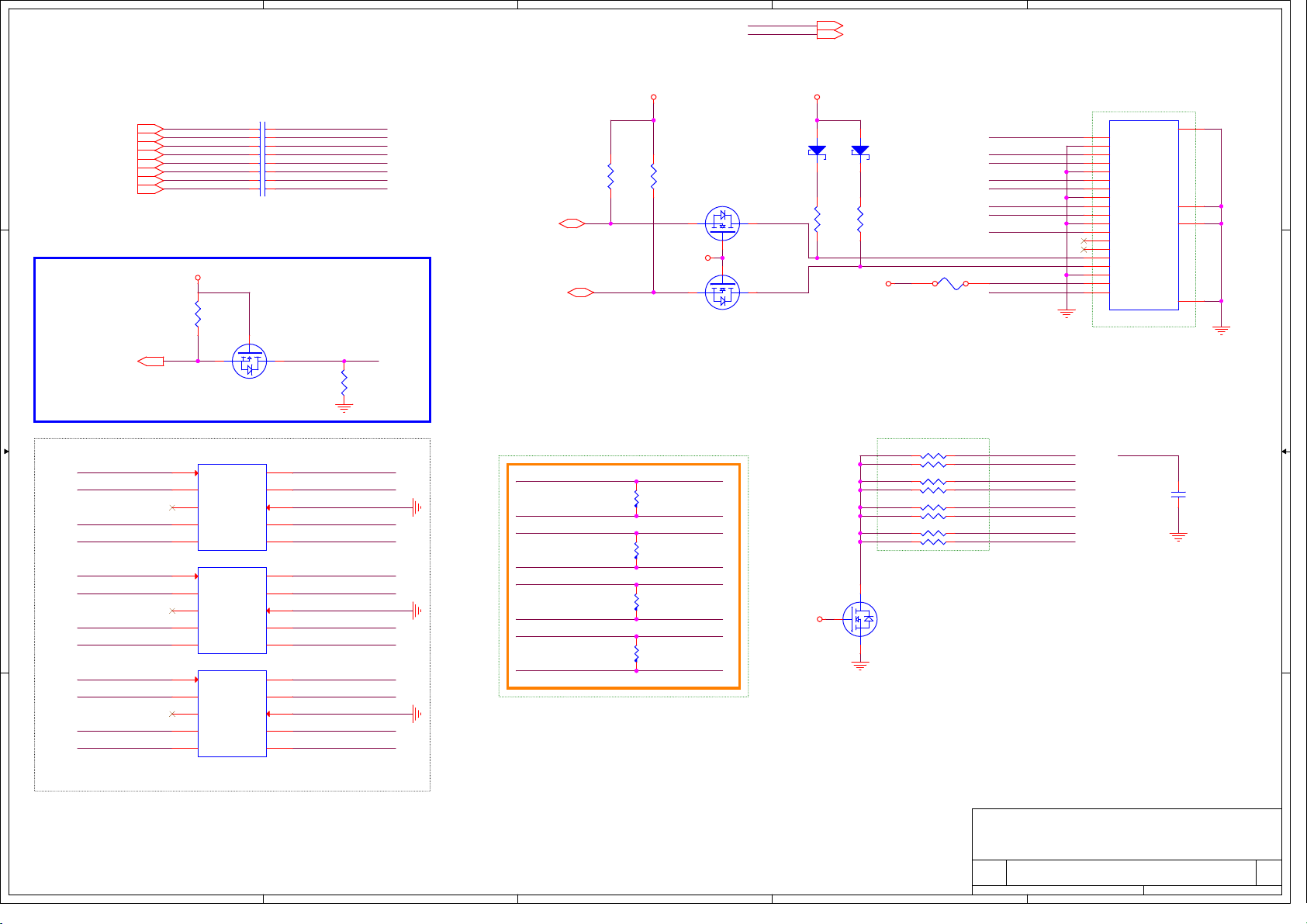

A
B
C
+5V (7,24,25,31,33,34,39,47,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,24,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
D
E
22
close to HDMI conn
4 4
3 3
2 2
IN_CL K#(2)
IN_CL K(2)
IN_D0 #(2)
IN_D0(2)
IN_D1 #(2)
IN_D1(2)
IN_D2 #(2)
IN_D2(2)
HDMI_HPD_CON(6)
HDMI_TX2+_C
HDMI_TX2-_C
HDMI_TX1+_C
HDMI_TX1-_C
HDMI_TX0+_C
HDMI_TX0-_C
HDMI_CLK+_C
HDMI_CLK-_C
HDMI_DDC_CLK
HDMI_HPD
1 1
For ESD Layout note:Place close to HDMI Conn
IN_CL K#
IN_CL K
IN_D0 #
IN_D0
IN_D1 #
IN_D1
IN_D2 #
IN_D2
+3V
R603
1M_4
Q43
2N7002BK
U43
6
NC
7
NC
8
GND
9
NC
10
NC
ESD8004MUTAG
U42
6
NC
7
NC
8
GND
9
NC
10
NC
ESD8004MUTAG
U41
6
NC
7
NC
8
GND
9
NC
10
NC
ESD8004MUTAG
C601 0.1U/10V_4
C603 0.1U/10V_4
C604 0.1U/10V_4
C605 0.1U/10V_4
C610 0.1U/10V_4
C611 0.1U/10V_4
C613 0.1U/10V_4
C614 0.1U/10V_4
2
1
CH4
CH3
GND
CH2
CH1
CH4
CH3
GND
CH2
CH1
CH4
CH3
GND
CH2
CH1
3
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
HDMI_CLK-_C
HDMI_CLK+_C
HDMI_TX0-_C
HDMI_TX0+_C
HDMI_TX1-_C
HDMI_TX1+_C
HDMI_TX2-_C
HDMI_TX2+_C
HDMI_HPD
HDMI_TX2+_C
HDMI_TX2-_C
HDMI_TX1+_C
HDMI_TX1-_C
HDMI_TX0+_C
HDMI_TX0-_C
HDMI_CLK+_C
HDMI_CLK-_C
HDMI_DDC_DATHDMI_DDC_DAT
HDMI_DDC_CLK
HDMIC_5VHDMIC_5V
HDMI_HPD
R613
20K/F_4
SDVO_CLK(6)
SDVO_DATA(6)
EMI reserve for HDMI
HDMI_TX2+_C
HDMI_TX2-_C
HDMI_TX1+_C
HDMI_TX1-_C
HDMI_TX0+_C
HDMI_TX0-_C
HDMI_CLK+_C
HDMI_CLK-_C
EC-DV-34
+3V +5V
R302
R303
2.2K_4
2.2K_4
2
2
3
Q11
FDV301N
3
Q10
FDV301N
R651
120/F_4
R650
120/F_4
R642
120/F_4
R638
120/F_4
1
+3V
1
+5V
D9
DB2J40600L
R637
2.2K_4
2
D10
DB2J40600L
R636
2.2K_4
+5V
R334 470/F_4
R333 470/F_4
R332 470/F_4
R329 470/F_4
R328 470/F_4
R327 470/F_4
R326 470/F_4
R325 470/F_4
HDMI_LF
3
Q12
2N7002BK
1
F2
FUSE1.1A_8V_POLY
EC-SIT-30
HDMI_TX2+_C
HDMI_TX2-_C
HDMI_TX1+_C
HDMI_TX1-_C
HDMI_TX0+_C
HDMI_TX0-_C
HDMI_CLK+_C
HDMI_CLK-_C
HDMI_DDC_CLK
HDMI_DDC_DAT
HDMIC_5V
HDMI_HPD
HDMI_TX2+_C
HDMI_TX2-_C
HDMI_TX1+_C
HDMI_TX1-_C
HDMI_TX0+_C
HDMI_TX0-_C
HDMI_CLK+_C
HDMI_CLK-_C
CN16
1
D2+
2
D2 Shield
3
D2-
4
D1+
5
D1 Shield
6
D1-
7
D0+
8
D0 Shield
9
D0-
10
CK+
11
CK Shield
12
CK-
13
CE Remote
14
NC
15
DDC CLK
16
DDC DATA
17
GND
18
+5V
19
HP DET
HDMI CONN
EC-SIT-33
HDMIC_5V
SHELL1
GND
GND
SHELL2
20
23
22
21
EC23
*220P/50V/X7R_4
For EMI
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Num ber Rev
Size Document Num ber Rev
Size Document Num ber Rev
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
HDMI CONN
HDMI CONN
HDMI CONN
of
of
of
22 61, 25, 2013
22 61, 25, 2013
22 61, 25, 2013
E
1ACustom
1ACustom
1ACustom
Page 23
5
D D
LANVCC
1
R455
4.7K_4
2
LTC044EUBFS8TL
LANVCC
R130 *0_4S
40 mils (Iout=1A)
C219
0.1U/10V_4
C C
LANVCC+3VS5
R116
C546
0.01U/16V/X7R_4
40 mils (Iout=1A)40 mils (Iout=1A)
3
Q26
AO3413
2
*100K/F_4
Q27
1 3
LANVCC
Trace width>60mil,
Trace length<200mil
LAN_POWER (32,49)
C524
0.1U/10V_4
C516
*0.1U/10V_4
C208
0.1U/10V_4
C212
10U/6.3V_6
C164
*0.1U/10V_4
R111 *0_8S
4
C508 *10P/50V/COG_4
VDD10
U24
33
1
2
3
4
5
6
7
8
C166
4.7U/6.3V_6
10 mils
GND
MDIP0
MDIN0
AVDD10( NC)
MDIP1
MDIN1
MDIP2(NC)
MDIN2(NC)
AVDD10
MDI_3+
MDI_3-
RSET
31
32
RSET
AVDD33
RTL8111GUS-CG
10
C513 *10P/50V/COG_4
XTAL1
XTAL2
RJ45_ACTIVITY#
RJ45_LINKUP#
28
26
25
27
30
LED0
AVDD10
CKXTAL229CKXTAL1
LED1/GPO
LED2(LED1)
REGOUT
VDDREG (VDD33)
DVDD10(NC)
LANWAKEB
ISOLAT EB
PERSTB
HSIP13HSIN14REFCLK_P15REFCLK_N
CLKREQB
AVDD33(NC)11MDIP3(NC)9MDIN3(NC)
16
12
REGOUT
40 mils (Iout=1A) 40 mils (Iout=1A)
R97 2.49K/F_4
LANVCC
MDI_0+
MDI_0-
VDD10
MDI_1+
MDI_1MDI_2+
MDI_2- GPP_TX5N_LAN
VDD10
LANVCC
PCIE_CLKREQ_LAN#(8)
C161
0.1U/10V_4
VDDREG/VDD33
40 mils (Iout=1A)
HSON
HSOP
3
TP5
TP58
TP6
24
REGOUT
23
VDDREG/VDD33
22
VDD10
21
20
ISOLATE B
19
18
17
GPP_TX5P_LAN
RTL8111GUS-CG 10/100/1000
Co-lay with RTL8106EUS 10/100
A Stage mounted RTL8111GS and RTL8106E
CLK_PCIE_LANN (8)
CLK_PCIE_LANP ( 8)
PCIE_TXN2_LAN (8)
PCIE_TXP2_LAN (8)
R436 *0_8
C510
*0.1U/10V_4
C539 0.1U/10V_4
C540 0.1U/10V_4
C518 12P/50V_4
C517
L27
4.7uH
4.7U/6.3V_6
1
2
Y1
25MHZ +-30PPM
4
3
12P/50V_4
PCIE_WAKE# (6,28)
PLTRST# (2, 8,14,27,28,30,34)
PCIE_RXN2_LAN (8)
PCIE_RXP2_LAN (8)
C514
R435 *0_4
XTAL2
XTAL1
C509
0.1U/10V_4
2
LAN_XTAL25_IN (35)
Suggested by Realtek
LANVCC
R442
1K_4
D15
DB2J40600L
R443
15K_4
For RTL8111G(S)/RTL8111GUS/RTL8106EUS
* Place 0.1uF CAP cl ose to each VDD10 pin-- 3, 8, 22, 30
For RTL8106E
* Place 0.1uF CAP cl ose to each VDD10 pin-- 8, 30
C154
0.1U/10V_4
LAN_ISOLATE (32)
C541
0.1U/10V_4
For RTL8106E
* Place 1uF CAP close t o each VDD10 pin-- 30 (reserve)
C526
0.1U/10V_4
1
+3VS5 (2,6,7,9,10,15,17,20,24,25,28,32,37,40,44,47,53)
LANVCC (35,49)
C160
C195
0.1U/10V_4
*1U/6.3V_4
C184
*0.1U/10V_4
C163
*1U/6.3V_4
23
VDD10
C151
*0.1U/10V_4
For RTL8111GUS/RTL8106EUS/RTL8111GS
* Place 0.1uF CAP cl ose to each
VDD33 pin-- 11, 32
B B
Tramsformer
U30
1
MDI_0+_ C
2
MDI_1- _C
1
MDI_2+_ C
2
MDI_3- _C
10/100 non-stuff
Reserve for Sur ge
A A
Line to GND TVS
IO1
IO4
REF5GND
IO23IO3
SP3002-04HTG
U31
IO1
IO4
REF5GND
IO23IO3
SP3002-04HTG
6
4
6
4
MDI_0- _C
MDI_1+_ C
MDI_2- _C
MDI_3+_ C
For RTL8106E
* Place 0.1uF CAP cl ose to
each VDD33 pin-- 23, 32
LANVCC
LANVCC
C248
0.01U/50V/X7R_4
MDI_3-
R449 LAN1G@1/F_4
MDI_3+
R448 LAN1G@1/F_4
R447 LAN1G@1/F_4
MDI_2+
R446 LAN1G@1/F_4
MDI_1-
R453 1/F_4
MDI_1+
R452 1/F_4
MDI_0- LAN_MX0-
R451 1/F_4
MDI_0+
R450 1/F_4
R172
1M_8
Remove F or Not Using SWR mode
Reserve for Sur ge
Line to Line TV S
U28
1
2
3
*UCLAMP2512T.TCT
1
2
3
Reserve for Sur ge
Line to Line TV S
1
2
3
445
MDI_3- _C
MDI_3+_ C
MDI_2- _CMDI_2-
MDI_2+_ C
MDI_1- _C
MDI_1+_ C
MDI_0- _C
MDI_0+_ C
U27
1
2
3
445
8
8
7
7
6
6
5
8
8
7
7
6
6
5
U35
TD4-12MX4-
11
TD4+
10
TCT4
9
TCT3
8
TD3-
7
TD3+
6
TD2-
5
TD2+
4
TCT2
3
TCT1
2
TD1-
1
TD1+
LAN_Transformer_NA0069R LF
For 1G firstly
RTL8111G (LDO mode) support
RTL8106E (LDO m ode) doesn't need
13
LAN_MX3-
14
LAN_MX3+
MX4+
15
LAN_MCT0
MCT4
16
LAN_MCT1
MCT3
17
LAN_MX2-
MX3-
18
LAN_MX2+
MX3+
19
LAN_MX1-
MX2-
20
LAN_MX1+
MX2+
21
LAN_MCT2
MCT2
22
LAN_MCT3
MCT1
23
MX1-
24
LAN_MX0+
MX1+
Layout:All termination
signal should have 50
mil trace
EC-SIT-08EC-SIT-08
5
4
3
RTL8111GUS/RTL8106EUS -CG/RTL8111GS
(SWR mode) support
R176 *0/F_12S
R175 *0/F_12S
3
3
1
1
R174 *0/F_12S
R173 *0/F_12S
3
3
1
1
LANCT3
*1234
2
2
U50
*1234
2
2
U51
R699
75/F_12
C581
10P/3KV/NPO_1808
D7
*BS201N-LV_1206
For RTL8111G(S)//RTL8111GUS/RTL8106EUS
* Place 1uF CAP close t o each VDD10 pin-- 22 (reserve)
RJ45 Connector
EMI:close RJ45
C583
*0.1U/10V_4
RV16*VARISTOR_4
1 2
RV19*VARISTOR_4
12
Orange LED
1 2
LAN_OLED
RJ45_ACTIVITY#
LAN_MX0+
LAN_MX0LAN_MX1+
LAN_MX2+
LAN_MX2LAN_MX1LAN_MX3+
LAN_MX3-
LAN_GLED
RJ45_LINKUP#
GREEN LED
RV18*VARISTOR_4
12
C590
*0.1U/10V_4
EMI:close RJ45
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
CN14 RJ45
10
12
1
2
3
4
5
6
7
8
9
11
EC-SIT-33
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
LAN(RTL8111GUS)
LAN(RTL8111GUS)
LAN(RTL8111GUS)
1
13
14
15
16
1ACustom
1ACustom
1ACustom
of
of
of
23 61, 25, 2013
23 61, 25, 2013
23 61, 25, 2013
LANVCC
LANVCC
EC-DV-17
R559 150_4
R591 150_4
RV17*VARISTOR_4
EC-DV-17
2

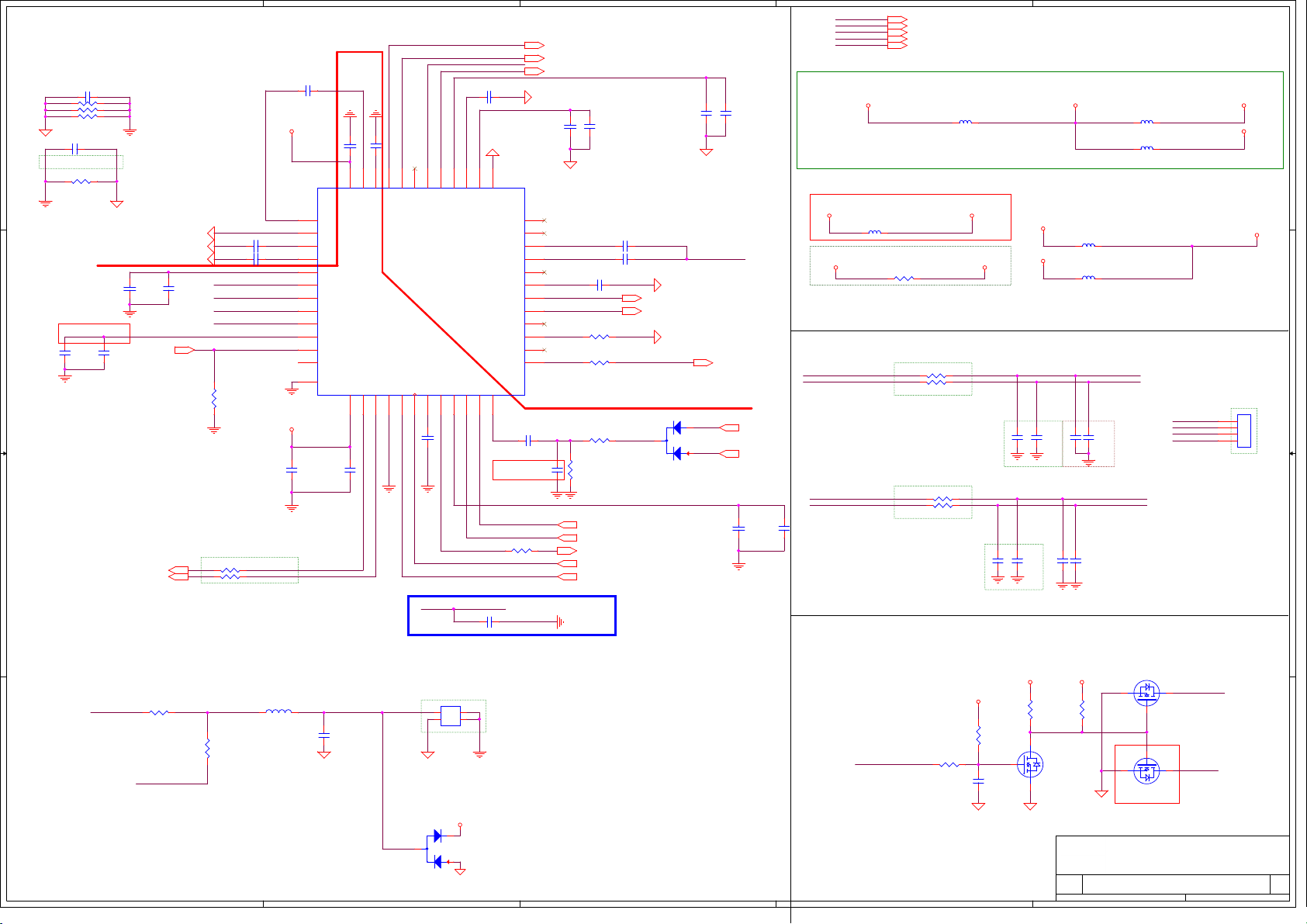

Page 24
5
ALC283
AVDD2
+V3.3DX_AUDIO
C367
C6402.2U/6.3V_4
C378
10U/6.3V_6
37
CBP
38
AVSS2
39
LDO2-CAP
40
AVDD2
41
PVDD1
42
SPK-L+
43
SPK-L-
44
SPK-R-
45
SPK-R+
46
PVDD2
47
PDB
48
SPDIFO/GPIO2
49
DGND
C377
0.1U/10V_4
DMIC_DATA1_C
DMIC_CLK1_C
FC16 0.1U/10V_4
R677 *0_4S
R681 *0_4S
D D
R360 *0_4S
AGND
FC13 *0.1U/10V_4
EC-SIT-19
R363 *0_4
AGND
AGND
+V5DX_AUDIO_PVDD
C372
0.1U/10V_4
AGND
AGND
Analog
Digital
10U/6.3V_6
C371
Realtek Suggested
C370
10U/6.3V_6
+V5DX_AUDIO_PVDD
C376
0.1U/10V_4
NB_MUTE#(32)
C C
For EMI, Close to CN19
B B
DMIC_DATA(21)
DMIC_CLK(21)
C375 10U/6.3V_6
C374
AUD_SPK_L+
AUD_SPK_L-
AUD_SPK_R-
AUD_SPK_R+
NB_MUTE#
R361
*100K_4
R362 BLM15AG601SS1D
R364 BLM15AG601SS1D
10U/6.3V_6
10U/6.3V_6
4
HPOUT_R
HPOUT_L
MIC1-VREF
MIC2_VREFO
C385 10U/6.3V_6
C379
2.2U/6.3V_4
34
33
36
35
CBN
CPVEE
CPVDD
30
32
31
HP-OUT-L
HP-OUT-R
MIC1-VREFO-L
MIC1-VREFO-R
AGND
27
29
MIC2-VREFO
25
26
28
VREF
AVDD1
LDO1-CAP
ALC283
MONO-OUT
DVDD1GPIO0/DMIC-DATA2GPIO1/DMIC-CLK3DVSS4SDATA-OUT5BIT-CLK6LDO3-CAP7SDATA-IN8DVDD-IO9SYNC10RESETB11PCBEEP
C380 10U/6.3V_6
12
Realtek Suggested
ACZ_RST#_AUDIO
HD_SDIN0
HPOUT_R (29)
HPOUT_L (29)
MIC2_VREFO (29)
Layout Notes:
AGND
Close to Codec
+V5DX_AUDIO_AVDD
C389
10U/6.3V_6
U15
AVSS1
24
LINE2-L
23
LINE2-R
22
LINE1-L
21
LINE1-R
20
MIC1-R
19
MIC1-L
18
MIC2-R
17
MIC2-L
16
15
JDREF
14
Sense B
13
SENSE_HP_R
Sense A
BEEP_C BEEP_R BEEP_D
C392
0.1U/10V_4
C391
*100P/50V/NPO_4
R366 33_4
C387
0.1U/10V_4
AGND
For Internal A MIC suggested by Realtek@1219
MIC1_R
MIC1_L
For Global_Headset MIC Bias suggested by Realtek@1219
C390 10U/6.3V/X5R_6
MIC2_R_C
MIC2_L_C
R369 20K/F _4
R368 39.2K/F _4
R367
47K_4
R370
47K_4
ACZ_RST#_AUDIO (7)
ACZ_SYNC_AUDIO (7)
ACZ_SDIN0 (7)
BIT_CLK_AUDIO (7)
ACZ_SDOUT_AUDIO (7)
3
Layout Notes:
Close to Codec
C382
2.2U/6.3V_4
AGND
C381
0.1U/10V_4
DIGITAL
2
+3V_RTC (6,7,10,32,35)
+3VS5 (2,6,7,9,10,15,17,20,23,25,28,32,37,40,44,47,53)
+5V (7,22,25,31,33,34,39,47,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,25,27,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
+1.5V (6,7,8,10,19,28,46,48,49)
+5V
CODEC 5V POWER
L16 BLM 18PG181SN1D_1.5A_6
ANALOG
+V5DX_AUDIO
L21 BLM 18PG181SN1D_1.5A_6
L18 BLM 18PG181SN1D_1.5A_6
Realtek Suggested
AVDD2 +1.5V
AUD_SPK_RAUD_SPK_R+
L17 BLM 18PG181SN1D_1.5A_6
R358 *0_6S
+3.3V_AUDIO_CODEC
Max Current : 419mA
Realtek Suggested
R4 BLM18BD601SN1D
R5 BLM18BD601SN1D
EC-DV-33
Realtek Suggested
R3 BLM18BD601SN1D
R2 BLM18BD601SN1D
EC-DV-33
+V3.3DX_AUDIO+3V
For EMI
1U/10V/X7R_6C394 L20 *HCB1608K F_1.5A_6
1U/10V/X7R_6C393
AGND
MIC2_R_C (29)
MIC2_L_C (29)
AGND
INT_MIC
SENSE_HP (29)
INT Speaker
AUD_SPK_L+
Analog
1
2
DVDD
10U/6.3V_6
Digital
ACZ_SPKR (7)
C388
BEEP (32)
C386
0.1U/10V_4
D11
3
BAT54C
AVDD2
DVDD
L19 BLM 18PG181SN1D_1.5A_6
SPK_L-_OUTAUD_SPK_LSPK_L+_OUT
Footprint changed @0118 -- ALF
680P/50V/X7R_4
680P/50V/X7R_4
C11
C6
680P/50V/X7R_4
C10
C9
SC6 *AVLC 5S 02 100
SC5 *AVLC 5S 02 100
For ESD
SPK_R-_OUT
SPK_R+_OUT
680P/50V/X7R_4
SC4 *AVLC 5S 02 100
SC3 *AVLC 5S 02 100
1
SPK_L+_OUT
SPK_L-_OUT
SPK_R-_OUT
SPK_R+_OUT
24
+V5DX_AUDIO_AVDD
+V5DX_AUDIO_PVDD+V3.3DX_AUDIO
+V3.3DX_AUDIO
INT SPEAKER CONN
1
2
3
4
CN2
EC-DV-07
ACZ_RST#_AUDIO
SC10 *AVLC 5S 02 100
Internal -- A-MIC
Jack insert open
INT_ MIC
CN9
R680 1K_4
A A
MIC1-VREF
5
INT_MIC_1
R679
2.2K_4
L28
BLM18PG181SN1D_1.5A_6
INT_MIC_2INT_MIC
C562
100P/50V/NPO_4
3
4
12G1
*MIC Conn
AGNDAGND
D18
*BAT54S-7-F/3 0V/0.2A
G2
AVDD2
2
1
AGND
3
4
EC-DV-24
For EMI
3
Grounding circuit for combo jack MIC2_R_C/MIC2_L_C pin
+3V_RTC
+3VS5
ACZ_RST#_AUDIO
R377 10K_4
*1U/6.3V/X5R_4
2
+V3.3DX_AUDIO
R376
*100K_4
C395
R375
100K_4
2
R374
*100K_4
3
PMF780SN
Q18
1
AGNDAGND
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
New adding by Realtek suggestion --1219
PMF780SN
Q20
Q19
*2N7002W
3
MIC2_R_C
2
2
3
MIC2_L_C
1
1
AGND
Realtek Suggested
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Audio(ALC283)
Audio(ALC283)
Audio(ALC283)
1
24 61, 25, 2013
24 61, 25, 2013
24 61, 25, 2013
of
of
of
1ACustom
1ACustom
1ACustom

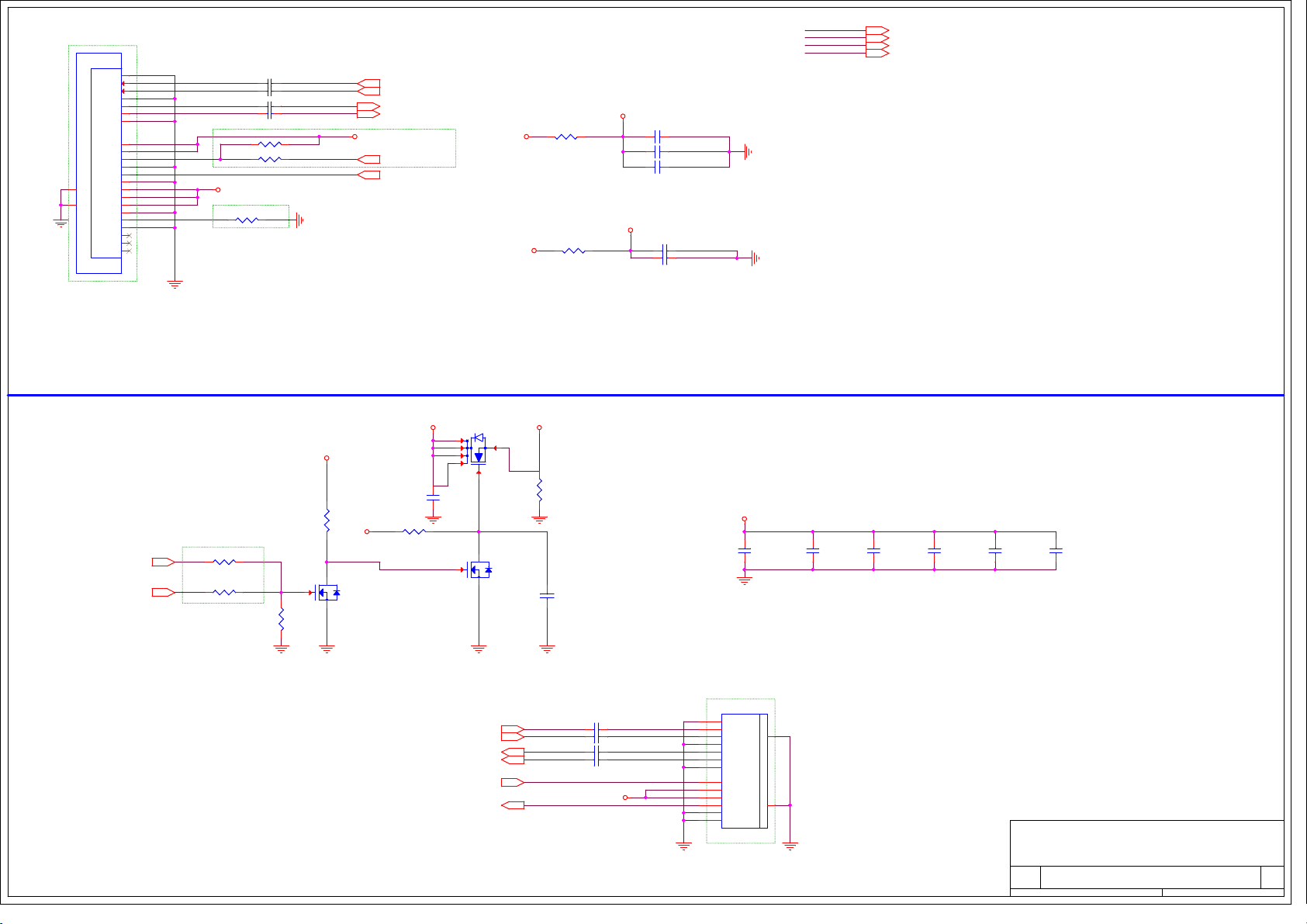

Page 25
HDD
CN17
1
GND1
2
TXP
3
TXN
4
GND2
5
RXN
6
RXP
7
GND3
8
3.3V
9
3.3V
10
3.3V
11
GND
12
GND
13
GND
GND
RSVD
GND
12V
12V
12V
14
5V
15
5V
16
5V
17
18
19
20
21
22
24
hole2
23
hole1
YMI-6030H -22104
EC-SIT-33
SATA ODD Connector.
SATA_TXP0_C
SATA_TXN0_C
SATA_RXN0_C
SATA_RXP0_C
10mil
C334 0.01U/16V/X7R_4
C335 0.01U/16V/X7R_4
C339 0.01U/16V/X7R_4
C338 0.01U/16V/X7R_4
R705 0_4
R704 *0_4
+V5DX_HDD
R709 *0_4S
EC-SIT2-03
SATA_TXP0 (7)
SATA_TXN0 (7)
SATA_RXN0 (7)
SATA_RXP0 (7)
+V3.3DX_HDD
HDD_DEVSLP (8)
HDD_DETECT# (32)
PLACE SATA AC COUPLING
CAPS CLOSE TO Connector
+5V
EC-SIT-28
1
DC Current rating: 2 A (MAX)
80 mils (Iout=2A)
R660 *0_8S
+V5DX_HDD
C626 10U/6.3V_6
C629 0.1U/10V_4
C627 *10U/6.3V_6
DC Current rating: 3 A (MAX)
120 mils (Iout=3A)
+3V
R350 *0_8S
+V3.3DX_HDD
C351 10U/6.3V_6
C349 0.1U/10V_4
+3VS5 (2,6,7,9,10,15,17,20,23,24,28,32,37,40,44,47,53)
+15V (40,47,48)
+5V (7,22,24,31,33,34,39,47,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,27,28,29,30,31,32,33,34,37,38,40,41,42, 43,46,47,48,49)
25
+5V
Q9
AO6402A
6
5
2
1
3
34
5
SATA_TXP4(7)
SATA_TXN4(7)
SATA_RXN4(7)
SATA_RXP4(7)
ODD_PRSNT#(9)
ODD_MDDA#(8,32)
R604
100K
+3VS5
R595
100K_4
+15V
61
2
Q42B
2N7002BKS
Place caps close to
connector(<200mil).
C307
0.1U/10V/X5R_4
R594 100K_4
A A
ODD_PWR(7)
ODD_EN(32)
R605 *0_4S
R608 *0_4
EC-DV-20
4
OOD_EN_5V
Q42A
2N7002BKS
+5V_ODD
R254
100K_4
C591
0.1U/25V/X5R_4
C3270.01U/16V_4
C3230.01U/16V_4
C3210.01U/16V/X7R_4
C3130.01U/16V/X7R_4
+5V_ODD
SATA_TXP4_C
SATA_TXN4_C
SATA_RXN4_C
SATA_RXP4_C
1
+5V_ODD
CN15
1
GND1
2
TXP
3
TXN
4
GND2
5
RXN
6
RXP
7
GND3
8
DP
9
+5V
10
+5V
11
MD
12
GND
13
GND
ODD Conn.
EC-SIT-33
C279
10U/10V/X5R_8
S1
14
A
14
B
S7
P1
15
15
P6
120 mils
C294
0.1U/10V/X5R_4
Place caps close to
connector.
C287
0.1U/10V/X5R_4
C283
0.1U/10V/X5R_4
C285
0.1U/10V/X5R_4
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
C290
10U/10V/X5R_8
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
SATA-HDD
SATA-HDD
SATA-HDD
of
of
of
25 61, 25, 2013
25 61, 25, 2013
25 61, 25, 2013
1ACustom
1ACustom
1ACustom
Page 26

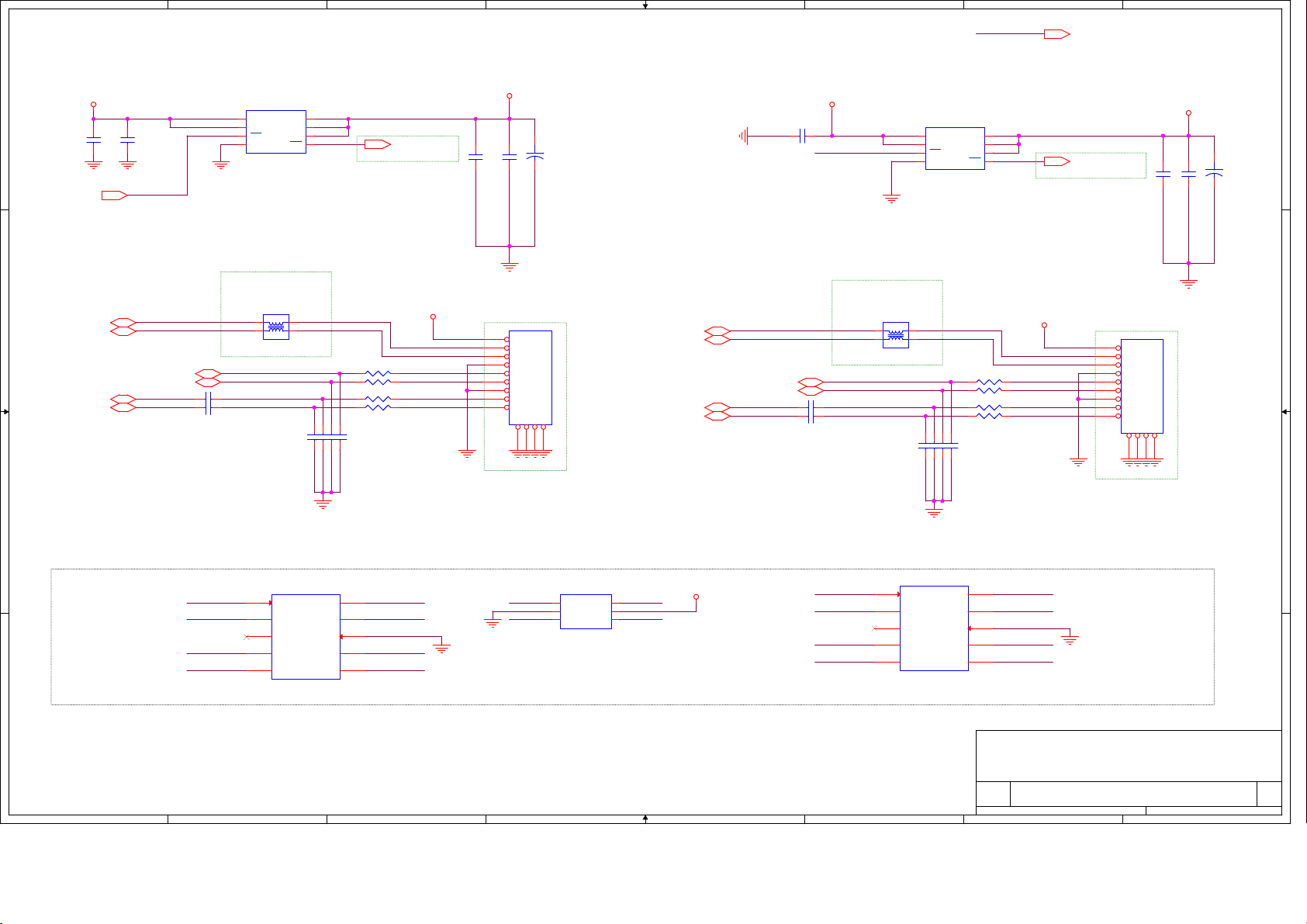

1
2
3
4
5
6
7
8
+5VS5 (15,19,29,37,38,40,41,42,43,45,46,47,48,49)
I continuous <1.5A
OC 1.5A
+5VS5 +5VS5
A A
C623
1U/10V/X7R_6
60 mils (Iout=1.5A)
C619
0.1U/10V_4
Low Active
U46
2
VIN1
OUT3
3
VIN2
OUT2
4
EN
OUT1
1
GND
RT9711BPF
8
7
6
5
OC
60 mils (Iout=1.5A)
USB_OC4# (8)
USB30PWR_1
C630 47 0P/50V/X7R_4
FOR USB 2.0 2CH
C631 15 0U/6.3V_3528
C628 0. 1U/10V_4
+
60 mils (Iout=1.5A) 60 mils (Iout=1.5A)
C3731U/10V/X7R_6
USB_ON#
EC-DV-11
USB_ON#(29,32)
B B
USBP3-(8)
USBP3+(8)
USB30_TX1-(8)
USB30_TX1+(8)
Place CAP,close to USB3.0 CONN
USB_ON#
EC-SIT2-12
EC-DV-32
1
2
4 3
CML8
DLW21HN900SQ2L
USB30_RX1-(8)
USB30_RX1+(8)
USB30_TX1-
C359 0.1U/10V_4
C360 0.1U/10V_4 FR5 *0_4SFR2 *0_4S
USB30_RX1USB30_RX1+
USB30_TX1-_R
USB30_TX1+_RUSB30_TX1+
FC8*1.6P/50V_4
FC6*1.6P/50V_4
FC5*1.6P/50V_4
FC7*1.6P/50V_4
FR3 *0_4S
FR4 *0_4S
FR1 *0_4S
USB30PWR_1
USBP3-_C
USBP3+_C
USB30_RX1-_C
USB30_RX1+_C
USB30_TX1-_C
USB30_TX1+_C
USB3.0 PORT1
Left_USB_up
CN18
1
VBUS
1
2
D-
2
3
3
D+
4
4
GND
5
5
SSRX-
6
6
SSRX+
7
7
GND
8
8
SSTX-
9
9
SSTX+
11111010121213
13
USB3.0 CONN
USBP2-(8)
USBP2+(8)
USB30_RX2-(8)
USB30_RX2+(8)
USB30_TX2-(8)
USB30_TX2+(8)
USB30_TX2-
C383 0.1U/10V_4
C384 0.1U/10V_4
Place CAP,close to USB3.0 CONN
EC-SIT2-12
EC-DV-31
USB30_RX2USB30_RX2+
USB30_TX2-_R
USB30_TX2+_RUSB30_TX2+
CML7
DLW21HN900SQ2L
EC-DV-19
EC-SIT-33
C C
I continuous <1.5A
OC 1.5A
Low Active
2
3
4
1
1
2
4 3
U13
VIN1
VIN2
EN
GND
RT9711BPF
FC9*1.6P/50V_4
FC12*1.6P/50V_4
FC11*1.6P/50V_4
FC10*1.6P/50V_4
8
OUT3
7
OUT2
6
OUT1
5
OC
FR7 *0_4S
FR8 *0_4S
FR6 *0_4S
EC-DV-11
USB30PWR_2
USBP2-_C
USBP2+_C
USB30_RX2-_C
USB30_RX2+_C
USB30_TX2-_C
USB30_TX2+_C
USB_OC0# (8,29)
USB3.0 PORT2
Left_USB_down
CN21
1
VBUS
1
2
D-
2
3
3
D+
4
4
GND
5
5
SSRX-
6
6
SSRX+
7
7
GND
8
8
SSTX-
9
9
SSTX+
11111010121213
13
USB3.0 CONN
EC-DV-19
EC-SIT-33
USB30PWR_2
C366 47 0P/50V/X7R_4
C363 0. 1U/10V_4
26
C365 15 0U/6.3V_3528
+
U11
USB30_RX1-_C
USB30_RX1+_C
ESD
D D
1
6
7
8
9
10
2
NC
NC
GND
NC
NC
ESD8004MUTAG
CH4
CH3
GND
CH2
CH1
5
USB30_RX1-_C
4
USB30_RX1+_C
3
2
USB30_TX1-_CUSB30_TX1-_C
1
USB30_TX1+_CUSB30_TX1+_C
USBP2-_C USBP2+_C
3
U47
1
IO1
2
GND
IO23IO3
SP3002-04HT G
4
IO4
REF
6
USBP3+_CUSBP3-_C
5
4
USB30PWR_1
USB30_RX2-_C
USB30_RX2+_C
ESD
5
U14
6
NC
7
NC
8
GND
9
NC
10
NC
ESD8004MUTAG
6
5
CH4
CH3
GND
CH2
CH1
USB30_RX2-_C
4
USB30_RX2+_C
3
2
USB30_TX2-_CUSB30_TX2-_C
1
USB30_TX2+_CUSB30_TX2+_C
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
Date: Sheet
7
USB3.0 x2
USB3.0 x2
USB3.0 x2
26 61, 25, 2013
26 61, 25, 2013
26 61, 25, 2013
1AB
1AB
1AB
of
of
of
8

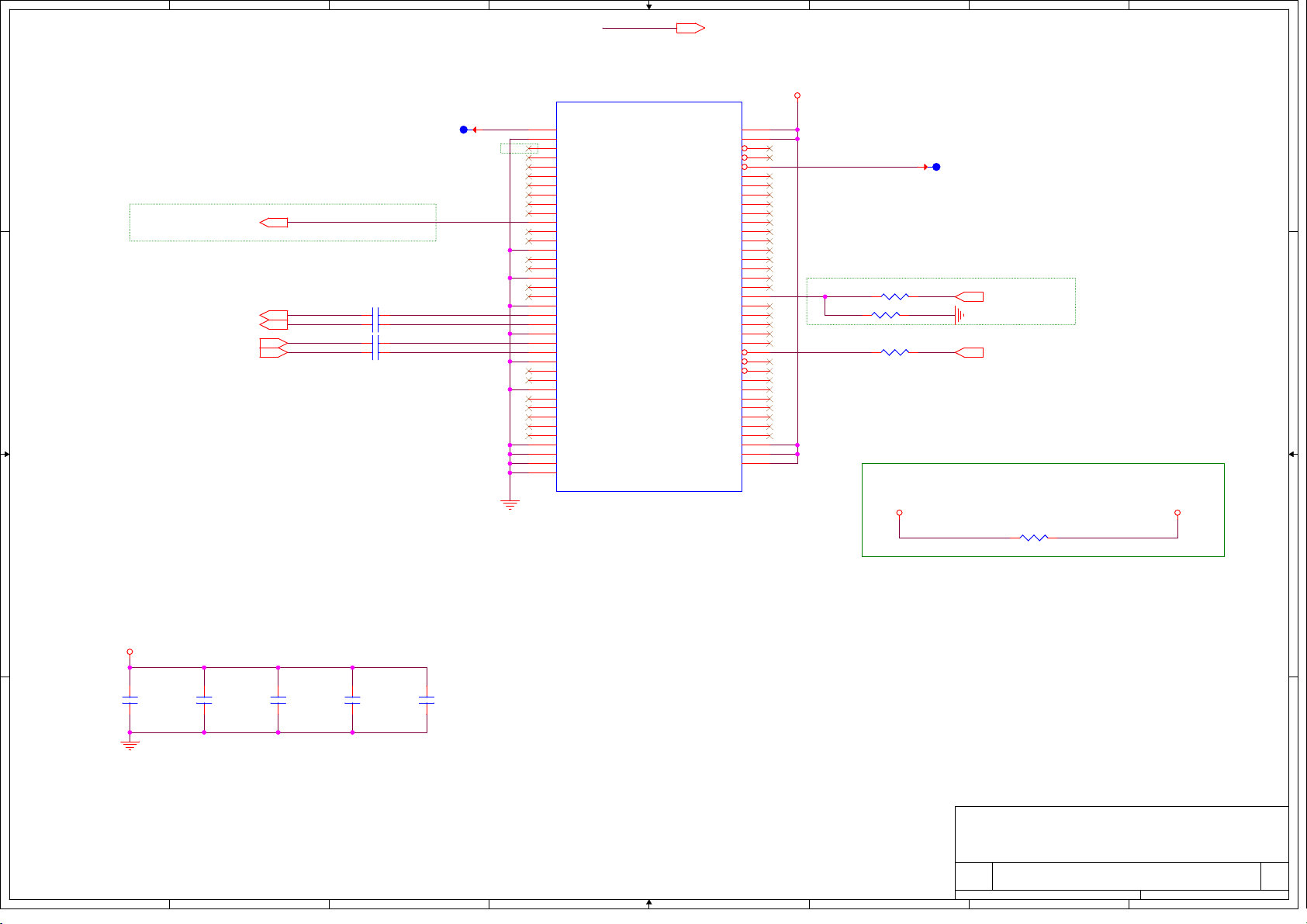

Page 27
1
2
3
4
5
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,28,29,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
6
7
8
27
NGFF SSD connector
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
+3.3V_SSD
R359 *0_4
R700 10K_4
R357 *0_4
120 mils (Iout=3A)
+3V
T10
SSD_DEVSLP (8)
PLTRST# (2,8,14,23,28,30,34)
EC-SIT-10
+3.3V_ NGFF_WWAN
Max Current : 2750mA
120 mils (Iout=3A)
+3.3V_SSD
A A
T11
EC-SIT2-10
EC-SIT-09
NGFF_SSD_PRESENT#(32)
SATA_RXP1_C
SATA_RXP1(7)
SATA_RXN1(7)
B B
SATA_TXN1(7)
SATA_TXP1(7)
C6330.01U/16V/X7R_4
C6320.01U/16V/X7R_4
C6340.01U/16V/X7R_4
C6360.01U/16V/X7R_4
SATA_RXN1_C
SATA_TXN1_C
SATA_TXP1_C
CN19
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
NGFF
GND_PRESENCE_IND
GND
GND
USB_D+
USB_DGND
Key
Key
Key
Key
WWAN/SSD IND
Wake_On_WWAN
BodySAR_N
GND
PERn1/USB3.0-RXPERp1/USB3.0-RX+
GND
PETn1/USB3.0-TXPETp1/USB3.0-TX+
GND
PERn0/SATA-R+
PERp0/SATA-RGND
PETn0/SATA-TPETn0/SATA-T+
GND
REFCLKN
REFCLKP
GND
ANTCTL0
ANTCTL1
ANTCTL2
ANTCTL3
Reset#
PEDET_OC-PCIE/GND-SATA
GND
GND
USB3.0IND/GND-O THER
3.3Vaux
3.3Vaux
Card_Power_ OFF#
W_DISABLE#
LED#1
Key
Key
Key
Key
AUDIO_0
AUDIO_1
AUDIO_2
GPS_DISABLE#
UIM-RFU
UIM-Reset
UIM-CLK
UIM-DATA
UIM-PWR
DEVSLP
GPIO_0
GPIO_1
GPIO_2
GPIO_3
GPIO_4
PERST#
CLKREQ#
PEWAKE#
COEX3
COEX2
COEX1
SIM Detect
SUSCLK(32kHz)
3.3Vaux
3.3Vaux
3.3Vaux
SSD_NGFF CONN
NC
NC
R352 *0_8S
C C
+3.3V_SSD
C369
0.1U/10V_4
D D
1
Place caps close to connector.
C368
0.047U/10V_4
C356
0.1U/10V_4
2
C354
0.047U/10V_4
3
C357
4.7U/6.3V/X5R_6
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
4
5
6
Date: Sheet
SSD NGFF
SSD NGFF
SSD NGFF
7
of
of
of
27 61, 25, 2013
27 61, 25, 2013
27 61, 25, 2013
8
1ACustom
1ACustom
1ACustom
Page 28

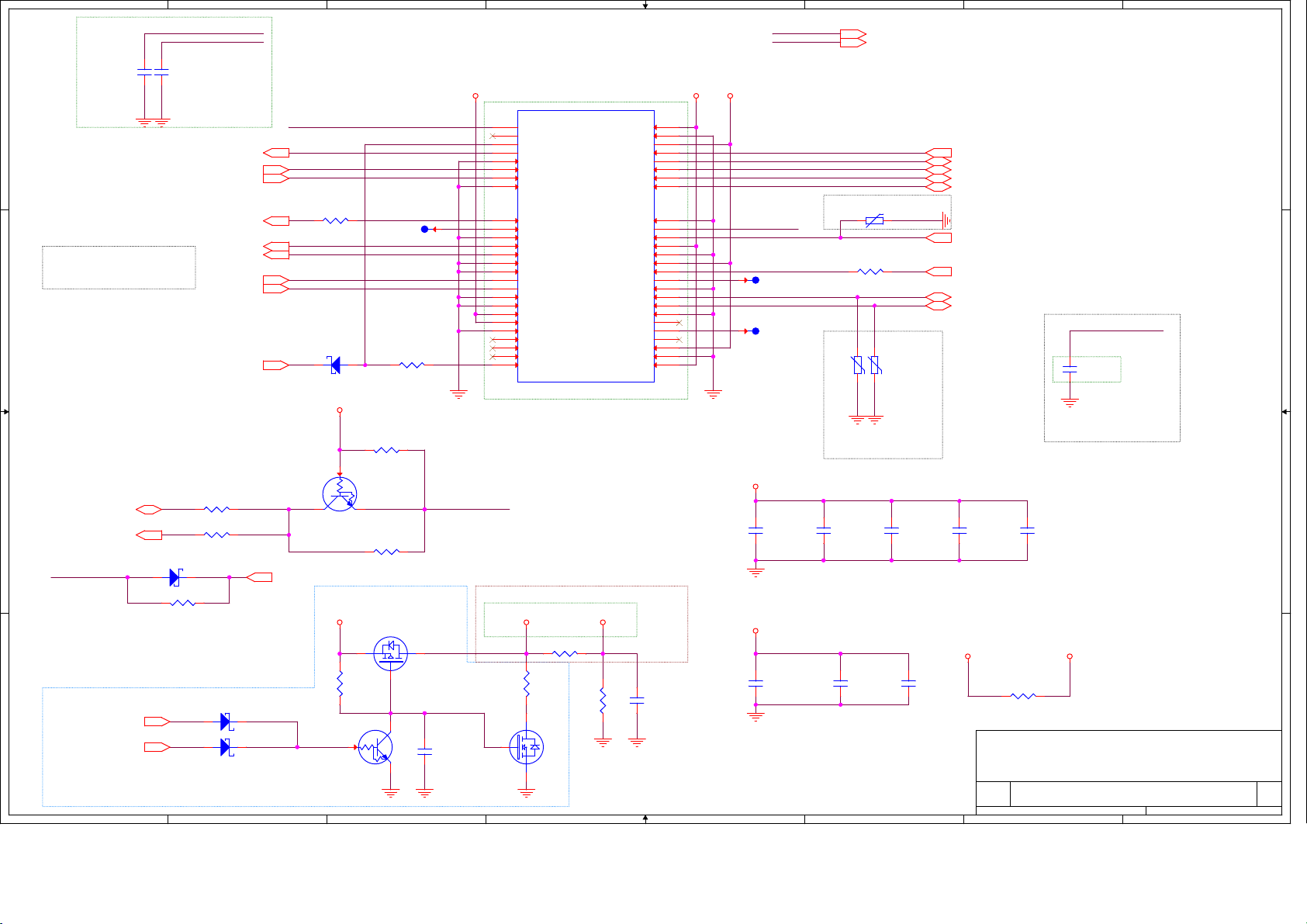

1
CLK_PCIE_WLAN#
CLK_PCIE_WLAN
2
3
4
Mini PCIE Wifi/BT connector
5
6
+3VS5 (2,6,7,9,10,15,17,20,23,24,25,32,37,40,44,47,53)
+1.5V (6,7,8,10,19,24,46,48,49)
7
8
28
C648
*5P/50V_4
A A
EC-SIT-12
C649
*5P/50V_4
PCIE_CLKREQ_WLAN #(8)
CLK_PCIE_WLAN#(8)
CLK_PCIE_WLAN(8)
MINICARD _PME#
CLK_PCIE_WLAN#
CLK_PCIE_WLAN
1
3
5
7
9
11
13
15
CN20
WAKE#
RESERVED_1
RESERVED_2
CLKREQ#
GND1
REFCLKREFCLK+
GND2
3.3V_1
GND0
1.5V_1
UIM_PWR
UIM_DATA
UIM_CLK
UIM_RESET
UIM_VPP
+3.3V_MPCIE_WLAN+3.3V_MPCIE_WLAN
2
4
6
8
10
12
14
16
+1.5V_WLAN
LFRAME# (7,32)
LAD0 (7,32)
LAD1 (7,32)
LAD2 (7,32)
LAD3 (7,32)
For ESD
SERIRQ(7,32)
PCIE_RXN1(8)
PCI-Express TX and RX
direct to connector
B B
PCIE_RXP1(8)
PCIE_TXN1(8)
PCIE_TXP1(8)
BT_OFF#(7,9)
R664 *0_4
D22
DB2J40600L
+3.3V_MPCIE_WLAN
IRQ_S ERIRQ_R
TP78
R661 *0_4S
17
UIM_C8
19
UIM_C4
21
GND4
23
PERn0
25
PERp0
27
GND6
29
GND7
31
PETn0
33
PETp0
35
GND9
37
RESERVED_3
39
RESERVED_4
41
RESERVED_5
43
RESERVED_6
45
RESERVED_7
47
RESERVED_8
49
RESERVED_9
51
RESERVED_10
MPCET- S5205-T P52
EC-SIT-33
W_DISABLE#
3.3VAUX1
SMB_CLK
SMB_DATA
LED_WWAN#
LED_WLAN#
LED_WPAN#
GND3
PERST#
GND5
1.5V_2
GND8
USB_D-
USB_D+
GND10
1.5V_3
GND11
3.3V_2
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
WLAN_OFF_R#
PLTRST#
PCLK_DEBUG
TP51
TP52
RV20 *EGA-0402
R662 *0_4S
FC15 *EGA-0402
FC14 *EGA-0402
PLTRST# (2,8,14,23,27,30,34 )
CLK_33M_DEBUG (8)
USBP10- (8)
USBP10+ (8)
PCLK_DEBUG
C635
15P/50V_4
EC-DV-29
For EMI
R672 *10K_4
2
C C
PCIE_WAKE#(6,23)
SIO_WAKE_SCI#(9,32)
WLAN_OFF_R#
D23 DB2J40600L
R668 *0_4
R678*0_4S
R682*0_4
WLAN_ON/OFF# (9)
13
Q46
LTC044EUBFS8TL
+3VS5
R683*0_4
40 mils (Iout=1A)
MINICARD _PME#
WLAN
+3.3V_ NGFF_WLAN
Max Current : 1000mA
+3.3V_MPCIE_WLAN +3V
Don't Support AOAC...
EC-SIT2-05
+3.3V_MPCIE_WLAN
C618
0.1U/10V_4
+1.5V_WLAN
For ESD / RF
Place caps close to connector.
C622
0.047U/10V_4
C642
0.1U/10V_4
C352
0.047U/10V_4
C615
4.7U/6.3V/X5R_6
2
Q45
1 3
3
+3.3V_MPCIE_WLAN
Q44
AOS3413
C639
0.01U/16V/X7R_4
3
3
2
1
R665 *0_6
15mils
R365
22_8
*100K/F_4
Q16
PMF780SN
1
Support AOAC...
D D
EC
EC_WLAN_EN(32)
WLAN_AOAC_ON(6)
D24 DB2J40600L
D25 *RB500V-40
PCH
1
2
R667
4.7K_4
2
LTC044EUBFS8TL
R663
4
40 mils (Iout=1A)
C637
0.1U/10V_4
5
C617
0.01U/16V/X7R_4
C621
0.1U/10V_4
6
C625
10U/6.3V_6
R345 *0_6S
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
Date: Sheet
+1.5V+1.5V_WLAN
40 mils (Iout=1A)
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Wifi/BT MiniPCIE
Wifi/BT MiniPCIE
Wifi/BT MiniPCIE
7
28 61, 25, 2013
28 61, 25, 2013
28 61, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of
8

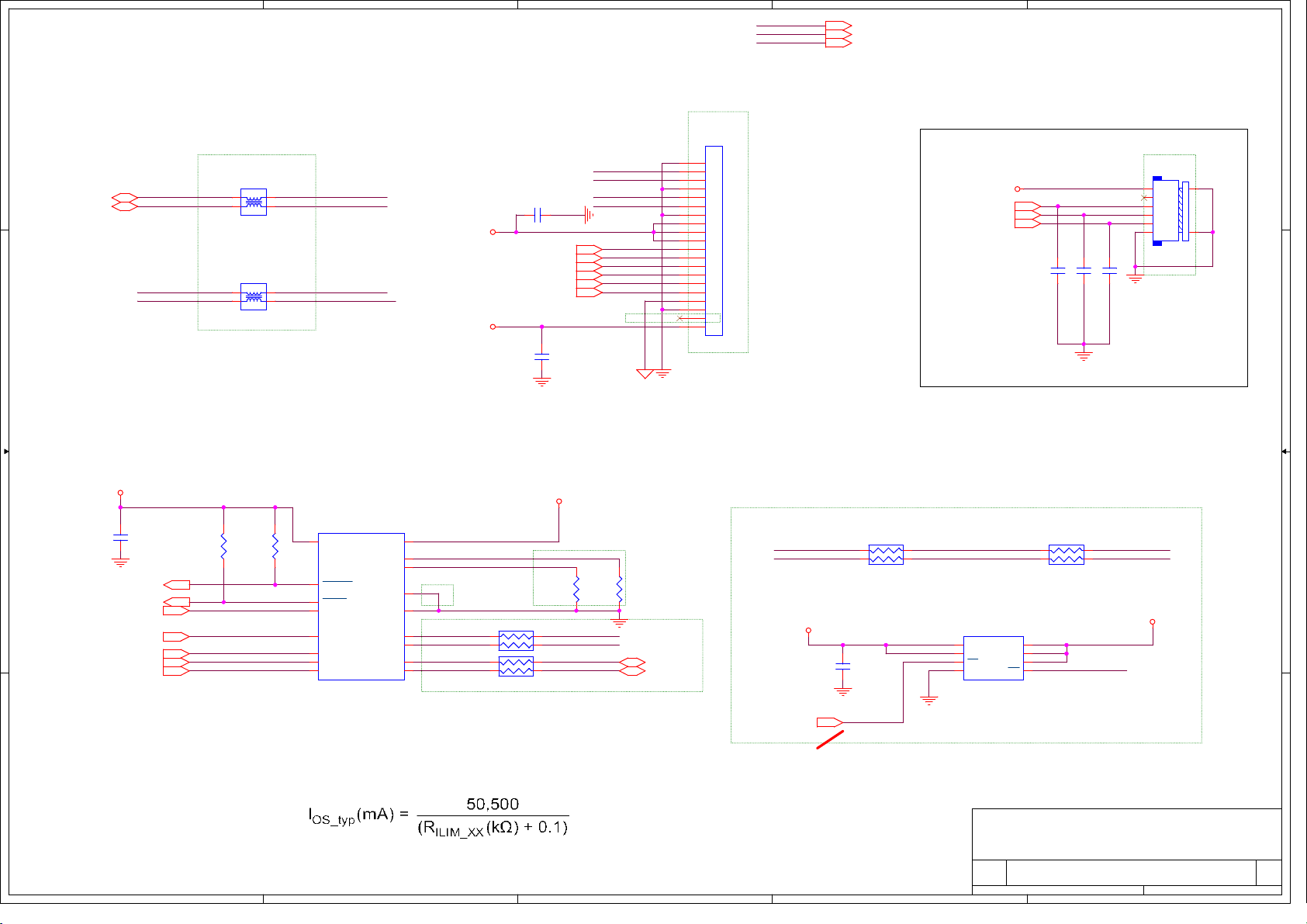

Page 29
A
D D
USBP8-(8)
USBP8+(8)
USBP0+_L
USBP0-_L
C C
4 3
1
4 3
1
EC-SIT-23
2
CML5
DLW21HN900SQ2L
2
CML4
DLW21HN900SQ2L
USBP8-_R
USBP8+_R
USBP0+_R
USBP0-_R
EC-SIT2-12
B
USB2.0 Charger Port
EC26
MIC2_VR EFO(24)
EC9
*0.1U/10V_4
*0.1U/10V_4
MIC2_R_ C(24)
MIC2_L_ C(24)
HPOUT_L(24)
HPOUT_R(24)
SENSE_HP(24)
EC-SIT2-02
Card Reader
USB3PWR
+3V
USBP0-_R
USBP0+_R
USBP8-_R
USBP8+_R
AGND
C
Function/B to MB conn
20
19
18
17
16
15
14
13
USB2.0 Charger Port 2A
12
11
10
9
8
7
6
5
4
3
2
1
CN10
EC-SIT-33
EC-SIT2-14
D
3.3_ALW
+5VS5 (15,19,26,37,38,40,41,42,43,45,46,47,48,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,30,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
E
Power/B CONN
CN4
3.3V_ALW
PWR_WHIT E#(32)
NBSWON#(32,37)
PWR_WHIT E#
LID#(20,32)
EC3*1000P/50V/X7R_4
EC2*1000P/50V/X7R_4
EC1*1000P/50V/X7R_4
Touch Pad CONN
7
6
5
4
3
2
8
1
EC-DV-09
EC-SIT-33
EC-SIT2-09
29
+5VS5
C641
0.1U/10V_4
B B
USB_STATUS#(32)
USB_OC0#(8,26)
USB_ILIM_SEL(32)
USB_CHARGER_ON(32)
USB_CTL1(32)
USB_CTL2(32)
USB_CTL3(32)
RILIM_LO is optional and the ILIM_LO pin may be left unconnected if the following conditions are met:
1. ILIM_SEL is always set high
2. Load Detection - Port Power Management is not used
3. Mouse / Keyboard wake function is not used
If conditions 1 and 2 are met but the mouse / keyboard wake function is also desired, it is recommended to use
RILIM_LO < 80.6 kΩ.
The following equation programs the typical current limit:
(1)
A A
RILIM_XX corresponds to either RILIM_HI or RILIM_LO as appropriate.
A
80 mils (Iout=2A)
R671
*10K_4
USB_OC0#
R666
*10K_4
U48
1
IN
9
STATUS
13
FAULT
4
ILIM_SEL
5
EN
6
CTL1
7
CTL2
CTL38DP_OUT
TPS2546RTER/GL887T-OCGO
OUT
ILIM_LO
ILIM_HI
GND_PAD
GND
DM_IN
DP_IN
DM_OUT
B
12
15
16
17
14
11
10
2
3
EC-SIT-02
USBP0-_L_IC
USBP0+_L_IC
USBP0-_IC
USBP0+_IC
80 mils (Iout=2A)
(RILIM_HI)
RP12 0_4P2R_4
4
2
2
4
RP11 0_4P2R_4
USB3PWR
R669
21.5K/F_4
3
1
1
3
EC-SIT2-15
EC-SIT-35
R670
2M_4
USBP0-_L
USBP0+_L
USBP0USBP0+
(RILIM_LO)
EC-SIT-18
USBP0- (8)
USBP0+ (8)
C
EC-SIT-18
For BM6 without AOU5 function
USBP0- USBP0-_RP USBP0-_L
USBP0+ USBP0+_RP USBP0+_L
+5VS5
USB_ON#(26,32)
2
4
RP9 *0_4P2R_4
C653
*0.1U/10V_4
USB_ON#
1
3
Confirmed with SW team already!!
D
2
4
RP10 *0_4P2R_4
U52
2
VIN1
3
VIN2
4
EN
1
GND
*RT9711BPF
Size Document Num ber Rev
Size Document Num ber Rev
Size Document Num ber Rev
Date: Sheet
Date: Sheet
Date: Sheet
8
OUT3
7
OUT2
6
OUT1
5
OC
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
1
3
USB3PWR
60 mils (Iout=1.5A)60 mils (Iout=1.5A)
USB_OC0#
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
USB2.0--Audio Jack Conn
USB2.0--Audio Jack Conn
USB2.0--Audio Jack Conn
E
of
of
of
29 61, 25, 2013
29 61, 25, 2013
29 61, 25, 2013
1ACustom
1ACustom
1ACustom
Page 30
A

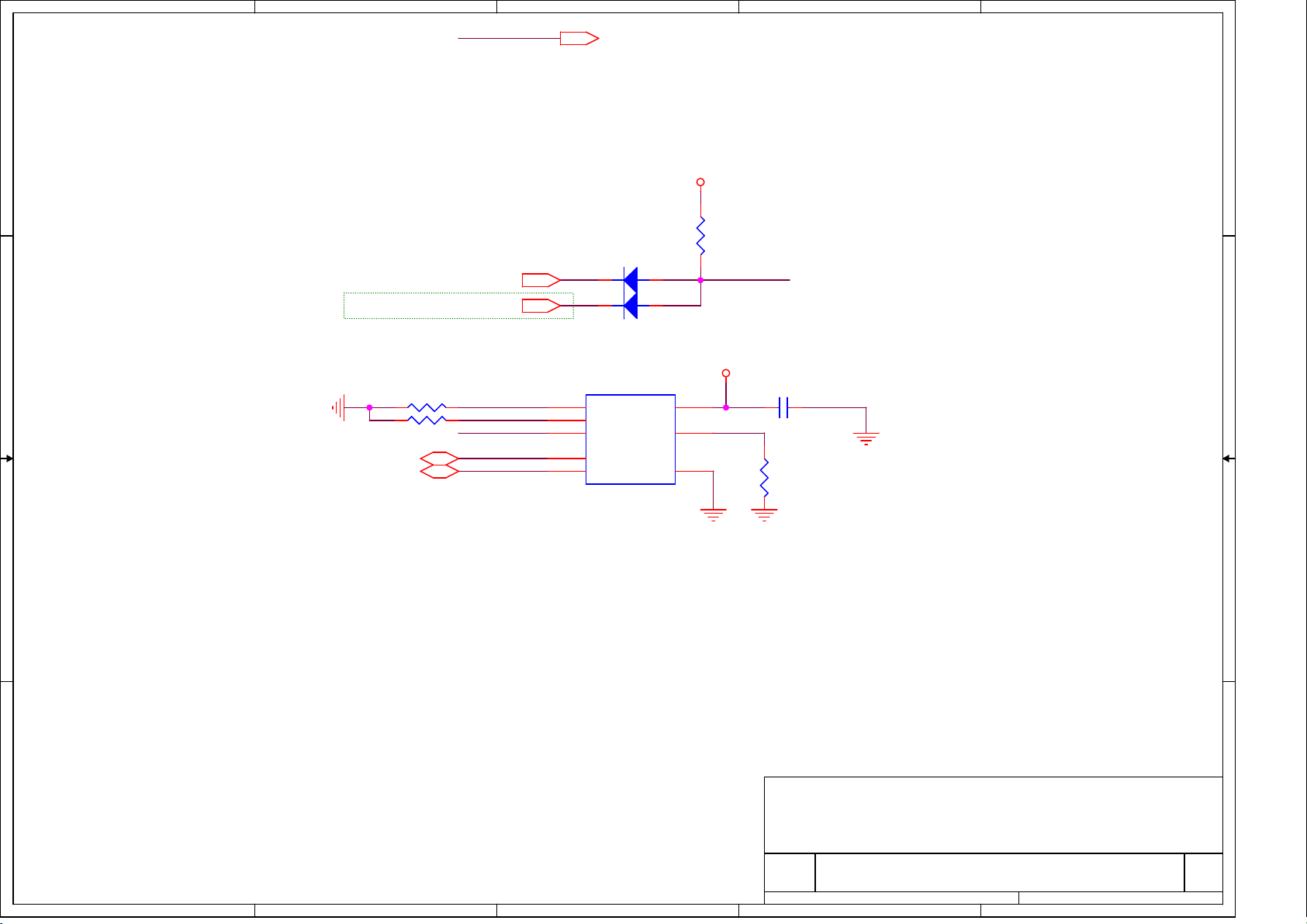

RFID
4 4
3 3
B
C
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,31,32,33,34,37,38,40,41,42,43,46,47,48,49)
D
E
30
+3V
R180
D21
*RB500V-40
HWPG(6,19,32,39,40,41,43,46)
PLTRST#(2,8,14,23,27,28,34)
D20
*RB500V-40
21
21
*4.7K_4
PROT
+3V
U37
R200 *100K_4
R199 *100K_4
SMB_RUN_CLK(8,12,13,20,33)
SMB_RUN_DAT(8,12,13,20,33)
2 2
1 1
A
B
PROT
1
L1
2
L2
PROT3WP
6
SCL
SDA5GND
*PCA24S08DP TSSOP
C
VCC
8
7
4
C272 *0.1U/10V/X7R_4
R179
*1K_4
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
RFID
RFID
RFID
Date: Sheet
Date: Sheet
Date: Sheet
D
of
of
of
30 61, 25, 2013
30 61, 25, 2013
30 61, 25, 2013
E
1AA
1AA
1AA

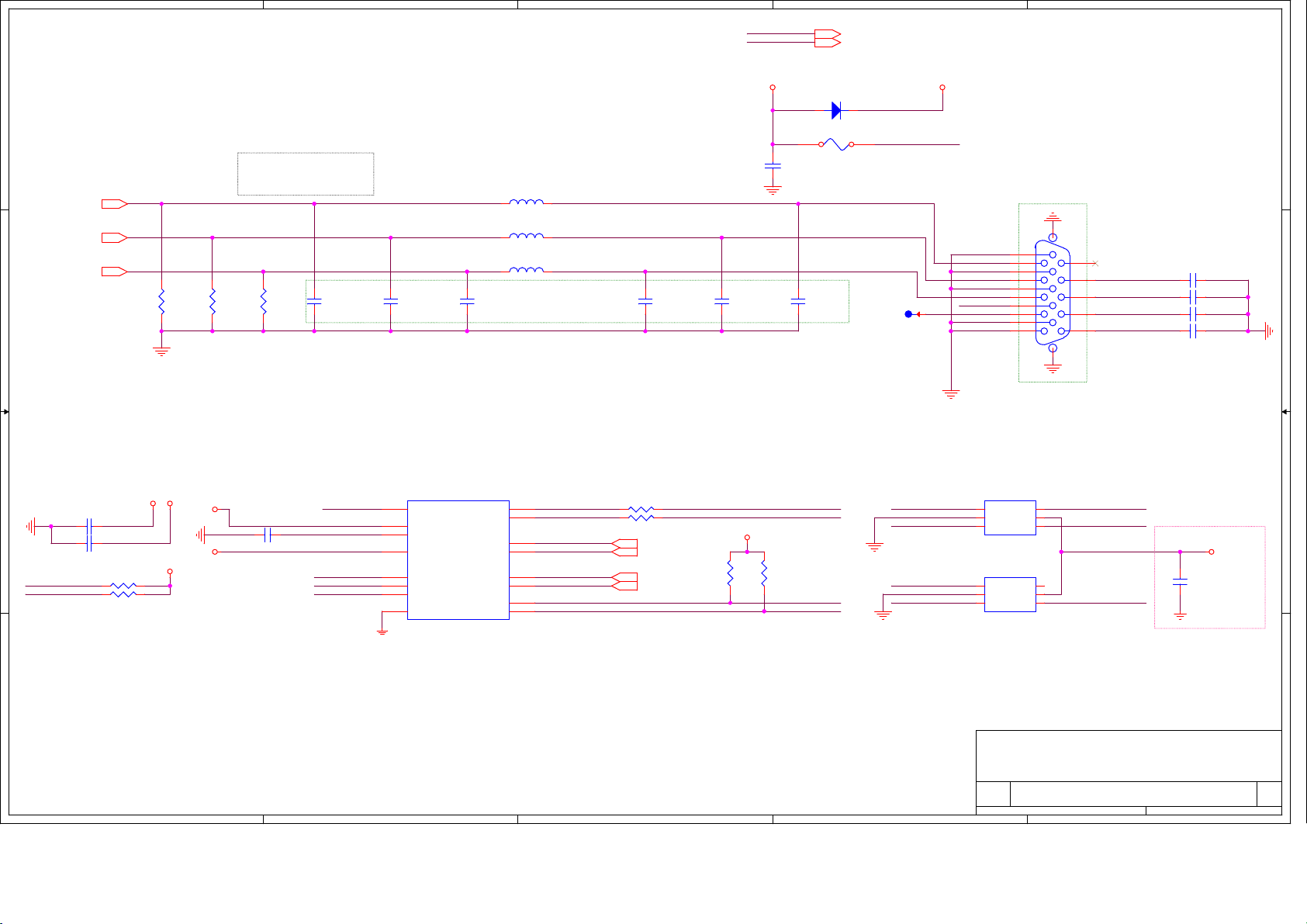

Page 31
A
4 4
Layout Note:
Setting R,G,B trace
impedance to 50 ohm.
CRT_R(6)
CRT_G(6)
CRT_B(6)
R129
3 3
150/F_4
R123
150/F_4
R118
150/F_4
C240
22P/50V_4
B
C229
22P/50V_4
L10 BLM15BA470SS1D
L9 BLM15BA470SS1D
L7 BLM15BA470SS1D
C215
22P/50V_4
C
C218
22P/50V_4
+5V (7,22,24,25,33,34,39,47,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,32,33,34,37,38,40,41,42,43,46,47,48,49)
+5V +5V_CRT2
C230
22P/50V_4
DB2J40600L
D14
2 1
F1
FUSE1.1A_8V_POLY
C506
0.1U/10V/X5R_4
C246
22P/50V_4
12
CRT_R1
CRT_G1
CRT_B1
TP17
D
CRT_VCC_R
CRT_VCC_R
E
31
1617
6
7
2
8
3
9
4
10
5
111
12
VGA_DDC_DAT _RT
13
CRTHSYNC
14
CRTVSYNC
15
VGA_DDC_CLK_ RT
C235 *470P/50V_4
C507 10P/50V_4
C505 10P/50V_4
C207 *470P/50V_4
EC-DV-30
CRT CONN
CN13
EC-SIT-33
ESD PROTECTION
+5V +3V
2 2
C544 0.1U/10V_4
C197 0.1U/10V_4
DDCCLK
DDCDATA
R82 2.7K_4
R83 2.7K_4
+3V
+5V
C190 0.22U/25V_6
+3V
+5V_CRT2
CRT_BYP
CRT_R1
CRT_G1
CRT_B1
U23
1
7
8
2
3
4
5
6
VCC_SYNC
VCC_DDC
BYP
VCC_VIDEO
VIDEO_1
VIDEO_2
VIDEO_3
GND
TPD7S019
SYNC_OUT2
SYNC_OUT1
SYNC_IN2
SYNC_IN1
DDC_IN1
DDC_IN2
DDC_OUT1
DDC_OUT2
16
14
15
13
10
11
9
12
CRT_VSYNC1
CRT_HSYNC1
VSYNC_COM
HSYNC_COM
DDCCLK
DDCDATA
VGA_DDC_CLK_ RT
VGA_DDC_DAT _RT
R437 22_4
R84 22_4
VSYNC_COM (6)
HSYNC_COM (6)
DDCCLK (6)
DDCDATA (6)
+5V_CRT2
R85
2.2K_4
CRTVSYNC
CRTHSYNC
R86
2.2K_4
CRT_G1
CRTHSYNC VGA_DDC_DAT _RT
CRTVSYNC
VGA_DDC_CLK_ RT CRT_B1
U29
1
IO1
2
GND
IO23IO3
SP3002-04HT G
U26
1
IO1
2
GND
IO23IO3
SP3002-04HT G
New Adding @ 1203
6
REF
REF
IO4
IO4
CRT_R1
5
4
6
5
4
CRT_VCC_R
C245
*0.1U/10V/X7R_4
For Checklist 0826
1 1
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
CRT
CRT
CRT
of
of
of
31 61, 25, 2013
31 61, 25, 2013
31 61, 25, 2013
E
1AB
1AB
1AB
Page 32
5
For detecting the RTC power level
R66 *1M_4
R703 *0_4S
R69
*0_4
D D
IT8512_VSTBY
C148
0.1U/10V_4
CLK_33M_KBC(8 )
EMI suggestion:
Add a 15p bypass CAP on CLK_PCI_8512
C C
Layout Note:
Place this test point on top side
3.3V_ALW
TP4
R52
100K_4
C101
0.1U/10V_4
+3V
Q4
2
PMBT3904
1 3
B B
SYS_SHDN# (34,40,51)
RSMRST#
C59
*0.1U/10V_4
EC-SIT-14
ACDC_ID
C650
*220P/50V/X7R_4
Layout Note:
Place all capacitors close to IT8512.
C144
0.1U/10V_4
CLK_33M_KBC
C107
*15P/50V/NPO_4
EC-DV-25
WRST_8512#
R62
4.7K_4
D3
EC_PWROK
DB2J40600L
EC-SIT2-04
for GC6 support
FOR DEEP S3
FOR EC auto load code
FOR DEEP S3
EC-SIT-13
A A
5
C147
0.1U/10V_4
BATLED_AMBER_LED#(33)
FB_CLAMP_TGL_REQ_EC#(1 7)
+3V_RTC_0RTC_VCC
+3V_RTC
EC-SIT-27
LFRAME#(7 ,28)
SUS_STAT#(6 )
EC_A20GATE(9)
SERIRQ(7,2 8)
SIO_EXT_SMI#(9)
SIO_EXT_SCI#(7)
EC_RCIN#(9)
USB_STATUS#(29)
D/C#(39)
LAN_POWER(23,49)
SIO_PWRBTN#(6 )
USB_ON#(26,29)
RSMRST#(6)
ODD_MDDA#(8,2 5)
SIO_SLP_S5#(6)
PM_SLP_M#(6)
NUMLED#(3 3)
FAN_ID(34)
ACDC_ID(39)
VCORE_IMON_EC(42)
AC_PRESENT(6 ,17)
SUSWARN#EC(6)
SLP_S4#(6)
SUSON(41, 49)
8512_SCK(7)
8512_SCE#(7 ,53)
8512_SI(7)
8512_SO(7)
USB_CHARGER_ON(29)
SUSACK#EC(6 )
MY[0..15](33)
MX[0..7](33)
For EMI, Close U16. pin74
C80
0.1U/10V_4
C58
0.1U/10V_4
EC-SIT-16
LAD0(7,28)
LAD1(7,28)
LAD2(7,28)
LAD3(7,28)
LID#(20 ,29)
D5 DB2J40600L
D1 DB2J40600L
D4 DB2J40600L
D2 DB2J40600L
R53 0_4
PM_SLP_M#
ACDC_ID
8512_SCK
8512_SCE#
8512_SI
8512_SO
MY16(33)
MY17(33)
R90
*0_4
USB_CHARGER_ON
C83
100P/50V/NPO_4
L2 BLM18AG121SN1D
C122
0.1U/10V_4
Layout Note:
net "3VPCU" and "RTC_VCC"
minimum trace width 12mils.
Layout Note:
net "3VALW" and "RTC_VCC"
minimum trace width 12mils.
C652
*330P/25V_4
CLK_33M_KBC
TP3
WRST_8512#
USB_STATUS#
SIO_PWRBTN#_R
RSMRST#
ODD_MDDA#_R_EC
GPG2
MY0
MY1
MY2
MY3
MY4
MY5
MY6
MY7
MY8
MY9
MY10
MY11
MY12
MY13
MY14
MY15
4
IT8512_AVCC
C82
1000P/16V/X7R_4
C124
0.1U/10V_4
10
LAD0/GPM0(X)
9
LAD1/GPM1(X)
8
LAD2/GPM2(X)
7
LAD3/GPM3(X)
22
LPCRST#/WUI4/GPD2(Up)
13
LPCCLK/GPM4(X)
6
LFRAME#/GPM5(X)
17
LPCPD#/WUI6/GPE6(Dn)
126
GA20/GPB5(X)
5
SERIRQ/GPM6(X)
15
ECSMI#/GPD4(Up)
23
ECSCI#/GPD3(Up)
14
WRST#
4
KBRST#/GPB6(X)
16
PWUREQ#/BBO /SMCLK2ALT/GPC7(Up)/SMCLK2ALT
119
CRX0/GPC0(Dn)
123
CTX0/TMA0/GPB2(Dn)
80
DAC4/DCD0#/GPJ4(X)
104
DSR0#/GPG6(X)
33
GINT/CTS0#/GPD5(Up)
88
PS2DAT1/RTS0#/ GPF3(Up)
81
DAC5/RIG0#/GPJ5(X)
87
PS2CLK1/DTR0#/G PF2(Up)
109
TXD/SOUT0/GPB1(Up)
108
RXD/SIN0/GPB0(Up)
71
ADC5/DCD1#/W UI29/GPI5(X)
72
ADC6/DSR1#/W UI30/GPI6(X)
73
ADC7/CTS1#/W UI31/GPI7(X)
35
RTS1#/WUI5/GPE5(Dn)
34
PWM7/RIG1#/GPA7( Up)
107
DTR1#/SBUSY/GPG1/ID7(Dn)
95
CTX1/WUI18/SOUT1/GPH2/SMDAT3/ID2(Dn)
94
CRX1/WUI17/SIN1/SMCLK3/GPH1/ID1(Dn)
105
FSCK/GPG7
101
FSCE#/GPG3
102
FMOSI/GPG4
103
FMISO/GPG5
56
KSO16/SMOSI/GPC3(Dn)
57
KSO17/SMISO/GPC5(Dn)
32
PWM6/SSCK/GPA6(U p)
100
SSCE0#/GPG2(X)
106
SSCE1#/GPG0(X)
36
KSO0/PD0
37
KSO1/PD1
38
KSO2/PD2
39
KSO3/PD3
40
KSO4/PD4
41
KSO5/PD5
42
KSO6/PD6
43
KSO7/PD7
44
KSO8/ACK#
45
KSO9/BUSY
46
KSO10/PE
51
KSO11/ERR#
52
KSO12/SLCT
53
KSO13
54
KSO14
55
KSO15
C81
1U/6.3V_4
+3V
R61
*0_4S
IT8512_VSTBY
+3.3V_RUN_EC
11
VCC
VSTBY26VSTBY50VSTBY92VSTBY
LPC
EXTERNAL SERIAL FLASH
SPI ENABLE
KSI0/STB#58KSI1/AFD#59KSI2/INIT#60KSI3/SLIN#61KSI462KSI563KSI664KSI7
MX0
MX1
MX2
MX3
MX4
MX5
MX6
MX7
4
RTC_VCC
114
121
VSTBY
CIR
KBMX
3
VBAT
UART port
65
L1 10_6
IT8512_VSTBY
L3 BLM18AG121SN1D
C141
0.1U/10V_4
IT8512_VSTBY
84
74
127
82
AVCC
VSTBY
EGAD/WUI25/GPE1(Dn)
EGCS#/WUI26/GPE2(Dn)83EGCLK/WUI27/GPE3(Dn)
IT8587
VSS
VSS27VSS49VSS
VSS
VSS
1
91
122
113
C117
*1U/6.3V/X5R_4
+3V_RTC_0 (7,35)
3.3V_ALW (7,29,33,35,39,40)
+3VS5 (2,6, 7,9,10,15,17, 20,23,24,25,2 8,37,40,44,4 7,53)
+3V (2,6,7,8 ,9,10,12,13,1 4,19,20,21,2 2,24,25,27,28 ,29,30,31,33,34,37,38,40,41,42,43,46,47,48,49)
(For PLL Power)
CLKRUN#_R
20
19
L80HLAT/BAO/WUI24/GP E0(Dn)
L80LLAT/WUI7/GPE7(Up)
GPIO
93
97
PECI/SMCLK2/WUI22/GPF 6(Up)
PS2CLK0/TMB0/CEC/GPF 0(Up)
WUI41/GPH5/ID5(Dn)98WUI42/GPH6/ID6(Dn)99WUI19/GPH3/ID3(Dn)96WUI40/GPH4/ID4(Dn)
SM BUS
PS2CLK2/WUI20/G PF4(Up)
PS2DAT2/W UI21/GPF5(Up)
PS/2
CLKRUN#/WUI16/GPH0/ID0(Dn)
SMDAT2/WUI23/G PF7(Up)
PS2DAT0/TMB1/GPF 1(Up)
PWM
TACH1A/TMA1/GPD7(Dn)
WAKE UP
RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7(Dn)
A/D D/A
CLOCK
VCORE
AVSS
12
75
C113
0.1U/10V_4
3
3.3V_ALW
3.3V_ALW
ODD_EN (25)
S5_ON (40)
LAN_ISOLATE (23)
DPWROK_EC (6)
EC_PWROK (5,6)
GFXON (15,45,48)
USB_CTL1 (29)
USB_CTL2 (29)
USB_CTL3 (29)
U4
IT8587E/FX
SMCLK0/GPB3(X)
SMDAT0/GPB4(X)
SMCLK1/GPC1(X)
SMDAT1/GPC2(X)
PWM0/GPA0(Up)
PWM1/GPA1(Up)
PWM2/GPA2(Up)
PWM3/GPA3(Up)
PWM4/GPA4(Up)
PWM5/GPA5(Up)
TACH0A/GPD6(Dn)
TMRI0/WUI2/GPC4(Dn)
TMRI1/WUI3/GPC6(Dn)
PWRSW /GPE4(Up)
RI1#/WUI0/GPD0(Up)
RI2#/WUI1/GPD1(Up)
ADC0/GPI0(X)
ADC1/GPI1(X)
ADC2/GPI2(X)
ADC3/GPI3(X)
ADC4/WUI28/G PI4(X)
TACH2/GPJ0(X)
GPJ1(X)
DAC2/TACH0B/GPJ2(X)
DAC3/TACH1B/GPJ3(X)
CK32KE/GPJ7
CK32K/GPJ6
3
FOR DEEP S3
R60 *0_4S
110
MBCLK
111
MBDATA
115
MBCLK_THRM
116
MBDATA_THRM
117
PECI_EC_L
118
85
86
89
90
24
25
28
29
30
31
47
48
120
124
125
18
21
112
66
67
68
69
70
76
77
78
79
2
128
R74 *0_4S
M3_ON
NGFF_SSD_PRESENT#
Moved the TEMP_ALERT# & VGA_OVT# to PCH -1221
H_PROCHOT_EC
HWPG
NBSWON#
ACIN
R49 *0_4S
Dock_Detect#
HDD_DETECT#
H_PROCHOT_EC
C145 *0.1U/10V_ 4
FOR DEEP S3
H_PROCHOT#_Q
3
Q3
2
R71
1
100K_4
CLKRUN# (6)
MBCLK (39)
MBDATA (39)
MBCLK_THRM (8,17,19,34)
MBDATA_THRM (8,17,19,34)
EC_PECI (2,9)
NB_MUTE# (24)
M3_ON (44,49)
NGFF_SSD_PRESENT# (27)
TPCLK (33)
TPDATA (33)
PWR_WHITE# (29)
FB_CLAMP (15,48)
FAN_PWM_R (34 )
CAPSLED# (33)
BATLED_GREEN_LED# (33)
BEEP (24)
FANSIG_R (34 )
EC_WLAN_EN (28)
HWPG (6,19,30,39,40,41 ,43,46)
NBSWON# (29,3 7)
SIO_SLP_S3# (6)
ACIN (39)
MAINON (19,41,43,46 ,49)
TEMP_ MBAT (39)
MBATV (39)
AD_ID (39)
Dock_Detect# (37)
USB_ILIM_SEL (29)
SLP_SUS# (6)
HDD_DETECT# (2 5)
BL/C# (39)
ADAPTER_ID (39)
VRON (42,49)
SIO_WAKE_SCI# (9,28)
for GC6 support
2N7002BK
R65 *0_4S
EC-SIT2-04
MBCLK
MBDATA
CLK_33M_KBC
EC-SIT-15
2
EC-SIT-04
H_PROCHOT# (2,3 9,42)
EC-DV-12
EC-SIT-09
EC-SIT2-16
for ODD used --1204
For EC E-flash(embedded flash) auto load code
SLP_SUS_ON_GPG2
ACIN
SLP_SUS_ON_GPG2(10 )
For ESD
SC7
SC8
SC9
*0.1U/10V_4
*0.1U/10V_4
*0.1U/10V_4
USB_STATUS#
PM_SLP_M#
SLP_SUS_ON_GPG2
MBCLK_THRM
MBDATA_THRM
MBCLK
MBDATA
SIO_WAKE_SCI#
Dock_Detect#
HDD_DETECT#
TEMP_ MBAT
NGFF_SSD_PRESENT#
M3_ON
ODD_MDDA#_R_EC
FB_CLAMP_TGL_REQ_EC#
HWPG
EC_PWROK
3.3V_ALW
C71
*0.1U/10V_4
C72 *0.1U/10V_ 4
R47 *10K_4
R45 *0_4 S
Note:
H01 use IT8587 with 128K-byte e-flash
Auto lo ad c ode co ndit ion :
1. Let PCH SPI interface in High-Z state.
2. RSMRST# pull low
(PCH SPI pins are tr i-stated prior to RSMRST# de-assertion)
3. EC pin 100(GPG2) pull high(force EC load code)
4. Supply power to SPI flash ROM,PCH(VCCSPI,+1.05V_SUS) and EC
POWER SWITCH For B ring Up Test
R78 *0_4S
SW3
3
4
5 6
Power-BUTTON
2
1
1
2
AOU5 function select setting
HDD_DETECT#
C651
*0.1U/10V_4
R702
*10K_4
With
Ra (Hi)Stuff
Without
Rb (Lo)
Default
USB_CHARGER_ON
EC-SIT-20
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
1
R698 10K_4
R73 *10K_4
R88 10K_4
R93 4.7K_4
R94 4.7K_4
R91 4.7K_4
R92 4.7K_4
R55 *10K_4
R418 100K_4
R687 100K_4
R48 *100K_4
R56 10K_4
R353 10K_4
R54 10K_4
R43 *10K_4
R95 10K_4
R51 10K_4
U3
*TC7SH08FU
4
3 5
R44
*100K/F_4
GPG2SLP_SUS_ON_GPG2
POWER SWITCH
3.3V_ALW
NBSWON#
3.3V_ALW
RaRb
R701
10K_4
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
KBC IT8587
KBC IT8587
KBC IT8587
1
+3VS5
32
3.3V_ALW
+3V
DSW_LOAD_CO DE (40)
R96
10K_4
C146
0.1U/10V_4
of
of
of
32 61, 25, 2013
32 61, 25, 2013
32 61, 25, 2013
1ACustom
1ACustom
1ACustom
Page 33
5
KEYBOARD
50503-0300B-V01
30
MX1(32)
MX7(32)
MX6(32)
MY9(32)
MX4(32)
D D
CAPSLED#(3 2)
NUMLED#(32)
C C
MX5(32)
MY0(32)
MX2(32)
MX3(32)
MY5(32)
MY1(32)
MX0(32)
MY2(32)
MY4(32)
MY7(32)
MY8(32)
MY6(32)
MY3(32)
MY12(32)
MY13(32)
MY14(32)
MY11(32)
MY10(32)
MY15(32)
MY16(32)
MY17(32)
+3V
R7 150_4
+3V
R6 150_4
MX1
MX7
MX6
MY9
MX4
MX5
MY0
MX2
MX3
MY5
MY1
MX0
MY2
MY4
MY7
MY8
MY6
MY3
MY12
MY13
MY14
MY11
MY10
MY15
MY16
MY17
30
29
29
28
28
27
27
26
26
25
25
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
CN5
EC-SIT-33
EMI
EC-SIT2-01
4
MY16 MY17
C15 *220P/50V/X7R_4
MY15
C16 *220P/50V/X7R_4 C20 *220P/50V/X7R_4
MY10
MY11
C18 *220P/50V/X7R_4
MY14
C19 *220P/50V/X7R_4
MX0
C28 *220P/50V/X7R_4
MY1
C29 *220P/50V/X7R_4
MY5
C12 *220P/50V/X7R_4
MX3
C13 *220P/50V/X7R_4 C34 *220P/50V/X7R_4
MX2
C30 *220P/50V/X7R_4
MY0
C31 *220P/50V/X7R_4
MX5
C32 *220P/50V/X7R_4
C33 *220P/50V/X7R_4
C14 *220P/50V/X7R_4
C21 *220P/50V/X7R_4C17 *22 0P/50V/X7R_4
C22 *220P/50V/X7R_4
C23 *220P/50V/X7R_4
C37 *220P/50V/X7R_4
C36 *220P/50V/X7R_4
C35 *220P/50V/X7R_4
C24 *220P/50V/X7R_4
C25 *220P/50V/X7R_4
C26 *220P/50V/X7R_4
C27 *220P/50V/X7R_4
MY13
MY12
MY3
MY6
MX1
MX7
MX6
MY9
MY8
MY7
MY4
MY2MX4
3
Fingerprint module
USBP5+_R
USBP5-_R
USBP5+(8)
USBP5-(8)
RV2
2
20mil
*VARISTOR_6
RV1
+3V
CN7
Fingerprint Conn.
7
6
5
4
3
2
8
1
EC-SIT-33
*VARISTOR_6
3.3V_ALW (7,29,32,35,39,40)
+5V (7,22,24,25,31,34,39,47,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,34,37,38,40,41,42,43,46,47,48,49)
EC-SIT2-12
R106 *0_4S
R105 *0_4S
USBP5+_R
USBP5-_R
FOR ESD
U7
2
VIN
IO1
3
GND
IO2
*PJSR05
+3V
4
1
1
33
LED1
BATLED_GREEN_LED#(32)
BATLED_AMBER_LED#(32)
R371 210_6
R372 210_6
BATLED_GREEN_LED#_R
BATLED_AMBER_LED#_R
RV12 *TVM0G5R5M411R
RV11 *TVM0G5R5M411R
For ESD
Touch pad
B B
1
3
RP5
10KX2
2
4
TPCLK(32)
TPDATA(32)
A A
LEFT_BTN#
RIGHT_BTN#
L5 *0_6S
L4 *0_6S
R104 *0_4S
R103 *0_4S
C158
20mil
RV5
C159
*15P/50V_4
*15P/50V_4
TVM0G5R5M330R_4
C182
0.1U/10V_4
RV6
TVM0G5R5M330R_4
RV3TVM0G5R5M330R_4
+5DX_TCH_PAD+5DX_TCH_PAD
C183
0.047U/10V_4
TP_CLK
TP_DATA
LEFT_BTN#_R
RIGHT_BTN#_R
RV4TVM0G5R5M330R
EC-SIT-33
CN6
7
6
5
4
3
2
8
1
Touch P ad CONN
GREEN
ORANGE
2
C2
3
C1
GREEN/ORANG-LED
SMB_RUN_CLK(8,12,1 3,20,30)
SMB_RUN_DAT(8,12,13,20,3 0)
1
A
3.3V_ALW
C176
*0.1U/10V_4
R203 *0_4S
R193 *0_4S
TVM0G5R 5M330R
RV8
Battery
+5DX_TCH_PAD
C185
*0.047U/10V_4
TP_CLK
TP_DATA
LEFT_BTN#_R
RIGHT_BTN#_R
PCH_SCLK1
PCH_SDATA1
RV7
TVM0G5R 5M330R
CN8
1
10
2
3
4
5
6
978
*Image Pad CONN
SATA_LED#(7)
R373 100_6
RV13 *TVM0G5R5M411R
SATA_LED#_R
For ESD
LEFT_BTN#
12
RV10
*Clamp-Diode_ 6
RIGHT_BTN#
12
RV9
*Clamp-Diode_ 6
3
4
5 6
LEFT-BUTTON
EC-DV-08
3
4
5 6
RIGHT-BUTTON
SW1
1
2
/ EC-SIT-34
SW2
SATA LED
LED2
GREEN_LED
1
2
21
+3V
EC-SIT-17
Profile Sensor 6Pin (Default)
Voltage: +5V
Max Current : 50mA
5
+5V
R108 0_4
+5DX_TCH_PAD
4
R102 *0_4
Image Sensor 8 Pin
Voltage: +3V
Max Current : 50mA
+3V
3
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
KB/TP/LID
KB/TP/LID
KB/TP/LID
33 61, 2 5, 2013
33 61, 2 5, 2013
33 61, 2 5, 2013
1
1ACustom
1ACustom
1ACustom
of
of
of
Page 34
FAN CONTROL & Thermal IC
Thermal IC(HW Shutdown)
+3V
1
Thermal IC
+5V (7,22,24,25,31,33,39,47,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,37,38,40,41,42,43,46,47,48,49)
+3V
34
C361
0.1U/25V/X5R_4
C364
U12
1
SMBCLK
VDD
2
D+
SMBDAT
3
D-
5
GND
W83L771AWG-2
Close to SSD
ALERT
T_CRIT
8
T_Sensor_MB_CLK
7
T_Sensor_MB_DATA
6
TEMP_ALERT#
4
T_Sensor_TCRIT#_1
ADDRESS: 9A
PMBT3904
Q32
2
1 3
Close to SO-DIMM
D+_1
D-_1
C404
0.1U/25V/X5R_4
NOTE:
Place C1300 near IC Pin
C572
2200P/50V/X7R_4
T_Sensor_TCRIT#
C400
10U/6.3V/X5R_6
U33
1
VDD
2
D+
3
D-
ALERT#
4
TCRIT#
NCT7718W
Close to CPU
SCLK
SDAT
GND
8
T_Sensor_MB_CLK
7
T_Sensor_MB_DATA
6
T_Sensor_ALERT#
5
10U/6.3V/X5R_6
NOTE:
Place C5742 near IC Pin
PMBT3904
Q17
2
D+_2
1 3
D-_2
Place on Right-buttom of PCB
C362
2200P/50V/X7R_4
ADDRESS: 98
+3V
R470
7.5K/F_4
Rb
Q29
Ra
1
Q28
PMF780SN
1
PMF780SN
3
2
R471 *0_4S
3
2
R492 *0_4S
TEMP_ALERT#
PLTRST#
PLTRST#
A A
*Reserved the
circuit to isolate
the ALERT#/T_CRIT#
pin for power-on
T_CRIT temperature
strapping.
T_Sensor_TCRIT#
T_Sensor_TCRIT#_1
T_Sensor_ALERT#
R491 *0_4S
R490
14K/F_4
+3V
+3V
R469
*10K_4
TEMP_ALERT# (9,17)
it is to avoid abnormal operation when power on within 100ms
for HW strap pin setting HW Shut-down Temp. 109
PLTRST# (2,8,14,23,27,28,30)
+3V
R489
10K_4
RV14 *EGA- 0402
SYS_SHDN# (32,40,51)
T_Sensor_MB_CLK
R505
4.7K/J_4
+3V
5
34
2N7002BKS
Q33A
+3V
+3V
R392
10K_4
MBCLK_ THRM (8,17 ,19,32)
R393
10K_4
+5V
R399 *0_6S
+3V
C422
1U/10V/X7R_6
FANSIG_R (32)
FAN_ID (32)
FAN_PWM_R (32)
+5V_FAN
FAN_ID
FANSIG_R
FAN_PWM_R
+5V_FAN
C416 *10P/50 V/COG_4
FAN Controller
C421
0.1U/10V/X5R_4
C410 *10P/50 V/COG_4
CONN_FAN
5
4
3
2
1
CN11
ALERT# /T_CRIT#
Pull-up Resistor
Ra
97
99
101
103
105
Rb
2Kohm
7.5Kohm
10.5Kohm
14Kohm
18.7Kohm
2Kohm 7.5Kohm 10.5Kohm 14Kohm 18.7Kohm
77
87
79
89
81
91
83
93
85
95
T_CRIT temperature strapping point
R525
4.7K/J_4
T_Sensor_MB_DATA
107
117
109
111
113
115
119
121
123
125
1
2
Q33B
61
2N7002BKS
MBDATA _THRM (8,17, 19,32)
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
Date: Sheet
FAN/Thermal
FAN/Thermal
FAN/Thermal
of
of
of
34 61, 25, 2013
34 61, 25, 2013
34 61, 25, 2013
1ACustom
1ACustom
1ACustom
Page 35
A
Green CLK Circuitry
B
C
+3V_RTC_0 (7,32)
+3V_RTC (6,7,10,24,32)
3.3V_ALW (7,29,32,33,39,40)
+3V_GPU (14,17,38,45,48,50)
LANVCC (23,49)
+1.05V (2,4,9,10,43,48,49,53)
D
E
35
4 4
+3V_RTC_0,+3V_RTC_R,+3V_RTC..
20mils width(min)
3.3V_ALW
+3V_RTC_0LANVCC
LAN_XTAL25_IN(23)
PCH_XTAL25_IN(8)
CLKGEN_RTC_X1(7)
GPU_XTAL27_IN(16)
3 3
LANVCC
+1.05V
New Adding for GPU 27M @1206
+3V_GPU
C560
*12P/50V_4
2 2
C556
*15P/50V_4
R515 *33_4
R501 *0_4
C563 *0.1U/10V_4
C565 *0.1U/10V_4
R507 *0_4
C566 *0.1U/10V_4
GEN_XTAL25_OUT
23
Y2
*25MHZ +-10PPM
4 1
GEN_XTAL25_IN
25M_A
PCH_XTAL25_IN
CLKGEN_RTC_X1
GPU_XTAL27_IN_R
GEN_XTAL25_IN
GEN_XTAL25_OUT
6
25M_A
5
25M_B
9
32KHz
12
27M
8
11
16
1
*SLG3NB314VTR
C568 *10P/50V_4
VDD_RTC_OUT
VDDIO_25M_A
VDDIO_25M_B3GND
VDDIO_27M
XTAL_IN
XTAL_OUT
U34
+V3.3A
VDD
VBAT
GND
GND
THEMPAD
PCH_XTAL25_IN
15
2
10
14
7
13
4
17
C557 *0.1U/10V_4
+3V_RTC_R
EMI
U63 P/N
R514 *360/F_4
C573 *22U/6.3VS_6
+3V_RTC
C561
*2.2U/6.3V_6
DIS
AL000314000
AL3NB244000UMA
1 1
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
A
B
C
Date: Sheet
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Green Clock
Green Clock
Green Clock
D
DIS
32Kx1+25M*2+27Mx1
UMA
32Kx1+25M*2
of
of
of
35 61, 25, 2013
35 61, 25, 2013
35 61, 25, 2013
E
1AA
1AA
1AA
Page 36
A
B
C
D
E
36
4 4
3 3
2 2
1 1
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
A
B
C
D
Date: Sheet
Blank
Blank
Blank
36 61, 25 , 2013
36 61, 25 , 2013
36 61, 25 , 2013
E
1ACustom
1ACustom
1ACustom
of
of
of
Page 37
5
USB30_TX3-(8,37)
USB30_TX3+(8,37)
USB30_RX3-(8,37)
USB30_RX3+(8,37)
D D
C C
B B
+3VS5
USB30_TX3-(8,37)
USB30_TX3+(8,37)
USB30_RX3-(8,37)
USB30_RX3+(8,37)
R27
*4.99K/F_4
R22
*4.99K/F_4
C41
1U/6.3V_4
C42
0.1U/10V_4
C52 0.1U/10V_4
C53 0.1U/10V_4
C54 0.1U/10V_4
C55 0.1U/10V_4
New adding @1124
+3VS5
R28
*4.99K/F_4
R29
*4.99K/F_4
R17
*4.99K/F_4
R18
*4.99K/F_4
C51
2.2U/10V_6
R25
*4.99K/F_4
R26
*4.99K/F_4
C50
470P/50V_4
USB30_TX3-_C
USB30_TX3+_C
USB30_RX3-_C
USB30_RX3+_C
EC-SIT-31
R16
4.99K/F_4
R15
*4.99K/F_4
USB3.0 re-driver IC
U2
8
RX1-
9
RX1+
11
TX2-
12
TX2+
1
VCC
13
VCC
2
EQ1
EQ2
DE1
DE2 B_DE1
OS1
OS2
EQ1
17
EQ2
3
DE1
16
DE2
4
OS1
15
OS2
SN65LVPE502ARGER
R20
4.99K/F_4
R21
*4.99K/F_4
EQ1
EQ2
DE1
DE2
OS1
OS2
4
If don't need the USB3.0 repeater @1219
2
4
RP3 *0_4P2R_4
2
4
RP4 *0_4P2R_4
23
TX1-
TX1+
RX2-
RX2+
EN_RXD
CM
NC1
NC2
GND
GND
GND
GND
EC-SIT-03
RE_USB30_TX3-
22
RE_USB30_TX3+
20
RE_USB30_RX3-
19
RE_USB30_RX3+
R38 *4.99K/F_4
5
14
7
24
6
10
18
21
R33 4.99K/F_4
R31 *4.99K/F_4
R32 4.99K/F_4
REXT
Debug
A_DE1
EC-SIT-03
Reserve some Rs for
Parade USB3.0 re-driver.
R692 *4.99K/F_4
Debug
R697 0_4
R696 0_4
B_DE1
A_DE1
for TI, MUST
1
3
USB30_TX3+_R
1
USB30_RX3-_R
3
R693 *4.7K_4
R694 *4.7K_4
R695 *4.7K_4
+3VS5
REXT
+3VS5
2
4
2
4
1
3
RP1 *0_4P2R_4
1
3
RP2 *0_4P2R_4
USBP7-(8)
USBP7+(8)
+3V
3
RE_USB30_TX3-USB30_TX3-_R
RE_USB30_TX3+
RE_USB30_RX3RE_USB30_RX3+USB30_RX3+_R
Follow Intel Design Guide, Put AC CAP on DB
ExDPP0_N(2 )
ExDPP0_P(2)
ExDPP1_N(2 )
ExDPP1_P(2)
ExDP_AUXN(6)
ExDP_AUXP(6)
CONFIG1
DOCK_CONSUMP(39)
Dock_Detect#(32)
Confirmed Lenovo!!
EC-SIT2-12
RE_USB30_RX3RE_USB30_RX3+
RE_USB30_TX3- RE_USB30_TX3-_C
RE_USB30_TX3+
+3V
NBSWON#(29,32)
+5VS5
R12 *0_4S
R13 *0_4S
C645 0.1U/10V_4
C644 0.1U/10V_4
C647 0.1U/10V_4
C646 0.1U/10V_4
EC13
*1000P/50V/X7R_4
RE_USB30_RX3-_C
RE_USB30_RX3+_C
RE_USB30_TX3+_C
EC-SIT-11
+5VS5+3V
C452
1U/6.3V_4
C454
0.1U/10V_4
Place CAP,close to CN1304
R11 *100K_4
R10 *100K_4
1U/6.3V_4
ExDP_AUXN
ExDP_AUXP
C444
C440
0.1U/10V_4
2
+5VS5 (15,19,26,29,38,40,41,42,43,45,46,47,48,49)
+3VS5 (2,6,7,9,10,15,17,20,23,24,25,28,32,40,44,47,53)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,38,40,41,42,43,46,47,48,49)
Cable Docking Conn.
G_3
30
29
28
G_4
27
26
25
CN12
24
23
22
21
20
19
18
17
16
15
G_2
14
13
12
11
10
9
8
7
6
5
4
3
G_1
2
1
G_0
ExDP_AUXN
ExDP_AUXP
Docking_HPD
USBP7-_C
USBP7+_C
FC1*1.6P/50V_4
FC2*1.6P/50V_4
FC3*1.6P/50V_4
FC4*1.6P/50V_4
1
EC-DV-06
37
Follow Docking Design Guide, Pull up/down on system
+3V
R30
1M_4
1
Q1
2N7002BK
2
3
Docking_HPD
R39
20K/F_4
USBP7-_C
USBP7+_C
2
3
U1
IO1
IO2
*PJSR05
GND
U20
+5VS5
4
VIN
1
RE_USB30_RX3-_C
RE_USB30_RX3+_C
ESD
6
NC
7
NC
8
GND
9
NC
10
NC
CH4
CH3
GND
CH2
CH1
*AZ1045-04F
5
RE_USB30_RX3-_C
4
RE_USB30_RX3+_C
3
2
RE_USB30_TX3-_CRE_USB30_TX3-_C
1
RE_USB30_TX3+_CRE_USB30 _TX3+_C
ExDP_HPD(6)
EC-SIT-11
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
Cable Docking
Cable Docking
Cable Docking
of
of
of
37 61, 2 5, 2013
37 61, 2 5, 2013
37 61, 2 5, 2013
1
1ACustom
1ACustom
1ACustom
Page 38
1
A A
keyboard Lockhole
HOLE11
*h-c295ic131d91p2
1
2
CPU HOLE GPU Bracket HOLE
HOLE5
*INTEL-CPU-BKT3
1
2
3
3
4
HOLE4
*H-C142D142N
1
4
HOLE9
*H-C142D142N
1
HOLE10
*H-C142D142N
1
5
EMI
+5VS5
C49
C443
+3V
0.1U/10V_4
0.1U/10V_4
6
VIN (2 0,39,40,41,42,43,45,46,51)
+5VS5 (15,19,26,29,37,40,41,42,43,45,46,47,48,49)
+1.35VSUS (2,4,12,13,41,49)
+3V (2,6,7,8,9,10,12,13,14,19,20,21,22,24,25,27,28,29,30,31,32,33,34,37,40,41,42,43,46,47,48,49)
+3V_GPU (14,17,35,45,48,50)
+1.5V_GPU (14,15,18,48,50)
C358
C638
C40
0.1U/10V_4
0.1U/10V_4
C579
0.1U/10V_4
0.1U/10V_4
C346
0.1U/10V_4
7
38
8
HDD Right Side's Lockhole
HOLE12
B B
*hg-c295ic150d110p2
2
3
4
5
6
7
1
8
9
HDD Hole MB's LockHole
*hg-c295d91p2
HOLE13
*O-BM5-1
C C
1
NPTH Hole
HOLE15
PAD1
*spad-re320x70np
1
HOLE7
*h-c87d87n
1
*h-c87d87n
1
HOLE1
*h-c87d87n
1
*hg-c295d110p2
NGFF HOLE PCH HOLE
HOLE21
FBAJ2003010
1
HOLE8
*hg-c295d91p2
2
3
4
1
8
9
HOLE6
*hg-c295d110p2
2
3
4
1
8
9
5
6
7
5
6
7
With NUT
HOLE18
FBKN2020011
HOLE16
*hg-c295d91p2
2
3
4
2
3
4
2
3
4
HOLE2
1
8
HOLE17
1
8
5
6
7
9
5
6
7
9
HOLE19
*MBBQ1001011
1
1
5
6
7
1
8
9
HOLE20
*MBBQ1001011
1
HOLE3
*hg-c295d91p2
2
3
4
8
HOLE14
*hg-c295d110p2
2
3
4
8
C177
C597
0.1U/10V_4
VIN
5
6
7
1
9
5
6
7
1
9
C407
0.1U/25V/X7R_6
+1.35VSUS +3V_GPU +1.5V_GPU
C261
0.1U/10V_4
0.1U/10V_4
C3
0.1U/25V/X7R_6
C142
0.1U/10V_4
C420
0.1U/10V_4
C598
0.1U/25V/X7R_6
C576
0.1U/10V_4
C593
0.1U/10V_4
C350
0.1U/25V/X7R_6
C85
0.1U/10V_4
C60
0.1U/10V_4
C262
0.1U/25V/X7R_6
C495
0.1U/10V_4
C269
0.1U/10V_4
C135
0.1U/25V/X7R_6
C273
0.1U/10V_4
C594
0.1U/10V_4
C451
0.1U/25V/X7R_6
C263
0.1U/10V_4
C225
0.1U/10V_4
C494
0.1U/10V_4
C574
0.1U/10V_4
EC-DV-16
D D
1
2
HOLE22
*hg-c295d110p2
2
3
4
1
8
9
5
6
7
EC-DV-13
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
3
4
5
6
Date: Sheet
7
Screw Hole/EMI
Screw Hole/EMI
Screw Hole/EMI
of
of
of
38 61, 25, 2013
38 61, 25, 2013
38 61, 25, 2013
8
1AB
1AB
1AB
Page 39
5
EL7
DC-IN
PF2
PC89
1000P/50V/X7R_4
0429007.WRMLHF
1 2
1
ADPIN+
2
3
4
5
PJ1
ADPIN-
HCB201 2KF 800T 50
EL5
HCB201 2KF 800T 50
PC91
*0.1U/25V/X7R_6
3.3V_ALW VIN
D D
ACDC_ID(3 2,39)
AD_ID
PR52
28K/F_4
2N7002BK
12
PQ11
PR41
*Short_4
bq24737_ACDET
C C
PEC-FVT-01
AD_ID(32,39)
ADP_TY PE_0(9)
B B
ACIN(32,39)
3
1
100P/50VNPO_4
PR8
*0_4
PD8
1SS355VM
PC27
2
ADP_TY PE_1(9)
15K/F_4
15K/F_4
PR12
PR10
1M_4
750_6
PQ1A
2N7002BKS
34
5
PD5
12
PSD05-LF-T7
ACOK
PDTA124EU
PR54
1 2
PR55
1 2
1U/25V/X5R_6
PR57
681K/F_4
2 1
12
PR45
30.9K/F_4
3
2
PQ40
2N7002BK
1
61
2
PR14
1M_4
PQ1B
2N7002BKS
PR53
*0/J_4
13
PQ9
2
ACOK#
PC33
12
bq24737_LDO
PEC-FVT-01
MBCLK(32,39)
ADAPTER_ ID (32)
316K/F_4
PR46
49.9K/F_4
PC30 0.01U/25V/X7R_4
ACIN=17.5V
MBDATA(32,39)
1 2
bq24737_LDO bq24737_CMPOUT
AD_ID(32,39)
PR51
49.9K/F_4
12
PR49
69.8K/F_4
3
2
1
PR47 10K/F_ 4
PQ7
2N7002BK
12
PR42
PR56
10K/F_4
2M/F_4
1 2
12
12
PR40
PR43
97.6K/F_4
*0_4
PD7
1SS355VM
VA
PR50
PR34 *Short_4
PR36 *Short_4
bq24737_CMPIN
10ms one-shot circuit
12
PC37
2
0.1U/25V/X5R_4
PR65
221K/F_4
PC39
0.01U/16V/X7R_4
12
12
PU3
84
SN74LVC2G00DCUR
7
6
5
1
2
3
H_PROCHOT#(2, 32,42)
A A
3
PQ13
2N7002BK
1
5
4
VA
5 2
PC90
0.1U/25V/X7R_6
VA
PC29
21
PR38
10/J_12
PC26
1U/25V/X5R_6
1 2
bq24737_ACDET bq24737_LDO
ACOK#
3.3V_ALW
PR33
86.6K/F_4
PD18
SMAJ22A
2 1
PR11
1K/J_6
PR7
1M/J_4
PC32
0.1U/25V/X7R_6
20
VCC
6
ACDET
5
/ACOK
9
SCL
8
SDA
7
IOUT
3
CMPOUT
4
CMPIN
10
ILIM
PR31
100K/F_4
0.1U/25V/X7R_6
PU2
GND23GND24GND25GND22GND
PR30
80.6K/F_4
LODRV
bq24737_ACN
1
HIDRV
PHASE
bq24737_BTST
ACN
17
BTST
16
REGN
18
bq24737_DHI
19
bq24737_LX
15
bq24737_DLO
14
GND
13
SRP
12
SRN
11
/BM
bq24737_ACP
2
ACP
BQ24737
21
+5V+5V
12
PR58
100K_4
PD9
2 1
1SS355VM
2 1
BATTERY_SENSE
PD10
1SS355VM
4
PQ10
2N7002BK
PQ37
TPCA8109
4
PR6
220K/F_4
1 2
1 2
PR5
220K/F_4
PC203
*0.1U/25V/X7R_6
1U/10V/X5R_4
PR23 10/F_6
PR24 7.5/J_6
BATTERY_SENSE
3
1
3216
4
PR32
*Short_6
PC21
BA10393F-GE2
PU9B
BA10393F-GE2
1
3
5
bq24737_LDO
PD6
DB2J40600L
PC12
0.1U/25V/X7R_6
PR163
*Short_4
1
PU9A
7
PR192
1.5M_4
2
PQ2
UMT1NG TN
21
0.047U/50V/X7R_6
+5V
84
+
-
-
+
12
PC128
100P/50V/NPO_4
bq24737_CMPOUT
PR4
1M/J_4
PEC-FVT-01
TPCC8067-H
PC25
3
2
6
5
PQ35
TPCC8067-H
bq24737_SRP
PC11
0.1U/25V/X7R_6
bq24737_SRN
PC13
0.1U/25V/X7R_6
12
PC129
100P/50V/NPO_4
237K/F_4
12
3
VA1
PQ3
PDTA124EU
1 3
2
12
PC10
1U/25V/X5R_6
bq24737_ACP
PC9
0.1U/25V/X7R_6
PC31
0.1U/25V/X7R_6
bq24737_ACN
BAT-V2
PR126
12
BAT-V
+
200K/F_4
4
PR125
PQ34
100K/F_4
TPCA8109
12
PC8
PC94
*10U/25V/X5R_8
10U/25V/X5R_8
+
Place these CA Ps
close to FETs
12
12
PC92
+
4.7U/25V/X5R_8
PC93
+
4.7U/25V/X5R_8
PL1
PCMC063T-4R7MN(7*7*3)
1 2
ER1
4.7/J_6
12
EC11
1000P/50V/X7R_4
0.1U/25V/X7R_6
PC6
52
4
3
1
52
4
PQ36
3
1
HCB201 2KF 800T 50
PC5
2200P/50V/X7R_4
PR130
RC1206-R020
EL4
VIN
21
12
PC95
10U/25V/X5R_8
+
3.3V_ALW
IN+
PC2
*0.1U/25V/X5R_4
PC4
IN-
12
PR3
*Short_4
1 2
12
6
5
IN-
OUT
INA199B1DCKR
PU1
REF
GND
1V+3
2
12
4
IN+
12
PR2
*Short_4
12
PC1
*0.1U/25V/X5R_4
PR1
*Short_6
PC3
0.1U/10V/X5R_4
PEC-FVT-01
12
+5V
PEC-FVT-01
*0.1U/25V/X5R_4
12
+5V
12
PR193
PR194
100K/F_4
3
2
ACDC_ID (32,39)
3.3V_ALW (7,29,32,33,35, 40)
ACIN (32,39)
5V_ALW (40)
MBCLK (32,39)
MBDATA (32,39)
AD_ID (32, 39)
MBATV (32,39)
TEMP_MBAT (32,39)
VIN (20,38,40,41, 42,43,45,46, 51)
BL/C# (32,39)
D/C# (32,3 9)
AD_C
AD_D
PR111
100K/F_4
ACOK
3
5 2
PR48 10 /F_6
PR39 10 /F_6
1
PR128 RC1206-R010
21
IN-IN+
3
1
PQ38
TPCA8109
4
5 2
VA2
PR129
RC1206-R010
PR44
2 1
10/F_4
VIN
PR22
1.5K/J_6
PR25
10K/J_6
DOCK_CONSUMP (37)
3.3V_ALW
VIN
PC84
PR108
100/F_4
5V_ALW
1 2
1
+
3
-
3
PC83
*1000P/50V/X7R_4
2
1
3.3V_ALW
PC14
PR152
100/F_4
1 2
21
PR151
*0/J_4
1000P/50V/X7R_4
PC100
*1000P/50V/X7R_4
PD13
1SS355VM
475K/F_4
332K/F_4
1000P/50V/X7R_4
PR104
21
PR103
PQ23
2N7002BK
PC7
0.1U/25V/X7R_6
3.3V_ALW
Battery Low 7.5V
VIN
PR150
*0/J_4
5V_ALW
PR13
PR9
*0/J_4
475K/F_4
PD4
3.3V_ALW
*1SS355VM
PC15
*1000P/50V/X7R_4
1SS355VM
PD3
21
PR17
280K/F_4
3.3V_ALW
PR15
HWPG(6,19,30 ,32,40,41,43,46)
100K/F_4
ACOK#
BAT-V
PR67
511K/F_4
200/F_4
PDZ5.6B
VBATT
VBATT
PR123
PR122
200/F_4
PD2
2 1
2 1
EL3
HCB201 2KF 800T 50
EL2
HCB201 2KF 800T 50
2
PF1
0501010.WR
1 2
MBDATA(32,39)
MBCLK(32,39)
5
PU5
2
LMV331IDBVR
2
71.5K/F_4
PD1
PDZ5.6B
PR155
15K/F_4
PR68
PR105
10K/F_4
4
PR107
10K/F_4
PR19
100K/F_4
2
3
PQ4
2N7002BK
1
Close to EC
D/C#(32,39)
5V_ALW
1
+
3
-
3
1
PC40
0.01U/25V/X7R_4
3.3V_ALW
PR124
10K/F_4
PR158
56K/F_4
5
PU7
2
LMV331IDBVR
2N7002BK
100K/F_4
BL/C# (32,39)
4
PQ5
MBATV
PC86
0.1U/10V/X7R_4
1
39
3
2
ACOK2
PD14
1SS355VM
2
D/C#
PR110
PR27
100K/F_4
3
2
PQ6
2N7002BK
1
TEMP_MBAT (3 2,39)
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
,
Date: Sheet of
,
Date: Sheet of
,
PQ26
2N7002BK
1
21
3
PQ24
2N7002BK
1
PR106
*0/J_4
1 2
5V_ALW
PR29
*0/J_4
PR28
*0/J_4
PD19
*1SS355VM
ACOK
2
21
MBATV (32,39)
EC10
220P/50V/X7R_4
8
G1
1
BT+
2
BT+
3
SCLK
4
SDATA
5
BT_TH
6
GND
7
GND
9
G2
PJP1
C144ML-K0715-L
EC-SIT-33
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Com puter In c.
Quanta Com puter In c.
Quanta Com puter In c.
Charger (BQ24737)
Charger (BQ24737)
Charger (BQ24737)
25, 2013
25, 2013
25, 2013
1
3
PQ8
2N7002BK
1
39 61
39 61
39 61
1ACustom
1ACustom
1ACustom
Page 40
5
4
3
2
1
40
D D
Place these CA Ps
PC194
4.7U/25V/X5R_8
PL11
*1000P/50V/X7R_4
close to FETs
PC75
4.7U/25V/X5R_8
ER10
*4.7_6
12
EC25
PC78
PC77
0.1U/25V/X7R_6
2200p/50V/X7R_4
52
4
PQ69
3
1
TPCC8067-H
52
4
PQ70
3
1
TPCC8065-H
PEC-FVT-01
SIT2 - ALF@0514
PR249
*Short_4
S5_ON_C
PC193
PR250
0.1U/25V/X7R_6
2.2_6
12
0.1U/25V/X7R_6
5V_DH
12
5V_BST
5V_LX
5V_DL
5V_FB1
EL15
*Short_8@NC
VIN
+5VS5
C C
PEAK :7.94A
OCP :10.56A
+5VS5
PC198
PC200
4.7U/10V/X5R_6
B B
12
PC199
+
0.1U/10V/X5R_4
330U/6.3V/ELEC_6358
PR248
30K/F_4
PR247
20K/F_4
+5V_PWR _SRC
2.2UH/8A-PCMC063T-2R2MN(7*7*3)
1 2
12
1 2
VIN
PR241
10_8
PC70
1U/10V/X5R_4
12
PC192
12
VIN
20
EN1
16
DRVH1
17
VBST1
18
SW1
15
DRVL1
14
VO1
2
VFB1
CS1
VCLK
1
19
PR85
82.5K/F_4
12
VCLK
SIT2 - ALF@0514 -- Del
3.3V_ALW
5V_ALW
1 2
13
VREG5
PU13
TPS51 225CR UKR
CS2
5
26
1 2
PR246
78.7K/F_4
PC190
12
1U/6.3V/X5R_4
3
6
S5_ON_C
EN2
VREG3
10
3V_DH
DRVH2
9
3V_BST
VBST2
8
3V_LX
SW2
11
3V_DL
DRVL2
4
3V_VFB2
VFB2
7
SYSPWGD_R
PDDG
GPAD21GPAD22GPAD23GPAD24GPAD25GPAD
PR242
2.2_6
1 2
PC182
0.1U/25V/X7R_6
1 2
TPCC8067-H
PQ68
TPCC8065-H
PQ67
4
4
Place these CA Ps
close to FETs
52
3
1
52
3
1
+3V_PWR _SRC
PC188
0.1U/25V/X5R_4
12
EL14
*Short_8@NC
PC69
PC68
0.1U/25V/X7R_6
2.2UH/8A-PCMC063T-2R2MN(7*7*3)
ER9
*4.7_6
EC24
*1000P/50VX7R_4
4.7U/25V/X5R_8
PL9
1 2
PC189
PR84
13K/F_4
PR83
20K/F_4
4.7U/25V/X5R_8
VIN
+3VS5
PEAK :7.24A
OCP :9.62A
+3VS5
12
PC196
PC197
+
12
12
330U/6.3V/ELEC_6358
PC195
4.7U/6.3V/X5R_6
PEC-FVT-02PEC-FVT-02
0.1U/10V/X5R_4
+3V
SIT2 - ALF@0514
1 2
+15V_ALW P
PC80
0.1U/25V/X5R_4
1
2
1
2
1 2
0.1U/25V/X5R_4
3
PD11
BAT54SLT1G
3
PD12
BAT54SLT1G
PC71
+5VS5
PC81
0.1U/25V/X5R_4
PR102
22_8
+15V
A A
12
12
PR251 *Short_6
PC72
0.1U/25V/X5R_4
1 2
PEC-FVT-01
VCLK
PR244
R624
100K/F_4
1 2
*10K/F_4
PR243
*Short_4
SYSPWGD_R
PD24 DB2J40600L
PD23 DB2J40600L
R655
100K/F_4
S5_ON
S5_ON (32)
DSW_LOAD_CODE (32)
PEC-FVT-1
SYS_SHDN#(32,34,51)
3.3V_ALW
S5_ON_C
PR92
*39K/F_4
Non-Stuff
PR88
*1K_4
HWPG(6,19,30, 32,39,41,4 3,46)
S5_ON_C
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet
Quanta Computer Inc.
System Power(TPS5122 5)
System Power(TPS5122 5)
System Power(TPS5122 5)
1
40 61, 25, 2013
40 61, 25, 2013
40 61, 25, 2013
1ACustom
1ACustom
1ACustom
of
Page 41
5
4
3
2
1
PC162
10U/6.3V/X5R_6
PR226
2.2/F_6
DDR_VBST
DRVH
DDR_LLDDR_VREF
DRVL
DDR_V5IN
PR225 *0_4
PD22
1SS355VM
PEC-FVT-02
PC163
0.1U/25V/X7R_6
12
21
PQ61
TPCC8067 -H
PQ62
TPCC8065 -H
PC62
1U/10V/X5R_4
PR20 *10K/F_4
52
4
3
1
52
4
3
1
PR76 *Short_6
PEC-FVT-01
+3V
HWPG (6,19,30,32,39,40,43,46)
DDR_VR_PWRGD (2)
Place these CAPs
close to FETs
PC60
12
0.1U/25V/X7R_6
+5VS5
PC61
2200P/50V/X7R_4
VIN_DDR
12
PC59
+
4.7U/25V/X5R_8
PCMC063T-1R0MN( 7*7*3)
ER7
*4.7_6
12
EC21
*1000P/50V /X7R_4
EL12
*Short_8@NC
12
PC167
+
4.7U/25V/X5R_8
PL7
VIN
41
+1.35VSUS
PEAK :9.2A
OCP :12.23A
+1.35VSUS
PC164
+
390U/2.5V/ELEC_6358
PC157
10U/6.3V/X5R_6
12
PC159
0.1U/10V/X7R_4
PEC-FVT-02
+0.675V_DDR_VTT
PEAK :1A
PC165
D D
+0.675V_DDR_VTT
PC168
PR230
10K/F_4
12
PC169
0.1U/25V/X5R_4
C C
12
0.01U/25V/X7R_4
SYS_PWROK(6)
0.1U/10V/X7R_4
PEC-FVT-02
PR229
30.9K/F_4
+SMDDR_VREF_DIMM
PR221 *100K_4
+1.35VSUS
*1000P/50V /X7R_4
PR228
*0_4
PC166
0.22U/10V/X5R_4
PC63
PC58
10U/6.3V/X5R_6
12
PEC-FVT-01
MAINON(19, 32,43,46,49)
PR220 *Short_4
PEC-FVT-01
SUSON(32,49)
B B
PR219
*Short_4
S3
12
PC161
*0.1UF/10 V/X7R_4
S5
12
PC160
*0.1U/10V/X 7R_4
DO NOT connect to AGND plane
PR223
200K/F_4
PR224
*0_4@NC
DDR_REFIN
DDR_VDDQS
SMDDR_VREF_C
S3
S5
DDR_TRIP
PR77
*Short_4
PR222
105K/F_4
4
1
7
19
6
8
9
5
17
16
18
VTTGND
VTTSNS
GND
MODE
VREF
REFIN
VDDQSNS
VTTREF
S3
S5
TRIP
PU11
TPS51216
26
+1.35VSUS
22
3
VTT
GND
GND24GND21GND23GND25GND
2
VLDOIN
15
VBST
14
DRVH
13
LL
11
DRVL
10
PGND
12
V5IN
20
PGOOD
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Num ber Rev
Size Document Num ber Rev
Size Document Num ber Rev
Date: Sheet
Date: Sheet of
5
4
3
2
Date: Sheet of
Quanta Computer Inc.
DDR Power (TPS51216)
DDR Power (TPS51216)
DDR Power (TPS51216)
,
25, 2013
,
25, 2013
,
25, 2013
1
41 61
41 61
41 61
of
1ACustom
1ACustom
1ACustom
Page 42
5
51631_VREF
13
THERM
PU6
1 2
PR165
*100/F_4
PR168
*100/F_4
IMON
PC98
4700P/25V_4
PR149
187K/F_4
51631_OCP-I
11
12
OCP-I
B-RAMP
V5A
PC99
2.2U/10V/X5R_4
VFB
GFB
VCORE_ IMON_E C (32)
PR144
39K/F_4
12
51631_B-RAMP
51631_F-IMAX
9
10
O-USR
F-IMAX
VR_ON
SKIP#
PWM1
PWM2
PWM3
PGOOD
VDD
VDIO
G6
G5
G4
PWPD33G134G235G3
32
51631_ALERT#
51631_VCLK
PR148
10/F_6
PR18
150K/F_4
51631_O-USR
8
7
6
5
4
3
2
1
39
38
37
36
+5VS5
+VCCIO_OUT
PR159
100K/J_6_NTC
PR156
10K/F_4
51631_THERM
17
18
19
20
21
22
23
24
42
41
40
PC107
*22P/50V/NPO_4
PR161
10K/F_4
PC104
330P/50V/X7R_4
PC106
0.1U/25V/X5R_4
PR164
*10K/F_4
PR162
39K/F_4
PR170
10K_6
CSP1
CSN1
CSN2
CSP2
CSP3
CSN3
GFB
VFB
G9
G8
G7
DROOP
PR154
3.24K/F_4
1 2
0.33U/10V/X5R_6
PEC-FVT-03
51631_SLEWA
15
16
14
VBAT
SLEWA
TPS51631RSM
COMP26VREF27V5A28GND29VR_HOT#30VCLK31ALERT#
DROOP
25
COMP
51631_VREF
PC20
D D
VIN
CSP1(42)
CSN1(42)
CSN2(42)
CSP2(42)
+3V
C C
GFB
VFB
PR160
10K/F_4
PEC-FVT-04
B B
VCC_SE NSE(4)
VSS_SENS E(4)
PR166
*Short_4
PR167
*Short_4
+VCC_CORE
12
12
PEC-FVT-01
A A
5
4
PR146
PR140
*562K/F_4
1 2
PR136 *Short_4
PR135 *Short_4
51631_PWM3
IMVP_PWRGD
VDD
549K/F_4
PR142
150K/F_4
PR137
*Short_4
12
SKIP# (42)
12
12
PR134 *0_4
PR133 10K_4
PR131
2.2_6
51631_VDIO
12
PC96
1U/6.3V/X5R_4
PR26
12
12
12
H_PROCHOT# (2, 32,39)
PR138 *Short_4
PR141 *Short_4
PR143 *Short_4
*Short_4
Open
PR16 13 0/F_4
PR21 56 _4
4
PR139
20K/F_4
PEC-FVT-01
VRON (32,49 )
+3V
PC16
0.1U/25V/X5R_4
PR132
64.9K/F_4
PWM1 (42 )
PWM2 (42 )
12
+3V
PEC-FVT-01
VR_SVID _DATA ( 4)
VR_SVID _ALER T# (4)
VR_SVID _CLK ( 4)
51631_VDIO
51631_VCLK
PWM1(42)
IMVP_PWRGD (6)
PWM2(42)
Close to PWR IC
PC97
PC105
0.1U/25V/X7R_6
PR147
2.2_6
0.1U/25V/X7R_6
PR157
2.2_6
3
CSD97374PQ39
5
VIN
6
BOOT_R
7
BOOT
8
PWM
SKIP#(42)
PWPD
9
VSW
PGND
SKIP#
VDD
PR35
*Short_4
Place these CAPs
close to FETs
PC18
0.1U/25V/X7R_6
4
3
2
1
12
PR169
*10K_4
1U/10V/X5R_4
1 2
PC17
PC114
2200P/50V/X7R_4
PEC-FVT-01
Place these CAPs
close to FETs
PC24
PC22
2200P/50V/X7R_4
0.1U/25V/X7R_6
CSD97374PQ41
5
6
7
8
VIN
BOOT_R
BOOT
PWM
SKIP#(42)
4
VSW
3
PGND
2
VDD
1
SKIP#
PWPD
9
PR37
*Short_4
PR173
*10K_4
PC28
1U/10V/X5R_4
1 2
12
PEC-FVT-01
PC47
PC115
PC116
22U/6.3V/X5R_8
22U/6.3V/X5R_8
3
PC44
PC45
PC46
22U/6.3V/X5R_8
22U/6.3V/X5R_8
22U/6.3V/X5R_8
2
EL6
*Short_8@NC
PC87
12
PC102
PC101
PC109
PC19
10U/25V/X5R_8
4.7_6
EC12
*Short_8@NC
PC108
10U/25V/X5R_8
10U/25V/X5R_8
ER3
4.7_6
EC14
1000P/50V/X7R_4
PC49
PC48
22U/6.3V/X5R_8
22U/6.3V/X5R_8
2
10U/25V/X5R_8
+5VS5
PC23
10U/25V/X5R_8
+5VS5
PC43
22U/6.3V/X5R_8
22U/6.3V/X5R_8
+
10U/25V/X5R_8
PCME06 4T-R15 MS0R66 7(7*7* 4)
ER2
PR177
2.37K/F_4
PR179
1000P/50V/X7R_4
2.94K/F_4
EL8
PC88
12
+
PCME06 4T-R15 MS0R66 7(7*7* 4)
1 2
3 4
PR180
2.37K/F_4
PR171
18K/F_4
PR182
2.94K/F_4
PC110
100nF/25V/X5R_4
1 2
PC112
47nF/25V/X7R_4
1 2
+VCC_CORE
+
PC42
22U/6.3V/X5R_8
100U/25V/105C_6358
1 2
3 4
PR172
18K/F_4
PC111
100nF/25V/X5R_4
1 2
PC113
47nF/25V/X7R_4
1 2
100U/25V/105C_6358
PL4
PC41
*330U/2V/ESR9_7343
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
Date: Sheet
VIN
PC103
12
+
100U/25V/105C_6358
PL2
PR178
NTC_10K_6
VIN
PR181
NTC_10K_6
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
1
42
+VCC_CORE
CSN1 (42)
CSP1 (42)
+VCC_CORE
PEAK :55A
OCP :63A
+VCC_CORE
CSN2 (42)
CSP2 (42)
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
VCC_CORE(TPS51631RSM)
VCC_CORE(TPS51631RSM)
VCC_CORE(TPS51631RSM)
42 61, 25, 2013
42 61, 25, 2013
42 61, 25, 2013
1
1ACustom
1ACustom
1ACustom
of
of
of
Page 43
5
4
3
2
1
43
+5VS5
PEC-FVT-01
D D
+3V
PEC-FVT-01
PR235
*10K/F_4
HWPG(6,19,30,32,39,40,41,46)
MAINON(19,32,41,46,49)
PEC-FVT-01
C C
PR240
*Short_4
12
PR237
86.6K/F_4
PC180
PR234
*Short_4
*0.1U/10V/X5R_4
PR236
470K/F_4
PR233
*Short_6
PC176
1U/10V/X5R_4
1 2
+1.05V_HDR
+1.05V_LX
+1.05V_LDR
PC175
0.1U/25V/X7R_6
PR232
7
V5IN
12
1
PGOOD
3
EN
2
TRIP
5
CCM
4
VFB
PU12
TPS51211
GND12GND14GND16GND13GND
VBST
DRVH
DRVL
GND
15
2.2_6
10
9
8
SW
6
11
PQ63
TPCC8067-H
PQ64
TPCC8065-H
4
4
Vo=0.704*(R1+R2)/R2
52
3
52
3
1
1
Place these CAPs
close to FETs
PC64
PC171
2200P/50V/X7R_4
0.1U/25V/X7R_6
PL8
2.2UH/8A-PCMC063T-2R2MN(7*7*3)
ER8
*4.7_6
12
EC22
*1000P/50V/X7R _4
VIN_+1.05V
12
+
PR238
10K/F_4
R1
PR239
20K/F_4
R2
PC65
12
EL13
*Short_8@NC
12
PC172
+
4.7U/25V/X5R_8
4.7U/25V/X5R_8
VIN
+1.05V
PEAK :7.32A
OCP :9.73A
+1.05V
PC179
*1000P/16V/X7R_4
12
330U/6.3V/ELEC_6358
+
PC173
PC174
PC170
PEC-FVT-02
0.1U/10V/X5R_4
10U/6.3V/X5R_6
B B
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet of
5
4
3
2
Date: Sheet of
Quanta Computer Inc.
+1.05V(TPS51211)
+1.05V(TPS51211)
,
,
,
+1.05V(TPS51211)
25, 2013
25, 2013
25, 2013
1
of
43 61
43 61
43 61
1ACustom
1ACustom
1ACustom
Page 44
5
+3V_M3 (7,10,47,49,53)
+1.05V_M3 (10,49,53)
4
3
2
1
44
D D
+3V_M3
+1.05V_M3
PR96
10K_4
+3VS5
+1.05V_M3_PWRGD(53)
EL1
C C
*Short_8@NC
PC74
10U/6.3V/X5R_6
PR97 *Short_4
VIN_+1.05V_M3
PR98
10_6
1 2
PC73
0.1U/10V/X7R_4
PEC-FVT-01
PC76
1U/6.3V/X5R_4
1 2
PL10
4
PGOOD
9
PVIN
10
PVIN
PU4
RT8068AZQW
8
SVIN
11
GND
*0.047U/25V_4_NC
LX1
LX2
LX3
1
2
3
7
NC
6
FB
5
EN
PC79
2.2UH/8A-PCMC063T-2R2MN(7*7*3)
PC82
22P/50V_4
PR99 *Sho rt_4
12
PEC-FVT-01
12
12
R1
PR101
7.5K/F_4
PC191
10U/6.3V/X5R_6
PC186
10U/6.3V/X5R_6
Vout =0.6(1+R1/R2)
=1.05V
R2
12
PR100
10K/F_4
PC67
0.1U/10V/X7R_4
PC187
10U/6.3V/X5R_6
M3_ON (32,4 9)
PEAK :1A
+1.05V_M3
PEC-FVT-02
Support SBA Function will be Mounted
B B
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
M3 Power(RT8068A)
M3 Power(RT8068A)
M3 Power(RT8068A)
1
of
of
of
44 61, 25, 2013
44 61, 25, 2013
44 61, 25, 2013
1AB
1AB
1AB
Page 45
5
4
3
2
1
45
PR195
*DIS@Short_4
PSI_GPU(17)
PWM-VID(17)
8812EN
PC133
[email protected]/16V/X7R_4
PR206
DIS@1/F_6
NV suggestion
PC140
[email protected]/10V/X7R_4
PR200
PC143
[email protected]/25V/X7R_4
PR205
DIS@499K/F_4
PR196 *DIS@Short_4
PR197 *DIS@Short_4
PC135
*DIS@33P/50V/COG_4
PR203
PR201
DIS@18K/F_4
PR70
*DIS@Short_4
8812REFIN
DIS@20K/F_4
8812TON
8812EN
8812PSI
8812VID
8812VREF
8812REFADJ
PC136
PU10
9
3
4
5
8
6
7
DIS@47P/50V/NPO_4
TON
EN
PSI
VID
DIS@RT8812AGQW
VREF
REFADJ
REFIN
11
8813SS
8812PVCC
18
PVCC
BOOT1
UGATE1
PHASE1
LGATE1
BOOT2
UGATE2
PHASE2
LGATE2
PG
VSNS
RGND
GND21SS
PC53
DIS@22P/50V/NPO_4
+5VS5
1
8812BOOST1
2
8812UGATE1
20
8812PHASE1
19
8812LGATE1
15
8812BOOST2
14
8812UGATE2
16
8812PHASE2
17
8812LGATE2
13
8812PG
12
8812VSNS
10
8813RGND
PR204
DIS@1/F_6
PC139
DIS@1U/10V/X5R_4
1 2
8812BOOST1
PC134
[email protected]/25V/X5R_6
8812UGATE1
8812PHASE1
8812LGATE1
PEC-FVT-05
8812BOOST2
[email protected]/25V/X5R_6
8812UGATE2
8812PHASE2
8812LGATE2
PR198
[email protected]_6
1 2
PR202
PR207
[email protected]_6
1 2
PC142
4
4
4
4
5
213
PQ50
DIS@RJK03J6DPA
5
213
PQ49
DIS@RJK03J1DPA
5
213
PQ52
DIS@RJK03J6DPA
5
213
PQ51
DIS@RJK03J1DPA
PC56
12
PC52
12
+
DIS@2200P/50V/X7R_4
PL5
12
PC151
+
DIS@2200P/50V/X7R_4
PL6
PC51
1 2
[email protected]/25V/X7R_6
[email protected](7*7*4)
1 2
3 4
ER5
*[email protected]_6
12
EC16
*DIS@1000P/50V/X7R_4
PC54
12
1 2
[email protected]/25V/X7R_6
[email protected](7*7*4)
1 2
3 4
ER6
*[email protected]_6
12
EC17
*DIS@1000P/50V/X7R_4
RT8812A_1_VIN
PC50
[email protected]/25V/X5R_8
RT8812A_2_VIN
12
+
[email protected]/25V/X5R_8
+
PC152
EL10
*DIS@Short_8@NC
12
12
PC141
PC137
+
[email protected]/25V/X5R_8
[email protected]/25V/X5R_8
PC130
PC150
+
DIS@10U/6.3V/X5R_6
DIS@390U/2.5V/ELEC_6358
EL11
*DIS@Short_8@NC
12
PC55
+
[email protected]/25V/X5R_8
[email protected]/25V/X5R_8
PC132
PC149
+
+
DIS@390U/2.5V/ELEC_6358
DIS@330U/2V/ESR9_7343
PC148
DIS@10U/6.3V/X5R_6
VIN
+VGPU_CORE
PC131
[email protected]/10V/X5R_4
+VGPU_CORE
PC147
[email protected]/10V/X5R_4
+VGPU_CORE
EDP-C: 35A
EDP-Peak: 55A
OCP: 60A
VIN
GFXON(15,32,48)
D D
RT8812A_1_VIN
C C
PR199
DIS@20K/F_4
PC138
DIS@2700P/50V/X7R_4
B B
5
N14M-GL
N14M-GE
(Config C)
39KΩ
30KΩ
3KΩ
27KΩ
0Ω
1.8nF
+3V_GPU
PR210
[email protected]/F_4
PR209
*DIS@Short_4
8812PG
4
NVVDD_PG (48)
3
8812VSNS
8813RGND
PC146
*DIS@47P/50V/NPO_4
PC145
*DIS@47P/50V/NPO_4
+VGPU_CORE
PC144
*DIS@47P/50V/NPO_4
PR72
DIS@100/F_4
PR71
DIS@100/F_4
PR212
*DIS@Short_4
PR211
*DIS@Short_4
GPUCORE_VCCSENSE (14)
GPUCORE_VSSSENSE (14)
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
2
Date: Sheet
Quanta Computer Inc.
VGPU_CORE(RT 8812A)
VGPU_CORE(RT 8812A)
VGPU_CORE(RT 8812A)
1
45 61, 25, 2013
45 61, 25, 2013
45 61, 25, 2013
1ACustom
1ACustom
1ACustom
of
of
of
N14P-GV2
(Config B)
Nvidia
PR199
PR203
PR200
A A
PR201
PR70
PC138
20KΩ
20KΩ
2.05KΩ
18KΩ
0Ω
2.7nF
Page 46
5
4
3
2
1
46
D D
+5VS5
PEC-FVT-01
PR183
*Short_6
+3V
PEC-FVT-01
PR191
PC127
*10K/F_4
PR189
76.8K/F_4
PR190 *Short_4
PR184
470K/F_4
C C
HWPG(6,19,30,32,39,40,41,43)
MAINON(19,32,41,43,49)
PR188 *Short_4
*0.1U/10V/X5R_4
PEC-FVT-01
B B
1 2
7
1
3
2
5
4
PC122
1U/10V/X5R_4
V5IN
PGOOD
EN
TPS51211
TRIP
CCM
VFB
12
PU8
DRVH
GND16GND15GND14GND13GND
VBST
DRVL
GND
PQ45
TPCC8067-H
PQ44
TPCC8065-H
4
3
4
3
+1.5V_HDR
+1.5V_LX
+1.5V_LDR
PC125
0.1U/25V/X7R_6
PR187
2.2_6
10
9
8
SW
6
11
Vo=0.704*(R1+R2)/R2
52
1
52
1
Place these CAPs
close to FETs
PC36
PC35
2.2UH/8A-PCMC063T-2R2MN(7*7*3)
ER4
*4.7_6
12
EC15
*1000P/50V/X7R_4
2200P/50V/X7R_4
0.1U/25V/X7R_6
PL3
+
PR185
23.2K/F_4
R1
PR186
20K/F_4
R2
VIN_+1.5V
12
PC117
4.7U/25V/X5R_8
+
12
*Short_8@NC
PC34
4.7U/25V/X5R_8
PC124
*1000P/16V/X7R_4
EL9
VIN
+1.5V
PEAK :6.75A
OCP :9A
+1.5V
12
+
330U/6.3V/ELEC_6358
10U/6.3V/X5R_6
PC118
PC119
PC121
PC120
0.1U/10V/X5R_4
2200P/50V/X7R_4
PEC-FVT-02
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
+1.5V
+1.5V
+1.5V
46 61, 25, 2013
46 61, 25, 2013
46 61, 25, 2013
1
1ACustom
1ACustom
1ACustom
of
of
of
Page 47
5
4
3
2
1
47
D D
+3V, +5V
+3VS5 +5VS5
+15V
PR80
1M_4
MAINON_15V
3
PR78
*1M_4
1
PQ16
2N7002BK
2
C C
MAINON#(49)
PC178
2200P/50V/X7R_4
52
4
3
PQ65
TPCC8067-H
1
+3V
PC177
0.1U/10V/X5R_4
PC184
0.1U/10V/X5R_4
PQ71
TPCC8067-H
1
4.96A5.56A
+5V
PC202
0.1U/10V/X5R_4
PC201
0.1U/10V/X5R_4
52
4
3
MAINON_15V (10)
+3VS5
+15V
3
1
0.1U/10V/X7R_4
PR81
*1M_4@NC
PC183
B B
SLPM_INV(49,53)
PQ15
2N7002BK
PR79
1M_4
2
12
PC66
2200P/50V/X7R_4
PQ66
TPCC8067-H
5 2
PR82
*Short_4
0.2A
+3V_M3
1
3
4
12
PC181
*0.015U/50V/X7R _6@NC
PEC-FVT-01
PC185
0.1U/10V/X7R_4
Support SBA Function will be Mounted
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet
Quanta Computer Inc.
Load Switch
Load Switch
,
,
,
Load Switch
25, 2013
25, 2013
25, 2013
1
47 61
47 61
47 61
of
1ACustom
1ACustom
1ACustom
Page 48
5
4
3
2
1
48
6A
+5VS5
PR64
DIS@1M_4
2
+15V
3
1
D D
GPIO0 For GC6 function
N14P-GV2
N14M-GE
N14M-GL
FB_CLAMP(15,32)
NVVDD_PG(45)
GFXON(15,32,45,48)
C C
PDa - Stuff
PDa - Un-Stuff
PDa - Un-Stuff
PDa
DIS@DB2J40600L
PR60
*DIS@0_4
PR59
*DIS@Short_4
PD21
1.5V_GPU_ON#
PD20
DIS@DB2J40600L
PR61
DIS@100K/F_4
PR62
DIS@100K/F_4
2
PQ47
DIS@PMF780SN
NVVDD_PG_INV
3
1
NVVDD_PG_INV(50)
+1.5V
DSI@10U/6.3V/X5R_6
PC123
PR63 *DIS@Sh ort_4
PQ48
DIS@2N7002BK
PEC-FVT-01
PQ46
DIS@TPCC8062-H
5 2
1
3
4
PC38
DIS@4700P/50V/X7R_4
for GC6 timing tuning -- 0322 ALF
PEC-FVT-01
0.22A
PQ58
+3V
DIS@10U/6.3V/X5R_6
5 2
PC155
PEC-FVT-01
DIS@TPCC8067-H
4
PR74
DIS@510k_4
2
+15V
PR75 *DIS@Short_4
3
PQ60
DSI@2N7002BK
1
+5VS5
PR73
DIS@100K/F_4
B B
GFXON_INV#
3
GFXON(15,32,45,48)
2
PQ59
DSI@2N7002BK
+3V_GPU
1
3
PC156
DIS@10U/6.3V/X5R_6
PC57
*DIS@2200P/50 V/X7R_4
GFXON_INV#
+15V
DIS@10U/6.3V/X5R_6
PR217
DIS@1M_4
3
2
DIS@2N7002BK
1
PQ57
PR253
DIS@2M_4
for GC6 timing tuning -- 0322 ALF
+1.05V
5 2
PC153
PR218 DSI@680 K_4
PQ53
DIS@TPCC8065-H
4
PC154
DIS@4700P/50V/X7R_4
+1.5V_GPU
2.32A
+1.05V_GFX_PCIE
1
3
PC126
DIS@10U/6.3V/X5R_6
PC158
DIS@10U/6.3V/X5R_6
1
A A
5
GFXON_INV# (50)
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
4
3
2
Date: Sheet
Discrete Load Switch
Discrete Load Switch
Discrete Load Switch
1
of
of
of
48 61, 2 5, 2013
48 61, 2 5, 2013
48 61, 2 5, 2013
1ACustom
1ACustom
1ACustom
Page 49
5
4
3
2
1
DISCHARGE
49
D D
+5VS5
PR86
100K/F_4
3
PQ18
2
MAINON(19,32,41,43,46)
C C
MAINON
PMF780SN
1
+5V +3V
PR94
22_8
3
PQ21
2
1
PR91
22_8
2
PMF780SN
+5VS5 +3V_M3+1.05V_M3
+1.05V +0.675V_DDR_VTT
PR87
22_8
3
PQ20
PMF780SN
1
3
PQ17
2
PMF780SN
1
PR90
22_8
3
PQ19
2
PMF780SN
1
MAINON#
PR95
22_8
+1.5V
+5VS5
3
PQ22
2
PMF780SN
1
SUSON(32,41)
MAINON# (4 7)
PR66
100K/F_4
2
SUSON#
3
PQ12
PMF780SN
1
+VCC_CORE
+1.35VSUS
3
2
1
PR69
22_8
PQ14
PMF780SN
LANVCC
+5VS5
PR175
*100K/F_4
2
PQ43
*PMF780SN @NC
+5VS5
PR119
PR176
*22_8
3
2
3
1
PQ42
*PMF780SN @NC
1
LAN_POWER(23,32)
PR114
100K/F_4
2
3
PQ32
PMF780SN
1
22_8
3
PQ31
PMF780SN
2
1
PR113
PR112
100K/F_4
B B
M3_ON(32,44)
PR115 *Short_4
V1.05M_SWITCH
PQ28
PMF780SN
SLPM_INV
3
2
1
22_8
3
PQ27
PMF780SN
2
1
PR109
22_8
3
PQ25
PMF780SN
2
1
VRON(32,42)
SLPM_INV (47,53)
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet of
5
4
3
2
Date: Sheet of
Quanta Computer Inc.
Discharge
Discharge
,
,
,
Discharge
25, 2013
25, 2013
25, 2013
1
of
49 61
49 61
49 61
1ACustom
1ACustom
1ACustom
Page 50
5
4
3
2
1
Discrete only
D D
50
+VGPU_CORE+3V_GPU +1.5V_GPU+1.05V_GFX_PCIE
2
PR216
*DIS@22_8
3
PQ54
*DIS@PMF780SN
1
PR213
2
DIS@22_8
3
PQ56
DIS@PMF780SN
1
C C
GFXON_INV#(48) NVVDD_PG_INV(48)
2
PR215
DIS@22_8
3
PQ55
DIS@PMF780SN
1
2
PR120
DIS@22_8
3
PQ33
DIS@PMF780SN
1
B B
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Numb er Rev
Size Document Numb er Rev
Size Document Numb er Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
Discrete Discharge
Discrete Discharge
Discrete Discharge
1
of
of
of
50 61, 25, 2013
50 61, 25, 2013
50 61, 25, 2013
1AB
1AB
1AB
Page 51
5
4
3
2
1
51
D D
SYS_SHDN#(32,34,40)
21
PD15
1SS355VM
PR117
100K_6
C C
PQ29
DSC500500L (3904)
B B
2
1 3
PR118
10K_6
DSA500500L (3906)
PQ30
PC85
1U/25V/X5R_6
1 2
PD16
1SS355VM
PD17
1SS355VM
PR116
549K/F_4
21
21
PR252
470_6_PTC
VA
VIN
+3VS5+5VS5 +1.35VSUS ACIN
12
PR245
12
470_6_PTC
+1.05V VIN
PR231
470_6_PTC
DIS:PR214,PR208 Mount to 470/PTC
UMA:PR214,PR208 Mount to 0ohm
PR227
1 2
12
470_6_PTC
PR214
DIS@470_6_PTC
12
PR153
1 2
470_6_PTC
Charger
Batt IN
PR208
12
DIS@470_6_PTC
PR145
1 2
470_6_PTC
PR127
470_6_PTC
PR121
470_6_PTC
PR174
470_6_PTC
1 2
1 2
12
VGA_Phase1VGA_Phase2 +1.5V
A A
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
Date: Sheet
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PTC Circuit
PTC Circuit
PTC Circuit
51 61, 25, 2013
51 61, 25, 2013
2
51 61, 25, 2013
1AA
1AA
1AA
of
of
of
1
Page 52
5
4
3
2
1
52
D D
Haswell
FDI
Lynx Point
HM87
GPIO30
SUS_PWR_DN_ACK
SLP_A#
+V3.3M
SLP_A#
GPIO29
DMI
SLP_S3#
+V1.05M
C C
+V1.05S
+V1.05S_VCCP
SLP_S4#
SLP_S5#
PWRBTN#
SLP_LAN#
SLP_S3#
SLP_S4#
SLP_S5#
PWRBTN#
ITE8587
VIN
VIN
14A
CPU VCCIO
+1.05V
B B
TPS51219
MAINON EN
A A
5
4
PCH VCORE+VCCIO
+V1.05S_VCCP
+V1.05S
3
3VPCU
M3_ON EN
3VPCU
M3_ON
VIN
VIN
S.W
MOS-FET
EN
RT8068A
0.2A
2
1.5A
+V1.05M
+V3.3M
PCH VCCASW
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
Quanta Computer Inc.
SBA Power Block
SBA Power Block
,
,
,
SBA Power Block
25, 2013
25, 2013
25, 2013
1
52 61
52 61
52 61
of
1ACustom
1ACustom
1ACustom
Page 53
5
D D
BIOS+ME=8MB
SBA Un-Stuff
R
Status
R684Non-SBA Stuff
R684
PCH_SPI_CS0#(7)
EC-DV-02
8512_SCE#(7,32)
R684 *0_4
SPI_CS0#_R
PCH_SPI_IO2(7)
PCH_SPI_IO3(7)
4
PCH Dual SPL -- ME ROM
32Mbit (2M or 8M Byte), SPI
EC-DV-02
R685 *0_4S
SPI_CLK(7)
SPI_SI(7)
SPI_SO(7)
R656 33J_4
R658 33J_4
R654 33J_4
C620
*22P/50V/NPO_4
R659 *33_4
R652 *33_4
PCH_SPI_IO2_2
PCH_SPI_IO3_2
SPI_CS0#_R
SPI_CLK_2
SPI_SI_2
SPI_SO_2
C624
*22P/50V/NPO_4
3
R657
1K_4
U45
1
CE#
6
SCK
5
SI
2
SO
3
WP#
W25Q64FVSSIQ
VDD
HOLD#
VSS
8
7
4
BOM P/N Okay @1227
2
+3V_M3+3V_M3
R653
1K_4
C616
0.1U/10V/X7R_4
Vender
Winbond
Size
P/N
V
8MB
AKE3EFP 0N0 7
AKE3EZN0Z00MXIC
8MB
+3VS5 (2,6,7,9,10,15,17,20,23,24,25,28,32,37,40,44,47)
+3V_M3 (7,10,44,47,49)
+3V_DEEP_SUS (6,7,8,9,10)
+1.05V_M3 (10,44,49)
+1.05V (2,4,9,10,35,43,48,49)
1
53
SBA POWERGD/SBA Power select
If EC support embedded flash , SPI
power must be used S5_0N power rail
C C
for EC load code.
+3V_DEEP_SUS +3V_M3
L15
+1.05V +1.05V_M3
*1uH/25mA_6
R628 *0/F_8
+3V_M3
R347 10K_4
2
Without SBA Function will be
Mounted
B B
Support SBA Function will be Mounted
+3VS5
3
1
R348
10K_4
2
Q13
PMF780SN
+3VS5
3
1
R349
10K_4
+3V_M3_PWRGD
Q14
PMF780SN
SBA LOGIC
+3VS5
C353
0.1U/10V/X7R_4
2
1
3 5
4
U10
TC7SH08FU
R351 22K/J_4
APWROK
C355
0.1U/10V/X7R_4
APWROK (6 )
3
+1.05V_M3_PWRGD
+3V_M3_PWRGD
Q15
2N7002BK
+1.05V_M3_PWRGD(44)
A A
SLPM_INV(47,49)
SLPM_INV
2
1
Size Document Num ber Rev
Size Document Num ber Rev
Support SBA Function will be Mounted
5
4
3
2
Size Document Num ber Rev
Date: Sheet
Date: Sheet
Date: Sheet
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Circuit for Intel SBA
Circuit for Intel SBA
Circuit for Intel SBA
53 61, 25, 2013
53 61, 25, 2013
53 61, 25, 2013
1
1ACustom
1ACustom
1ACustom
of
of
of
Page 54
5
4
3
2
1
BM5/6 -- Intel Shark Bay mainly Power On Sequence(G3 to S0)
D D
From Coin Cell BAT
From AC,BATT
Sys +3v VR internal LDO power
From PW On Button to EC
EC Assert S5_On when received NBSWON#
From EC(S5_ON) to System +3V/+5V PWM
From EC to PCH
VCCRTC
VIN
3.3_ALW
NBSWON#
S5_ON
+3VS5/+5VS5
EC_RSMRST#
17ms
EC defined 17ms from S5_ON to RSMRST#
54
EC defined 80ms from NBSWON# to assert DNBSWON# to PCH
From EC to PCH
DNBSWON#
PCH assert SUSCLK SUSCLK
C C
EC Assert LAN_POWERON
From PCH to EC
EC Assert SUS_ON
SUSB#/SUSC#
SUS_ON
LAN_POWERON
EC Assert MAIN_ON MAIN_ON
MainOn Power Rails
+3V/+5V/+1.05V/+1.5V
80ms
mini duration => 16ms(Intel Shark Bay)
5ms
SUSCLK RUNNING
PCH Asserted SUSB#/SUSC# to EC to assert SUSON..
10ms
EC defined 10ms from SUS_ON to LAN_POWERON Asserted
110ms
EC defined 110ms from SUS_ON to MAINON Asserted
?ms
SUSON Power rail +1.35VSUS
1.05V_VTT_PWRGD to enable +VCCSA 1.05V_VTT_PWRGD
EC Received HW_PG
from MainOn/SUSON/VCCSA PowerGD
EC Assert VR_ON VRON
B B
IMVP_PWRGD to PCH PCH PWROK IMVP_PWRGD(PCH PWROK)
EC Assert EC_PWROK EC_PWROK(PCH SYS_PWROK)
PCH Assert PLTRST#
DMI
HW_PG
DRAMPWROKDRAMPWROK
H_POWERGDPCH assert UNCOREPWRGOOD to CPU
PLTRST#
DMI BUS
5ms
EC defined 1ms from HWPG to VRON
5ms
0
2ms
EC defined 100ms from HWPG to ECPWROK INT defined 99ms for minimum
100ms
1ms+60uS
200us
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
5
4
3
2
Date: Sheet
Quanta Computer Inc.
Power On Sequence CDP ROF
Power On Sequence CDP ROF
,
,
,
Power On Sequence CDP ROF
25, 2013
25, 2013
25, 2013
1
54 61
54 61
54 61
of
1ACustom
1ACustom
1ACustom
Page 55
5
4
3
2
1
BM5/6 -- Intel Shark Bay mainly Power On Sequence(G3 to S0)
D D
NBSWON#
3
55
6
5ms
RSMRST#
6b
SUSCLK
7
DNBSWON#
8
SUSC#
SUSB#
17
EC_PWROK
VRON
HWPG
PCH
U40
H_POWERGD
PM_DRAM_PWROK
SYS_PWROK
13
CPU Power
12
PLTRST#
PWROK
APWROK
+VCC_CORE
PU6
13b
IMVP_PWRGD
16
15
18
UNCOREPWRGOOD
SMDRAMPWROK
RESET#
14
PM_PCH_PWROK
CPU
U21
NBSWON#
S5_ON
RSMRST#
DNBSWON#
SUSB#/SUSC#
SUSON
LAN_POWER
MAINON
BM5_EC simply control sequence
17ms
80ms
10ms
110ms
BATTERY
ADAPTER
BATTERY
Charger
PU2
1
+VIN
Sys always
Power
+5VS5
+3VS5
PU13
2
3.3_ALW
S5_ON
4
KBC
U4
5
+3VS5
+5VS5
C C
MEM Power
+1.35VSUS
SUSON
HWPG(+3VS5/+5VS5)
4b
9
PU11
Sys PW Rail
+3V/+5V
DGPU_PWR_EN
MAINON
11
LAN Power
LANVCC
PQ26
LAN_POWERON
10
100ms
PQ65/PQ71
Sys PW Rail
+1.5V
B B
PU8
9b
11a
Sys PW Rail
+1.05V
11a
4b
HWPG(+3VS5/+5VS5)
HWPG(+1.35VSUS)
HWPG(+1.5V)
HWPG(+1.05V)
PU12
HWPG
Intel Suggestion to avoid glitching @ 0109
5
DGPU_VC_EN
GPU Power
+1.05V_GPU_PCIE
PQ53
GPU Power
+1.5V_GPU
PQ46
4
3
GPU Power
+VGPU_CORE
PU10
A A
GPU Power
+3V_GPU
PQ58
VRON
EC_PWROK
2
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Date: Sheet of
Date: Sheet
Quanta Computer Inc.
Control Procesure CDP ROF
Control Procesure CDP ROF
,
,
,
Control Procesure CDP ROF
25, 2013
25, 2013
25, 2013
5ms
100ms
1ACustom
1ACustom
55 61
55 61
1
55 61
1ACustom
of
Page 56
5
BM5/6 Schematic EC Tracking Record DV ( for DV ) Jan. 18, 2013
4
3
Description Part AffectedPageEC #
2
1
56
10EC-DV-01
D D
EC-DV-02 53 Add one CS0# for SPI ROM for suppoted non-SBA function. BIOS+ME at one 8MB SPI ROM. R685,R684
EC-DV-03
EC-DV-04
EC-DV-05
EC-DV-06
21 Changed the Touch Screen CONN footprint and swap Pin Define. CN1
37 Changed the internal docking CONN footprint and swap Pin Define.
Change component to "Stuff" to supply the power for VCCASW.
R301
8Changed the Power Rail to +3V_DEEP_SUS following CRB Q41
6
Follow up Intel suggestion to meet the power up sequence for Shark Bay Platform
R686,R187,U49,C643,U36,R185,C274
CN21
24 CN2Modify Speaker CONN footprintEC-DV-07
EC-DV-08
EC-DV-09
EC-DV-10
EC-DV-11
C C
EC-DV-12
EC-DV-13
EC-DV-14
EC-DV-14
EC-DV-15
EC-DV-16
EC-DV-17
EC-DV-18
EC-DV-19
B B
EC-DV-20
33 Modify SW1 & SW2 Switch footprint SW1,SW2
CN4Changed the Power/B CONN footprint29
Y47Changed the 32.768KHz part for single source issue
8
Moved the USB2+/- from port 2 to port 1and USB3+/- from port 3 to port 9 for BIOS debug function.
32
Add HDD_DETECT# pull up 100K ohm to 3.3_ALW R687
38 HOLE 22Modify HOLE 22 footprint
7,10 R688,R689Separate the BIOS SPI & PCH SPI I/F power from +3V_M3, and adding a +3V_DEEP_SUS power
7Modify the layout routing for EC auto load function to support CS0# (SBA) & CS1#(non-SBA)
10 R555Un-Stuff the 100K ohm on SLP_SUS_ON_GPG2 for voltage-divider issue
38 PAD1Add a GND signal suggesded by ESD team
23 RV15,RV16,RV17,RV18,RV19Modify the component footprint suggestion by ESD team
18
Modify the VRAM footprint, to add the silkscreen for different VRAM package of 2Gb & 4Gb U9,U32,U6,U22
26 Changed the USB3.0 footprint. CN18,CN21
R605,R60825 Changed the ODD Power control GPIO from EC to PCH by customer request
EC-DV-21 20 Modify the component footprint C399
EC-DV-22 23 Modify the component footprint C406
EC-DV-23 16 For install GPU-GV2 driver issue, to stuff to supply power for VID_PLLVDD. R115
EC-DV-24 24 Swap the Pin define to solve the recorder issue of internal MIC. CN9
EC-DV-25 32 Change the R vaule to 100K ohm R52
EC-DV-26 6 Reserver TPs for DDI Port debug, And adding pull-up a R to +3V for Enable DDI Port. TP79,TP80,TP81,TP82, R691
EC-DV-27 7 EMI Suggestion, stuff 15pF for 24MHz Harmonic EC18
EC-DV-28 8 EMI Suggestion, stuff 15pF for 33MHz SSC issue EC5,EC20
A A
EC-DV-29 28 EMI Suggestion, stuff 15pF for 33MHz SSC issue C635
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
EC RECORD DV
EC RECORD DV
EC RECORD DV
of
of
of
56 61, 2 5, 2013
56 61, 2 5, 2013
56 61, 2 5, 2013
1
1ACustom
1ACustom
1ACustom
Page 57
5
BM5/6 Schematic EC Tracking Record DV ( for DV ) Jan. 18, 2013
4
3
Description Part AffectedPageEC #
2
1
57
31EC-DV-30
D D
EC-DV-31 26 EMI Sugestion, stuff 90 ohm common choke for USB2.0 port. CML7,R673,R674
EMI Suggestion, stuff 22pF for CRT EMI issue C215,C218,C229,C230,C240,C246,
EC-DV-32 26 EMI Sugestion, stuff 90 ohm common choke for USB2.0 port. CML8,R675,R676
EC-DV-33
EC-DV-34
24
22 R638,R642,R650,R651
EMI Sugestion, stuff 600 ohm bead for Speaker port.
EMI Sugestion, stuff 120 ohm R for HDMI port.
R2,R3,R4,R5
EC-DV-35 Board ID for BM5 / BM6 A2 stage09 R586,R589,R283,R284,R575,R573,R278,R275
C C
B B
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
EC RECORD DV
EC RECORD DV
EC RECORD DV
of
of
of
57 61, 2 5, 2013
57 61, 2 5, 2013
57 61, 2 5, 2013
1
1ACustom
1ACustom
1ACustom
Page 58
5
BM5/6 Schematic POWER EC Tracking Record DV ( for DV ) Jan. 18, 2013
4
3
2
1
58
Description Part AffectedPageEC #
Follow Intel schematic review suggestion C487,C92,C93,C512,C4785PEC-DV-01
D D
C C
B B
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
POWER EC RECORD DV
POWER EC RECORD DV
POWER EC RECORD DV
58 61, 2 5, 2013
58 61, 2 5, 2013
58 61, 2 5, 2013
1
of
of
of
1ACustom
1ACustom
1ACustom
Page 59
5
BM5/6 Schematic EC Tracking Record SIT ( for SIT ) Mar. 21, 2013
4
3
2
1
59
Description Part AffectedPageEC #
Intel's Suggestion, to remove 1K ohm on CFG9 R480EC-SIT-01 05
D D
C C
EC-SIT-19 Delete R359 to increase space for circuit of w/o AOU524 R359
EC-SIT-20 32 Added 2 resistances to select AOU5 function R701,R702
B B
EC-SIT-21 20 Changed the Touch Screen solution, so deleted the CN1 Conn. CN1
EC-SIT-22 20 Changed the LVDS Conn type to 40Pin for adding touch function CML1,R402
EC-SIT-23 29 Stuff the parts, EMI suggestion CML4,CML5,R355,R356,R354,R353
EC-SIT-24 21 Stuff the parts, EMI suggestion CML6,R395,R396
EC-SIT-25 20 Stuff the parts, EMI suggestion C4,C5
EC-SIT-26 20 Stuff the parts, EMI suggestion L23,R406,R407
EC-SIT-27 32 Added on 0 ohm from +3V_RTC rail to RTC_VCC rail R703
EC-SIT-28 08,25 Reserve HDD_DEVSLP function at HDD device R704,R705
EC-SIT-29 07 Stuff the some components for preventing the leakage on +3V power rail Q38,R205,R194,R527,R
A A
EC-SIT-30 22 Changed the R value from 680 to 470 of Cost Reduced Level Shifter for HDMI eye diagram test R325,R326,R327,R328,R329,R332,R333,R334
Added Thermal Pad to GNDEC-SIT-02 29 U48
Reserve design for Parade USB3.0 re-driver ICEC-SIT-03 37 U2,R692,R693,R694,R695,R696,R697
Added 10K ohm to pull-up the +3VS5 rail on USB_STATUS#EC-SIT-04 32 R698
Changed the power rail of "SV_DET" to +3VEC-SIT-05 09 R542
Changed the GPU's enable signal of CLK_REGA_REQ# to "GFXPG"EC-SIT-06 14 Q6
EMI suggestion to change the capacitor valueEC-SIT-07 07 EC18,EC19
Modify the LAN Surge protected circuit from EMI suggestionEC-SIT-08 23 R172,RV15,R699,R173,R174,R175,R176,U50,U51
Removed the "NGFF_SSD_PRESENT#" to Pin21, and changed to 3.3V_ALW. Lenovo suggestionEC-SIT-09 27,32 CN19
Added one GPIO controlled by PCH and pull down 10K ohmEC-SIT-10 08,27 R700,CN19,R359
Added 4pcs AC Cap at RX/TX for docking USB3.0 function. Lenovo suggestionEC-SIT-11 37 C644,C645,C646,C647,CN12,U2,U20
Reserve 2pcs Cap on WLAN PCIE Clock 100MHz.EC-SIT-12 28 C648,C649
Reserve 220pF on ACDC_ID signalEC-SIT-13 32 C650
Non-stuff the parts, ESD suggestionEC-SIT-14 06,32 C59,C586
Reserve 0.1uF on "HDD_DETECT# signalEC-SIT-15 32 C651
Reserve 330pF on +3.3V_RUN_EC power railEC-SIT-16 32 C652
Stuff the parts, ESD suggestionEC-SIT-17 33 RV5,RV6
Reserve without AOU5 circuitEC-SIT-18 29 RP9,PR10,RP11,RP12,U52,U48,C653
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
EC RECORD SIT
EC RECORD SIT
EC RECORD SIT
of
of
of
59 61, 2 5, 2013
59 61, 2 5, 2013
59 61, 2 5, 2013
1
1ACustom
1ACustom
1ACustom
Page 60
5
BM5/6 Schematic EC Tracking Record SIT ( for SIT ) Mar. 21, 2013
4
3
2
1
60
Description Part AffectedPageEC #
EC-SIT-31 37 Added the pull-up R on EQ1 & EQ2 for USB3.0 SI of RX test R16,R20
D D
EC-SIT-32 07 Changed the Cap Value for fine-tuning the crystal's accuracy C277,C280
EC-SIT-33 Changed the Conn. to ECSL parts
EC-SIT-34 33 Changed the parts of click pad switch by ME requirement SW1,SW2
EC-SIT-35 29 Setting the AOU5 RILIM_Hi & RILIM_Lo to current 2.3A & 1.5A R669,R670
EC-SIT-36 09 Board ID for BM5 / BM6 SIT Stage R586,R589,R283,R284,R575,R573,R278,R275
C C
JDIM2,JDIM1,CN15,CN17, PJP1,CN13,CN14,CN16,CN18,CN21,CN5,CN6
CN7,CN10,CN4,CN20
B B
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
EC RECORD SIT
EC RECORD SIT
EC RECORD SIT
of
of
of
60 61, 2 5, 2013
60 61, 2 5, 2013
60 61, 2 5, 2013
1
1ACustom
1ACustom
1ACustom
Page 61
5
BM5/6 Schematic EC Tracking Record SIT2 ( for SIT2 ) May. 24, 2013
4
3
2
1
59
Description Part AffectedPageEC #
Changed the CN5 Footprint CN5EC-SIT2-01 33
D D
C C
EC-SIT2-17 09
Delete the CN10 Pin 2 +3V for assembly line issueEC-SIT2-02 29 CN10
Directly connect HDD Conn Pin18 to GND. Lenovo suggestionEC-SIT2-03 25 CN17
Swap the GPIO Pin on 108 & 30 to support the breathing effectEC-SIT2-04 32 U4
Add a circuit to don't support AOAC functionEC-SIT2-05 28 R665
Added 1 GPIO21 of PCH to control the Touch Panel RST Pin and 1 Cap 0.47u for timing fine tuneEC-SIT2-06 07,20 U40,R630, C654
Stuff the parts for linking the eDP to LVDS converter IC via SMBus EC-SIT2-07 19 Q22
Modify the part's footprintEC-SIT2-08 15 Q35
Changed the CN4 Footprint from 0.5 pitch to 1.0 pitch for assembly line issueEC-SIT2-09 29 CN4
Delete the GND Pin on Pin5 of NGFF Connector as Vendor's PCREC-SIT2-10 27 CN19
Just modify the signal neme to AOAC_ENEC-SIT2-11 09
U40
Delete the 0 ohm or common chock on all USB portsEC-SIT2-12 R353,R354,R355,R356,R673,R674,R675,R676,R395,R396,R406,R407,CML2,3
Modify the part's footprintEC-SIT2-13 20 CML1
Modify the part's footprintEC-SIT2-14 29 CN10
Modify the ILIM LO R value from 68K ohm to 2M ohmEC-SIT2-15 29 R670
Added M3_ON pull up 10K ohm with 3.3V_ALW for Auto load code issueEC-SIT2-16 32 R353
Board ID for BM5 / BM6 SIT2 Stage R586,R589,R283,R284,R575,R573,R278,R275
B B
A A
PROJECT : M Note
PROJECT : M Note
PROJECT : M Note
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet
Date: Sheet
5
4
3
2
Date: Sheet
EC RECORD SIT2
EC RECORD SIT2
EC RECORD SIT2
1
of
of
of
61 61, 2 5, 2013
61 61, 2 5, 2013
61 61, 2 5, 2013
1ACustom
1ACustom
1ACustom
Loading...
