Samsung BD-C7900-XAA User Manual

Download

Page 1

Blu-ray Disc Player

user manual

BD-C7900

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Page 2

Key features

Blu-ray Disc Features

Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.

The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc. Not all discs will have the features described below.

Video highlights

The BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2.

HD video resolutions are also available:

1920 x 1080 High Definition

• 1280 x 720 High Definition

•

For High-Definition Playback

To view high-definition contents on a Blu-ray Disc, an HDTV (High Definition Television) is required. Some Blu-ray Discs may require you to use the player's HDMI OUT to view high-definition content. The ability to view high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV.

Interactivity

Certain Blu-ray Discs may contain Animated menus and Trivia games.

Subtitles

Depending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes, and colors for the subtitles. Subtitles may also be animated, scrolled, or faded in and out.

BD-LIVE

You can use a Blu-ray Disc supporting BD-LIVE to download contents provided by the disc manufacturer through a network connection.

Blu-ray Disc Player Features

Internet@TV

You can download various for-a-fee or free-ofcharge applications through a network connection.

With these, you can access Internet services and content such as news, weather forecasts, stock market quotes, games, movies, and music.

This player can play 3D contents through an HDMI cable.

To implement the 3D effect, connect a 3D device (3D-compliant AV receiver, 3D-compliant TV) to the player using an HDMI cable, and play the 3D content while wearing 3D vision glasses.

User Browsable Slideshows

With Blu-ray Discs, you can browse through still pictures while audio plays in the background.

2 English

Page 3

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lighting flash and Arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.

WARNING

•

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

FCC NOTE (for U.S.A)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on.

The user is encouraged to try to correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

This class B digital product meets all

• requirements of the Canadian Interference Causing Equipment Regulations.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

FCC RF Radiation Exposure

RF Radiation Exposure Statement

This equipment complies with FCC RF Radiation Exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter.

The final device into which this transmitter module is installed must be labeled with the following statement:

“This device contains TX FCC ID: A3LDNUBS1.” If this transmitter will be configured as a pc peripheral, it will be the OEM’s responsibility to obtain authorization as such (either through Certification of Declaration of Conformity) prior to marketing of the device.

02 Safety Information

English 3

Page 4

Safety Information

Note to CATV system installer

This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

DANGER :

VISIBLE AND INVISIBLE LASER RADIATION

• WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

CAUTION :

CLASS 3B VISIBLE AND INVISIBLE LASER

• RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)

THIS PRODUCT UTILIZES A LASER. USE

• OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

NOTE

✎

If the Region number of a Blu-ray Disc/DVD disc

▪

does not correspond to the Region number of this player, the player cannot play the disc.

Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install

in accordance with the manufacturer’s instructions.

Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on

10.

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified

11.

by the manufacturer.

Use only with the cart,

12.

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

4 English

Page 5

Unplug this apparatus during lightning storms

13.

or when unused for long periods of time.

Refer all servicing to qualified service

14.

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disc Storage & Management

Disc Handling

Disc Shape

Use discs with regular

• shapes. If an irregular disc (a disc with a special shape) is used, this player may be damaged.

Holding discs

Avoid touching the surface of

• a disc where data has been recorded.

Blu-ray Discs

Do not leave a Blu-ray Disc in the player for long

• periods of time. Remove the Blu-ray Disc from the player and store it in its case.

Be careful not to leave fingerprints or scratches

• on the surface of the Blu-ray Disc.

DVD-VIDEO, Audio CD (CD-DA)

Wipe off dirt or contamination on the disc with a

• soft cloth.

Disc Storage

Be careful not to damage the disc because the data on these discs is highly vulnerable to the environment.

Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

• If you move your player suddenly from a cold

• place to a warm place, condensation may occur on the operating parts and lens, causing abnormal disc playback. If this occurs, unplug the player, wait for two hours, and then connect the plug to the power outlet. Then insert the disc and try to play back again.

Handling Cautions

Do not write on the printed side with a ball-point

• pen or pencil.

Do not use record cleaning or antistatic sprays.

• Also, do not use volatile chemicals, such as benzene or thinner.

Do not apply labels or stickers to discs. (Do not

• use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)

Do not use scratch-proof protectors or covers.

• Do not use discs printed with label printers

• available on the market.

Do not load warped or cracked discs.

• Before connecting other components to this

• player, be sure to turn them all off.

Do not move the player while a disc is being

• played as the disc may be scratched or broken, or the player’s internal parts may be damaged.

Do not put a flower vase filled with water or any

• small metal objects on the player.

Be careful not to put your hand into the disc

• tray.

Do not place anything other than the disc in the

• disc tray.

Exterior interferences such as lightning and

• static electricity can affect the normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.

02 Safety Information

English 5

Page 6

Safety Information

Be sure to remove the disc and turn off the

• player after use.

Disconnect the AC power cord from the AC

• outlet when you don’t intend to use the player for long periods of time.

To clean a disc, wipe it in a straight

• line from the inside to the outside of the disc.

Do not expose the player to any

• liquid.

When the AC plug is connected to a wall outlet,

• the player will still draw power (standby mode) when it is turned off.

Apparatus must not be exposed to dripping or

• splashing and no objects filled with liquids, such as vases, should be placed on the apparatus.

The main plug is used as a disconnect device

• and shall stay readily operable at any time.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet before cleaning.

Do not use benzene, thinner, or other solvents

• for cleaning.

Wipe the cabinet with a soft, dry cloth.

•

Restrictions on Playback

This player may not respond to all operating

• commands because some Blu-ray, DVD and CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the player.

Samsung cannot assure that this player will

• play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care center if you have questions or encounter difficulty in playing Blu-ray, DVD, or CD discs in this player. Also, refer to rest of this user manual for additional information on playback restrictions.

6 English

Page 7

Contents

KEY FEATURES

SAFETY INFORMATION

GETTING STARTED

2 Blu-ray Disc Features 2

Blu-ray Disc Player Features

3 Warning 4

Precautions

4 Important Safety Instructions 5 Disc Storage & Management 5 Disc Handling

11 Before using the User Manual 11 Disc Types and Contents that can be played. 11 12 12 14 14 15 15 Accessories 16 17 18 19 19 Tour of the Remote Control 20 20

Disc types that cannot be played Blu-ray Disc Compatibility Disc Types Region Code Copyright Logos of Discs that can be played

Front Panel Front Panel Display Rear Panel Remote Control

Setting the Remote Control Controllable TV Codes

ENGLISH

CONNECTIONS

21 Connecting to a TV 21 Case 1 : Connecting to a TV with an HDMI Cable

- Best Quality (Recommended) Case 2 : Connecting to a TV with a DVI Cable

- Best Quality (Recommended) Case 3 : Connecting to a TV with Component

Cables - Better Quality Case 4 : Connecting to a TV with Video cables

- Good Quality

English 7

Page 8

Contents

CONNECTIONS

SETUP

25 Connecting to an Audio System 25 Case 1 : Connecting to an Audio System (HDMI

28 Connecting to the Network 28 Cable Network 29

30 Before Starting (Initial Settings) 31 32 32 3D 33 33 BD Wise (Samsung Players only) 33 35 35 35 35 35 35 Audio 35 Digital Output 36 37 37 37 37 37 38 System 38 Initial Settings 38 38 38 39 39 39

and 3D Supported Amplifier) - Best Quality (Recommended)

Case 2 : Connecting to an Audio System (HDMI Supported Amplifier) - Best Quality (Recommended)

Case 3 : Connecting to an Audio System (Dolby Digital, DTS Amplifier) - Better Quality

Case 4 : Connecting to an Audio System (2 Channel Amplifier) - Good Quality

Wireless Network

Setting the Menu Display

TV Aspect Ratio (Screen Size)

Resolution HDMI Format Movie Frame (24Fs) Progressive Mode Still Mode HDMI Deep Color

PCM Downsampling Dynamic Range Control Downmixing Mode DTS Neo:6 HDMI Audio Output Audio Sync

Internet@TV Screen Size Anynet+(HDMI-CEC) BD Data Management Clock DivX(R) Registration DivX(R) Deactivation

8 English

Page 9

SETUP

39 Network Setup 39 Network Settings 43 43 43 Language 43 43 Parental Rating 44 44 General 44 Background 44 44 44 45 Support 45 Software Upgrade 45

Network Status BD-LIVE Internet Connection

Security

Change Password

Front Display Power On/Off Sound Light Effect

Contact Samsung

ENGLISH

BASIC FUNCTIONS

46 Playing a Disc 46 Playback 46 46 Using the Disc menu/Title menu/Popup menu 46 Using the Disc Menu 46 46 47 47 Using the Search and Skip Functions 47 Searching for a Desired Scene 47 47 Slow Motion Play/Step Motion Play 47 Slow Motion Play 47 48 Repeat Playback 48 Repeat the Title or Chapter 48 48 Using the TOOLS button 48 Moving to a Desired Scene Directly 49 49 49 49 50

Disc Structure

Using the Title Menu Playing the Title List Using the Popup Menu

Skipping Chapters

Step Motion Play

Repeat the Section

Selecting the Audio Language Selecting the Subtitle Language Changing the Camera Angle Selecting the Picture Setting Setting BONUSVIEW

English 9

Page 10

Contents

BASIC FUNCTIONS

NETWORK SERVICES

APPENDIX

50 Listening to Music 50 Buttons on the Remote Control used for Music

51 51 51 52 Playing back a Picture 52 Playing a JPEG Disc 52 53 Playing back a USB Storage Device 54 Notes on the USB connection

55 Using Internet@TV 55 Getting Started with Internet@TV 57 60 62 BD-LIVE™ 62 62

64 Troubleshooting 67 68 69 Compliance and Compatibility Notice 69 70 71

Playback Playing an Audio CD (CD-DA)/MP3 Repeat an Audio CD (CD-DA)/MP3 Playlist

Using the TOOLS button

Settings Samsung Apps

Software Upgrade Notification Using the AllShare Function

Index Specifications

Copy Protection Network Service Disclaimer License

10 English

Page 11

Getting Started

Before using the User Manual

Disc Types and Contents that can be played.

Term Logo Icon Definition

BD-ROM

BD-RE/-R

DVD-VIDEO

DVD-RW(V)

DVD-R

DVD+RW

DVD+R

Audio CD

MP3

WMA

JPEG

DivX MKV MP4

h z Z

This indicates a function available on a BD-ROM.

This indicates a function available on a BD-RE/-R disc recorded in the BD-RE format.

This indicates a function available on a DVD-VIDEO.

This indicates a function available on recorded DVD+RW or DVD-RW(V)/DVD-R/+R discs that have been recorded and finalized.

This indicates a function available on an audio CD-RW/-R (CD-DA format).

This indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB storage media containing MP3 or WMA contents.

This indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB storage media containing JPEG contents.

This indicates a function available in a CD-RW/-R, DVD-RW/-R, BD-RE/-R disc or a USB storage media containing DivX, MKV, MP4 contents.

03 Getting Started

NOTE

✎

The player may not play certain CD-RW/-R and DVD-R due to the disc type or recording conditions.

▪

If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.

▪

Disc types that cannot be played

HD DVD

• DVD-ROM/PD/

• MV-Disc, etc

DVD-RAM

• Super Audio CD

• (except CD layer)

DVD-RW(VR mode)

• CVD/CD-ROM/CDV/

• CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

3.9 GB DVD-R Disc for

• Authoring.

English 11

Page 12

Getting Started

NOTE

✎

Some commercial discs and DVD discs purchased

▪

outside your region may not be playable with this player. When these discs are played, either “This disc can not be played.” or ““Cannot read this disc. Please check the regional code of the disc.” will be displayed.

Playback may not work for some types of discs, or

▪

when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

Do not allow the disc to become dirty or scratched.

▪

Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.

Discs with PAL programs recorded on them cannot

▪

be played using this player.

This player is compatible with the NTSC color system

▪

only.

When a BD-J title is played, loading may take longer

▪

than a normal title, or some functions may perform slowly.

This player may not respond to all operating

▪

commands because some Blu-ray, DVD and CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the player.

Samsung cannot assure that this player will play

▪

every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care center if you have questions or encounter difficulty when playing Blu-ray, DVD, or CD discs in this player. Also, refer to rest of this user manual for additional information on playback restrictions.

Blu-ray Disc Compatibility

Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this user manual.

Disc Types

BD-ROM

This Blu-ray disc can only be played back. This player can play back pre-recorded commercial BD-ROM discs.

BD-RE/-R

This Blu-ray disc can be recorded and played back. This player can play back a BD-RE/-R disc recorded by other compatible Blu-ray disc recorders.

DVD-VIDEO

This player can play back pre-recorded

• commercial DVD discs (DVD-VIDEO discs) with movies.

When switching from the first layer to the

• second layer of a dual-layered DVD-VIDEO disc, there may be momentary distortion in the image and sound. This is not a malfunction of the player.

DVD-RW

This player can play back a DVD-RW disc recorded and finalized with a DVD video recorder. Ability to play back may depend on recording conditions.

DVD-R

This player can play back a DVD-R disc recorded and finalized with a DVD Video recorder. Ability to play back may depend on recording conditions.

DVD+RW

This player can play back a DVD+RW disc

• recorded with a DVD Video recorder. Ability to play back may depend on recording conditions.

12 English

Page 13

DVD+R

This player can play back a DVD+R disc

• recorded and finalized with a DVD Video recorder. Ability to play back may depend on recording conditions.

Audio CD (CD-DA)

This player can play back CD-DA format audio

• CD-RW/-R discs.

The player may not be able to play some

• CD-RW/-R discs due to the condition of the recording.

CD-RW/-R

Use a 700MB (80 minute) CD-RW/-R disc.

• If possible, do not use a 800MB (90 minute) or above disc, as the disc may not play back.

If the CD-RW/-R disc was not recorded as a

• closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play.

Some CD-RW/-R discs may not be playable

• with this player, depending on the device which was used to burn them. For contents recorded on CD-RW/-R media from CDs for your personal use, playability may vary depending on contents and discs.

AVCHD (Advanced Video Codec High Definition)

This player can playback AVCHD format discs.

• These discs are normally recorded and used in camcorders.

The AVCHD format is a high definition digital

• video camera format.

The MPEG-4 AVC/H.264 format is capable of

• compressing images at higher efficiency than that of the conventional image compressing format.

Some AVCHD discs use the “x.v.Color” format.

• This player can playback AVCHD discs using

• “x.v.Color” format.

“x.v.Color” is a trademark of Sony Corporation.

• “AVCHD” and the AVCHD logo are trademarks

• of Matsushita Electronic Industrial Co., Ltd. and Sony Corporation.

NOTE

✎

Some AVCHD format discs may not play, depending

▪

on the recording condition. AVCHD format discs need to be finalized.

“x.v.Color” offers a wider color range than normal

▪

DVD camcorder discs.

Some DivX, MKV, and MP4 format discs may not

▪

play, depending on the video resolution and frame rate condition.

03 Getting Started

English 13

Page 14

Getting Started

Region Code

Both the player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this player is displayed on the rear panel of the player.

Disc Type

Blu-ray

Region

Code

North America, Central America, South America, Korea, Japan,

Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa,

Australia and New Zealand.

India, China, Russia, Central

and South Asia.

The U.S., U.S. territories and

Canada

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

Area

Copyright

manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

DVD-VIDEO

14 English

Mexico, South America, Central America, Australia,

New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

China

Page 15

Logos of Discs that can be played

MUTE

VOL CH

POWER

BONUSVIEW

SOURCE

DISC MENU TITLE MENUMENU

INTERNET@

REPEAT

FULL SCREEN

SUBTITLE

AUDIO

INFO

POPUP

TOOLS

EXITRETURN

AK59-00104R

Blu-ray Disc 3D Blu-ray Disc DTS-HD Master Audio DivX

03 Getting Started

BD-LIVE Dolby TrueHD

Check for the supplied accessories below.

Audio/Video cable

Batteries for Remote Control (AAA Size)

(AC39-00073A)

User Manual

(AK68-01960T)

NTSC broadcast system in

U.S.A, Canada, Korea, Japan

Accessories

(AC43-12002H)

Quick Guide

(AK68-01855V)

Java

Remote Control (AK59-00104R)

English 15

Page 16

Getting Started

DISC TRAY Opens to accept a disc.

DISPLAY Displays the playing status, time, etc.

REMOTE CONTROL SENSOR Detects signals from the remote control.

Front Panel

d e f gb c

OPEN/CLOSE BUTTON Opens and closes the disc tray.

STOP BUTTON Stops disc playback.

PLAY/PAUSE BUTTON Plays a disc or pauses playback.

POWER BUTTON Turns the player on and off.

USB HOST

NOTE

✎

Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.

▪

The front panel's Play button does not start some BD titles from the Blu-ray disc's menu.

▪

A USB memory flash stick can be connected here and used as storage when connected to BD-LIVE. It can also be used for software upgrades and MP3/JPEG/ DivX/MKV/MP4 playback.

16 English

Page 17

Front Panel Display

03 Getting Started

a b

IN DISC INDICATOR Lights when a disc is inserted or played back.

CURRENT TIME AND

STATUS INDICATOR

3D DISC INDICATOR Lights when 3D disc is inserted or played back.

WIFI INDICATOR Lights when a wireless network is connected.

Displays the play time and the current status.

English 17

Page 18

Getting Started

Rear Panel

ba ec d

DIGITAL AUDIO OUT

(OPTICAL)

LAN

HDMI OUT 1

HDMI OUT 2

COMPONENT OUT

VIDEO OUT

AUDIO OUT

Connects to a Receiver.

Can be used for network based services (See pages 55~63), BD-LIVE, and software upgrades using a network connection.

Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture or to your receiver for the best quality sound.

Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your receiver for the best quality sound.

Connects to equipment having component video input.

Connects to the input of external equipment using a video cable.

Connects to the audio input of external equipment using audio cables.

18 English

Page 19

Tour of the Remote Control

MUTE

VOL CH

POWER

BONUSVIEW

SOURCE

DISC MENU TITLE MENUMENU

INTERNET@

REPEAT

FULL SCREEN

SUBTITLE

AUDIO

INFO

POPUP

TOOLS

EXITRETURN

AK59-00104R

Remote Control

03 Getting Started

Turn the player on and off.

To open and close the disc tray.

Press to use Bonusview function.

Press numeric buttons to operate options.

Press to switch the Blu-ray Disc/DVD’s

Press to skip backwards or forwards.

Press to stop a disc.

Press to enter the disc menu.

Press to move to the home menu.

Press to use Tools menu.

Return to the previous menu.

Press to link to various Internet@TV

Press to see the full screen on a TV.

TV volume adjustment.

Mutes the speakers of your TV.

subtitle language.

services.

Turn the TV on and off. (To operate your TV, please refer to page 20)

After setup, allows you to set the input source on your TV.

Use this to access various audio functions on a disc (Blu-ray Disc/DVD).

Press to search a disc backwards or forwards.

Press to pause a disc.

Press to play a disc.

Use to enter the popup menu/title menu.

Use to display playback information while playing a Blu-ray/DVD disc.

Select menu items and change menu value.

Press this to exit the menu.

These buttons are used both for menus on the player and also several Blu-ray Disc functions.

Allows you to repeat a title, chapter, track or disc.

Use to select a TV program.

Installing batteries

NOTE

✎

If the remote does not operate properly :

▪

Check the polarity +/– of the batteries.

•

Check if the batteries are drained.

•

Check if the remote sensor is blocked by obstacles.

•

Check if there is any fluorescent lighting nearby.

•

English 19

Page 20

Getting Started

Setting the Remote Control

You can control certain functions of your TV with this remote control.

Button Function

TV POWER Used to switch the television on and off.

TV SOURCE

TV VOL (+/–) Used to adjust the volume of the television.

TV CH (,/.) Used to select the desired channel.

TV MUTE Used to toggle the sound on and off.

NOTE

✎

▪

To determine whether your television is compatible, follow the instructions below.

Switch your television on.

Point the remote control towards the

television.

Press and hold the TV POWER button, and

then enter the two-figure code from the table on the right corresponding to the brand of your television by pressing the appropriate number buttons. If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

NOTE

✎

▪

Used to select an external source connected to the TV.

The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly or using the TV's remote.

If several codes are listed for your television brand, try each one in turn until you find one that works.

If you replace the remote control's batteries, you must set the brand code again.

Controllable TV Codes

Brand Code

SAMSUNG

BANG & OLUFSEN

BLAUPUNKT TV POWER+71

BRIONVEGA TV POWER+57

CONTINENTAL

EMERSON TV POWER+64

FERGUSON TV POWER+73

FORMENTI TV POWER+57

GRADIENTE TV POWER+70

IMPERIAL TV POWER+52

LOEWE OPTA TV POWER+06, +57

MAGNAVOX TV POWER+40

MITSUBISHI

TV POWER+01, +02, +03, +04, +05, +06, +07, +08, +09

AIWA TV POWER+82

TV POWER+10, +11,

ANAM

+12, +13, +14, +15, +16, +17, +18

TV POWER+57

BRANDT TV POWER+73

CGE TV POWER+52

TV POWER+75

EDISON

TV POWER+19, +20, +23, +24, +25,

DAEWOO

+26, +27, +28, +29, +30, +31, +32, +33, +34

TV POWER+06, +49,

FINLUX

+57

FUJITSU TV POWER+84

TV POWER+49, +52,

GRUNDIG

+71

TV POWER+60, +72,

HITACHI

+73, +75

JVC TV POWER+61, +79

TV POWER+06, +19,

+20, +21, +22, +78

LOEWE TV POWER+06, +69

METZ TV POWER+57

TV POWER+06, +48, +62, +65

MIVAR TV POWER+52, +77

NEC TV POWER+83

NEWSAN TV POWER+68

Brand Code

NOBLEX TV POWER+66

NOKIA TV POWER+74

NORDMENDE

PANASONIC

PHILIPS

PHONOLA

PIONEER

RADIOLA TV POWER+06, +56

RADIOMARELLI TV POWER+57

RCA TV POWER+45, +46

REX TV POWER+74

SABA

SALORA TV POWER+74

SANYO

SCHNEIDER TV POWER+06

SELECO TV POWER+74

SHARP

SIEMENS TV POWER+71

SINGER TV POWER+57

SINUDYNE TV POWER+57

SONY TV POWER+35, +48

TELEAVA TV POWER+73

TELEFUNKEN

THOMSON

THOMSON ASIA TV POWER+80, +81

TOSHIBA

WEGA TV POWER+57

YOKO TV POWER+06

ZENITH TV POWER+63

TV POWER+72, +73, +75

TV POWER+53, +54, +74, +75

TV POWER+06, +55, +56, +57

TV POWER+06, +56, +57

TV POWER+58, +59, +73, +74

TV POWER+57, +72, +73, +74, +75

TV POWER+41, +42, +43, +44, +48

TV POWER+36, +37, +38, +39, +48

TV POWER+67, +73, +75, +76

TV POWER+72, +73, +75

TV POWER+47, +48, +49, +50, +51, +52

20 English

Page 21

Connections

Connecting to a TV

Case 1 : Connecting to a TV with an HDMI Cable - Best Quality (Recommended)

Using an HDMI cable, connect the HDMI OUT 1 terminal on the rear of the player to the HDMI IN terminal of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the HDMI signal from the player appears on

your TV screen.

If you have set the player's remote control to operate your TV (See page 20), press the TV

•

SOURCE button on the remote control and select HDMI as the external source of the TV.

HDMI cable

(not included)

04 Connections

NOTE

✎

An HDMI cable outputs digital video/audio, so you don't need to connect an audio cable.

▪

Connect only the HDMI 1 terminal on the rear of the player to the HDMI IN terminal on your TV. Do not use the HDMI2

▪

terminal. The HDMI 2 terminal does not output a video signal.

If the player is connected to your TV in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed

▪

(category 2) HDMI cable.

HDMI outputs only a pure digital signal to the TV.

▪

If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

▪

When you connect the player to a TV using the HDMI cable for the first time or connect to a new TV, the player sets the

▪

HDMI output resolution to the highest supported by the TV automatically.

You must have an HDMI connection to enjoy videos with 3D technology.

▪

A long HDMI cable may cause screen noise or distortion. If this occurs, set Deep Color to Off in the menu.

▪

English 21

Page 22

Connections

TV monitor

Case 2 : Connecting to a TV with a DVI Cable - Best Quality (Recommended)

Using an HDMI-DVI cable, connect the HDMI OUT 1 terminal on the rear of the player to the DVI IN

terminal of your TV.

Using an audio cable, connect the AUDIO OUT (red and white) terminals on the rear of the player

to the AUDIO IN (red and white) terminals of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the HDMI-DVI signal from the player appears

on your TV screen.

If you have set the player's remote control to operate your TV (See page 20), press the TV

•

SOURCE button on the remote control and select HDMI-DVI as the external source of the TV.

HDMI-DVI cable

(not included)

Audio cable

White Red

NOTE

✎

HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content

▪

Protection), random noise appears on the screen.

Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

▪

When you connect the player to the TV using the HDMI-DVI cable for the first time or connect to a new TV, the player

▪

sets the HDMI output resolution to the highest supported by the TV automatically.

22 English

Page 23

Case 3 : Connecting to a TV with Component Cables - Better Quality

Connect to your TV using Component video cables and separate audio cables.

You will enjoy high quality images with accurate color reproduction. Component video separates the

picture element into black and white (Y), blue (PB), and red (PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

Using Component video cables, connect the COMPONENT OUT terminals on the rear of the player

to the COMPONENT IN terminals of your TV.

Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player

to the AUDIO IN (red and white) terminals of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the “COMPONENT” signal from the player

appears on the TV screen.

If you have set the player's remote control to operate your TV (See page 20), press the TV

•

SOURCE button on the remote control and select COMPONENT as the external source of the TV.

Component cable

(not included)

Audio cable

04 Connections

Red

White Red Blue Green

NOTE

✎

Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y ” or “Cr, Cb, Y”

▪

instead of “PB, PR, Y”. The number and position of the terminals may vary depending on the TV set. Please refer to the user manual of your TV.

You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 480p, 480i, depending on

▪

the disc type. (See pages 33~34.)

The actual resolution may differ from the setting in the setup menu if both Component and HDMI cables are connected.

▪

The resolution may also be different depending on the disc. (See pages 33~34.)

In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or

▪

720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 480i.

English 23

Page 24

Connections

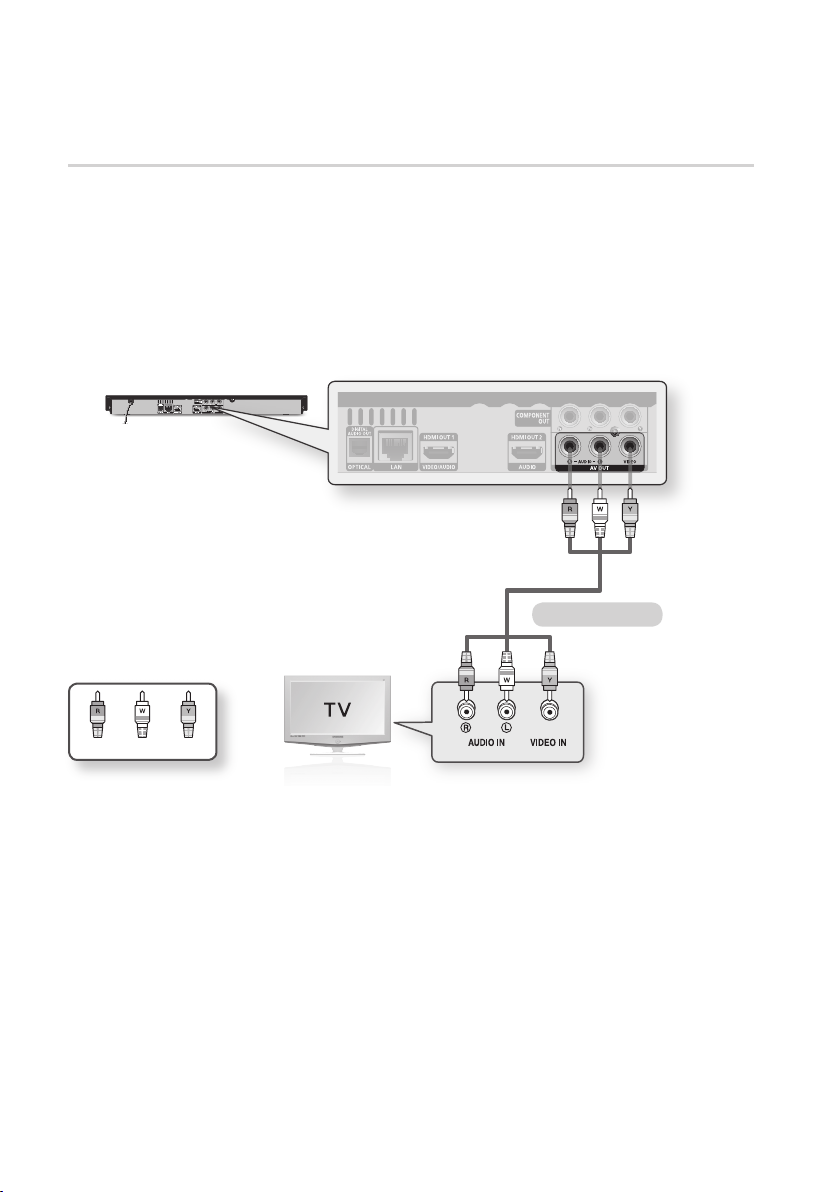

Case 4 : Connecting to a TV with Video cables - Good Quality

Using video/audio cables, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white) terminals on the rear of the player to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the “VIDEO” signal from the player appears on the TV screen.

•

If you have set the player's remote control to operate your TV (See page 20), press the TV SOURCE button on the remote control and select VIDEO as the external source of the TV.

Audio/Video cable

WhiteRed Yellow

NOTE

✎

Noise may be generated if the audio cable is placed too close to the power cable.

▪

If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 25~27)

▪

The number and position of the terminals may vary depending on your TV set. Please refer to the user manual of your TV.

▪

If there is only one audio input terminal on the TV, connect it to the AUDIO OUT (right/white) terminal of the player.

▪

CAUTION

Do not connect the player to your TV through a VCR. Video signals fed through VCRs may be affected by copyright

▪

protection systems and the picture will be distorted on the television.

24 English

Page 25

Connecting to an Audio System

Please turn the volume down when you turn on the amplifier. A sudden loud sound may cause

• damage to the speakers and your ears.

Set the audio output format according to the capabilities of your amplifier. (See pages 35~37)

• The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user manual

• of your Amplifier.

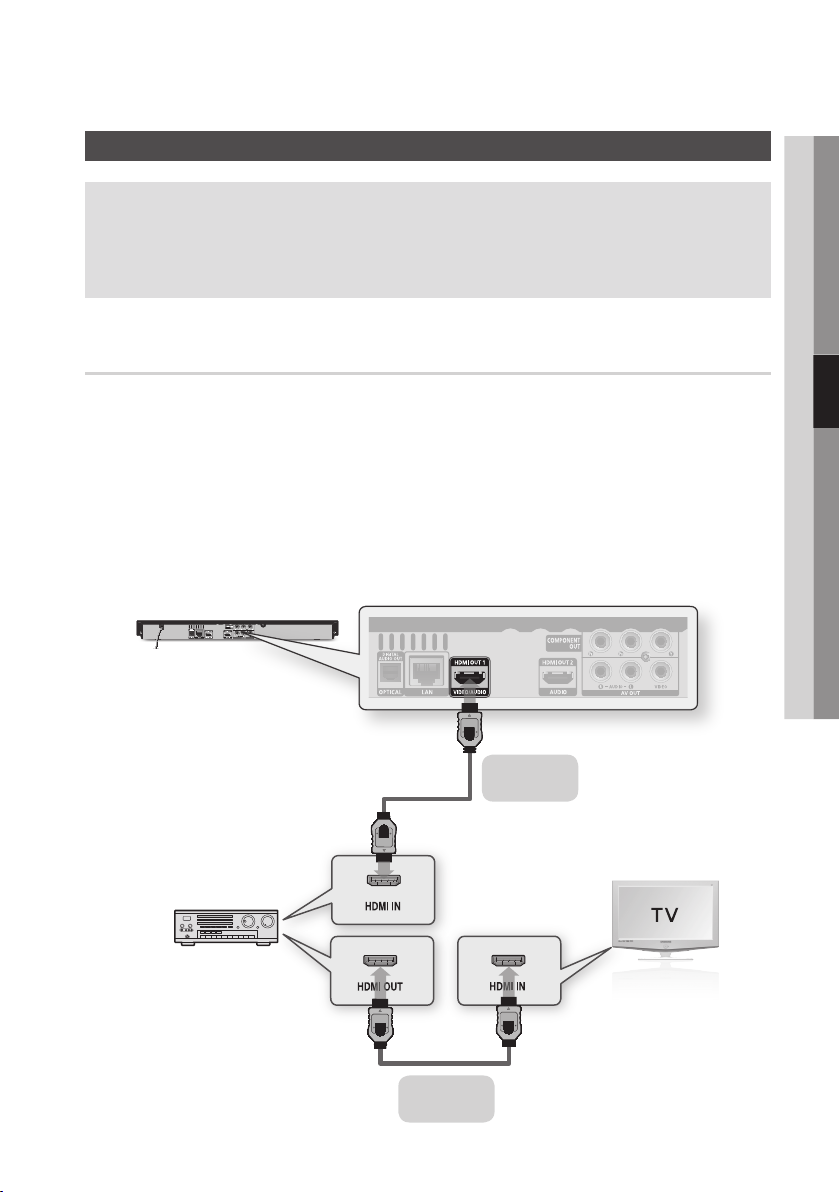

Case 1 : Connecting to an Audio System (HDMI and 3D Supported Amplifier) - Best Quality (Recommended)

Using an HDMI cable, connect the HDMI OUT 1 terminal on the rear of the player to the HDMI IN

terminal of your amplifier.

Using an HDMI cable, connect the HDMI OUT terminal of the amplifier to the HDMI IN terminal of

your TV.

Turn on the player, TV, and amplifier.

Press the input select button of the amplifier to select the external input and hear sound from the

player. Refer to the user manual of the amplifier and TV to set the audio input.

Press the input selector on your TV remote control until the HDMI signal from the player appears on

your TV screen.

04 Connections

3D supported Amplifier

HDMI cable

(not included)

HDMI cable

(not included)

English 25

Page 26

Connections

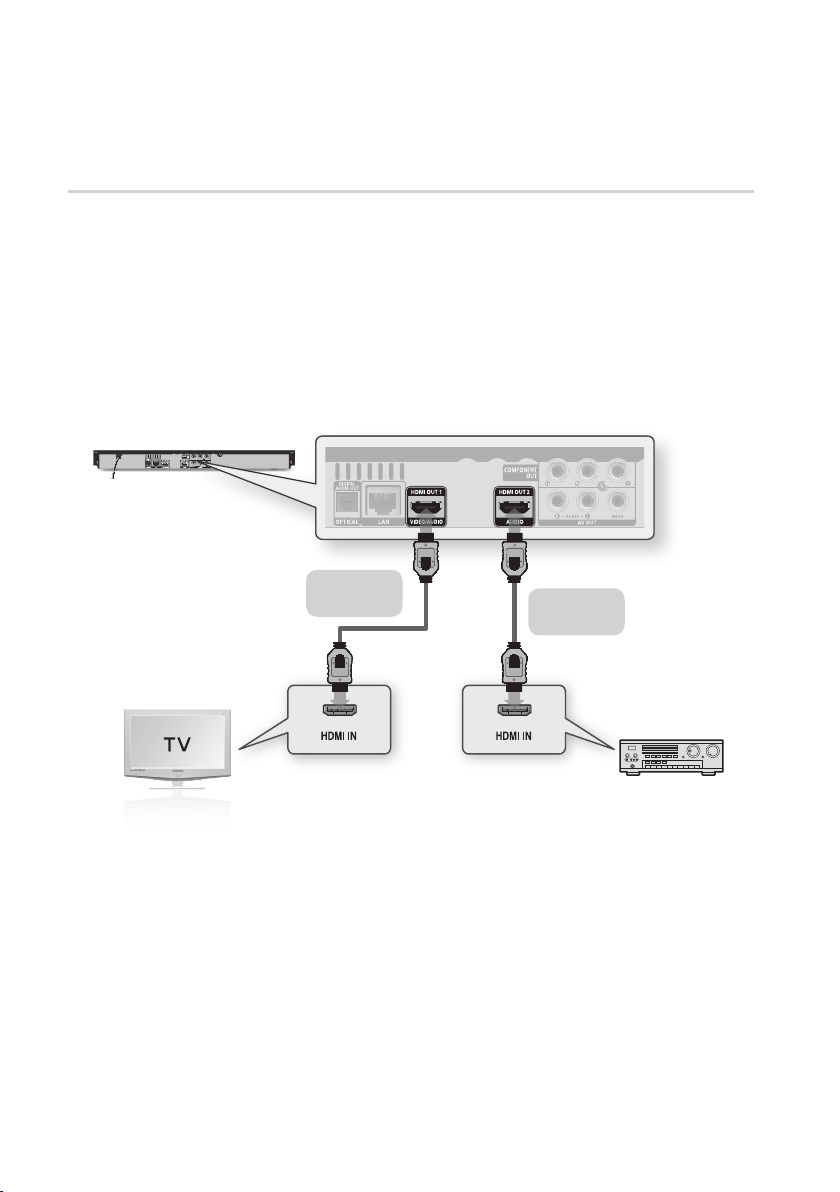

Case 2 : Connecting to an Audio System (HDMI Supported Amplifier)

- Best Quality (Recommended)

Using an HDMI cable, connect the HDMI OUT 1 terminal on the rear of the player to the HDMI IN

terminal of your TV.

Using an HDMI cable, connect the HDMI OUT 2 terminal on the rear of the player to the HDMI IN

terminal of your amplifier.

Turn on the player, TV, and amplifier.

Press the input select button of the amplifier to select the external input and hear sound from the

player. Refer to your user manual of your amplifier and TV to set the audio input.

Press the input selector on your TV remote control until the HDMI signal from the player appears on

your TV screen.

HDMI cable

(not included)

CAUTION

Do not connect the HDMI OUT 1 and HDMI OUT 2 terminals of the player with an HDMI cable.

▪

NOTE

✎

The HDMI OUT 1 terminal outputs both video and audio signals. The HDMI OUT 2 terminal outputs audio only.

▪

The HDMI OUT 2 terminal does not output video.

HDMI cable

(not included)

26 English

2D supported Amplifier

Page 27

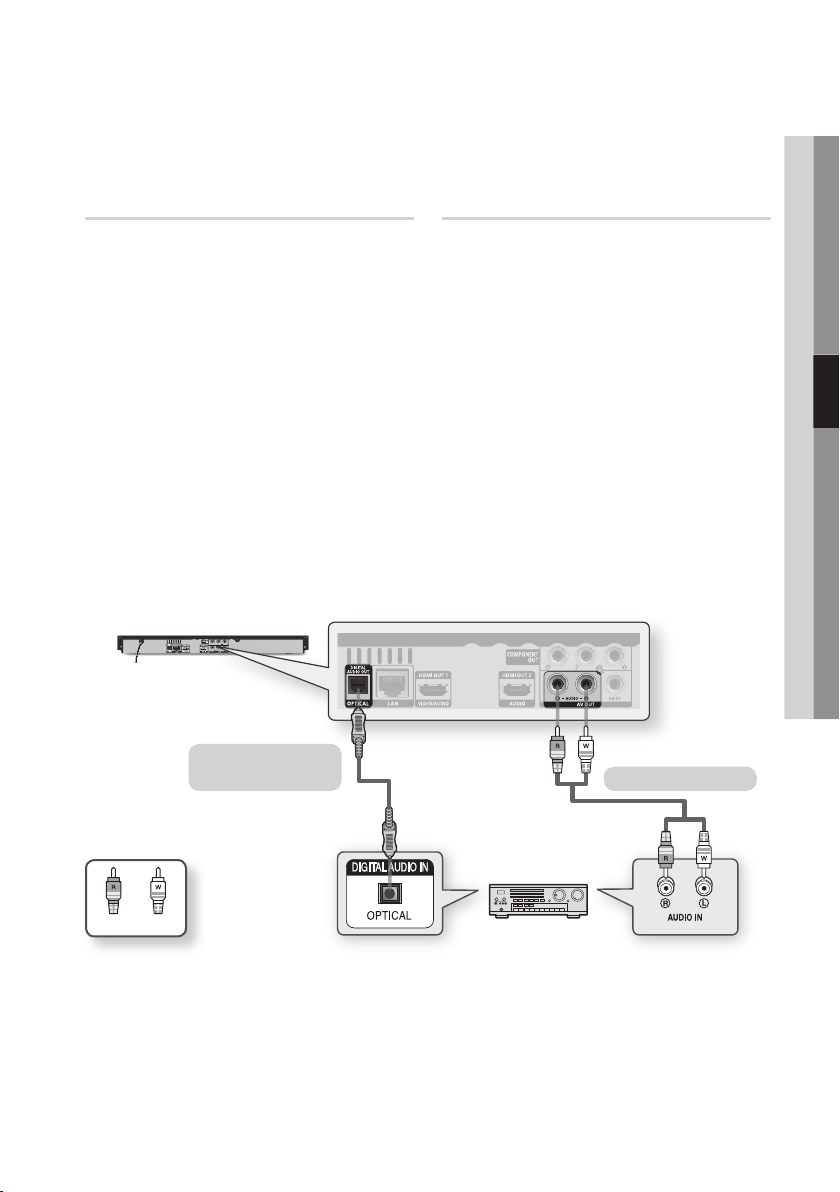

Case 3 : Connecting to an Audio System (Dolby Digital, DTS Amplifier) - Better Quality

Using an optical cable, connect the DIGITAL

1. AUDIO OUT (OPTICAL) terminal on the rear of the player to the DIGITAL AUDIO IN (OPTICAL) terminal of your amplifier.

Using the video signal cable(s), connect the

2. HDMI 1, COMPONENT, or VIDEO OUT

terminals on the rear of the player to the HDMI, COMPONENT, or VIDEO IN terminal of your TV. (See pages 21~24)

Turn on the player, TV, and amplifier.

Press the input select button of the amplifier

to select the external input and hear sound from the player. Refer to your amplifier's user manual to set the amplifier's audio input.

Press the input selector on your TV remote

control to select the video source (HDMI1, Component, or Video.)

Case 4 : Connecting to an Audio System (2 Channel Amplifier)

- Good Quality

Using audio cables, connect the AUDIO

1. OUT (red and white) terminals on the rear of

the player to the AUDIO IN (red and white) terminals of your amplifier.

Using the video signal cable(s), connect the

2. HDMI 1, COMPONENT, or VIDEO OUT

terminals on the rear of the player to the HDMI, COMPONENT, or VIDEO IN terminal of your TV. (See pages 21~24)

Turn on the player, TV, and amplifier.

Press the input select button of the amplifier

to select the external input and hear sound from the player. Refer to your amplifier's user manual to set the amplifier's audio input.

Press the input selector on your TV remote

control to select the video source (HDMI1, Component, or Video.)

04 Connections

Case 3 : Optical cable

(not included)

WhiteRed

NOTE

✎

If you use the Digital Audio connection described in Case 3, you will hear discs with PCM audio soundtracks only

▪

through the front two speakers.

Case 4 : Audio cable

English 27

Page 28

Connections

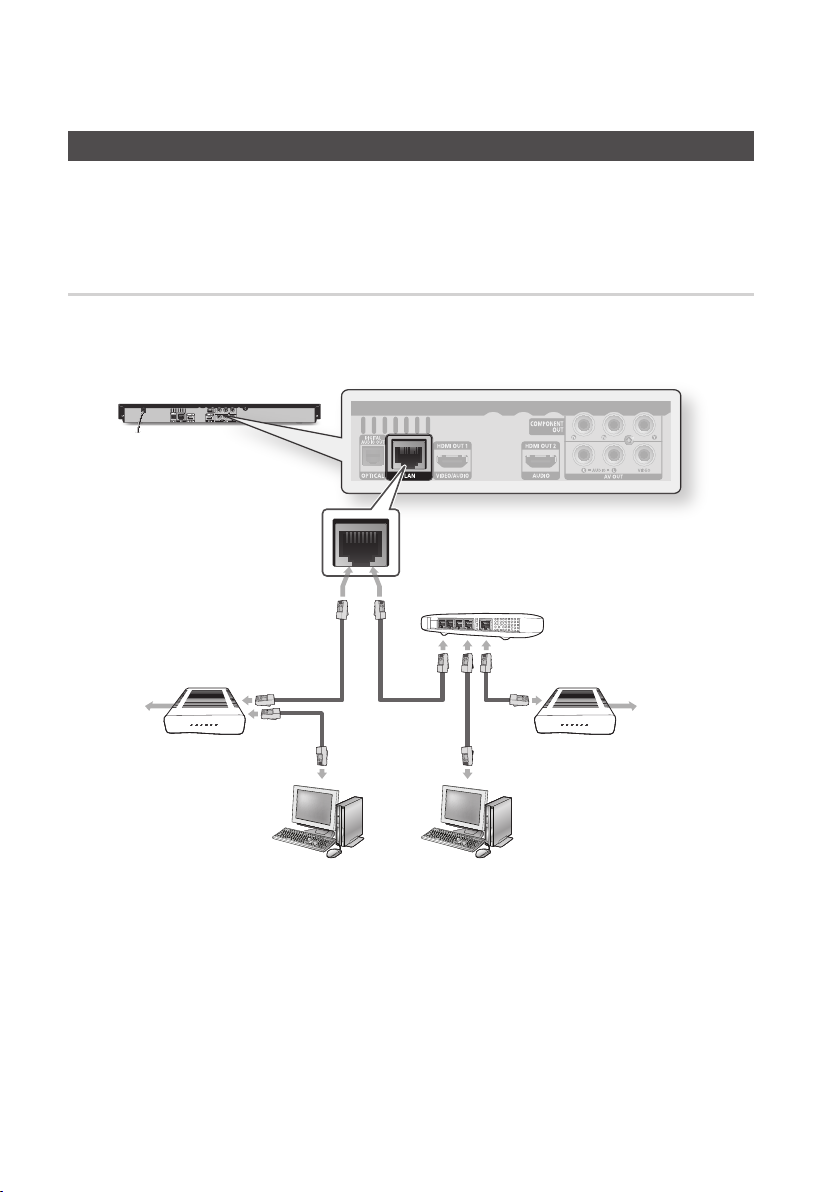

Connecting to the Network

This player lets you view network based services (See pages 55~63) such as Internet@TV and BD-LIVE, as well as receive software upgrades through a network connection. We recommend using an AP (Access Point) or IP router for the connection. For more information on router connection, refer to the user manual of the router or contact the router manufacturer for technical assistance.

Cable Network

Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the player to the LAN terminal

of your modem or router.

Set the network options. (See pages 39~43)

Router

Broadband modem

(with integrated router)

Broadband

service

NOTE

✎

Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the ISP’s

▪

policy. For more information, contact your ISP (Internet Service Provider).

DSL users, please use a router to make a network connection.

▪

To use the AllShare function, you must connect your PC to your network as shown in the figure.

▪

The connection can be wired or wireless.

Broadband modem

Broadband service

Networking with PC for AllShare function (See pages 62~63)

28 English

Page 29

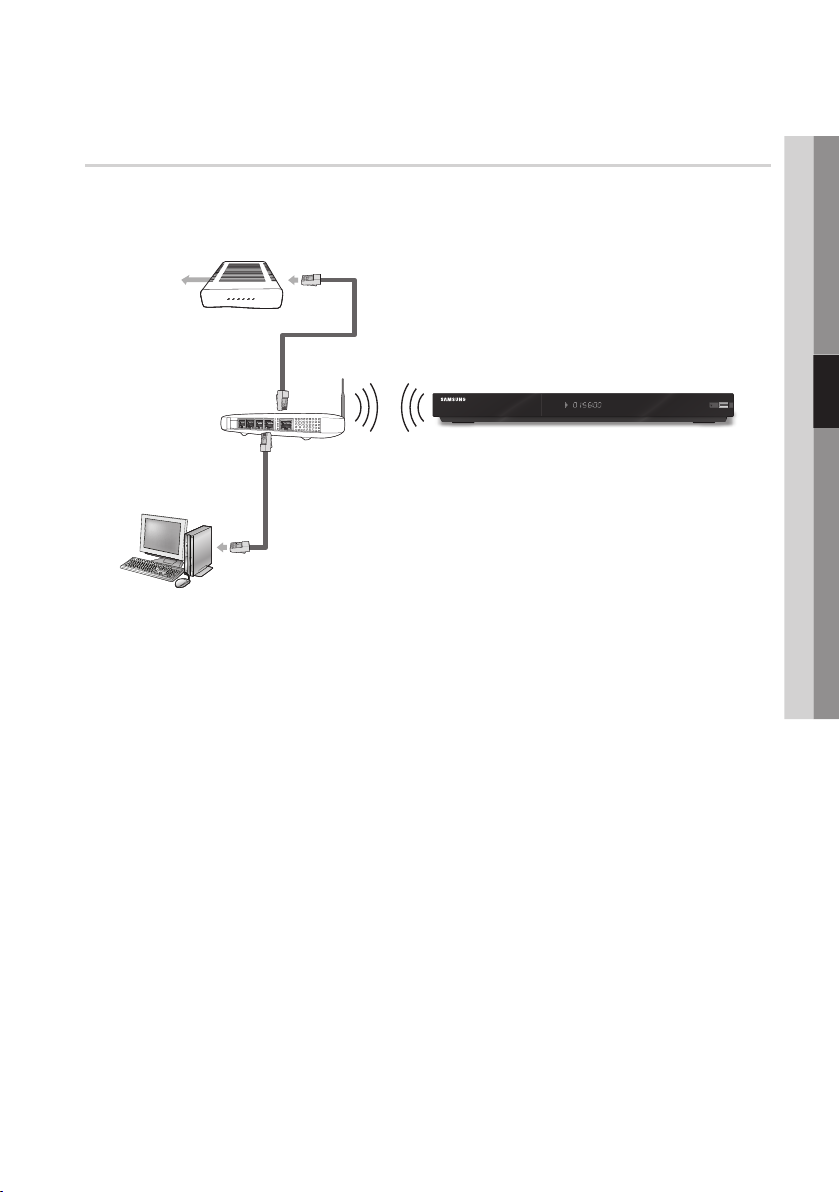

Wireless Network

You can connect your player to your network with a Wireless IP sharer. A wireless AP/IP router is required to make a wireless network connection. To set the network options, see pages 39~43.

Broadband

service

Wireless IP sharer

Networking with PC for AllShare function (See pages 62~63)

NOTE

✎

To use a wireless network, your player must be connected to a wireless IP sharer. If the wireless IP sharer supports

▪

DHCP, your player can use a DHCP or static IP address to connect to the wireless network. This player supports IEEE 802.11B, IEEE 802.11G, IEEE 802.11N. When you play the video over IEEE 802.11B/G

▪

connection, the video may not be played smoothly. Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer

▪

is currently being used by another device nearby, this will result in interference and communication failure. If you select the Pure High-throughput (Greenfield) 802.11n mode and set the Encryption type to WEP, TKIP, or TKIP-AES

▪

(WPS2Mixed) on your AP, this player will not support a connection in compliance with new Wi-Fi certification specifications. If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration)

▪

or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode. Connection Methods : You can set up the wireless network connection 3 ways :

▪

PBC (WPS)

Auto Setup (Using the Auto Network Search function)

Manual Setup

Wireless LAN, by its nature, may cause interference, depending on the operating conditions.

▪

(AP performance, distance, obstacles, interference by other radio devices, etc). Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.

▪

When applying the security key for the AP (wireless IP sharer), only the following security protocols are supported:

▪

Authentication Mode : WEP, WPAPSK, WPA2PSK

1) Encryption Type : WEP, AES

To use the AllShare function, you must connect your PC to your network as shown in the figure.

▪

The connection can be wired or wireless.

04 Connections

English 29

Page 30

Setup

internet radio

You Tube

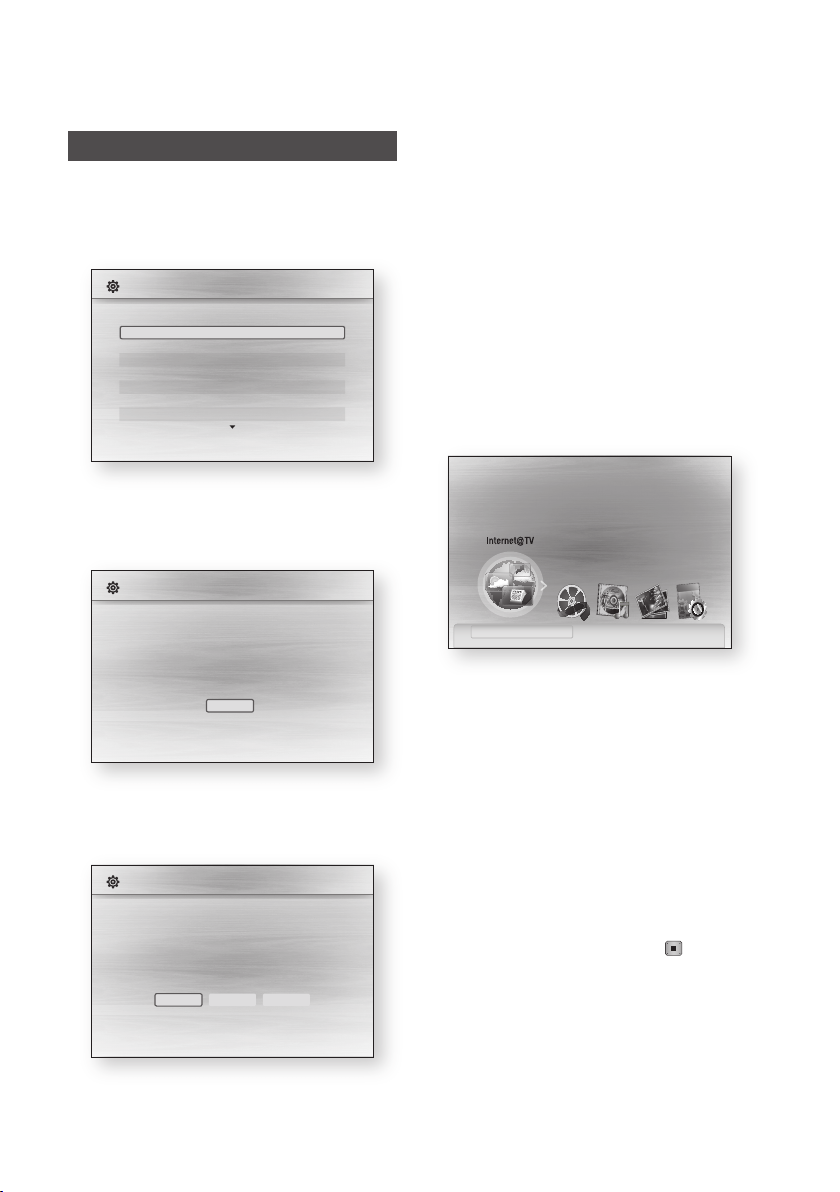

Before Starting (Initial Settings)

Turn on your TV after connecting the player.

(When the player is connected to TV for the first time, the player will turn on automatically and display the Initial Settings screen.)

Initial Settings I On-Screen Language

Select a language for the on-screen displays.

English

Français

Deutsch

Español

Italiano

Nederlands

Svenska

> Move " Select

Press the ◄► buttons to select the desired

5. Network Settings : Wired, Wireless or PBC (WPS), and then press the ENTER button.

If you do not know your Network Settings, press the BLUE (D) button on your remote instead to skip Network Settings here, finish the Initial Settings, and go to the Home menu. If you selected a Network Setting, go to pages 39~43 for more information about the Network settings. When done, go to Step 6.

Press the OK button.

The Home menu is displayed. For more information about the Home menu, please see page 31.

Home Menu

•

Press the ▲▼ buttons to select the desired

language, then press the ENTER button.

Press the ENTER button to select Start.

Initial Settings

TV Aspect and Network will be set.

Each setting may be changed later under "Settings"

Start

a Previous " Select

Press the ▲▼ buttons to select the desired

TV aspect ratio, then press the ENTER button. (See page 33)

Initial Settings I Network

Network Setting is needed to use various Internet services.

Choose the primary method for connecting to network.

Wired : Set the network connection using Ethernet cable. Please make sure that the Ethernet cable is connected.

Wireless PBC (WPS)

Wired

a Previous d Skip < Move " Select

Please activate Internet@TV service

to enjoy a variety of Internet Services.

No Disc a Change Device d View Devices " Enter

NOTE

✎

When the player is connected to a TV for the first

▪

time, the player turns on automatically. This is not malfunction.

The Home menu will not appear if you do not

▪

configure the initial settings except as noted below.

If you press the BLUE (D) button during the network

▪

setup, you can access the Home menu even if the network setup is not completed yet.

When you return to the Home menu, the full screen

▪

mode is cancelled automatically.

If you want to display the Initial Setting screen again

▪

to make changes, press the STOP ( ) button on the front panel of the player for more than 5 seconds with no disc inserted.

30 English

Page 31

POWER

BONUSVIEW

SOURCE

DISC MENU TITLE MENUMENU

SUBTITLE

AUDIO

INFO

POPUP

TOOLS

EXITRETURN

internet radio

You Tube

Use the HDMI cable to connect the player to an

▪

Anynet+(HDMI-CEC)-compliant Samsung TV. If the TV uses a language supported by the player, that language will be set to a preferred language automatically. For this to work, the Anynet+(HDMI-CEC) feature should be set to On in both the TV and the player.

If the player is left in the stop mode more than

▪

5 minutes without being used, a screen saver appears on your TV. If the player is left in the screen saver mode for more than 25 minutes, the power automatically turns off.

Setting the Menu

2 4

MENU Button :

RETURN Button : Return to the previous menu.

ENTER / DIRECTION Button : Move the cursor or select an item.

Select the currently selected item. Confirm the setting.

EXIT Button :

Press to move to the Home menu.

Press to exit the menu.

Press the POWER button.

The Home Menu will appear.

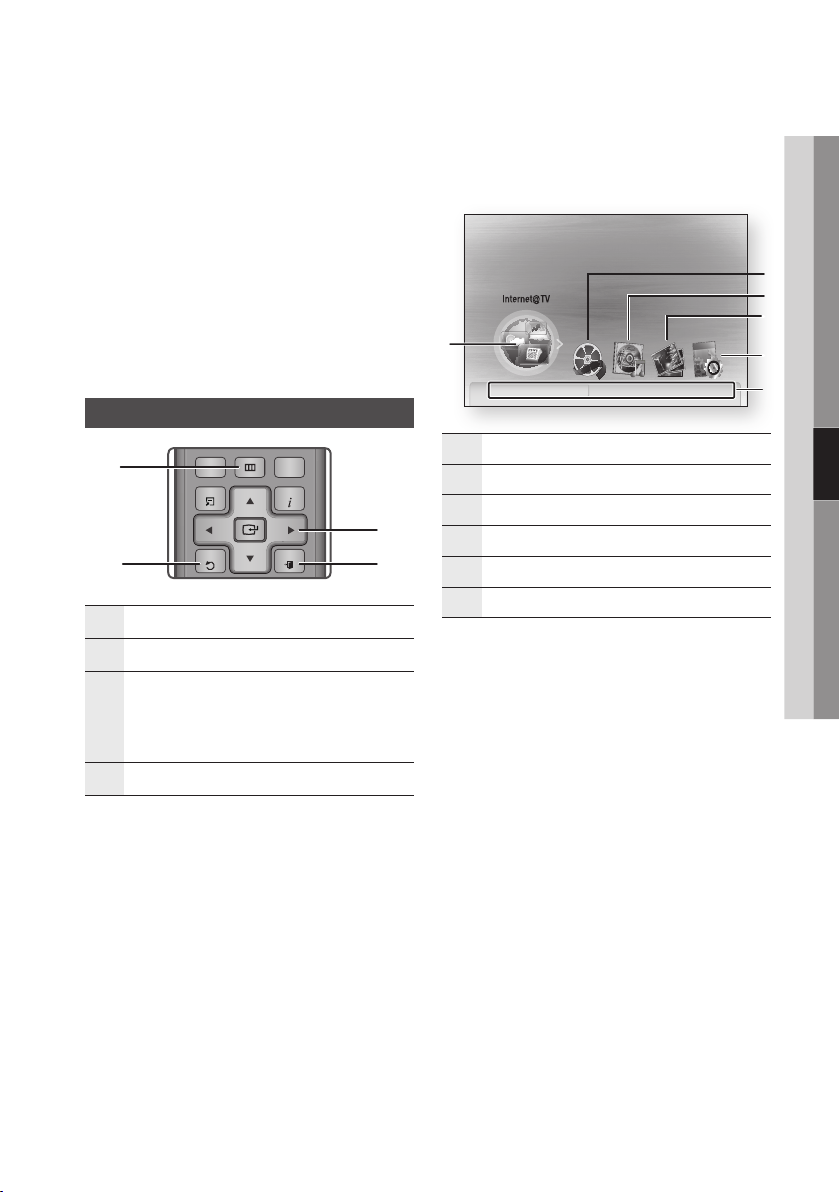

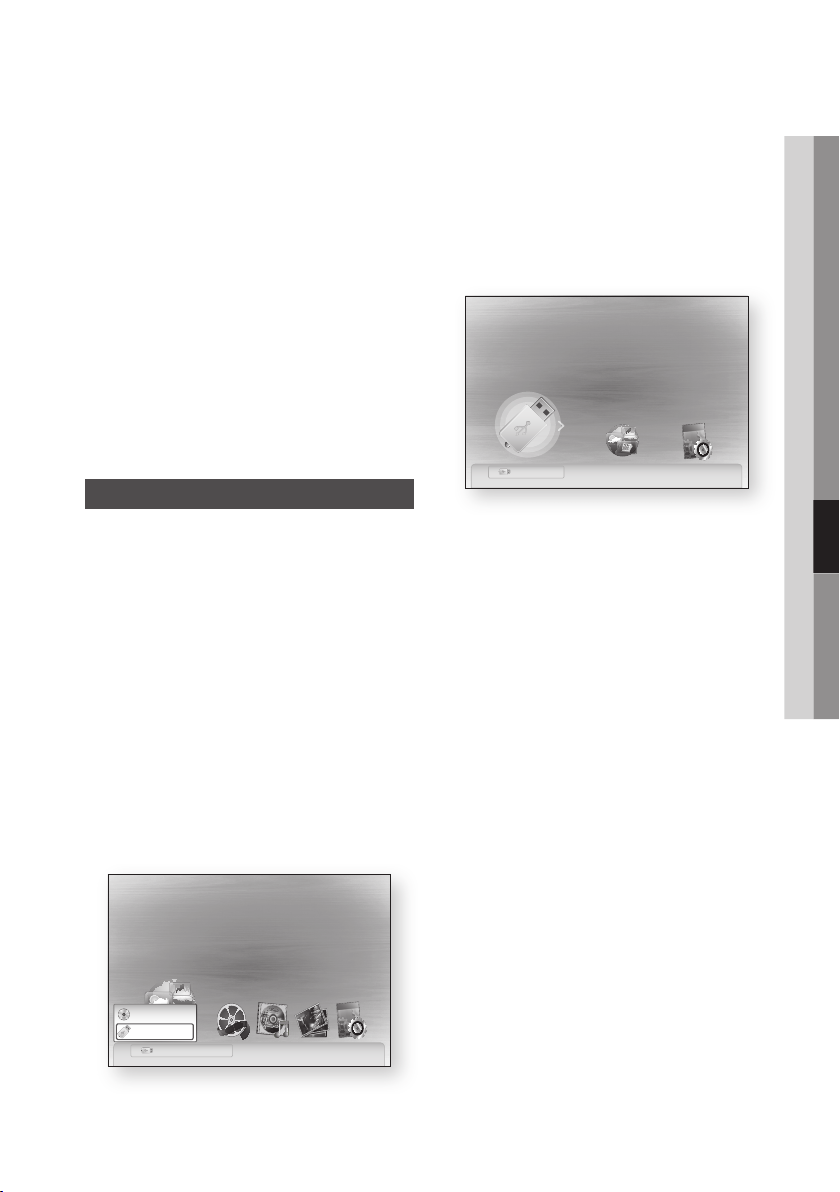

Home Menu

•

Please activate Internet@TV service

to enjoy a variety of Internet Services.

No Disc a Change Device d View Devices " Enter

Selects Internet@TV.

Selects Videos.

Selects Music.

Selects Photos.

Selects Settings.

Displays the buttons available.

Press the ◄► buttons to select Settings,

then press the ENTER button.

Press the ▲▼ buttons to select the desired

submenu, then press the ENTER button.

Press the ▲▼ buttons to select the desired

item, then press the ENTER button.

Press the EXIT button to exit the menu.

NOTE

✎

When the player is connected to the network, select

▪

Internet@TV from the Home menu. Download desired content from Samsung Apps. (See pages 60~61)

The access steps may differ depending on the

▪

selected menu.

The OSD (On Screen Display) may change in this

▪

player after you upgrade the software version.

05 Setup

2 3 4

English 31

Page 32

Setup

Display

You can configure various display options such as the TV Aspect, Resolution, etc.

Select whether to play a Blu-ray Disc with 3D contents in 3D Mode.

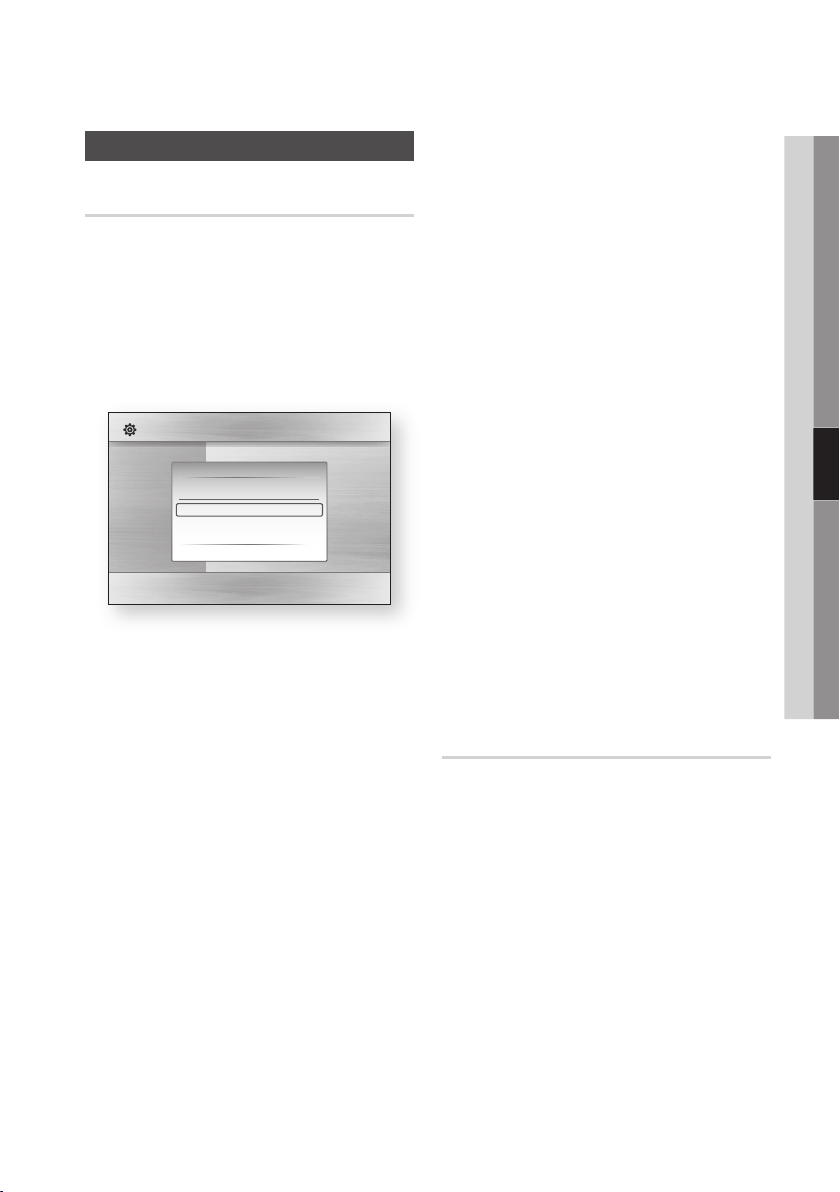

Settings

Display

Audio

System

Network

Language

Security

General

Support

3D Mode

Auto : You can choose whether to watch a 3D

• Blu-ray disc in 3D or 2D mode before playing the 3D Blu-ray. It is automatically played in 2D mode if your TV cannot support 3D contents.

3D : 3D Blu-ray Discs are played in 3D mode

• at all times. If a TV cannot support 3D Blu-ray discs, the playing screen can be black.

2D : 3D Blu-ray Discs are played in 2D mode at

• all times. Choose this to view a picture without the 3D effect or when a TV cannot support 3D Blu-ray discs.

NOTE

✎

If you press the STOP (

▪

the 3D disc playback, 3D mode option will not be activated. To activate the 3D mode option during the 3D disc playback, press the STOP (

Depending on the content and position of the picture

▪

on your TV screen, you may see vertical black bars on the left or right or both sides.

3D Mode : Auto

TV Screen Size : 55 inch

> Move " Enter ' Return

Still Mode : Auto

) button once during



) button twice.

TV Screen Size

Lets you enter the actual screen size of your TV so that the player can adjust the image according to the screen size and display an optimal 3D image. (The maximum allowed screen size is 116 inches for this player.)

CAUTION

If you want to enjoy 3D content, connect a 3D device

▪

(3D compliant AV receiver or TV) to the player’s HDMI OUT 1 port using high-speed HDMI cable. Put on 3D glasses before playing the 3D content.

While you watch 3D video, the player blocks

▪

all analog component and composite signals automatically.

The player outputs 3D signals only through HDMI

▪

cable connected to the HDMI OUT 1 port.

As the video resolution in 3D play mode is fixed

▪

according to the resolution of the original 3D video, you can not change the resolution to your preference.

Some functions such as BD Wise, screen size

▪

adjustment, and resolution adjustment may not operate properly in 3D play mode.

You must use a high-speed HDMI cable for proper

▪

output of the 3D signal.

Stay at least three times the width of the screen from

▪

the TV when watching 3D images. For example, if you have a 46 inch screen, stay 138 inches (11.5ft.) from the screen.

- Place the 3D video screen at eye level for the best 3D picture.

When the product is connected to some 3D devices,

▪

the 3D effect may not function properly.

This player does not convert 2D content to 3D.

▪

“Blu-ray 3D” and “Blu-ray 3D” logo are trademarks

▪

of Blu-ray Disc Association.

32 English

Page 33

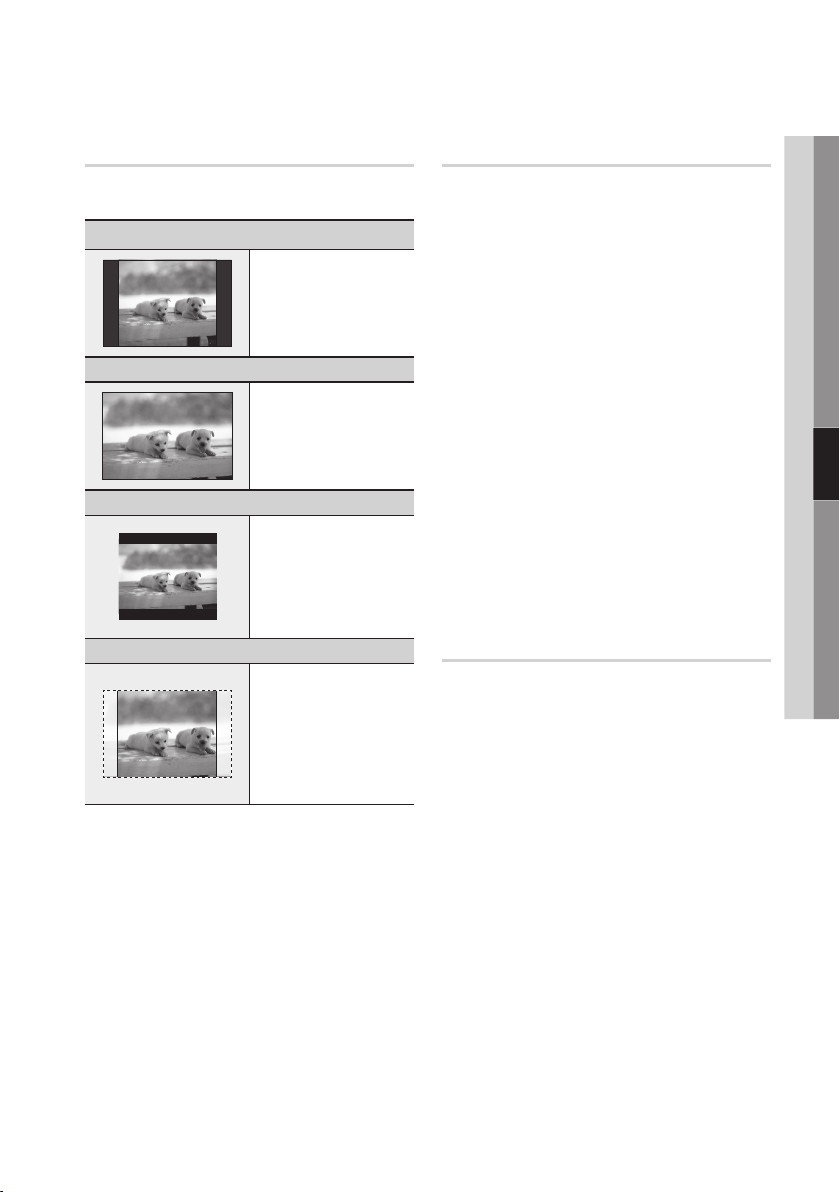

TV Aspect Ratio (Screen Size)

Depending on the type of television you have, you may want to adjust the screen size setting.

16:9 Normal

•

The player plays 4:3 source movies in 4:3 Pillar-box (black bars on sides of picture) on your wide scren TV if you select 16:9 normal.

16:9 Wide

•

Select to view a movie with an aspect ratio of 16:9 (wide screen) in full 16:9 wide screen on your widescreen TV.

4:3 Letter Box

•

If you have a TV with a 4:3 ratio screen, select when you want to see full 16:9 ratio images supplied by a Blu-ray Disc/DVD. Black bars will appear at the top and bottom of the screen.

4:3 Pan-Scan

•

If you have a TV with a 4:3 ratio screen, select when you want to see the 16:9 video supplied by the Bluray Disc/DVD without the black bars on top and bottom. The extreme left and right portion of the movie picture will be cut off.

NOTE

✎

Depending on the disc type, some aspect ratios may

▪

not be available.

If you select an aspect ratio and option which is

▪

different than the aspect ratio of your TV screen, the picture might appear distorted.

If you select the 4:3 Pan-Scan or 4:3 Letter Box, the

▪

FULL SCREEN button on your remote will not work.

If you select the 16:9 Normal, your TV may display

▪

4:3 Pillar-box. If this occurs, the FULL SCREEN button on the remote control will not work.

BD Wise (Samsung Players only)

BD Wise is Samsung's latest inter-connectivity feature.

When you connect Samsung players with BD Wise to a Samsung TV via HDMI, the optimum resolution is set automatically.

On : The original resolution of the BD/DVD disc

• is output to the TV.

Off : The output resolution is fixed at the

• resolution previously set, regardless of the resolution of the disc.

NOTE

✎

If you want to change the resolution in BD Wise, you

▪

must set BD Wise to Off in advance.

If you set BD Wise off, the resolution of the

▪

connected TV is adjusted to its maximum resolution automatically.

If the player is connected to a device that does not

▪

support BD Wise, you can not use the BD Wise function.

For proper operation of BD Wise, set the BD Wise

▪

menu of both the player and the TV to On.

Resolution

Sets the output resolution of the Component and HDMI video signal to 1080p, 1080i, 720p, 480p, or 480i. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher the quality.

Auto : Automatically checks and sets the

• optimal resolution.

BD Wise : Automatically sets the optimal

• resolution when you connect the player via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.)

1080p : Outputs 1080 lines of progressive

• video.

1080i : Outputs 1080 lines of interlaced video.

• 720p : Outputs 720 lines of progressive video.

• 480p : Outputs 480 lines of progressive video.

• 480i : Outputs 480 lines of interlaced video.

•

05 Setup

English 33

Page 34

Setup

Resolution according to the output mode

Blu-ray Disc playback

•

Setup

1080p, Movie Frame(24Fs) off 1080p@60F 480i - -

1080p/1080i,

Movie Frame(24Fs) on

1080i, Movie Frame(24Fs) off 1080i 480i 1080i 480i

DVD playback

•

Setup

1080p 1080p@60F 480i - -

1080i 1080i 480i 480p 480i

Output

Auto Optimal Resolution 480i - -

720p 720p 480i 720p 480i

480p 480p 480i 480p 480i

480i - - 480i 480i

Output

Auto Optimal Resolution 480i - -

720p 720p 480i 480p 480i

480p 480p 480i 480p 480i

480i - - 480i 480i

HDMI connected HDMI not connected

HDMI Mode

1080p@24F 480i - -

HDMI Mode

Component/VIDEO Mode

HDMI connected HDMI not connected

Component/VIDEO Mode

Component Mode VIDEO Mode

NOTE

✎

If the connected TV does not support Movie Frame or

▪

the selected resolution, the message “If no pictures are shown after the selection, please wait for 15 seconds. And then, the resolution will be reverted to the previous value automatically. Would you like to make a selection?” will be displayed. If you select Yes and the resolution is not supported, the TV's screen will be blank. Please wait for 15 seconds and the resolution will revert to the previous value automatically.

34 English

If the screen is blank, press and hold the STOP ( )

▪

button on the front of the player for more than 5 seconds (no disc inserted). All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support.

When the factory default settings are restored, all

▪

stored user BD data is deleted.

The Blu-ray Disc must have the 24 frame feature to

▪

use the Movie Frame (24Fs) mode.

If both HDMI and Component jacks are connected

▪

and you are currently viewing Component output, there may be a difference between the resolution listed above and the actual resolution depending on your TV.

Page 35

HDMI Format

You can optimize the color setting from the HDMI output by selecting a connected device Type.

TV : Select if connected to a TV via HDMI.

•

Monitor : Select if connected to a Monitor via

• HDMI.

Movie Frame (24Fs)

Setting the Movie Frame (24Fs) feature to On allows you to adjust the player's HDMI output to 24 frames per second for improved picture quality. You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. This menu can only be selected in 1080i or 1080p HDMI output resolution modes.

On : Movie Frame (24Fs) functions is on.

• Off : Movie Frame (24Fs) functions is off.

•

NOTE

✎

If your TV does not support Movie Frame (24Fs)

▪

function, a pop-up message is displayed.

Progressive Mode

Set to improve picture quality when viewing DVDs.

Auto : Select to have the player automatically

• set the best picture for the DVD you're watching.

Video : Select for the best picture quality from

• concert or TV show DVDs.

Still Mode

Set the type of picture the player shows when you pause DVD playback.

Auto : Automatically show the best still picture

• depending on the content.

Frame : Select when pausing a scene with a

• little action.

Field : Select when pausing a scene with a lot

• of action.

HDMI Deep Color

Set to output the picture from the HDMI OUT jack with Deep Color or without. Deep Color allows more accurate color reproduction with deeper color depth.

Auto : The picture is output with Deep Color

• to the connected TV if it supports HDMI Deep Color.

Off : The picture is output without Deep Color.

•

Audio

Digital Output

Lets you set the audio output format according to the capabilities of your amplifier. (For more details, see the digital output selection on the next page.)

PCM

•

Bitstream (Re-encode)

•

Bitstream (Audiophile)

•

NOTE

✎

Be sure to select the correct Digital Output or you

▪

will hear no sound or a loud noise.

If the HDMI device (Receiver, TV) is not compatible

▪

with a compression format (Dolby digital, DTS), the audio signal outputs as PCM.

Regular DVDs do not have BONUSVIEW audio and

▪

Navigation Sound Effects.

Some Blu-ray Discs do not have BONUSVIEW audio

▪

and Navigation Sound Effects.

This Digital Output setup does not affect the analog

▪

(L/R) audio or HDMI audio output to your TV. It affects the optical and HDMI audio output when the player is connected to a receiver.

If you play MPEG audio soundtracks, the audio

▪

signal outputs as PCM regardless of Digital Output Selections (PCM or Bitstream).

05 Setup

English 35

Page 36

Setup

Digital Output Selection

Setup PCM

Connection HDMI Receiver Optical HDMI Receiver or Optical HDMI Receiver Optical

PCM Up to 7.1ch PCM 2ch DTS re-encoded PCM PCM 2ch

Dolby Digital Up to 5.1ch PCM 2ch DTS re-encoded Dolby Digital Dolby Digital

Audio Stream

on Blu-ray

Disc

Audio Stream

on DVD

Definition for

Blu-ray Disc

Blu-ray Discs may include three audio streams.

Main Feature Audio : The audio soundtrack of

the main feature.

BONUSVIEW audio : Additional soundtrack

such as director or actor's commentary.

Navigation Sound Effects : When you choose

some menu navigation icons, the player may play Navigation Sound Effects. Navigation Sound Effects are different on each Blu-ray Disc.

Dolby Digital

Plus

Dolby TrueHD Up to 7.1ch PCM 2ch DTS re-encoded Dolby TrueHD Dolby Digital

DTS Up to 6.1ch PCM 2ch DTS re-encoded DTS DTS

DTS-HD HRA Up to 7.1ch PCM 2ch DTS re-encoded DTS-HD HRA DTS

DTS-HD MA Up to 7.1ch PCM 2ch DTS re-encoded DTS-HD MA DTS

PCM PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch

Dolby Digital Up to 5.1ch PCM 2ch Dolby Digital Dolby Digital Dolby Digital

DTS Up to 6.1ch PCM 2ch DTS DTS DTS

Any

Up to 7.1ch PCM 2ch DTS re-encoded

Decodes main feature audio

and BONUSVIEW audio stream together into PCM audio and add Navigation

Sound Effects.

Bitstream

(Re-encode)

Dolby Digital

Plus

Decodes main feature audio

and BONUSVIEW audio stream

together into PCM audio and

add Navigation Sound Effects,

then re-encodes the PCM audio

into DTS bitstream.

Outputs only main feature audio

stream so that your AV receiver

can decode the audio bitstream.

You will not hear BONUSVIEW

audio and Navigation Sound

PCM Downsampling

Select whether to downsample 96kHz signals.

On : Select when the Amplifier connected to the

• player is not 96kHz compatible. 96kHz signals are down converted to 48kHz.

Off : Select this when the Amplifier connected

• to the player is 96kHz compatible.

NOTE

✎

Even when PCM Downsampling is set to Off, some

▪

discs will only output downsampled audio through the optical digital outputs.

Bitstream

(Audiophile)

Dolby Digital

Effects.

36 English

Page 37

HDMI

If your TV is not compatible with compressed

• multi-channel formats (Dolby Digital, DTS), the player may output PCM 2ch downmixed audio even though you set Bitstream (either Reencode or Audiophile) on your setup menu.

If your TV is not compatible with PCM sampling

• rates over 48kHz, the player may output 48kHz downsampled PCM audio even though you set PCM Downsampling to Off.

Dynamic Range Control

You can listen at low volumes but still hear dialog clearly. This is only active when a Dolby Digital signal is

detected.

Auto : The Dynamic Range Control will be set

• automatically based on the information provided by the Dolby TrueHD Soundtrack.

Off : Turn Dynamic Range Control off.

• On : Choose to listen to a movie at a lower

• volume without losing clarity of dialog.

Downmixing Mode

Select whether to downmix the multi-channel audio into fewer channels.

Normal Stereo : Downmixes the multi-channel

• audio into two channel stereo. Choose when connected to equipment that does not support virtual surround functions such as Dolby Pro Logic.

Surround Compatible : Downmixes multi-

• channel audio into surround compatible stereo. Choose when connected to equipment that supports virtual surround functions such as Dolby Pro Logic.

DTS Neo:6

You can enjoy multi-channel sound from a simple 2-channel audio source.

Off : Outputs a 2-channel audio signal through

• the front speakers only.

Cinema : Outputs 2-channel movie sound over

• multi-channels.

Music : Outputs 2-channel music over multi-

• channels.

NOTE

✎

If you are using an HDMI receiver, this option is

▪

available when you set Digital Output setup to PCM.

HDMI Audio Output

Set the audio output method when a receiver is connected to the player.

Auto : If the HDMI OUT 1 and HDMI OUT 2

• terminals are connected to a TV and receiver respectively, you will hear audio through the device connected to HDMI OUT 2. If the receiver is not connected to the player or turned off, you will hear audio through the TV speakers.

HDMI 1 & HDMI 2 : You can listen to the audio

• from both the receiver and TV speakers.

Audio Sync

In some cases when the player is connected to a digital TV, the audio signal may not synchronize with the video signal. If this occurs, adjust the audio delay time to match the video signal.

You can set the audio delay time between 0

• msec and 200 msec. Adjust it to the optimal setting.

NOTE

✎

The audio delay time you specify may not be exact

▪

depending on the played content.

05 Setup

English 37

Page 38

Setup

System

Initial Settings

By adjusting the Initial Settings, you can set the language, TV aspect ratio and Network Settings, etc. For more information on the settings, refer to the corresponding section in this user manual. (See pages 30~45)

Internet@TV Screen Size

Set the Internet@TV Screen to the optimal size.

Size 1 : Display smaller application icons.

• You may see some black on the sides of the screen.

Size 2 : Display normal application icons.

• The image may be too large for your TV screen.

Size 3 : Display larger application icons.

• The image may be too large for your TV screen.

Anynet+(HDMI-CEC)

Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature. To operate this function, connect this player to an Anynet+ Samsung TV with an HDMI cable. You can operate this player using a Samsung TV remote control and start disc playback simply by pressing the PLAY ( ) button on the TV’s remote control. For more information, please see the TV user manual.

On : Anynet+ function is on.

• Off : Anynet+ function is off.

•

NOTE

✎

This function is not available if the HDMI cable does

▪

not support CEC.

If your Samsung TV has an

▪

supports the Anynet+ function.

Depending on your TV, certain HDMI output

▪

resolutions may not work. Please refer to the user manual of your TV.

logo, then it

BD Data Management

Lets you manage the downloaded contents you accessed through a Blu-ray Disc that supports the BD-LIVE service.

You can check the device information including the storage size, delete the BD data, or change the Flash memory device.

Change Device allows you to select either the player's Internal Memory or the External Memory (in a connected USB Device).

If the data to be stored from BD-LIVE is greater than the size of the remaining memory or the Internal Memory is full, connect an External USB device, then select External Device in the menu.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Description of Device (Storage) Information on the Player

Total Size : Total memory of the Device

• (Storage).

Available Size : Available memory in the Device

• (Storage).

NOTE

✎

In the external memory mode, disc playback is

▪

stopped if you disconnect the USB device in the middle of playback.

Only those USB devices formatted in the FAT file

▪

system (DOS 8.3 volume label) are supported, We recommend you use USB devices that support the USB 2.0 protocol with 4 MB/sec or faster read/write speed.

The Resume Play function may not work after you

▪

format the storage device.

The total memory available for BD Data Management

▪

may vary, depending on the conditions.

BD Data Management

Current Device :

Total Size : 703MB

Available Size : 700MB

Delete BD Data

Change Device :

> Move " Select ' Return

Internal Flash Memory



38 English

Page 39

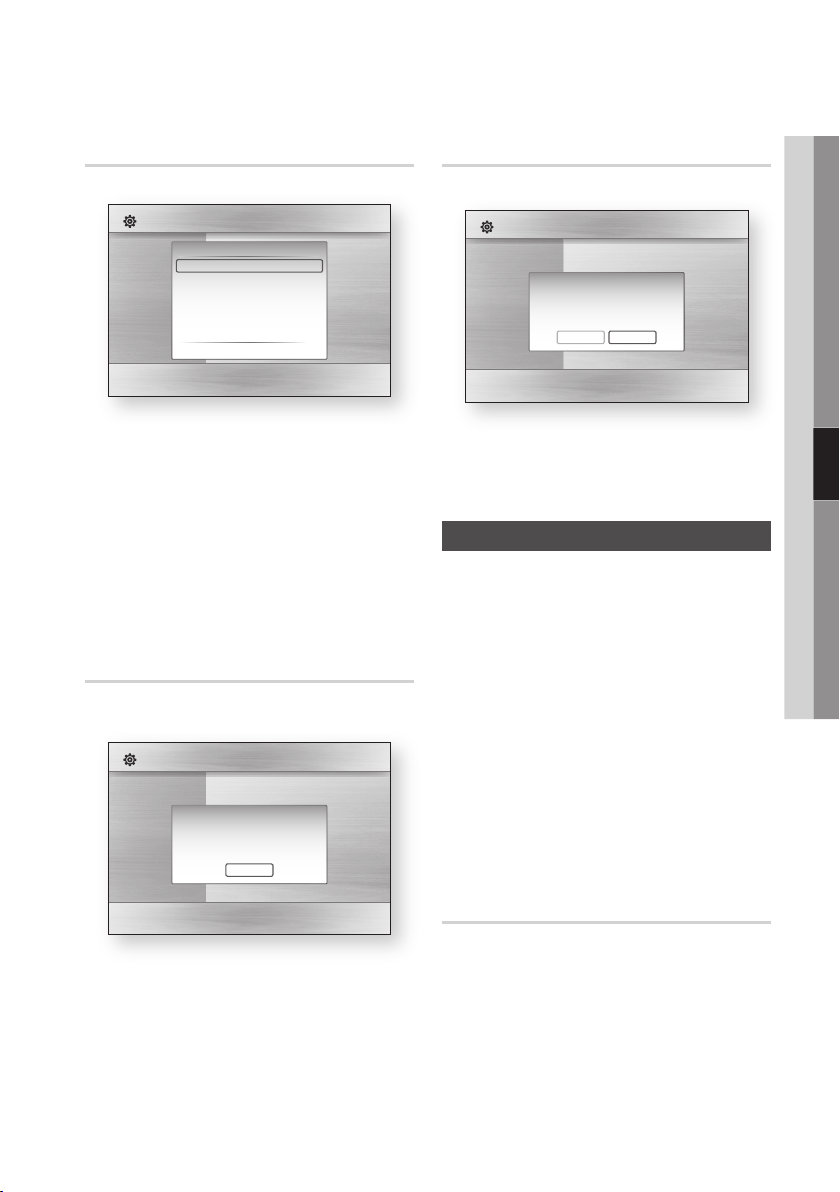

Clock

Set time-related functions.

DivX(R) Deactivation

Select to get a new DivX(R) registration code.

05 Setup

Settings

Display

Audio

Clock Mode : Auto 

System

Clock Set

Network

Time Zone : GMT + 0:00

Language

DST : Off

Security

General

> Move " Enter ' Return

Support

Clock Mode : You can set it to Auto or

•

Clock

Manual. If you select Manual, the Clock Set menu is activated and DST is deactivated.

Clock Set : You can specify the current time

• and date manually.

Time Zone : You can specify the time zone that

• is applicable to your area.

DST : You can set DST (Daylight Saving Time)

• on or off.

DivX(R) Registration

View the DivX(R) VOD Registration Code to purchase and play DivX(R) VOD content.

Settings

Display

Audio

System

Network

Language

Security

General

Support

NOTE

✎

This option is not activated if you select OK.

▪

To activate this option, please activate the DivX(R) Deactivation.

Initial Settings

Internet@TV Screen Size : Size 2

DivX(R) Video On Demand

Your registration code is : XXXXXXXXXX

To learn more visit www.divx.com/vod

Settings

Display

Audio

System

Network

Language

Security

General

Support

NOTE

✎

You can operate this function when the DivX(R)

▪

Initial Settings

Internet@TV Screen Size : Size 2

Do you want to deactivate your device?

Yes No

Registration function is deactivated.

Network Setup

To begin setting up the network connection for your player, follow these steps:

In the Home menu, press the ◄► buttons to

select Settings, and then press the ENTER button.

Press the ▲▼ buttons to select Network, and

then press the ENTER button.

Press the ▲▼ buttons to select Network

3. Settings, and then press the ENTER button.

Press the ▲▼ buttons to select Network

4. Type, and then press the ENTER button.

Press the ▲▼ buttons to select Wired or

5. Wireless, and then press the ENTER button.

Go to the next section.

Network Settings

Please contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, we recommend using the Auto setting. This is the easiest and will work in the majority of cases. If it is static, you must use the manual set up procedure.

Directions for wired networks are below. Directions for wireless networks are after the directions for wired networks.

English 39

Page 40

Setup

Wired Network

In the Network Settings menu, press the ▲▼

buttons to select Network Setting, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the ► button, then select Auto or

2. Manual, and then press the ENTER button.

Setting Up a Wired Connection - Auto

If you selected Auto, the Network Function

acquires and fills in the values for IP Address, Subnet Mask, etc., automatically.

NOTE

✎

This process can take up to five minutes.

▪

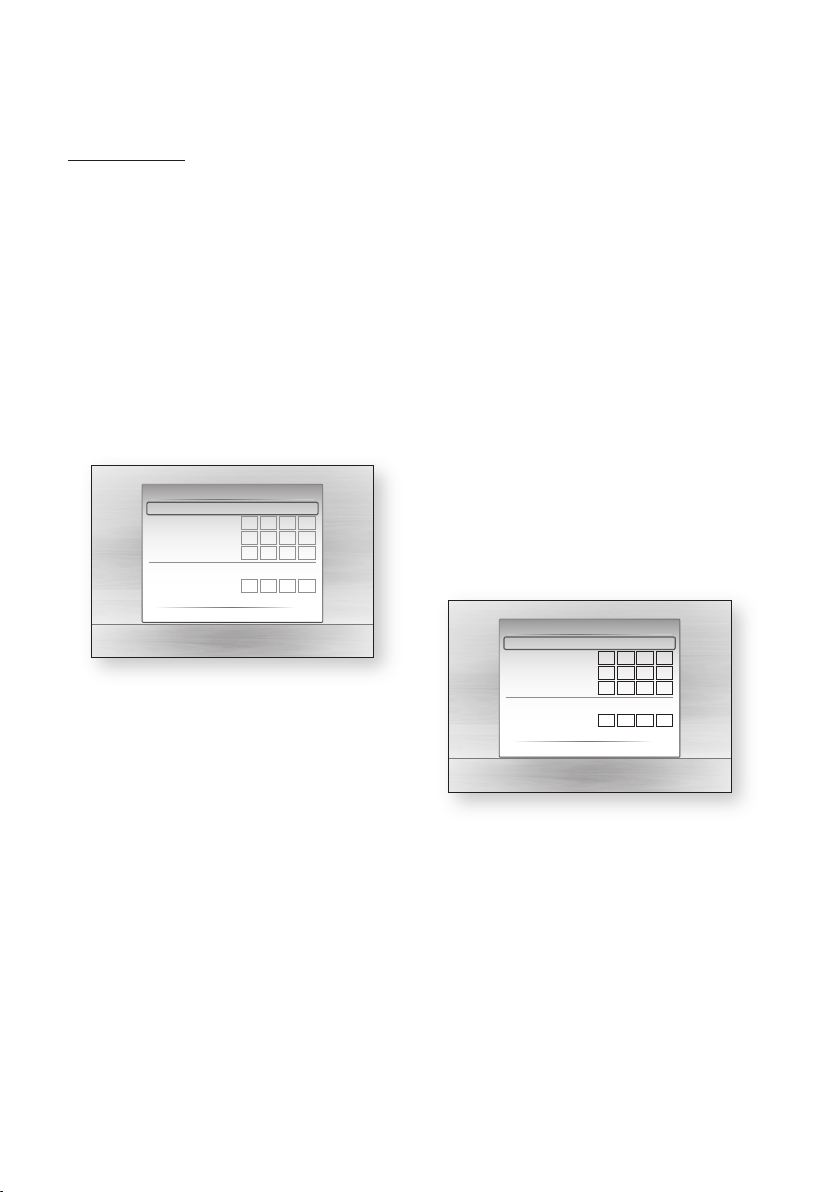

Network Setting

Internet Protocol Setup : Auto 

IP Address : 0 0 0 0

Subnet Mask :

Gateway :

DNS : Auto

DNS Server : 0 0 0 0

> Move " Enter ' Return

After the Network Function has acquired the

network values, press the RETURN button. Then, run a Network Test to ensure the player has connected to your network (See page 43).

If the Network Function does not acquire the

network values or you selected Manual, go to the directions for Manual Setup.

0 0 0 0

Setting Up a Wired Connection - Manual

If the Auto Setting does not work, you’ll need to set the Network Setting values manually.

To view the Network setting values on most Windows computers, follow these steps:

Right click the Network icon on the bottom

right of the screen.

In the pop-up menu, click Status.

On the dialog that appears, click the Support

tab.

On the Support tab, click the Details button.

The Network settings are displayed.

To enter the Network settings into your player, follow these steps:

On the Internet Protocol Setup screen, press

the ENTER button.

Press the ▲▼ buttons to select Manual, and

then press the ENTER button.

Press the ▼ button to go to the first entry field

(IP Address).

Network Setting

Internet Protocol Setup : Manual

IP Address : 0 0 0 0

Subnet Mask :

Gateway :

DNS : Manual

DNS Server :

> Move " Enter ' Return

Use the number buttons on your remote to

0 0 0 0

enter numbers.

When done with each field, use the ► button

to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.

Enter the IP Address, Subnet Mask, and

6. Gateway values.

Press the ▼ button to go to DNS.

Press the ▼ button to go to the first DNS

entry field. Enter the numbers as above.

40 English

Page 41

Press the RETURN button on your remote.

Run a Network Test to ensure the player has

10.

connected to your network (See page 43).

Wireless Network

You can setup the wireless connection three ways:

Using PBC (WPS)

• Using the Auto Network Search function.

• Manually.

•

Each method is described below.

Setting Up the Wireless Network Connection

- PBC (WPS)

The easiest way to set up the wireless network connection is using the PBC (WPS) function. If your wireless router has a PBC (WPS) button, follow these steps:

In the Network Settings menu, press the ▲▼

buttons to select Network Setting, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the RED (A) button on the remote

control.

Press the PBC (WPS) button on your router

within two minutes. Your player displays the Network Selection Screen, and automatically acquires all the network setting values it needs and connects to your network. When it is done, it displays an OK button. Press the ENTER button on your remote.

After the network connection is set up, press

the RETURN button to exit the Network Setting screen.

Setting Up the Wireless Network Connection

- Auto Network Search

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

Setting Up the Network Connection



To set up the wireless connection using Auto Network Search, follow these steps:

In the Network Settings menu, press the ▲▼

buttons to select Network Setting, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the ▲▼ buttons to select the Internet

2. Protocol Setup, and then press the ENTER

button.

Press the ▲▼ buttons to select Auto or

3. Manual, and then press the ENTER button.

If you selected Auto, press the ▲ button to

4. go to Select a Network, and then press the ENTER button.

The Network function searches for available wireless networks. When done, it displays a list of the available networks.

05 Setup

Network Setting

Select a Network : Not Selected

Internet Protocol Setup : Auto

IP Address : 0 0 0 0

Subnet Mask :

Gateway :

DNS : Auto

DNS Server : 0 0 0 0

a PBC (WPS) > Move " Enter ' Return

0 0 0 0



English 41

Page 42

Setup

In the list of networks, press the ▲▼ buttons

to select a network, and then press the ENTER button.

If the PIN/Security pop-up appears, go to

Step 7. If the Network Connecting Screen appears, go to Step 11.

Press the ▲▼ buttons to select PIN or

Security. For most home networks, you would select Security (for Security Key).

On the Security screen, enter your network’s

Pass Phrase.

NOTE

✎

You should be able to find the Pass Phrase on one of

▪

the set up screens you used to set up your router or modem.

Security Key

–

m Move " Enter ' Return

To enter the Pass Phrase, follow these

general directions:

Press the number keys on your remote to

• enter numbers.

Use the arrow keys on your remote to move

• from button to button on the Security Key screen.

Pressing the RED (A) button on the remote

• lets you change the text displayed on the buttons to lower case, upper case, numbers, or icons. To enter a letter or symbol, move the cursor to the letter or symbol, and then press the ENTER button.

To delete the last letter or number you

• entered, press the GREEN (B) button.

When done, press the BLUE (D) button on

10.

your remote, and then press the ENTER button.

Network Setting

0 entered

= Number

a Lower case

b Delete

 Space

Wait until the connection confirmation

11.

message is displayed, and then press the ENTER button. The Network Settings screen reappears.

To test the connection, press the ▼ button

12. to select Network Test, and then press the ENTER button.

Setting Up the Wireless Network Connection

- Manual

If the Auto Setting does not work, you need to enter the Network settng values manually.

To view the Network setting values on most Windows computers, follow these steps:

Right click the Network icon on the bottom

right of the screen.

In the pop-up menu, click Status.

On the dialog that appears, click the Support

tab.

On the Support tab, click the Details button.

The Network settings are displayed.

To Enter the Network settings into your player, follow these steps:

On the Internet Protocol Setup screen, press

the ENTER button.

Press the ▲▼ buttons to select Manual, and

then press the ENTER button.

Press the ▼ button to go to the first entry field

(IP Address).

Network Setting

Select a Network : Not Selected

Internet Protocol Setup : Manual

IP Address :

Subnet Mask :

Gateway : 0 0 0 0

DNS : Manual

DNS Server :

a PBC (WPS) > Move " Enter ' Return

Use the number buttons to enter numbers.

When done with each field, use the ► button

0 0 0 0



to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.

42 English

Page 43

Enter the IP Address, Subnet Mask, and

6. Gateway values.

Press the ▼ to go to DNS.

Press the ▼ button to go to the first DNS

entry field. Enter the numbers as above.

When done, press the ▲ button to return to

Access Point Selection. Select the network, and then press the ENTER button.

Go to Step 6 in the Automatic Wireless

10.

procedure above, and follow the directions from that point on.

NOTE

✎

What is a valid certificate?

▪

When the player uses BD-LIVE to send the disc data and a request to the server to certify the disc, the server uses the transferred data to check if the disc is valid and sends the certificate back to the player.

The Internet connection may be restricted while you

▪

are using BD-LIVE contents.

Language

05 Setup

Network Test

Use this menu to connect to the wired network or check whether your network connection is working or not.

Network Status

Check whether a connection to the network and the Internet have been established.

BD-LIVE Internet Connection

Select whether to allow an Internet connection when you are using the BD-LIVE service.

Allow (All) : The Internet connection is allowed

•

for all BD-LIVE contents. Allow (Valid Only) : The Internet connection is

•

allowed only for BD-LIVE contents containing a valid certificate.

Prohibit : No Internet connection is allowed for

•

any BD-LIVE content.

You can select the language you prefer for the Home menu, disc menu, etc.

On-Screen Menu : Select the language for the

• on-screen displays.

Disc Menu : Select the language for the disc

• menu displays.

Audio : Select the language for disc audio.

• Subtitle : Select the language for disc subtitles.

•

NOTE

✎

The selected language only appears if it is supported

▪

on the disc.

Security

When you operate this menu for the first time, the password setup screen appears. Enter a desired 4-digit password using the number buttons.

Parental Rating

The Parental Rating works in conjunction with Bluray Disc/DVDs that have been assigned a rating, which helps you control the types of Blu-ray Disc/ DVDs that your family can watch.

To use this function, select a rating level that restricts the player to playing discs with ratings appropriate for your family.

A larger number indicates that the program is intended for adult audiences only. When you select a rating number, you should select the highest rating number you want the player to be able to play. For example, if you select Level 6, the player will play discs rated 6 and below, and will not play discs rated Level 7 or 8.

English 43

Page 44

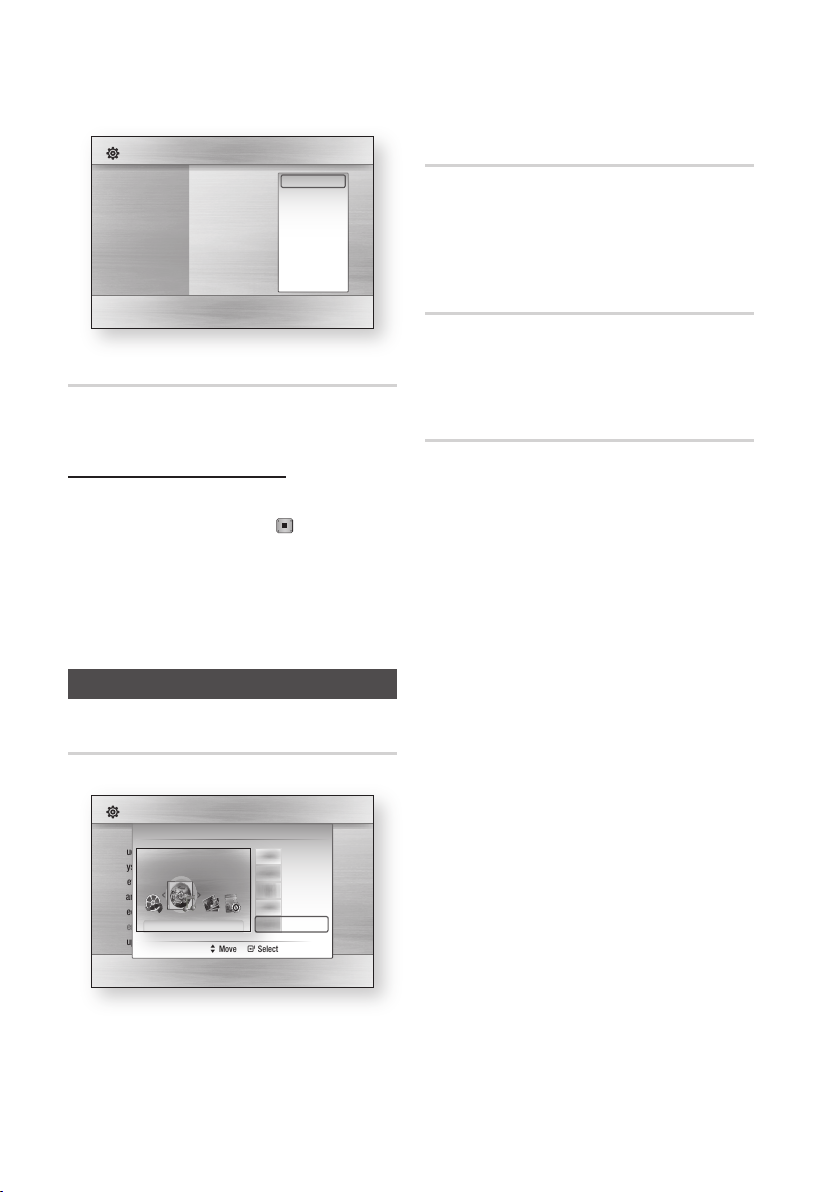

Setup

Settings

Display

Audio

System

Network

Language

Security

General

Support

Parental Rating

Change Password

 Off

8 (Adult)

Change Password

Change the 4-digit password used to access security functions.

If you forgot your password

Remove the disc.

Press and hold the STOP ( ) button on the

front panel for 5 seconds or more. All settings will revert to the factory settings.

NOTE

✎

When the factory default settings are restored, all

▪

stored user BD data is deleted.

General

Front Display

Change the brightness of the front panel.

Auto : Dim during playback.

•

Dim : Dim the display window.

•

Bright : Brighten the display window.

•

Power On/Off Sound

Play a melody when the player is turned on and off.

On : Turn Power Sound On.

•

Off : Turn Power Sound Off.

•

Light Effect

You can activate or deactivate the light effect on the top of the product.

Always On : Activates Light Effect at all times.

• Select this for retail display.

Auto : Activates Light Effect when you turn the

• player on and off or when you open and close the tray. Select when installing the player in your home.

Off : Turn Light Effect off at all times.

•

Background

Change the background theme of the menu screen.

Settings

Display

Audio

System

Network

Language

Security

General

Support

> Move " Select ' Return

Background

Skin 1

Skin 2

Skin 3

Skin 4

Skin 5

44 English

Page 45

Support

Software Upgrade

The Software Upgrade menu allows you to upgrade software for performance improvements or additional services. You can check the current software version, upgrade using the Internet and set the Auto upgrade notification. If the player is properly connected to the network by cable or wirelessly, the player automatically connects to Samsung's website each time it is turned on and downloads update files if any valid upgrade exists.

Settings

Display

Audio

System

Network

Language

Security

General

Support

To select By Internet, press the ENTER

button. A popup message appears if an update is available, asking if you want to upgrade.

If you select Yes, the player turns off

automatically, restarts, and then begins the upgrade. (Do not turn it on manually here.)

The update progress popup appears.

When the update is complete, the player turns off again automatically.

Press the POWER button to turn on the

player.

NOTE

✎

The Update is complete when the player turns off

▪

after restarting. Press the POWER button to turn on the updated player for your use. Never turn the player off or on manually during the update process.

Samsung Electronics shall take no legal responsibility

▪

for player malfunction caused by an unstable internet connection or consumer negligence during a software upgrade.

Software Upgrade

Current Version : XXX-XXXXXXXXX

By Internet

Auto Upgrade Notiﬁcation

> Move " Select ' Return

: On



You can also update software in either of the two ways listed below. The software update process is essentially the same as in the By Internet option.

USB : Visit www.samsung.com/bluraysupport,

• then download and store the latest software (RUF file) onto a USB flash drive. Connect the USB flash drive to the USB port of the player (the disc tray must be empty) to update the software, then follow the on-screen instructions.

CD/DVD : Visit www.samsung.com/

• bluraysupport, download and write the latest software (RUF file) onto a disc. Insert and play the disc in the player to start the update, then follow the on-screen instructions.

NOTE

✎

Software upgrades using the USB Host jack must be

▪

performed with no disc inside.

If you want to cancel the upgrade in the process of

▪

downloading the upgrade data, press the ENTER button.

When the system upgrade is done, check the

▪

software details in the software Upgrade menu.

Do not turn off the player during the System

▪

Upgrade. It may cause the player not to work properly.

Software upgrades using the USB Host jack must be

▪

performed with a USB memory flash stick only.

Contact Samsung

Provides contact information for assistance with your player.

05 Setup

English 45

Page 46

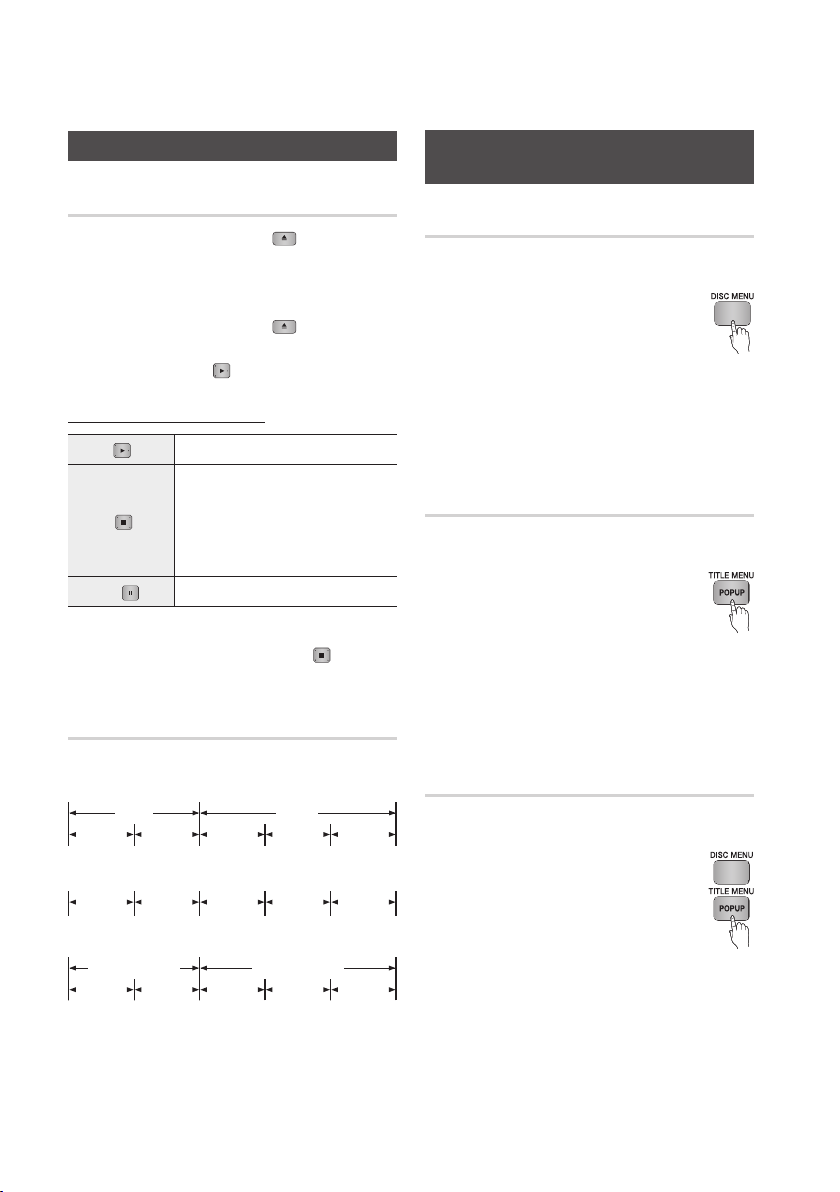

Basic Functions

Playing a Disc

Playback

Press the OPEN/CLOSE ( ) button to

open the disc tray.

Place a disc gently into the tray with the disc’s

label facing up.

Press the OPEN/CLOSE ( ) button to

close the disc tray.

Press the PLAY ( ) button.

Playback related buttons

PLAY (

) Starts playback.

Stops playback.

If you press the button once, the

STOP (

PAUSE (

NOTE

✎

For some discs, pressing the STOP ( ) button

▪

once may not memorize the resume position.

•

)

stop position is memorized. If you press the button twice, the

•

stop position is not memorized.

) Pauses playback.

Disc Structure

The contents of disc are usually divided as below.

Blu-ray Disc, DVD-VIDEO

•

title 1 title 2

chapter 1 chapter 2 chapter 1 chapter 2 chapter 3

Audio CD (CD-DA)

•

track 1 track 2 track 3 track 4 track 5

MP3, WMA, DivX, MKV and MP4

•

folder (group) 1 folder (group) 2

file 1 file 2 file 1 file 2 file 3

Using the Disc menu/Title menu/

Popup menu

Using the Disc Menu

During playback, press the DISC MENU

button on the remote control.

Press the ▲▼◄► buttons to make

the desired selection, then press the ENTER button.

NOTE

✎

Depending on the disc, the menu items may differ or

▪

this menu may not be available.

Using the Title Menu

During playback, press the TITLE MENU

button on the remote control.

Press the ▲▼◄► buttons to make

the desired selection, then press the

ENTER button.

NOTE

✎

Depending on the disc, the menu items may differ or

▪

this menu may not be available.

Playing the Title List

During playback, press the DISC MENU

or TITLE MENU button.

Press the ▲▼ buttons to select an

entry you want to play from Title List, then press the ENTER button.

NOTE

✎

If your disc has a playlist, press the GREEN (B)

▪

button to go to the Playlist.

46 English

Page 47

Using the Popup Menu

Skipping Chapters

06 Basic Functions

During playback, press the POPUP

1. MENU button on the remote control.

Press the ▲▼◄► buttons or ENTER

button to select the desired menu.

NOTE

✎

Depending on the disc, the menu items may differ or

▪

this menu may not be available.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching for a Desired Scene

hzZyx

During playback, press the SEARCH ( )

•

button. Each time you press the SEARCH ( )

button, the playback speed changes as follows:

BD-ROM,

BD-RE/-R,

DVD-RW/-R,

DVD+RW/+R,

DVD-VIDEO

DivX, MKV, MP4

To return to normal speed playback, press the

•

PLAY ( ) button.

NOTE

✎

No sound is played during search mode.

▪

) )

( (

)

(

)



)



(



(



)



(



2  ) 3  5  ) 6  ) 7

2  ( 3  5  ( 6  ( 7

2  ) 3 2  ( 3

hzZyx

During playback, press the SKIP ( )

• button.

If you press the SKIP ( ) button, the disc moves to the next chapter.

If you press the SKIP ( ) button, the disc moves to the beginning of the chapter. One more press makes the disc move to the beginning of the previous chapter.

Slow Motion Play/Step Motion Play

Slow Motion Play

hzZyx

In pause mode, press the SEARCH ( )

• button.

Each time you press the SEARCH ( ) button, the playback speed is reduced as follows:

1/8 * 1/4 * 1/2

To return to normal speed playback, press the

•

PLAY ( ) button.

NOTE

✎

No sound is played during slow mode.

▪

Step Motion Play

hzZyx

In pause mode, press the PAUSE ( ) button.

• Each time you press the PAUSE ( ) button, a

new frame appears. To return to normal speed playback, press the

•

PLAY ( ) button.

NOTE

✎

No sound is played during step mode.

▪

English 47

Page 48

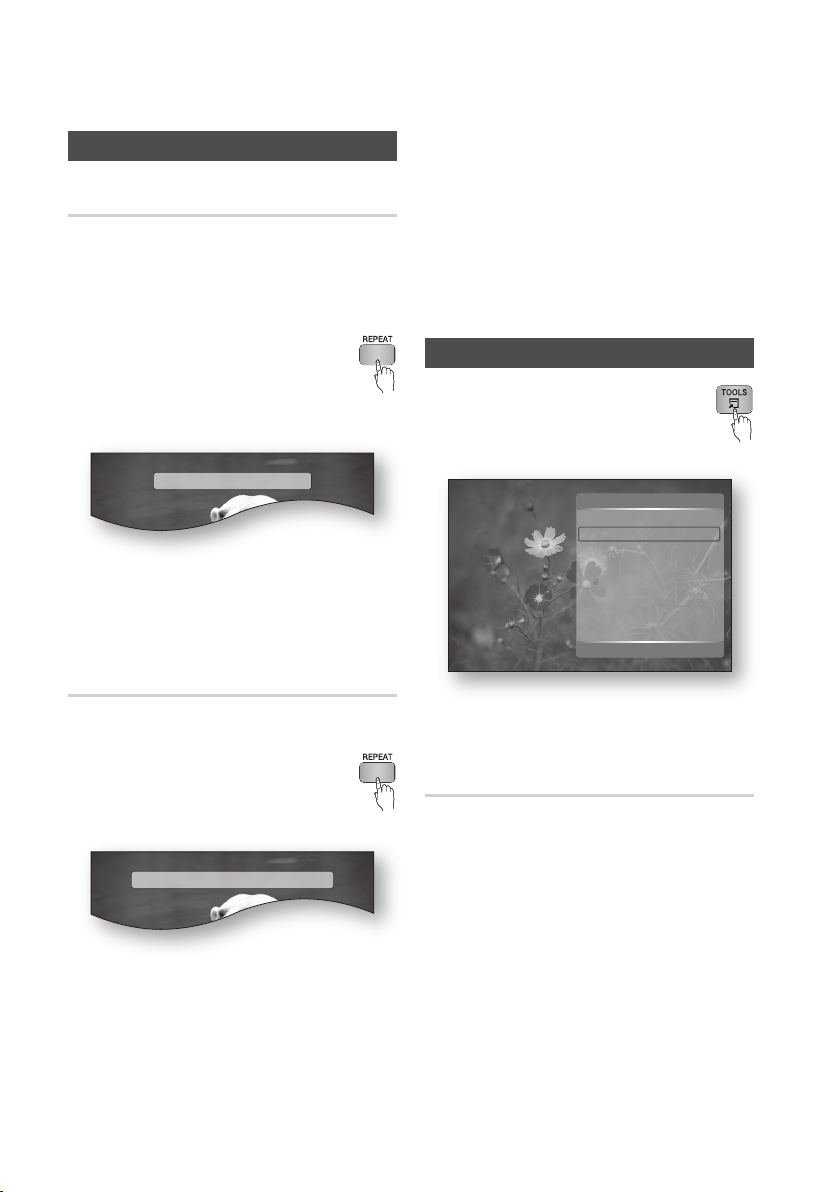

Basic Functions

Repeat Playback

Repeat the Title or Chapter

hzZy

Repeat the disc title or chapter. Depending on the disc, the Repeat function may

not be available.

During playback, press the REPEAT

button on the remote control.

Press the ▲▼ buttons to select Chapter or

2. Title, then press the ENTER button.

Repeat > Chapter

To return to normal play, press the REPEAT

button again.

Press the ▲▼ buttons to select Off, then

4. press the ENTER button.

Repeat the Section

hzZy

During playback, press the REPEAT

button on the remote control.

Press the ENTER button at the point where

you want repeat play to stop (B).

To return to normal play, press the REPEAT

button again.

Press the ENTER button.

NOTE

✎

You must set point (B) at least 5 seconds after point

▪

(A). If you don’t, a warning appears.

Using the TOOLS button

During playback, you can operate the disc menu by pressing the TOOLS button.

Tools Menu Screen

•

Tools

Title : 1/1

Chapter

Playing Time : 00:12:06

Audio : 1/7 ENG Multi CH

Subtitle : 1/6 ENG

Angle : 1/1

BONUSVIEW Video : Off

BONUSVIEW Audio : 0/1 Off

Picture Setting

< Change " Enter

NOTE

✎

Depending on the disc, the Tools menu may differ.

▪

< 4/21 >

Moving to a Desired Scene Directly

Press the ▲▼ buttons to select Repeat A-B.

Repeat A-B : Off

Repeat

Press the ENTER button at the point where

you want repeat play to start (A).

" Mark A

48 English

hzZy

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Title, Chapter,

or Playing Time.

Enter the desired Title, Chapter, or Playing

3. Time using the number buttons, and then press the ENTER button.

Page 49

Selecting the Audio Language

hzZx

You can also operate this function by pressing the AUDIO button on the remote control.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Audio.

Press the ◄► buttons to select the desired

audio language.

NOTE

✎

The ◄► indicator will not be displayed on the

▪

screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.

Information about the main feature/BONUSVIEW

▪

mode is also displayed if the Blu-ray Disc has a BONUSVIEW section. Use the ◄► button to switch between main feature and BONUSVIEW audio modes.

This function depends on which audio languages are

▪

encoded on the disc and may not be available.

A Blu-ray Disc can contain up to 32 audio languages

▪

and a DVD up to 8.

Some Blu-ray Discs may allow you to select either

▪

the multi-channel LPCM or Dolby digital audio soundtrack in English.

If you press the AUDIO button on the remote control,

▪

the Audio bar is displayed. Press the RETURN button to remove the Audio bar.

NOTE

✎

Depending on the Blu-ray Disc / DVD, you may be

▪

able to change the desired subtitle in the Disc Menu. Press the DISC MENU button.

This function depends on which subtitles are

▪

encoded on the disc and may not be available on all Blu-ray Discs/DVDs.

A Blu-ray Disc can contain up to 255 subtitle

▪

languages and a DVD up to 32.

Information about the main feature/BONUSVIEW

▪

mode is also displayed if the Blu-ray Disc has a BONUSVIEW section.

This function changes both the primary and

▪

secondary subtitles at the same time.

The total number of subtitles is the sum of the

▪

primary and secondary ones.

If you press the SUBTITLE button on the remote

▪

control, the subtitle bar is displayed. Press the RETURN button to remove the subtitle bar.

Changing the Camera Angle

When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Angle.

Press the ◄► buttons to select the desired

angle.

06 Basic Functions

Selecting the Subtitle Language

hZx

You can also operate this function by pressing the SUBTITLE button on the remote control.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Subtitle.

Press the ◄► buttons to select the desired

subtitle language.

Selecting the Picture Setting

hzZy

This function lets you adjust video quality when your player is connected to a TV via HDMI.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Picture Setting,

then press the ENTER button.

Press the ◄► buttons to select the desired

3. Picture Setting, then press the ENTER button.

English 49

Page 50

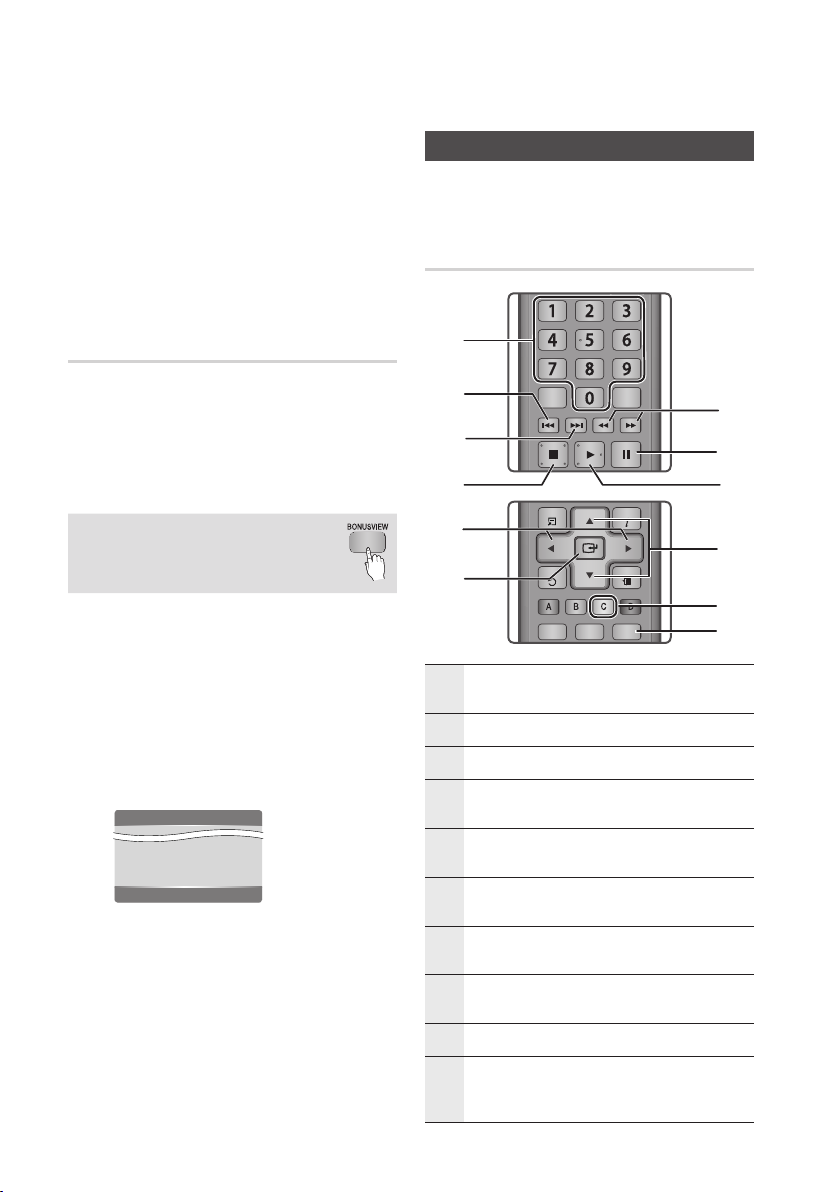

Basic Functions

POWER

BONUSVIEW

SOURCE

SUBTITLE

AUDIO

POWER

BONUSVIEW

SOURCE

DISC MENU TITLE MENUMENU

INTERNET@

REPEAT

FULL SCREEN

SUBTITLE

AUDIO

INFO

POPUP

TOOLS

EXITRETURN

Dynamic : Choose this setting to increase

• Sharpness.

Normal : Choose this setting for most

• viewing applications.

Movie : This is the best setting for watching

• movies.

User : You can adjust the sharpness and

• noise reduction functions respectively.

Listening to Music

Buttons on the Remote Control used for Music Playback

Setting BONUSVIEW

The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. This function is only available if the disc has the Bonusview feature.

You can also operate this function by pressing the BONUSVIEW button on the remote control.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select BONUSVIEW

2. Video or BONUSVIEW Audio.

Press the ◄► buttons to select the desired

Bonusview.

NOTE

✎

If you switch from BONUSVIEW Video, BONUSVIEW

▪

Audio will change automatically in accordance with BONUSVIEW Video.

< Change " Enter

Tools

BONUSVIEW Video < Off >

BONUSVIEW Audio : 0/1 Off

Picture Setting

50 English

SEARCH buttons : Fast Play.

(Audio CD (CD-DA) only)

PAUSE button : Pauses playback.

PLAY button : Plays the currently selected track.

▲▼ buttons : Selects a track in the Music List or

Playlist.

YELLOW (C) button : Select or deselect a track in

the music list.

REPEAT button : Selects the play mode in the

Playlist.

ENTER button : Plays and pauses the selected

track.

◄► buttons :

(except for the Audio CD (CD-DA))

STOP button :

SKIP button : During playback, moves to the next page in the Music List or moves to the next track in

the Playlist.

Jump Play.

Stops a

track

2 3

5 6

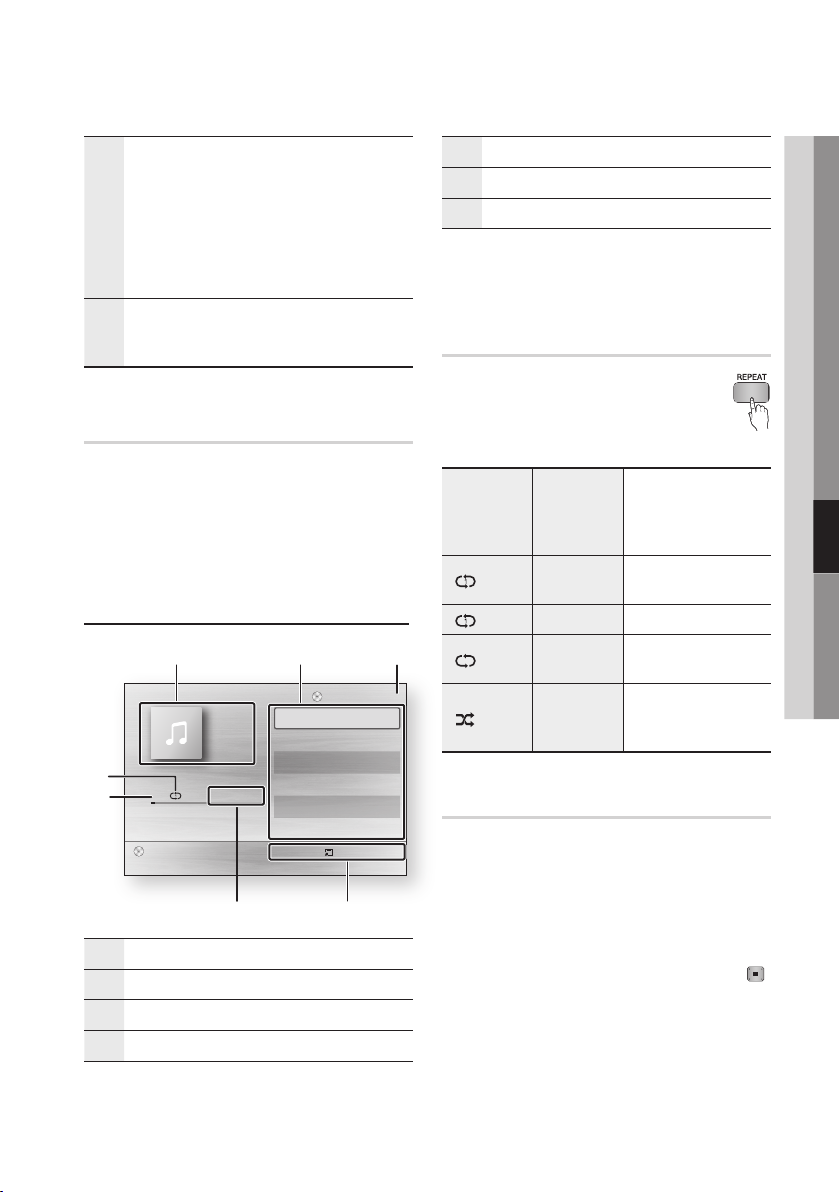

Page 51

SKIP button : During playback, moves to the previous page in the Music List or moves to the previous track in the Playlist. If you press this button after three seconds of

playback in the Playlist, the current track is replayed from the beginning. But, if you press this button within three seconds after playback starts in the Playlist, the previous track is played.

NUMBER buttons : During the Playlist playback, press the desired track number. The selected track

is played.

Playing an Audio CD (CD-DA)/MP3

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

Audio CDs (CD-DA) play automatically.

•

To start an MP3 disc, press the ◄►

•

buttons to select Music, then press the

ENTER button.

Audio CD (CD-DA)/MP3 Screen Elements

31 2

TRACK 001

7 6

+ 00:08 / 05:57

Displays the music information.

Displays the playlist.

Display the current track/total tracks.

Displays control buttons available.

TRACK 001

TRACK 002

TRACK 003

TRACK 004

TRACK 005

TRACK 006

Pause

Playlist

1/6

05:57

04:27

04:07

03:41

03:17

03:35

Tools ' Return

Shows the current play time/total play time.

Displays the current playback status

Displays the repeated playback status.

Press the ▲▼ buttons to select the track

you want to play, and then press the ENTER button.

Repeat an Audio CD (CD-DA)/MP3

During the Playlist playback, press the

1. REPEAT button.

Select the desired play mode by

2. pressing the REPEAT button repeatedly.

Tracks on a disc are

Off

Audio CD (CD-DA)/MP3

played in the order in which they were recorded on the disc.

(

) Track

(

) One MP3 Current track is repeated.

(

) All

( ) Shuffle

Audio CD (CD-DA)

Audio CD (CD-DA)/MP3

Current track is repeated.

All tracks are repeated.

The random option plays a disc's tracks in random order.

Playlist

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

Audio CDs (CD-DA) play automatically.

•

To start an MP3 disc, press the ◄►

•

buttons to select Music, then press the ENTER button.

To move to the Music List, press the STOP ( )

or RETURN button. The Music List screen is displayed.

06 Basic Functions

English 51

Page 52

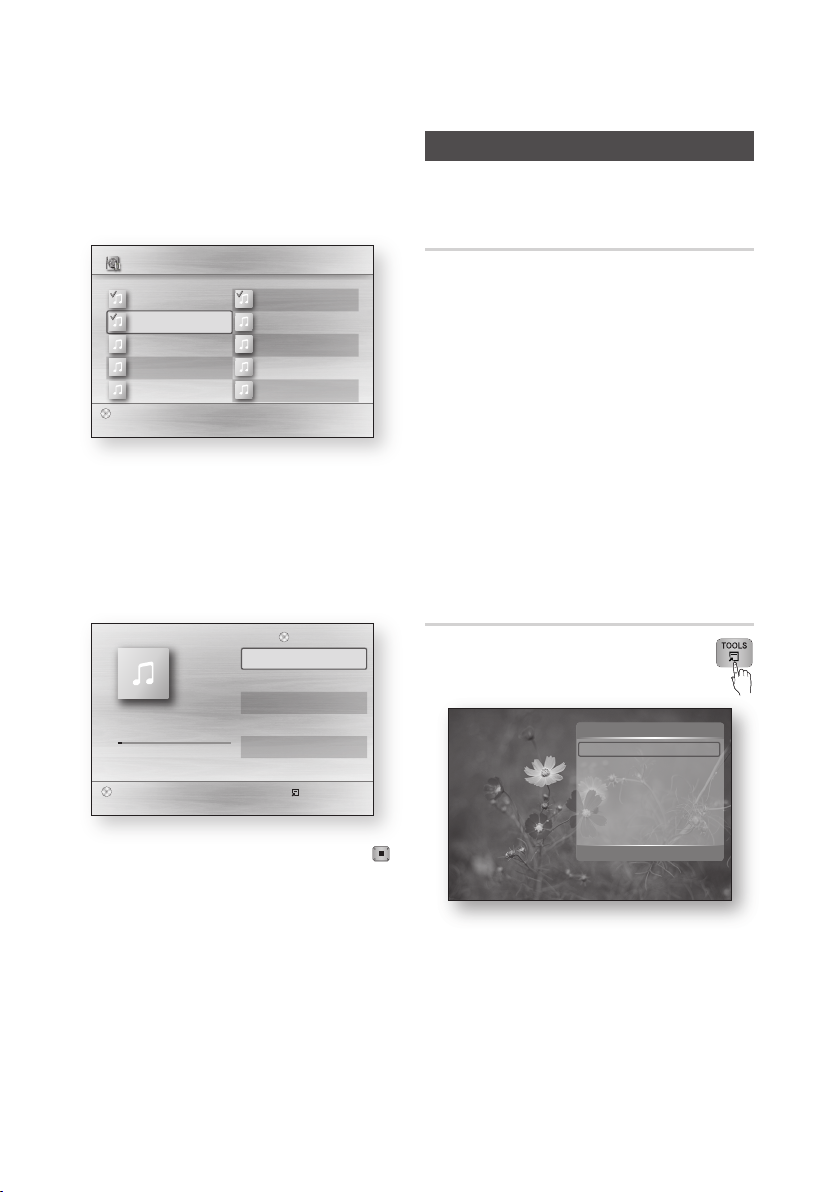

Basic Functions

Press the ▲▼◄► buttons to move to the

desired track, then press the YELLOW (C) button to check the desired track. Repeat this procedure to select additional tracks.

TRACK 002
