Blu-ray Disc Player

user manual

BD-C6900

imagine the possibilities

Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at

www.samsung.com/register

2 English

Key features

Blu-ray Disc Features

Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.

The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc. Not all discs will have the features described below.

Video highlights

The BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2.

HD video resolutions are also available:

1920 x 1080 High Definition

• 1280 x 720 High Definition

•

For High-Definition Playback

To view high-definition contents on a Blu-ray Disc, an HDTV (High Definition Television) is required. Some Blu-ray Discs may require you to use the product's HDMI OUT to view high-definition content. The ability to view high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV.

Interactivity

Certain Blu-ray Discs may contain Animated menus and Trivia games.

Subtitles

Depending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes and colours for the subtitles. Subtitles may also be animated, scrolled or faded in and out.

BD-LIVE

You can use a Blu-ray Disc supporting BD-LIVE to download contents provided by the disc manufacturer through a network connection.

Blu-ray Disc Player Features

Internet@TV

You can download various for-a-fee or free-ofcharge applications through a network connection.

With these, you can access Internet services and content such as news, weather forecasts,

stock market quotes, games, movies and music.

This product can play 3D contents through an HDMI cable.

To implement the 3D effect, connect a 3D device (3D-compliant AV receiver, 3D-compliant TV) to the product using an HDMI cable, and play the 3D content while wearing 3D vision glasses.

User Browsable Slideshows

With Blu-ray Discs, you can browse through still pictures while audio plays in the background.

English 3

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION

Blu-ray Disc Player USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE Blu-ray Disc Player CORRECTLY AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT NOTE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug.

If it requires replacing, a fuse approved to BS1362 of the same rating must be used.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This licence is limited to private non-commercial use by end-user consumers for licensed contents.

No rights are granted for commercial use. The licence does not cover any product unit other

than this product unit and the licence does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The licence only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this licence for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

This symbol indicates important instructions accompanying the product.

02 Safety Information

4 English

Safety Information

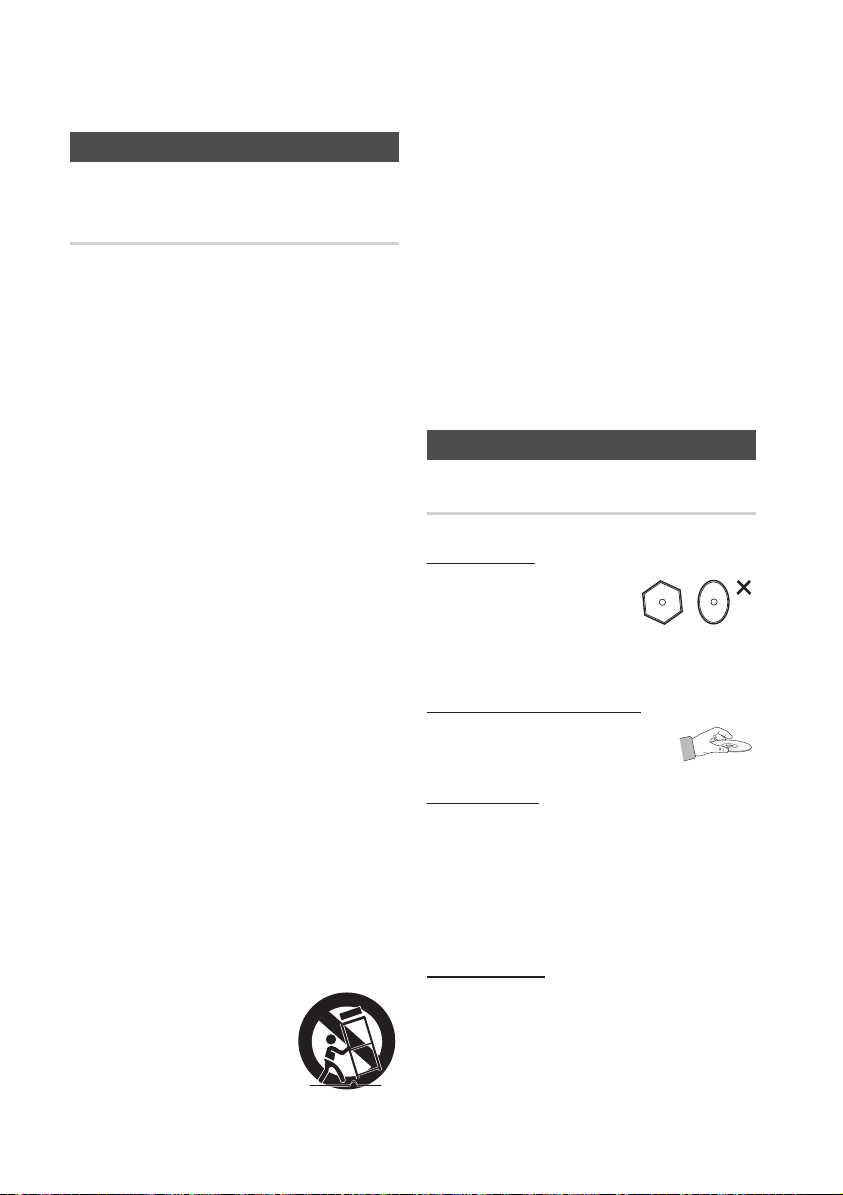

Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install

in accordance with the manufacturer’s instructions.

Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on

10.

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified

11.

by the manufacturer. Use only with the cart,

12.

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms

13.

or when unused for long periods of time. Refer all servicing to qualified service

14.

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disc Storage & Management

Disc Handling

Disc Shape

Use discs with regular

• shapes. If an irregular disc (a disc with a special shape) is used, this product may be damaged.

Holding discs

Avoid touching the surface of a

• disc where recording is performed.

Blu-ray Discs

If the product is not used for a long period of

• time, remove the Blu-ray Disc from the product and store it in its case.

Be careful not to leave fingerprints or scratches

• on the surface of the Blu-ray Disc.

DVD-VIDEO, Audio CD (CD-DA)

Wipe off dirt or contamination on the disc with a

• soft cloth.

English 5

02 Safety Information

Disc Storage

Be careful not to damage the disc because the data on these discs is highly vulnerable to the environment.

Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

• If you move your product suddenly from a cold

• place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, wait for two hours before connecting the plug to the power outlet. Then insert the disc and try to play back again.

Handling Cautions

Do not write on the printed side with a ball-point

• pen or pencil.

Do not use record cleaning or antistatic sprays.

• Also, do not use volatile chemicals, such as benzene or thinner.

Do not apply labels or stickers to discs. (Do not

• use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)

Do not use scratch-proof protectors or covers.

• Do not use discs printed with label printers

• available on the market.

Do not load warped or cracked discs.

• Before connecting other components to this

• product, be sure to turn them all off.

Do not move the product while a disc is being

• played as the disc may be scratched or broken, or the product’s internal parts may be damaged.

Do not put a flower vase filled with water or any

• small metal objects on the product.

Be careful not to put your hand into the disc

• tray.

Do not place anything other than the disc in the

• disc tray.

Exterior interferences such as lightning and

• static electricity can affect the normal operation of this product. If this occurs, turn the product off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The product will operate normally.

Be sure to remove the disc and turn off the

• product after use.

Disconnect the AC power cord from the AC

• outlet when you don’t intend to use the product for long periods of time.

To clean a disc, wipe it in a straight

• line from the inside to the outside of the disc.

Do not expose the product to any

• liquid.

When the AC plug is connected to a wall outlet,

• the product will still draw power (standby mode) when it is turned off.

Apparatus must not be exposed to dripping or

• splashing and no objects filled with liquids, such as vases, should be placed on the apparatus.

The main plug is used as a disconnect device

• and shall stay readily operable at any time.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet before cleaning.

Do not use benzene, thinner, or other solvents

• for cleaning.

Wipe the cabinet with a soft, dry cloth.

•

Restrictions on Playback

This product may not respond to all operating

• commands because some Blu-ray, DVD and CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the product.

Samsung cannot assure that this product will

• play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care centre if you have questions or encounter difficulty in playing Blu-ray, DVD, or CD discs in this product. Also, refer to rest of this user manual for additional information on playback restrictions.

6 English

Contents

KEY FEATURES

SAFETY INFORMATION

GETTING STARTED

2 Blu-ray Disc Features 2

Blu-ray Disc Player Features

3 Warning 4

Precautions

4 Important Safety Instructions 4 Disc Storage & Management 4 Disc Handling

10 Before Using the user manual 10 Disc Types and Contents that can be played. 10 11 11 12 13 13 14 14 Accessories 15 16 17 18 18 Tour of the Remote Control 19 19

Disc types that cannot be played Blu-ray Disc Compatibility Disc Types Supported File Formats Region Code Copyright Logos of Discs that can be played

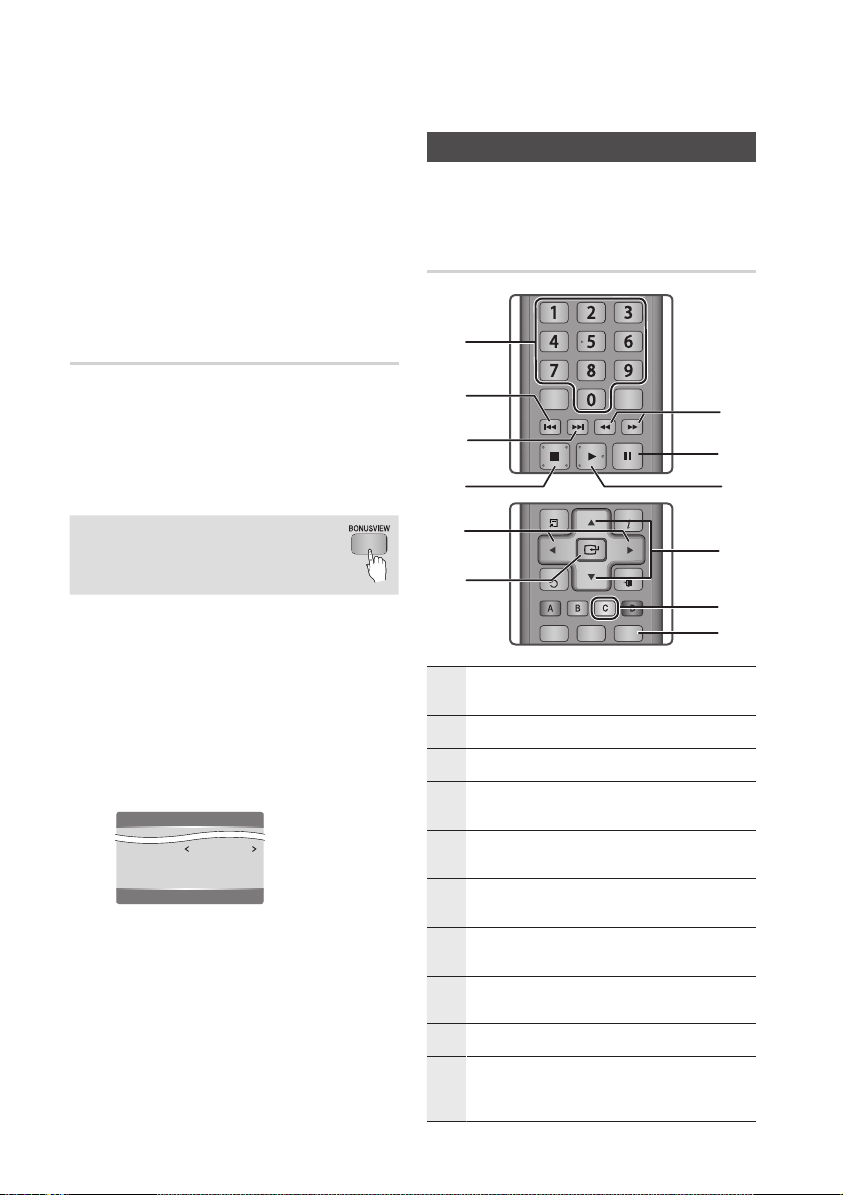

Front Panel Front Panel Display Rear Panel Remote Control

Setting the Remote Control Controllable TV Codes

CONNECTIONS

20 Connecting to a TV 20 Case 1 : Connecting to a TV with an HDMI Cable

- Best Quality (Recommended) Case 2 : Connecting to a TV with a DVI Cable

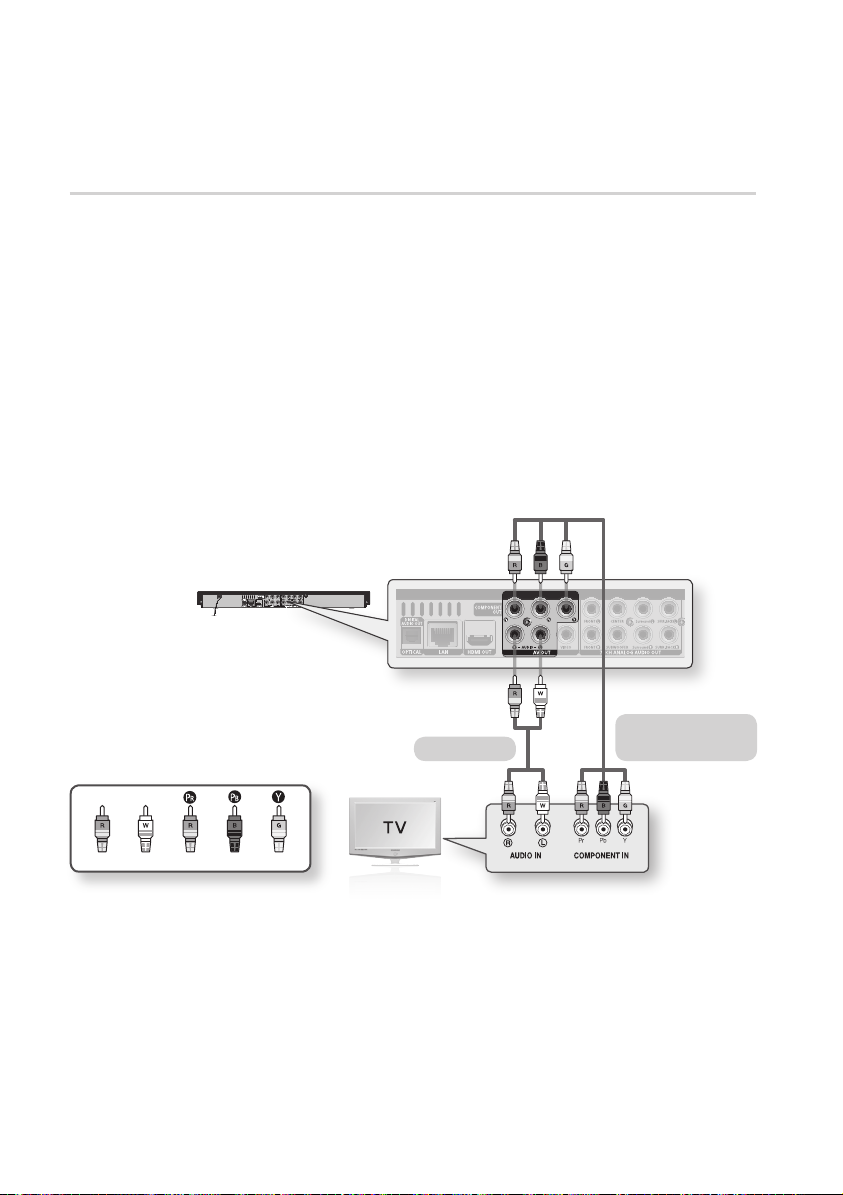

- Best Quality (Recommended) Case 3 : Connecting to a TV (Component)

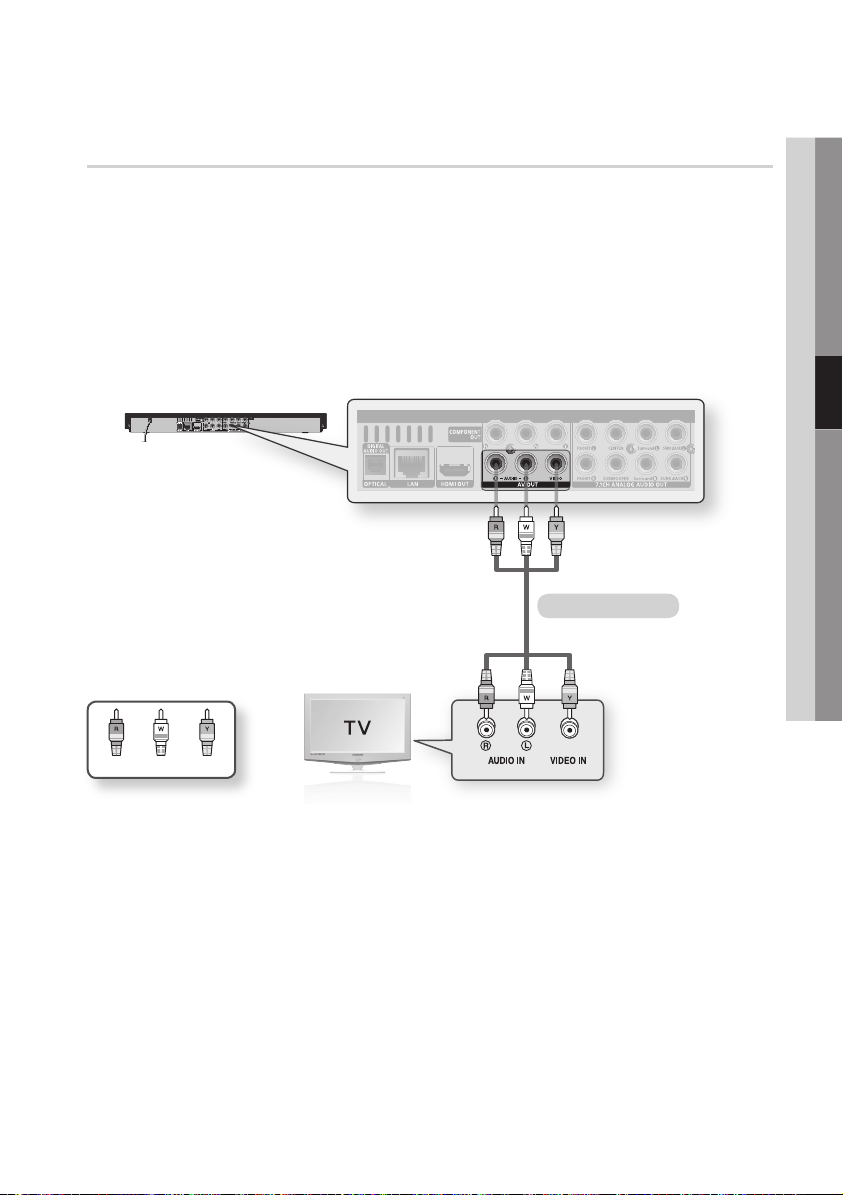

- Better Quality Case 4 : Connecting to a TV (Video)

- Good Quality

English 7

ENGLISH

Contents

CONNECTIONS

SETUP

24 Connecting to an Audio System 24 Case 1 : Connecting to an Audio System

27 Connecting to the Network

28 Before Starting (Initial Settings) 29 30 30 3D 31 31 31 33 33 33 33 33 33 Audio 33 Digital Output 34 35 35 35 35 36 System 36 Initial Settings 36 36 36 37 37 37 37 Network Setup 37 Network Settings 39 39

(HDMI Supported Amplifier) - Best Quality (Recommended)

Case 2 : Connecting to an Audio System (7.1 Channel Amplifier) - Better Quality

Case 3 : Connecting to an Audio System (Dolby Digital, DTS Amplifier) - Better Quality

Case 4 : Connecting to an Audio System (2 Channel Amplifier) - Good Quality

Setting the Menu Display

TV Aspect BD Wise (Samsung Products only) Resolution HDMI Format Movie Frame (24Fs) Progressive Mode Still Mode HDMI Deep Colour

PCM Downsampling Dynamic Range Control Downmixing Mode DTS Neo:6 Speaker Setting

Internet@TV Screen Size Anynet+(HDMI-CEC) BD Data Management Clock DivX(R) Registration DivX(R) Deactivation

Network Status BD-LIVE Internet Connection

8 English

Contents

SETUP

BASIC FUNCTIONS

39 Language 39

Security

39 Parental Rating 40 40 General 40 Background 40 40 40 41 Support 41 Software Upgrade 41

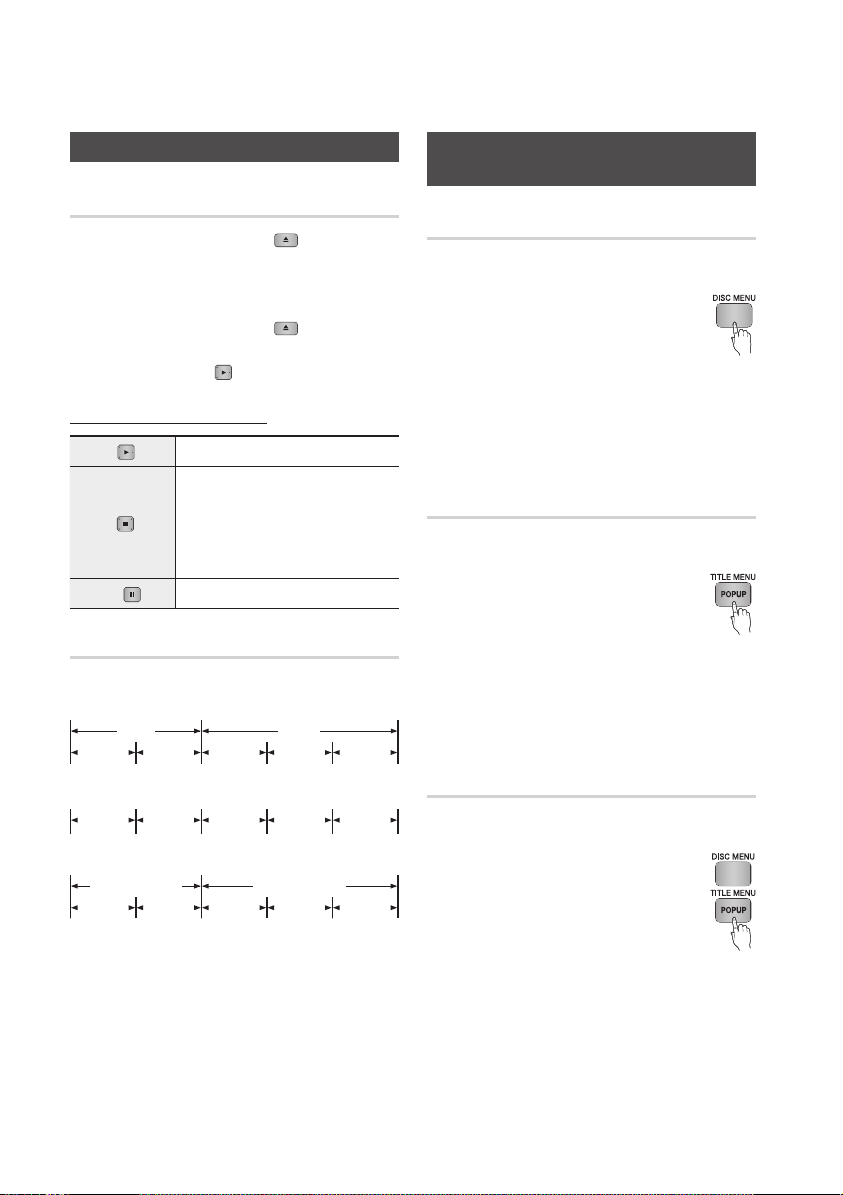

42 Playing a Disc 42 Playback 42 42 Using the Disc menu/Title menu/Popup menu 42 Using the Disc Menu 42 42 43 43 Using the Search and Skip Functions 43 Searching for a Desired Scene 43 43 Slow Motion Play/Step Motion Play 43 Slow Motion Play 43 44 Repeat Playback 44 Repeat the Title or Chapter 44 44 Using the TOOLS button 44 Moving to a Desired Scene Directly 45 45 45 45 46

Change Password

Front Display Power On/Off Sound Light Effect

Contact Samsung

Disc Structure

Using the Title Menu Playing the Title List Using the Popup Menu

Skipping Chapters

Step Motion Play

Repeat the Section

Selecting the Audio Language Selecting the Subtitle Language Changing the Camera Angle Selecting the Picture Setting Setting BONUSVIEW

English 9

ENGLISH

Contents

BASIC FUNCTIONS

NETWORK SERVICES

APPENDIX

46 Listening to Music 46 Buttons on the Remote Control used for Music

47 47 47 48 Playing back a Picture 48 Playing a JPEG Disc 48 49 Playing back a USB Storage Device

50 Using Internet@TV 50 Getting Started with Internet@TV 52 53 54 BD-LIVE™ 54 54

56 Troubleshooting 59 60 61 Compliance and Compatibility Notice 61 62 63

Playback Playing an Audio CD (CD-DA)/MP3 Repeat an Audio CD (CD-DA)/MP3 Playlist

Using the TOOLS button

Settings Samsung Apps

Software Upgrade Notification Using the AllShare Function

Index Specifications

Copy Protection Network Service Disclaimer License

10 English

Getting Started

Before Using the user manual

Disc Types and Contents that can be played.

Term Logo Icon Definition

BD-ROM

BD-RE/-R

DVD-VIDEO

DVD-RW(V)

DVD-R

DVD+RW

DVD+R

Audio CD

MP3

WMA

JPEG

DivX MKV MP4

NOTE

✎

The product may not play certain CD-RW/-R and DVD-R due to the disc type or recording conditions.

▪

If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.

▪

h z Z

This involves a function available on a BD-ROM.

This involves a function available on a BD-RE/-R disc recorded in the BD-RE format.

This involves a function available on a DVD-VIDEO.

This involves a function available on recorded DVD+RW or DVD-RW(V)/DVD-R/+R discs that have been recorded and finalized.

This involves a function available on an audio CD-RW/-R (CD-DA format).

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing MP3 or WMA contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing JPEG contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing DivX, MKV, MP4 contents.

Disc types that cannot be played

HD DVD

• DVD-ROM/PD/MV-

• Disc, etc

DVD-RAM

• Super Audio CD

• (except CD layer)

DVD-RW(VR mode)

• CVD/CD-ROM/CDV/

• CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

3.9 GB DVD-R Disc for

• Authoring.

English 11

03 Getting Started

NOTE

✎

Some commercial discs and DVD discs purchased

▪

outside your region may not be playable with this product. When these discs are played, either “This disc can not be played.” or “Cannot read this disc. Please check the regional code of the disc.” will be displayed.

Playback may not work for some types of discs, or

▪

when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

Do not allow the disc to become dirty or scratched.

▪

Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.

When a BD-J title is played, loading may take longer

▪

than a normal title, or some functions may perform slowly.

This product may not respond to all operating

▪

commands because some Blu-ray, DVD and CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the product.

Samsung cannot assure that this product will play

▪

every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care centre if you have questions or encounter difficulty when playing Blu-ray, DVD, or CD discs in this product. Also, refer to rest of this user manual for additional information on playback restrictions.

Blu-ray Disc Compatibility

Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this user manual.

Disc Types

BD-ROM

This Blu-ray disc can only be played back. This product can play back pre-recorded commercial BD-ROM discs.

BD-RE/-R

This Blu-ray disc can be recorded and played back. This product can play back a BD-RE/-R disc recorded by other compatible Blu-ray disc recorders.

DVD-VIDEO

This product can play back pre-recorded

• commercial DVD discs (DVD-VIDEO discs) with movies.

When switching from the first layer to the

• second layer of a dual-layered DVD-VIDEO disc, there may be momentary distortion in the image and sound. This is not a malfunction of the product.

DVD-RW

This product can play back a DVD-RW disc recorded and finalized with a DVD video recorder. Ability to play back may depend on recording conditions.

DVD-R

This product can play back a DVD-R disc recorded and finalized with a DVD Video recorder. Ability to play back may depend on recording conditions.

DVD+RW

This product can play back a DVD+RW disc

• recorded with a DVD Video recorder. Ability to play back may depend on recording conditions.

12 English

Getting Started

DVD+R

This product can play back a DVD+R disc

• recorded and finalized with a DVD Video recorder. Ability to play back may depend on recording conditions.

Audio CD (CD-DA)

This product can play back CD-DA format audio

• CD-RW/-R discs.

The product may not be able to play some

• CD-RW/-R discs due to the condition of the recording.

CD-RW/-R

Use a 700MB (80 minute) CD-RW/-R disc.

• If possible, do not use a 800MB (90 minute) or above disc, as the disc may not play back.

If the CD-RW/-R disc was not recorded as a

• closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play.

Some CD-RW/-R discs may not be playable

• with this product, depending on the device which was used to burn them. For contents recorded on CD-RW/-R media from CDs for your personal use, playability may vary depending on contents and discs.

Supported File Formats

Video File Support

File Extension Container Video Codec Audio Codec Resolution

1920x1080

*.avi

*.mkv

*.wmv

*.mp4

*.mpg

*.mpeg

AVI

MKV

WMV

MP4

Divx 3.11/4.x/5.1/6.0

XviD

MP4v3

H.264 BP/MP/HP

VC-1 AP(wmv1)

DivX 5.1/6.0

XviD

H.264 BP/MP/HP

VC-1 AP

VC-1 SM

MP4 (mp4v)

H.264 BP/MP/HP

MPEG1

MPEG2

H.264 BP/MP/HP

MP3 AC3

DTS

WMA

PCM

MP3 AC3

DTS

WMA

AAC

MP1, 2

AC3

DTS

English 13

03 Getting Started

Music File Support

File

Extension

*.mp3

*.wma

Container

MP3

WMA

Audio

Codec

MP3 -

WMA

Support Range

Compliant with WMA version 10

* Sampling rates (in

kHz) - 8, 11, 16, 22, 32, 44.1, 48

* Bit rates - All bit-

rates in the range 5kbps to 384kbps

AVCHD (Advanced Video Codec High Definition)

This product can playback AVCHD format

• discs. These discs are normally recorded and used in camcorders.

The AVCHD format is a high definition digital

• video camera format.

The MPEG-4 AVC/H.264 format is capable of

• compressing images at higher efficiency than that of the conventional image compressing format.

Some AVCHD discs use the “x.v.Color” format.

• This product can playback AVCHD discs using

• “x.v.Color” format.

“x.v.Color” is a trademark of Sony Corporation.

• “AVCHD” and the AVCHD logo are trademarks

• of Matsushita Electronic Industrial Co.,Ltd. and Sony Corporation.

NOTE

✎

Some AVCHD format discs may not play, depending

▪

on the recording condition. AVCHD format discs need to be finalized.

“x.v.Color” offers a wider colour range than normal

▪

DVD camcorder discs. Some DivX, MKV and MP4 format discs may not

▪

play, depending on the video resolution and frame rate condition.

Region Code

Both the product and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this product is described on the rear panel of the product.

Disc Type

Blu-ray

DVD-VIDEO

Region

Code

North America, Central America, South America, Korea, Japan,

Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa,

Australia and New Zealand.

India, China, Russia, Central

and South Asia.

The U.S., U.S. territories and

Canada

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

Mexico, South America, Central America, Australia,

New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

China

Area

manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

14 English

Getting Started

MUTE

VOL CH

POWER

BONUSVIEW

SOURCE

DISC MENU TITLE MENUMENU

INTERNET@

REPEAT

FULL SCREEN

SUBTITLE

AUDIO

INFO

POPUP

TOOLS

EXITRETURN

AK59-00104R

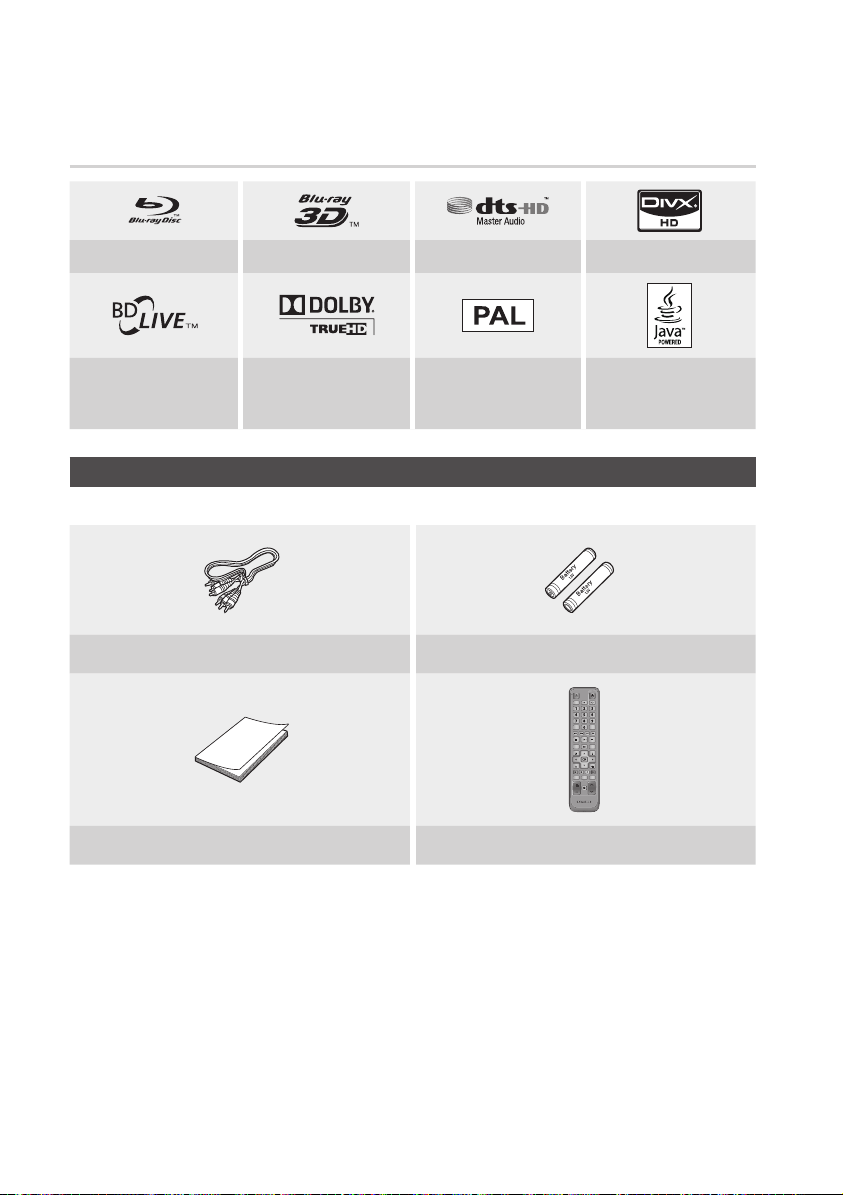

Logos of Discs that can be played

Blu-ray Disc 3D Blu-ray Disc DTS-HD Master Audio DivX

BD-LIVE Dolby TrueHD

Check for the supplied accessories below.

Audio/Video cable Batteries for Remote Control (AAA Size)

User Manual Remote Control

PAL broadcast System in

U.K., France, Germany, etc.

Accessories

Java

English 15

03 Getting Started

Front Panel

DISC TRAY Opens to accept a disc.

DISPLAY Displays the playing status, time, etc.

REMOTE CONTROL SENSOR Detects signals from the remote control.

OPEN/CLOSE BUTTON Opens and closes the disc tray.

d e f gb c

STOP BUTTON Stops disc playback.

PLAY/PAUSE BUTTON Plays a disc or pauses playback.

POWER BUTTON Turns the product on and off.

USB HOST

NOTE

✎

Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.

▪

A USB device consuming more than 500mA requires a separate power supply device for normal operation.

▪

A USB HDD device cannot be used for BD Data storage (BD-LIVE).

▪

A USB memory flash stick can be connected here and used as storage when connected to BD-LIVE. It can also be used for software upgrades and MP3/JPEG/ DivX/MKV/MP4 playback.

16 English

Getting Started

a b c

IN DISC INDICATOR Lights when a disc is inserted or played back.

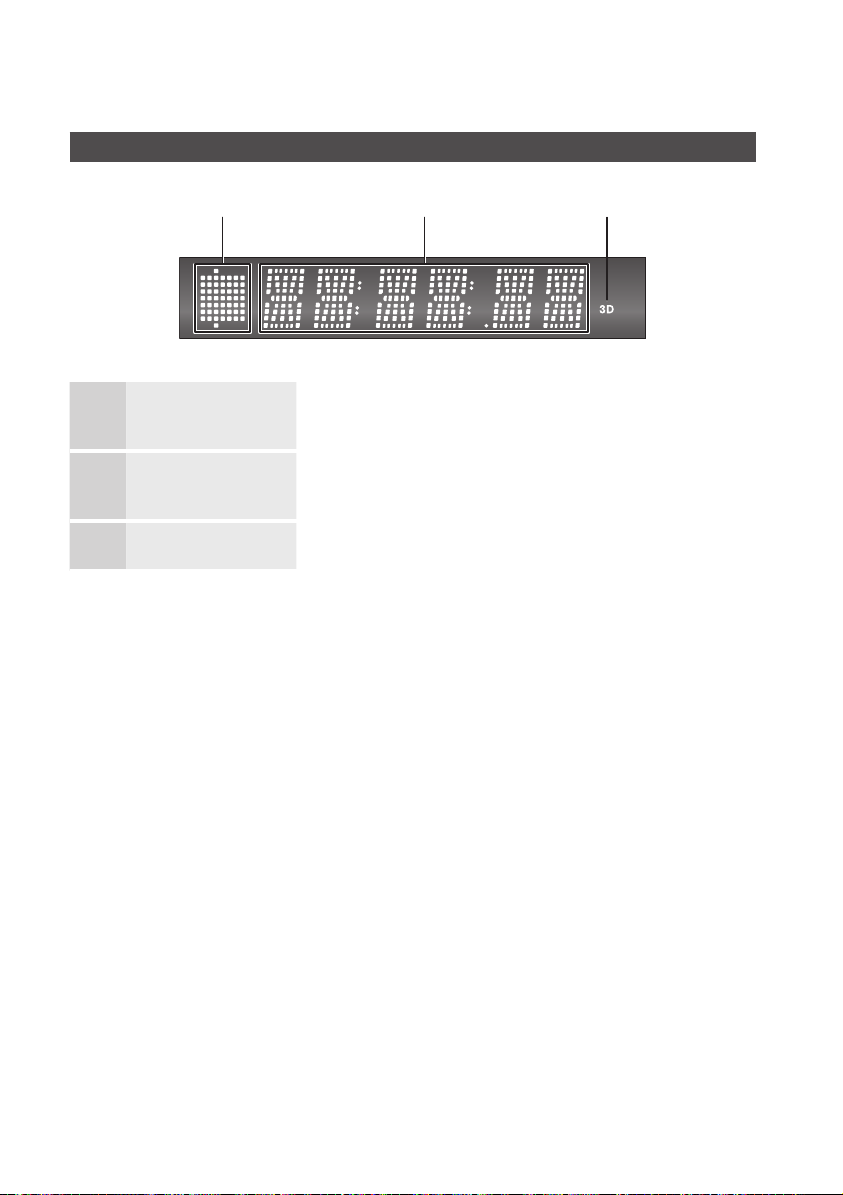

Front Panel Display

CURRENT TIME AND

STATUS INDICATOR

3D DISC INDICATOR Lights when 3D disc is inserted or played back.

Displays the play time and the current status.

English 17

03 Getting Started

Rear Panel

d ecba

g f

DIGITAL AUDIO OUT

(OPTICAL)

LAN

HDMI OUT

COMPONENT OUT

7.1CH ANALOG AUDIO OUT

VIDEO OUT

AUDIO OUT

Connects to a Receiver.

Can be used for network based services (See pages 50~55), BD-LIVE and software upgrades using a network connection.

Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture or to your Receiver for the best quality sound.

Connects to equipment having component video input.

Connect to a 7.1CH analogue input on an A/V amplifier. (When connecting to a 5.1CH home theatre or receiver, connect all the Analogue Audio output jacks from this product except for the Surround Back Left/Surround Back Right outputs)

Connects to the input of external equipment using a video cable.

Connects to the audio input of external equipment using audio cables.

18 English

Getting Started

MUTE

VOL CH

POWER

BONUSVIEW

SOURCE

DISC MENU TITLE MENUMENU

INTERNET@

REPEAT

FULL SCREEN

SUBTITLE

AUDIO

INFO

POPUP

TOOLS

EXITRETURN

AK59-00104R

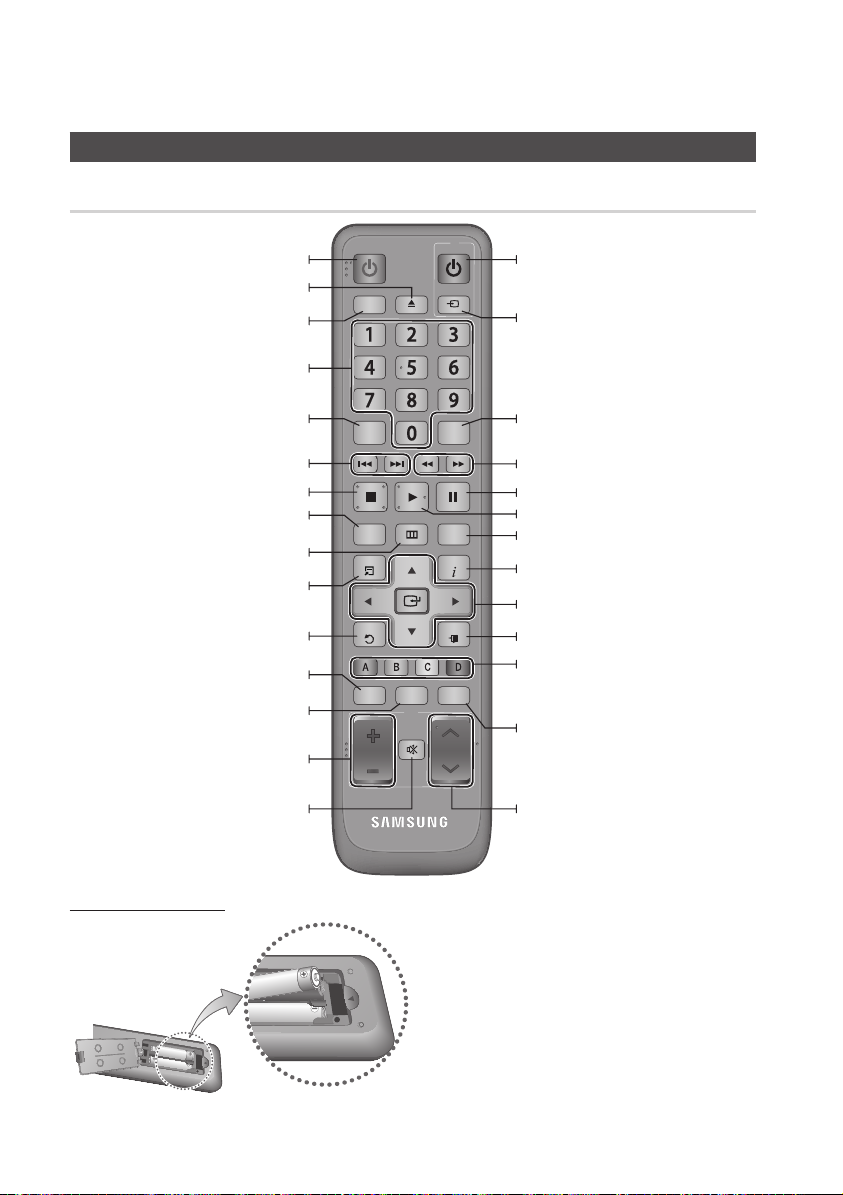

Tour of the Remote Control

Remote Control

Turn the product on and off.

To open and close the disc tray.

Press this to use Bonusview function.

Press numeric buttons to operate options.

Press this to switch the Blu-ray Disc/DVD’s

Press to skip backwards or forwards.

Press to enter the disc menu.

Press this to move to the home menu.

Press this to use Tools menu.

Return to the previous menu.

Press this to link to various Internet@TV

Press this to see the full screen on a TV.

Mutes the speakers of your TV.

subtitle language.

Press to stop a disc.

TV volume adjustment.

services.

Turn the TV on and off. (To operate your TV, please refer to page 19)

After setup, allows you to set the input source on your TV.

Use this to access various audio functions on a disc (Blu-ray Disc/DVD).

Press to search a disc backwards or forwards.

Press to pause a disc. Press to play a disc. Use this to enter the popup menu/title

menu. Use this to display the playback information during playing a Blu-ray/DVD disc.

Select menu items and change menu value.

Press this to exit the menu.

These buttons are used both for menus on the product and also several Blu-ray Disc functions.

Allows you to repeat a title, chapter, track or disc.

Use this to select a TV program.

Installing batteries

NOTE

✎

If the remote does not operate properly :

▪

Check the polarity +/– of the batteries.

•

Check if the batteries are drained.

•

Check if the remote sensor is blocked by obstacles.

•

Check if there is any fluorescent lighting nearby.

•

CAUTION

The rechargeable battery incorportabed in this

▪

product is not user replaceable. For the information on its replacement, go to your service provider.

English 19

03 Getting Started

Setting the Remote Control

You can control certain functions of your TV with this remote control.

Button Function

TV POWER Used to switch the television on and off.

TV SOURCE

TV VOL (+/–) Used to adjust the volume of the television.

TV CH (,/.) Used to select the desired channel.

TV MUTE Used to toggle the sound on and off.

NOTE

✎

▪

To determine whether your television is compatible, follow the instructions below.

Switch your television on.

Point the remote control towards the

television. Press and hold the TV POWER button and

enter the two-figure code from the table on the right corresponding to the brand of your television by pressing the appropriate number buttons. If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

NOTE

✎

▪

Used to select an external source connected to the TV.

The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly or using the TV's remote.

If several codes are listed for your television brand, try each one in turn until you find one that works.

If you replace the remote control's batteries, you must set the brand code again.

Controllable TV Codes

Brand Code

SAMSUNG

BANG & OLUFSEN

BLAUPUNKT TV POWER+71

BRIONVEGA TV POWER+57

CONTINENTAL

EMERSON TV POWER+64

FERGUSON TV POWER+73

FORMENTI TV POWER+57

GRADIENTE TV POWER+70

IMPERIAL TV POWER+52

LOEWE OPTA TV POWER+06, +57

MAGNAVOX TV POWER+40

MITSUBISHI

TV POWER+01, +02, +03, +04, +05, +06, +07, +08, +09

AIWA TV POWER+82

TV POWER+10, +11,

ANAM

+12, +13, +14, +15, +16, +17, +18

TV POWER+57

BRANDT TV POWER+73

CGE TV POWER+52

TV POWER+75

EDISON

TV POWER+19, +20, +23, +24, +25,

DAEWOO

+26, +27, +28, +29, +30, +31, +32, +33, +34

TV POWER+06, +49,

FINLUX

+57

FUJITSU TV POWER+84

TV POWER+49, +52,

GRUNDIG

+71

TV POWER+60, +72,

HITACHI

+73, +75

JVC TV POWER+61, +79

TV POWER+06, +19,

+20, +21, +22, +78

LOEWE TV POWER+06, +69

METZ TV POWER+57

TV POWER+06, +48, +62, +65

MIVAR TV POWER+52, +77

NEC TV POWER+83

NEWSAN TV POWER+68

Brand Code

NOBLEX TV POWER+66

NOKIA TV POWER+74

NORDMENDE

PANASONIC

PHILIPS

PHONOLA

PIONEER

RADIOLA TV POWER+06, +56

RADIOMARELLI TV POWER+57

RCA TV POWER+45, +46

REX TV POWER+74

SABA

SALORA TV POWER+74

SANYO

SCHNEIDER TV POWER+06

SELECO TV POWER+74

SHARP

SIEMENS TV POWER+71

SINGER TV POWER+57

SINUDYNE TV POWER+57

SONY TV POWER+35, +48

TELEAVA TV POWER+73

TELEFUNKEN

THOMSON

THOMSON ASIA TV POWER+80, +81

TOSHIBA

WEGA TV POWER+57

YOKO TV POWER+06

ZENITH TV POWER+63

TV POWER+72, +73, +75

TV POWER+53, +54, +74, +75

TV POWER+06, +55, +56, +57

TV POWER+06, +56, +57

TV POWER+58, +59, +73, +74

TV POWER+57, +72, +73, +74, +75

TV POWER+41, +42, +43, +44, +48

TV POWER+36, +37, +38, +39, +48

TV POWER+67, +73, +75, +76

TV POWER+72, +73, +75

TV POWER+47, +48, +49, +50, +51, +52

20 English

Connections

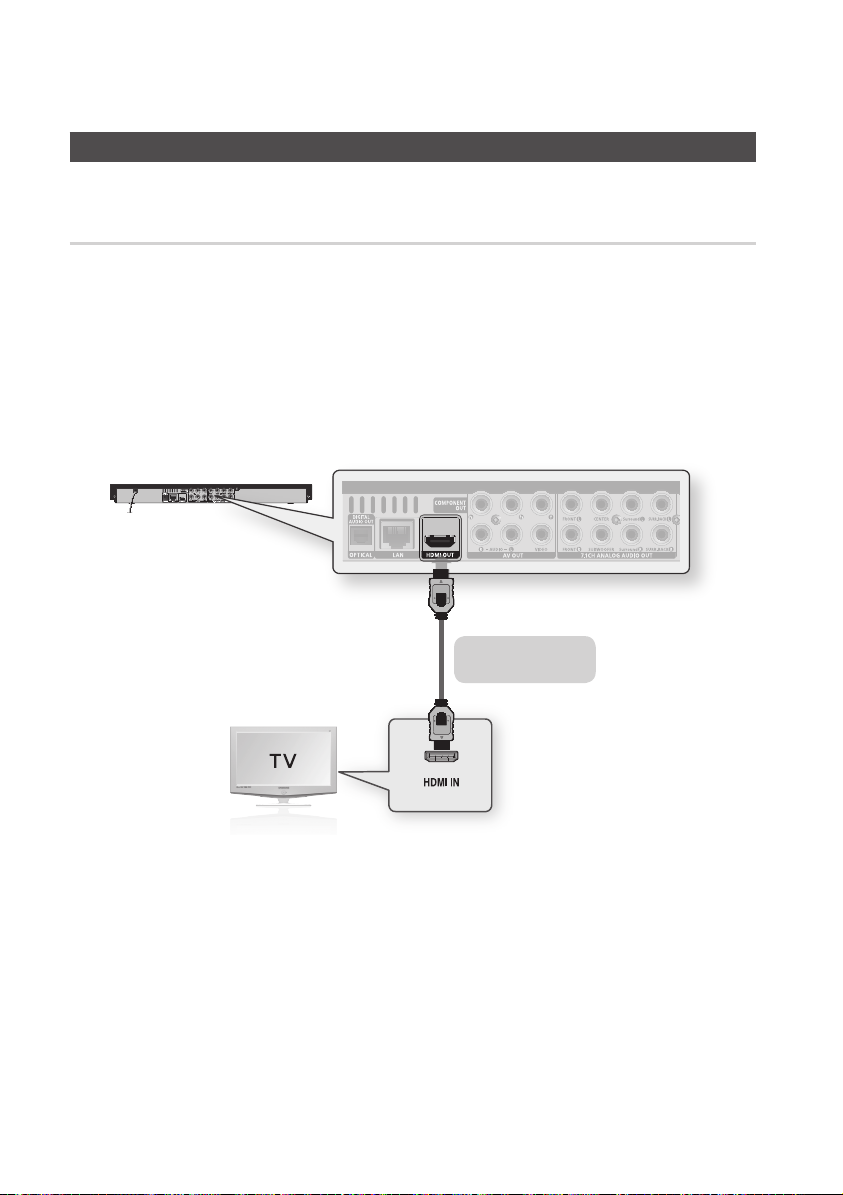

Connecting to a TV

Case 1 : Connecting to a TV with an HDMI Cable - Best Quality (Recommended)

Using an HDMI cable, connect the HDMI OUT terminal on the rear of the product to the HDMI IN

terminal of your TV. Turn on the product and TV.

Press the input selector on your TV remote control until the HDMI signal from the product appears

on your TV screen.

If you have set the product's remote control to operate your TV (See page 19), press the TV

•

SOURCE button on the remote control and select HDMI as the external source of the TV.

HDMI cable

(not included)

NOTE

✎

An HDMI cable outputs digital video/audio, so you don't need to connect an audio cable.

▪

If the product is connected to your TV in HDMI 720p,1080i or 1080p output mode, you must use a High speed (category

▪

2) HDMI cable. HDMI outputs only a pure digital signal to the TV.

▪

If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen. Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

▪

When you connect the product to the TV using the HDMI cable for the first time or to a new TV, the product sets the

▪

HDMI output resolution to the highest supported by the TV automatically. You must have an HDMI connection to enjoy videos with 3D technology.

▪

A long HDMI cable may cause a screen noise. If this is the case, set Deep Colour to Off in the menu.

▪

English 21

04 Connections

Case 2 : Connecting to a TV with a DVI Cable - Best Quality (Recommended)

Using an HDMI-DVI cable, connect the HDMI OUT terminal on the rear of the product to the DVI IN

terminal of your TV. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the product

to the AUDIO IN (red and white) terminals of your TV. Turn on the product and TV.

Press the input selector on your TV remote control until the DVI signal from the product appears on

your TV screen.

If you have set the product's remote control to operate your TV (See page 19), press the TV

•

SOURCE button on the remote control and select HDMI as the external source of the TV.

HDMI-DVI cable

(not included)

Audio cable

White Red

NOTE

✎

HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content

▪

Protection), random noise appears on the screen. Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

▪

When you connect the product to the TV using the HDMI-DVI cable for the first time or to a new TV, the product sets

▪

the HDMI output resolution to the highest supported by the TV automatically.

22 English

Connections

Case 3 : Connecting to a TV (Component) - Better Quality

Connecting to your TV using Component video cables.

You will enjoy high quality images with accurate colour reproduction. Component video separates

the picture element into black and white (Y), blue (PB) and red (PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

Using Component video cables, connect the COMPONENT VIDEO OUT terminals on the rear of

the product to the COMPONENT IN terminals of your TV. Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the product

to the AUDIO IN (red and white) terminals of your TV. Turn on the product and TV.

Press the input selector on your TV remote control until the “COMPONENT” signal from the product

appears on the TV screen.

If you have set the product's remote control to operate your TV (See page 19), press the TV

•

SOURCE button on the remote control and select COMPONENT as the external source of the TV.

Component cable

Audio cable

Red

White Red Blue Green

NOTE

✎

Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y ” or “Cr, Cb, Y”

▪

instead of “PB, PR, Y”. The number and position of the terminals may vary depending on the TV set. Please refer to the user manual of your TV.

You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 576p/480p, 576i/480i,

▪

depending on the disc type. (See pages 31~32) The actual resolution may differ from the setting in the setup menu if both Component and HDMI cables are connected.

▪

The resolution may also be different depending on the disc. (See pages 31~32) In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or

▪

720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 576i/480i.

(not included)

English 23

04 Connections

Case 4 : Connecting to a TV (Video) - Good Quality

Using video/audio cables, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white)

terminals on the rear of the product to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals of your TV.

Turn on the product and TV.

Press the input selector on your TV remote control until the “VIDEO” signal from the product appears

on the TV screen.

If you have set the product's remote control to operate your TV (See page 19), press the TV

•

SOURCE button on the remote control and select VIDEO as the external source of the TV.

Audio/Video cable

WhiteRed Yellow

NOTE

✎

Noise may be generated if the audio cable is placed too close to the power cable.

▪

If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 24~26)

▪

The number and position of the terminals may vary depending on your TV set. Please refer to the user manual of your TV.

▪

24 English

Connections

Connecting to an Audio System

Please turn the volume down when you turn on the Amplifier. A sudden loud sound may cause

• damage to the speakers and your ears.

Set the audio output format according to the capabilities of your amplifier. (See pages 33~35)

• The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user manual

• of your Amplifier.

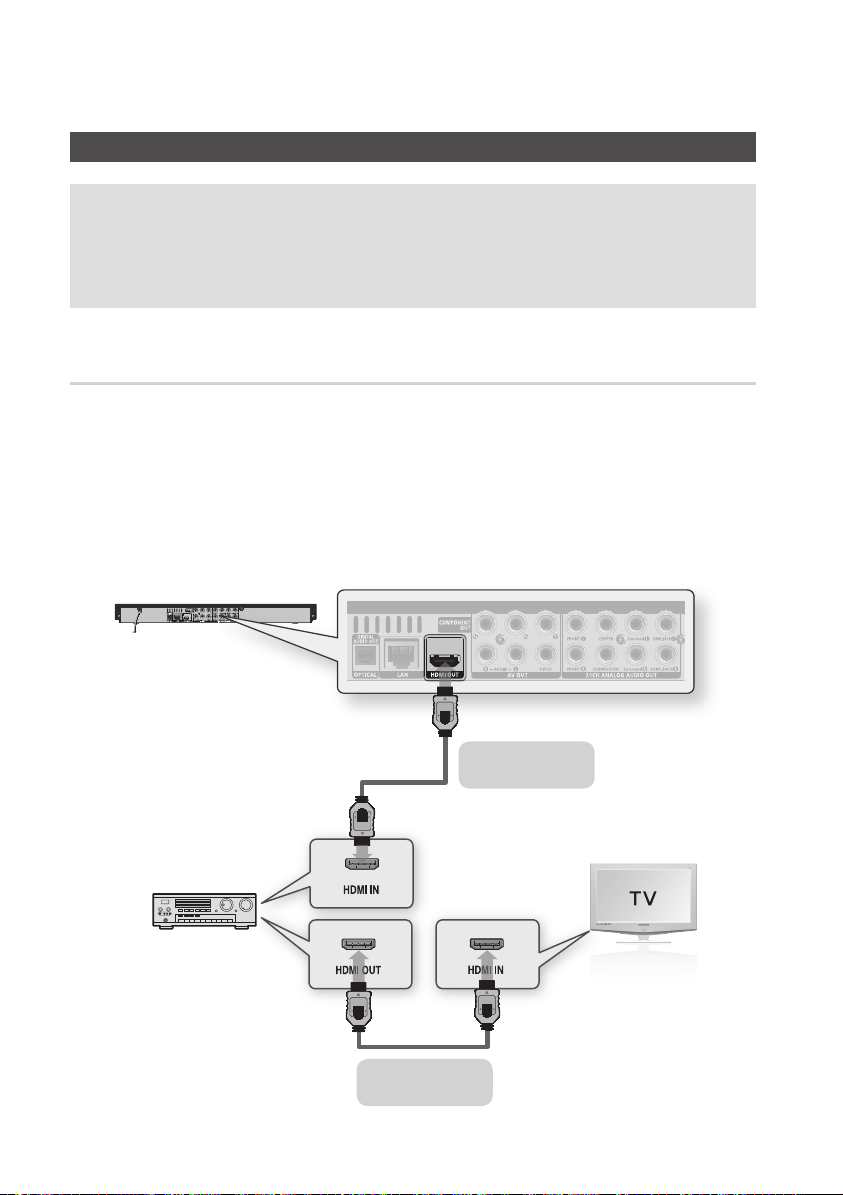

Case 1 : Connecting to an Audio System (HDMI Supported Amplifier)

- Best Quality (Recommended)

Using an HDMI cable, connect the HDMI OUT terminal on the rear of the product to the HDMI IN

terminal of your amplifier. Using an HDMI cable, connect the HDMI OUT terminal of the amplifier to the HDMI IN terminal of

your TV. Turn on the product, TV and amplifier.

Press the input select button of the amplifier to select the external input and hear sound from the

product. Refer to your Amplifier's user manual to set the Amplifier's audio input.

HDMI cable

(not included)

HDMI cable

(not included)

English 25

04 Connections

Case 2 : Connecting to an Audio System (7.1 Channel Amplifier)

- Better Quality

Using the 7.1CH audio cables, connect the 7.1CH ANALOG AUDIO OUT terminals on the rear of

the product to the 7.1CH ANALOG AUDIO IN terminals of your amplifier. Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the

rear of the product to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 20~23) Turn on the Product, TV and amplifier.

3. Press the input select button of the amplifier to select the external input and hear sound from the

product. Refer to your amplifier's user manual to set the amplifier's audio input.

7.1CH audio cables (not included)

7.1 Channel Ampliﬁer

NOTE

✎

The front left and right outputs on your product and 7.1 channel amplifier must be connected to hear disc menu audio

▪

from certain Blu-ray discs. When you connect the 7.1CH ANALOG AUDIO OUT terminals using 7.1CH audio cables, we recommend you set the

▪

Digital Output to PCM. (See page 33) When you connect to a 5.1 channel home theatre or receiver, connect all the Analogue Audio output jacks from the

▪

product except for the Surround Back Left/Surround Back Right outputs.

26 English

Connections

Case 3 : Connecting to an Audio System (Dolby Digital, DTS Amplifier) - Better Quality

Using an optical cable, connect the DIGITAL

1. AUDIO OUT (OPTICAL) terminal on the rear of the product to the DIGITAL AUDIO IN (OPTICAL) terminal of your amplifier.

Using the video signal cable(s), connect

the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the product to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 20~23)

Turn on the product, TV and amplifier.

Press the input select button of the amplifier

to select the external input and hear sound from the product. Refer to your amplifier's user manual to set the amplifier's audio input.

Case 3 : Optical cable

(not included)

Case 4 : Connecting to an Audio System (2 Channel Amplifier)

- Good Quality

Using audio cables, connect the AUDIO OUT

1. (red and white) terminals on the rear of the

product to the AUDIO IN (red and white) terminals of your amplifier.

Using the video signal cable(s), connect

the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the product to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 20~23)

Turn on the product, TV and amplifier.

Press the input select button of the amplifier

to select the external input and hear sound from the product. Refer to your amplifier's user manual to set the amplifier's audio input.

Case 4 : Audio cable

WhiteRed

NOTE

✎

If you use the Digital Audio connection described in Case 3, you will hear discs with PCM audio soundtracks only

▪

through the front two speakers.

English 27

04 Connections

Connecting to the Network

This product lets you view network based services (See pages 50~55) such as Internet@TV and BD-LIVE, as well as receive software upgrades through a network connection. We recommend using an AP (Access Point) or IP router for the connection. For more information on router connection, refer to the user manual of the router or contact the router manufacturer for technical assistance.

Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the product to the LAN

terminal of your modem. Set the network options. (See pages 37~39)

Router

Broadband modem

(with integrated router)

Broadband

service

NOTE

✎

Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the ISP’s

▪

policy. For more information, contact your ISP (Internet Service Provider). For DSL users, please use a router to make a network connection.

▪

To use the AllShare function, you must connect your PC to your network as shown in the figure.

▪

Broadband modem

Broadband service

Networking with PC for AllShare function (See pages 54~55)

28 English

Setup

internet radio

You Tube

Before Starting (Initial Settings)

Turn on your TV after connecting the product.

(When the product is connected to TV for the first time, the product will turn on automatically and display the Initial Settings screen.)

Initial Settings I On-Screen Language

Select a language for the on-screen displays.

English Français Deutsch Español Italiano Nederlands Svenska

> Move " Select

Press the ▲▼ buttons to select the desired

language, then press the ENTER button. Press the ENTER button to select Start.

Initial Settings

TV Aspect and Network will be set. Each setting may be changed later under "Settings"

Start

a Previous " Select

Press the ▲▼ buttons to select the desired

TV aspect ratio, then press the ENTER button. (See page 31)

Press the ENTER button.

If you selected a Network Setting, go to pages 37~39 for more information about the Network settings. When done, go to Step 6.

Press the OK button.

The Home menu is displayed. For more information about the Home menu, please see page 29.

Home Menu

•

Please activate Internet@TV service

to enjoy a variety of Internet Services.

No Disc a Change Device

NOTE

✎

When the product is connected to a TV for the first

▪

View Devices

time, product will turn on automatically. This is not malfunction.

The Home menu will not appear if you do not

▪

configure the initial settings except as noted below. If you press the BLUE (D) button during the network

▪

setup, you can access the Home menu even if the network setup is not completed yet.

When you return to the Home menu, the full screen

▪

mode is cancelled automatically. If you want to display the Initial Setting screen again

▪

to make changes, press the STOP ( ) button on the front panel of the product for more than 5 seconds with no disc inserted.

Use the HDMI cable to connect the product to an

▪

Anynet+(HDMI-CEC)-compliant Samsung TV. If the TV uses a language supported by the product, that language will be set to a preferred language automatically. For this to work, the Anynet+(HDMI-CEC) feature should be set to On in both the TV and the product.

If the product is left in the stop mode more than 5

▪

minutes without being used, a screen saver appears on your TV. If the product is left in the screen saver mode for more than 25 minutes, the power automatically turns off.

Enter

English 29

05 Setup

POWER

BONUSVIEW

SOURCE

DISC MENU TITLE MENUMENU

SUBTITLE

AUDIO

INFO

POPUP

TOOLS

EXITRETURN

internet radio

You Tube

Setting the Menu

MENU Button :

RETURN Button : Return to the previous menu.

ENTER / DIRECTION Button : Move the cursor or select an item.

Select the currently selected item. Confirm the setting.

EXIT Button :

Press the POWER button.

The Home Menu will appear.

Home Menu

•

No Disc a Change Device

Press this to move to the Home menu.

Press this to exit the menu.

Please activate Internet@TV service

to enjoy a variety of Internet Services.

View Devices

Press the ◄► buttons to select Settings,

then press the ENTER button. Press the ▲▼ buttons to select the desired

submenu, then press the ENTER button. Press the ▲▼ buttons to select the desired

item, then press the ENTER button. Press the EXIT button to exit the menu.

5. NOTE

✎

When the product is connected to the network,

▪

select Internet@TV from the Home menu. Download desired content from Samsung Apps. (See page 50)

The access steps may differ depending on the

▪

selected menu. The OSD (On Screen Display) may change in this

▪

product after you upgrade the software version.

2 3 4

Enter

Selects Internet@TV.

Selects Videos.

Selects Music.

Selects Photos.

Selects Settings.

Displays the buttons available.

30 English

Setup

Display

You can configure various display options such as the TV Aspect, Resolution, etc.

Select whether to play a Blu-ray Disc with 3D contents in 3D Mode.

Settings

Display

Audio System Network Language Security General Support

3D Mode

Auto : The 3D Blu-ray Disc is played in 3D

• mode if your product detects a TV which supports it. It is played in 2D mode if your product detects a TV which cannot support it.

3D : The 3D Blu-ray Disc is played in 3D mode

• at all times. If a TV cannot support 3D Blu-ray discs, the playing screen can be black.

2D : The 3D Blu-ray Disc is played in 2D mode

• at all times. Choose this to view a picture without 3D effect or when a TV cannot support 3D Blu-ray discs.

NOTE

✎

If you press the STOP(

▪

the 3D disc playback, 3D mode option will not be deactivated. To activate 3D mode option during the 3D disc playback, press the STOP(

Depending on the content and its play position,

▪

vertical black bars could be seen on left or right or both sides.

3D Mode : Auto TV Screen Size : 55 inch

> Move " Enter ' Return

Still Mode : Auto

) button once during

) button twice.



TV Screen Size

Lets you enter the actual screen size of your TV so that the product can adjust the image according to the screen size and display an optimal 3D image. (The maximum allowed screen size is 116 inches for this product.)

CAUTION

If you want to enjoy a 3D content, connect a 3D

▪

device (3D compliant AV receiver or TV) to the product and wear a 3D glass before playing the 3D content.

While watching the 3D video, all analogue component

▪

and composite signals will be blocked automatically. All 3D signals are output only using the HDMI cable

▪

and through the HDMI OUT port. As the video resolution in 3D play mode is fixed

▪

according to the resolution of the original 3D video, you can not change the resolution to your preference.

Some functions such as BD Wise, or setting the

▪

screen size or resolution may not operate properly in 3D play mode.

You must use a high-speed HDMI cable for a proper

▪

output of the 3D signal. Stay at least three times of the length of the screen

▪

distant from the TV.

- It is recommended to place the 3D video screen forward at eye level.

If the product is connected to some 3D devices, the

▪

3D effect may not function properly. You can not use this product for switching a 2D

▪

content to 3D.

+ 227 hidden pages
