Blu-ray Disc Player

user manual

BD-C6500

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Key features

Blu-ray Disc Features

Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.

The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc. Not all discs will have the features described below.

Video highlights

The BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2.

HD video resolutions are also available:

1920 x 1080 High Definition

• 1280 x 720 High Definition

•

For High-Definition Playback

To view high-definition contents on a Blu-ray Disc, an HDTV (High Definition Television) is required. Some Blu-ray Discs may require using the player’s HDMI OUT to view high-definition content. The ability to view high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV.

Subtitles

Depending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes and colors for the subtitles. Subtitles may also be animated, scrolled or faded in and out.

BD-LIVE

You can use a Blu-ray Disc supporting BD-LIVE through network connection to enjoy various contents provided by the disc manufacturer.

Blu-ray Disc Player Features

Internet@TV

You can download various chargeable or free-ofcharge applications through network connection.

Various internet service and contents will be provided, which include news, weather forecast, stock market, games, movies and music.

Interactivity

Certain Blu-ray Discs may contain Animated menus and Trivia games.

User Browsable Slideshows

With Blu-ray Discs, you can browse through various still pictures while the audio remains playing.

2 English

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lighting flash and Arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.

WARNING

To reduce the risk of fire or electric shock, do

• not expose this appliance to rain or moisture.

FCC NOTE (for U.S.A)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on.

The user is encouraged to try to correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

• and receiver.

Connect this equipment into an outlet on a

• circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV

• technician for help.

This class B digital product meets all

• requirements of the Canadian Interference Causing Equipment Regulations.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

FCC RF Radiation Exposure

RF Radiation Exposure Statement

This equipment complies with FCC RF Radiation Exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter.

The final device into which this transmitter module is installed must be labeled with the following statement:

“This device contains TX FCC ID: A3LDNUBS1.” If this transmitter will be configured as a pc peripheral, it will be the OEM’s responsibility to obtain authorization as such (either through Certification of Declaration of Conformity) prior to marketing of the device.

02 Safety Information

English 3

Safety Information

Note to CATV system installer

This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

DANGER :

VISIBLE AND INVISIBLE LASER RADIATION

• WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

CAUTION :

CLASS 3B VISIBLE AND INVISIBLE LASER

• RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)

THIS PRODUCT UTILIZES A LASER. USE

• OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

NOTE

✎

If the Region number of a Blu-ray Disc/DVD disc

▪

does not correspond to the Region number of this player, the player cannot play the disc.

Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this player near water.

Clean only with dry cloth.

Do not block any ventilation openings, install

in accordance with the manufacturer’s instructions.

Do not install near any heat sources such

as radiators, heat registers, or other player (including amplifiers) that produce heat.

The polarized or the grounding type plug has

an important safety purpose. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being deformed

10.

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the player.

Only use attachments/accessories specified

11.

by the manufacturer.

Use only with the cart, stand, tripod, bracket,

12.

or table specified by the manufacturer, or sold with the player. When a cart is used, use caution when moving the cart/player combination to avoid injury from tip-over.

Unplug this player during lightning storms or

13.

when unused for long periods of time.

4 English

Refer all servicing to a

14.

qualified service personnel. Servicing is required when the player has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the player, the player has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disc Storage & Management

Disc Handling

Disc Shape

Use discs with regular

• shapes. If an irregular disc (a disc with a special shape) is used, this player may be damaged.

Holding discs

Avoid touching the surface of a

• disc where recording is performed.

Blu-ray Discs

If the player is not used for a long period of time,

• remove the Blu-ray Disc from the player and store it in its case.

Be careful not to leave fingerprints or scratches

• on the surface of the Blu-ray Disc.

DVD-VIDEO, Audio CD (CD-DA)

Wipe off dirt or contamination on the disc with a

• soft cloth.

Disc Storage

Be careful not to damage the disc because the data on these discs is highly vulnerable to the environment.

Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

•

If you move your player suddenly from a cold

• place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. If this occurs, wait for two hours before connecting the plug to the power outlet. Then insert the disc and try to play back again.

Handling Cautions

Do not write on the printed side with a ball-point

• pen or pencil.

Do not use record cleaning sprays or antistatic.

• Also, do not use volatile chemicals, such as benzene or thinner.

Do not apply labels or stickers to discs. (Do not

• use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)

Do not use scratch-proof protectors or covers.

• Do not use discs printed with label printers

• available on the market.

Do not load warped or cracked discs.

• Before connecting other components to this

• player, be sure to turn them all off.

Do not move the player while a disc is being

• played as the disc may be scratched or broken, or the player’s internal parts may be damaged.

Do not put a flower vase filled with water or any

• small metal objects on the player.

Be careful not to put your hand into the disc

• tray.

Do not place anything other than the disc in the

• disc tray.

Exterior interferences such as lightning and

• static electricity can affect the normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.

Be sure to remove the disc and turn off the

• player after use.

Disconnect the AC power cord from the AC

• outlet when you don’t intend to use the player for long periods of time.

02 Safety Information

English 5

Safety Information

To clean a disc, wipe it in a straight

• line from the inside to the outside of the disc.

Do not expose the player to any

• liquid.

When the AC plug is connected to a wall outlet,

• the player will still draw power (standby mode) when it is turned off.

Apparatus shall not be exposed to dripping or

• splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

The main plug is used as a disconnect device

• and shall stay readily operable at any time.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

Do not use benzene, thinner, or other solvents

• for cleaning.

Wipe the cabinet with a soft cloth.

•

Restrictions on Playback

This player may not respond to all operating

• commands because some Blu-ray, DVD and CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the player.

Samsung cannot assure that this player will

• play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care center if you have questions or encounter difficulty in playing Blu-ray, DVD, or CD discs in this player. Also, refer to rest of this user manual for additional information on playback restrictions.

6 English

Contents

KEY FEATURES

SAFETY INFORMATION

GETTING STARTED

2 Blu-ray Disc Features 2

Blu-ray Disc Player Features

3 Warning 4

Precautions

4 Important Safety Instructions 5 Disc Storage & Management 5 Disc Handling

11 Before Using the user manual 11 Disc Types and Contents that can be played. 11 12 12 13 14 14 15 15 Accessories 16 17 18 19 19 Tour of the Remote Control 20 20

Disc types that cannot be played Blu-ray Disc Compatibility Disc Types Supported File Formats Region Code Copyright Logos of Discs that can be played

Front Panel Front Panel Display Rear Panel Remote Control

Setting the Remote Control Controllable TV Codes

ENGLISH

CONNECTIONS

21 Connecting to a TV 21 Case 1 : Connecting to a TV with an HDMI Cable

- Best Quality (Recommended) Case 2 : Connecting to a TV with DVI Cable

- Best Quality (Recommended) Case 3 : Connecting to a TV (Component)

- Better Quality Case 4 : Connecting to a TV (Video)

- Good Quality

English 7

Contents

CONNECTIONS

SETUP

25 Connecting to an Audio System 25 Case 1 : Connecting to an Audio System

28 Connecting to the Network 28 Cable Network 29

30 Before Starting (Initial Settings) 31 32 32 TV Aspect 32 32 34 34 34 34 34 34 Audio 34 Digital Output 35 36 36 36 36 37 System 37 Initial Settings 37 37 37 38 38 38 38 Network Setup 38 Network Settings 42 42

(HDMI Supported Amplifier) - Best Quality (Recommended)

Case 2 : Connecting to an Audio System (7.1 Channel Amplifier) - Better Quality

Case 3 : Connecting to an Audio System (Dolby Digital, DTS Amplifier) - Better Quality

Case 4 : Connecting to an Audio System (2 Channel Amplifier) - Good Quality

Wireless Network

Setting the Menu Display

BD Wise (Samsung Players only) Resolution HDMI Format Movie Frame (24Fs) Progressive Mode Still Mode HDMI Deep Color

PCM Downsampling Dynamic Range Control Downmixing Mode DTS Neo:6 Speaker Setting

Internet@TV Screen Size Anynet+(HDMI-CEC) BD Data Management Clock DivX(R) Registration DivX(R) Deactivation

Network Status BD-LIVE Internet Connection

8 English

SETUP

42 Language 42

Security

42 Parental Rating 43 43 General 43 Background 43 43 43 43 44 Support 44 Software Upgrade 44

Change Password

Energy Saving Front Display Power On/Off Sound Light Effect

Contact Samsung

ENGLISH

BASIC FUNCTIONS

45 Playing a Disc 45 Playback 45 45 Using the Disc menu/Title menu/Popup menu 45 Using the Disc Menu 45 45 46 46 Using the Search and Skip Functions 46 Searching for a Desired Scene 46 46 Slow Motion Play/Step Motion Play 46 Slow Motion Play 46 47 Repeat Playback 47 Repeat the Title or Chapter 47 47 Using the TOOLS button 47 Moving to a Desired Scene Directly 48 48 48 48 49

Disc Structure

Using the Title Menu Playing the Title List Using the Popup Menu

Skipping Chapters

Step Motion Play

Repeat the Section

Selecting the Audio Language Selecting the Subtitle Language Changing the Camera Angle Selecting the Picture Setting Setting BONUSVIEW

English 9

Contents

BASIC FUNCTIONS

NETWORK SERVICES

APPENDIX

49 Listening to Music 49 Buttons on the Remote Control used for Music

50 50 50 51 Playing back a Picture 51 Playing a JPEG Disc 51 52 Playing back a USB Storage Device

53 Using Internet@TV 53 Getting Started with Internet@TV 55 56 57 BD-LIVE™ 57 57

59 Troubleshooting 62 Index 63 64 Compliance and Compatibility Notice 64 65 66

Playback Playing an Audio CD (CD-DA)/MP3 Repeat an Audio CD (CD-DA)/MP3 Playlist

Using the TOOLS button

Settings Samsung AppS

Software Upgrade Notification Using the AllShare Function

Specifications

Copy Protection Network Service Disclaimer License

10 English

Getting Started

Before Using the user manual

Disc Types and Contents that can be played.

Term Logo Icon Definition

BD-ROM

BD-RE/-R

DVD-VIDEO

DVD-RW(V)

DVD-R

DVD+RW

DVD+R

Audio CD

MP3

WMA

JPEG

DivX MKV MP4

h z Z

This involves a function available on a BD-ROM.

This involves a function available on a BD-RE/-R disc recorded in the BD-RE format.

This involves a function available on a DVD-VIDEO.

This involves a function available on recorded DVD+RW or DVD-RW(V)/DVD-R/+R discs that have been recorded and finalized.

This involves a function available on an audio CD-RW/-R (CD-DA format).

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing MP3 or WMA contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing JPEG contents.

This involves a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing DivX, MKV, MP4 contents.

03 Getting Started

NOTE

✎

The player may not play certain CD-RW/-R and DVD-R due to the disc type or recording conditions.

▪

If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.

▪

Disc types that cannot be played

HD DVD

• DVD-ROM/PD/MV-

• Disc, etc

DVD-RAM

• Super Audio CD

• (except CD layer)

DVD-RW(VR mode)

• CVD/CD-ROM/CDV/

• CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

3.9 GB DVD-R Disc for

• Authoring.

English 11

Getting Started

NOTE

✎

Some commercial discs and DVD discs purchased

▪

outside your region may not be playable with this player. When these discs are played, either “This disc can not be played.” or “Please check the regional code of the disc.” will be displayed.

Playback may not work for some types of discs, or

▪

when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

Do not allow the disc to become dirty or scratched.

▪

Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.

Discs with PAL programs recorded on them cannot

▪

be played using this player.

This player is compatible with the NTSC color system

▪

only.

When a BD-J title is played, loading may take longer

▪

than a normal title, or some functions may perform slowly.

This player may not respond to all operating

▪

commands because some Blu-ray, DVD and CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the player.

Samsung cannot assure that this player will play

▪

every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software and/or the manufacture of discs. Please contact the SAMSUNG customer care center if you have questions or encounter difficulty when playing Blu-ray, DVD, or CD discs in this player. Also, refer to rest of this user manual for additional information on playback restrictions.

Blu-ray Disc Compatibility

Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this user manual.

Disc Types

BD-ROM

This Blu-ray disc can only be played back. This player can play back pre-recorded commercial BD-ROM discs.

BD-RE/-R

This Blu-ray disc can be recorded and played back. This player can play back a BD-RE/-R disc recorded by other compatible Blu-ray disc recorders.

DVD-VIDEO

This player can play back pre-recorded

• commercial DVD discs (DVD-VIDEO discs) with movies.

When switching from the first layer to the

• second layer of a dual-layered DVD-VIDEO disc, there may be momentary distortion in the image and sound. This is not a malfunction of the player.

DVD-RW

This player can play back a DVD-RW disc recorded and finalized with a DVD video recorder. Ability to play back may depend on recording conditions.

DVD-R

This player can play back a DVD-R disc recorded and finalized with a DVD Video recorder. Ability to play back may depend on recording conditions.

DVD+RW

This player can play back a DVD+RW disc

• recorded with a DVD Video recorder. Ability to play back may depend on recording conditions.

12 English

DVD+R

This player can play back a DVD+R disc

• recorded and finalized with a DVD Video recorder. Ability to play back may depend on recording conditions.

Audio CD (CD-DA)

This player can play back CD-DA format audio

• CD-RW/-R discs.

The player may not be able to play some

• CD-RW/-R discs due to the condition of the recording.

CD-RW/-R

Use a 700MB(80 minutes) CD-RW/-R disc.

• If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.

If the CD-RW/-R disc was not recorded as a

• closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play.

Some CD-RW/-R discs may not be playable

• with this player, depending on the device which was used to burn them. For contents recorded on CD-RW/-R media from CDs for your personal use, playability may vary depending on contents and discs.

Supported File Formats

Video File Support

File Extension Container Video Codec Audio Codec Resolution

1920x1080

*.avi

*.mkv

*.wmv

*.mp4

*.mpg

*.mpeg

AVI

MKV

WMV

MP4

Divx 3.11/4.x/5.1/6.0

XviD

MP4v3

H.264 BP/MP/HP

VC-1 AP(wmv1)

DivX 5.1/6.0

XviD

H.264 BP/MP/HP

VC-1 AP

VC-1 SM

MP4 (mp4v)

H.264 BP/MP/HP

MPEG1

MPEG2

H.264 BP/MP/HP

MP3 AC3

DTS

WMA

PCM

MP3 AC3

DTS

WMA

AAC

MP1, 2

AC3

DTS

03 Getting Started

English 13

Getting Started

Music File Support

File

Extension

*.mp3

*.wma

AVCHD (Advanced Video Codec High Definition)

This player can playback AVCHD format discs.

• These discs are normally recorded and used in camcorders.

The AVCHD format is a high definition digital

• video camera format.

The MPEG-4 AVC/H.264 format is capable of

• compressing images at higher efficiency than that of the conventional image compressing format.

Some AVCHD discs use the “x.v.Color” format.

• This player can playback AVCHD discs using

• “x.v.Color” format.

“x.v.Color” is a trademark of Sony Corporation.

• “AVCHD” and the AVCHD logo are trademarks

• of Matsushita Electronic Industrial Co., Ltd. and Sony Corporation.

✎

Container

MP3

WMA

NOTE

Some AVCHD format discs may not play, depending

▪

on the recording condition. AVCHD format discs need to be finalized.

“x.v.Color” offers a wider color range than normal

▪

DVD camcorder discs.

Some DivX, MKV and MP4 format discs may not

▪

play, depending on the video resolution and frame rate condition.

Audio

Codec

MP3 -

WMA

Support Range

Compliant with WMA version 10

* Sampling rates (in

kHz) - 8, 11, 16, 22, 32, 44.1, 48

* Bit rates - All bit-

rates in the range 5kbps to 384kbps

Region Code

Both the player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this player is described on the rear panel of the player.

Disc Type

Blu-ray

DVD-VIDEO

Region

Code

North America, Central America, South America, Korea, Japan,

Taiwan, Hong Kong and South East Asia.

Europe, Greenland, French territories, Middle East, Africa,

Australia and New Zealand.

India, China, Russia, Central

and South Asia.

The U.S., U.S. territories and

Canada

Europe, Japan, the Middle East,

Egypt, South Africa, Greenland

Taiwan, Korea, the Philippines,

Indonesia, Hong Kong

Mexico, South America, Central America, Australia,

New Zealand, Pacific Islands, Caribbean

Russia, Eastern Europe, India, most of Africa, North Korea,

Mongolia

China

Area

Copyright

manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

14 English

Logos of Discs that can be played

POWER

BONUSVIEW SOURCE

DISC MENU TITLE MENUMENU

INTERNET@ REPEATFULL SCREEN

MUTE

1 2 3

4 5 6

7 8 9

SUBTITLE

AUDIO

A B C D

VOL CH

INFOTOOLS

EXITRETURN

AK59-00104R

Blu-ray Disc DTS-HD Master Audio DivX BD-LIVE

03 Getting Started

Dolby TrueHD

NTSC broadcast system in U.S.A, Canada,

Korea, Japan

Check for the supplied accessories below.

Audio/Video cable

Batteries for Remote Control (AAA Size)

(AC39-00073A)

User Manual

(AK68-01859A)

Accessories

(AC43-12002H)

Quick Guide

(AK68-01855C)

Java

Remote Control (AK59-00104R)

English 15

Getting Started

DISC TRAY Opens to accept a disc.

REMOTE CONTROL SENSOR Detects signals from the remote control.

DISPLAY Displays the playing status, time, etc.

Front Panel

b c defhg

OPEN/CLOSE BUTTON Opens and closes the disc tray.

STOP BUTTON Stops disc playback.

PLAY/PAUSE BUTTON Plays a disc or pauses playback.

POWER BUTTON Turns the player on and off.

USB HOST

NOTE

✎

Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.

▪

A USB device consuming more than 500mA requires a separate power supply device for normal operation.

▪

A USB HDD device cannot be used for BD Data storage (BD-LIVE).

▪

A USB memory flash stick can be connected here and used as storage when connected to BD-LIVE. It can also be used for software upgrades and MP3/JPEG/ DivX/MKV/MP4 playback.

16 English

Front Panel Display

a b

IN DISC INDICATOR Lights when a disc is inserted or played back.

03 Getting Started

CURRENT TIME AND

STATUS INDICATOR

WIFI INDICATOR Lights when the wireless network is connected.

Displays the play time and the current status.

English 17

Getting Started

Rear Panel

LAN

HDMI OUT

DIGITAL AUDIO OUT

COMPONENT OUT

cb d

g f

Can be used for network based services (See pages 53~58), BD-LIVE and software upgrades using a network connection.

Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture or to your Receiver for the best quality sound.

Connects to a Receiver.

Connects to equipment having component video input.

7.1CH ANALOG AUDIO OUT

VIDEO OUT

AUDIO OUT

18 English

Connect to a 7.1CH analog input on an A/V amplifier. (When connecting to a 5.1CH home theater or receiver, connect all the Analog Audio output jacks from this product except for the Surround Back Left/Surround Back Right outputs)

Connects the input of external equipment using a video cable.

Connects to the audio input of external equipment using audio cables.

Tour of the Remote Control

POWER

BONUSVIEW SOURCE

DISC MENU TITLE MENUMENU

INTERNET@ REPEATFULL SCREEN

MUTE

1 2 3

4 5 6

7 8 9

SUBTITLE

AUDIO

A B C D

VOL CH

INFOTOOLS

EXITRE TURN

AK59-00104R

Remote Control

03 Getting Started

Turn the player on and off.

To open and close the disc tray.

Press this to use Bonusview function.

Press numeric buttons to operate options.

Press this to switch the Blu-ray Disc/DVD’s

Press to skip backwards or forwards.

Use this to enter the disc menu.

Press this to move to the home menu.

Press this to use Tools menu.

subtitle language.

Press to stop a disc.

Return to the previous menu.

Press this to link to various Internet@TV

Press this to see the full screen on a TV.

TV volume adjustment.

Mutes the speakers of your TV.

services.

Turn the TV on and off. (To operate your TV, please refer to page 20)

After setup, allows you to set the input source on your TV.

Use this to access various audio functions on a disc (Blu-ray Disc/DVD).

Press to search a disc backwards or forwards.

Press to pause a disc.

Press to play a disc.

Use this to enter the popup menu/title menu. Use this to display the playback information during playing a Blu-ray/DVD disc.

Select menu items and change menu value.

Press this to exit the menu.

These buttons are used both for menus on the player and also several Blu-ray Disc functions.

Allows you to repeat a title, chapter, track or disc.

Use this to select a TV program.

Installing batteries

NOTE

✎

If the remote does not operate properly :

▪

Check the polarity +/– of the batteries (Dry-Cell)

•

Check if the batteries are drained.

•

Check if remote sensor is blocked by obstacles.

•

Check if there is any fluorescent lighting nearby.

•

English 19

Getting Started

Setting the Remote Control

You can control certain functions of your TV with this remote control.

Button Function

TV POWER Used to switch the television on and off.

TV SOURCE

TV VOL (+/–) Used to adjust the volume of the television.

TV CH (,/.) Used to select the desired channel.

TV MUTE Used to toggle the sound on and off.

NOTE

✎

▪

To determine whether your television is compatible, follow the instructions below.

Switch your television on.

Point the remote control towards the

television.

Press and hold the TV POWER button and

enter the two-figure code corresponding to the brand of your television by pressing the appropriate number buttons. If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

NOTE

✎

▪

Used to select an external source connected to the TV.

The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly.

If several codes are listed for your television brand, try each one in turn until you find one that works.

If you replace the remote control’s batteries, you must set the brand code again.

Controllable TV Codes

Brand Code

SAMSUNG

BANG & OLUFSEN

BLAUPUNKT TV POWER+71

BRIONVEGA TV POWER+57

CONTINENTAL

EMERSON TV POWER+64

FERGUSON TV POWER+73

FORMENTI TV POWER+57

GRADIENTE TV POWER+70

IMPERIAL TV POWER+52

LOEWE OPTA TV POWER+06, +57

MAGNAVOX TV POWER+40

MITSUBISHI

TV POWER+01, +02, +03, +04, +05, +06, +07, +08, +09

AIWA TV POWER+82

TV POWER+10, +11,

ANAM

+12, +13, +14, +15, +16, +17, +18

TV POWER+57

BRANDT TV POWER+73

CGE TV POWER+52

TV POWER+75

EDISON

TV POWER+19, +20, +23, +24, +25,

DAEWOO

+26, +27, +28, +29, +30, +31, +32, +33, +34

TV POWER+06, +49,

FINLUX

+57

FUJITSU TV POWER+84

TV POWER+49, +52,

GRUNDIG

+71

TV POWER+60, +72,

HITACHI

+73, +75

JVC TV POWER+61, +79

TV POWER+06, +19,

+20, +21, +22, +78

LOEWE TV POWER+06, +69

METZ TV POWER+57

TV POWER+06, +48, +62, +65

MIVAR TV POWER+52, +77

NEC TV POWER+83

NEWSAN TV POWER+68

Brand Code

NOBLEX TV POWER+66

NOKIA TV POWER+74

NORDMENDE

PANASONIC

PHILIPS

PHONOLA

PIONEER

RADIOLA TV POWER+06, +56

RADIOMARELLI TV POWER+57

RCA TV POWER+45, +46

REX TV POWER+74

SABA

SALORA TV POWER+74

SANYO

SCHNEIDER TV POWER+06

SELECO TV POWER+74

SHARP

SIEMENS TV POWER+71

SINGER TV POWER+57

SINUDYNE TV POWER+57

SONY TV POWER+35, +48

TELEAVA TV POWER+73

TELEFUNKEN

THOMSON

THOMSON ASIA TV POWER+80, +81

TOSHIBA

WEGA TV POWER+57

YOKO TV POWER+06

ZENITH TV POWER+63

TV POWER+72, +73, +75

TV POWER+53, +54, +74, +75

TV POWER+06, +55, +56, +57

TV POWER+06, +56, +57

TV POWER+58, +59, +73, +74

TV POWER+57, +72, +73, +74, +75

TV POWER+41, +42, +43, +44, +48

TV POWER+36, +37, +38, +39, +48

TV POWER+67, +73, +75, +76

TV POWER+72, +73, +75

TV POWER+47, +48, +49, +50, +51, +52

20 English

Connections

Connecting to a TV

Case 1 : Connecting to a TV with an HDMI Cable - Best Quality (Recommended)

Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN terminal of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the HDMI signal from the player appears on

your TV screen.

If you have set the remote control to operate your TV (See page 20), press the TV SOURCE

• button on the remote control and select HDMI as the external source of the TV.

HDMI cable

(not included)

04 Connections

NOTE

✎

An HDMI cable outputs digital video/audio, so you don’t need to connect an audio cable.

▪

If the player is connected to your TV in HDMI 720p, 1080i, 1080p output mode, you must use a High speed(category2)

▪

HDMI cable.

HDMI outputs only a pure digital signal to the TV.

▪

If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

▪

When you connect the player to the TV using the HDMI cable for the first time or to a new TV, the HDMI output

▪

resolution will be automatically set to the highest supported by the TV.

English 21

Connections

Case 2 : Connecting to a TV with DVI Cable - Best Quality (Recommended)

Using an HDMI-DVI cable, connect the HDMI OUT terminal on the rear of the player to the DVI IN

terminal of your TV.

Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player

to the AUDIO IN (red and white) terminals of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the DVI signal from the player appears on

your TV screen.

If you have set the remote control to operate your TV (See page 20), press the TV SOURCE

• button on the remote control and select HDMI as the external source of the TV.

HDMI-DVI cable

(not included)

NOTE

✎

HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content

▪

Protection), random noise appears on the screen.

Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

▪

When you connect the player to the TV using the HDMI-DVI cable for the first time or to a new TV, the HDMI output

▪

resolution will be automatically set to the highest supported by the TV.

Audio cable

22 English

WhiteRed

Case 3 : Connecting to a TV (Component) - Better Quality

Connecting to your TV using Component video cables.

You will enjoy high quality images with accurate color reproduction. Component video separates the

picture element into black and white(Y), blue(PB) and red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.)

Using Component video cables, connect the COMPONENT VIDEO OUT terminals on the rear of

the player to the COMPONENT IN terminals of your TV.

Using the audio cables, connect the AUDIO OUT (red and white) terminals on the rear of the player

to the AUDIO IN (red and white) terminals of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the “COMPONENT” signal from the player

appears on the TV screen.

If you have set the remote control to operate your TV (See page 20), press the TV SOURCE

• button on the remote control and select COMPONENT as the external source of the TV.

Component cable

Audio cable

(not included)

04 Connections

White Red Blue GreenRed

NOTE

✎

Depending on the manufacturer, the component terminals on your TV may be marked “R-Y, B-Y, Y ” or “Cr, Cb, Y”

▪

instead of “PB, PR, Y”. The number and position of terminals may vary depending on the TV set. Please refer to the user manual of your TV.

You can select from a variety of resolution settings for Blu-ray Discs such as 1080i, 720p, 480p, 480i, depending on

▪

the disc type. (See pages 32~33)

The actual resolution may differ from the setting in the setup menu if both Component and HDMI cables are connected.

▪

The resolution may also be different depending on the disc. (See pages 32~33)

In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i or

▪

720p mode, the Display Setup menu will show the output resolution as 1080p, 1080i or 720p in the menu. The resolution is actually 480i.

English 23

Connections

Case 4 : Connecting to a TV (Video) - Good Quality

Using video/audio cables, connect the VIDEO OUT (yellow) / AUDIO OUT (red and white) terminals on the rear of the player to the VIDEO IN (yellow) / AUDIO IN (red and white) terminals of your TV.

Turn on the player and TV.

Press the input selector on your TV remote control until the “VIDEO” signal from the player appears on the TV screen.

•

If you have set the remote control to operate your TV (See page 20), press the TV SOURCE button on the remote control and select VIDEO as the external source of the TV.

Audio/Video cable

NOTE

✎

Noise may be generated if the audio cable is placed too close to the power cable.

▪

If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 25~27)

▪

The number and position of terminals may vary depending on your TV set. Please refer to the user manual of your TV.

▪

If there is only one audio input terminal on the TV, connect it to the AUDIO OUT(right/white) terminal of the player.

▪

CAUTION

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection

▪

systems and the picture will be distorted on the television.

24 English

WhiteRed Yellow

Connecting to an Audio System

Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause

• damage to the speakers and your ears.

Please set the audio in the menu screen according to the Amplifier. (See pages 34~36)

• The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user manual

• of your Amplifier.

Case 1 : Connecting to an Audio System (HDMI Supported Amplifier)

- Best Quality (Recommended)

Using an HDMI cable, connect the HDMI OUT terminal on the rear of the player to the HDMI IN

terminal of your Amplifier.

Using an HDMI cable, connect the HDMI OUT terminal of the Amplifier to the HDMI IN terminal of

your TV.

Turn on the player, TV and Amplifier.

Press the input select button of the Amplifier to select the external input in order to hear sound from

the player. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.

04 Connections

HDMI cable

(not included)

HDMI cable

(not included)

English 25

Connections

Case 2 : Connecting to an Audio System (7.1 Channel Amplifier)

- Better Quality

Using the 7.1CH audio cables, connect the 7.1CH ANALOG AUDIO OUT terminals on the rear of

the Player to the 7.1CH ANALOG AUDIO IN terminals of your Amplifier.

Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the

rear of the Player to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 21~24)

Turn on the Player, TV and Amplifier.

Press the input select button of the Amplifier to select the external input in order to hear sound from

the Player. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.

7.1CH audio cables (not included)

26 English

7.1 Channel Ampliﬁer

The front left and right outputs on your player and 7.1 channel ampliﬁer must be connected to hear disc



menu audio from certain Blu-ray discs.

When you connecting the 7.1CH ANALOG AUDIO OUT terminals using 7.1CH audio cables, it is



recommended to set the Digital Output to PCM. (See page 34)

When connecting to a 5.1 channel home theater or receiver, connect all the Analog Audio output jacks from



the player except for the Surround Back Left/Surround Back Right outputs.

Case 3 : Connecting to an Audio System (Dolby Digital, DTS Amplifier) - Better Quality

Using an optical cable, connect the DIGITAL

1. AUDIO OUT (OPTICAL) terminal on the rear of the player to the DIGITAL AUDIO IN (OPTICAL) terminal of your Amplifier.

Using the video signal cable(s), connect

the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the player to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 21~24)

Turn on the player, TV and Amplifier.

Press the input select button of the Amplifier

to select the external input in order to hear sound from the player. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.

Case 4 : Connecting to an Audio System (2 Channel Amplifier)

- Good Quality

Using the audio cables, connect the AUDIO

1. OUT (red and white) terminals on the rear of

the player to the AUDIO IN (red and white) terminals of your Amplifier.

Using the video signal cable(s), connect

the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the player to the HDMI, COMPONENT or VIDEO IN terminal of your TV. (See pages 21~24)

Turn on the player, TV and Amplifier.

Press the input select button of the Amplifier

to select the external input in order to hear sound from the player. Refer to your Amplifier’s user manual to set the Amplifier’s audio input.

04 Connections

Case 3 :

Optical cable

(not included)

NOTE

✎

When following the case 3 connection, discs with PCM audio soundtracks will only be heard over the front two

▪

channels.

Case 4 : Audio cable

WhiteRed

English 27

Connections

Connecting to the Network

This player enables you to view network based services (See pages 53~58) such as Internet@TV and BD-LIVE, as well as receive software upgrades when a network connection is made. We recommend using an AP (Access Point) or IP router for the connection. For more information on router connection, refer to the user manual of the router or contact the router manufacturer for technical assistance.

Cable Network

Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the player to the LAN terminal

of your modem.

Set the network options. (See pages 38~42)

Broadband modem

(with integrated router)

Broadband

service

Networking with PC for AllShare function (See pages 57~58)

NOTE

✎

Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the ISP’s

▪

policy. For more information, contact your ISP (Internet Service Provider).

For DSL users, please use a router to make a network connection.

▪

For the AllShare function, a PC must be connected in the network as shown in the figure.

▪

Router

Broadband modem

Broadband service

28 English

Wireless Network

You can connect to network with a Wireless IP sharer. A wireless AP/IP router is required to make a wireless network connection. Set the network options. (See pages 38~42)

Broadband

service

Wireless IP sharer

Networking with PC for AllShare function (See pages 57~58)

NOTE

✎

You must use a wireless IP sharer that supports IEEE 802.11 b/g/n. (n is recommended for stable operation of the

▪

wireless network.)

Wireless LAN, by its nature, may cause interference, depending on the use condition (AP performance, distance,

▪

obstacles, interference by other radio devices, etc).

Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.

▪

When applying the security key for the AP (wireless IP sharer), only the following is supported.

▪

Authentication Mode : WEP, WPAPSK, WPA2PSK

Encryption Type : WEP, TKIP, AES

For the AllShare function, a PC must be connected in the network as shown in the figure.

▪

04 Connections

English 29

Setup

internet radio

You Tube

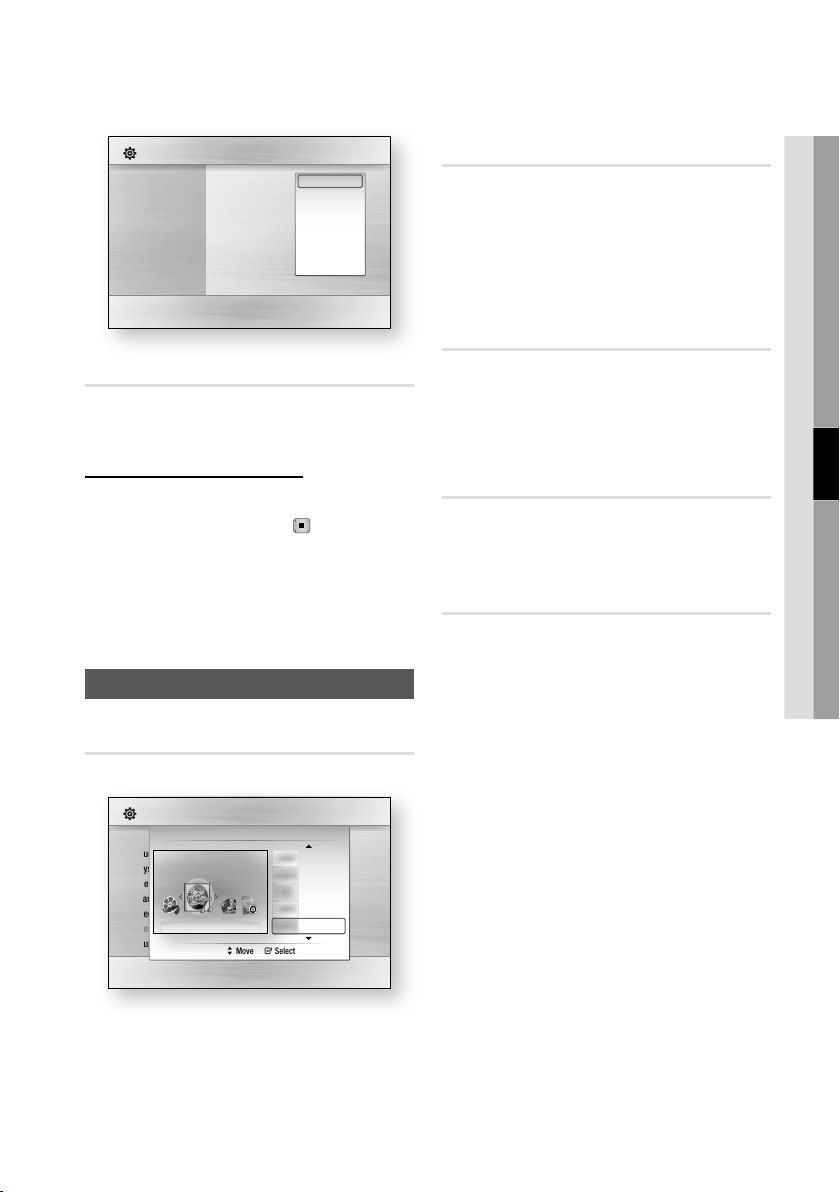

Before Starting (Initial Settings)

Turn on your TV after connecting the player.

(When the player is connected to TV for the first time, player will turn on automatically and the Initial Settings screen will be displayed.)

Initial Settings I On-Screen Language

Select a language for the on-screen displays.

English

Français

Deutsch

Español

Italiano

Nederlands

> Move " Select

Press the ▲▼ buttons to select desired

language, then press the ENTER button.

Press the ENTER button to select Start

button.

Press the ◄► buttons to the select the

5. desired Network Settings: Wired, Wireless or PBC (WPS), then press the ENTER button.

(See pages 39~42) The Network Test will start and Initial Settings will be completed.

Press the OK button.

The home menu will be displayed. (For more information about home menu, please see page 31)

Home Menu

•

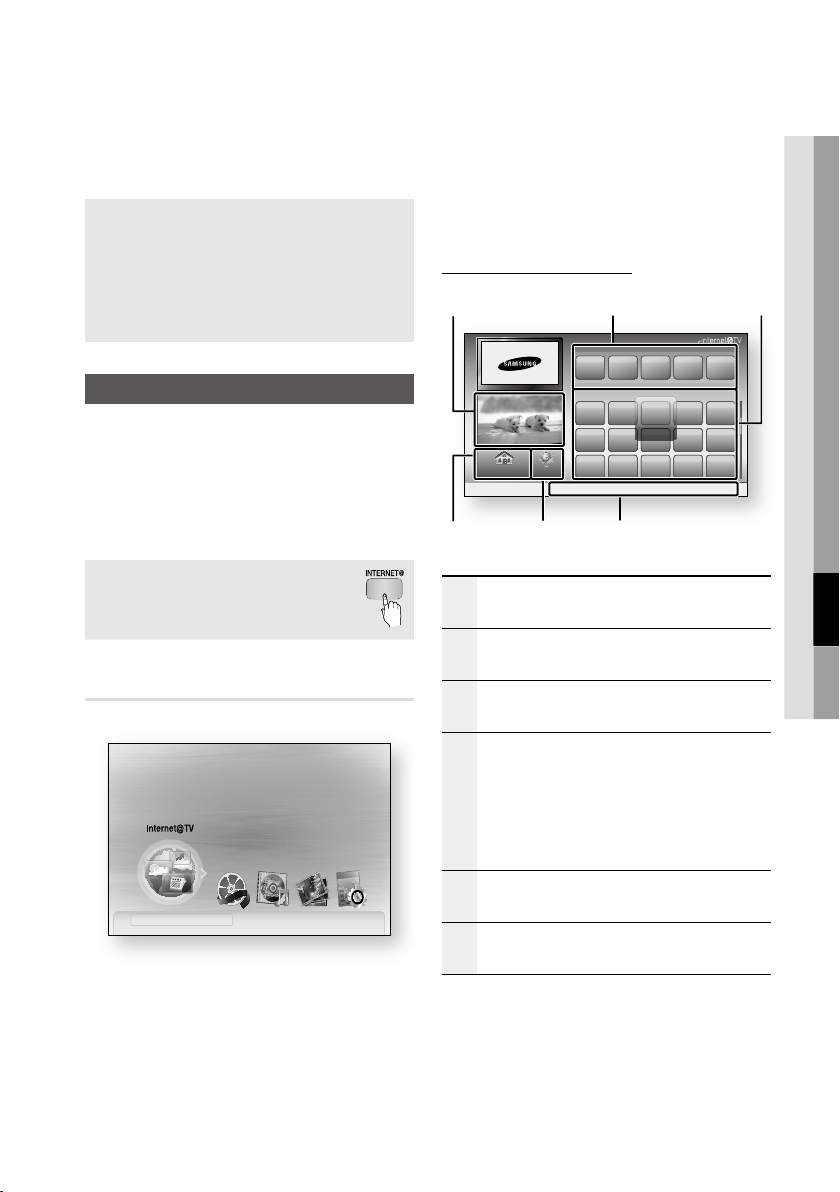

Please activate Internet@TV service

to enjoy a variety of Internet Services.

No Disc a Change Device d View Devices " Enter

Initial Settings

TV Aspect and Network will be set.

Each setting may be changed later under "Settings"

Start

a Previous " Select

Press the ▲▼ buttons to select the desired

TV Aspect ratio, then press the ENTER button. (See page 32)

Initial Settings I Network

Network Setting is needed to use various Internet services.

Choose the primary method for connecting to network.

Wired : Set the network by using Ethernet cable.

Please make sure that Ethernet cable is connected.

Wireless PBC (WPS)

Wired

a Previous d Skip < Move " Select

30 English

NOTE

✎

When the player is connected to TV for the first time,

▪

player will turn on automatically. Do not confuse because this is not malfunction.

The home menu will not be displayed if you do not

▪

configure the initial settings.

If you press the BLUE(D) button during the network

▪

setup, you can access the home menu even if the network setup is not completed yet.

When you return to home menu, the full screen

▪

mode will be cancelled automatically.

If you want to display Initial Setting screen again

▪

in order to make changes, press the STOP ( ) button on the front panel of the player for more than 5 seconds with no disc inserted.

Use the HDMI cable to connect the player to an

▪

Anynet+(HDMI-CEC)-compliant Samsung TV. If the TV uses a language supported by the player, that language will be set to a preferred language automatically. However, the Anynet+(HDMI-CEC) feature should be set to On in both TV and the player.

If the player is left in the stop mode more than 5

POWER

BONUSVIEW SOURCE

DISC MENU TITLE MENUMENU

1 2 3

4 5 6

7 8 9

SUBTITLE

AUDIO

INFOTOOLS

EXITRETURN

internet radio

You Tube

▪

minutes without being used, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 25 minutes, the power will automatically turn off.

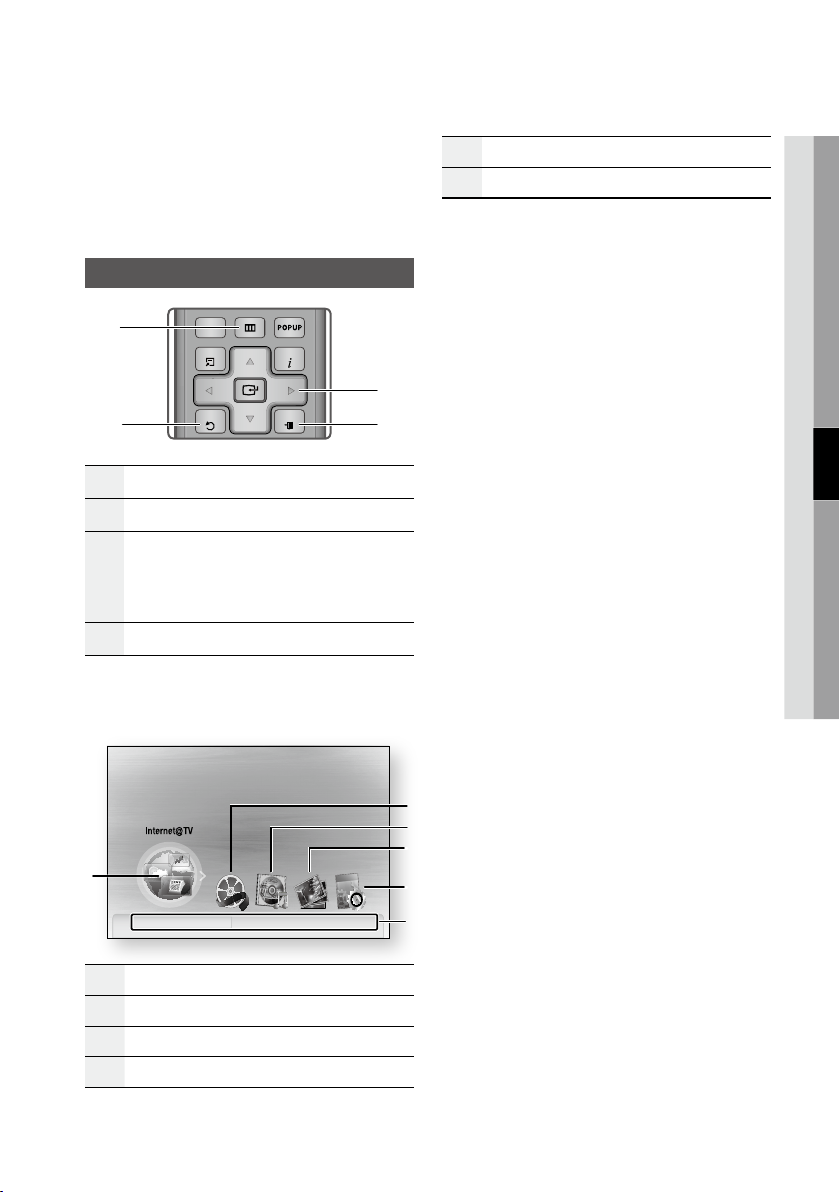

Setting the Menu

MENU Button :

RETURN Button : Return to the previous menu.

ENTER / DIRECTION Button : Move the cursor or select an item.

Select the currently selected item. Confirm the setting.

EXIT Button :

Press the POWER button.

The Home Menu will appear.

Home Menu

•

Press this to move to the home menu.

Press this to exit the menu.

Selects the Settings.

Displays buttons available.

Press the ◄► buttons to select Settings,

then press the ENTER button.

Press the ▲▼ buttons to select the desired

submenu, then press the ENTER button.

Press the ▲▼ buttons to select the desired

item, then press the ENTER button.

Press the EXIT button to exit the menu.

NOTE

✎

When the player is connected to the network, select

▪

Internet@TV from the home menu. Download desired content from Samsung AppS. (See page 56)

The access step may differ depending on the

▪

selected menu.

The OSD (On Screen Display) may change in this

▪

player after upgrading the software version.

05 Setup

Please activate Internet@TV service

to enjoy a variety of Internet Services.

No Disc a Change Device d View Devices " Enter

Selects the Internet@TV.

Selects the Videos.

Selects the Music.

Selects the Photos.

2 3 4

English 31

Setup

Display

You can configure various display options such as the TV Aspect, Resolution, etc.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting.

16:9 Normal

•

Certain movies(4:3 source) will be displayed in 4:3 Pillarbox (black bars on sides of picture) if 16:9 normal is selected.

16:9 Wide

•

You can view the full 16:9 picture on your widescreen TV.

4:3 Letter Box

•

Select when you want to see the total 16:9 ratio screen a Blu-ray Disc/DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

4:3 Pan-Scan

•

Select when you want to see the 16:9 video supplied by the Blu-ray Disc/DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).

NOTE

✎

Depending on the disc type, some aspect ratios may

▪

not be available.

If you select an aspect ratio and option which is

▪

different than the aspect ratio of your TV screen, then the picture might appear to be distorted.

If you select the 4:3 Pan-Scan or 4:3 Letter Box, you

▪

can’t see full screen by pressing the FULL SCREEN button on the remote control.

32 English

If you select the 16:9 Normal, 4:3 Pillarbox may

▪

displayed. In this case, you can’t see full screen by pressing the FULL SCREEN button on the remote control.

BD Wise (Samsung Players only)

BD Wise is Samsung’s latest inter-connectivity feature.

When you connect Samsung players with BD Wise to each other via HDMI, the optimum resolution will be set automatically.

On : The original resolution of the BD/DVD disc

•

will be output to the TV. Off : The output resolution will be fixed

•

according to the Resolution previously set, regardless of the resolution of the disc.

NOTE

✎

If you want to change the resolution in BD Wise, you

▪

must set BD Wise to Off in advance.

If you set off the BD Wise, the resolution of the

▪

connected TV will be adjusted to its maximum resolution automatically.

If the player is connected to a device that does not

▪

support BD Wise, you can not use the BD Wise function.

For proper operation of BD Wise, set the BD Wise

▪

menu of both the product and the TV to On.

Resolution

Sets the output resolution of the Component and HDMI video signal.

The number in 1080p, 1080i, 720p, 480p, 480i indicates the number of lines of video. The i and p indicate interlace and progressive scan, respectively.

Auto : It automatically checks and sets the

•

optimal resolution. BD Wise : Automatically sets the optimal

•

resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.)

1080p : Outputs 1080 lines of progressive

•

video. 1080i : Outputs 1080 lines of interlaced video.

•

720p : Outputs 720 lines of progressive video.

•

480p : Outputs 480 lines of progressive video.

•

480i : Outputs 480 lines of interlaced video.

•

Resolution according to the output mode

Blu-ray Disc playback

•

Setup

1080p, Movie Frame(24Fs) off 1080p@60F 480i - -

1080p/1080i,

Movie Frame(24Fs) on

1080i, Movie Frame(24Fs) off 1080i 480i 1080i 480i

720p 720p 480i 720p 480i

480p 480p 480i 480p 480i

DVD playback

•

Setup

1080p 1080p@60F 480i - -

1080i 1080i 480i 480p 480i

720p 720p 480i 480p 480i

480p 480p 480i 480p 480i

Output

Auto Optimal Resolution 480i - -

480i - - 480i 480i

Output

Auto Optimal Resolution 480i - -

480i - - 480i 480i

HDMI / connected HDMI / not connected

HDMI Mode

1080p@24F 480i - -

HDMI Mode

Component/VIDEO Mode

HDMI / connected HDMI / not connected

Component/VIDEO Mode

Component Mode VIDEO Mode

05 Setup

NOTE

✎

If the connected TV does not support Movie Frame or

▪

the selected resolution, the message “If no pictures are shown after the selection, please wait for 15 seconds. And then, the resolution will be reverted to the previous value automatically. Would you like to make a selection?” will be displayed. If you select Yes and the resolution is not supported, the TV’s screen will be blank. Please wait for 15 seconds and the resolution will be reverted to the previous value automatically.

If the screen is blank, press and hold the STOP ( )

▪

button on the front of the player for more than 5 seconds (no disc inserted). All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support.

When the factory default settings are restored, all

▪

the user data stored in the BD data will be deleted.

The Blu-ray Disc must have the 24 frame feature in

▪

order to use the Movie Frame (24Fs) mode.

If both HDMI and Component jacks are connected

▪

and you are currently viewing component output, there is a difference between resolution table and acutal resuloution depending on your TV.

English 33

Setup

HDMI Format

You can optimize the color setting from the HDMI output. Select a connected device Type.

TV : Select if connected to a TV via HDMI.

•

Monitor : Select if connected to a Monitor via

• HDMI.

Movie Frame (24Fs)

Setting the Movie Frame (24Fs) feature to On allows you to adjust the player’s HDMI output to 24 frames per second for improved picture quality. You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. This menu can only be selected in 1080i or 1080p HDMI output resolution modes.

On : Movie Frame (24Fs) functions will work.

• Off : Movie Frame (24Fs) functions will not work.

•

NOTE

✎

If your TV does not support Movie Frame (24Fs)

▪

function, the pop-up message will be displayed.

Progressive Mode

Set to improve picture quality when viewing DVDs.

Auto : Select this to have the player

• automatically set the best picture for the DVD you’re watching.

Video : Select for the best picture quality from

• concert or TV show DVDs.

Still Mode

Set the type of picture shown when you pause DVD playback.

Auto : Automatically set the best still picture

• depending on the content.

Frame : Select when pausing a scene with a

• little action.

Field : Select when pausing a scene with a lot

• of action.

HDMI Deep Color

Set to output the picture from the HDMI OUT jack with Deep Color or not. Deep Color allows more accurate color reproduction with deeper color depth.

Auto : The picture will be output with Deep

• Color to the connected TV which supports HDMI Deep Color.

Off : The picture will be output without Deep

• Color.

Audio

Digital Output

Set Digital Output depending on the connected receiver. (For more details, please refer to the digital output selection on the next page)

PCM

•

Bitstream(Re-encode)

•

Bitstream(Audiophile)

•

NOTE

✎

Be sure to select the correct Digital Output or you

▪

will hear no sound or a loud noise.

If the HDMI device (Receiver, TV) is not compatible

▪

with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.

Secondary and Effect audio will not be heard with

▪

regular DVDs.

Some Blu-ray Discs do not have Secondary and

▪

Effect audio.

This Digital Output setup does not effect the analog

▪

(L/R) audio or HDMI audio output to your TV. It effects the optical and HDMI audio output when connected to a receiver.

If you play MPEG audio soundtracks, audio signal

▪

outputs PCM regardless of Digital Output Selections (PCM or Bitstream).

34 English

Digital Output Selection

05 Setup

Audio Stream

Setup Definition Connection

PCM

Bitstream

(Re-encode)

Bitstream

(Audiophile)

Decodes Primary, Secondary and Effect audio streams together into PCM audio.

Decodes Primary, Secondary and Effect audio streams together into PCM audio, then reencodes the PCM audio into DTS bitstream.

Outputs only the Primary audio soundtrack (main soundtrack of the movie) so that your receiver can decode the audio bitstream. You will not hear Secondary and Effect audio.

HDMI

Receiver

Optical PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch

HDMI/

Optical

HDMI 1.3

Receiver

Optical PCM 2ch

Dolby

PCM

Digital

Up to

PCM

7.1ch

5.1ch

DTS DTS DTS DTS DTS DTS DTS

Up to

Dolby

PCM

Digital

7.1ch

Dolby Digital

Digital

Plus

Up to PCM

7.1ch

Dolby

Digital

Plus

Dolby

Digital

Dolby

TrueHD

Up to PCM

7.1ch

Dolby

TrueHD

Dolby

Digital

DTS-HD

HRA

Up to

PCM

7.1ch

DTS-HD

HRA

DTS-HD

Up to

7.1ch

DTS-HD

DTS

Up to

PCM

6.1ch

DTS

DTS DTS DTS

HRA

PCM

Blu-ray Discs may include three audio streams.

Primary Audio : The audio soundtrack of the

main feature

Secondary Audio : Addional soundtrack such as

director or actor’s commentary.

Interactive Audio : Interactive sounds will be

heard when selected. Interactive Audio is different on each Blu-ray Disc.

PCM Downsampling

Set whether to downsample 96KHz signals.

On : Select this when the Amplifier connected

• to the player is not 96KHz compatible. 96KHz signals will be down converted to 48KHz.

Off : Select this when the Amplifier connected

• to the player is 96KHz compatible.

NOTE

✎

Even when PCM Downsampling is set to Off, some

▪

discs will only output downsampled audio through the optical digital outputs.

English 35

Setup

HDMI

If your TV is not compatible with compressed

• multi-channel formats (Dolby Digital, DTS), the player may output PCM 2ch downmixed audio even though you set Bitstream(either Re-encode or Audiophile) on your setup menu.

If your TV is not compatible with PCM sampling

• rates over 48kHz, the player may output 48kHz downsampled PCM audio even though you set PCM Downsampling to Off.

Cinema : Select this if you want to play

• 2-channel movie sound over multi-channels.

Music : Select this if you want to play 2-channel

• music sound over multi-channels.

NOTE

✎

If you are using HDMI receiver, this option is

▪

available when you set Digital Output setup as PCM.

You can use this option with analog 7.1ch output

▪

when you don’t use HDMI receiver.

Dynamic Range Control

You can listen at low volumes but still hear dialog clearly. This is only active when a Dolby Digital signal is detected.

On : When Movie soundtracks are played at low

• volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

Off : You can enjoy the movie with the standard

• Dynamic Range.

Downmixing Mode

Set whether to downmix the multi-channel audio into fewer channels.

Normal Stereo : Downmixes the multi-channel

• audio into two channel stereo. Choose when connected to equipment that does not support virtual surround functions such as Dolby Pro Logic.

Surround Compatible : Downmixes multi-

• channel audio into surround compatible stereo. Choose when connected to equipment that supports virtual surround functions such as Dolby Pro Logic.

Speaker Setting

Set the speaker sound to obtain the best possible surround sound.

This menu is available only when using 7.1ch analog output.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Set the front speaker size to Large.

Test Tone

A test tone will be sent to L ; C ; R ; RS ;

•

RSB ; LSB ; LS ; LFE in order, so you can make sure the speakers are set up correctly.

The test tone can only be activated when no

• discs are in the unit.

The test tone outputs through the 7.1 channel

• analog outputs only.

Speaker Setting

Front : Large

Center : Large Surround : Large Surround Back : Large Subwoofer : On

< Change " Enter ' Return

Test Tone : Off

DTS Neo:6

You can enjoy multi-channel sound from a simple 2-channel audio source.

Off : Outputs a 2-channel audio signal through

• the front speakers only.

36 English

System

Initial Settings

By using Initial Settings, you can set language, TV aspect and Network Settings, etc. For more information on the settings, refer to the corresponding section in this user manual. (See pages 31~44)

Internet@TV Screen Size

Set the Internet@TV Screen to the optimal size.

Size 1 : Display smaller application icons, you

• may see some black on sides of screen.

Size 2 : Display normal application icons, image

• may be too large for your TV screen.

Size 3 : Display larger application icons, image

• may be too large for your TV screen.

Anynet+(HDMI-CEC)

Anynet+ is a convenient function that offers linked operations with other Samsung players with the Anynet+ feature. To operate this function, connect this player to a Samsung TV with an HDMI cable. You can operate this player using a Samsung TV remote control and start disc playback simply by pressing the PLAY ( ) button on the TV’s remote control. For more information, please see the TV user manual.

On : Anynet+ functions will work.

• Off : Anynet+ function will not work.

•

NOTE

✎

This function is not available if the HDMI cable does

▪

not support CEC.

If your Samsung TV has an

▪

supports the Anynet+ function.

Depending on your TV, certain HDMI output

▪

resolutions may not work. Please refer to the user manual of your TV.

logo, then it

BD Data Management

Enables you to manage the downloaded contents from a Blu-ray Disc that supports the BD-LIVE service.

You can check the device information including the storage size, delete the BD data or change the Flash memory device.

Change Device allows you to select either the player’s Internal Memory or External Memory (connected USB Device).

If the data to be stored from BD-LIVE is greater than the size of the remaining memory or the Internal Memory is full, connect an External USB device, then select External Device in the menu.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Delete all BD data in the storage.

Description of Device(Storage) Information on the Player

Total Size : Total size of the Device(Storage).

•

Available Size : Available size of the Device

• (Storage).

NOTE

✎

In the external memory mode, disc playback will

▪

be stopped if you disconnect the USB device in the middle of the playback.

Only those USB devices formatted in FAT file system

▪

(DOS 8.3 volume label) are supported, and it is recommended to use USB devices that support USB

2.0 protocol, 4 MB/sec or faster read/write speed.

A USB HDD device cannot be used for BD Data

▪

storage (BD-LIVE).

The Resume Play function may not work after

▪

formatting the storage device.

The total size of BD Data Management may differ,

▪

depending on the software version.

BD Data Management

Current Device : Internal Memory

Total Size : 703MB

Available Size : 703MB

Delete BD Data

Change Device : Internal Memory

" Select ' Return



05 Setup

English 37

Setup

Clock

Set time-related functions.

Settings

Display

Audio

Clock Mode : Auto 

System

Clock Set

Network

Time Zone : GMT + 0:00

Language

DST : Off

Security

General

> Move " Enter ' Return

Support

Choose your preferred method of setting clock.

Clock Mode : You can set it to Auto or

•

Clock

Manual. If you select Manual, the Clock Set menu will be activated while DST will be deactivated.

Clock Set : You can specify the current time

• and date manually.

Time Zone : You can specify the time zone that

• is applicable to your area.

DST : You can set DST (Daylight Saving Time)

• on or off.

DivX(R) Registration

View DivX(R) VOD Registration Code to purchase and play DivX(R) VOD content.

Settings

Display

Audio

System

Network

Language

Security

General

Support

NOTE

✎

This option is not activated if you select OK.

▪

To activate this option, please activate the DivX(R) Deactivation.

Initial Setting

Disc Menu :

Audio :

DivX(R) Video On Demand

Subtitle :

Your registration code is : XXXXXXXXXX

To learn more visit www.divx.com/vod

DivX(R) Deactivation

Select this to get a new registration code.

Settings

Display

Audio

System

Network

Language

Security

General

Support

NOTE

✎

This function can be operated when DivX(R)

▪

Initial Setting

Disc Menu :

Audio :

Subtitle :

Do you want to deactivate your device?

Yes No

Registration function is deactivated.

Network Setup

To begin setting up the network connection for your player, follow these steps:

In the Home menu, press the ◄► buttons

1. to select the Settings, and then press the ENTER button.

Press the ▲▼ buttons to select Network, and

then press the ENTER button.

Press the ▲▼ buttons to select Network

3. Settings, and then press the ENTER button.

Press the ▲▼ buttons to select Network

4. Type, and then press the ENTER button.

Press the ▲▼ buttons to select Wired or

5. Wireless, and then press the ENTER button.

Go to the next section.

Network Settings

Please contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, we recommend using the Auto setting. This is the easiest and will work in the majority of cases. If it is static, you must use the manual set up procedure.

Directions for wired networks are below. Directions for wireless networks are after the directions for wired networks.

38 English

Wired Network

In the Network Settings menu, press the ▲▼

buttons to select Network Settings, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the ► button, then select Auto or

2. Manual, and then press the ENTER button.

Setting Up a Wired Connection - Auto

If you selected Auto, the Network Function

acquires and fills in the values for IP Address, Subnet Mask, etc., automatically.

NOTE

✎

This process can take up to five minutes.

▪

Settings

Display

Audio

System

Network

Language

Security

General

Support

> Move " Select ' Return

After the Network Function has acquired the

network values, press the RETURN button. Then, run a Network Test to ensure the player has connected to your network (See page 42).

If the Network Function does not acquire the

network values or you selected Manual, go to the directions for Manual Setup.

Network Settings

Internet Protocol Setup : Auto 

IP Address : 0 0 0 0

Subnet Mask :

Gateway :

DNS : Auto

DNS Server : 0 0 0 0

0 0 0 0

Setting Up a Wired Connection - Manual

If the Auto Setting does not work, you’ll need to set the Network Setting values manually.

To get the Network setting values from most Windows computers, follow these steps:

Right click the Network icon on the bottom

right of the screen.

In the pop-up menu, click Status.

On the dialog that appears, click the Support

tab.

On the Support tab, click the Details button.

The Network settings are displayed.

To enter the Network settings into your player, follow these steps:

On the Internet Protocol Setup screen, press

the ENTER button.

Press the ▲▼ buttons to select Manual, and

then press the ENTER button.

Press the ▼ button to go to the first entry field

(IP Address).

Settings

Display

Audio

System

Network

Language

Security

General

Support

Select to conﬁgure your network type and IP address, or to perform a Network Test.

Use the number buttons on your remote to

Network Settings

Internet Protocol Setup : Manual

IP Address : 0 0 0 0

Subnet Mask :

Gateway :

DNS : Manual

DNS Server :

> Move " Select ' Return

255 255 255 0

0 0 0 0

enter numbers.

When done with each field, use the ► button

to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.

Enter the IP Address, Subnet Mask, and

6. Gateway values.

Press the ▼ button to go to DNS.

Press the ▼ button to go to the first DNS

entry field. Enter the numbers as above.

05 Setup

English 39

Setup

Press the RETURN button on your remote.

Run a Network Test to ensure the player has

10.

connected to your network (See page 42).

Wireless Network

You can setup the wireless network three ways:

Using PBC (WPS)

• Using the Auto Network Search function.

• Manually.

•

Each method is described below.

Setting Up the Wireless Network Connection

- PBC (WPS)

The easiest way to set up the wireless network connection is using the PBC (WPS) function. If your wireless router has a PBC (WPS) button, follow these steps:

In the Network Settings menu, press the ▲▼

buttons to select Network Settings, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the RED(A) button on the remote

control.

Press the PBC (WPS) button on your router

within two minutes. Your player displays the Network Selection Screen, and automatically acquires all the network setting values it needs and connects to your network. When it is done, it displays an OK button. Press the ENTER button on your remote.

After the network connection is set up, press

the RETURN button to exit the Network Setting screen.

Setting Up the Wireless Network Connection

- Auto Network Search

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

Setting Up the Network Connection



To set up the wireless connection using Auto Network Search, follow these steps:

In the Network Settings menu, press the ▲▼

buttons to select Network Settings, and then press the ENTER button. The Internet Protocol Setup screen appears.

Press the ▲▼ buttons to select the Internet

2. Protocol Setup, and then press the ENTER

button.

Press the ▲▼ buttons to select Auto or

3. Manual, and then press the ENTER button.

If you selected Auto, press the ▲ button to

go to Access Point Selection, and then press the ENTER button. The Network function searches for available wireless networks. When done, it displays a list of the available networks.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Network Settings

Network Selection

Connecting to network.

Network Name(SSID) : shj

" Select ' Return

Stop

40 English

In the list of networks, press the ▲▼ buttons

to select a network, and then press the ENTER button.

If the PIN/Security pop-up appears, go to

Step 7. If the Network Connecting Screen appears, go to Step 11.

Press the ▲▼ buttons to select PIN or

Security. For most home networks, you would select Security (for Security Key).

On the Security screen, enter your network’s

Pass Phrase.

NOTE

✎

You should be able to find the Pass Phrase on one of

▪

the set up screens you used to set up your router or modem.

To enter the Pass Phrase, follow these

general directions:

Press the number keys on your remote to

• enter numbers.

Use the arrow keys on your remote to move

• from button to button on the Security Key screen.

To enter letters, move to the button labeled

• a/A/1/, and then press the ENTER button. Each time you press the ENTER button, you change the kind of characters you can enter (a/A/1/).

To enter a letter, press the number button

• that corresponds to the letter. Pressing the button repeatedly changes the letter.

To delete the last letter or number you

• entered, move to the Delete button, and then press the ENTER button.

To clear all entered letters and numbers,

• move to the Clear key, and then press the

ENTER button. You can also just press the RED(A) button on your remote.

When done, press the YELLOW(C) button

10.

on your remote, or move to the Done button, and then press the ENTER button. The Network Connecting screen appears.

Wait until the connection confirmation

11.

message is displayed, and then press the ENTER button. The Network Settings screen reappears.

To test the connection, press the ▼ button

12. to select Network Test, and then press the ENTER button.

Setting Up the Wireless Network Connection

- Manual

If the Auto Setting does not work, you need to enter the Network settng values manually.

To get the Network setting values from most Windows computers, follow these steps:

Right click the Network icon on the bottom

right of the screen.

In the pop-up menu, click Status.

On the dialog that appears, click the Support

tab.

On the Support tab, click the Details button.

The Network settings are displayed.

To Enter the Network settings into your player, follow these steps:

On the Internet Protocol Setup screen, press

the ENTER button.

Press the ▲▼ buttons to select Manual, and

then press the ENTER button.

Press the ▼ button to go to the first entry field

(IP Address).

Settings

Display

Audio

System

Network

Language

Security

General

Support

Use the number buttons to enter numbers.

When done with each field, use the ► button

Network Settings

Access Point Selection : Not Selected 

Internet Protocol Setup : Manual

IP Address :

Subnet Mask :

Gateway :

DNS : Manual

DNS Server :

a PBC (WPS) > Move " Select ' Return

0 0 0

255 255 255 0

0 0 0 0

to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.

05 Setup

English 41

Setup

Enter the IP Address, Subnet Mask, and

6. Gateway values.

Press the ▼ to go to DNS.

Press the ▼ button to go to the first DNS

entry field. Enter the numbers as above.

When done, press the ▲ button to return to

Access Point Selection. Select the network, and then press the ENTER button.

Go to Step 6 in the Automatic Wireless

10.

procedure above, and follow the directions from that point on.

NOTE

✎

What is a valid certificate?

▪

When the player uses BD-LIVE to send the disc data and a request to the server to certify the disc, the server uses the transferred data to check if the disc is valid and sends the certificate back to the player.

The Internet connection may be restricted while you

▪

are using BD-LIVE contents.

Language

Network Test

Use this menu to connect the wired network or check whether your network connection is working or not.

Settings

Display

Audio

System

Network

Language

Security

General

Support

Test your Internet Protocol setup to see if it works correctly.

Network Test

MAC Address (00:00:00:00:00:00)



IP Address,Subnet Mask,Gateway,DNS Server

Gateway Ping

Internet Service Test

Network testing...

Network Status

Check whether a connection to the network and the Internet have been established.

BD-LIVE Internet Connection

Set to allow internet connection when BD-LIVE service is used.

Allow (All) : The Internet connection will be

•

allowed for all BD-LIVE contents. Allow (Valid Only) : The Internet connection will

•

be allowed only for BD-LIVE contents containing a valid certificate.

Prohibit : No Internet connection will be allowed

•

for any BD-LIVE content.

You can select the language you prefer for home menu, disc menu, etc.

On-Screen Menu : Select the language for the

• on-screen displays.

Disc Menu : Select the language for the disc

• menu displays.

Audio : Select the language for disc audio.

• Subtitle : Select the language for disc subtitles.

•

NOTE

✎

The selected language will only appear if it is

▪

supported on the disc.

Security

When you operate this menu for the first time, password setup screen will be displayed. Enter the desired 4-digit password using the number buttons. (Default password is set to 0000.)

Parental Rating

This function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating, which helps you control the types of Blu-ray Disc/ DVDs that your family watches.

Select the rating level you want to set. A larger number indicates that the program is

intended for adult use only. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.

42 English

Settings

Display

Audio

System

Network

Language

Security

General

Support

Parental Rating

Change Password

 Off

8(Adults)

Change Password

Change the 4-digit password used to access security functions.

If you forgot your password

Remove the disc.

Press and hold the STOP ( ) button on the

front panel for 5 seconds or more. All settings will revert to the factory settings.

NOTE

✎

When the factory default settings are restored, all

▪

the user data stored in the BD data will be deleted.

General

Background

Change the background theme of the menu screen.

Energy Saving

You can reduce power consumption by setting the front panel to turn off automatically when there is no operation for 5 seconds.

On : The front panel will automatically turn off

• when there is no operation for 5 seconds.

Off : Energy Saving function is not used.

•

Front Display

Change the brightness of the front panel.

Auto : Dim during playback.

• Dim : Dim the display window.

• Bright : Brighten the display window.

•

Power On/Off Sound

Play a melody when the player is turned on and off.

On : Turn Power Sound On.

• Off : Turn Power Sound Off.

•

Light Effect

You can activate or deactivate the light effect on the top of the product.

Always On : Activate Light Effect at all times.

• Select this for retail display.

Auto : Activate Light Effect when turning the

• player on and off or when moving the tray. Select when installing the player in your home.

Off : Turn Light Effect off at all times.

•

05 Setup

Settings

Display

Audio

System

Network

Language

Security

General

Support

> Move " Select ' Return

Background

Skin 1

Skin 2

Skin 3

Skin 4

Skin 5

English 43

Setup

Support

Software Upgrade

This menu allows you to upgrade software for performance improvements or additional services. You can check the current software version, upgrade using the internet and set the Auto upgrade notification. If the player is properly connected to the network by cable or wirelessly, the player will automatically connect to Samsung’s website each time it is turned on and download update files if any valid upgrade exists.

Settings

Display

Audio

System

Network

Language

Security

General

Support

To select By Internet, press the ENTER

button. A popup message will appear if an update is available.

If you select Yes, the player will turn off

automatically before restarting. (Never turn it on manually.)

The update progress popup will appear.

When the update is completed, the player will turn back off automatically.

Press the POWER button to turn on the

player.

NOTE

✎

The Update will be completed when the player turns

▪

off after restarting. Press the POWER button to turn on the updated player for your use. Never turn off or on the player manually during the update process.

Samsung Electronics shall take no legal responsibility

▪

for player malfunction caused an unstable internet connection or consumer negligence during software upgrade.

Software Upgrade

Disc Menu :

Audio :

Current Version : XXX-XXXXXXXXX

Subtitle :

By Internet

Auto Upgrade Notiﬁcation

" Select ' Return

: On



You can also update software in any of the two ways as follows: Software update is the same as in the By Internet menu.

USB : Visit www.samsung.com/bluraysupport,

• then download and store the latest software (RUF file) into a USB flash drive. Connect the USB flash drive to the USB port of the player (disc tray must be empty) to update the software, then follow the on-screen instructions.

CD/DVD : Visit www.samsung.com/

• bluraysupport, download and write the latest software (RUF file) onto a disc. Insert and play the disc in the player to start the update, then follow the on-screen instructions.

NOTE

✎

Software upgrades using the USB Host jack must be

▪

performed with no disc inside.

If you want to cancel the upgrade in the process of

▪

downloading the upgrade data, press the ENTER button.

When the system upgrade is done, check the

▪

software details in the software Upgrade menu.

Do not turn off the player during the System

▪

Upgrade, as it may cause the player to not work properly.

Software upgrades using the USB Host jack must be

▪

performed with a USB memory flash stick only.

Contact Samsung

Provide contact information for assistance with your player.

44 English

Basic Functions

Playing a Disc

Playback

Press the OPEN/CLOSE ( ) button to

open the disc tray.

Place a disc gently into the tray with the disc’s

label facing up.

Press the OPEN/CLOSE ( ) button to

close the disc tray.

Press the PLAY ( ) button.

Playback related buttons

PLAY (

) Starts playback.

Stops playback.

If pressing the button once : The

STOP (

PAUSE (

•

)

stop position will be memorized. If pressing the button twice : The

•

stop position will be not memorized.

) Pauses playback.

Disc Structure

The contents of disc are usually divided as below.

Blu-ray Disc, DVD-VIDEO

•

title 1 title 2

chapter 1 chapter 2 chapter 1 chapter 2 chapter 3

Audio CD (CD-DA)

•

track 1 track 2 track 3 track 4 track 5

MP3, WMA, DivX, MKV and MP4

•

folder (group) 1 folder (group) 2

file 1 file 2 file 1 file 2 file 3

Using the Disc menu/Title menu/

Popup menu

Using the Disc Menu

During playback, press the DISC

1. MENU button on the remote control.

Press the ▲▼◄► buttons to make

the desired selection, then press the

ENTER button.

NOTE

✎

Depending on the disc, the menu items may differ

▪

and this menu may not be available.

Using the Title Menu

During playback, press the TITLE

1. MENU button on the remote control.

Press the ▲▼◄► buttons to make

the desired selection, then press the

ENTER button.

NOTE

✎

Depending on the disc, the menu items may differ

▪

and this menu may not be available.

Playing the Title List

During playback, press the DISC

1. MENU or TITLE MENU button.

Press the ▲▼ buttons to select an

entry you want to play from Title List, then press the ENTER button.

NOTE

✎

If your disc has the playlist, press the GREEN(B)

▪

button to go to the Playlist.

06 Basic Functions

English 45

Basic Functions

Using the Popup Menu

During playback, press the POPUP

1. MENU button on the remote control.

Press the ▲▼◄► buttons or ENTER

button to select the desired menu.

NOTE

✎

Depending on the disc, the menu items may differ

▪

and this menu may not be available.

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.

Searching for a Desired Scene

hzZyx

During playback, press the SEARCH ( )

•

button. Each time you press the SEARCH ( )

button, the playback speed will change as follows.

BD-ROM,

BD-RE/-R,

DVD-RW/-R,

DVD+RW/+R,

DVD-VIDEO

DivX, MKV, MP4

To return to normal speed playback, press the

•

PLAY ( ) button.

NOTE

✎

No sound is heard during search mode.

▪

) )

( (

)

(

)



2  ) 3 

)



5  ) 6  ) 7

(



2  ( 3 

(



5  ( 6  ( 7

)



2  ) 3

(



2  ( 3

Skipping Chapters

hzZyx

During playback, press the SKIP ( )

• button.

If you press the SKIP ( ) button, it moves to the next chapter.

If you press the SKIP ( ) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.

Slow Motion Play/Step Motion Play

Slow Motion Play

hzZyx

In pause mode, press the SEARCH ( )

• button.

If you press the SEARCH ( ) button, the playback speed is reduced to

1/8 * 1/4 * 1/2

To return to normal speed playback, press the

•

PLAY ( ) button.

NOTE

✎

No sound is heard during slow mode.

▪

Slow motion operates only in the forward direction.

▪

Step Motion Play

hzZyx

In pause mode, press the PAUSE ( ) button.

• Each time the PAUSE ( ) button is pressed,

a new frame will appear. To return to normal speed playback, press the

•

PLAY ( ) button.

NOTE

✎

No sound is heard during step mode.

▪

Step motion operates only in the forward direction.

▪

46 English

Repeat Playback

Repeat the Title or Chapter

hzZy

Repeat the disc title or chapter. Depending on the disc, the Repeat function may

not be available.

During playback, press the REPEAT

button on the remote control.

Press the ▲▼ buttons to select Chapter or

2. Title, then press the ENTER button.

Repeat > Chapter

To return to normal play, press the REPEAT

button again.

Press the ▲▼ buttons to select Off, the press

4. the ENTER button.

Repeat the Section

hzZy

During playback, press the REPEAT

button on the remote control.

Press the ENTER button at the point where

you want repeat play to stop (B).

To return to normal play, press the REPEAT

button again.

Press the ENTER button.

NOTE

✎

If you set point (B) before 5 seconds has lapsed, the

▪

prohibition message will appear.

Using the TOOLS button

During playback, you can operate disc menu by pressing the TOOLS button.

TOOLS Menu Screen

•

Tools

Title : 1/1

Chapter

Playing Time : 00:12:06

Audio : 1/7 ENG Multi CH

Subtitle : 1/6 ENG

Angle : 1/1

BONUSVIEW Video : Off

BONUSVIEW Audio : 0/1 Off

Picture Setting

< Change " Select

NOTE

✎

Depending on the disc, the TOOLS menu may differ.

▪

< 4/21 >

Moving to a Desired Scene Directly

06 Basic Functions

Press the ▲▼ buttons to select Repeat A-B.

Repeat A-B : Off

Repeat

Press the ENTER button at the point where

" Mark A

you want repeat play to start (A).

hzZy

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Title, Chapter

or Playing Time.

Enter the desired Title, Chapter or Playing

3. Time using the number buttons, then press the ENTER button.

English 47

Basic Functions

Selecting the Audio Language

hzZx

You can also operate this function by pressing the AUDIO button on the remote control.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Audio.

Press the ◄► buttons to select the desired

audio language.

NOTE

✎

The ◄► indicator will not be displayed on the

▪

screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings.

Information about the primary / secondary mode

▪

will be also displayed if the Blu-ray Disc has a BONUSVIEW section. Use the ◄► button to switch between primary and secondary audio modes.

This function depends on what audio languages are

▪

encoded on the disc and may not be available.

A Blu-ray Disc can contain up to 32 audio languages

▪

and a DVD up to 8.

Some Blu-ray Discs may allow you to select either

▪

the multi-channel LPCM or Dolby digital audio soundtrack in English.

If you press the AUDIO button on the remote control,

▪

Audio bar will be displayed. Press the RETURN button to remove the Audio bar.

NOTE

✎

Depending on the Blu-ray Disc / DVD, you may be

▪

able to change the desired subtitle in the Disc Menu. Press the DISC MENU button.

This function depends on what subtitles are encoded

▪

on the disc and may not be available on all Blu-ray Discs/DVDs.

A Blu-ray Disc can contain up to 255 subtitle

▪

languages and a DVD up to 32.

Information about the primary / secondary mode

▪

will also be displayed if the Blu-ray Disc has a BONUSVIEW section.

This function changes both the primary and

▪

secondary subtitles at the same time.

The total number of subtitles is the sum of the

▪

primary and secondary ones.

If you press the SUBTITLE button on the remote

▪

control, the subtitle bar will be displayed. Press the RETURN button to remove the subtitle bar.

Changing the Camera Angle

When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Angle.

Press the ◄► buttons to select the desired

Angle.

Selecting the Subtitle Language

hZx

You can also operate this function by pressing the SUBTITLE button on the remote control.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Subtitle.

Press the ◄► buttons to select the desired

subtitle language.

48 English

Selecting the Picture Setting

hzZy

This function enables you to adjust video quality when you are connected to a TV via HDMI.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select Picture Setting,

then press the ENTER button.

Press the ◄► buttons to select the desired

3. Picture Setting, then press the ENTER button.

Dynamic : Choose this setting to increase

POWER

BONUSVIEW SOURCE

1 2 3

4 5 6

7 8 9

SUBTITLE

AUDIO

POWER

BONUSVIEW SOURCE

DISC MENU TITLE MENUMENU

INTERNET@ REPEATFULL SCREEN

1 2 3

4 5 6

7 8 9

SUBTITLE

AUDIO

A B C D

INFOTOOLS

EXITRETURN

• Sharpness.

Normal : Choose this setting for most

• viewing applications.

Movie : This is the best setting for watching

• movies.

User : The user can adjust the sharpness

• and noise reduction function respectively.

Listening to Music

Buttons on the Remote Control used for Music Playback

06 Basic Functions

Setting BONUSVIEW

The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. This function is only available if the disc has the bonusview feature.

You can also operate this function by pressing the BONUSVIEW button on the remote control.

During playback, press the TOOLS button.

Press the ▲▼ buttons to select BONUSVIEW

2. Video or BONUSVIEW Audio.

Press the ◄► buttons to select the desired

bonusview.

NOTE

✎

If you switch from BONUSVIEW Video, BONUSVIEW

▪

Audio will change automatically in accordance with BONUSVIEW Video.

BONUSVIEW Video < Off >

BONUSVIEW Audio : 0/1 Off

Picture Setting

< Change " Select

Tools

SEARCH buttons : Fast Play.

(Audio CD (CD-DA) only)

PAUSE button : Pauses playback.

PLAY button : Plays the currently selected track.

▲▼ buttons : Selects a track in the Music List or

Playlist.

YELLOW(C) button : Select or deselect a track in

the music list.

REPEAT button : Selects the play mode in the

Playlist.

ENTER button : Plays and pauses the selected

track.

STOP button :

SKIP button : During playback, moves to the next page in the Music List or moves to the next track in

the Playlist.

Stops a

track

English 49

2 3

5 6

Basic Functions

SKIP button : During playback, moves to the previous page in the Music List or moves to the previous track in the Playlist. If you press this button after three seconds of

playback in the Playlist, the current track will be replayed from the beginning. But, if you press this button within three seconds after playback starts in the Playlist, the previous track will be played.

NUMBER button : During the Playlist playback, press the desired track number. The selected track

will be played.

Playing an Audio CD (CD-DA)/MP3

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

For an Audio CD (CD-DA), the first track will

• be played automatically.

For an MP3 disc, press the ◄► buttons

• to select Music, then press the ENTER button.

Audio CD (CD-DA)/MP3 Screen Elements

31 2

TRACK 001

7 6

+ 00:08 / 05:57

Displays the music information.

Displays the playlist.

Shows the current page/total pages.

Displays buttons available.

TRACK 001

TRACK 002

TRACK 003

TRACK 004

TRACK 005

TRACK 006

Pause

Playlist

1/3

05:57

04:27

04:07

03:41

03:17

03:35

Tools ' Return

Shows the current play time/total play time.

Displays the current playback status

Displays the repeated playback status.

Press the ▲▼ buttons to select the track

you want to play, and then press the ENTER button.

Repeat an Audio CD (CD-DA)/MP3

During the Playlist playback, press the

1. REPEAT button.

Select the desired play mode by

2. pressing the REPEAT button repeatedly.

Tracks on a disc are

Off

Audio CD (CD-DA)/MP3

played in the order in which they were recorded on the disc.

(

) Track

(

) One MP3 Current track is repeated.

(

) All

( ) Shuffle

Audio CD (CD-DA)

Audio CD (CD-DA)/MP3

Current track is repeated.

All tracks are repeated.

The random option plays a disc’s track in random order.

Playlist

Insert an Audio CD (CD-DA) or an MP3 Disc

into the disc tray.

For an Audio CD (CD-DA), the first track will

•

be played automatically.

For an MP3 disc, press the ◄► buttons

•

to select Music, then press the ENTER button.

To move to the Music List, press the STOP ( )

or RETURN button. The Music List screen is displayed.

50 English

Press the ▲▼◄► buttons to move desired

track, then press the YELLOW(C) button to check desired tracks. Repeat this procedure to select additional tracks.

Playing back a Picture

Playing a JPEG Disc

06 Basic Functions

Music TRACK 003

TRACK 001
