Indoor unit Outdoor unit

AS07P2GED SC07APGD SC07ZP2D AS09P2GBD AS09P2GED SC09APGD SC09ZP2D AS12P4GBD AS12P4GED SC12APGD SC12ZP4D

AS18PJGB AS18PJGE SC18AP0D SC18ZPJ AS24P6GBD AS24P6GED SC24AP6D SC24ZP6D

US07P2GED SC07APGDX SC07ZP2DX US09P2GBD US09P2GED SC09APGDX SC09ZP2DX US12P4GBD US12P4GED SC12APGDX SC12ZP4DX

US18PJGB US18PJGE SC18AP0DX SC18ZPJX US24P6GBD US24P6GED SC24AP6DX SC24ZP6DX

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆ Users of this product are cautioned not to attempt repair of this product at their own discretion. Instead, they are requested to directly contact a designated service center or the outlet at which the product was purchased.

◆ Never spill any kind of liquid into the unit. Should this happen, unplug or main switch off the unit and contact an authorized service center.

◆ Do not insert anything between the air outlet blades because the inner fan may be damaged and could cause injury. Keep children away from the unit.

◆ Do not place any obstacles in front of the unit.

◆ Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your installation specialist.

◆ Make sure that the unit is correctly ventilated at all times: Do not place clothing or other materials over it.

◆ If the wireless remote control will not be used for a long time, remove the batteries. (If applicable)

◆ When using a wireless remote control, the distance should not be more than 7 meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆ Never store or ship the air conditioner upside down or sideways to avoid damage to the compressor.

◆ The appliance is not intended for use by young children or infirm persons without supervision: Young children should be supervised to ensure that they do not play with the appliance.

◆ Max current is measured according to IEC standard for safety and current is measured according to ISO standard for energy efficiency.

THERS

◆ Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely for recycling reasons.

◆ When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environments.

◆ Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

E-3

ENGLISH

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

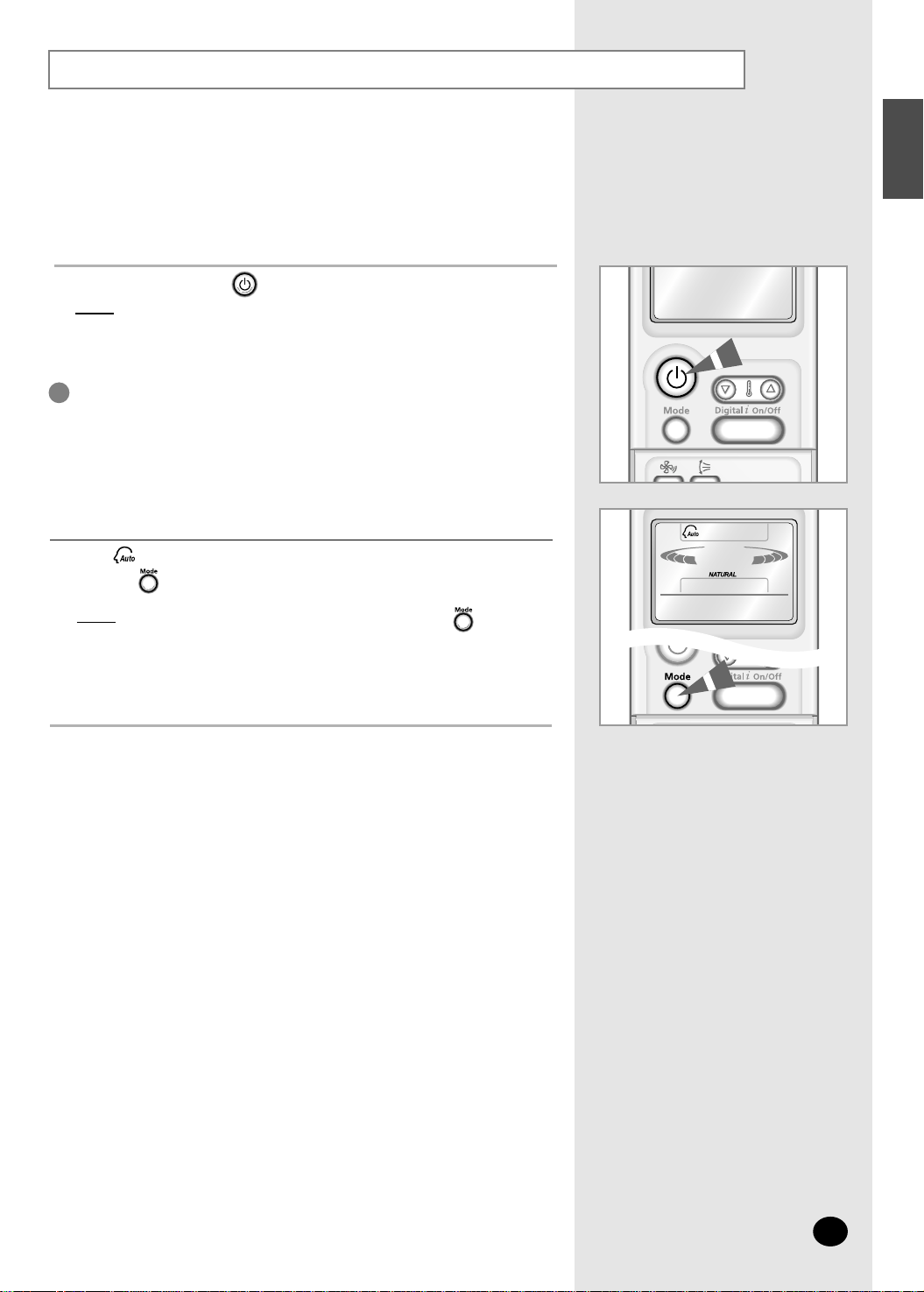

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9

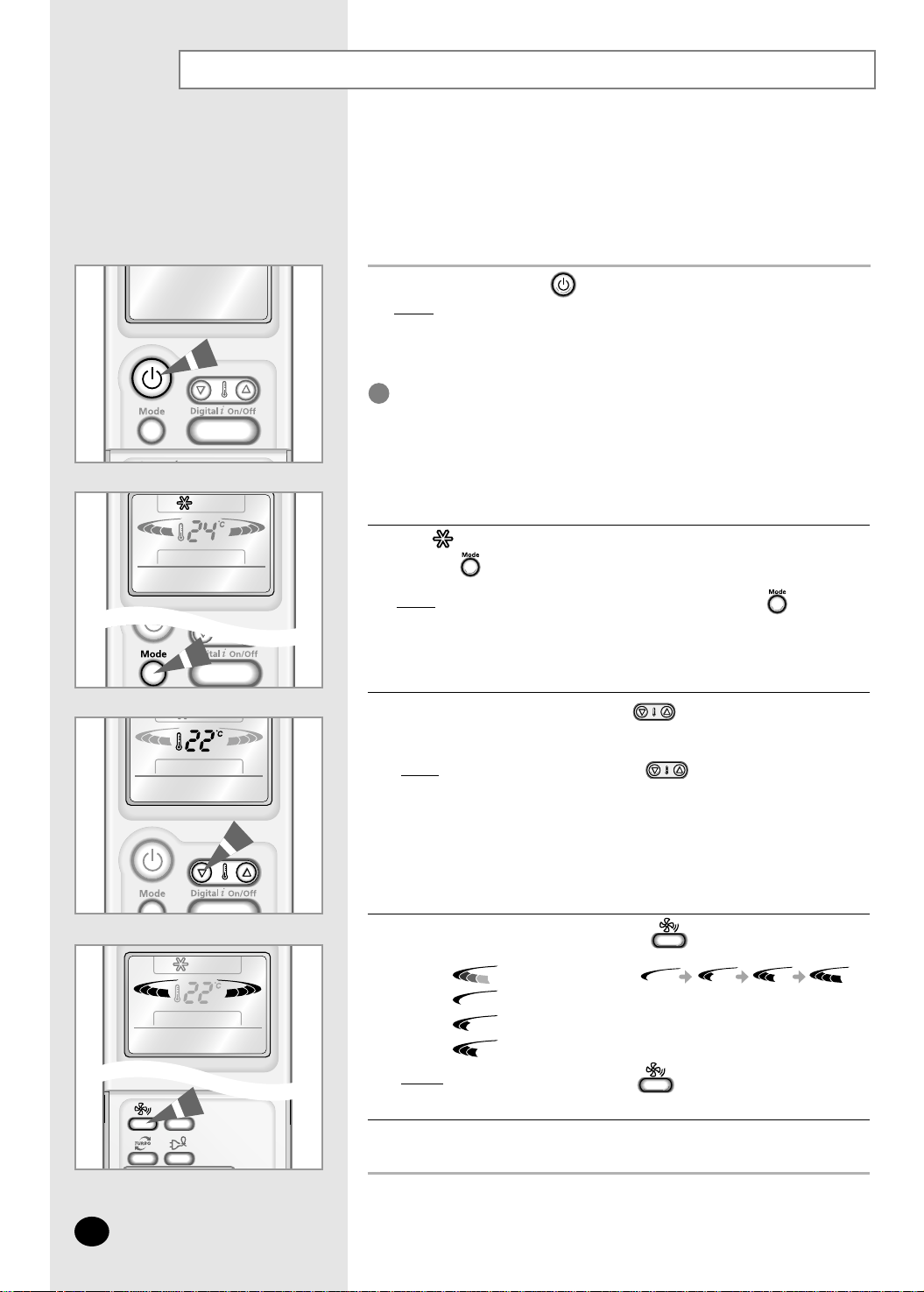

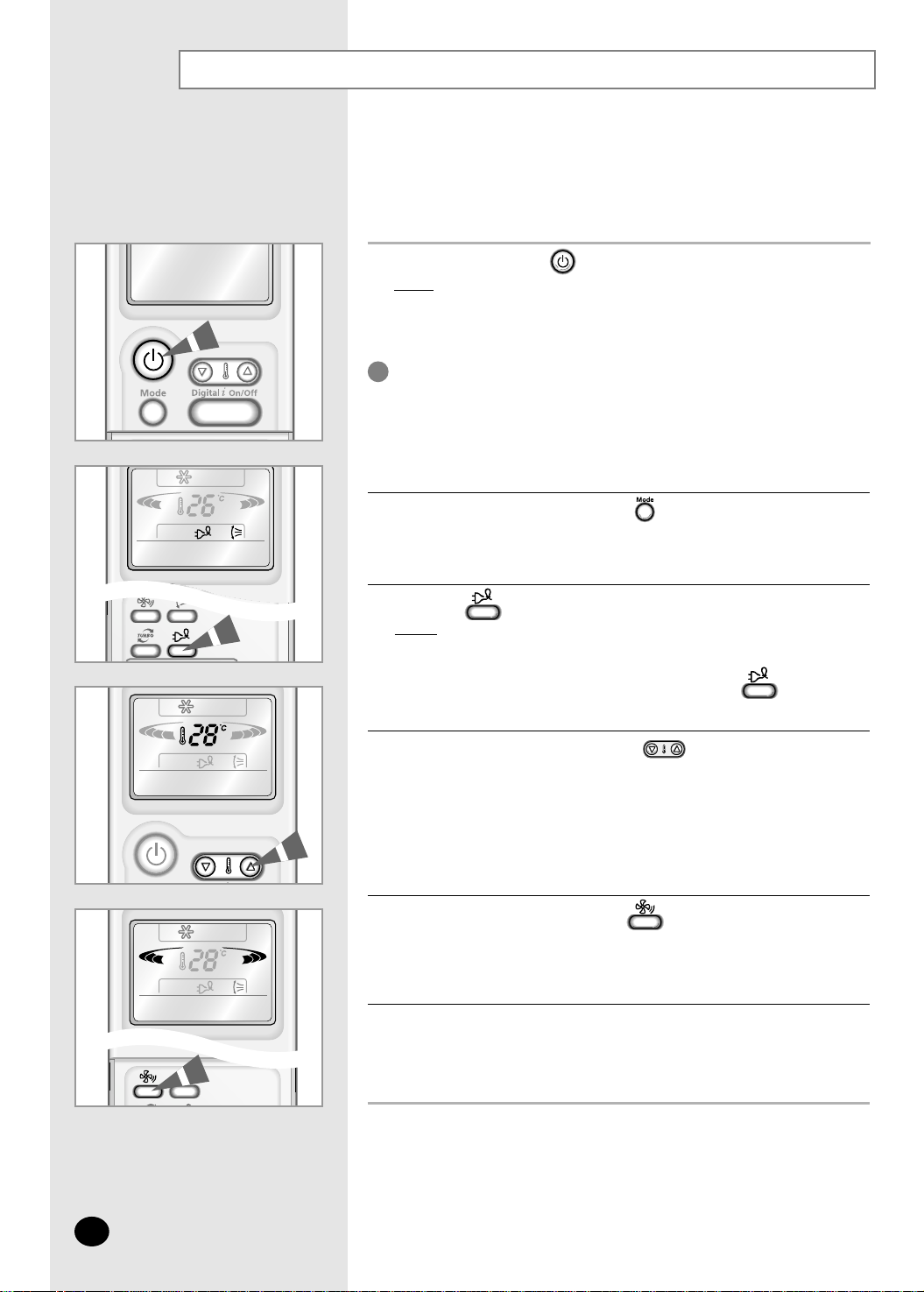

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

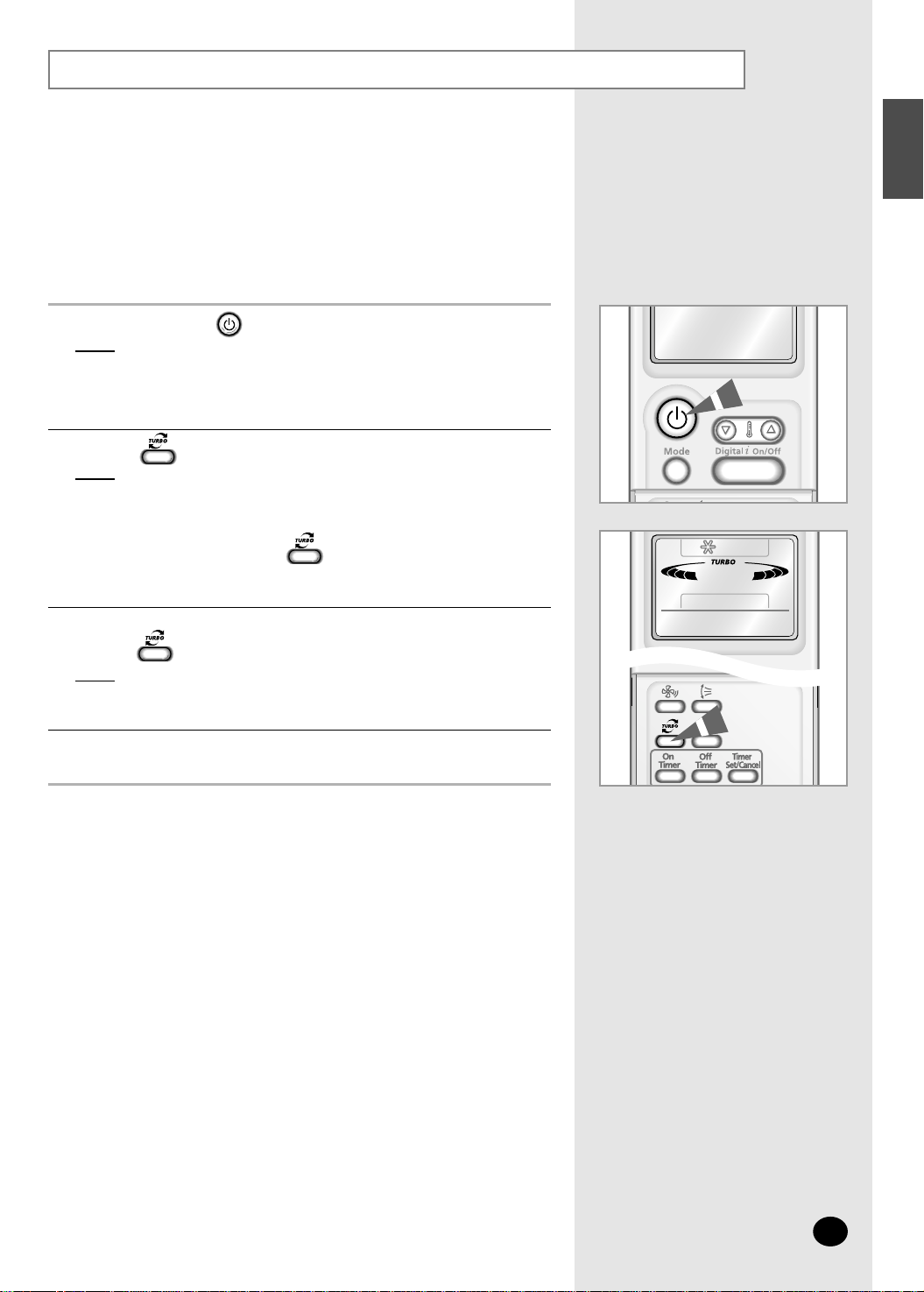

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 11

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

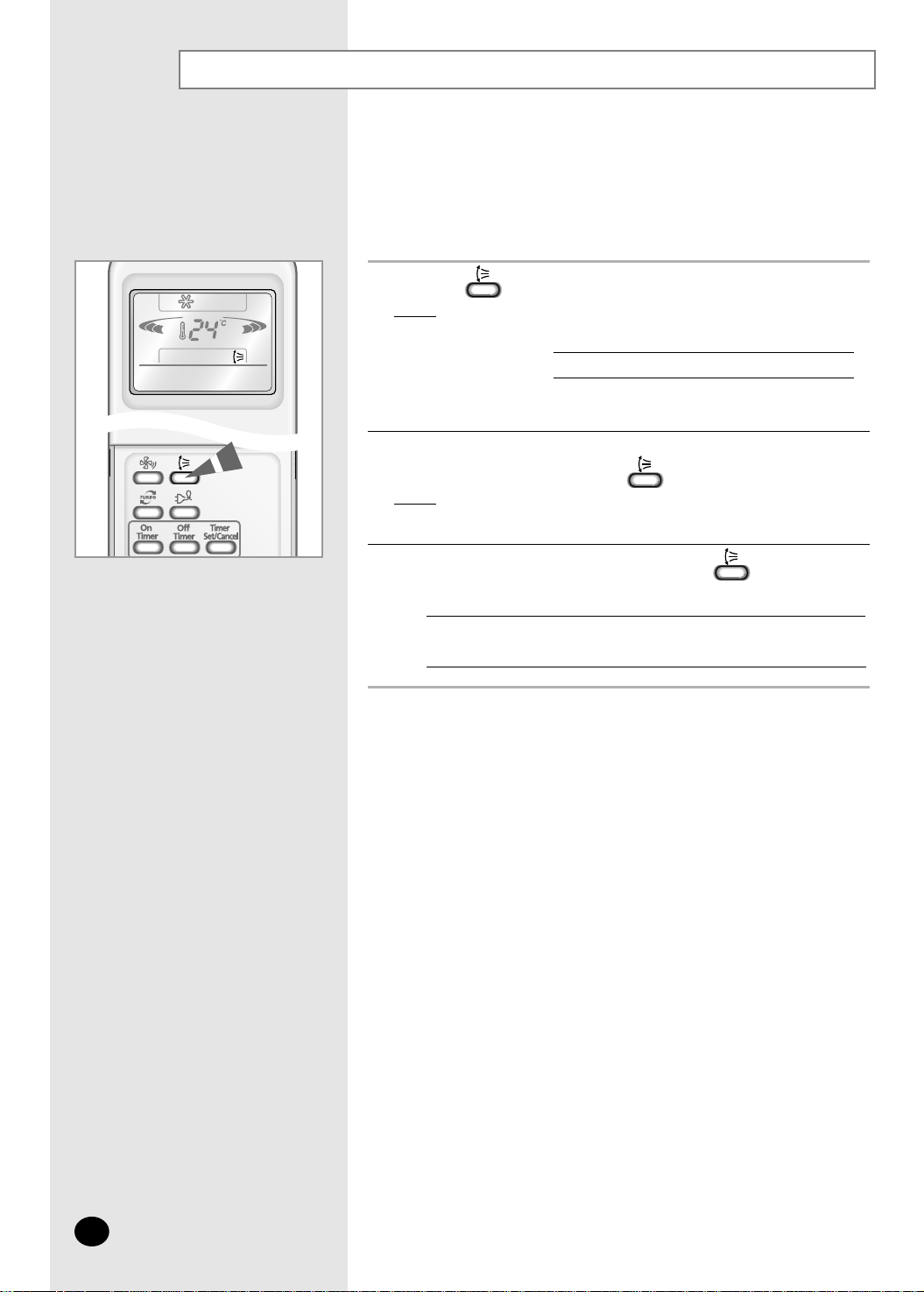

■ Selecting Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Generating Anions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 16

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 17

◆

ROGRAMMING YOUR AIR CONDITIONER

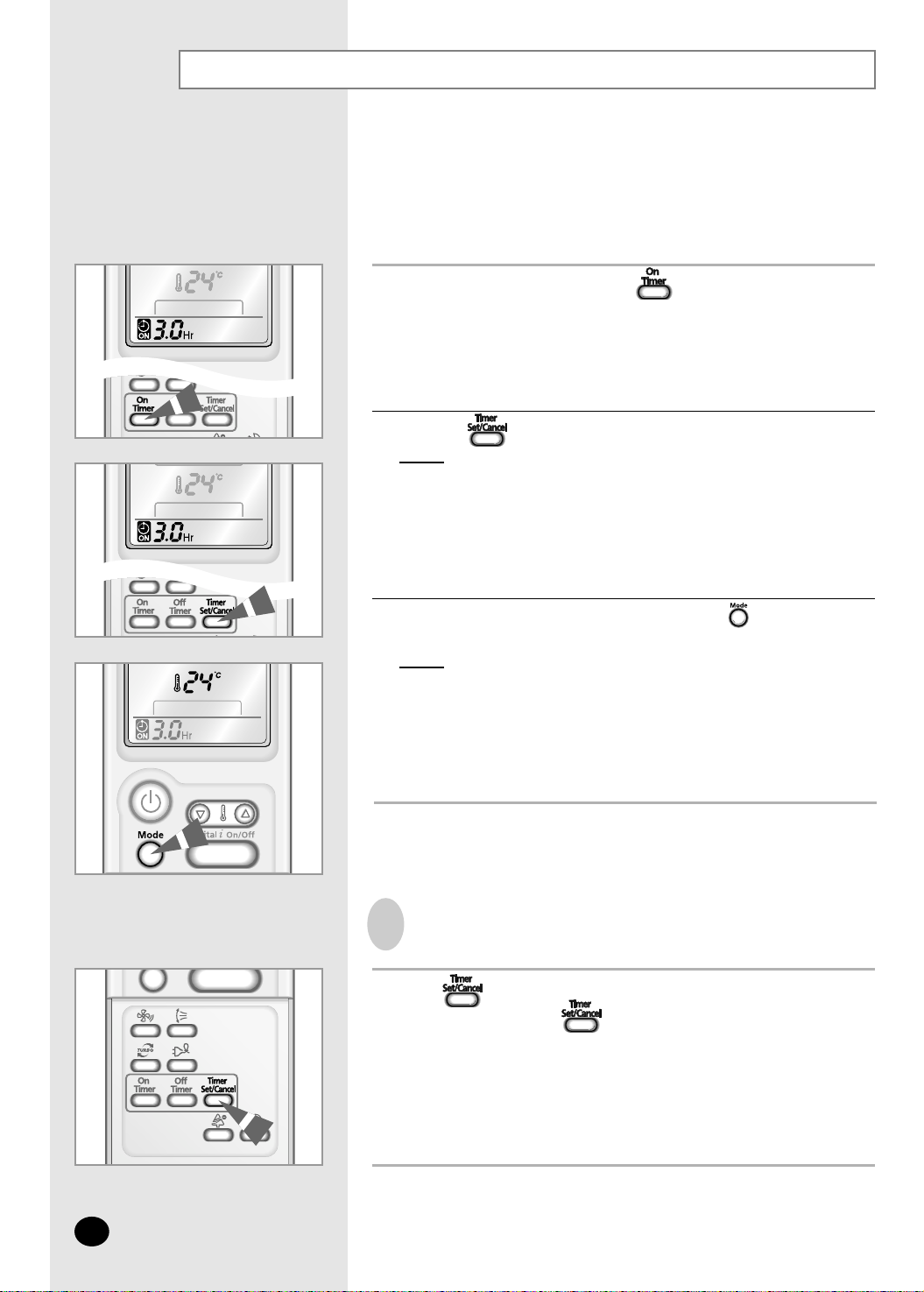

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

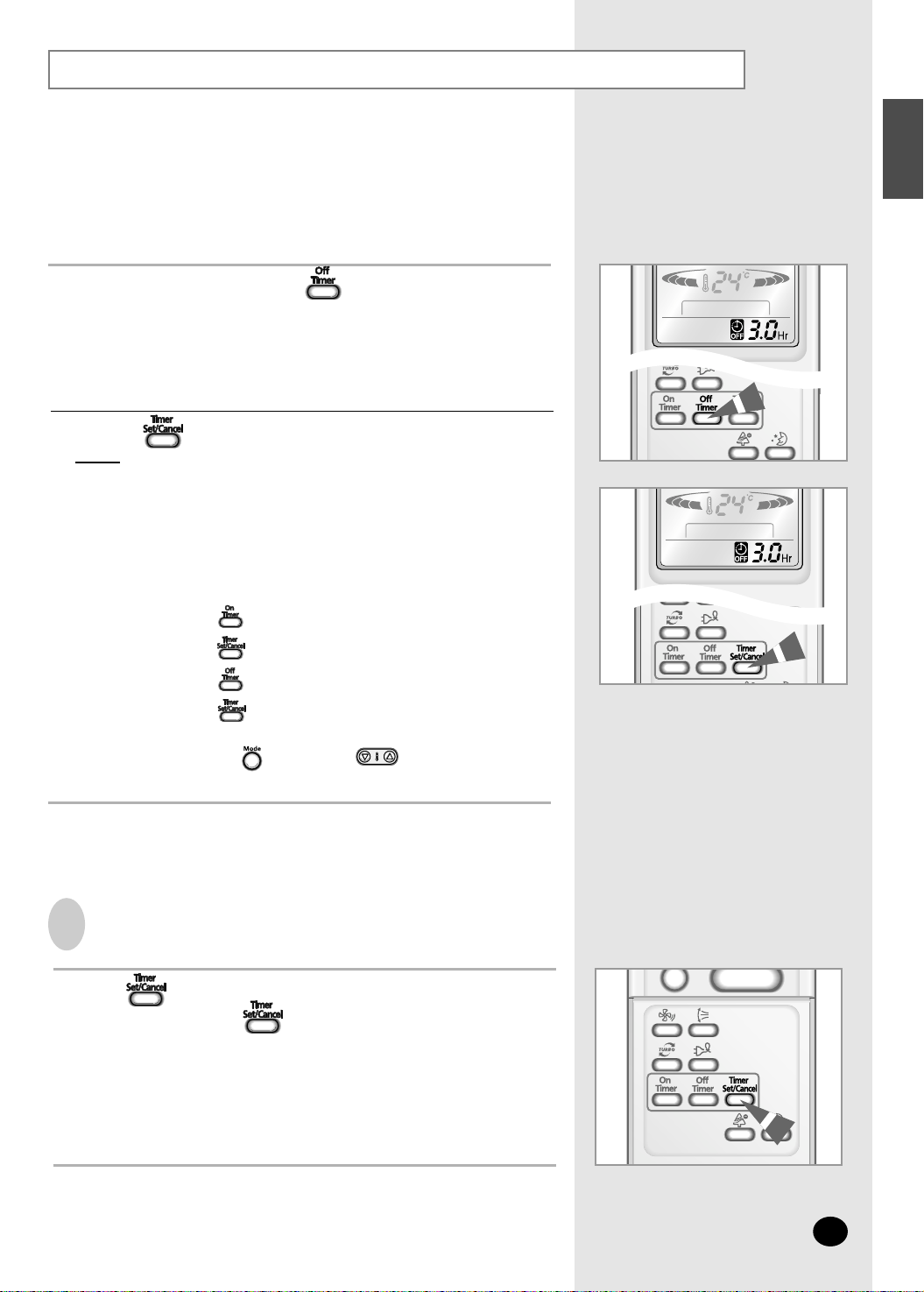

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

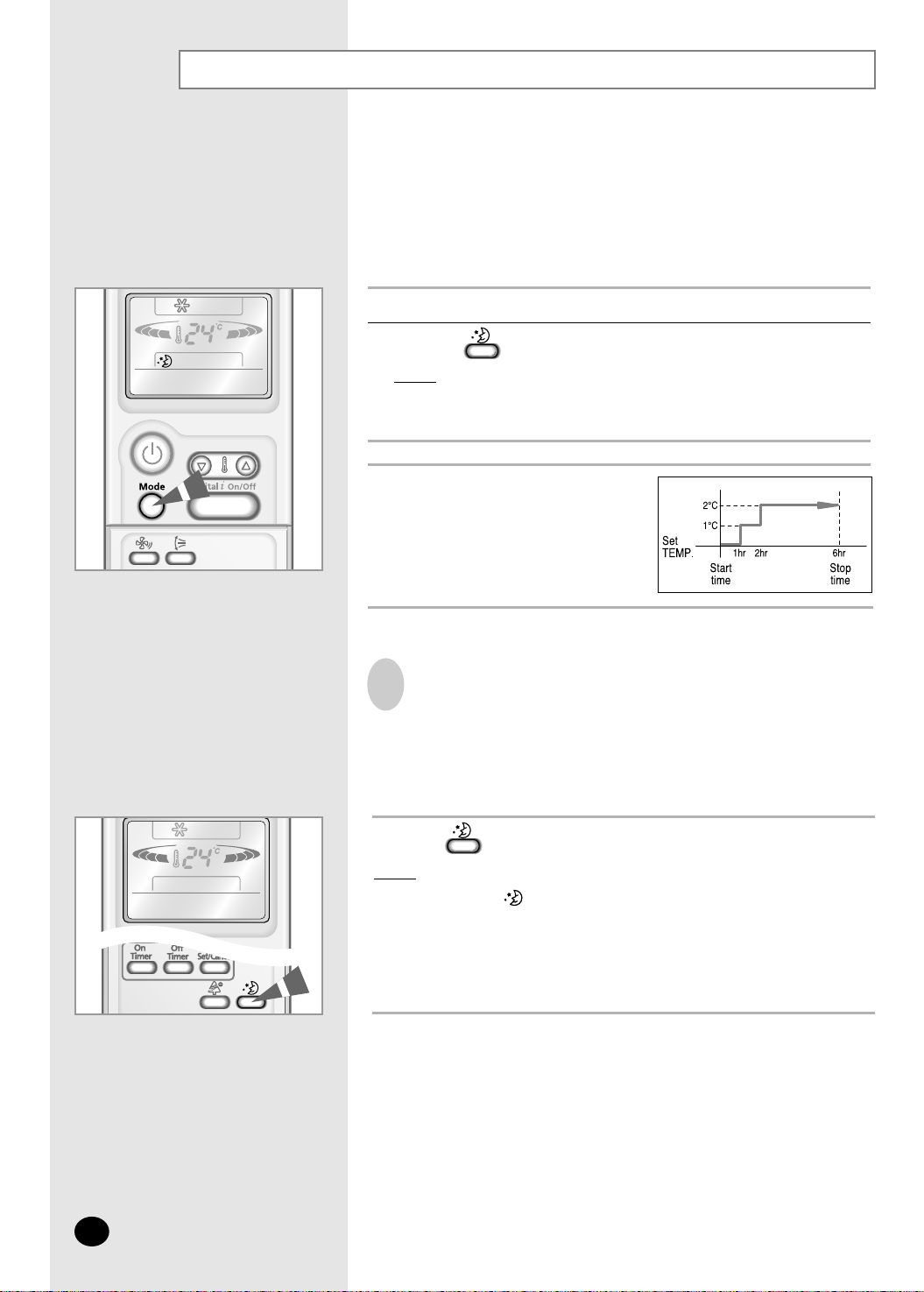

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 22

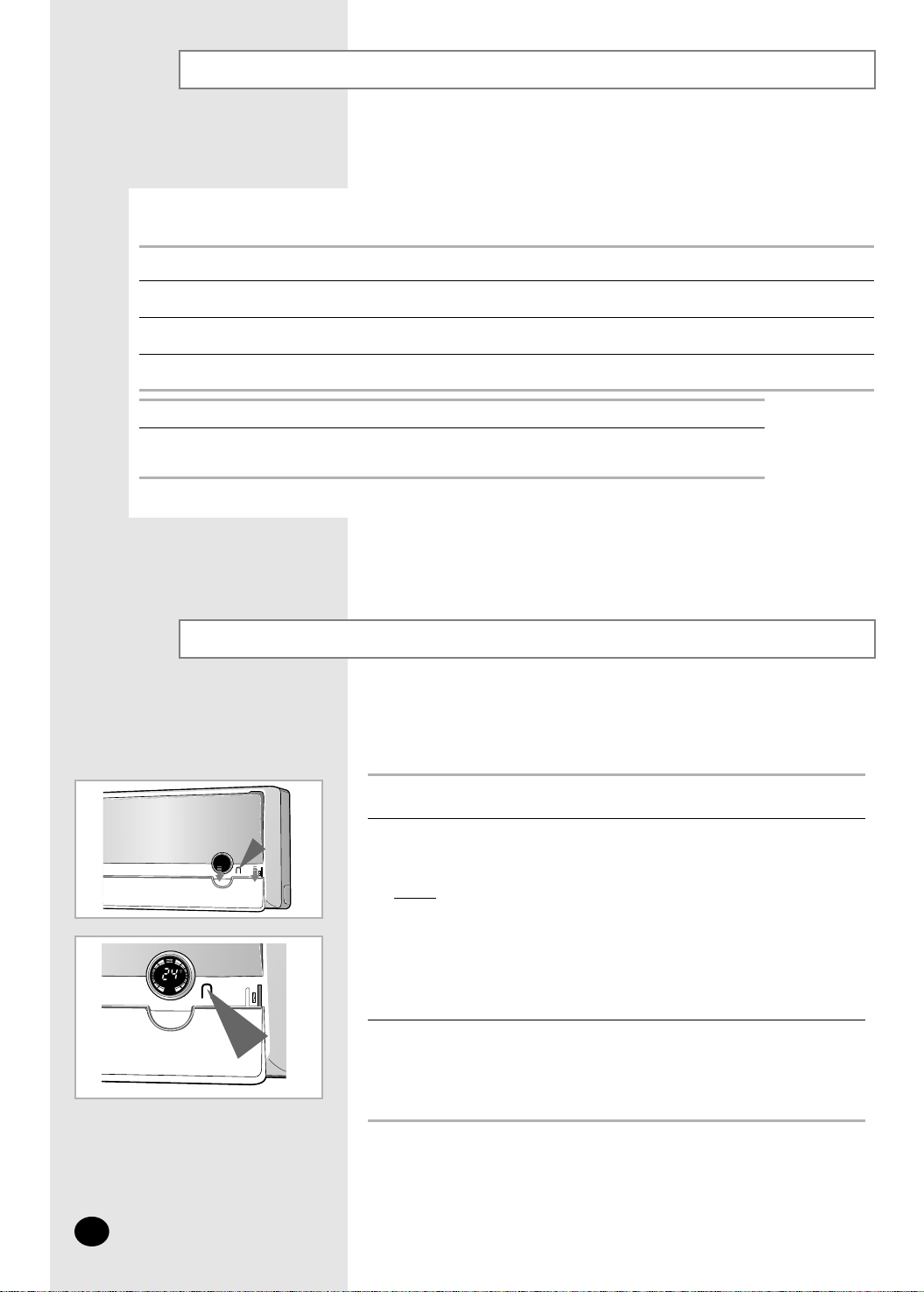

■ Operating Your Air Conditioner Without the Remote Control . . . . . 22

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Cleaning Deodorizing and Bio Filters (Option) . . . . . . . . . . . . . . . 25

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

View of the Unit

E-4

◆ If you want to turn on/off the display during operation, press the button on the remote control.

◆ The room temperature sensor senses air temperature around the sensor, and shows the temperature on the display.

NNNNoooottttee

Indoor Unit

Air filter

(under the grille)

Air flow blades

(outlet)

Remote Control Sensor

On/Off switch

Timer indicator

Fan speed setting

Sleep Timer indicator

Operation indicator

Set temperature & Room temperature

Anions indicator

Auto grille

Air Inlet

Room temperature sensor

The design and shape are subject to change according to the model.

E-5

ENGLISH

Air Inlet(Rear)

Air Outlet

Connection Valve (inside)

Outdoor Unit

SC07APGDX SC09APGDX SC12APGDX

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit

US07P2GED SC07ZP2DX US09P2GBD US09P2GED SC09ZP2DX US12P4GBD US12P4GED SC12ZP4DX

Air Inlet (Rear)

Air Outlet

Connection Valve (inside)

Outdoor Unit

US18PJGB US18PJGE SC18ZPJX

Air Inlet (Rear)

Air Outlet

Connection Valve

Outdoor Unit

SC18AP0DX US24P6GBD US24P6GED SC24AP6DX SC24ZP6DX

Remote Control - Buttons and Display

E-6

Operating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator

Off Timer setting Energy saving

Anionss button

Sleep button

Energy saving button

Swing button

Timer Set/Cancel button

Temperature adjustment buttons

Temperature setting Air flow direction

Turbo mode

Sleep mode

On/Off button

Mode selection button

(AUTO, COOL, DRY, FAN)

Fan speed adjustment

button

Turbo button

On Timer button Off Timer button

Fan speed

Anions indicator

On Timer setting

Battery discharge indicator

Digital On/Off button

etting Started

You have just purchased a split type air conditioner and it has been installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆ The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display) They will help you find the buttons and understand the symbols displayed.

◆ In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different symbols:

E-7

ENGLISH

PRESS PUSH HOLD DOWN

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆ + on the battery with + on the remote control.

◆ - on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆ Use two AAA, LR03 1.5V batteries.

◆ Do not use old batteries or different kinds of batteries together.

◆ Batteries may be completely discharged after 12 months, even

◆ if they have not actually been used.

You must insert or replace the remote control batteries when :

◆ You purchase the air conditioner

◆ The remote control does not work correctly

NNNNoooottttee

E-8
