Page 1
Floor Stand type Air Conditioner
(Cool and Heat)
OWNER’S
INSTRUCTIONS
APH289SEF
APH289SEG
E R DB98-16484A(2)
Page 2
E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆ Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆ Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆ Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆ Do not place any obstacles in front of the unit.
◆ Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆ Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆ If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆ When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
◆ Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆ The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆ Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
O
THERS
◆ Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆ When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆ Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
D
ISPOSING OF THE UNIT
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
Page 3
E-3
Contents
◆
P
REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6
■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8
■ Operating Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
◆
O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 14
■ Selecting Health Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

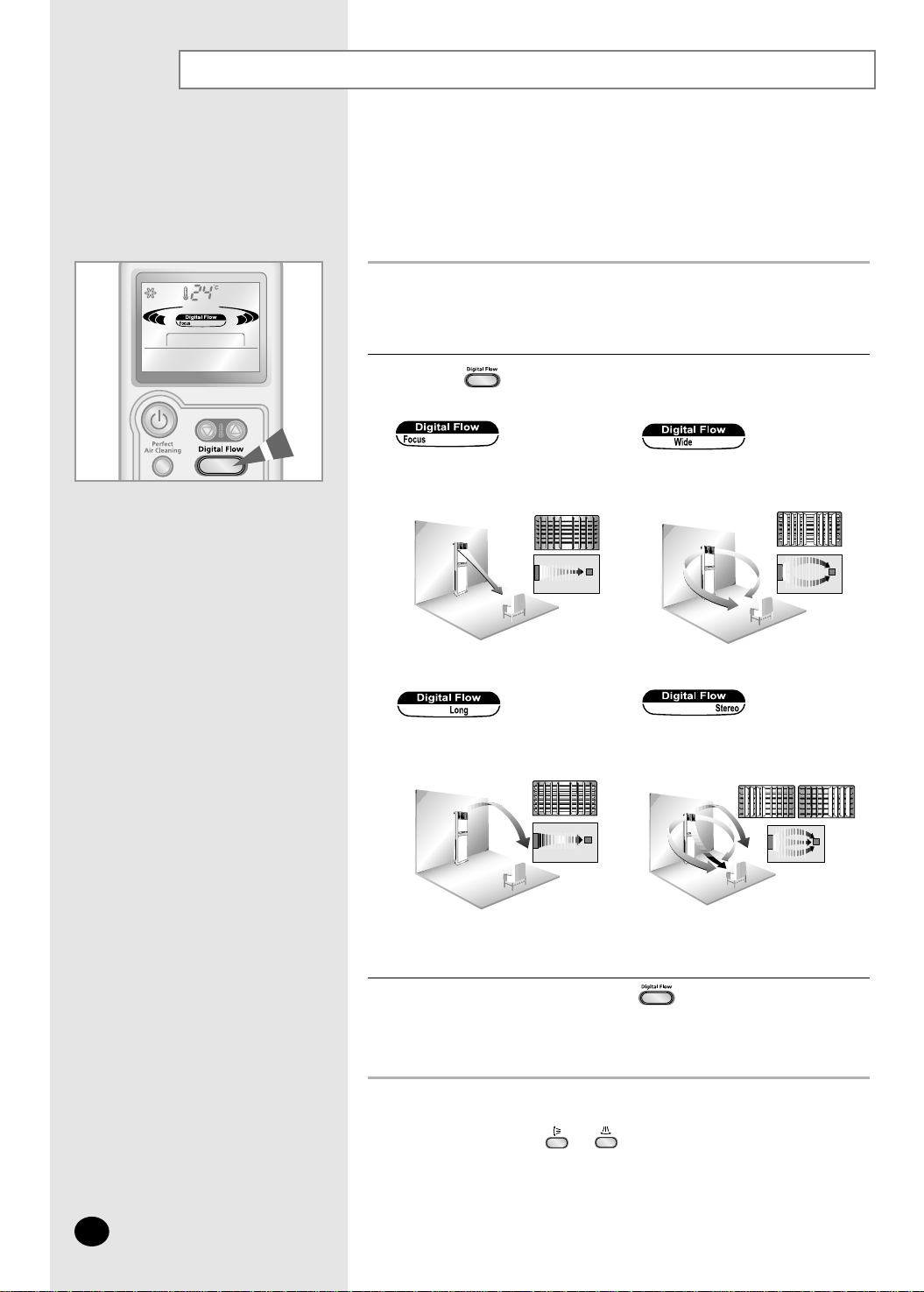

■ Selecting Digital Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 17
■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 17
◆
P
ROGRAMMING YOUR AIR CONDITIONER

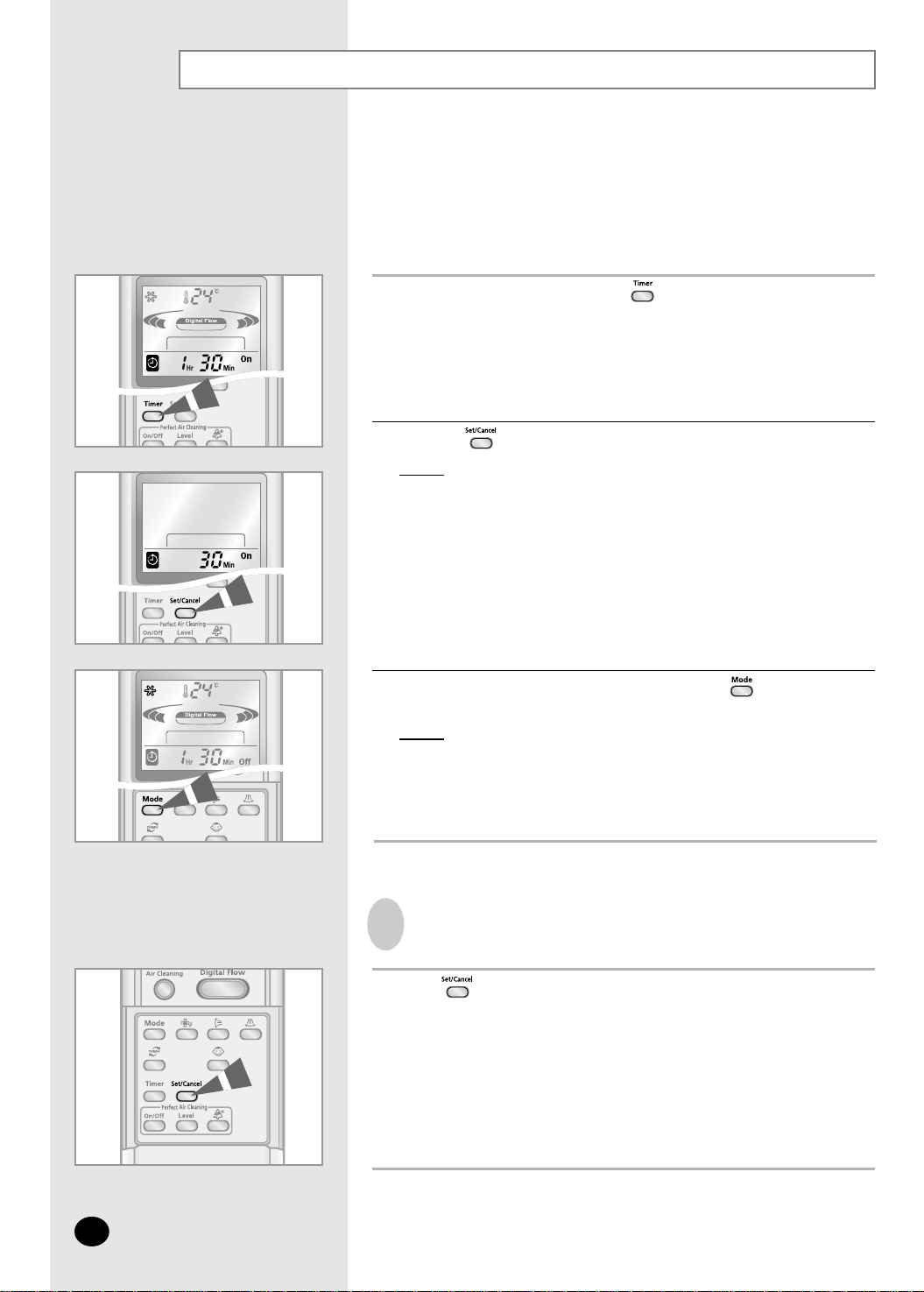

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

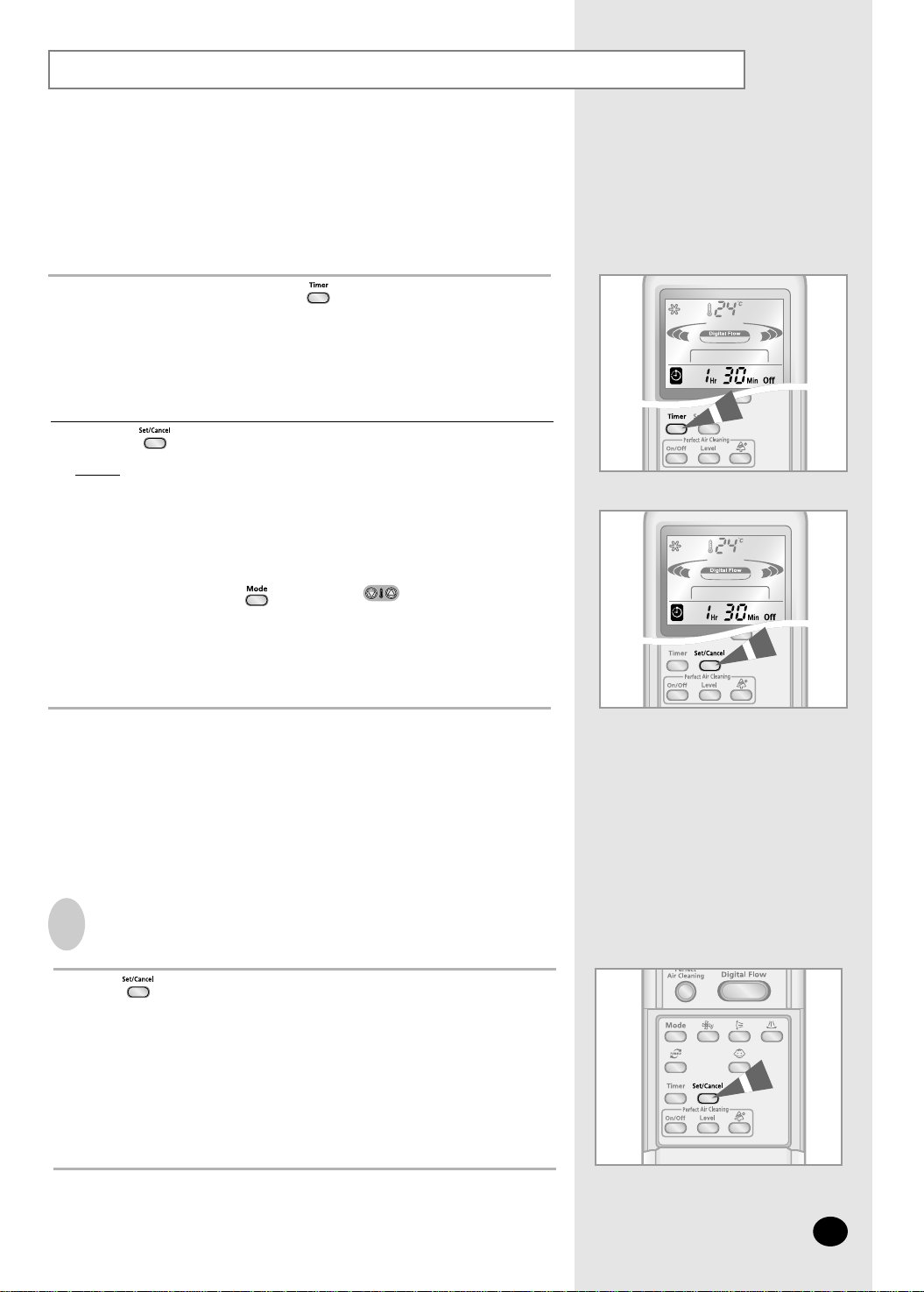

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
◆
P
ERFECT AIR CLEANING
■ Selecting Perfect Air Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
■ Generating Anion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
◆
R
ECOMMENDATIONS FOR USE
■ Using Control Panel on the Indoor Unit . . . . . . . . . . . . . . . . . . . . . 22
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 25
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
◆
T
ECHNICAL SPECIFICA TIONS
Page 4
View of the Unit
E-4
Indoor Unit
Control Panel
You can operate the air conditioner with the control panel when you
can’t or don’t want to operate the air conditioner with the remote control.
(refer to page 22)
Air flow blade(right/left orientation)
Air flow blade(up/down orientation)
Air outlet
Automatic shutter
Perfect air cleaner
Remote
control holder
Air inlet
Air filter
Operating
indicators
Turbo indicator
Digital Flow indicator Anion indicator
Perfect air cleaning
indicator
Timer indicator
Health indicator
Outdoor operating
indicator
Temperature setting
T emperature
adjustment buttons
Fan speed
Lock function
indicator
Air purity level
indicator
Perfect air cleaning button
Turbo button
Operating mode
Selection button
Remote control
sensor
On/Off button
The design and shape are subject to change according to the model.
To open the grille
◆ Hold the upper part
of the grille, then pull
it slightly forward.
◆ Don’t open the grille
when it is operating.
It may cause
a malfunction or
an electrical hazard.
Page 5
E-5
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
Page 6
Remote Control - Buttons and Display
E-6
Temperature setting
Operating mode
Digital Flow & Fan speed setting
Operating mode
Perfect air cleaning setting
Health mode
T emperature
adjustment buttons
Air flow direction adjustment
buttons
Timer setting
Air flow direction
Health button
Timer Set/Cancel button
Perfect air cleaning Anion button
Digital Flow selection button
Anion indicator
Turbo mode
On/Off button
Perfect air cleaning - speed
adjustment button
Fan speed button
Mode selection button
Perfect air cleaning On/Off button
Perfect air cleaning - On/Off button
Turbo button
On/Off Timer button
◆
is battery discharge indicator.
If the indicator is displayed on the remote control, replace batteries; refer to page 8.
NNNNoooottttee
ee
Page 7
G
etting Started
You have just purchased a floor stand type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contains valuable information on using your
air conditioner. Please take the time to read it as it will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆ The following figures are shown on pages from 4 to 6 :
- Indoor and outdoor units
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
◆ In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
E-7
Page 8
Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆ + on the battery with + on the remote control.
◆ - on the battery with - on the remote control.
1
2
Close the cover by sliding it back until it clicks into place.
3
◆ Use two AAA, LR03 1.5V batteries.
◆ Do not use old batteries or different kinds of batteries together.
◆ Batteries may be completely discharged after 12 months, even
◆ if they have not actually been used.
You must insert or replace the remote control batteries when :
◆ You purchase the air conditioner
◆ The remote control does not work correctly
NNNNoooottttee
ee
E-8
Look around the indoor and outdoor units. Confirm if any obstacles
that may prevent the air flow are present near the air conditioner.
Operating Preparation
Turn the power switch on.
To operate the unit, the power switch is fitted to the wall and
should be set to ON.
IMPORTANT
Page 9
Selecting the Automatic Operating Mode
E-9
You can start the air conditioner in Automatic mode from your remote
control. In the Automatic mode, the optimum temperature and the fan
speed is selected automatically.
1
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result
: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in AUTO mode.
(It starts cooling/heating according to the room temperature)
2
You can change modes at any time.
If necessary, press the (On/Off) button.
Result: ◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
NNNNoooottttee
ee
Page 10

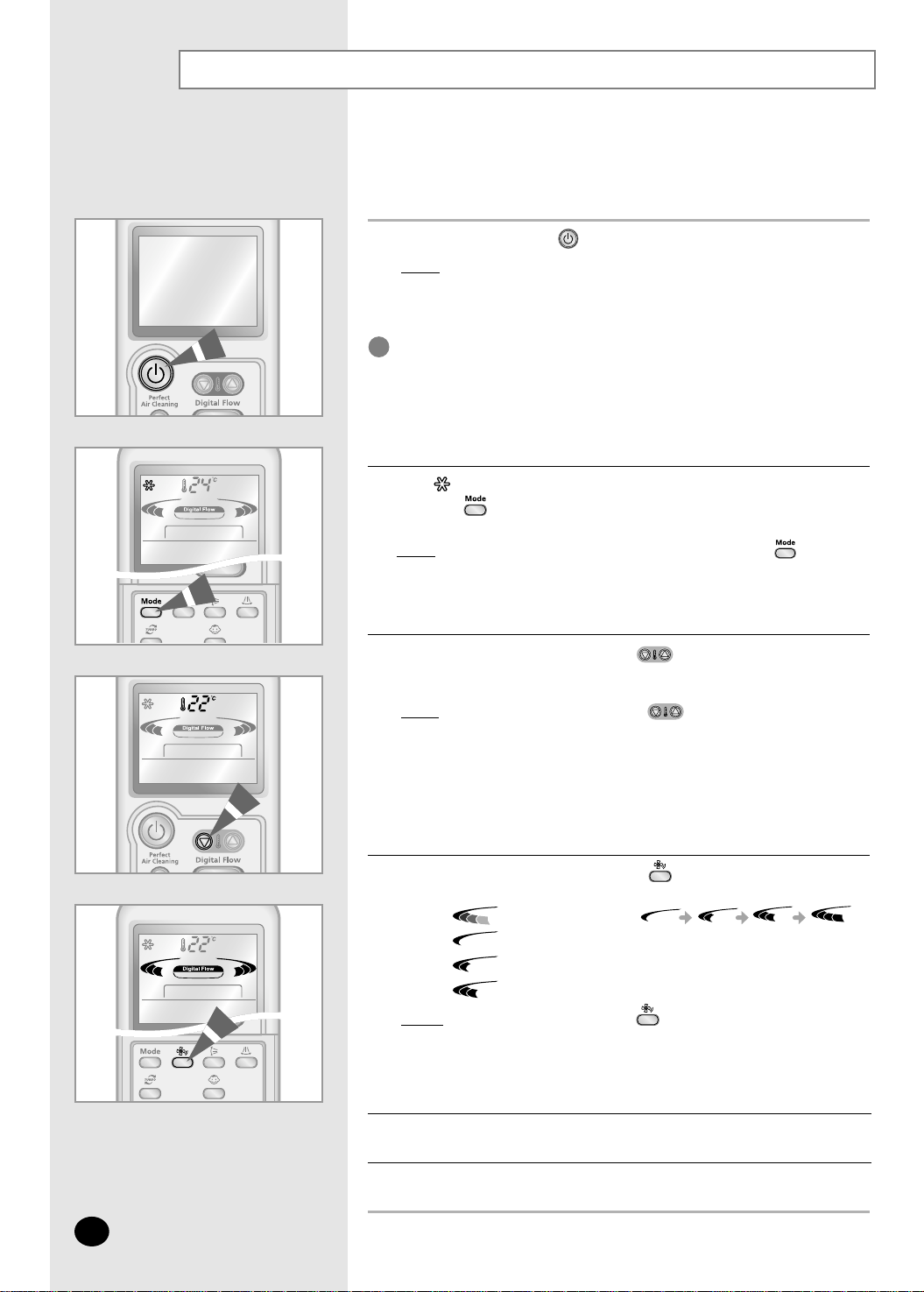

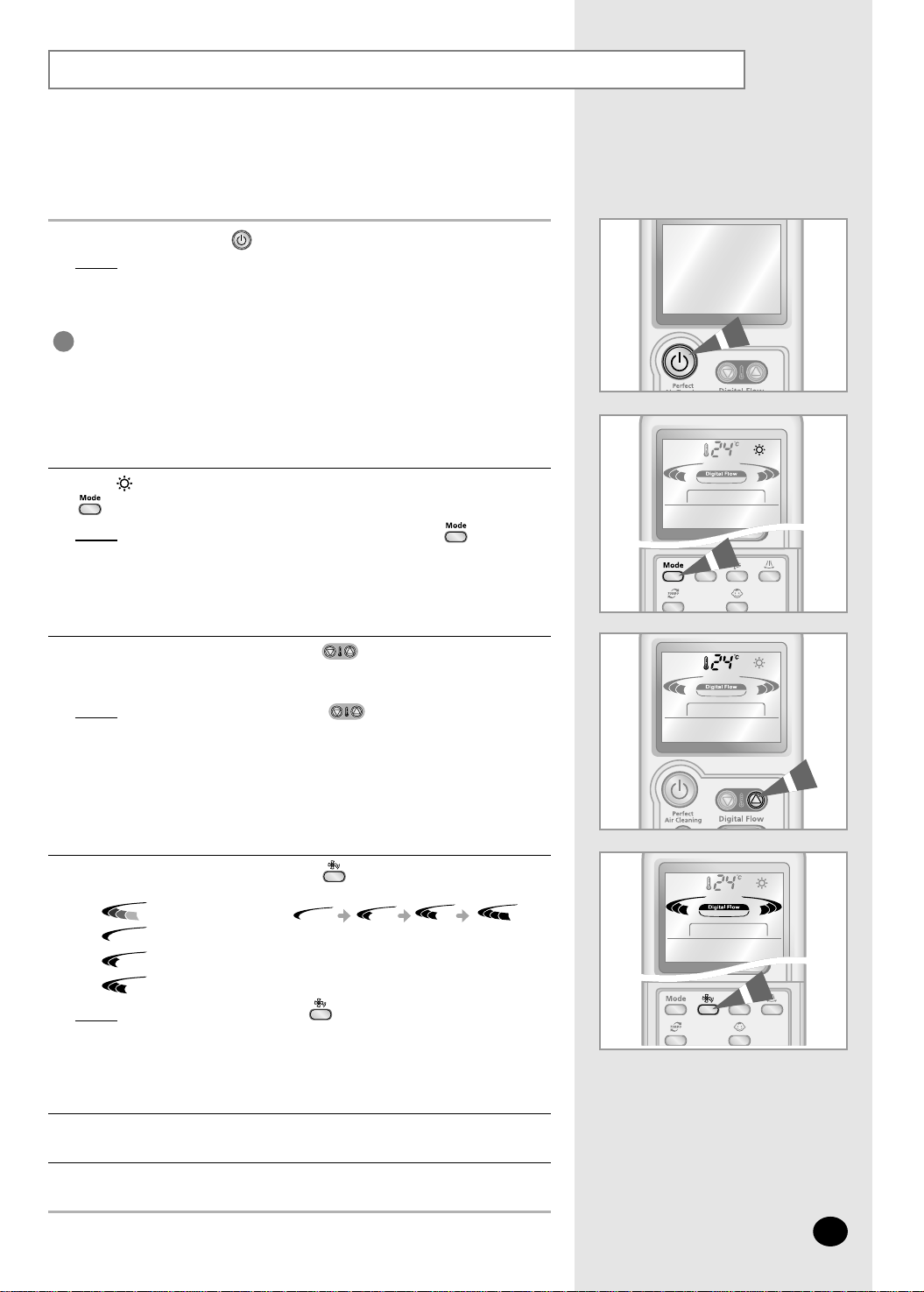

Cooling Your Room
E-10
1
If necessary, press the (On/Off) button.
Result:
◆
The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:
◆
The indoor unit beeps each time you press the button.
◆
The air conditioner runs in COOL mode.
2
You can change modes at any time.
NNNNoooottttee
ee
To adjust the temperature, press the button one or more times until
the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result: ◆
Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆ The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature.
◆ If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan is still operating.
3
To select the Digital Flow, refer to page 16.
5
You must select the Cool mode if you wish to adjust the:
◆ Cooling temperature
◆ Fan speed when cooling
To control the direction of the air flow, refer to page 17.
6
Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result
: Each time you press the button, the indoor unit
beeps.
4
Page 11
Heating Your Room
E-11
You must select the Heat mode if you wish to adjust the:
◆ Heating temperature
◆ Fan speed when heating
1 If necessary, press the (On/Off) button.
Result
: ◆
The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when
the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
It will start up normally after three minutes.
2 If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result
: ◆
The indoor unit beeps each time you press the button.
◆
The air conditioner runs in HEAT mode.
NNNNoooottttee
ee You can change modes at any time.
3 To adjust the temperature, press the button one or more times
until the required temperature is displayed.
Possible temperatures are between 16°C and 30°C inclusive.
Result
: ◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆ The air conditioner starts heating, provided that the room
temperature is lower than the desired temperature
(selected temperature+3°C).
◆ If the room temperature reaches the set temperature, the air
conditioner stops heating, but the fan is still operating.
5 To select the Digital Flow, refer to page 16.
6 To control the direction of the air flow, refer to page 17.
IMPORTANT
4 Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result
: ◆
Each time you press the button, the indoor unit beeps.
◆
For the first three to five minutes, the fan operates very
slowly until the air has been sufficiently warmed. Once the
correct temperature has been reached, the fan is automatically
set to the required speed.
Page 12

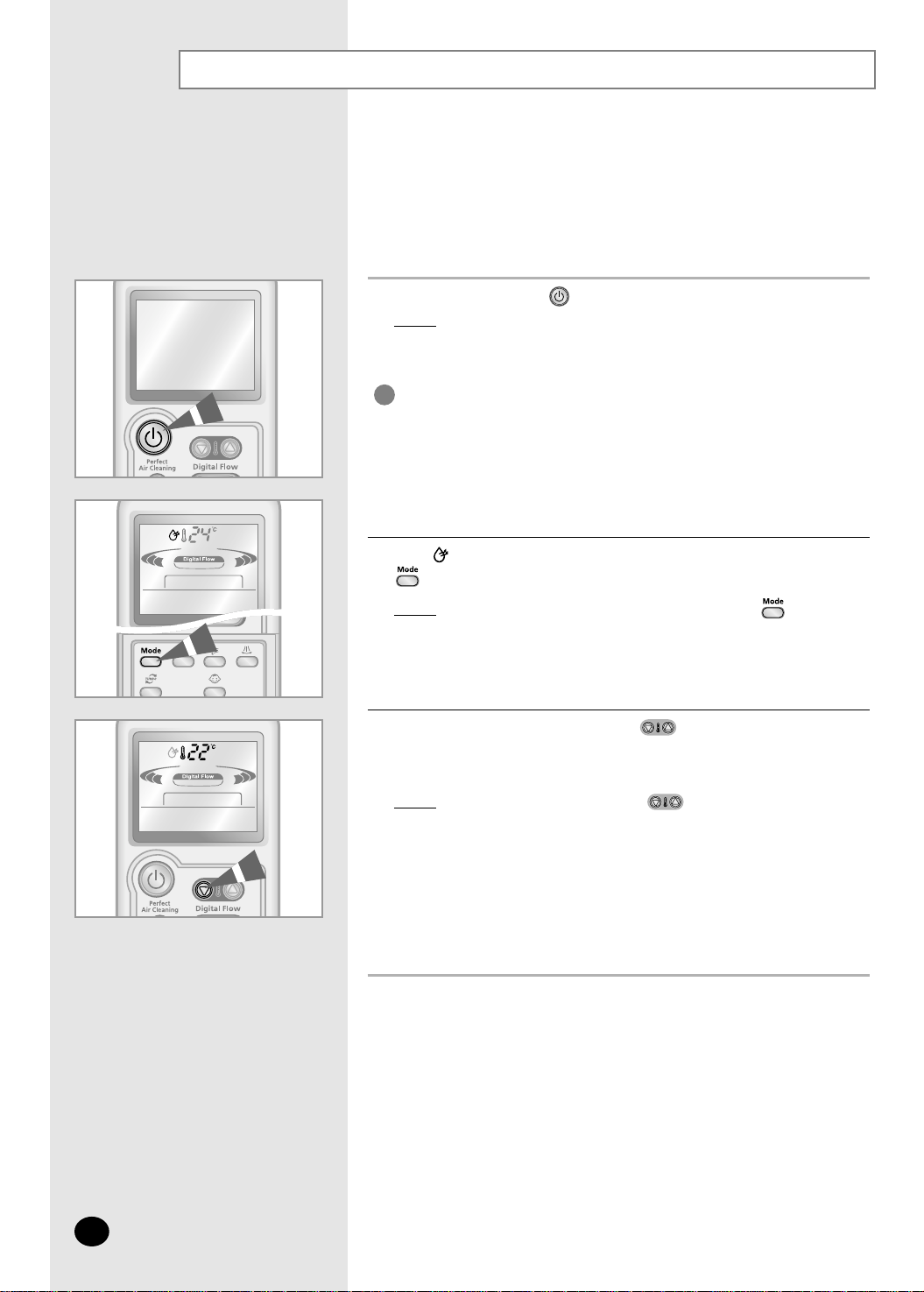

Removing Excess Humidity
E-12
If the atmosphere in your room is very humid or damp, you can
remove excess humidity without lowering the room temperature too
much. In DRY mode, the quantity of air and the direction of the air
flow is adjusted automatically.
1 If necessary, press the (On/Off) button.
Result
: ◆
The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when
the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
It will start up normally after three minutes.
IMPORTANT
2 If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result
: ◆
The indoor unit beeps each time you press the button.
◆
The air conditioner runs in DRY mode.
NNNNoooottttee
ee You can change modes at any time.
3 To adjust the temperature, press the button one or more times
until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result
: ◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆ The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
Page 13

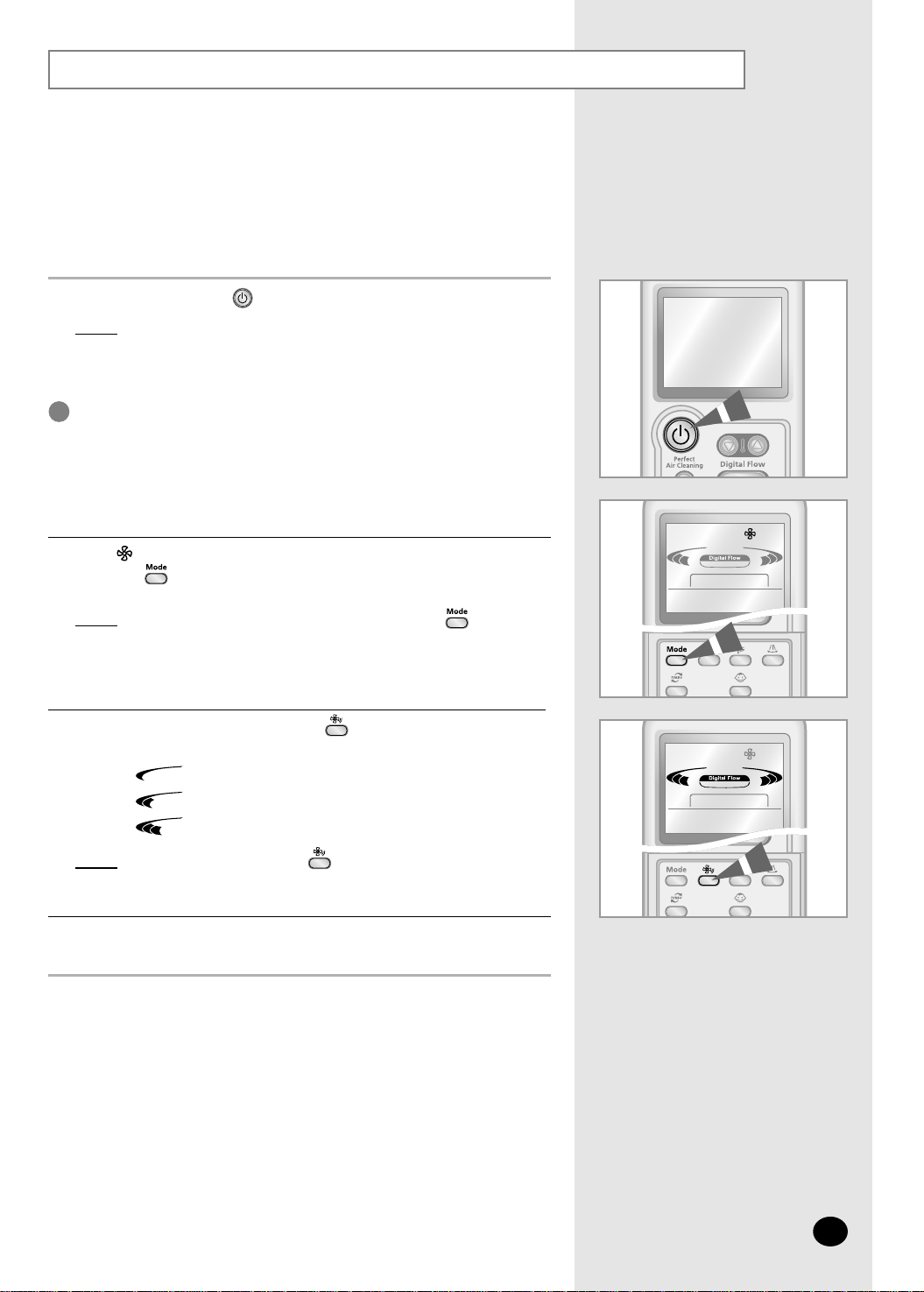

Airing Your Room
E-13
If the atmosphere in your room is stale, you can air the room using
the Fan feature.
1 If necessary, press the (On/Off) button.
Result
: ◆
The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when
the unit was last used.
◆ The indoor unit beeps.
3 Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Low
Medium
High
Result
: Each time you press the button, the indoor unit beeps.
4 To control the direction of the air flow, refer to page 17.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
2 If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result
: ◆
The indoor unit beeps each time you press the button.
◆
The air conditioner runs in FAN mode.
◆
The temperature is set automatically.
NNNNoooottttee
ee You can change modes at any time.
Page 14
E-14

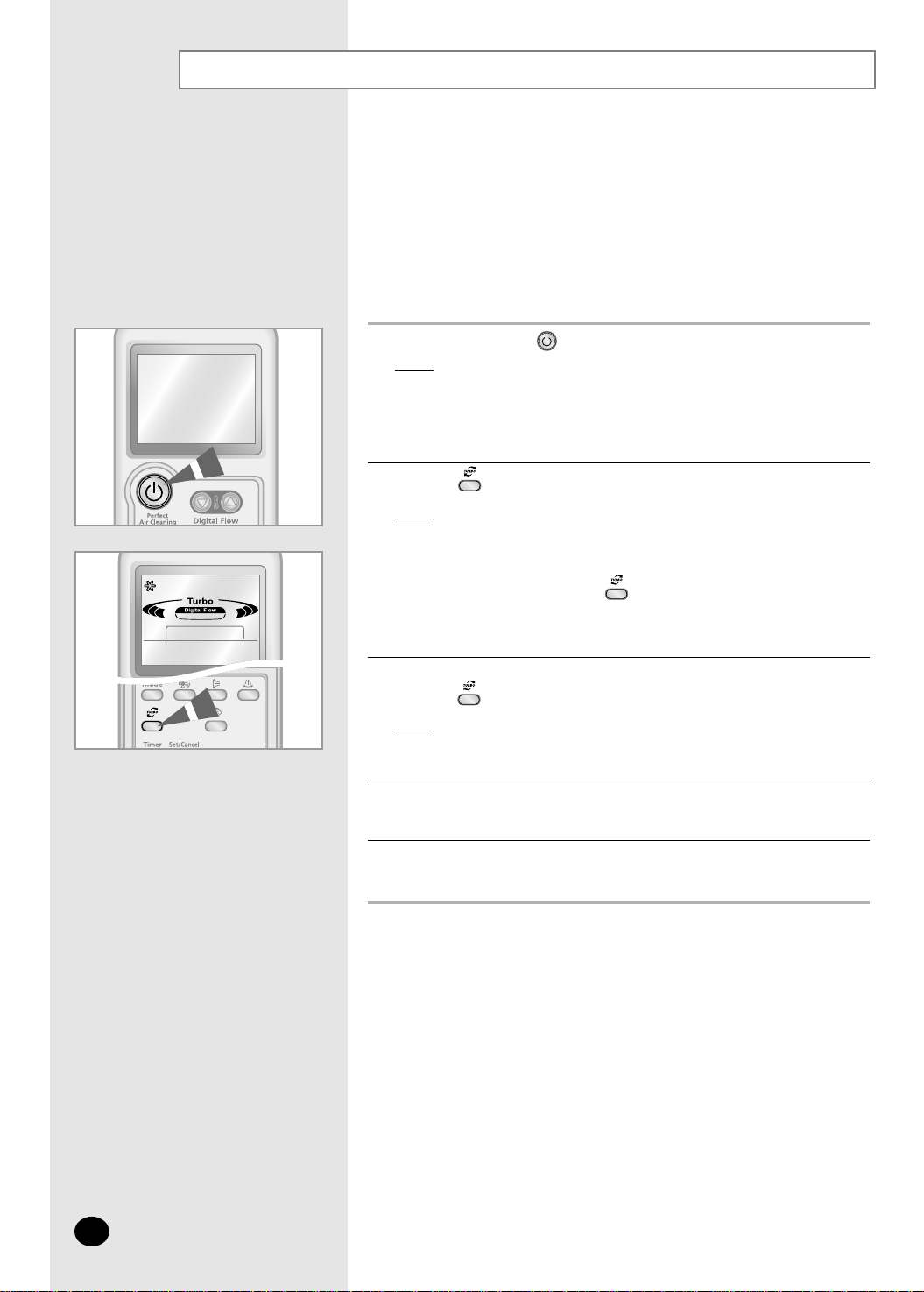

Changing the Room Temperature Quickly
The Turbo cooling/heating function is used to cool or heat your room as
quickly as possible.
EEEExxxxaaaammmmpppplllleeee
: You have just come home and find that the room is very
hot. You wish to cool it down as quickly as possible.
The Turbo function operates for 30 minutes with the maximum settings before
returning automatically to the mode and temperature previously selected.
1
If necessary, press the (On/Off) button.
Result
: ◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit
was last used.
◆ The indoor unit beeps.
2
Press the button.
Result
: ◆ The temperature and fan settings are adjusted automatically.
◆ The air conditioner cools or heats the room as quickly as possible.
◆ After 30 minutes, the air conditioner is reset automatically to the
previous mode, temperature and fan settings.
But, if you press the button in DRY or FAN mode,
it will change to AUTO mode automatically.
3
If you wish to stop the Turbo function before the end of the 30-minute period,
press the button again.
Result
: The air conditioner is reset automatically to the previous mode,
temperature and fan settings.
4
To select the Digital Flow, refer to page 16.
5
To control the direction of the air flow, refer to page
17.
Page 15

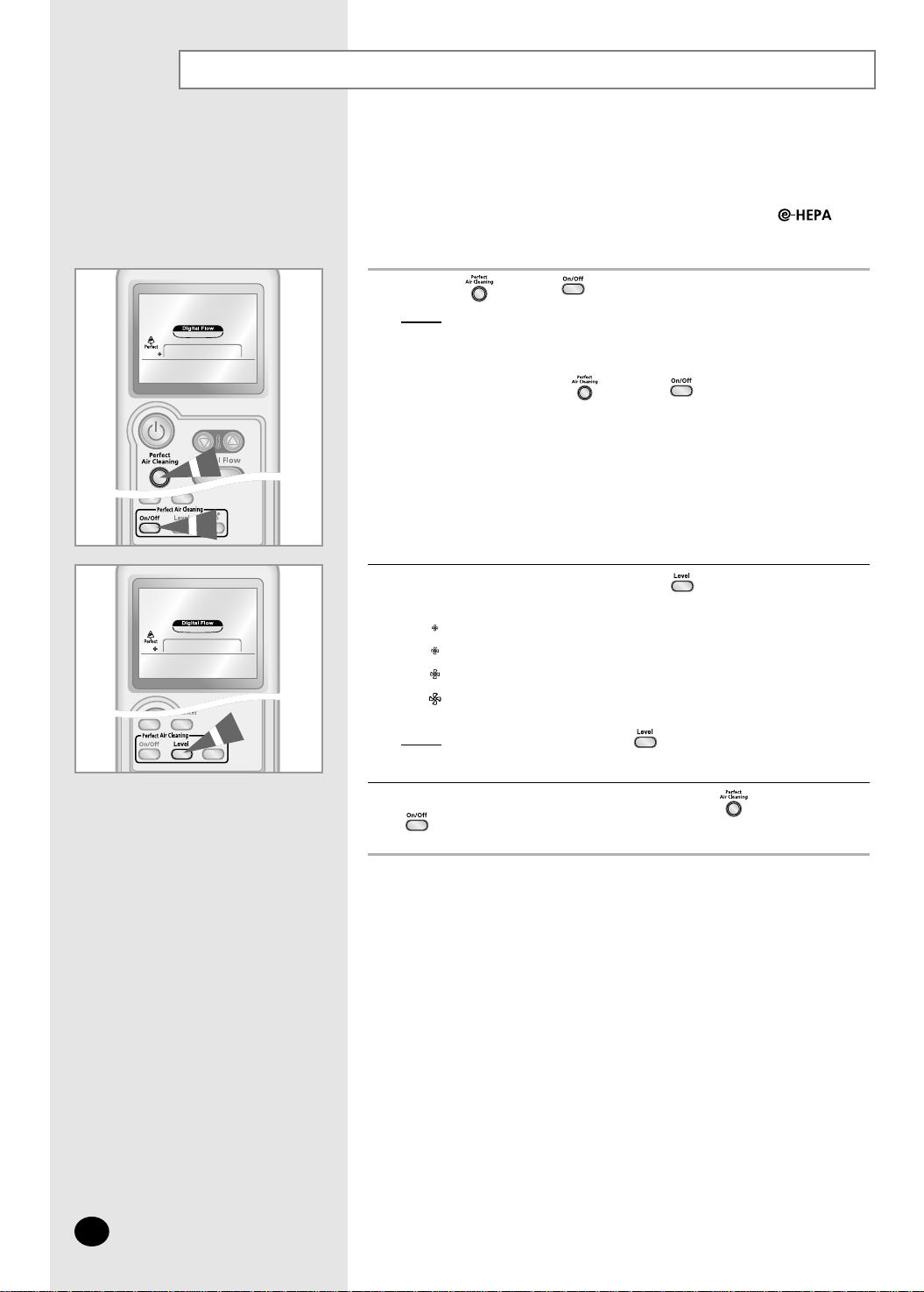

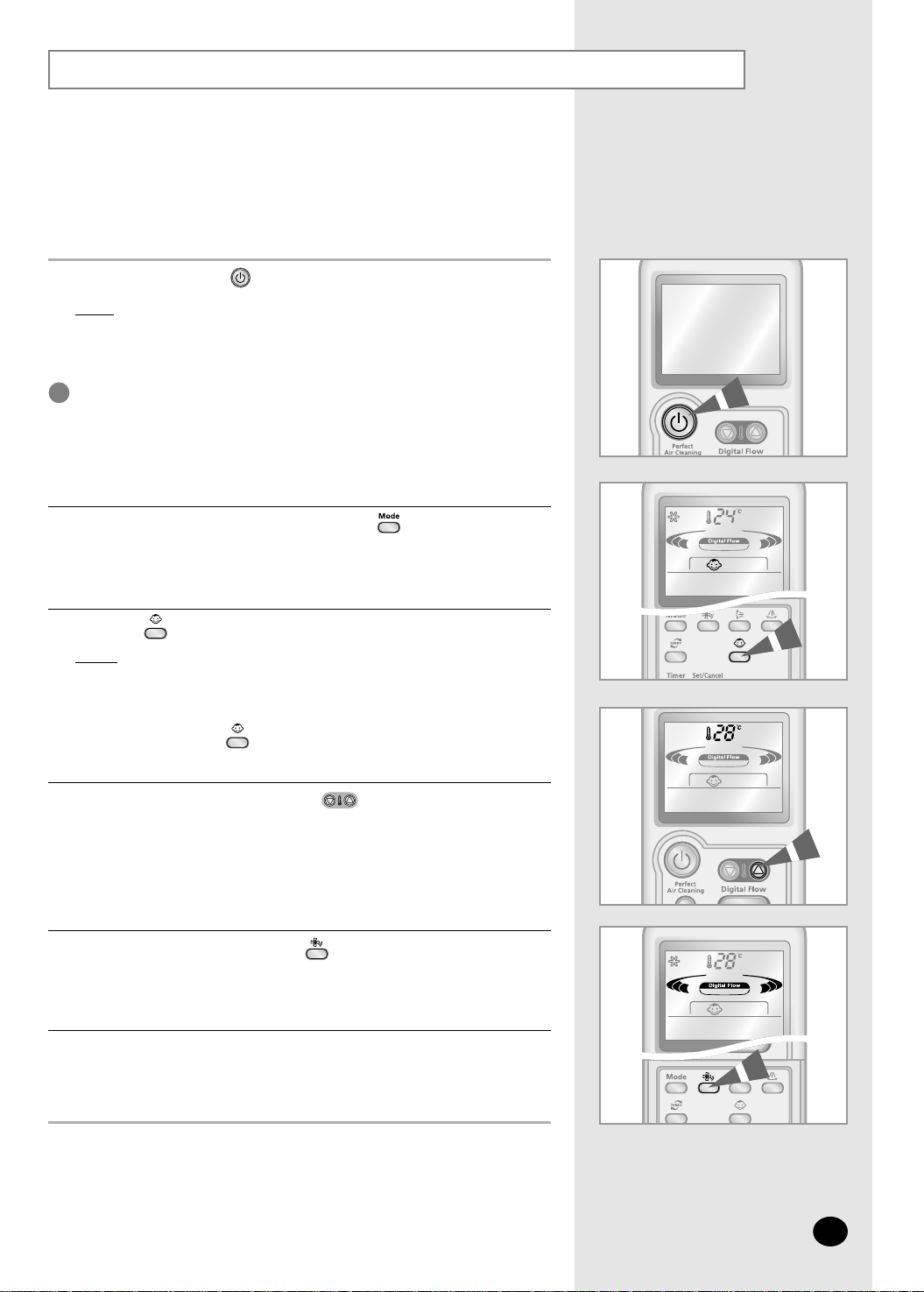

Selecting Health Mode
If you wish to clean the air during cooling/heating operation, select
the Health mode. In the Health mode, the perfect air cleaning is also
operated and the optimum air flow direction is selected automatically.
3 Press the button.
Result
: ◆ The indoor unit beeps.
◆ The air conditioner runs in the Health mode.
◆ The perfect air cleaner opens and it provides clean air to
the room.
NNNNoooottttee
ee If you press in TURBO mode, the TURBO operation is
cancelled.
4 To adjust the temperature, press the button one or more times
until the required temperature is displayed.
NNNNoooottttee
ee Adjustable temperature
◆ In
COOL
mode : 18°C ~ 30°C
◆ In HEAT mode : 16°C ~ 30°C
6 To select the Digital Flow, refer to page 16.
5 To select the fan speed, press the button one or more times until
the required setting is displayed.
E-15
1
If necessary, press the (On/Off) button.
Result: ◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
lt will start up normally after three minutes.
IMPORTANT
2 Select COOL or HEAT mode by pressing the button.
NNNNoooottttee
ee You can select the Health mode only in COOL, HEAT or
TURBO mode.
Page 16
Selecting Digital Flow
In Cool, Heat, Turbo or Health mode, you can adjust the Digital Flow
depending on your needs.
1 Select COOL, HEAT, TURBO or HEALTH mode first.
2 Press the button once or more times as required.
The air conditioner blows
cool/hot air into a specific area.
The air conditioner blows
cool/hot air into wide/whole area.
3 To cancel the Digital Flow, press the button until the Digital Flow
indicators disappear.
The air conditioner blows
cool/hot air into distant area.
The air conditioner blows
cool/hot air into every corner.
E-16
◆
If you select the Digital Flow in Turbo or Health mode, it will change
to Cool/Heat mode automatically.
◆
If you press the or button, the Digital Flow is cancelled.
NNNNoooottttee
ee
Page 17

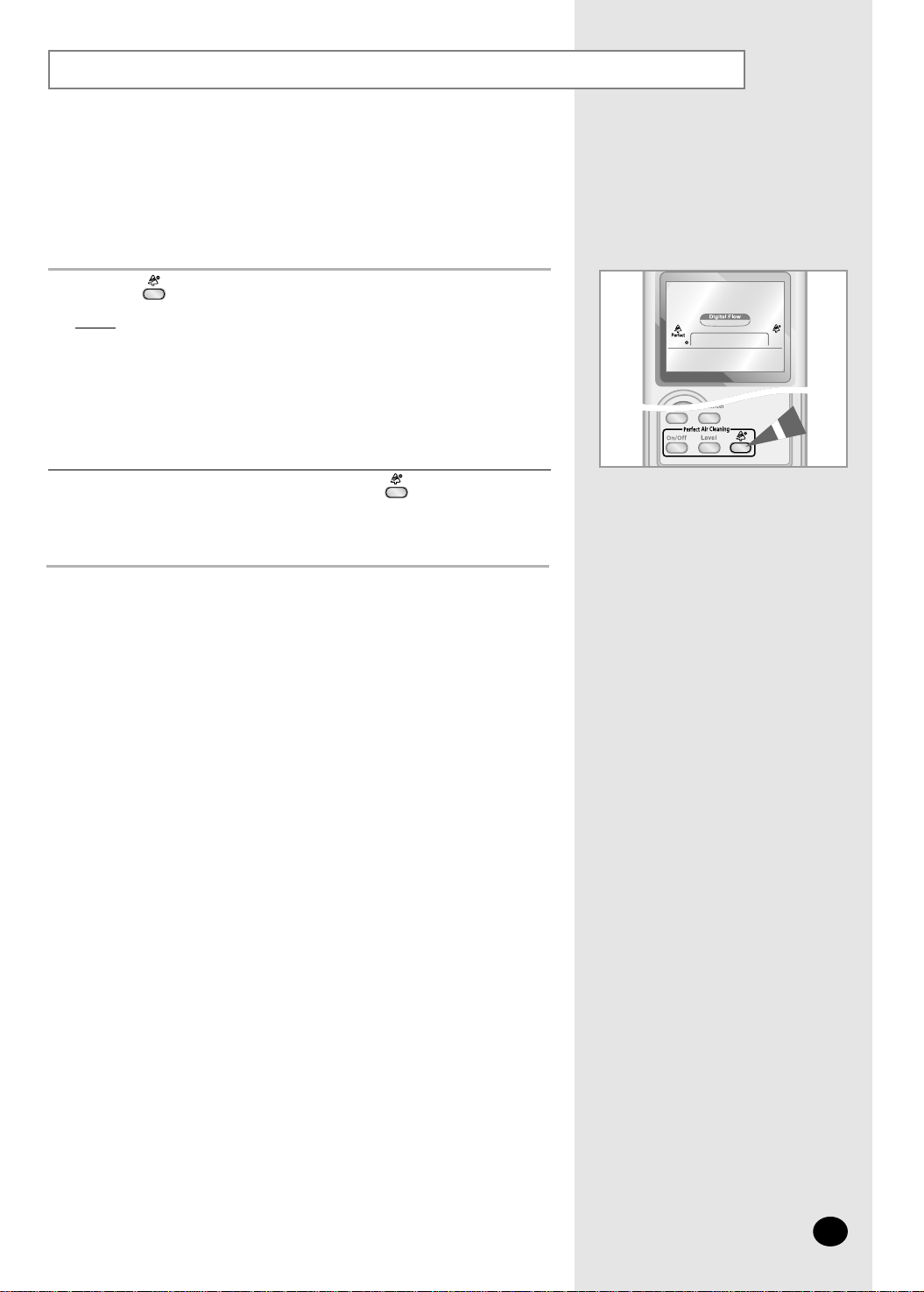

Adjusting the Air Flow Direction Vertically
Adjusting the Air Flow Direction Horizontally
There are two sets of inner air flow blades. Just as the outer air flow
blade can be adjusted vertically, the inner blades can be adjusted
horizontally.
1 Press the button one or more times as required.
Result
: The inner blades are adjusted horizontally.
2 If you want blades to move left and right automatically when the air
conditioner is operating, press the button.
Result
: The blades move left and right, around the base position set.
E-17
Depending on the position of the indoor unit on the wall of your room,
you can adjust the position of the outer air flow blade on the bottom
of the unit, thus increasing the efficiency of the air conditioner.
1 Press the button one or more times as required.
Result
: The outer blades are adjusted vertically.
RECOMMENDATION When... Adjust the blade to face...
Cooling Upwards.
Heating Downwards.
2 If you want the blades to move up and down automatically when the air
conditioner is operating, press the button.
Result
: The blades move up and down, around the base position set.
3
To stop the blades moving up and down, press the button again.
3 To stop the blades moving left and right, press the button again.
Page 18

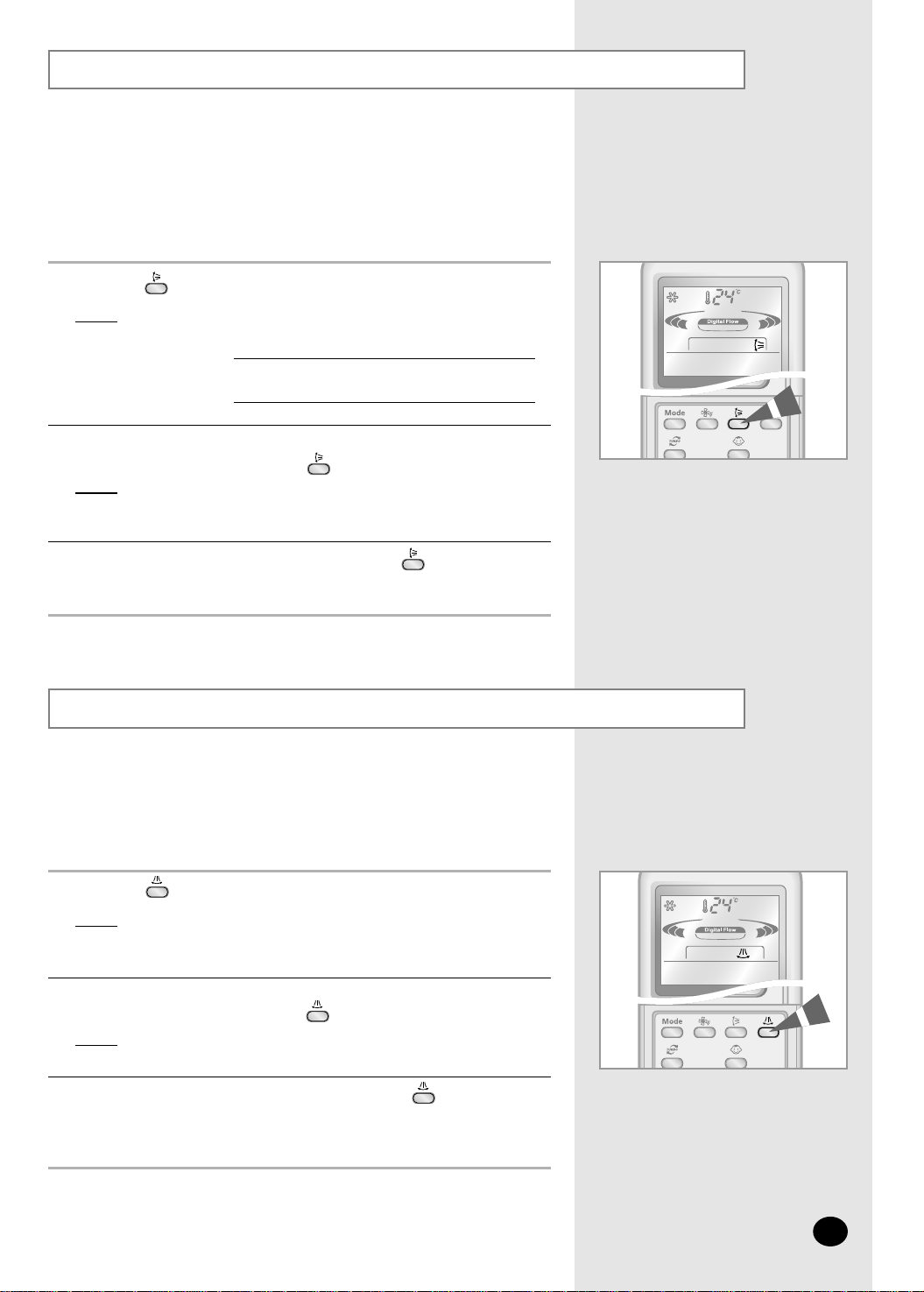

Setting the On Timer
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours. You can select the On Timer only when the air
conditioner is off.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 30 minutes and
24 hours inclusive.
1
Press the (Set/Cancel) button to complete the setting.
Result:
◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature on the display
disappear after 10 seconds.
◆ The air conditioner will switch on automatically when the
counter displayed on the remote control reaches the set time
and disappears the On timer setting.
2
Press the (Set/Cancel) button.
To Cancel the On Timer
E-18
To select an operating mode in advance, press the button until the
desired mode is displayed at the top of the remote control.
Result:
◆ The air conditioner will run in the selected mode when it is
turned on.
3
Page 19
Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours. You can select the Off Timer only when the air
conditioner is on.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 30 minutes and
24 hours inclusive.
1
You can see or change the setting mode and/or the temperature
by pressing the button or the button after setting the
Off timer.
NNNNoooottttee
ee
Press the (Set/Cancel) button to complete the setting.
Result:
◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The air conditioner will switch off automatically when the
counter displayed on the remote control reaches the set time
and disappears the Off timer setting.
2
Press the (Set/Cancel) button.
To Cancel the Off Timer
E-19
Page 20
Select the cleaning speed by pressing the button one or more times
until the required setting is displayed.
Low
Medium
High
Turbo
Result
: Each time you press the button, the indoor unit beeps.
Selecting Perfect Air Cleaning
E-20
1
Press the button or button.
Result
: ◆ The perfect air cleaner is opened and the air conditioner
runs in the perfect air cleaning mode.
◆ The indoor unit beeps.
2
3
To stop the perfect air cleaning function, press the button or
button again.
If you press the button or button when the air
conditioner is on, the function is operated additionally.
NNNNoooottttee
ee
In perfect air cleaning mode, the perfect air cleaner with
filter removes dust particle and tobacco smoke. This function can be
selected in any mode or when the air conditioner is off.
Page 21
Generating Anion
E-21
In the perfect air cleaning mode, you can select the Anion
generating function additionally.
1 Press the button.
Result
: ◆ The air conditioner generates Anion.
◆ The indoor unit beeps.
2 To stop the Anion generating function, press the button again.
The Anion generating function can be selected only
in the perfect cleaning mode.
NNNNoooottttee
ee

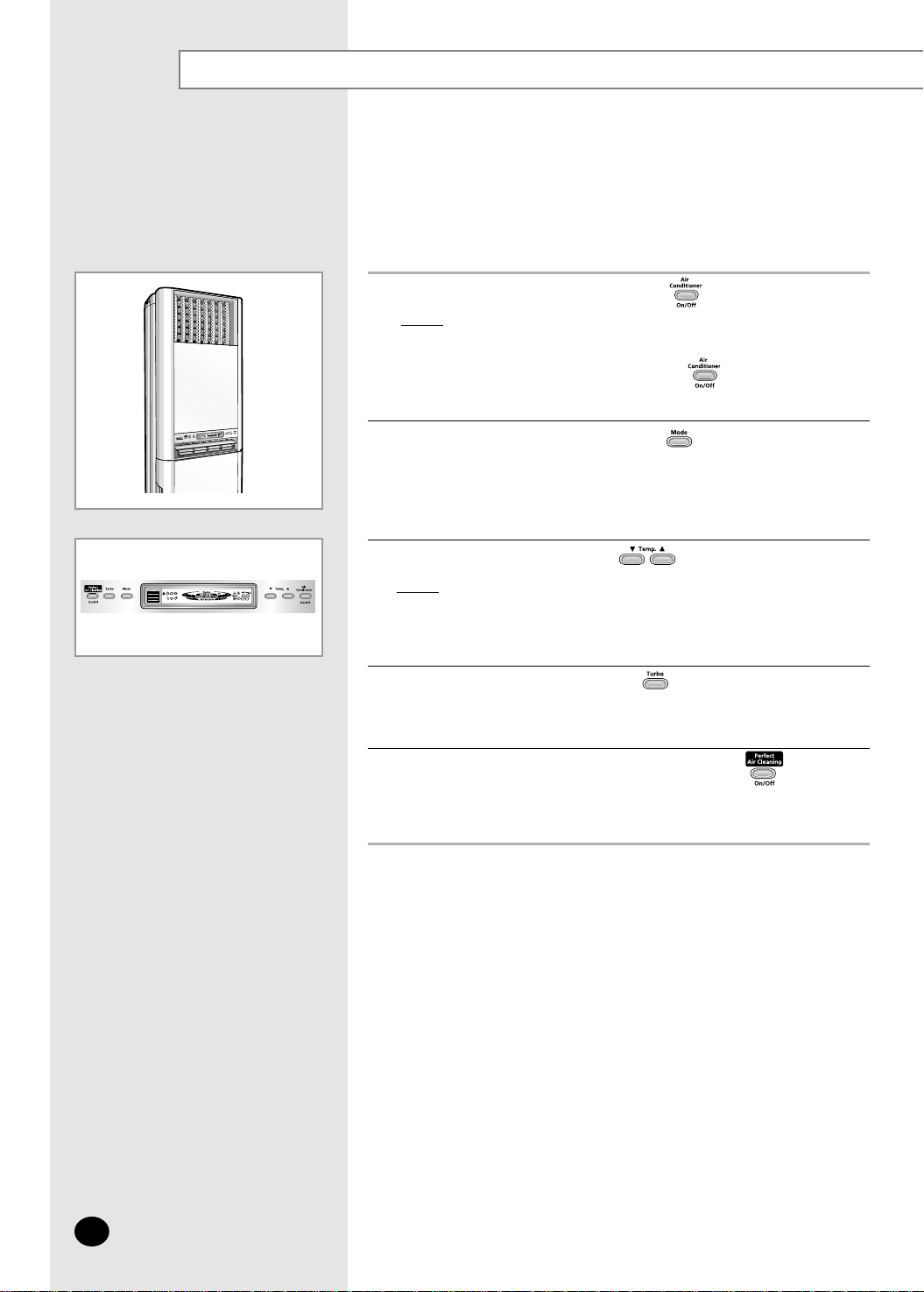

Page 22
E-22
Using the Control Panel on the Indoor Unit
1
To operate the air conditioner, press the (On/Off) button.
Result
: ◆ The air conditioner starts up in the mode selected
when the unit was last used.
◆ The indoor unit beeps.
◆ If you want to stop, press the (On/Off) button
once again.
Select the operating mode by pressing the button.
2
You can select each AUTO, COOL, DRY, FAN, HEAT mode.
NNNNoooottttee
ee
You can operate the air conditioner with the control panel when you can’t
or don’t want to operate the air conditioner with the remote control.
To adjust temperature, press the buttons once or more times.
Result
: If you finish setting the temperature, the current temperature
indicates on the control panel.
3
To select the Turbo mode, press the button.
4
To select the perfect air cleaning function, press the button.5

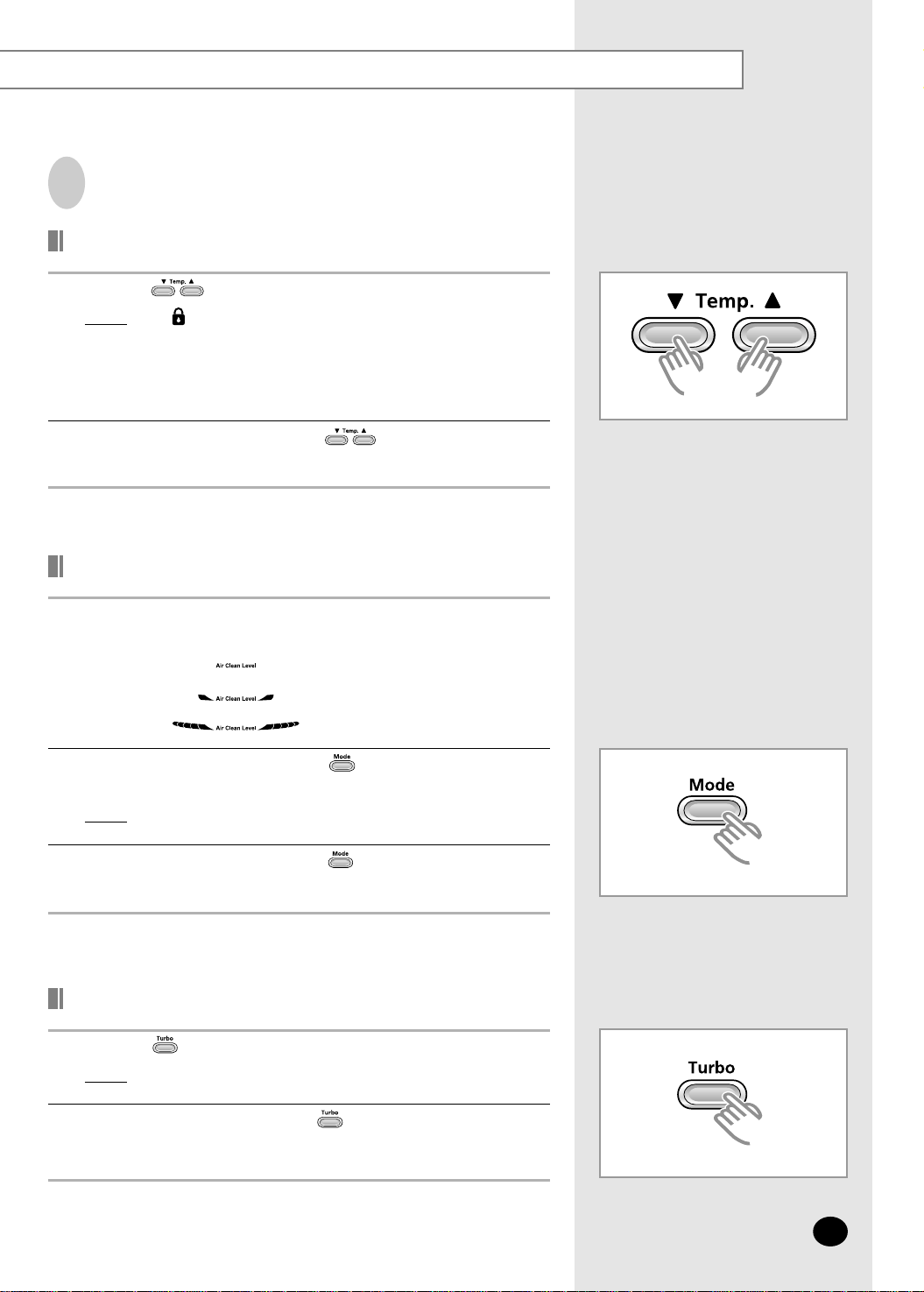

Page 23
E-23
Press the buttons simultaneously for 3 seconds.
Result
: ◆ indicates on the control panel.
◆ The control panel is locked.
1
To cancel the lock function press the buttons simultaneously
for 3 seconds once again.
2
Lock function
You can use the remote control even if the control
panel is locked.
NNNNoooottttee
ee
If the air conditioner is on, the air purity level is displayed automatically
on the control panel.
EEEExxxxaaaammmmpppplllleeee
: Very pure
: Pure
: Impure
1
If the air conditioner is off, press the button for 3 seconds
once again.
Result
: The air purity level is displayed on the control panel.
2
To clear the control panel, press the button for 3 seconds
once again.
3
Air purity level display
Press the button for 3 seconds.
Result
: Light of the control panel is turned off.
1
Turning off the light
Other Functions
To turn on the light again, press the button.2
Page 24
Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic Recommendation
Heating performances The heat pump inside the air conditioner
absorbs heat from outside air and brings it
indoors. If the temperature of the outside air
drops, the air conditioner will heat less.
Warm air circulation The air conditioner circulates warm air to heat
your room; as a result, some time will be
required after starting the air conditioner to
warm the entire room. If necessary, set the air
conditioner on before you wish to use the
room.
Frost When outside temperatures are low and
humidity is high, frost may form in the outdoor
unit when heating is selected.
If this happens:
◆ The heating operation is stopped.
◆ The Defrost( ) mode is triggered
automatically for about seven minutes.
No intervention is required from you; after
about seven minutes, the air conditioner starts
operating again normally.
High indoor and outdoor If both the indoor and outdoor temperatures
temperatures are high and you select the Heat mode, the
outdoor unit’s fan and compressor may stop at
times. This is normal; simply wait until the air
conditioner switches on again.
Power failure If a power failure occurs when the air conditioner
is operating, the unit is switched off.
When the power returns, the air conditioner starts
up again automatically.
E-24
Page 25
E-25
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges within which the air conditioner can be used.
If the air conditioner is used at... Then...
High temperatures
The automatic protection feature may be triggered and the air conditioner stopped.
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Heating 27°C or less 0°C to 24°C approx. Cooling 18°C to 32°C approx. 21°C to 43°C approx. 80% or less
Drying 18°C to 32°C approx. 18°C to 43°C approx. -
❇ If the outdoor temperature is as low as 0°C, the heating capacity drops up to 70~80% depending on
the operating condition.
If the cooling operation is used at over 33°C(indoor temperature), it does not cool at its full capacity.
Low temperatures
A water leak or some other malfunction may occur if the heat exchanger freezes.
High humidity levels
Water may condense on and drip from the surface of the indoor unit if it is used for long periods.

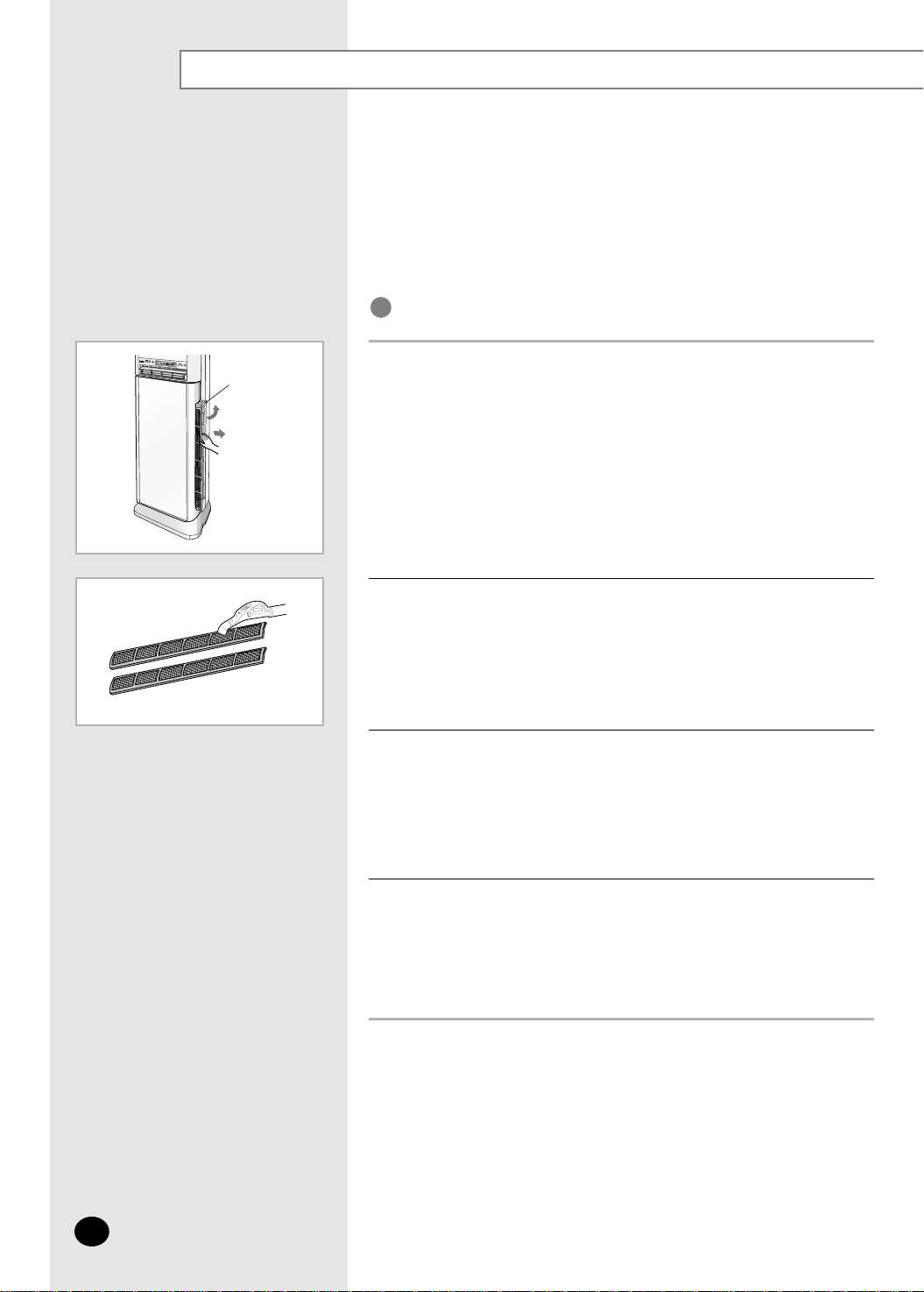

Page 26
E-26
Cleaning Your Air Conditioner
For the best use of your air conditioner, you must clean it every two
weeks regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you
have switched off the breaker used for the unit.
2 Remove all dust on the air filters with a vacuum cleaner or brush.
1 Open the air inlet cover, then pull out the air filters.
4 Clean the unit with a damp cloth and mild detergent (do NOT use
benzene, solvents or other chemicals).
3 When you have finished, insert the air filters into the original position
and close the air inlet cover.
IMPORTANT
NNNNoooottttee
ee
◆ If you have not used the air conditioner for a long period of
time, set the fan going for three to four hours to dry the inside
of the air conditioner thoroughly.
Air inlet cover

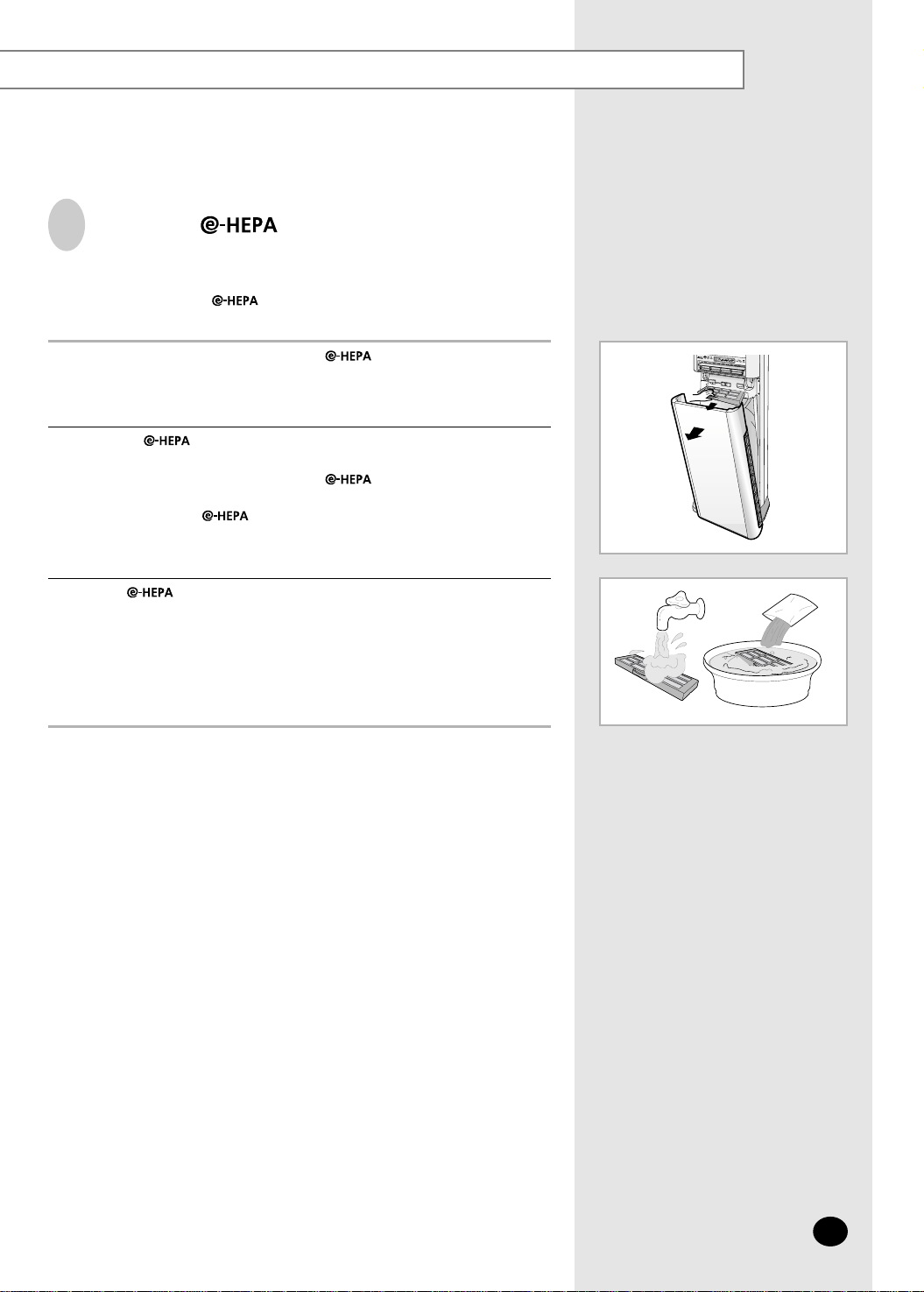

Page 27
E-27
You have to clean the filter once a month and cleaning cycle
depends on the time that the air conditioner is used.
1 Open the front panel, then pull out the filter.
2 Clean the filter with tepid running water.
◆ Do not disassemble the filter when you clean
the filter.
◆ If the filter is too dirty, dissolve mild detergent in
tepid water, then put the filter in the water for 30 minutes.
NNNNoooottttee
ee
To Clean the Filter
3 Dry the filter in the shade, then insert the filter into the original
position, close the front panel.
Page 28
Solving Common Problems
Explanation/Solution
◆ Check that the breaker used for the air conditioner is switched on.
◆ Check that the operation indicator on the indoor unit is on;
if necessary press the (On/Off) button on the remote control.
◆ Check whether the TIMER indicator on the indoor unit is switched on.
If so:
- Wait until the switch-on time is reached and the air conditioner starts
up automatically
- Cancel the timer (see pages 18 and 19 for further details)
◆ Check that there are no obstacles between you and the indoor unit.
◆ Check the remote control batteries.
◆ Check that you are close enough to the indoor unit (seven meters/
yards or less).
◆ Check that you are pointing the remote control at the remote control
sensor in the right of the indoor unit.
◆ Replace the remote control batteries if necessary.
◆ Check that the correct operating mode has been selected (AUTO,
COOL, HEAT).
◆ The room temperature may be too low or too high.
◆ Dust may be blocking the air filter guard; refer to page 26 for cleaning
instructions.
◆ Check that there is no obstacle in front of the outdoor unit.
◆ Check that the required temperature has been set correctly.
◆ Increase the fan speed.
◆ If the air flow is directed upwards, use the remote control to direct it
downwards.
◆ Check that the operating mode is set to COOL, HEAT or FAN ; in the
AUTO mode, the fan speed changes automatically and in the
DRY mode, it is set to AUTO.
◆ Check that the air conditioner has been switched on; if necessary,
press the (On/Off) button on the remote control.
◆ Check that the correct operating mode has been selected :
in the Auto, Dry and Health mode, the air flow direction is selected
automatically .
◆ Check that the timer has been programmed correctly; see pages 18
and 19.
◆ Air the room.
Problem
The air conditioner does not
operate at all
The air conditioner does not
operate with the remote control
No beep is heard when you press
the (On/Off) on the remote
control
The air conditioner does not cool
or heat
When heating, the required room
temperature is never reached and
the air conditioner frequently stops
The fan speed does not change
when you press the button
The air flow direction does
not change when you press
the / button
The timer is not correctly triggered
Odour is permeated in the room
during air conditioning
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
E-28
Page 29
E-29
Technical Specifications
Model
Item
Power supply
Capacity
Power consumption
Running current
Dimension
(W×H×D)
575× 1840× 320 (mm)
880× 798× 310 (mm)
Cooling
26000 BTU/h
2600W
12A
Heating
30000 BTU/h
2800W
12.5A
1Ø, 220-240V~, 50Hz
APH289SEF/APH289SEG
Indoor unit
Outdoor unit
Page 30
ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
Loading...
