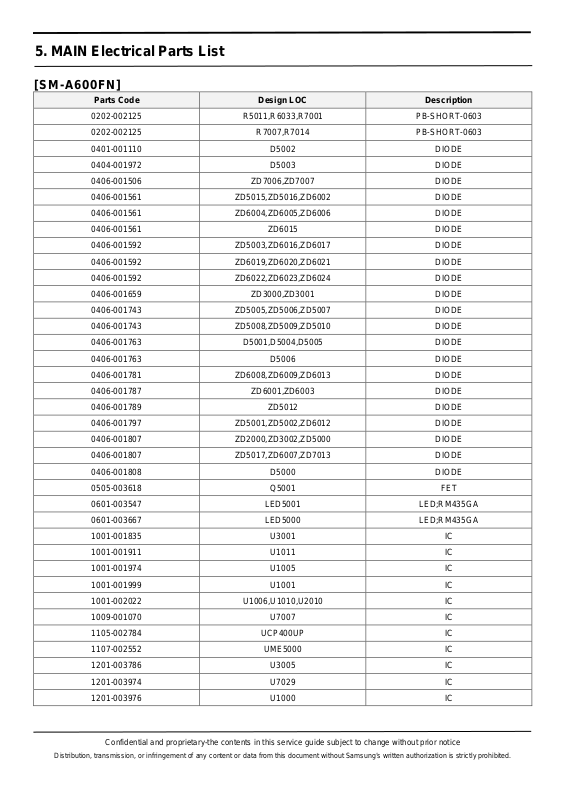

5. MAIN Electrical Parts List

[SM-A600FN]

Parts Code Design LOC Description

0202-002125 R5011,R6033,R7001 PB-SHORT-0603
0202-002125 R7007,R7014 PB-SHORT-0603
0401-001110 D5002 DIODE
0404-001972 D5003 DIODE
0406-001506 ZD7006,ZD7007 DIODE
0406-001561 ZD5015,ZD5016,ZD6002 DIODE
0406-001561 ZD6004,ZD6005,ZD6006 DIODE
0406-001561 ZD6015 DIODE
0406-001592 ZD5003,ZD6016,ZD6017 DIODE
0406-001592 ZD6019,ZD6020,ZD6021 DIODE
0406-001592 ZD6022,ZD6023,ZD6024 DIODE
0406-001659 ZD3000,ZD3001 DIODE
0406-001743 ZD5005,ZD5006,ZD5007 DIODE
0406-001743 ZD5008,ZD5009,ZD5010 DIODE
0406-001763 D5001,D5004,D5005 DIODE
0406-001763 D5006 DIODE
0406-001781 ZD6008,ZD6009,ZD6013 DIODE
0406-001787 ZD6001,ZD6003 DIODE
0406-001789 ZD5012 DIODE
0406-001797 ZD5001,ZD5002,ZD6012 DIODE
0406-001807 ZD2000,ZD3002,ZD5000 DIODE
0406-001807 ZD5017,ZD6007,ZD7013 DIODE
0406-001808 D5000 DIODE
0505-003618 Q5001 FET
0601-003547 LED5001 LED;RM435GA
0601-003667 LED5000 LED;RM435GA
1001-001835 U3001 IC
1001-001911 U1011 IC
1001-001974 U1005 IC
1001-001999 U1001 IC
1001-002022 U1006,U1010,U2010 IC
1009-001070 U7007 IC
1105-002784 UCP400UP IC
1107-002552 UME5000 IC
1201-003786 U3005 IC
1201-003974 U7029 IC
1201-003976 U1000 IC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

1201-004029 U7023 IC
1201-004109 PAM2000 IC
1201-004129 U2001 IC
1201-004178 U6000 IC
1203-008468 U5002 IC
1203-008693 U1004 IC
1203-008696 U7011 IC
1203-008719 U6004 IC
1203-008767 U5001 IC
1203-008865 U7003 IC
1203-008867 U3010 IC
1203-008870 U7005 IC
1203-008925 U7006 IC
1203-008951 U5005 IC
1203-008955 U7002,U7004 IC
1203-008989 U7000 IC
1203-008995 U5000 IC
1205-005565 UCP400 IC
1205-005767 U2003 IC
1205-005814 U3009 IC
1205-005929 U3007 IC
1209-002413 U7008 IC
1209-002450 U7009 IC
1209-002490 U7010 IC
1209-002556 U6001 IC
1404-001664 TH4000,TH4001 THERMISTOR
1404-001724 TH2000 THERMISTOR
1405-001395 V2000,VR1002,VR2001 VARISTOR
1405-001395 VR2003,VR2004 VARISTOR
1405-001403 V1001,V1002,V1003 VARISTOR
1405-001403 V1004,VR1001 VARISTOR
1405-001404 VR7000,VR7001 VARISTOR
1405-001410 VR1006 VARISTOR
1405-001411 V1007,V1008 VARISTOR
1405-001412 V1005,V1006 VARISTOR
1405-001425 V2001,V2002,V2003 VARISTOR
1405-001425 VR1005,VR2000,VR2005 VARISTOR
1405-001425 VR2006,VR3002 VARISTOR
1405-001431 V3001,VR1004 VARISTOR

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

1405-001450 V1009,VR1000 VARISTOR
2007-000141 R4019 R-CHIP
2007-002796 R6017,R6020 R-CHIP
2007-003015 R5057,R5058 R-CHIP
2007-007100 R1004 R-CHIP
2007-007190 R6008,R6009 R-CHIP
2007-007405 R1006 R-CHIP
2007-007741 R4000,R4003,R4005 R-CHIP
2007-007741 R4007,R4023,R4038 R-CHIP
2007-007741 R5000,R5027,R5052 R-CHIP
2007-007741 R5059,R6006,R7012 R-CHIP
2007-007798 R5023,TH5000 R-CHIP
2007-007942 R5049 R-CHIP
2007-008043 R2003 R-CHIP
2007-008056 R1005,R1012 R-CHIP
2007-008210 R5031 R-CHIP
2007-008785 R1013,R6016 R-CHIP
2007-008800 R4010,R4011,R4039 R-CHIP
2007-008800 R4040,R6019 R-CHIP
2007-008816 R6023 R-CHIP
2007-009111 R5002,R7011 R-CHIP
2007-009157 R2009,R4001,R4025 R-CHIP
2007-009157 R4027,R4033,R4034 R-CHIP
2007-009157 R5003,R5004,R5019 R-CHIP
2007-009157 R6010,R6011 R-CHIP
2007-009158 R5005 R-CHIP
2007-009171 R4024,R5001,R5018 R-CHIP
2007-009201 R6002,R6007 R-CHIP
2007-009212 R5008,R5010,R5056 R-CHIP
2007-009212 R6012 R-CHIP
2007-009314 R5014,R5037,R5038 R-CHIP
2007-009315 R5016,R5017,R5020 R-CHIP
2007-009315 R5022,R5040,R5041 R-CHIP
2007-009315 R5043,R5044,R5045 R-CHIP
2007-009352 R3020 R-CHIP
2007-009408 R4014,R4015,R4016 R-CHIP
2007-009408 R4017,R4018,R4020 R-CHIP
2007-009408 R4021,R4028,R4029 R-CHIP
2007-009408 R4030,R4031,R4032 R-CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2007-009408 R4035,R4048,R4049 R-CHIP
2007-009408 R6013,R6028,R6029 R-CHIP
2007-009408 R6030,R7008,R7009 R-CHIP
2007-009408 R7010 R-CHIP
2007-009793 R6022 R-CHIP
2007-009801 R5054 R-CHIP
2007-009805 R1008,R1010,R1018 R-CHIP
2007-009805 R1019,R1020,R1021 R-CHIP
2007-009805 R1024,R2000 R-CHIP
2007-009920 R4008,R4009,R4012 R-CHIP
2007-009969 R6015 R-CHIP
2007-010031 R6005 R-CHIP
2007-010202 R5025,R5026 R-CHIP
2007-010685 R6004 R-CHIP
2007-011043 R4013 R-CHIP
2007-012068 R5030 R-CHIP
2007-012202 R5053 R-CHIP
2203-000311 C3104 C-CERAMIC
2203-000812 C3109,C3127,C3141 C-CERAMIC
2203-000854 C3108,C3128 C-CERAMIC
2203-001153 C5101,C5148 C-CERAMIC
2203-005682 C2040,C3132,C5005 C-CERAMIC
2203-005682 C5093,C5094,C5095 C-CERAMIC
2203-005682 C5096,C5105,C5107 C-CERAMIC
2203-005682 C5124,C5156,C5159 C-CERAMIC
2203-005682 C5163,C6000,C7009 C-CERAMIC
2203-005719 C1016,C1039 C-CERAMIC
2203-005725 C3021 C-CERAMIC
2203-005727 C3038,C3039,C5103 C-CERAMIC
2203-005729 C6007,C6010,C7003 C-CERAMIC
2203-005729 C7007,C7008,C7096 C-CERAMIC
2203-005729 C7097,C7098,C7103 C-CERAMIC
2203-005729 C7104,C7105,C7106 C-CERAMIC
2203-005731 C2005,C2105,C6016 C-CERAMIC
2203-005731 C6017,L1013 C-CERAMIC
2203-005732 C5135,C6033,C6035 C-CERAMIC
2203-005734 C5162,C6001,C6014 C-CERAMIC
2203-005734 C6015 C-CERAMIC
2203-005736 C1004,C1005,C1006 C-CERAMIC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-005736 C1007,C1014,C1015 C-CERAMIC
2203-005736 C1024,C1032,C1033 C-CERAMIC
2203-005736 C1037,C1041,C1043 C-CERAMIC
2203-005736 C1050,C1055,C1058 C-CERAMIC
2203-005736 C1059,C1128,C1130 C-CERAMIC
2203-005736 C1131,C1132,C1151 C-CERAMIC
2203-005736 C1244,C1247,C2000 C-CERAMIC
2203-005736 C2015,C2027,C2028 C-CERAMIC
2203-005736 C2047,C2048,C2049 C-CERAMIC
2203-005736 C2052,C2053,C2072 C-CERAMIC
2203-005736 C2073,C2098,C2100 C-CERAMIC
2203-005736 C2101,C2102,C2104 C-CERAMIC
2203-005736 C2106,C2108,C2114 C-CERAMIC
2203-005736 C2115,C2130,C2131 C-CERAMIC
2203-005736 C2133,C2134,C3011 C-CERAMIC
2203-005736 C3043,C3048,C3057 C-CERAMIC
2203-005736 C3131,C5051,C5161 C-CERAMIC
2203-005736 C6031,C7027,C7043 C-CERAMIC
2203-005736 C7048,L2052,L2057 C-CERAMIC
2203-005736 L3005,L3027,R1000 C-CERAMIC
2203-005777 C2059,C2062,C2094 C-CERAMIC
2203-005777 L1008,L2003,L2030 C-CERAMIC
2203-005789 C1045,C2001,C2034 C-CERAMIC
2203-005789 C2035,C2044,C2090 C-CERAMIC
2203-005789 C2296,C3050,L1009 C-CERAMIC
2203-005789 L1011 C-CERAMIC
2203-005792 C2013,C2112,C5114 C-CERAMIC
2203-005792 L2008 C-CERAMIC
2203-005806 C2003,C2007,C2021 C-CERAMIC
2203-005806 C2103 C-CERAMIC
2203-006048 C6009 C-CERAMIC
2203-006120 C6022 C-CERAMIC
2203-006187 L1023 C-CERAMIC
2203-006194 C2132,C5123,C5160 C-CERAMIC
2203-006194 C6020,C6023 C-CERAMIC
2203-006305 C2095,C2096,C2099 C-CERAMIC
2203-006305 C3012,C3037,C3045 C-CERAMIC
2203-006305 C3137,L2009,L2046 C-CERAMIC
2203-006318 C2031,C5115,L2013 C-CERAMIC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-006399 C4001,C4012,C4016 C-CERAMIC
2203-006399 C4021,C4022,C4025 C-CERAMIC
2203-006399 C4062,C4071,C7004 C-CERAMIC
2203-006399 C7005 C-CERAMIC
2203-006400 C1000,C2016,C2215 C-CERAMIC
2203-006400 C2222,C3007,C3090 C-CERAMIC
2203-006400 C4027,C4070 C-CERAMIC
2203-006410 C2026,C2055,C2088 C-CERAMIC
2203-006423 C2011,C2283,C3004 C-CERAMIC
2203-006423 C3006,C3013,C3015 C-CERAMIC
2203-006423 C3018,C4068,C4069 C-CERAMIC
2203-006423 C5076,C5100,C5104 C-CERAMIC
2203-006423 C5113,C5125,C5157 C-CERAMIC
2203-006423 C5158,C6011,C6012 C-CERAMIC
2203-006423 C7025 C-CERAMIC
2203-006556 C2010,C2018,C2038 C-CERAMIC
2203-006556 C2039,C2058,C5130 C-CERAMIC
2203-006556 C5154,C5155,C6021 C-CERAMIC
2203-006556 C6025,C6027 C-CERAMIC
2203-006562 C2004,C4064,C4065 C-CERAMIC
2203-006562 C5042,C5043,C5121 C-CERAMIC
2203-006562 C6006,C6039,C7038 C-CERAMIC
2203-006562 C7042 C-CERAMIC
2203-006611 C2009,C5132,L1044 C-CERAMIC
2203-006642 C2228 C-CERAMIC
2203-006648 C6024 C-CERAMIC
2203-006665 C2042,C3066 C-CERAMIC
2203-006668 C2123,C2231,C4032 C-CERAMIC
2203-006668 C5097,C5098 C-CERAMIC
2203-006707 C3047,C3049,C3051 C-CERAMIC
2203-006707 C3052,C3056 C-CERAMIC
2203-006839 C2017,C5068,C5069 C-CERAMIC
2203-006839 C5071,C7049,C7050 C-CERAMIC
2203-006841 C5110,C5134 C-CERAMIC
2203-006872 C7099 C-CERAMIC
2203-006896 C6002,C6013 C-CERAMIC
2203-006979 C2076,C2078,C2085 C-CERAMIC
2203-006979 C2286,C2288,C2290 C-CERAMIC
2203-006979 C2292,C2295,C3143 C-CERAMIC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-006979 C3145,C6019,R6034 C-CERAMIC
2203-007210 C3019,C3025,C3026 C-CERAMIC
2203-007210 C5141,C5142,C6040 C-CERAMIC
2203-007210 C6042 C-CERAMIC
2203-007240 C5080,C5084,C5086 C-CERAMIC
2203-007240 C5087,C5151,C5153 C-CERAMIC
2203-007269 C7028,C7032,C7033 C-CERAMIC
2203-007269 C7044,C7047 C-CERAMIC
2203-007271 C2006,C2012,C5013 C-CERAMIC
2203-007271 C5092,C5099,C5109 C-CERAMIC
2203-007271 C5117 C-CERAMIC
2203-007279 C2020,C5074,C7031 C-CERAMIC
2203-007317 C3009,C3028,C3088 C-CERAMIC
2203-007317 C3089,C4020,C4030 C-CERAMIC
2203-007317 C5024,C5025,C7026 C-CERAMIC
2203-007317 C7046,C7075 C-CERAMIC
2203-007391 C2282,C3020,C6005 C-CERAMIC
2203-007393 C1100,C5062,C5070 C-CERAMIC
2203-007393 C5081,C5082,C5150 C-CERAMIC
2203-007393 C7035 C-CERAMIC
2203-007544 C6004 C-CERAMIC
2203-007775 C5053 C-CERAMIC
2203-007796 C1099,C2075,C2284 C-CERAMIC
2203-007796 C2289,C2293,C3005 C-CERAMIC
2203-007796 C3022,C3027,C3077 C-CERAMIC
2203-007796 C3085,C3087,C4000 C-CERAMIC
2203-007796 C4002,C4003,C4006 C-CERAMIC
2203-007796 C4007,C4008,C4009 C-CERAMIC
2203-007796 C4010,C4011,C4013 C-CERAMIC
2203-007796 C4015,C4017,C4019 C-CERAMIC
2203-007796 C4023,C4024,C4026 C-CERAMIC
2203-007796 C4033,C4034,C4035 C-CERAMIC
2203-007796 C4037,C4038,C4040 C-CERAMIC
2203-007796 C4043,C4046,C4047 C-CERAMIC
2203-007796 C4048,C4049,C4050 C-CERAMIC
2203-007796 C4051,C4052,C4053 C-CERAMIC
2203-007796 C4057,C4060,C4061 C-CERAMIC
2203-007796 C4063,C5006,C5007 C-CERAMIC
2203-007796 C5008,C5009,C5010 C-CERAMIC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-007796 C5016,C5017,C5018 C-CERAMIC
2203-007796 C5019,C5020,C5022 C-CERAMIC
2203-007796 C5028,C5034,C5035 C-CERAMIC
2203-007796 C5036,C5037,C5038 C-CERAMIC
2203-007796 C5040,C5073,C5079 C-CERAMIC
2203-007796 C5088,C5089,C5090 C-CERAMIC
2203-007796 C5091,C5118,C5144 C-CERAMIC
2203-007796 C7006,C7011,C7013 C-CERAMIC
2203-007796 C7014,C7015,C7017 C-CERAMIC
2203-007796 C7018,C7019,C7021 C-CERAMIC
2203-007796 C7023,C7040,C7041 C-CERAMIC
2203-008094 C6028 C-CERAMIC
2203-008097 C2019,C6029 C-CERAMIC
2203-008161 C5004 C-CERAMIC
2203-008242 C3031,C3135,C4028 C-CERAMIC
2203-008242 C4041,C4044,C4056 C-CERAMIC
2203-008242 C4059,C5039 C-CERAMIC
2203-008529 C3030,C5000,C5001 C-CERAMIC
2203-008529 C5059,C5063,C5064 C-CERAMIC
2203-008529 C5065,C6008,C6043 C-CERAMIC
2203-008572 C5054,C5136 C-CERAMIC
2203-008654 C5149 C-CERAMIC
2203-008860 C3084,C3086,C5083 C-CERAMIC
2203-008860 C7010,C7016,C7020 C-CERAMIC
2203-008860 C7022 C-CERAMIC
2203-008876 C3008,C5106,C6036 C-CERAMIC
2203-008876 C6038,C7039 C-CERAMIC
2203-009210 C3064,C3130 C-CERAMIC
2203-009444 C6026 C-CERAMIC
2203-009551 C6032 C-CERAMIC
2203-009733 C1098,C2077,C2287 C-CERAMIC
2203-009733 C2291,C2294,C3080 C-CERAMIC
2203-009733 C4036,C4042,C4055 C-CERAMIC
2203-009733 C7001,C7045,C7074 C-CERAMIC
2203-009736 C3032,C4014,C4018 C-CERAMIC
2203-009736 C5023,C5112,C5143 C-CERAMIC
2203-009736 C5152 C-CERAMIC
2203-009858 C5041,C5066 C-CERAMIC
2203-009917 C6003 C-CERAMIC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-002309 L6008 INDUCTOR
2703-002649 C1062,C2024,L2007 INDUCTOR
2703-002900 L5008 INDUCTOR
2703-002901 L1025 INDUCTOR
2703-002907 L2034,L3020 INDUCTOR
2703-002953 C1009,L5009 INDUCTOR
2703-002958 L1005,L1006,L1034 INDUCTOR
2703-002959 L1021,L1045,L1048 INDUCTOR
2703-002959 L3035,U7031 INDUCTOR
2703-002999 C1042 INDUCTOR
2703-003878 L6012 INDUCTOR
2703-004000 L2051 INDUCTOR
2703-004001 C1025 INDUCTOR
2703-004012 C1003,L2005,L2010 INDUCTOR
2703-004012 L2011,L2020,L2058 INDUCTOR
2703-004013 C2091,L2022,L2029 INDUCTOR
2703-004013 L2048,L2070,L3030 INDUCTOR
2703-004018 C1023,C2030,L1015 INDUCTOR
2703-004018 L1017,L2016,L2032 INDUCTOR
2703-004018 L3031,L3037 INDUCTOR
2703-004032 C1017,L1014 INDUCTOR
2703-004034 C2113,L1019,L1035 INDUCTOR
2703-004034 L3015 INDUCTOR
2703-004036 L2078 INDUCTOR
2703-004037 L1018,L2000 INDUCTOR
2703-004038 C1002,C1021,C1051 INDUCTOR
2703-004038 C2084,C2097,L1003 INDUCTOR
2703-004038 L1007,L1041,L2043 INDUCTOR
2703-004038 L2053,L3029 INDUCTOR
2703-004286 C1061,L1004,L2002 INDUCTOR
2703-004286 L2024,L2044,L2050 INDUCTOR
2703-004286 L2056,L2065,L3033 INDUCTOR
2703-004288 L3032 INDUCTOR
2703-004289 L3016 INDUCTOR
2703-004301 C2029,C2087,C2129 INDUCTOR
2703-004328 L2006,L2012,L2017 INDUCTOR
2703-004328 L2036,L2049,L2054 INDUCTOR
2703-004363 C2014 INDUCTOR
2703-004367 L1020 INDUCTOR

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-004369 L3013 INDUCTOR
2703-004763 L1001,L1032,L1043 INDUCTOR
2703-004853 C1030,L1002,L2074 INDUCTOR
2703-004901 L5002,L5003,L5004 INDUCTOR
2703-004901 L5005,L5006 INDUCTOR
2703-005066 L1033 INDUCTOR
2703-005085 C1008,C2041,C2046 INDUCTOR
2703-005085 C3041,L1029,L1030 INDUCTOR
2703-005085 L2001,L2023,L2047 INDUCTOR
2703-005085 L2077 INDUCTOR
2703-005087 C2093,L1012,L2045 INDUCTOR
2703-005087 L2066,L2067 INDUCTOR
2703-005109 L5011 INDUCTOR
2703-005117 L7007,L7008 INDUCTOR
2703-005118 L7006 INDUCTOR
2703-005200 L3006 INDUCTOR
2703-005296 C2022,L1024 INDUCTOR
2703-005372 L3018,L3019 INDUCTOR
2703-005505 L6001 INDUCTOR
2801-005487 OSC3000 CRYSTAL
2801-005496 OSC5000 CRYSTAL
2805-001106 OSC3001 OSCILLATOR
2809-001419 TCX2000 OSCILLATOR
2901-001798 F7005,F7006,F7007 FILTER
2901-001798 F7008,F7009 FILTER
2904-002143 F2002 FILTER
2904-002257 F2007 FILTER
2904-002266 F1002 FILTER
2904-002319 F2010 FILTER
2904-002339 F2006 FILTER
2904-002349 F2005 FILTER
2904-002350 F2003 FILTER
2904-002355 F3003,F3004 FILTER
2904-002390 F3000 FILTER
2910-000401 F2001 FILTER
2911-000435 U2005 FILTER
2911-000447 U1003 FILTER
3301-001438 L3036 CORE-FERRITE BEAD
3301-001778 R1028 CORE-FERRITE BEAD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

3301-001885 L6000,L6014,L6016 CORE-FERRITE BEAD
3301-002078 L6006,L6007,L6009 CORE-FERRITE BEAD
3301-002078 L6010,L6013,L7003 CORE-FERRITE BEAD
3301-002078 L7012,R6018 CORE-FERRITE BEAD
3301-002122 L1031,L1230,L2069 CORE-FERRITE BEAD
3301-002122 L6002,L6004 CORE-FERRITE BEAD
3301-002223 L7000,L7001,L7013 CORE-FERRITE BEAD
3301-002223 L7014 CORE-FERRITE BEAD
3301-002236 L5015,L6003,L6005 CORE-FERRITE BEAD
3301-002236 L6015 CORE-FERRITE BEAD
3301-002237 L1000,L1042,L2073 CORE-FERRITE BEAD
3301-002237 L3000 CORE-FERRITE BEAD
3301-002238 L2039,L2042,L3007 CORE-FERRITE BEAD
3301-002238 L3009 CORE-FERRITE BEAD
3301-002240 L2059,L2061 CORE-FERRITE BEAD
3301-002241 R7005 CORE-FERRITE BEAD
3301-002254 L5000,L5007 CORE-FERRITE BEAD
3301-002287 L5014 CORE-FERRITE BEAD
3301-002304 R7013 CORE-FERRITE BEAD
3301-002312 L2037,L2040,L2060 CORE-FERRITE BEAD
3301-002312 L2062,L4000,L7005 CORE-FERRITE BEAD
3301-002312 L7009,L7010 CORE-FERRITE BEAD
3301-002335 L6011 CORE-FERRITE BEAD
3705-001708 CON1000,CON1006 CONNECTOR
3709-001880 CN5000 CONNECTOR
3709-001891 CN5001 CONNECTOR
3711-007107 HEA7001 CONNECTOR
3711-007810 HEA6000 CONNECTOR
3711-008182 HEA7000 CONNECTOR
3711-008508 HEA7002 CONNECTOR
3711-008847 HDC5001 CONNECTOR
3712-001604 ANT3003,ANT3004 CONNECTOR
3712-001621 ANT6004,ANT6005 CONNECTOR
3712-001621 ANT6006,ANT6007 CONNECTOR
3712-001621 ANT6008,ANT6009 CONNECTOR
3712-001621 ANT6010,ANT6011 CONNECTOR
3712-001621 ANT6012,CON5001 CONNECTOR
3712-001621 CON5002,CON5003 CONNECTOR
3712-001634 ANT5004,ANT5006 CONNECTOR

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

3712-001666 ANT6002,ANT6003 CONNECTOR
3712-001694 ANT1010,ANT1011 CONNECTOR
3712-001694 ANT1012,ANT1015 CONNECTOR
3712-001694 ANT1016,ANT2002 CONNECTOR
3712-001694 ANT5003,ANT5007 CONNECTOR
3712-001694 ANT6000,ANT6001 CONNECTOR
3712-001749 ANT1002,ANT1003 CONNECTOR
3712-001749 ANT1004,ANT1005 CONNECTOR
3712-001749 ANT1007,ANT1008 CONNECTOR
3712-001749 ANT1009,ANT2001 CONNECTOR
3712-001749 ANT2004,ANT2006 CONNECTOR
3712-001749 ANT2007,ANT2008 CONNECTOR
3712-001749 ANT2010,ANT3005 CONNECTOR
3712-001749 ANT3006 CONNECTOR
3712-001800 ANT1000,ANT1013 CONNECTOR
3712-001800 ANT1018,ANT1020 CONNECTOR
3722-003954 IFC5000 JACK-PHONE
4709-002196 F2009 RF-MODULE
4709-002351 F3001 RF-MODULE
4709-002464 F1000 RF-MODULE
4709-002484 F2004 RF-MODULE

4709-002589 F1001,F1004 RF-MODULE
GH61-04484A SUS7000 SUS
GH61-08266A SUS7001 SUS
GH62-00044A CN7000,CN7001 CONTACK
GH63-14633A SC7003 SHIELDCAN
GH63-15417A SC7006 SHIELDCAN
GH63-15418A SC7007 SHIELDCAN
GH63-15419A SC7008 SHIELDCAN
GH63-15420A SC7004 SHIELDCAN
GH63-15421A SC7002 SHIELDCAN
GH63-15422A SC7005 SHIELDCAN
GH02-16501A SC7006SP TAPE

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

[SM-A600F]

Parts Code Design Loc Description

0202-002125 R5012,R6033,R7000 PB-SHORT-0603

0202-002125 R7007,R7016 PB-SHORT-0603

0401-001110 D5002 DIODE-SWITCHING
0404-001972 D5003 DIODE-SCHOTTKY
0406-001506 ZD7006,ZD7007 DIODE-TVS
0406-001561 ZD5015,ZD5016,ZD6002 DIODE-TVS
0406-001561 ZD6004,ZD6005,ZD6006 DIODE-TVS
0406-001561 ZD6015 DIODE-TVS
0406-001592 ZD5003,ZD6016,ZD6017 DIODE-TVS
0406-001592 ZD6019,ZD6020,ZD6021 DIODE-TVS
0406-001592 ZD6022,ZD6023,ZD6024 DIODE-TVS
0406-001743 ZD5005,ZD5006,ZD5007 DIODE-TVS
0406-001743 ZD5008,ZD5009,ZD5010 DIODE-TVS
0406-001763 D5001,D5004,D5005 DIODE-TVS
0406-001763 D5006 DIODE-TVS
0406-001781 ZD6008,ZD6009,ZD6013 DIODE-TVS
0406-001787 ZD6001,ZD6003 DIODE-TVS
0406-001789 ZD5012 DIODE-TVS
0406-001797 ZD5001,ZD5002,ZD6012 DIODE-TVS
0406-001807 ZD2000,ZD3002,ZD5000 DIODE-TVS
0406-001807 ZD5017,ZD6007,ZD7013 DIODE-TVS
0406-001808 D5000 DIODE-TVS
0505-003618 Q5001 FET-SILICON
0601-003547 LED5001 LED
0601-003667 LED5000 LED
1001-001835 U3001 IC

1001-001911 U1011 IC
1001-001974 U1005 IC
1001-001999 U1001 IC
1001-002022 U1006,U1010,U2010 IC
1009-001070 U7007 IC

1105-002927 UCP400UP IC

1107-002609 UME5000 IC
1201-003786 U3005 IC
1201-003974 U7029 IC
1201-003976 U1000 IC
1201-004029 U7023 IC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

1201-004109 PAM2000 IC
1201-004129 U2001 IC
1201-004178 U6000 IC
1203-008468 U5002 IC
1203-008693 U1004 IC
1203-008696 U7011 IC
1203-008719 U6004 IC
1203-008767 U5001 IC
1203-008865 U7003 IC
1203-008870 U7005 IC
1203-008925 U7006 IC
1203-008951 U5005 IC
1203-008955 U7002,U7004 IC
1203-008989 U7000 IC
1203-008995 U5000 IC
1205-005565 UCP400 IC
1205-005767 U2003 IC
1205-005929 U3007 IC
1209-002413 U7008 IC
1209-002450 U7009 IC
1209-002490 U7010 IC
1209-002556 U6001 IC
1404-001664 TH4000,TH4001 THERMISTOR
1404-001724 TH2000 THERMISTOR
1405-001395 V2000,VR1002,VR2001 VARISTOR
1405-001395 VR2003,VR2004 VARISTOR
1405-001403 V1001,V1002,V1003 VARISTOR
1405-001403 V1004,VR1001 VARISTOR
1405-001404 VR7000,VR7001 VARISTOR
1405-001410 VR1006 VARISTOR

1405-001411 V1007,V1008 VARISTOR
1405-001412 V1005,V1006 VARISTOR
1405-001425 V2001,V2002,V2003 VARISTOR
1405-001425 VR1005,VR2000,VR2005 VARISTOR
1405-001425 VR2006,VR3002 VARISTOR
1405-001431 V3001,VR1004 VARISTOR
1405-001450 V1009,VR1000 VARISTOR
2007-000141 R4019 R-CHIP
2007-002796 R6017,R6020 R-CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2007-003015 R5057,R5058 R-CHIP
2007-007100 R1004 R-CHIP
2007-007190 R6008,R6009 R-CHIP
2007-007405 R1006 R-CHIP
2007-007741 R4000,R4003,R4005 R-CHIP
2007-007741 R4007,R4023,R4038 R-CHIP
2007-007741 R5000,R5027,R5052 R-CHIP
2007-007741 R5059,R6006,R7012 R-CHIP
2007-007798 R5023,TH5000 R-CHIP
2007-007942 R5049 R-CHIP
2007-008043 R2003 R-CHIP
2007-008056 R1005,R1012 R-CHIP
2007-008210 R5031 R-CHIP
2007-008785 R1013,R6016 R-CHIP
2007-008800 R4010,R4011,R4039 R-CHIP
2007-008800 R4040,R6019 R-CHIP
2007-008816 R6023 R-CHIP

2007-009111 R5002,R7011 R-CHIP
2007-009157 R2009,R4001,R4026 R-CHIP
2007-009157 R4027,R4033,R4034 R-CHIP
2007-009157 R5003,R5004,R5019 R-CHIP
2007-009157 R6010,R6011 R-CHIP
2007-009158 R5005 R-CHIP
2007-009171 R4024,R5001,R5018 R-CHIP
2007-009201 R6002,R6007 R-CHIP
2007-009212 R5008,R5010,R5056 R-CHIP
2007-009212 R6012 R-CHIP
2007-009314 R5014,R5037,R5038 R-CHIP
2007-009315 R5016,R5017,R5020 R-CHIP
2007-009315 R5022,R5040,R5041 R-CHIP
2007-009315 R5043,R5044,R5045 R-CHIP
2007-009408 R4014,R4015,R4016 R-CHIP
2007-009408 R4017,R4018,R4020 R-CHIP
2007-009408 R4021,R4028,R4029 R-CHIP
2007-009408 R4030,R4031,R4032 R-CHIP
2007-009408 R4035,R4048,R4049 R-CHIP
2007-009408 R6013,R6028,R6029 R-CHIP
2007-009408 R6030,R7008,R7009 R-CHIP
2007-009408 R7010 R-CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2007-009793 R6022 R-CHIP
2007-009801 R5054 R-CHIP
2007-009805 R1008,R1010,R1018 R-CHIP
2007-009805 R1019,R1020,R1021 R-CHIP
2007-009805 R1024,R2000 R-CHIP
2007-009920 R4008,R4009,R4012 R-CHIP
2007-009969 R6015 R-CHIP
2007-010031 R6005 R-CHIP
2007-010202 R5025,R5026 R-CHIP
2007-010685 R6004 R-CHIP

2007-011043 R4013 R-CHIP
2007-012068 R5030 R-CHIP
2007-012202 R5053 R-CHIP

2203-001153 C5101,C5148 C-CERAMIC,CHIP
2203-005682 C2040,C3132,C5005 C-CERAMIC,CHIP
2203-005682 C5093,C5094,C5095 C-CERAMIC,CHIP
2203-005682 C5096,C5105,C5107 C-CERAMIC,CHIP
2203-005682 C5124,C5156,C5159 C-CERAMIC,CHIP
2203-005682 C5163,C6000,C7009 C-CERAMIC,CHIP
2203-005719 C1016,C1039 C-CERAMIC,CHIP
2203-005725 C3021 C-CERAMIC,CHIP
2203-005727 C3038,C3039,C5103 C-CERAMIC,CHIP
2203-005729 C6007,C6010,C7003 C-CERAMIC,CHIP
2203-005729 C7007,C7008,C7096 C-CERAMIC,CHIP
2203-005729 C7097,C7098,C7103 C-CERAMIC,CHIP
2203-005729 C7104,C7105,C7106 C-CERAMIC,CHIP
2203-005731 C2005,C2105,C6016 C-CERAMIC,CHIP
2203-005731 C6017,L1013 C-CERAMIC,CHIP
2203-005732 C5135,C6033,C6035 C-CERAMIC,CHIP
2203-005734 C5162,C6001,C6014 C-CERAMIC,CHIP
2203-005734 C6015 C-CERAMIC,CHIP
2203-005736 C1004,C1005,C1006 C-CERAMIC,CHIP
2203-005736 C1007,C1014,C1015 C-CERAMIC,CHIP
2203-005736 C1024,C1032,C1033 C-CERAMIC,CHIP
2203-005736 C1037,C1041,C1043 C-CERAMIC,CHIP
2203-005736 C1050,C1055,C1058 C-CERAMIC,CHIP
2203-005736 C1059,C1128,C1130 C-CERAMIC,CHIP
2203-005736 C1131,C1132,C1151 C-CERAMIC,CHIP
2203-005736 C1244,C1247,C2000 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-005736 C2015,C2027,C2028 C-CERAMIC,CHIP
2203-005736 C2047,C2048,C2049 C-CERAMIC,CHIP
2203-005736 C2052,C2053,C2072 C-CERAMIC,CHIP
2203-005736 C2073,C2098,C2100 C-CERAMIC,CHIP
2203-005736 C2101,C2102,C2104 C-CERAMIC,CHIP
2203-005736 C2106,C2108,C2114 C-CERAMIC,CHIP
2203-005736 C2115,C2130,C2131 C-CERAMIC,CHIP
2203-005736 C2133,C2134,C3011 C-CERAMIC,CHIP
2203-005736 C3043,C3048,C3057 C-CERAMIC,CHIP
2203-005736 C3131,C5051,C5161 C-CERAMIC,CHIP
2203-005736 C6031,C7027,C7043 C-CERAMIC,CHIP
2203-005736 C7048,L2052,L2057 C-CERAMIC,CHIP
2203-005736 L3005,L3027,R1000 C-CERAMIC,CHIP
2203-005777 C2059,C2062,C2094 C-CERAMIC,CHIP
2203-005777 L1008,L2003,L2030 C-CERAMIC,CHIP
2203-005789 C1045,C2001,C2034 C-CERAMIC,CHIP
2203-005789 C2035,C2044,C2090 C-CERAMIC,CHIP
2203-005789 C2296,C3050,L1009 C-CERAMIC,CHIP
2203-005789 L1011 C-CERAMIC,CHIP
2203-005792 C2013,C2112,C5114 C-CERAMIC,CHIP
2203-005792 L2008 C-CERAMIC,CHIP
2203-005806 C2003,C2007,C2021 C-CERAMIC,CHIP
2203-005806 C2103 C-CERAMIC,CHIP
2203-006048 C6009 C-CERAMIC,CHIP
2203-006120 C6022 C-CERAMIC,CHIP
2203-006187 L1023 C-CERAMIC,CHIP
2203-006194 C2132,C5123,C5160 C-CERAMIC,CHIP
2203-006194 C6020,C6023 C-CERAMIC,CHIP
2203-006305 C2095,C2096,C2099 C-CERAMIC,CHIP
2203-006305 C3012,C3037,C3045 C-CERAMIC,CHIP
2203-006305 C3137,L2009,L2046 C-CERAMIC,CHIP
2203-006318 C2031,C5115,L2013 C-CERAMIC,CHIP
2203-006399 C4001,C4012,C4016 C-CERAMIC,CHIP
2203-006399 C4021,C4022,C4025 C-CERAMIC,CHIP
2203-006399 C4062,C4071,C7004 C-CERAMIC,CHIP
2203-006399 C7005 C-CERAMIC,CHIP
2203-006400 C1000,C2016,C2215 C-CERAMIC,CHIP
2203-006400 C2222,C3007,C4027 C-CERAMIC,CHIP
2203-006400 C4070 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-006410 C2026,C2055,C2088 C-CERAMIC,CHIP
2203-006423 C2011,C2283,C3004 C-CERAMIC,CHIP
2203-006423 C3006,C3013,C3015 C-CERAMIC,CHIP
2203-006423 C3018,C4068,C4069 C-CERAMIC,CHIP
2203-006423 C5076,C5100,C5104 C-CERAMIC,CHIP
2203-006423 C5113,C5125,C5157 C-CERAMIC,CHIP
2203-006423 C5158,C6011,C6012 C-CERAMIC,CHIP
2203-006423 C7025 C-CERAMIC,CHIP
2203-006556 C2010,C2018,C2038 C-CERAMIC,CHIP
2203-006556 C2039,C2058,C5130 C-CERAMIC,CHIP
2203-006556 C5154,C5155,C6021 C-CERAMIC,CHIP
2203-006556 C6025,C6027 C-CERAMIC,CHIP
2203-006562 C2004,C4064,C4065 C-CERAMIC,CHIP
2203-006562 C5042,C5043,C5121 C-CERAMIC,CHIP
2203-006562 C6006,C6039,C7038 C-CERAMIC,CHIP
2203-006562 C7042 C-CERAMIC,CHIP

2203-006611 C2009,C5132,L1044 C-CERAMIC,CHIP
2203-006642 C2228 C-CERAMIC,CHIP
2203-006648 C6024 C-CERAMIC,CHIP
2203-006665 C2042,C3066 C-CERAMIC,CHIP
2203-006668 C2123,C2231,C4032 C-CERAMIC,CHIP
2203-006668 C5097,C5098 C-CERAMIC,CHIP
2203-006707 C3047,C3049,C3051 C-CERAMIC,CHIP
2203-006707 C3052,C3056 C-CERAMIC,CHIP
2203-006839 C2017,C5068,C5069 C-CERAMIC,CHIP
2203-006839 C5071,C7049,C7050 C-CERAMIC,CHIP
2203-006841 C5110,C5134 C-CERAMIC,CHIP
2203-006872 C7099 C-CERAMIC,CHIP
2203-006896 C6002,C6013 C-CERAMIC,CHIP
2203-006979 C2076,C2078,C2085 C-CERAMIC,CHIP
2203-006979 C2286,C2288,C2290 C-CERAMIC,CHIP
2203-006979 C2292,C2295,C3143 C-CERAMIC,CHIP
2203-006979 C3145,C6019,R6034 C-CERAMIC,CHIP
2203-007210 C3019,C3025,C3026 C-CERAMIC,CHIP
2203-007210 C5141,C5142,C6040 C-CERAMIC,CHIP
2203-007210 C6042 C-CERAMIC,CHIP
2203-007240 C5080,C5084,C5086 C-CERAMIC,CHIP
2203-007240 C5087,C5151,C5153 C-CERAMIC,CHIP
2203-007269 C7028,C7032,C7033 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-007269 C7044,C7047 C-CERAMIC,CHIP
2203-007271 C2006,C2012,C5013 C-CERAMIC,CHIP
2203-007271 C5092,C5099,C5109 C-CERAMIC,CHIP
2203-007271 C5117 C-CERAMIC,CHIP
2203-007279 C2020,C5074,C7031 C-CERAMIC,CHIP
2203-007317 C3009,C3028,C4020 C-CERAMIC,CHIP
2203-007317 C4030,C5024,C5025 C-CERAMIC,CHIP
2203-007317 C7026,C7046,C7075 C-CERAMIC,CHIP
2203-007391 C2282,C3020,C6005 C-CERAMIC,CHIP
2203-007393 C1100,C5062,C5070 C-CERAMIC,CHIP
2203-007393 C5081,C5082,C5150 C-CERAMIC,CHIP
2203-007393 C7035 C-CERAMIC,CHIP
2203-007544 C6004 C-CERAMIC,CHIP
2203-007775 C5053 C-CERAMIC,CHIP
2203-007796 C1099,C2075,C2284 C-CERAMIC,CHIP
2203-007796 C2289,C2293,C3005 C-CERAMIC,CHIP
2203-007796 C3022,C3027,C4000 C-CERAMIC,CHIP
2203-007796 C4002,C4003,C4006 C-CERAMIC,CHIP
2203-007796 C4007,C4008,C4009 C-CERAMIC,CHIP
2203-007796 C4010,C4011,C4013 C-CERAMIC,CHIP
2203-007796 C4015,C4017,C4019 C-CERAMIC,CHIP
2203-007796 C4023,C4024,C4026 C-CERAMIC,CHIP
2203-007796 C4033,C4034,C4035 C-CERAMIC,CHIP
2203-007796 C4037,C4038,C4040 C-CERAMIC,CHIP
2203-007796 C4043,C4046,C4047 C-CERAMIC,CHIP
2203-007796 C4048,C4049,C4050 C-CERAMIC,CHIP
2203-007796 C4051,C4052,C4053 C-CERAMIC,CHIP
2203-007796 C4057,C4060,C4061 C-CERAMIC,CHIP
2203-007796 C4063,C5006,C5007 C-CERAMIC,CHIP
2203-007796 C5008,C5009,C5010 C-CERAMIC,CHIP
2203-007796 C5016,C5017,C5018 C-CERAMIC,CHIP
2203-007796 C5019,C5020,C5022 C-CERAMIC,CHIP
2203-007796 C5028,C5034,C5035 C-CERAMIC,CHIP
2203-007796 C5036,C5037,C5038 C-CERAMIC,CHIP
2203-007796 C5040,C5073,C5079 C-CERAMIC,CHIP
2203-007796 C5088,C5089,C5090 C-CERAMIC,CHIP
2203-007796 C5091,C5118,C5144 C-CERAMIC,CHIP
2203-007796 C7006,C7011,C7013 C-CERAMIC,CHIP
2203-007796 C7014,C7015,C7017 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-007796 C7018,C7019,C7021 C-CERAMIC,CHIP
2203-007796 C7023,C7040,C7041 C-CERAMIC,CHIP
2203-008094 C6028 C-CERAMIC,CHIP
2203-008097 C2019,C6029 C-CERAMIC,CHIP
2203-008161 C5004 C-CERAMIC,CHIP
2203-008242 C3031,C3135,C4028 C-CERAMIC,CHIP
2203-008242 C4041,C4044,C4056 C-CERAMIC,CHIP
2203-008242 C4059,C5039 C-CERAMIC,CHIP
2203-008529 C3030,C5000,C5001 C-CERAMIC,CHIP
2203-008529 C5059,C5063,C5064 C-CERAMIC,CHIP
2203-008529 C5065,C6008,C6043 C-CERAMIC,CHIP
2203-008572 C5054,C5136 C-CERAMIC,CHIP
2203-008654 C5149 C-CERAMIC,CHIP
2203-008860 C5083,C7010,C7016 C-CERAMIC,CHIP
2203-008860 C7020,C7022 C-CERAMIC,CHIP
2203-008876 C3008,C5106,C6036 C-CERAMIC,CHIP
2203-008876 C6038,C7039 C-CERAMIC,CHIP
2203-009444 C6026 C-CERAMIC,CHIP
2203-009551 C6032 C-CERAMIC,CHIP
2203-009733 C1098,C2077,C2287 C-CERAMIC,CHIP
2203-009733 C2291,C2294,C4036 C-CERAMIC,CHIP
2203-009733 C4042,C4055,C7001 C-CERAMIC,CHIP
2203-009733 C7045,C7074 C-CERAMIC,CHIP
2203-009736 C3032,C4014,C4018 C-CERAMIC,CHIP
2203-009736 C5023,C5112,C5143 C-CERAMIC,CHIP
2203-009736 C5152 C-CERAMIC,CHIP
2203-009858 C5041,C5066 C-CERAMIC,CHIP
2203-009917 C6003 C-CERAMIC,CHIP
2703-002309 L6008 INDUCTOR-SMD
2703-002649 C1062,C2024,L2007 INDUCTOR-SMD
2703-002900 L5008 INDUCTOR-SMD
2703-002901 L1025 INDUCTOR-SMD
2703-002907 L2034,L3020 INDUCTOR-SMD
2703-002953 C1009,L5009 INDUCTOR-SMD
2703-002958 L1005,L1006,L1034 INDUCTOR-SMD
2703-002959 L1021,L1045,L1048 INDUCTOR-SMD
2703-002959 L3035,U7031 INDUCTOR-SMD
2703-002999 C1042 INDUCTOR-SMD
2703-003878 L6012 INDUCTOR-SMD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-004000 L2051 INDUCTOR-SMD
2703-004001 C1025 INDUCTOR-SMD
2703-004012 C1003,L2005,L2010 INDUCTOR-SMD
2703-004012 L2011,L2020,L2058 INDUCTOR-SMD
2703-004013 C2091,L2022,L2029 INDUCTOR-SMD
2703-004013 L2048,L2070,L3030 INDUCTOR-SMD
2703-004018 C1023,C2030,L1015 INDUCTOR-SMD
2703-004018 L1017,L2016,L2032 INDUCTOR-SMD
2703-004018 L3031,L3037 INDUCTOR-SMD
2703-004032 C1017,L1014 INDUCTOR-SMD
2703-004034 C2113,L1019,L1035 INDUCTOR-SMD
2703-004034 L3015 INDUCTOR-SMD
2703-004036 L2078 INDUCTOR-SMD
2703-004037 L1018,L2000 INDUCTOR-SMD
2703-004038 C1002,C1021,C1051 INDUCTOR-SMD
2703-004038 C2084,C2097,L1003 INDUCTOR-SMD
2703-004038 L1007,L1041,L2043 INDUCTOR-SMD
2703-004038 L2053,L3029 INDUCTOR-SMD
2703-004286 C1061,L1004,L2002 INDUCTOR-SMD
2703-004286 L2024,L2044,L2050 INDUCTOR-SMD
2703-004286 L2056,L2065,L3033 INDUCTOR-SMD
2703-004288 L3032 INDUCTOR-SMD
2703-004289 L3016 INDUCTOR-SMD
2703-004301 C2029,C2087,C2129 INDUCTOR-SMD
2703-004328 L2006,L2012,L2017 INDUCTOR-SMD
2703-004328 L2036,L2049,L2054 INDUCTOR-SMD
2703-004363 C2014 INDUCTOR-SMD
2703-004367 L1020 INDUCTOR-SMD
2703-004369 L3013 INDUCTOR-SMD
2703-004763 L1001,L1032,L1043 INDUCTOR-SMD
2703-004853 C1030,L1002,L2074 INDUCTOR-SMD
2703-004901 L5002,L5003,L5004 INDUCTOR-SMD
2703-004901 L5005,L5006 INDUCTOR-SMD
2703-005066 L1033 INDUCTOR-SMD
2703-005085 C1008,C2041,C2046 INDUCTOR-SMD
2703-005085 C3041,L1029,L1030 INDUCTOR-SMD
2703-005085 L2001,L2023,L2047 INDUCTOR-SMD
2703-005085 L2077 INDUCTOR-SMD
2703-005087 C2093,L1012,L2045 INDUCTOR-SMD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-005087 L2066,L2067 INDUCTOR-SMD
2703-005109 L5011 INDUCTOR-SMD

2703-005117 L7007,L7008 INDUCTOR-SMD

2703-005118 L7006 INDUCTOR-SMD
2703-005200 L3006 INDUCTOR-SMD
2703-005296 C2022,L1024 INDUCTOR-SMD
2703-005505 L6001 INDUCTOR-SMD
2801-005487 OSC3000 CRYSTAL-UNIT
2801-005496 OSC5000 CRYSTAL-UNIT

2805-001106 OSC3001 OSCILLATOR
2809-001419 TCX2000 OSCILLATOR
2901-001798 F7005,F7006,F7007 FILTER-EMI SMD
2901-001798 F7008,F7009 FILTER-EMI SMD
2904-002143 F2002 FILTER-SAW
2904-002257 F2007 FILTER-SAW
2904-002266 F1002 FILTER-SAW
2904-002319 F2010 FILTER-SAW
2904-002339 F2006 FILTER-SAW
2904-002349 F2005 FILTER-SAW
2904-002350 F2003 FILTER-SAW
2904-002355 F3003,F3004 FILTER-SAW
2904-002390 F3000 FILTER-SAW
2910-000401 F2001 FILTER

2911-000435 U2005 FILTER

2911-000447 U1003 FILTER
3301-001438 L3036 CORE-FERRITE BEAD
3301-001778 R1028 CORE-FERRITE BEAD
3301-001885 L6000,L6014,L6016 CORE-FERRITE BEAD
3301-002078 L6006,L6007,L6009 CORE-FERRITE BEAD
3301-002078 L6010,L6013,L7003 CORE-FERRITE BEAD
3301-002078 L7012,R6018 CORE-FERRITE BEAD
3301-002122 L1031,L1230,L2069 CORE-FERRITE BEAD
3301-002122 L6002,L6004 CORE-FERRITE BEAD
3301-002223 L7000,L7001,L7013 CORE-FERRITE BEAD
3301-002223 L7014 CORE-FERRITE BEAD
3301-002236 L5015,L6003,L6005 CORE-FERRITE BEAD
3301-002236 L6015 CORE-FERRITE BEAD
3301-002237 L1000,L1042,L2073 CORE-FERRITE BEAD
3301-002237 L3000 CORE-FERRITE BEAD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

3301-002238 L2039,L2042,L3007 CORE-FERRITE BEAD
3301-002238 L3009 CORE-FERRITE BEAD
3301-002240 L2059,L2061 CORE-FERRITE BEAD
3301-002241 R7005 CORE-FERRITE BEAD
3301-002254 L5000,L5007 CORE-FERRITE BEAD
3301-002287 L5014 CORE-FERRITE BEAD
3301-002304 R7013 CORE-FERRITE BEAD
3301-002312 L2037,L2040,L2060 CORE-FERRITE BEAD
3301-002312 L2062,L4000,L7005 CORE-FERRITE BEAD
3301-002312 L7009,L7010 CORE-FERRITE BEAD
3301-002335 L6011 CORE-FERRITE BEAD
3705-001708 CON1000,CON1006 CONNECTOR-COAXIAL
3709-001880 CN5000 CONNECTOR-CARD EDGE
3709-001891 CN5001 CONNECTOR-CARD EDGE

3711-007107 HEA7001 CONNECTOR-HEADER

3711-007810 HEA6000 CONNECTOR-HEADER

3711-008182 HEA7000 CONNECTOR-HEADER

3711-008508 HEA7002 CONNECTOR-HEADER

3711-008847 HDC5001 CONNECTOR-HEADER
3712-001621 ANT6004,ANT6005 CONNECTOR
3712-001621 ANT6006,ANT6007 CONNECTOR
3712-001621 ANT6008,ANT6009 CONNECTOR
3712-001621 ANT6010,ANT6011 CONNECTOR
3712-001621 ANT6012,CON5001 CONNECTOR
3712-001621 CON5002,CON5003 CONNECTOR
3712-001634 ANT5004,ANT5006 CONNECTOR
3712-001666 ANT6002,ANT6003 CONNECTOR
3712-001694 ANT1010,ANT1011 CONNECTOR
3712-001694 ANT1012,ANT1015 CONNECTOR
3712-001694 ANT1016,ANT2002 CONNECTOR
3712-001694 ANT5003,ANT5007 CONNECTOR
3712-001694 ANT6000,ANT6001 CONNECTOR
3712-001749 ANT1002,ANT1003 CONNECTOR
3712-001749 ANT1004,ANT1005 CONNECTOR
3712-001749 ANT1007,ANT1008 CONNECTOR
3712-001749 ANT1009,ANT2001 CONNECTOR
3712-001749 ANT2004,ANT2006 CONNECTOR
3712-001749 ANT2007,ANT2008 CONNECTOR
3712-001749 ANT2010,ANT3005 CONNECTOR

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

3712-001749 ANT3006 CONNECTOR
3712-001800 ANT1000,ANT1013 CONNECTOR
3712-001800 ANT1018,ANT1020 CONNECTOR
3722-003954 IFC5000 JACK-PHONE
4709-002196 F2009 RF-MODULE
4709-002351 F3001 RF-MODULE
4709-002464 F1000 RF-MODULE
4709-002484 F2004 RF-MODULE
4709-002589 F1001,F1004 RF-MODULE

GH61-04484A SUS7000 SHIELD CAN
GH61-08266A SUS7001 SHIELD CAN
GH62-00044A CN7000,CN7001 SHIELD CAN
GH63-14633A SC7003 SHIELD CAN
GH63-15417A SC7006 SHIELD CAN
GH63-15418A SC7007 SHIELD CAN
GH63-15419A SC7008 SHIELD CAN
GH63-15420A SC7004 SHIELD CAN
GH63-15421A SC7002 SHIELD CAN
GH63-15422A SC7005 SHIELD CAN
GH02-16501A SC7004SP TAPE

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

[SM-A600GN]

Parts Code Design Loc Description

0202-002125 R5011,R6033,R7003 PB-SHORT-0603
0202-002125 R7007,R7014 PB-SHORT-0603

0401-001110 D5002 DIODE-SWITCHING
0404-001972 D5003 DIODE-SCHOTTKY
0406-001506 ZD7006,ZD7007 DIODE-TVS
0406-001561 ZD5015,ZD5016,ZD6002 DIODE-TVS
0406-001561 ZD6004,ZD6005,ZD6006 DIODE-TVS
0406-001561 ZD6015 DIODE-TVS
0406-001592 ZD5003,ZD6016,ZD6017 DIODE-TVS
0406-001592 ZD6019,ZD6020,ZD6021 DIODE-TVS
0406-001592 ZD6022,ZD6023,ZD6024 DIODE-TVS
0406-001659 ZD3000,ZD3001 DIODE-TVS
0406-001743 ZD5005,ZD5006,ZD5007 DIODE-TVS
0406-001743 ZD5008,ZD5009,ZD5010 DIODE-TVS
0406-001763 D5001,D5004,D5005 DIODE-TVS
0406-001763 D5006 DIODE-TVS
0406-001781 ZD6008,ZD6009,ZD6013 DIODE-TVS
0406-001787 ZD6001,ZD6003 DIODE-TVS
0406-001789 ZD5012 DIODE-TVS
0406-001797 ZD5001,ZD5002,ZD6012 DIODE-TVS
0406-001807 ZD2000,ZD3002,ZD5000 DIODE-TVS
0406-001807 ZD5017,ZD6007,ZD7013 DIODE-TVS
0406-001808 D5000 DIODE-TVS
0505-003618 Q5001 FET-SILICON
0601-003547 LED5001 LED
0601-003667 LED5000 LED
1001-001835 U3001 IC
1001-001844 U2000 IC

1001-001911 U1011 IC
1001-001974 U1005 IC
1001-001999 U1001 IC
1001-002022 U1006,U1010,U2010 IC
1009-001070 U7007 IC

1105-002784 UCP400UP IC

1107-002552 UME5000 IC
1201-003786 U3005 IC
1201-003974 U7029 IC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

1201-003976 U1000 IC
1201-004029 U7023 IC
1201-004109 PAM2000 IC
1201-004129 U2001 IC
1201-004178 U6000 IC
1203-008468 U5002 IC
1203-008693 U1004 IC
1203-008696 U7011 IC
1203-008719 U6004 IC
1203-008767 U5001 IC
1203-008865 U7003 IC
1203-008867 U3010 IC
1203-008870 U7005 IC
1203-008925 U7006 IC
1203-008951 U5005 IC
1203-008955 U7002,U7004 IC
1203-008989 U7000 IC
1203-008995 U5000 IC
1205-005565 UCP400 IC
1205-005767 U2003 IC
1205-005814 U3009 IC
1205-005929 U3007 IC
1209-002413 U7008 IC
1209-002450 U7009 IC
1209-002490 U7010 IC
1209-002556 U6001 IC
1404-001664 TH4000,TH4001 THERMISTOR
1404-001724 TH2000 THERMISTOR
1405-001395 V2000,VR1002,VR2001 VARISTOR
1405-001395 VR2003,VR2004 VARISTOR
1405-001403 V1001,V1002,V1003 VARISTOR
1405-001403 V1004,VR1001 VARISTOR
1405-001404 VR7000,VR7001 VARISTOR
1405-001410 VR1006 VARISTOR

1405-001411 V1007,V1008 VARISTOR
1405-001412 V1005,V1006 VARISTOR
1405-001416 V1012 VARISTOR
1405-001425 V2001,V2002,V2003 VARISTOR
1405-001425 VR1005,VR2000,VR2005 VARISTOR

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

1405-001425 VR2006,VR3002 VARISTOR
1405-001431 V3001,VR1004 VARISTOR
1405-001450 V1009 VARISTOR
2007-000141 R4019 R-CHIP
2007-002796 R6017,R6020 R-CHIP
2007-003015 R5057,R5058 R-CHIP
2007-007100 R1004 R-CHIP
2007-007190 R6008,R6009 R-CHIP
2007-007405 R1006 R-CHIP
2007-007741 R4000,R4003,R4005 R-CHIP
2007-007741 R4007,R4023,R4038 R-CHIP
2007-007741 R5000,R5027,R5052 R-CHIP
2007-007741 R5059,R6006,R7012 R-CHIP
2007-007798 R5023,TH5000 R-CHIP
2007-007942 R5049 R-CHIP
2007-008043 R2003 R-CHIP
2007-008056 R1005,R1012 R-CHIP
2007-008210 R5031 R-CHIP
2007-008785 R1013,R6016 R-CHIP
2007-008800 R4010,R4011,R4039 R-CHIP
2007-008800 R4040,R6019 R-CHIP
2007-008816 R6023 R-CHIP

2007-009111 R5002,R7011 R-CHIP
2007-009157 R2009,R4001,R4025 R-CHIP
2007-009157 R4027,R4033,R4034 R-CHIP
2007-009157 R5003,R5004,R5019 R-CHIP
2007-009157 R6010,R6011 R-CHIP
2007-009158 R5005 R-CHIP
2007-009171 R4024,R5001,R5018 R-CHIP
2007-009201 R6002,R6007 R-CHIP
2007-009212 R5008,R5010,R5056 R-CHIP
2007-009212 R6012 R-CHIP
2007-009314 R5014,R5037,R5038 R-CHIP
2007-009315 R5016,R5017,R5020 R-CHIP
2007-009315 R5022,R5040,R5041 R-CHIP
2007-009315 R5043,R5044,R5045 R-CHIP
2007-009352 R3020 R-CHIP
2007-009408 R4014,R4015,R4016 R-CHIP
2007-009408 R4017,R4018,R4020 R-CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2007-009408 R4021,R4028,R4029 R-CHIP
2007-009408 R4030,R4031,R4032 R-CHIP
2007-009408 R4035,R4048,R4049 R-CHIP
2007-009408 R6013,R6028,R6029 R-CHIP
2007-009408 R6030,R7008,R7009 R-CHIP
2007-009408 R7010 R-CHIP
2007-009793 R6022 R-CHIP
2007-009801 R5054 R-CHIP
2007-009805 R1008,R1010,R1018 R-CHIP
2007-009805 R1019,R1020,R1021 R-CHIP
2007-009805 R1024,R2000 R-CHIP
2007-009920 R4008,R4009,R4012 R-CHIP
2007-009969 R6015 R-CHIP
2007-010031 R6005 R-CHIP
2007-010202 R5025,R5026 R-CHIP
2007-010685 R6004 R-CHIP

2007-011043 R4013 R-CHIP
2007-012068 R5030 R-CHIP
2007-012202 R5053 R-CHIP

2203-000311 C3104 C-CERAMIC,CHIP
2203-000812 C3109,C3127,C3141 C-CERAMIC,CHIP
2203-000854 C3108,C3128 C-CERAMIC,CHIP

2203-001153 C5101,C5148 C-CERAMIC,CHIP
2203-005682 C2040,C3132,C5005 C-CERAMIC,CHIP
2203-005682 C5093,C5094,C5095 C-CERAMIC,CHIP
2203-005682 C5096,C5105,C5107 C-CERAMIC,CHIP
2203-005682 C5124,C5156,C5159 C-CERAMIC,CHIP
2203-005682 C5163,C6000,C7009 C-CERAMIC,CHIP
2203-005717 C1058 C-CERAMIC,CHIP
2203-005719 C1016,C1039 C-CERAMIC,CHIP
2203-005725 C3021 C-CERAMIC,CHIP
2203-005727 C3038,C3039,C5103 C-CERAMIC,CHIP
2203-005729 C1083,C6007,C6010 C-CERAMIC,CHIP
2203-005729 C7003,C7007,C7008 C-CERAMIC,CHIP
2203-005729 C7096,C7097,C7098 C-CERAMIC,CHIP
2203-005729 C7103,C7104,C7105 C-CERAMIC,CHIP
2203-005729 C7106 C-CERAMIC,CHIP
2203-005731 C2005,C2105,C6016 C-CERAMIC,CHIP
2203-005731 C6017,L1013 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-005732 C1036,C5135,C6033 C-CERAMIC,CHIP
2203-005732 C6035 C-CERAMIC,CHIP
2203-005734 C5162,C6001,C6014 C-CERAMIC,CHIP
2203-005734 C6015 C-CERAMIC,CHIP
2203-005736 C1004,C1005,C1006 C-CERAMIC,CHIP
2203-005736 C1007,C1014,C1015 C-CERAMIC,CHIP
2203-005736 C1024,C1032,C1033 C-CERAMIC,CHIP
2203-005736 C1037,C1041,C1043 C-CERAMIC,CHIP
2203-005736 C1048,C1050,C1055 C-CERAMIC,CHIP
2203-005736 C1059,C1063,C1128 C-CERAMIC,CHIP
2203-005736 C1130,C1131,C1132 C-CERAMIC,CHIP
2203-005736 C1151,C1244,C1247 C-CERAMIC,CHIP
2203-005736 C2000,C2015,C2027 C-CERAMIC,CHIP
2203-005736 C2028,C2049,C2052 C-CERAMIC,CHIP
2203-005736 C2053,C2067,C2072 C-CERAMIC,CHIP
2203-005736 C2073,C2098,C2100 C-CERAMIC,CHIP
2203-005736 C2101,C2102,C2104 C-CERAMIC,CHIP
2203-005736 C2106,C2108,C2114 C-CERAMIC,CHIP
2203-005736 C2115,C2119,C2120 C-CERAMIC,CHIP
2203-005736 C2121,C2130,C2131 C-CERAMIC,CHIP
2203-005736 C2133,C2134,C3011 C-CERAMIC,CHIP
2203-005736 C3043,C3048,C3057 C-CERAMIC,CHIP
2203-005736 C3131,C5051,C5161 C-CERAMIC,CHIP
2203-005736 C6031,C7027,C7043 C-CERAMIC,CHIP
2203-005736 C7048,L2052,L2057 C-CERAMIC,CHIP
2203-005736 L3005,L3027,R1000 C-CERAMIC,CHIP
2203-005777 C2059,C2062,C2066 C-CERAMIC,CHIP
2203-005777 C2094,L1008,L2003 C-CERAMIC,CHIP
2203-005777 L2030 C-CERAMIC,CHIP
2203-005789 C1045,C2001,C2024 C-CERAMIC,CHIP
2203-005789 C2034,C2035,C2036 C-CERAMIC,CHIP
2203-005789 C2044,C2090,C2248 C-CERAMIC,CHIP
2203-005789 C2296,C3050,L1009 C-CERAMIC,CHIP
2203-005789 L1011,L2014 C-CERAMIC,CHIP
2203-005792 C1064,C1065,C2013 C-CERAMIC,CHIP
2203-005792 C2112,C5114,L2008 C-CERAMIC,CHIP
2203-005806 C2003,C2007,C2021 C-CERAMIC,CHIP
2203-005806 C2103 C-CERAMIC,CHIP
2203-006048 C6009 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-006120 C6022 C-CERAMIC,CHIP
2203-006187 L1023 C-CERAMIC,CHIP
2203-006194 C2132,C5123,C5160 C-CERAMIC,CHIP
2203-006194 C6020,C6023 C-CERAMIC,CHIP
2203-006305 C2095,C2096,C2099 C-CERAMIC,CHIP
2203-006305 C3012,C3037,C3045 C-CERAMIC,CHIP
2203-006305 C3137,L2009,L2046 C-CERAMIC,CHIP
2203-006305 L3032 C-CERAMIC,CHIP
2203-006318 C2031,C5115,L3024 C-CERAMIC,CHIP
2203-006399 C4001,C4012,C4016 C-CERAMIC,CHIP
2203-006399 C4021,C4022,C4025 C-CERAMIC,CHIP
2203-006399 C4062,C4071,C7004 C-CERAMIC,CHIP
2203-006399 C7005 C-CERAMIC,CHIP
2203-006400 C1000,C1073,C1077 C-CERAMIC,CHIP
2203-006400 C2016,C2215,C2222 C-CERAMIC,CHIP
2203-006400 C3007,C3090,C4027 C-CERAMIC,CHIP
2203-006400 C4070 C-CERAMIC,CHIP
2203-006410 C2026,C2055,C2088 C-CERAMIC,CHIP
2203-006423 C2011,C2283,C3004 C-CERAMIC,CHIP
2203-006423 C3006,C3013,C3015 C-CERAMIC,CHIP
2203-006423 C3018,C4068,C4069 C-CERAMIC,CHIP
2203-006423 C5076,C5100,C5104 C-CERAMIC,CHIP
2203-006423 C5113,C5125,C5157 C-CERAMIC,CHIP
2203-006423 C5158,C6011,C6012 C-CERAMIC,CHIP
2203-006423 C7025 C-CERAMIC,CHIP
2203-006556 C2010,C2018,C2038 C-CERAMIC,CHIP
2203-006556 C2039,C2058,C5130 C-CERAMIC,CHIP
2203-006556 C5154,C5155,C6021 C-CERAMIC,CHIP
2203-006556 C6025,C6027 C-CERAMIC,CHIP
2203-006562 C2004,C4064,C4065 C-CERAMIC,CHIP
2203-006562 C5042,C5043,C5121 C-CERAMIC,CHIP
2203-006562 C6006,C6039,C7038 C-CERAMIC,CHIP
2203-006562 C7042 C-CERAMIC,CHIP

2203-006611 C2009,C5132,L1044 C-CERAMIC,CHIP
2203-006642 C2228 C-CERAMIC,CHIP
2203-006648 C6024 C-CERAMIC,CHIP
2203-006665 C2042,C3066 C-CERAMIC,CHIP
2203-006668 C2123,C2231,C4032 C-CERAMIC,CHIP
2203-006668 C5097,C5098 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-006707 C3047,C3049,C3051 C-CERAMIC,CHIP
2203-006707 C3052,C3056 C-CERAMIC,CHIP
2203-006839 C2017,C5068,C5069 C-CERAMIC,CHIP
2203-006839 C5071,C7049,C7050 C-CERAMIC,CHIP
2203-006841 C5110,C5134 C-CERAMIC,CHIP
2203-006872 C7099 C-CERAMIC,CHIP
2203-006896 C6002,C6013 C-CERAMIC,CHIP
2203-006979 C2076,C2078,C2085 C-CERAMIC,CHIP
2203-006979 C2286,C2288,C2290 C-CERAMIC,CHIP
2203-006979 C2292,C2295,C3143 C-CERAMIC,CHIP
2203-006979 C3145,C6019,R6034 C-CERAMIC,CHIP
2203-007194 C3053 C-CERAMIC,CHIP
2203-007210 C3019,C3025,C3026 C-CERAMIC,CHIP
2203-007210 C5141,C5142,C6040 C-CERAMIC,CHIP
2203-007210 C6042 C-CERAMIC,CHIP
2203-007240 C5080,C5084,C5086 C-CERAMIC,CHIP
2203-007240 C5087,C5151,C5153 C-CERAMIC,CHIP
2203-007269 C7028,C7032,C7033 C-CERAMIC,CHIP
2203-007269 C7044,C7047 C-CERAMIC,CHIP
2203-007271 C2006,C2012,C5013 C-CERAMIC,CHIP
2203-007271 C5092,C5099,C5109 C-CERAMIC,CHIP
2203-007271 C5117 C-CERAMIC,CHIP
2203-007279 C2020,C5074,C7031 C-CERAMIC,CHIP
2203-007317 C3009,C3028,C3088 C-CERAMIC,CHIP
2203-007317 C3089,C4020,C4030 C-CERAMIC,CHIP
2203-007317 C5024,C5025,C7026 C-CERAMIC,CHIP
2203-007317 C7046,C7075 C-CERAMIC,CHIP
2203-007391 C2282,C3020,C6005 C-CERAMIC,CHIP
2203-007393 C1100,C5062,C5070 C-CERAMIC,CHIP
2203-007393 C5081,C5082,C5150 C-CERAMIC,CHIP
2203-007393 C7035 C-CERAMIC,CHIP
2203-007544 C6004 C-CERAMIC,CHIP
2203-007775 C5053 C-CERAMIC,CHIP
2203-007796 C1099,C2075,C2284 C-CERAMIC,CHIP
2203-007796 C2289,C2293,C3005 C-CERAMIC,CHIP
2203-007796 C3022,C3027,C3077 C-CERAMIC,CHIP
2203-007796 C3085,C3087,C4000 C-CERAMIC,CHIP
2203-007796 C4002,C4003,C4006 C-CERAMIC,CHIP
2203-007796 C4007,C4008,C4009 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-007796 C4010,C4011,C4013 C-CERAMIC,CHIP
2203-007796 C4015,C4017,C4019 C-CERAMIC,CHIP
2203-007796 C4023,C4024,C4026 C-CERAMIC,CHIP
2203-007796 C4033,C4034,C4035 C-CERAMIC,CHIP
2203-007796 C4037,C4038,C4040 C-CERAMIC,CHIP
2203-007796 C4043,C4046,C4047 C-CERAMIC,CHIP
2203-007796 C4048,C4049,C4050 C-CERAMIC,CHIP
2203-007796 C4051,C4052,C4053 C-CERAMIC,CHIP
2203-007796 C4057,C4060,C4061 C-CERAMIC,CHIP
2203-007796 C4063,C5006,C5007 C-CERAMIC,CHIP
2203-007796 C5008,C5009,C5010 C-CERAMIC,CHIP
2203-007796 C5016,C5017,C5018 C-CERAMIC,CHIP
2203-007796 C5019,C5020,C5022 C-CERAMIC,CHIP
2203-007796 C5028,C5034,C5035 C-CERAMIC,CHIP
2203-007796 C5036,C5037,C5038 C-CERAMIC,CHIP
2203-007796 C5040,C5073,C5079 C-CERAMIC,CHIP
2203-007796 C5088,C5089,C5090 C-CERAMIC,CHIP
2203-007796 C5091,C5118,C5144 C-CERAMIC,CHIP
2203-007796 C7006,C7011,C7013 C-CERAMIC,CHIP
2203-007796 C7014,C7015,C7017 C-CERAMIC,CHIP
2203-007796 C7018,C7019,C7021 C-CERAMIC,CHIP
2203-007796 C7023,C7040,C7041 C-CERAMIC,CHIP
2203-008094 C6028 C-CERAMIC,CHIP
2203-008097 C2019,C6029 C-CERAMIC,CHIP
2203-008161 C5004 C-CERAMIC,CHIP
2203-008242 C3031,C3135,C4028 C-CERAMIC,CHIP
2203-008242 C4041,C4044,C4056 C-CERAMIC,CHIP
2203-008242 C4059,C5039 C-CERAMIC,CHIP
2203-008529 C3030,C5000,C5001 C-CERAMIC,CHIP
2203-008529 C5059,C5063,C5064 C-CERAMIC,CHIP
2203-008529 C5065,C6008,C6043 C-CERAMIC,CHIP
2203-008572 C5054,C5136 C-CERAMIC,CHIP
2203-008654 C5149 C-CERAMIC,CHIP
2203-008860 C3084,C3086,C5083 C-CERAMIC,CHIP
2203-008860 C7010,C7016,C7020 C-CERAMIC,CHIP
2203-008860 C7022 C-CERAMIC,CHIP
2203-008876 C3008,C5106,C6036 C-CERAMIC,CHIP
2203-008876 C6038,C7039 C-CERAMIC,CHIP
2203-009210 C3064,C3130 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-009444 C6026 C-CERAMIC,CHIP
2203-009551 C6032 C-CERAMIC,CHIP
2203-009733 C1098,C2077,C2287 C-CERAMIC,CHIP
2203-009733 C2291,C2294,C3080 C-CERAMIC,CHIP
2203-009733 C4036,C4042,C4055 C-CERAMIC,CHIP
2203-009733 C7001,C7045,C7074 C-CERAMIC,CHIP
2203-009736 C3032,C4014,C4018 C-CERAMIC,CHIP
2203-009736 C5023,C5112,C5143 C-CERAMIC,CHIP
2203-009736 C5152 C-CERAMIC,CHIP
2203-009858 C5041,C5066 C-CERAMIC,CHIP
2203-009917 C6003 C-CERAMIC,CHIP
2703-002309 L6008 INDUCTOR-SMD
2703-002649 C1062,L2007,L3025 INDUCTOR-SMD
2703-002858 L1027 INDUCTOR-SMD
2703-002900 L5008 INDUCTOR-SMD
2703-002901 L1022,L1025 INDUCTOR-SMD
2703-002907 L2034,L3020 INDUCTOR-SMD
2703-002951 C1074 INDUCTOR-SMD
2703-002953 C1009,C2122,L1071 INDUCTOR-SMD
2703-002953 L5009 INDUCTOR-SMD
2703-002955 L1037 INDUCTOR-SMD
2703-002958 L1005,L1006,L1034 INDUCTOR-SMD
2703-002958 L1077 INDUCTOR-SMD
2703-002959 L1021,L1045,L1048 INDUCTOR-SMD
2703-002959 L3035,U7031 INDUCTOR-SMD
2703-002999 C1042 INDUCTOR-SMD
2703-003878 L6012 INDUCTOR-SMD
2703-003970 L1124 INDUCTOR-SMD
2703-004000 L2051 INDUCTOR-SMD
2703-004001 C1025 INDUCTOR-SMD
2703-004012 C1003,C1066,L2005 INDUCTOR-SMD
2703-004012 L2010,L2011,L2020 INDUCTOR-SMD
2703-004012 L2058 INDUCTOR-SMD
2703-004013 C2091,L2022,L2029 INDUCTOR-SMD
2703-004013 L2048,L2070,L2071 INDUCTOR-SMD
2703-004013 L3030 INDUCTOR-SMD
2703-004018 C1023,C2030,L1015 INDUCTOR-SMD
2703-004018 L1017,L1068,L2016 INDUCTOR-SMD
2703-004018 L2032,L3031,L3037 INDUCTOR-SMD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-004032 C1017,L1014,L1049 INDUCTOR-SMD
2703-004034 C2113,L1019,L1035 INDUCTOR-SMD
2703-004034 L3015 INDUCTOR-SMD
2703-004035 L1047 INDUCTOR-SMD
2703-004036 L1046,L2078 INDUCTOR-SMD
2703-004037 L1018 INDUCTOR-SMD
2703-004038 C1002,C1021,C1051 INDUCTOR-SMD
2703-004038 C1061,C2084,C2097 INDUCTOR-SMD
2703-004038 L1003,L1007,L1041 INDUCTOR-SMD
2703-004038 L2043,L2053,L3029 INDUCTOR-SMD
2703-004286 L1004,L2002,L2021 INDUCTOR-SMD
2703-004286 L2024,L2028,L2044 INDUCTOR-SMD
2703-004286 L2050,L2056,L2065 INDUCTOR-SMD
2703-004286 L3033 INDUCTOR-SMD
2703-004289 L3016 INDUCTOR-SMD
2703-004301 C2029,C2087,C2129 INDUCTOR-SMD
2703-004328 L2006,L2012,L2017 INDUCTOR-SMD
2703-004328 L2036,L2041,L2049 INDUCTOR-SMD
2703-004328 L2054,L2063 INDUCTOR-SMD
2703-004363 C2014 INDUCTOR-SMD
2703-004367 L1020 INDUCTOR-SMD
2703-004369 L3013 INDUCTOR-SMD
2703-004763 L1001,L1028,L1032 INDUCTOR-SMD
2703-004763 L1043 INDUCTOR-SMD
2703-004764 C1071 INDUCTOR-SMD
2703-004853 C1030,L1002,L2074 INDUCTOR-SMD
2703-004901 L5002,L5003,L5004 INDUCTOR-SMD
2703-004901 L5005,L5006 INDUCTOR-SMD

2703-004911 L1038 INDUCTOR-SMD
2703-005066 L1033 INDUCTOR-SMD
2703-005085 C1008,C2041,C2046 INDUCTOR-SMD
2703-005085 C3041,L1029,L1030 INDUCTOR-SMD
2703-005085 L2001,L2023,L2047 INDUCTOR-SMD
2703-005085 L2077 INDUCTOR-SMD
2703-005087 C2093,C2136,L1012 INDUCTOR-SMD
2703-005087 L2000,L2045,L2066 INDUCTOR-SMD
2703-005087 L2067 INDUCTOR-SMD
2703-005109 L5011 INDUCTOR-SMD

2703-005117 L7007,L7008 INDUCTOR-SMD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-005118 L7006 INDUCTOR-SMD
2703-005200 L3006 INDUCTOR-SMD
2703-005296 C2022,C2137,L1024 INDUCTOR-SMD
2703-005372 L3018,L3019 INDUCTOR-SMD
2703-005505 L6001 INDUCTOR-SMD
2801-005487 OSC3000 CRYSTAL-UNIT
2801-005496 OSC5000 CRYSTAL-UNIT

2805-001106 OSC3001 OSCILLATOR
2809-001419 TCX2000 OSCILLATOR-VCTCXO
2901-001798 F7005,F7006,F7007 FILTER-EMI SMD
2901-001798 F7008,F7009 FILTER-EMI SMD
2904-002143 F2002 FILTER-SAW
2904-002257 F2007 FILTER-SAW
2904-002266 F1002 FILTER-SAW
2904-002326 F2008 FILTER-SAW
2904-002339 F2006 FILTER-SAW
2904-002349 F2005 FILTER-SAW
2904-002350 F2003 FILTER-SAW
2904-002355 F3003,F3004 FILTER-SAW
2904-002365 F2000 FILTER-SAW
2904-002390 F3000 FILTER-SAW
2910-000364 F1007 FILTER
2910-000401 F2001 FILTER
2910-000402 U1007 FILTER

2911-000435 U2005 FILTER

2911-000447 U1003 FILTER
3301-001438 L3036 CORE-FERRITE BEAD
3301-001778 R1028 CORE-FERRITE BEAD
3301-001885 L6000,L6014,L6016 CORE-FERRITE BEAD
3301-002078 L6006,L6007,L6009 CORE-FERRITE BEAD
3301-002078 L6010,L6013,L7003 CORE-FERRITE BEAD
3301-002078 L7012,R6018 CORE-FERRITE BEAD
3301-002122 L1031,L1230,L2069 CORE-FERRITE BEAD
3301-002122 L6002,L6004 CORE-FERRITE BEAD
3301-002223 L7000,L7001,L7013 CORE-FERRITE BEAD
3301-002223 L7014 CORE-FERRITE BEAD
3301-002236 L5015,L6003,L6005 CORE-FERRITE BEAD
3301-002236 L6015 CORE-FERRITE BEAD
3301-002237 L1000,L1042,L2073 CORE-FERRITE BEAD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

3301-002237 L3000 CORE-FERRITE BEAD
3301-002238 L2039,L2042,L3007 CORE-FERRITE BEAD
3301-002238 L3009 CORE-FERRITE BEAD
3301-002240 L2059,L2061 CORE-FERRITE BEAD
3301-002241 R7005 CORE-FERRITE BEAD
3301-002254 L5000,L5007 CORE-FERRITE BEAD
3301-002287 L5014 CORE-FERRITE BEAD
3301-002304 R7013 CORE-FERRITE BEAD
3301-002312 L2037,L2040,L2060 CORE-FERRITE BEAD
3301-002312 L2062,L4000,L7005 CORE-FERRITE BEAD
3301-002312 L7009,L7010 CORE-FERRITE BEAD
3301-002335 L6011 CORE-FERRITE BEAD
3705-001708 CON1000,CON1006 CONNECTOR-COAXIAL
3709-001880 CN5000 CONNECTOR-CARD EDGE
3709-001891 CN5001 CONNECTOR-CARD EDGE

3711-007107 HEA7001 CONNECTOR-HEADER

3711-007810 HEA6000 CONNECTOR-HEADER

3711-008182 HEA7000 CONNECTOR-HEADER

3711-008508 HEA7002 CONNECTOR-HEADER

3711-008847 HDC5001 CONNECTOR-HEADER
3712-001604 ANT3003,ANT3004 CONNECTOR
3712-001621 ANT6004,ANT6005 CONNECTOR
3712-001621 ANT6006,ANT6007 CONNECTOR
3712-001621 ANT6008,ANT6009 CONNECTOR
3712-001621 ANT6010,ANT6011 CONNECTOR
3712-001621 ANT6012,CON5001 CONNECTOR
3712-001621 CON5002,CON5003 CONNECTOR
3712-001634 ANT5004,ANT5006 CONNECTOR
3712-001666 ANT6002,ANT6003 CONNECTOR
3712-001694 ANT1010,ANT1011 CONNECTOR
3712-001694 ANT1012,ANT1015 CONNECTOR
3712-001694 ANT1016,ANT2002 CONNECTOR
3712-001694 ANT5003,ANT5007 CONNECTOR
3712-001694 ANT6000,ANT6001 CONNECTOR
3712-001749 ANT1002,ANT1003 CONNECTOR
3712-001749 ANT1004,ANT1005 CONNECTOR
3712-001749 ANT1007,ANT1008 CONNECTOR
3712-001749 ANT1009,ANT2001 CONNECTOR
3712-001749 ANT2004,ANT2006 CONNECTOR

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

3712-001749 ANT2007,ANT2008 CONNECTOR
3712-001749 ANT2010,ANT3005 CONNECTOR
3712-001749 ANT3006 CONNECTOR
3712-001800 ANT1000,ANT1013 CONNECTOR
3712-001800 ANT1018,ANT1020 CONNECTOR
3722-003954 IFC5000 JACK-PHONE
4709-002196 F2009 RF-MODULE
4709-002351 F3001 RF-MODULE
4709-002464 F1000 RF-MODULE
4709-002484 F2004 RF-MODULE
4709-002589 F1001,F1004 RF-MODULE

GH61-04484A SUS7000 SHIELD CAN
GH61-08266A SUS7001 SHIELD CAN
GH62-00044A CN7000,CN7001 SHIELD CAN
GH63-14633A SC7003 SHIELD CAN
GH63-15417A SC7006 SHIELD CAN
GH63-15418A SC7007 SHIELD CAN
GH63-15419A SC7008 SHIELD CAN
GH63-15420A SC7004 SHIELD CAN
GH63-15421A SC7002 SHIELD CAN
GH63-15422A SC7005 SHIELD CAN
GH02-16501A SC7004SP TAPE

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

[SM-A600G]

Parts Code Design Loc Description

0202-002125 R5012,R6033,R7002 PB-SHORT-0603
0202-002125 R7007,R7014 PB-SHORT-0603

0401-001110 D5002 DIODE-SWITCHING
0404-001972 D5003 DIODE-SCHOTTKY
0406-001506 ZD7006,ZD7007 DIODE-TVS
0406-001561 ZD5015,ZD5016,ZD6002 DIODE-TVS
0406-001561 ZD6004,ZD6005,ZD6006 DIODE-TVS
0406-001561 ZD6015 DIODE-TVS
0406-001592 ZD5003,ZD6016,ZD6017 DIODE-TVS
0406-001592 ZD6019,ZD6020,ZD6021 DIODE-TVS
0406-001592 ZD6022,ZD6023,ZD6024 DIODE-TVS
0406-001743 ZD5005,ZD5006,ZD5007 DIODE-TVS
0406-001743 ZD5008,ZD5009,ZD5010 DIODE-TVS
0406-001763 D5001,D5004,D5005 DIODE-TVS
0406-001763 D5006 DIODE-TVS
0406-001781 ZD6008,ZD6009,ZD6013 DIODE-TVS
0406-001787 ZD6001,ZD6003 DIODE-TVS
0406-001789 ZD5012 DIODE-TVS
0406-001797 ZD5001,ZD5002,ZD6012 DIODE-TVS
0406-001807 ZD2000,ZD3002,ZD5000 DIODE-TVS
0406-001807 ZD5017,ZD6007,ZD7013 DIODE-TVS
0406-001808 D5000 DIODE-TVS
0505-003618 Q5001 FET-SILICON
0601-003547 LED5001 LED
0601-003667 LED5000 LED
1001-001835 U3001 IC
1001-001844 U2000 IC

1001-001911 U1011 IC
1001-001974 U1005 IC
1001-001999 U1001 IC
1001-002022 U1006,U1010,U2010 IC
1009-001070 U7007 IC

1105-002784 UCP400UP IC

1107-002552 UME5000 IC
1201-003786 U3005 IC
1201-003974 U7029 IC
1201-003976 U1000 IC

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

1201-004029 U7023 IC
1201-004109 PAM2000 IC
1201-004129 U2001 IC
1201-004178 U6000 IC
1203-008468 U5002 IC
1203-008693 U1004 IC
1203-008696 U7011 IC
1203-008719 U6004 IC
1203-008767 U5001 IC
1203-008865 U7003 IC
1203-008870 U7005 IC
1203-008925 U7006 IC
1203-008951 U5005 IC
1203-008955 U7002,U7004 IC
1203-008989 U7000 IC
1203-008995 U5000 IC
1205-005565 UCP400 IC
1205-005767 U2003 IC
1205-005929 U3007 IC
1209-002413 U7008 IC
1209-002450 U7009 IC
1209-002490 U7010 IC
1209-002556 U6001 IC
1404-001664 TH4000,TH4001 THERMISTOR
1404-001724 TH2000 THERMISTOR
1405-001395 V2000,VR1002,VR2001 VARISTOR
1405-001395 VR2003,VR2004 VARISTOR
1405-001403 V1001,V1002,V1003 VARISTOR
1405-001403 V1004,VR1001 VARISTOR
1405-001404 VR7000,VR7001 VARISTOR
1405-001410 VR1006 VARISTOR

1405-001411 V1007,V1008 VARISTOR
1405-001412 V1005,V1006 VARISTOR
1405-001416 V1012 VARISTOR
1405-001425 V2001,V2002,V2003 VARISTOR
1405-001425 VR1005,VR2000,VR2005 VARISTOR
1405-001425 VR2006,VR3002 VARISTOR
1405-001431 V3001,VR1004 VARISTOR
1405-001450 V1009 VARISTOR

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2007-000141 R4019 R-CHIP
2007-002796 R6017,R6020 R-CHIP
2007-003015 R5057,R5058 R-CHIP
2007-007100 R1004 R-CHIP
2007-007190 R6008,R6009 R-CHIP
2007-007405 R1006 R-CHIP
2007-007741 R4000,R4003,R4005 R-CHIP
2007-007741 R4007,R4023,R4038 R-CHIP
2007-007741 R5000,R5027,R5052 R-CHIP
2007-007741 R5059,R6006,R7012 R-CHIP
2007-007798 R5023,TH5000 R-CHIP
2007-007942 R5049 R-CHIP
2007-008043 R2003 R-CHIP
2007-008056 R1005,R1012 R-CHIP
2007-008210 R5031 R-CHIP
2007-008785 R1013,R6016 R-CHIP
2007-008800 R4010,R4011,R4039 R-CHIP
2007-008800 R4040,R6019 R-CHIP
2007-008816 R6023 R-CHIP

2007-009111 R5002,R7011 R-CHIP
2007-009157 R2009,R4001,R4026 R-CHIP
2007-009157 R4027,R4033,R4034 R-CHIP
2007-009157 R5003,R5004,R5019 R-CHIP
2007-009157 R6010,R6011 R-CHIP
2007-009158 R5005 R-CHIP
2007-009171 R4024,R5001,R5018 R-CHIP
2007-009201 R6002,R6007 R-CHIP
2007-009212 R5008,R5010,R5056 R-CHIP
2007-009212 R6012 R-CHIP
2007-009314 R5014,R5037,R5038 R-CHIP
2007-009315 R5016,R5017,R5020 R-CHIP
2007-009315 R5022,R5040,R5041 R-CHIP
2007-009315 R5043,R5044,R5045 R-CHIP
2007-009408 R4014,R4015,R4016 R-CHIP
2007-009408 R4017,R4018,R4020 R-CHIP
2007-009408 R4021,R4028,R4029 R-CHIP
2007-009408 R4030,R4031,R4032 R-CHIP
2007-009408 R4035,R4048,R4049 R-CHIP
2007-009408 R6013,R6028,R6029 R-CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2007-009408 R6030,R7008,R7009 R-CHIP
2007-009408 R7010 R-CHIP
2007-009793 R6022 R-CHIP
2007-009801 R5054 R-CHIP
2007-009805 R1008,R1010,R1018 R-CHIP
2007-009805 R1019,R1020,R1021 R-CHIP
2007-009805 R1024,R2000 R-CHIP
2007-009920 R4008,R4009,R4012 R-CHIP
2007-009969 R6015 R-CHIP
2007-010031 R6005 R-CHIP
2007-010202 R5025,R5026 R-CHIP
2007-010685 R6004 R-CHIP

2007-011043 R4013 R-CHIP
2007-012068 R5030 R-CHIP
2007-012202 R5053 R-CHIP

2203-001153 C5101,C5148 C-CERAMIC,CHIP
2203-005682 C2040,C3132,C5005 C-CERAMIC,CHIP
2203-005682 C5093,C5094,C5095 C-CERAMIC,CHIP
2203-005682 C5096,C5105,C5107 C-CERAMIC,CHIP
2203-005682 C5124,C5156,C5159 C-CERAMIC,CHIP
2203-005682 C5163,C6000,C7009 C-CERAMIC,CHIP
2203-005717 C1058 C-CERAMIC,CHIP
2203-005719 C1016,C1039 C-CERAMIC,CHIP
2203-005725 C3021 C-CERAMIC,CHIP
2203-005727 C3038,C3039,C5103 C-CERAMIC,CHIP
2203-005729 C1083,C6007,C6010 C-CERAMIC,CHIP
2203-005729 C7003,C7007,C7008 C-CERAMIC,CHIP
2203-005729 C7096,C7097,C7098 C-CERAMIC,CHIP
2203-005729 C7103,C7104,C7105 C-CERAMIC,CHIP
2203-005729 C7106 C-CERAMIC,CHIP
2203-005731 C2005,C2105,C6016 C-CERAMIC,CHIP
2203-005731 C6017,L1013 C-CERAMIC,CHIP
2203-005732 C1036,C5135,C6033 C-CERAMIC,CHIP
2203-005732 C6035 C-CERAMIC,CHIP
2203-005734 C5162,C6001,C6014 C-CERAMIC,CHIP
2203-005734 C6015 C-CERAMIC,CHIP
2203-005736 C1004,C1005,C1006 C-CERAMIC,CHIP
2203-005736 C1007,C1014,C1015 C-CERAMIC,CHIP
2203-005736 C1024,C1032,C1033 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-005736 C1037,C1041,C1043 C-CERAMIC,CHIP
2203-005736 C1048,C1050,C1055 C-CERAMIC,CHIP
2203-005736 C1059,C1063,C1128 C-CERAMIC,CHIP
2203-005736 C1130,C1131,C1132 C-CERAMIC,CHIP
2203-005736 C1151,C1244,C1247 C-CERAMIC,CHIP
2203-005736 C2000,C2015,C2027 C-CERAMIC,CHIP
2203-005736 C2028,C2049,C2052 C-CERAMIC,CHIP
2203-005736 C2053,C2067,C2072 C-CERAMIC,CHIP
2203-005736 C2073,C2098,C2100 C-CERAMIC,CHIP
2203-005736 C2101,C2102,C2104 C-CERAMIC,CHIP
2203-005736 C2106,C2108,C2114 C-CERAMIC,CHIP
2203-005736 C2115,C2119,C2120 C-CERAMIC,CHIP
2203-005736 C2121,C2130,C2131 C-CERAMIC,CHIP
2203-005736 C2133,C2134,C3011 C-CERAMIC,CHIP
2203-005736 C3043,C3048,C3057 C-CERAMIC,CHIP
2203-005736 C3131,C5051,C5161 C-CERAMIC,CHIP
2203-005736 C6031,C7027,C7043 C-CERAMIC,CHIP
2203-005736 C7048,L2052,L2057 C-CERAMIC,CHIP
2203-005736 L3005,L3027,R1000 C-CERAMIC,CHIP
2203-005777 C2059,C2062,C2066 C-CERAMIC,CHIP
2203-005777 C2094,L1008,L2003 C-CERAMIC,CHIP
2203-005777 L2030 C-CERAMIC,CHIP
2203-005789 C1045,C2001,C2024 C-CERAMIC,CHIP
2203-005789 C2034,C2035,C2036 C-CERAMIC,CHIP
2203-005789 C2044,C2090,C2248 C-CERAMIC,CHIP
2203-005789 C2296,C3050,L1009 C-CERAMIC,CHIP
2203-005789 L1011,L2014 C-CERAMIC,CHIP
2203-005792 C1064,C1065,C2013 C-CERAMIC,CHIP
2203-005792 C2112,C5114,L2008 C-CERAMIC,CHIP
2203-005806 C2003,C2007,C2021 C-CERAMIC,CHIP
2203-005806 C2103 C-CERAMIC,CHIP
2203-006048 C6009 C-CERAMIC,CHIP
2203-006120 C6022 C-CERAMIC,CHIP
2203-006187 L1023 C-CERAMIC,CHIP
2203-006194 C2132,C5123,C5160 C-CERAMIC,CHIP
2203-006194 C6020,C6023 C-CERAMIC,CHIP
2203-006305 C2095,C2096,C2099 C-CERAMIC,CHIP
2203-006305 C3012,C3037,C3045 C-CERAMIC,CHIP
2203-006305 C3137,L2009,L2046 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-006318 C2031,C5115 C-CERAMIC,CHIP
2203-006399 C4001,C4012,C4016 C-CERAMIC,CHIP
2203-006399 C4021,C4022,C4025 C-CERAMIC,CHIP
2203-006399 C4062,C4071,C7004 C-CERAMIC,CHIP
2203-006399 C7005 C-CERAMIC,CHIP
2203-006400 C1000,C1073,C1077 C-CERAMIC,CHIP
2203-006400 C2016,C2215,C2222 C-CERAMIC,CHIP
2203-006400 C3007,C4027,C4070 C-CERAMIC,CHIP
2203-006410 C2026,C2055,C2088 C-CERAMIC,CHIP
2203-006423 C2011,C2283,C3004 C-CERAMIC,CHIP
2203-006423 C3006,C3013,C3015 C-CERAMIC,CHIP
2203-006423 C3018,C4068,C4069 C-CERAMIC,CHIP
2203-006423 C5076,C5100,C5104 C-CERAMIC,CHIP
2203-006423 C5113,C5125,C5157 C-CERAMIC,CHIP
2203-006423 C5158,C6011,C6012 C-CERAMIC,CHIP
2203-006423 C7025 C-CERAMIC,CHIP
2203-006556 C2010,C2018,C2038 C-CERAMIC,CHIP
2203-006556 C2039,C2058,C5130 C-CERAMIC,CHIP
2203-006556 C5154,C5155,C6021 C-CERAMIC,CHIP
2203-006556 C6025,C6027 C-CERAMIC,CHIP
2203-006562 C2004,C4064,C4065 C-CERAMIC,CHIP
2203-006562 C5042,C5043,C5121 C-CERAMIC,CHIP
2203-006562 C6006,C6039,C7038 C-CERAMIC,CHIP
2203-006562 C7042 C-CERAMIC,CHIP

2203-006611 C2009,C5132,L1044 C-CERAMIC,CHIP
2203-006642 C2228 C-CERAMIC,CHIP
2203-006648 C6024 C-CERAMIC,CHIP
2203-006665 C2042,C3066 C-CERAMIC,CHIP
2203-006668 C2123,C2231,C4032 C-CERAMIC,CHIP
2203-006668 C5097,C5098 C-CERAMIC,CHIP
2203-006707 C3047,C3049,C3051 C-CERAMIC,CHIP
2203-006707 C3052,C3056 C-CERAMIC,CHIP
2203-006839 C2017,C5068,C5069 C-CERAMIC,CHIP
2203-006839 C5071,C7049,C7050 C-CERAMIC,CHIP
2203-006841 C5110,C5134 C-CERAMIC,CHIP
2203-006872 C7099 C-CERAMIC,CHIP
2203-006896 C6002,C6013 C-CERAMIC,CHIP
2203-006979 C2076,C2078,C2085 C-CERAMIC,CHIP
2203-006979 C2286,C2288,C2290 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-006979 C2292,C2295,C3143 C-CERAMIC,CHIP
2203-006979 C3145,C6019,R6034 C-CERAMIC,CHIP
2203-007210 C3019,C3025,C3026 C-CERAMIC,CHIP
2203-007210 C5141,C5142,C6040 C-CERAMIC,CHIP
2203-007210 C6042 C-CERAMIC,CHIP
2203-007240 C5080,C5084,C5086 C-CERAMIC,CHIP
2203-007240 C5087,C5151,C5153 C-CERAMIC,CHIP
2203-007269 C7028,C7032,C7033 C-CERAMIC,CHIP
2203-007269 C7044,C7047 C-CERAMIC,CHIP
2203-007271 C2006,C2012,C5013 C-CERAMIC,CHIP
2203-007271 C5092,C5099,C5109 C-CERAMIC,CHIP
2203-007271 C5117 C-CERAMIC,CHIP
2203-007279 C2020,C5074,C7031 C-CERAMIC,CHIP
2203-007317 C3009,C3028,C4020 C-CERAMIC,CHIP
2203-007317 C4030,C5024,C5025 C-CERAMIC,CHIP
2203-007317 C7026,C7046,C7075 C-CERAMIC,CHIP
2203-007391 C2282,C3020,C6005 C-CERAMIC,CHIP
2203-007393 C1100,C5062,C5070 C-CERAMIC,CHIP
2203-007393 C5081,C5082,C5150 C-CERAMIC,CHIP
2203-007393 C7035 C-CERAMIC,CHIP
2203-007544 C6004 C-CERAMIC,CHIP
2203-007775 C5053 C-CERAMIC,CHIP
2203-007796 C1099,C2075,C2284 C-CERAMIC,CHIP
2203-007796 C2289,C2293,C3005 C-CERAMIC,CHIP
2203-007796 C3022,C3027,C4000 C-CERAMIC,CHIP
2203-007796 C4002,C4003,C4006 C-CERAMIC,CHIP
2203-007796 C4007,C4008,C4009 C-CERAMIC,CHIP
2203-007796 C4010,C4011,C4013 C-CERAMIC,CHIP
2203-007796 C4015,C4017,C4019 C-CERAMIC,CHIP
2203-007796 C4023,C4024,C4026 C-CERAMIC,CHIP
2203-007796 C4033,C4034,C4035 C-CERAMIC,CHIP
2203-007796 C4037,C4038,C4040 C-CERAMIC,CHIP
2203-007796 C4043,C4046,C4047 C-CERAMIC,CHIP
2203-007796 C4048,C4049,C4050 C-CERAMIC,CHIP
2203-007796 C4051,C4052,C4053 C-CERAMIC,CHIP
2203-007796 C4057,C4060,C4061 C-CERAMIC,CHIP
2203-007796 C4063,C5006,C5007 C-CERAMIC,CHIP
2203-007796 C5008,C5009,C5010 C-CERAMIC,CHIP
2203-007796 C5016,C5017,C5018 C-CERAMIC,CHIP

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2203-007796 C5019,C5020,C5022 C-CERAMIC,CHIP
2203-007796 C5028,C5034,C5035 C-CERAMIC,CHIP
2203-007796 C5036,C5037,C5038 C-CERAMIC,CHIP
2203-007796 C5040,C5073,C5079 C-CERAMIC,CHIP
2203-007796 C5088,C5089,C5090 C-CERAMIC,CHIP
2203-007796 C5091,C5118,C5144 C-CERAMIC,CHIP
2203-007796 C7006,C7011,C7013 C-CERAMIC,CHIP
2203-007796 C7014,C7015,C7017 C-CERAMIC,CHIP
2203-007796 C7018,C7019,C7021 C-CERAMIC,CHIP
2203-007796 C7023,C7040,C7041 C-CERAMIC,CHIP
2203-008094 C6028 C-CERAMIC,CHIP
2203-008097 C2019,C6029 C-CERAMIC,CHIP
2203-008161 C5004 C-CERAMIC,CHIP
2203-008242 C3031,C3135,C4028 C-CERAMIC,CHIP
2203-008242 C4041,C4044,C4056 C-CERAMIC,CHIP
2203-008242 C4059,C5039 C-CERAMIC,CHIP
2203-008529 C3030,C5000,C5001 C-CERAMIC,CHIP
2203-008529 C5059,C5063,C5064 C-CERAMIC,CHIP
2203-008529 C5065,C6008,C6043 C-CERAMIC,CHIP
2203-008572 C5054,C5136 C-CERAMIC,CHIP
2203-008654 C5149 C-CERAMIC,CHIP
2203-008860 C5083,C7010,C7016 C-CERAMIC,CHIP
2203-008860 C7020,C7022 C-CERAMIC,CHIP
2203-008876 C3008,C5106,C6036 C-CERAMIC,CHIP
2203-008876 C6038,C7039 C-CERAMIC,CHIP
2203-009444 C6026 C-CERAMIC,CHIP
2203-009551 C6032 C-CERAMIC,CHIP
2203-009733 C1098,C2077,C2287 C-CERAMIC,CHIP
2203-009733 C2291,C2294,C4036 C-CERAMIC,CHIP
2203-009733 C4042,C4055,C7001 C-CERAMIC,CHIP
2203-009733 C7045,C7074 C-CERAMIC,CHIP
2203-009736 C3032,C4014,C4018 C-CERAMIC,CHIP
2203-009736 C5023,C5112,C5143 C-CERAMIC,CHIP
2203-009736 C5152 C-CERAMIC,CHIP
2203-009858 C5041,C5066 C-CERAMIC,CHIP
2203-009917 C6003 C-CERAMIC,CHIP
2703-002309 L6008 INDUCTOR-SMD
2703-002649 C1062,L2007 INDUCTOR-SMD
2703-002858 L1027 INDUCTOR-SMD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-002900 L5008 INDUCTOR-SMD
2703-002901 L1022,L1025 INDUCTOR-SMD
2703-002907 L2034,L3020 INDUCTOR-SMD
2703-002951 C1074 INDUCTOR-SMD
2703-002953 C1009,C2122,L1071 INDUCTOR-SMD
2703-002953 L5009 INDUCTOR-SMD
2703-002955 L1037 INDUCTOR-SMD
2703-002958 L1005,L1006,L1034 INDUCTOR-SMD
2703-002958 L1077 INDUCTOR-SMD
2703-002959 L1021,L1045,L1048 INDUCTOR-SMD
2703-002959 L3035,U7031 INDUCTOR-SMD
2703-002999 C1042 INDUCTOR-SMD
2703-003878 L6012 INDUCTOR-SMD
2703-003970 L1124 INDUCTOR-SMD
2703-004000 L2051 INDUCTOR-SMD
2703-004001 C1025 INDUCTOR-SMD
2703-004012 C1003,C1066,L2005 INDUCTOR-SMD
2703-004012 L2010,L2011,L2020 INDUCTOR-SMD
2703-004012 L2058 INDUCTOR-SMD
2703-004013 C2091,L2022,L2029 INDUCTOR-SMD
2703-004013 L2048,L2070,L2071 INDUCTOR-SMD
2703-004013 L3030 INDUCTOR-SMD
2703-004018 C1023,C2030,L1015 INDUCTOR-SMD
2703-004018 L1017,L1068,L2016 INDUCTOR-SMD
2703-004018 L2032,L3031,L3037 INDUCTOR-SMD
2703-004032 C1017,L1014,L1049 INDUCTOR-SMD
2703-004034 C2113,L1019,L1035 INDUCTOR-SMD
2703-004034 L3015 INDUCTOR-SMD
2703-004035 L1047 INDUCTOR-SMD
2703-004036 L1046,L2078 INDUCTOR-SMD
2703-004037 L1018 INDUCTOR-SMD
2703-004038 C1002,C1021,C1051 INDUCTOR-SMD
2703-004038 C1061,C2084,C2097 INDUCTOR-SMD
2703-004038 L1003,L1007,L1041 INDUCTOR-SMD
2703-004038 L2043,L2053,L3029 INDUCTOR-SMD
2703-004286 L1004,L2002,L2021 INDUCTOR-SMD
2703-004286 L2024,L2028,L2044 INDUCTOR-SMD
2703-004286 L2050,L2056,L2065 INDUCTOR-SMD
2703-004286 L3033 INDUCTOR-SMD

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2703-004288 L3032 INDUCTOR-SMD
2703-004289 L3016 INDUCTOR-SMD
2703-004301 C2029,C2087,C2129 INDUCTOR-SMD
2703-004328 L2006,L2012,L2017 INDUCTOR-SMD
2703-004328 L2036,L2041,L2049 INDUCTOR-SMD
2703-004328 L2054,L2063 INDUCTOR-SMD
2703-004363 C2014 INDUCTOR-SMD
2703-004367 L1020 INDUCTOR-SMD
2703-004369 L3013 INDUCTOR-SMD
2703-004763 L1001,L1028,L1032 INDUCTOR-SMD
2703-004763 L1043 INDUCTOR-SMD
2703-004764 C1071 INDUCTOR-SMD
2703-004853 C1030,L1002,L2074 INDUCTOR-SMD
2703-004901 L5002,L5003,L5004 INDUCTOR-SMD
2703-004901 L5005,L5006 INDUCTOR-SMD

2703-004911 L1038 INDUCTOR-SMD
2703-005066 L1033 INDUCTOR-SMD
2703-005085 C1008,C2041,C2046 INDUCTOR-SMD
2703-005085 C3041,L1029,L1030 INDUCTOR-SMD
2703-005085 L2001,L2023,L2047 INDUCTOR-SMD
2703-005085 L2077 INDUCTOR-SMD
2703-005087 C2093,C2136,L1012 INDUCTOR-SMD
2703-005087 L2000,L2045,L2066 INDUCTOR-SMD
2703-005087 L2067 INDUCTOR-SMD
2703-005109 L5011 INDUCTOR-SMD

2703-005117 L7007,L7008 INDUCTOR-SMD

2703-005118 L7006 INDUCTOR-SMD
2703-005200 L3006 INDUCTOR-SMD
2703-005296 C2022,C2137,L1024 INDUCTOR-SMD
2703-005505 L6001 INDUCTOR-SMD
2801-005487 OSC3000 CRYSTAL-UNIT
2801-005496 OSC5000 CRYSTAL-UNIT

2805-001106 OSC3001 OSCILLATOR
2809-001419 TCX2000 OSCILLATOR-VCTCXO
2901-001798 F7005,F7006,F7007 FILTER-EMI SMD
2901-001798 F7008,F7009 FILTER-EMI SMD
2904-002143 F2002 FILTER-SAW
2904-002257 F2007 FILTER-SAW
2904-002266 F1002 FILTER-SAW

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

2904-002326 F2008 FILTER-SAW
2904-002339 F2006 FILTER-SAW
2904-002349 F2005 FILTER-SAW
2904-002350 F2003 FILTER-SAW
2904-002355 F3003,F3004 FILTER-SAW
2904-002365 F2000 FILTER-SAW
2904-002390 F3000 FILTER-SAW
2910-000364 F1007 FILTER
2910-000401 F2001 FILTER
2910-000402 U1007 FILTER

2911-000435 U2005 FILTER

2911-000447 U1003 FILTER
3301-001438 L3036 CORE-FERRITE BEAD
3301-001778 R1028 CORE-FERRITE BEAD
3301-001885 L6000,L6014,L6016 CORE-FERRITE BEAD
3301-002078 L6006,L6007,L6009 CORE-FERRITE BEAD
3301-002078 L6010,L6013,L7003 CORE-FERRITE BEAD
3301-002078 L7012,R6018 CORE-FERRITE BEAD
3301-002122 L1031,L1230,L2069 CORE-FERRITE BEAD
3301-002122 L6002,L6004 CORE-FERRITE BEAD
3301-002223 L7000,L7001,L7013 CORE-FERRITE BEAD
3301-002223 L7014 CORE-FERRITE BEAD
3301-002236 L5015,L6003,L6005 CORE-FERRITE BEAD
3301-002236 L6015 CORE-FERRITE BEAD
3301-002237 L1000,L1042,L2073 CORE-FERRITE BEAD
3301-002237 L3000 CORE-FERRITE BEAD
3301-002238 L2039,L2042,L3007 CORE-FERRITE BEAD
3301-002238 L3009 CORE-FERRITE BEAD
3301-002240 L2059,L2061 CORE-FERRITE BEAD
3301-002241 R7005 CORE-FERRITE BEAD
3301-002254 L5000,L5007 CORE-FERRITE BEAD
3301-002287 L5014 CORE-FERRITE BEAD
3301-002304 R7013 CORE-FERRITE BEAD
3301-002312 L2037,L2040,L2060 CORE-FERRITE BEAD
3301-002312 L2062,L4000,L7005 CORE-FERRITE BEAD
3301-002312 L7009,L7010 CORE-FERRITE BEAD
3301-002335 L6011 CORE-FERRITE BEAD
3705-001708 CON1000,CON1006 CONNECTOR-COAXIAL
3709-001880 CN5000 CONNECTOR-CARD EDGE

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

3709-001891 CN5001 CONNECTOR-CARD EDGE

3711-007107 HEA7001 CONNECTOR-HEADER

3711-007810 HEA6000 CONNECTOR-HEADER

3711-008182 HEA7000 CONNECTOR-HEADER

3711-008508 HEA7002 CONNECTOR-HEADER

3711-008847 HDC5001 CONNECTOR-HEADER
3712-001621 ANT6004,ANT6005 CONNECTOR
3712-001621 ANT6006,ANT6007 CONNECTOR
3712-001621 ANT6008,ANT6009 CONNECTOR
3712-001621 ANT6010,ANT6011 CONNECTOR
3712-001621 ANT6012,CON5001 CONNECTOR
3712-001621 CON5002,CON5003 CONNECTOR
3712-001634 ANT5004,ANT5006 CONNECTOR
3712-001666 ANT6002,ANT6003 CONNECTOR
3712-001694 ANT1010,ANT1011 CONNECTOR
3712-001694 ANT1012,ANT1015 CONNECTOR
3712-001694 ANT1016,ANT2002 CONNECTOR
3712-001694 ANT5003,ANT5007 CONNECTOR
3712-001694 ANT6000,ANT6001 CONNECTOR
3712-001749 ANT1002,ANT1003 CONNECTOR
3712-001749 ANT1004,ANT1005 CONNECTOR
3712-001749 ANT1007,ANT1008 CONNECTOR
3712-001749 ANT1009,ANT2001 CONNECTOR
3712-001749 ANT2004,ANT2006 CONNECTOR
3712-001749 ANT2007,ANT2008 CONNECTOR
3712-001749 ANT2010,ANT3005 CONNECTOR
3712-001749 ANT3006 CONNECTOR
3712-001800 ANT1000,ANT1013 CONNECTOR
3712-001800 ANT1018,ANT1020 CONNECTOR
3722-003954 IFC5000 JACK-PHONE
4709-002196 F2009 RF-MODULE
4709-002351 F3001 RF-MODULE
4709-002464 F1000 RF-MODULE
4709-002484 F2004 RF-MODULE
4709-002589 F1001,F1004 RF-MODULE

GH61-04484A SUS7000 SHIELD CAN
GH61-08266A SUS7001 SHIELD CAN
GH62-00044A CN7000,CN7001 SHIELD CAN
GH63-14633A SC7003 SHIELD CAN

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.

5. MAIN Electrical Parts List

GH63-15417A SC7006 SHIELD CAN
GH63-15418A SC7007 SHIELD CAN
GH63-15419A SC7008 SHIELD CAN
GH63-15420A SC7004 SHIELD CAN
GH63-15421A SC7002 SHIELD CAN
GH63-15422A SC7005 SHIELD CAN
GH02-16501A SC7004SP ;TAPE

Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

Confidential and pr oprietary-the c ontents in this ser vice guide subject to change wi thout prior noti ce

Distribution, transmi ssion, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohib ited.
