Samsung 963UW, 2063UW User Manual 2
SyncMaster 963UW / 2063UW
LCD Monitor
User Manual
Introduction
Package Contents
Note
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Without stand With stand
Monitor Monitor
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
Cables
D-Sub Cable Power Cord USB Cable
Sold separately
User's Guide
tions)
DVI Cable HDMI Cable Headphones
Others
Note
This is only provided for highly polished black products as a product feature.
Your Monitor
Introduction
Cleaning Cloth
Initial Settings
Select the language using the up or down key.
The displayed content will disappear after 40 seconds.
Turn the Power button off and on. It will be displayed again.
It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before reaching
the maximum count.
Note
The resolution displayed on the screen is the optimal resolution for this product.
Adjust your PC resolution so that it is the same as the optimal resolution for this product.
Front
Introduction
MENU button [MENU/ ]
Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu
or return to the previous menu.
Customized Key
You can customize key assignment for the Custom button according to your preferences.
Note
You can configure the Customized key for a required function via Setup > Customized Key.
Volume button
When OSD is not on the screen, push the button to adjust volume.
>> Click here to see an animation clip
Adjust buttons [ ]
Adjust items in the menu.
SOURCE button / Enter button [ ]
Push the 'SOURCE/ ', then selects the video signal while the OSD is off. (When
the SOURCE/ button is pressed to change the input mode, a message appears
in the upper left of the screen displaying the current mode -- analog or digital input
signal.)
/ Activates a highlighted menu item.
Introduction
Note
If you select the digital mode, you must connect your monitor to the graphic card's
DVI port using the DVI cable.
>> Click here to see an animation clip
AUTO button
Use this button for auto adjustment.
(Available in Analog mode only)
>> Click here to see an animation clip
Power button [ ] / Power indicator
Use this button for turning the monitor on and off.
/ This light glows blue during normal operation, and blinking blue once as the
monitor saves your adjustments.
Camera
Using this camera, you can view and send video for video chatting.
Mic
Rear
Using this microphone, you can view and send audio for video chatting.
Speaker
You can hear sound by connecting the soundcard of your PC to the monitor.
Note
The configuration at the back of the monitor may vary from product to product.
POWER
DVI IN / RGB IN
Introduction
POWER
Connect the power cord for your monitor to the
POWER port on the back of the monitor.
DVI IN
Connect the DVI cable to the DVI IN port on the
back of your monitor.
RGB IN
USB connection termi-
nal (Option)
Connect the RGB IN terminal at the back of your
monitor to your computer.
UP (USB upstream port)
Connect the UP port of the monitor and the
USB port of the computer with the USB cable.
DOWN (USB downstream port)
Connect the DOWN port of the USB monitor
and a USB device with the USB cable.
Note
To use DOWN (Downstream Port), you have
to connect the
PC.
Make sure to use the USB cable supplied with this
monitor to connect the monitor's UP port
and your computer's USB port.
UP (Upstream Cable ) to the
Kensington Lock
Introduction
The Kensington Lock is a device used to physically fix the system when using it in a public
place. The locking device has to be purchased
separately. The appearance and locking method
may differ from the illustration depending on the
manufacturer. Refer to the manual provided with
the Kensington Lock for proper use. The locking
device has to be purchased separately.
Note
The location of the Kensington Lock may be different depending on its model.
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington
slot on the Monitor ( ) and turn it in the
/ MIC
Cable holding ring
locking direction ( ).
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy
stationary object.

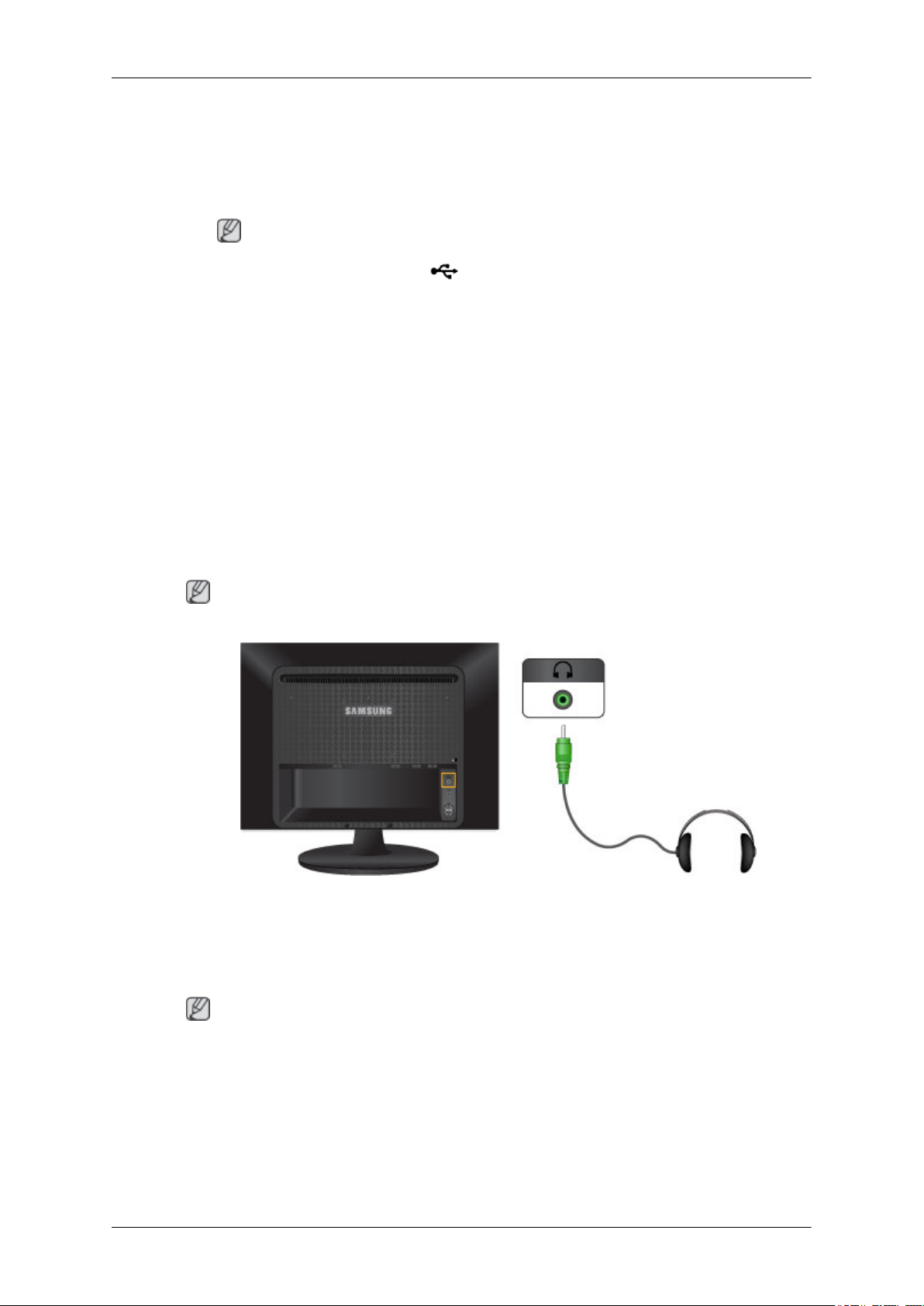

Headphone output terminal

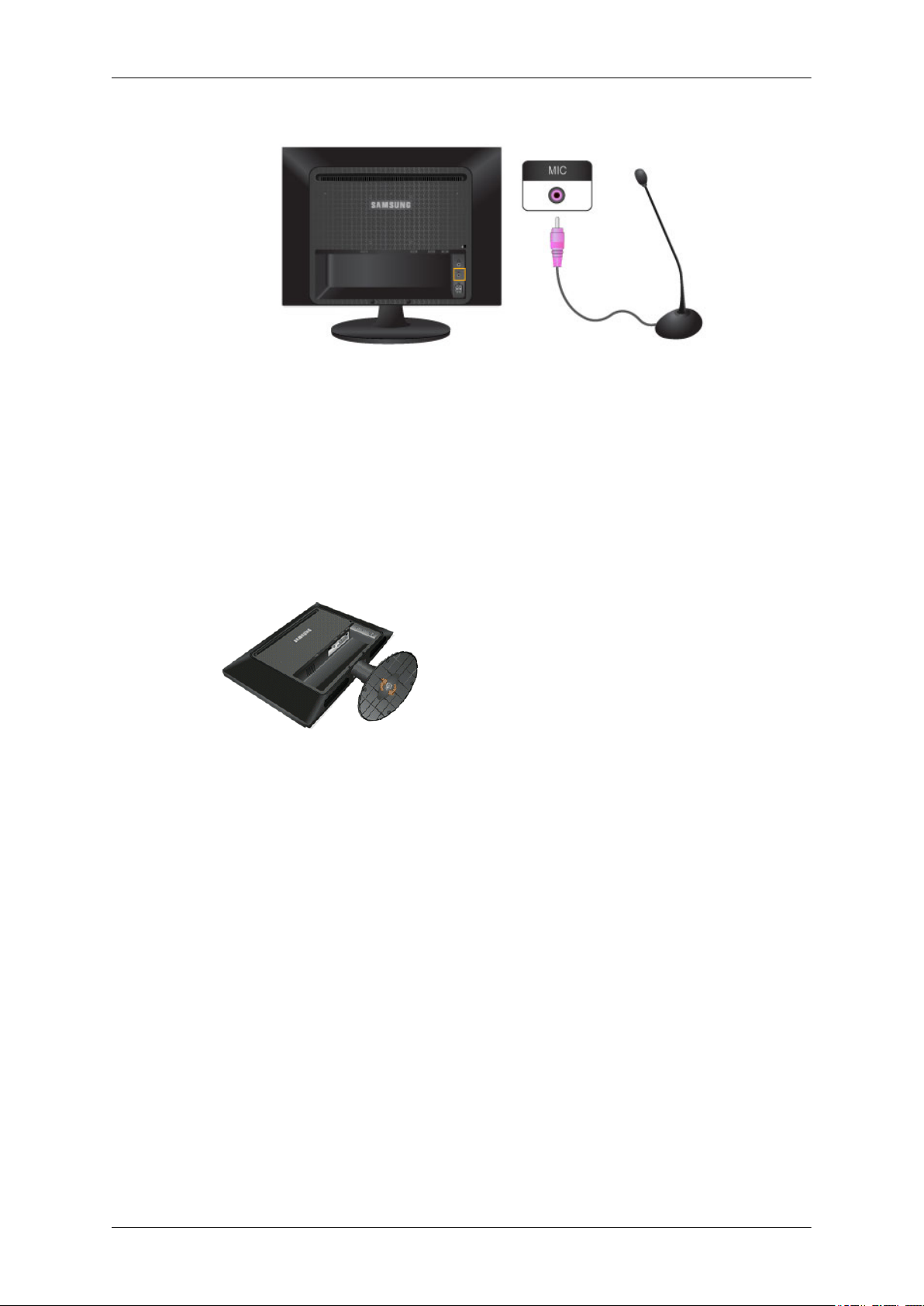

MIC
Connect a microphone to the MIC terminal.
Fix the cables using the holding ring, as shown in
the figure.
Introduction
Note
See
{963UW}
Connecting Cables for further information regarding cable connections.
Connections
{963UW}

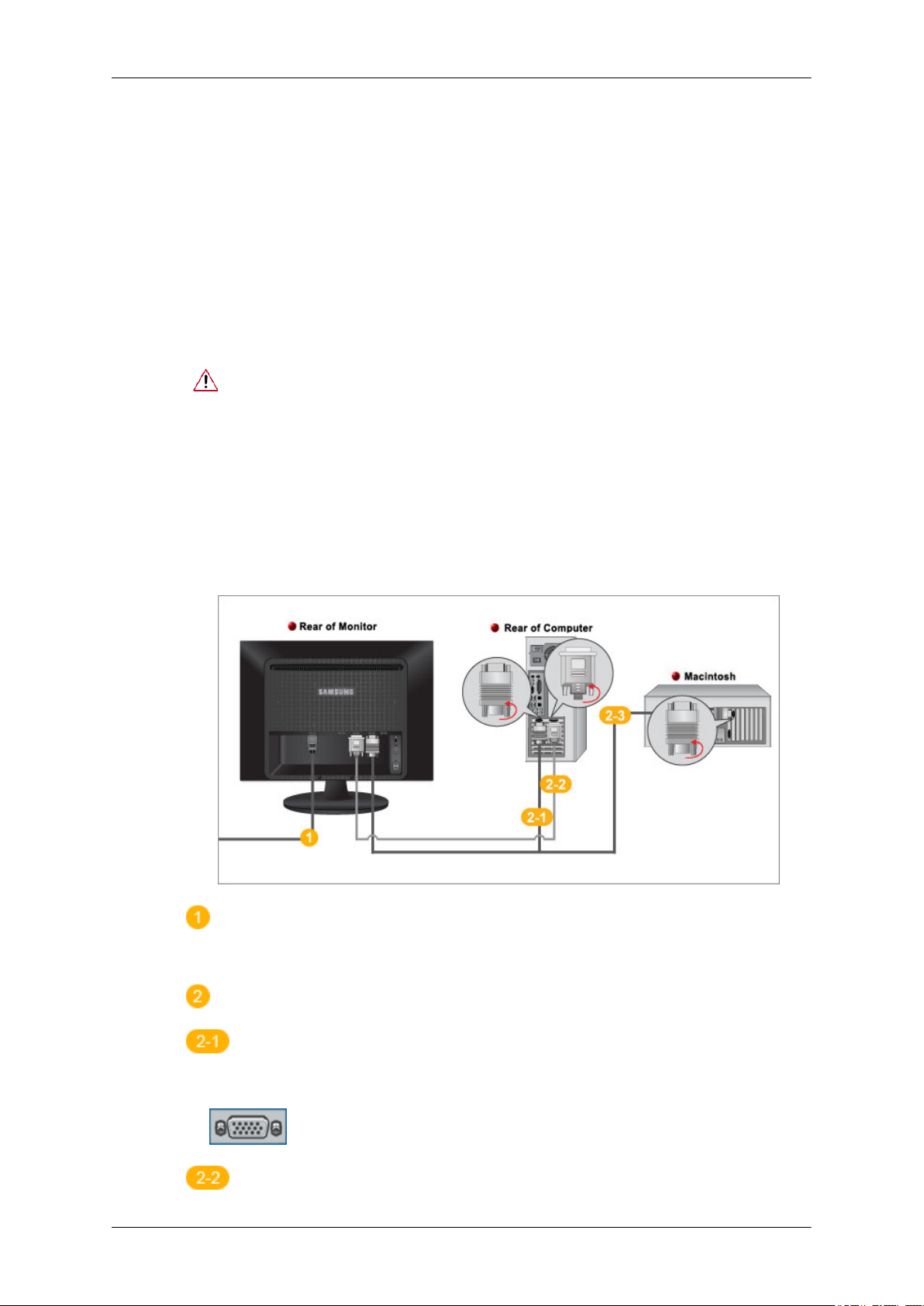

Connecting Cables
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use a connection appropriate for your computer.
Using the D-sub (Analog) connector on the video card.
• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[RGB IN]
Using the DVI (Digital) connector on the video card.
• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.
[DVI IN]
Connected to a Macintosh.
• Connect the monitor to the Macintosh computer using the D-sub connection cable.
Note
If the monitor and the computer are connected, you can turn them on and use them.
{963UW}

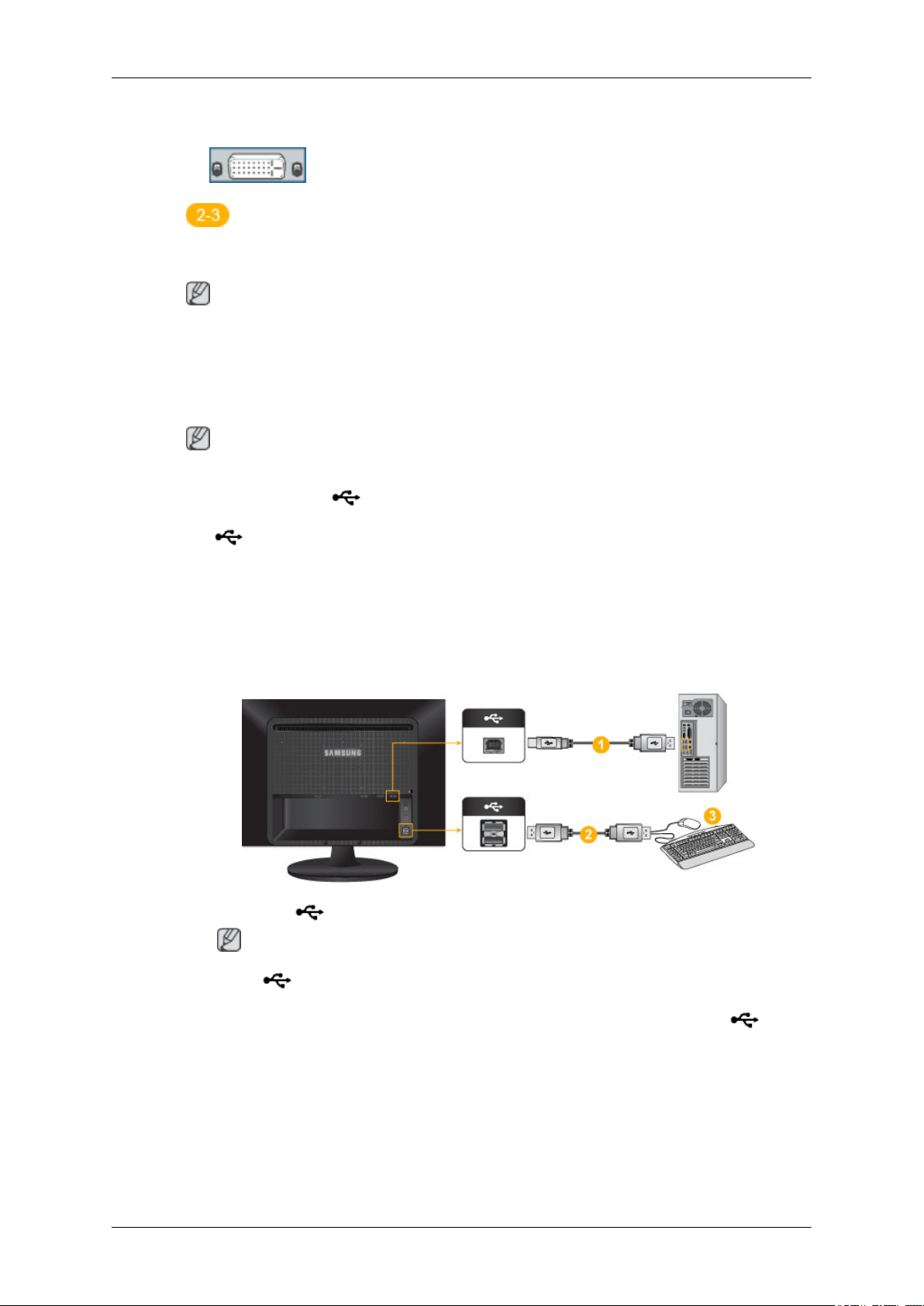

Connecting USB
Note
You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by
connecting them to the DOWN port of the monitor without connecting them to the PC.
The USB port of the monitor supports High-Speed Certified USB 2.0.
Data Rate 480 Mbps 12 Mbps 1.5 Mbps
Power Consumption 2.5 W
Connections
High speed Full speed Low speed
2.5 W
2.5 W
(Max., each port)
1.
Connect the UP port of the monitor and the USB port of the computer with the USB cable.
Note
To use DOWN port, you have to connect the UP (Upstream Cable) to the PC.
Make sure to use the USB cable supplied with this monitor to connect the monitor's
and your computer's USB port.
(Max., each port)
(Max., each port)
UP port
2.
Connect the DOWN port of the USB monitor and a USB device with the USB cable.
3. The use procedures are as the same as those for using an external device connecting to the PC.
• You can connect and use a keyboard and mouse.
• You can play a file from a media device.
(Examples of media devices: MP3, digital camera, etc.)
