Samsung 793SG, 591SG, 788DF Plus, 594MG User Manual

Install driver Install programs

SyncMaster 591S/591SG/591V/594MG/592V/

794V/793DF/793MG/793SG/793V/

794MG/793S/783DF/788DF Plus

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to
the equipment.

Prohibited Important to read and understand at all times

Power

Do not disassemble Disconnect the plug from the outlet

Do not touch Ground to prevent an electric shock

When not used for extended periods of time, set your computer to a screen
saver.

z If the same image is present for long periods of time, Phosphor Burnt can be

occured, or the screen may be blurred.

z

The images here are for reference only, and are not applicable in all cases (or

countries).

A

Do not use a damaged or loose plug.

z

This may cause electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

z This may cause electric shock or fire.

Use only a properly grounded plug and receptacle.

z An improper ground may cause electric shock or equipment damage.

(Class l Equipment only.)

Insert the power plug firmly so that it does not come loose.

z A bad connection may cause fire.

Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause damage.

z

This may cause electric shock or fire.

Do not connect too many extension cords or plugs to one outlet.

z This may cause fire.

Do not disconnect the power cord while using the monitor.

z

surge may be caused by the separation and may damage the monitor.

Do not use the power cord when the connector or plug is dusty.

z If the connector or plug of the power cord is dusty, clean it with a dry

cloth.

z

Using the power cord with a dusty plug or connector may cause an
electric shock or fire.

To disconnect the apparatus from the mains, the plug must be pulled out
from the mains socket, therefore the mains plug shall be readily
operable.

Installation

z

This may cause an electric shock or fire.

Be sure to contact an authorized Service Center when installing your monitor in a
location with heavy dust, high or low temperatures, high humidity, and exposed
to chemical substances and where it operates for 24 hours such as at airports,
train stations etc.

Failure to do so may cause serious damage to your set.

Put your monitor in a location with low humidity and a minimum of dust.

z Failure to do so may cause electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

z This may cause damage to the product or the person carrying it.

Install the monitor base in a showcase or shelf so that the end of the
base does not protrude from the showcase or shelf.

z Dropping the product may cause damage to the product or the person

carrying it.

Do not place the product on an unstable or small surface area.

z

Place the product on an even end stable surface ,as the product may fall
and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

z Take care, as someone, specifically children may trip over it.

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN
FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

z

Otherwise, this may cause fire.

Keep any heating devices away from the power cable.

z A melted coating may lead to electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a
bookshelf, closet, etc.

z Any increase in internal temperature may cause fire.

Set down the monitor carefully.

z The monitor could be damaged or broken.

Do not place the monitor face down.

z

The CDT surface may be damaged.

Do not use the monitor without the monitor stand.

z

It could break down or cause fire due to bad ventilation.

z

If the monitor must be used without the supplied stand, take steps to
insure proper ventilation.

When installing the product, make sure to keep it away from the wall
(more than 10 cm/4 inches) for ventilation purposes.

z Poor ventilation may cause an increase in the internal temperature of

the product, resulting in a shortened component life and degraded
performance.

Keep the plastic packaging (bag) out of children’s reach.

z The plastic packaging (bag) may cause suffocation if children play with

it.

Clean

When cleaning the monitor case or the surface of the CDT, wipe with a slightly

moistened, soft fabric.

Do not clean Flat monitor with water. Use a water-diluted mild detergent.

(Some detergents contain significant amounts of alcohol-based solvents, which
can damage (color change) or crack the monitor case. The antiglare/anti-static
surface coating on the CDT may also be affected.)

Dilute the detergent (1:10 ratio) with water before using.

Do not spray water or detergent directly onto the monitor.

z

This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

z

You may prevent the coated CDT from being damaged or the monitor
cabinet from being dissolved, cracked or discolored.

z You may buy a recommended detergent at any Service Center.

If the connector between the plug and the pin is dusty or dirty, clean it
properly using a dry cloth.

z

A dirty connector may cause electric shock or fire.

Make sure to unplug the power cord before cleaning the product.

z Otherwise, this may cause electric shock or fire.

Unplug the power cord from the power outlet and wipe the product using
a soft, dry cloth.

z Do not use any chemicals such as wax, benzene, alcohol, thinners,

insecticide, air freshener, lubricant or detergent.

Contact a Service Center or Customer Center for interior cleaning once a
year.

z Keep the product's interior clean. Dust which has accumulated in the

interior over an extended period of time may cause malfunction or fire.

Others

Do not remove cover(or back).

z This may cause electric shock or fire.
z Refer to a qualified servicing company.

If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact an authorized dealer or the Service Center.

z This may cause electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture;
do not install inside a vehicle.

z

This may cause malfunction, an electric shock or fire.

z

Especially avoid operating the monitor near water or outdoors where the
monitor could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off
and unplug the power cord. Then contact a Service Center.

z The monitor may cause a malfunction, electric shock or fire.

Disconnect the plug from the outlet during storms or lightning or if it is
not used for a long period of time.

z Failure to do so may cause electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal
cable.

z This may cause a breakdown, electric shock or fire due to damage to the

cable.

Do not move the monitor right or left by pulling only the wire or the
signal cable.

z This may cause a breakdown, electric shock or fire due to damage to the

cable.

Do not cover the vents on the monitor cabinet.

z Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects
on the monitor.

z

This may cause malfunction, an electric shock or fire.

z

If a foreign substance enters the monitor, unplug the power cord and
contact the Service Center .

Do not place any heavy objects on the monitor.

z

This may cause electric shock or fire.

Keep the product away from combustible chemical sprays or
inflammable substances.

z This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

z This may cause electric shock, fire or injury.

Keep the monitor away from any magnetic substances.

z

This may cause discoloring or distortion of the image.

Viewing the monitor continuously at a too close angle may result in
damage to your eyesight.

To ease eye strain, take at least a five-minute break after every hour of
using the monitor.

Do not install the product on an unstable, uneven surface or a location
prone to vibrations.

z

Dropping the product may cause damage to the product or the person
carrying it. Using the product in a location prone to vibrations may
shorten the lifetime of the product or may catch fire.

When moving the monitor, turn off and unplug the power cord.
Make sure that all cables, including the antenna cable and cables
connected to other devices, are disconnected before moving the
monitor.

z

Failure to disconnect a cable may damage it and lead to fire or an
electric shock.

r

Place the product out of children’s reach, as they could damage by
hanging onto it.

z A falling product may cause injury to the person or even fatality.

When not using the product for an extended time period, keep the
product unplugged

z Otherwise, this may cause heat emission from the accumulated dirt or

degraded insulation, causing electric shock or fire.

Do not place children's favorite objects (or anything else that may be
tempting) on the product.

z Children may try to climb on the product to retrieve an object. The

product could fall, causing physical damage or even death.

Good Postures When Using the Monito

Try to maintain a good posture when using the monitor.

z Keep your back straight.

z

Keep a distance of about 45 ~ 50 cm between your eyes
and the monitor screen. Look at the screen from slightly
above it, and have the monitor directly in front of you.

z

Tilt the monitor upwards by 10 ~20 degrees. Adjust the
monitor height so that the top of the monitor is slightly
below eye level.

z Adjust the monitor angle so that there is no reflected light

on the screen.Try to maintain your arms perpendicular to
your armpits.

z Keep your arms level with the back of your hands.

z

Keep the angle of the elbow perpendicular.

z

Keep the angle of the knees at more than 90 degree. Do
not let your feet fall up from the floor. Adjust the arm
position so that it is below the heart.

r

g

SyncMaster 591S/591SG/591V/594MG/793DF/793MG

Unpacking

Monitor and Stand

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local deale

793SG/793V/794MG/793S/783DF

to buy optional items.

(Some models include a stand attached.)

Manual

Cable

Quick Setup Guide

Warranty Card

(Not available in all

locations)

User's Guide,

Monitor Driver,

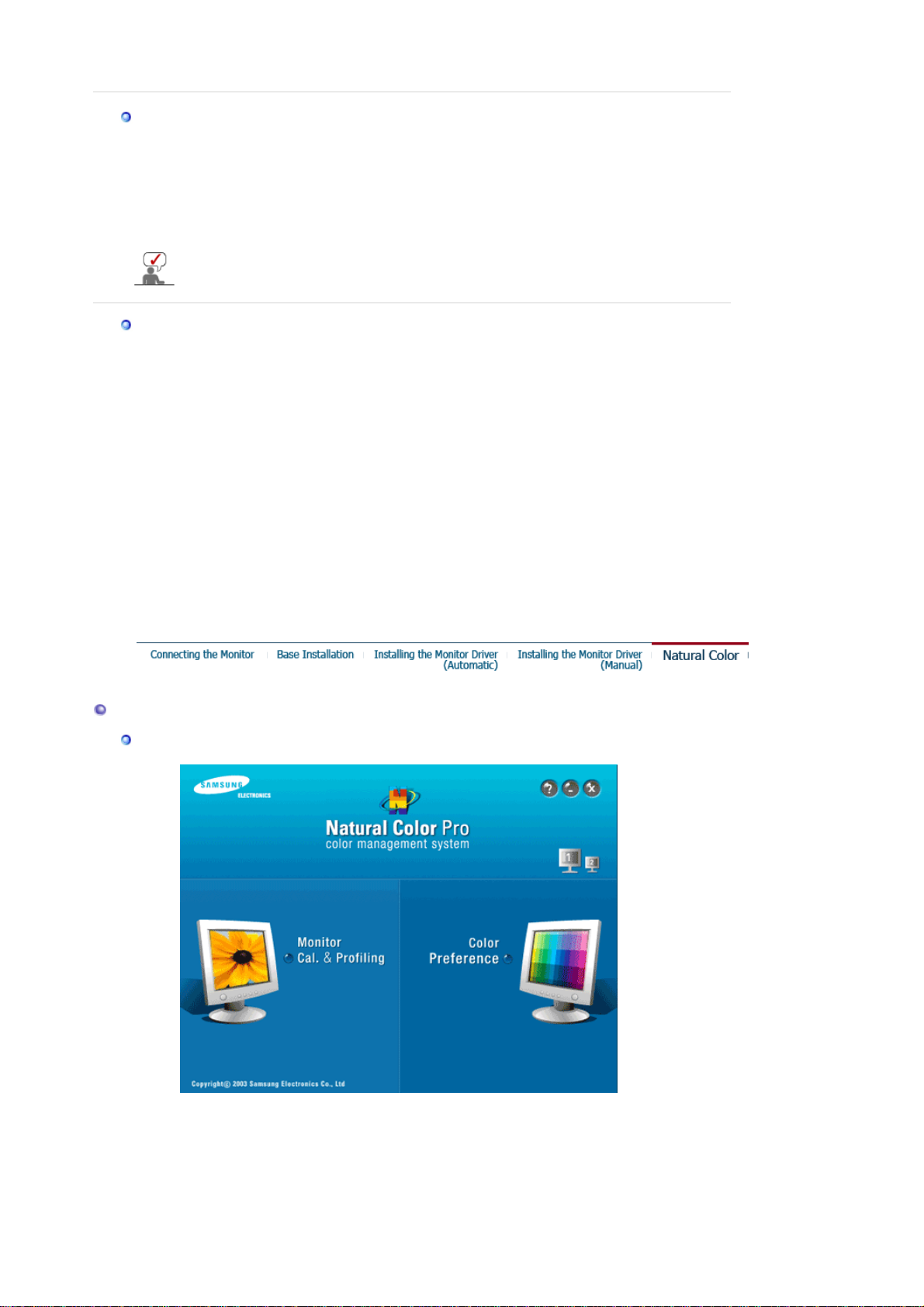

Natural Color software,

icTune™ software

Ma

Power Cord

)

Stand

Stand

For Multimedia model (Option)

Manual

Cable

Stand

User Guide

Sound Cables(2each

DC Power Cord

Front

Multimedia Speaker Stand

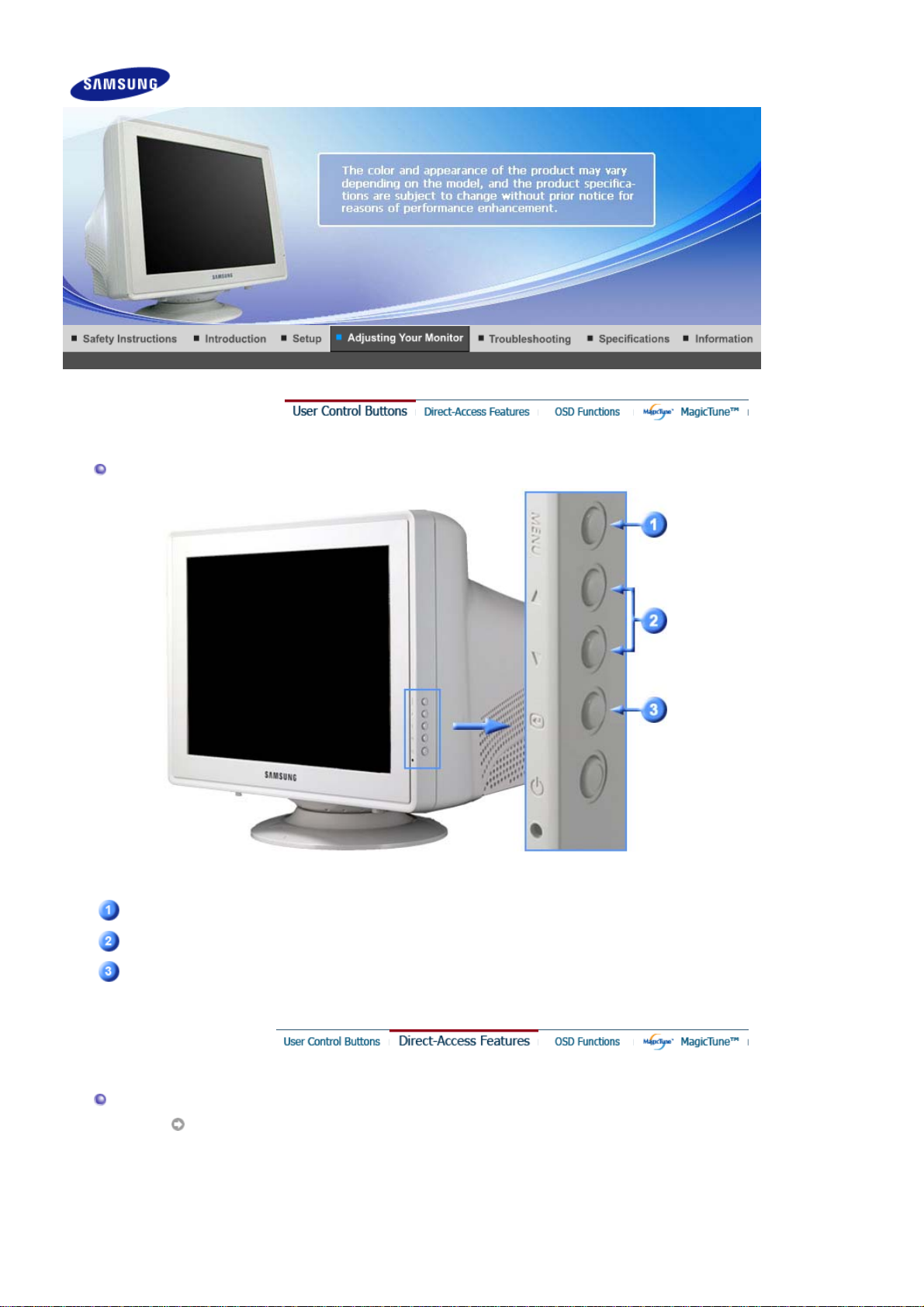

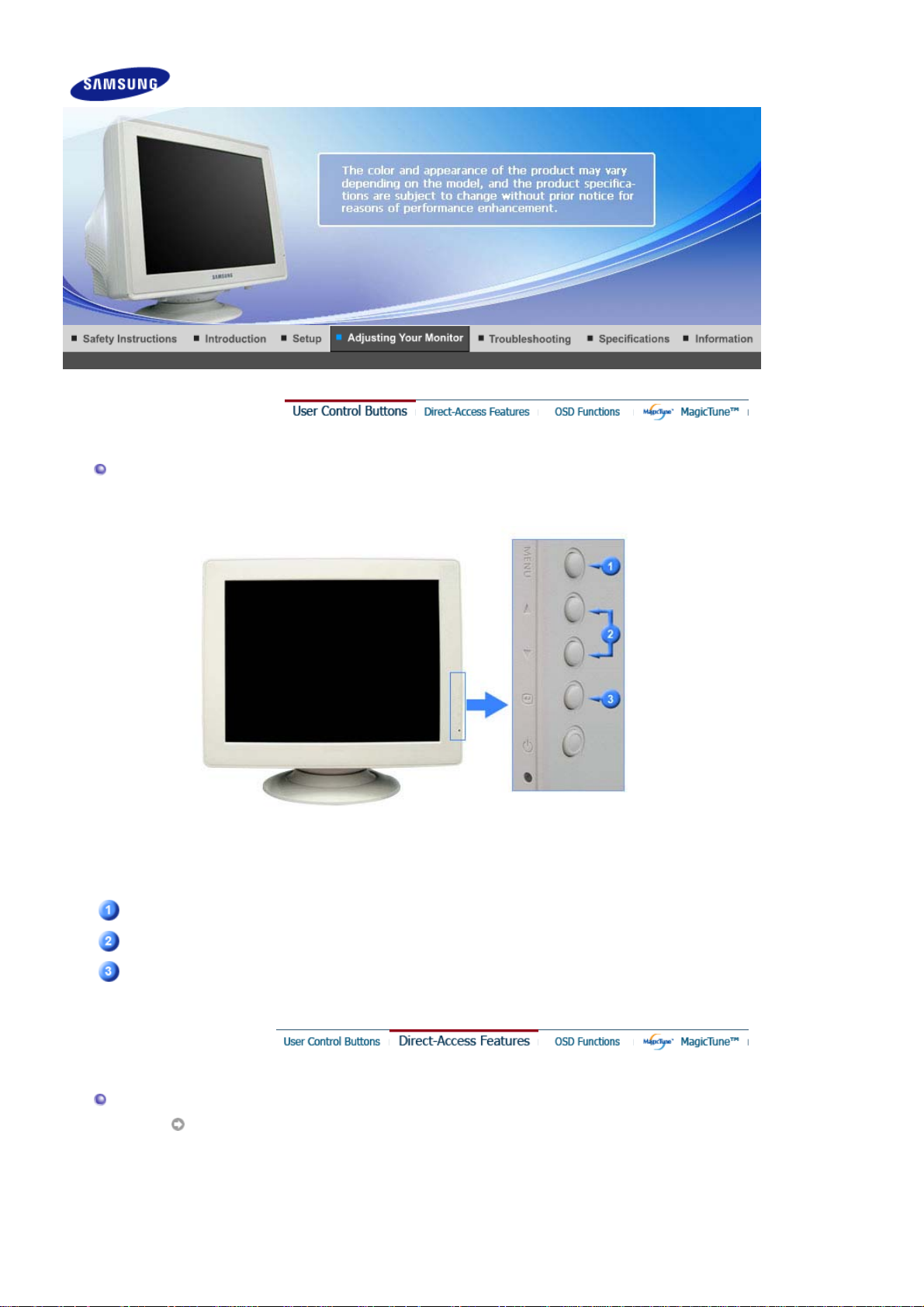

Menu button [MENU]

Adjust buttons [ ]

Enter button [ ]

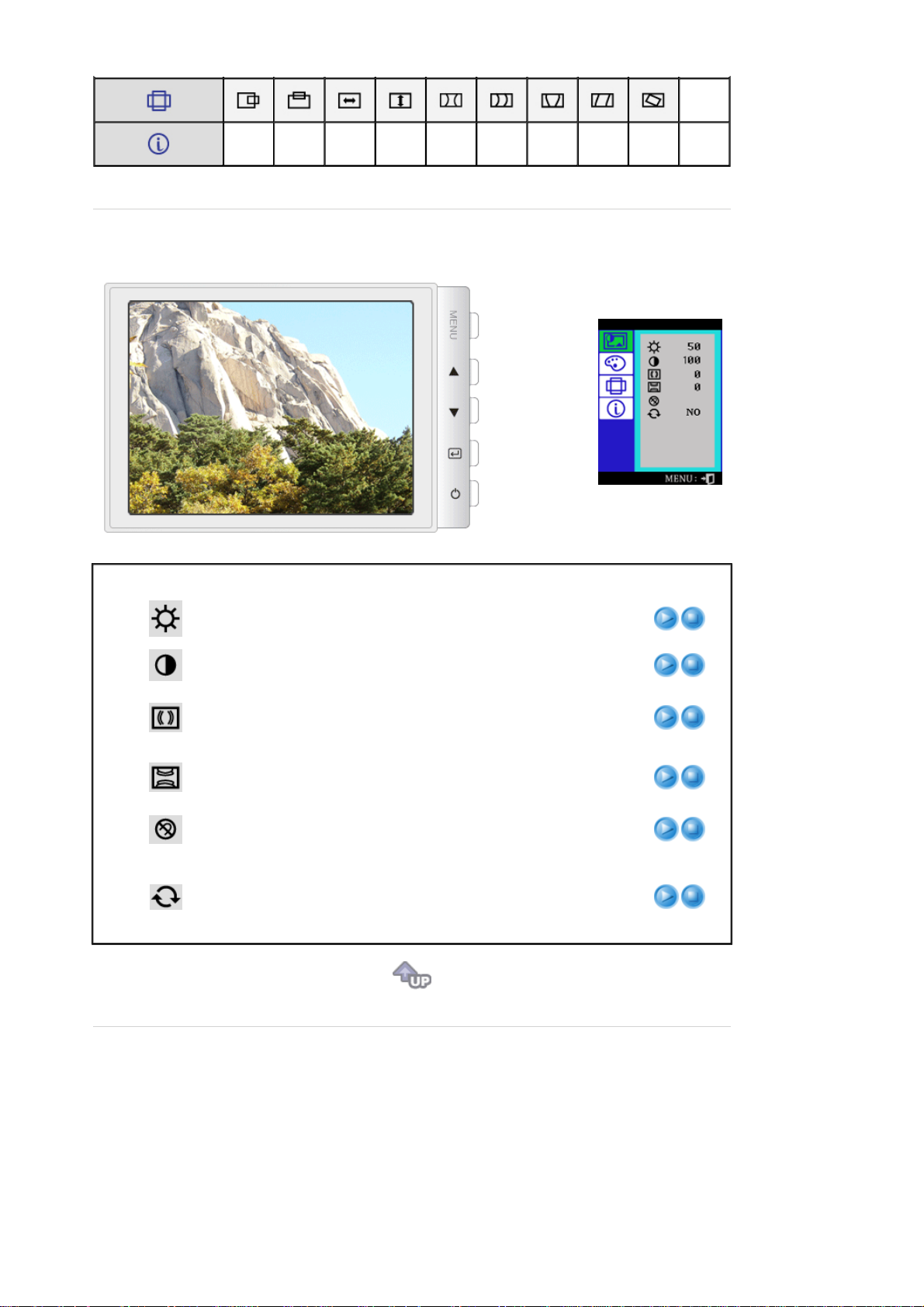

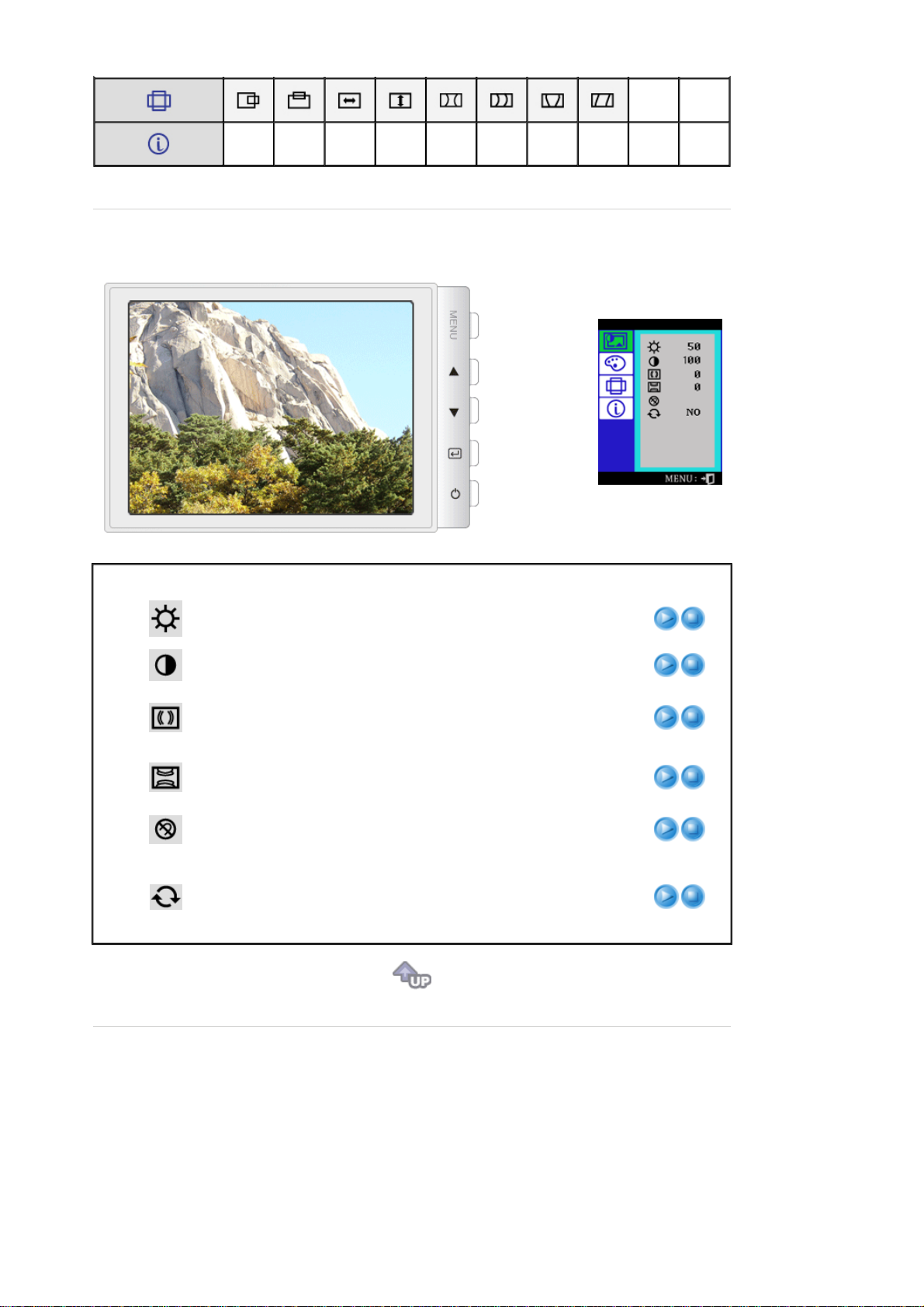

Opens the OSD menu. Also used to exit the OSD menu or
return to the previous menu.

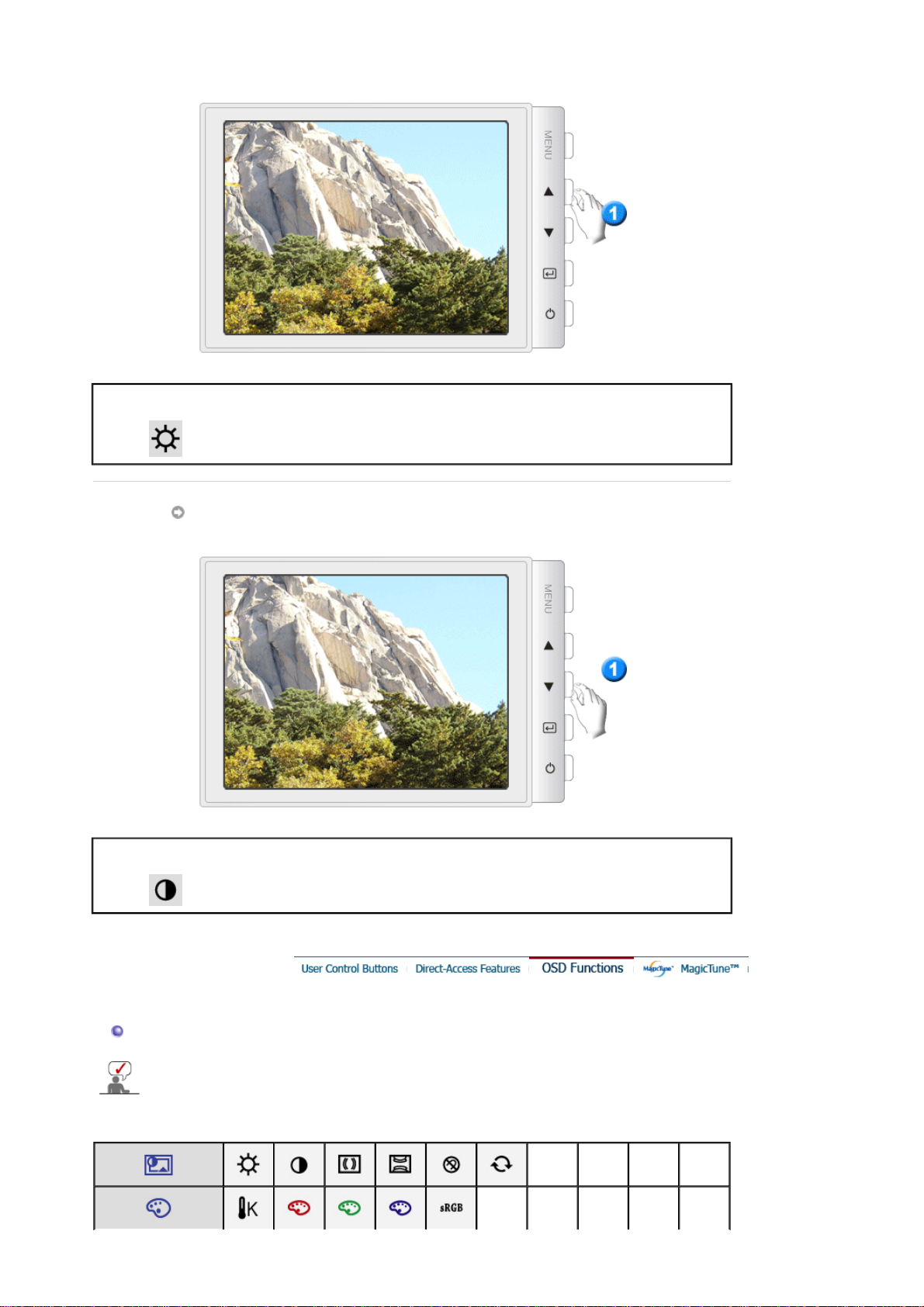

These buttons allow you to highlight and adjust items in the
menu.

Used to select the OSD menu.

Power button [ ]

Power indicator

See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.

Rear

Use this button for turn the monitor on and off.

This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.

(The configuration at the back of the monitor may vary from product to product.)

Power port

Signal Cable

See Connecting the Monitor for further information regarding cable connections.

Bottom

Connect the power cord for your monitor to the power port on

the back of the monitor.

Connect the signal cable to the video port on your computer
(video board, video card, or graphics card).

Tilt/Swivel Base

You can separate the base from the monitor.

r

g

Unpacking

Monitor and Stand

SyncMaster 592V/794V/788DF Plus

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local deale

to buy optional items.

(Some models include a stand attached.)

Manual

Cable

Quick Setup Guide

Warranty Card

(Not available in all

locations)

User's Guide,

Monitor Driver,

Natural Color software,

icTune™ software

Ma

Power Cord

)

Stand

Stand

For Multimedia model (Option)

Manual

Cable

Stand

User Guide

Sound Cables(2each

DC Power Cord

Front

Multimedia Speaker Stand

Menu button [MENU]

Adjust buttons [ ]

Enter button [ ]

Opens the OSD menu. Also used to exit the OSD menu or
return to the previous menu.

These buttons allow you to highlight and adjust items in the
menu.

Used to select the OSD menu.

Power button [ ]

Power indicator

See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.

Rear

Use this button for turn the monitor on and off.

This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.

(The configuration at the back of the monitor may vary from product to product.)

Power port

Signal Cable

See Connecting the Monitor for further information regarding cable connections.

Bottom

Connect the power cord for your monitor to the power port on

the back of the monitor.

Connect the signal cable to the video port on your computer
(video board, video card, or graphics card).

Tilt/Swivel Base

You can separate the base from the monitor.

Connecting the Monitor

Setup-For Multimedia model | Multimedia Speaker Stand

1.

2.

Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Connecting to a computer

2-1.

Connect the signal cable to the 15-pin, D-sub connector on the back of your computer.

Connecting to a new Macintosh

2-2.

Connect the monitor to the Macintosh computer using the D-SUB connection cable.

Turn on your computer and monitor. If your monitor displays an image, installation is
complete.

Setup-For Multimedia model

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Turn off your computer and unplug the power cord.

Connect the end of the signal cable to your computer's video port(video board, video card or
graphics card).

Connect one end of the other sound cable to the Mic Input jack on your sound card or
computer.Connect the other end of this cable to the Mic By-pass jack on the back of the
monitor stand.

Plug the DC power cord from the stand into a nearby outlet.

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor and the power cord for your computer into a nearby
outlet.

Turn on your computer and monitor.

Turn up or down the On-Off control terminal on the stand of the monitor until it clicks.

Execute a sound program, music or sound effect in your computer and then adjust the volume
by turning up or down until the sound volume is appropriate.

Adjust the treble and bass.

Sound distortion may occur when the monitor is placed on top of a mostly hollow cabinet
such as your computer. If this occurs, place a pad or magazine beneath the monitor stand.
High sound volume may also cause sound distortion; lower the volume.

Multimedia Speaker Stand

1. Mic By-pass Jack

To transmit your voice,connect a sound cable from
the Mic By-pass jack to the mic in jack on the sound
card slot in your computer.

2. Stereo Input Jack

Connect a sound cable from the input source(sound
card,computer,CD-ROM drive).

3. DC Power Cord

g

y

Connect DC power cord to monitor DC 12V output
jack.

4. Power Indicator

Glows green when the speakers are turned on.

5. On/Off Volume

Turns On/Off and adjusts the output volume.

6. Treble Control

Use to control high frequencies.

7. Bass Control

Use to control low frequencies.

8. Mic Input Jack

To transmit your voice,connect a microphone to this
jack.

9. Headphone Jack

To listen in privacy,connect headphones here.

10.
Detachable Stand Top

Base Installation

Tilt/Swivel Base

With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable
viewin

angle.

Tilt/Swivel Base | Attaching and Removing the Base

The base is detachable.

Attaching and Removing the Base

our monitor was supplied with the base detached, attach the base as follows.

If

g

g

Remove the twist-tie before attaching the base to the monitor.

Attachin

1. Place the monitor upside-down on a flat work surface.

2. Align the tabs on the base with the corresponding slots on the bottom of the monitor.

3. Press the base onto the monitor until the tabs are fully engaged in the slots.

4. Push the base toward the front of the monitor until the release latch clicks into the locked

Removin

5. Squeeze and pull up on the release latch on the base.

6. Push the base toward the back of the monitor and lift up to remove the base.

the Base

position.
* Do not bend the snap.

the Base

The base will align with the monitor slots in only one position.

Installing the Monitor Driver(Automatic)

When prompted by the operating system for the monitor driver, insert the CD-ROM

included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

1. Insert the CD into the CD-ROM drive.

2. Click

"Windows"

3. Choose your monitor model in the model list, then click the

"OK"

.

4. If you can see following message window, then click the
Then click

. (Microsoft® Windows® XP/2000 Operating System)

"OK"

This monitor driver is under certified MS logo and this installation doesn't
damage your system. The certified driver will be posted on Samsung
Monitor homepage.

http://www.samsung.com/.

5. Monitor driver installation is completed.

"Continue Anyway"

button.

Installing the Monitor Driver(Manual)

Windows XP | Windows 2000 | Windows Me | Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating

system to another. Follow the directions appropriate for the operating system you
have.

Prepare a blank disk and download the driver program file at the Internet web site shown
here.

z

Internet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "

Start

" —> "

Control Panel

" then click the "

Appearance and Themes

" icon.

3. Click "

Display

4. Click the "

" icon and choose the "

Properties

" button on the "

Settings

" tab then click "

Advanced..

".

Monitor

" tab and select "

Driver

" tab.

5. Click "

Update Driver..

" and select "

Install from a list or..

" then click "

Next

" button.

6. Select "

7. Click the "
model list and click the "

Don't search ,I will..

Browse

" then click "

" button then choose A:(D:\Driver) and choose your monitor model in the

" button.

Next

" and then click "

Next

Have disk

".

8. If you can see following message window, then click the "
click "OK" button.

This monitor driver is under certified MS logo and this installation doesn't
damage your system. The certified driver will be posted on Samsung
Monitor homepage.

http://www.samsung.com/.

9. Click the "

" button, then click "OK" button continually.

Close

Continue Anyway

" button. Then

K

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "

2. Click the "

3. Choose A:(D:\Driver) then click the "Open" button and then click "

How to install

1. Click "

2. Double click the "

3. Choose the "

4. Choose "

Case1:If the "Properties" button is inactive, it means your monitor is properly configured.

Case2:If the "Properties" button is active, click the "Properties" button then follow next steps

5. Click "

6. Choose "

specific driver

7. Click the "

8. Click the "

9. Choose your monitor model and click the "

10. Click the "

Browse

Start

Monitor

Please stop installation

continually.

Driver

Display a list of the known drivers for this device so that I can choose a

Browse
Open

Finish

" button on the "

" , "

Setting

Display

Settings

".

" and then click on "

" then click "

" button then choose A:(D:\Driver).

" button, then click "OK" button.

" button then the "

Insert disk

File Needed

" , "

Control Panel

" Icon.

" tab and then click "

Update Driver..

" and then click "

Next

Close

" window.

" window.

".

Advanced..

" then click on the "Next" button.

Have disk

" button then click "

Next

" button.

".

".

" button.

O

Next

" button.

If you can see the "
And click the "

Microsoft® Windows® Millennium Operating System

1. Click "

2. Double click "

3. Select the "

4. Select the "

5. Click the "

6. Choose "

7. Choose "

8. Click the "

9. Specify A:\(D:\driver) then click "OK" button.

10. Select "
connected to your computer and click "OK".

11. Continue choosing "
dialogue box.

" , "

Start

Settings
Monitor

Change
Specify the location of the driver
Display a list of all the driver in a specific location..

Have Disk

Show all devices

Digital Signature Not Found

" button then the "

Finish

Setting

Display

" , "

Control Panel

" icon.

" tab and click "

" tab.

" button in the "

" button

" and choose the monitor that corresponds to the one you

" button and "OK" button until you close the Display Properties

Close

Advanced Properties

Monitor Type

Close

".

" window then click the "

" button.

" area.

".

" button.

" then click "

Yes

"button.

" button.

Next

Microsoft® Windows® NT Operating System

1. Click

2. In Display Registration Information window, click Settings Tab and then click

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)

4. Click

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for

3. Set a mouse for your computer.

4. The next screen is for

5. Set a Keyboard for your computer.

6. The next screen is for

7. First of all, set a

8. Set a

9. Enter the

10. You have

Start, Settings, Control Panel

.

Modes

and then click OK.

not normal, change to a different mode (lower mode of resolution, colors or frequency).

directly.)

of X-Window.

Execute

button if you see the screen working normally after clicking

Apply

If there is no Mode at
frequency by referring to the Preset Timing Modes in the user guide.

horizontal frequency

vertical frequency

model name of your monitor

finished

X-Window after setting other requested hardware.

setting up your monitor.

All Display Modes

setting your mouse

selecting a keyboard

setting your monitor

for your monitor. (You can enter the frequency directly.)

, and then double-click

Display

, select the level of resolution and vertical

.

.

.

for your monitor. (You can enter the frequency

. This information will not affect the actual execution

icon.

Test

All Display

. If the screen is

Natural Color

Natural Color Software Program

One of the recent problems in using a computer is that the color of the images printed out by a
printer or other images scanned by a scanner or a digital camera are not the same as those
shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI).
This is only available for Samsung monitors and ensures that the color of the images on the

monitor are the same as the printed or scanned images.

[

]

For more information, refer to Help (F1) in the software program.

Installing the Natural Color Software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. The initial Natural
Color screen will appear. Click on Natural Color in the startup window to install the Natural
Color software.
To install the program manually, insert the CD included with the Samsung monitor into the CD­ROM Drive, click the Windows [Start] button, select select
Enter D:\color\NCProSetup.exe and then press the
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)

Uninstalling the Natural Color Software Program

Select

[Settings]/[Control Panel]

program]

Select Natural Color from the list and then click the

.

from the

[Execute]

<Enter>

menu and then double-click

[Start]

Add/Delete

key.

.

[Add/Delete a

button.

User Control Buttons

SyncMaster 591S/591V/591SG/594MG

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

These buttons allow you to highlight and adjust items in the menu.

Use to select the OSD menu.

Direct-Access Features

Brightness

Menu Description

When OSD is not on the screen, push the button to adjust brightness.

Contrast

Menu Description

When OSD is not on the screen, push the button to adjust Contrast.

OSD Functions

Select an icon that you want to know from the OSD menu to display a text or animation
explanation of that icon.

Menu Description Play/Stop

You can use the on-screen menus to change the brightness
according to personal preference.

You can use the on-screen menus to change the contrast
according to personal preference.

A "Moiré" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the horizontal moire adjustments.

A "Moirë" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the vertical moire adjustments.

The Degauss feature will remove color impurities caused by
magnetic fields.

Use the recall feature to reset these monitor settings to their
original levels: Position, Size, Pincushion, Trapezoid,
Parallelogram, Pinbalance, Rotation, H-Moire,and V-Moire.

If you have selected "Yes", all settings listed above will

Note:

be reset. All other settings will remain the same.

Menu Description Play/Stop

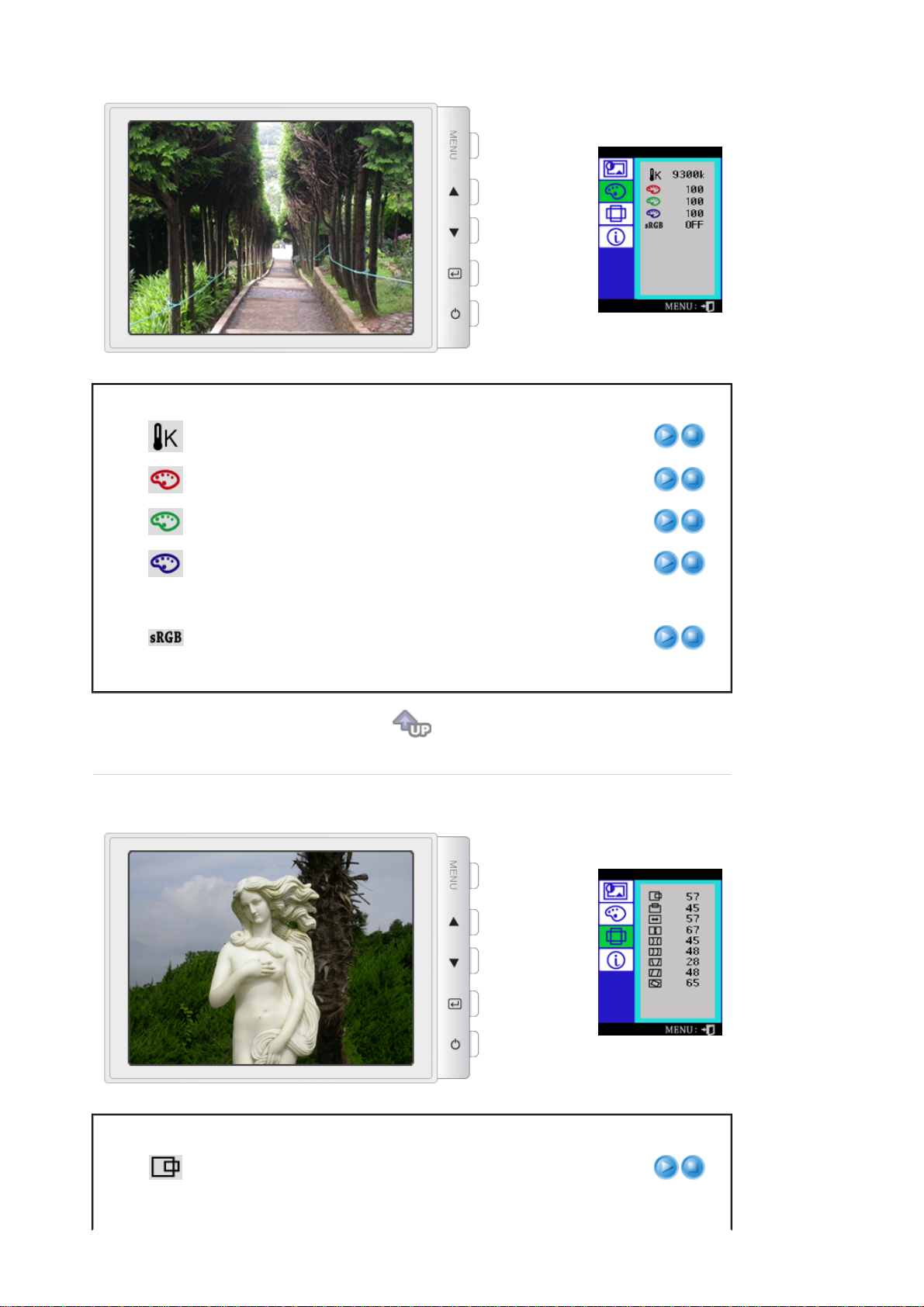

Color temperature is a measure of the 'warmth' of the image
colors. (6500K / 9300K)

Use to adjust the monitor color setting.(Red)

Use to adjust the monitor color setting.(Green)

Use to adjust the monitor color setting.(Blue)

Standard Red Green Blue (sRGB) is a defined default color
space. If a monitor, printer and scanner are all calibrated to
the sRGB color characteristics, then you can find color
matching from each peripheral.

When the monitor is in the sRGB mode, Brightness /

Note:

Contrast adjustment is not available.

Menu Description Play/Stop

Follow these instructions to change the horizontal position of
the monitor's entire display.

Follow these instructions to change the vetical position of the

monitor's entire display.

Follow these instructions to change the horizontal size of the
monitor's entire display.

Follow these instructions to change the vertical size of the
monitor's entire display.

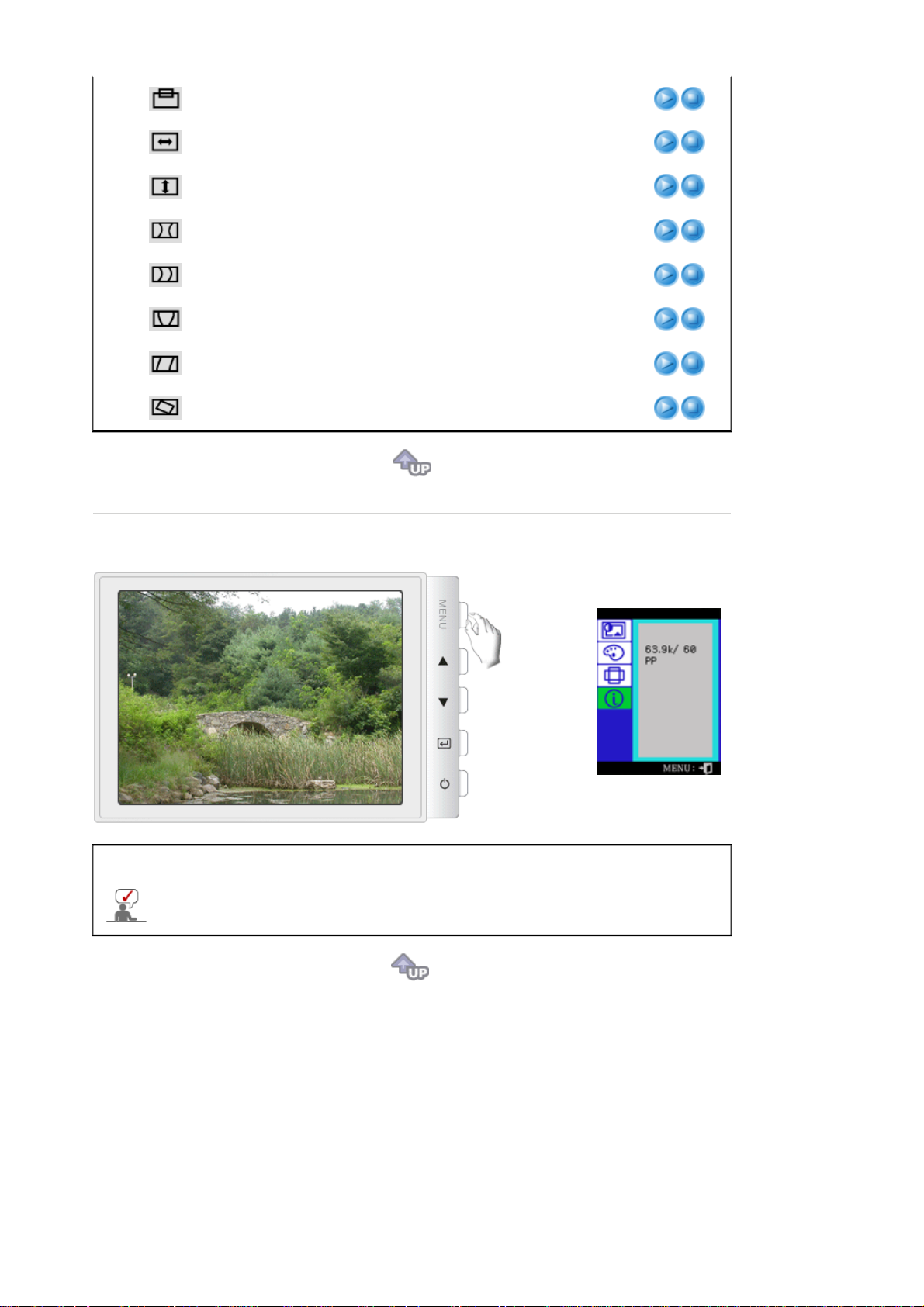

Adjust the pincushion setting when the sides of the display
are bowed in or bowed out.

Adjust the pinbalance setting when the sides of the display
are bowed towards the left or right.

Adjust the trapezoid setting when the top or bottom of the
display is too large or small.

Adjust the parallelogram setting when the display is leaning
left or right.

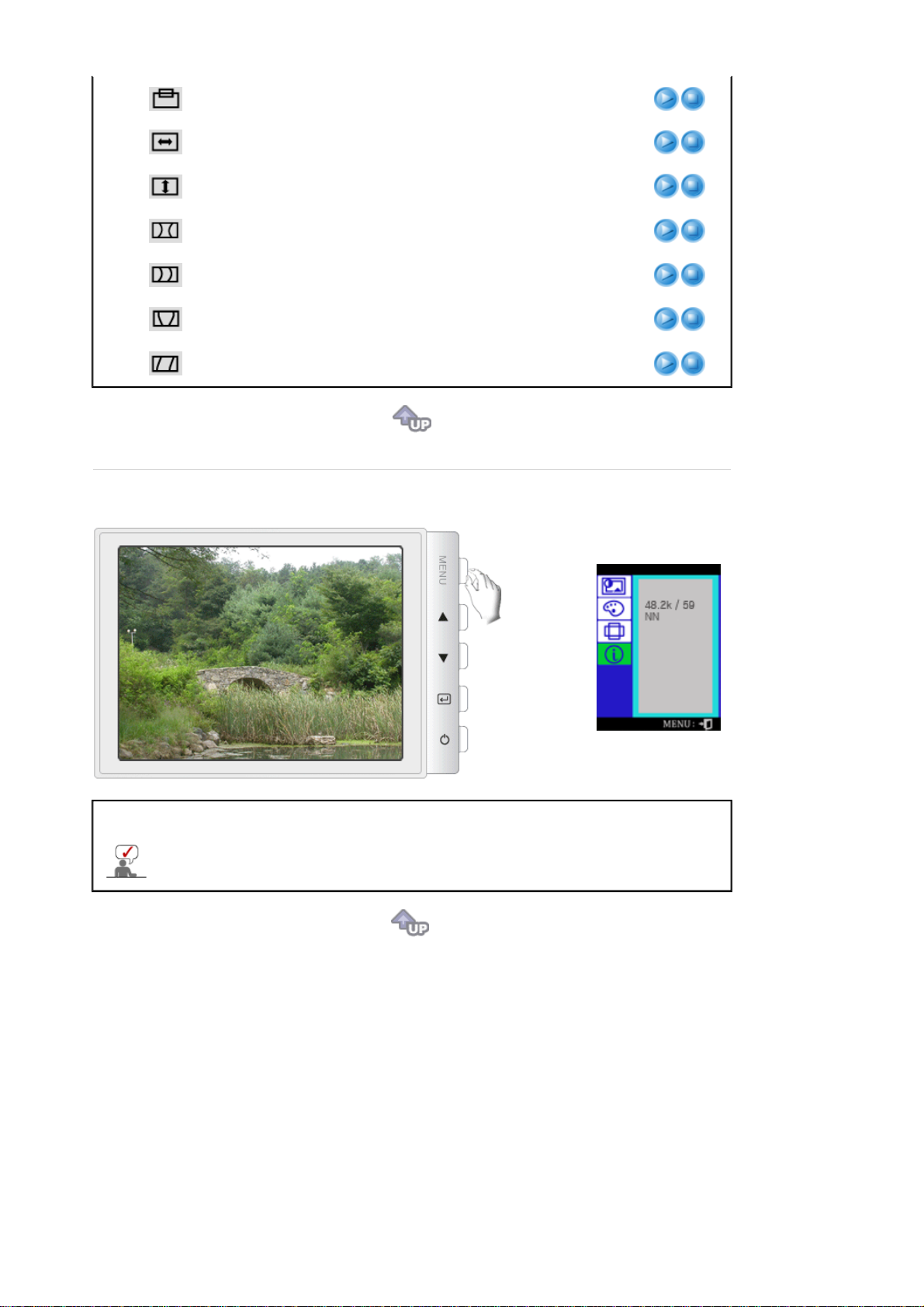

Provides information about the display timing and sync signals polarity(user mode).

These screens do not allow any changes to the settings, they are for information only.

User Control Buttons

SyncMaster 592V

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

These buttons allow you to highlight and adjust items in the menu.

Use to select the OSD menu.

Direct-Access Features

Brightness

Menu Description

When OSD is not on the screen, push the button to adjust brightness.

Contrast

Menu Description

When OSD is not on the screen, push the button to adjust Contrast.

OSD Functions

Select an icon that you want to know from the OSD menu to display a text or animation
explanation of that icon.

Menu Description Play/Stop

You can use the on-screen menus to change the brightness
according to personal preference.

You can use the on-screen menus to change the contrast
according to personal preference.

A "Moiré" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the horizontal moire adjustments.

A "Moirë" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the vertical moire adjustments.

The Degauss feature will remove color impurities caused by
magnetic fields.

Use the recall feature to reset these monitor settings to their
original levels: Position, Size, Pincushion, Trapezoid,
Parallelogram, Pinbalance, Rotation, H-Moire,and V-Moire.

If you have selected "Yes", all settings listed above will

Note:

be reset. All other settings will remain the same.

Menu Description Play/Stop

Color temperature is a measure of the 'warmth' of the image
colors. (6500K / 9300K)

Use to adjust the monitor color setting.(Red)

Use to adjust the monitor color setting.(Green)

Use to adjust the monitor color setting.(Blue)

Standard Red Green Blue (sRGB) is a defined default color
space. If a monitor, printer and scanner are all calibrated to
the sRGB color characteristics, then you can find color
matching from each peripheral.

When the monitor is in the sRGB mode, Brightness /

Note:

Contrast adjustment is not available.

Menu Description Play/Stop

Follow these instructions to change the horizontal position of
the monitor's entire display.

Follow these instructions to change the vetical position of the

monitor's entire display.

Follow these instructions to change the horizontal size of the
monitor's entire display.

Follow these instructions to change the vertical size of the
monitor's entire display.

Adjust the pincushion setting when the sides of the display
are bowed in or bowed out.

Adjust the pinbalance setting when the sides of the display
are bowed towards the left or right.

Adjust the trapezoid setting when the top or bottom of the
display is too large or small.

Adjust the parallelogram setting when the display is leaning
left or right.

Provides information about the display timing and sync signals polarity(user mode).

These screens do not allow any changes to the settings, they are for information only.

User Control Buttons

SyncMaster 793S/793V/793SG/794MG/ 783DF/793DF/793MG

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

These buttons allow you to highlight and adjust items in the menu.

Use to select the OSD menu.

Direct-Access Features

Brightness

Menu Description

When OSD is not on the screen, push the button to adjust brightness.

Contrast

Menu Description

When OSD is not on the screen, push the button to adjust Contrast.

OSD Functions

Select an icon that you want to know from the OSD menu to display a text or animation
explanation of that icon.

Menu Description Play/Stop

You can use the on-screen menus to change the brightness
according to personal preference.

You can use the on-screen menus to change the contrast
according to personal preference.

A "Moiré" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the horizontal moire adjustments.

A "Moirë" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the vertical moire adjustments.

The Degauss feature will remove color impurities caused by
magnetic fields.

Use the recall feature to reset these monitor settings to their
original levels: Position, Size, Pincushion, Trapezoid,
Parallelogram, Pinbalance, Rotation, H-Moire,and V-Moire.

If you have selected "Yes", all settings listed above will

Note:

be reset. All other settings will remain the same.

Menu Description Play/Stop

Color temperature is a measure of the 'warmth' of the image
colors. (6500K / 9300K)

Use to adjust the monitor color setting.(Red)

Use to adjust the monitor color setting.(Green)

Use to adjust the monitor color setting.(Blue)

Standard Red Green Blue (sRGB) is a defined default color
space. If a monitor, printer and scanner are all calibrated to
the sRGB color characteristics, then you can find color
matching from each peripheral.

When the monitor is in the sRGB mode, Brightness /

Note:

Contrast adjustment is not available.

Menu Description Play/Stop

Follow these instructions to change the horizontal position of
the monitor's entire display.

Follow these instructions to change the vetical position of the

monitor's entire display.

Follow these instructions to change the horizontal size of the
monitor's entire display.

Follow these instructions to change the vertical size of the
monitor's entire display.

Adjust the pincushion setting when the sides of the display
are bowed in or bowed out.

Adjust the pinbalance setting when the sides of the display
are bowed towards the left or right.

Adjust the trapezoid setting when the top or bottom of the
display is too large or small.

Adjust the parallelogram setting when the display is leaning
left or right.

Adjust the rotation setting when the entire display is tilted left
or right.

Provides information about the display timing and sync signals polarity(user mode).

These screens do not allow any changes to the settings, they are for information only.

User Control Buttons

SyncMaster 794V/788DF Plus

Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu.

These buttons allow you to highlight and adjust items in the menu.

Use to select the OSD menu.

Direct-Access Features

Brightness

Menu Description

When OSD is not on the screen, push the button to adjust brightness.

Contrast

Menu Description

When OSD is not on the screen, push the button to adjust Contrast.

OSD Functions

Select an icon that you want to know from the OSD menu to display a text or animation
explanation of that icon.

Menu Description Play/Stop

You can use the on-screen menus to change the brightness
according to personal preference.

You can use the on-screen menus to change the contrast
according to personal preference.

A "Moiré" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the horizontal moire adjustments.

A "Moirë" pattern can appear on your screen, looking like a
series of concentric circles or arcs. To eliminate this pattern,
use the vertical moire adjustments.

The Degauss feature will remove color impurities caused by
magnetic fields.

Use the recall feature to reset these monitor settings to their
original levels: Position, Size, Pincushion, Trapezoid,
Parallelogram, Pinbalance, Rotation, H-Moire,and V-Moire.

If you have selected "Yes", all settings listed above will

Note:

be reset. All other settings will remain the same.

Menu Description Play/Stop

Color temperature is a measure of the 'warmth' of the image
colors. (6500K / 9300K)

Use to adjust the monitor color setting.(Red)

Use to adjust the monitor color setting.(Green)

Use to adjust the monitor color setting.(Blue)

Standard Red Green Blue (sRGB) is a defined default color
space. If a monitor, printer and scanner are all calibrated to
the sRGB color characteristics, then you can find color
matching from each peripheral.

When the monitor is in the sRGB mode, Brightness /

Note:

Contrast adjustment is not available.

Menu Description Play/Stop

Follow these instructions to change the horizontal position of
the monitor's entire display.

Follow these instructions to change the vetical position of the

monitor's entire display.

Follow these instructions to change the horizontal size of the
monitor's entire display.

Follow these instructions to change the vertical size of the
monitor's entire display.

Adjust the pincushion setting when the sides of the display
are bowed in or bowed out.

Adjust the pinbalance setting when the sides of the display
are bowed towards the left or right.

Adjust the trapezoid setting when the top or bottom of the
display is too large or small.

Adjust the parallelogram setting when the display is leaning
left or right.

Adjust the rotation setting when the entire display is tilted left
or right.

Provides information about the display timing and sync signals polarity(user mode).

These screens do not allow any changes to the settings, they are for information only.

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click the MagicTune™ installation file.

3. Select installation Language, Click "Next".

4. When the Installation Shield Wizard window appears, click "Next."

5. Select "I agree to the terms of the license agreement" to accept the terms of use.

6. Choose a folder to install the MagicTune™ program.

7. Click "Install."

8. The "Installation Status" window appears.

9. Click "Finish."

10. When the installation is complete, the MagicTune™ executable icon appears on your desktop.

Double-click the icon to start the program.

MagicTune™ execution icon may not appear depending on specification of computer
system or monitor. If that happens, press F5 Key.

Installation Problems

The installation of MagicTune™ can be affected by such factors as the video card, motherboard and the network
environment.

System Requirements

OS

z

Windows 2000

z

Windows XP Home Edition

z

Windows XP Professional

z

Windows Vista™

It is recommended using MagicTune™ in Windows® 2000 or
later.

Hardware

z

32 MB Memory above

z

60 MB Hard disk space above

* For more information, visit the MagicTune™

website.

Uninstall

The MagicTune™ program can be removed only by using the "Add or Remove Programs" option of the

Windows

®

Control Panel.

Perform the following steps remove MagicTune™ .

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on

Windows

®

XP, go to [Control Panel] in the [Start] menu.

2. Click the "Add or Remove Programs" icon in Control Panel.

3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune™ ." Click on it to highlight
it.

4. Click the "Change/Remove" button to remove the program.

5. Click "Yes" to begin the uninstall process.

6. Wait until the "Uninstall Complete" dialog box appears.

Visit the MagicTune™

website for technical support for MagicTune™ , FAQs (questions and answers) and

software upgrades.

Check List

No images on the
screen. I cannot turn on
the monitor.

Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the

Information section or contact your dealer.

Symptom Check List Solutions

Is the power cord
connected properly?

Can you see
the screen?

If the power is on, reboot
the computer to see the
initial screen(the login
screen), which can be
seen.

Can you see
the screen?

on

""

on

""

Check the power cord connection and
supply.

Check the signal cable connection.

If the initial screen (the login screen)
appears, boot the computer in the applicable
mode (the safe mode for Windows
ME/XP/2000) and then change the
frequency of the video card.
(Refer to the Preset Timing Modes)

Note: If the initial screen (the login screen)
does not appear, contact a service center or

your dealer.

You can see this message when the signal
from the video card exceeds the maximum
resolution and frequency that the monitor
can properly handle.

Adjust the maximum resolution and
frequency that the monitor can handle
properly.

The image on the screen
is shaking.

There is no image on the
screen.
Is the power indicator on
the monitor blinking at 1
second intervals?

Check the monitor
configuration to see if it
is in Interlace Mode.
(Interlace Mode: Vertical
frequency 43 Hz, 87 Hz
(i), etc)

The monitor is in PowerSaver mode.

Press any key on the keyboard to activate
the monitor and restore the image on the
screen.

Change the vertical frequency to Non­Interlace mode by referring to the video card
manual.

Are there any magnetic
products such as a
power adapter, speaker
or a high voltage wire
near by?

Is the voltage stable? The screen image can appear to shake or

The screen image can also appear to shake or vibrate if there is a
problem with the video card or the computer's main board.

Move the monitor away from anything that
can create a strong magnetic field.

vibrate at a particular time of day due to low
supply voltage.

The screen shows
strange colors or just
black and white.

The screen suddenly has
become unbalanced.

The screen is out of
focus or OSD cannot be
adjusted.

The screen is partially
distorted.

Is the screen displaying
only one color as if
looking at the screen
through a cellophane
paper?

Have the screen colors
become strange after
running a program or
due to a crash between
applications?

Has the video card been
set properly?

Have you changed the
video card or the driver?

Have you adjusted the
resolution or frequency
on the monitor?

The screen can be unbalanced due to the cycle of the video card
signals. Readjust Position by referring to the OSD.

Have you adjusted the
resolution or frequency
on the monitor?

Are there any magnetic
products such as an
adapter, speaker or a
high voltage wire near
the monitor?

Check the signal cable connection.

Make sure the video card is fully inserted in
it's slot.

Reboot the computer.

Set the video card by referring to the video
card manual.

Adjust screen image position and size using
the OSD.

Adjust the resolution and frequency of the
video card.
(Refer to the Preset Timing Modes).

Adjust the resolution and frequency of the
video card.
(Refer to the Preset Timing Modes).

Enter the OSD and perform a "Degauss".

Keep the monitor away from any magnetic
products.

LED is blinking but no
images on the screen.

There are only 16 colors
shown on the screen.
The screen colors have
changed after changing
the video card.

There is a message that
reads "Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".

Check when
MagicTune™ does not
function properly.

Is the frequency properly
adjusted when checking
the Display Timing on
the menu?

Have the Windows
colors been set properly?

Has the video card been
set properly?

Have you installed the
monitor driver?

See the video card
manual to see if the Plug
& Play (VESA DDC)
function can be
supported.

MagicTune™ feature is
found only on PC (VGA)
with Window OS that
supports Plug and Play.

Adjust the frequency properly by referring to
the video card manual and the Preset Timing

Modes.

(The maximum frequency per resolution may
differ from product to product.)

Windows ME/2000/XP:
Set the colors properly at the

→

Display → Settings

Set the video card by referring to the video
card manual.

Install the monitor driver according to the

Driver Installation Instructions.

Install the monitor driver according to the

Driver Installation Instructions.

* To check whether your PC is available for
MagicTune™ feature, follow the
steps below (When Windows is XP);

Control Panel

.

Control Panel → Performance and
Maintenance → System → Hardware →
Device Manager → Monitors → After
deleting Plug and Play monitor, find 'Plug
and Play monitor' by searching new
Hardware.

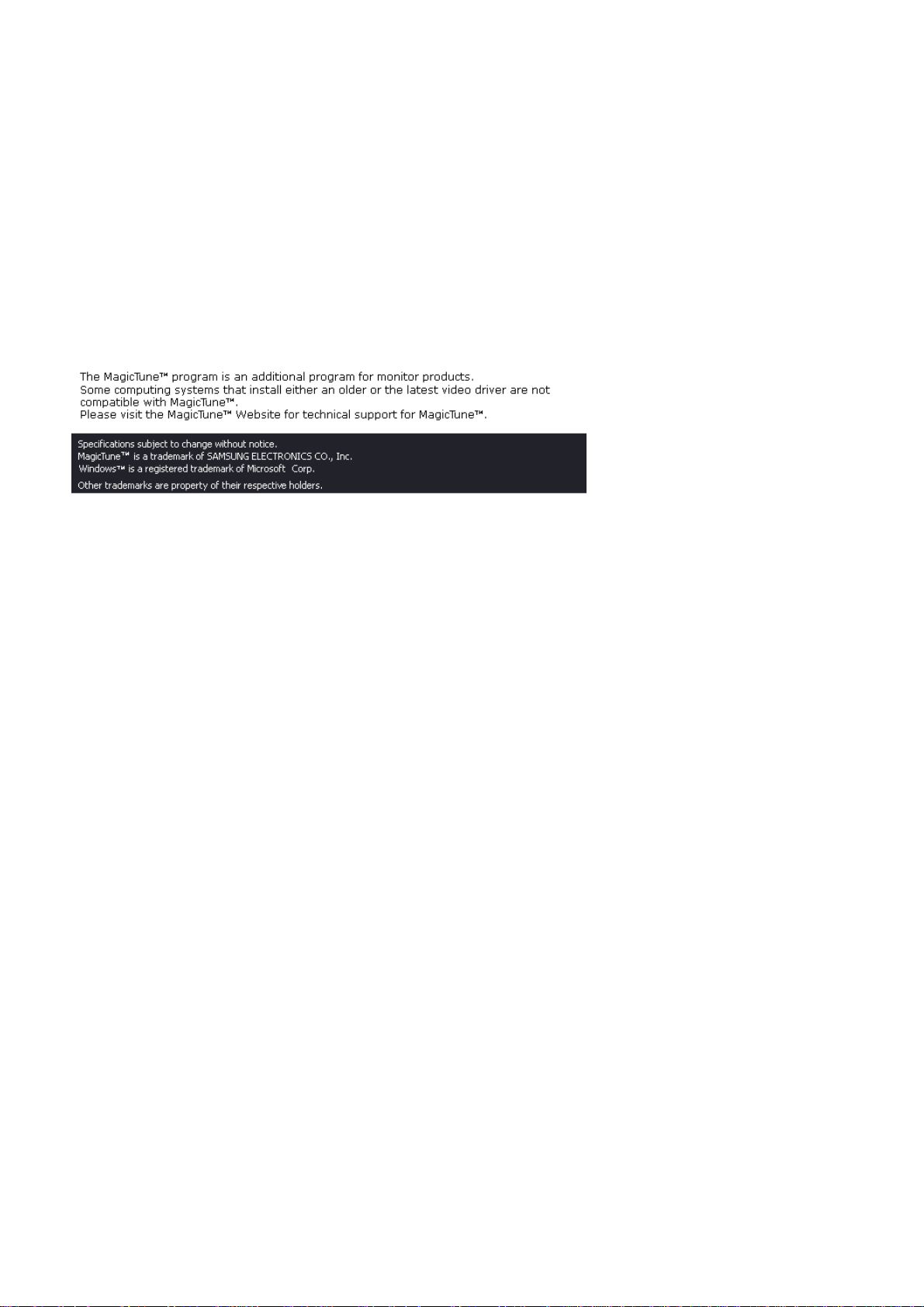

MagicTune™ is an additional software for
the monitor. Some graphic cards may not
support your monitor. When you have a
problem with the graphic card, visit our
website to check the compatible graphic
card list provided.

http://www.samsung.com/monitor/magictune

MagicTune™ doesn't
work properly.

Visit the MagicTune™ website and download the installation software for MagicTune™
MAC.

Check the following items if there is trouble with the monitor.

1. Check if the power cord and the video cables are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if the installed adapter (video)
driver and the monitor driver.

4. Check if the scanning ratio of the video screen is set at 50Hz ~ 160Hz .
(Do not exceed 65Hz when using the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "
reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Have you changed your
PC or video graphic
card?

Did you install the
program?

Control Panel→System→Device Administrator

Download the latest program. The program
can be downloaded

http://www.samsung.com/monitor/magictune.

Reboot the computer after installing the
program for the first time. If a copy of the
program is already installed, remove it,
reboot the computer, and then install the
program again. You need to reboot the
computer for it to operate normally after
installing or removing the program.

" and then

Q & A

Question

How can I change the
frequency?

How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the

How can I set the Power Saving
function?

Frequency can be changed by reconfiguring the video card.

Note that video card support can vary, depending on the version
of the driver used. (Refer to the computer or the video card
manual for details.)

Panel→Display→Settings

* Contact the video card manufacturer for details.

Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).

Answer

.

Control

The monitor makes a sound
when it is turned on.

This is normal as some sound may be generated when the metal
case and the electromagnet, which are installed to block any
electromagnetic waves, interact with each other.

How can I clean the outer
case/Picture tube?

Self-Test Feature Check

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

Your monitor provides a self test feature that allows you to check whether your monitor is
functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.

Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.

Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.

This box appears during normal operation if the video cable becomes disconnected or
damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, the message below appears on the screen
or the screen goes blank although the power indicator LED is still on. The message may
indicate that the monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other
features of the monitor.

1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.

2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.

3. Degauss the monitor if any devices were removed from the area.

Useful Tips

z A monitor recreates visual signals received from the computer. Therefore, if there is trouble with

the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, unavailable video mode, etc. In this case, first check the source of the problem, and then
contact a service center or your dealer.

z

Judging the monitor's working condition

If there is no image on the screen or a

message comes up, disconnect the cable from the

""

computer while the monitor is still powered on.

{ If there is a message coming up on the screen or if the screen goes white, this means the

monitor is in working condition.

{

In this case, check the computer for trouble.

General

General

Model Name SyncMaster 591S/591V/591SG/594MG

Picture Tube

Type 15" (38 cm) FST (35 cm viewable)

Deflection angle 90 °

Dot Pitch 0.24 mm (Horizontal)

Resolution

Optimum resolution 800 x 600 @ 85 Hz

Maximum resolution 1024 x 768 @ 70 Hz

Active Display

Horizontal 267 ± 4 mm

Vertical 200 ± 4 mm

Synchronization

Horizontal 30 ~ 55 kHz

Vertical 50 ~ 120 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vp-p Positive at 75 Ω

Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

65 MHz

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Dimensions (WxDxH)

361 x 379.2 x 347 mm / 14.2 x 14.9 x 13.7 inch (After installation of Stand)

Weight

11.0 kg / 24.3 lbs

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)

Humidity 10% ~ 80%, non-condensing

Storage Temperature -4°F ~113°F (-20°C ~ 45°C)

Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor
and the computer systems will provide the best operating conditions and monitor settings. In most
cases, the monitor installation will proceed automatically, unless the user wishes to select alternate
settings.

Note: Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.

State

Power Indicator Green Green, Blinking

Power Consumption Less than 50 W (at the windows pattern) Less than 1 W

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Horizontal

Display Mode

Frequency

(kHz)

Normal Operation

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Power-off mode

Sync Polarity

(H/V)

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 43.300 85.000 36.000 -/-

VESA, 800 x 600 53.700 85.100 56.250 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called the Horizontal Cycle and the inverse
number of the Horizontal Cycle is called the Horizontal Frequency.
Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called the Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 592V

Picture Tube

Type 15" (38 cm) FST (35 cm viewable)

Deflection angle 90 °

Dot Pitch 0.24 mm (Horizontal)

Resolution

Optimum resolution 800 x 600 @ 85 Hz

Maximum resolution 1024 x 768 @ 70 Hz

Active Display

Horizontal 267 ± 4 mm

Vertical 200 ± 4 mm

Synchronization

Horizontal 30 ~ 55 kHz

Vertical 50 ~ 120 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vp-p Positive at 75 Ω

Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

65 MHz

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Dimensions (WxDxH)

361 x 376 x 346 mm / 14.2 x 14.8 x 13.6 inch (After installation of Stand)

Weight

10.3 kg / 22.7 lbs

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)

Humidity 10% ~ 80%, non-condensing

Storage Temperature -4°F ~113°F (-20°C ~ 45°C)

Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor
and the computer systems will provide the best operating conditions and monitor settings. In most
cases, the monitor installation will proceed automatically, unless the user wishes to select alternate
settings.

Note: Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.

State

Power Indicator Green Green, Blinking

Power Consumption Less than 50 W (at the windows pattern) Less than 1 W

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Horizontal

Display Mode

Frequency

(kHz)

Normal Operation

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Power-off mode

Sync Polarity

(H/V)

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 43.300 85.000 36.000 -/-

VESA, 800 x 600 53.700 85.100 56.250 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called the Horizontal Cycle and the inverse
number of the Horizontal Cycle is called the Horizontal Frequency.
Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called the Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 793S/793V/793SG/794MG

Picture Tube

Type 17" (43 cm) FSE (40.6 cm viewable)

Deflection angle 90 °

Dot Pitch 0.23 mm (Horizontal)

Resolution

Optimum resolution 1024 x 768 @ 85 Hz

Maximum resolution 1280 x 1024 @ 65 Hz

Active Display

Horizontal 312 ± 4 mm

Vertical 234 ± 4 mm

Synchronization

Horizontal 30 ~ 70 kHz

Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vp-p Positive at 75 Ω

Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

110 MHz

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Dimensions (WxDxH)

401 x 410 x 378 mm / 15.8 x 16.1 x 14.9 inch (After installation of Stand)

Weight

13.8 kg / 30.4 lbs

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)

Humidity 10% ~ 80%, non-condensing

Storage Temperature -4°F ~113°F (-20°C ~ 45°C)

Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor
and the computer systems will provide the best operating conditions and monitor settings. In most
cases, the monitor installation will proceed automatically, unless the user wishes to select alternate
settings.

Note: Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.

State

Power Indicator Green Green, Blinking

Power Consumption Less than 55 W (at the windows pattern) Less than 1 W

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Horizontal

Display Mode

Frequency

(kHz)

Normal Operation

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Power-off mode

Sync Polarity

(H/V)

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 800 x 600 53.700 85.100 56.250 +/+

VESA, 1024 x 768 68.700 85.000 94.500 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called the Horizontal Cycle and the inverse
number of the Horizontal Cycle is called the Horizontal Frequency.
Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called the Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 794V

Picture Tube

Type 17" (43 cm) FSE (40.6 cm viewable)

Deflection angle 90 °

Dot Pitch 0.23 mm (Horizontal)

Resolution

Optimum resolution 1024 x 768 @ 85 Hz

Maximum resolution 1280 x 1024 @ 65 Hz

Active Display

Horizontal 312 ± 4 mm

Vertical 234 ± 4 mm

Synchronization

Horizontal 30 ~ 70 kHz

Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vp-p Positive at 75 Ω

Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

110 MHz

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Dimensions (WxDxH)

401 x 410 x 378 mm / 15.8 x 16.1 x 14.9 inch (After installation of Stand)

Weight

12.8 kg / 28.2 lbs

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)

Humidity 10% ~ 80%, non-condensing

Storage Temperature -4°F ~113°F (-20°C ~ 45°C)

Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor
and the computer systems will provide the best operating conditions and monitor settings. In most
cases, the monitor installation will proceed automatically, unless the user wishes to select alternate
settings.

Note: Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.

State

Power Indicator Green Green, Blinking

Power Consumption Less than 55 W (at the windows pattern) Less than 1 W

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Horizontal

Display Mode

Frequency

(kHz)

Normal Operation

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Power-off mode

Sync Polarity

(H/V)

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 800 x 600 53.700 85.100 56.250 +/+

VESA, 1024 x 768 68.700 85.000 94.500 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called the Horizontal Cycle and the inverse
number of the Horizontal Cycle is called the Horizontal Frequency.
Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called the Vertical Frequency or Refresh
Rate. Unit: Hz

General

General

Model Name SyncMaster 783DF/793DF/793MG/788DF Plus

Picture Tube

Type 17" (43 cm) Flat (40.6 cm viewable)

Deflection angle 90 °

Dot Pitch 0.20 mm (Horizontal)

Resolution

Optimum resolution 1024 x 768 @ 85 Hz

Maximum resolution 1280 x 1024 @ 65 Hz

Active Display

Horizontal 312 ± 4 mm

Vertical 234 ± 4 mm

Synchronization

Horizontal 30 ~ 70 kHz

Vertical 50 ~ 160 Hz

Input Signal Definition

Video Signal RGB, Analog 0.7 Vp-p Positive at 75 Ω

Sync Signal Separate H/V sync, TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

110 MHz

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Dimensions (WxDxH)

401 x 410 x 378 mm / 15.8 x 16.1 x 14.9 inch (After installation of Stand)

Weight

14.3 kg / 31.5 lbs

Environmental considerations

Operating Temperature 32°F ~ 104°F(0°C ~ 40°C)

Humidity 10% ~ 80%, non-condensing

Storage Temperature -4°F ~113°F (-20°C ~ 45°C)

Humidity 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor
and the computer systems will provide the best operating conditions and monitor settings. In most
cases, the monitor installation will proceed automatically, unless the user wishes to select alternate
settings.

Note: Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.

State

Power Indicator Green Green, Blinking

Power Consumption Less than 55 W (at the windows pattern) Less than 1 W

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Horizontal

Display Mode

Frequency

(kHz)

Normal Operation

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Power-off mode

Sync Polarity

(H/V)

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 800 x 600 53.700 85.100 56.250 +/+

VESA, 1024 x 768 68.700 85.000 94.500 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called the Horizontal Cycle and the inverse
number of the Horizontal Cycle is called the Horizontal Frequency.
Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called the Vertical Frequency or Refresh
Rate. Unit: Hz

SyncMaster 591V/591S/592V/793V/794V/793DF/793S/783DF

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.

North America

U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com

CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL 4004-0000 http://www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) http://www.samsung.com/cl

COLOMBIA 01-8000112112 http://www.samsung.com.co

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

ECUADOR 1-800-10-7267 http://www.samsung.com/latin

EL SALVADOR 800-6225 http://www.samsung.com/latin

GUATEMALA 1-800-299-0013 http://www.samsung.com/latin

JAMAICA 1-800-234-7267 http://www.samsung.com/latin

PANAMA 800-7267 http://www.samsung.com/latin

PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 http://www.samsung.com/latin

TRINIDAD & TOBAGO 1-800-7267-864 http://www.samsung.com/latin

VENEZUELA 0-800-100-5303 http://www.samsung.com/latin

Europe

BELGIUM 02 201 2418 http://www.samsung.com/be

CZECH REPUBLIC 844 000 844 http://www.samsung.com/cz

DENMARK 70 70 19 70 http://www.samsung.com/dk

FINLAND 030-6227 515 http://www.samsung.com/fi

FRANCE

GERMANY 01805 - 121213 (€ 0,14/Min) http://www.samsung.de

HUNGARY 06-80-SAMSUNG (7267864) http://www.samsung.com/hu

ITALIA 800 SAMSUNG (7267864) http://www.samsung.com/it

LUXEMBURG 0032 (0)2 201 24 18 http://www.samsung.lu

NETHERLANDS 0900 20 200 88 (€ 0,10/Min) http://www.samsung.com/nl

NORWAY 815-56 480 http://www.samsung.com/no

POLAND 0 801 801 881 http://www.samsung.com/pl

PORTUGAL 80 8 200 128 http://www.samsung.com/pt

REPUBLIC OF IRELAND 0818 717 100 http://www.samsung.com/uk

SLOVAKIA 0800-SAMSUNG (7267864) http://www.samsung.com/sk

SPAIN 902 10 11 30 http://www.samsung.com/es

SWEDEN 0771-400 200 http://www.samsung.com/se

SWITZERLAND 0800-7267864 http://www.samsung.com/ch

U.K 0870 SAMSUNG (7267864) http://www.samsung.com/uk

3260 SAMSUNG(7267864)
(€ 0,15/min)

CIS

http://www.samsung.com/fr

ESTONIA 800-7267 http://www.samsung.ee

LATVIA 800-7267 http://www.samsung.com/lv

LITHUANIA 8-800-77777 http://www.samsung.lt

KAZAKHSTAN 8 800 080 1188 http://www.samsung.kz

RUSSIA 8-800-200-0400 http://www.samsung.ru

UKRAINE 8-800-502-0000 http://www.samsung.com/ur

UZBEKISTAN 140-1234 http://www.samsung.uz

Asia Pacific

AUSTRALIA 1300 362 603 http://www.samsung.com/au

CHINA 800-810-5858, 010- 6475 1880 http://www.samsung.com.cn

HONG KONG 3698-4698 http://www.samsung.com/hk

INDIA 3030 8282, 1800 1100 11 http://www.samsung.com/in

INDONESIA 0800-112-8888 http://www.samsung.com/id

JAPAN 0120-327-527 http://www.samsung.com/jp

MALAYSIA 1800-88-9999 http://www.samsung.com/my

PHILIPPINES 1800-10-SAMSUNG (7267864) http://www.samsung.com/ph

SINGAPORE 1800-SAMSUNG (7267864) http://www.samsung.com/sg

©

THAILAND 1800-29-3232, 02-689-3232 http://www.samsung.com/th

TAIWAN 0800-329-999 http://www.samsung.com/tw

VIETNAM 1 800 588 889 http://www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA 0860 7267864 (SAMSUNG) http://www.samsung.com/za

U.A.E

800SAMSUNG (7267864)
8000-4726

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the
higher the resolution. The distance between two dots of the same color is called the 'Dot
Pitch'. Unit: mm

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image
for the user. The frequency of this repetition per second is called the Vertical Frequency or
Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally
is called the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal
Frequency. Unit: kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom sequentially is called the
Non-Interlace method while showing odd lines and then even lines in turn is called the
Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a
clear image. The Interlace method is the same as that used in TVs.

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer
and the monitor to exchange information automatically. This monitor follows the international
standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called the
'resolution'. This number shows the accuracy of the display. A high resolution is good for
performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1024 X 768, this means the screen is composed of 1024

horizontal dots (horizontal resolution) and 768 vertical lines (vertical resolution).

http://www.samsung.com/mea

Authority

Information in this document is subject to change without notice.

2007 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics
Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are
registered trademarks of Video Electronics Standard Association; the E

NERGY STAR

® name and

logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). All other
product names mentioned herein may be the trademarks or registered trademarks of their
respective owners.

SyncMaster 591SG/594MG/794MG/793SG

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.

North America

U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com

CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL 4004-0000 http://www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) http://www.samsung.com/cl

COLOMBIA 01-8000112112 http://www.samsung.com.co

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

ECUADOR 1-800-10-7267 http://www.samsung.com/latin

EL SALVADOR 800-6225 http://www.samsung.com/latin

GUATEMALA 1-800-299-0013 http://www.samsung.com/latin

JAMAICA 1-800-234-7267 http://www.samsung.com/latin

PANAMA 800-7267 http://www.samsung.com/latin

PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 http://www.samsung.com/latin

TRINIDAD & TOBAGO 1-800-7267-864 http://www.samsung.com/latin

VENEZUELA 0-800-100-5303 http://www.samsung.com/latin

Europe

BELGIUM 02 201 2418 http://www.samsung.com/be

CZECH REPUBLIC 844 000 844 http://www.samsung.com/cz

DENMARK 70 70 19 70 http://www.samsung.com/dk

FINLAND 030-6227 515 http://www.samsung.com/fi

FRANCE

GERMANY 01805 - 121213 (€ 0,14/Min) http://www.samsung.de

HUNGARY 06-80-SAMSUNG (7267864) http://www.samsung.com/hu

ITALIA 800 SAMSUNG (7267864) http://www.samsung.com/it

LUXEMBURG 0032 (0)2 201 24 18 http://www.samsung.lu

NETHERLANDS 0900 20 200 88 (€ 0,10/Min) http://www.samsung.com/nl

NORWAY 815-56 480 http://www.samsung.com/no

POLAND 0 801 801 881 http://www.samsung.com/pl

PORTUGAL 80 8 200 128 http://www.samsung.com/pt

REPUBLIC OF IRELAND 0818 717 100 http://www.samsung.com/uk

SLOVAKIA 0800-SAMSUNG (7267864) http://www.samsung.com/sk

SPAIN 902 10 11 30 http://www.samsung.com/es

SWEDEN 0771-400 200 http://www.samsung.com/se

SWITZERLAND 0800-7267864 http://www.samsung.com/ch

U.K 0870 SAMSUNG (7267864) http://www.samsung.com/uk

3260 SAMSUNG(7267864)
(€ 0,15/min)

CIS

http://www.samsung.com/fr

ESTONIA 800-7267 http://www.samsung.ee

LATVIA 800-7267 http://www.samsung.com/lv

LITHUANIA 8-800-77777 http://www.samsung.lt

KAZAKHSTAN 8 800 080 1188 http://www.samsung.kz

RUSSIA 8-800-200-0400 http://www.samsung.ru

UKRAINE 8-800-502-0000 http://www.samsung.com/ur

UZBEKISTAN 140-1234 http://www.samsung.uz

Asia Pacific

AUSTRALIA 1300 362 603 http://www.samsung.com/au

CHINA 800-810-5858, 010- 6475 1880 http://www.samsung.com.cn

HONG KONG 3698-4698 http://www.samsung.com/hk

INDIA 3030 8282, 1800 1100 11 http://www.samsung.com/in

INDONESIA 0800-112-8888 http://www.samsung.com/id

JAPAN 0120-327-527 http://www.samsung.com/jp

MALAYSIA 1800-88-9999 http://www.samsung.com/my

PHILIPPINES 1800-10-SAMSUNG (7267864) http://www.samsung.com/ph

SINGAPORE 1800-SAMSUNG (7267864) http://www.samsung.com/sg

THAILAND 1800-29-3232, 02-689-3232 http://www.samsung.com/th

TAIWAN 0800-329-999 http://www.samsung.com/tw

VIETNAM 1 800 588 889 http://www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA 0860 7267864 (SAMSUNG) http://www.samsung.com/za

U.A.E

800SAMSUNG (7267864)
8000-4726

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the
higher the resolution. The distance between two dots of the same color is called the 'Dot
Pitch'. Unit: mm

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image
for the user. The frequency of this repetition per second is called the Vertical Frequency or
Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally
is called the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal
Frequency. Unit: kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom sequentially is called the
Non-Interlace method while showing odd lines and then even lines in turn is called the
Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a
clear image. The Interlace method is the same as that used in TVs.

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer
and the monitor to exchange information automatically. This monitor follows the international
standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called the
'resolution'. This number shows the accuracy of the display. A high resolution is good for
performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1024 X 768, this means the screen is composed of 1024

Green

The Green CDT monitor has adopted a Well-Being CDT that is coated with a Vital & Pure coating,
which radiates far infrared and anion.

Vital
Coating

MagicGreen is different from Green. They have different functions.
There is no sterilization/deodorization function.

horizontal dots (horizontal resolution) and 768 vertical lines (vertical resolution).

Radiates far infrared and anion by applying a specialized ceramic on the
surface of the CDT funnel.

http://www.samsung.com/mea

Authority

Information in this document is subject to change without notice.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics
Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are
registered trademarks of Video Electronics Standard Association; the E

NERGY STAR

® name and

logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). All other
product names mentioned herein may be the trademarks or registered trademarks of their
respective owners.

SyncMaster 793MG/788DF Plus

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.

North America

U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com

CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL 4004-0000 http://www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) http://www.samsung.com/cl

COLOMBIA 01-8000112112 http://www.samsung.com.co

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

ECUADOR 1-800-10-7267 http://www.samsung.com/latin

EL SALVADOR 800-6225 http://www.samsung.com/latin

GUATEMALA 1-800-299-0013 http://www.samsung.com/latin

JAMAICA 1-800-234-7267 http://www.samsung.com/latin

PANAMA 800-7267 http://www.samsung.com/latin

PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 http://www.samsung.com/latin

TRINIDAD & TOBAGO 1-800-7267-864 http://www.samsung.com/latin

VENEZUELA 0-800-100-5303 http://www.samsung.com/latin

Europe

BELGIUM 02 201 2418 http://www.samsung.com/be

CZECH REPUBLIC 844 000 844 http://www.samsung.com/cz

DENMARK 70 70 19 70 http://www.samsung.com/dk

FINLAND 030-6227 515 http://www.samsung.com/fi

FRANCE

GERMANY 01805 - 121213 (€ 0,14/Min) http://www.samsung.de

HUNGARY 06-80-SAMSUNG (7267864) http://www.samsung.com/hu

ITALIA 800 SAMSUNG (7267864) http://www.samsung.com/it

LUXEMBURG 0032 (0)2 201 24 18 http://www.samsung.lu

NETHERLANDS 0900 20 200 88 (€ 0,10/Min) http://www.samsung.com/nl

NORWAY 815-56 480 http://www.samsung.com/no

POLAND 0 801 801 881 http://www.samsung.com/pl

PORTUGAL 80 8 200 128 http://www.samsung.com/pt

REPUBLIC OF IRELAND 0818 717 100 http://www.samsung.com/uk

SLOVAKIA 0800-SAMSUNG (7267864) http://www.samsung.com/sk

SPAIN 902 10 11 30 http://www.samsung.com/es

SWEDEN 0771-400 200 http://www.samsung.com/se

SWITZERLAND 0800-7267864 http://www.samsung.com/ch

U.K 0870 SAMSUNG (7267864) http://www.samsung.com/uk

3260 SAMSUNG(7267864)
(€ 0,15/min)

CIS

http://www.samsung.com/fr

ESTONIA 800-7267 http://www.samsung.ee

LATVIA 800-7267 http://www.samsung.com/lv

LITHUANIA 8-800-77777 http://www.samsung.lt

KAZAKHSTAN 8 800 080 1188 http://www.samsung.kz

RUSSIA 8-800-200-0400 http://www.samsung.ru

UKRAINE 8-800-502-0000 http://www.samsung.com/ur

UZBEKISTAN 140-1234 http://www.samsung.uz

Asia Pacific

AUSTRALIA 1300 362 603 http://www.samsung.com/au

CHINA 800-810-5858, 010- 6475 1880 http://www.samsung.com.cn

HONG KONG 3698-4698 http://www.samsung.com/hk

INDIA 3030 8282, 1800 1100 11 http://www.samsung.com/in

INDONESIA 0800-112-8888 http://www.samsung.com/id

JAPAN 0120-327-527 http://www.samsung.com/jp

MALAYSIA 1800-88-9999 http://www.samsung.com/my

PHILIPPINES 1800-10-SAMSUNG (7267864) http://www.samsung.com/ph

SINGAPORE 1800-SAMSUNG (7267864) http://www.samsung.com/sg

THAILAND 1800-29-3232, 02-689-3232 http://www.samsung.com/th

TAIWAN 0800-329-999 http://www.samsung.com/tw

VIETNAM 1 800 588 889 http://www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA 0860 7267864 (SAMSUNG) http://www.samsung.com/za

U.A.E

800SAMSUNG (7267864)
8000-4726

http://www.samsung.com/mea

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the
higher the resolution. The distance between two dots of the same color is called the 'Dot
Pitch'. Unit: mm

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image
for the user. The frequency of this repetition per second is called the Vertical Frequency or
Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally
is called the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal
Frequency. Unit: kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom sequentially is called the
Non-Interlace method while showing odd lines and then even lines in turn is called the
Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a
clear image. The Interlace method is the same as that used in TVs.

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer
and the monitor to exchange information automatically. This monitor follows the international
standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called the
'resolution'. This number shows the accuracy of the display. A high resolution is good for
performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1024 X 768, this means the screen is composed of 1024

horizontal dots (horizontal resolution) and 768 vertical lines (vertical resolution).

MagicGreen

The MagicGreen CDT monitor has adopted a Well-Being CDT that is coated with a Vital &
Pure coating, which radiates far infrared and anion and provides antibacterial and deodorizing
effects.

z

Vital Coating

Radiates far infrared and anion by applying a specialized ceramic on the

surface of the CDT funnel.

z

Pure Coating

Provides antibacterial deodorizing effects by treating the surface with

photocatalyst TiO2 and Nano Silver.

Authority

Information in this document is subject to change without notice.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics
Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are
registered trademarks of Video Electronics Standard Association; the E

NERGY STAR

® name and

logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). All other
product names mentioned herein may be the trademarks or registered trademarks of their
respective owners.

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with
separate collection systems)

This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
