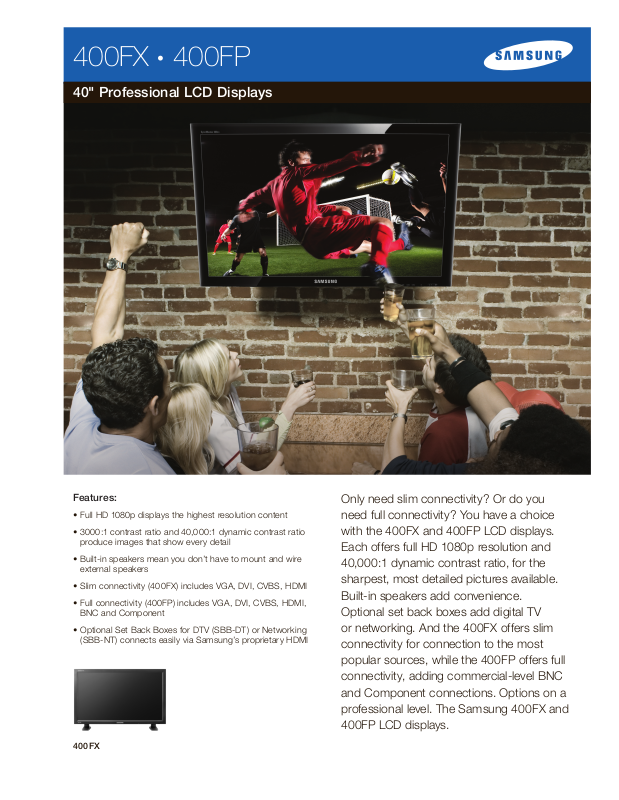

Samsung 400FX, 400FP User Manual

400FX • 400FP

40" Professional LCD Displays

Features:

• Full HD 1080p displays the highest resolution content

• 3000:1 contrast ratio and 40,000:1 dynamic contrast ratio produce images that show every detail

• Built-in speakers mean you don’t have to mount and wire external speakers

• Slim connectivity (400FX) includes VGA, DVI, CVBS, HDMI

• Full connectivity (400FP) includes VGA, DVI, CVBS, HDMI, BNC and Component

• Optional Set Back Boxes for DTV (SBB-DT) or Networking (SBB-NT) connects easily via Samsung’s proprietary HDMI

400FX

Only need slim connectivity? Or do you need full connectivity? You have a choice with the 400FX and 400FP LCD displays. Each offers full HD 1080p resolution and 40,000:1 dynamic contrast ratio, for the sharpest, most detailed pictures available. Built-in speakers add convenience. Optional set back boxes add digital TV or networking. And the 400FX offers slim connectivity for connection to the most popular sources, while the 400FP offers full connectivity, adding commercial-level BNC and Component connections. Options on a professional level. The Samsung 400FX and 400FP LCD displays.

400FX

23.6"

15.8"

17.3"

28.2"

33.1"

36.4"

7.9" 7.9"

9.1"

1.2"

10.6"

10.8"

11.1"

2.3"

2.4"

3.5"

4.7"

400FP

Features

Full HD 1080p Resolution

With 1920 x 1080 resolution, the 400FX and 400FP are capable of displaying the highest resolution images possible.

High Contrast Ratio /Response Time

3000 :1 static contrast ratio, 40,000 :1 dynamic contrast ratio and 8ms response time combine to give you crisp, sharp, motion video full of detail.

Built-in Speakers

Two 10W built-in speakers mean you don’t have to install external speakers.

Slim Connectivity (400FX)

Designed for educational and many other industries, the 400FX gives users a commercial-grade, high-resolution display, without paying for connections they may never need. Connections include VGA, DVI, CVBS and HDMI.

Full Connectivity (400FP)

Designed for demanding commercial applications, the Samsung 400FP display gives users connections that include VGA, DVI, CVBS, HDMI, BNC and Component.

Optional Set Back Boxes

Add a digital TV tuner (SBB-DT) or compact CPU (SBB-NT) to your display, without having to run installation cables.

400FX Dimensions

38.2"

22.9"

Specifications 400FX 400FP

Panel Diagonal Size 40" 40"

Connectivity PC inputs VGA/DVI VGA/DVI/BNC

Power Power Consumption (Max) 220W 220W

Mechanical Spec VESA Mount 600 x 400 mm 600 x 400 mm

Operation Operating Temperature

Feature Special Features - Lamp Error Detection

Network Support with optional Set Back Box

Package Contents Manuals Quick Setup Guide, Warranty Card, Application CD Quick Setup Guide, Warranty Card, Application CD

Optional Accessories Speaker Built-in Standard Built-in Standard

Green Management Emission Standard EMC EMC

Type S-PVA S-PVA

Resolution 1920 x 1080 1920 x 1080

Pixel Pitch (H x W) 0.461 x 0.461 0.461 x 0.461

Brightness (Typ.) 470 cd/m

Contrast Ratio 3000:1 3000:1

Dynamic C/R 40,000:1 40,000:1

Viewing Angle (H/V) 178°/178° 178°/178°

Response Time (G-to-G) 8 ms 8 ms

Color Space (CIE1931) 72% 72%

Video Inputs CVBS/HDMI CVBS/Component/HDMI

Power Consumption at Stand-by (Max)

Power Supply AC 100 - 240 V (+/-10%), 50/60 Hz AC 100 - 240 V (+/-10%), 50/60 Hz

Cabinet Color Black Black

Weight (Set/Package) 41.9/49.6 lbs. 51.9/59.6 lbs.

Dimension (W/O Stand) 38.2" x 22.9" x 4.7" 38.2" x 22.9" x 4.7"

Dimension (With Stand) 38.2" x 25.3" x 12.2" 38.2" x 25.3" x 12.2"

Bezel Width 40 mm TBD

(Normal)

Humidity 10 – 80% 10 – 80%

MTBF 50,000 hours 50,000 hours

Regulations Safety: UL, CSA, NOM

Operating System Window XP Embedded Window XP Embedded

Software Magicinfo™ Pro Magicinfo™ Pro

CPU AMD Athlon64 X2 3400+ (1.8GHz, Dual Core) AMD Athlon64 X2 3400+ (1.8GHz, Dual Core)

Cache 256KB (L1) , 1MB (L2) 256KB (L1) , 1MB (L2)

N/B AMD RS780 AMD RS780

S/B AMD SB700 AMD SB700

GPU AMD RS780 (IGP) AMD RS780 (IGP)

FDM 4GB 4GB

Memory SEC DDR2 1GB (Single Channel) SEC DDR2 1GB (Single Channel)

Ethernet Marvell 88E8055 Gigabit LAN Marvell 88E8055 Gigabit LAN

USB 3 USB 3 USB

VGA Out 1 VGA Out 1 VGA Out

Audio Codec Realtek ALC262 Realtek ALC262

MagicInfo features - Contents Play (Photo, Movie, Music, Offices, PDF, Flash,

Cables D-Sub, Power Cord D-Sub, Power Cord

Others Remote Controller, Batteries Remote Controller, Batteries

Wall Mount WMN-5770D WMN-5770D

Vertical Mount WMN-5770D WMN-5770D

Stand Optional TBD

RoHS Compliant

Energy Star Compliant

Product Recyclability CCFL panel contains mercury, please dispose of properly CCFL panel contains mercury, please dispose of properly

Packaging Recyclability Packing materials recyclable Packing materials recyclable

40" Professional LCD Displays

2W (Energy Saving ON) 2W (Energy Saving ON)

10°C ~ 40°C 10°C ~ 40°C

EMC: FCC Ergonomics & Environments (option): TCO’95, TCO’99

- Temperature Sensor

- Built in Fan

- Video Wall

- RS232C

Web Page, Text, Input sources)

- Contents scheduler

- MDC via Network

- Diagnosis (Lamp, Temperature, etc.)

- Network System information

- Asset Management

- Global Network

n n

470 cd/m

Safety: UL, CSA, NOM EMC: FCC Ergonomics & Environments (option): TCO’95, TCO’99

- Lamp Error Detection

- Temperature Sensor

- Built in Fan

- Video Wall

- RS232C
