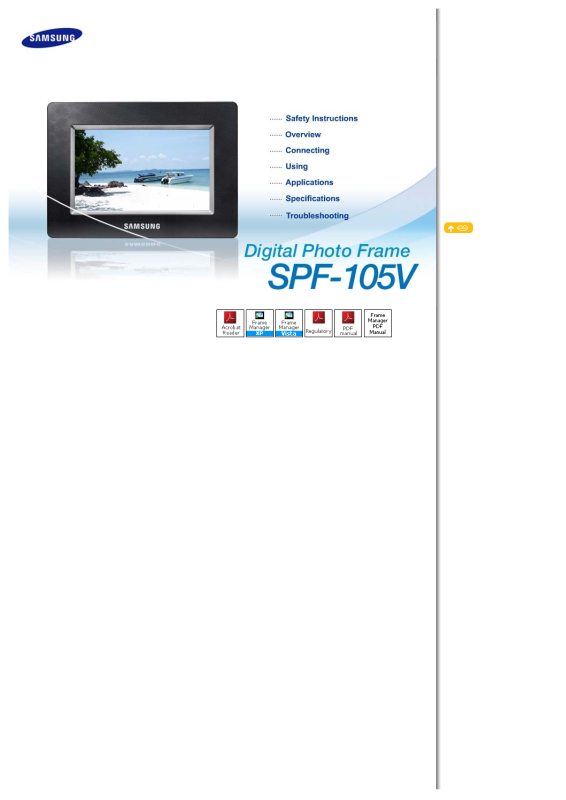

Samsung 105V, SPF-105V User Manual

Safety Symbols

Power | Installation

Safety Symbols

Make sure to follow the directions below to prevent accidents and damage to the product.

Failure to follow the accompanying directions may lead to serious injury or death.

Failure to follow the accompanying directions may lead to minor personal injury or property damage.

Using and

Cleaning

Safety Symbols

Power | Installation

Power

he images here are for reference only, and are not applicable in all cases (or countries).

Insert the power plug correctly until it is firmly in place.

Failing to do so, may cause fire.

Do not use a damaged power plug, cord or outlet, as this may cause electric shock or fire.

Do not touch the power plug with wet hands, as this may cause electric shock.

Using and

Cleaning

Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire.

Do not use force to pull the power cord. Don't place anything heavy on the power cord, as this may cause electric shock or fire.

Make sure to turn the power off and disconnect the power plug from the outlet before moving the product. Make sure to disconnect the connection cables from other devices as well.

Moving the product without disconnecting the power cord may damage it while moving, and may cause electric shock or fire.

Hold and pull out the plug by its body when disconnecting it from the outlet, as pulling the plug out by the cord may cause it to be damaged.

Failing to do so, may cause fire, or the product may not turn on normally.

Ensure that the power plug is disconnected before cleaning the product.

Failing to do so, may cause electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle.

This may cause a malfunction, electric shock or fire.

In particular, avoid operating the monitor near water or outdoors where it could be exposed to snow or rain.

Do not install the product near any heating appliance.

There is a risk of fire.

Installation

Safety Symbols

When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge.

Power | Installation

Failing to do so, may cause the product to fall, resulting in a product malfunction or personal injury.

Using and

Cleaning

Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire.

Do not install the product in a car or a location exposed to oil, smoke, moisture, water, or rainwater.

Any contact of these materials with the product may cause electric shock or fire.

Disconnect the power plug when there is thunder or lightning.

Failing to do so, may cause electric shock or fire.

Place the product down gently when installing it.

Failing to do so may cause product damage or personal injury.

Avoid dropping the product when moving, as this may cause product damage or personal injury.

Do not install the product in a location easily reached by children.

As the product may fall and cause personal injury.

Using and Cleaning

Safety Symbols

Do not insert any metal objects such as forks, wire, or gimlets, or flammable items such as paper or matches into the ports at the back of the product, as this may cause electric shock or fire.

Power | Installation

If water or any foreign substance enters the product, make sure to turn the product

Using and

Cleaning

off and disconnect the power plug from the outlet, and contact a service center.

Never disassemble, repair, or modify the product yourself.

If you need to repair your product, contact a service center. An attempt at repairing this product may cause electric shock or fire.

If you hear a strange sound, smell anything burning, or see smoke, disconnect the power plug immediately and contact a service center.

Failing to disconnect the power plug may cause electric shock or fire.

Always remove dust and water from the pins and connections of the power plug.

Failing to do so may cause electric shock or fire.

When cleaning the product, first disconnect the power plug and clean it with a soft, dry cloth.

Do not use any chemicals such as benzene, alcohol, thinners, mosquito repellant, aromatic, lubricant, detergent or wax.

When not using the product for a long time, make sure to disconnect the power plug.

Heavy accumulated dust may cause electric shock or fire.

If the product needs to be installed in a location that doesn't satisfy general conditions, make sure to contact one of our service engineers about the installation as the product may encounter serious quality problems due to its environment.

This refers to locations exposed to conditions such as heavy fine dust, chemicals, high or low temperature, moisture, or when the product needs to be used continually without a break over a long time.

If the product has been dropped or the product casing is damaged, turn it off and disconnect the power plug.

Using the product without verifying that it has not been damaged may cause electric shock or fire. Please contact a service center.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or damage to health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

- Europe only

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Features| Components

Front

Back

Features

Expansion of built-in memory using memory cards. Instant view of stored images. Background music function. Can be used with the battery for a specific period of time without being connected to a power outlet. Provides a Mini-Monitor function. Stylish Design

premium, stylish design that can be used as a decoration on a desk or table. rotating stand that allows vertical/horizontal placement.

Side

Features| Components

Please check that all components are contained in the delivered package. If anything is omitted, contact the local distributor where the product was purchased. For optional items, contact a service center. Never use a power adapter other than the adapter provided with the product.

Front

Back

Side

Components

Digital Photo Frame

(The product color and shape may vary depending on the model.)

Manual

Quick Start

Cables

Power cord

(Not available in all locations)

Warranty

USB cable

(A-mini B type)

User Manual

Power Adapter

Features| Components

Front

he product color and shape may vary depending on the model.

Front

Back

Side

his product is a touch type product. If you lightly touch the button on the right of the product, the button light is turned on.

When the button light is turned on, you can then operate each button's menu.

[MENU] Menu Button Displays the menu window at the bottom left corner of the screen.

[] Up Button

[] Left Button

[ ] Right Button

[ ] Down Button

[ ] Enter Button

[ ] Back Button

[ ] Slideshow Button

Used for moving up.

Used for moving left.

Used for moving right.

Used for moving down.

Used for selection.

Return to the previous menu.

Play or pause the Slideshow.

When playing a slideshow by pressing the []button, the photos in the location of the last played photo are played. If the photos in the location of the last played photo have

been removed, they are automatically searched for and then played in a slideshow.

Features| Components

Back

he product color and shape may vary depending on the model.

DC –In Jack

[] Power Button

Connect the power adapter to this jack. Connect the power cord to the power terminal of the power adapter.

urns the product on or off.

Hold down the power button for about 2 seconds.

Front

Back

Side

Stand

ou can use the product in a vertical or horizontal direction by using the rotating stand.

Sliding Prevention

jack

Holder

Supports the product so that it stays firmly in place on slippery surfaces.

Service terminal

Kensington lock

his is a terminal for servicing the product only. Do not operate it arbitrarily.

he Kensington lock is a device used to physically secure the system when using it in a public place.

(The locking device has to be purchased separately.)

Features| Components

Side

he product color and shape may vary depending on the model.

Front

Back

Side

Speaker

Headphone connection

Memory Card Slot

ou can listen to sound without connecting an additional speaker.

ou can listen to sound by connecting headphones or earphones to the product.

llows you to insert an optional memory card. (Only applicable for SD/MS/CF card)

Connect a PC or an external device using a USB cable.

MEMORY CARD

Up stream terminal

Make sure to use the USB cable (A-mini B type) provided with the product when connecting your digital photo frame to a PC through the up stream terminal.

Down stream terminal

Connect your Digital Photo Frame to a PC's USB terminal with a USB cable.

Connect your Digital Photo Frame to a USB-supported storage device.

Connecting the Power

Connect the adapter cable to the power terminal on the back of the product.

Connect the power cord to the power adapter.

Plug the power cord for the product into a nearby outlet.

Power

USB

Memory Card

Press the [ ] button to turn on the power.

Connecting via USB

Up Stream Terminal

Down Stream Terminal

Power

Used to connect your digital photo frame to a PC.

When connecting your digital photo frame to a PC through the up stream terminal, make sure to use the USB cable provided with the product.

Used to connect an external USB-supporting device to your digital photo frame.

USB

Memory Card

Some USB devices may not support Digital Photo Frame.

his product does not support USB card readers. Only USB storage is supported.

he external devices connected to your Digital Photo Frame are not recognized by your PC. When connecting an external device to the down stream terminal, use the USB cable provided with the external device. (For more information on external devices and their cables, contact a relevant service center.) Samsung carries no liability for external device malfunctions caused by using any cable except the standard cables specified for each device. Some external products provide a cable that does not meet USB standards. Hence, they may cause a malfunction. If an external storage device does not work normally when connected to your digital photo frame, try to connect it to your PC. If it still does not work normally when connected to your PC, contact a service center for that external device or your PC.

Connect to the upstream jack of your digital photo frame.

Connect the USB terminal of your PC.

Folder Structure

When connecting this product to your PC, it is displayed as a removable disk (E:), as shown in the figure below. You can save and play all music and movie files in the following folders. You can also add and delete folders as required. (However, if you delete the following default folders, they are automatically created when your product is turned on again.)

Connecting a Memory Card

.rss

he capacity of this product is 64 MB. If the capacity is exceeded, no further files can be stored. Do not turn off the product while saving, playing, or deleting a file.

he volume name of the removable disk (for example, E:, F:, G:) may differ depending on your computer environment.

Only the photos from Web Photos (photos from RSS) corresponding to the free space of the internal memory are saved. If a user manually copies photos from the PC to the .rss folder, the Photoframe will not show the photos.

Power

USB

Memory Card

MEMORY CARD CF

Slide the card in the direction marked on the top of the card.

Removing the memory card while playing MP3s, movies, or photos, may cause the product to operate abnormally. In this case, turn the product off and on.

If no button is pressed for ten (10) minutes, Slideshow or Clock mode is activated. However, if a music file is being played, Clock mode is activated and the filename of that music file is displayed. You can switch to Clock mode even when the movie is paused. In some cases, you can switch to the Movie List screen.

his product is a touch type product. If you lightly touch the button on the right of the product, the button light is turned on.

When the button light is turned on, you can then operate each button's menu.

Guide

User

User Guide

Buttons

Menu Description

, , ,

Screen Status Indications

Display Description


Music

Enters or exits a menu. Hold the MENU button down for more than five (5) seconds. All the lights of the buttons will blink twice and the button lock function will be activated. To clear the button lock function, hold the MENU button down again for more than five (5) seconds.

Moves around the items and adjusts the value.

Selects a function.

Returns to the previous screen.

Hold down this button for five (5) seconds to return to the Main screen.

Play or pause a Slideshow. When playing a slideshow by pressing the [] button, the photos in the location of the last played photo are played. If the photos in the location of the last played photo have been removed, they are

automatically searched for and then played in a slideshow.

This is displayed differently according to the signal strength when connected to a network.

If not connected to a network, is displayed.

Displayed when a PC is connected or there is a PC which can be connected to.

This icon only appears when the network is connected and an Internet connection is available. You can only view RSS photos when this icon is displayed.

Movie

Clock & Alarm

Settings

Battery Indicators

Displayed when a USB device is connected.

Displayed when an SD/MS memory card is connected.

Displayed when an CF memory card is connected.

Display Description

Displayed when the battery is being used with the power cable connected and the battery is being charged.

+ 29 hidden pages
