RACK-MOUNT POWER DISTRIBUTION
PS10
PB10
PB10PRO
Caution: To reduce the hazard of electrical shock, do
not remove cover or back.
No user serviceable parts inside. Please refer all servicing to qualified personnel.
WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.
The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the
presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the product.
Important Safety Instructions
1. Please read all instructions before operating the unit.
2. Keep these instructions for future reference.
3. Please heed all safety warnings.
4. Follow manufacturers instructions.
5. Do not use this unit near water or moisture.
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ
ing amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong is provided for your safety. When the provided plug does not fit
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on and pinched particularly at plugs, convenience recep
tacles and at the point at which they exit from the unit.
11. Unplug this unit during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified personnel. Servicing is required when the unit has been damaged in
any way, such as power supply cord or plug damage, or if liquid has been spilled or objects have fallen
into the unit, the unit has been exposed to rain or moisture, does not operate normally, or has been
dropped.
-
-
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
PowerBrite Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
PS10 Guided Tour - Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PS10 Guided Tour - Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PB10 Guided Tour - Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PB10 Guided Tour - Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
PB10PRO Guided Tour - Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
PB10PRO Guided Tour - Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Setting Up and Using Your PowerStrip or PowerBrite . . . . . . . . . . . . . . . . . . 10
Appendix A: LED Or Incandescent? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Copyright 2007, Samson Technologies Corp.
Printed April, 2007 v1.0
Samson Technologies Corp.
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 631-784-2201
www.samsontech.com
Introduction
Congratulations on purchasing your Samson PowerStrip, PowerBrite, or PowerBrite
Pro! This manual covers three products: the PowerStrip PS10; the PowerBrite PB10;
and the PowerBrite PB10Pro. All three of these single-space rack units provide
multiple outlets for reliable power distribution with 3-point surge and spike
protection, plus RF (Radio Frequency) filtering. The three products differ in that the
PowerBrite and PowerBrite Pro also provide dual front-panel LED lamps (in retractable
cylinders), with dimmer control, which can be used to fully illuminate your entire
rack of gear. In addition, the PB10 and PB10Pro also provide a rear-panel USB socket
to use with the included LED gooseneck lamp so you can see the back of your
gear. For advance control, the PowerBrite PB10Pro's feature front-panel voltmeter
and ammeter, each with their own large LED display so you can easily monitor
the condition of your power source. The steel chassis and solid build construction
makes the PowerStrip and PowerBrite series reliable tools on the road or in fixed
installations.
In this manual, you’ll find a more detailed description of the features of your
PowerStrip PS10, PowerBrite PB10, or PowerBrite PB10Pro, as well as instructions for
its use and complete specifications. You’ll also find a warranty card enclosed—don’t
forget to fill it out and mail it in! This will enable you to receive online technical
support and will allow us to send you updated information about other Samson
products in the future. Also, be sure to check out our website (www.samsontech.com)
for complete information about our full product line.
With proper care and adequate air circulation, your PowerStrip PS10, PowerBrite PB10,
or PowerBrite PB10Pro will operate trouble free for many years. We recommend you
record your serial number in the space provided below for future reference.
Serial number: __________________________________
Date of purchase: ________________________________
SPECIAL NOTE: Should your PowerStrip PS10, PowerBrite PB10, or PowerBrite PB10Pro
ever require servicing, a Return Authorization number (RA) is necessary. Without this
number, the unit will not be accepted. If purchased in the United States, please call
Samson at (516) 364-2244 for a Return Authorization number prior to shipping the
unit. If you purchased your Samson product outside the United States, please contact
your local distributor for warranty information and service. Please retain the original
packing material and, if possible, return the unit in its original carton and packing
materials.
WARNING: Though the PowerStrip PS10, PowerBrite PB10, and PowerBrite PB10Pro
all provide both surge and spike protection, they are not designed to protect
against major overload situations such as lightning strikes or connection to incorrect
voltage supplies. In the event of either occurrence, unplug all connected equipment
immediately and have your PowerStrip PS10, PowerBrite PB10, or PowerBrite PB10Pro
evaluated by Samson Technical Support or by an authorized Samson service center
before using it again.
2
PowerStrip & PowerBrite Features
The Samson PowerStrip PS10, PowerBrite PB10, and PowerBrite PB10Pro all utilize
state-of-the-art technology in power distribution and are engineered to the finest
detail. Here are some of their main features:
• Eight switched, rear panel, IEC outlets that allow you to power an entire rack’s
worth of gear from one source. In addition, an unswitched front panel convenience
outlet is provided for temporary power needs (such as plugging in a guitar
amplifier, soldering iron, etc.).
• 3-point surge protection, spike clamping protection and RF filtering enables all
connected equipment to operate with maximum efficiency and minimal noise.
• Front panel, re-settable, 10 amp circuit breaker protects all connected gear.
• An independent dedicated switch with status light for powering the rear panel
switched outlets.
• In the PowerBrite PB10 and PowerBrite PB10Pro, dual slide out cylinders containing
LED light clusters that illuminate all gear underneath with cool, clear light. In
addition, there is automatic switching for turning on the lamps.
• In the PowerBrite PB10 and PB10Pro, a rear panel USB socket to use with the
included LED gooseneck lamp providing rear rack lighting.
• In the PowerBrite PB10Pro, a front panel voltmeter and ammeter that allow you to
monitor changes in the current drawn from both switched and unswitched outlets.
• All units are designed to be mounted in the top slot of any standard 19” rack, taking
only a single rack space.
• Rugged construction that makes the Samson PowerStrip PS10, PowerBrite
PB10, and PowerBrite PB10Pro eminently roadworthy and extremely reliably in
permanent installation.
• Four IEC power cables included.
3
PS10 Guided Tour - Front Panel
1 2 3 4
PowerStrip PS10 Front Panel
1: Circuit breaker- This circuit breaker will trip whenever the total load on the PS10
(all rear panel switched outlets plus the front panel unswitched convenience
outlet) exceeds 10 amps. To reset it, unplug one or more devices so as to reduce
the load and gently press the circuit breaker in until you hear it click.
Note: It may take a minute to cool before you can reset it.
2. Vent -
3: Unswitched convenience outlet- This IEC outlet is active whenever the PS10 is
4: Outlets switch- Use this to turn the rear panel outlets on or off. When on, the
Convection cooling is accomplished by the front panel vent holes.
plugged in, regardless of the setting of the Outlets switch (see #4 below).
status light inside this switch is lit red.
4
PS10 Guided Tour - Rear Panel
1 21 3

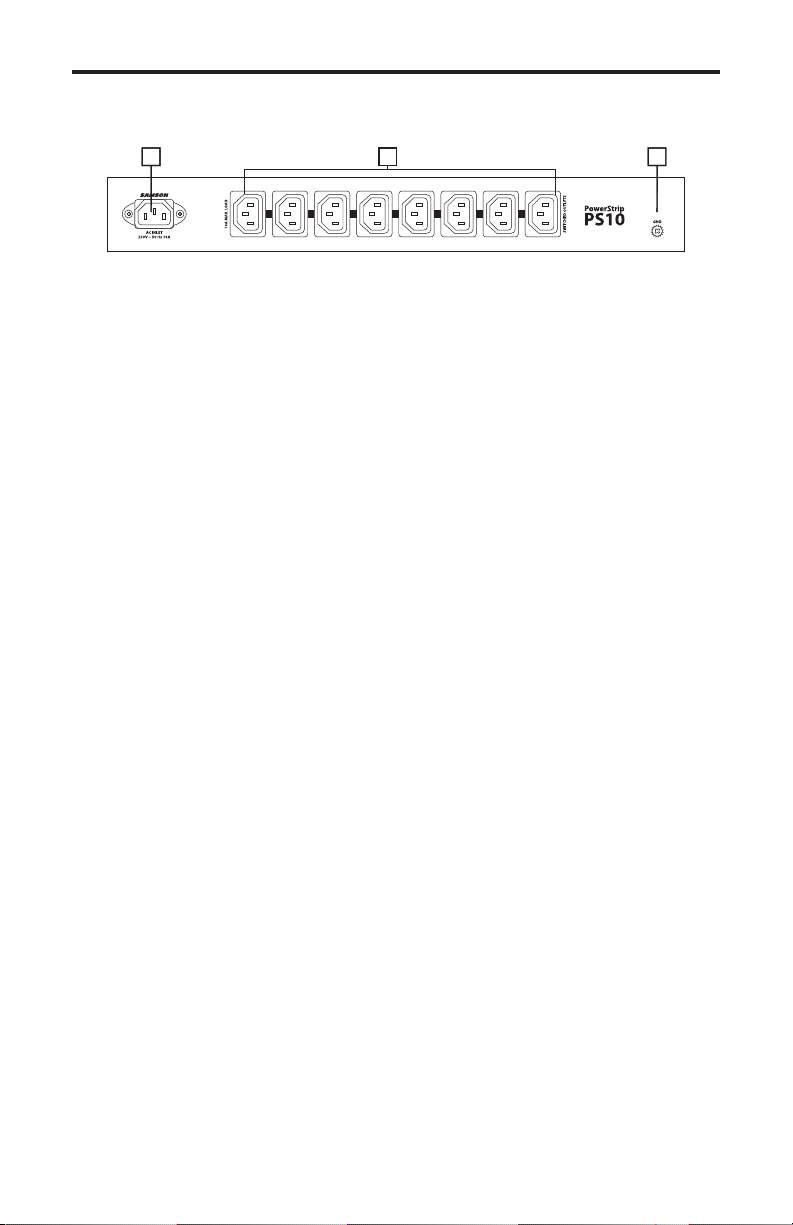

PowerStrip PS10 Rear Panel
1. Power cord - Heavy Duty, 14 gauge mains power cord.
2: Switched AC outlets - Connect external equipment to these standard IECoutlets,
which are turned on and off from the front panel Outlets switch (see #2 on the
previous page).
3: Ground Lug - Convenient thumb screw for connecting home run grounds.
5
PB10 Guided Tour - Front Panel
1 42 3 53 6
PowerBrite PB10 Front Panel
1: Circuit breaker- This circuit breaker will trip whenever the total load on the PB10
(all rear panel switched outlets plus the front panel unswitched convenience
outlet) exceeds 10 amps. To reset it, unplug one or more devices so as to reduce
the load and gently press the circuit breaker in until you hear it click.
Note: It may take a minute to cool before you can reset it.
2: Dimmer -
3: Lamps- Contains the PB10’s 5-LED light. Use the Dimmer control (see #2 above)
to adjust the brightness of the lamps. To turn off the lamp, gently slide the lamp
back in.
4: Vents-
5: Unswitched convenience outlet- This IEC outlet is active whenever the PB10 is
plugged in, regardless of the setting of the Outlets switch (see #6 below).
6: Outlets switch-
lamp inside this switch lights red.
Use this to adjust the level of the LED light in the slide-out Lamps.
Convection cooling is accomplished by the front panel vent holes.
Use this to turn the rear panel outlets on or off. When on, the
6
PB10 Guided Tour - Rear Panel
1 2 431 2

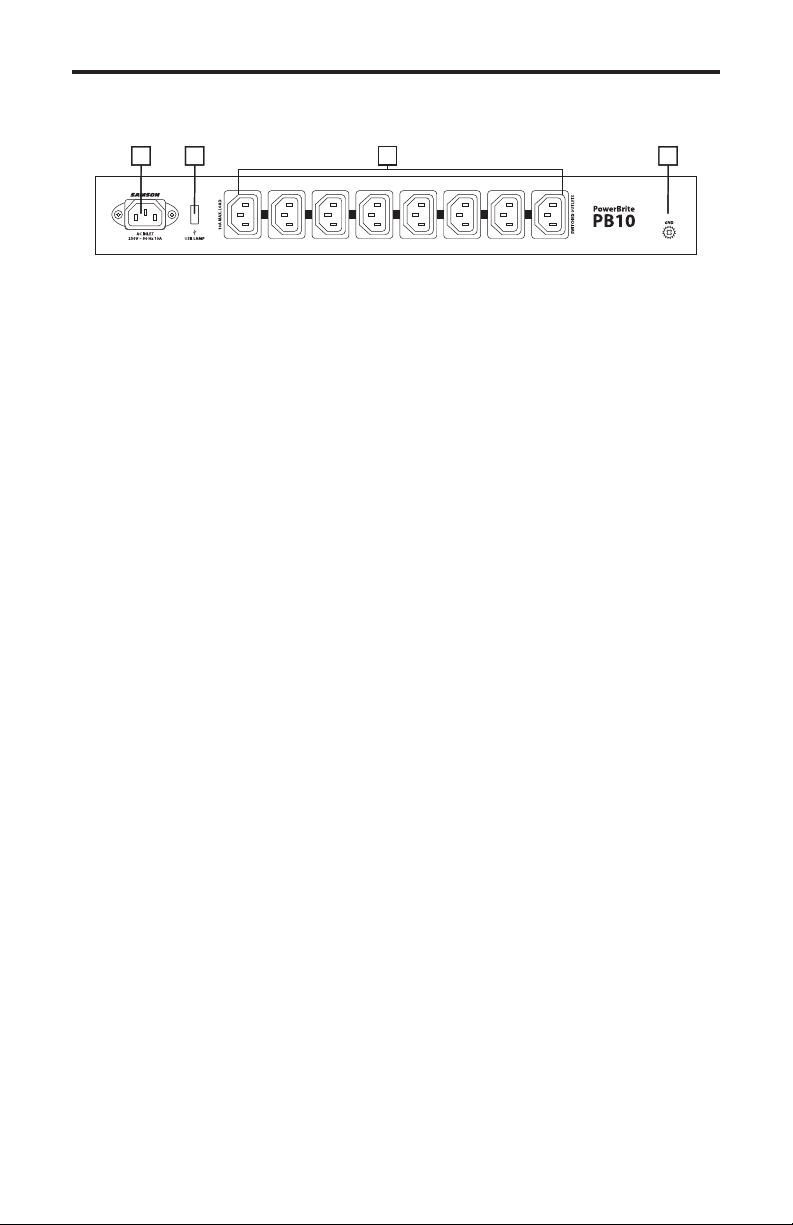

PowerBrite PB10 Rear Panel
1: Power Cord - Heavy Duty, 14 gauge mains power cord.
2: USB Socket -
lamp.
3: Switched AC outlets - Connect external equipment to these standard 3-pin AC
outlets, which are turned on and off from the front panel Outlets switch (see #6 on
the previous page).
4: Ground Lug -
USB type socket for connecting the included USB gooseneck LED
Convenient thumb screw for connecting home run grounds.
7
PB10PRO Guided Tour - Front Panel
1 4 65 32 3 7 8
PowerBrite PB10Pro Front Panel
1: Circuit breaker- This circuit breaker will trip whenever the total load on the
PB10Pro (all rear panel switched outlets plus the front-panel unswitched
convenience outlet) exceeds 10 amps. To reset it, unplug one or more devices so
as to reduce the load and gently press the circuit breaker in until you hear it click.
Note: It may take a minute to cool before you can reset it.
2: Dimmer -
3: Lamps- Contains the PB10Pro’s 5-LED light. Use the Dimmer control (see #2
above) to turn the light on or off. To turn off the lamp, gently slide the lamp back
in.
4: Voltmeter-
electrical signal being received by the PowerBrite PB10Pro.
WARNING: Severe voltage swings can cause damage to connected
equipment. If you see the voltmeter changing drastically or rapidly,
disconnect the PB10Pro until the source of the problem is identified.
5: Vents- Convection cooling is accomplished by the front panel vent holes.
6: Ammeter-
by equipment connected to the PB PB10Pro.
WARNING: Severe current swings can cause damage to connected
equipment. If you see the ammeter changing drastically or rapidly,
disconnect the PB10Pro until the source of the problem is identified and
repaired.
7: Unswitched convenience outlet- This IEC outlet is active whenever the PB10Pro
is plugged in, regardless of the setting of the Outlets switch (see #8 below).
8: Outlets switch-
status light inside this switch is lit red.
Use this to adjust the level of the LED light in the slide out Lamps.
This three digit LED meter shows the amount of voltage in the
This three digit LED meter shows the amount of current being drawn
Use this to turn the rear-panel outlets on or off. When on, the
8
PB10PRO Guided Tour - Rear Panel
1 2 431 2

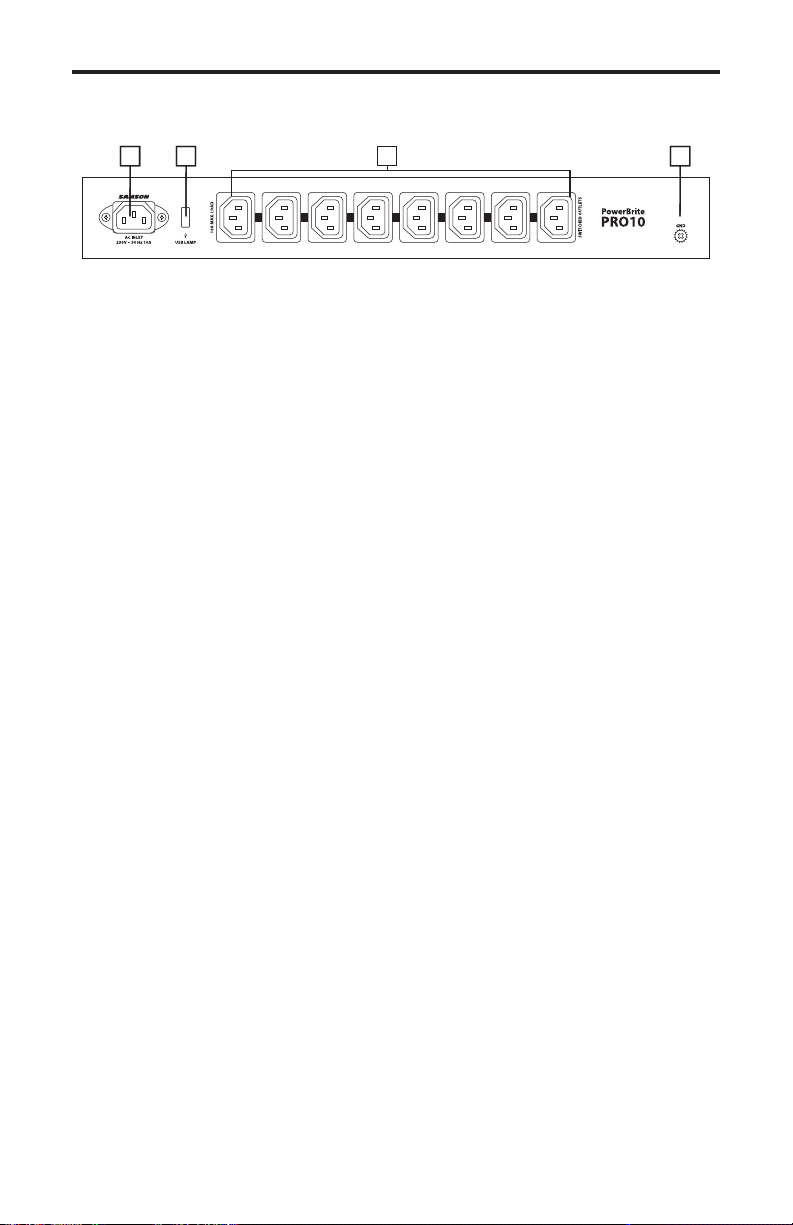

PowerBrite PB10Pro Rear Panel
1: Power Cord - Heavy Duty, 14 gauge mains power cord.
2: USB Socket -
lamp.
3: Switched AC outlets - Connect external equipment to these standard 3-pin AC
outlets, which are turned on and off from the front panel Outlets switch (see #8 on
the previous page).
4: Ground Lug -
USB type socket for connecting the included USB gooseneck LED
Convenient thumb screw for connecting home run grounds.
9
Setting Up and Using Your PowerStrip or PowerBrite
Setting up your PS10, PB10, or PB10Pro is a simple procedure which takes only a few
minutes:
1. Remove all packing materials (save them in case of need for future service) and
install the unit in a standard 19” rack. We recommend that the PB10 and PB10Pro
be placed in the top slot so that its slide-out LED lamps can be used to illuminate
the entire rack of equipment below.
2. Connect the PS10, PB10, or PB10Pro to any standard grounded AC outlet. If you
are using a PB10Pro, the front-panel voltmeter and ammeter will show you the
incoming electrical voltage and current draw of connected equipment.
3. Connect the AC cables of your rack equipment to the rear-panel switched AC
outlets, using the included IEC cables.
4. Make sure all connected equipment is switched off, then press the front panel
Outlets switch so that its status light is lit red. This activates all rear panel
switched outlets.
5. Turn on all connected equipment, one at a time. If the total load exceeds 10
amps, the front-panel circuit breaker will trip. To reset it, unplug one or more
devices, then press in the front panel circuit breaker.
6. You can also use the unswitched front panel convenience outlet for additional
temporary power needs (such as connecting a guitar amplifier, soldering iron,
etc.). This outlet is fully operational whenever the PS10, PB10, or PB10Pro is
plugged into an AC source, regardless of the position of the front panel Outlets
switch. The front panel circuit breaker affects this outlet as well as all rear-panel
switched outlets.
7. (PB10 and PB10Pro only) - To illuminate the equipment in your rack, gently pull
the front-panel slide-out cylinders out towards you. The lamps will switch on
automatically .
8. You can illuminate the back of your rack by connecting the included USB
gooseneck LED light to the rear panel USB power socket.
10
Appendix A: LED Or Incandescent?
There are numerous advantages to using the kind of LED (light emitting diode)
lighting provided by the PowerBrite PB10 and PowerBrite PB10Pro over the
incandescent lighting provided by competing rack light products. Here are the main
points to consider when making your purchase:
• LED lights generate almost no heat at all; incandescent bulbs can generate large
amounts of heat.
• LED lights last approximately 50 times longer than incandescent ones, with a
typical life of 100,000 hours (as opposed to incandescent lights, which rarely last
more than about 2,000 hours).
• LED lights are brighter than incandescent ones and when properly arranged, they
deliver much greater light level.
• The quality of our LED light is similar to daylight, while incandescent lights impart
a yellowish, artificial glow.
• Taking your rack on the road? LED lights travel better than incandescent ones
because the LED has no delicate filament or glass that can break from mechanical
shock or vibration.
11
Specifications
Electrical:
Number of Outlets
PS10, PB10, PB10Pro 8 switched, 1 unswitched
Max. Current 10 Amp (circuit breaker protected)
Input Voltage (RMS) 0 to 130 Vac continuous
Spike Protection Mode Hot to Neutral, Hot to Ground, and Neutral to Ground
Max. Clamping Voltage (@ 50 A) 340 Vac
Response Time 1 nanosecond
Max. Surge Current 6,000 Amps (8 x 20 _s pulse)
Max. Spike Energy 70 Joules per leg
Noise Attenuation >20 dB, 1.5 MHz to 200 MHz
Power Cord Attached, 14 gauge
LED Light Life (Typical) 100,000 Hours
General:
Dimensions 19 in. (w) x 7.5 (d)x 3.5 (h)
482 mm (w)x 190 (d) x 88 (h)
Weight
PS10 5.0 lbs. • 2. 27 kg
PB10 6.5 lbs. • 2. 95 kg
PB10PRO 7.0 lbs. • 3.18 kg
Specifications are subject to change without notice.
12
Samson Technologies Corp.
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 631-784-2201
www.samsontech.com
Loading...
