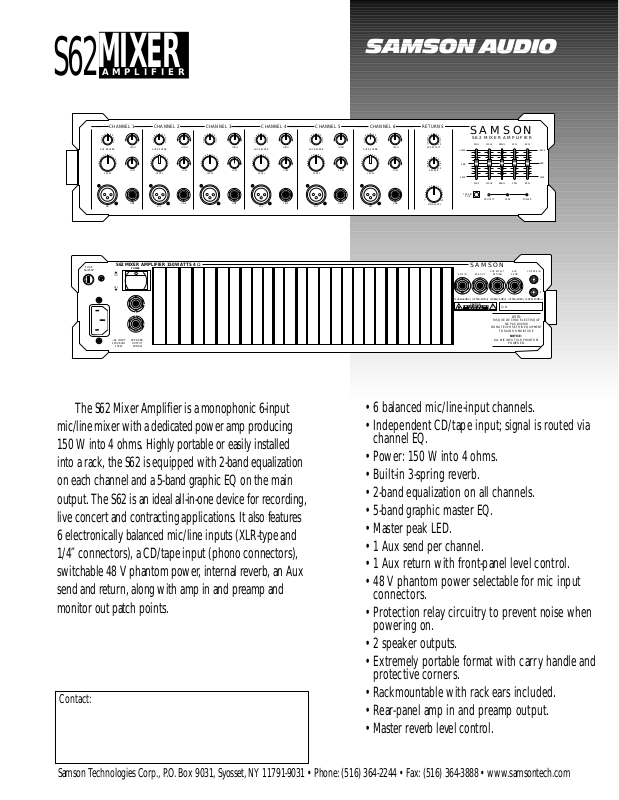

Samson Mixer S62 User Manual

• 6 balanced mic/line-input channels.

• Independent CD/tape input; signal is routed via
channel EQ.

• Power: 150 W into 4 ohms.

• Built-in 3-spring reverb.

• 2-band equalization on all channels.

• 5-band graphic master EQ.

• Master peak LED.

• 1 Aux send per channel.

• 1 Aux return with front-panel level control.

• 48 V phantom power selectable for mic input
connectors.

• Protection relay circuitry to prevent noise when
powering on.

• 2 speaker outputs.

• Extremely portable format with carry handle and
protective corners.

• Rackmountable with rack ears included.

• Rear-panel amp in and preamp output.

• Master reverb level control.

S62

AMPLIFIER

MIXER

The S62 Mixer Amplifier is a monophonic 6-input
mic/line mixer with a dedicated power amp producing
150 W into 4 ohms. Highly portable or easily installed
into a rack, the S62 is equipped with 2-band equalization
on each channel and a 5-band graphic EQ on the main
output. The S62 is an ideal all-in-one device for recording,
live concert and contracting applications. It also features
6 electronically balanced mic/line inputs (XLR-type and
1/4

″ connectors), a CD/tape input (phono connectors),
switchable 48 V phantom power, internal reverb, an Aux
send and return, along with amp in and preamp and
monitor out patch points.

FUSE

SAMSON

CAUTION

AVIS:

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE

NOTICE:

ALL MIC INPUT XLR PHANTOM

POWERED.

AUX

SEND

AUX EFFECT

RETURN

PRE-OUTAMP IN

S62 MIXER AMPLIFIER 150 WATTS 4 Ω

CD/TAPE IN

L

R

(<75Ω+4dBu) (<75Ω+4dBu)

(10KΩ-10dBu)

~AC INPUT
120V,60Hz

135W

SPEAKER

OUTPUT

MIN 4Ω

FUSE

5A/250V

POWER

(10KΩ+4dBu)

S / N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

!

ON

OFF

(1oKΩ+4dBu)

•

+10

0

-15

+15

•

+10

0

-15

+15

•

+10

0

-15

+15

•

+10

0

-15

+15

AUX REVERB

LEVEL

HIGH

LOW

•

+10

0

-15

+15

•

+10

0

-15

+15

AUX REVERB

HIGH

LOW

•

+10

0

-15

+15

•

+10

0

-15

+15

AUX REVERB

LEVEL

HIGH

LOW

•

+10

0

-15

+15

•

+10

0

-15

+15

AUX REVERB

LEVEL

HIGH

LOW

•

+10

0

-15

+15

•

+10

0

-15

+15

AUX REVERB

LEVEL

HIGH

LOW

•

+10

0

•

+10

0

•

+10

0

CHANNEL 1

CHANNEL 2

CHANNEL 3

CHANNEL 4

CHANNEL 5

CHANNEL 6

SAMSON

RETURNS

S62 MIXER AMPLIFIER

MAIN LEVEL

AUX EFFECT

REVERB

AUX REVERB

LEVEL

HIGH

LOW

LINE

LINE

LINELINELINELINE

MIC

MIC MIC MIC MIC MIC

+15db

-15db

0dB

30Hz 120Hz 480Hz 2Khz 8Khz

8Khz

2Khz

480Hz120Hz30Hz

+15db

-15db

0dB

TAPE IN

CH 6

PROTECT PEAK POWER

LEVEL

Contact:

Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 • Phone: [phone] • Fax: [phone] • www.samsontech.com

ARCHITECT’S & ENGINEER’S

SPECIFICATION

The mixer amplifier shall incorporate a 150 W
monophonic amplifier, a 5-band graphic equalizer and a
monophonic mixer with 6 microphone/line-input chan­nels. Microphone inputs shall be on XLR-type connec­tors and line inputs shall be on balanced 1/4

″ T ip-Ring­Sleeve phone connectors. An independent line-level
CD/tape input (routed to channel 6) shall be on phono
connectors. Each channel shall have an aux/reverb send,
2-band equalization and a level control.

The mixer shall provide an effects output on a 1/4

″

phone connector, as well as a preamp out and power
amp in for submix applications on 1/4

″ phone connec-

tors. An effects return shall be provided on a 1/4

′′ phone
connector, and it shall have an independent level con­trol. Phantom Power of +48 V shall be provided for
operation of condenser microphones. The amplifier shall
be passively cooled. Amplifier output shall be provided
on two 1/4

″ phone connectors. Indicators shall be pro­vided for peak level (3 dB before clipping), power and
amplifier protection. The unit shall be of a rack-mount
type.

The amplifier shall deliver maximum power equal
to or greater than 150 W into 4 ohms, signal-to-noise
equal to or greater than 95 dB, THD less than 0.1% and
frequency response of ±3 dB from 20 Hz to 50 kHz. The
mixer shall have residual noise of 70 dBu, signal-to-noise
equal to or greater than 70 dB and THD less than 0.03%.
Total power consumed at 1/8 audio power shall be 134
W (115 Vac). Dimensions shall be 19

″ (480 mm) wide,

9

″ (230 mm) deep and 3.5″(88 mm; 2 rack spaces)
high. Weight shall be 17.6 lb. (8 kg). The mixer amplifier
shall carry a three-year warranty.

The mixer amplifier shall be a SAMSON S62.

S62 SPECIFICATIONS

MIXER/PREAMP SECTION
Total harmonic distortion (with 30 kHz LPF):

Mic in to preamp out: < 0.05%
Line in to preamp out: < 0.03%
Aux return to preamp out: < 0.03%

Signal to noise ratio (with 30 kHz LPF, unity gain):

Mic input (-50 dBu): 67 dB
Line input (-10 dBu): 70 dB

Maximum voltage gain (1 kHz):

Mic in to preamp out: 54 dB
Line in to preamp out: 24 dB
Tape in to preamp out: 24 dB
Aux return to preamp out: 10 dB

Residual noise (with 30 kHz LPF, VR min):

Preamp out: 70 dBu

Tone controls:

High (10 kHz): ± 15 dB
Low (100 Hz): ± 15 dB

Graphic equalizer (30, 120, 480 Hz, 2, 8 kHz): ± 15 dB
Peak LED: 3 dB before clipping
Tape input sensitivity (-10 dB): 300 mV
Crosstalk (1 kHz, EQ flat):

Ch vs. Ch: 76 dB

Input vs. output: 78 dB
POWER AMP SECTION

Rated output power (1 kHz): 150 W into 4 Ω
Total harmonic distortion (with 30 kHz LPF): < 0.1%
Signal to noise ratio (with 30 kHz LPF): 95 dB
Frequency response (±3 dB): 20 Hz - 50 kHz
Maximum voltage gain (1 kHz): 36 dB
Residual noise (VR min): 70 dB typical
Idle current (across the 0.47Ω emitter resistor): < 20 mA
DC offset voltage: 0 ± 50 mV

GENERAL
Dimensions: 19

″ (w) x 9″ (d) x 3.5″ (h)

480 mm (w) x 230 mm (d) x 88 mm (h)
Weight: 17.6 lb. / 8 kg.
Power requirements: 115 Vac • 50/60 Hz
Power consumption (1/8 power): 134 W (115 Vac)

Specifications subject to change without notice. © 1998 SAMSON

CHANNELS 1-5

MIC INPUT

3

LINE INPUT

CHANNEL 6

MIC INPUT

3

LINE INPUT

TAPE/CD L

TAPE/CD R

AUX
RETURN

AUX EFFECT RETURN

AUX/REV

MAIN

+36

AUX/REV

AUX/REV

REVERB

5 BAND

MAIN

GRAPHIC EQ

+/-15db

MAIN

MAIN

AUX/REV

HIGH

LOW

TAPE IN CH6

LEVEL

-10db

LEVEL

-10db

EQ2 BAND

+/-15db

(INV)

AUX/REV

HIGH

LOW

EQ2 BAND

+/-15db

(INV)

2

2

3
1

1

2

1

T
TN
S

R
T

S

2
3
1

R
T

S

AUX.EFFECT

MIC PRE

(LINE)

PAD

MIC PRE

(LINE)

PAD

REVERB

150 Wrms
Power Amp

AUX SEND

T
TN

S

2 INPUT

PEAK

DETECTOR

PRE-OUT

AMP IN

PEAK

A

B
