Salvajor SS33 User Manual
Salvajor Collectors

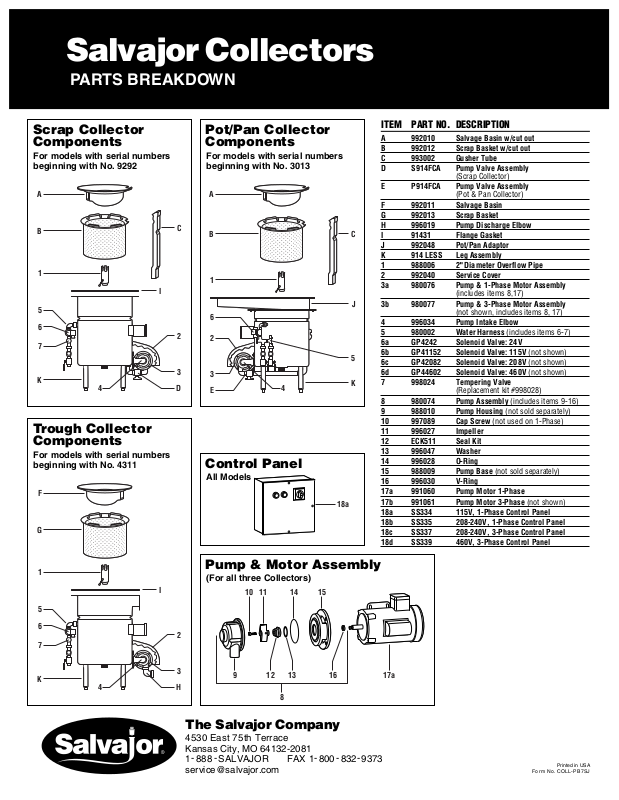

PARTS BREAKDOWN
ITEM PART NO. DESCRIPTION
A 992010 Salvage Basin w/cut out
B 992012 Scrap Basket w/cut out
C 993002 Gusher Tube
D S914FCA Pump Valve Assembly
(Scrap Collector)
E P914FCA Pump Valve Assembly
(Pot & Pan Collector)
F 992011 Salvage Basin
G 992013 Scrap Basket
H 996019 Pump Discharge Elbow
I 91431 Flange Gasket
J 992048 Pot/Pan Adaptor
K 914 LESS Leg Assembly
1 988006 2" Diameter Overflow Pipe
2 992040 Service Cover
3a 980076 Pump & 1-Phase Motor Assembly
(includes items 8,17)
3b 980077 Pump & 3-Phase Motor Assembly
(not shown, includes items 8, 17)
4 996034 Pump Intake Elbow
5 980002 Water Harness (includes items 6-7)
6a GP4242 Solenoid Valve: 24V
6b GP41152 Solenoid Valve: 115V (not shown)
6c GP42082 Solenoid Valve: 208V (not shown)
6d GP44602 Solenoid Valve: 460V (not shown)
7 998024 Tempering Valve
(Replacement kit #998028)
8 980074 Pump Assembly (includes items 9-16)
9 988010 Pump Housing (not sold separately)
10 997089 Cap Screw (not used on 1-Phase)
11 996027 Impeller
12 ECK511 Seal Kit
13 996047 Washer
14 996028 O-Ring
15 988009 Pump Base (not sold separately)
16 996030 V-Ring
17a 991060 Pump Motor 1-Phase
17b 991061 Pump Motor 3-Phase (not shown)
18a SS334 115V, 1-Phase Control Panel
18b SS335 208-240V, 1-Phase Control Panel
18c SS337 208-240V, 3-Phase Control Panel
18d SS339 460V, 3-Phase Control Panel
Scrap Collector
Components
For models with serial numbers
beginning with No. 9292
Trough Collector
Components
For models with serial numbers
beginning with No. 4311
Pump & Motor Assembly
(For all three Collectors)
Control Panel
All Models
Pot/Pan Collector
Components
For models with serial numbers
beginning with No. 3013
The Salvajor Company
4530 East 75th Terrace
Kansas City, MO 64132-2081
1-888-SALVAJOR FAX 1-800-832-9373
service@salvajor.com
Printed in USA
Form No. COLL-PB7SJ
A
B
1
I
5
6
7
K
F
G
A
C
2
3
D4
B C
1
6
2
3
E
J
5
18a
K
4
1
I
5
6
7
K
4
2
3
H
9
8
15141110
16 17a12 13
Salvajor Collectors
PRE-WIRED CONTROL PANEL PARTS BREAKDOWN
ITEM PART NO. DESCRIPTION
1a SS339IP Inner Panel Assembly 460V, 3-Phase
1b SS334IP Inner Panel Assembly 115V, 1-Phase
1c SS335IP Inner Panel Assembly 208-230V, 1-Phase
1d SS337IP Inner Panel Assembly 208-230V, 3-Phase
2 997093 Screw-10-32 x 3/8" Phillips Truss Head
3 994005 Din Rail Mounting Track
4 994059 Contactor 24V 30 Amp Normally Open 3 Pole
5 994177 Disconnect Switch Assembly
6a 994115 Transformer 50VA 208V Pri-Fuse
6b 994116 Transformer 50VA 120V Pri-Fuse
7a 994122 Fuse .5 Amp 600V UL/CSA (used on 460V system)
7b 994095 Fuse 1 Amp 600V UL/CSA (used on 208-230V system)
8 994169 Terminal Block
9 994171 Terminal End Block
10 994172 Terminal Mounting Channel
11 994170 Terminal Clamp
12 SCR1032 Screw 10-32 Green Hex Head Ground
13 ABD100B24 Start Button Normally Open w/24V Pilot Light
14 ABD200A Stop Button Normally Closed
15 994263 Disconnect Handle
16 997032 Lid Screw-10-32 x 5/8" Phillips Truss Head
17 1229A Lid Gasket Assembly
Model SS33 Control Components
Note: 460V components shown
(208-230V is similar)
15
16
17
12 x 12 Control Box Assembly
