Salvajor SA-100 User Manual

:

Models 75-200

Standard
Housing

Short Top

Housing

Models 300-750

2” Drain

Leg
Optional

Leg

Included

2” or 3”

Drain

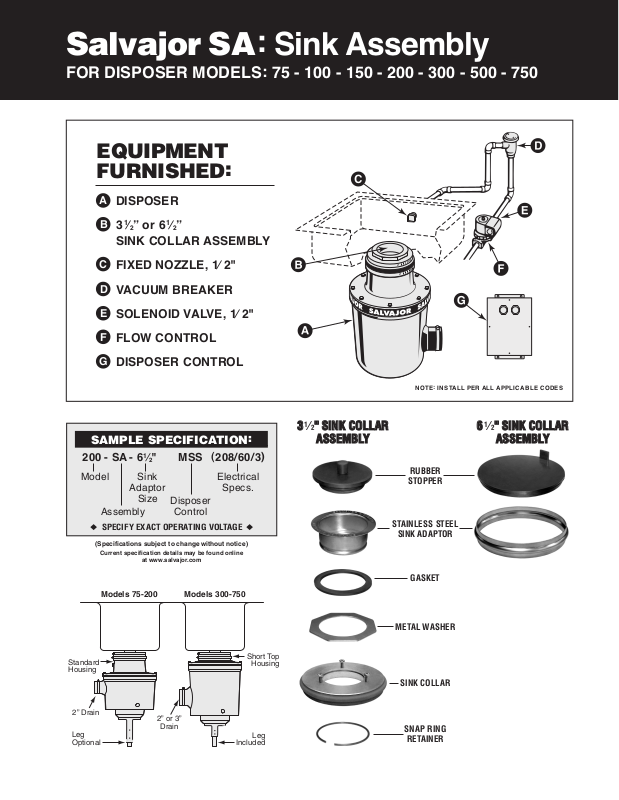

Salvajor SA

Sink Assembly

FOR DISPOSER MODELS:75 - 100 - 150 - 200 - 300 - 500 - 750

EQUIPMENT
FURNISHED

A

DISPOSER

B

31⁄2” or 61⁄2”

:

SINK COLLAR ASSEMBLY

C

FIXED NOZZLE, 1⁄ 2"

D

VACUUM BREAKER

E

SOLENOID VALVE, 1⁄ 2"

F

FLOW CONTROL

G

DISPOSER CONTROL

SAMPLE SPECIFICATION

SAMPLE SPECIFICATION

200- SA- 61⁄2" MSS(208/60/3

Model Sink Electrical

Adaptor Specs.

Size

Assembly Control

◆ SPECIFY EXACT OPERATING VOLTAGE ◆

(Specifications subject to change without notice)

Current specification details may be found online

Disposer

at www.salvajor.com

:

NOT E:INS TALL PER A LL APPLI CABL E CODES

1

2

33

"" SSIINNKK CCOOLLLLAARR

⁄

AASSSSEEMMBBLLYY

)

RUBBER

STOPPER

STAINLESS STEEL

SINK ADAPTOR

1

2

66

"" SSIINNKK CCOOLLLLAARR

⁄

AASSSSEEMMBBLLYY

GASKET

METAL WASHER

SINK COLLAR

SNAP RING

RETAINER

Salvajor SA:Sink Assembly

31/2" (8.89)

SINK OPENING

3

/4" (1.91)

3

/16" (0.48)

1

/2" NPT

WATER

INLET

8

1

/2"

(21.59)

POWER

ENTRANCE

RESET

BUTTON

13"

(33.02)

65/8" (16.83)

CUTOUT

A

BH

CI

D

E

F

G

Adjustable leg
optional on
Models 75-200

Models 75-200

Deep

Sink

Deep

Sink

Models 300-750

D E T A I L S A N D D I M E N S I O N S

FOR MODELS:75 - 100 - 150 - 200 - 300 - 500 - 750

1

⁄2” SINK COLLAR ASSEMBLY

31⁄2” SINK COLLAR ASSEMBLY

6

NOTE: Dimensions in parenthesis are in centimeters. Models 300-750 shown, Short Top & 75-200 similar.

Dimensions

AB C DEFGH I

Models 5-5/8” 9-1/4” 27-1/8” to 30-3/4” 8-1/2” 7-5/16” 15-13/16” 2” 8-11/16” 26-9/16” to 30-3/16”

75 - 200 (14.29) (23.50) (68.90 to 78.11) (21.59) (18.57) (40.16) Drain (20.07) (67.47 to 76.68)

Models 5-5/8” 14-9/16” 27-1/8” to 30-3/4” 13-13/16” 6-5/16” 20-1/8” 2” or 3” 14” 26-9/16” to 30-3/16”

300 - 750 (14.29) (36.99) (68.90 to 78.11) (35.08) (16.03) (51.12) Drain (35.56) (67.47 to 76.68)

300 - 750 2-9/16” 11-1/2” 24-1/16” to 27-11/16” 10-3/4” 6-5/16” 17-1/16” 2” or 3” 10-15/16” 23-1/2” to 27-1/8”

Short Top (6.51) (29.21) (61.12 to 70.33) (27.31) (16.03) (43.34) Drain (27.78) (59.69 to 68.90)

The Salvajor Company 4530 East 75th Terrace Kansas City, Missouri 64132-2081, USA

1-800-SALVAJOR [phone] FAX:[phone]

www.salvajor.com Email: [e-mail] [e-mail]

Manufacturers of Co mme rci al Food Waste Disposi ng Sys tem s s inc e 1944

Printed in USA

Form No. SA-10-BH
