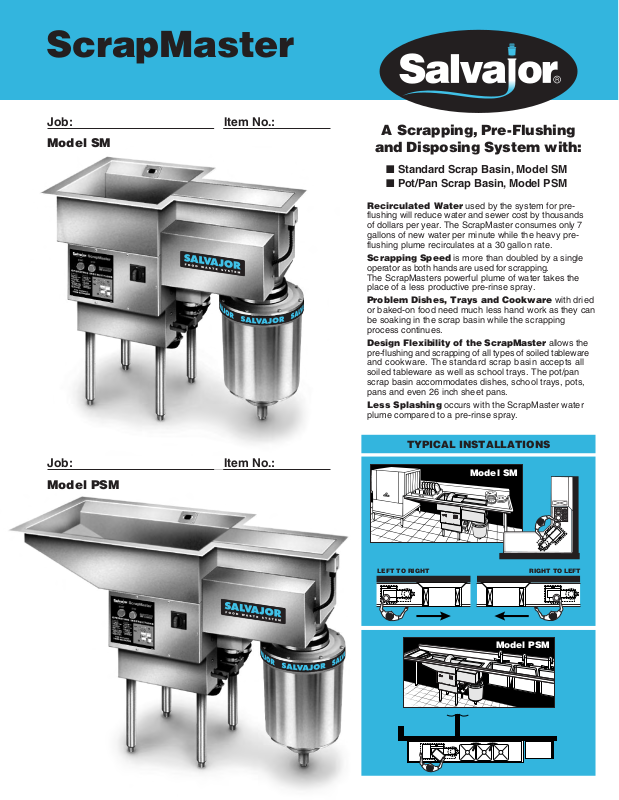

Page 1
ScrapMaster
Job: Item No.:
Model SM
A Scrapping, Pre-Flushing
and Disposing System with:
■ Standard Scrap Basin, Model SM
■ Pot/Pan Scrap Basin, Model PSM
Recirculated Water used by the system for preflushing will reduce water and sewer cost by thousands
of dollars per year. The ScrapMaster consumes only 7
gallons of new water per minute while the heavy preflushing plume recirculates at a 30 gallon rate.
Scrapping Speed is more than doubled by a single
operator as both hands are used for scrapping.
The ScrapMasters powerful plume of water takes the
place of a less productive pre-rinse spray.
Problem Dishes, Trays and Cookware with dried
or baked-on food need much less hand work as they can
be soaking in the scrap basin while the scrapping
process continues.
Design Flexibility of the ScrapMaster allows the
pre-flushing and scrapping of all types of soiled tableware
and cookware. The standard scrap basin accepts all
soiled tableware as well as school trays. The pot/pan
scrap basin accommodates dishes, school trays, pots,
pans and even 26 inch sheet pans.
Less Splashing occurs with the ScrapMaster water
plume compared to a pre-rinse spray.
Job: Item No.:
Model PSM
TYPICAL INSTALLATIONS
Model SM
LEFT TO RIGHT
RIGHT TO LEFT
Model PSM
Page 2
ScrapMaster Model SM
B
F
E
A
115/8"
(29.53)
22"
(55.88)
371/8"
(94.32)
39"
(99.06)
B
D
G
F
E
C
A
333/16"(84.28)
Adjustable to
36
1
/8"(91.76)
187/16"
(46.82)
12"
(30.48)
141/4"
(36.12)
39"
(99.06)
203/4"
(52.77)
231/4"
(59.07)
299/16"
(75.13)
F
G
23"
(58.42)
1915/16"
(50.58)
75/16"
(18.57)
51/8"
(12.95)
9"
(22.86)
195/8"
(49.85)
55/16"
(13.49)
20"
(50.80)
161/2"
(41.91)
TABLE CUTOUT DETAIL
Model SM Legend
Disposer outlet can be rotated at most
A
any angle by rotating disposer.
Rubber drain accepts 2” piping or 3”
piping by removing drain insert.
Tank reservoir drain – Plumb 2” piping
B
from valve to floor drain or connect to
disposer drain piping ahead of P trap.
Disposer electrical connection.
C
Disposer to control connection.
D
Incoming electrical connection.
E
Hot and cold water connection. 1/2” NPT
F
Recirculating water valve.
G
Model SM Drain Piping
2” tank reservoir
drain can be run
separately or be
tied in with 2”-3”
disposer drain.
ALL CONNECTIONS
ARE TO BE MADE BY
QUALIFIED PERSONNEL
WHO WILL OBSERVE
ALL LOCAL AND
NATIONAL CODES.
NOTE: Dimensions in parenthesis are in centimeters
Page 3
Pot/Pan ScrapMaster Model PSM
B
B
D
G
F
F
F
G
E
E
C
A
A
333/16"(84.28)
Adjustable to
36
1
/8"(91.76)
187/16"
(46.82)
115/8"
(29.53)
9"
(22.86)
22"
(55.88)
61/2"
(16.51)
377/8"
(96.23)
12"
(30.48)
141/4"
(36.12)
48"
(121.91)
203/4"
(52.77)
231/4"
(59.07)
299/16"
(75.13)
241/2"
(62.23)
217/16"
(54.39)
75/16"
(18.57)
51/8"
(12.95)
29"
(73.66)
161/2"
(41.91)
48"
(121.91)
TABLE CUTOUT DETAIL
Model PSM Legend
Disposer outlet can be rotated at most
A
any angle by rotating disposer.
Rubber drain accepts 2” piping or 3”
piping by removing drain insert.
Tank reservoir drain – Plumb 2” piping
B
from valve to floor drain or connect to
disposer drain piping ahead of P trap.
Disposer electrical connection.
C
Disposer to control connection.
D
Incoming electrical connection.
E
Hot and cold water connection. 1/2” NPT
F
Recirculating water valve.
G
Model PSM Drain Piping
2” tank reservoir
drain can be run
separately or be
tied in with 2”-3”
disposer drain.
ALL CONNECTIONS
ARE TO BE MADE BY
QUALIFIED PERSONNEL
WHO WILL OBSERVE
ALL LOCAL AND
NATIONAL CODES.
NOTE: Dimensions in parenthesis are in centimeters
Page 4
Salvajor ScrapMaster System
Model SM & Model PSM
S P E C I F I C A T I O N S
CONSTRUCTION MODELS AVAILABLE
■ Stainless Steel Components
■ Salvage Basin
■ Disposer Safety Cover
■ Adjustable Legs
■ Control Panel
ELECTRICAL
■ Pre-wired NEMA 4 Panel
■ Watertight Conduit/Fittings
■ Separate Component Grounding
■ Thermally Protected Motors
■ Totally Enclosed Motors
■ Line Voltage Disconnect
■ Disposer Safety Switch
■ 24 Volt Safety Circuitry
PLUMBING
■ Corrosion Resistant Components
■ Automatic Water Blender
■ Solenoid Valves
■ Unions
■ Check Valves
■ Incoming Water Valves
■ Non-clogging Pump Design
■ Backflow Prevention Device
■ Quick Opening Drain Valve
SAMPLE SPECIFICATIONS
Model Model Disposer Lbs.
300 SM
■■
500 SM
■■
750 SM
■■
300 PSM 3
■■
500 PSM 5
■■
750 PSM 7
■■
HP 332
HP 339
1
⁄ 2 HP 349
ACCESSORIES
■■
■■
■■
te Start-Stop Button
Remo
Remo
te Mounting Bracket
Corre
ctional Package
VOLTAGES AVAILABLE
(
SPECIFY EXACT OPERATING VOLTAGE
208V ■■230V ■■460V,
■■
Disposer 3-7
Pump
Separator
1
⁄2 HP 208
3
⁄4 HP 208
1
⁄6 HP 208
60 Cycle, 3 Phase
-
230
-
230
-
230
)
-460V
-460V
-460V
FULL LOAD AMPS
TOTAL FULL LOAD AMPS THREE PHASE
MODEL 208V 230V 460/480V Total HP
300-SM/PSM 12.64 11.66 5.83 3.92
500-SM/PSM 17.64 16.16 8.13 5.92
750-SM/PSM 23.64 21.66 10.83 8.42
Unit shall be a ScrapMaster (or Pot/Pan ScrapMaster)
pre-flushing scrapping and food waste disposing system
with recirculating water as manufactured by Salvajor.
____ SM (or PSM), ____Volts, ___Hz, ___Phase.
Model
Furnished with a pre-wired control panel and Stainless
Steel NEMA 4 watertight enclosure.
UTILITIES REQUIRED
208, 230 or 460 Volt, 60 cycle, 3 phase electric service,
3
⁄4" hot and cold water supply and reduce to 1⁄2" at
connection. 2" or 3” waste line, 2" tank reservoir drain.
(Specifications subject to change without notice.)
The Salvajor Company 4530 East 75th Terrace Kansas City, Missouri 64132-2081, USA
1-800-SALVAJOR (816) 363-1030 FAX:1-800-832-9373
www.salvajor.com Email: sales@salvajor.com service@salvajor.com
Manuf actur ers o f Com merci al Fo od Wa ste D ispos ing Sys tems since 1944
Disposer
not included
in listing.
Printed in USA
Form No.SM-9-BH
