Sagemcom RTI95500 Instruction manual

Draft 1.2 - 02/2012

Terrestrial High Definition

Digital Television Recorder

RTI95 T2 HD UK

User Manual

LU 253463441-A RTI95 T2 HD UK.book Page 1 Mercredi, 1. février 2012 10:59 10

LU 253463441-A RTI95 T2 HD UK.book Page 2 Mercredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

Congratulations!

This High Definition Digital Television Receiver (DTR) is an innovative product from the latest generation of Sagemcom digital TV recorders, dedicated to Digital Terrestrial Television. Equipped with a silent hard disk drive, it allows easy reception and recording of digital programmes, including those broadcast in High Definition.

Once you have connected your recorder and performed the initial installation, you will be able to watch and enjoy all the FREEVIEW channels available in your geographical area. Thanks to its embedded ’over the air’ upgrade feature, you can update your recorder with new features or services when they become available.

The Sagemcom recorder follows a continuous development strategy. Therefore, we reserve the right to make changes and improvements to the product described in this user manual without any prior notice.

CE Marking:

The CE marking certifies that the product complies with the essential requirements of the Directive1999/5/EC concerning radio equipment and telecommunication equipment, and of Directives 2006/95/EC concerning safety, 2004/108/EC concerning electromagnetic compatibility and ErP 2009/125/EC concerning ecodesign requirements, defined by the European Parliament and Council to minimize electromagnetic interferences, ensure the safety of users and their equipment and protect their health, and minimize the impact of products on the environment.

The CE declaration of conformity can be viewed in the support section of the Sagemcom site www.sagemcom.com, or it can be obtained from the following address:

Sagemcom Broadband SAS - Customer relations department

250 route de l’Empereur

92848 Rueil-Malmaison Cedex - FRANCE

The FREEVIEW and FREEVIEW+HD words and logos are trademarks of DTV Services Ltd and are used under licence.

HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories Inc.

Should your Store be unable to help, please check the following Websites for

Please note: In order to receive digital signal of good quality you may need an antenna upgrade.

Telephone number for your local store is on your till receipt.

Digital Television Terrestrial signal coverage:

http://www.dtg.org.uk/consumer/freeview.html

http://www.freeview.co.uk

http://www.bbc.co.uk/digital

LU 253463441-A RTI95 T2 HD UK.book Page 3 Mercredi, 1. février 2012 10:59 10

Table of contents

RTI95 T2 HD UK

1. Product Overview.......................... 5

Package contents....................................... 5

Front panel of the recorder......................... 6

Rear panel of the recorder ......................... 6

Remote control........................................... 7

2. Safety recommendations.............. 8

Where to put your recorder? ...................... 8

Warnings and safety instructions ............... 8

Batteries ..................................................... 9

Interference .............................................. 10

Hard disk .................................................. 10

USB Storage devices ............................... 10

Cleaning the recorder............................... 10

3. Environment ................................ 11

Meaning of logos present on the product or its

packaging................................................. 11

Product recycling and disposal ................ 11

European Directive on Waste Electrical

and Electronic Equipment (WEEE) .......... 11

Directive on the Restriction of use of certain hazardous substances in electronic

equipment (ROHS)................................... 12

Electrical consumption of the recorder ..... 12

4. Connecting your devices............ 13

Connection to the terrestrial antenna ....... 13

Connection to the TV set.......................... 14

Connection to a VCR/DVD recorder ........ 16

Connection to a Home cinema system .... 16

Connection to a hi-fi unit .......................... 17

Connection to your Ethernet network ....... 17

5. Before starting............................. 18

Basics of the menu system ...................... 18

Menu tree ................................................. 19

6. Running your first installation.... 20

Video Settings .......................................... 20

Parental Control........................................ 20

Channel Search........................................ 21

Selecting your region ................................ 21

7. Your recorder’s main

commands ....................................22

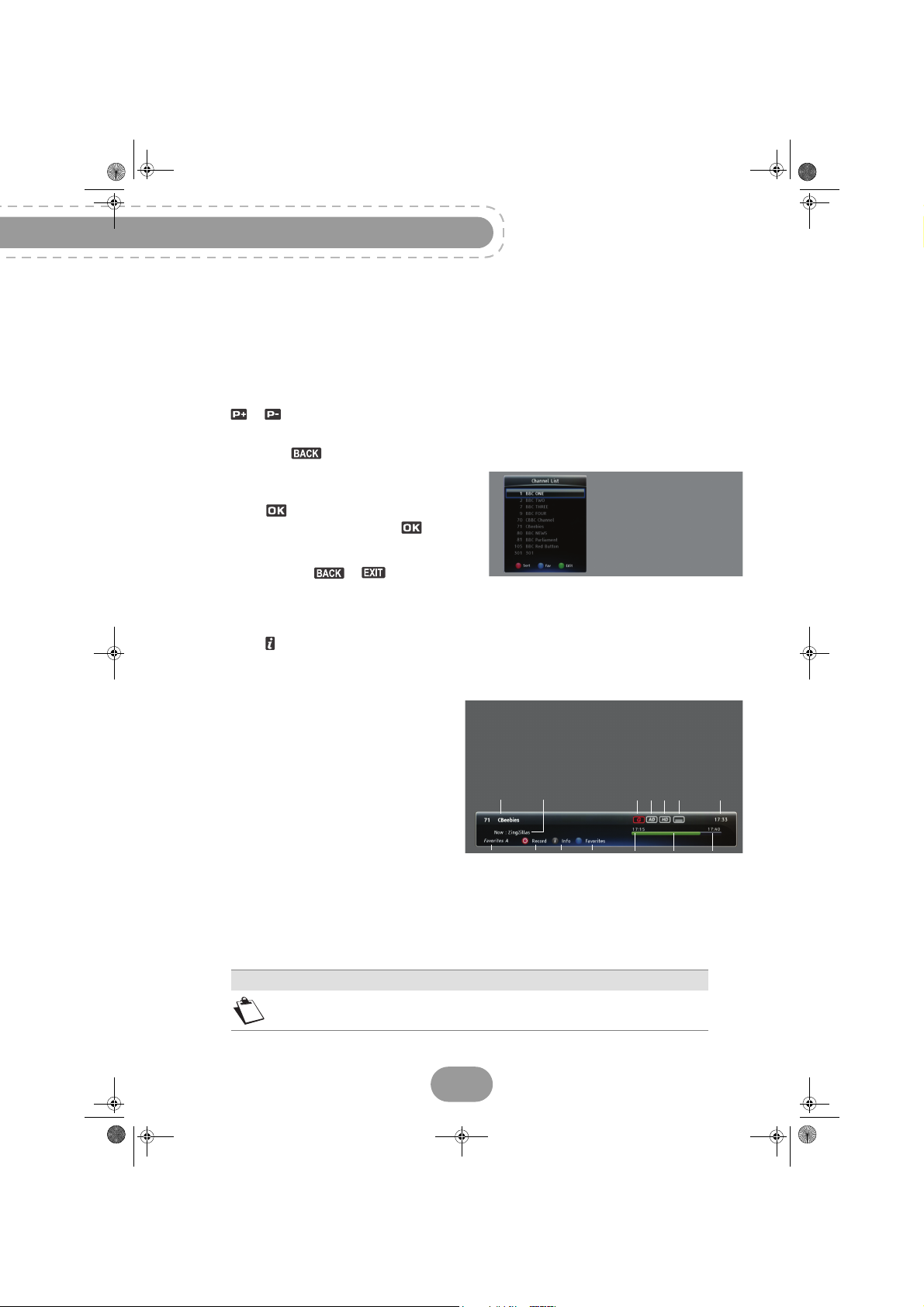

Selecting a TV channel............................. 22

Adjusting the audio volume ...................... 23

Using the Picture in Picture (PIP) feature . 23

Changing the favourites list ...................... 24

Temporarily selecting audio languages

and subtitles ............................................. 24

Activating and Using Audio description .... 24

Teletext and interactive services .............. 24

TV/AUX Switch ......................................... 25

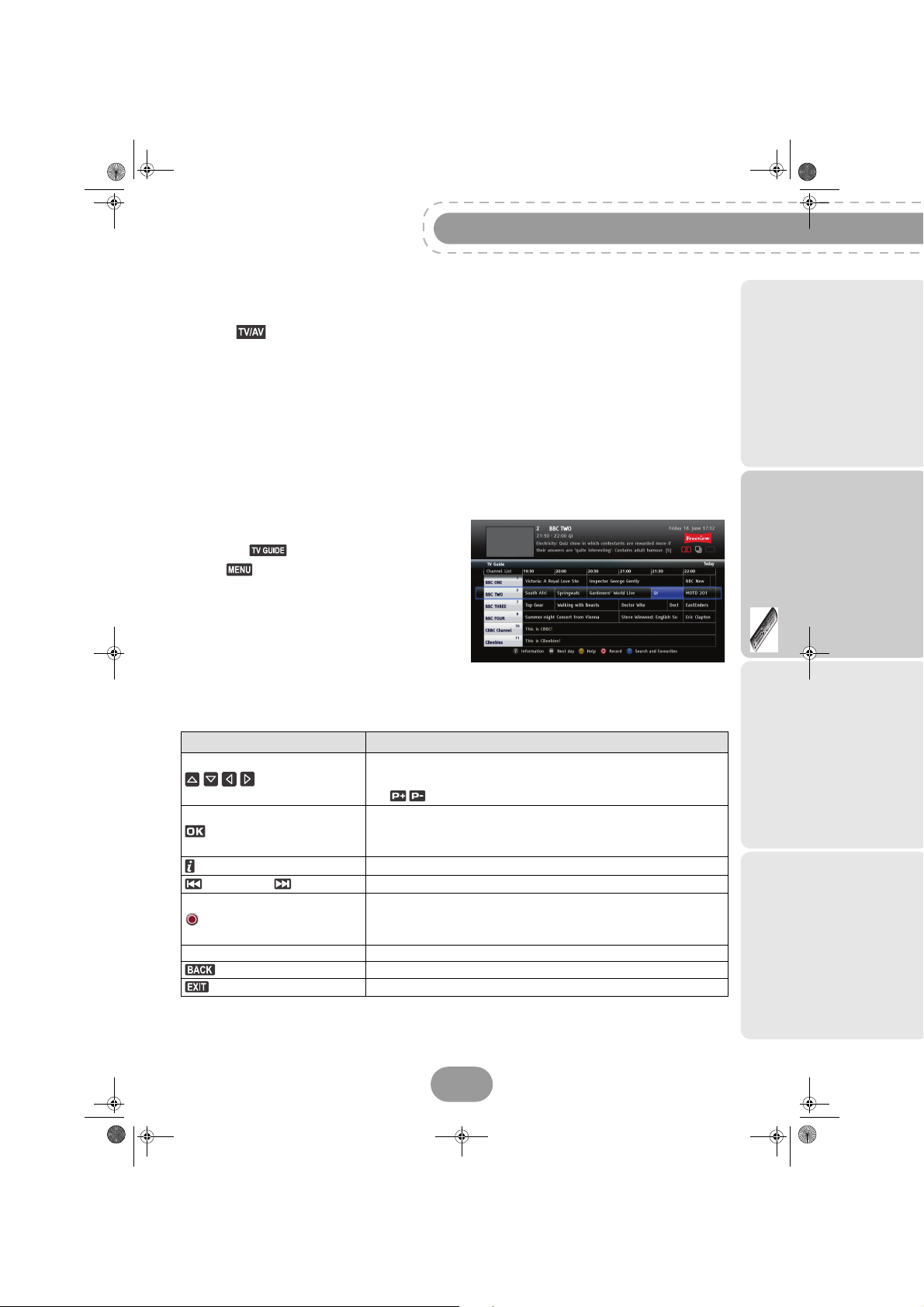

TV Guide .................................................. 25

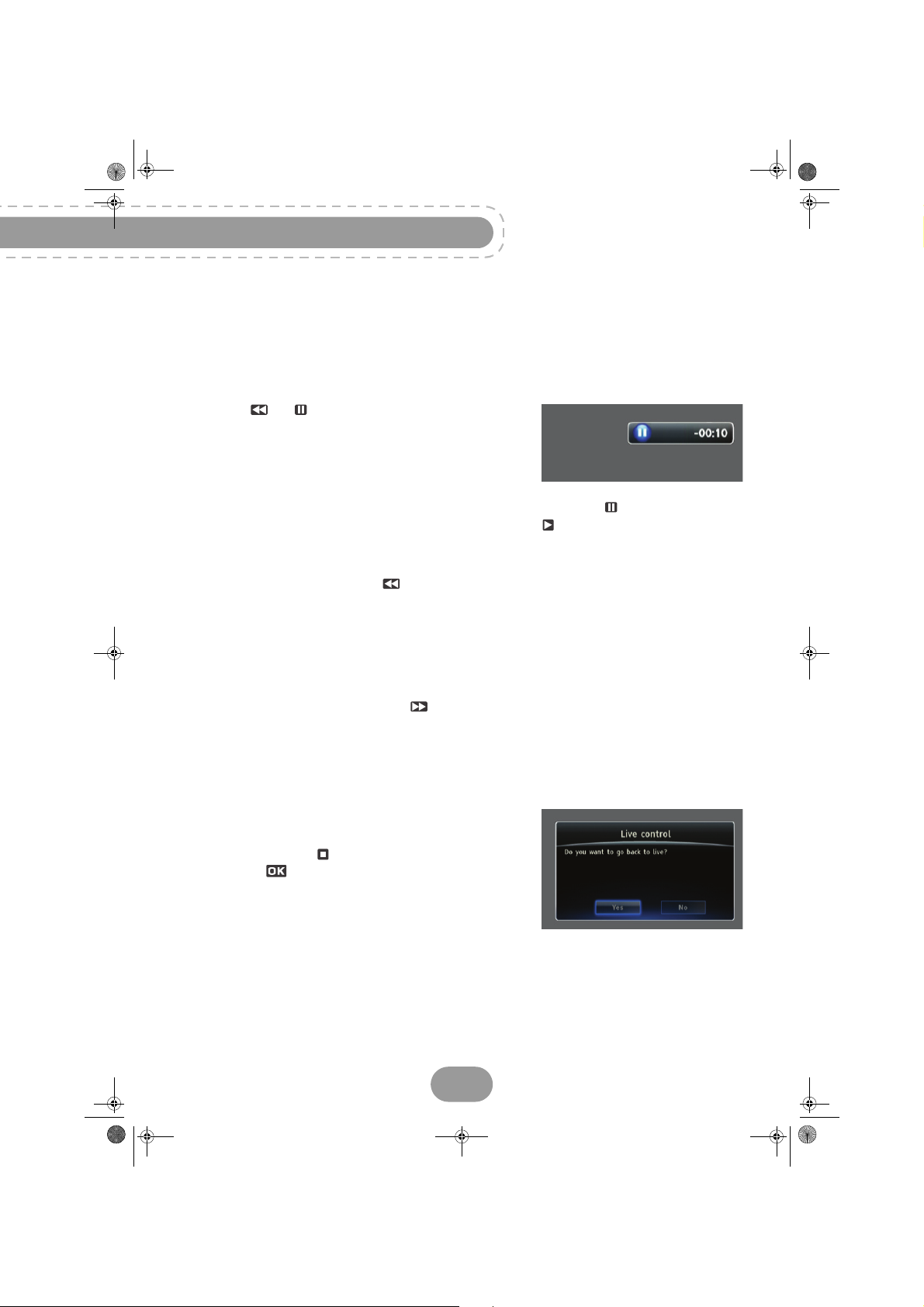

Live mode/Deferred mode ........................ 26

8. Video Recordings ........................ 27

Immediate recording (Live or Deferred

programme) .............................................. 27

Recording programmes from the

Recording Timer menu ............................. 28

Recording programmes from

the TV Guide ............................................ 29

Recording List........................................... 30

Managing the Recording list ..................... 31

9. Multimedia interface .................... 33

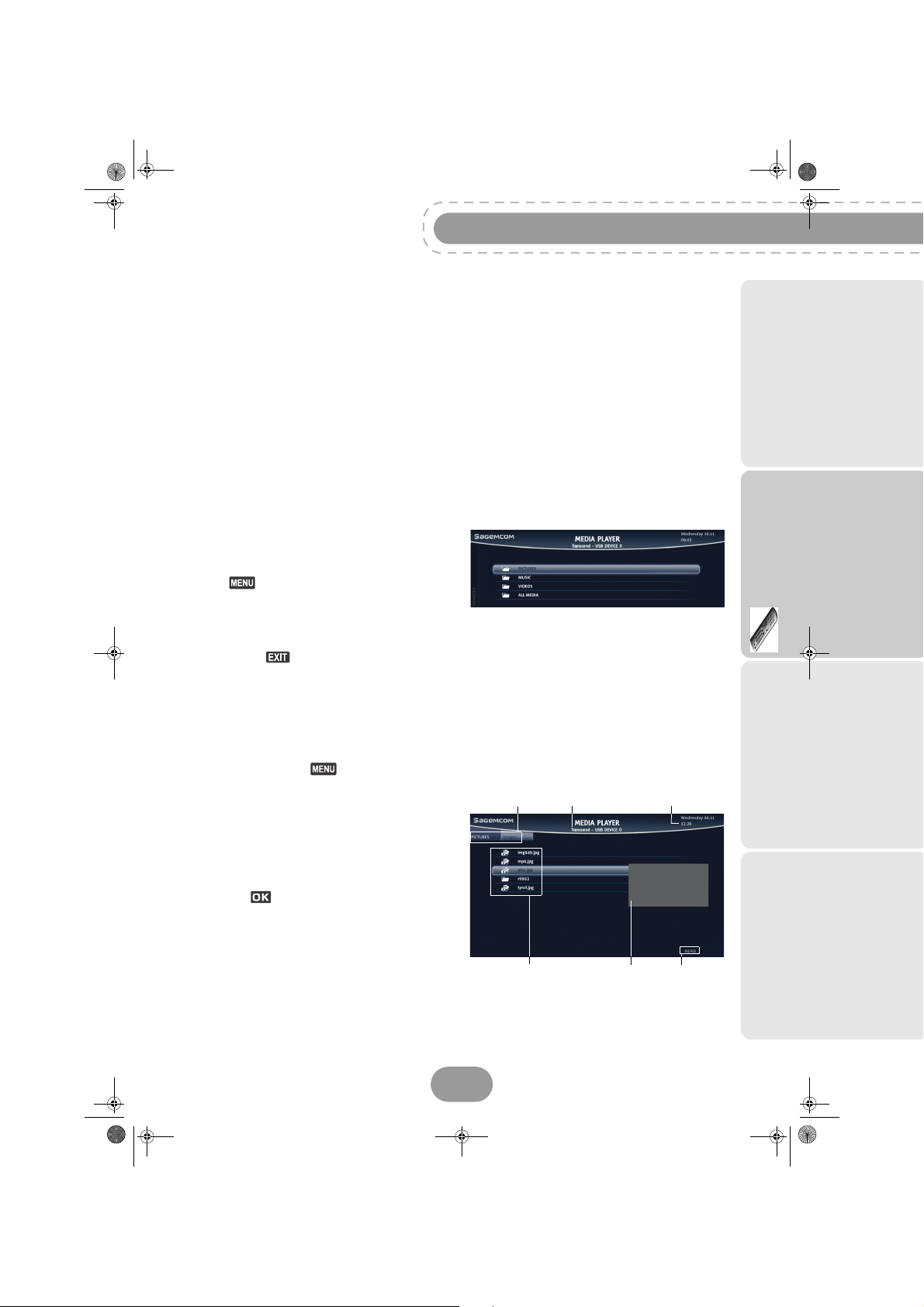

Accessing the Media Player ..................... 33

Navigating in the Media Player ................. 33

Viewing photo files.................................... 34

Playing audio files..................................... 34

Viewing your own video files .................... 35

Importing/Exporting multimedia files......... 35

LU 253463441-A RTI95 T2 HD UK.book Page 4 Mercredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

10. Adjusting the installation

parameters ................................... 36

Channel Search........................................ 36

Channel Management .............................. 37

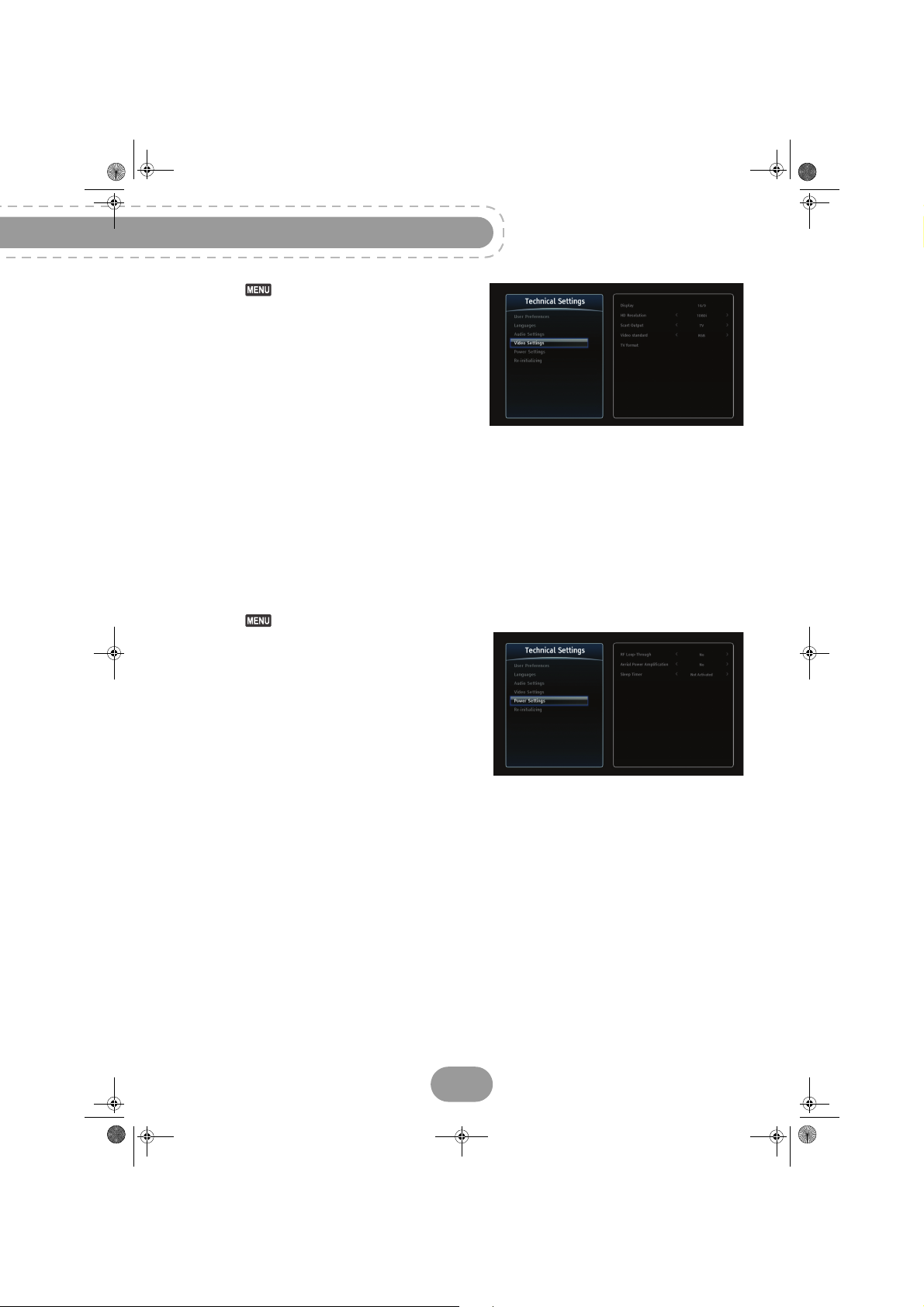

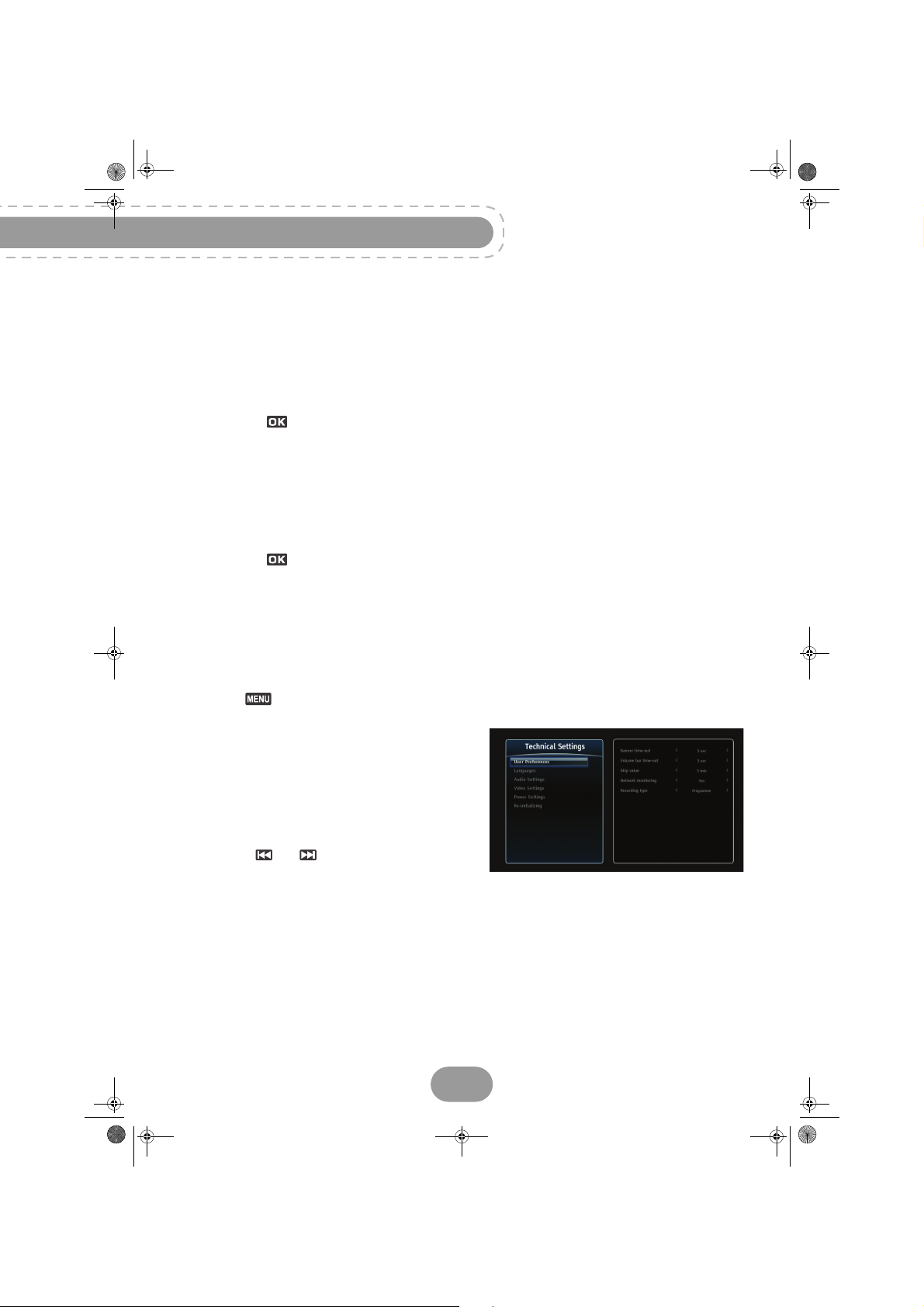

Technical Settings .................................... 38

Information and Support ........................... 41

11. Troubleshooting .......................... 43

Using the recorder .................................... 43

Updating the software............................... 44

12. Customer Support ....................... 45

13. Guarantee Terms......................... 46

14. Specifications .............................. 48

LU 253463441-A RTI95 T2 HD UK.book Page 5 Mercredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

1. Product Overview

Your High Definition Digital Television Recorder allows you to watch and record FREEVIEW channels.

Package contents

Your new equipment includes:

P- P+

Item Description

1 1 High Definition Digital Television Recorder (DTR)

2 1 power supply unit (power adapter and power cord)

3 1 remote control with 2 batteries (AAA)

4 1 HDMI lead for connection to a High Definition TV set

5 This user manual

Getting started

P- P+

2 31 64 5

TV/AUX

OUT

ANTENNA

HiFi

DIG. AUDIO

ETHERNET

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

87 11109 141312

LU 253463441-A RTI95 T2 HD UK.book Page 6 Mercredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

Front panel of the recorder

Item Description Item Description

USB port

Green: Operating

Red: Standby

Digital display

• Shows the current time when the

recorder is in standby.

• Shows the programme number when the recorder is on.

• Shows hard disk activity (recording in progress, programme playback, ...)

P-

Change channel (Down)

Standby button

Put the recorder in standby mode/Wake up the recorder from standby mode (press and let go)

P+

Change channel (Up)

Rear panel of the recorder

Item Description Item Description

7 Power supply unit connector 11 Digital audio connector (S/PDIF)

8 Ethernet port 12 SCART connector (to TV, VCR/DVD)

9 HDMI Digital video audio connector 13 Antenna input

Analogue audio connectors (to hi-fi

unit)

14 Antenna output (Loopthrough only)

BACK

LIBRARY

TEXT AD SUB

SETTINGS

EXIT

TV GUIDE

PIP

V+

V-

P+

P-

abc,.;@

789

ghi

pqrs

jkl

tuv

mno

wxyz

def

11 14

LU 253463441-A RTI95 T2 HD UK.book Page 7 Mercredi, 1. février 2012 10:59 10

Remote control

Batteries

The remote control needs two batteries (AAA) to operate. The drawing in the battery compartment indicates how to install them. The batteries provided are not rechargeable.

RTI95 T2 HD UK

Key(s) Description

Put the recorder in standby mode/Wake up the

recorder from standby mode.

2 Access channels and various on-screen options

3 Display programme information and options

Launch immediate recording, Schedule a

recording from the TV Guide

5 Access menus

6 Increase or decrease the audio volume

7 Move in a page, a menu, the PIP window…

8 Go back to the previous channel, screen or mode

9 Access your recording library

On-screen options (MHEG, Teletext pages and

menu)

11 -Reserved-

12 Display Teletext pages when available

This key only becomes active when Audio Description is activated in your User Preferences. When activated it will allow you to set Audio

Description where available on your current programme (see section Audio settings, page 39).

14 Select subtitles and audio tracks

15 Access recorder settings

16 Exit from current screen or setting

17 Display the channel list, confirm a selection

Change channel in the main screen and in

PIP mode

19 Display the TV Guide

20 Stop / Play / Pause

Skip backward / Rewind / Fast forward / Skip

forward

22 Activate PIP feature

Toggle between TV and AUX modes on the

SCART output

24 Turn the sound off/on

Getting started

LU 253463441-A RTI95 T2 HD UK.book Page 8 Mercredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

2. Safety recommendations

Use of the recorder is subject to safety measures designed to protect users and their environment.

Where to put your recorder?

In order to guarantee the correct operation of your recorder, you must:

• place it indoors to protect it from lightning, rain, and direct sunlight,

• place it in a dry and well ventilated area,

• keep it away from heat sources such as radiators, candles,

lamps, etc.

• protect it from dampness, place it on a flat surface from where it will not fall and is out of the reach of children,

• avoid violent shocks. Choose a stable, horizontal surface on which the recorder will not be exposed to intense vibrations.

• do not place anything on top of your recorder (as it would restrict ventilation): the ventilation slots located on the casing prevent your recorder from overheating. If you place the recorder in a compartment or other closed space, leave a space of at least 10 cm on each side and 20 cm on the front and back of the recorder,

• connect it directly to the mains with the provided cords, the socket must be near the recorder and easy to access. The use of an extension cable (with multi-points) is not recommended.

Warnings and safety instructions

NEVER OPEN THE RECORDER OR THE POWER SUPPLY UNIT! YOU RISK GETTING AN ELECTRIC SHOCK.

• Use only the power supply unit supplied with the recorder to connect it to the mains. Other practice may be dangerous.

• As a precaution, in case of danger, the power supply unit acts as a disconnecting

mechanism for the 230V power supply. That is why it is imperative that you connect the recorder to a power outlet located nearby and easily accessible.

• Connect the recorder to the mains in accordance with the indications mentioned on the identification label affixed on the recorder (voltage, current, frequency of electricity network).

• The identification label is located under the recorder or on the rear panel.

• You must imperatively connect the power supply unit to the recorder before connecting the power

supply unit to the power socket. Ensure the power cord is correctly connected to the mains power socket and to the recorder. Otherwise, there is a risk of fire and you risk getting an electric shock when touching the recorder.

• You must imperatively use the recorder in an environment that complies with the following requirements:

• temperature: between 0°C [32°F] and 40°C [104°F].

• ambient humidity: between 20% and 90%.

• altitude: below 2000 m [6562 ft].

LU 253463441-A RTI95 T2 HD UK.book Page 9 Mercredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

• To avoid short-circuits (fire or electrocution hazard), do not expose your recorder to dampness. Do not place any object containing liquid (vase for example) on the appliance. The recorder must not be splashed with liquid. If liquid is spilled onto the recorder, unplug it immediately from the mains and consult your supplier.

• Take care not to allow liquids or metal objects to enter the recorder through the ventilation slots.

• Avoid reconnecting the recorder after it has been subjected to large changes in temperature.

• The recorder must be disconnected from mains supply (from the power outlet or rear panel) before

any modification of connection between TV, VCR or antenna.

• In the event of a storm, it is advisable to unplug the antenna. Even if the recorder and the television set are disconnected from the power supply, lightning can still damage them.

• If you hear unusual noise coming from the mains power socket or from the power cord or adapter, disconnect immediately the power cord from the mains power socket in accordance with all the precautions of use, you risk getting an electric shock, and contact your retailer.

• Never connect the recorder to a mains power socket which is loose, shows signs of wear or damage, you risk getting an electric shock.

• Never touch the power cord with wet hands. You risk getting an electric shock.

• When connecting or disconnecting the power cord, always take hold of the plug without pulling on

the cord. A damaged cord presents a potential risk of fire or electric shock. Never pull the power cord when disconnecting from the mains power socket.

• Never place objects on the power cord, and never pull on it or fold it. This may cause a risk of fire or electric shock. Ensure that the recorder never lies on the power cord or any other cables.

• Never place objects on the power adapter, never step on it or roll over it with a rolling device. You risk damaging the power adapter and creating a risk of fire or electric shock.

• Ensure the recorder is placed on a flat and stable surface, placing it incorrectly may lead to the power cord being disconnected. This may cause a risk of fire or electric shock.

• Always connect the power adapter cord to the recorder first, then connect the power cord to the power adapter, and finally connect the power cord to the mains power socket. By not observing the order indicated, you risk getting an electric shock.

• Ensure the power cord is correctly connected to the power adapter, and that it is firmly inserted in its slot. It is important that you push the connector into its slot. There is a risk of fire or electric shock in case of incorrect connection.

• Always keep the power cord and power supply unit out of the reach of children or domestic animals.

• Only personnel approved by the manufacturer can repair the recorder. Failure to comply with these

safety precautions will invalidate the guarantee.

• Have a specialised installer perform all connections if you want to use cables that are not provided with the recorder.

Getting started

Batteries

Batteries are easily swallowed by young children. Do not allow young children to play with the remote control.

Always keep batteries away from excessive heat sources such as direct sunlight, fire or similar sources.

To avoid damaging the remote control, only use identical batteries or batteries of an equivalent type. The batteries provided are not rechargeable.

LU 253463441-A RTI95 T2 HD UK.book Page 10 Me rcredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

Interference

Do not place the recorder near appliances that may cause electromagnetic interferences (for example, loudspeakers, modems, routers or cordless phones). This could affect recorder operation and distort the picture or sound.

Hard disk

This unit contains a hard disk drive. Please wait for the unit to go into standby mode before unplugging and moving it.

Never cut off the electrical supply while the disk is reading or writing, you may lose data and/or damage the hard disk.

USB Storage devices

Please wait until the recorder or the multimedia file application exits the multimedia list manager (multimedia file application) or is in standby mode before disconnecting your storage devices. Otherwise, you risk losing data or damage your storage device.

When connecting a USB peripheral device, respect the way of insertion and never use force. You may damage your peripheral device and/or the appliance.

Cleaning the recorder

The outer casing of the recorder can be cleaned with a soft and dry cloth. Do not use any type of abrasive pad, scouring powder or solvents, such as alcohol or turpentine, as they could damage the surface of the recorder.

LU 253463441-A RTI95 T2 HD UK.book Page 11 Me rcredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

3. Environment

Preservation of the environment is an essential concern of Sagemcom Broadband SAS. The desire of Sagemcom Broadband SAS is to operate systems observing the environment and consequently it has decided to integrate environmental performances in the life cycle of its products, from manufacturing to commissioning, use and elimination.

Meaning of logos present on the product or its packaging

European regulations require packaging to be recycled. It must not be discarded with unsorted waste. There are local arrangements for sorting and recycling this waste.

The looped arrow sign means that the packaging may be recycled and must not be disposed of with household waste.

The logo with three arrows shown on the plastic parts means that they may be recycled and that they must not be disposed of with household waste.

The crossed-out dustbin sign stuck on the product or its accessories means that at the end of its life, the product is subject to selective collection and must not be thrown away in unsorted household waste.

Product recycling and disposal

To facilitate recycling, please respect the sorting rules set up locally for this kind of waste.

If your product contains batteries, they must be disposed of at appropriate collection points.

European regulations ask you to dispose of products belonging to the family of electrical and electronic

equipments ( ) selectively:

• At the collection points made available to you locally (drop-off centre, selective collection, etc.),

• At sales points in the event of the purchase of similar equipment.

In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health.

Getting started

European Directive on Waste Electrical and Electronic Equipment (WEEE)

In the context of sustainable development, the reduction of wastes to be eliminated by reusing, recycling, composting and energy recovery is strongly advised.

In order to comply with this directive which is applicable to EEEs sold after 13/08/2005, your recorder will be taken back free of charge and recycled by the distributor of the EEE within the limits of the quantity and types of equipment bought from them. These appliances which contain substances potentially dangerous to human health and the environment will be recycled.

LU 253463441-A RTI95 T2 HD UK.book Page 12 Me rcredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

Directive on the Restriction of use of certain hazardous substances in electronic equipment (ROHS)

Your recorder along with the batteries supplied comply with the directive relating to the RoHS – dangerous materials such as lead, mercury or cadmium are not used. This avoids environmental hazards and any risks to the health of personnel at the recycling centres. The batteries of the remote control can be removed simply.

Note: When the batteries of the remote control are worn out, please dispose of them at a collection point and not with household waste.

Electrical consumption of the recorder

To reduce the consumption of your recorder, you are recommended to place it in standby mode when not in use. We recommend that you turn off the recorder or unplug it from the mains if you will not be using it for a prolonged period of time.

LU 253463441-A RTI95 T2 HD UK.book Page 13 Me rcredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

4. Connecting your devices

Before installing your recorder:

• Please check that the delivery is complete (see Package contents, page 5).

• Please ensure that the appliances to be connected together (recorder, TV set, VCR/DVD…) are

unplugged before making any connections.

• Please ensure that Digital Terrestrial Television (DTT) is available in your area.

Connection to the terrestrial antenna

Very often to get the best reception, you may simply need to adjust your antenna. Alternatively, you can connect an indoor antenna to your system. For more information, please contact your specialised distributor.

Standard outdoor antenna

Preferably use an outside roof antenna that is designed to receive UHF channels (21 to 69). However:

• if your building is equipped with an old antenna model, digital channels may be difficult or even impossible to receive. The problem can only be resolved by changing the antenna.

• if your building is equipped with a common antenna which contains selective filters devised for analogue channels, reception will most probably not work correctly. In this case, you will have to contact the administrator of the building.

• some antennas directed towards an analogue TV transmitter must be re-adjusted towards a digital TV transmitter. If you encounter reception problems, you can also try placing the antenna at different heights.

Getting started

Indoor antenna

In ideal reception conditions, this type of antenna is sufficient. Here, however, are some useful tips:

• use an antenna designed to receive channels 21 to 69.

• install the antenna close to the window and direct it towards the digital TV transmitter.

• if possible, use an antenna with an amplifier. The recorder can provide remote power supply to your indoor antenna (see Setting the power parameters, page 40).

Connection to the antenna

1. Plug the antenna cable (not supplied) into the ANTENNA IN input connector on your recorder.

2. You can connect the RF output connector of your recorder to the antenna input of the television set

or VCR/DVD recorder (cable not supplied).

LU 253463441-A RTI95 T2 HD UK.book Page 14 Me rcredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

Connection to the TV set

Connection to a High-Definition television set using an HDMI lead

1. To take advantage of High Definition picture quality, you must connect the HDMI connector of your

recorder to the HDMI connector on your television set (cable supplied).

2. To connect other devices to the recorder (VCR/DVD, Home cinema...), refer to the following pages.

3. Connect the power adapter to the power cable. Then, connect the power cable into the 12 V

connector on the recorder.

4. Plug the power cord into the wall socket.

LU 253463441-A RTI95 T2 HD UK.book Page 15 Me rcredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

Connection to a Standard-Definition television set

1. You must connect the television set to your recorder using a SCART connector (not supplied).

2. To connect other devices to the recorder (Home cinema...), refer to the following sections.

3. Connect the power adapter to the power cable. Then, connect the power cable into the 12V

connector on the recorder.

4. Plug the power cord into the wall socket.

Getting started

LU 253463441-A RTI95 T2 HD UK.book Page 16 Me rcredi, 1. février 2012 10:59 10

RTI95 T2 HD UK

Connection to a VCR/DVD recorder

See the diagram below to connect your recorder to a VCR/DVD recorder.

EXT

Connection to a Home cinema system

Some programmes are broadcast with a high quality multichannel digital sound. The connection of your recorder to a Home cinema system will give you a cinematic surround sound experience when watching these programmes.

This can easily be done by connecting with a coaxial cable (not supplied) the DIGITAL AUDIO output of your recorder to the digital audio coaxial input of your Home cinema amplifier

Dolby® Digital Plus is one of the latest innovations of Dolby Laboratories in high quality digital audio. Compatible with Dolby Digital systems, it addresses the expectations of most demanding viewers, and is scalable to the diverse world of content delivery, such as, for instance, High Definition TV broadcast.

Note

For more information, please visit the following website: http://www.dolby.com/consumer/setup/index.html

+ 36 hidden pages
