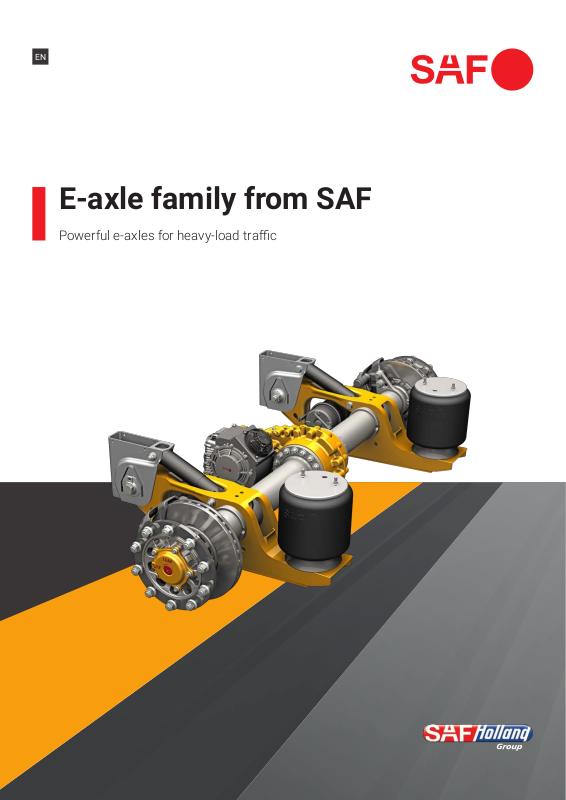

E-axle family from SAF
Powerful e-axles for heavy-load trac
Towards e-mobility with SAF-HOLLAND.
Heavy-load trac will be electric,
green and quiet.
The future runs on electricity.
Stricter CO2 legislation and bans on diesel-operated vehicles in inner cities;
in addition, according to Europe-wide directives, new trucks must have signicantly
So there is an urgent need for vehicle manufacturers and eet managers to act.
Electromobility as a technology changer.
Electrication is the game changer and future enabler for the commercial vehicle industry. This is because electromobility provides emission-free commercial vehicles and sustainable eco-friendly logistics and transport processes through innovative technologies.
Join us in pushing the electrical transformation.
The electried trailer axles from SAF-HOLLAND prepare heavy­load trac for the future.
2 3
Powerful e-axles
for heavy-load trac.
Convert your vehicles
with SAF-HOLLAND,
the leader in this technology.
SAF-HOLLAND pioneers e-axles for heavy-load trac. As a lea­ding global supplier for the commercial vehicle industry, we de­velop innovative solutions for an optimized and resource-friendly world of transport. Our vision is to shape the industry with sus­tainable and future-proof solutions. After all: every saved litre of
diesel counts.
Our e-axle systems were specially developed in dialogue with our customers to meet the stringent demands of heavy-load trac. The e-axle family from SAF for large trailers makes commercial vehicles greener, quieter and more ecient.
Sustainable. Economical. Future-proof.
4 5
The future of e-transport.
The e-axle family from SAF: powerful e-axles for large trailers.
Electrication
Advantages at a glance
Lower fuel consumption, fewer CO2 emissions
The e-axle family from SAF uses kinetic energy of the vehicle to generate ad­ditional energy that relieves the vehicle and its units on the road. This lowers fuel consumption and carbon emissions and thus makes a valuable contribu-
tion towards achieving the emission targets
Noise protection through noise reduction
The quiet e-axles reduce the noise of refrigerated trucks and similar vehicles on the road and reduce noise emissions to below the limits that will apply in future. This means that SAF TRAKr and TRAKe meet the ever more stringent noise protection standards for harbours, airports and night or inner-city trac
E-axle family from SAF
@ SAF-HOLLAND
Reliable compliance with legislation
CO2 reduction, noise reduction, diesel travel bans and other laws to protect in-
ner cities and high-density areas are among an increasing number of challen­ges facing the world of transport. Electried axles help you meet strict legal
requirements.
Fewer particulates for clean air
Diesel-powered commercial vehicles are among the biggest producers of particulate matter. The clean electric engines of e-axles signicantly reduce the particulate and soot emissions of the entire truck. This ensures complian­ce with nitrogen oxide and particulate limits and simultaneously improves air quality.
Ecient and future-proof transport processes
The e-axles from SAF-HOLLAND ensure greater availability, eciency and sustainability: They save fuel, avoid exhaust emissions, and comply with legal regulations. The generated energy also reduces downtimes considerably.
Another contribution towards resource conservation: The TRAKr generator is
produced without rare earth metals.
6 7
E-axle family from SAF.
Converting movement into energy.
The e-axle family from SAF uses recuperation for energy recovery. This reduces fuel consumption as well as carbon and particulate emissions and makes commercial vehicles more eco-friendly.
SAF TRAKr: Electrical recuperation. Generating power on the move.
During braking or acceleration phases, the centrally located high­voltage generator unit of the SAF TRAKr converts the kinetic energy of the vehicle into electrical energy. This energy is stored in a Li-ion battery of the proven electrical system from CARRIER/ ADDVOLT – or can supply auxiliary consumers in the trailer such
as cooling units, heaters or hydraulic platforms while the vehic­le is moving. The SAF TRAKr is favoured for use in refrigerated trucks, where the cooling units can be operated in fully electrical
mode.
Generates energy.
For operating a cooling
unit, for example.
SAF TRAKe: Electrical recuperation and traction support. More power thanks to an additional electric drive.
The SAF TRAKe goes one further: As well as using recuperation to generate energy, it operates with a more powerful high-voltage
e-machine with a higher output. With this additional power, the
SAF TRAKe helps power the truck and supports the main engine when the vehicle pulls away and accelerates. Especially in chal­lenging road conditions and on slopes, the SAF TRAKe provides greater traction and stability for the articulated truck and provi­des valuable assistance, for example in site trac.
Additional drive.
More traction during
acceleration and when
driving up inclines.
The obtained energy is stored in a Li-ion battery here as well. De­pending on the operating mode, the energy can be used to opera­te units or to support the main engine of the truck.
Saves fuel and
protects the environment.
Main applications:
Refrigerated trailer
Food tanker Silos
Generator: max. 20 kW peak (at 20 °C ambient temperature) E-machine: max. 120 kW peak, max. 320 Nm peak
8 9
Main applications:
Refrigerated trailer
Dump trailer
Food tanker
Silos
… and many more –
get in touch!
SAF TRAKr / TRAKe technology
Gearbox unit
1
General design: 1-speed with differential
Gearbox is part of the axle structure
Specially designed and developed for SAF-HOLLAND
SAF TRAKr: Ratio i = 1 : 14.0
SAF TRAKe: Ratio i = 1 : 12.08
E-machine (SAF TRAKr & TRAKe)
2
SAF TRAKr:
Air-cooled switched reluctance motor
(SRM)
Max. power: 20 kW peak,
17 kW cont. (at 20 °C ambient temperature)
SAF TRAKe:
Liquid-cooled permanent
magnet synchronous motor (PSM)
Max. power: 120 kW peak / 60 kW cont.
Max. torque: 320 Nm peak -> 1,933 Nm per wheel
Axle
7
Half axles with one central gearbox unit and e-machine
Can be combined with INTRA or MODUL air suspension
SAF TRAKr: Additional weight incl. generator:
approx. +150 kg
SAF TRAKe: Additional weight incl. e-machine:
approx. +300 kg
1
7
6
2
Axle load
6
INTRA: max. 9.0 t
MODUL: max. 10.0 t
Wheel head
3
Maintenance-free wheel bearing technology
identical to that in non-electried axles
ø335 10-hole offset depth 120 or ø275
8-hole offset depth 0
3
5
4
Axle types
4
SAF TRAKr: BIR9 -… / BIR10 -… / ZIR9 -… / ZIR10
SAF TRAKe: BIE9 -… / BIE10 -… / ZIE9 -… / ZIE10
10 11
Disc brakes
5
19.5“ and 22.5“ disc brakes identical to those in
non-electried axles
Spare parts (pads, rotors etc.)
identical to those for non-electried axles
Identical test reports
Increased availability thanks to internal charging.
Charge the battery while driving and avoid expensive downtimes: The energy generation of the e-axle family from SAF enables the battery to be charged internally while the vehicle is in operation. This reduces the downtimes for external charging processes and increases truck availability. The battery system is utilised perfect­ly, which provides real added value during daily operations.
SAF TRAKr and TRAKe:
External charging time:
no external charching time necessary*
Other systems:
External charging time for a system with 68 kWh:
Optimised and economic driving.
With the powerful e-axle family from SAF.
The e-axle family from SAF optimises transport and logistics pro­cesses drastically and sustainably. Right from the start, it excels thanks to its outstanding battery system, which provides consi-
Conversion of
existing vehicles is
subsidised by
the state.
derable assistance to the driver, the vehicle and the units in their
everyday work.
The e-axles are not just quiet and emission-free, they are also economical. This is because they improve vehicle eciency, re­duce fuel costs and require less maintenance. State subsidies provide assistance to those purchasing and retrotting electrical solutions for trucks. As a result, e-axles pay for themselves after just a few years of operation – for an optimised TCO for heavy
commercial vehicles.
at least 4 h 57 min
Even tyre wear.
SAF TRAKr and SAF TRAKe tap the same torque from both ty­res. Advantage: even wear makes it easier for eet managers to plan tyre changes and reduces maintenance costs.
* only for battery balancing
12 13
Sustainable power for your transports.
Powerful support for heavy-load trac.
In long-haul trac and urban spaces, on slopes and in deman­ding road conditions, heavy trucks and trailers receive optimal support in every setting with the e-axle family from SAF.
That’s because the energy generated by the e-axles is used where it is generated: It supplies the vehicle and its electrical compo­nents with power during the journey, relieves the main motor, and
increases climbing power on challenging routes. Thanks to emis-
sion-free driving, e-axles enable night transports in high-density urban areas. In short: SAF TRAKr and SAF TRAKe provide sustai­nable power for your transport processes
A diverse range of possible applications.
SAF TRAKr & SAF TRAKe.
Cooler
Cooling units are operated temporarily in fully electric mode thanks to the re­cuperation of SAF TRAKr and SAF TRAKe. This safety backup reliably protects highly sensitive goods during transport.
Silo and tanker
The electrical compressor is powered by the energy of the e-axles and inde­pendently of the truck. This saves energy and ensures additional protection for the liquid transport or bulk goods.
Moving-oor trailers
The hydraulically controlled oor system or moving sliding panel is electrically operated by SAF TRAKr and SAF TRAKe and helps the driver load goods safely
and without leaving residues.
Trailer with lift gates
Thanks to the electrical drive solution, the electrical pump for hydraulic tailga­tes (lifting door) is powered by the vehicle without dependence on the axles.
Transportable e-forklift
With the e-axle family from SAF, e-forklifts can be charged during the trip, so they are ready for use as soon as the vehicle stops.
14 15
The future of e-mobility:
SAF TRAKr and SAF TRAKe for heavy-load trailers
Standardised, modular, exible.
Standardised system: same design as standard axles
Modular design for different versions
Plug & Play thanks to standardised interfaces
Retrotting possible
Independent of trailer or cooling system manufacturers
Service-friendly.
Standard wear parts for a simplied spare parts supply
Simple maintenance tasks: Tyres, wheel heads and brakes
can be serviced without dismantling the system
Large global service network
Fully automatic operating system
Quick and easy to install.
Total system with e-axle, control electronics, battery system and control unit with standard interfaces for smooth integration and awless operation.
Driver-friendly and easy to operate.
Fully automatic operating system
Little training and instruction required
(no prior knowledge required!)
Easy handling
Less background noise during the trip
Greater eciency thanks to short loading and downtimes
Identical wear and spare parts.
INTEGRAL brake disc
Brake calliper
Brake cylinder
Brake pads
Airbag
Shock absorber
3D bushing
Standard suspension SAF INTRA
SAF TRAKr / TRAKe
Standard suspension SAF INTRA
Systems from CARRIER/ADDVOLT:
perfectly adapted to SAF TRAKr.
16 17
Convert to e-axles from SAF-HOLLAND now
And push forward with e-mobility.
Thanks to lower fuel consumption, fewer exhaust emissions and reduced noise emissions, electried axles are a sustainable solution for future-proof transport and logistics processes. With our modular SAF TRAKr and SAF TRAKe e-axles, we offer powerful techno­logies that were specially developed to meet the challenging requirements in heavy-load trac.
A perfect solution for your vehicles.
The e-axle family from SAF is characterised by uncompromi­sing quality, high functional reliability and cost-effectiveness. It’s the perfect solution for retrotting diesel-operated vehicles and
equipping new vehicles.
Let’s push the electrical revolution of the commercial
vehicle industry together.
E-axles from
SAF-HOLLAND:
Greener,
more economical,
future-proof.
Rent a test vehicle!
Would you like to test our e-axles? Then book one of our test vehicles today.
Do you have any questions about our e-axles? We are happy to help and look forward
to hearing from you.
Your contact
Michael Neuberger
Tel. + 49 6095 301-0 Michael.Neuberger@safholland.de
Arrange an appointment for consultation now!
18 19
