Ryobi S605D User Manual

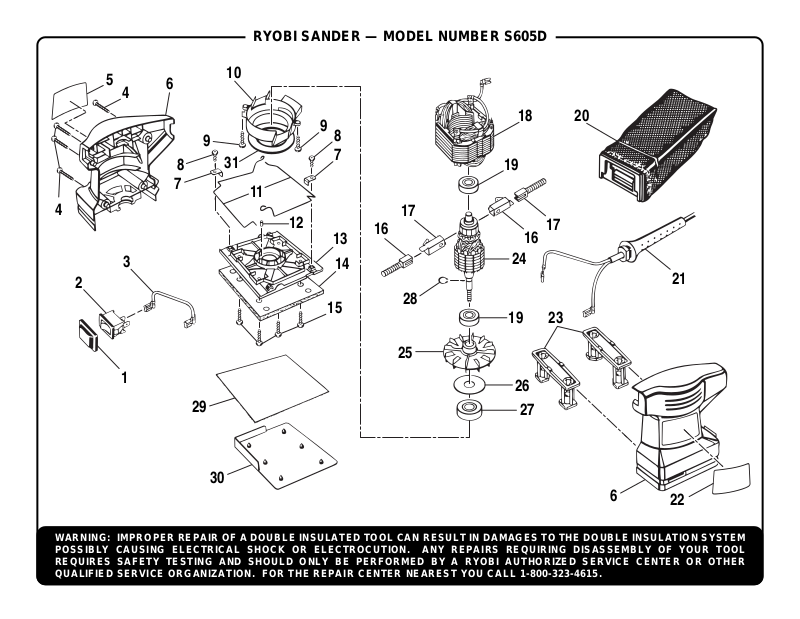

RYOBI SANDER — MODEL NUMBER S605D
5
6
10
4
18
20
9
9
8
31
8
7
19
7
11
4
12
13
3
14
2
16
17
17
16
24
21
28
15
19
23
25
1
29
26
27
30
6
WARNING: IMPROPER REPAIR OF A DOUBLE INSULATED TOOL CAN RESULT IN DAMAGES TO THE DOUBLE INSULATION SYSTEM
POSSIBLY CAUSING ELECTRICAL SHOCK OR ELECTROCUTION. ANY REPAIRS REQUIRING DISASSEMBLY OF YOUR TOOL
REQUIRES SAFETY TESTING AND SHOULD ONLY BE PERFORMED BY A RYOBI AUTHORIZED SERVICE CENTER OR OTHER
QUALIFIED SERVICE ORGANIZATION. FOR THE REPAIR CENTER NEAREST YOU CALL 1-800-323-4615.
22
RYOBI SANDER — MODEL NUMBER S605D
The model number will be found on a plate attached to the motor housing. Always mention the
model number in all correspondence regarding your SANDER or when ordering repair parts.
PARTS LIST
KEY PART
NO. NUMBER DESCRIPTION QUAN.
1 971443-002 SWITCH COVER ........................................................................... 1
2 968303-023 SWITCH......................................................................................... 1
3 971785-004 RED LEAD ..................................................................................... 1
4 968700-011 SCREW.......................................................................................... 6
5 662340-013 DATA PLATE ................................................................................. 1
6 662636-011 HOUSING ASSEMBLY.................................................................. 1
7 031500-300 CLAMP........................................................................................... 2
8 968700-004 SCREW.......................................................................................... 2
9 968700-007 SCREW.......................................................................................... 2
10 662316-001 FAN BAFFLE ................................................................................. 1
11 662318-001 WIRE CLAMP ................................................................................ 2
12 623019-004 RUBBER PLUG ............................................................................. 1
13 662315-003 PLATEN ......................................................................................... 1
14 662317-001 CUSHION ...................................................................................... 1
15 999306-009 SCREW.......................................................................................... 4
16 968304-059 BRUSH ASSEMBLY...................................................................... 2
17 612255-002 BRUSH TUBE................................................................................ 2
18 968307-092 FIELD............................................................................................. 1
19 968305-030 BALL BEARING............................................................................. 2
20 663153-001 DUST TRAP ADAPTER ................................................................ 1
21 969533-002 FILTERFLO DUST TRAP............................................................ 1
22 967917-001 CORD CLAMP ............................................................................... 1
23 662778-001 CORD ............................................................................................ 1
24 662341-013 LOGO PLATE ................................................................................ 1
25 063603-331 CUSHION POST............................................................................2
26 968306-093 ARMATURE (INCLUDES KEY NOS. 19 AND 30) ........................ 1
27 662637-001 FAN WITH BEARING (INCLUDES KEY NOS. 28 AND 29) ......... 1
28 662314-001 FLANGED WASHER ..................................................................... 1
29 968305-029 BALL BEARING............................................................................. 1
30 622167-014 RETAINING RING ......................................................................... 1
31 *** SANDPAPER
32 662447-001 PAPER PUNCH............................................................................. 1
33 662870-001 DUST SHIELD ............................................................................... 1
612547-952 OWNER’S MANUAL
1-97
*** STANDARD HARDWARE ITEM — MAY BE PURCHASED LOCALLY
