Page 1

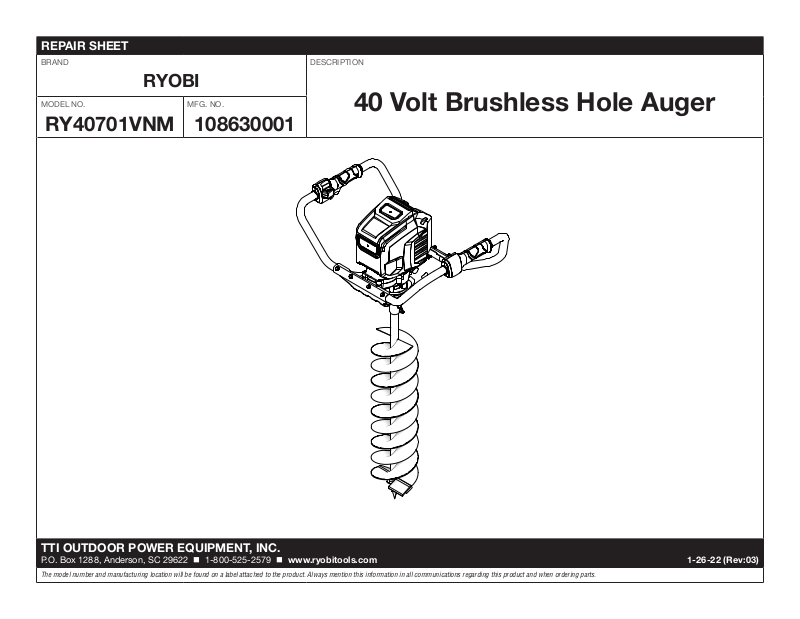

REPAIR SHEET
BRAND
DESCRIPTION
RYOBI
MODEL NO.
RY40701VNM
MFG. NO.
108630001

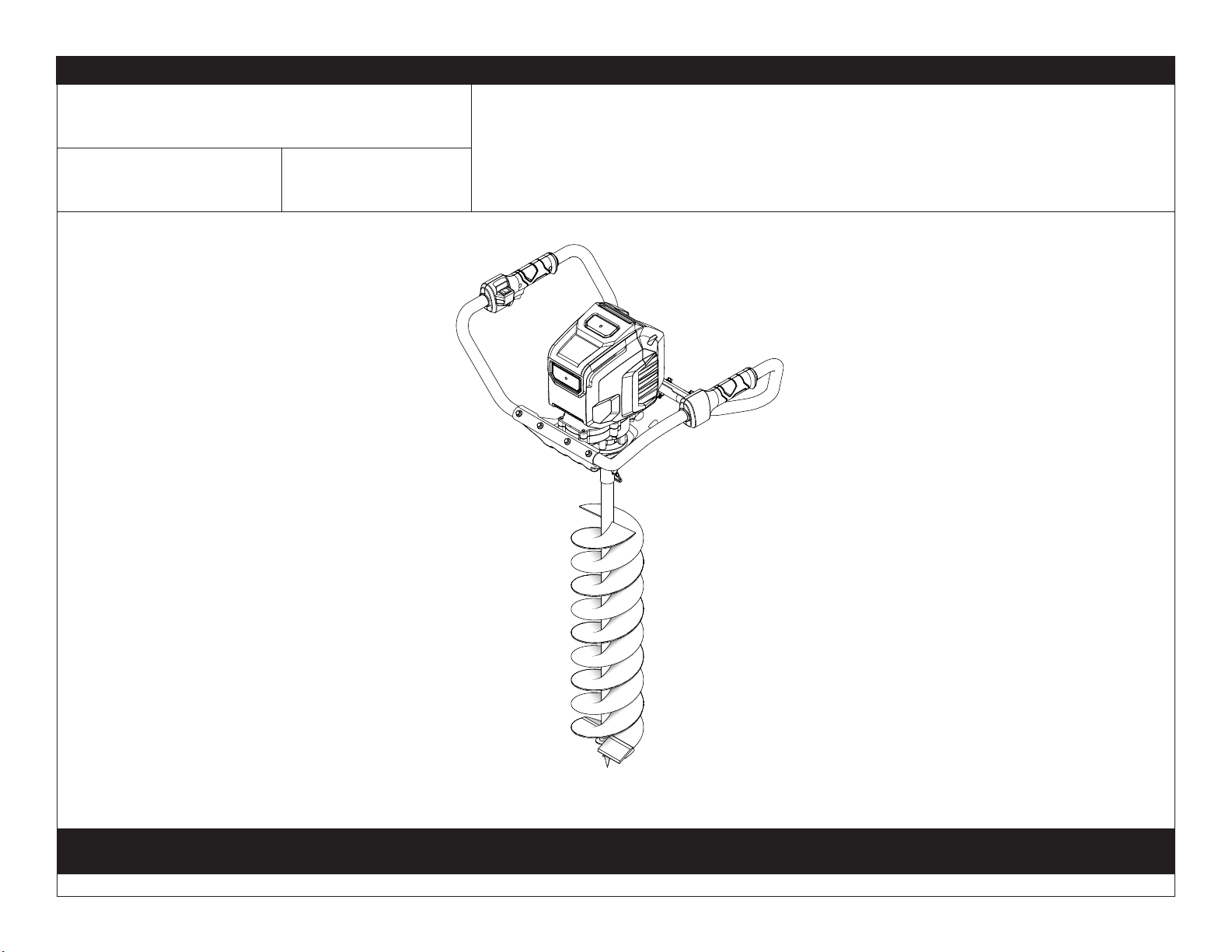

40 Volt Brushless Hole Auger
TTI OUTDOOR POWER EQUIPMENT, INC.
P.O. Box 1288, Anderson, SC 29622 1-800-525-2579 www.ryobitools.com 1-26-22 (Rev:03)
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
Page 2
RY40701VNM

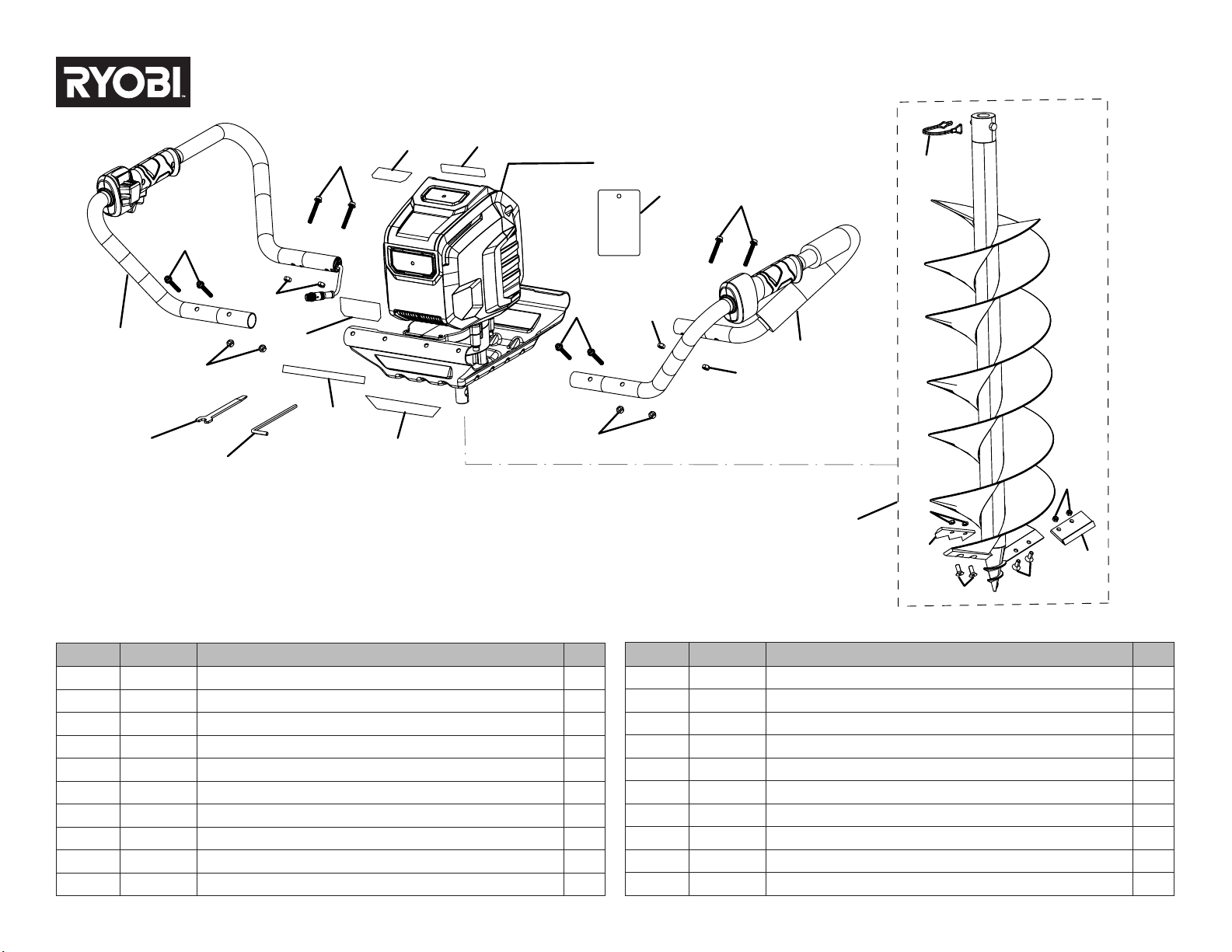

FIGURE A
12
4
4
3
7
3
2
1
9
11
10
8
SEE FIGURE B
14
13
4
3
3
4
6
3
18
5
18
16
17
15
17
PARTS LIST — FIGURE A
KEY NO. PART NO. DESCRIPTION QTY.
1 639850001 Hex Key 1
2 639255001 Combination Wrench 1
3 678029002 Hex Nut (M6) 8
4 660481031 Screw (M6, Hex Hd.) 8
5 682486001 Auger (Inc. Key Nos. 14-17) 1
6 317209001 Handlebar Assembly (Left) 1
7 317210001 Handlebar Assembly (Right) 1
8 941588763 LED Label 1
9 941588759 RYOBI Logo Label 1
10 941588758 Data Label 1
KEY NO. PART NO. DESCRIPTION QTY.
11 941588757 Icon Label 1
12 941588761 Brushless Logo Label 1
13 918013099 Instruction Hang Tag 1
14 674269001 Safety Clip 1
15 682563001 Flat Blade Tip 1
16 682565001 Serrated Tip 1
17 663138001 Screw 4
18 678292002 Nut 4
Not Shown:
998000275 Operator’s Manual
2
Page 3
RY40701VNM

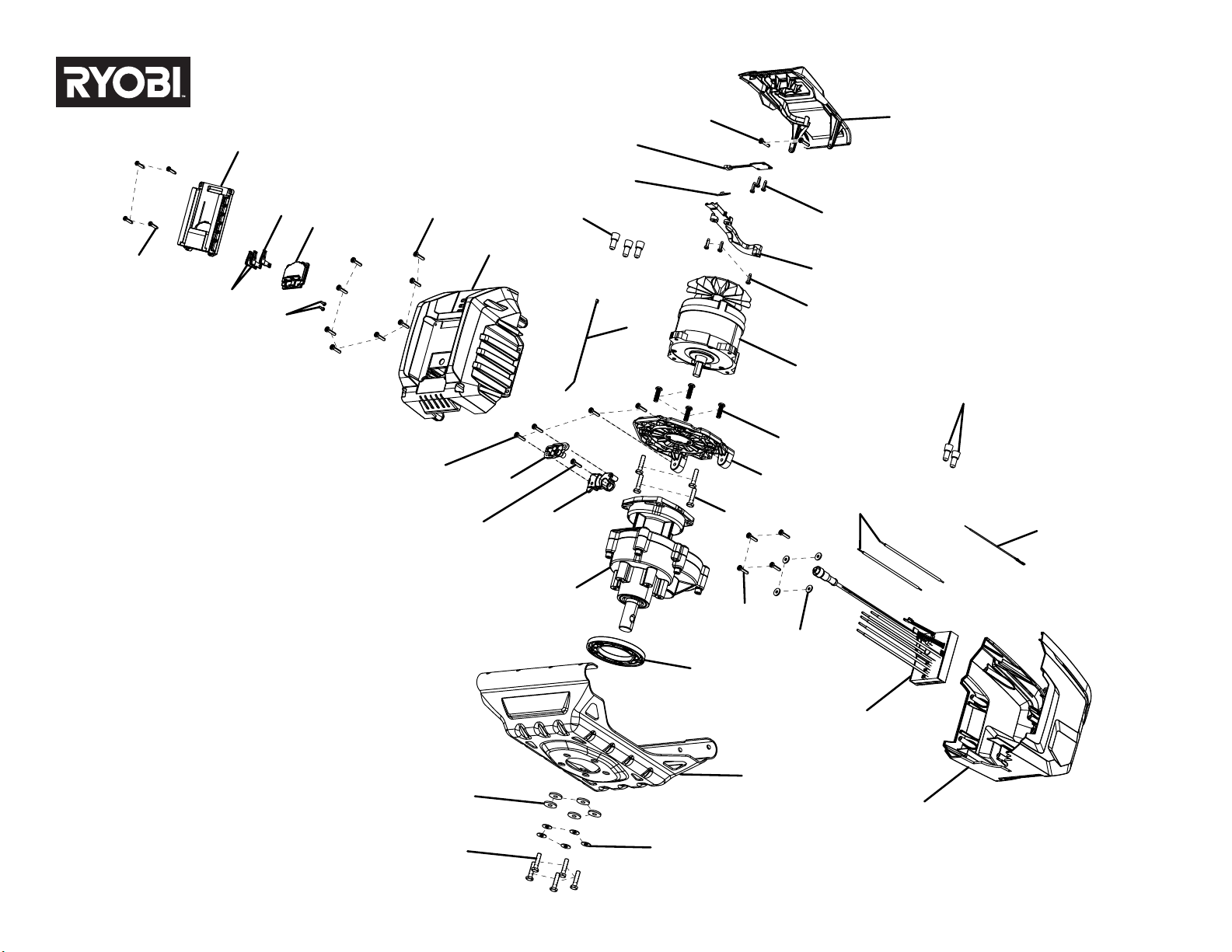

FIGURE B
18
13
20
21
11
17
29
9
12
11
11
11
31
27
4
22
14
8
15
3
26
3
28
6
30
4
24
1
15
16
11
5
19
7
23
2
10
3
25
Page 4
RY40701VNM
PARTS LIST — FIGURE B
KEY NO. PART NO. DESCRIPTION QTY.
1 292273001 Wire Assembly 1
2 542043001 Isolation Bushing 5
3 661817001 Screw (M4 x 14 mm) 6
4 870601002 Close-End Connector 5
5 678125001 Flat Washer (ID4.3 x OD12 x 1.5t) 4
6 660697002 Bolt (M6 x 20 mm, Torx Hd.) 4
7 281020006 Motor Controller 1
8 542135001 Cable Strain Relief Base 1
9 658139002 Battery Connection Terminal 1
10 638557001 Washer (ID6.2 x OD15 x 0.8t) 5
11 660466001 Screw (M4 x 18 mm) 19
12 532760002 Common Foot Cover 1
13 658139001 Battery Connection Terminal 2
14 542091001 Motor Mounting Bracket 1
15 660722002 Hex Bolt (M6) 9
16 220709001 Gear Box 1
KEY NO. PART NO. DESCRIPTION QTY.
17 281170001 Gyro Circuit Board Assembly 1
18 662028001 Screw (M4 x 16 mm) 4
19 542044001 Isolation Ring 1
20 535110004 Battery Foot Adapter 1
21 660203001 Screw (M3 x 8 mm, Pan Hd.) 2
22 790003001 Cable Tie 1
23 659593001 Base Plate 1
24 292249001 Wire Assembly 1
25 542024001 Front Housing 1
26 542137001 Wire Retainer 1
27 542134001 Cable Strain Relief Top 1
28 742710001 Motor 1
29 281208003 Circuit Board LED 1
30 542026001 Top Housing 1
31 542025001 Rear Housing 1
4
Page 5
RY40701VNM
1
2
4

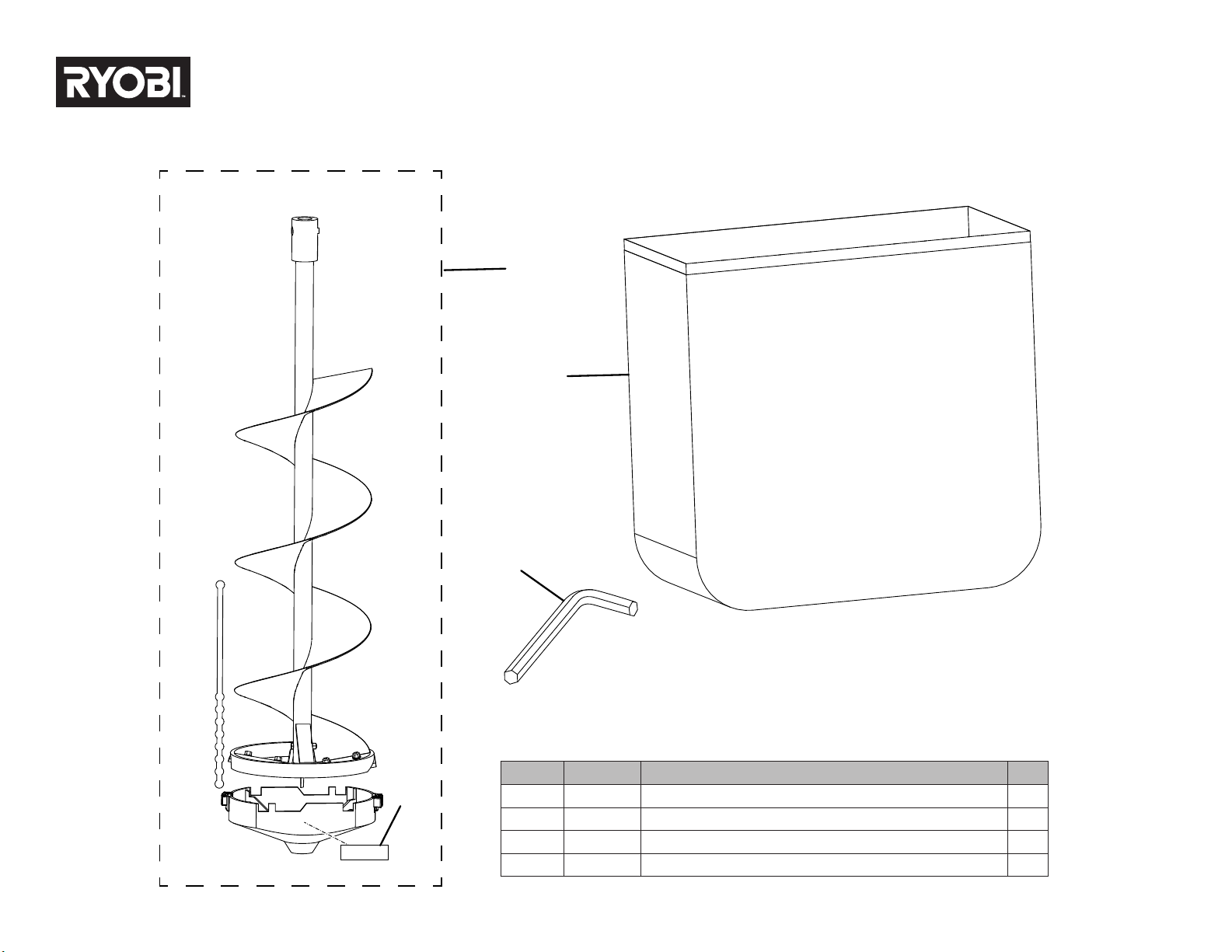

OPTIONAL ICE AUGER ATTACHMENT (MODEL NO. AC8ICE)
KEY NO. PART NO. DESCRIPTION QTY.
3
1 682528001 Ice Auger 1
2 906045001 Protective Packing Bag 1
3 941031009 Cover Icon Label 1
4 697827001 Hex Key (6 mm) 1
5
Page 6
MOTOR
RY40701VNM
WIRE
CONNECTORS
BLUE

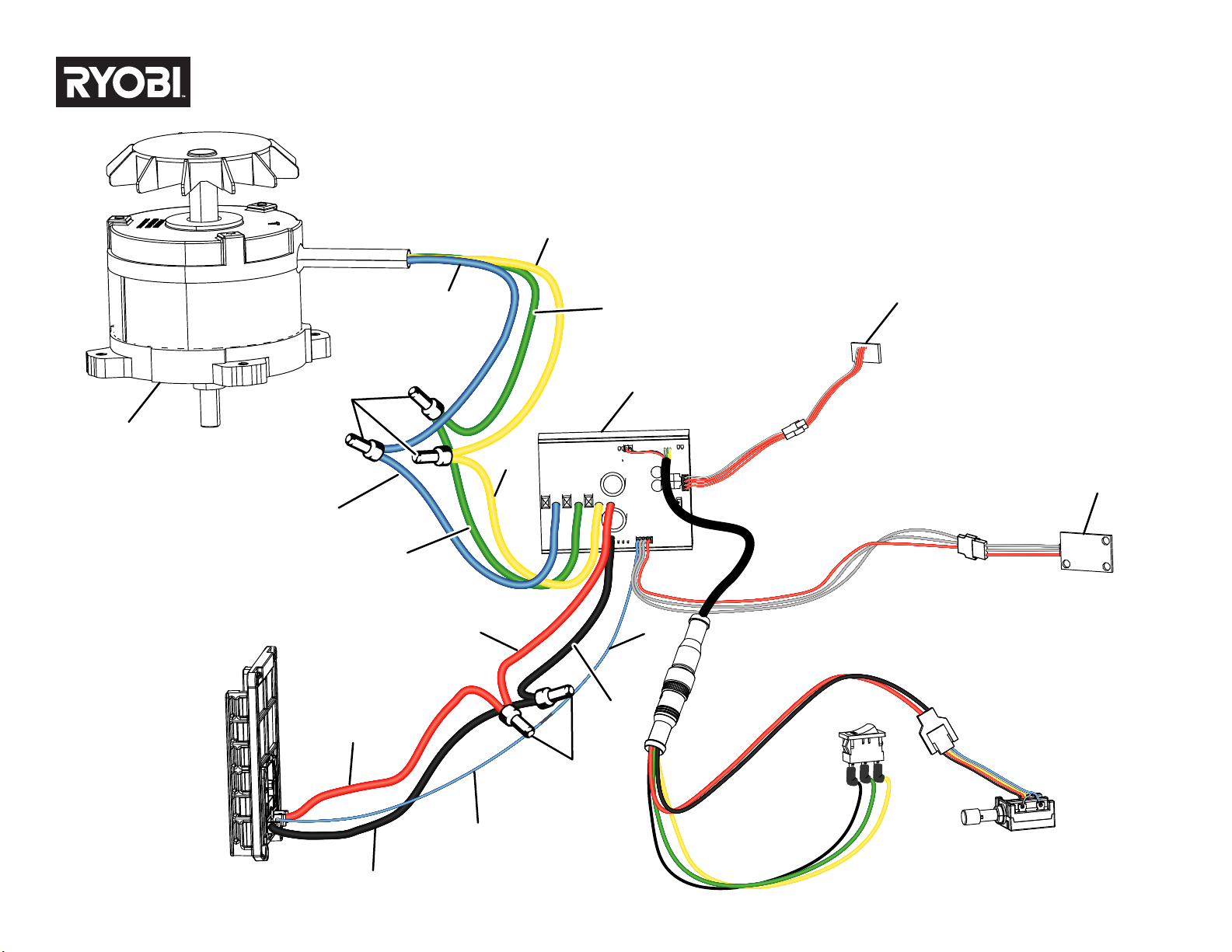

WIRING DIAGRAM
YELLOW
LED
CIRCUIT BOARD
GREEN
MOTOR
CONTROLLER
BATTERY
FOOT
BLUE
RED
BLACK
GREEN
YELLOW
RED
BLUE
BLACK
WIRE
CONNECTORS
GYRO
CIRCUIT BOARD
BLUE
FORWARD/
REVERSE
SWITCH
VARIABLE
SPEED
SWITCH
6
