Page 1
RBC36X26E
RBC36X26E
RPW130XRB
ORIGINAL INSTRUCTIONS
High Pressure
Cleaner
RPW130XRBB
Page 2
Important!
It is essential that you read the instructions in this manual before assembling,
maintaining, and operating the product.
Subject to technical modification.
Page 3
Safety, performance, and dependability have
been given top priority in the design of your
electric high pressure cleaner.
INTENDED USE
The electric high pressure cleaner is intended
only for outdoor use. For safety reasons,
the product must be adequately controlled
by using two-handed operation. It should be
used in well-illuminated conditions.
The product is designed for home or domestic
use. It is intended to clean machines, vehicles,
buildings, oors, tools, facades, terraces,
oors, and concrete walkways by removal of
stubborn dirt using clean water with or without
cleaning detergent.
The product can be used with turbo nozzle,
spray nozzle, wash brush, and surface
cleaner. The turbo nozzle is used for normal
cleaning. The spray nozzle is used for
cleaning surfaces that require spraying or with
the use of detergent. The wash brush is used
for effective cleaning of cars, bikes, or other
items that require spraying or with the use
of detergent. The surface cleaner is used for
cleaning and brushing surfaces.
Do not use the product for any other purpose.
WARNING
The product is designed for use with a neutral
cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning
agents or chemicals may adversely affect
the safety of the product.
GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury.
■ The product is not intended for use by
children or persons with reduced physical,
sensory, or mental capabilities, or lack
of experience and knowledge. Children
should be adequately supervised to ensure
they do not play with the product.
■ Wear a complete personal protective
equipment when operating the product,
such as boots, safety gloves, safety
helmets with visor, and hearing protection.
Use high-impact visors only with liquid
splash protection.
CAUTION
The product must not be used on the
drinking water supply without a backow
preventer being installed that corresponds to
EN 12729 Type BA. Water owing through
a backow preventer is considered nondrinkable. Always observe the regulations
of your local water utility company when
connecting the product to a water supply
line.
WARNING
Do not use the product when people are
within range, unless they wear protective
clothing.
To reduce the risk of injury, keep children and
visitors away. All visitors should wear safety
glasses and be kept at a safe distance from
the work area.
■ Inspect the safety devices, such as safety
valves, flow switches, and pressure
switches to check if they are in good
working condition. Make sure all safety
devices are operating properly before each
use:

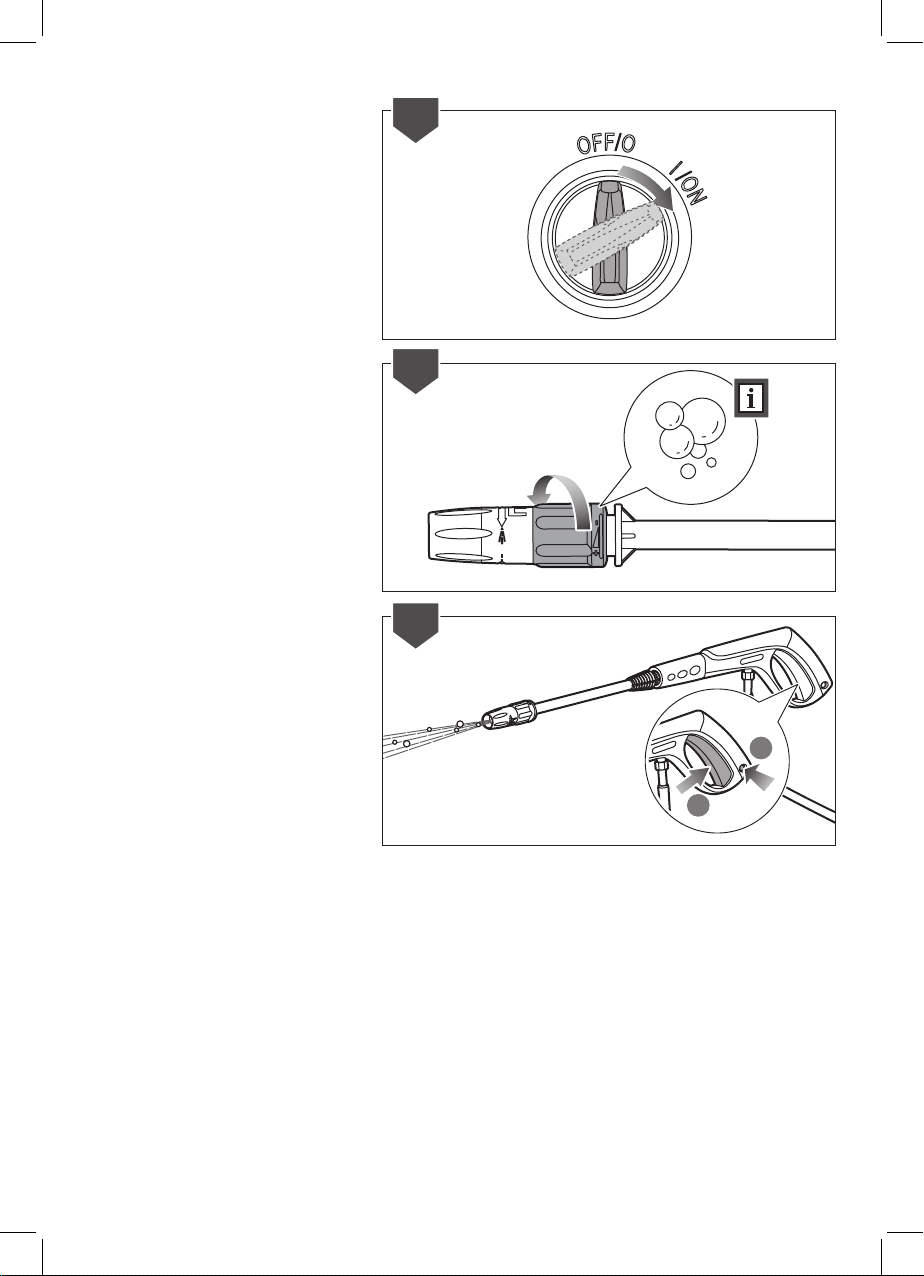

● On/Off switch
– The on/off switch prevents
unintentional operation of the
product.
● Trigger handle lock
– The trigger handle lock locks the
trigger and prevents unintentional
opening of the high-pressure jet.
● Overflow valve with pressure switch
– The overflow valve prevents the
permissible working pressure from
being exceeded. If the lever on the
trigger gun is released, the pressure
switch turns off the pump and the
high-pressure jet stops. If the lever is
pulled, the pump turns on again.
● Motor protection switch
– The motor protection switch
switches off the device if the power
consumption is high.
■ Do not use the product if the important
parts are damaged, such as safety devices,
1
Page 4
high-pressure hoses, or trigger gun.
■ Exercise caution when opening the trigger.
Hold the handle firmly with two hands to
avoid injury when the handle kicks back.
WARNING
During use of high pressure cleaners,
aerosols may be formed. Inhalation of
aerosols can be hazardous to health.
WARNING
Depending on the application, shielded
nozzles can be used for high-pressure
cleaning, which will reduce the emission
of hydrous aerosols. However, not all
applications allow the use of such a device.
If shielded nozzles are not applicable for the
protection against aerosols, a respiratory
mask of class FFP 2 or equivalent may
be needed, depending on the cleaning
environment.
■ Always stop the product when you leave it
unattended.
■ High-pressure jet is dangerous if misused.
Do not direct the jet to people, live electrical
equipment, or the product itself.
■ To avoid a risk of explosion, do not spray
flammable liquids.
■ Do not direct the jet against yourself or
others in order to clean clothes or footwear.
■ Do not use the product to clean electronic
devices, clothes, or footwear.
■ High-pressure hoses, fittings, and couplings
are important for the safety of the product.
Use only hoses, fittings, and couplings
recommended by the manufacturer.
ELECTRICAL SAFETY WARNINGS
■ The plug must match the outlet. Never
modify the plug in any way. Unmodified
plugs and matching outlets reduces the
risk of electric shock.
■ Do not use the product if the power cord
or other important parts, such as safety
devices, are damaged.
■ Check the power cord and the extension
cord for damage before each use. If
the power cord or the extension cord
is damaged, it must be replaced by the
manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
■ Keep the power cord away from heat, oil,
and sharp edges.
■ Never touch the mains plug and the socket
with wet hands.
■ Inadequate extension cords can be
dangerous. If an extension cord is used,
it shall be suitable for outdoor use, and
the connection has to be kept dry and off
the ground. Use a cord wheel to keep the
socket at least 60 mm above the ground.
■ The electric supply connection must
be made by a qualified electrician and
must comply with IEC 60364-1. It is
recommended that the electric supply to
the product should include either a residual
current device that interrupts the supply if
the leakage current to earth exceeds 30
mA for 30 ms or a device that proves the
earth circuit.
ADDITIONAL SAFETY WARNINGS
■ Some regions have regulations that restrict
the use of the product in some operations.
Check with your local authority for advice.
■ Before each use, check for damage.
A damaged high-pressure hose must
be replaced immediately. Ensure all
connections, such as high-pressure hose
and nozzle, are secure. Unwind the hose
properly so they may not get twisted or
kinked.
■ Do not allow children or untrained
individuals to use the product.
■ Before starting any cleaning operation,
close doors and windows. Clear the area
to be cleaned of debris, toys, outdoor
furniture, or other objects that could create
a hazard.
■ Never pick up or carry the product while the
motor is running.
■ Do not use the product in temperatures
below 0°C.
■ Do not use acids, alkalines, solvents,
flammable material, bleaches, or industrial
grade solutions in the product. These
products can cause physical injuries to the
operator and irreversible damage to the
product.
■ Always operate the product on a level
surface.
2
Page 5
WARNING
High-pressure jet can be dangerous if
subject to misuse. The jet must not be
directed to people, animals, electrical
devices, or the product itself.
■ Hold the trigger handle securely with both
hands. Expect the handle to move when
the trigger is pulled due to reaction forces.
Failure to do so could cause loss of control
and injury to yourself and others.
■ Make sure that the air in the hose and pump
is released before you turn on the product.
To remove the air in the hose and pump,
connect the water supply to the pump
using a garden hose, connect the trigger
handle to pump using the high-pressure
hose, disengage the trigger handle lock,
and press the trigger until there is a steady
flow.
■ Exercise caution to avoid slipping or falling.
■ Keep firm footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■ Use only accessories that are
recommended by the manufacturer. The
use of improper accessories may cause
injury.
■ Never leave the product running
unattended. Turn off the product. Do
not leave the product until it comes to a
complete stop.
■ Be familiar with the controls. Know how to
stop the product and bleed the pressure
quickly.
■ Stay alert and exercise control. Watch what
you are doing and use common sense.
■ Do not use the product while tired, ill, or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating the product may result in serious
personal injury.
■ Do not use the product if the switch does not
turn it on and off. Any product that cannot
be controlled with a switch is dangerous
and must be repaired.
■ Keep a minimum distance of 30 cm when
cleaning vehicles. The high-pressure jet
may damage or burst vehicle tires and/or
tire valves.
■ Use a garden hose with a maximum length
of 15 m and minimum diameter of 18 mm
(3/4 in.).
■ Before each use, ensure that the accessory
is securely attached to the trigger gun.
OVERLOAD PROTECTION
The product has an overload protection device
that is activated when overheating or when a
current spike occurs, automatically shutting
down power within the product. To resume
operation, disconnect the product from the
power supply, wait for about 15 minutes and
reconnect the product to the power supply.

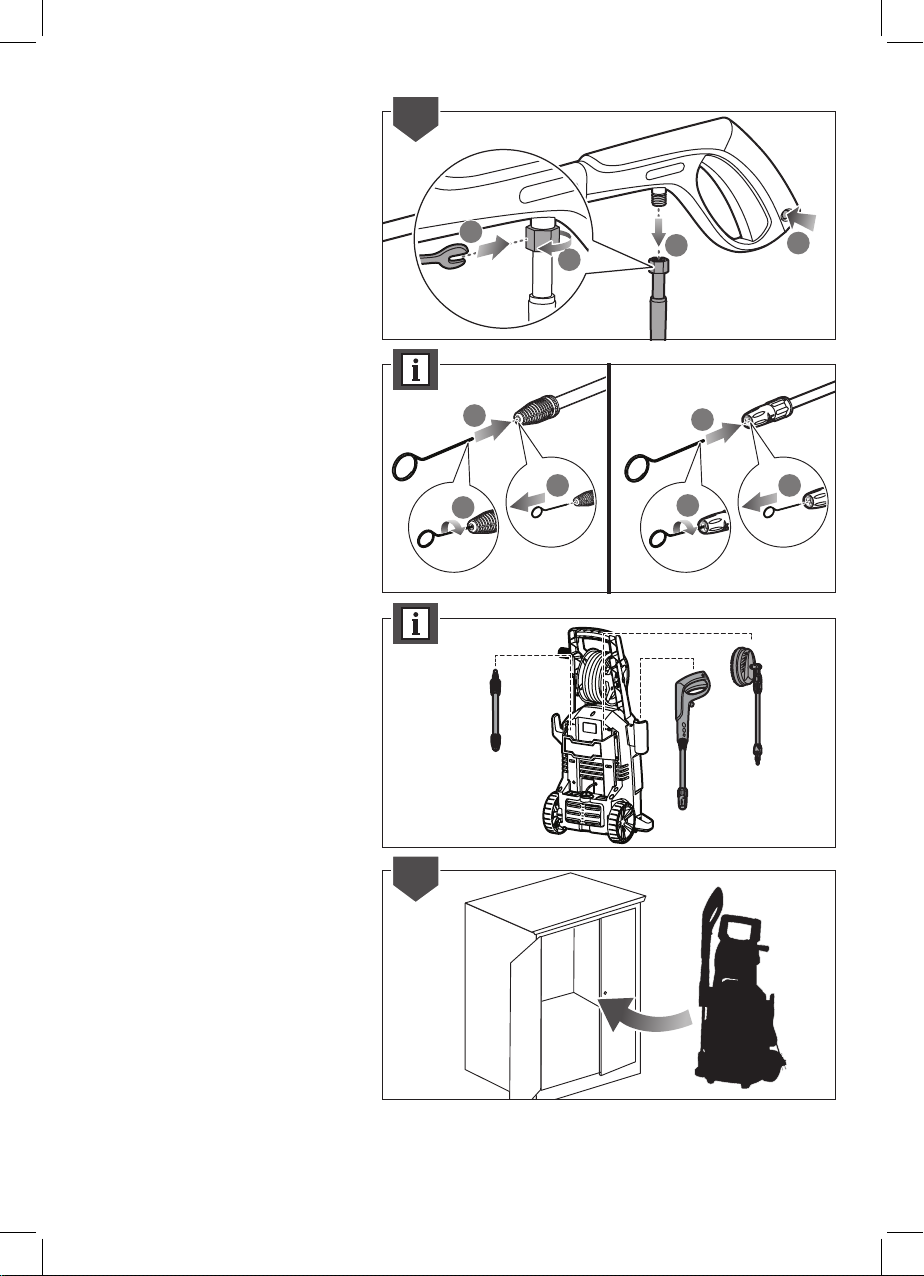

TRANSPORTATION AND STORAGE
CAUTION
Mind the weight of the product when
selecting the storage location and during
transportation to prevent accidents or
injuries.
■ Stop the product, disconnect from the
power supply, and allow the product to cool
down. Disconnect the product from the
water supply before storing or transporting.
Never place the product in any position
other than upright.
■ Remove water from all hoses and the
pump, and empty the detergent tank before
storing the product.

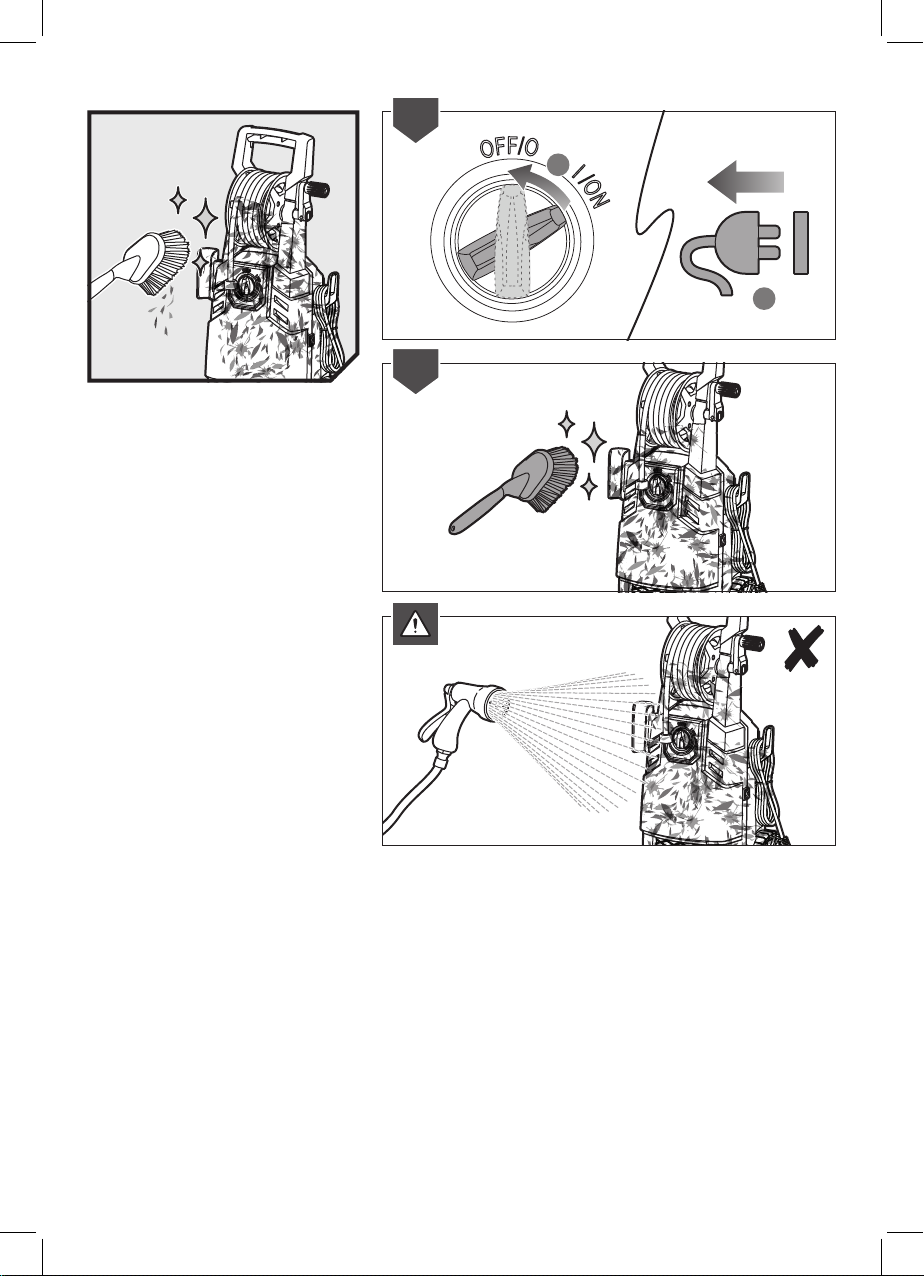

■ Clean all foreign materials from the product.
Store it in a cool, frost-free, dry, and wellventilated place that is inaccessible to
children. Keep the product away from
corrosive agents such as garden chemicals
and de-icing salts. Do not store the product
outdoors.
■ For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
WARNING
Store the product indoor only. Storing in
an area with temperature below 0°C will
damage the product.
3
Page 6
MAINTENANCE
WARNING
Use only original manufacturer’s
replacement parts, accessories, and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
WARNING
Servicing requires extreme care and
knowledge and should be performed only
by a qualied service technician. Have the
product serviced by an authorised service
centre only. When servicing, use only
original replacement parts.
■ Stop the product, disconnect from the
power supply, and allow the product to cool
down. Disconnect the product from the
water supply:
● before cleaning the product
● before maintaining the product
● before replacing spare parts
■ You may make adjustments or repairs
described in this manual. For other repairs,
contact an authorised service centre.
■ Regularly inspect and maintain the high
pressure cleaner for safe operation. RYOBI
recommends inspecting the product every
6 months.
■ Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure the
product is in safe working condition. Any
part that is damaged should be properly
repaired or replaced by an authorised
service centre.
RESIDUAL RISKS
Even when the product is used as prescribed,
it is still impossible to completely eliminate
certain residual risk factors. The following
hazards may arise during use and the
operator should pay special attention to avoid
the following:
■ injury caused by vibration
– Hold the product by the designated
handles and restrict working time and
exposure.
■ injury caused by flying debris
– Wear eye protection at all times.
■ injury caused by exposure to noise
– Wear hearing protection and limit
exposure.
RISK REDUCTION
It has been reported that vibrations from
handheld tools may contribute to a condition
called Raynaud’s Syndrome. Symptoms may
include tingling, numbness, and blanching of
the ngers, usually apparent upon exposure
to cold. Hereditary factors, exposure to cold
and dampness, diet, smoking, and work
practices are all thought to contribute to the
development of these symptoms. There are
measures that can be taken by the operator to
possibly reduce the effects of vibration:
■ Keep your body warm in cold weather.
When operating the product, wear gloves
to keep the hands and wrists warm. It is
reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■ After each period of operation, exercise to
increase blood circulation.
■ Take frequent work breaks. Limit the
amount of exposure per day.
If you experience any of the symptoms of this
condition, immediately discontinue use and
see your physician.
WARNING
Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure to take
regular breaks.
KNOW YOUR PRODUCT
See page 7.
1. Handle
2. Hose rotating handle
3. High-pressure hose
4. On/off switch
5. Power cord holder
6. Power cord
7. Wheel
8. Soap tank
9. Turbo lance
10. Surface cleaner
11. Rotary brush
12. Multi-purpose brush
13. Nozzle cleaning tool
14. Water inlet filter
15. Water inlet port
16. Water outlet port
17. Vario lance
4
Page 7
18. Trigger handle holder
95
19. Trigger gun inlet
20. Trigger
21. Trigger handle lock
NOTE: If using detergent, refer to the Material
Safety Data Sheet of the detergent.

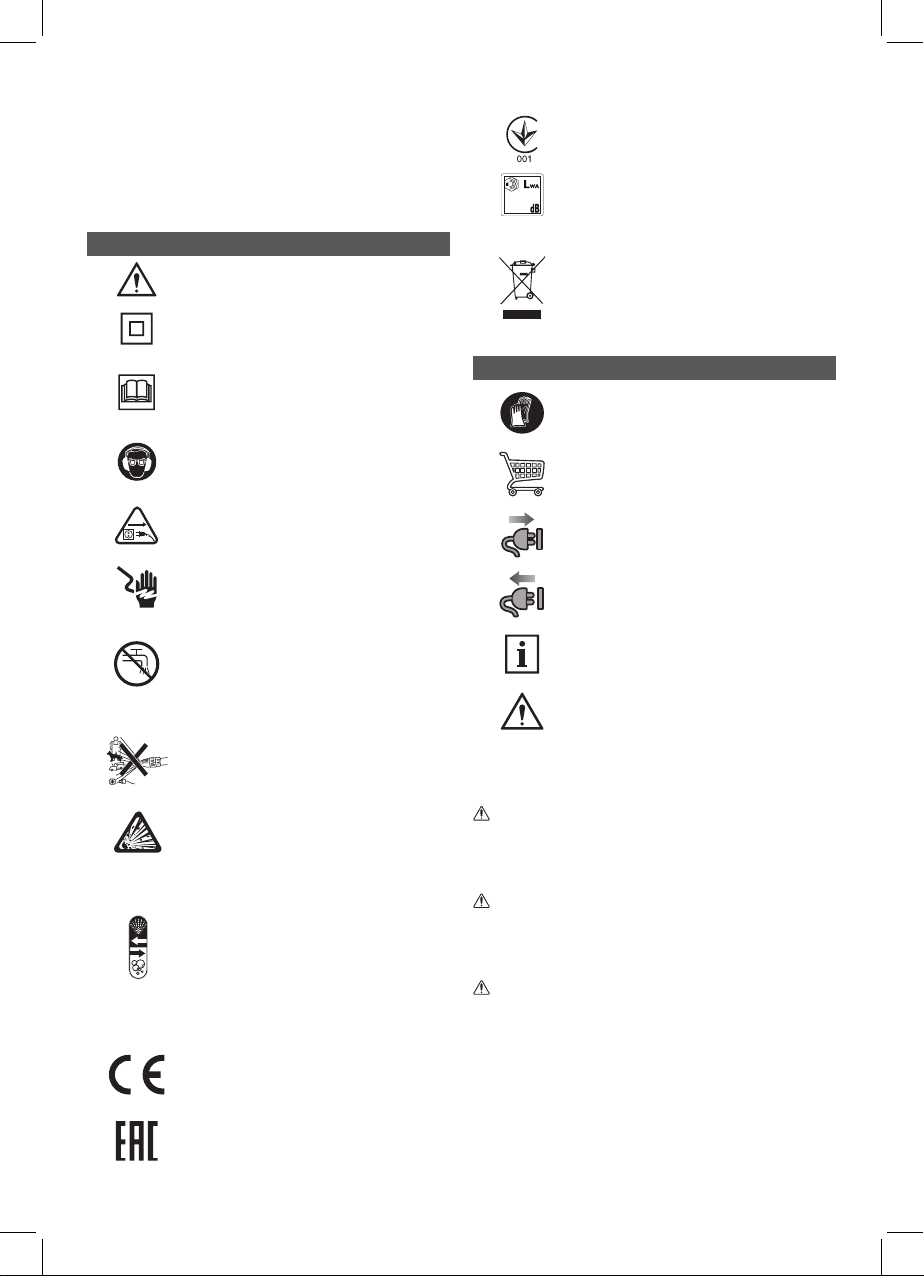

SYMBOLS ON THE PRODUCT
Warning
Class II tool, double insulation
To reduce the risk of injury, the
user must read and understand
operator’s manual before using
this product.
Wear eye and hearing
protection.
Remove plug from the mains
immediately if cable is damaged
or cut.
Ukrainian mark of conformity
Guaranteed sound power level
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your local authority
or retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Wear non-slip, heavy-duty,
protective gloves when
handling.
Parts or accessories sold
separately
Connect to power outlet.
Electrical shock hazard
The product is not suitable
for connection to the drinking
water mains without backow
preventer.
Never point the spray wand to
people, animals, the body of the
product, power supply, or any
electric appliances.
Burst hazard
Turn the bottom portion of the
nozzle to the left to increase
water pressure, or to the right to
decrease water pressure.
Turn the bottom portion of the
nozzle all the way to the right to
activate low pressure mode for
foaming/detergent.
Conforms to all regulatory
standards in the country in
the EU where the product is
purchased.
EurAsian Conformity Mark
Disconnect from power outlet.
Note
Warning
The following signal words and meanings
are intended to explain the levels of risk
associated with this product.
DANGER
Indicates an imminently hazardous
situation, which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation,
which, if not avoided, could result in death
or serious injury.
CAUTION
Indicates a potentially hazardous situation,
which, if not avoided, may result in minor or
moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in
property damage.
5
Page 8
x 1
x 1
x 1
x 1
x 1
RPW130XRBB
x 1
x 1
x 1 x 1 x 1
x 1 x 1 x 1
x 1
x 2
x 1
x 1 x 1
x 1
6
Page 9
21
20
19
1
2
3
4
18
17
16
15
5
6
7
8
11
10
914 13 12
7
Page 10
1 2
1
2
1
2
3
9
8
10
Page 11

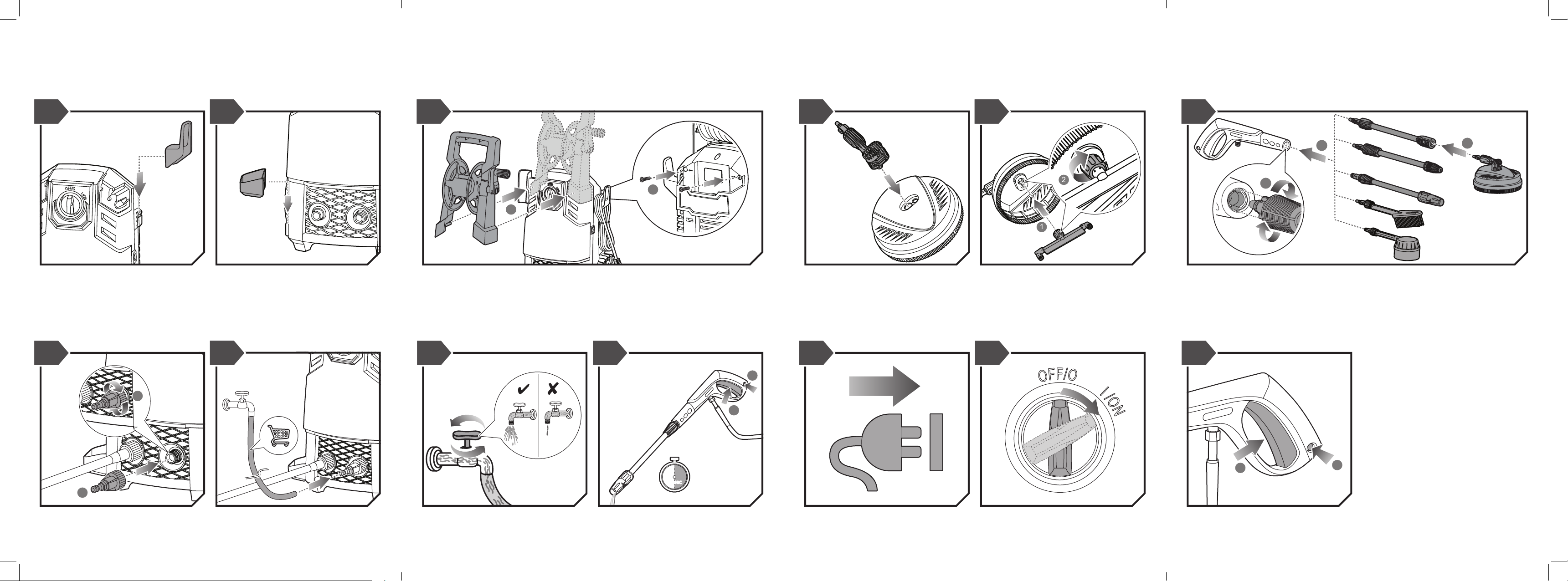

1
2
30 sec
1
2
43
1
2
1
2
1
2
3
2
1
5
6 7
8
11
12
13 14
15 16
17
9
Page 12
10
Page 13
p.12 p.14 p.15
p.19p.16 p.18
11
Page 14
1
1
2
2
1
2
1
2
3
1
2
3
4
12
Page 15
13
Page 16

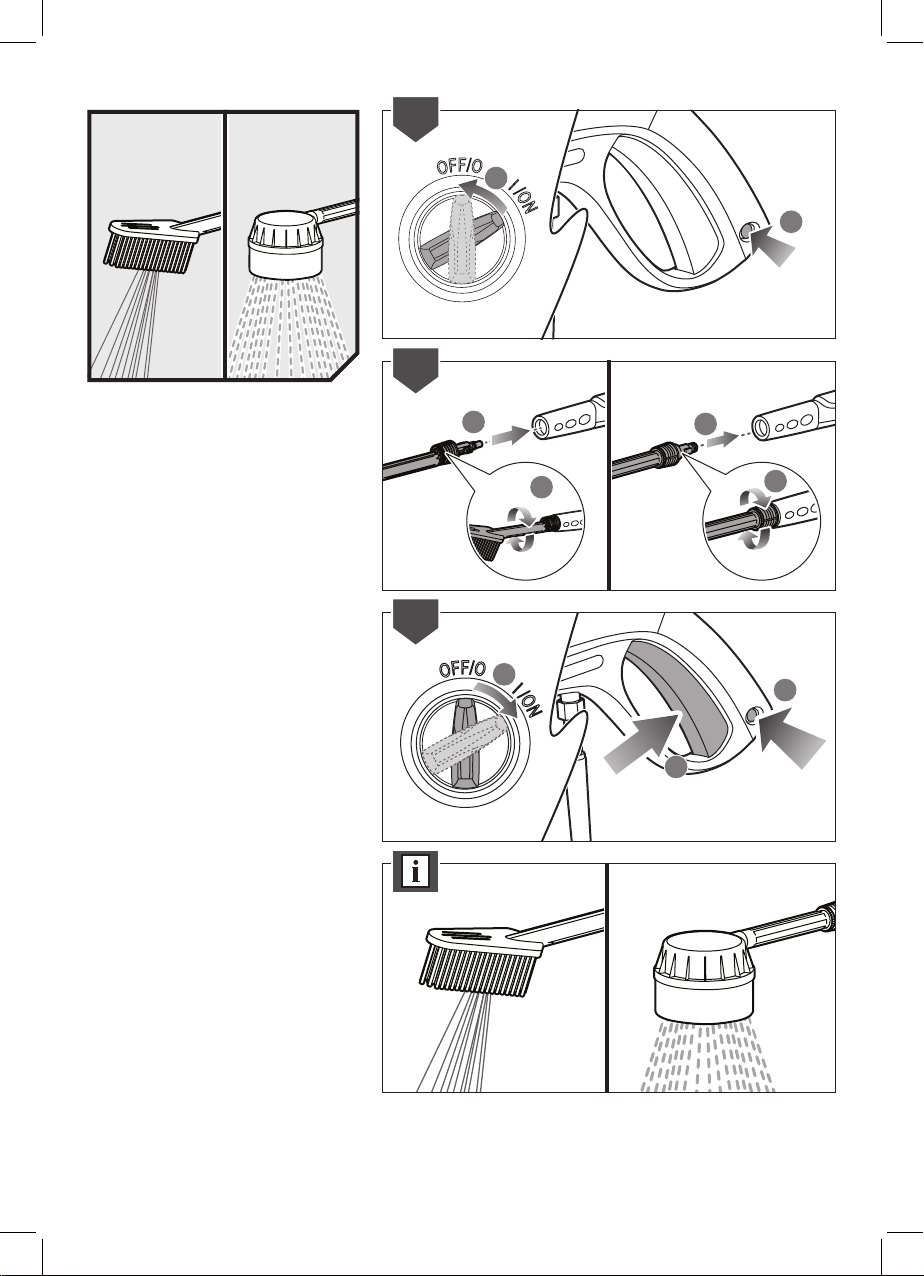

1
1
2
2
1
2
1
2
3
1
3
2
14
Page 17
1
1
2
2
4
3
1
2
3
1
2
4
15
Page 18
1
1
2
3
2
3
2
1
16
4
1
2
Page 19
5
6
7
1
2
17
Page 20
1
1
2
2
18
Page 21
1
1
2
2
3
2
1
4
3
4
2
1
19
Page 22
5
2
3
1
3
2
4
1
2
1
3
20
6
20200715v9
Page 23
TROUBLESHOOTING
Problem Possible causes Solution
Pump sucking air Bring the product to an authorised service
Fluctuating
pressure
Product stops
Product
pulsating
Product starts,
but no water
comes out
No detergent
Valves dirty, worn out or
stuck
Pump seals worn out Clean and replace or refer to local distributor.
Thermal sensor activated Leave the cleaner for 15 minutes to cool down.
Nozzle partially blocked Clean the nozzle.
Air in inlet hose/pump Allow the product to run with open trigger until
Inadequate supply of
mains water
Nozzle partially blocked Clean the nozzle.
Water lter blocked Clean the lter.
Hose kinked Straighten out hose.
Pump/hoses or accessory
frozen
No water supply Connect the water inlet port to a water supply.
Water lter blocked Clean the lter.
Nozzle blocked Clean the nozzle.
Nozzle adjusted to high
pressure
centre for service or repair.
Bring the product to an authorised service
centre for service or repair.
regular working pressure resumes.
Check that the water supply corresponds to
the specications required (see model tag).
Avoid using long, thin hoses.
Wait for pump/hoses or accessory to thaw.
Adjust to low pressure.
Page 24
PRODUCT SPECIFICATIONS
Electric High Pressure Cleaner
Model RPW130XRB/RPW130XRBB
Rated voltage
Frequency
Power
Maximum pressure
Rated pressure
Degree of protection
Rated ow
Max. ow
Max. inlet water pressure
Detergent tank
Power cord length
Sound pressure level (LPA)
(in accordance with EN
60335-2-79)
Uncertainty
Sound power level (LWA)
(in accordance with EN
60335-2-79)
Uncertainty
Vibration value (in
accordance with EN
60335-2-79)
Weight
Maximum garden hose
length
Minimum garden hose
diameter
220 - 240 V
50 Hz
1800 W
13 MPa (130 bar)
10 MPa (100 bar)
IPX5
6.0 L/min
6.3 L/min
0.7 MPa (7 bar)
1.0 L
5 m
79 dB(A)
3 dB
92 dB(A)
3 dB
2
< 2.5 m/s
8.9 kg
15 m
18 mm (3/4 in.)
RAC742 Angled Turbo Lance
RAC743 Extension Lance
RAC744 Water Inlet Filter
RAC745 Rotary Brush
RAC746 Pipe Cleaning Hose
RAC747 Syphoning Kit
NOTE: * Compatible adaptor for KÄRCHER
pressure cleaner accessories. KÄRCHER is a
registered trademark of Alfred Kärcher GmbH
& Co. KG.
NOTE: Check the specication of the
accessory part if it matches the specications
of the RYOBI high pressure cleaner.
VIBRATION LEVEL
The declared vibration value has been
measured with a standard test method and
may be used to compare one tool with another.
The declared vibration value may be used in a
preliminary assessment of exposure.
The vibration emission during actual use of
power tool can differ from the declared total
value depending on the ways in which the tool
is used.
Identify safety measures to protect yourself
based on an estimation of exposure in the
actual conditions of use, taking account of all
parts of the operating cycle such as the times
when the tool is switched off and when it is
running idle in addition to the trigger time.
ACCESSORIES
RAC719 Surface Cleaner
RAC720 Horizontal Brush
RAC726 Foam Jet Connector
RAC731 Stone Detergent
RAC732 Foam Detergent
RAC733 Universal Detergent
RAC734 Wood Detergent
RAC736 Trigger Gun
RAC737 Vario Lance
RAC738 Turbo Lance
RAC739 Steel-Armed Hose
RAC740 * Karcher Adapter
RAC741 Surface Scrubber
Page 25
RYOBI® WARRANTY APPLICATION CONDITIONS
In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.
1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date
has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer
and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies
only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period
described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended
warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The
end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The
end user may register for the extended warranty in his/her country of residence if listed on the online registration form
where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is
required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt,
which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended
warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at
the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations
including but not limited to incidental or consequential damages. The warranty is not valid if the product has been
misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty
does not apply to:
– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or
removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior
authorisation by Techtronic Industries
– any product connected to an improper power supply (amps, voltage, frequency)
– any product used with inappropriate fuel mixture (fuel, oil, Ratio of oil / fuel mixture)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting
lines etc.
– Any periodic adjustments to or maintenance cleaning of carburetors
– Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs,
drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord,
tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw
chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark
plugs, air filters, gas filters, mulching blades, etc.
4. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the
following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product
to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely
packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short
description of the fault.
5. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the
warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage
will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
6. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia.
Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.
Page 26
AUTHORISED SERVICE CENTRES
ACD PLANT LTD
145 Southbank Road
Coundon
Coventry, West Midlands
CV6 1FG
Phone: 02476 594348
Email: [email protected]
Web: www.acdplant.co.uk
CBS Power Tools Limited
Unit 4, V P Square
Storeys Bar Rd, Fengate
Peterborough, Cambridgeshire
PE1 5YS
Phone: 01733 343031
Email: [email protected]
Web: www.cbspowertools.com
C D Powertools
76 Old Road
Churwell Morley, Leeds
LS27 7TH
Phone: 0113 2718494
Email: [email protected]
Web : www.cdpowertools.co.uk
C J Sinclair Limited
44 Victoria Road
St Peters
Broadstairs, Kent
CT10 2UG
Phone: 01843 869400
Email: [email protected]
Web: www.cjsinclairltd.co.uk
ToolTech Industrial Equipment
227 E Dunhill Road, Macosquin
Coleraine, Co Londonderry
BT514LQ
Phone: 028 70359493
Email: [email protected]
For an updated list of authorised service centres, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.
Page 27
DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Herewith we declare that the product
Electric High Pressure Cleaner
Brand: RYOBI
Model number: RPW130XRB/RPW130XRBB
Serial number range: 46214302000000 - 46214302999999
is in conformity with the following European Directives and harmonised standards
2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU, EN 61000-3-2:2014, EN 61000-3-3:2013, EN
60335-1:2012+A11:2014+A13:2017, EN 60335-2-79:2012, EN 62233:2008, EN 55014-1:2017, EN 55014-2:2015,
EN 50581:2012, EN61000-3-11:2000
Measured sound power level: 92 dB(A)
Guaranteed sound power level: 95 dB(A)
Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC
Sven Eschrich
VP of Engineering - TTI Outdoor Power Division
Winnenden, Aug. 21, 2019
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Page 28
Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
RYOBI is a trade mark of Ryobi Limited, and is used under license.
KÄRCHER is a registered trade mark of Alfred Kärcher GmbH & Co. KG.
© 2019-20 Techtronic Cordless GP.
099903048001-03
Loading...
