Ryobi P422 User Manual [en, es, fr]
OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
18 V ANGLE GRINDER
MEULEUSE D’ANGLE DE 18 V
AMOLADORA ANGULAR
DE 18 V
P421/P422
INCLUDES: Angle Grinder with Guard, Side
Handle/Wrench, Grinding Wheel, Operator’s Manual
TABLE OF CONTENTS
****************
General Safety Rules .......................2-3
Specific Safety Rules ......................3-5
Symbols ..............................................6
Features .............................................. 7
Assembly .........................................7-8
Operation .........................................8-9
Maintenance ..................................... 10
Figures (Illustrations) ...................12-13
Parts Ordering and Service
............................................Back page
WARNING: To reduce the
risk of injury, the user must read and
understand the operator’s manual
before using this product.
INCLUT : Meuleuse d’angle avec garde,
Poignée latérale/llave, muela abrasiva,
manual del operator
TABLE DES MATIÈRES
****************
Règles de sécurité générales ..........2-3
Règles de sécurité particulières ......3-5
Symboles ............................................6
Caractéristiques .................................7
Assemblage .....................................7-8
Utilisation ......................................8-10
Entretien ...........................................10
Figures (illustrations) ....................12-13
Commande de pièces et dépannage
..........................................Page arrière
AVERTISSEMENT :
réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien
comprendre le manuel d’utilisation avant
d’employer ce produit.
Pour
INCLUYE: Amoladora angular con guard,
mango lateral/llave, brida circular, manual
del operador
ÍNDICE DE CONTENIDO
****************
Reglas de seguridad generales ..... 2-3
Reglas de seguridad específicas ... 3-5
Símbolos ............................................6
Características ...................................7
Armado .......................................... 7-8
Funcionamiento ........................... 8-10
Mantenimiento ........................... 10-11
Figuras (illustraciones) ............... 12-13
Pedidos de piezas y servicio
...................................... Pág. posterior
ADVERTENCIA: Para reducir
el riesgo de lesiones, el usuario debe leer
y comprender el manual del operador
antes de usar este producto.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
GENERAL SAFETY RULES
WARNING!
Read all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or
serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
Use battery only with charger listed. For use with
18 V nickel-cadmium and 18 V lithium-ion battery
packs, see tool/appliance/battery pack/charger correla-
tion supplement 987000-432.
PERSONAL SAFETY
Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
Avoid accidental starting. Ensure the switch is in the
off-position before plugging in. Carrying power tools
with your finger on the switch or plugging in power tools
that have the switch on invites accidents.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dust-related hazards.
Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
power tool in unexpected situations.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or bind-
ing of moving parts, breakage of parts, and any other
condition that may affect the power tool’s operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power
tools.
Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
2 — English
GENERAL SAFETY RULES
Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking
into account the working conditions and the work to
be performed. Use of the power tool for operations dif-
ferent from those intended could result in a hazardous
situation.
BATTERY TOOL USE AND CARE
Ensure the switch is in the off position before
inserting battery pack. Inserting the battery pack into
power tools that have the switch on invites accidents.
Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
Use power tools only with specifically designated bat-
tery packs. Use of any other battery packs may create
a risk of injury and fire.
When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected
from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
SERVICE
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
WARNING!
To reduce the risk of injury, user must read instruction
manual.
When servicing a power tool, use only identical
replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized
parts or failure to follow Maintenance instructions may
create a risk of shock or injury.
SPECIFIC SAFETY RULES
SAFETY WARNINGS COMMON FOR GRINDING,
SANDING AND POLISHING OPERATIONS
This power tool is intended to function as a grinder,
sander, or polisher. Read all safety warnings,
instructions, illustrations and specifications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, fire and/or
serious injury.
Operations such as wire brushing or cutting-off are
not recommended to be performed with this power
tool. Operations for which the power tool was not
designed may create a hazard and cause personal injury.
Do not use accessories which are not specifically
designed and recommended by the tool manufacturer.
Just because the accessory can be attached to your
power tool, it does not assure safe operation.
The rated speed of the accessory must be at least
equal to the maximum speed marked on the power
tool. Accessories running faster than their RATED SPEED
can break and fly apart.
The outside diameter and the thickness of your
accessory must be within the capacity rating of your
power tool. Incorrectly sized accessories cannot be
adequately guarded or controlled.
The arbor size of wheels, flanges, backing pads or
any other accessory must properly fit the spindle of
the power tool. Accessories with arbor holes that do not
match the mounting hardware of the power tool will run
out of balance, vibrate excessively and may cause loss
of control.
Do not use a damaged accessory. Before each use
inspect the accessory such as abrasive wheels for
chips and cracks, backing pad for cracks, tear or
excess wear, wire brush for loose or cracked wires.
If power tool or accessory is dropped, inspect for
damage or install an undamaged accessory. After
inspecting and installing an accessory, position
yourself and bystanders away from the plane of
the rotating accessory and run the power tool at
maximum no-load speed for one minute. Damaged
accessories will normally break apart during this test time.
Wear personal protective equipment. Depending on
application, use face shield, safety goggles or safety
glasses. As appropriate, wear dust mask, hearing
protectors, gloves and workshop apron capable of
stopping small abrasive or workpiece fragments.
The eye protection must be capable of stopping flying
debris generated by various operations. The dust mask or
respirator must be capable of filtrating particles generated
by your operation. Prolonged exposure to high intensity
noise may cause hearing loss.
3 — English
SPECIFIC SAFETY RULES
Keep bystanders a safe distance away from work area.
Anyone entering the work area must wear personal
protective equipment. Fragments of workpiece or of a
broken accessory may fly away and cause injury beyond
immediate area of operation.
Hold power tool by insulated gripping surfaces only,
when performing an operation where the cutting
accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and shock the
operator.
Never lay the power tool down until the accessory
has come to a complete stop. The spinning accessory
may grab the surface and pull the power tool out of your
control.
Do not run the power tool while carrying it at your
side. Accidental contact with the spinning accessory
could snag your clothing, pulling the accessory into your
body.
Regularly clean the power tool’s air vents. The motor’s
fan will draw the dust inside the housing and excessive
accumulation of powdered metal may cause electrical
hazards.
Do not operate the power tool near flammable
materials. Sparks could ignite these materials.
Do not use accessories that require liquid coolants.
Using water or other liquid coolants may result in
electrocution or shock.

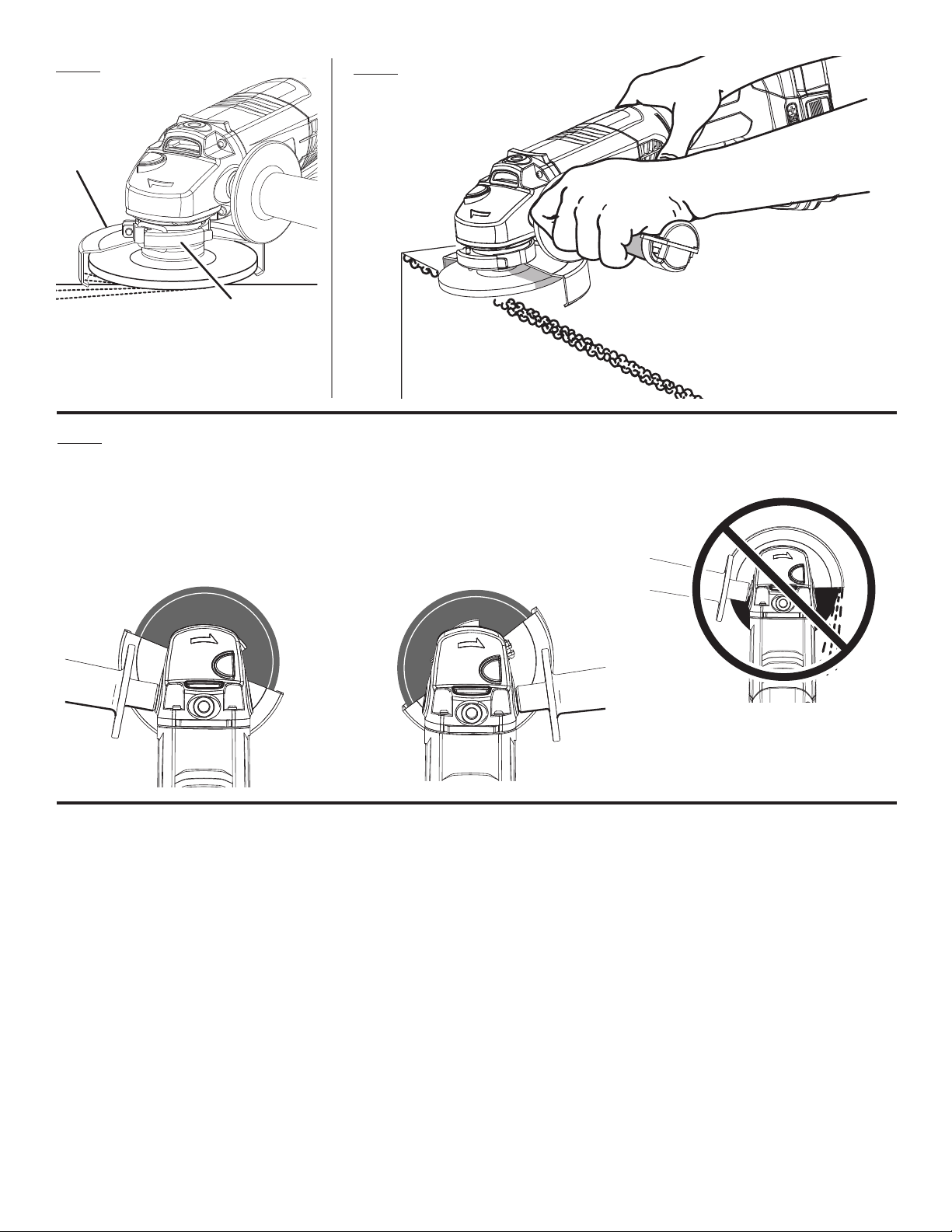

KICKBACK AND RELATED WARNINGS
Kickback is a sudden reaction to a pinched or snagged
rotating wheel, backing pad, brush or any other accessory.
Pinching or snagging causes rapid stalling of the rotating
accessory which in turn causes the uncontrolled power tool
to be forced in the direction opposite of the accessory’s
rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by
the workpiece, the edge of the wheel that is entering into the
pinch point can dig into the surface of the material causing
the wheel to climb out or kick out. The wheel may either jump
toward or away from the operator, depending on direction
of the wheel’s movement at the point of pinching. Abrasive
wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect
operating procedures or conditions and can be avoided by
taking proper precautions as given below.
Maintain a firm grip on the power tool and position
your body and arm to allow you to resist kickback
forces. Always use auxiliary handle, if provided, for
maximum control over kickback or torque reaction
during start-up. The operator can control torque
reactions or kickback forces, if proper precautions are
taken.
Never place your hand near the rotating accessory.
Accessory may kickback over your hand.
Do not position your body in the area where power
tool will move if kickback occurs. Kickback will propel
the tool in direction opposite to the wheel’s movement
at the point of snagging.
Use special care when working corners, sharp edges
etc. Avoid bouncing and snagging the accessory.
Corners, sharp edges or bouncing have a tendency to
snag the rotating accessory and cause loss of control or
kickback.
Do not attach a saw chain woodcarving blade or
toothed saw blade. Such blades create frequent
kickback and loss of control.
SAFETY WARNINGS SPECIFIC FOR GRINDING
OPERATIONS
Use only wheel types that are recommended for your
power tool and the specific guard designed for the
selected wheel. Wheels for which the power tool was not
designed cannot be adequately guarded and are unsafe.
The guard must be securely attached to the power
tool and positioned for maximum safety, so the least
amount of wheel is exposed towards the operator.
The guard helps to protect operator from broken wheel
fragments and accidental contact with wheel.
Wheels must be used only for recommended
applications. For example: do not grind with the side
of an abrasive cut-off wheel. Abrasive cut-off wheels
are intended for peripheral grinding, side forces applied
to these wheels may cause them to shatter.
Always use undamaged wheel flanges that are of
correct size and shape for your selected wheel.
Proper wheel flanges support the wheel thus reducing the
possibility of wheel breakage. Flanges for cut-off wheels
may be different from grinding wheel flanges.
Do not use worn down wheels from larger power tools.
Wheel intended for larger power tool is not suitable for
the higher speed of a smaller tool and may burst.
Accessories must be rated for at least the speed
recommended on the tool warning label. Wheels and
other accessories running over rated speed can fly apart
and cause injury.
4 — English
SPECIFIC SAFETY RULES
SAFETY WARNINGS SPECIFIC FOR SANDING
OPERATIONS
Do not use excessively oversized sanding disc
paper. Follow manufacturers recommendations,
when selecting sanding paper. Larger sanding paper
extending beyond the sanding pad presents a laceration
hazard and may cause snagging, tearing of the disc or
kickback.
SAFETY WARNINGS SPECIFIC FOR POLISHING
OPERATIONS
Do not allow any loose portion of the polishing
bonnet or its attachment strings to spin freely. Tuck
away or trim any loose attachment strings. Loose
and spinning attachment strings can entangle your
fingers or snag on the workpiece.
ADDITIONAL SAFETY RULES
Always use proper guard with grinding wheel. A
guard protects operator from broken wheel fragments.
Know your power tool. Read operator’s manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
power tool. Following this rule will reduce the risk of
electric shock, fire, or serious injury.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Following this rule will
reduce the risk of serious personal injury.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the risk
of serious personal injury.
Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
Check damaged parts. Before further use of the power
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other conditions
that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced
by an authorized service center. Following this rule will
reduce the risk of shock, fire, or serious injury.
Inspect for and remove all nails from lumber before
using this power tool. Following this rule will reduce the
risk of serious personal injury.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this power tool.
If you loan someone this power tool, loan them these
instructions also.
CALIFORNIA PROPOSITION 65
WARNING
This product and some dust created by power sanding, sawing, grinding, drilling, and other construction activities may
contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling.
Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products and,
• arsenic and chromium from chemically treated lumber.
Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your
exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially
designed to filter out microscopic particles.
5 — English
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING:
CAUTION:
NOTICE:
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result
in minor or moderate injury.
(Without Safety Alert Symbol) Indicates important information not related to
an injury hazard, such as a situation that may result in property damage.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s
Manual
Eye Protection
To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Always wear eye protection with side shields marked to comply with
ANSI Z87.1.
Eye and Hearing
Protection
Wet Conditions Alert Do not expose to rain or use in damp locations.
Recycle Symbols
V Volts Voltage
min Minutes Time
Direct Current Type or a characteristic of current
n
o
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
No Load Speed Rotational speed, at no load
Always wear eye protection with side shields marked to comply with
ANSI Z87.1 as well as hearing protection when operating this equipment.
This product uses nickel- cadmium (Ni-Cd) and lithium-ion (Li-ion)
batteries. Local, state or federal laws may prohibit disposal of batteries
in ordinary trash. Consult your local waste authority for information
regarding available recycling and/or disposal options.
6 — English
FEATURES
PRODUCT SPECIFICATIONS
Grinding Wheel Capacity .......................................4-1/2 in.
Motor ................................................................. 18 Volt DC
ASSEMBLY
No Load Speed .....................................6,500 r/min. (RPM)
Spindle Thread ............................................. 5/8 x 11 UNC
UNPACKING
This product requires assembly.
Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
WARNING:
Do not use this product if any parts on the Includes
Section are already assembled to your product when
you unpack it. Parts on this list are not assembled to the
product by the manufacturer and require customer installation. Use of a product that may have been improperly
assembled could result in serious personal injury.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
WARNING:
If any parts are damaged or missing do not operate this
product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this product or create accessories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
product when assembling parts.
7 — English
ASSEMBLY
INSTALLING GRINDING WHEEL
See Figure 2, page 12.
DANGER:
Use ONLY Type 27 depressed center grinding wheels
(such as the one provided with this product). NEVER
attach a Type 1 straight or cut-off wheel to this angle
grinder. Use for any other purpose is not recommended
and creates a hazard, which will result in serious injury.

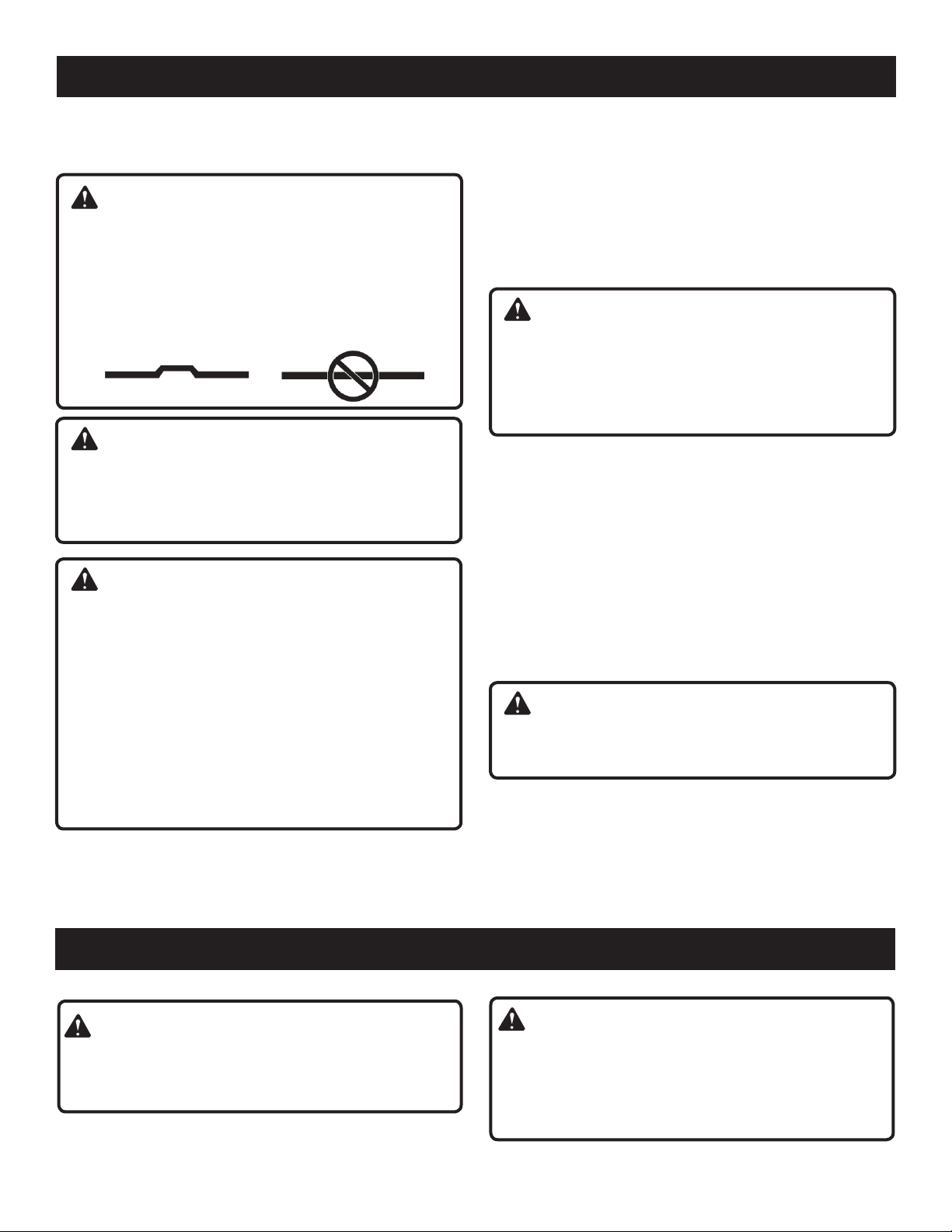

TYPE 27 − OK TO USE TYPE 1 − DO NOT USE
DANGER:
Never attach a wood cutting or carving blade of any type
to this grinder. It is only designed for grinding and sanding. Use for any other purpose is not recommended and
creates a hazard, which will result in serious injury.
WARNING:
Thoroughly inspect a new grinding wheel before you
install it on the grinder.
• Tap lightly around the wheel using a wooden
hammer.
• Listen carefully to the resulting sounds. Places with
fissures or cracks will result in a different sound.
Do not use a wheel containing fissures or cracks. When
you install a new grinding wheel, carry out a no load
revolution test of approximately one minute with the
grinding wheel facing a safe direction, i.e., away from
people or objects.
Depress the spindle lock button and rotate the clamp nut
until the spindle locks.
NOTE: To prevent damage to the spindle or spindle lock,
always allow motor to come to a complete stop before
engaging spindle lock.
Loosen and remove the clamp nut from the spindle. Do
not remove the disc flange.
Make sure the flats on the bottom of the disc flange are
engaged with the flats on the spindle.
Place the grinding wheel over the spindle.
WARNING:
Always install a grinding wheel with the depressed center
against the disc flange. Failure to do so will cause the
grinding wheel to crack when tightening the clamp nut.
This could result in serious personal injury because of
loose particles breaking off and being thrown from the
grinder. Do not overtighten.
Thread the clamp nut on the spindle with the flat side of
the nut facing up.
Fit the raised, small diameter portion of the clamp nut
into the hole in the wheel and finger tighten.
Depress the spindle lock button and rotate the wheel
clockwise until the spindle locks in position.
Tighten the clamp nut securely with the wrench provided.
Do not overtighten.
INSTALLING THE SIDE HANDLE
See Figure 3, page 12.
WARNING:
The side handle must always be used to help prevent
loss of control and possible serious injury.
The side handle can be installed on the top, left, or right side
of the grinder, depending on operator preference.
Insertthesidehandleintothedesiredoperatingposition.
Turn the side handle clockwise to securely tighten.
OPERATION
WARNING:
Do not allow familiarity with this product to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict serious injury.
8 — English
WARNING:
Always remove battery pack from the tool when you are
assembling parts, making adjustments, cleaning, or when
not in use. Removing battery pack will prevent accidental
starting that could cause serious personal injury.
OPERATION
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1, along with hearing protection.
Failure to do so could result in objects being thrown into
your eyes and other possible serious injuries.
WARNING:
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of
attachments or accessories not recommended can result
in serious personal injury.
APPLICATIONS
You may use this product for the purpose listed below:
Grinding metals
Sanding wood or metal surfaces
WARNING:
Battery products are always in operating condition.
Therefore, the switch should always be locked when not
in use or carrying at your side.
INSTALLING/REMOVING BATTERY PACK
See Figure 4, page 12.
To install:
Insert the battery pack.
Make sure the latches on each side of the battery pack
snap in place and that battery pack is secured in the
product before beginning operation.
To remove:
Depress the latches on each side of the battery pack.
LOCK-OFF BUTTON
See Figure 5, page 12.
The lock-off button is located on the handle above the
switch trigger. You must depress the lock-off button in
order to pull the switch trigger. The lock resets each time
the trigger is released.
SWITCH TRIGGER
See Figure 5, page 12.
To turn the grinder ON, depress and hold lock-off button,
then depress the switch trigger. To turn it OFF, release the
switch trigger.
POSITIONING THE GUARD
See Figures 6 - 7, page 13.
The guard on the grinder should be correctly positioned
depending on which side the handle is mounted. Never use
the grinder without the guard correctly in place.
WARNING:
Never place the guard so that it is in front of the grinder.
This could result in serious injury because sparks and
loose particles thrown from the grinding wheel would be
directed toward the operator. Always place the guard in
the correct location as shown.
To reposition the guard:
Remove the battery pack.
Unlock the guard clasp by pulling the clasp out, away
from the grinder.
Rotatetheguardtoitscorrectpositionasshown.
Locktheguardclaspbypushingtheclaspin.
NOTE: Be sure the raised ridge on the guard is seated
in the groove on the bearing cap. Never use the grinder
without the guard in place and properly adjusted.
OPERATING THE GRINDER
See Figure 8, page 13.
Always carefully select and use grinding wheels that are
recommended for the material to be ground. Make sure
that the minimum operating speed of any accessory wheel
selected is 6,500 r/min. or more. The grinding wheel provided
with the grinder is suitable for grinding welds, preparing
surfaces to be welded, grinding structural steel, and grinding
stainless steel.
To operate the grinder:
Secure all work in a vise or clamp to a workbench.
DANGER:
Never use the grinder with the guard removed. It has been
designed for use only with the guard installed. Attempting
to use grinder with guard removed will result in loose
particles being thrown against the operator resulting in
serious personal injury.
Hold the grinder in front and away from you with both
hands, keeping the grinding wheel clear of the workpiece.
Turn on the grinder and let the motor and grinding wheel
build up to full speed.
Lower the grinder gradually until the grinding wheel
contacts the workpiece.
WARNING:
To prevent loss of control and possible serious personal
injury, always operate the grinder with both hands,
keeping one hand on the side handle.
Keep the grinder tilted at an angle from 5° to 15° and
continuously moving at a steady, consistent pace.
9 — English
OPERATION
NOTICE:
If the grinder is held in one spot too long, it will gouge
and cut grooves in the workpiece. If the grinder is held
at too sharp an angle, it will also gouge the workpiece
because of concentration of pressure on a small area.
Use just enough pressure to keep the grinder from
chattering or bouncing.
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts.
Use of any other part could create a hazard or cause
product damage.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1, along with hearing protection.
Failure to do so could result in objects being thrown into
your eyes and other possible serious injuries.
WARNING:
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning, performing any
maintenance, or when storing the tool.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and can be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
NOTE: Heavy pressure will decrease the grinder’s speed and
put a strain on the motor. Normally the weight of the tool
alone is adequate for most grinding jobs. Use light pressure
when grinding jagged edges or loose bolts where there is the
potential for the grinder to snag on the metal edge.
Lift the grinder away from the workpiece before turning
off the grinder.
To replace the guard:
Remove the battery pack from the grinder.
Depressspindlelockandrotateclampnutuntilspindle
locks.
Loosen and remove clamp nut from spindle using the
wrench provided.
Remove grinding wheel and disc flange.
Unlocktheguard clasp bypullingthe clasp out,away
from the grinder.
Openclaspfully and twistguardtoreleaseitfromthe
locking groove in the tool housing.
Removeguard.
Place the new guard on the shoulder of the bearing cap.
Rotate guard to the correct position. Refer to Positioning
the Guard earlier in this manual.
NOTE: Be sure the raised ridge on the guard is seated in
the groove on the bearing cap.
Reassemble disc flange, grinding wheel, and clamp nut.
Refer to Installing Grinding Wheel earlier in this manual.
Tighten the clamp nut securely with the wrench provided.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
WARNING:
Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which could result in serious personal
injury.
REPLACING THE GUARD
See Figure 2, page 12.
WARNING:
Do not change or loosen guard screw. Failure to heed this
warning may cause the guard to become loose during
operation resulting in serious personal injury.
After extended use, the guard may wear and need replacing.
If you drop the grinder and damage the guard it may also be
necessary for you to replace it.
10 — English
WARNING:
Upon removal, cover the battery pack’s terminals with
heavy-duty adhesive tape. Do not attempt to destroy or
disassemble battery pack or remove any of its components. Batteries must be recycled or disposed of properly.
Also, never touch both terminals with metal objects and/
or body parts as short circuit may result. Keep away from
children. Failure to comply with these warnings could
result in fire and/or serious injury.
NOTE: Figures (illustrations) start on page 12
after French and Spanish language sections.
This product has a Three-year
Limited Warranty.
For Warranty details go to
www.ryobitools.com
Loading...
