OPERATOR’S MANUAL
CORDLESS DRILL-DRIVER
HP496 — 9.6 VOLT
HP412 — 12 VOLT
Your cordless drill-driver has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.
Thank you for buying a Ryobi product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
TABLE OF CONTENTS
n Introduction ..................................................................................................................................................................... 2
�n General Safety Rules....................................................................................................................................................3-4
�n Specific Safety Rules....................................................................................................................................................... 4
n Safety Rules for Charger ................................................................................................................................................. 5
�n Symbols........................................................................................................................................................................ 6-7

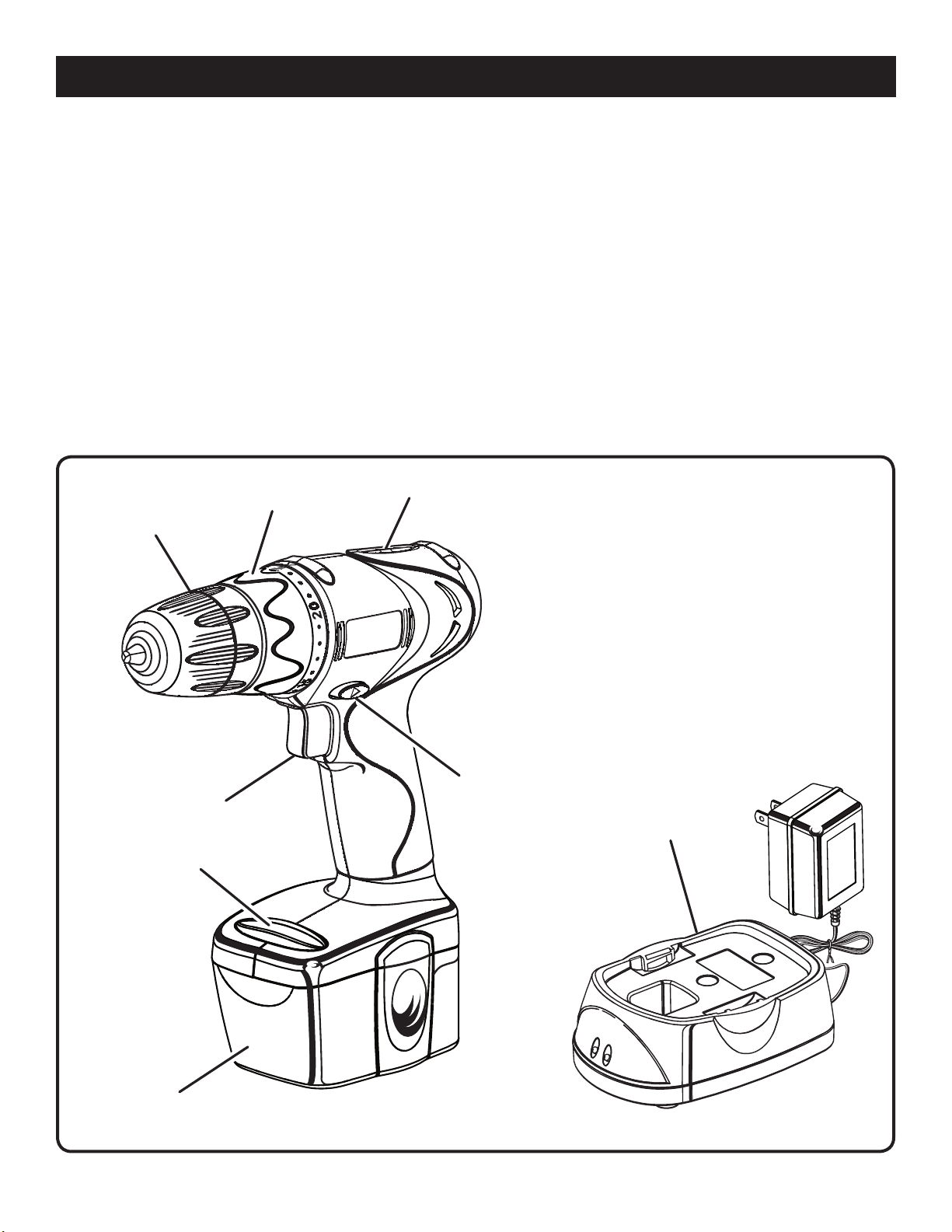

��n Features........................................................................................................................................................................ 8-9
��n Assembly ....................................................................................................................................................................... 10
�n Operation.................................................................................................................................................................. 11-16
n Maintenance.............................................................................................................................................................17-18
n Parts Ordering / Service ................................................................................................................................................ 20
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
2 3
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Fail-
ure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
n Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
n Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
n Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
n A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specified charger for the battery. A charger that
may be suitable for one type of battery may create a risk
of fire when used with another battery.
n Use battery operated tool only with specifically
designated battery pack. Use of any other batteries
may create a risk of fire.
n Use battery only with charger listed.
MODEL BATTERY PACK CHARGER
HP496 130269002, 130269014 140295002
HP412 130269003, 130269012 140295003
n Do not abuse the cord. Never use the cord to carry
the charger. Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged cords
immediately. Damaged cords may create a fire.
PERSONAL SAFETY
n Stay alert, watch what you a re doing and use
common sense when operating a power tool. Do not
use tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
n Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
n Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or inserting
the battery pack into a tool with the switch on invites accidents.
n Remove adjusting keys or wrenches before turning
the tool on. A wrench or a key that is left attached to a
rotating part of the tool may result in personal injury.
n Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
control of the tool in unexpected situations.
n Use safety equipment. Always wear eye protection.
Dust mask, non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
n Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
n Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOL USE AND CARE
n Use clamps or other practical way to secure and sup-
port the workpiece to a stable platform. Holding the
work by hand or against your body is unstable and may
lead to loss of control.
n Do not force tool. Use the correct tool for your
application. The correct tool will do the job better and
safer at the rate for which it is designed.
n Do not use tool if switch does not turn it on or off.
A tool that cannot be controlled with the switch is
dangerous and must be repaired.
n Disconnect battery pack from tool or place the switch
in the locked or off position before making any adjustments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the
tool accidentally.
n Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the hands
of untrained users.
n When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make
a connection from one terminal to another. Shorting
the battery terminals together may cause sparks, burns,
or a fire.
n Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp
cutting edges are less likely to bind and are easier to
control.
n Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by
poorly maintained tools.
n Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one tool may create a risk of injury when used
on another tool.
n Keep the tool and its handle dry, clean and free from
oil and grease. Always use a clean cloth when clean-
ing. Never use brake fluids, gasoline, petroleum-based
products, or any strong solvents to clean your tool. Following this rule will reduce the risk of loss of control and
deterioration of the enclosure plastic.
GENERAL SAFETY RULES
SERVICE
n Tool service must be performed only by qualified re-
pair personnel. Service or maintenance performed by
unqualified personnel may result in a risk of injury.
SPECIFIC SAFETY RULES
n Hold tool by insulated gripping surfaces when per-
forming an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will also
make exposed metal parts of the tool “live” and shock
the operator.
n Know your power tool. Read operator’s manual care-
fully. Learn its applications and limitations, as well
as the specific potential hazards related to this tool.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
n Always wear s afety glasses with side shields.
Everyday glasses have only impact resistant lenses. They
are NOT safety glasses. Following this rule will reduce
the risk of eye injury.
n Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the
risk of serious personal injury.
n Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
n Battery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
n When servicing a tool, use only identical replacement
parts. Follow instructions in the Maintenance section
of this manual. Use of unauthorized parts or failure to fol-
low Maintenance Instructions may create a risk of shock
or injury.
n Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and pos-
sibly injury.
n Never use a battery that has been dropped or
received a sharp blow. A damaged battery is subject to
explosion. Properly dispose of a dropped or damaged
battery immediately.
n Batteries vent hydrogen gas and can explode in the
presence of a source of ignition, such as a pilot light.
To reduce the risk of serious personal injury, never use
any cordless product in the presence of open flame. An
exploded battery can propel debris and chemicals. If
exposed, flush with water immediately.
n Do not charg e batt er y tool in a damp or wet
location. Following this rule will reduce the risk of electric
shock.
n For best results, your battery tool should be charged
in a location where the temperature is more than
50°F but less than 100°F. Do not store outside or in
vehicles.
n Under extreme usage or temperature conditions, bat-
tery leakage may occur. If liquid comes in contact with
your skin, wash immediately with soap and water, then
neutralize with lemon juice or vinegar. If liquid gets
into your eyes, flush them with clean water for at least
10 minutes, then seek immediate medical attention.
Following this rule will reduce the risk of serious personal
injury.
4 5
SAFETY RULES FOR CHARGER
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
n Before using battery charger, read all instructions and
cautionary markings in this manual, on battery charger,
battery, and product using battery to prevent misuse of
the products and possible injury or damage.
CAUTION:
To reduce the risk of electric shock or damage to
the charger and battery, charge only nickel-cadmium
rechargeable batteries as specifically designated on your
charger. Other types of batteries may burst, causing personal injury or damage.
n Do not use charger outdoors or expose to wet or damp
conditions. Water entering charger will increase the risk
of electric shock.
n Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of
fire, electric shock, or injury to persons. Following this
rule will reduce the risk of electric shock, fire, or serious
personal injury.
n Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather than
the plug when disconnecting from receptacle. Damage
to the cord or charger could occur and create an electric
shock hazard. Replace damaged cords immediately.
n Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges
or moving parts or otherwise subjected to damage or
stress. This will reduce the risk of accidental falls, which
could cause injury, and damage to the cord, which could
result in electric shock.
n Ke ep cord an d cha rg er from h eat t o preve nt
damage to housing or internal parts.
n Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
n An e xtension cord sho uld not be used unless
absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of exte ns ion co rd are the
same numbe r, size and shape as t hose of
plug on charger.
b. That extension cord is properly w ir ed and in
good electrical condition; and
c. That wire size is lar ge enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
n Do not operate charger with a damaged cord or
plug, which could cause shorting and electric shock. If
damaged, have the charger replaced by an authorized
serviceman.
n Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take
it to an authorized serviceman for electrical check to
determine if the charger is in good working order.
n Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
n Unplug char ger from outlet before att empting
any maintenance or cleaning to reduce the risk of
electric shock.
n Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock or
damage to the charger if metal items should fall into the
opening. It also will help prevent damage to the charger
during a power surge.
n Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
n Save these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them these
instructions also to prevent misuse of the product and
possible injury.
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks
that are specially designed to filter out microscopic particles.
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts
A Amperes
Hz Hertz
W Watt
min Minutes
Alternating Current
Direct Current
n
o
.../min
No Load Speed
Class II Construction
Per Minute
Wet Conditions Alert
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Do not expose to rain or use in damp locations.
Read The Operator’s Manual
Eye Protection
Safety Alert
No Hands Symbol
No Hands Symbol
No Hands Symbol
No Hands Symbol
Hot Surface
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Always wear safety goggles or safety glasses with side shields
and a full face shield when operating this product.
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
To reduce the risk of injury or damage, avoid contact with
any hot surface.
6 7
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest
AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety
Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection
which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
WARNING:
To avoid serious personal injury, do not attempt to use
this product until you read thoroughly and understand
completely the operator’s manual. Save this operator’s
manual and review frequently for continuing safe operation and instructing others who may use this product.
FEATURES
PRODUCT SPECIFICATIONS
Chuck .............................................................................................................................................................. 3/8 in. Keyless
Motor
Model HP496....................................................................................................................................................9.6 Volt DC
Model HP412.....................................................................................................................................................12 Volt DC
Switch..............................................................................................................................................................Variable Speed
No Load Speed
Model HP496.................................................................................................................................................... 0-580/min.
Model HP412.................................................................................................................................................... 0-550/min.
Clutch .................................................................................................................................................................. 24 Positions
Charger Input .......................................................................................................................................120 V, 60 Hz, AC only
Charge Rate ............................................................................................................................................................3-6 Hours
Torque
Model HP496........................................................................................................................................ Maximum 85 in.lb.
Model HP412........................................................................................................................................ Maximum 95 in.lb.
KEYLESS
CHUCK
BIT STORAGE
SWITCH
TRIGGER
TORQUE
ADJUSTMENT RING
LEVEL
DIRECTION OF
ROTATION SELECTOR
(FORWARD / REVERSE
AND CENTER LOCK)
CHARGER
BATTERY
PACK
Fig. 1
8 9
FEATURES
KNOW YOUR DRILL-DRIVER
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.

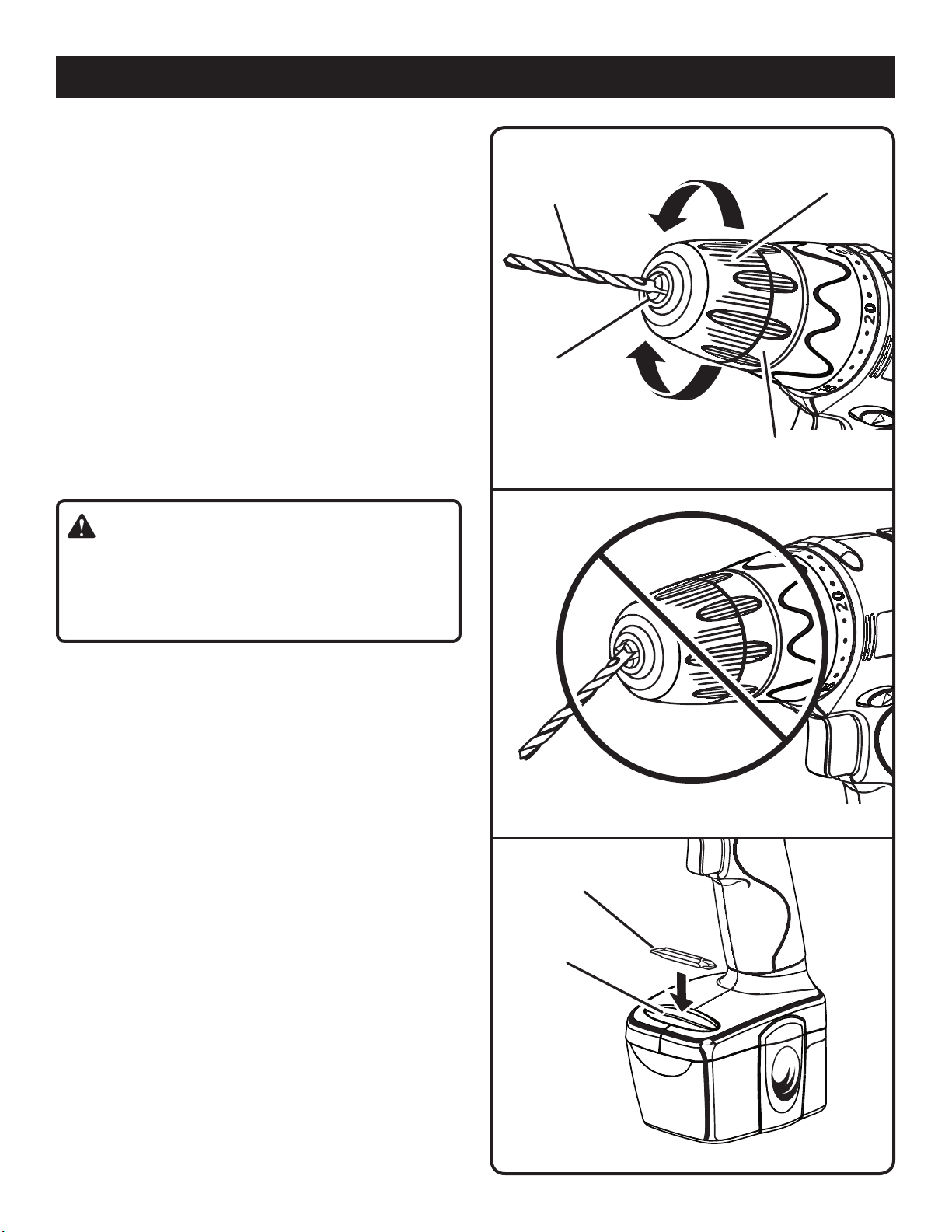

KEYLESS CHUCK
The drill-driver has a keyless chuck that allows you to hand
tighten or release drill bit in the chuck jaws.
LEVEL
To keep drill bit level during drilling operations, a level is
located on the top end of the motor housing.
SWITCH TRIGGER
The drill-driver has a conveniently located variable speed
switch trigger.
SWITCH LOCK
The switch trigger can be locked in the OFF position. This
feature helps reduce the possibility of accidental starting
when not in use.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
The drill-driver has a forward/reverse selector located above
the switch trigger.
BIT STORAGE
When not in use, bits can be placed in the storage area
located on the base of your drill-driver.
CHARGER
Your charger can be used on a flat surface, or it can be
mounted on the wall or underneath a counter or shelf for
convenient, space-saving storage.
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
n Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
n Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
n Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
n If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
PACKING LIST
Cordless Drill
Charger
Battery Pack (Model HP412 only includes 2)
Double-ended Bit
26-Piece Bit Set
Case
Warranty Registration Card
Operator’s Manual
WARNING:
If any parts are missing do not operate this tool until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
tool when assembling parts.
10 11
OPERATION
WARNING:
Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in
possible serious injury.
WARNING:
Do not use any attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not recommended can result
in serious personal injury.
APPLICATIONS
You may use this tool for the following purposes:
n Drilling in wood
n Drilling in ceramics, plastics, fiberglass, and laminates
n Drilling in both hard and soft metals
n Using driving accessories, such as driving screws with
screwdriver bits
n Mixing paints
CAUTION:
To prevent damage to the battery pack, remove the battery pack from the charger immediately if no LED comes
on. Return the battery pack and charger to your nearest
service center for checking or replacing. Also, if you are
removing the battery pack from the charger and no LEDs
are on, return both the battery pack and the charger to
your nearest service center. Do not insert another battery pack into the charger. A damaged charger may
damage a battery pack.
n Connect charger to power supply.

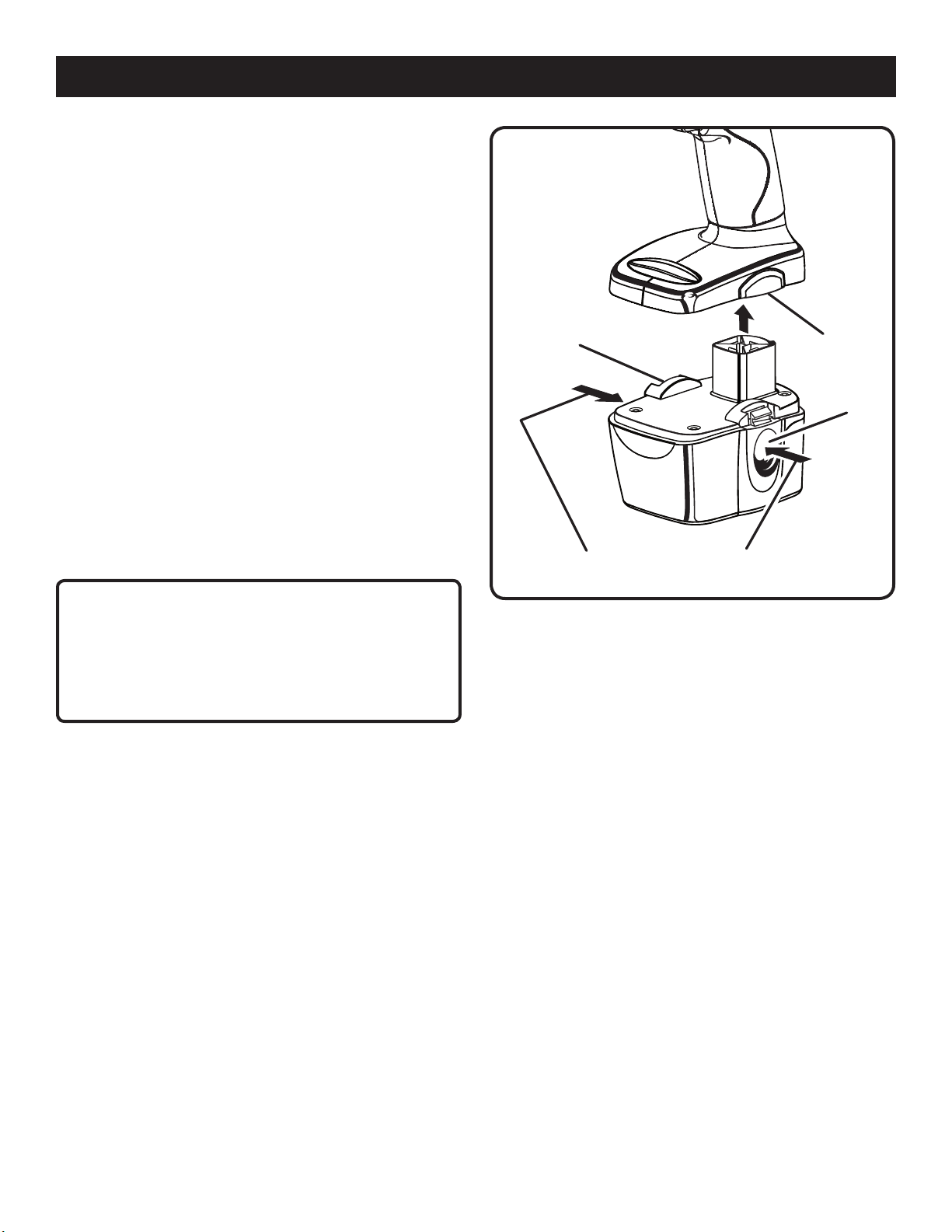

n Place battery pack in charging stand. Align raised rib
on battery pack with groove in charging stand. See
Figure 2.
n Press down on battery pack to be sure contacts on battery
pack engage properly with contacts in charging stand.
n The charge indicator light (LED), located on the charg-
ing stand, will light up red and glow when the charger
is properly connected to power supply. This light
indicates the charger is operating properly. It will remain
on until battery pack is removed from charging stand or
charger is disconnected from power supply.
n After normal usage, 3 hours or less of charging time is
required to fully recharge battery pack.
n If both red and orange LED indicators glow, the bat-
tery pack is deeply or completely discharged, and
6 hours or longer of charging time is required to fully
recharge battery pack.
NOTE: If charger does not charge battery pack or orange
LED continues to glow after more than 30 minutes of
charging, return battery pack and charging assembly to
your nearest Ryobi Authorized Service Center for electrical check.
n The battery pack will become slightly warm to the touch
while charging. This is normal and does not indicate a
problem.
n Do not place charger in an area of extreme heat or cold.
It will work best at normal room temperature.
n When batteries become fully charged, unplug charger
from power supply and remove the battery pack.
BATTERY SHOWN
IN CHARGER
CHARGING THE BATTERY PACK
The battery pack for this tool has been shipped in a low
charge condition to prevent possible problems. Therefore,
you should charge overnight prior to use.
NOTE: Batteries will not reach full charge the first time they
are charged. Allow several cycles (operation followed by
recharging) for them to become fully charged.
n Charge battery pack only with the charging assembly
provided.
n Make sure power supply is normal household voltage,
120 volts, 60 Hz, AC only.
RED LED
ORANGE LED
Fig. 2
OPERATION
CHARGING A HOT BATTERY PACK
When using the tool continuously, the batteries in the
battery pack will become hot. You should let a hot battery pack cool down for approximately 30 minutes before
attempting to recharge.
NOTE: This situation only occurs when continuous use of
the drill causes the batteries to become hot. It does not
occur under normal circumstances. Refer to “CHARGING
THE BATTERY PACK” for normal recharging of batteries.
If the charging assembly does not charge the battery pack
under normal circumstances, return both the battery pack
and charging assembly to your nearest Ryobi Authorized
Service Center for electrical check.
BATTERY
BATTERY
PORT
TO INSTALL BATTERY PACK
See Figure 3.
n Place the direction of rotation selector in center po-
sition.
n Place the battery pack in the drill. Align raised rib on bat-
tery pack with groove in drill’s battery port.
n Make sure the latches on each side of the battery pack
snap in place and that battery pack is secured in drill
before beginning operation.
CAUTION:
When placing battery pack in the tool, be sure raised
rib on battery pack aligns with the bottom of the drill
and latches into place properly. Improper installation of the battery pack can cause damage to internal
components.
TO REMOVE BATTERY PACK
n Place the direction of rotation selector in center po-
sition.
n Locate latches on side of battery pack and depress both
sides to release battery pack from the drill.
n Remove battery pack from the drill.
LATCHES
DEPRESS LATCHES TO
RELEASE BATTERY PACK
Fig. 3
12 13
OPERATION
INSTALLING BITS
See Figures 4 - 5.
n Lock the switch trigger by placing the direction of rotation
selector in center position.
n Open or close chuck jaws to a point where the opening
is slightly larger than the bit size you intend to use. Also,
raise the front of the drill slightly to keep the bit from falling out of the chuck jaws.
n Insert drill bit straight into chuck the full length of the
jaws.
n Tighten the chuck jaws on the drill bit.
n To tighten: grasp and hold the collar of the chuck with
one hand, while rotating the chuck body with your other
hand.
NOTE: Rotate the chuck body in the direction of the ar-
row marked LOCK to tighten chuck jaws.
n Do not use a wrench to tighten or loosen the chuck
jaws.
WARNING:
Make sure to insert the drill bit straight into the chuck
jaws. Do not insert the drill bit into the chuck jaws at an
angle then tighten, as shown in figure 5. This could cause
the drill bit to be thrown from the drill, resulting in possible
serious personal injury or damage to the chuck.
DRILL BIT
CHUCK
JAWS
RELEASE
(UNLOCK)
GRIP
(TIGHTEN)
CHUCK
COLLAR
CHUCK
BODY
Fig. 4
REMOVING BITS
See Figure 4.
n Lock the switch trigger by placing the direction of rotation
selector in center position.
n Loosen the chuck jaws from the drill bit.
n To loosen: grasp and hold the collar of the chuck with one
hand, while rotating chuck body with your other hand.
NOTE: Rotate chuck body in the direction of the arrow
marked UNLOCK to loosen chuck jaws.
n Do not use a wrench to tighten or loosen the chuck
jaws.
n Remove the drill bit from the chuck jaws.
NOTE: Rotate the chuck body in the direction of the arrow
marked GRIP to tighten the chuck jaws. DO NOT use a
wrench to tighten or loosen the chuck jaws.
BIT STORAGE
See Figure 6.
When not in use, bits provided with the drill can be placed
in the storage area located on the base of the drill.
WRONG
Fig. 5
SCREWDRIVER BIT
BIT STORAGE
Fig. 6
OPERATION
SWITCH
See Figure 7.
To turn the drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger.
VARIABLE SPEED
See Figure 7.
The drill has a variable speed feature in the switch. The
switch delivers higher speed and torque with increased
trigger pressure. Speed is controlled by the amount of
switch trigger depression.
SWITCH LOCK
See Figure 7.
The switch trigger can be locked in the OFF position. This
feature helps reduce the possibility of accidental starting when
not in use. To lock the switch trigger, place the direction of
rotation selector in the center position.
REVERSIBLE
See Figure 8.
This tool has the feature of being reversible. The direction of
rotation is controlled by a selector located above the switch
trigger. With the drill held in normal operating position, the
direction of rotation selector should be positioned to the left
of the switch for drilling. The drilling direction is reversed
when the selector is to the right of the switch. When the
selector is in center position, the switch trigger is locked.
FORWARD / REVERSE SELECTOR
WITH CENTER LOCK POSITION
SWITCH
TRIGGER
Fig. 7
SELECTOR
REVERSE
CAUTION:
To prevent gear damage, always allow chuck to come
to a complete stop before changing the direction of
rotation.
To stop, release switch trigger and allow the chuck to come
to a complete stop.
KEYLESS CHUCK
See Figure 9.
A keyless chuck has been provided with the drill to allow for
easy installation and removal of bits. As the name implies, you
can hand tighten or release drill bits in the chuck jaws. Grasp
and hold the collar of the chuck with one hand. Rotate the
chuck body with your other hand. The arrows on the chuck
indicate which direction to rotate the chuck body in order to
GRIP (tighten) or RELEASE (unlock) the drill bit.
WARNING:
Do not hold the chuck body with one hand and use the
power of the drill to tighten chuck jaws on drill bits. Chuck
body could slip in your hand or your hand could slip and
come in contact with rotating drill bit. This could cause
an accident resulting in serious personal injury.
DRILL BIT
CHUCK
JAWS
RELEASE
(UNLOCK)
GRIP
(TIGHTEN)
FORWARD
CHUCK
COLLAR
Fig. 8
CHUCK
BODY
Fig. 9
14 15
OPERATION
WARNING:
Battery tools are always in operating condition. Therefore, switch should always be locked when not in use or
carrying at your side.
DRILLING
See Figure 10.
When drilling hard, smooth surfaces, use a center punch
to mark the desired hole location. This will prevent the drill
bit from slipping off center as the hole is started. However,
the lower speed feature allows starting holes without center
punching if desired. To accomplish this, simply operate the
drill at lower speed until the hole is started.
The material to be drilled should be secured in a vise or with
clamps to keep it from turning as the drill bit rotates.
Hold tool firmly and place the bit at the point to be drilled.
Depress the switch trigger to start tool.
Move the drill bit into the workpiece, applying only enough
pressure to keep the bit cutting. Do not force or apply side
pressure to elongate a hole.
WARNING:
Be prepared for binding at bit breakthrough. When these
situations occur, the drill has a tendency to grab and kick
opposite to the direction of rotation and could cause loss
of control when breaking through material. If you are not
prepared, this loss of control can result in possible serious injury.
When drilling metals, use a light oil on the drill bit to keep it
from overheating. The oil will prolong the life of the bit and
increase the drilling action.
If the bit jams in workpiece or if the drill stalls, release switch
trigger immediately. Remove the bit from the workpiece and
determine the reason for jamming.
LEVEL DRILLING
See Figure 11.
Another convenient feature provided with the drill is a level.
It is recessed in the motor housing on top of the drill. It
can be used to keep drill bit level during horizontal drilling
operations.
Fig. 10
LEVEL
Fig. 11
OPERATION
ADJUSTABLE TORQUE CLUTCH
See Figure 12.
When using the drill-driver for various driving applications,
it becomes necessary to increase or decrease the torque
in order to help prevent the possibility of damaging screw
heads, threads, workpiece, etc. In general, torque should
correspond to the intensity of the screw diameter. If the
torque is too high or the screws too small, the screws may
be damaged or broken.
The torque is adjusted by rotating the torque adjustment
ring. The torque is greater when the torque adjustment ring
is set on a higher setting. The torque is less when the torque
adjustment ring is set on a lower setting.
The proper setting depends on the type of material and the
size of screw you are using.
ADJUSTING TORQUE
n Identify the twenty four torque indicator settings located
on the front of the drill.
n Rotate adjusting ring to the desired setting.
• 1 - 4 ..................For driving small screws
• 5 - 8 ..................For driving screws into soft material
• 9 - 12 ................For driving screws into soft and hard
materials
• 13 - 16 ..............For driving screws in hard wood
• 17 - 20 ..............For driving large screws
• 21 - ( ) ..... For heavy drilling
TO DECREASE
TORQUE
TO INCREASE
TORQUE
ADJUSTING
RING
Fig. 12
16 17
MAINTENANCE
WARNING:
When servicing, use only identical Ryobi replacement
parts. Use of any other parts may create a hazard or
cause product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
WARNING:
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
CHUCK JAWS
HEX KEY
WRENCH
SCREWDRIVER
MALLET
KEYLESS
CHUCK
Fig. 13
WARNING:
Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at a Ryobi Authorized Service Center.
CHUCK REMOVAL
See Figures 13 - 15.
To remove chuck:
n Lock the switch trigger by placing the direction of rotation
selector in center position.
n Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
n Tap the hex key sharply with a mallet in a clockwise di-
rection. This will loosen the screw in the chuck for easy
removal.
n Open the chuck jaws and remove the hex key. Remove
the chuck screw by turning it in a clockwise direction.
NOTE: The screw has left hand threads.
n Insert the hex key in the chuck and tighten chuck jaws
securely. Tap sharply with a mallet in a counterclockwise
direction. This will loosen the chuck on the spindle. It can
now be unscrewed by hand.
Fig. 14
Fig. 15
MAINTENANCE
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on spindle and develop a
wobble. Periodically check chuck screw for tightness.
To tighten, follow these steps:
n Lock the switch trigger by placing the direction of rotation
selector in center position.
n Open the chuck jaws.
n Insert the hex key into the chuck and tighten chuck
jaws securely. Tap the hex key sharply with a mallet in
a clockwise direction. This will tighten the chuck on the
spindle.
n Open the chuck jaws and remove the hex key.
n Tighten the chuck screw.
NOTE: The chuck screw has left hand threads.
BATTERIES
The battery pack for this tool is equipped with nickel-cadmium
rechargeable batteries. Length of service from each charging
will depend on the type of work you are doing.
The batteries in this tool have been designed to provide
maximum trouble-free life. However, like all batteries, they
will eventually wear out. Do not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry, could
result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
n Remove the battery pack from the charger once it is fully
charged and ready for use.
For battery storage longer than 30 days:
n Store the battery pack where the temperature is below
80°F.
n Store battery packs in a “discharged” condition.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
To preserve natural resources, please
re cy cle or dispose of batteri es
properly.
This product contains nickel-cadmium
batteries. Local, state or federal laws
may prohibit disposal of nickel-cadmium
batteries in ordinary trash.
Consult your local waste authority for information regarding
available recycling and/or disposal options.
WARNING:
Up on removal, c ov er the battery pack ’s terminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble battery pack or
remove any of its components. Nickel-cadmium
batteries must be recycled or disposed of properly. Also,
never touch both terminals with metal objects and/or
body parts as short circuit may result. Keep away from
children. Failure to comply with these warnings could
result in fire and/or serious injury.
18 19
18
NOTES
OPERATOR’S MANUAL
CORDLESS DRILL-DRIVER
HP496 — 9.6 VOLT
HP412 — 12 VOLT
• SERVICE
Now that you have purchased your tool, should a need ever exist for repair parts or
service, simply contact your nearest Ryobi Authorized Service Center. Be sure to provide
all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest Ryobi
Authorized Service Center. You can also check our web site at www.ryobitools.com for a
complete list of Authorized Service Centers.
• MODEL NO. AND SERIAL NO.
The model number of this tool will be found on a plate attached to the motor housing.
Please record the model number and serial number in the space provided below.
• HOW TO ORDER REPAIR PARTS
When ordering repair parts, always give the following information:
• MODEL NUMBER
• SERIAL NUMBER
RYOBI TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Post Office Box 1207, Anderson, SC 29622-1207
HP496/HP412
Phone 1-800-525-2579
www.ryobitools.com
983000-501
6-05
20
