Ryobi 140R User Manual

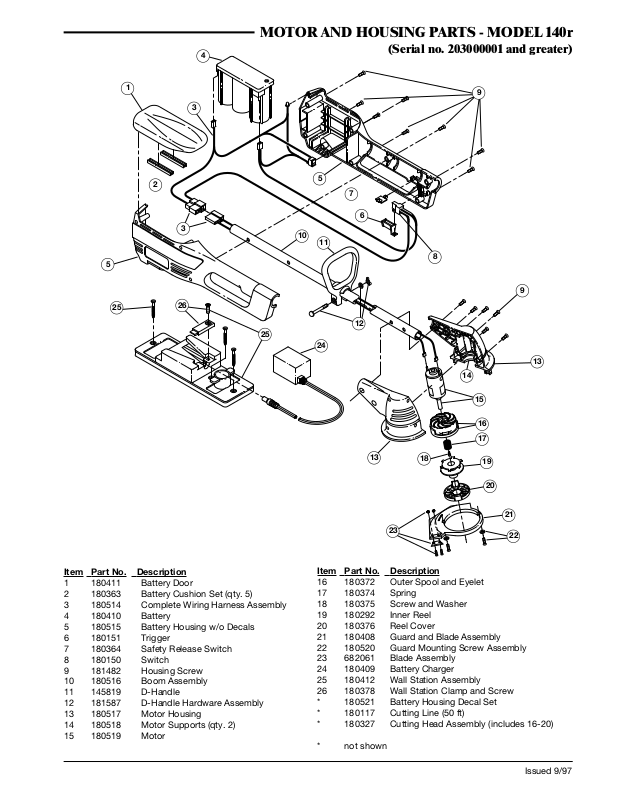

MOTOR AND HOUSING PARTS - MODEL 140r

(Serial no. 203000001 and greater)

Issued 9/97

Item Part No. Description

1 180411 Battery Door 2 180363 Battery Cushion Set (qty. 5) 3 180514 Complete Wiring Harness Assembly 4 180410 Battery 5 180515 Battery Housing w/o Decals 6 180151 Trigger 7 180364 Safety Release Switch 8 180150 Switch 9 181482 Housing Screw 10 180516 Boom Assembly 11 145819 D-Handle 12 181587 D-Handle Hardware Assembly 13 180517 Motor Housing 14 180518 Motor Supports (qty. 2) 15 180519 Motor

Item

Part No. Description

16 180372 Outer Spool and Eyelet 17 180374 Spring 18 180375 Screw and Washer 19 180292 Inner Reel 20 180376 Reel Cover 21 180408 Guard and Blade Assembly 22 180520 Guard Mounting Screw Assembly 23 682061 Blade Assembly 24 180409 Battery Charger 25 180412 Wall Station Assembly 26 180378 Wall Station Clamp and Screw * 180521 Battery Housing Decal Set * 180117 Cutting Line (50 ft) * 180327 Cutting Head Assembly (includes 16-20)

* not shown
