130rEB
Electric Trimmer / Edger / Blower
OPERATOR’S MANUAL
FOR QUESTIONS, CALL 1-800-345-8746 in U.S. or
1-800-265-6778 in CANADA
www.ryobi.com
IMPORTANT MANUAL DO NOT THROW AWAY
INTRODUCTION TABLE OF CONTENTS
2
THANK YOU
Thank you for buying this quality product. This modern
outdoor power tool will provide many hours of useful
service. You will find it to be a great labor-saving device.
This operator’s manual provides you with easy-to-understand operating instructions. Read the whole manual
and follow all the instructions to keep your new outdoor
power tool in top operating condition.
PRODUCT REFERENCES, ILLUSTRATIONS AND
SPECIFICATIONS
All information, illustrations and specifications in this
manual are based on the latest product information
available at the time of printing. We reserve the right
to make changes at any time without notice.
Copyright© 1999 Ryobi Outdoor Products, Inc.
All Rights Reserved.
Click-Link® is a registered trademark of Ryobi Outdoor
Products.
Bump Head™ is a trademark of Ryobi Outdoor
Products.
SERVICE INFORMATION
Service on this unit both within and after the warranty
period should be performed only by an authorized and
approved service dealer.
Dial:
• 1-800-345-8746 or www.ryobi.com on the world wide
web for authorized service dealers in the United States
Or
• 1-800-265-6778 in Canada to obtain the listing of the
authorized service dealer nearest you.
to obtain the listing of the authorized service dealer
nearest you.
DO NOT RETURN THE UNIT TO THE RETAILER.
NOTE: PROOF OF PURCHASE WILL BE REQUIRED
FOR WARRANTY SERVICE.
Make sure this manual is carefully read and understood
before starting or operating this equipment.
THIS PRODUCT IS COVERED BY ONE OR MORE
US PATENTS, OTHER PATENTS PENDING.
I. Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . 3-7
A. Important Safety Information . . . . . . . . . . . . . . . 4-5
B. Safety and International Symbols . . . . . . . . . . . . . .6
C. Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
II. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 8
A. Adjusting D-Handle . . . . . . . . . . . . . . . . . . . . . . . . 8
B. Installing Cutting Attachment Shield . . . . . . . . . . 8
III. Operating Instructions . . . . . . . . . . . . . . . . . . . . . . 9-13
A. Connecting the Power Cord . . . . . . . . . . . . . . . . . . 9
B. Starting the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C. Stopping the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 9
D. Operating the Two-Speed Switch . . . . . . . . . . . . . 9
E. Operating Click-Link System . . . . . . . . . . . . . . . . 10
F. Holding the Trimmer . . . . . . . . . . . . . . . . . . . . . . . 11
G. Adjusting Trimming Line Length . . . . . . . . . . . . . . 11
H. Tips for Best Trimming Results . . . . . . . . . . . . . . 11
I. Decorative Trimming . . . . . . . . . . . . . . . . . . . . . . . 12
J. Holding the Unit with Edger Add-On . . . . . . . . . . 12
K. Adjusting Edger Cutting Depth . . . . . . . . . . . . . . . 12
L. Tips for Best Edging Results . . . . . . . . . . . . . . . . 12
M.Holding the Unit with Sweeper/Blower Add-On . . 13
N. Operating Tips When Using Sweeper/Blower . . . 13
IV. Maintenance and Repair Instructions . . . . . . . . . 14-16
A. Servicing of Double Insulated Units . . . . . . . . . . . 14
B. Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
C. Installing a Prewound Reel . . . . . . . . . . . . . . . . . . 15
D. Edger Blade Replacement . . . . . . . . . . . . . . . . . . 16
E. Accessories and Replacement Parts . . . . . . . . . . 16
V. Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . 17
A. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
A. Inspect Extension Cords . . . . . . . . . . . . . . . . . . . 17
A. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
VI. Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . 17
VII. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
VIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CONTENTS OF CARTON
• Model 130rEB Trimmer with D-Handle and
Cutting Attachment Shield
• LE720r Edger Add-On
• SB720r Sweeper/Blower Add-On
• Locking Rod
• Operator's Manual
• Product Registration Card
RULES FOR SAFE OPERATION
3
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols,
and their explanations, deserve your careful attention
and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings
they give are not substitutes for proper
accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL:
Indicates danger, warning, or caution.
Attention is required in order to avoid serious
personal injury. May be used in conjunction
with other symbols or pictographs.
NOTE: Advises you of information or instructions vital to
the operation or maintenance of the equipment.
DANGER:
Failure to obey a safety warning will result in
serious injury to yourself or to others. Always
follow the safety precautions to reduce the
risk of fire, electric shock, and personal injury.
WARNING:
Failure to obey a safety warning can result in
injury to yourself and others. Always follow
the safety precautions to reduce the risk of
fire, electric shock, and personal injury.
CAUTION:
Failure to obey a safety warning may result
in property damage or personal injury to
yourself or to others. Always follow the
safety precautions to reduce the risk of fire,
electric shock, and personal injury.
• IMPORTANT SAFETY INSTRUCTIONS •
WARNING:
When using this electric garden tools,
basic safety precautions should always be
followed to reduce the risk of fire, electric
shock, and personal injury. Carefully read
and understand the entire Operator's
Manual before using your unit. Pay close
attention to the Operating Instructions
and Safety Warnings.
READ ALL INSTRUCTIONS
WARNING:
To reduce the risk of fire, electric shock, or injury:
• Do not leave the unit plugged in. Unplug from outlet
when not in use, changing attachments, blades,
cutting line or before servicing.
• Avoid dangerous environments. Never operate your
unit in damp or wet conditions. Moisture is a shock
hazard.
• Do not use the unit in the rain.
• Do not handle the unit with wet hands.
• Use the right tool. Use this unit only as described in
this manual. Do not use for any job except that for
which it is intended. Use only the manufacturer’s
recommended attachments.
• Do not abuse the power cord. Do not pull or carry the
unit by the cord, use cord as a handle, close a door on
cord, or pull the cord around sharp edges or corners.
Keep the cord away from heated surfaces, oil and
sharp edges.
• Turn off all controls before unplugging.
• Do not unplug by pulling on the cord. To unplug,
grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of
body away from openings and moving parts.
• Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
• Inspect all extension cords and the unit power
connection periodically. Look closely for deterioration,
cuts or cracks in the insulation. Also inspect the
connections for damage. Replace the cords if any
defects or damage appear.
• Risk of cut. Keep hands away from blades and cutting
attachments. Keep both hands on handles when
power is on.
• To reduce the risk of electrical shock, use only with
an extension cord intended for outdoor use, such as
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A,
SJTW-A or SJTOW-A.
• To reduce the risk of electrical shock, this unit has a
polarized plug (one blade is wider than the other) and
will require the use of a polarized extension cord. This
unit plug will fit into a polarized extension cord only
one way. If the plug does not fit fully into the extension
cord, reverse the plug. If the plug still does not fit,
obtain a correct polarized extension cord. A polarized
extension cord will require the use of a polarized wall
outlet. This plug will fit into a polarized wall outlet only
one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the unit plug, extension cord receptacle, or extension cord plug in any way.
RULES FOR SAFE OPERATION
4
• Ground Fault Circuit Interrupter (GFCI) protection
should be provided on the circuit(s) or outlet(s) to be
used for this unit. Receptacles are available having
built-in GFCI protection and may be used for this
measure of safety.
• EXTENSION CORDS: Make sure your extension cord
is in good condition. When using an extension cord,
be sure to use a cord that is heavy enough to carry the
current that your unit will draw. An undersized extension cord will cause a drop in line voltage resulting in
loss of power and overheating. The table shows the
correct size to use depending on the cord length and
nameplate amperage rating. If in doubt, use the next
heavier size line gauge. The smaller the gauge number, the heavier the cord. To reduce the possibility of
disconnection of the unit from the extension cord during operation, see Fig. 5, page 9.
• A nameplate on your unit indicates what voltage it
uses. Never connect the unit to an AC voltage that differs from this voltage.
BEFORE OPERATING
• Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
• Always remain alert. Use common sense. To prevent
injury to yourself and others, do not operate this unit if
you are fatigued.
• Do not operate the unit while under the influence of
drugs, alcohol or medication.
• Children and teens under the age of 15 must not use
the unit, except for teens guided by an adult.
• Inspect the unit before use. Replace damaged parts.
Make sure all fasteners are in place and secure.
Replace cutting attachment parts that are cracked,
chipped, or damaged in any way. Make sure the
cutting attachment is properly installed and securely
fastened. Be sure the cutting attachment shield is
properly attached, and positioned as recommended.
Failure to do so can result in personal injury to the
operator and bystanders, as well as damage to the
unit.
• Use only 0.080 inch (2.03 mm) diameter genuine Ryobi
replacement line. Never use metal-reinforced line,
wire, or rope, etc.. These can break off and become a
dangerous projectile.
• Be aware of the risk of injury to the head, hands and
feet.
• Clear the area to be cut before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string which can be thrown or become entangled in
the cutting attachment. Clear the area of children,
bystanders, and pets. At a minimum, keep all children,
bystanders and pets outside a 50 feet (15 m.) radius;
there still may be a risk to bystanders from thrown
objects. Bystanders should be encouraged to wear
eye protection. If you are approached, stop the engine
and cutting attachment immediately.
• This unit was not designed to be used as a
brushcutter. Do not attach or operate this unit with any
type of brushcutting blade or brushcutting attachment.
WHILE OPERATING
• Avoid unintentional starting. Do not carry plugged-in
unit with your finger on the switch. Be sure switch is
off when plugging in.
• Wear safety glasses or goggles that are marked as
meeting ANSI Z87.1 standards, and ear/hearing protection when operating this unit. Wear a face or dust
mask if the operation is dusty.
• Wear heavy, long pants, boots, gloves and a long
sleeve shirt. Do not wear loose clothing, jewelry,
short pants, sandals or go barefoot. Secure hair
above shoulder level.
• The cutting attachment shield must always be in place
while operating the unit as a trimmer. Do not operate
unit without both trimming lines extended, and the
proper line installed. Do not extend the trimming line
beyond the length of the shield.
• Adjust the assist handle to your size to provide the
best grip.
• Be sure the cutting attachment is not in contact with
anything before starting the unit.
• Use the unit only in daylight or good artificial light.
• Use the right tool. Only use this tool for the purpose
intended.
• Do not overreach. Always keep proper footing and
balance.
• Always hold the unit with both hands when operating.
Keep a firm grip on both the front and rear handle or
grips.
• Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the cutting
attachment when it is rotating.
• Do not force unit. It will do the job better and with less
likelihood of injury at a rate for which it was designed.
• Always stop the unit when operation is delayed or
when walking from one work location to another.
• If you strike or become entangled with a foreign
object, stop the unit immediately and check for
damage. Do not operate before repairing damage. Do
not operate the unit with loose or damaged parts.
MINIMUM WIRE SIZE FOR EXTENSION CORDS
FOR 120 VOLT APPLIANCES
Cord length (ft) 25 50 100 150
Amperage Rating Wire size (AWG)
1 to 10 amps 18 16 14 12
10 to 12 amps 16 16 14 12
12 to 16 amps 14 12
NOT
RECOMMENDED
RULES FOR SAFE OPERATION
5
• Stop and unplug the unit for maintenance, repair,
or for changing the cutting attachment or other
attachments.
• Use only genuine Ryobi replacement parts and
accessories for this unit. These are available from
your authorized service dealer. Use of any non Ryobi
parts or accessories could lead to serious injury to the
user, or damage to the unit, and void your warranty.
• This unit is provided with double-insulation. Use only
identical replacement parts. See instructions for
Servicing of Double-Insulated Units.
• Keep unit clean of vegetation and other materials.
They may become lodged between the cutting
attachment and shield.
• Maintain the unit with care. Keep cutting edge sharp
and clean for best performance and to reduce the risk
of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean and free
from oil and grease. Always use a clean cloth when
cleaning. Never use brake fluid, gasoline, petroleumbased products, or any strong solvents to clean your
tool.
• Check for damaged parts. Before further use of the
unit, a guard or other part that is damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition
that may effect the units operation. A guard or other
part that is damaged should be properly repaired or
replaced by an authorized service dealer unless indicated elsewhere in this manual.
WHILE OPERATING WITH EDGER ADD-ON
• Inspect the unit before use. Ensure the blade is
installed correctly and secure.
• Clear the area to be edged before each use. Remove
all objects such as rocks, broken glass, nails, wire, or
string which can be thrown or become entangled in
the edging attachment.
• Do not attempt to touch or stop the blade when it is
rotating.
• A coasting blade can cause injury while it continues to
spin after the unit is stopped. Maintain proper control
until the blade has completely stopped rotating.
• Do not run the unit at high speed when not edging.
• If you strike or become entangled with a foreign
object, stop the unit immediately and check for
damage. Have any damage repaired before attempting
further operations. Do not operate unit with a bent,
cracked or dull blade. Discard blades that are bent,
warped, cracked or broken.
• Stop the unit IMMEDIATELY if you feel excessive
vibration. Vibration is a sign of trouble. Inspect
thoroughly for loose nuts, bolts or damage before
continuing. Repair or replace affected parts as
necessary.
WHILE OPERATING WITH SWEEPER/BLOWER
ADD-ON
• Inspect the unit before use. Ensure the air intake on
sweeper/blower is free of debris.
• Do not overreach. Always keep proper footing and
balance. Take extra caution when cleaning on steps
or stairs.
• Never point the Blower in the direction of people or
pets, or in the direction of windows. Always direct the
blowing debris away from people, animals, glass, and
solid objects such as trees, automobiles, walls, etc.
OTHER SAFETY WARNINGS
• Allow the unit to cool before storing or transporting.
Be sure to secure the unit while transporting.
• Store the unit indoors in a locked up and dry or high
and dry place to prevent unauthorized use or damage,
out of the reach of children.
• Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean after each use, see Cleaning and Storage
instructions.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
SAVE THESE INSTRUCTIONS
WARNING: The operation of any power tool can cause foreign objects to be thrown into your
eyes. This can lead to severe eye damage. Before commencing power tool operation, always
wear safety glasses or goggles that are marked as meeting ANSI Z87.1 standards, and a full
face shield when needed.
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning, or caution. May be used in conjunction with other
symbols or pictographs.
• WARNING - READ OPERATOR'S MANUAL
Read the Operator’s Manual(s) and follow all warnings and safety instructions.
Failure to do so can result in serious injury to the operator and/or bystanders.
• FOR SERVICE INFORMATION, CALL:
USA: 1-800-345-8746
CANADA: 1-800-265-6778
• WEAR EYE AND HEARING PROTECTION
WARNING:
Thrown objects and loud noise can cause severe eye injury and hearing loss.
Wear eye protection meeting ANSI Z87.1 standards and ear protection when
operating this unit.
• KEEP BYSTANDERS AWAY
WARNING:
Keep all bystanders, especially children and pets, at least 50 feet (15 m)
from the operating area.
• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY
WARNING:
Do not operate without the cutting attachment shield in place.
Keep away from the rotating cutting attachment or edger blade.
• SPEED SWITCH
Indicates “HIGH” or “FASTEST” speed.
• SPEED SWITCH
Indicates “LOW” or “SLOWEST” speed.
• HOT SURFACE WARNING
WARNING:
The gear housing gets hot after long periods of use. To avoid serious
personal injury, do not touch the housing until it has cooled.
• SHARP BLADE
WARNING:
There is a sharp blade on the cutting attachment shield.
To prevent serious injury, do not touch blade.
• BLOWERS AND BLOWER/VACUUMS – ROTATING IMPELLER BLADES CAN
CAUSE SEVERE INJURY
WARNING:
Stop, unplug the unit, and allow the impeller to stop before cleaning or
performing any maintenance.
RULES FOR SAFE OPERATION
6
RULES FOR SAFE OPERATION
7

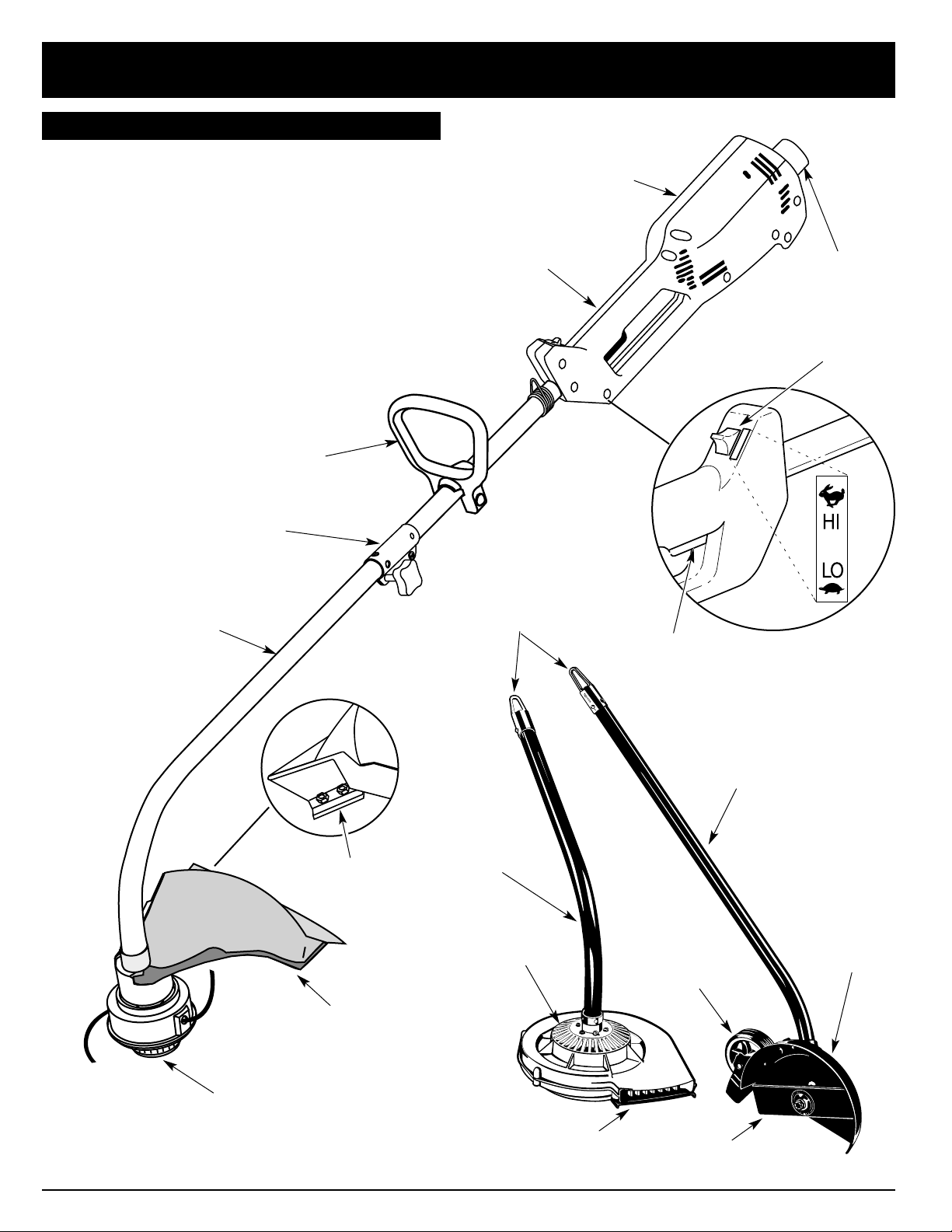

KNOW YOUR UNIT
APPLICATIONS
As a trimmer;
• Cutting grass and light weeds.
• Decorative trimming around trees, fences, etc.
With Edger Add-On;
• Edging along paths, driveways, rockeries, etc.
With Sweeper/Blower Add-On
• Cleaning driveways, porches, around walls, fences,
etc.
Hanger
Height
Adjustment
Wheel
Air Intakes
Air Output
Edger Blade
D-handle
Click-Link
Line Cutting
Blade
Cutting Attachment
Shaft Housing
Blade Shield
Edger Add-On
Sweeper/Blower
Add-On
Housing Grip
Two Speed Switch
Switch Trigger
Motor Housing
Cutting Attachment
Shield
Recessed
Plug
ASSEMBLY INSTRUCTIONS
8
Fig. 3
Fig. 4
INSTALLING CUTTING ATTACHMENT SHIELD
WARNING: To avoid injury, never operate the
trimmer without the cutting attachment shield
installed. If the trimmer is operated without it
in place, you will VOID the warranty.
1. Place the cutting attachment shield onto the shaft
housing above the clamp assembly (Fig. 3).
2. Push the cutting attachment shield down to the top
of the cutting attachment assembly and then rotate
the cutting attachment shield 180°. Align the 4 screw
holes and fit the cutting attachment shield securely
in the recessed pocket (Fig. 3).
3. Install the four (4) screws (10-24 x 1/2) with a regular
Phillips screwdriver (Fig. 4). Tighten securely.
Screws
Cutting
Attachment
Shield
Cutting
Attachment
Clamp
Assembly
Shaft Housing
Fig. 1
Fig. 2
D Handle
Wing Nut
ADJUSTING THE D-HANDLE
1. Hold the unit in the operating position (Fig. 1).
2. Loosen the wing nut (Fig. 2). It is not necessary to
remove the wing nut, washer or bolt.
3. Position the D-handle to the location that provides
you the best grip, and tighten the wing nut (Fig. 2).
OPERATING INSTRUCTIONS
9
Fig. 5
Fig. 6
CONNECTING THE POWER CORD
WARNING: To reduce the risk of electrical
shock, this unit has a polarized plug (one
blade is wider than the other) and will require
the use of a polarized extension cord. This
unit plug will fit into a polarized extension
cord only one way. If the plug does not fit
fully into the extension cord, reverse the
plug. If the plug still does not fit, obtain a
correct polarized extension cord. A
polarized extension cord will require the
use of a polarized wall outlet. This plug will
fit into a polarized wall outlet only one way.
If the plug does not fit fully into the wall
outlet, reverse the plug. If the plug still
does not fit, contact a qualified electrician to
install the proper wall outlet. Do not change
the unit plug, extension cord receptacle, or
extension cord plug in any way.
1. Use the cord hook when you connect the extension
cord to the power cord to prevent disconnection
(Fig. 5). Use only an outdoor-approved extension
cord as specified in the Rules for Safe Operation
section.
2. Secure the extension cord to motor housing as
shown (Fig. 5).
STARTING THE UNIT
Be in the operating position (Fig. 1). Squeeze the trigger
to start the trimmer (Fig. 6).
STOPPING THE UNIT
Release the trigger to stop the trimmer.
OPERATING THE TWO-SPEED SWITCH
This unit is equipped with a two-speed switch;
a powerful high speed for demanding yard work, and
a precision low speed for light-duty yard work.
Push the switch up for high speed trimming. Push the
switch down for low speed trimming (Fig. 6).
CAUTION: Do not use the unit for demanding work with the switch in the low speed.
This may cause the unit to overheat and fail.
Trigger
OPERATING INSTRUCTIONS
10
2. While firmly holding the add-on, push it straight into
the Click-Link® coupler (Fig. 8).
NOTE: Aligning the release button with the guide recess
will help installation (Fig. 8).
3. Turn the knob clockwise to tighten (Fig. 9).
CAUTION: Lock the release button in the
primary hole and securely tighten the knob
before operating this unit.
OPERATING THE CLICK-LINK® SYSTEM
The Click-Link® system enables the use of these
optional add-ons.
Blower/Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . BV720r
Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GC720r
Hedge Trimmer (gas units only) . . . . . . . . . . . . . HS720r
Snow Thrower (gas units only) . . . . . . . . . . . . . . ST720r
Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . SS725r
Tree Pruner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TP720r
Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB720r
WARNING: Read and understand operator’s
manual for add-on prior to operation.
Removing the Cutting Attachment or Add-Ons:
1. Turn the knob counterclockwise to loosen (Fig. 7).
2. Press and hold the release button (Fig. 7).
3. While firmly holding the upper shaft housing, pull the
cutting attachment or add-on straight out of the
Click-Link® coupler.
Installing the Cutting Attachment or Add-Ons:
WARNING: To avoid serious personal injury,
shut unit off before removing or installing
add-ons.
NOTE: To make installing or removing the add-on easier,
place the unit on the ground or on a work bench.
1. Turn the knob counterclockwise to loosen (Fig. 7).
Click-Link®Coupler
Release Button
Guide
Recess
Knob
Primary Hole
Upper Shaft
Housing
Lower Shaft
Housing
Release Button
90˚ Edging Hole
180˚ Edging
Hole
Knob
CAUTION: The cutting attachment and add-
ons with the Click-Link® system are to be
used in the primary hole unless stated otherwise in the specific add-ons operator’s man-
ual. Using the wrong hole could lead to personal injury, or damage to the unit.
For edging when using the line head cutting attachment
with Click-Link® models, lock the release button of the
cutting attachment into the 90° edging hole or the 180°
edging hole(Fig. 9). The edger add-on should be
installed with the release button in the primary hole.
Fig. 7
Fig. 8
Fig. 9
Click-Link
®
Coupler
OPERATING INSTRUCTIONS
11
Fig. 10
Fig. 11
Each time the head is bumped, about 1 inch (25.4 mm.)
of trimming line is released. A blade in the cutting
attachment shield will cut the line to the proper length
if excess line is released.
For best results, tap the Bump Head on bare ground or
hard soil. If line release is attempted in tall grass, the
engine may stall. Always keep the trimming line fully
extended. Line release becomes more difficult as the
cutting line becomes shorter.
NOTE: Do not rest the Bump Head on the ground.
CAUTION: Do not remove or alter the line
cutting blade assembly. Excessive line length
will make the motor overheat. This may lead
to serious personal injury or damage to the
unit.
Some line breakage will occur from:
• Entanglement with foreign matter
• Normal line fatigue
• Attempting to cut thick, stalky weeds
• Forcing the line into objects such as walls or fence
posts
TIPS FOR BEST TRIMMING RESULTS
• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of
the line to do the cutting (especially along walls).
Cutting with more than the tip will reduce cutting
efficiency and may overload the engine.
• Cut grass over 8 inches (200 mm.) by working from
top to bottom in small increments to avoid premature
line wear or engine drag.
• Cut from right to left whenever possible. Cutting to the
left improves the unit's cutting efficiency. Clippings are
thrown away from the operator.
• Slowly move the trimmer into and out of the cutting
area at the desired height. Move either in a forwardbackward or side-to-side motion. Cutting shorter
lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon;
• Following the previous trimming techniques
• What vegetation is being cut
• Where it’s being cut
For example, the line will wear faster when trimming
against a foundation wall as opposed to trimming
around a tree.
ADJUSTING TRIMMING LINE LENGTH
The Bump Head™ cutting attachment allows you to
release trimming line without stopping the engine. To
release more line, lightly tap the cutting attachment on
the ground (Fig. 11) while operating the trimmer at high
speed.
NOTE: Always keep the trimming line fully extended.
Line release becomes more difficult as cutting
line becomes shorter.
HOLDING THE TRIMMER
WARNING:
Always wear eye, hearing, foot
and body protection to reduce the risk of
injury when operating this unit.
Before operating the unit, stand in the operating position
(Fig. 10). Check for the following:
• The operator is wearing eye protection and proper
clothing.
• The right arm is slightly bent, and the hand is holding
the housing grip.
• The left arm is straight, and the hand is holding the
D-handle.
• The unit is at waist level.
• The cutting attachment is parallel to the ground and
easily contacts the vegetation to be cut without the
operator having to bend over.
OPERATING INSTRUCTIONS
12
DECORATIVE TRIMMING
Decorative trimming is accomplished by removing all
vegetation around trees, posts, fences, etc.
Rotate the whole unit so that the cutting attachment is at
a 30° angle to the ground (Fig. 12).
HOLDING THE UNIT WITH EDGER ADD-ON
WARNING:
Always wear eye, hearing, foot
and body protection to reduce the risk of
injury when operating this unit.
Before operating the unit, stand in the operating position
(Fig. 13). Check for the following:
• The operator is wearing eye protection and proper
clothing.
• The right arm is slightly bent, and the hand is holding
the housing grip.
• The left arm is straight, and the hand is holding the
D-handle.
• The unit is at waist level.
• The edger wheel adjusted for proper cut depth and
edger positioned as shown in Fig. 13.
ADJUSTING EDGER CUTTING DEPTH
1. Loosen the adjustment knob above the wheel
(Fig 14).
2. Slide the wheel to the desired position.
• Raising the wheel increases the cutting depth.
• Lowering the wheel decreases the cutting depth.
3. Tighten the adjustment knob securely.
TIPS FOR BEST EDGING RESULTS
• Keep the cutting attachment perpendicular to the
ground.
• Do not force the edger. Edge the first time at a lower
depth, then do the area again with a deeper setting.
• Walk the edger at a slow, even pace
• Check the blade condition, as it wears it becomes
smaller, reducing the cutting depth performance.
Replace with a new blade as required.
Fig. 12
Fig. 13
Fig. 14
Raising
Lowering
OPERATING INSTRUCTIONS
13
OPERATING TIPS WHEN USING
SWEEPER/BLOWER
• To reduce the risk of hearing loss associated with
sound level(s), the use of hearing protection is
required.
• Operate power equipment only at reasonable hours –
not early in the morning or late at night when people
might be disturbed. Comply with time listed in local
ordinance. Usual recommendations are 9:00 am to
5:00 pm, Monday through Saturday.
• To reduce noise levels, limit the number of pieces of
equipment used at any one time.
• To reduce noise levels, operate power blowers at the
lowest possible speed to do the job.
• Use rakes and brooms to loosen debris before
blowing.
• In dusty conditions, slightly dampen surfaces or use a
mister attachment when water is available.
• Conserve water by using power blowers instead of
hoses for many lawn and garden applications,
including areas such as gutters, screens, patios,
grills, porches, and gardens
• Watch out for children, pets, open windows, or freshly
washed cars, and blow debris away.
• After using blowers and other equipment, CLEAN UP!
Dispose of debris in trash receptacles.
HOLDING THE UNIT WITH SWEEPER/BLOWER
ADD-ON
WARNING:
Always wear eye, hearing, foot
and body protection to reduce the risk of
injury when operating this unit.
Before operating the unit, stand in the operating position
(Figs. 15). Check for the following:
• The operator is wearing eye protection and proper
clothing.
• The right arm is slightly bent, and the hand is holding
the housing grip.
• The left arm is straight, and the hand is holding the
D-handle.
• The unit is at waist level.
• The sweeper/blower is parallel to the ground and is
positioned so debris is blown away from operator.
WARNING: To prevent serious injury to
yourself or others, or possible damage to
property, never point the sweeper/blower in
the direction of people or pets, or in the
direction of windows. Always direct the
blowing debris away from people, animals,
glass, and solid objects such as trees,
automobiles, walls, etc.
1. Use the sweeper/blower to clean around buildings,
walls and fences (Figs. 15 & 16).
2. Use around trees, shrubs and flower beds (Fig. 17).
Fig. 15
Fig. 16
Fig. 17
MAINTENANCE AND REPAIR INSTRUCTIONS
14
Fig. 21
5. Check the indexing teeth on the inner reel and outer
spool for wear (Fig. 21). If necessary, remove burrs
or replace the reel and spool.
Indexing Teeth
6. Take approximately 25 feet (7.6 m) of new 0.080 inch
diameter trimming line, loop it into two equal lengths.
Insert each end of the line through one of the two
holes in the inner reel (Fig. 22). Pull the line through
the inner reel so that the loop is as small as possible.
NOTE: Always use the correct line length when installing
trimming line on the unit. The line may not
release properly if the line is too long.
Fig. 18
Fig. 20
Fig. 19
WARNING: To avoid serious personal
injury, be sure the unit is off and unplugged
before cleaning or performing any
maintenance on it.
SERVICING OF DOUBLE INSULATED UNITS
This unit is double-insulated. In a double-insulated unit,
two systems of insulation are provided instead of
grounding. No means of grounding are provided on a
double-insulated unit, nor should a means for grounding
be added to this unit.
Servicing a double-insulated unit requires extreme care
and knowledge of the system, and should be done only
by qualified service personnel. Replacement parts for a
double-insulated unit must be identical to the parts they
replace. Refer any repair to an authorized service dealer.
A double-insulated unit is marked with the words
“DOUBLE INSULATION” or “DOUBLE INSULATED.”
LINE INSTALLATION
Always use genuine Ryobi 0.080 inch (2.03 mm.)
replacement line. Line other than specified may make
the motor overheat or fail.
WARNING: To prevent serious personal
injury, never use metal-reinforced line, wire,
or rope, etc.. These can break off and
become a dangerous projectile.
There are two methods to replace the trimming line.
• Wind the inner reel with new line
• Install a prewound inner reel
Winding the Existing Inner Reel
1. Hold the outer spool with one hand and unscrew the
Bump Knob™ counterclockwise (Fig. 18). Inspect
the bolt inside the Bump Knob to make sure it
moves freely. Replace the Bump Knob if damaged.
4. Use a clean cloth to clean the inner reel, spring,
shaft, and inner surface of the outer spool (Fig. 20).
2. Remove the inner reel from the outer spool (Fig. 19).
3. Remove spring from the inner reel (Fig. 19).
Inner Reel
Outer Spool
Spring
Bump Knob™
Shaft
MAINTENANCE AND REPAIR INSTRUCTIONS
15
Fig. 23
Fig. 24
Fig. 22
Fig. 25

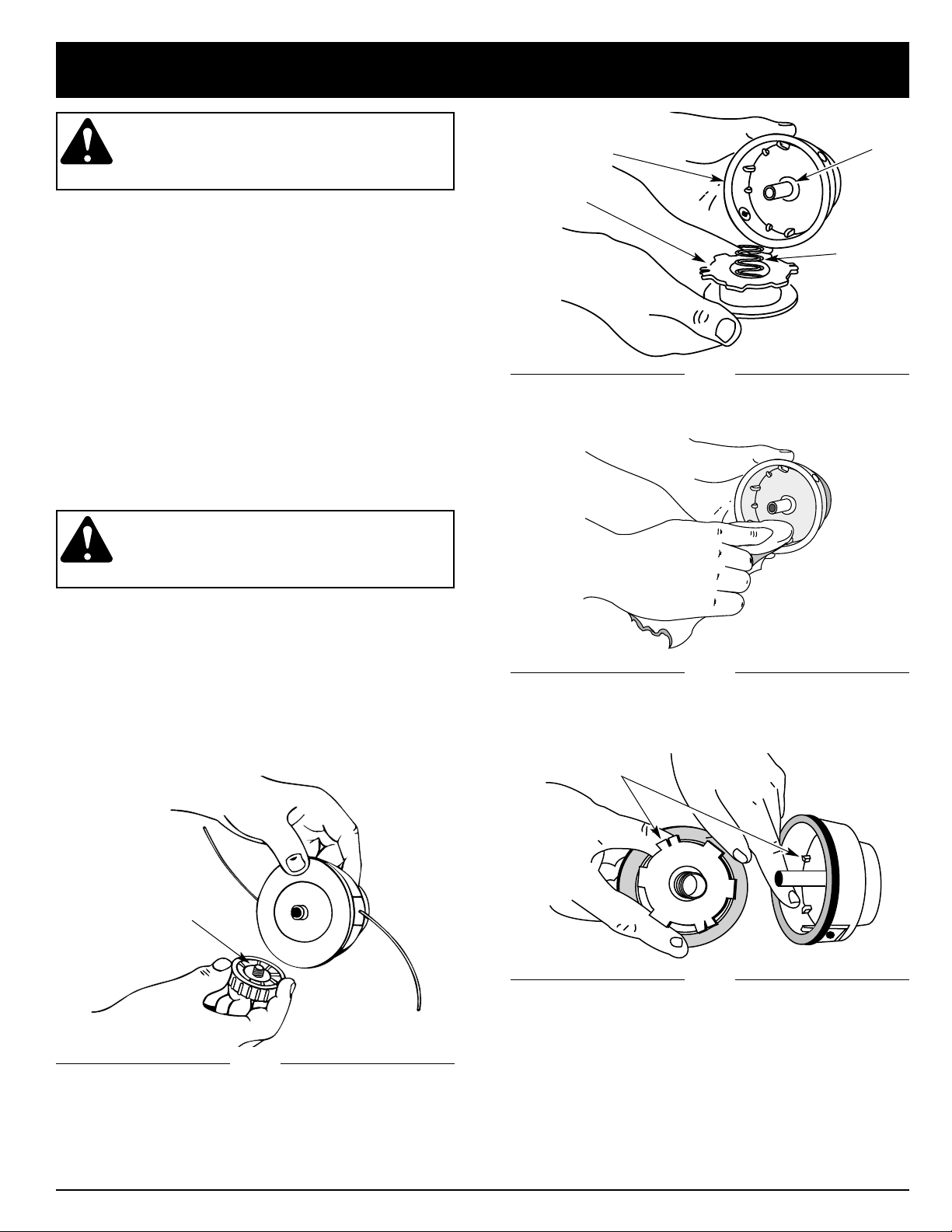

9. Place the spring in the inner reel. Insert the ends of
the line through the eyelets in the outer spool and
place inner reel inside the outer spool (Fig. 25). Push
the inner reel and outer spool together. While holding
the inner reel and outer spool, grasp the ends and
pull firmly to release the line from the holding slots in
the spool.
NOTE: The spring must be assembled on the inner reel
before reassembling the cutting attachment.
7. Wind the lines in tight even layers, onto the reel
(Fig. 23). Wind the line in the direction indicated on
the inner reel. Place your index finger between the
two lines to stop the lines from overlapping. Do not
overlap the ends of the line.
NOTE: Failure to wind the line in the direction indicated
will cause the cutting attachment to operate
incorrectly.
8. Insert the ends of the line into the two holding slots
(Fig. 24).
Holding Slots
10. Hold the inner reel in place and install the Bump
Knob by turning clockwise. Tighten securely.
INSTALLING A PREWOUND REEL
1. Hold the outer spool with one hand and unscrew the
Bump Knob counterclockwise (Fig. 18). Inspect the
bolt inside the Bump Knob to make sure it moves
freely. Replace the Bump Knob if damaged.
2. Remove the old inner reel from the outer spool
(Fig. 19).
3. Remove the spring from the old inner reel (Fig. 19).
4. Use a clean cloth to clean the spring, shaft, and
inner surface of the outer spool (Fig. 20).
5. Place the spring in the new inner reel. Insert the ends
of the line through the eyelets in the outer spool
(Fig. 25).
6. Place the new inner reel inside the outer spool. Push
the inner reel and outer spool together. While holding
the inner reel and outer spool, grasp the ends and
pull firmly to release the line from the holding slots in
the spool.
NOTE: The spring must be assembled on the inner reel
before reassembling the cutting attachment.
7. Hold the inner reel in place and install the Bump
Knob by turning clockwise. Tighten securely.
MAINTENANCE AND REPAIR INSTRUCTIONS
16
EDGER BLADE REPLACEMENT
WARNING:
To avoid serious personal injury,
always wear gloves while handling, removing
or installing the blade.
WARNING: The gear housing gets hot
after long periods of use. To avoid serious
personal injury, do not touch the housing
until it has cooled.
1. Line up the hole in output shaft with the locking rod
slot. Insert the locking rod through the slot into the
output shaft hole (Fig. 26).
2. While holding the locking rod, loosen the nut on the
blade by turning it clockwise with a 5/8 inch wrench
(Fig. 27). Remove the nut, retaining washer and
blade. Keep the nut and blade retainer for
installation.
3. Install the new blade, blade retainer, and nut
(Fig. 28). Insert the locking rod through the slot into
the output shaft hole. Make sure that the blade stays
flat and centered against the output shaft while
tightening the lock nut counterclockwise (Fig. 29).
Fig. 26
Fig. 28
Fig. 27
Fig. 29
4. If you have a torque wrench, tighten the nut to
325-335 in.•lbs (37-38 N•m), while holding the
locking rod in the slot.
If you do not have a torque wrench, hold the locking
rod in the slot. Rotate the nut counterclockwise
with a 5/8 inch closed-ended or socket wrench, until
the nut presses against the washer and the blade is
snug. Make sure the blade assembly is installed
correctly, then rotate the nut an additional 1/4-1/2
turn (Fig. 29).
5. Remove the locking rod.
WARNING: Verify the blade is flat against
the output shaft after the nut is tightened. If
the blade is off-center, the unit will be
damaged by vibration, and the blade may fly
off, which can cause serious personal injury.
Locking Rod
Locking Rod
Blade Retainer
Lock Nut
Loosen
Tighten
Edger Blade
Output Shaft
Hole
Locking Rod
Slot
Output Shaft
ACCESSORIES/REPLACEMENT PARTS
Replacement Line . . . . . . . . . . . . . . . . . . . . . . . 610375
Replacement Line Cartridge . . . . . . . . . . . . . . . . 153577
Inner Reel Spring . . . . . . . . . . . . . . . . . . . . . . . . 610317
Bump Head Knob Assembly . . . . . . . . . . . . . . . . 153066
Edger Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . 613223
Blade Retaining Kit (edger blade) . . . . . . . . . . . . 180015
Locking Rod Tool . . . . . . . . . . . . . . . . . . . . . . . . 613226
Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . 682075
CLEANING AND STORAGE
17
INSPECT EXTENSION CORDS
Inspect all extension cords periodically. Look closely for
deterioration, cuts or cracks in the insulation. Inspect the
connectors for damage. Replace cords if defective or
damaged.
STORAGE
• Store the unit indoors, away from moisture and
harmful substances such as fertilizers and solvents.
• Store the unit indoors in a locked up and dry, or high
and dry place to prevent unauthorized use or damage,
out of the reach of children.
CLEANING
WARNING: To avoid serious personal
injury, be sure the unit is off and unplugged
before cleaning or performing any
maintenance on it.
1. Switch off the unit and disconnect it from the
power source.
2. Use a small brush or the air discharge of a
vacuum cleaner brush to keep the air vents
free of obstructions.
3. Do not use strong detergents on the plastic housing
or components. These can be damaged by certain
household cleaners that contain aromatic oils such
as pine and lemon, and by solvents such as kerosene
or acetone. Moisture can also cause a shock hazard.
Wipe off any moisture with a soft cloth.
TROUBLESHOOTING
CAUSE ACTION
Cutting attachment bound with grass Stop, unplug the unit, and clean cutting attachment
Cutting attachment out of line Refill with new line
Inner reel bound up Replace the inner reel
Cutting attachment dirty Clean inner reel and outer spool
Line welded Disassemble, remove the welded section
and rewind the line
Line twisted when refilled Disassemble and rewind the line
Not enough line is exposed Push the Bump Knob and pull out line until
4 inches (102 mm.) of line is outside of the
cutting attachment
CUTTING ATTACHMENT WILL NOT ADVANCE LINE
SPECIFICATIONS
18
Motor Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A.C. 110 Volt Electric
Operating RPM (both lines fully extended)
Low Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000-5,500 rpm
High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,000-7,000 rpm
Amperage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2 Amps
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Momentary Trigger Switch
MOTOR
DRIVE SHAFT and CUTTING ATTACHMENT
Drive Shaft Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Steel Tube, Click-Link
Unit Weight (with cutting attachment, cutting attachment shield and D-handle) . . . . . . . . . . . . . . 12.25 lbs. (5.6 kg.)
Cutting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dual Line Bump Head
Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optional
Line Spool Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 in (76.2 mm)
Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.080 in (2.03 mm.)
Cutting Path Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 in. (38.1 cm)
EDGER ADD-ON
Unit Weight (Add-On only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.25 lbs. (2.36 kg.)
Cutting Depth (maximum) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 in. (63.5 mm)
Wheel Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.75 in (95.25 mm)
Gearbox Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23:1
SWEEPER/BLOWER ADD-ON
Unit Weight (Add-On only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.25 lbs. (1.46 kg.)
Air Output Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . up to 100 MPH
NOTES
19
ALL IMPLIED WARRANTIES ARE LIMITED IN
DURATION TO THE TWO (2) YEAR WARRANTY
PERIOD OR NINETY (90) DAYS FOR PRODUCTS
USED FOR ANY COMMERCIAL PURPOSE.
ACCORDINGLY, ANY SUCH IMPLIED WARRANTIES
INCLUDING MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, OR OTHERWISE, ARE
DISCLAIMED IN THEIR ENTIRETY AFTER THE
EXPIRATION OF THE APPROPRIATE TWO-YEAR
OR NINETY DAY WARRANTY PERIOD. RYOBI’S
OBLIGATION UNDER THIS WARRANTY, IS STRICTLY
AND EXCLUSIVELY LIMITED TO THE REPAIR OR
REPLACEMENT OF DEFECTIVE PARTS, AND ROP
DOES NOT ASSUME OR AUTHORIZE ANYONE TO
ASSUME FOR THEM ANY OTHER OBLIGATION.
SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
RYOBI ASSUMES NO RESPONSIBILITY FOR
INCIDENTAL, CONSEQUENTIAL OR OTHER
DAMAGES INCLUDING, BUT NOT LIMITED TO
EXPENSE OF RETURNING THE RYOBI PRODUCT
TO AN AUTHORIZED SERVICE DEALER AND
EXPENSE OF DELIVERING IT BACK TO THE
OWNER, MECHANIC’S TRAVEL TIME, TELEPHONE
OR TELEGRAM CHARGES, RENTAL OF A LIKE
PRODUCT DURING THE TIME WARRANTY SERVICE
IS BEING PERFORMED, TRAVEL, LOSS OR DAMAGE
TO PERSONAL PROPERTY, LOSS OF REVENUE,
LOSS OF USE OF THE PRODUCT, LOSS OF TIME,
OR INCONVENIENCE. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
This warranty applies to all RYOBI Products
manufactured by RYOBI and sold in the United States
and Canada.
To locate your nearest service dealer dial
1-800-345-8746 in the United States or
1-800-265-6778 in Canada.
RYOBI OUTDOOR PRODUCTS
550 N. 54th Street
Chandler, AZ 85226 U.S.A.
RYOBI CANADA INC.
275 Industrial Rd
Cambridge, Ontario N1R 6K2 CANADA
RYOBI OUTDOOR PRODUCTS warrants each new
RYOBI Product for two (2) years according to the
following terms.
This warranty extends to the original retail purchaser
only and commences on the date of original retail
purchase.
Any part of the RYOBI Product manufactured or
supplied by RYOBI and found in the reasonable
judgement of RYOBI to be defective in material or
workmanship will be repaired or replaced by an
authorized RYOBI service dealer without charge for
parts and labor.
The RYOBI Product including any defective part must
be returned to an authorized service dealer within the
warranty period. The expense of delivering the RYOBI
Product to the dealer for warranty work and the
expense of returning it back to the owner after repair
or replacement will be paid for by the owner. RYOBI’s
responsibility in respect to claims is limited to making
the required repairs or replacements and no claim of
breach of warranty shall be cause for cancellation or
rescission of the contract of sale of any RYOBI
Product. Proof of purchase will be required by the
dealer to substantiate any warranty claim. All warranty
work must be performed by an authorized RYOBI
service dealer.
This warranty is limited to ninety (90) days from the
date of original retail purchase for any RYOBI Product
that is used for rental or commercial purposes, or any
other income-producing purpose.
This warranty does not cover any RYOBI Product that
has been subject to misuse, neglect, negligence, or
accident, or that has been operated in any way
contrary to the operating instructions as specified in
the RYOBI Operator’s Manual. This warranty does not
apply to any damage to the RYOBI Product that is the
result of improper maintenance or to any RYOBI
Product that has been altered or modified so as to
adversely affect the product's operation, performance
or durability or that has been altered or modified so as
to change its intended use. The warranty does not
extend to repairs made necessary by normal wear or
by the use of parts or accessories which are either
incompatible with the RYOBI Product or adversely
affect its operation, performance or durability.
In addition, this warranty does not cover:
A. Wear items - Bump Knobs, Outer Spools,
Cutting Line, Inner Reels, Edger Blades
RYOBI reserves the right to change or improve the
design of any RYOBI Product without assuming
any obligation to modify any product previously
manufactured.
LIMITED TWO-YEAR WARRANTY
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR QUESTIONS CALL 1-800-345-8746 IN U.S.
OR 1-800-265-6778 IN CANADA
OPERATOR’S MANUAL PART NO. 182596 REV. A (51715)
PRINTED IN U.S.A. 11/99
Loading...
