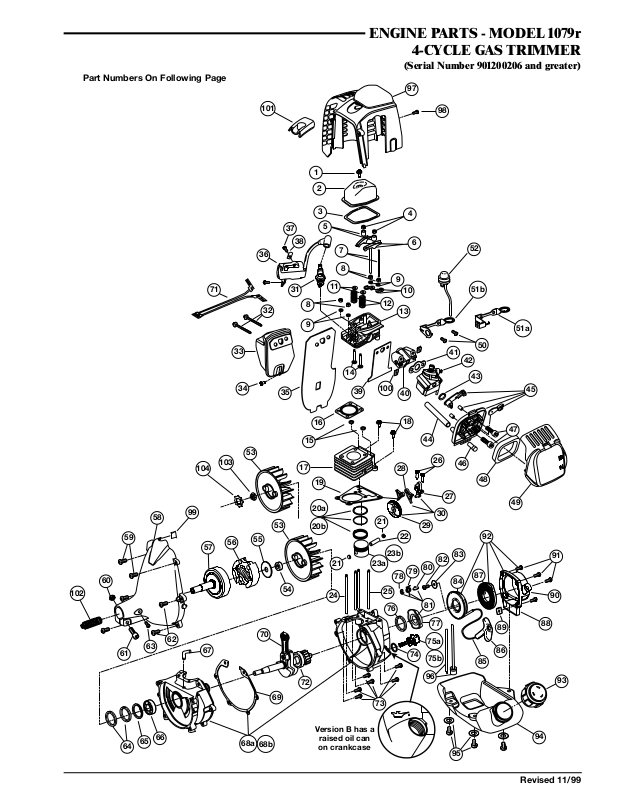

ENGINE PARTS - MODEL 1079r
4-CYCLE GAS TRIMMER
(Serial Number 901200206 and greater)
Part Numbers On Following Page
Page 2
ENGINE PARTS - MODEL 1079r
4-CYCLE GAS TRIMMER
(Serial Number 901200206 and greater)
Revised 11/99
Item Part
No. Description
1 181025 Valve Cover Screw
2 182098 Valve Cover
3 182099 Valve Cover Gasket
4 181030 Rocker Adjustment Nut
5 182101 Rocker Arm Pivot
6 182100 Rocker Arm
7 181033 Push Rod
8 181034 Hex Nut
9 181035 Washer
10 182102 Push Rod Guide
11 182103 Valve Spring Retainer
12 181038 Valve Spring
13 182306 Cylinder Head with Valve Seal
(includes 10-14)
14 181040 Valve
15 181000 O-Ring
16 181001 Cylinder Head Gasket
17 182132 Cylinder
18 181003 Screw (M5 x 18.7mm)
19 181004 Cylinder Gasket
20a 181005 Piston Ring Set (1 Piece Oil Ring)
20b 182295 Piston Ring Set (3 Piece Oil Ring)
21 181008 Wrist Pin Button
22 181006 Wrist Pin
23 181007 Piston (1 Piece Oil Ring)
23 182300 Piston (3 Piece Oil Ring)
24 181010 Cylinder Stud (83.5mm)
25 181011 Cylinder Stud (115.5mm)
26 181012 Cam Bracket Screw
27 181013 Cam Bracket
28 182123 Cam Follower (Chromed)
29 182124 Cam Gear
30 182125 Cam Bracket Assembly (includes 26-29)
31 180852 Spark Plug
32 182105 Muffler Mounting Screw
33 182106 Muffler
34 181020 Screw
35 182107 Muffler Gasket
36 182108 Module
37 181066 Screw
38 611063 Ground Tab
39 182131 Insulator Gasket
40 182109 Insulator
41 181709 Carburetor Gasket
42 182110 Carburetor
43 181751 O-Ring, Carburetor
44 182096 Breather Hose
45 182111 Air Cleaner Assembly
46 182097 Breather assembly
47 182133 Screw
48 182116 Air Filter
49 182115 Air Cleaner Cover
50 182105 Screw
51a 182112 Throttle Cable Bracket (version A)
51b 182589 Throttle Cable Bracket (version B)
52 181054 Primer and Line Assembly
53 182113 Flywheel
54 181731 Spacer (version B flywheel mounting)
55 182590 Clutch Washer
56 181730 Clutch
57 180232 Clutch Drum
Item Part
No. Description
58 182114 Front Housing
59 181764 Screw
60 181761 Nut
61 181760 Engine Bolt
62 181003 Screw
63 182188 Anti-Rotation Screw
64 182127 Oil Seal
65 182128 Snap Ring
66 182134 Bearing
67 182135 90° Elbow
68a 182140 Crankcase (version A) (includes 73)
68b 182593 Crankcase (version B) (includes 73)
69 182136 Crankcase Gasket
70 182139 Crankshaft
71 182126 Lead Wire
72 182138 Bearing
73 182147 Screw
74 181021 O-Ring
75a 181022 Oil Cap Dipstick (version A crankcase)
(includes 74)
75b 182289 Oil Cap Dipstick (version B crankcase)
(includes 74)
76 182142 Oil Seal
77 182187 Pulley with Nut
78 181747 Retaining Ring
79 181746 Spring
80 181745 Ratchet
81 182118 Pulley Assembly (includes 77-88)
82 181740 Screw
83 181741 Washer
84 181738 Recoil Pully
85 181742 Rope
86 181079 Pull Handle
87 181739 Recoil Spring
88 182120 Recoil Case
89 182121 Square Nut
90 182122 Rope Guide
91 182143 Screw
92 182117 Recoil Case Assembly
(includes 82-91)
93 181083 Fuel Cap
94 182130 Fuel Tank
95 182144 Screw with Washer
96 182129 Fuel Line Assembly
97 182145 Engine Cover
98 182146 Screw
99 182157 Wire Grommet
100 182159 Nut
101 182293 Spark Plug Cover
102 612468 Spring
103 182261 Nut (version A flywheel mounting)
104 182591 Lock Washer (version A flywheel mounting)
* 182595 Crankcase Assembly
(includes 24, 25 & 64-76)
* 182594 Short Block Assembly
(includes 1-30, & 64-76)
* 182307 Valve Stem Seal
* 182153 Spark Arrestor Screen
* 182156 AC-10 Carburetor Repair Kit
* Parts not shown
Page 3
Revised 11/99

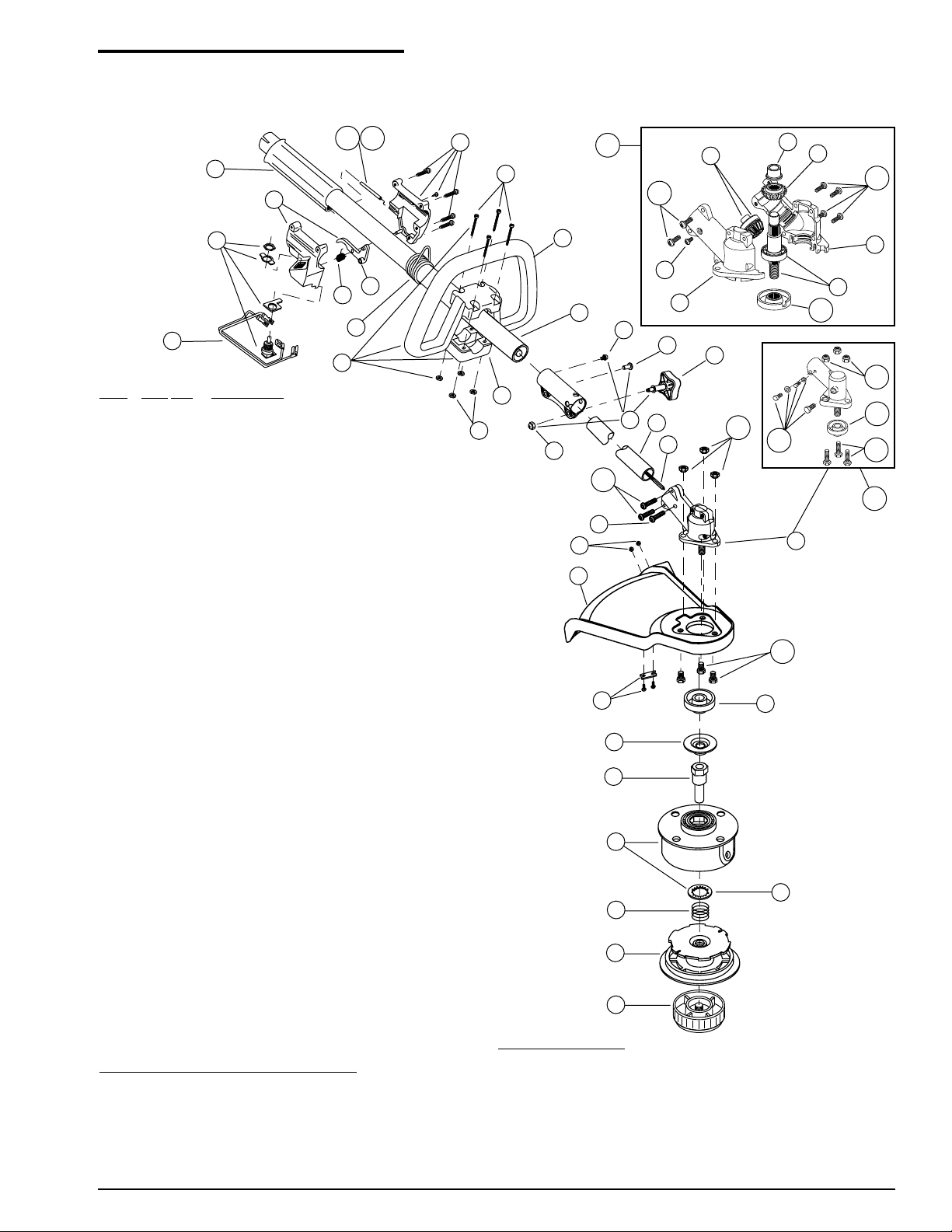

BOOM AND TRIMMER PARTS - MODEL 1079r
4-CYCLE GAS TRIMMER
(Serial Number 901200206 and greater)
Item Part
No. Description
1 180866 Grip
2a 182158 Throttle Cable Assembly
(version A throttle cable bracket)
2b 182592 Throttle Cable Assembly
(version B throttle cable bracket)
3 180975 Throttle Trigger
4 610314 Throttle Trigger Spring
5 181689 Throttle Trigger Assembly (includes 4)
6 180252 Switch Assembly
7 181690 Wire Lead Assembly
8 181969 Upper Drive Shaft Housing Assembly
9 610327 Shoulder Harness Clamp
10 180869 Loop Handle Assembly (includes 11-14)
11 181838 Screw
12 182167 Loop Handle
13 182168 Bottom Clamp
14 181810 Nut
15 181616 Click-Link Coupler (includes 16-19)
16 182057 Screw
17 181617 Bolt
18 181618 Adjustment Knob
19 181886 Knob Retaining Nut
20 181972 Lower Drive Shaft Housing
21 181570 Drive Shaft
22a 147539 Shield Mount Screw Assembly (1 piece Gearbox)
22b 182200 Shield Mount Screw Assembly (2 piece Gearbox)
23 182189 Shield and Blade Assembly
24 682061 Blade Assembly
25a 147677 Gearbox Mounting Hardware and
Grease Plug (1 piece Gearbox)
25b 182195 Gearbox Mounting Hardware (2 piece Gearbox)
26 145569 Anti-Rotation Screw (2 piece Gearbox)
27a 147488 1 piece Gearbox Assembly (includes 25a, 28a & 29)
27b 182193 2 piece Gearbox Assembly (includes 25b, 28b & 29)
28a 147489 Blade Driver (1 piece Gearbox)
28b 182196 Blade Driver (2 piece Gearbox)
29 147490 Retaining Washer
30 612483 Spool Shaft
31 683301 Outer Spool & Eyelet Assembly
32 612026 Retainer
33 610636 Spring
34 147495 Inner Reel
35 180814 Bump Head Knob Assembly
2 Piece Gearbox Assembly Parts – Item 27b
36 182191 Left Housing
37 182192 Right Housing
38 182194 Pinion Gear Assembly
39 182199 Output Shaft Bushing
40 182198 Output Shaft Gear
41 182197 Output Shaft Assembly (includes 39 & 40)
5
1
5
6
7
11
12
9
8
14
4
3
13
10
17
16
18
15
19
20
21
27
24
24
25a
25b
28a
22a
22a
27a
26
23
28
30
29
32
31
33
34
35
39
40
36
37
26
38
41
Optional Accessories
* 612454 Replacement Line, 0.095 Diameter
* 147345 Reel and Line Assembly
* 147498 Bump Head Assembly (includes 30-35)
* 181786 Ryobi 4-Cycle Motor Oil
* 682075 Shoulder Harness
* 300026 Brush Cutter Accessory Kit
* Items Not Shown
28b
25b
27b
2a
2b
25b
22b
22b
