XZone4
Streaming System
Installation Manual
RUSSOUND CERTIFIED INSTALLER REQUIRED
NOTICE:
IF YOU ARE NOT A RUSSOUND CERTIFIED INSTALLER,
YOU WILL NOT BE ABLE TO INSTALL AND CONFIGURE
THIS PRODUCT
INTERNET CONNECTION REQUIRED
FOR PRODUCT INSTALLATION
There are two things that must be done at the time of installation of this
product that require a working internet connection:
1. Enter valid Russound Certied Installer credentials. The XZone4 is
shipped in a locked state. It cannot be operated without rst being congured
by a Russound Certied Installer.
If you are a custom installation professional and wish to become authorized as a
Russound Certied Installer, please contact your Russound Sales Representative
for more information.
Note: If you are a Russound Certied Installer and you plan on installing this
product on a job site that may not have working internet access, please
congure the unit at your shop or other location where internet access is
available BEFORE you take it to the job site.
2. Firmware may be updated easily through Web Cong conguration. An
internet connection is required for obtaining the most recent rmware.
Note: If an internet connection will not be available at the place of installation,
please download the latest rmware from the Russound website to a laptop
before going to the job site.
Lockdown Feature
Installer Credential Entry
When the XZone4 is shipped from Russound, it will only operate in a "locked"
state. In this state, no audio or control is available. In order to unlock the system,
valid Russound Certied Installer credentials must be entered using the Web
Cong.
When the XZone4 is rst powered on, a message will appear on any compatible
user interfaces and the MyRussound App indicating that the device must be
unlocked. The message will contain the IP address of the XZone4. Using your
mobile device or computer, browse to the XZone4 IP address (type http:// and
then the IP address).
If you are using the MyRussound App, the IP address appears as a link that will
direct you to Web Cong via your local web browser.
If you do not have a valid Russound Certied Installer credential, please
contact your Russound Sales Representative.
2 XZone4 Installation Manual
PRODUCT OVERVIEW
Product Overview
Thank you for choosing the Russound XZone4 Four-Zone Streaming Audio
System as your audio solution. The XZone4 is a Hi-Res Audio system designed
to provide high quality streaming audio to up to four rooms. It is easy to add
additional rooms up to a maximum of sixteen total rooms by adding additional
Russound XStream Series components.
The XZone4 puts all of your music at your ngertip, with access to today’s
most popular streaming services like Spotify®, Pandora®, SiriusXM® and the
best that internet radio has to oer from TuneIn® and vTuner®. In addition to
these sources, you can access all of your locally stored music on networked
computers, NAS drives, or phones/tablets through the integrated DLNA player.
Russound was the rst multiroom audio company to embrace Apple AirPlay
and oer popular on-board streaming services. You can easily stream your
iTunes™ library and other audio content from any AirPlay-enabled Apple
device to the XZone4 and listen to it throughout your home.
In addition to oering easy access and control through the MyRussound App
(iOS and Android® versions are available), Russound also oers the XTS in-wall
touchscreen, for an easy-to-access, always available control point for any zone
in your home.
Product Overview ................................................................................................................... 3
Web Conguration..................................................................................................................4
Front and Back Panel ..............................................................................................................5
Ethernet Connection and Factory Reset ......................................................................... 6
Installation Overview ......................................................................................................... 6-8
Conguration ............................................................................................................................9
Troubleshooting ....................................................................................................................12

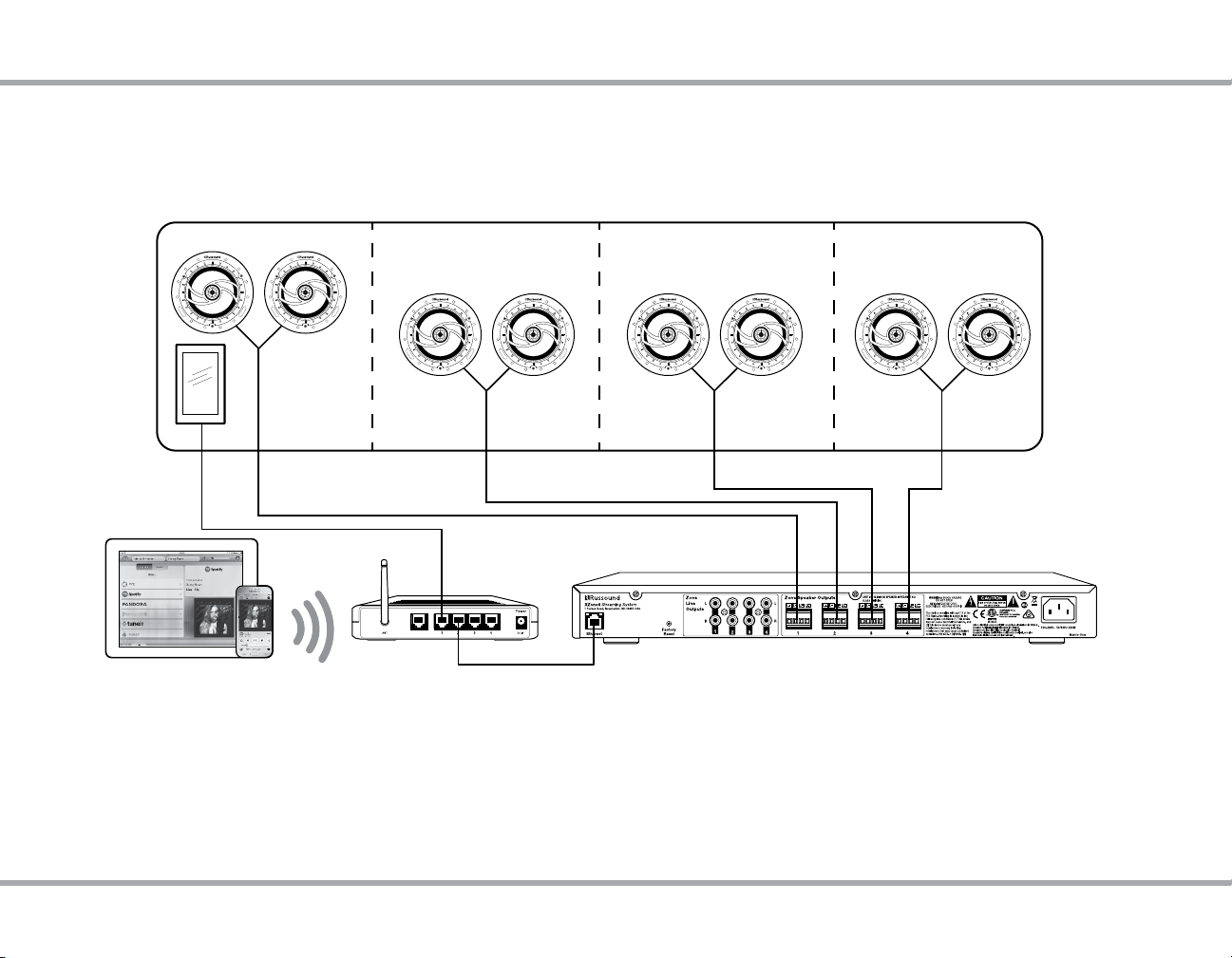

Connection Diagrams ................................................................................................... 13-14
Network Best Practices ........................................................................................................15
Technical Specications ......................................................................................................15
Limited Warranty ...................................................................................................................16
Safety Instructions ......................................................................................................... 18-19
Features
• Built-in AirPlay streaming with full metadata to iOS/Android apps or XTS touchscreens
• Hi-Res audio streaming supports up to 24-bit/192 kHz
• Powerful 30 watts per channel to each connected zone
• Integrated xed/variable stereo line-out connections for additional amplication options
• Four mounting options available: table top, rack mount, under cabinet or wall mount
• Easy conguration and set-up via smartphone, tablet or laptop using Russound Web Cong
• 4 independent streaming audio players
• 4 amplied zones, expandable to 16 streaming zones using any combination of XStream
Series products
• Controllable by the XTS in-wall touchscreen or the MyRussound app
• XStream complement of streaming sources include Spotify, Pandora, AirPlay and more
• Mix and match with other XStream Series components for versatile system design
TABLE OF CONTENTS
3XZone4 Installation Manual
WEB CONFIGURATION
Conguration Password
In order to prevent unauthorized changes to conguration settings, a default
password of russound123 has been created that will be required to be
entered prior to changing any conguration settings. Enter this password
when prompted for a Conguration Password.
This password is separate from the Russound Certied Installer password that
is used to unlock the controller and cannot be modied.
Key Programming Features
The XZone4 has a programming feature called Web Config. This programming feature allows the installer
to connect to the XZone4 via its IP address or Host Name using any smartphone, tablet, or laptop and
configure it.
Web Config is designed to be used with a web browser. With Web Config, the XZone4 can be completely
configured, quickly and easily.
Web Cong Features
• General network configuration (DHCP/static IP)
• Firmware Updates
• Configure Zone Output Type – Speaker Level Outputs can be enabled
or disabled. Variable Line-Level Output is always active
• Assign device name (zone name) for each zone
• Zone Volume Trim
• Set AirPlay password for each zone (if desired)
• Enable/disable or re-order streaming services for each zone
• Enable/disable front panel LED’s (for use in installations where light
pollution is a concern, such as bedrooms)
• Enable/disable All On Participation for each zone
4 XZone4 Installation Manual
Web Config status page.
FRONT AND BACK PANEL
XZone4 Front Panel
Zone LEDs
Power Button Status LEDs
XZone4 Rear Panel
Ethernet
port
Factory
Reset
Zone Line
Outputs
Power Button - Turns the XZone4 on/o.
Zone LEDs - When a zone is powered on, the corresponding LED lights green.
When a zone is OFF, the LED is o.
Status LEDs - Troubleshooting - See LED diagnostic chart on page 11
Ethernet Connection - The Ethernet connection is used for configuration as well
as for enabling control via the MyRussound App or the XTS Touchscreen. The default
network setting is DHCP-enabled, but the XZone4 can be configured with a static IP
address using the Web Config interface.
Factory Reset - The factory reset button has two functions. A 3-second press and
hold will restore network settings to DHCP. A 10-second press and hold will reset the
XZone4 to its factory default settings.
Zone Speaker
Outputs
Note: A unit that has been reset to factory default will have no configuration and will
need to be unlocked and reconfigured by a Russound Certified Installer. Network
connections will also default back to DHCP during a reset.
AC Input
Zone Line Outputs - A fixed/variable line output is provided for each of the four
zones, for adding additional amplification to any zone if needed. When using as a fixed
output, the speaker amplification is disabled for the zone.
Zone Speaker Outputs - Connect speakers for each of the zones. Minimum
impedance is 4 ohms.
AC input - Voltage is autoswitching for 100V to 240V operation 50-60 Hz. This recep-
tacle accepts a 3-prong IEC C13 type connector. A detachable 3-terminal power cord is
included.
5XZone4 Installation Manual
ETHERNET CONNECTION AND FACTORY RESET
INSTALLATION OVERVIEW
Ethernet Connection
The Ethernet connection is used for conguration and audio streaming as well as
for enabling control via the MyRussound App or the XTS Touchscreen. The default
network setting is DHCP-enabled, but the XZone4 can be congured with static IP
addressing using Web Cong. The Ethernet connection is also used for the built-in
streaming services and for playing any music stored on connected network drives
using DLNA.
Note: While the XZone4 has a single physical Ethernet connection, it will occupy
a total of 5 IP addresses on the network. One address is for XZone4 management,
and there are four other addresses, one for each of the internal streaming modules
that the XZone4 utilizes to provide independent streaming audio content to each
zone. If using DHCP, all 5 addresses will use DHCP. If using static IP addressing, all
5 addresses will need to be congured with a static address.
Factory Reset
The factory reset button has two functions. A 3-second press and hold will restore
network settings to DHCP. A 10-second press and hold will reset the XZone4 to
its factory default settings. When performing either of these functions, do not
power o the XZone4. It will reboot automatically on its own at the proper time.
The entire reset process may take several minutes. The XZone4 status LED will
illuminate green when the process is complete.
The factory reset deletes all conguration and personal information including
service account settings and passwords.
Note: After a factory reset, the XZone4 will require valid Russound Certied
Installer credentials in order to be unlocked and congured again.
Installation
Clearance Requirements
When installing the XZone4, the clearances shown here MUST be kept for
proper ventilation of the unit.
Installation
Step 1. Mounting the XZone4
The XZone4 comes with a pair of rack mount ears,
that allows XZone4 to be mounted in any of four ways:
1. Table Top Mount
Attach the four adhesive backed feet to the bottom of the chassis
2. Rack Mount
Attach the included rack mount ears to both sides of the unit as shown.
3. Under Cabinet Mount
Attach the included rack
mount ears to both sides of
the unit, with mounting holes
facing up as shown.
Rack mount ear
4 Non-marking
adhesive rubber feet
4. Wall Mount
1.75” (4.4cm)
Attach the included rack
mount ears to both sides of
the unit, with mounting holes
facing down as shown.
6 XZone4 Installation Manual
Top of the unit
INSTALLATION OVERVIEW
Important Considerations
1. Disconnect the power cord before making any wiring connections to the
XZone4.
2. Verify that all connections and polarity are correct.
3. Keep all power cords away from all signal cables to prevent humming
caused by induced noise.
4. Label wires appropriately, on both ends of the wire run.
5. Avoid running speaker wires or signal cables close to house electrical
wiring for any distance. If you have to run them parallel, make sure to space
the wires at least two feet from the AC line. If you need to cross an AC line it
should be at a 90° angle.
Step 2. Connect the speaker wires for each zone, being careful to match the
wiring polarity (positive to positive, negative to negative)
a. Strip back 1/8” of the insulation on the speaker wire and twist the end of
each wire to tighten the bundle of copper strands on each wire.
b. Place the stripped end of the wire into the appropriate terminal and
collapse the latch. Check to make sure there are no strands of copper
showing and check the security of the wire in the connector. Between each
terminal, take caution to not let the wire fray or touch another connection.
Each terminal accepts up to 14 AWG wire.
c. Connect the other end of the wire to each speaker. Be careful to maintain
polarity.
d. Re-connect the detachable speaker terminal.
Snap connector
Speaker wires
Make sure to label each speaker wire with the zone name that it is connected
to. This will allow easier system maintenance in the future.
Attach the speaker terminal to the appropriate output on the XZone4. Each
of the four zones can be custom-named so that it doesn’t matter which of the
four connections you are using for any particular zone.
Step 3. Connect an Ethernet cable from an open network port on the home
network to the Ethernet port on the rear of the XZone4.
Step 4. Connect the power cord to the rear of the XZone4 and then plug the
other end into an electrical outlet.
Step 5. Depress the power button on the front of the XZone4 to power on the
unit.
The XZone4 will take 1-2 minutes to fully power up. The amber LED on the
front panel will illuminate during the power-up process. When the green LED
on the front panel is illuminated, you are ready to proceed.
Step 6. Unlock the XZone4 – Using a smartphone, tablet, or laptop, navigate
to the XZone4 Web Cong main page by typing in one of the following:
a. XZone4 IP address – Enter the IP address of the XZone4 into the
web browser on your phone, tablet, or PC connected to the same
network as the XZone4. Example: if the IP address is 192.168.0.105, type
http://192.168.0.105 into the web browser. Note: If you don’t know the IP
address, you can use a network scanning app such as FING (free for iOS and
Android) to discover the IP address of the XZone4. The device name you
will be searching for in the Fing device list is “XZone4-XXXX” where XXXX
are the last four digits of the MAC ID of the XZone4.
b. XZone4 Hostname – Enter the hostname of the XZone4 into the web
browser on your phone, tablet, or PC connected to the same network as
the XZone4. For your convenience, the hostname is printed on a label
on the rear of the XZone4. The hostname is formatted as XZone4-XXXX
where XXXX is the last four digits of the XZone4’s MAC ID. Example: if
the hostname is XZONE4-1234, type http://XZONE4-1234 into the web
browser.
7XZone4 Installation Manual
INSTALLATION OVERVIEW
At the top of the web browser, a notication will appear stating that the
product must be unlocked by a Russound Certied Installer. Click on the unlock
button and you will be taken to a page where you will enter your credentials.
Enter your Russound Certied Installer Email Address and password into the
elds shown and click “Apply”. Once your information has been validated,
the XZone4 will unlock and be ready for conguration and use. This unlock
process will need to be repeated any time that the XZone4 is reset to factory
settings using the rear panel reset button.
Step 5. Firmware Update – Because new features and capabilities may be
added at any time, make sure to verify that the XZone4 has the latest rmware
available. From the Web Cong page, go to Admin, Firmware Update. If the
XZone4 has an internet connection, it will automatically verify if it is running
the latest rmware from Russound. You may update the XZone4 by selecting
Web Update for any XZone4 with an internet connection, or by choosing
File Update to update the XZone4 from a rmware update le stored on a
computer that is on the same network as the XZone4.
Note: It can take 10-15 minutes for a rmware update to be completed.
The front panel status LED will illuminate a steady green when the update is
completed.
8 XZone4 Installation Manual
CONFIGURATION
Conguration of the XZone4 is done through Web Cong. Navigate to the
XZone4 Web Cong page (see Step 6 above)
Web Cong Setup Tab
Front Panel LEDs – The front panel LED lights can be disabled for any
installation where viewing the operational lights would be distracting, such as
in a bedroom where complete darkness is desired at night. The default setting
is enabled. To disable the front panel LED’s, select “Disabled” for this option
in Web Cong. Note: Only normal operation LEDs are disabled. Any error
condition LED lights will always illuminate.
Streamer Select – There are four tabs across the page that allow you to select
each of the four media streamers that you wish to congure. All settings in
this section apply to each individual streamer only and must be congured for
EACH streamer of the XZone4.
Device Name – Enter the desired zone name here. The name you enter will
be visible to all users of the MyRussound App or other user interfaces when
selecting the zone they would like to control. Suggested names include such
things as:
Master Bedroom Dining Room Guest Room
Bill's Room Patio Oce
Great Room Pool Bath
Kitchen Veranda Media Room
Make sure to choose a unique name for each zone in the home. If there are
two rooms named “Bedroom” for example, users will not know which zone
they are selecting and controlling.
AirPlay Password (Optional) - If you want to use an AirPlay password to limit
access for AirPlay users to stream audio to any zone of the XZone4, enter an
AirPlay password for that zone and click “Apply”. This same password must be
entered on any iOS device when attempting to use Apple AirPlay to stream
audio to that particular zone. If you do not want to use a password to control
access to AirPlay, leave the AirPlay Password eld blank.
Services - By default, all available audio services are enabled and are selectable
as options when streaming audio to a particular zone. If any of these services
are not being used, or if you wish to block access to any services for this
particular zone, you can do so by dragging and dropping the services between
the “Enabled” and “Disabled” sections on this Web Cong page. Note: You can
also re-order the services so that the services the end user wants to use rst are
at the top of the list. Simply drag and drop each service in the “Enabled” list to
the appropriate order that you would like them to appear to the end user for
each zone.
Volume Trim – The Volume Trim setting is used to allow a zone compensation
adjustment for each individual zone. In most cases, this setting does not need
to be modied, but if there are unusual audio characteristics such as for small
rooms, rooms lled with very reective surfaces like tiled oors and bare walls,
or rooms lled with highly absorptive materials like thick carpet and heavy
curtains, you can use the Volume Trim settings to tweak the sound levels. For
example in a smaller space such as a bathroom, you might want to tweak
the Volume Trim to a lower settings so that the volume level in that zone can
never get too loud. In a larger zone or a zone that has heavy curtains and thick
carpet, you might want to tweak the Volume Trim level higher. The default
setting for the Volume Trim level in each zone is -3 dB.
All-On Participation – When Enabled (Default), this zone will turn on when an
“All On” signal is received. If you do not want this zone to participate in an All
On command, choose Disabled on this page. Examples of rooms where you
might want this setting disabled are certain bedrooms or children’s nurseries
where such participation would not be desired.
Zone Output Type – The default setting for this is “Speaker + Line”. This setting
allows you to disable the speaker amplication for a particular zone. Disabling
the speaker output will shut o the power amplication circuit and will result
in reduced energy consumption for the zone. Changing this setting to “Line
Only” is required in any zone that is using the line-level output in "Fixed"
output mode to feed an additional amplier for extra power in that zone.
Congratulations! Your XZone4 is now fully congured.
9XZone4 Installation Manual
NETWORKING SETTINGS (OPTIONAL)
The XZone4 can be congured to use either dynamic DHCP network addresses
(Default) or to use pre-assigned static IP addresses. Note that the XZone4
occupies 5 total IP addresses on a network. One IP address is used for
communication and control information of the XZone4 itself (HOST) and the
other four are used with one for each of the four internal streaming modules
that the XZone4 utilizes to provide independent streaming audio content to
each zone. (STREAMER).
The Streamers are numbered 1 to 4 and correspond to each of the four zone
outputs of the XZone4.
The IP addresses are set using the Admin, Networking selection from the Web
Cong menu. The ve addresses can be set as DHCP (Default) or all ve can
be set as static IP addresses. Use caution when setting static IP addresses
as incorrect settings can cause network instability and cause networking
products such as the XZone4 to stop working properly. If static settings have
been entered and you are experiencing diculty communicating with the
XZone4, you can restore dynamic DHCP settings by pressing the Reset button
on the rear of the XZone4 and holding the button pressed for 3 seconds.
When entering static IP information, 5 IP addresses must be assigned, one
for the Host and one for each of the four Streamers. If DHCP is enabled on
the network, use caution to make sure that any static IP addresses assigned
to the XZone4 are not within the range of possible DHCP addresses and that
the addresses you assign to the XZone4 are not used for any other networking
device.
If necessary, change the Subnet Mask, Default Gateway, and DNS information
to the appropriate settings for your particular network.
Note: When changing the network address of the XZone4 Host, your browser
will lose its connection to the XZone4 and you will need to navigate to the
XZone4 Host’s new network address.
Power
As an advanced networking device, the XZone4 is designed
to be left on at all times. This allows instant access to your
favorite streaming audio sources at any time and is especially
useful due to the fact that most installations involve locating
the XZone4 in remote locations of the home where it would
be dicult to know if it is powered on or o or to know its
current status.
For extended periods of non-use (vacations, etc), we
recommend disconnecting the power source to the XZone4
unit until it is needed again.
Networking: DHCP Networking: Static IP
10 XZone4 Installation Manual
CONFIGURATION STREAMING SERVICE ACCOUNTS (OPTIONAL)
TROUBLESHOOTING
Note: Conguring accounts must be done for each of the four zones. Dierent
accounts may be entered for each zone if desired.
Spotify® – Spotify account credentials are entered in the Spotify app on your
phone, tablet, or PC. No additional information needs to be entered on the
XZone4. Note that the name that you congured under “Device Name” will
be the same name that appears in the Spotify Connect menu as an available
selection, for example “Kitchen”, “Bedroom”, “Patio”, etc. This same name is also
the name used when connecting to the zone via Apple AirPlay.
Pandora®– Pandora account credentials are entered by using the MyRussound
App or a connected Russound XTS in-wall touchscreen. Select the desired
zone as the active audio source and then choose “Pandora” from its menu. If
no account information has been entered, a login screen will be displayed.
SiriusXM® – SiriusXM account credentials are entered by using the
MyRussound App or a connected Russound XTS in-wall touchscreen. Select
the desired zone as the active audio source and then choose “SiriusXM” from
its menu. If no account information has been entered, a login screen will be
displayed.
vTuner® – No account information is needed to access vTuner internet radio.
If you wish to associate a zone’s Streamer with a vTuner account so that you
can share vTuner favorites across multiple devices, you can select “Get Access
Code” from the zone’s vTuner menu and enter that code at http://russound.
vtuner.com to associate that zone’s Streamer with your vTuner account.
TuneIn® – No account information is needed to access Tunein internet radio.
If you wish to associate a zone’s Streamer with a TuneIn account so that you
can share TuneIn favorites across multiple devices, you can select “Account
Association” from the zone’s TuneIn menu and enter that code in your account
settings page at http://www.tunein.com to associate that zone’s Streamer with
your TuneIn account.
Multiple Streaming Products
Note that account settings are individual settings for each zone of the XZone4
or other Russound XStream Series streaming products. If you have multiple
XStream Series devices, each must be congured with the appropriate
account logon information. This is done so that each device can have its own
independent user in a home so that users will not have to share accounts or
favorites with anyone else in the home.
DHCP Reset
A DHCP Reset can be performed using the factory reset button on the rear
panel of the XZone4.
If your XZone4 cannot communicate on the network, you can reset its DHCP
connection by pressing and holding the Reset button on the rear of the
XZone4 for 3 seconds and then releasing it. This will restore the XZone4 to a
DHCP connection from a static IP connection.
Factory Reset
For a full factory reset, erasing all conguration settings, and re-locking the
XZone4:
Press and hold the Reset button on the rear of the XZone4 for 10 seconds.
The Red Status LED will light and the XZone4 will reboot on its own.
Note: Performing a factory reset will restore the unit to its factory default
settings and the unit will require valid Russound Certied Installer credentials
in order to be unlocked and congured again. The factory reset will also delete
all personal information including service account settings and passwords.
There are four LED’s on the front panel of the XZone4 to assist with any troubleshooting.
This chart explains the operation of the LED’s:
System Status Yellow
LED
Booting ON - - -
Ready - ON - -
Factory Reset - - ON -
Zone On - - - ON
Firmware Update - Blinking - -
Network Error Blinking - - -
Green
LED
Red
LED
Blue
LED
11XZone4 Installation Manual
TROUBLESHOOTING
General Troubleshooting
Check for rmware updates available to make sure that your Russound
product is always up to date and to take advantage of any additional features
or supporting services that may be available.
Many issues can be resolved by power cycling the XZone4 by disconnecting
the power supply, waiting 15 seconds and re-connecting the power supply.
For networking issues, resetting network gear in the home such as the router
or any switches between the XZone4 and the router may also resolve any
issues.
If you have the XZone4 congured with a static IP address and do not
remember the settings, you can reset the XZone4 to DHCP by pressing and
holding the rear panel Reset button for 3 seconds. If there are any issues
reconnecting to the XZone4 after resetting to DHCP, unplug the XZone4 from
the network and re-connect it, or try power cycling the network router to force
a new DHCP connection.
For audio connection issues, verify all audio connections from the XZone4 to
the speakers or any amplier/receiver.
For more system installation and network troubleshooting tips, visit
www.russound.com
12 XZone4 Installation Manual
CONNECTION DIAGRAMS
XTS
Phone or Tablet
Room 1 Room 2 Room 3
CAT-5
Wireless
network
router
CAT-5
Speaker cable
XZone4
Room 4
13XZone4 Installation Manual
CONNECTION DIAGRAMS
Patio
Room 1 Room 2 Room 3
Speaker cable
RCA cable
Phone or Tablet
Wireless
network
router
CAT-5
XZone4
14 XZone4 Installation Manual
NETWORKING BEST PRACTICES
TECHNICAL SPECIFICATIONS
Networking Best Practices
Some of the most common problems can be caused by improper network
conguration and out-of-date rmware. Improper network conguration can
prevent XStream Series devices from connecting and communicating on the
network.
The rst step for troubleshooting is to check networking connections and
power cycle the equipment to check for proper communication.
A dedicated wireless 802.11n or better router is recommended. The reason
for this is that ISP supplied modem/router combination devices may have
incompatible settings that can cause issues with XStream Series devices
connecting or communicating across the network. It is recommended to not
use these modem/router combination devices, because the end user may not
have access to all services of the device. The ISP may have sole control over the
device settings and send updates to reset, reinitialize, or replace the device at
their discretion.
Check for rmware updates available for your Russound equipment to make
sure they are up-to-date in order to take advantage of any additional features
and supported services.
Use a network discovery and IP scanning application that can assist to better
understand the network, such as FING. http://overlooksoft.com/FING is free
and available for iOS and Android and can assist in identifying devices on the
network and if there are any IP addressing conicts.
Router Conguration:
A few routers may need additional conguration to prevent incompatibility
or intermittent connection issues. Access the router and check user accessible
settings that enable support for Multicast or IGMP and enable them or check
for options that may be actively ltering these protocols and disable those
lters. Check for other options that could have an eect on communication:
Options such as UPnP should be enabled Options such as IGMP Proxy, IGMP
Snooping, Multicast Filtering or WMM Proxy should be disabled.
Glossary
Multicast: The delivery of a message or information to a group of destination
computers simultaneously in a single transmission from the source.
Unicast: The delivery of a message or information which is sent from one point
to another point An example would be connecting to an IP address of a URL
such as www.google.com.
IGMP: Internet Group Management Protocol is an integral part of IP Multicast
and is used for one-to-many networking applications such as online streaming
audio and video, gaming, and allows more ecient use of resources when
supporting these types of applications.
WMM: Wireless Media Management is designed to support consumer and
corporate applications and works with 802.11a, 802.11b and 802.11g. The
specication provides basic prioritization of data packets based on four
categories - voice, video, best eort and background.
UPnP: Universal Plug and Play uses Multicast and allows media servers and
streaming devices to communicate.
Frequency Response: 20Hz to 20KHz
Variable Line Outputs: 2Vrms Max
Digital Amplier Power Output: 30 Watts per channel at 8 ohms
Minimum impedance: 4 ohms.
Total Harmonic Distortion: <1% THD+N
Communication ports: 1 Ethernet RJ45, 10/100 Base T
Music File Formats: MP3 (CBR, VBR), WAV (8, 16-bit),
OGG Vorbis, FLAC (8, 16-bit). AAC, AAC+
(supports up to 24-bit/192 kHz)
Power Requirements: Input: 100-240V~50/60Hz, 240W
Dimensions: 17" W x 9"D x 1.7"H (43 x 22.8 x 4.3cm)
Weight: 7.2 lbs. (3.3 kg)
15XZone4 Installation Manual
LIMITED WARRANTY
The Russound XZone4 is guaranteed against all defects in materials and workmanship
for two (2) years from the date of purchase. During this period, Russound will replace any
defective parts and correct any defect in workmanship without charge for either parts
or labor.
For this warranty to apply, the unit must be installed and used according to its written
instructions. If service is necessary, it must be performed by Russound. The unit must
be returned to Russound at the owner’s expense and with prior written permission.
Accidental damage and shipping damage are not considered defects, nor is damage
resulting from abuse or from servicing by an agency or person not specically authorized
in writing by Russound.
This Warranty does not cover:
• Damage caused by abuse, accident, misuse, negligence, or improper installation or
operation
• Power surges and lightning strikes
• Normal wear and maintenance
• Products that have been altered or modied
• Any product whose identifying number, decal, serial number, etc. has been altered,
defaced or removed.
Russound sells products only through authorized Dealers and Distributors to ensure that
customers obtain proper support and service. Any Russound product purchased from
an unauthorized dealer or other source, including retailers, mail order sellers and online
sellers will not be honored or serviced under existing Russound warranty policy. Any sale
of products by an unauthorized source or other manner not authorized by Russound
shall void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids
the warranty on those parts. In these cases, repairs will be made on the basis of the retail
value of the parts and labor. To return for repairs, the unit must be shipped to Russound
at the owner’s expense, along with a note explaining the nature of service required. Be
sure to pack the unit in a corrugated container with at least three (3) inches of resilient
material to protect the unit from damage in transit.
Before returning a unit for repair, call Russound at (603) 659-5170 for a Return
Authorization number. Write this number on the shipping label and ship to:
Russound
ATTN: Service
1 Forbes Road
Newmarket, NH 03857
Due to continual eorts to improve product quality as new technology and techniques
become available, Russound/FMP, Inc. reserves the right to revise system specications
without notice.
16 XZone4 Installation Manual
17XZone4 Installation Manual
SAFETY INSTRUCTIONS
RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR.
ATTENTION:
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
ATTENTION: AFIN DE RÉDUIRE LES RISQUES
D'INCENDIE OU DE CHOC ÉLECTRIQUE, NE PAS
EXPOSER CET APPAREIL À LA PLUIE OU.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER. NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
ATTENTION: AFIN DE RÉDUIRE LE RISQUE
DE CHOC ÉLECTRIQUE, NE PAS RETIRER LE
CAPOT. AUCUNE PIÈCE À L'INTÉRIEUR. CONFIER
L'ENTRETIEN DE PERSONNEL QUALIFIÉ.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product’s
enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Safety Instructions
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
Lisez les instructions - Toutes les instructions de sécurité
et doivent être lues avant d'utiliser l'appareil.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
Conservez les instructions - Les instructions de sécurité
et devrait être conservé pour référence future.
3. Heed Warnings - All warnings on the appliance in the
operating instructions should be adhered to.
Tenez compte des avertissements - Tous les
avertissements gurant sur l'appareil dans les
instructions de fonctionnement doivent être
respectées.
4. Follow Instructions - All operating and user
instructions should be followed.
Suivez les instructions - Toutes les instructions de
fonctionnement et d'utilisation doivent être suivies.
5. Water and Moisture - The appliance should not
be used near water; for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement,
or near a swimming pool. The apparatus shall not be
exposed to dripping or splashing liquids and no objects
lled with liquids, such as vases, shall be placed on the
apparatus. Do not touch the appliance with wet hands.
Do not handle the appliance or power cord with wet
or damp hands. If water or any other liquid enters
the appliance cabinet, take it to qualied service
personnel for inspection.
Eau et humidité - L'appareil ne doit pas être utilisé
près de l'eau, par exemple près d'une baignoire, d'un
lavabo, d'un évier, machine à laver, dans un sous-sol
humide ou près d'une piscine. L'appareil ne doit pas
être exposé à des éclaboussures de liquides et aucun
objet rempli de liquide, comme des vases, ne doit être
posé sur l'appareil. Ne pas toucher l'appareil avec les
mains mouillées. Ne manipulez pas l'appareil ou le
cordon d'alimentation avec les mains mouillées ou
humides. Si de l'eau ou tout autre liquide pénètre dans
le coret de l'appareil, il amène à un personnel qualié
pour l'inspection.
6. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer. From time to time
you should wipe o the front and side panels and the
cabinet with a soft cloth. Do not use rough material,
thinners, alcohol or other chemical solvents or cloths
since this may damage the nish or remove the panel
lettering.
Nettoyage - L'appareil doit être nettoyé uniquement
tel que recommandé par le fabricant. De temps en
temps vous devriez essuyer les panneaux latéraux
avant et arrière et le boîtier avec un chion doux. Ne
pas utiliser de matériel rugueux, de diluant, d'alcool
ou d'autres solvants chimiques ou de chions car cela
pourrait endommager la nition ou faire disparaître la
sérigraphie du boîtier.
7. Ventilation - The appliance should be situated so
that its location or position does not interfere with its
proper ventilation. For example, the appliance should
not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings, or placed in
a built-in installation, such as a bookcase or cabinet
that may impede the ow of air through the ventilation
openings. Place the unit in a well-ventilated location,
leaving at least 2 inches (5 cm) of clearance on all sides,
top and rear of unit for air ow. If ventilation is blocked,
the unit may overheat and malfunction.
Ventilation - L'appareil doit être placé de telle sorte
que son emplacement ou sa position ne gêne pas
sa propre ventilation. Par exemple, l'appareil ne doit
pas être placé sur un lit, un canapé, un tapis ou une
surface similaire qui pourrait obstruer les ouvertures de
ventilation, ou placés dans un haut-installation, comme
une bibliothèque ou un meuble qui pourrait empêcher
le ux d'air à travers les ouvertures de ventilation. Placer
l'appareil dans un endroit bien aéré, laissant au moins
2 pouces (5 cm) de dégagement de tous les côtés, en
haut et à l'arrière de l'unité de circulation de l'air. Si la
ventilation est bloqué, l'appareil peut surchauer et mal
fonctionner.
8. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including ampliers) that produce heat.
Chaleur - L'appareil doit être placé loin des sources de
chaleur telles que des radiateurs, registres de chaleur,
poêles ou autres appareils (incluant les amplicateurs)
qui produisent de la chaleur.
9. Grounding or Polarization - Precaution should be
taken so that the grounding or polarization means of an
appliance is not defeated.
La terre ou polarisation - précautions doivent être
prises pour que les moyens d'un appareil à la terre ou
polarisation ne soit pas annulée.
10. Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
18 XZone4 Installation Manual
SAFETY INSTRUCTIONS
particular attention to cords at plugs, receptacles, and the point where they exit from
the appliance.
Protection du cordon d'alimentation - Les cordons d'alimentation doivent être
acheminés de sorte qu'ils ne sont pas susceptibles d'être piétinés ou coincés par des
objets placés sur ou contre eux, en accordant une attention particulière aux cordons au
niveau des ches, des prises et à l'endroit où ils sortent de l'appareil.
11. Power Sources - The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
Sources d'énergie - Cet appareil doit être connecté à une source d'alimentation du
type décrit dans le mode manuel ou tel qu'indiqué sur l'appareil.
12. Main Power Disconnect - The power switch is a single-pole switch. When the switch is
in the “O” position, the appliance is not completely disconnected from the main power.
The main power plug is used as the disconnect device and shall remain readily operable.
When installing the product, ensure that the plug is easily accessible.
Débranchez l'alimentation principale - L'interrupteur est un interrupteur unipolaire.
Lorsque l'interrupteur est en position "O", l'appareil n'est pas complètement
déconnecté de l'alimentation principale. La che d'alimentation est utilisée comme
dispositif de déconnexion et doit rester facilement accessible. Lors de l'installation du
produit, assurez-vous que la prise soit facilement accessible.
13. Non-Use Periods - The power cord of the appliance should be unplugged from the
outlet when left unused for a long period of time.
Périodes de non-utilisation - Le cordon d'alimentation de l'appareil doit être débranché
de la prise en cas de non utilisé pendant une longue période de temps.
14. Attachments - Only use attachments/accessories specied by the manufacturer.
Accessoires - N'utilisez que des xations / accessoires spéciés par le fabricant.
15. Carts and Stands - The appliance should be used only with a cart or
stand that is recommended by the manufacturer. An appliance and cart
combination should be moved with care. Quick stops, excessive force
and uneven surfaces may cause the appliance and cart combination to
overturn.
Chariots et supports - L'appareil doit être utilisé uniquement avec un
chariot ou un support recommandé par le fabricant. Une combinaison de l'appareil et
chariot doit être déplacé avec précaution. Des arrêts brusques, une force excessive et
des surfaces inégales peuvent provoquer la chute de l'appareil et du chariot.
16. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only
as recommended by the manufacturer.
Mur ou au plafond - L'appareil doit être xé au mur ou au plafond, tel que recommandé
par le fabricant.
17. Location of the Amplier - Do not mount this unit under a kitchen cabinet. Do
not expose the amplier to direct sun light or heating units as the amplier internal
components’ temperature may rise and shorten the life of the components. Avoid damp
and dusty places.
Localisation de l'amplicateur - Ne montez pas cet appareil dans une armoire de
cuisine. N'exposez pas l'amplicateur à la lumière directe du soleil ou appareils de
chauage comme la température des composants internes de l'amplicateur de risque
d'augmenter et raccourcir la durée de vie des composants. Evitez les endroits humides
et poussiéreux.
18. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids
are not spilled into the enclosure through the openings.
Objets et de liquides - Des précautions doivent être prises an que des objets ne
tombent ou que des liquides coulent dans le boîtier à travers les ouvertures.
19. Servicing - The user should not attempt to service the appliance beyond that described
in the operating instructions. All other servicing should be referred to qualied service
personnel.
Entretien - L'utilisateur ne doit pas tenter de réparer l'appareil au-delà de celle qui est
décrite dans le manuel d'instructions. Toutes les réparations doivent être eectuées par
un technicien qualié.
20. Damage Requiring Service - The appliance should be serviced by qualied service
personnel when: A. The power supply cord or the plug has been damaged; B. Objects
have fallen, liquid has been spilled into the appliance; C. The appliance has been
exposed to rain; or D. The appliance does not appear to operate normally; or E. The
appliance has been dropped or the enclosure is damaged.
Dommages nécessitant des réparations - L'appareil doit être réparé par un personnel
qualié lorsque: A. Le cordon d'alimentation ou la prise a été endommagé; B. Des objets
sont tombés, du liquide a été renversé dans l'appareil C. Si l'appareil a été exposé à pluie;
ou D. l'appareil ne semble pas fonctionner normalement, ou E. L'appareil est tombé ou
son boîtier est endommagé.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one of or more of the following measures: reorient or
relocate the receiving antenna; increase the separation between the equipment and receiver; connect
the equipment into an outlet on a circuit dierent from that to which the receiver is connected, or
consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan (for Finland). Apparatet må tilkoples
jordet stikkontakt (for Norway). Apparaten skall anslutas till jordat uttag (for Sweden).
Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til stikproppens jord
(for Denmark).
Changes or modications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
19XZone4 Installation Manual
XZone4
Streaming System
Installation Manual
Russound, Inc.
1 Forbes Road, Newmarket, NH 03857
tel 603.659.5170 • fax 603.659.5388
email: tech@russound.com www.russound.com
28-1401 09.23.16, Rev.5
AirPlay, iPad, iPhone and iPod, are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
“Made for iPhone” means that an electronic accessory has been designed to connect specically to iPhone and has been certied by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this
accessory with iPhone may aect wireless performance.
SiriusXM Internet Radio Service is available in the USA, PR or Canada. SiriusXM Internet Radio subscriptions are sold separately and are governed by the Sirius Terms and
Conditions (see www.siriusxm.com). Be sure to read this agreement before you purchase your subscription. Sirius, XM and all related marks and logos are trademarks of
Sirius XM Radio Inc. and its subsidiaries. All rights reserved.
This product includes some software components that are licensed under the General Public License (GPL). Source code for GPL components is available upon request.
©2016 Russound. All rights reserved. All trademarks are the property of their respective owners. Specications are subject to change without notice.
Loading...
