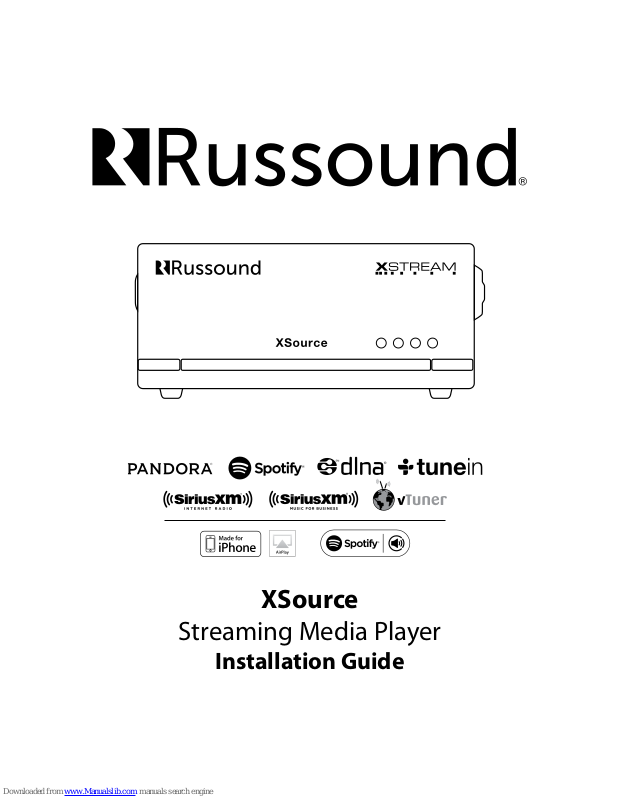

Russound XSource Installation Manual
XSource
Streaming Media Player
Installation Guide
2 Russound XSource Installation Guide
NOTICE:
IF YOU ARE NOT A RUSSOUND CERTIFIED INSTALLER,
YOU WILL NOT BE ABLE TO INSTALL AND CONFIGURE THIS PRODUCT
INTERNET CONNECTION REQUIRED FOR PRODUCT INSTALLATION
There are two things that must be done at the time of installation of this product that require a working internet connection:
1. Enter valid Russound Certied Installer credentials. The XSource is shipped in a locked state. It cannot be operated
without rst being congured by a Russound Certied Installer.
If you are a custom installation professional and wish to become authorized as a Russound Certied Installer, please contact
your Russound Sales Representative for more information.
Note: If you are a Russound Certied Installer and you plan on installing this product on a job site that may not have working
internet access, please congure the unit at your shop or other location where internet access is available BEFORE you take it to
the job site.
2. Firmware may be updated easily through Web Cong conguration. An internet connection is required for obtaining
the most recent rmware.
Note: If an internet connection will not be available at the place of installation, please download the latest rmware from the
Russound website to a laptop before going to the job site.
Russound Certied Installer credentials must be entered
through the Web Cong conguration web pages.
When the XSource is shipped from Russound, it will only operate
in a "locked" state. In this state, no audio or control is available.
In order to unlock the system, valid Russound Certied Installer
credentials must be entered using the Web Cong.
When the XSource is rst powered on, a message will appear
on any compatible user interfaces and the MyRussound App
indicating that the device must be unlocked. The message
will contain the IP address of the controller. Using your mobile
device or computer, browse to the controller’s IP address (type
http:// and then the IP address).
If you are using the MyRussound App, the IP address appears
as a link that will direct you to Web Cong via your local web
browser.
If you do not have a valid Russound Certied Installer
credential, please contact your Russound Sales Representative.
LOCKDOWN FEATURE
Lockdown Feature
3Russound XSource Installation Guide
Table of Contents
Product Overview ............................................................................... 3
Web Conguration..........................................................................4-5
Ethernet Connection and Factory Reset ..................................... 5
Installation Overview ......................................................................... 6
Installation ............................................................................................. 7
Conguration ..................................................................................8-12
Troubleshooting ................................................................................13
Audio Connection with MCA-Series Controllers ....................14
Additional Audio Connections .....................................................15
Network Best Practices ....................................................................16
Technical Specications ..................................................................17
Safety Instructions ............................................................................18
TABLE OF CONTENTS / PRODUCT OVERVIEW
Product Overview
The XSource Streaming Audio Player is designed to oer a
simple-to-install and simple-to-congure streaming media
solution to add high quality streaming audio content to any
audio system. The XSource can be used as a single stereo
audio streaming source for a single room, or supply a single
audio stream to a larger whole-house system through its
easy-to-use analog line-level/digital (coax/optical) outputs.
The XSource allows for expansion to up to 16 streaming
rooms of audio in a single installation with any combination
of other XStream™ Series streaming products from
Russound. When paired with a Russound multi-room
controller, system expansion is possible up to 8 independent
audio sources and up to 48 total rooms of audio.
In addition to oering streaming audio from popular
internet sources, the XSource also oers streaming of
local DLNA™-compliant audio. In addition a built-in USB
port allows users to connect an external ash drive or an
externally-powered USB hard drive for use as additional
music sources.
Features
• Independent streaming audio player
• Built-in AirPlay streaming with full metadata to iOS/
Android apps or XTS touchscreens
• Hi-Res audio streaming support up to 24-bit/192 kHz
• USB for Flash or external USB Hard drive-based music
collections
• Digital coax/optical or analog output
• Can be integrated (as a source) with a Russound multiroom system or standalone (as a zone) when used with any
brand of amplier or receiver
• Controlled with the MyRussound App and fully compatible
with the Russound XTS in-wall touchscreen
• Bass, Treble, and Loudness settings available through the
MyRussound App
• Supports local favorites
• Onboard web-based conguration, accessible from a
smartphone or tablet
• Mix and match with other XStream Series components for
versatile system designs
• Built-in slide connectors for physical coupling of multiple
units
4 Russound XSource Installation Guide
Key Programming Features
The XSource has a programming feature called Web Config.
Web Config is an onboard hosted web page used for
unlocking and configuring the XSource. Web Config can
be accessed by entering the IP address or Hostname in an
internet browser on a smartphone, tablet, or laptop that is
connected to the same network as the XSource. Using Web
Config, the XSource can be completely configured, quickly
and easily, from the palm of your hand.
Note: When used with a Russound controller, additional
configuration may be required for complex installations via
the Russound SCS-C5 software on a PC.
For more information, refer to the installation manual of your
specific Russound controller.
Web Cong Features
• General network configuration (DHCP/static IP)
• Firmware Updates
• Zone or source mode
• Assign device name
• Zone/Source Volume Trim
• Set AirPlay password
• Enable/disable or re-order streaming services
WEB CONFIGURATION
Web Config status page.
5Russound XSource Installation Guide
Ethernet Connection
The Ethernet connection is used for configuration and
programming as well as for enabling control via the
MyRussound App or the XTS Touchscreen. The default
network setting is DHCP-enabled, but the XSource can be
configured with a static IP address using the Web Config
software. The Ethernet connection is also used for the builtin streaming services and for playing any music stored on
connected network drives using DLNA.
Factory Reset
The factory reset button has two functions. A 3-second press
and hold will restore network settings to DHCP. A 10-second
press and hold will reset the XSource to its factory default
settings.
Note: Performing a factory reset will restore the unit to its
factory default settings and put XSource in Zone mode.
The unit will require valid Russound Certied Installer
credentials in order to be unlocked and congured again.
The factory reset will also delete all personal information
including service account settings and passwords.
ETHERNET CONNECTION AND FACTORY RESET
Ethernet port Factory Reset
6 Russound XSource Installation Guide
INSTALLATION OVERVIEW
The XSource can be rack-mounted, table-mounted or wallmounted. You can connect multiple XSource media players
by using the integrated slide connectors as shown. For wallmount, use the mounting holes on the bottom of the unit.
See diagrams below.
Important Considerations
1. Disconnect the power cord before making any wiring
connections to the XSource.
2. Verify that all connections and polarity are correct.
3. Keep all power cords away from all signal cables to
prevent humming caused by induced noise.
4. Label wires appropriately, on both ends of the wire run.
5. Avoid running speaker wires or signal cables close to
house electrical wiring for any distance. If you have to run
them parallel, make sure to space the wires at least two feet
from the AC line. If you need to cross an AC line it should be
at a 90° angle.
Holes for wall-mount.
Slide connectors
Rack-mount - Slide Lock System
You can connect multiple XSource media players by
using the integrated slide connectors as shown.
Wall-mount
For wall-mount use the mounting
holes on the bottom of the unit.
Table-mount
For table-mount use the
rubber feet (included)
4 Non-marking
adhesive rubber feet
