WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
If you have any questions please call Russound Inc. at
1-800-638-8055 or 603-659-5170.
Safety Instructions:
1. Read Instructions - All the safety and operating instructions should be
read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be
retained for future reference.
3. Heed Warnings - All warnings on the appliance in the operating instructions should be adhered to.
4. Follow Instructions - All operating and user instructions should be followed.
5. Water and Moisture - The appliance should not be used near water; for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.
6. Carts and Stands - The appliance should be used only
with a cart or stand that is recommended by the
manufacturer. An appliance and cart combination
should be moved with care. Quick stops, excessive
force and uneven surfaces may cause the appliance
and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall
or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings, or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
10.Power Sources - The appliance should be connected to a power supply
only of the type described in the operating instructions or as marked on
the appliance.
11.Grounding or Polarization - Precaution should be taken so that the
grounding or polarization means of an appliance is not defeated.
12.Power Cord Protection - Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, receptacles,
and the point where they exit from the appliance.
13.Cleaning - The appliance should be cleaned only as recommended by
the manufacturer.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period of time.
15.Object and Liquid Entry - Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through the openings.
16.Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D.The appliance does not appear to operate normally; or
E. The appliance has been dropped or the enclosure is damaged.
17.Servicing - The user should not attempt to service the appliance beyond
that described in the operating instructions. All other servicing should
be referred to qualified service personnel.
Precautions:
1. Power – WARNING: BEFORE TURNING ON THE POWER FOR THE
FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.
2. Do Not Touch The ST2 With Wet Hands – Do not handle the ST2 or
power cord when your hands are wet or damp. If water or any other liquid enters the ST2 cabinet, unplug the unit from power immediately and
take the ST2 to a qualified service person for inspection.
3. Location of ST2 – Place the ST2 in a well-ventilated location. Take special care to provide plenty of ventilation on all sides of the ST2 especially when it is placed in an audio rack. If ventilation is blocked, the ST2
may overheat and malfunction. Do not expose the ST2 to direct sun
light or heating units as the ST2 internal components temperature may
rise and shorten the life of the components. Avoid damp and dusty
places.
4. Care – From time to time you should wipe off the front and side panels
of the cabinet with a soft cloth. Do not use rough material, thinners,
alcohol or other chemical solvents or cloths since this may damage the
finish or remove the panel lettering.
This device complies with Part 15B of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by
Russound could void the user’s authority to operate this equipment.
IMPORTANT SAFEGUARDS
2
TABLE OF CONTENTS
Product Introduction..........................................................................................................4-5
Component Guide
ST2-XM Front Panel.............................................................................................................6
ST2-XM Rear Panel..............................................................................................................7
ST2-RC Remote Control.......................................................................................................8
ST2-XM Setup and Connections
Basic Connections...............................................................................................................9
ST2-KP and CAV6.6 ..........................................................................................................10
CAi Series and A-BUS Connections .....................................................................................11
Antenna Connections ....................................................................................................12-13
ST2-XM Operation
XM Radio Activation...........................................................................................................14
XM Radio Displays.............................................................................................................14
XM Radio Modes .........................................................................................................15-18
Front Panel Controls..........................................................................................................19
ST2-RC Remote Control.....................................................................................................20
ST2-KP Keypad Controls....................................................................................................21
UNO-S2 Keypad Controls with CAV6.6............................................................................22-23
UNO-LRC1 Remote Control with CAV6.6.........................................................................24-25
ST2-XM Tuner Programming
ST2 Chassis Setup Menu...................................................................................................26
Source Number .........................................................................................................26
Update Firmware .......................................................................................................26
Factory Initialization ...................................................................................................27
System Info...............................................................................................................28
Tuner Setup Menu for XM ..................................................................................................29
Memory Name...........................................................................................................29
Bank Name ...............................................................................................................30
Controller ID..............................................................................................................30
Diagnostics ...............................................................................................................30
Factory Initialization ...................................................................................................30
System Info...............................................................................................................31
Tuner Setup Menu for AM/FM.............................................................................................31
Memory Name...........................................................................................................31
Bank Name ...............................................................................................................32
Region ......................................................................................................................32
Backup and Restore .........................................................................................................33
Programming for CAV6.6 Use ............................................................................................34
Technical Specifications ....................................................................................................35
Warranty & Repair .............................................................................................................36
3
4
INTRODUCTION
DESCRIPTION
Thank you for choosing the Russound ST2-XM
Smart Tuner. Whether you are adding radio to an
existing system, expanding a CAi Series system
or taking advantage of the CAV6.6’s robust
RNET™ communication link, the ST2-XM Tuner is
designed to meet your needs.
The ST2-XM Tuner is like having two radios in
one. The AM/FM tuner provides broadcast of
local AM/FM stations, and the XM tuner delivers
all the diversity and choices available to XM radio
subscribers. The two modules share one set of
controls and display on the front of the unit, but
each runs independently. This arrangement
allows two different broadcasts at the same time
in a multi-room audio distribution system.
XM satellite radio provides over 100 channels of
music, news sports, comedy, talk and entertainment. Its coast-to-coast coverage, digital quality
sound and many commercial-free music channels
make XM radio the choice for the discriminating
listener.
XM radio is a subscription-based service, and listeners can subscribe by visiting XM on the web
www.xmradio.com
or by calling XM’s Listener
Care at 800-852-9696.
In addition to the traditional AM/FM broadcast
tuner function and the XM satellite access, the
ST2-XM Tuner can store up to 72 favorites, or
memory presets
. These are stored in groups of
six called
banks
. There are six banks for each
tuner. Each preset and each bank can be given a
custom name of your choice.
The ST2-XM Tuner can be controlled from the
front panel or by the dedicated ST2-KP tuner keypad. It can also be controlled by the ST2-RC IR
remote aimed at the tuner’s front panel IR receiver. The ST2-RC IR codes can be learned into any
IR learning remote control for easy system inte-
gration. It can also be controlled by IR signals
received through the IR connections on the rear
panel from IR repeating system commonly used
in distributed audio systems.
If the ST2-XM Tuner is part of an RNET-enabled
system such as the CAV6.6-S2 system, the tuner
can be controlled through an RNET keypad such
as the UNO-S2.
The ST2 Tuner also has an RS-232 port to support fully bi-directional integration into wholehouse control systems such as Crestron
®
and
AMX
®
.
FEATURES
• AM/FM Tuner
• XM satellite radio
• Compact single rack unit chassis
• Six banks of six memory presets each per
tuner (72 total presets) for storing AM/FM
station settings or XM channels
• Custom names for presets and banks
• Two Favorite presets per tuner
• Stereo or mono mode
• Local or distant mode
• Dedicated IR remote control
• Individual IR direct inputs for each tuner
• Front panel IR receiver
• Supports two ST2-KP optional tuner keypads
• RNET connections send tuner frequency and
control information to UNO keypad display
• RS-232 control and programming. User
settings can be backed up and restored.
INSTALLATION APPLICATIONS
RNET-enabled System
When the ST2-XM Tuner is used with an RNETenabled device such as the CAV6.6 and is connected to it through the Link In or Link Out port,
the tuner will be controlled by the CAV6.6
through the UNO-S2 keypad. Through RNET,
tuner information such as Tuner 1 or 2, station
5
INTRODUCTION
frequency or channel, preset names and AM/FM
band or XM is displayed on UNO-S2 keypads. An
additional RNET device can be connected to an
existing ST2 by using the Link Out of the first
unit into the Link In of the second unit.
Before using the ST2-XM tuner with the
CAV6.6, you must assign source numbers
to Tuner 1 and 2 in the ST2 Setup Menu
AND
complete the CAV6.6’s Source Setup
procedure to identify the tuner as a
“Peripheral“ device and assign Source
Numbers. The CAV6.6 requires firmware
version 2.00.01 or higher to control each
tuner through RNET. The UNO-S2 keypad
requires firmware version 3.00.01 or
higher.
IR-controlled System
CAi Series -
The ST2-XM Tuner can be controlled by infrared
commands received through either of the two IR
connections on the rear panel. There are two
unique IR code sets for Tuner 1 and Tuner 2,
which allow each to be controlled independently
from either IR connection. These codes can be
learned from the ST2-RC remote control into the
CA-LRC1 remote control and/or the DSC and
DAN IR learning keypads. The ST2-XM contains
two individual tuners, which makes it act as two
sources in the CAi system. There are two source
audio outputs and two IR connections - one for
each tuner in the ST2-XM. You will need at least
one IR link cable (Russound P/N 09-0508) for
these connections (one is supplied with each CAi
system). If you are using an IR-controlled system
from another manufacturer, installation should be
similar. The ST2-XM IR codes may be learned
into many other manufacturers’ remote controls
that have learning capability for unified control
over the A/V equipment.
A-BUS® System -
The ST2-XM Tuner can be used in an A-BUS sys-
tem with an audio distribution hub such as the
A-H484 and IR-repeating keypads such as the
A-KP2. The connections on the rear panel are
designed to receive IR signals from a repeating
system commonly used in A-BUS distributed
audio systems.
For A-BUS applications, as with the CAi series
installation, the two tuners in the ST2-XM unit
must be set up as two sources, with two source
audio inputs and two IR connections. You will
need two IR link cables for these connections.
The two IR code sets can be learned from the
ST2-RC remote into the A-LRC1 remote control.
Note: Optional ST2-KP keypads can be used to
provide control for the ST2-XM Tuner and are
designed to be used with IR-controlled systems.
RS-232 Controlled System
The ST2-XM Tuner can be controlled using the
RNET protocol provided via the RS-232 port on
the rear panel. It can also be controlled by any
RS-232-enabled control system (e.g., Crestron,
AMX). Information on RS-232 operation is available to dealers on the Russound web site,
www.russound.com
.
BOX CONTENTS
The ST2-XM Tuner comes with the parts needed
to setup and operate the component. These
include:
• ST2 Tuner (AM/FM module, XM module)
• ST2-RC remote control
• 12VDC power supply
• AM loop antenna (1)
• FM antenna (1)
• XM antenna (1)
• RCA audio cable (2)
• Rack mount ears
Please call Russound at 800-638-8055 ext. 501
for assistance if parts are missing.
6
COMPONENT GUIDE
ST2-XM FRONT PANEL
MAIN POWER SWITCH - Turns power on and off
POWER ON/OFF LED - Indicates power on or off
REMOVABLE COVER LENS - Covers the selection buttons on the tuner
BANK SELECT BUTTON - Selects bank 1-6
MEMORY SELECT BUTTONS - Sets and selects memory presets 1-6 for each bank
IR RECEIVER - Receives IR signal from remote control
LCD PANEL - 12-character backlit display shows station, channel, custom names, etc.
XM and AM/FM - Backlit tuner selection indicator
TNR SEL - Selects Tuner 1 (XM) or Tuner 2 (AM/FM), and accesses tuner setup menus
BAND - (AM/FM) Selects AM or FM band
(XM) Selects an XM Mode (Category Search, Now Playing, Display Preferences)
(ALL) Enters menu selections when programming
ST/MONO - (AM/FM) Selects stereo or mono mode for AM/FM, and Distant/Local reception
(XM) Press to Exit current XM Mode, hold for signal strength
MEM PRESET UP/DOWN - Selects memory presets starting with last preset, and toggles
through menu features
TUNE UP/DOWN - (AM/FM) Manually selects radio stations
(XM) Manually selects channels (Channel Up/Channel Down)
(ALL) Toggles through menu settings
1
4
2
5
3
1
6
6
7
10
11
13
8
9
12
4
3
7
11
13
8
9
2
12
5
10
64 : The Groove
64 : The Groove
XM
AM/FM
XM
AM/FM
7
RNET LINK IN/LINK OUT - Links to other Russound components that are RNET compatible, displays frequency and other information on the UNO keypads
RS-232 INTERFACE - The RS-232 Interface allows the tuner to be controlled by PC or other devices
that have an RS-232 Interface. The RS-232 Interface also allows for firmware updates and programming (DB9 Cable)
KEYPAD PORTS - RJ-45 Keypad ports for ST2-KP tuner keypads in dedicated, non-RNET systems (Do not connect UNO keypads to these ports)
FM COAX - FM Antenna threaded F-connection (75 ohms) for Tuner 2
LOOP ANTENNA - AM antenna connection (300 ohms) for Tuner 2
IR INPUT - IR control input (common IR control) for Tuner 2 or Tuner 1
AUDIO OUTPUT - Line-level audio signal outputs (RCA Cable) for Tuner 2
XM ANTENNA - XM Antenna SMB connection (50 ohms) for Tuner 1
IR INPUT - IR control input (common IR control) for Tuner 1 or Tuner 2
AUDIO OUTPUT - Line-level audio signal outputs (RCA Cable) for Tuner 1
POWER SUPPLY - 12VDC external power supply connection
TUNER 2 AM/FM
TUNER 1 XM
4
7
2
5
3
6
1
1
3 114 5
COMPONENT GUIDE
ST2-XM REAR PANEL
8
2 8
9
6 7 9 10
10
11
NEWMARKET, NH U.S.A.
LINK KEYPAD PORTS
N OUT
I
ST2
Smart Tuner
RS-232
INTERFACE
FM COAX
LOOP
ANTENNA
IR
TUNER 2
A
UDIO OUTPUT
LR
ANTENNA
IR
TUNER 1
A
UDIO OUTPUT
LR
Serial#
12VDC 1.5A
MADE IN KOREA
8
POWER - Puts the tuner in/out of standby mode
TUNER CONTROL - Select TUNER 1 (XM) or
TUNER 2 (AM/FM) and all subsequent button
presses affect that tuner
NUMERIC INPUT - Number buttons for direct
selection of station, channel, bank, preset
BANK SELECT - Used for direct bank selection
(numeric input 1-6)
TUNE SELECT - Used for direct station or chan-
nel selection (numeric input)
TUNE UP/DOWN - Incrementally scrolls through
station or channel numbers
FAV 1/FAV 2 - Sets/Selects Favorite 1 or 2
preset selection on ST2-XM tuner
SEEK UP/DOWN -
(AM/FM) Seeks the next tuned station
up/down
(XM) Scrolls through banks 1-6
LOCAL/DISTANCE -
(AM/FM) Optimizes station reception
OK -
(AM/FM) Confirms direct entries
(XM) Operating mode toggle
STEREO/MONO -
(AM/FM) Selects stereo or mono broadcast
(XM) Exit current XM operating mode
TUNE UP/DOWN - Scrolls through station or
channel numbers
MEM UP/DOWN - Scrolls through preset sta-
tions within selected bank
AM/FM - Selects AM or FM band
MEM SELECT - Used for direct memory select
(numeric input 1-6)
COMPONENT GUIDE
ST2-RC REMOTE CONTROL
1
4
7
2
5
8
3
6
9
11
10
15
14
12
13
1
7
2
3
4
5
6
9
8
15
14
13
12
11
10
PWR
TUNER 1 TUNER 2
123
4
56
789
MEM
MEM
FAV 1
SEEK
ST/
MONO
OK
0
TUNE
AM/FM
TUNE
TUNE
BAN
TUNE
K
LOC/
FAV 2
SEEK
DX
9
ST2-XM SETUP AND CONNECTIONS
BASIC CONNECTIONS
Power
To power the tuner, connect the 12VDC external
power supply by inserting the power supply jack
into the power supply connection on the tuner’s
rear panel.
Audio Output
Connect one end of a dual RCA audio cable to
the Tuner 1 Audio Output connection. Keep proper channel identity. Attach the other end of the
RCA cables to the source input of the audio control system. Repeat the same procedure for the
Tuner 2 Audio Output.
IR Connections
The ST2-XM Tuner can be controlled by infrared
commands received through the two IR connections on the rear panel. The ST2-XM Tuner component contains two tuners, which must be set
up as two sources. There are two IR connections - one for each tuner in the ST2-XM. You will
need two IR link cables (Russound P/N 09-0508)
for these connections. There is a unique IR code
set each for Tuner 1 and Tuner 2, which allow
each to be controlled independently. These
codes can be learned from the ST2-RC remote
into learning-capable remotes and keypads.
If you are using an IR-controlled system from
another manufacturer, installation should be similar. The ST2-XM IR codes may be learned into
many other manufacturers’ remote controls that
have learning capability for unified control over
the A/V equipment.
RNET Connection
To link the ST2-XM to an RNET-compatible
device, use a CAT-5 passthrough patch cable
with similar wiring terminations at each end.
Connect one end of the cable to the RNET Link
In of the ST2 tuner, and connect the other end
of the patch cable to the RNET Link Out connection on the RNET-compatible device.
ST2-KP Keypad to ST2-XM Connection
(Non-RNET System)
The ST2-KP connects to the ST2-XM tuner with
CAT-5 cable, using an RJ-45 (T568A) jack on the
tuner connection end of the cable. Be sure to
use the keypad ports for the ST2-KP and NOT
the RNET link ports. The ST2-XM tuner supports
up to two ST2-KP keypads. An SA-ZX3 Keypad
Splitter can be used to add additional keypads.
Note: ST2-KP keypads are designed for use
with IR-controlled systems (non-RNET systems).
When the ST2-XM Tuner is a component of an
RNET system such as CAV6.6, the RNET-system
keypads are used.
Rack Mount Installation
The ST2-XM can be mounted in a standard component rack using the rack ears provided. Line
the rack ear’s two rows of screw holes with the
three screw holes on the side of the tuner. Use
the screws provided to secure the rack ears
onto the unit on both sides. The ST2-XM tuner
should not be installed above a high heat-producing component such as a power amplifier.
ST2-KP RJ-45 Connection Wiring
10
Source Connections with CAV6.6 Controller/Amplifier (RNET System)
The diagram depicts a typical setup using the ST2-XM Tuner with a CAV6.6 amplifier. Each tuner in
the ST2 unit must be connected as a separate source for audio inputs. UNO-S2 keypads are connected to the CAV6.6 keypad ports, NOT the ports on the ST2 Tuner.
ST2-XM SETUP AND CONNECTIONS
ST2-KP AND CAV6.6 CONNECTIONS
ST2-KP Connections to ST2-XM Tuner (Non-RNET Systems)
The diagram depicts a standard ST2-KP keypad connection to the keypad port on the back of the
ST2-XM. The keypad uses a 110 punchdown connection and an RJ-45 T568A connection to the tuner.
CAT-5 Cable
UNO-S2
keypads
64:The Groove
ST2 Tuner
CAV6.6
RCA Cable
11
ST2-XM SETUP AND CONNECTIONS
CAi SERIES AND A-BUS CONNECTIONS
ST2-KP
Source Connections with CAi Series Controller/Amplifier
The diagram depicts a typical setup using the ST2-XM Tuner with a CAi Series amplifier. Each tuner in
the ST2 unit must be connected as a separate source for audio inputs.
Source Connections with A-BUS Audio Distribution Hub
The diagram depicts a typical setup using the ST2-XM Tuner with an A-BUS system’s audio distribution hub. Each tuner in the ST2 unit must be connected as a separate source for audio and IR inputs.
VOLUME
SOURCE
STORE POWER
REMOTE SENSOR
CA-LCD2
ST2
NEWMARKET, NH U.S.A.
LINK KEYPAD PORTS
I
N OUT
SOURCE INPUTS
1
2
R
L
LINK
IN OUT
CA6.4i
RS-232
INTERFACE
Smart Tuner
NEWMARKET, NH U.S.A.
34
IR EMITTERS
LOOP
ANTENNA
FM COAX
IR Link Cable
KEYPAD PORTS
123456
OUTPUT TO 8 OHM SPEAKER
123456
RCA Cable
TUNER 2
UDIO OUTPUT
A
LR
IR
RCA Cable
VARIABLE
FIXED
IR Link Cable
ZONE PREAMP
OUTPUTS
1
R
L
MUTE
IN OUT
ANTENNA
2
VARIABLE
FIXED
12V TRIG
Pos (+)
RCA Cable
WARNING : SHOCK HAZARD – DO NOT OPEN
AVIS : RISQUE DE CHOC ELECTRIQUE –
NES PAS OUVRIR.
SERIAL #
Serial#
TUNER 1
A
UDIO OUTPUT
LR
IR
12VDC 1.5A
MADE IN KOREA
~110VAC~220-240VAC
VOLTAGE
FUSE
110V
F4A
220-240V
F2A
~110VAC
~220-240VAC
~50-60Hz
400W
Neg (–)
ST2-KPA-KP2
ST2 Smart Tuner
NEWMARKET, NH U.S.A.
LINK KEYPAD PORTS
N OUT
I
N
EWMARKET
, NH U.S.A.
L
R
TRIGGER OUT
12
VDC
100mA
SYSTEM ON
4 COUPLED-ZONE, 4-SOURCE
PANEL MOUNT AUDIO HUB
OUTPUT TO
A KEYPADS
OUTPUT TO
B KEYPADS
S
ERIAL
#
A/B C
1A2
1B2
INTERFACE
RS-232
S
OURCE AUDIO INPUT
S
OURCE
OUPLED-ZONE OUTPUT
A
B
LOOP
ANTENNA
OAX
FM C
A
UDIO OUTPUT
LR
IR
RCA Cable
IR Link Cable
L
INK
OUT
IN
4321
IR
OMMON
IR
C
A
A
3
4
P
OWER FOR
A K
EYPADS
+24V
4A
P
OWER FOR
B
3
DESIGNED IN USA MADE IN KOREA
B
B K
EYPADS
4
A-H484
IR Link Cable
RCA Cable
FM COAX
LOOP
ANTENNA
RCA Cable
AUDIO OUTPUT
LR
IR
IR Link Cable
Serial#
TUNER 1TUNER 2
12VDC 1.5A
MADE IN KOREA
Pos (+)
Neg (–)
12
ST2-XM SETUP AND CONNECTIONS
ANTENNA CONNECTIONS
Connecting an Indoor and Outdoor Antenna
The diagram above depicts a typical setup using the ST2-XM Tuner with the included XM antenna, FM
antenna and AM loop antenna. Also shown are two outdoor antenna options (not included).
(Not to scale)
XM Antenna
Connect the included XM antenna for XM reception to the back panel of the XM module. The
antenna comes with 20 feet of cable. If this
length is not sufficient, there are aftermarket
antenna kits available for custom lengths.
Position the antenna near a south-facing window
to receive the best signal from a satellite or terrestrial signal.
The antenna may also be attached to an external wall by sliding the slots on the back of the
antenna onto four screws mounted on an exterior wall. Establish the best receiving position for
the antenna before attaching it to the wall.
XM Signal Strength Mode
To test the XM reception, turn the unit on. When
the XM radio is powered for the first time, the
XM service will start playing XM Channel 1, a
preview/promotional channel. Verify that Channel
1 is playing by pressing the Tune Up/Tune Down
buttons. Enter Signal Strength Mode by pressing
and holding the ST/MONO button on the ST2-XM
front panel. The display shows one of the following:
GOOD SIGNAL Signal strength good
MARGINAL SIG Signal strength marginal
POOR SIGNAL Signal strength poor
NO SIGNAL Loss of signal
Adjust the antenna until GOOD SIGNAL is displayed. Press ST/MONO to exit Signal Strength
Mode.
75 ohm
to 300 ohm
balun
13
ST2-XM SETUP AND CONNECTIONS
ANTENNA CONNECTIONS
Grounding an Outdoor Antenna
If the tuner is used with an outdoor antenna, the antenna must be grounded against static charges
and voltage surges. Consult the instructions that came with the antenna or contact the antenna manufacturer for proper installation instructions. The diagram gives a general depiction of how an outdoor
antenna should be grounded. For complete guidelines on antenna grounding procedures, please consult the National Electrical Code, Section 810, ANSI/NFPA No. 70-1984.
Antenna
Lead In Wire
Grounding
Conductors
Ground
Clamps
Power Service
Grounding
Electrode System
Electric
Service
Equipment
AM Antenna
Connect the included loop antenna for AM reception to the back panel, attaching the GND
(ground) and AM ends to the appropriate connections for Tuner 2.
It is recommended to use an external outdoor or
attic-mounted long wire antenna for best performance for AM reception. Use a 75-ohm to
300-ohm balun at the AM connection on the
tuner, and attach the 75-ohm coax cable to the
balun.
FM Antenna
Attach the included FM antenna to the Tuner 2
FM COAX connection on the back panel by pushing the F-type quick-connect termination of the
antenna onto the FM connection.
It is recommended to use an external outdoor or
attic-mounted long wire antenna for best performance for FM reception. Attach the desired
length of 75-ohm coax cable directly to the FM
connection on the tuner.
XM Radio Activation
XM Radio is over 100 channels of radio broadcasts with the signal delivered by satellite and (depending on location) transferred by terrestrial antennas. The radio is a subscription-based service with a
monthly provider fee and an activation charge. XM radio broadcasts several channels for preview but
will not broadcast the full range of channels without activation. Activation and billing are handled solely through XM Radio.
To activate the XM tuner:
1 Turn on the power, select the XM Tuner, and select channel 0. The tuner’s eight-character XM
satellite Radio ID number will appear on the display. Write the number down to have it available
when contacting XM Radio for activation. The number is also shown on the back of the unit and
on the product box.
2. To subscribe, have a major credit card and your XM Radio ID number at hand and contact XM at
http://www.xmradio.com/activation You can also activate service by calling XM Radio at
1-800-852-9696. You will be guided through the activation process step by step.
3. A complete and up-to-date full channel listing is available on the XM Radio website,
www.xmradio.com.
XM Radio Displays
In addition to Channel and Category information, the XM tuner will broadcast operating condition messages when the following conditions occur:
Display Condition
ANTENNA Antenna not connected
UPDATING Updating encryption code
LOADING Acquiring channel audio or information
OFF AIR Channel not in service
CH - - - Channel (SID) no longer available
- - - - - - Corresponding Artist Name or Song Title are null (empty)
- - - - - - No channel available for the chosen category
ST2-XM OPERATION
XM RADIO OVERVIEW
14
15
ST2-XM OPERATION
XM RADIO MODES
XM Radio Modes
There are four user “modes” for selecting music and viewing music information on the XM Tuner:
Preset (default or normal)
Category Search
Now Playing
Display Preferences.
These modes are accessed through certain button and key presses from the tuner panel, remote
controls and keypads. When choosing modes, if no choice is made after 20 seconds, the tuner will
time out by showing EXIT and return to tuner display and Preset mode.
For all XM Modes

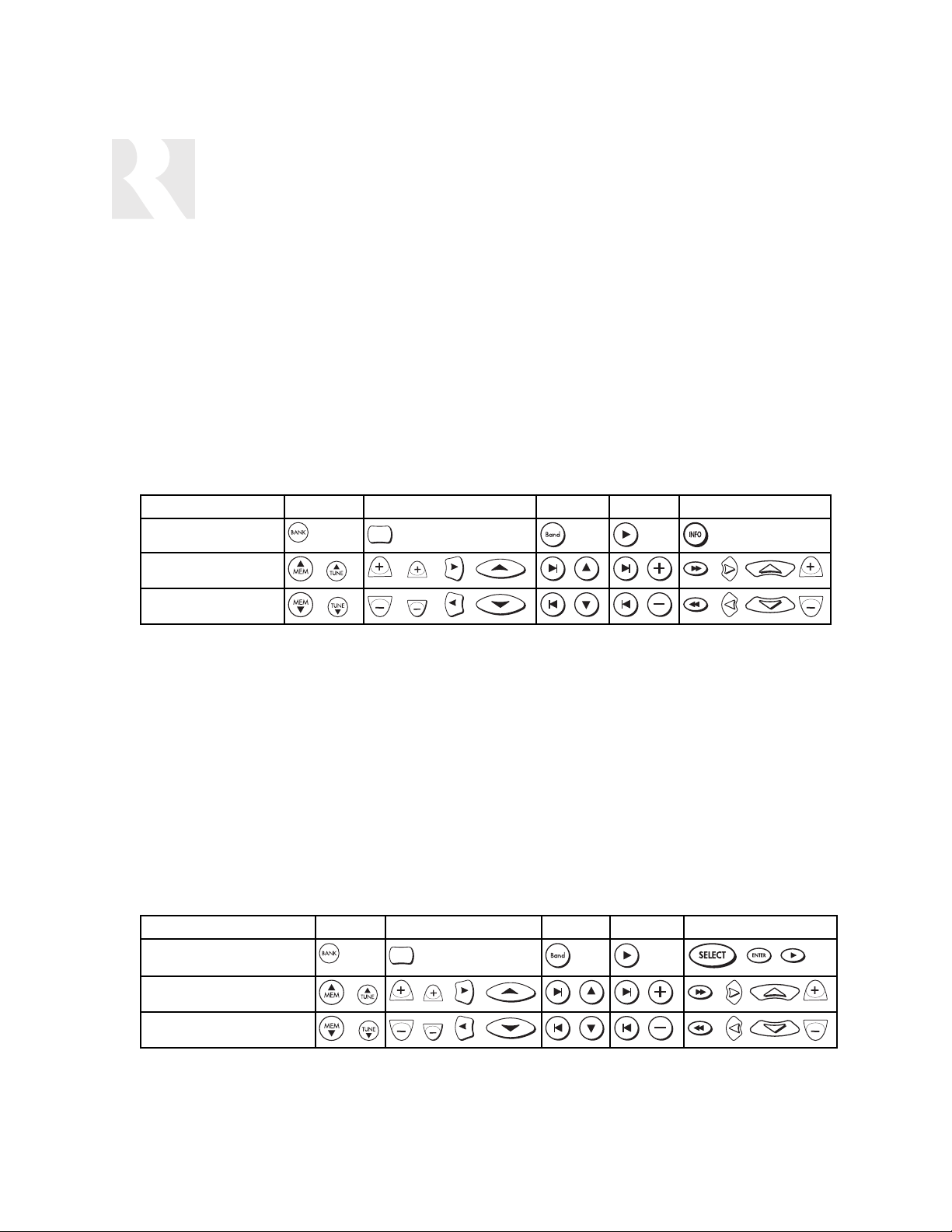

The chart below outlines the button presses for various XM tuner functions outside of the XM modes.
Operating Mode Toggle
This button press accesses the three non-default XM modes. The three modes will appear in order:
Category Search, Now Playing and Display Preferences.
Exit Current Mode
This button press returns the XM tuner to Preset (default) mode.
Signal Strength
This button press and hold accesses the Signal Strength mode. Depending on the signal, the following will be displayed:
GOOD SIGNAL Signal strength good
MARGINAL SIG Signal strength marginal
POOR SIGNAL Signal strength poor
NO SIGNAL Loss of signal
Press the appropriate button again to exit Signal Strength Mode.
ST2-XM ST2-RC ST2-KP UNO-S2 UNO-LRC1
All User Modes
Operating Mode Toggle
Exit Current Mode
Signal Strength
Hold
Hold Hold
OK
MONO
ST/
16
ST2-XM OPERATION
XM RADIO MODES
ST2-XM ST2-RC ST2-KP UNO-S2 UNO-LRC1
Preset Mode
Next Preset
Previous Preset
Next Bank
Hold Hold Hold
Previous Bank
Hold Hold Hold
Channel Up
Channel Down
Preset (default) Mode
This is the normal operating mode of the XM tuner. In this mode the XM tuner operates similarly to
the AM/FM tuner for channel up and down, bank selection and memory presets.
Next Preset
This button press accesses the next saved preset (6 presets for each bank) in the chosen bank.
Previous Preset
This button press accesses the previous saved preset in the chosen bank
Next Bank
This button press accesses the next bank (total of 6 banks).
Previous Bank
This button press accesses the previous bank.
Channel Up
This button press accesses the next active channel up from the current channel.
Channel Down
This button press accesses the next active channel down from the current channel.
MEM
MEM
TUNE
TUNE
17
Category Search Mode (
11..CCAATT SSEEAARRCCHH
)
XM Radio is organized by Channel Category (e.g., Rock, Country, News). Within each category is
a series of channels (e.g., Top Tracks, Bluegrass Junction, XM Classics). Channel selection in this
mode is refined to scrolling only those channels in the selected category.
Next Category
This button press accesses the next category from the current category.
Previous Category
This button press accesses the previous category from the current category.
Category Channel Up
This button press accesses the next channel up within the selected category.
Category Channel Down
This button press accesses the next channel down within the selected category.
ST2-XM ST2-RC ST2-KP UNO-S2 UNO-LRC1
Category Search Mode
Next Category
Previous Category
Category Channel Up
Category Channel Down
ST2-XM OPERATION
XM RADIO MODES
OK
MEM
MEM
TUNE
TUNE
18
ST2-XM ST2-RC ST2-KP UNO-S2 UNO-LRC1
Display Preference Mode
Next Display Preference
Previous Display Preference
ST2-XM OPERATION
XM RADIO MODES
Now Playing Mode (
22..NNOOWW PPLLAAYYNNGG
)
This mode displays information about the current XM selection. Appropriate button presses access
the next or previous information item.
NNAAMMEE::
Displays the artist’s name, feature name or program name (news, talk, sports).
TTIITTLLEE::
Displays the song title or program title.
CCAATTEEGGOORRYY::
Displays the current category.
Display Preference Mode (
33..DDSSPPLLYY PPRREEFF
)
This mode allows you to choose how XM channel information will be displayed on the keypad and
tuner. Appropriate button presses access the next or previous preference item.
Note: For any display configuration, the artist’s name and song title will scroll before the display
returns to the designated display format.
Channel Number (
CCHH NNUUMMBBEERR::
)
This selection displays the channel number only (e.g., XM070, XM103).
Channel Name (
CCHH NNAAMMEE::
)
This selection displays the channel name only (e.g., ESPN Radio, Real Jazz).
Channel Number and Name (
##::CCHH NNAAMMEE::
)
This selection displays the channel number and name (e.g., 64:The Groove, 121:Fox News).
ST2-XM ST2-RC ST2-KP UNO-S2 UNO-LRC1
Now Playing Mode
Next Info Item
Previous Info Item
OK
MEM
TUNE
MEM
TUNE
MEM
MEM
OK
MEM
TUNE
MEM
TUNE
MEM
MEM
19
Front Panel Operation
Turning the unit on
To turn the unit on, push the On/Off button up on the
front panel. Pushing the On/Off button down turns the
tuner off.
Selecting the desired tuner
From the front panel, use to toggle between XM
and AM/FM. A backlight shows behind the selected
label XM (green) or AM/FM (amber) to indicate the
active tuner. In addition, the LCD panel is also backlit
green for Tuner 1 and amber for Tuner 2. Each time a
tuner is selected the display will refresh with the current station or preset, and all subsequent memory
preset entries will be associated with that selected
tuner.
Selecting the desired band (AM/FM only)
Push to switch between AM and FM reception.
Selecting a mode (XM)
Push to select an XM operating mode.
Exiting a mode (XM)
Push to exit the XM mode selection menu.
Signal Strength mode (XM)
Press and hold and release. The display shows
the signal strength rating. To exit press .
Selecting the desired frequency or channel
Press and release and for manual tuning.
Selecting Stereo or Mono Output (AM/FM
only)
Press and release to toggle between stereo and
mono mode. STEREO or MONO appears briefly on the
screen when selecting mode.
Selecting Distant or Local Reception
(AM/FM only)
Press and hold to toggle between distant and
local mode. DISTANT or LOCAL appears briefly on the
screen when selecting mode. Normal operation is in
Distant mode. In cities, antennas can pick up multipath signals when they bounce off buildings and get
doubled. The Local mode limits the noise associated
with these reflected signals.
Bank/Memory Presets
Each tuner has six banks of preset memory settings,
and each bank holds six presets for a total of 36 possible presets for each tuner (72 total presets).
Presets are associated with the tuner that is selected
at the time the preset is saved.
Memory Preset programming
From the front panel, perform these steps:
1. Select a tuner using .
2. Use to choose from one of six banks (1-6).
3. If AM/FM, select the desired band using .
4. Tune to the desired station or channel.
5. Push the desired memory preset (M1 through M6)
button for more than 2 seconds. When the memory
preset is saved, the appropriate preset number (M1
through M6) and SAVED appears on the LCD. The
selected station setting reappears and the sound
resumes after the button is released.
Recalling a Memory Preset
To recall a memory preset, use to select the
desired bank, then press the desired preset button
(M1 to M6). In addition to direct selection, the memo-
ry presets can be accessed by using and to
scroll through all presets for the bank selected.
Backup and Restore
Once all of the tuner settings are completed, it may
be advisable to create a backup of the programmed
settings for future use. The backup will then be available in case tuner settings need to be restored. The
“RNET Backup Utility” is available through the
Document Center at
www.russound.com
. Also
required are a DB9 male-to-female cable and laptop
or desktop PC.
ST2-XM OPERATION
FRONT PANEL CONTROLS
20
ST2-XM OPERATION
ST2-RC REMOTE CONTROL
ST2-RC Remote Control Operation
The ST2-RC remote control is the only means of
remote operation of the ST2-XM in a non--RNET system. The ST2-XM front panel displays information for
the tuner that is receiving commands from the ST2RC. However, the ST2-RC commands do not change
which tuner is playing; that is done through the system’s source selection.
Turning the unit on/off
To switch the ST2 tuner in or out of standby mode,
push or any other button except TUNER 1 or
TUNER 2.
Selecting the desired tuner
To control a tuner, push or . When
pressed, these buttons will be backlit green for Tuner
1 (XM) and amber for Tuner 2 (AM/FM). Each time a
tuner is selected the display will refresh with the current station or preset for that tuner,
and all subsequent button presses and memory preset entries will
be associated with that selected tuner.
Selecting the desired band (AM/FM only)
Push to switch between AM and FM reception.
Selecting the desired frequency or channel
Use and for manual tuning. To move quickly
through the stations or channels, press and hold
either of the Tune buttons for more than 1.5 seconds.
To directly select a station or channel, press ,
and enter the two- or three-digit XM channel number,
or the three- or four-digit station frequency (1071 for
107.1, etc.). European regions use five-digit station
frequencies.
Selecting a mode (XM)
Push to select an XM operating mode.
Exiting a mode (XM)
Push to exit the XM operating mode selection
menu.
Frequency Seek (AM/FM only)
The SEEK function is performed by pressing and
releasing to seek lower frequencies or for
higher frequencies. SEEK tuning begins at the current
frequency, seeks upward and stops at the next tuned
station. Pushing continues the SEEK function.
Once the highest frequency is reached, the tuner continues in SEEK mode at the lowest frequency.
Selecting Stereo or Mono Output
(AM/FM only)
Press to toggle between stereo and mono mode.
STEREO or MONO appears briefly on the screen when
selecting mode. Normal operation is in stereo mode.
On a preset, the stereo/mono setting is saved for
that preset.
Selecting Distant or Local Reception
(AM/FM only)
Press to toggle between Distant and Local
mode. DISTANT or LOCAL appears briefly on the
screen when selecting mode. Normal operation is in
Distant mode.
Recalling a Memory Preset
To recall a memory preset, select the desired tuner,
press and enter the desired bank number
(1-6), then press and enter the desired preset
number (1 to 6). The memory presets can also be
accessed by using and to scroll through all
presets for the selected bank.
Saving Favorites
The remote control stores two “favorites” (similar to
memory presets) per tuner. These are set simply by
selecting either Tuner 1 or Tuner 2, setting the
desired frequency and pressing and holding or
until “FAV1 (2) saved” appears on the tuner.
Stored Favorites are then recalled by pressing either
or .
PWR
TUNER 2TUNER 1
AM/FM
TUNE
TUNE
TUNE
OK
ST/
MONO
ST/
MONO
LOC/
DX
BAN
K
MEM
M
EM
MEM
FAV 2
FAV 1
FAV 2
FAV 1
21
ST2-XM OPERATION
ST2-KP KEYPAD CONTROLS
ST2-KP Keypad Operation
Turning the keypad on/off
To activate the ST2-KP, press . Press to
power down the keypad display. The keypad remains
powered until the ST2-XM Tuner is turned off.
Selecting the desired tuner
To select a different tuner, press and hold . (If the
keypad has been hardware jumper-selected to Tuner
1 or Tuner 2, it will not switch between the two
tuners.) The backlight color of the display will be
green for Tuner 1 (XM) and amber for Tuner 2
(AM/FM). Each time a tuner is selected the display
will refresh with the current station or preset for that
tuner, and
all subsequent button presses and memory preset entries will be associated with that selected
tuner.
Selecting the desired band (AM/FM)
Push to switch between AM or FM band.
Selecting a mode (XM)
Push to select an XM operating mode.
Exiting a mode (XM)
Press and release until EXIT is displayed to exit
the XM operating mode menu.
Selecting the desired frequency or
channel
Use and for manual tuning. To move quickly
through the channels, press and hold either or
for more than 1.5 seconds. European frequen-
cies show in .05 MHz increments.
Selecting a Bank
To select a bank, select the desired tuner, then press
and hold or to select the desired bank. The
bank name will show on the display.
Recalling a Memory Preset
To recall a memory preset, press and release or
to scroll through the presets for the selected
bank. (Memory presets must be stored for ST2-KP
recall)
ST2-KP Keypad Display
The 5-character backlit display shows frequency and
band, plus XM channel and mode information.
Messages scroll twice, then display the first 5 characters.
5
4
4
3
2
2
2
1
1
5
3
2
1
4
ST2-KP Keypad-Front Panel
3
22
ST2-XM OPERATION
UNO-S2 KEYPAD CONTROLS WITH CAV6.6
CAV6.6-UNO-S2 Keypad Operation
NOTE: To control the ST2 Tuner through the
UNO-S2 keypad, the tuner must be configured
as a source using the CAV6.6 programming
steps.
Turning the unit on
The tuner is power managed by the CAV6.6 or other
RNET-enabled controller. If the tuner is in standby
mode, any button press of the UNO-S2 keypad will
bring the tuner out of standby mode.
Selecting the desired tuner
On the UNO-S2 keypad, press to select
either Tuner 1 (XM) or Tuner 2 (AM/FM) by
choosing the tuner’s preassigned source num-
ber.
Selecting the desired band (AM/FM only)
Push to toggle between AM band and FM
band reception.
Selecting a Mode (XM)
Push to toggle between XM modes.
Exiting a Mode (XM)
Press
and release
until EXIT is displayed to
exit XM mode selection menu.
Selecting the desired frequency or channel
Use and for manual tuning or channel
selection. The frequency or channel will appear
on the keypad and the active tuner. To move
quickly through the channels, press and hold
either or for more than 1.5 seconds
.
Frequency Seek (AM/FM only)
A press on will seek the next higher tune-
able station. If a tuneable station is not found,
end the SEEK function by pressing again.
Frequency Scan (AM/FM only)
To scan, press and hold then release . The
tuner scans through tuned stations with a 5-sec-
ond preview before moving to the next station.
To end scanning, press again.
Signal Strength Mode (XM)
To check XM signal strength, press and hold
then release. The display shows the signal
strength rating. To exit, press again.
Selecting a Bank
To select a bank, press and hold for bank
up or for bank down. The bank’s name will
be temporarily displayed on the UNO-S2.
Recalling a Memory Preset
Press and to scroll through the memo-
ry presets for the selected bank. This procedure
will step through all of the presets in the current
bank, then loop back to start at the first one.
Only configured presets will be displayed.
Mute
Press to mute/unmute the tuner audio output.
23
ST2-XM OPERATION
UNO-S2 KEYPAD CONTROLS WITH CAV6.6

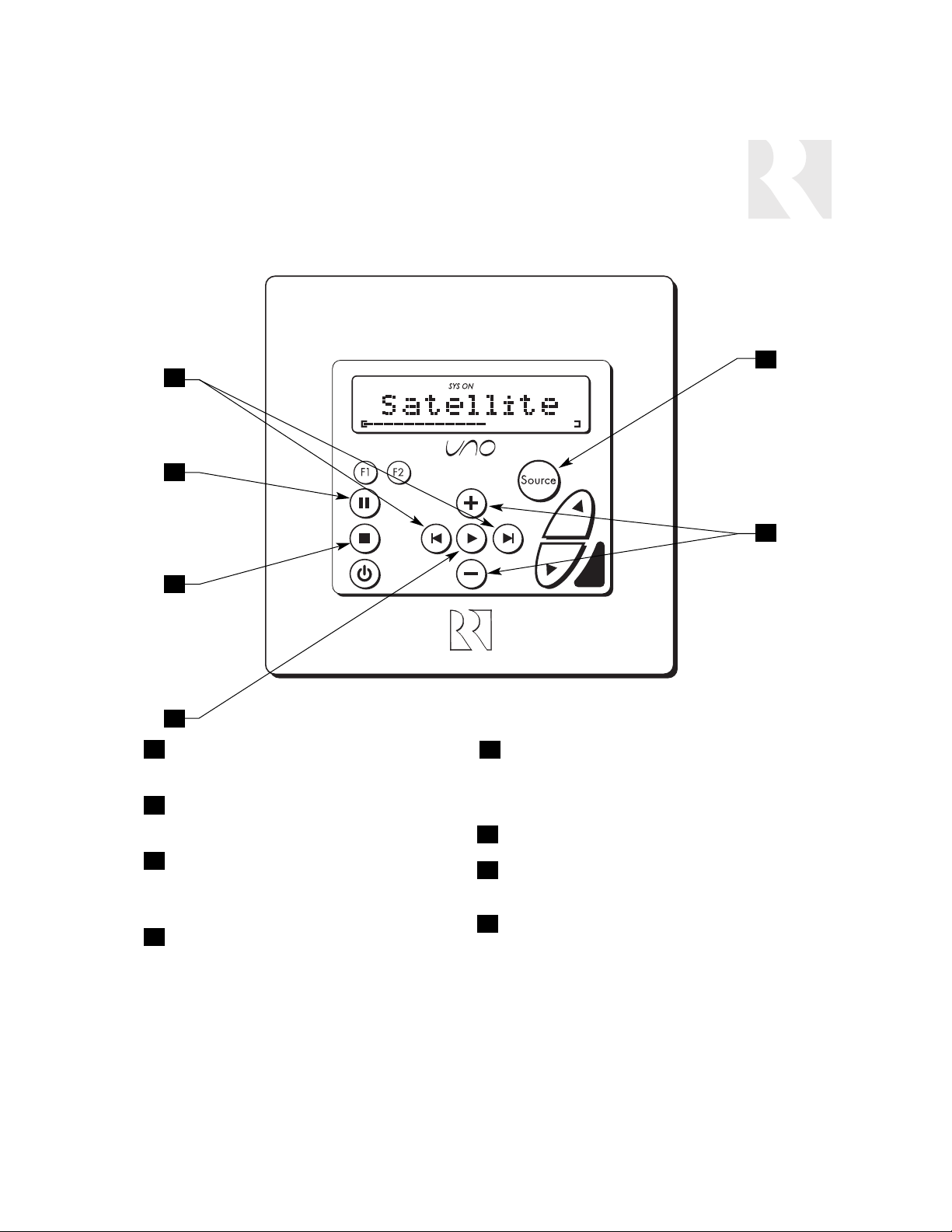

TUNER SELECTION - Select source number
assigned to TUNER 1 (XM) or TUNER 2 (AM/FM)
TUNE UP/DOWN - Used for manual station or
channel selection
SELECT -
(AM/FM) Selects AM or FM band
(XM) Operating mode toggle
SEEK - (press)
(AM/FM) Seeks next higher tuned station
(XM) Exit current XM mode
SCAN - (press and hold)
(AM/FM) Scans through tuned stations with
5-second preview before next station
(XM) Signal Strength mode toggle
MUTE - Mutes/unmutes tuner audio output
BANK SELECT - Used for bank selection (press
and hold)
MEM UP/DOWN - Scrolls through memory preset
stations (press)
NOTE: UNO-S2 keypads are connected to the
CAV6.6 to control the ST2-XM through RNET.
UNO-S2 keypads do not connect directly to
the ST2 Tuner.
1
4
2
5
3
1
2
4
4
5
6
6
6
3
24
UNO-LRC1 Remote Control Operation
Turning the unit on
The tuner is power managed by the CAV6.6 or other
RNET-enabled controller. If the tuner is in standby
mode, any button press of the UNO-LRC1 will bring
the tuner out of standby mode when used with the
UNO keypad.
Selecting the desired tuner
To select a tuner, push and choose the source
number preassigned to Tuner 1 (XM) or Tuner 2
(AM/FM), or use the UNO numeric source inputs at
the bottom of the UNO-LRC1.
Selecting the desired band (AM/FM only)
Push to toggle between AM/FM reception.
Selecting a Mode (XM)
Push , or to toggle between XM
operating modes.
Exiting a Mode (XM)
Press or to exit XM operating mode menu.
Signal Strength mode (XM)
Press and hold and release. The display shows
the signal strength rating. To exit press .
Selecting the desired frequency or channel
Use the Channel and or and
for manual tuning. To move quickly through the
channels, press and hold the button for more than
1.5 seconds. To directly select a station or channel,
enter the three- or four-digit channel or frequency
(1071 for 107.1, etc.). European regions use five-
digit station frequencies.
Frequency Seek (AM/FM only)
The SEEK function is performed by pressing and
releasing the Select or or . To seek
higher frequency station press . Press for
lower frequencies. Tuning begins at the current fre-
quency, seeks upward (or downward) and stops at the
next tuned station. Pushing or again con-
tinues the SEEK function. Once the highest frequency
is reached, the tuner continues SEEK mode at the
lowest frequency.
Frequency Scan (AM/FM only)
To scan, press and hold then release . The
tuner scans through tuned stations with a 5-second
preview before moving to the next station. To end
scanning, press again.
Selecting a Bank
To select a bank, press and hold for bank up
or for bank down.
Recalling a Memory Preset
Press and or and to scroll
through a loop of all the memory presets for the cur-
rently selected bank. Only configured presets will be
displayed.
Mute
Press the button to mute/unmute the tuner
audio output.
ST2-XM OPERATION
UNO-LRC1 REMOTE CONTROL WITH CAV6.6
ST2-XM OPERATION
UNO-LRC1 REMOTE CONTROL WITH CAV6.6
POWER - Power managed by CAV6.6
NUMERIC INPUT - Number buttons for direct
input of frequency, channel, preset, bank
TUNE UP/DOWN - Incrementally scrolls through
channels or tuned stations
EXIT - Exit XM operating mode
TUNE UP/DOWN - Incrementally scrolls through
channels or tuned stations
SELECT -
(AM/FM) Confirms numeric selection
(XM) Operating mode toggle
MENU - XM operating mode toggle
PLAY -
(AM/FM) Selects AM or FM band
(XM) Operating mode toggle
BANK UP/DOWN - Used for bank selection (press
and hold)
MEM UP/DOWN - Scrolls through memory presets for selected bank (press)
MUTE - Mutes/unmutes tuner audio output
SCAN - (SEEK - press, see #14 below)
(AM/FM) Scans through tuned stations with 5second preview before next station (press and
hold)
(XM) Exit XM operating mode
TUNER SELECTION - Select source number
assigned to TUNER 1 (XM) or TUNER 2 (AM/FM)
INFO - XM Now Playing mode toggle
SEEK UP/DOWN -
(AM/FM) Seeks next tuned station up/down
(XM) Next/previous preset, category, info item,
display preference
GUIDE - XM Category Search mode toggle
1
4
7
2
5
8
3
6
9
11
10
5
7
10
13
6
14
9
15
1
2
4
12
3
12
UNO SELECTION - UNO must be the
selected source for control of the
CAV6.6 and any connected components. Select UNO before sending
UNO-LRC1 remote commands.
5
8
9
11
12
13
14
15
25
26
ST2-XM Tuner Setup Menus
Note: The Setup Menu procedures must be performed from the ST2-XM Tuner front panel.
The ST2-XM Tuner Setup Menus provide setup and naming procedures for the ST2-XM main chassis,
the XM tuner module and the AM/FM tuner module. These procedures include source number assignments, assigning a custom name to a memory preset or a bank, choosing a region for AM/FM operation (US or Euro), factory initialization and system information.
If the ST2-XM is used with a non-RNET system, the ST2-XM can be connected and operated without
any setup programming. Follow the setup menus if custom names are desired, or for system info.
If the ST2-XM is used with an RNET system such as CAV6.6, the following minimum setup must be
performed for the ST2-XM to be properly controlled by the CAV6.6.
1. ST2 Chassis Setup Menu - Assign source numbers to Tuner 1 and Tuner 2.
2. CAV6.6 Source Setup Menu - Assign the corresponding source numbers to Tuner 1 and Tuner 2.
3. CAV6.6 Source Setup Menu - Assign command type PERIPHERAL to Tuner 1 and Tuner 2.
NOTE: Once the programming procedures are completed, cycle power first to the Tuner and then
to the CAV6.6 (must be powered on last) to establish a connection.
ST2 Chassis Setup Menu
Source Number (Chassis)
The Source Number procedure permits Tuner 1
(XM) and Tuner 2 (AM/FM) to be assigned the
proper peripheral source identities as will be
assigned in the CAV6.6 Source Setup.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press MEM Up/Down
until SOURCE NUM appears on the tuner.
3. Press BAND. TUNER # appears.
4. Press the Tune Up/Down buttons to select the
Tuner # (Tuner 1 is XM, Tuner 2 is AM/FM).
5. Press BAND. SOURCE NUM appears.
6. Press the Tune Up/Down buttons to scroll
through the source numbers 1-6.
7. Press BAND to select the source number (as
assigned in the CAV6.6 setup process).
8. Repeat the process for the next tuner.
9. Press TNR SEL to exit the Source Number
menu.
Update Firmware (Chassis)
The Update Firmware procedure allows the ST2
tuner’s OS firmware to be updated. The procedure is performed using a DB9 serial cable with
one end connected to the RS-232 port on the
back of the tuner and the other connected to a
PC or laptop. If an OS firmware update is available, it can be obtained through the Document
Center at
www.russound.com
. XM tuner module
firmware must be performed by an authorized
Russound service facility.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press MEM Up/Down
until UPDATE FIRMW appears on the tuner.
3. Press BAND to enter the UPDATE FIRMW menu.
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
27
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
Press and Hold
4. “Hold BAND” appears on the tuner.
5. While pressing and holding BAND, “After
update cycle power” appears on the tuner
display.
6. When “Start Update” appears on the tuner display, start the update program. “Finished”
appears on the computer screen when complete.
7. Cycle power to the tuner.
Factory Initialization (Chassis)
The Factory Initialization procedure allows the
erasure of all programmed settings and returns
them to the factory default settings.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press MEM Up/Down
until FACTORY INIT appears on the tuner.
3. Press BAND to enter the FACTORY INIT menu.
4. “Are you sure” appears on the tuner. Using the
Tune Up/Down buttons, view the “Yes” and “No”
selections.
5. Press BAND to select. A “No” selection
returns to the top of the Factory Init menu. A
“Yes” begins the initialization.
6. “Please wait” appears on the tuner during the
process and “Cycle Power” appears when complete.
7. Cycle power on the ST2-XM tuner.
TNR SEL button
TNR
TNR
SEL
SEL
ST2 Chassis Setup Procedures
TUNER
SETUP
Menu
SOURCE
NUM
Procedure
TUNER
#
SOURCE
NUM
UPDATE
FIRMW
Procedure
TNR
TNR
SEL
SEL
HOLD
BAND
After update
cycle Power
Start
Update
Cycle Power
FACTORY
INIT
Procedure
This
Procedure
returns the
ST2 Tuner
to its
Factory
settings
Are you sure
YES
Please wait
Cycle Power
NO
SYSTEM
INFO
Procedure
TNR
SEL
Chassis
Setup
Menu
28
System Info (Chassis)
The System Info menu shows the ST2 Tuner’s
manufacturing build properties.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press MEM Up/Down
until SYSTEM INFO appears on the tuner.
3. Press BAND.
4. Press BAND at “Build Time” to view.
5. Press MEM Up/Down to advance.
6. Press BAND at “Build Date” to view.
7. Press MEM Up/Down to advance.
8. Press BAND at “Version” to view.
9. Press TNR SEL to exit the System Info menu.
(END OF ST2 CHASSIS SETUP)
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
Press TNR SEL
button to select
XM Tuner
TNR
TNR
SEL
SEL
TUNER
SETUP
Menu
TNR
SEL
MEM
NAME
Procedure
SOURCE
NUM
Procedure
BANK
NAME
Procedure
XM Setup Menu
Memory Name Procedure
UPDATE
FIRMW
Procedure
CONTROLLR
ID
Procedure
FAC TORY
INIT
Procedure
DIAGNOSTICS
Procedure
SYSTEM
INFO
Procedure
FAC TORY
INIT
Procedure
Chassis
Setup
Menu
SYSTEM
INFO
Procedure
XM
Setup
Menu
TNR
SEL
BANK #
MEMORY #
MEMORY
NAME
Selects
character
Selects
character
position
Repeat
for each
character
in name
SAVE
CHANGES?
29
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
Tuner Setup Menu for XM
It is important to select the desired tuner
(Tuner 1 for XM) using the TNR SEL button
BEFORE accessing the Tuner Setup Menus.
Memory Name (XM)
A memory preset
must
be created and saved
before it can be named (see page 19). Once it is
saved, the preset’s Tuner #, Bank # and Memory
# must be entered in the following procedure.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press BAND again.
3. MEMORY NAME appears on the tuner.
4. Press BAND.
5. Bank # appears.
6. Press the Tune Up/Down buttons to select the
Bank #.
7. Press BAND to advance. Memory # appears.
8. Press the Tune Up/Down buttons to select a
Memory #. (continued)
Press TNR SEL
button to select
XM Tuner
TNR
TNR
SEL
SEL
TUNER
SETUP
Menu
TNR
SEL
MEM
NAME
Procedure
XM Setup Menu
Bank Name Procedure
SOURCE
NUM
Procedure
BANK
NAME
Procedure
UPDATE
FIRMW
Procedure
CONTROLLR
ID
Procedure
FACTORY
INIT
Procedure
DIAGNOSTICS
Procedure
SYSTEM
INFO
Procedure
FACTORY
INIT
Procedure
Chassis
Setup
Menu
SYSTEM
INFO
Procedure
XM
Setup
Menu
TNR
SEL
BANK #
BANK
NAME
Selects
character
Selects
character
position
Repeat
for each
character
in name
SAVE
CHANGES?
30
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
Memory Name (XM) (continued)
9. Press BAND to advance. MEMORY NAME
appears again.
10. Press BAND to access the Memory Name
entry screen.
11. Press Tune Up/Down to select a character
and MEM Up/Down to change a character
position. Up to 12 characters can be entered
one by one. A blinking cursor indicates the placement of the character being entered.
12. Press BAND when memory name is entered.
13. SAVE CHANGES will appear.
14. Press Tune Up/Down to select Yes or No.
15. Press BAND to save memory name. The
Memory Name menu returns to the Memory #
prompt to name other presets, or press TNR
SEL to return to the Memory Name menu start.
Bank Name (XM)
A custom name can be assigned to each of the
six banks of Tuner 1 (XM).
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press BAND.
3. MEMORY NAME appears. Press MEM
Up/Down until BANK NAME appears on the tuner.
4. Press BAND.
5. Bank # appears.
6. Press the Tune Up/Down buttons to select the
Bank #.
7. Press BAND. BANK NAME appears again.
8. Press BAND to access the Bank Name entry
screen.
9. Press Tune Up/Down to select a character
and MEM Up/Down to change a character position. Up to 12 characters can be entered one by
one. A blinking cursor indicates the placement of
the character being entered.
10. Press BAND when bank name is entered.
11. SAVE CHANGES will appear.
12. Press Tune Up/Down to select Yes or No.
13. Press BAND to save bank name. The Bank
Name menu returns to the Bank # prompt to
name other banks, or press TNR SEL to exit the
Bank Name menu.
Controller ID (XM)
The Controller ID procedure is used to identify
the controller(s) that the XM tuner will
respond to.
Note: For the XM module that is installed in the
ST2-XM chassis, “All Controllers” will be the
default setting.
Diagnostics (XM)
The Diagnostics procedure is for factory
use only.
Factory Initialization (XM)
The Factory Initialization procedure allows the
erasure of all programmed settings of the XM
tuner and returns them to the factory default settings.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press BAND.
3. MEMORY NAME appears. Press MEM
Up/Down until FACTORY INIT appears on the
tuner.
4. Press BAND to enter the FACTORY INIT menu.
5. “Are you sure” appears on the tuner. Using the
Tune Up/Down buttons, view the “Yes” and “No”
selections.
6. Press BAND to select. A “No” selection
returns to the top of the Factory Init menu. A
“Yes” begins the initialization.
7. “Please wait” appears on the tuner during the
process and “Cycle Power” appears when complete.
8. Cycle power on the ST2-XM tuner.
31
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
System Info (XM)
The System Info menu shows the ST2 Tuner’s
manufacturing build properties.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press MEM Up/Down
until SYSTEM INFO appears on the tuner.
3. Press BAND.
4. Press BAND at “Build Time” to view.
5. Press MEM Up/Down to advance.
6. Press BAND at “Build Date” to view.
7. Press MEM Up/Down to advance.
8. Press BAND at “Version” to view.
9. Press TNR SEL to exit the System Info menu.
(END OF XM TUNER SETUP)
Tuner Setup Menu for AM/FM
It is important to select the desired tuner
(Tuner 2 for AM/FM) using the TNR SEL
button BEFORE accessing the Tuner Setup
Menus.
Memory Name (AM/FM)
A memory preset
must
be created and saved
before it can be named (see page 19). Once it is
saved, the preset’s Tuner #, Bank # and Memory
# must be entered in the following procedure.
(continued)
Press TNR SEL
button to select
XM Tuner
TNR
TNR
SEL
SEL
TUNER
SETUP
Menu
TNR
SEL
Controller, Diagnostics, Factory Initialization
SOURCE
NUM
Procedure
XM Setup Menu
and System Info Procedures
UPDATE
FIRMW
Procedure
FACTORY
INIT
Procedure
SYSTEM
INFO
Procedure
Chassis
Setup
Menu
MEM
NAME
Procedure
BANK
NAME
Procedure
CONTROLLR
ID
Procedure
All Contrlrs
DIAGNOSTICS
Procedure
This
Procedure
is for
Factory
use
ONLY
FACTORY
INIT
Procedure
This
Procedure
returns the
ST2 Tuner
to its
Factory
settings
Are you
sure?
Yes or No
YES
Please
Wait
Cycle Power
SYSTEM
XM
INFO
Setup
Procedure
Menu
TNR
SEL
NO
32
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
Memory Name (AM/FM) (continued)
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press BAND again.
3. MEMORY NAME appears on the tuner.
4. Press BAND.
5. Bank # appears.
6. Press the Tune Up/Down buttons to select the
Bank #.
7. Press BAND to advance.
8. Press the Tune Up/Down buttons to select a
Memory #.
9. Press BAND to advance. MEMORY NAME
appears again.
10. Press BAND to access the Memory Name
entry screen.
11. Press Tune Up/Down to select a character
and MEM Up/Down to change a character position. Up to 12 characters can be entered one by
one. A blinking cursor indicates the placement of
the character being entered.
12. Press BAND when memory name is entered.
13. SAVE CHANGES will appear.
14. Press Tune Up/Down to select Yes or No.
15. Press BAND to save memory name. The
Memory Name menu returns to the Memory #
prompt to name other presets, or press TNR
SEL to return to the Memory Name menu start.
Bank Name (AM/FM)
A custom name can be assigned to each of the
six banks of Tuner 2 (AM/FM).
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press BAND.
3. MEMORY NAME appears. Press MEM
Up/Down until BANK NAME appears on the tuner.
4. Press BAND.
5. Bank # appears.
6. Press the Tune Up/Down buttons to select the
Bank #.
7. Press BAND. BANK NAME appears again.
8. Press BAND to access the Bank Name entry
screen.
9. Press Tune Up/Down to select a character
and MEM Up/Down to change a character position. Up to 12 characters can be entered one by
one. A blinking cursor indicates the placement of
the character being entered.
10. Press BAND when bank name is entered.
11. SAVE CHANGES will appear.
12. Press Tune Up/Down to select Yes or No.
13. Press BAND to save bank name. The Bank
Name menu returns to the Bank # prompt to
name other banks, or press TNR SEL to exit the
Bank Name menu.
Region (AM/FM)
The Region procedure assigns either US or Euro
to the tuner. The difference between the two is
that US FM frequencies operate in .2 MHz increments, while European FM frequencies operate in
.05 MHz increments.
1. Enter the Setup Menu by pressing and holding
the TNR SEL button.
2. TUNER SETUP appears. Press BAND.
3. MEMORY NAME appears. Press MEM
Up/Down until REGION appears on the tuner.
4. Press BAND.
5. Press the Tune Up/Down buttons to select
either US or EURO.
6. Press BAND to select. Press TNR SEL to exit
the REGION menu.
(END OF AM/FM TUNER SETUP)
33
ST2-XM TUNER PROGRAMMING
ST2 TUNER SETUP MENU
Backup and Restore
Once all of the tuner settings are completed, it
may be advisable to create a backup of the programmed settings for future use. The backup will
then be available in case tuner settings need to
be restored.
The backup and restore PC application “RNET
Backup” is available through the Document
Center at
www.russound.com
. Also required are
a DB9 male-to-female cable and laptop or desktop PC.
Press TNR SEL
button to select
AM/FM Tuner
TNR
TNR
SEL
SEL
TUNER
SETUP
Menu
TNR
SEL
MEM
NAME
Procedure
TNR
SEL
BANK #
SOURCE
NUM
Procedure
MEMORY #
UPDATE
FIRMW
Procedure
MEMORY
NAME
AM/FM Setup Menu
FACTORY
INIT
Procedure
Chassis
SYSTEM
INFO
Setup
Menu
REGION
Procedure
AM/FM
Setup
Menu
BANK
NAME
Procedure
Procedure
TNR
SEL
Selects
character
Selects
character
position
Repeat
for each
character
in name
SAVE
CHANGES?
BANK #
BANK
NAME
Selects
character
Selects
character
position
Repeat
for each
character
in name
SAVE
CHANGES?
34
NOTE: The CAV6.6 firmware must be version 2.00.01 or higher and UNO-S2
firmware must be version 3.00.01 or higher to control the ST2-XM Tuner. Use
the System Info Menu of the CAV6.6 to check the firmware version. If the
firmware is not the proper revision as noted here, visit the Document Center
at www.russound.com
to obtain the latest version.
To Program the CAV6.6 to operate with the ST2-XM Tuner:
(refer to the CAV6.6 Instruction Manual for details)
1. Enter the Setup Menu by pressing the Setup button on the side of the UNO-S2 keypad.
2. SOURCE SETUP will appear. Enter the Source Setup Menu by pressing the Play button on the
UNO-S2 keypad.
3. BASIC SETUP will appear. Enter the Basic Setup Menu by pressing the Play button again.
4. SOURCE NUM will appear. Use + and - buttons to select the source number to which Tuner 1 (XM)
is connected. Press the Play button to enter your choice.
5. SOURCE NAME will appear. Use + and - buttons to select the name for the source (e.g., Tuner 1
or XM). Press the Play button to enter your choice.
6. COMMAND TYPE will appear. Select PERIPHERAL from the list. Press the Play button to enter this
choice.
7. SAVE CHANGES? appears. Select “Yes” and press the Play button to save changes.
8. SOURCE NUM appears again. Repeat steps 4 through 7 to configure the second tuner.
9. Press the Setup button three times to back out of the Installation Menu.
Source Configuration Note:
When the ST2-XM Tuner is used with the CAV6.6 or other RNET controller, it is configured as an
RNET command type “Peripheral” and is connected via the RNET bus. This makes the tuner behave
as a fully integrated device with UNO-S2 keypad support. Each tuner must be set up with a unique
source number (1 - 6) or unassigned. An unassigned tuner is not controlled by the RNET bus.
Key Function Note:
When using the tuner with the CAV6.6-S2 system, do not reassign keypad and remote buttons for
tuner control in the CAV6.6 Key Configuration Menu. When the tuner is assigned the “Peripheral” command type in the CAV6.6 Setup Menu, key assignments and functions are automatically assigned and
will operate as shown in the preceding UNO-S2 keypad and UNO-LRC1 remote diagrams.
ST2-XM TUNER PROGRAMMING
PROGRAMMING FOR CAV6.6 USE
35
ST2-XM Smart Tuner
Dimensions: 17"W x 8"D x 1.8"H (43 x 20.3 x 4.4 cm)
Weight: 7 lbs. (3.2kg)
Power Supply: 12VDC 1.5A
Frequency Range: AM 530 - 1710 kHz
FM 87.7 - 107.9 MHz
FM Antenna impedance: 75 ohm unbalanced
Impedance: 300 ohm balanced
AM
Sensitivity @ S/N: 20dB 55 dBu
Image rejection: 33dB
S/N ratio: 45 dB
FM
Sensitivity @ S/N: 30 dB 6dB max 12 dBu
Image rejection: 80 dB
S/N ratio: 60 dB
XM
XM Band: 2332.5 - 2345 MHz
XM Antenna: 50-ohm SMB connection
TECHNICAL SPECIFICATION
It is prohibited to copy, decompile, disassemble, reverse engineer, or manipulate any technology
incorporated in receivers compatible with the XM Satellite Radio system. Furthermore, the AMBE®
voice compression software included in this product is protected by intellectual property rights
including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this
or any other software contained in an XM radio is explicitly prohibited from attempting to copy,
decompile, reverse engineer, or disassemble the object code, or in any way convert the object code
into human-readable form. The software is licensed solely for use within this product.
36
WARRANTY & REPAIR
The Russound ST2-XM is fully guaranteed against all defects in materials and workmanship for two
(2) years from the date of purchase. During this period, Russound will replace any defective parts and
correct any defect in workmanship without charge for either parts or labor.
For this warranty to apply, the unit must be installed and used according to its written instructions. If
service is necessary, it must be performed by Russound. The unit must be returned to Russound at
the owner's expense and with prior written permission. Accidental damage and shipping damage are
not considered defects, nor is damage resulting from abuse or from servicing by an agency or person not specifically authorized in writing by Russound.
This Warranty does not cover:
• Damage caused by abuse, accident, misuse, negligence,
or improper installation or operation
• Power surges and lightning strikes
• Normal wear and maintenance
• Products that have been altered or modified
• Any product whose identifying number, decal, serial number, etc.
has been altered, defaced or removed
Russound sells products only through authorized Dealers and Distributors to ensure that customers
obtain proper support and service. Any Russound product purchased from an unauthorized dealer or
other source, including retailers, mail order sellers and online sellers will not be honored or serviced
under existing Russound warranty policy. Any sale of products by an unauthorized source or other
manner not authorized by Russound shall void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the warranty on
those parts. In these cases, repairs will be made on the basis of the retail value of the parts and
labor. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with
a note explaining the nature of service required. Be sure to pack the unit in a corrugated container
with at least three (3) inches of resilient material to protect the unit from damage in transit.
Before returning a unit for repair, call Russound at (603) 659-5170 for a Return Authorization number.
Write this number on the shipping label and ship to:
Russound
ATTN: Service
5 Forbes Road
Newmarket, NH 03857
Due to continual efforts to improve product quality as new technology and techniques become available, Russound/FMP, Inc. reserves the right to revise system specifications without notice.
37
NOTES
38
NOTES
39
NOTES
Russound
5 Forbes Road, Newmarket, NH 03857
tel 603.659.5170 • fax 603.659.5388
e-mail: tech@russound.com
www.russound.com
E. & O.E.
Copyright © 2004 Russound®All rights reserved.
All trademarks are property of their respective owners.
28-1160 07/13/04
Loading...
