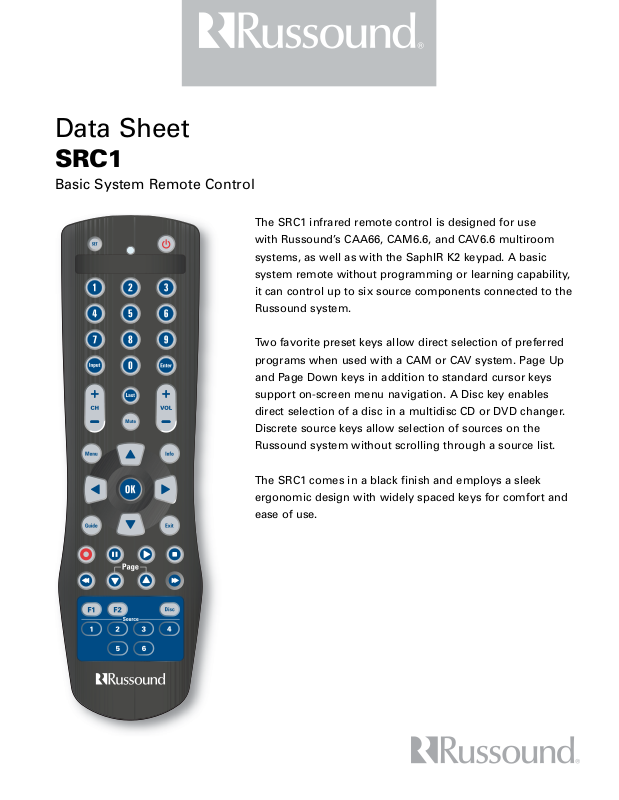

Data Sheet

SRC1

Basic System Remote Control

The SRC1 infrared remote control is designed for use

with Russound’s CAA66, CAM6.6, and CAV6.6 multiroom

systems, as well as with the SaphIR K2 keypad. A basic

system remote without programming or learning capability,

it can control up to six source components connected to the

Russound system.

Two favorite preset keys allow direct selection of preferred

programs when used with a CAM or CAV system. Page Up

and Page Down keys in addition to standard cursor keys

support on-screen menu navigation. A Disc key enables

direct selection of a disc in a multidisc CD or DVD changer.

Discrete source keys allow selection of sources on the

Russound system without scrolling through a source list.

The SRC1 comes in a black finish and employs a sleek

ergonomic design with widely spaced keys for comfort and

ease of use.

Specifications

Russound Remote Control Compatibility Guide

Other Models

Since 1967, innovation, quality and reliability have been the core of the Russound product tradition. Today, Russound offers everything for enjoying multiroom audio-video in your home. All distributed audio-video solutions are built to high standards and designed with the unique consideration of making products that are a pleasure to live with and enjoy.

5 Forbes Road, Newmarket, New Hampshire 03857 603.659.5170 www.russound.com

©2005 Russound. All rights reserved. All trademarks are the property of their respective owners. Specifications are subject to change without notice. Russound is not responsible for typographical errors or omissions. 09/05

Systems supported: CAA66, CAM6.6, CAV6.6, SaphIR K2 keypad

Sources supported: 6 (controlled through system programming)

Batteries: (2) AA alkaline

Finish: Black

Dimensions: 2.18” W x 7.63”H x 1.37” D (5.5 x 19.4 x 3.5 cm)

Weight: 5.8 oz (164 g)

System:

CAV6.6 CAM6.6 CAA66 CAS44 A-BUS Infrared

Keypad:

UNO-S1 or UNO-S2;

UNO-TS2 Touchscreen

KP6 or

KPL

KP4 or

KPL

A-KP2 SaphIR K2

SRC1

Basic

✓ ✓ ✓ ✓*

SRC2

Advanced Learning

✓ ✓ ✓ ✓

CAS-RC

Learning

✓

A-LRC1

Learning

✓

SRC1

SRC2 CAS-RC A-LRC1

*For configurations with up to 6 sources

PWR

SOURCE

CBL VCR TV

CONTROL

1234

123

456

789

ENTER

MUTE

LAST

SLEEP

VOL CH

INPUT

EXIT

GUIDE

SELECT

INFO

VOL

ALL OFF

ON OFF

SOURCE SELECT

12 34
