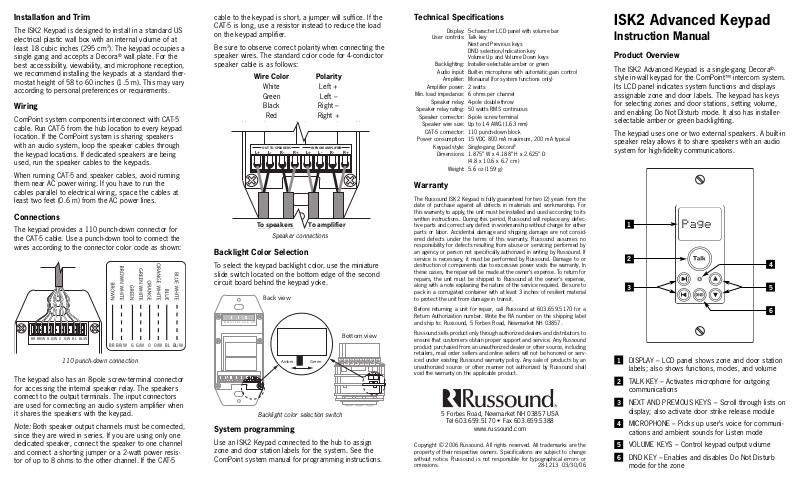

Russound ISK2 User Manual
ISK2 Advanced Keypad
Instruction Manual
Product Overview
The ISK2 Advanced Keypad is a single-gang Decora®style in-wall keypad for the ComPoint
™ intercom system.
Its LCD panel indicates system functions and displays
assignable zone and door labels. The keypad has keys
for selecting zones and door stations, setting volume,
and enabling Do Not Disturb mode. It also has installerselectable amber or green backlighting.
The keypad uses one or two external speakers. A built-in
speaker relay allows it to share speakers with an audio
system for high-fidelity communications.
1
2
3
4
5
6
1
2
3
4
5
6
DISPLAY – LCD panel shows zone and door station
labels; also shows functions, modes, and volume
TALK KEY – Activates microphone for outgoing
communications
NEXT AND PREVIOUS KEYS – Scroll through lists on
display; also activate door strike release module
MICROPHONE – Picks up user’s voice for communications and ambient sounds for Listen mode
VOLUME KEYS – Control keypad output volume
DND KEY – Enables and disables Do Not Disturb
mode for the zone
5 Forbes Road, Newmarket NH 03857 USA
Tel 603.659.5170 • Fax 603.659.5388
www.russound.com
Installation and Trim
The ISK2 Keypad is designed to install in a standard US
electrical plastic wall box with an internal volume of at
least 18 cubic inches (295 cm3). The keypad occupies a
single gang and accepts a Decora®wall plate. For the
best accessibility, viewability, and microphone reception,
we recommend installing the keypads at a standard thermostat height of 58 to 60 inches (1.5 m). This may vary
according to personal preferences or requirements.
Wiring
ComPoint system components interconnect with CAT-5
cable. Run CAT-5 from the hub location to every keypad
location. If the ComPoint system is sharing speakers
with an audio system, loop the speaker cables through
the keypad locations. If dedicated speakers are being
used, run the speaker cables to the keypads.
When running CAT-5 and speaker cables, avoid running
them near AC power wiring. If you have to run the
cables parallel to electrical wiring, space the cables at
least two feet (0.6 m) from the AC power lines.
Connections
The keypad provides a 110 punch-down connector for
the CAT-5 cable. Use a punch-down tool to connect the
wires according to the connector color code as shown:
The keypad also has an 8-pole screw-terminal connector
for accessing the internal speaker relay. The speakers
connect to the output terminals. The input connectors
are used for connecting an audio system amplifier when
it shares the speakers with the keypad.
Note:
Both speaker output channels must be connected,
since they are wired in series. If you are using only one
dedicated speaker, connect the speaker to one channel
and connect a shorting jumper or a 2-watt power resistor of up to 8 ohms to the other channel. If the CAT-5
cable to the keypad is short, a jumper will suffice. If the
CAT-5 is long, use a resistor instead to reduce the load
on the keypad amplifier.
Be sure to observe correct polarity when connecting the
speaker wires. The standard color code for 4-conductor
speaker cable is as follows:
Wire Color Polarity
White Left +
Green Left –
Black Right –
Red Right +
Backlight Color Selection
To select the keypad backlight color, use the miniature
slide switch located on the bottom edge of the second
circuit board behind the keypad yoke.
System programming
Use an ISK2 Keypad connected to the hub to assign
zone and door station labels for the system. See the
ComPoint system manual for programming instructions.
Warranty
The Russound ISK2 Keypad is fully guaranteed for two (2) years from the
date of purchase against all defects in materials and workmanship. For
this warranty to apply, the unit must be installed and used according to its
written instructions. During this period, Russound will replace any defective parts and correct any defect in workmanship without charge for either
parts or labor. Accidental damage and shipping damage are not considered defects under the terms of this warranty. Russound assumes no
responsibility for defects resulting from abuse or servicing performed by
an agency or person not specifically authorized in writing by Russound. If
service is necessary, it must be performed by Russound. Damage to or
destruction of components due to excessive power voids the warranty. In
these cases, the repair will be made at the owner’s expense. To return for
repairs, the unit must be shipped to Russound at the owner’s expense,
along with a note explaining the nature of the service required. Be sure to
pack in a corrugated container with at least 3 inches of resilient material
to protect the unit from damage in transit.
Before returning a unit for repair, call Russound at 603.659.5170 for a
Return Authorization number. Write the RA number on the shipping label
and ship to: Russound, 5 Forbes Road, Newmarket NH 03857.
Russound sells product only through authorized dealers and distributors to
ensure that customers obtain proper support and service. Any Russound
product purchased from an unauthorized dealer or other source, including
retailers, mail order sellers and online sellers will not be honored or serviced under existing Russound warranty policy. Any sale of products by an
unauthorized source or other manner not authorized by Russound shall
void the warranty on the applicable product.
Technical Specifications
Display: 5-character LCD panel with volume bar
User controls: Talk key
Next and Previous keys
DND selection/indication key
Volume Up and Volume Down keys
Backlighting: Installer-selectable amber or green
Audio input: Built-in microphone with automatic gain control
Amplifier: Monaural (for system functions only)
Amplifier power: 2 watts
Min. load impedance: 6 ohms per channel
Speaker relay: 4-pole double-throw
Speaker relay rating: 50 watts RMS continuous
Speaker connector: 8-pole screw terminal
Speaker wire size: Up to 14 AWG (1.63 mm)
CAT-5 connector: 110 punch-down block
Power consumption: 15 VDC 800 mA maximum, 200 mA typical
Keypad style: Single-gang Decora
®
Dimensions: 1.875” W x 4.188” H x 2.625” D
(4.8 x 10.6 x 6.7 cm)
Weight: 5.6 oz (159 g)
110 punch-down connection
Speaker connections
Backlight color selection switch
Copyright © 2006 Russound. All rights reserved. All trademarks are the
property of their respective owners. Specifications are subject to change
without notice. Russound is not responsible for typographical errors or
omissions. 28-1213 03/30/06
BR BR/W G G/W O O/W BL BL/W
BR BR/W G G/W O O/W BL BL/W
OUT TO SPEAKERS IN FROM AMPLIFIER
L+ L- R- R+ L+ L- R- R+
To speakers
To amplifier
Back view
BR BR/W G G/W O O/W BL BL/W
Bottom view
Amber
Green
Safety Precautions
For your safety, please read and follow these precautions
before installing or using this product:
➤ Read instructions. Read and understand all the applicable
instructions before installing or operating the product.
➤ Retain documents. Keep this manual in a convenient place
for reference.
➤ Heed warnings. Be aware of all warnings on the product
and in the instructions.
➤ Follow instructions. Install and use this product only as
described in the instructions. Don’t try to use this product in
ways it wasn’t designed for.
➤ Use indoors only. Don’t expose this product to the weather
or harsh environmental conditions such as continuous sunlight, excessive humidity, or rain.
➤ Keep product dry. Don’t use the product near water; for
example, near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, or near a swimming pool. Also, do
not handle the product when your hands are wet or damp.
➤ Avoid heat. Locate the product away from heat sources
such as radiators, heat registers, stoves or other appliances
that produce heat.
➤ Use the right power. Don’t connect the product directly to
electrical line voltage. Use only the power adapter provided
with the product, described in the product specifications or
installation instructions, or as marked on the product.
➤ Ground product properly. Make sure the product’s means
of grounding or polarization is not defeated.
➤ Keep product clean. From time to time, wipe off the prod-
uct with a clean soft cloth. Don’t use abrasive materials,
thinners, alcohol or other chemical solvents or materials.
➤ Avoid spills and foreign objects. Make sure liquids and
objects don’t get into the product through any openings.
➤ Get professional service. Have the product serviced only
by qualified service personnel when:
• Liquids have spilled or objects have fallen into the product
• The product has been exposed to rain
• The product doesn’t appear to operate normally
• The product is damaged
Don’t attempt to service the product yourself. Doing so will
void the warranty.
If you have any questions, call Russound at 1-800-638-8055 or
603-659-5170.
Operation
The ISK2 Keypad allows you to perform the following
functions:
• System-wide paging
• Point-to-point intercom
• Call and reply to door station
• Door strike release
• Listen to another zone
It also allows you to put the zone in Do Not Disturb
mode to prevent communications and doorbell chimes
from being heard in the room where it’s installed.
Paging
To send a page, press and hold the Talk key and speak
anytime Page appears in the keypad display. Release
the key when you’re done speaking.
If the display shows a zone label instead of Page, first
use the Next or Previous key to select Page before you
press the Talk key.
If the system is busy when you press the Talk key, the
display indicates Busy and the Talk key blinks red for 7
seconds.
When you press the Talk key, all keypads sound a single
ping tone to announce your message. They also indicate
which zone you’re sending from by showing your zone’s
label on their displays. The zone indication remains for
30 seconds after you release the Talk key.
The keypads sound a double ping when you release the
Talk key. This lets others know they can reply to the
page within 30 seconds.
To reply to a page from another zone within the 30-second limit, press and hold the Talk key and speak. Your
reply will be heard only in the zone that sent the page.
Paging is not allowed when there is a door station call,
intercom session, or other page in progress. Also, a
door station call takes precedence over a page and thus
interrupts a page in progress.
Intercom
To talk with someone in another zone, first use the Next
or Previous key to select that zone. When the desired
zone label appears in the display, press and hold the
Talk key and speak. Release the Talk key when you’re
done speaking.
If the system is busy when you try to start an intercom
session, the display indicates Busy and the Talk key
blinks red for 7 seconds.
If the selected zone is in Do Not Disturb mode, the
display alternately shows the zone label and DND at 1second intervals and the DND key blinks rapidly for 7
seconds.
When you press the Talk key on the sending keypad, the
receiving keypad sounds a single ping and shows the
sending zone’s label on its display.
When you release the Talk key, both the sending and
receiving keypads sound a single ping to signal the person receiving can reply hands free within 7 seconds.
After 7 seconds, the keypads sound a double ping to
signal the end of the hands-free reply period.
To reply to an intercom from another zone before the
double ping, just speak. After the double ping, press and
hold the Talk key while you speak. You can reply as long
as the sending zone’s label appears on the display.
An intercom session is not allowed when there is a
page, door station call, or other intercom session in
progress. Also, a door station call takes precedence
and thus interrupts an intercom session in progress.
Door station call
The door station call function gives you the convenience
of answering the door from any keypad.
When a visitor rings the doorbell from a door station, all
keypads indicate the calling door station for 15 seconds
by showing the door station label on their displays.
To reply to a door station call within the 15 seconds,
press and hold the Talk key on a keypad and speak.
Release the Talk key when you’re done speaking.
Please note that you must use the Talk key when replying to a door station call. For your privacy, ComPoint
does not allow a hands-free reply to the door station.
When you release the Talk key, the door station sounds
a single ping to let the caller know they can answer your
reply hands free within 7 seconds. After the 7 seconds,
the door station pings twice to indicate the end of the
communication.
After 15 seconds, you can reconnect by using the Next
or Previous key to select the door station and then
pressing the Talk key to start a new intercom session.
This does not ring the doorbell.
Door strike release
If your ComPoint system includes an optional ISDR1
Door Strike Release Module, you can activate it from a
keypad to unlock the door.
To activate the Door Strike Release Module during a
door station call, press and hold both the Next and
Previous keys simultaneously for 3 seconds. The module
then activates and the keypad confirms activation with
an audible buzz tone through the speakers.
To activate the Door Strike Release Module when there
is no door station call in progress, first use the Next or
Previous key to select the door station, then press and
hold both keys for 3 seconds.
Listen to another zone
You can use your ComPoint system to continuously listen to any single zone from one or more other zones.
This is done by first turning on a keypad microphone in
the zone you want to listen to, then selecting that zone
on one or more other keypads.
To turn on a keypad’s microphone, use the Next or
Previous key to select that keypad’s own zone label. The
Talk key lights up red and after 2 seconds the display
shows MicOn to show the keypad microphone is active.
To listen to the zone with the active microphone from
other keypads, use the Next or Previous key to select
that zone on the other keypads. Each display alternately
shows the zone label and Listn to indicate the system is
in Listen mode.
To exit Listen mode, press any key other than Volume
Up or Volume Down in the zone you’re listening to.
Listen mode cannot be disabled from any other zone.
Other communication events have priority over Listen
mode and thus interrupt listening to another zone.
Do Not Disturb mode
You can prevent pages, intercom sessions, door station
calls, and doorbell chimes from being heard in any zone
by using Do Not Disturb (DND) mode.
To turn on DND mode, press and release the DND key.
The DND key lights up red to indicate DND mode is on.
To cancel DND mode, press any key other than Volume
Up or Volume Down. The red DND light shuts off.
Combined Listen and DND modes
You can use DND mode in a zone you are listening to.
This way the zone you’re listening to won’t be disturbed
by the doorbell or communication events.
To set up a zone for listening and DND, first select that
zone’s label on its keypad. Then press and release the
DND key.
The Talk key and DND key light up red and the display
shows Listn to indicate the keypad’s microphone is on
and the zone is also in DND mode.
Volume adjustment
To adjust the output volume of the keypad, press either
the Volume Up or Volume Down key. This affects the
volume of all communications heard in that zone, and
depending on how the system hub is configured, may
also affect the doorbell volume in the zone. A bar graph
at the bottom of the keypad display shows the current
volume setting.
The Volume Up and Volume Down keys do not affect the
volume of the multiroom audio program in the zone.
For more information, see the ComPoint system manual.
Loading...
