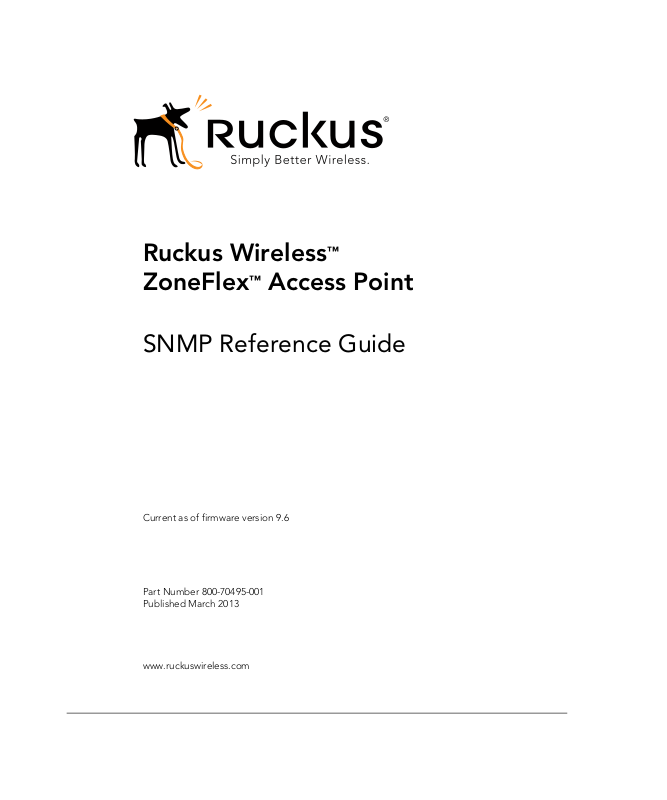

Ruckus Wireless

™

ZoneFlex™ Access Point

SNMP Reference Guide

Current as of firmware version 9.6

Part Number 800-70495-001
Published March 2013

www.ruckuswireless.com

About This Guide

This Ruckus Wireless ZoneFlex Access Point SNMP Reference Guide describes the
SNMP Management Information Bases (MIBs) that ZoneFlex Access Points support.

NOTE: SNMP is enabled by default on all ZoneFlex standalone Access Points. For
information on how to disable SNMP management and other network management
options, refer to the Ruckus Wireless ZoneFlex Access Point User Guides, available
from the Ruckus Wireless Support website.

Most user guides and release notes are available in Adobe Acrobat Reader Portable
Document Format (PDF) or HTML on the Ruckus Wireless Support website:

http://support.ruckuswireless.com/

Documentation Comments

Ruckus Wireless is interested in improving its documentation and welcomes your
comments and suggestions. You can email your comments to Ruckus Wireless at:

[email protected]

When contacting us, please include the following information:

■ Document title

■ Document part number (on the cover page)

■ Page number (if appropriate)

For example:

■ Ruckus Wireless ZoneFlex Access Point SNMP Reference Guide 9.6

■ Part number: 800-70495-001

■ Page 88

Please note that we can only respond to comments and questions about Ruckus
Wireless product documentation at this email address. Questions related to technical
support or sales should be directed in the first instance to your network supplier.

About This Guide

2

About This Guide

3

Contents

About This Guide

1

Access Point Event MIBs

Event MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Access Point Event MIB Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

ruckusEventAssocTrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

ruckusEventDiassocTrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

ruckusEventSetErrorTrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

ruckusEventConnectTrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

ruckusEventDisconnectTrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Ruckus AP Event Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

ruckusEventClientMacAddr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

ruckusEventSetErrorOID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2

Access Point System MIBs

Access Point System MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

System Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ruckusSystemCPUUtil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ruckusSystemMemoryUtil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

System Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ruckusSystemHTTPStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ruckusSystemHTTPSStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ruckusSystemTelnetStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

ruckusSystemSSHStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

ruckusSystemBonjourStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

ruckusSystemSyslogStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ruckusSystemSyslogServerIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ruckusSystemSyslogServerPort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ruckusSystemNTPStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ruckusSystemNTPGMTTime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ruckusSystemNTPActiveServer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ruckusSystemNTPUpdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4

ruckusSystemFlexMasterURL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ruckusSystemReboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

ruckusSystemSetFactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

ruckusSystemDHCPRenew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3

Ruckus Product MIBs

Ruckus Product MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Scalars and Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Wireless Router Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Wireless Adapter Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Wireless Metro Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Wireless Hotzone Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Wireless Controller Products. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

4

Access Point WLAN MIBs

Access Point WLAN MIBs Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

WLAN Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

WLAN Suported Transmit Rates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

WLAN Suported Receive Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

WLAN Station Statistics-Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

WLAN Station Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

WLAN Station MQ Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

WLAN Station Statistics-Ruckus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

WLAN Security Information Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

WLAN Stats Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

5

Access Point Radio Configuration MIBs

Access Point Radio MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Radio Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

5

Radio Stats Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

6

Ruckus Adapter MIBs

Ruckus Adapter MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Ruckus Adapter Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Ruckus Adapter Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Ruckus Adapter Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

7

Access Point Device MIBs

AP Device MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Device Generals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

SNMP Trap Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Device Misc IP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Device WAN Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

8

Access Point DHCP MIBs

Access Point DHCP MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

DHCP Client Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

9

Access Point Ethernet MIBs

Access Point Eth MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Ethernet Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

10

Access Point Hardware Info MIBs

AP Hardware Info MIBs Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

6

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

Hardware Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

11

Access Point L2TP MIBs

Access Point L2TP MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

L2TP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

12

Access Point PPPoE MIBs

Access Point PPPoE MIBs Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

PPPoE Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

13

Access Point Software Info MIBs

Access Point Software Information MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . .147

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Software Revision Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

14

Access Point Upgrade MIBs

Access Point Upgrade MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Server and File settings for Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Auto Upgrade Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154

15

MediaFlex 2825 MIBs

MediaFlex 2825 MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Scalars and Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

7

Notification Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

16

Access Point Wireless Link MIBs

ZoneFlex AP Wireless Link MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

Wireless Link Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

17

Appendix - Changes in This Version

Access Point MIB Changes in 9.6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

Ruckus Radio MIB Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Ruckus WLAN MIB Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

8

Access Point Event MIBs

Access Point Event MIBs

In This Chapter

Event MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Access Point Event MIB Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Ruckus AP Event Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1

9

Access Point Event MIBs

Event MIBs Overview

Event MIBs Overview

This section describes ZoneFlex AP events and traps that are triggered when an event
occurs, along with possible causes for the event and recommended actions to take
(if any).

The MIBs described in this section are contained in the RUCKUS-EVENT-MIB.txt
file. This section is divided into the following subsections:

■ Access Point Event MIB Group

■ Ruckus AP Event Objects

Access Point Event MIB Group

The ruckusZDEventTraps MIB tree contains events that trigger SNMP traps to be
delivered to an SNMP receiver.

ruckusEventAssocTrap

Name ruckusEventAssocTrap
OID 1.3.6.1.4.1.25053.2.1.1.1
Severity Minor
Status current
Objects ruckusEventClientMacAddr
Description Trigger when there is a client join event.

The AP's MAC address is enclosed.

Recommended Actions

None

ruckusEventDiassocTrap

Name ruckusEventDiassocTrap
OID 1.3.6.1.4.1.25053.2.1.1.2
Severity Minor
Status current
Objects ruckusEventClientMacAddr
Description Trigger when there is a client disassociation event.

The client's MAC address is enclosed.

Recommended Actions

None

ruckusEventSetErrorTrap

Name ruckusEventSetErrorTrap
OID 1.3.6.1.4.1.25053.2.1.1.3
Severity Major

10

Access Point Event MIBs

Ruckus AP Event Objects

Status current
Objects ruckusEventSetErrorOID

Description Trigger when there is an snmp-set error event. The OID of the snmp-

set is enclosed.

Recommended Actions

None.

ruckusEventConnectTrap

Name ruckusEventConnectTrap
OID 1.3.6.1.4.1.25053.2.2.1.4
Severity Minor
Status current
Objects ruckusEventClientMacAddr
Description Trigger when there is an AP connect event. The AP's MAC address

is enclosed.

Recommended Actions

None.

ruckusEventDisconnectTrap

Name ruckusEventDisconnectTrap
OID 1.3.6.1.4.1.25053.2.1.1.26
Severity Medium
Status current
Objects ruckusEventClientMacAddr
Description Trigger when there is an AP disconnect event. The AP's MAC

address is enclosed.

Recommended Actions

None.

11

Ruckus AP Event Objects

The objects in the following section are contained in the ruckusEventObjects tree and
are used in traps to specify details for the trap.

ruckusEventClientMacAddr

Name ruckusEventClientMacAddr
OID 1.3.6.1.4.1.25053.2.1.2.15
Syntax OCTET STRING
Status current
Max Access accessible-for-notify

Description The client's MAC address.

ruckusEventSetErrorOID

Name ruckusEventSetErrorOID
OID 1.3.6.1.4.1.25053.2.1.2.20
Syntax OCTET STRING
Status current
Max Access accessible-for-notify
Description Network element ID.

Access Point Event MIBs

Ruckus AP Event Objects

12

Access Point System MIBs

Access Point System MIBs

In This Chapter

Access Point System MIBs Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2

13

Access Point System MIBs

Access Point System MIBs Overview

Access Point System MIBs Overview

The objects contained in the RUCKUS-SYSTEM-MIB.txt MIB file are used to set and
get Access Point system configuration values including resource utilization (get) and
to factory reset the AP (set).

Imports

ruckusCommonSystemModule
FROM RUCKUS-ROOT-MIB
TruthValue,
DisplayString
FROM SNMPv2-TC
OBJECT-GROUP,
MODULE-COMPLIANCE
FROM SNMPv2-CONF
MODULE-IDENTITY,
OBJECT-TYPE,
Unsigned32
FROM SNMPv2-SMI;

Groups

ruckusSystemObjects OBJECT IDENTIFIER ::= { ruckusSystemMIB 1 }

ruckusSystemInfo OBJECT IDENTIFIER ::= { ruckusSystemObjects 1 }

ruckusSystemServices OBJECT IDENTIFIER ::= { ruckusSystemObjects 2 }

ruckusSystemCommands OBJECT IDENTIFIER ::= { ruckusSystemObjects 3 }

ruckusSystemEvents OBJECT IDENTIFIER ::= { ruckusSystemMIB 2 }

System Info

The ruckusSystemInfo MIB tree contains CPU and memory utilization information.

14

Access Point System MIBs

System Services

ruckusSystemCPUUtil

SYNTAX INTEGER
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"CPU utilization."
::= { ruckusSystemInfo 1 }

ruckusSystemMemoryUtil

SYNTAX INTEGER
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Memory utilization."
::= { ruckusSystemInfo 2 }

15

System Services

The ruckusSystemServices MIB tree contains objects used to configure system
services such as HTTP, Telnet, SSH, Syslog, etc., and to perform tasks such as reboot
the AP, factory reset and renew DHCP.

ruckusSystemHTTPStatus

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable HTTP service."
DEFVAL { true }
::= { ruckusSystemHTTP 1 }

ruckusSystemHTTPSStatus

SYNTAX TruthValue

MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable HTTPS service."
DEFVAL { true }
::= { ruckusSystemHTTPS 1 }

ruckusSystemTelnetStatus

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable Telnet service."
DEFVAL { true }
::= { ruckusSystemTelnet 1 }

Access Point System MIBs

System Services

ruckusSystemSSHStatus

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable SSH service."
DEFVAL { true }
::= { ruckusSystemSSH 1 }

ruckusSystemBonjourStatus

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable Bonjour service."
DEFVAL { true }
::= { ruckusSystemBonjour 1 }

16

Access Point System MIBs

System Services

ruckusSystemSyslogStatus

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable Syslog service."
DEFVAL { true }
::= { ruckusSystemSyslog 1 }

ruckusSystemSyslogServerIP

SYNTAX OCTET STRING (SIZE (2..40))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"IP(v4 or v6) of syslog server."
::= { ruckusSystemSyslog 2 }

17

ruckusSystemSyslogServerPort

SYNTAX INTEGER
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Port of syslog server."
::= { ruckusSystemSyslog 3 }

ruckusSystemNTPStatus

SYNTAX TruthValue
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Enable/disable NTP service."
DEFVAL { true }

::= { ruckusSystemNTP 1 }

ruckusSystemNTPGMTTime

SYNTAX OCTET STRING
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"GMT time."
::= { ruckusSystemNTP 2 }

ruckusSystemNTPActiveServer

SYNTAX OCTET STRING (SIZE (1..128))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Active NTP server."
::= { ruckusSystemNTP 3 }

Access Point System MIBs

System Services

ruckusSystemNTPUpdate

SYNTAX INTEGER
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Update GMT time."
::= { ruckusSystemNTP 4 }

ruckusSystemFlexMasterURL

SYNTAX OCTET STRING (SIZE (1..128))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Config FlexMaster server URL. URL start with 'http://' or 'https://'"

18

Access Point System MIBs

System Services

::= { ruckusSystemFlexMaster 1 }

ruckusSystemReboot

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Reboot."
DEFVAL { true }
::= { ruckusSystemCommands 1 }

ruckusSystemSetFactory

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Set factory default."
DEFVAL { true }
::= { ruckusSystemCommands 2 }

19

ruckusSystemDHCPRenew

SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Renew DHCP IP."
DEFVAL { true }
::= { ruckusSystemCommands 3 }

Ruckus Product MIBs

In This Chapter

Ruckus Product MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Scalars and Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Wireless Router Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Wireless Adapter Products. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Wireless Metro Products. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Wireless Hotzone Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Wireless Controller Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Ruckus Product MIBs

3

20

Ruckus Product MIBs

Ruckus Product MIBs Overview

Ruckus Product MIBs Overview

The Ruckus Product MIBs define OIDs for supported Ruckus Wireless products. The
Product MIBs are contained in the RUCKUS-PRODUCTS-MIB.txt MIB file.

Imports

ruckusProducts
FROM RUCKUS-ROOT-MIB
ifIndex
FROM IF-MIB
TruthValue,
DisplayString,
MacAddress
FROM SNMPv2-TC
MODULE-IDENTITY
FROM SNMPv2-SMI
RuckusCountryCode
FROM RUCKUS-TC-MIB;

21

Scalars and Tables

ruckusWirelessRouterProducts OBJECT IDENTIFIER ::= { ruckusProductsMIB 1 }

ruckusWirelessAdapterProducts OBJECT IDENTIFIER ::= { ruckusProductsMIB 2 }

ruckusWirelessMetroProducts OBJECT IDENTIFIER ::= { ruckusProductsMIB 3 }

ruckusWirelessHotzoneProducts OBJECT IDENTIFIER ::= { ruckusProductsMIB 4 }

ruckusWirelessControllerProducts OBJECT IDENTIFIER ::= { ruckusProductsMIB 5 }

Wireless Router Products

-- VF2825 - 802.11b/g AP, 5 Ethernet ports, 8MB Flash, 32MB DRAM
ruckusVF2825 OBJECT IDENTIFIER ::= { ruckusWirelessRouterProducts 1 }

-- VF2811 - 802.11b/g AP, 1 Ethernet port, 8MB Flash, 16MB DRAM
ruckusVF2811 OBJECT IDENTIFIER ::= { ruckusWirelessRouterProducts 2 }

Ruckus Product MIBs

Wireless Adapter Products

-- VF2821 - 802.11b/g AP, 1 Ethernet port, 8MB Flash, 32MB DRAM
ruckusVF2821 OBJECT IDENTIFIER ::= { ruckusWirelessRouterProducts 3 }

-- VF2835 - 802.11b/g AP, 5 Ethernet ports, 16MB Flash, 32MB DRAM
ruckusVF2835 OBJECT IDENTIFIER ::= { ruckusWirelessRouterProducts 4 }

-- VF7811 - 802.11n AP, 1 Ethernet port, 16MB Flash, 32MB DRAM
ruckusVF7811 OBJECT IDENTIFIER ::= { ruckusWirelessRouterProducts 5 }

Wireless Adapter Products

-- VF2111 - 802.11b/g Adapter, 1 Ethernet port, 8MB Flash, 16MB DRAM
ruckusVF2111 OBJECT IDENTIFIER ::= { ruckusWirelessAdapterProducts 1 }

-- VF2121 - 802.11b/g Adapter, 1 Ethernet port, 8MB Flash, 16MB DRAM
ruckusVF2121 OBJECT IDENTIFIER ::= { ruckusWirelessAdapterProducts 2 }

-- VF7111 - 802.11n Adapter, 1 Ethernet port, 16MB Flash, 32MB DRAM
ruckusVF7111 OBJECT IDENTIFIER ::= { ruckusWirelessAdapterProducts 3 }

Wireless Metro Products

-- MM2225 - 802.11b/g Metro CPE, 5 Ethernet ports, 16MB Flash, 32MB DRAM
ruckusMM2225 OBJECT IDENTIFIER ::= { ruckusWirelessMetroProducts 1 }

-- MM2211 - 802.11b/g Metro CPE, 1 Ethernet port, 16MB Flash, 32MB DRAM
ruckusMM2211 OBJECT IDENTIFIER ::= { ruckusWirelessMetroProducts 2 }

-- MM2221 - 802.11b/g Metro CPE, 1 Ethernet port, 16MB Flash, 32MB DRAM
ruckusMM2221 OBJECT IDENTIFIER ::= { ruckusWirelessMetroProducts 3 }

Wireless Hotzone Products

-- ZF2925 - 802.11b/g AP, 5 Ethernet ports, 8MB Flash, 32MB DRAM
ruckusZF2925 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 1 }

22

Ruckus Product MIBs

Wireless Hotzone Products

-- ZF2942 - 802.11b/g AP, 2 Ethernet ports, 16MB Flash, 32MB DRAM
ruckusZF2942 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 2 }

-- ZF7942 - 802.11n AP, 2 Ethernet ports, 16MB Flash, 64MB DRAM
ruckusZF7942 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 3 }

-- ZF7962 - 802.11n Dual-Band AP, 2 Ethernet ports, 16B Flash, 64MB DRAM
ruckusZF7962 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 4 }

-- ZF2741 - 802.11b/g AP, 1 Ethernet ports, 16MB Flash, 32MB DRAM
ruckusZF2741 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 5 }

-- ZF7762 - 802.11n Dual-Band Outdoor AP, 2 Ethernet ports, 16MB Flash, 32MB DRAM
ruckusZF7762 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 6 }

-- ZF7762-S ­ruckusZF7762S OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 8 }

-- ZF7762-T ­ruckusZF7762T OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 9 }

-- ZF7762-N ­ruckusZF7762N OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 10 }

-- ZF7343 ­ruckusZF7343 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 12 }

-- ZF7363 ­ruckusZF7363 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 13 }

-- ZF7341 ­ruckusZF7341 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 14 }

23

-- ZF7211 -

--ruckusZF7211 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 15 }

-- ZF7731 ­ruckusZF7731 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 16 }

-- ZF7025 -

Ruckus Product MIBs

Wireless Hotzone Products

ruckusZF7025 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 20 }

-- ZF7321 ­ruckusZF7321 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 22 }

-- ZF7321-U ­ruckusZF7321U OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 23 }

-- ZF2741-EXT ­ruckusZF2741EXT OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 24 }

-- ZF7982 ­ruckusZF7982 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 25 }

-- ZF7782 ­ruckusZF7782 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 28 }

-- ZF7782-S ­ruckusZF7782S OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 29 }

-- ZF7782-N ­ruckusZF7782N OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 30 }

-- ZF7782-E ­ruckusZF7782E OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 31 }

-- ZF8800-s-ac ­ruckusZF8800SAC OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 32 }

-- ZF7762-AC ­ruckusZF7762AC OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 35 }

-- ZF7762-S-AC ­ruckusZF7762SAC OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 36 }

-- ZF7762-T-AC ­ruckusZF7762TAC OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 37 }

-- ZF7372 ­ruckusZF7372 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 40 }

24

Ruckus Product MIBs

Wireless Hotzone Products

-- ZF7372-E ­ruckusZF7372E OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 41 }

-- ZF7352 ­ruckusZF7352 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 45 }

-- ZF7351 ­ruckusZF7351 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 48 }

-- ZF7742 ­ruckusZF7742 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 50 }

-- ZF7055 ­ruckusZF7055 OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 52 }

-- ZF7781-M ­ruckusZF7781M OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 55 }

-- ZF7781CM ­ruckusZF7781CM OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 56 }

25

-- ZF7781CM-E ­ruckusZF7781CME OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 57 }

-- ZF7781CM-S ­ruckusZF7781CMS OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 58 }

-- ZF7781-FN ­ruckusZF7781FN OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 60 }

-- ZF7781-FN-E ­ruckusZF7781FNE OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 61 }

-- ZF7781-FN-S ­ruckusZF7781FNS OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 62 }

-- SC8800-S-AC ­ruckusSC8800SAC OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 65 }

-- SC8800-S ­ruckusSC8800S OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 66 }

Ruckus Product MIBs

Wireless Hotzone Products

-- ZF7761CM - 802.11n Dual-Band Outdoor AP with CableModem, 2 Ethernet ports,
16MB Flash, 32MB DRAM

ruckusZF7761CM OBJECT IDENTIFIER ::= { ruckusWirelessHotzoneProducts 7 }

ruckusZF7761CMControlLED OBJECT-TYPE
SYNTAX INTEGER {
ledPerCM(1),
ledPerAP(2),
ledAlternateMode1Mode2OneHour(3),
ledAlternateMode1Mode2Mode6(4),
blueActive(5),
blueActiveCMOnlineLed(6),
ledAllOff(7),
heartbeatOffCM(8),
heartbeatOffAP(9),
softResetAP(10),
powerCycleAP(11),
factoryResetAP(12),
softResetCM(13),
powerCycleCM(14),
factoryResetCM(15) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"ledPerCM(1): LEDs enabled per Cable Modem definition,
ledPerAP(2): LEDs configured per Access Point definition,
ledAlternateMode1Mode2OneHour(3): Alternalte between modes 1 and 2 at a

30 second period then disabled after one hour,
ledAlternateMode1Mode2Mode6(4): Alternalte between modes 1 and 2 at a

30 second period and then go to mode 6
blueActive(5): Blue Active Surge Protection Indicator,
blueActiveCMOnlineLed(6): Blue Active Surge Protection Indicator and

Cable Modem online Green LED enabled,
ledAllOff(7): All LEDs disabled,
heartbeatOffCM(8): Disable Cable Modem heartbeat monitoring,
heartbeatOffAP(9): Disable Access Point heartbeat monitoring,
softResetAP(10): Soft reset of Access Point,
powerCycleAP(11): Power cycle Access Point,
factoryResetAP(12): Reset Access Point to factory defaults,

26

Ruckus Product MIBs

Wireless Hotzone Products

softResetCM(13): Soft reset of Cable Modem,
powerCycleCM(14): Power cycle Cable Modem,
factoryResetCM(15): Reset Cable Modem to factory defaults"
DEFVAL { ledPerCM }
::= { ruckusZF7761CM 3 }

ruckusZF7761CMWanIPAddr OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the IP address of the Cable Modem WAN interface."
::= { ruckusZF7761CM 4 }

ruckusZF7761CMCustomization OBJECT IDENTIFIER ::= { ruckusZF7761CM 5 }

ruckusZF7761CMHTTPService OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable HTTP service."
DEFVAL { false }
::= { ruckusZF7761CMCustomization 1 }

27

ruckusZF7761CMTelnetService OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable Telnet service."
DEFVAL { false }
::= { ruckusZF7761CMCustomization 2 }

ruckusZF7761CMSSHService OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable SSH service."
DEFVAL { true }

Ruckus Product MIBs

Wireless Hotzone Products

::= { ruckusZF7761CMCustomization 3 }

ruckusZF7761CMUsername OBJECT-TYPE
SYNTAX DisplayString (SIZE (1..64))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies username of cable modem. "
::= { ruckusZF7761CMCustomization 4 }

ruckusZF7761CMPassword OBJECT-TYPE
SYNTAX DisplayString (SIZE (1..64))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies password of cable modem. "
::= { ruckusZF7761CMCustomization 5 }

ruckusZF7761CMLEDMode OBJECT-TYPE
SYNTAX INTEGER {
ledAllOff(0),
blueActive(1),
blueActiveCMOnlineLed(2) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"ledAllOff(0): All LEDs disabled after 3 second delay,
blueActive(1): Blue Active Surge Protection Indicator,
blueActiveCMOnlineLed(2): Blue Active Surge Protection Indicator and Cable

Modem online Green LED enabled"
::= { ruckusZF7761CM 6 }

ruckusZF7761CMHeartbeatMonitorCM OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable Cable Modem heartbeat monitoring."

::= { ruckusZF7761CM 7 }

28

Ruckus Product MIBs

Wireless Controller Products

ruckusZF7761CMHeartbeatMonitorAP OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enable/disable Access Point heartbeat monitoring." ::= { ruckusZF7761CM 8 }

Wireless Controller Products

-- ZD1000 - Access Controller, 2 Ethernet ports, 32MB Flash, 64MB DRAM
ruckusZD1000 OBJECT IDENTIFIER ::= { ruckusWirelessControllerProducts 1 }

-- ZD1100 - Access Controller, 2 Ethernet ports
ruckusZD1100 OBJECT IDENTIFIER ::= { ruckusWirelessControllerProducts 2 }

-- ZD3000 - Access Controller, 2 Ethernet ports, 2048MB Flash, 1024MB DRAM
ruckusZD3000 OBJECT IDENTIFIER ::= { ruckusWirelessControllerProducts 3 }

-- ZD5000 - Access Controller,
ruckusZD5000 OBJECT IDENTIFIER ::= { ruckusWirelessControllerProducts 8 }

-- ZD6000 - Access Controller,

--ruckusZD6000 OBJECT IDENTIFIER ::= { ruckusWirelessControllerProducts 9 }

ruckusZD1000SystemName OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"System name"
::= { ruckusZD1000 1 }

ruckusZD1000SystemIPAddr OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"IP Address"
::= { ruckusZD1000 2 }

29

ruckusZD1000SystemMacAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"MAC Address"
::= { ruckusZD1000 3 }

ruckusZD1000SystemUptime OBJECT-TYPE
SYNTAX TimeTicks
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Up time"
::= { ruckusZD1000 4 }

ruckusZD1000SystemModel OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Model"
::= { ruckusZD1000 5 }

Ruckus Product MIBs

Wireless Controller Products

ruckusZD1000SystemLicensedAPs OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Licensed APs"
::= { ruckusZD1000 6 }

ruckusZD1000SystemSerialNumber OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Serial number"
::= { ruckusZD1000 7 }

30

Ruckus Product MIBs

Wireless Controller Products

ruckusZD1000SystemVersion OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Software version"
::= { ruckusZD1000 8 }

ruckusZD1000CountryCode OBJECT-TYPE
SYNTAX RuckusCountryCode
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Country code"
::= { ruckusZD1000 9 }

ruckusZD1100SystemName OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"System name"
::= { ruckusZD1100 1 }

31

ruckusZD1100SystemIPAddr OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"IP Address"
::= { ruckusZD1100 2 }

ruckusZD1100SystemMacAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"MAC Address"
::= { ruckusZD1100 3 }

ruckusZD1100SystemUptime OBJECT-TYPE
SYNTAX TimeTicks
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Up time"
::= { ruckusZD1100 4 }

ruckusZD1100SystemModel OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Model"
::= { ruckusZD1100 5 }

ruckusZD1100SystemLicensedAPs OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Licensed APs"
::= { ruckusZD1100 6 }

Ruckus Product MIBs

Wireless Controller Products

ruckusZD1100SystemSerialNumber OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Serial number"
::= { ruckusZD1100 7 }

ruckusZD1100SystemVersion OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Software version"
::= { ruckusZD1100 8 }

ruckusZD1100CountryCode OBJECT-TYPE

32

Ruckus Product MIBs

Wireless Controller Products

SYNTAX RuckusCountryCode
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Country code"
::= { ruckusZD1100 9 }

ruckusZD3000SystemName OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"System name"
::= { ruckusZD3000 1 }

ruckusZD3000SystemIPAddr OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"IP Address"
::= { ruckusZD3000 2 }

33

ruckusZD3000SystemMacAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"MAC Address"
::= { ruckusZD3000 3 }

ruckusZD3000SystemUptime OBJECT-TYPE
SYNTAX TimeTicks
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Up time"
::= { ruckusZD3000 4 }

ruckusZD3000SystemModel OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Model"
::= { ruckusZD3000 5 }

ruckusZD3000SystemLicensedAPs OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Licensed APs"
::= { ruckusZD3000 6 }

ruckusZD3000SystemSerialNumber OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Serial number"
::= { ruckusZD3000 7 }

Ruckus Product MIBs

Wireless Controller Products

ruckusZD3000SystemVersion OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Software version"
::= { ruckusZD3000 8 }

ruckusZD3000CountryCode OBJECT-TYPE
SYNTAX RuckusCountryCode
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Country code"
::= { ruckusZD3000 9 }

34

Ruckus Product MIBs

Wireless Controller Products

ruckusZD5000SystemName OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"System name"
::= { ruckusZD5000 1 }

ruckusZD5000SystemIPAddr OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"IP Address"
::= { ruckusZD5000 2 }

ruckusZD5000SystemMacAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"MAC Address"
::= { ruckusZD5000 3 }

35

ruckusZD5000SystemUptime OBJECT-TYPE
SYNTAX TimeTicks
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Up time"
::= { ruckusZD5000 4 }

ruckusZD5000SystemModel OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Model"
::= { ruckusZD5000 5 }

ruckusZD5000SystemLicensedAPs OBJECT-TYPE

SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Licensed APs"
::= { ruckusZD5000 6 }

ruckusZD5000SystemSerialNumber OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Serial number"
::= { ruckusZD5000 7 }

ruckusZD5000SystemVersion OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Software version"
::= { ruckusZD5000 8 }

Ruckus Product MIBs

Wireless Controller Products

ruckusZD5000CountryCode OBJECT-TYPE
SYNTAX RuckusCountryCode
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Country code"
::= { ruckusZD5000 9 }

36

Ruckus Product MIBs

Wireless Controller Products

37

Access Point WLAN MIBs

In This Chapter

Access Point WLAN MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

WLAN Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

WLAN Suported Transmit Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

WLAN Suported Receive Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

WLAN Station Statistics-Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

WLAN Station Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

WLAN Station MQ Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

WLAN Station Statistics-Ruckus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

WLAN Security Information Group . . . . . . . . . . . . . . . . . . . . . . . . . . . 67WLAN Stats Table74

WLAN Stats Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Access Point WLAN MIBs

4

38

Access Point WLAN MIBs

Access Point WLAN MIBs Overview

Access Point WLAN MIBs Overview

The objects contained in the RUCKUS-WLAN-MIB.txt file are used to set or get WLAN
configuration settings such as WLAN name, ESSID, encryption settings and
transmission statistics.

Imports

ruckusCommonWLANModule
FROM RUCKUS-ROOT-MIB
RuckusAdminStatus,
RuckusRadioMode,
RuckusSSID,
RuckusWEPKey,
RuckusdB,
RuckusWPAPassPhrase
FROM RUCKUS-TC-MIB
DisplayString,
MacAddress,
RowStatus,
TruthValue
FROM SNMPv2-TC
OBJECT-GROUP
FROM SNMPv2-CONF
ifIndex,
InterfaceIndex,
IpAddress
FROM IF-MIB
MODULE-IDENTITY,
OBJECT-TYPE,
Counter32,
Integer32,
Unsigned32
FROM SNMPv2-SMI;

39

Groups

ruckusWLANObjects OBJECT IDENTIFIER ::= { ruckusWLANMIB 1 }

Access Point WLAN MIBs

WLAN Table

ruckusWLANInfo OBJECT IDENTIFIER ::= { ruckusWLANObjects 1 }

ruckusWLANStaInfo OBJECT IDENTIFIER ::= { ruckusWLANObjects 2 }

ruckusWLANSecurityInfo OBJECT IDENTIFIER ::= { ruckusWLANObjects 3 }

-- ruckusWLANStatsInfo OBJECT IDENTIFIER ::= { ruckusWLANObjects 4 }

ruckusWLANEvents OBJECT IDENTIFIER ::= { ruckusWLANMIB 2 }

WLAN Table

The WLAN table provides options for modifying an existing WLAN; WLAN creation
is performed via the ruckusWLANRadioTable.

ruckusWLANTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"WLAN table."
::= { ruckusWLANInfo 1 }

ruckusWLANEntry OBJECT-TYPE
SYNTAX RuckusWLANEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each WLAN entry."
INDEX {
ifIndex }
::= { ruckusWLANTable 1 }

RuckusWLANEntry ::= SEQUENCE {

ruckusWLANSSID RuckusSSID,
ruckusWLANBSSID MacAddress,
ruckusWLANBSSType INTEGER,

40

Access Point WLAN MIBs

WLAN Table

-- ruckusWLANOperationalRateSet OCTET STRING(SIZE(1..255)),
ruckusWLANOperationalRateSet OCTET STRING,
ruckusWLANBeaconPeriod INTEGER,
ruckusWLANDTIMPeriod INTEGER,
ruckusWLANRTSThreshold INTEGER,
ruckusWLANFragmentationThreshold INTEGER,
ruckusWLANRadioMode RuckusRadioMode,
ruckusWLANChannel INTEGER,
ruckusWLANWDSEnable TruthValue,
ruckusWLANAdminStatus INTEGER,
ruckusWLANProtectionMode INTEGER,
ruckusWLANName DisplayString,
ruckusWLANSSIDBcastDisable TruthValue,
ruckusWLANVlanID INTEGER,
ruckusWLANIGMPSnooping INTEGER }

ruckusWLANSSID OBJECT-TYPE
SYNTAX RuckusSSID
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the name of the SSID."
::= { ruckusWLANEntry 1 }

41

ruckusWLANBSSID OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"This attribute is the unique identifier in this BSS.
It is the 48-bit MAC address of the wireless interface."
::= { ruckusWLANEntry 2 }

ruckusWLANBSSType OBJECT-TYPE
SYNTAX INTEGER {
station(1),
master(2),
independent(3) }

MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the bss type."
::= { ruckusWLANEntry 3 }

ruckusWLANOperationalRateSet OBJECT-TYPE
SYNTAX OCTET STRING(SIZE(1..255))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"This attribute shall specify the set of data rates
at which the station may transmit data. Each octet
contains a value representing a rate. Each rate
shall be within the range from 2 to 127,
corresponding to data rates in increments of
500 kb/s from 1 Mb/s to 63.5 Mb/s, and shall be
supported (as indicated in the supported rates
table) for receiving data. This value is reported in
transmitted Beacon, Probe Request, Probe Response,
Association Request, Association Response,
Reassociation Request, and Reassociation Response
frames, and is used to determine whether a BSS
with which the station desires to synchronize is
suitable. It is also used when starting a BSS,
as specified in 10.3."
::= { ruckusWLANEntry 4 }

Access Point WLAN MIBs

WLAN Table

ruckusWLANBeaconPeriod OBJECT-TYPE
SYNTAX INTEGER (100..1000)
UNITS
"milli seconds"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"This attribute shall specify the number of milli seconds that a
station shall use for scheduling Beacon transmissions.
This value is transmitted in Beacon and Probe Response
frames."

42

Access Point WLAN MIBs

WLAN Table

::= { ruckusWLANEntry 5 }

ruckusWLANDTIMPeriod OBJECT-TYPE
SYNTAX INTEGER (1..255)
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"This attribute shall specify the number of TU that a
station shall use for scheduling Beacon transmissions.
This value is transmitted in Beacon and Probe Response
frames."
::= { ruckusWLANEntry 6 }

ruckusWLANRTSThreshold OBJECT-TYPE
SYNTAX INTEGER (256..2346)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"This attribute shall indicate the number of octets in an
MPDU, below which an RTS/CTS handshake shall not be
performed, except as RTS/CTS is used as a cross modulation
protection mechanism as defined in 9.10. An RTS/CTS
handshake shall be performed at the beginning of any frame
exchange sequence where the MPDU is of type Data or
Management, the MPDU has an individual address in the
Address1 field, and the length of the MPDU is greater than
this threshold. (For additional details, refer to Table 21
in 9.7.) Setting this attribute to be larger than the
maximum MSDU size shall have the effect of turning off the
RTS/CTS handshake for frames of Data or Management type
transmitted by this STA. Setting this attribute to zero
shall have the effect of turning on the RTS/CTS handshake
for all frames of Data or Management type transmitted by
this STA. The default value of this attribute shall be

2347."
::= { ruckusWLANEntry 7 }

43

ruckusWLANFragmentationThreshold OBJECT-TYPE

Access Point WLAN MIBs

SYNTAX INTEGER (256..2346)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"This attribute shall specify the current maximum size, in
octets, of the MPDU that may be delivered to the PHY.
An MSDU shall be broken into fragments if its size exceeds
the value of this attribute after adding MAC headers and trailers.
An MSDU or MMPDU shall be fragmented when the resulting
frame has an individual address in the Address1 field,
and the length of the frame is larger than this threshold.
The default value for this attribute shall be the lesser of
2346 or the aMPDUMaxLength of the attached PHY and
shall never exceed the lesser of 2346 or the
aMPDUMaxLength of the attached PHY. The value of this
attribute shall never be less than 256."
::= { ruckusWLANEntry 8 }

ruckusWLANRadioMode OBJECT-TYPE
SYNTAX RuckusRadioMode
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the radio mode. "
::= { ruckusWLANEntry 9 }

WLAN Table

ruckusWLANChannel OBJECT-TYPE
SYNTAX INTEGER (1..14)
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the current operating channel."
::= { ruckusWLANEntry 10 }

ruckusWLANWDSEnable OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current

44

Access Point WLAN MIBs

WLAN Table

DESCRIPTION
"Specifies if the WDS is enabled or disabled on this interface.
Allow 4 address mode of operation for an given WLAN interface."
DEFVAL { false }
::= { ruckusWLANEntry 11 }

ruckusWLANAdminStatus OBJECT-TYPE
SYNTAX INTEGER {
up(1),
down(2) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Administrative status of the WLAN interface."
::= { ruckusWLANEntry 12 }

ruckusWLANProtectionMode OBJECT-TYPE
SYNTAX INTEGER {
none(1),
ctsOnly(2),
ctsRts(3) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Enabled when 11g and 11b clients exist on the same network.
none:
Do not use any protection

45

ctsOnly:
AP will send a CTS frame prior to sending 11g frames.
The CTS frame will silence 11b clients

rtsCts:
Require RTS to be sent by sender of 11g frame and responder
to send CTS prior to any 11g frames being sent."
::= { ruckusWLANEntry 13 }

ruckusWLANName OBJECT-TYPE

Access Point WLAN MIBs

WLAN Table

SYNTAX OCTET STRING(SIZE(1..16))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the name of the wlan."
::= { ruckusWLANEntry 14 }

ruckusWLANSSIDBcastDisable OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Setting to 1, cause the ssid will not be broadcast in the beacons."
DEFVAL { false }
::= { ruckusWLANEntry 15 }

ruckusWLANVlanID OBJECT-TYPE
SYNTAX INTEGER (1..4094)
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the VLAN ID of the WLAN. If VLAN ID is 1, packets from this WLAN

will be untagged."
::= { ruckusWLANEntry 16 }

ruckusWLANIGMPSnooping OBJECT-TYPE
SYNTAX INTEGER {
enable(1),
disable(2)}
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Configure the IGMPSnooping for this WLAN. "
::= { ruckusWLANEntry 25 }

46

Access Point WLAN MIBs

WLAN Suported Transmit Rates

WLAN Suported Transmit Rates

ruckusWLANSuppDataRatesTxTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANSuppDataRatesTxEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"The Transmit bit rates supported by the PLCP and PMD,
represented by a count from X'02-X'7f, corresponding to data
rates in increments of 500Kb/s from 1 Mb/s to 63.5 Mb/s subject
to limitations of each individual PHY."
::= { ruckusWLANInfo 2 }

ruckusWLANSuppDataRatesTxEntry OBJECT-TYPE
SYNTAX RuckusWLANSuppDataRatesTxEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"An Entry (conceptual row) in the dot11SupportedDataRatesTx
Table."
INDEX {
ifIndex,
ruckusWLANSuppDataRatesTxIndex }
::= { ruckusWLANSuppDataRatesTxTable 1 }

47

RuckusWLANSuppDataRatesTxEntry ::= SEQUENCE {

ruckusWLANSuppDataRatesTxIndex Integer32,
ruckusWLANSuppDataRatesTxValue DisplayString }

ruckusWLANSuppDataRatesTxIndex OBJECT-TYPE
SYNTAX Integer32
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Index object that identifies which data rate to access."
::= { ruckusWLANSuppDataRatesTxEntry 1 }

Access Point WLAN MIBs

WLAN Suported Receive Rates

ruckusWLANSuppDataRatesTxValue OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"The Transmit bit rates supported by the PLCP and PMD,
represented by a count from X'02-X'7f, corresponding to data
rates in increments of 500Kb/s from 1 Mb/s to 63.5 Mb/s subject
to limitations of each individual PHY"
::= { ruckusWLANSuppDataRatesTxEntry 2 }

WLAN Suported Receive Rates

ruckusWLANSuppDataRatesRxTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANSuppDataRatesRxEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"The receive bit rates supported by the PLCP and PMD,
represented by a count from X'02-X'7f, corresponding to data
rates in increments of 500Kb/s from 1 Mb/s to 63.5 Mb/s.'"
::= { ruckusWLANInfo 3 }

ruckusWLANSuppDataRatesRxEntry OBJECT-TYPE
SYNTAX RuckusWLANSuppDataRatesRxEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"An Entry (conceptual row) in the
dot11SupportedDataRatesRx Table."
INDEX {
ifIndex,
ruckusWLANSuppDataRatesRxIndex }
::= { ruckusWLANSuppDataRatesRxTable 1 }

RuckusWLANSuppDataRatesRxEntry ::= SEQUENCE {

48

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

ruckusWLANSuppDataRatesRxIndex Integer32,
ruckusWLANSuppDataRatesRxValue DisplayString }

ruckusWLANSuppDataRatesRxIndex OBJECT-TYPE
SYNTAX Integer32
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Index object which identifies which data rate to access."
::= { ruckusWLANSuppDataRatesRxEntry 1 }

ruckusWLANSuppDataRatesRxValue OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"The receive bit rates supported by the PLCP and PMD,
represented by a count from X'02-X'7f, corresponding to data
rates in increments of 500Kb/s from 1 Mb/s to 63.5 Mb/s."
::= { ruckusWLANSuppDataRatesRxEntry 2 }

49

WLAN Station Statistics-Hardware

ruckusWLANStaStatsTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANStaStatsEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"WLAN counter table."
::= { ruckusWLANStaInfo 1 }

ruckusWLANStaStatsEntry OBJECT-TYPE
SYNTAX RuckusWLANStaStatsEntry
MAX-ACCESS not-accessible
STATUS current

DESCRIPTION
"Specifies each wlan counter entry."
INDEX {
ifIndex,
ruckusWLANStaStatsMacAddr }
::= { ruckusWLANStaStatsTable 1 }

RuckusWLANStaStatsEntry ::= SEQUENCE {

ruckusWLANStaStatsMacAddr MacAddress,
ruckusWLANStaStatsSSID RuckusSSID,
ruckusWLANStaStatsRxDataFrames Counter32,
ruckusWLANStaStatsRxMgmtFrames Counter32,
ruckusWLANStaStatsRxCtrlFrames Counter32,
ruckusWLANStaStatsRxUnicastFrames Counter32,
ruckusWLANStaStatsRxMulticastFrames Counter32,
ruckusWLANStaStatsRxBytes Counter32,
ruckusWLANStaStatsRxDup Counter32,
ruckusWLANStaStatsRxNoPrivacy Counter32,
ruckusWLANStaStatsRxWEPFail Counter32,
ruckusWLANStaStatsRxDemicFail Counter32,
ruckusWLANStaStatsTxDecap Counter32,
ruckusWLANStaStatsRxDefrag Counter32,
ruckusWLANStaStatsTxDataFrames Counter32,
ruckusWLANStaStatsTxMgmtFrames Counter32,
ruckusWLANStaStatsTxUnicastFrames Counter32,
ruckusWLANStaStatsTxMulticastFrames Counter32,
ruckusWLANStaStatsTxBytes Counter32,
ruckusWLANStaStatsTxAssoc Counter32,
ruckusWLANStaStatsTxAssocFail Counter32,
ruckusWLANStaStatsTxAuth Counter32,
ruckusWLANStaStatsTxAuthFail Counter32,
ruckusWLANStaStatsRSSI Counter32,
ruckusWLANStaStatsTxRxBytes Counter32,
ruckusWLANStaStatsTxRate Unsigned32,
ruckusWLANStaStatsRxRate Unsigned32,
ruckusWLANStaStatsTxDropRate Unsigned32
}

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

50

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

ruckusWLANStaStatsMacAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies the station mac address."
::= { ruckusWLANStaStatsEntry 1 }

ruckusWLANStaStatsSSID OBJECT-TYPE
SYNTAX RuckusSSID
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"station SSID."
::= { ruckusWLANStaStatsEntry 2 }

ruckusWLANStaStatsRxDataFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx data frames."
::= { ruckusWLANStaStatsEntry 3 }

51

ruckusWLANStaStatsRxMgmtFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx management frames."
::= { ruckusWLANStaStatsEntry 4 }

ruckusWLANStaStatsRxCtrlFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION

"Rx control frames."
::= { ruckusWLANStaStatsEntry 5 }

ruckusWLANStaStatsRxUnicastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx unicast frames."
::= { ruckusWLANStaStatsEntry 6 }

ruckusWLANStaStatsRxMulticastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx multicast frames."
::= { ruckusWLANStaStatsEntry 7 }

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

ruckusWLANStaStatsRxBytes OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx data count (bytes)."
::= { ruckusWLANStaStatsEntry 8 }

ruckusWLANStaStatsRxDup OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx discarded because of duplicate."
::= { ruckusWLANStaStatsEntry 9 }

ruckusWLANStaStatsRxNoPrivacy OBJECT-TYPE

52

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx with WEP but privacy off."
::= { ruckusWLANStaStatsEntry 10 }

ruckusWLANStaStatsRxWEPFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx WEP processing failed."
::= { ruckusWLANStaStatsEntry 11 }

ruckusWLANStaStatsRxDemicFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx demic failed."
::= { ruckusWLANStaStatsEntry 12 }

53

ruckusWLANStaStatsTxDecap OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx decapsulation failed."
::= { ruckusWLANStaStatsEntry 13 }

ruckusWLANStaStatsRxDefrag OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx defragmentation failed."

::= { ruckusWLANStaStatsEntry 14 }

ruckusWLANStaStatsTxDataFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx data frames."
::= { ruckusWLANStaStatsEntry 15 }

ruckusWLANStaStatsTxMgmtFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx management frames."
::= { ruckusWLANStaStatsEntry 16 }

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

ruckusWLANStaStatsTxUnicastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx unicast frames."
::= { ruckusWLANStaStatsEntry 17 }

ruckusWLANStaStatsTxMulticastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx multicast frames."
::= { ruckusWLANStaStatsEntry 18 }

ruckusWLANStaStatsTxBytes OBJECT-TYPE
SYNTAX Counter32

54

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx data count (bytes)."
::= { ruckusWLANStaStatsEntry 19 }

ruckusWLANStaStatsTxAssoc OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx (re)associations."
::= { ruckusWLANStaStatsEntry 20 }

ruckusWLANStaStatsTxAssocFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx (re)association failures"
::= { ruckusWLANStaStatsEntry 21 }

55

ruckusWLANStaStatsTxAuth OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx (re)authentications."
::= { ruckusWLANStaStatsEntry 22 }

ruckusWLANStaStatsTxAuthFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx (re)authentication failures."
::= { ruckusWLANStaStatsEntry 23 }

ruckusWLANStaStatsRSSI OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station RSSI."
::= { ruckusWLANStaStatsEntry 24 }

ruckusWLANStaStatsTxRxBytes OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Total Tx and Rx data bytes of last 5 min period."
::= { ruckusWLANStaStatsEntry 25 }

Access Point WLAN MIBs

WLAN Station Statistics-Hardware

ruckusWLANStaStatsTxRate OBJECT-TYPE
SYNTAX Unsigned32
UNITS
"Bps"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx data rate of last 5 min period."
::= { ruckusWLANStaStatsEntry 26 }

ruckusWLANStaStatsRxRate OBJECT-TYPE
SYNTAX Unsigned32
UNITS
"Bps"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rx data rate of last 5 min period."
::= { ruckusWLANStaStatsEntry 27 }

56

Access Point WLAN MIBs

WLAN Station Information

ruckusWLANStaStatsTxDropRate OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Tx Packet drop rate."
::= { ruckusWLANStaStatsEntry 28 }

WLAN Station Information

ruckusWLANStaTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANStaEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"WLAN station table."
::= { ruckusWLANStaInfo 2 }

ruckusWLANStaEntry OBJECT-TYPE
SYNTAX RuckusWLANStaEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each station entry."
INDEX {
ifIndex,
ruckusWLANStaAddr }
::= { ruckusWLANStaTable 1 }

RuckusWLANStaEntry ::= SEQUENCE {

ruckusWLANStaAddr MacAddress,
ruckusWLANStaRssi Unsigned32,
ruckusWLANStaErp Unsigned32,
ruckusWLANState Unsigned32,
ruckusWLANStaCapInfo Unsigned32,
ruckusWLANStaAssocid Unsigned32,

57

ruckusWLANStaOpMode Unsigned32,
ruckusWLANStaIdle Unsigned32,
ruckusWLANStaRates OCTET STRING,
ruckusWLANStaIpaddr OCTET STRING,
ruckusWLANStaAuthMode OCTET STRING }

ruckusWLANStaAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"An index into the table. Specifies each station address."
::= { ruckusWLANStaEntry 1 }

ruckusWLANStaRssi OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station RSSI."
::= { ruckusWLANStaEntry 2 }

Access Point WLAN MIBs

WLAN Station Information

ruckusWLANStaErp OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station ERP."
::= { ruckusWLANStaEntry 3 }

ruckusWLANState OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies station state."
::= { ruckusWLANStaEntry 4 }

58

Access Point WLAN MIBs

WLAN Station Information

ruckusWLANStaCapInfo OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies station capability information."
::= { ruckusWLANStaEntry 5 }

ruckusWLANStaAssocid OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the station association id."
::= { ruckusWLANStaEntry 6 }

ruckusWLANStaOpMode OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies station operational mode."
::= { ruckusWLANStaEntry 7 }

ruckusWLANStaIdle OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies station idle time."
::= { ruckusWLANStaEntry 8 }

ruckusWLANStaRates OBJECT-TYPE
SYNTAX OCTET STRING (SIZE (1..127))
MAX-ACCESS read-only

59

STATUS current
DESCRIPTION
"Specifies station rates."
::= { ruckusWLANStaEntry 9 }

ruckusWLANStaIpaddr OBJECT-TYPE
SYNTAX OCTET STRING (SIZE (2..40))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies Station IPv4 or IPv6 address."
::= { ruckusWLANStaEntry 16 }

ruckusWLANStaAuthMode OBJECT-TYPE
SYNTAX OCTET STRING
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station Authentication Mode."
::= { ruckusWLANStaEntry 20 }

Access Point WLAN MIBs

WLAN Station MQ Statistics

WLAN Station MQ Statistics

ruckusWLANStaMQTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANStaMQEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifes ruckusWLANMQStatTable."
::= { ruckusWLANStaInfo 3 }

ruckusWLANStaMQEntry OBJECT-TYPE
SYNTAX RuckusWLANStaMQEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each ruckusWLANMQStatEntry."
INDEX {

60

Access Point WLAN MIBs

WLAN Station MQ Statistics

ifIndex,
ruckusWLANStaMQAddr,
ruckusWLANStaMQQIndex }
::= { ruckusWLANStaMQTable 1 }

RuckusWLANStaMQEntry ::= SEQUENCE {

ruckusWLANStaMQAddr MacAddress,
ruckusWLANStaMQQIndex Integer32,
ruckusWLANStaMQPktsQueued Unsigned32,
ruckusWLANStaMQNumEnqueued Unsigned32,
ruckusWLANStaMQNumDequeued Unsigned32,
ruckusWLANStaMQNumRequeued Unsigned32,
ruckusWLANStaMQNumDropped Unsigned32,
ruckusWLANStaMQNumDeactivateQueue Unsigned32,
ruckusWLANStaMQAveIpg Unsigned32,
ruckusWLANStaMQMinIpg Unsigned32,
ruckusWLANStaMQMaxIpg Unsigned32,
ruckusWLANStaMQAveTxLatency Unsigned32,
ruckusWLANStaMQMinTxLatency Unsigned32,
ruckusWLANStaMQMaxTxLatency Unsigned32 }

61

ruckusWLANStaMQAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Station address."
::= { ruckusWLANStaMQEntry 1 }

ruckusWLANStaMQQIndex OBJECT-TYPE
SYNTAX Integer32 (1..4)
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Media queue index."
::= { ruckusWLANStaMQEntry 2 }

ruckusWLANStaMQPktsQueued OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Frames currently queued."
::= { ruckusWLANStaMQEntry 3 }

ruckusWLANStaMQNumEnqueued OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Total number of frames queued."
::= { ruckusWLANStaMQEntry 4 }

ruckusWLANStaMQNumDequeued OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Total number of dequeued frames."
::= { ruckusWLANStaMQEntry 5 }

Access Point WLAN MIBs

WLAN Station MQ Statistics

ruckusWLANStaMQNumRequeued OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Total number of requeued frames."
::= { ruckusWLANStaMQEntry 6 }

ruckusWLANStaMQNumDropped OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current

62

Access Point WLAN MIBs

WLAN Station MQ Statistics

DESCRIPTION
"Drops due to queue overflow."
::= { ruckusWLANStaMQEntry 7 }

ruckusWLANStaMQNumDeactivateQueue OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Total number of times queue deactivated."
::= { ruckusWLANStaMQEntry 8 }

ruckusWLANStaMQAveIpg OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Average inter packet arrival time."
::= { ruckusWLANStaMQEntry 9 }

63

ruckusWLANStaMQMinIpg OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Current max. inter packet arrival."
::= { ruckusWLANStaMQEntry 10 }

ruckusWLANStaMQMaxIpg OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Current min. inter packet arrival."
::= { ruckusWLANStaMQEntry 11 }

ruckusWLANStaMQAveTxLatency OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Average time to transmit frames from queue."
::= { ruckusWLANStaMQEntry 12 }

ruckusWLANStaMQMinTxLatency OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Minimum time to transmit frames from queue."
::= { ruckusWLANStaMQEntry 13 }

ruckusWLANStaMQMaxTxLatency OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Maximum time to transmit frames from queue."
::= { ruckusWLANStaMQEntry 14 }

Access Point WLAN MIBs

WLAN Station Statistics-Ruckus

WLAN Station Statistics-Ruckus

ruckusWLANStaRksTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANStaRksEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies ruckusWLANStaRksTable."
::= { ruckusWLANStaInfo 4 }

ruckusWLANStaRksEntry OBJECT-TYPE
SYNTAX RuckusWLANStaRksEntry

64

Access Point WLAN MIBs

WLAN Station Statistics-Ruckus

MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each ruckusWLANStaRksEntry."
INDEX {
ifIndex,
ruckusWLANStaRksAddr }
::= { ruckusWLANStaRksTable 1 }

RuckusWLANStaRksEntry ::= SEQUENCE {

ruckusWLANStaRksAddr MacAddress,
ruckusWLANStaRksRxGoodFrames Unsigned32,
ruckusWLANStaRksRxCrcErrors Unsigned32,
ruckusWLANStaRksTxGoodFrames Unsigned32,
ruckusWLANStaRksTxRetries Unsigned32,
ruckusWLANStaRksTxDiscardExRetries Unsigned32,
ruckusWLANStaRksTxRate Unsigned32,
ruckusWLANStaRksTxKbps Unsigned32,
ruckusWLANStaRksTxPer Unsigned32,
ruckusWLANStaRksTxRssi RuckusdB }

65

ruckusWLANStaRksAddr OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION ""
::= { ruckusWLANStaRksEntry 1 }

ruckusWLANStaRksRxGoodFrames OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"number of rx frames without errors."
::= { ruckusWLANStaRksEntry 2 }

ruckusWLANStaRksRxCrcErrors OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of rx frames with CRks errors."
::= { ruckusWLANStaRksEntry 3 }

ruckusWLANStaRksTxGoodFrames OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of good tx frames acked."
::= { ruckusWLANStaRksEntry 4 }

ruckusWLANStaRksTxRetries OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of retried frames."
::= { ruckusWLANStaRksEntry 5 }

Access Point WLAN MIBs

WLAN Station Statistics-Ruckus

ruckusWLANStaRksTxDiscardExRetries OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of discarded frames due to excessive retries."
::= { ruckusWLANStaRksEntry 6 }

ruckusWLANStaRksTxRate OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION

66

Access Point WLAN MIBs

WLAN Security Information Group

"Current Phy Rate."
::= { ruckusWLANStaRksEntry 7 }

ruckusWLANStaRksTxKbps OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Current transmit throughput."
::= { ruckusWLANStaRksEntry 8 }

ruckusWLANStaRksTxPer OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Current Packet error rate."
::= { ruckusWLANStaRksEntry 9 }

67

ruckusWLANStaRksTxRssi OBJECT-TYPE
SYNTAX RuckusdB
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Rssi for ack'ed packets."
::= { ruckusWLANStaRksEntry 10 }

WLAN Security Information Group

The WLAN Security Information Group contains WLAN security settings which are
dependent on the ruckusWLANSecurityTable expansion relationship table.

ruckusWLANSecurityTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANSecurityEntry
MAX-ACCESS not-accessible
STATUS current

DESCRIPTION
"Specifies WLAN security settings."
::= { ruckusWLANSecurityInfo 1 }

ruckusWLANSecurityEntry OBJECT-TYPE
SYNTAX RuckusWLANSecurityEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each WLAN security entry."
INDEX {
ifIndex }
::= { ruckusWLANSecurityTable 1 }

RuckusWLANSecurityEntry ::= SEQUENCE {
ruckusWLANSecurityMode INTEGER,
ruckusWLANSecurityAuthMode INTEGER,
ruckusWLANSecurityEncryMode INTEGER
}

Access Point WLAN MIBs

WLAN Security Information Group

ruckusWLANSecurityMode OBJECT-TYPE
SYNTAX INTEGER {
none(1),
wep(2),
wpa(3) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the security mode.
if wep, table ruckusWLANWEPTable should be configured firstly;
if wpa + 'psk' auth,table ruckusWLANWPATable should be configured firstly;
if wpa + 'eap-802-1x' or 'auto' auth,firstly configure ruckusWLANAAAServerT-

able,then configure ruckusWLANWPATable."
DEFVAL { none }
::= { ruckusWLANSecurityEntry 5 }

ruckusWLANSecurityAuthMode OBJECT-TYPE
SYNTAX INTEGER {

68

Access Point WLAN MIBs

WLAN Security Information Group

open(1),
wep-shared(2),
auto(3),
wpa-eap-802-1x(4) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the security mode.
if wep, only open;
if wpa, open,wpa-eap-802-1x,auto ; for auto,is open,wpa-eap-802-1x"
DEFVAL { open }
::= { ruckusWLANSecurityEntry 8 }

ruckusWLANSecurityEncryMode OBJECT-TYPE
SYNTAX INTEGER {
none(1),
tkip(2),
aes(3),
auto(4) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the security mode.
if none, for wep/none;
if tkip, for wpa ver1;
if aes, for wpa ver2;
if auto, for wpa(ver2);"
DEFVAL { none }
::= { ruckusWLANSecurityEntry 10 }

69

ruckusWLANWEPTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANWEPEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies WLAN WEP settings."
::= { ruckusWLANSecurityInfo 2 }

ruckusWLANWEPEntry OBJECT-TYPE

SYNTAX RuckusWLANWEPEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each WLAN WEP entry."
INDEX {
ifIndex }
::= { ruckusWLANWEPTable 1 }

RuckusWLANWEPEntry ::= SEQUENCE {

ruckusWLANWEPEncryLenType INTEGER,
ruckusWLANWEPKeyIndex INTEGER,
ruckusWLANWEPKey DisplayString
}

ruckusWLANWEPEncryLenType OBJECT-TYPE
SYNTAX INTEGER {
bit-64(1),
bit-128(2) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the WEP encryption len type."
DEFVAL { bit-128 }
::= { ruckusWLANWEPEntry 6 }

Access Point WLAN MIBs

WLAN Security Information Group

ruckusWLANWEPKeyIndex OBJECT-TYPE
SYNTAX INTEGER (1..4)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the WEP key index.
For WEP,if one wlan has already used '1',
so other wlans cannot use '1' again."
::= { ruckusWLANWEPEntry 8 }

ruckusWLANWEPKey OBJECT-TYPE
SYNTAX DisplayString (SIZE(3..32))

70

Access Point WLAN MIBs

WLAN Security Information Group

MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the WEP key.
if ascII text,the length is 5 or 13,
if Hexadecimal,the length is 10 or 26"
::= { ruckusWLANWEPEntry 9 }

ruckusWLANWPATable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANWPAEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies WLAN WPA settings."
::= { ruckusWLANSecurityInfo 3 }

ruckusWLANWPAEntry OBJECT-TYPE
SYNTAX RuckusWLANWPAEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each WLAN WPA entry."
INDEX {
ifIndex }
::= { ruckusWLANWPATable 1 }

71

RuckusWLANWPAEntry ::= SEQUENCE {

ruckusWLANWPAVersion INTEGER,
ruckusWLANWPAKey DisplayString,
ruckusWLANWPARadiusNasId DisplayString,
ruckusWLANWPAReAuthenticationPeriod INTEGER
}

ruckusWLANWPAVersion OBJECT-TYPE
SYNTAX INTEGER {
wpa(1),

Access Point WLAN MIBs

WLAN Security Information Group

wpa2(2),
auto(3) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the WPA version."
DEFVAL { wpa }
::= { ruckusWLANWPAEntry 5 }

ruckusWLANWPAKey OBJECT-TYPE
SYNTAX DisplayString (SIZE(8..63))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the WPA key."
::= { ruckusWLANWPAEntry 12 }

ruckusWLANWPARadiusNasId OBJECT-TYPE
SYNTAX DisplayString (SIZE(1..64))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the WPA radius nas id(only for auth type is EAP_802.1x)."
::= { ruckusWLANWPAEntry 15 }

ruckusWLANWPAReAuthenticationPeriod OBJECT-TYPE
SYNTAX INTEGER (30..3600)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the WPA radius reauthenticate period ,unit: second (only for auth type

is EAP_802.1x)."
DEFVAL { 600 }
::= { ruckusWLANWPAEntry 20 }

ruckusWLANAAAServerTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusWLANAAAServerEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION

72

Access Point WLAN MIBs

WLAN Security Information Group

"Specifies WLAN AAA server settings."
::= { ruckusWLANSecurityInfo 4 }

ruckusWLANAAAServerEntry OBJECT-TYPE
SYNTAX RuckusWLANAAAServerEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each WLAN AAA server entry."
INDEX {
ifIndex,
ruckusWLANSeverMode
}
::= { ruckusWLANAAAServerTable 1 }

RuckusWLANAAAServerEntry ::= SEQUENCE {
ruckusWLANSeverMode INTEGER,
ruckusWLANServerIpAddress OCTET STRING,
ruckusWLANServerPort INTEGER,
ruckusWLANServerSecret OCTET STRING
}

73

ruckusWLANSeverMode OBJECT-TYPE
SYNTAX INTEGER {
auth(1),
account(2) }
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies the AAA server mode:1,authenticate server;2,account server."
::= { ruckusWLANAAAServerEntry 2 }

ruckusWLANServerIpAddress OBJECT-TYPE
SYNTAX OCTET STRING (SIZE (2..40))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the AAA server ip(v4 and v6) address."

DEFVAL {0}
::= { ruckusWLANAAAServerEntry 10 }

ruckusWLANServerPort OBJECT-TYPE
SYNTAX INTEGER
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the AAA server port."
DEFVAL {1812}
::= { ruckusWLANAAAServerEntry 12 }

ruckusWLANServerSecret OBJECT-TYPE
SYNTAX OCTET STRING(SIZE(1..64))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the AAA server access secret."
::= { ruckusWLANAAAServerEntry 15 }

Access Point WLAN MIBs

WLAN Stats Table

WLAN Stats Table

The objects in the RuckusWLANStatsEntry table contain WLAN statistics information.

SYNTAX SEQUENCE OF RuckusWLANStatsEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"WLAN statistics table"
::= { ruckusWLANInfo 4 }

ruckusWLANStatsEntry OBJECT-TYPE
SYNTAX RuckusWLANStatsEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each WLAN statictics entry."

74

Access Point WLAN MIBs

WLAN Stats Table

INDEX {
ifIndex }
::= { ruckusWLANStatsTable 1 }

RuckusWLANStatsEntry ::= SEQUENCE {
ruckusWLANStatsSSID RuckusSSID,
ruckusWLANStatsBSSID MacAddress,
ruckusWLANStatsNumSta Counter32,
ruckusWLANStatsNumAuthSta Counter32,
ruckusWLANStatsNumAuthReq Counter32,
ruckusWLANStatsNumAuthResp Counter32,
ruckusWLANStatsNumAuthSuccess Counter32,
ruckusWLANStatsNumAuthFail Counter32,
ruckusWLANStatsNumAssocReq Counter32,
ruckusWLANStatsNumAssocResp Counter32,
ruckusWLANStatsNumReAssocReq Counter32,
ruckusWLANStatsNumReAssocResp Counter32,
ruckusWLANStatsNumAssocSuccess Counter32,
ruckusWLANStatsNumAssocFail Counter32,
ruckusWLANStatsAssocFailRate Unsigned32,
ruckusWLANStatsAuthFailRate Unsigned32,
ruckusWLANStatsAssocSuccessRate Unsigned32,
ruckusWLANStatsRxDataFrames Counter32,
ruckusWLANStatsRxMgmtFrames Counter32,
ruckusWLANStatsRxCtrlFrames Counter32,
ruckusWLANStatsRxUnicastFrames Counter32,
ruckusWLANStatsRxMulticastFrames Counter32,
ruckusWLANStatsRxBroadcastFrames Counter32,
ruckusWLANStatsRxBytes Counter32,
ruckusWLANStatsRxDup Counter32,
ruckusWLANStatsRxNoPrivacy Counter32,
ruckusWLANStatsRxWEPFail Counter32,

-- ruckusWLANStatsRxDemicFail Counter32,

-- ruckusWLANStatsRxDecap Counter32,

-- ruckusWLANStatsRxDefrag Counter32,

-- ruckusWLANStatsRxCRCError Counter32,
ruckusWLANStatsRxDecryptCRCError Counter32,
ruckusWLANStatsRxMICError Counter32,
ruckusWLANStatsRxDrops Counter32,
ruckusWLANStatsRxErrors Counter32,

75

ruckusWLANStatsRxFrames Counter32,
ruckusWLANStatsRxDropRate Unsigned32,
ruckusWLANStatsTxDataFrames Counter32,
ruckusWLANStatsTxMgmtFrames Counter32,
ruckusWLANStatsTxUnicastFrames Counter32,
ruckusWLANStatsTxMulticastFrames Counter32,
ruckusWLANStatsTxBroadcastFrames Counter32,
ruckusWLANStatsTxBytes Counter32,
ruckusWLANStatsTxDrops Counter32,
ruckusWLANStatsTxErrors Counter32,
ruckusWLANStatsTxFrames Counter32,
ruckusWLANStatsPeriodRxErrorRate Unsigned32,
ruckusWLANStatsPeriodTxErrorRate Unsigned32,
ruckusWLANStatsPeriodAssocReq Counter32,
ruckusWLANStatsPeriodAssocResp Counter32,
ruckusWLANStatsPeriodAssocSuccess Counter32,
ruckusWLANStatsTotalAssocTime TimeTicks
}

ruckusWLANStatsSSID OBJECT-TYPE
SYNTAX RuckusSSID
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"station SSID."
::= { ruckusWLANStatsEntry 1 }

Access Point WLAN MIBs

WLAN Stats Table

ruckusWLANStatsBSSID OBJECT-TYPE
SYNTAX MacAddress
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Wlan BSSID."
::= { ruckusWLANStatsEntry 2 }

ruckusWLANStatsNumSta OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only

76

Access Point WLAN MIBs

WLAN Stats Table

STATUS current
DESCRIPTION
"Number of associated stations."
::= { ruckusWLANStatsEntry 3 }

ruckusWLANStatsNumAuthSta OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of authenticated stations."
::= { ruckusWLANStatsEntry 4 }

ruckusWLANStatsNumAuthReq OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of authentication requests."
::= { ruckusWLANStatsEntry 5 }

ruckusWLANStatsNumAuthResp OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of authentication responses."
::= { ruckusWLANStatsEntry 6 }

77

ruckusWLANStatsNumAuthSuccess OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of successful authentications."
::= { ruckusWLANStatsEntry 7 }

ruckusWLANStatsNumAuthFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of authentication failures."
::= { ruckusWLANStatsEntry 8 }

ruckusWLANStatsNumAssocReq OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association requests."
::= { ruckusWLANStatsEntry 9 }

ruckusWLANStatsNumAssocResp OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association responses."
::= { ruckusWLANStatsEntry 10 }

Access Point WLAN MIBs

WLAN Stats Table

ruckusWLANStatsNumReAssocReq OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of reassociation requests."
::= { ruckusWLANStatsEntry 11 }

ruckusWLANStatsNumReAssocResp OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current

78

Access Point WLAN MIBs

WLAN Stats Table

DESCRIPTION
"Number of reassociation responses."
::= { ruckusWLANStatsEntry 12 }

ruckusWLANStatsNumAssocSuccess OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of successful associations."
::= { ruckusWLANStatsEntry 13 }

ruckusWLANStatsNumAssocFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association failures."
::= { ruckusWLANStatsEntry 14 }

79

ruckusWLANStatsAssocFailRate OBJECT-TYPE
SYNTAX Unsigned32
UNITS
"percentage"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station association fail rate. ruckusWLANStatsNumAssocFail/ruckusW-

LANStatsNumAssocReq"
::= { ruckusWLANStatsEntry 15 }

ruckusWLANStatsAuthFailRate OBJECT-TYPE
SYNTAX Unsigned32
UNITS
"percentage"
MAX-ACCESS read-only
STATUS current

Access Point WLAN MIBs

WLAN Stats Table

DESCRIPTION
"Station authentication fail rate. ruckusWLANStatsNumAuthFail/ruckusW-

LANStatsNumAuthReq"
::= { ruckusWLANStatsEntry 16 }

ruckusWLANStatsAssocSuccessRate OBJECT-TYPE
SYNTAX Unsigned32
UNITS
"percentage"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station association success rate. ruckusWLANStatsNumAssocSuccess/ruckus-

WLANStatsNumAssocReq"
::= { ruckusWLANStatsEntry 17 }

ruckusWLANStatsRxDataFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received data frames."
::= { ruckusWLANStatsEntry 18 }

ruckusWLANStatsRxMgmtFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received management frames."
::= { ruckusWLANStatsEntry 19 }

ruckusWLANStatsRxCtrlFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION

80

Access Point WLAN MIBs

WLAN Stats Table

"Count of received contrl frames."
::= { ruckusWLANStatsEntry 20 }

ruckusWLANStatsRxUnicastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received unicast frames."
::= { ruckusWLANStatsEntry 21 }

ruckusWLANStatsRxMulticastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received multicast frames."
::= { ruckusWLANStatsEntry 22 }

ruckusWLANStatsRxBroadcastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received broadcast frames."
::= { ruckusWLANStatsEntry 23 }

ruckusWLANStatsRxBytes OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received bytes."
::= { ruckusWLANStatsEntry 24 }

ruckusWLANStatsRxDup OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current

81

DESCRIPTION
"Count of received duplicated frames."
::= { ruckusWLANStatsEntry 25 }

ruckusWLANStatsRxNoPrivacy OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received frames without privacy bit enabled."
::= { ruckusWLANStatsEntry 26 }

ruckusWLANStatsRxWEPFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received failured WEP frames."
::= { ruckusWLANStatsEntry 27 }

ruckusWLANStatsRxDecryptCRCError OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received frames with decrypted CRC error."
::= { ruckusWLANStatsEntry 28 }

ruckusWLANStatsRxMICError OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received frames with MIC error."
::= { ruckusWLANStatsEntry 29 }

Access Point WLAN MIBs

WLAN Stats Table

ruckusWLANStatsRxDrops OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION

82

Access Point WLAN MIBs

WLAN Stats Table

"Count of received frame drops."
::= { ruckusWLANStatsEntry 30 }

ruckusWLANStatsRxErrors OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received error frames."
::= { ruckusWLANStatsEntry 31 }

ruckusWLANStatsRxFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received frames."
::= { ruckusWLANStatsEntry 32 }

83

ruckusWLANStatsRxDropRate OBJECT-TYPE
SYNTAX Unsigned32
UNITS
"percentage"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Received frame drop rate. ruckusWLANStatsRxDrops/ruckusWLANStatsRx-

Frames"
::= { ruckusWLANStatsEntry 33 }

ruckusWLANStatsTxDataFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted data frames."

::= { ruckusWLANStatsEntry 34 }

ruckusWLANStatsTxMgmtFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted management frames."
::= { ruckusWLANStatsEntry 35 }

ruckusWLANStatsTxUnicastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted unicast frames."
::= { ruckusWLANStatsEntry 36 }

ruckusWLANStatsTxMulticastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted multicast frames."
::= { ruckusWLANStatsEntry 37 }

ruckusWLANStatsTxBroadcastFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted broadcast frames."
::= { ruckusWLANStatsEntry 38 }

ruckusWLANStatsTxBytes OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted bytes."
::= { ruckusWLANStatsEntry 39 }

Access Point WLAN MIBs

WLAN Stats Table

84

Access Point WLAN MIBs

WLAN Stats Table

ruckusWLANStatsTxDrops OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted frame drops."
::= { ruckusWLANStatsEntry 40 }

ruckusWLANStatsTxErrors OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted error frames."
::= { ruckusWLANStatsEntry 41 }

ruckusWLANStatsTxFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of total transmitted frames."
::= { ruckusWLANStatsEntry 42 }

85

ruckusWLANStatsPeriodRxErrorRate OBJECT-TYPE
SYNTAX Unsigned32
UNITS
"percentage"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"RX packet error rate.
ruckusWLANStatsRxErrors/ruckusWLANStatsRxFrames of last 5 min period
"
::= { ruckusWLANStatsEntry 43 }

ruckusWLANStatsPeriodTxErrorRate OBJECT-TYPE
SYNTAX Unsigned32

Access Point WLAN MIBs

WLAN Stats Table

UNITS
"percentage"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"TX packet error rate.
ruckusWLANStatsTxErrors/ruckusWLANStatsTxFrames of last 5 min period"
::= { ruckusWLANStatsEntry 44 }

ruckusWLANStatsPeriodAssocReq OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association requests of last 5 min period."
::= { ruckusWLANStatsEntry 45 }

ruckusWLANStatsPeriodAssocResp OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association responses of last 5 min period."
::= { ruckusWLANStatsEntry 46 }

ruckusWLANStatsPeriodAssocSuccess OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of successful associations of last 5 min period."
::= { ruckusWLANStatsEntry 47 }

ruckusWLANStatsTotalAssocTime OBJECT-TYPE
SYNTAX TimeTicks
MAX-ACCESS read-only
STATUS current
DESCRIPTION

86

Access Point WLAN MIBs

WLAN Stats Table

"WLAN Stats client total association time"
::= { ruckusWLANStatsEntry 49 }

87

Access Point Radio Configuration MIBs

Access Point Radio Configuration
MIBs

In This Chapter

Access Point Radio MIBs Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Radio Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Radio Stats Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

5

88

Access Point Radio Configuration MIBs

Access Point Radio MIBs Overview

Access Point Radio MIBs Overview

The objects contained in the RUCKUS-RADIO-MIB.txt file provide Access Point radio
configuration options including transmit power, channel settings, transmission
statistics, etc.

Imports

ruckusCommonRadioModule
FROM RUCKUS-ROOT-MIB
RuckusRadioMode,
RuckusCountryCode,
RuckusRate
FROM RUCKUS-TC-MIB
ifIndex,
InterfaceIndex
FROM IF-MIB
MODULE-IDENTITY,
OBJECT-TYPE,
Integer32
FROM SNMPv2-SMI;

89

Groups

ruckusRadioObjects OBJECT IDENTIFIER ::= { ruckusRadioMIB 1 }

ruckusRadioInfo OBJECT IDENTIFIER ::= { ruckusRadioObjects 1 }

ruckusRadioNumber OBJECT-TYPE
SYNTAX INTEGER
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"The number of radios present on this system."
::= { ruckusRadioInfo 1 }

Radio Table

ruckusRadioTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusRadioEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Radio table."
::= { ruckusRadioInfo 2 }

ruckusRadioEntry OBJECT-TYPE
SYNTAX RuckusRadioEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies each Radio entry."
INDEX {
ifIndex }
::= { ruckusRadioTable 1 }

RuckusRadioEntry ::= SEQUENCE {
ruckusRadioMode INTEGER,
ruckusRadioCountry RuckusCountryCode,
ruckusRadioBSSType INTEGER,
ruckusRadioChannel INTEGER,
ruckusRadioDataRate OCTET STRING,
ruckusRadioTxPower INTEGER,
ruckusRadioProtectionMode INTEGER }

Access Point Radio Configuration MIBs

Radio Table

ruckusRadioMode OBJECT-TYPE
SYNTAX INTEGER {
auto(0),
ieee802dot11g-only(1),
ieee802dot11b-only(2),
ieee802dot11ng(3),
ieee802dot11na(4),
ieee802dot11a-only(5)}
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the radio mode."

90

Access Point Radio Configuration MIBs

Radio Table

::= { ruckusRadioEntry 1 }

ruckusRadioCountry OBJECT-TYPE
SYNTAX RuckusCountryCode
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the country code."
::= { ruckusRadioEntry 2 }

ruckusRadioBSSType OBJECT-TYPE
SYNTAX INTEGER {
station(1),
master(2),
independent(3) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the bss type."
::= { ruckusRadioEntry 3 }

ruckusRadioChannel OBJECT-TYPE
SYNTAX INTEGER (0..14)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the current operating channel. When 0, it indicates
the system selects the best channel automatically."
::= { ruckusRadioEntry 4 }

ruckusRadioDataRate OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(6))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Specifies the transmit rate of radio.

91

Access Point Radio Configuration MIBs

18Mb, 24Mb, 36Mb, 48Mb,
54Mb.
11ng/11na - auto, 1Mb, 2Mb, 5.5Mb, 11Mb, 6Mb, 9Mb, 12Mb,
18Mb, 24Mb, 36Mb, 48Mb, 54Mb,

6.5Mb, 13Mb, 19.5Mb, 26Mb, 39Mb, 52Mb, 58.5Mb, 65Mb,
78Mb, 104Mb, 117Mb, 130Mb,

13.5Mb, 27.5Mb, 40.5Mb, 81.5Mb, 108Mb, 121.5Mb, 135Mb,
27Mb, 81Mb, 162Mb, 162MB, 216Mb, 243Mb, 270Mb."
::= { ruckusRadioEntry 5 }

ruckusRadioTxPower OBJECT-TYPE
SYNTAX INTEGER {
full(0),
half(1),
quarter(2),
eighth(3),
minimum(4) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Specifies the transmit power of radio"
::= { ruckusRadioEntry 6 }

Radio Table

ruckusRadioProtectionMode OBJECT-TYPE
SYNTAX INTEGER {
none(0),
ctsOnly(1),
ctsRts(2)}
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Enabled when 11g and 11b clients exist on the same network.
none:
Do not use any protection

ctsOnly:
AP will send a CTS frame prior to sending 11g frames.

92

Access Point Radio Configuration MIBs

Radio Stats Table

The CTS frame will silence 11b clients

rtsCts:
Require RTS to be sent by sender of 11g frame and responder
to send CTS prior to any 11g frames being sent."
::= { ruckusRadioEntry 7 }

Radio Stats Table

ruckusRadioStatsTable OBJECT-TYPE
SYNTAX SEQUENCE OF RuckusRadioStatsEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Radios statistics table"
::= { ruckusRadioInfo 3 }

ruckusRadioStatsEntry OBJECT-TYPE
SYNTAX RuckusRadioStatsEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Specifies radio statistics entry."
INDEX {
ifIndex }
::= { ruckusRadioStatsTable 1 }

RuckusRadioStatsEntry ::= SEQUENCE {

ruckusRadioStatsMaxSta Counter32,
ruckusRadioStatsNumSta Counter32,
ruckusRadioStatsNumAuthSta Counter32,
ruckusRadioStatsNumAuthReq Counter32,
ruckusRadioStatsNumAuthResp Counter32,
ruckusRadioStatsNumAuthSuccess Counter32,
ruckusRadioStatsNumAuthFail Counter32,
ruckusRadioStatsNumAssocReq Counter32,

93

Access Point Radio Configuration MIBs

ruckusRadioStatsNumAssocResp Counter32,
ruckusRadioStatsNumAssocSuccess Counter32,
ruckusRadioStatsNumAssocFail Counter32,
ruckusRadioStatsAssocFailRate Unsigned32,
ruckusRadioStatsAuthFailRate Unsigned32,
ruckusRadioStatsAssocSuccessRate Unsigned32,
ruckusRadioStatsResourceUtil Unsigned32,
ruckusRadioStatsRxBytes Counter32,
ruckusRadioStatsRxFrames Counter32,
ruckusRadioStatsRxWEPFail Counter32,
ruckusRadioStatsRxDecryptCRCError Counter32,
ruckusRadioStatsRxMICError Counter32,
ruckusRadioStatsRxErrors Counter32,
ruckusRadioStatsTxBytes Counter32,
ruckusRadioStatsTxFrames Counter32,
ruckusRadioStatsTotalAssocTime TimeTicks
}

ruckusRadioStatsMaxSta OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Num of max stations allowed."
::= { ruckusRadioStatsEntry 1 }

Radio Stats Table

ruckusRadioStatsNumSta OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Num of associated stations."
::= { ruckusRadioStatsEntry 2 }

ruckusRadioStatsNumAuthSta OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION

94

Access Point Radio Configuration MIBs

Radio Stats Table

"Num of authenticated stations."
::= { ruckusRadioStatsEntry 3 }

ruckusRadioStatsNumAuthReq OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of authentication requests."
::= { ruckusRadioStatsEntry 4 }

ruckusRadioStatsNumAuthResp OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of authentication responses."
::= { ruckusRadioStatsEntry 5 }

95

ruckusRadioStatsNumAuthSuccess OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of successful authentications."
::= { ruckusRadioStatsEntry 6 }

ruckusRadioStatsNumAuthFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of authentication failures."
::= { ruckusRadioStatsEntry 7 }

ruckusRadioStatsNumAssocReq OBJECT-TYPE

SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association requests."
::= { ruckusRadioStatsEntry 8 }

ruckusRadioStatsNumAssocResp OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association responses."
::= { ruckusRadioStatsEntry 9 }

ruckusRadioStatsNumAssocSuccess OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of successful associations."
::= { ruckusRadioStatsEntry 10 }

Access Point Radio Configuration MIBs

Radio Stats Table

ruckusRadioStatsNumAssocFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of association failures."
::= { ruckusRadioStatsEntry 11 }

ruckusRadioStatsAssocFailRate OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION

96

Access Point Radio Configuration MIBs

Radio Stats Table

"Station association fail rate. ruckusRadioStatsNumAssocFail/
ruckusRadioStatsNumAssocReq"

::= { ruckusRadioStatsEntry 12 }

ruckusRadioStatsAuthFailRate OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station authentication fail rate. ruckusRadioStatsNumAuthFail/

ruckusRadioStatsNumAuthReq"
::= { ruckusRadioStatsEntry 13 }

ruckusRadioStatsAssocSuccessRate OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Station association success rate. ruckusRadioStatsNumAssocSuccess/

ruckusRadioStatsNumAssocReq"
::= { ruckusRadioStatsEntry 14 }

97

ruckusRadioStatsResourceUtil OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Wireless resource utilization rate. ruckusRadioStatsNumSta/

ruckusRadioStatsMaxSta"
::= { ruckusRadioStatsEntry 15 }

ruckusRadioStatsRxBytes OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received bytes."

Access Point Radio Configuration MIBs

::= { ruckusRadioStatsEntry 16 }

ruckusRadioStatsRxFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received frames."
::= { ruckusRadioStatsEntry 17 }

ruckusRadioStatsRxWEPFail OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received failured WEP frames."
::= { ruckusRadioStatsEntry 18 }

ruckusRadioStatsRxDecryptCRCError OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received frames with decrypted CRC error."
::= { ruckusRadioStatsEntry 19 }

ruckusRadioStatsRxMICError OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of received frames with MIC error."
::= { ruckusRadioStatsEntry 20 }

Radio Stats Table

ruckusRadioStatsRxErrors OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION

98

Access Point Radio Configuration MIBs

Radio Stats Table

"Count of received error frames."
::= { ruckusRadioStatsEntry 21 }

ruckusRadioStatsTxBytes OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted bytes."
::= { ruckusRadioStatsEntry 22 }

ruckusRadioStatsTxFrames OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Count of transmitted frames."
::= { ruckusRadioStatsEntry 23 }

ruckusRadioStatsTotalAssocTime OBJECT-TYPE
SYNTAX TimeTicks
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Client total association time."
::= { ruckusRadioStatsEntry 42 }

99

Access Point Radio Configuration MIBs

Radio Stats Table

100
