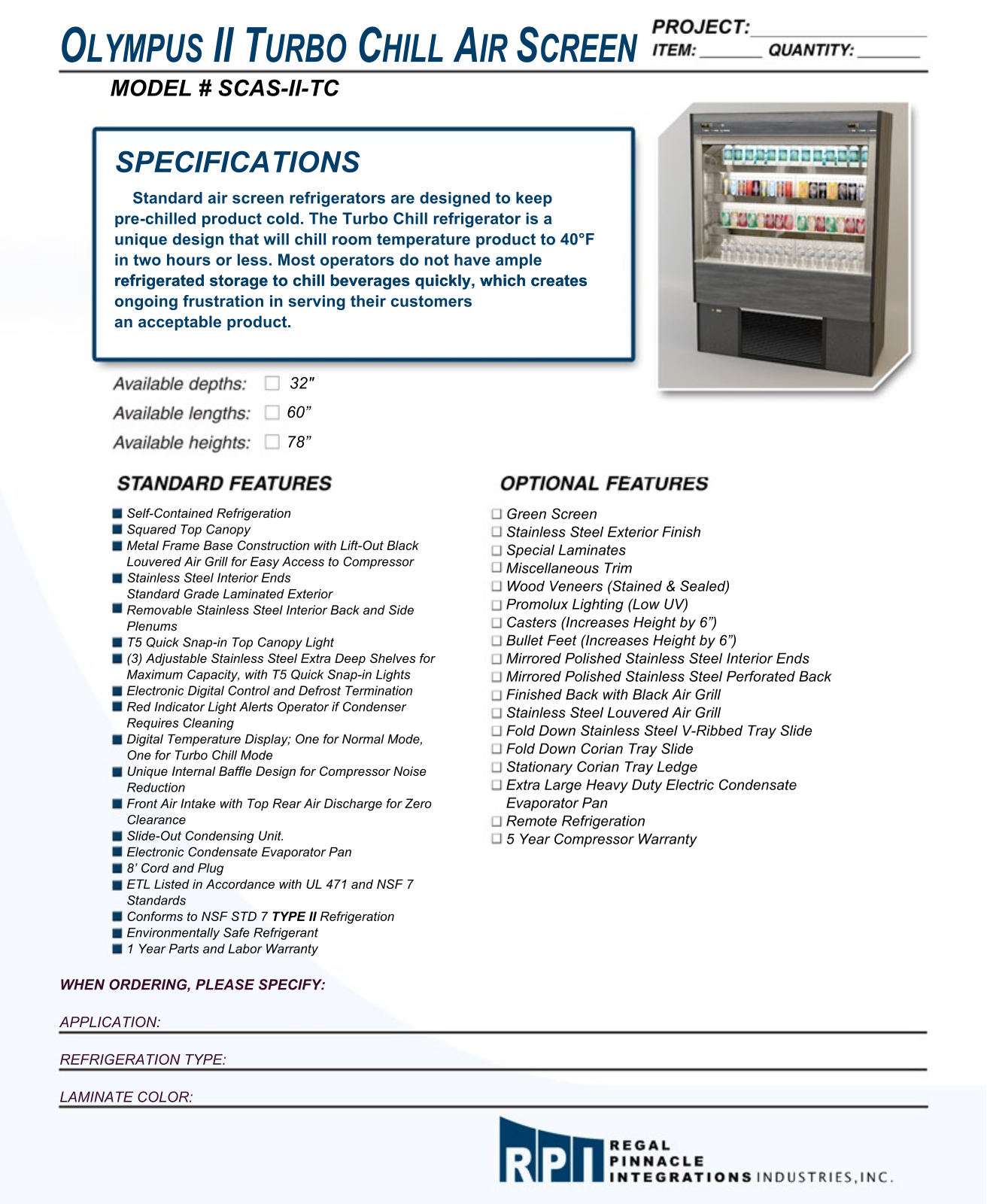

RPI Industries SCAS-II-TC User Manual
O
LYMPUS
MODEL # SCAS-II-TC
SPECIFICATIONS
Standard air screen refrigerators are designed to keep
pre-chilled product cold. The Turbo Chill refrigerator is a
unique design that will chill room temperature product to 40°F
in two hours or less. Most operators do not have ample
refrigerated storage to chill beverages quickly, which createsrefrigerated storage to chill beverages quickly, which creates
ongoing frustration in serving their customers
an acceptable product.
II T
URBO
32"
60”
78”
C
HILL
A
IR
S
CREEN
Self-Contained Refrigeration
Squared Top Canopy
Metal Frame Base Construction with Lift-Out Black
Louvered Air Grill for Easy Access to Compressor
Stainless Steel Interior Ends
Standard Grade Laminated Exterior
Removable Stainless Steel Interior Back and Side
Plenums
T5 Quick Snap-in Top Canopy Light
(3) Adjustable Stainless Steel Extra Deep Shelves for
Maximum Capacity, with T5 Quick Snap-in Lights
Electronic Digital Control and Defrost Termination
Red Indicator Light Alerts Operator if Condenser
Requires Cleaning
Digital Temperature Display; One for Normal Mode,
One for Turbo Chill Mode
Unique Internal Baffle Design for Compressor Noise
Reduction
Front Air Intake with Top Rear Air Discharge for Zero
Clearance
Slide-Out Condensing Unit.
Electronic Condensate Evaporator Pan
8’ Cord and Plug
ETL Listed in Accordance with UL 471 and NSF 7
Standards
Conforms to NSF STD 7 TYPE II Refrigeration
Environmentally Safe Refrigerant
1 Year Parts and Labor Warranty
Green Screen
Stainless Steel Exterior Finish
Special Laminates
Miscellaneous Trim
Wood Veneers (Stained & Sealed)
Promolux Lighting (Low UV)
Casters (Increases Height by 6”)
Bullet Feet (Increases Height by 6”)
Mirrored Polished Stainless Steel Interior Ends
Mirrored Polished Stainless Steel Perforated Back
Finished Back with Black Air Grill
Stainless Steel Louvered Air Grill
Fold Down Stainless Steel V-Ribbed Tray Slide
Fold Down Corian Tray Slide
Stationary Corian Tray Ledge
Extra Large Heavy Duty Electric Condensate
Evaporator Pan
Remote Refrigeration
5 Year Compressor Warranty
WHEN ORDERING, PLEASE SPECIFY:
APPLICATION:
REFRIGERATION TYPE:
LAMINATE COLOR:

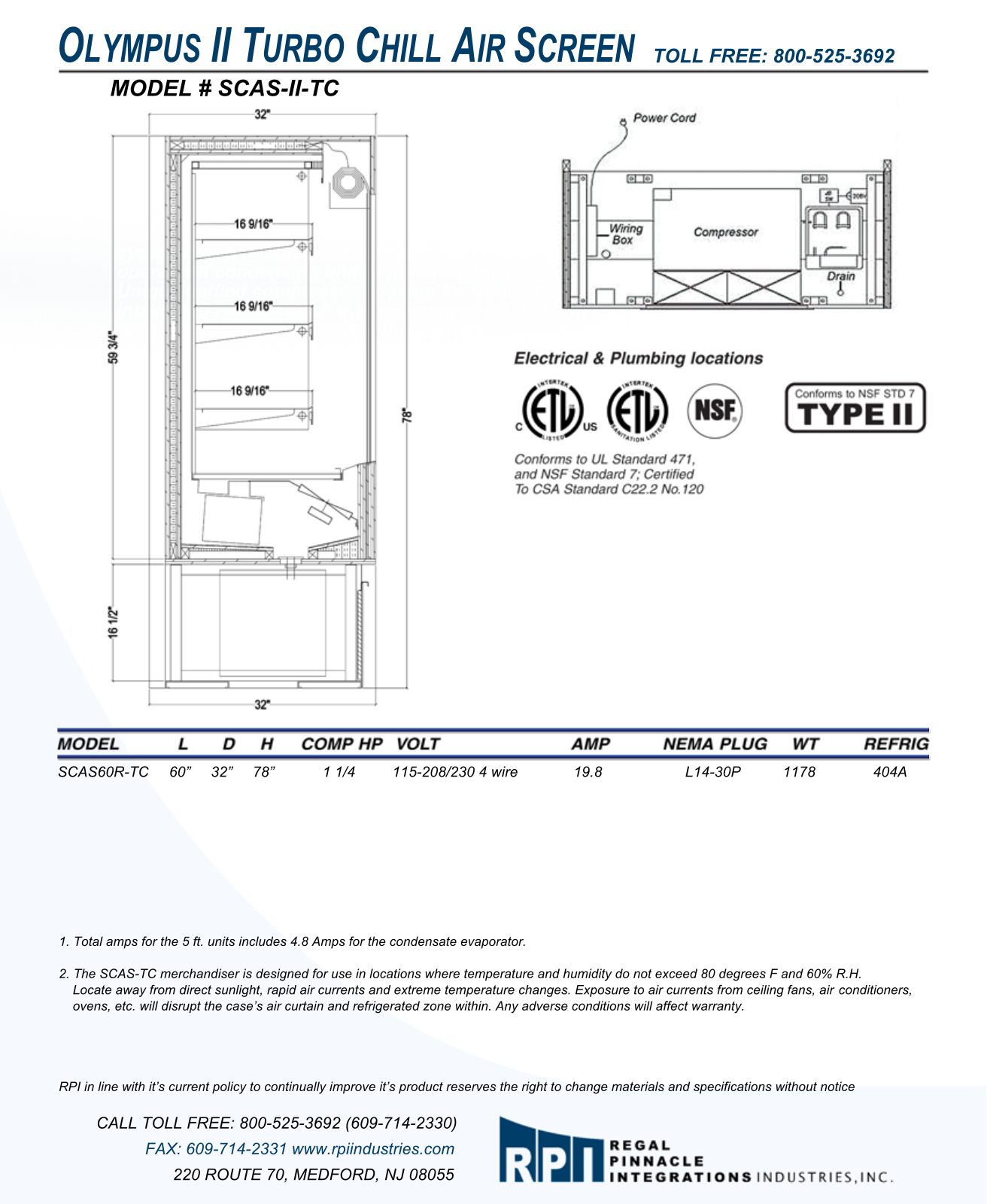

O
LYMPUS
MODEL # SCAS-II-TC
II T
URBO
C
HILL
A
IR
S
CREEN
TOLL FREE: 800-525-3692
SCAS60R-TC 60” 32” 78” 1 1/4 115-208/230 4 wire 19.8 L14-30P 1178 404A
1. Total amps for the 5 ft. units includes 4.8 Amps for the condensate evaporator.
2. The SCAS-TC merchandiser is designed for use in locations where temperature and humidity do not exceed 80 degrees F and 60% R.H.
Locate away from direct sunlight, rapid air currents and extreme temperature changes. Exposure to air currents from ceiling fans, air conditioners,
ovens, etc. will disrupt the case’s air curtain and refrigerated zone within. Any adverse conditions will affect warranty.
RPI in line with it’s current policy to continually improve it’s product reserves the right to change materials and specifications without notice
CALL TOLL FREE: 800-525-3692 (609-714-2330)
FAX: 609-714-2331 www.rpiindustries.com
220 ROUTE 70, MEDFORD, NJ 08055
