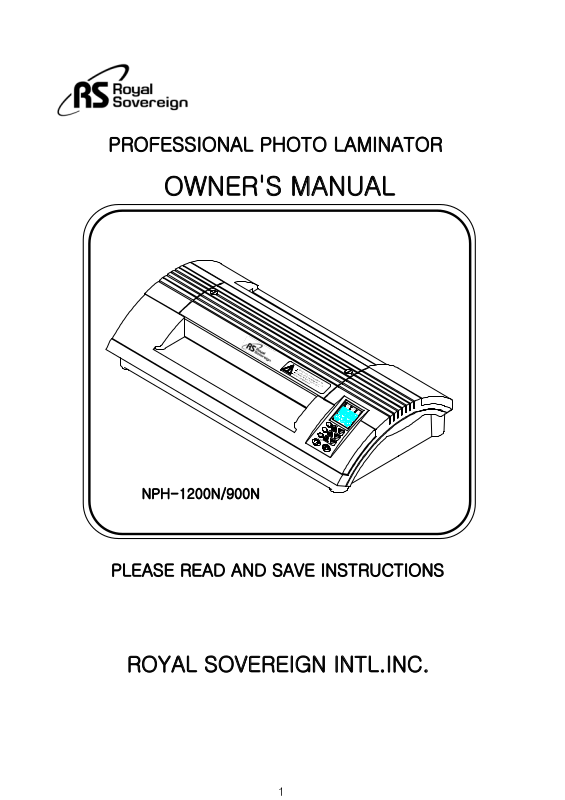

Royal Sovereign NPH-1200, 900N 1, 900NPH-1200N User Manual
PROFESSIONAL PHOTO LAMINATOR
OWNER'S MANUAL
NPH-1200N/900N
NPH-1200 / 900
PLEASE READ AND SAVE INSTRUCTIONS
ROYAL SOVEREIGN INTL.INC.
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
TABLE OF CONTENTS
TOPICS PAGE
INTRODUCTION ----------------------------------------SAFETY PRECAUTIONS ----------------------------------CHARACTERISTICS OF NPH-1200N/900N --------------------SPECIFICATIONS ---------------------------------------SETUP -----------------------------------------------MAJOR PARTS IDENTIFICATION ----------------------------CONTROL PANEL INSTRUCTIONS ----------------------------
1.CONTROL PANEL SETTINGS ----------------------------
2.LCD WINDOW --------------------------------------
3.BUTTON FUNCTIONS ---------------------------------
4.HOW TO SET THE BUTTONS --------------------------*SET TEMPERATURE -------------------------------*SPEED CONTROLS --------------------------------*CHECK TEMPERATURE ON THE ROLLER ----------------*MEMORY WORKING CONDITION AND
USING THE MEMORY SETTING -----------------*COLD MODE --------------------------------------
LAMINATING STEPS --------------------------------------
1.HOT LAMINATING ------------------------------------
2.COLD LAMINATING -----------------------------------
3.COLOR FOIL LAMINATING -----------------------------
4.MOUNT BOARD LAMINATING ---------------------------
HOW TO CLEAN ROLLERS AND REMOVE STUCK
OR JAMMED FILMS ---------------IMPORTANT SAFETY CONCERNS ---------------------------MAINTENANCE -----------------------------------------A/S PARTS -------------------------------------------TROUBLE SHOOTING ------------------------------------ONE YEAR LIMITED COMMERCIAL/PROFESSIONAL WARRANTY -----
3
3
4
5
5
6
7
7
8
9
10
10
10
10
11
11
12
12
13
14
15
16
17
17
17
17
18
2
g
INTRODUCTION
Thank you for purchasing a Royal Sovereign Laminating Machine.
To insure high quality lamination, please read this instruction manual thoroughly.
For additional product support or factory-direct ordering information, call Royal
Sovereign Customer Service at (201)568-0830 or toll free call, (800)397-1025.
SAFETY PRECAUTIONS
The safety recommendations outlined in this section are to be read,
understood and followed before operating the machine.
Keep this information for future reference. Failure to comply with any of
the following safety procedures could result in serious personal injuries
1. To prevent the possibility of electrical shock, do not immerse machine
in water or permit liquids to get inside.
2. Do not allow articles of clothing (neckties, scarves, etc.) or papers near
the front or rear of the machine while operating as they could get cought
by the rollers and be pulled inside, causing personal injury.
3. Do not attemp to laminate that exceed total recommended material
thickness.
4. Do not operate machine for any other purpose than its intended use.
5. Do not operate machine when electrical plug or power cord is damaged.
6. Turn off the power when not in use. Unplug machine
before movin
7. This machine is indoor use only.
8. Do not alter the electric plug in any use.
it or when it is not in use for an extended period of time.
3
CHARACTERISTICS OF LAMINATOR NPH-1200N/900N
This machine has been designed using the latest laminating technology.
1. This machine is controlled by a state-of-the-art Microprocessor.
a) Protect the rollers--When the power is off or a power failure occurs, rollers
continue to turn until the unit properly cools down.
b) Automatic overheating protection--If a temperature sensor should fail,
the heating elements will not heat up.
c) You can set your own operating conditions into "Memory".
2. Temperature and speed can be adjusted, to properly laminate various
film thickness.
3. A buzzer rings, alerting you that a butten has been pressed. This prevents
accidental setting changes.
4. Roller cover may be opened for easy access to clean the rollers.
5. Thermostats are used to economically maintain consistent temperature.
4
SPECIFICATIONS
Description
Dimensions(w x d x h)
Max.Laminating Width
Max.Lam. Thickness
Film Thickness
Transport Type
Heat Source
Pre-Heating Time
Temp. Operating Range
Cooling Fan Type
Motor Type
Max. Laminating Speed
Weight
Voltage / Cycle AC 120V/60Hz (AC230~240V ,50/60Hz)
Power Consumption
NPH - 1200N
580x290x135mm
(22.8"x11.4"x5.3")
330mm
(13")
2mm
(1/12")
75 ~ 250mic
(3 ~ 10 mil)
Four Roller (no carrier)
Hot Roller Type
4 ~ 5 min
20 ~ 160℃
DC FAN
DC GEARED MOTOR
750mm/min
(29.5" per min)
11Kg
(24 lbs)
1000W 850W
NPH - 900N
505x290x135mm
(19.9"x11.4"x5.3")
240mm
(9.4")
9Kg
(20 lbs)
SETUP
Place laminator on a sturdy, flat work surface. Allow ample clearence behind laminator
for laminated document or photograph to exit completely without bending.
Connect laminator to an electrical outlet that matches laminator's rated voltage and
power requirements.
If an extension cord is required, use a cord rated higher than the laminator's capacity.
5
MAJOR PARTS IDENTIFICATION
1. Top Cabinet
2. Roller Cover
3. Roller Cover Screws
4. Control Panel
5. LCD Window
6. Input
7. Output
8. Power Cord
6
