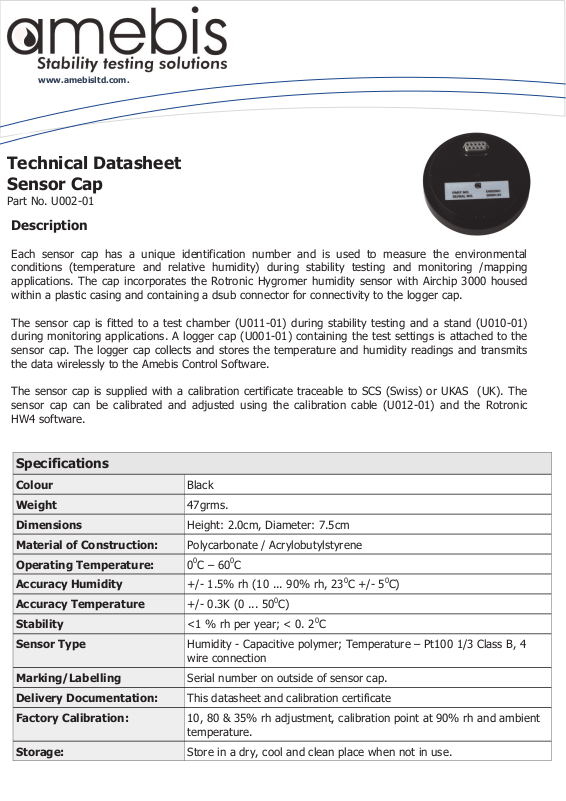

Technical Datasheet
Sensor Cap

Part No. U002-01

Description

Each sensor cap has a unique identification number and is used to measure the environmental
conditions (temperature and relative humidity) during stability testing and monitoring /mapping
applications. The cap incorporates the Rotronic Hygromer humidity sensor with Airchip 3000 housed
within a plastic casing and containing a dsub connector for connectivity to the logger cap.

The sensor cap is fitted to a test chamber (U011-01) during stability testing and a stand (U010-01)
during monitoring applications. A logger cap (U001-01) containing the test settings is attached to the
sensor cap. The logger cap collects and stores the temperature and humidity readings and transmits
the data wirelessly to the Amebis Control Software.

The sensor cap is supplied with a calibration certificate traceable to SCS (Swiss) or UKAS (UK). The
sensor cap can be calibrated and adjusted using the calibration cable (U012-01) and the Rotronic
HW4 software.

Specifications

Colour Black

Weight 47grms.

Dimensions Height: 2.0cm, Diameter: 7.5cm

Material of Construction: Polycarbonate / Acrylobutylstyrene

Operating Temperature: 00C – 600C

Accuracy Humidity +/- 1.5% rh (10 ... 90% rh, 230C +/- 50C)

Accuracy Temperature +/- 0.3K (0 ... 500C)

Stability <1 % rh per year; < 0. 20C

Sensor Type Humidity - Capacitive polymer; Temperature – Pt100 1/3 Class B, 4

wire connection

Marking/Labelling Serial number on outside of sensor cap.

Delivery Documentation: This datasheet and calibration certificate

Factory Calibration: 10, 80 & 35% rh adjustment, calibration point at 90% rh and ambient

temperature.

Storage: Store in a dry, cool and clean place when not in use.

Sensor cap fitted to test

chamber

www.amebisltd.com.

Sensor cap fitted to test

chamber with connected

logger cap

Sensor cap fitted to stand.

Sensor cap fitted to stand

with connected logger cap

Sensor cap fitted to calibration
chamber with connected
calibration cable.

Warning

The sensor cap has been designed to allow connection of logger caps (U001-01) and calibration cables
(U012-01) only. Do not connect any other cables or parts to the sensor cap.

Visit our website for more information on the sensor (Rotronic Hygromer humidity sensor with
Airchip 3000).

Datasheet 3.1
