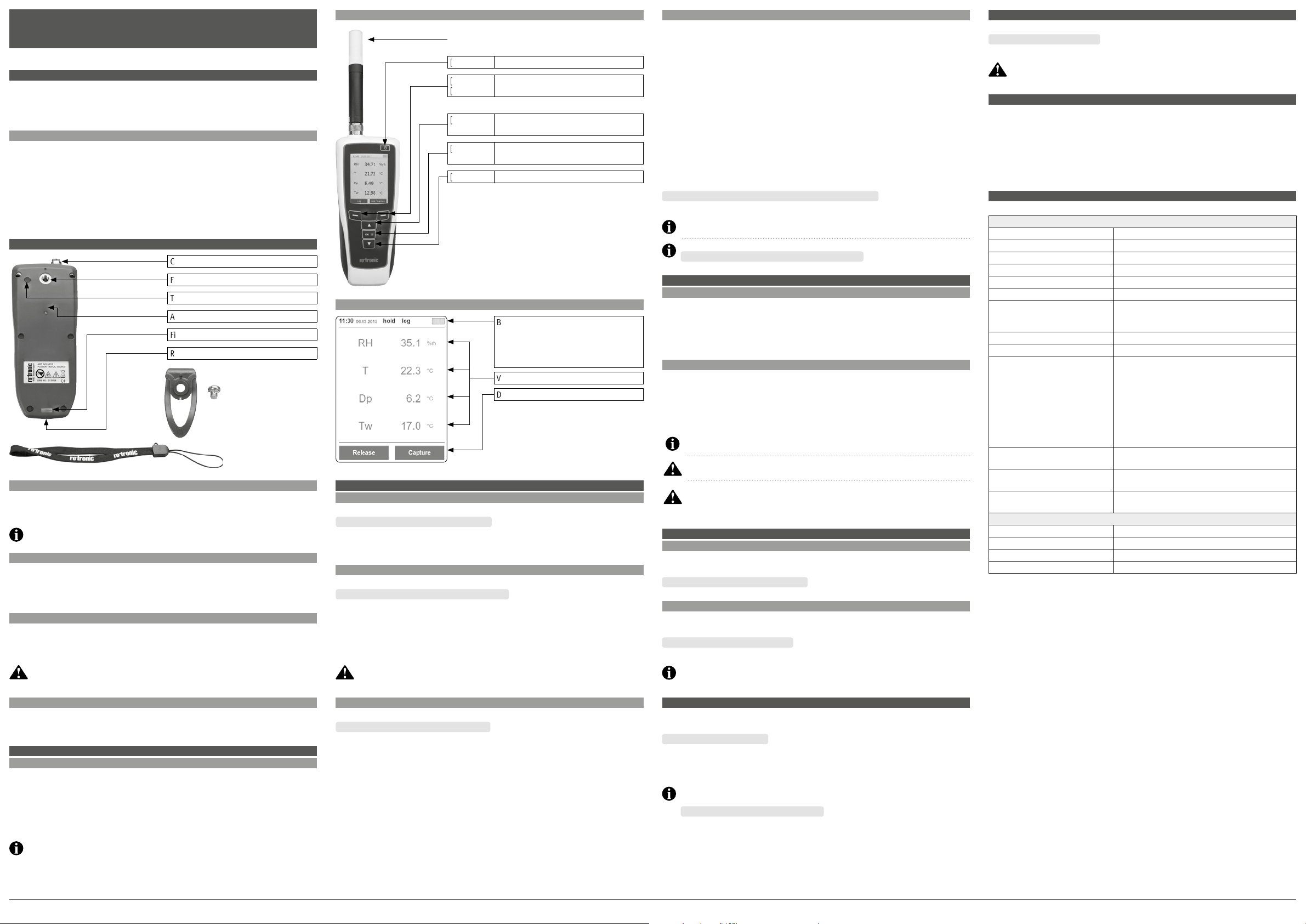

HYGROPALM HP32
Short Instruction Manual
1 GENERAL DESCRIPTION
The HP32 is a highly accurate handheld instrument compatible with all HC2 and HC2A probes to perfor m measurement and logging of relativ e humidity, temper ature and calculated psychro­metric parameters.
1.1 PACKAGE CONTENT
• Soft Case
• Micro-USB Service Cable (AC0006)
• Belt Buckle Set
• Lanyard
Certicate
• HW4-LITE license key
2 ASSEMBLY AND FIXATION
Probe connector
Tripod socket
Reset button
Integrated magnet
Lanyard xation
USB port
Belt Buckle Set
Lanyard
2.1 PROBE
The HP32 is compatible with all HC2 and HC2A probes. Simply connect it to the probe input on top.
A calibration of the HP32 after changing the probe is not necessary.
2.2 TRIPOD SOCKET
The standardized tripod socket (1/4”-20 UNC thread) at the back of the device enables a wide range of conventional mounting accessories. For example, camera tripods or, the belt buckle delivered with the device.
2.3 MAGNETIC
The magnet integrated at the back of the HP32 enables easy installation on metallic surfaces such as, for example, ventilation shafts.
The magnetic fastening will not work with an accessory mounted on the tripod socket.
2.4 LANYARD
Delivered with the HP32, you will nd a lanyard that can be tightened on the HP32 for easy
hand carrying and manipulation.
3 GENERAL OPERATION
3.1 BATTERY, STAND-BY AND AUTO SWITCH OFF
The HP32 has an integrated battery. Simply connect the device to an USB port with the deliv­ered cable to charge it.
3.2 BUTTONS
Probe HC2A-S (not included)
[POWER] Switches the HP32 on or of f.
[LEFT] [RIGHT]
[UP] • Cursor up
[OK] • Opens the main menu / submenus
[DOWN] Cursor down
Action buttons, their action are indicated by the on-screen labels.
• Parameter selection (home screen)
Conrm entries
HP32
3.3 DISPLAY AND HOME SCREEN
Status Bar
• Time and date
• Hold indicator
• Log indicator
• Battery status
Measured values
Action Buttons labels
4 GENERAL SETTINGS
4.1 LANGUAGE
To change the display language, go into:
Main menu [OK] Settings Language
Available languages: English, Deutsch, Français, Italiano
4.2 DATE/TIME
To set up the date and time, go into:
Main menu [OK] Settings Date / Time
The following settings can also be set beside the date and time.
• Date format: DIN, US, ISO
• Time format: 12 h, 24 h
The date and time must be set correctly for proper operation of the device.
4.3 UNITS
Set units used and displayed by the HP32 into:
Main menu [OK] Settings Units
Your options are as follow:
• Distance: m, f t
• Temperature: °C, °F
• Pressure: hPa, mmHg
• Weight: kg, lbs
4.4 CALCULATED PSYCHROMETRIC PAR AMETERS
Beside relative humidity and temperature, the HP32 can display 2 of the following 10 psychro­metric parameters:
• Dew / Frost point (Dp/Fp)
• Wet bulb temperature (Tw)
• Enthalpy (H)
• Vapor concentration (Dv)
Specic humidity (Q )
• Mixing ration by weight (R)
• Vapor pressure (E)
• Saturation vapor pressure (Ew)
• Saturation vapor density (SVD)
Select the parameters that you want to log and/or see on the home screen within:
Main menu [OK] Settings Displayed calculated parameters
You can change the order of values on the home screen by [UP] on the home screen. You can change the atmospheric pressure constant used in calculations in:
Main menu Settings  Atmospheric pressure
5 SAVING DATA
5.1 HOLD/CAPTURE AND SPOT MEASUREMENTS
Freeze the displayed values on the home screen by pressing the [Hold/Capture] action button on the home screen. Those values can then be:
• Saved as a spot measurement with [Capture]
• Released again with [Release]
5.2 DATA LOGGING
Program or start the automatic logging at regular interval with the [Log] action button. Dene
the storage location, the interval and, if you want, a start and stop time, then start the logging operation by pressing the [Start] action button.
Your device will be automaticall y switched on at the given star t time to start the logg ing. The main menu is not accessible while data logging is active. Spot measurements are, however, still possible. You must name storage locations before use. Simply use the [Rename] action button when selecting a storage location to assign it a name.
6 VIEWING SAVED DATA
6.1 SPOT MEASUREMENTS
Review the spot measurements by selecting their storage location within:
Main Menu [OK] Memory – Capture
6.2 LOGGED DATA
Review the logged data by selecting its storage location within:
Main Menu [OK] Memory – Log
Switch between graphic displays and MIN / MAX / AVG values of the 4 parameters with [UP] and [DOWN].
7 ALARM
Set up upper, lower limits as well as hysteresis for every displayed parameter in:
Main Menu [OK] Alarms
Broken alarm limits are shown in red on the home screen.
You can also enable an acoustic signal for broken alarms in:
Main Menu [OK] Settings Buzzer
8 ADJUSTEMENT
Adjustments of the probe (humidity and temperature) can be performed in:
Main Menu [OK] Adjustement
Incorrectly adjusted probes will deliver wrong measurements. Please refer to our man­ual for more information about probe adjustments.
10 TECHNICAL DATA
General specications
Device type Handheld device (%RH / °C) Compatible probes All HC2 and HC2A probes Application range -10…60°C | 0…100%RH (non-cond.) Storage range -10…45 °C | 10…90%RH Probe application range Depends on the probe Accuracy Depends on the probe Functions Spot measurements
Interval logging
MIN / MA X / AVG / MKT Logging interval 1s…24h Memory capacity 8x8000 data points Psychrometric calculations Dew / Frost point (Dp /Fp)
Wet bulb temperature (Tw)
Enthalpy (H)
Vapor concentration (Dv)
Specic humidity (Q )
Mixing ratio by weight (R)
Vapor pressure (E)
Saturation vapor pressure (Ew)
Saturation vapor density (SVD) Display refresh rate 1 s (typical) Integrated Batter y 48h – Logging every 30s, screen off
10h – Screen always on (typical) PC Interface Micro-USB port,
HW4 compatible
Housing / Mechanics
Housing Material ABS, T PR IP Protection IP65 Dimension 160 x 63 x 30 mm Weight 185 g
The device has a stand-by and an auto switch off feature. After 5 minutes without user interac­tion, the display is dimmed. Moreover, after a total of 10 minutes without user interaction, the device is switched off to save battery.
These features do not affect data logging operations. While data logging is active, although the screen is dimmed or off, data points are still logged and saved.
9 COMPUTER CONNECTION
It is possible to connect the HP32 to a computer with the delivered USB service cable. Data analysis and settings changes are performed with the HW4 software for which you received a license key.
To download the HW4 sof tware and learn more about its capabilities, please visit our webpage: www.rotronic.com/hw4.
www.rotronic.comEnglish
Page 2
HYGROPALM HP32
Kurzbedienungsanleitung
1 ALLGEMEINE BESCHREIBUNG
Das HP32 ist ein sehr präzises Handmessgerät, das mit allen HC2- und HC2A-Fühlern kompati­bel ist, um Messungen vorzunehmen und die relative Feuchte, die Temperatur und die berech­neten psychrometrischen Parameter aufzuzeichnen.
1.1 PACKUNGSINHALT
• Softcase
• Micro-USB-Servicekabel (AC0006)
• Gürtelschnallen-Set
• Umhängeband
Zertikat
• HW4-LITE-Lizenzschlüssel
2 MONTAGE UND BEFESTIGUNG
Fühler-Anschlussstecker
Stativgewinde
Reset-Taste
Integrierter Magnet
Umhängeband-Befestigung
USB-Anschluss
Gürtelschnallen-Set
Umhängeband
2.1 FÜHLER
Das HP32 ist mit allen HC2- und HC2A-Fühlern kompatibel. Schliessen Sie diesen einfach am Fühlereingang an der Oberseite an.
Eine Kalibrierung des HP32 nach dem Fühlerwechsel ist nicht erforderlich.
2.2 STATIVGEWINDE
Das standardisierte Stativgewinde (1/4"-20 UNC-Gewinde) auf der Rückseite des Geräts ermög­licht eine breite Auswahl an gebräuchlichem Montagezubehör, wie beispielsweise Kamerasta­tive oder die mitgelieferte Gürtelschnalle.
2.3 MAGNETISCHE BEFESTIGUNG
Der auf der Rückseite des HP32 integrierte Magnet ermöglicht eine einfache Installation auf
metallischen Oberächen, wie z. B. Lüftungsschächten.
Die magnetische Befestigung funktioniert nicht mit Zubehör, das am Stativgewinde befestigt wird.
2.4 UMHÄNGEBAND
Im Lieferumfang des HP32 ist ein Umhängeband enthalten, das zur bequemen Beförderung und Handhabung am HP32 befestigt werden kann.
3.2 TASTEN
Fühler HC2A-S (nicht inklusive)
[STROM] Zum Ein- und Ausschalten des HP32.
[LINKS] [RECHTS]
[AUF] • Taste aufw ärts
[OK] • Öffnet Hauptmenü / Untermenüs
[AB] Taste abwär ts
Aktionstasten, deren Funktion durch die Bezeichnung auf dem Bildschirm gekenn­zeichnet ist.
• Parameterwahl (Startbildschirm)
• Bestätigt Eingaben
HP32
3.3 DISPLAY UND STARTBILDSCHIRM
Statusleiste
• Uhrzeit und Datum
• Halte-Indikator
• Log-Indikator
• Batteriestatus
Messwerte
Bezeichnung Aktionstasten
4 ALLGEMEINE EINSTELLUNGEN
4.1 SPRACHE
Um die Anzeigesprache zu ändern, gehen Sie auf:
Hauptmenü [OK] Einstellungen Sprache
Verfügbare Sprachen: English, Deutsch, Français, Italiano
4.2 DATUM/UHRZEIT
Zur Einstellung von Datum und Uhrzeit gehen Sie auf:
Hauptmenü [OK] Einstellungen Datum / Zeit
Neben Datum und Uhrzeit können folgende Einstellungen vorgenommen werden.
• Datumsformat: DIN, US, ISO
• Zeitformat: 12 h, 24 h
Für eine einwandfreie Funktion des Geräts müssen Datum und Uhrzeit richtig einge­stellt sein.
4.3 EINHEITEN
Zur Einstellung der vom HP32 verwendeten und angezeigten Einheiten gehen Sie auf:
Hauptmenü [OK] Einstellungen Einheiten
4.4 BERECHNETE PSYCHROMETRISCHE PARAMETER
Neben relativer Feuchte und Temperatur kann das HP32 zwei der folgenden 10 psychrometri­schen Parameter anzeigen:
• Tau- / Frostpunkttemperatur (Dp/Fp)
• Feuchtkugeltemperatur (Tw)
• Enthalpie (H)
• Wasserdampfdichte (Dv)
Wasserdampfgehalt (Q)
• Mischungsverhältnis (R)
• Wasserdampfdruck (E)
• Wassersättigungsdampfdruck (Ew)
• Wasserdampfsättigungsdichte (SVD)
Zur Auswahl der Parameter, die Sie protokollieren und/oder auf dem Startbildschirm anzeigen wollen, gehen Sie auf:
Hauptmenü [OK] Einstellungen Angezeigte berechnete Parameter
Sie können die Anzeigereihenfolge der Werte auf dem Star tbildschirm ändern, indem Sie auf dem Startbildschirm [AUF] drücken. Um die in den Berechnungen ver wendete Atmosphärendruckkonstante zu ändern, gehen Sie auf:
Hauptmenü Einstellungen Luftdruck
5 DATENSPEICHERUNG
5.1 ERFASSEN/SPEICHERN UND PUNKTAUFZEICHNUNGEN
Die auf dem Startbildschirm angezeigten Werte können mittels Betätigung der Aktionstaste [HALTEN/SPEICHERN] auf dem Startbildschirm eingefroren werden. Diese Werte können dann:
• Als Punktaufzeichnung mit [Erfassen] gespeichert werden
• Mit [Lösen] wieder losgelassen werden
5.2 DATENAUFZEICHNUNG
Programmieren oder starten Sie die automatische Aufzeichnung in regelmässigen Abständen mit der Aktionstaste [Aufzeichnen]. Denieren Sie den Speicherort, das Intervall und, falls ge­wünscht, eine Star t- und Stoppzeit; starten Sie dann den Auf zeichnungsvorgang durch Drücken der Aktionstaste [Start].
Ihr Gerät wird zur vorgegebenen Startzeit automatisch eingeschaltet, um die Aufzeich­nung zu starten. Während der Datenaufzeichnung kann nicht auf das Hauptmenü zugegriffen werden. Punktaufzeichnungen können jedoch weiterhin gemacht werden. Speicherorte müssen vor der Benutzung benannt werden. Verwenden Sie bei der Aus­wahl des Speicherorts einfach die Aktionstaste [Umbenennen], um einen Namen zu­zuweisen.
6 ANZEIGE GESPEICHERTER DATEN
6.1 PUNKTAUFZEICHNUNGEN
Zur Prüfung von Punktaufzeichnungen den Speicherort wie folgt auswählen:
Hauptmenü [OK] Speicher – Erfassen
6.2 AUFZEICHNETE DATEN
Zur Prüfung der gespeicherten Daten den Speicherort wie folgt auswählen:
Hauptmenü [OK] Speicher – Log
Sie können zwischen den graschen Anzeigen und den MIN / MAX / AVG-Werten der 4
Parameter mit [AUF] und [AB] umschalten.
7 ALARM
Zur Einrichtung der unteren und obe ren Alarmgrenze sowie der Hy sterese für jeden angezeig ten Parameter, gehen Sie auf:
Hauptmenü [OK] Alarme
9 COMPUTERANSCHLUSS
Das HP32 kann über das mitgelieferte USB-Kabel an einen Computer angeschlossen werden. Datenanalyse und Änderungen an den Einstellungen werden mit der HW4-Software durchge­führt, für die Sie einen Lizenzschlüssel erhalten haben.
Um die HW4-Software herunterzuladen und mehr über ihre Funktionen zu erfahren, besuchen Sie bitte unsere Webseite: w ww.rotronic.com/hw4.
10 TECHNISCHE DATEN
Allgemeine Spezikationen
Gerätetyp Handmessgerät (%rf / °C) Kompatible Fühler Alle HC2- und HC2A-Fühler Einsatzbereich -10…60°C | 0…100 %rF (nicht kond.) Lagerung -10…45° C | 10… 90 %r F Einsatzbereich Fühler Abhängig vom Fühler Genauigkeit Abhängig vom Fühler Funktionen Punktauf zeichnungen
Intervallaufzeichnung
MIN / MA X / AVG / MKT Log-Intervall 1 s…24 h Messwertspeicher 8 x 8000 Datenpunkte Psychrometrische Berechnungen Tau- / Frostpunkttemperatur (Dp/Fp)
Feuchtkugeltemperatur (Tw)
Enthalpie (H)
Wasserdampfdichte (Dv)
Wasserdampfgehalt (Q)
Gewichts-Mischungsverhältnis (R)
Wasserdampfdruck (E)
Wassersättigungsdampfdruck (Ew)
Wasserdampfsättigungsdichte (SVD) Display-W iederholrate 1 s (typisch) Integrierte Batterie 48 h – Aufzeichnung alle 30 s, bei ausgeschaltetem
Bildschirm
10 h – Bei eingeschaltetem Bildschirm (typisch) PC-Schnittstelle Micro-USB-Anschluss
HW4-kompatibel
Gehäuse / Mechanik
Gehäusematerial ABS, TPR IP-Schutzart IP65 Abmessungen 160 x 63 x 30 mm Gewicht 185 g
3 ALLGEMEINE BEDIENUNG
3.1 BATTERIE, STANDBY UND AUTOMATISCHE ABSCHALTUNG
Das HP32 verfügt über eine integrierte Batterie. Schliessen Sie das Gerät zum Auaden einfach
mit dem mitgeliefer ten Kabel an einen USB-Anschlu ss an. Das Gerät verfüg t über eine Standby­und eine automatische Abschalt funktion. Nach 5 Minuten ohne Nutzereingriff wird das Display gedimmt. Nach insgesamt 10 Minuten ohne Nutzereingriff wird das Gerät ausgeschaltet, um die Batterie zu schonen.
Diese Funktionen beeinträchtigen die Datenauf zeichnungsvorgänge nicht. Wurde die Da­tenaufzeichnung aktiviert, werden die Datenpunkte weiterhin protokolliert und gespei­chert, auch wenn das Display gedimmt oder ausgeschaltet wurde.
Die Auswahlmöglichkeiten sind:
• Distanz: m, ft
• Temperatur: °C, °F
• Druck: hPa, mmHg
• Gewicht: kg, lbs
Überschrittene Alarmgrenzen werden auf dem Startbildschirm rot dargestellt.
Sie können zudem ein akustisches Signal für überschrittene Alarmgrenzen aktivieren:
Hauptmenü [OK] Einstellungen Signalton
8 JUSTIERUNG
Zur Einstellung des Fühlers (Feuchte und Temperatur) gehen Sie auf:
Hauptmenü [OK] Justierung
Falsch justier te Fühler zeigen falsche Messresultate. Weiter führende Informationen zur
Fühlerjustierung nden Sie in unserem Handbuch.
www.rotronic.comDeutsch
Page 3
HYGROPALM HP32
Mode d'emploi abrégé
1 DESCRIPTION GÉNÉRALE
HP32 est un appareil de mesure portatif précis, compatible avec tous les capteurs HC2 et HC2A; il sert à réaliser des mesures et à enregistrer l’humidité relative, la température et les paramètres psychrométriques calculés.
1.1 FOURNITURES
• Sacoche souple
• Câble de service micro USB (AC0006)
• Set pour ceinture
• Dragonne
Certicat
• Clé de licence HW4-LITE
2 MONTAGE ET FIXATION
Connecteur de raccordement du capteur
Filetage pour trépied
Touche de réinitialisation
Aimant intégré
Fixation de la dragonne
Raccordement USB
Set pour ceinture
Dragonne
2.1 CAPTEURS
HP32 est compatible avec tous les capteurs HC2 et HC2A. Raccordez ceux-ci simplement à l’entrée pour capteur sur le haut de l’appareil.
Il n’est pas nécessaire d’étalonner HP32 après un changement de capteur.
2.2 FILETAGE POUR TRÉPIED
Le letage standard pour trépied (1/4"-20 UNC), sur le dos de l’appareil, permet d’utiliser un
large choix d’accessoires de montage, comme les trépieds pour caméras ou la boucle de cein­ture jointe à la livraison.
2.3 FIXATION MAGNÉTIQUE
Un aimant intégré sur l’arrière du HP32 permet d’installer simplement celui-ci sur les surfaces métalliques, comme les conduits d’aération.
3.2 TOUCHES
Capteur HC2A-S (non inclus)
[COUR ANT] Pour mettre HP32 en/hors service.
[GAUCHE] [DROITE]
[HAUT] • Touche vers le haut
[OK] • Ouvre le menu principal / sous menu
[BAS] Touche vers le bas
Touches dont les fonctions sont signalées sur l’écran par leur description.
• Choix des paramètres (écran d’accueil)
Conrme la saisie
HP32
3.3 AFFICHAGE ET ÉCRAN D’ACCUEIL
Barre d’état
• Heure et date
Indicateur du " gel d'afchage " (Hold)
• Indicateur LOG
• État de la pile
Valeurs de mesures
Description des touches
4 RÉGLAGES GÉNÉRAUX
4.1 LANGAGE
An de changer le langage afché allez sur :
Menu principal [OK] Paramètres Langue
Langues disponibles : anglais, allemand, français, italien
4.2 DATE/HEURE
Pour le réglage de la date t de l’heure allez sur :
Menu principal [OK] Paramètres Date / Heure
Les réglages suivants peuvent être effectués, en plus de la saisie de la date et de l’heure :
• Format de la date : DIN, US, ISO
• Format de l’heure : 12h, 24h
4.4 PARAMÈTRES PSYCHROMÉTRIQUES CALCULÉS
Parallèlement à l’humidité relative et à la température, HP32 peut calculer les 10 paramètres psychrométriques suivants :
• Point de rosée/de gel (Dp/Fp)
• Température à bulbe humide (Tw)
• Enthalpie (H)
• Densité de vapeur (Dv)
Teneur en vapeur (Q)
• Poids de rapport de mélange (R)
• Pression de vapeur (E)
• Pression de vapeur saturée (Ew)
• Densité de vapeur saturéee (SVD)
Pour le choix des paramètres que vous désirez prendre en protocole et/ou af cher sur l’écran
d’accueil allez sur :
Menu principal [OK] Réglages Paramètres calculés afchés
Vous pouvez modier l’ordre d’afchage des valeurs sur l’écran d’accueil en pressant
sur [HAUT ] sur celui-ci.
Pour modier la constante atmosphérique utilisée pour les calculs, allez sur :
Menu principal  Réglage  Pression atmosphérique
5 ENREGISTREMENT DES DONNÉES
5.1 SAISIE/ENREGISTREMENT ET ENREGISTREMENT PONCTUEL
Les données afchées peuvent être « gelées » sur l’écran d’accueil en actionnant la touche [Hold/Capture]. Ces valeurs peuvent alors être :
• Enregistrées en tant qu’enregistrement ponctuel avec [Capture]
• Et libérées avec [libérer]
5.2 ENREGISTREMENT DES DONNÉES
Programmer ou démarrer l’enregistrement automatique à intervalles réguliers avec la touche
[Log]. Dénissez un emplacement pour enregistrer, l’intervalle et, si désiré, une heure de départ et d’arrêt; Démarrez alors le processus d’enregistrement en appuyant suer la touche
[Start].
Votre appareil sera mis en marche automatiquement à l’heure programmée et débutera l’enregistrement. L’accès au menu principal est impossible pendant l’enregistrement des données. Les
enregistrements ponctuels peuvent toutefois être poursuivis. Les emplacements de stockage doivent être désignés avant l’utilisation. Utilisez sim-
plement la touche [Renommer] pour attribuer un nom lors du choix de l’emplacement de l’enregistrement.
6 AFFICHAGE DES DONNÉES ENREGISTRÉES
6.1 ENREGISTREMENTS PONCTUELS
Pour le contrôle des enregistrements ponctuels, choisissez l’emplacement de l’enregistrement de la manière suivante :
Menu principal [OK] Mémoire – Capture
6.2 DONNÉES ENREGISTRÉES
Pour le contrôle des données enregistrées choisissez l’emplacement de l’enregistrement de la manière suivante :
Menu principal [OK] Mémoire – Log
8 AJUSTAGE
Pour le réglage du capteur (humidité et température), allez sur :
Menu principal [OK] Ajustage
Les capteurs incorrectement ajustés afchent des résultats de mesure erronés. Vous
trouverez plus d’informations concernant l’ajustage des capteurs sur notre manuel.
9 RACCORDEMENT À L’ORDINATEUR
HP32 peut être raccordé à un ordinateur avec le câble USB fourni. Les analyses des données et les modications des réglages sont effectuées avec le logiciel HW4, pour lequel vous avez
reçu une clé de licence.
An de télécharger le logiciel HW4 et d’en apprendre plus sur ses fonctionnalités, veuillez visi­ter notre site Internet : w ww.rotronic.com/hw4.
10 CARACTÉRISTIQUES TECHNIQUES
Spécications générales
Type d’appareil Appareil de mesure por tatif (%HR / °C) Capteurs compatibles Tous les capteurs HC2 et HC2A Gamme d’utilisation -10…60°C | 0…100 %HR (sans condensation) Entreposage -10…45 °C | 10…90 %H R Gamme d’utilisation du capteur Selon le capteur Précision Selon le capteur Fonctions Enregistrements ponctuels
Intervalle d’enregistrement 1 s…24 h Mémoire pour valeur de mesure 8 x 8000 points de données Calculs psychrométriques Point de rosée/de gel (Dp/Fp)
Fréquence de rafraîchissement de l’écran
Pile intégrée 48 h – enregistrement toutes les 30 s, avec écran éteint
Interface PC Raccordement micro USB
Boîtier / Mécanique
Matériau du boîtier ABS, TPR Type de protection IP IP65 Dimensions 160 x 63 x 30 mm Poids 185 g
Intervalle d’enregistrement
MIN / MA X / AVG / MKT
Température à bulbe humide (Tw)
Enthalpie (H)
Densité de vapeur (Dv)
Teneur en vapeur (Q)
Poids de rappor t de mélange (R)
Pression de vapeur (E)
Pression de vapeur saturée (Ew)
Densité de vapeur saturéee (SVD)
1 s (typique)
10 h – avec écran actif (typique)
Compatible avec HW4
La xation magnétique ne fonctionne pas avec les accessoires qui doivent être xés sur le letage pour trépied.
2.4 DRAGONNE
Une dragonne est incluse à la livraison du HP32, elle peut être xée à celui-ci pour faciliter son
utilisation et son maniement.
3 UTILISATION COURANTE
3.1 PILE, VEILLE ET ARRÊT AUTOMATIQUE
HP32 est équipé d’une pile intégrée. Raccordez simplement l’appareil à une prise USB avec le
câble fourni, pour le recharger. L’appareil dispose d’une fonction de veille et d’arrêt automa­tique. L’écran s’obscurcit après 5 minutes, sans intervention de l’utilisateur. An de ménager la
pile, l’appareil est mis hors service après 10 minutes sans intervention de l’utilisateur.
Cette fonction n’interrompt pas le processus d’enregistrement des données. Si l’enre-
gistrement des données est activé, celles-ci sont protocolées et enregistrées même si
l’écran a été mis en veille ou éteint.
La date et l’heure doivent être réglées correctement pour un fonctionnement optimal
de l’appareil.
4.3 UNITÉS
Pour le réglage des unités utilisées sur HP32 allez sur :
Menu Principal [OK ] Paramètres Unités
Les possibilités de choix sont :
• Distance : m, ft
• Température : °C, °F
• Pression : hPa, mmHg
• Poids : kg, lbs
Vous pouvez commuter entre les afchages graphiques et les valeurs MIN / MAX / AVG
des 4 paramètres avec [HAUT ] et [BAS].
7 ALARME
Pour le réglage des seuils d’alarme inférieurs et supérieurs, ainsi que pour l’hystérèse pour chaque paramètres, allez sur :
Menu principal [OK] Alarme
Les seuils d’alarme dépassés sont afchés en rouge sur l’écran d’accueil.
Vous pouvez, de plus, activer un signal acoustique lors du dépassement des seuils d’alarme :
Menu principal [OK] Paramètres Son
www.rotronic.comFrançais
Page 4
HYGROPALM HP32
Manuale di istruzioni breve
1 DESCRIZIONE GENERALE
L'HP32 è uno strumento di misura portatile estremamente preciso, compatibile con tutte le sonde HC2 ed HC2A, ideale per effettuare misurazioni e per registrare l'umidità relativa, la temperatura e i parametri psicrometrici calcolati.
1.1 CONTENUTO DELLA CONFEZIONE
• Custodia softcase
• Cavo di servizio micro USB (AC0006)
Set bbia
• Cordino
Certicato
• Chiave di licenza HW4-LITE
2 MONTAGGIO E FISSAGGIO
Connettore sonda
Filettatura per cavallet ti
Pulsante reset
Calamita integ rata
Fissaggio con cordino
Collegamento USB
Set bbia
Cordino
2.1 SONDE
L'HP32 è compatibile con tutte le sonde HC2 e HC2A. Basterà collegarle all'ingresso sonda sulla parte superiore.
Non è necessaria alcuna calibrazione dell'HP32 dopo la sostituzione della sonda.
2.2 FILETTATURA PER CAVALLETTI
La lettatura standardizzata per cavalletti (lettatura UNC 1/4"-20), che si trova sul retro del­lo strumento, consente di scegliere tra un vasto numero di accessori di ssaggio disponibili in commercio come, ad esempio, cavalletti per telecamere o la bbia, inclusa nella fornitura.
2.3 FISSAGGIO MAGNETICO
La calamita integrata sul retro dell'HP32 consente di installare lo strumento con facilità su su-
perci metalliche, come ad es. prese d'aria.
Il ssaggio magnetico non funziona con l'accessorio ssato alla lettatura per caval-
letti.
2.4 CORDINO
La dotazione dell'HP32 comprende un cordino che può essere ssato allo strumento per tra­sportarlo e maneggiarlo comodamente.
3 INDICAZIONI D'USO GENERALI
3.1 BATTERIA, STANDBY E SPEGNIMENTO AUTOMATICO
L'HP32 dispone di una batteria integrata. Per caricarla collegare semplicemente lo strumento ad una porta USB con il cavo fornito in dotazione. Lo strumento dispone di una funzione di standby e di spegnimento au tomatico. Trascorsi 5 minuti senza intervento d ell'utente, il display si oscura. Dopo complessivamente 10 minuti senza alcun intervento dell'utente, lo strumento viene spento per preser varne la batteria.
Queste funzioni non pregiudicano i processi di registrazione dei dati. Se la registrazione
dei dati è stata attivata, i punti di riferimento continueranno ad essere protocollati e salvati anche quando il display è stato oscurato o spento.
3.2 PULSANTI
Sonda HC2A-S (non in dotazione)
[CORRENTE] Per accendere e spegnere l'HP32.
[SINISTRA] [DESTRA]
[SU] • Pulsante su
[OK] • Per aprire il menu principale / i sottomenu
[GIÙ] Pulsante giù
Pulsanti la cui funzione viene indicata sulla schermata.
• Scelta dei parametri (schermata iniziale)
• Per confermare l'immissione
HP32
3.3 DISPLAY E SCHERMATA INIZIALE
Barra di stato
• Ora e data
• Indicatore Hold
• Indicatore Log
• Stato della batteria
Valori di misura
Descrizione pulsanti
4 IMPOSTAZIONI GENERALI
4.1 LINGUA
Per modicare la lingua di visualizzazione andare su:
Menu principale [OK] Registrazione Lingua
Lingue disponibili: English, Deutsch, Français, Italiano
4.2 DATA/ORA
Per impostare data e ora andare su:
Menu principale [OK] Registrazione Data / Ora
Oltre alla data e all'ora è possibile effettuare le seguenti impostazioni.
• Formato data: DIN, US, ISO
• Formato ora: 12 h, 24 h
La corretta impostazione della data e dell'ora è indispensabile per un funzionamento regolare dello strumento.
4.3 UNITÀ
Per impostare le unità utilizzate e visualizzate dall'HP32 andare su:
Menu principale [OK] Registrazione Unità
È possibile selezionare fra:
• Distanza: m, f t
• Temperatura: °C, °F
• Pressione: hPa, mmHg
• Peso: kg, lbs
4.4 PARAMETRI PSICROMETRICI CALCOLATI
Oltre all'umidità relativa e alla temperatura l'HP32 può visualizzare due dei 10 parametri psi­crometrici seguenti:
• Punto di rugiada / di gelo (Dp/Fp)
• Temperatura di bulbo umido (Tw)
Entalpia specica (H)
• Densità del vapore acqueo (Dv)
Contenuto di vapore acqueo (Q )
• Rapporto di miscelazione (R)
• Pressione vapore acqueo (E)
• Saturazione vapore acqueo (Ew)
• Saturazione densità vapore (SVD)
Per selezionare i parametri che si desidera protocollare e/o visualizzare sulla schermata ini­ziale, andare su:
Menu principale [OK] Registrazione Visualizzazione dei calcoli
È possibile modicare la sequenza di visualizzazione dei valori sulla schermata iniziale
premendo sul pulsante [SU] sulla schermata iniziale.
Per modicare la costante di pressione atmosferica utilizzata nei calcoli, andare su:
Menu principale Registrazione Pressione atmosferica
5 SALVATAGGIO DEI DATI
5.1 ACQUISIZIONE/SALVATAGGIO E REGISTRAZIONI PUNTUALI
È possibile congelare i valori visualizzati sulla schermata principale premendo il pulsante [Hold/Acquisizione] presente sempre sulla schermata iniziale. Tali valori possono:
• Essere salvati come registrazione puntuale con [Acquisizione]
• Essere scartati con il pulsante [Annullare]
5.2 REGISTRAZIONE DEI DATI
È possibile programmare o avviare la registrazione automatica ad intervalli regolari con il pul-
sante [Log]. Si dovranno denire il luogo di memorizzazione, l'intervallo e, se richiesto, un orario di inizio e di ne; av viare poi il processo di registrazione premendo il pulsante [Start].
Lo strumento si accenderà automaticamente all'orario indicato per avviare la registra­zione. L'accesso al menu principale non è possibile durante la registrazione dei dati. È, tutta­via, possibile anche in questa fase eseguire registrazioni puntuali.
È necessario identicare i luoghi di memorizzazione prima dell'uso. Per selezionare
il luogo di memorizzazione utilizzare semplicemente il pulsante [Rinomina] per asse­gnare un nome.
6 VISUALIZZAZIONE DEI DATI SALVATI
6.1 REGISTRAZIONI PUNTUALI
Per controllare le registrazioni puntuali selezionare il luogo di memorizzazione procedendo come segue:
Menu principale [OK] Memoria – Acquisizione
6.2 DATI REGISTRATI
Per controllare i dati salvati selezionare il luogo di memorizzazione procedendo come segue:
Menu principale [OK] Memoria – Log
È possibile muoversi fra le visualizzazioni grache e i valori MIN / MAX / AVG dei 4 para­metri con i pulsanti [SU] e [GIÙ].
7 ALLARME
Per impostare i limiti di allar me inferiore e superiore e l'isteresi per ogni parametro visualizzato andare su:
Menu principale [OK] Allarme
I limiti di allarme superati vengono visualizzati in rosso sulla schermata iniziale.
È possibile inoltre attivare un segnale acustico per segnalare il superamento dei limiti di allarme:
Menu principale [OK] RegistrazioneCicalcino
8 CALIBRAZIONE
Per l'impostazione della sonda (umidità e temperatura) andare su:
Menu principale [OK] Regolazione
Le sonde mal calibrate forniscono risultati di misura sbagliati. Il nostro manuale contie­ne ulteriori informazioni sulla calibrazione della sonda.
9 COLLEGAMENTO AD UN COMPUTER
L'HP32 può essere collegato ad un computer attraverso il cavo USB fornito in dotazione. L'ana-
lisi dei dati e le modiche alle impostazioni vengono eseguite con il software HW4 per il quale
è stata consegnata una chiave di licenza.
Per scaricare il software HW4 e scoprire maggiori dettagli sulle sue funzioni, visitare il nostro sito: www.rotronic.com/hw4.
10 DATI TECNICI
Speciche generali
Descrizione Strumento di misura por tatile (%UR / °C) Sonde compatibili Tutte le sonde HC2 e HC2A Campo di lavoro -10…60°C | 0…100 %UR (non cond.) Come stoccarlo -10…45 °C | 10…90 %UR Campo di lavoro sonda In base alla sonda Precisione In base alla sonda Funzioni Registrazioni puntuali
Registrazioni ad inter vallo
MIN / MA X / AVG / MKT Intervallo log 1 s…24 h Memoria dei valori di misura 8 x 8000 punti di riferimento Calcoli psicrometrici Punto di rugiada / di gelo (Dp/Fp)
Temperatura di bulbo umido (Tw)
Entalpia specica (H)
Densità del vapore acqueo (Dv)
Contenuto di vapore acqueo (Q)
Rapporto di miscelazione (R)
Pressione vapore acqueo (E)
Saturazione vapore acqueo (Ew)
Saturazione densità vapore (SVD) Velocità di ripetizione display 1 s (tipico) Batteria integrata 48 h – registrazione ogni 30 s, con schermo disattivato
10 h – con schermo attivo (tipico) Interfaccia PC Collegamento per micro USB
Compatibile con HW4
Housing/ Meccanica
Materiale housing ABS, TPR Classe di protezione IP IP65 Dimensioni 160 x 63 x 30 mm Peso 185 g
www.rotronic.comItaliano
Loading...
