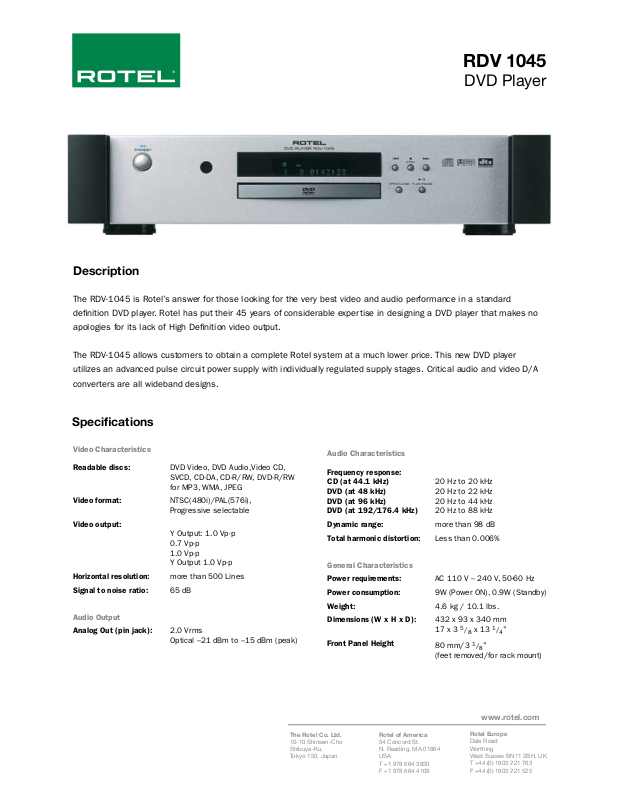

Rotel RDV-1045 Brochure
RDV 1045
DVD Player
Description
The RDV-1045 is Rotel’s answer for those looking for the very best video and audio performance in a standard
denition DVD player. Rotel has put their 45 years of considerable expertise in designing a DVD player that makes no
apologies for its lack of High Denition video output.
The RDV-1045 allows customers to obtain a complete Rotel system at a much lower price. This new DVD player
utilizes an advanced pulse circuit power supply with individually regulated supply stages. Critical audio and video D/A
converters are all wideband designs.
Specications
Video Characteristics
Readable discs: DVD Video, DVD Audio,Video CD,
SVCD, CD-DA, CD-R/RW, DVD-R/RW
for MP3, WMA, JPEG
Video format: NTSC(480i)/PAL(576i),
Progressive selectable
Video output:
Y Output: 1.0 Vp-p
0.7 Vp-p
1.0 Vp-p
Y Output 1.0 Vp-p
Horizontal resolution: more than 500 Lines
Signal to noise ratio: 65 dB
Audio Output
Analog Out (pin jack): 2.0 Vrms
Optical –21 dBm to –15 dBm (peak)
Audio Characteristics
Frequency response:
CD (at 44.1 kHz)
DVD (at 48 kHz)
DVD (at 96 kHz)
DVD (at 192/176.4 kHz)
20 Hz to 20 kHz
20 Hz to 22 kHz
20 Hz to 44 kHz
20 Hz to 88 kHz
Dynamic range: more than 98 dB
Total harmonic distortion: Less than 0.006%
General Characteristics
Power requirements: AC 110 V – 240 V, 50-60 Hz
Power consumption: 9W (Power ON), 0.9W (Standby)
Weight: 4.6 kg / 10.1 lbs.
Dimensions (W x H x D): 432 x 93 x 340 mm
Front Panel Height
5
17 x 3
80 mm/3
(feet removed/for rack mount)
/
8
x 13
1
/
"
8
1
/
"
4
