Ross Video UDA-8705A-R2 Users Manual

Ross Video Limited

UDA-8705A

Analog Utility Distribution Amplifier

User Manual

UDA-8705A • Analog Utility Distribution Amplifier User Manual

• Ross Part Number: 8705ADR-004-02

• Release Date: April 14, 2011. Printed in Canada.

The information contained in this manual is subject to change without notice or obligation.

Copyright

© 2011 Ross Video Limited. All rights reserved.

Contents of this publication may not be reproduced in any form without the written permission of
Ross Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited.

Patents

This product is protected by the following US Patents: 4,205,346; 5,115,314; 5,280,346;
5,561,404; 7,034,886; 7,508,455; 7,602,446; 7,834,886. This product is protected by the
following Canadian Patents: 2039277; 1237518; 1127289. Other patents pending.

Notice

The material in this manual is furnished for informational use only. It is subject to change without
notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited
assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.

Trademarks

• is a registered trademark of Ross Video Limited.

• Ross, ROSS, ROSS

• openGear® is a registered trademark of Ross Video Limited.

• DashBoard Control System™ is a trademark of Ross Video Limited.

• All other product names and any registered and unregistered trademarks mentioned in
this guide are used for identification purposes only and remain the exclusive property of
their respective owners.

®

are registered trademarks of Ross Video Limited.

Important Regulatory and Safety Notices

Before using this product and any associated equipment, refer to the “Important Safety
Instructions” listed below to avoid personnel injury and to prevent product damage.

Products may require specific equipment, and/or installation procedures to be carried out to
satisfy certain regulatory compliance requirements. Notices have been included in this
publication to call attention to these specific requirements.

Symbol Meanings

This symbol on the equipment refers you to important operating and maintenance
(servicing) instructions within the Product Manual Documentation. Failure to heed this
information may present a major risk of damage or injury to persons or equipment.

Warning — The symbol with the word “Warning” within the equipment manual

indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.

Caution — The symbol with the word “Caution” within the equipment manual

indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury. It may also be used to alert against unsafe practices.

Notice — The symbol with the word “Notice” within the equipment manual indicates

a situation, which if not avoided, may result in major or minor equipment damage or a
situation which could place the equipment in a non-compliant operating state.

ESD Susceptibility — This symbol is used to alert the user that an electrical or

electronic device or assembly is susceptible to damage from an ESD event.

Important Safety Instructions

Caution — This product is intended to be a component product of the DFR-8300

series frame. Refer to the DFR-8300 series frame User Manual for important safety
instructions regarding the proper installation and safe operation of the frame as well
as its component products.

Warning — Certain parts of this equipment namely the power supply area still

present a safety hazard, with the power switch in the OFF position. To avoid electrical
shock, disconnect all A/C power cards from the chassis’ rear appliance connectors
before servicing this area.

Warning — Service barriers within this product are intended to protect the operator

and service personnel from hazardous voltages. For continued safety, replace all
ba rr ie rs aft er an y s er vi cin g.
This product contains safety critical parts, which if incorrectly replaced may present a
risk of fire or electrical shock. Components contained with the product’s power
supplies and power supply area, are not intended to be customer serviced and should
be returned to the factory for repair. To reduce the risk of fire, replacement fuses must
be the same time and rating. Only use attachments/accessories specified by the
manufacturer.

EMC Notices

United States of America
FCC Part 15

This equipment has been tested and found to comply with the limits for a class A Digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

Notice — Changes or modifications to this equipment not expressly approved by

Ross Video Limited could void the user’s authority to operate this equipment.

CANADA

This Class “A” digital apparatus complies with Canadian ICES-003.

Cet appariel numerique de la classe “A” est conforme a la norme NMB-003 du Canada.

EUROPE

This equipment is in compliance with the essential requirements and other relevant provisions of
CE Directive 93/68/EEC.

INTERNATIONAL

This equipment has been tested to CISPR 22:1997 along with amendments A1:2000 and
A2:2002, and found to comply with the limits for a Class A Digital device.

Notice — This is a Class A product. In domestic environments, this product may

cause radio interference, in which case the user may have to take adequate
measures.

Maintenance/User Serviceable Parts

Routine maintenance to this openGear product is not required. This product contains no user
serviceable parts. If the module does not appear to be working properly, please contact Technical
Support using the numbers listed under the “Contact Us” section on the last page of this manual.
All openGear products are covered by a generous 5-year warranty and will be repaired without
charge for materials or labor within this period. See the “Warranty and Repair Policy” section in
this manual for details.

Environmental Information

The equipment that you purchased required the extraction and use of natural
resources for its production. It may contain hazardous substances that could
impact health and the environment.

To avoid the potential release of those substances into the environment and to diminish the need
for the extraction of natural resources, Ross Video encourages you to use the appropriate
take-back systems. These systems will reuse or recycle most of the materials from your
end-of-life equipment in an environmentally friendly and health conscious manner.

The crossed-out wheeled bin symbol invites you to use these systems.

If you need more information on the collection, reuse, and recycling systems, please contact your
local or regional waste administration. You can also contact Ross Video for more information on
the environmental performances of our products.

Company Address

Ross Video Limited

8 John Street
Iroquois, Ontario
Canada, K0E 1K0

General Business Office: (+1) 613 • 652 • 4886

Technical Support: (+1) 613 • 652 • 4886

After Hours Emergency: (+1) 613 • 349 • 0006

E-mail (Technical Support): [e-mail]

E-mail (General Information): [e-mail]

Website: http://www.rossvideo.com

Ross Video Incorporated

P.O. Box 880
Ogdensburg, New York
USA 13669-0880

Fax: (+1) 613 • 652 • 4425

Contents

Introduction 1

Overview.............................................................................................................................. 1-2

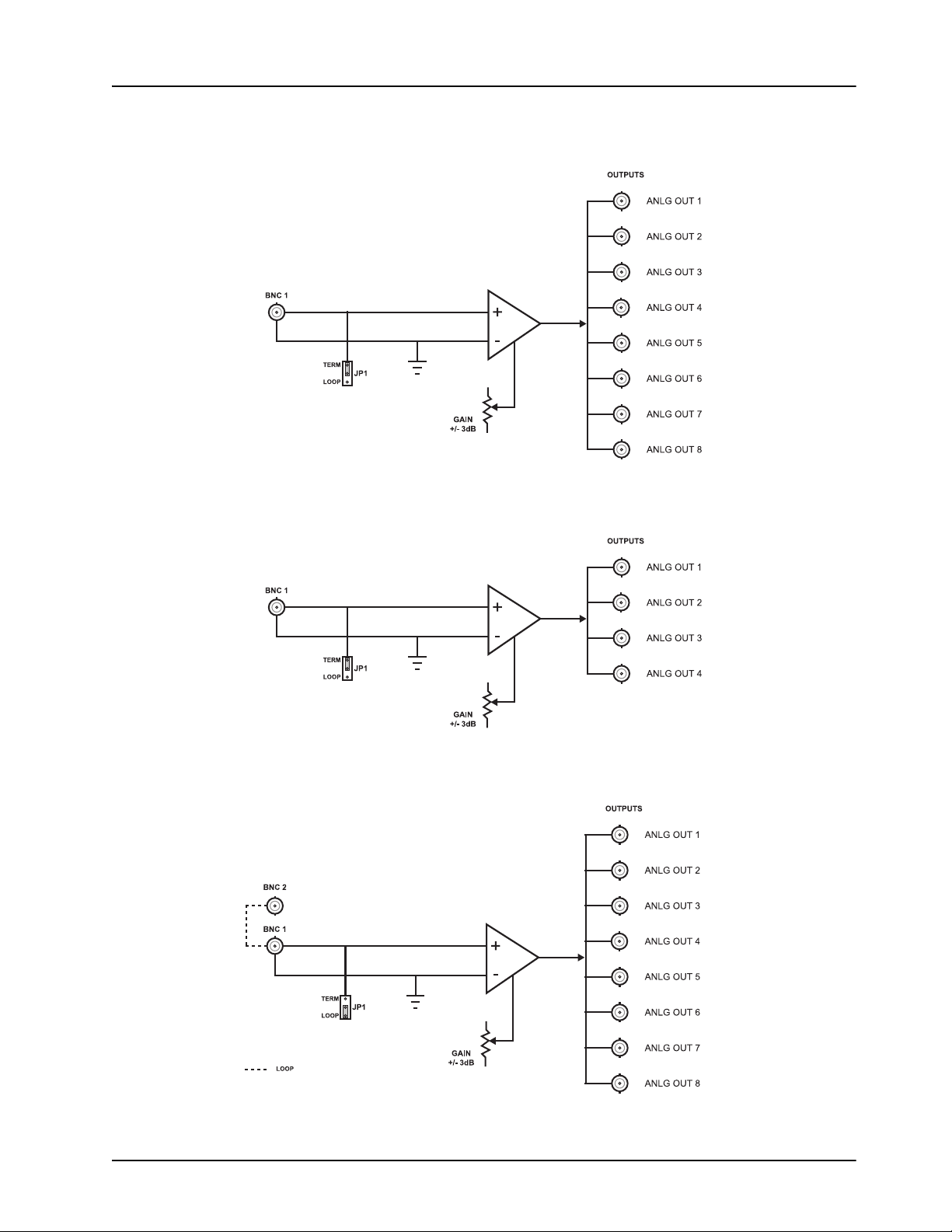

Functional Block Diagrams ................................................................................................. 1-3

Documentation Terms and Conventions.............................................................................. 1-4

Installation 2

Before You Begin ................................................................................................................2-2

Installing the UDA-8705A................................................................................................... 2-3

Cabling for the UDA-8705A ............................................................................................... 2-5

Features.................................................................................................................. 1-2

Static Discharge..................................................................................................... 2-2

Unpacking.............................................................................................................. 2-2

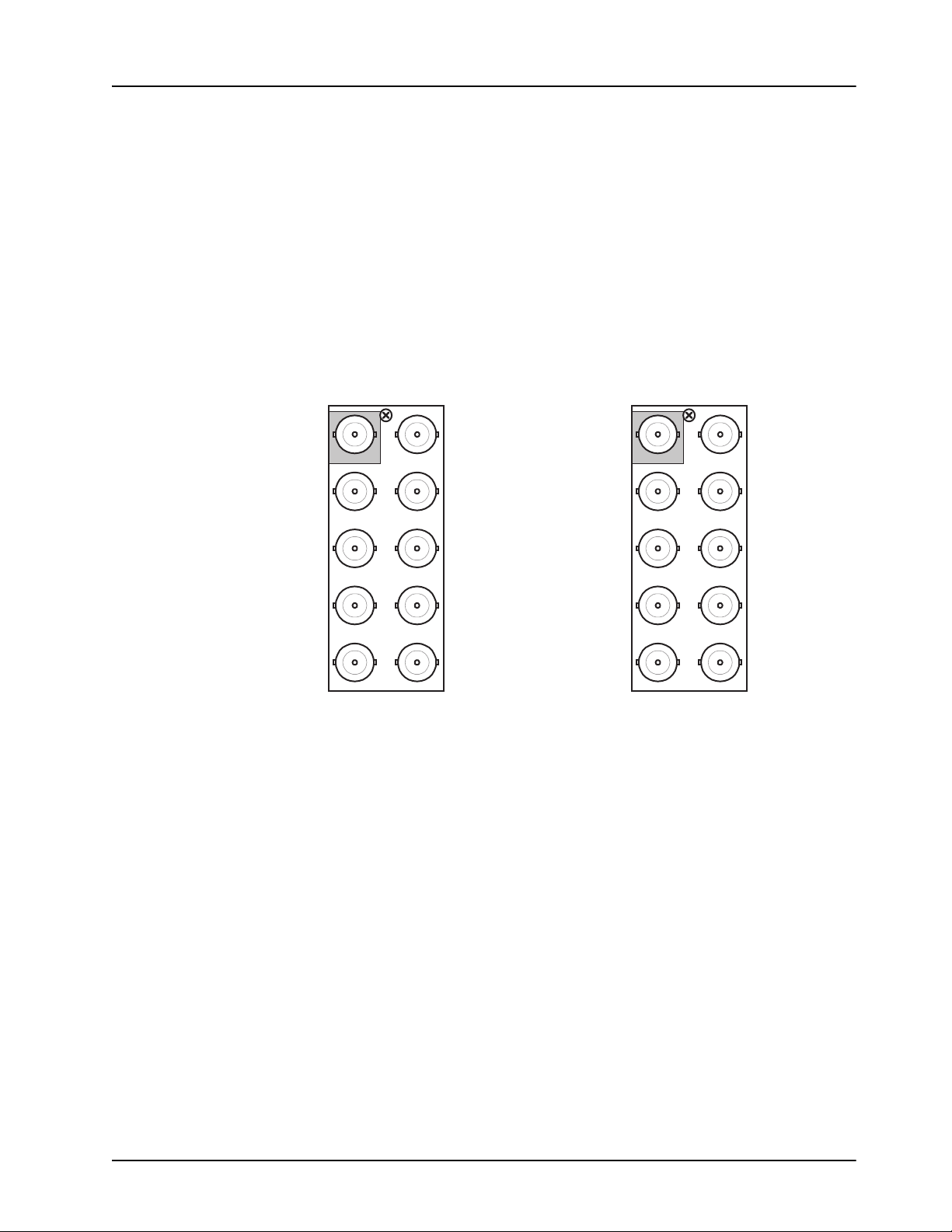

Rear Modules for the UDA-8705A ....................................................................... 2-3

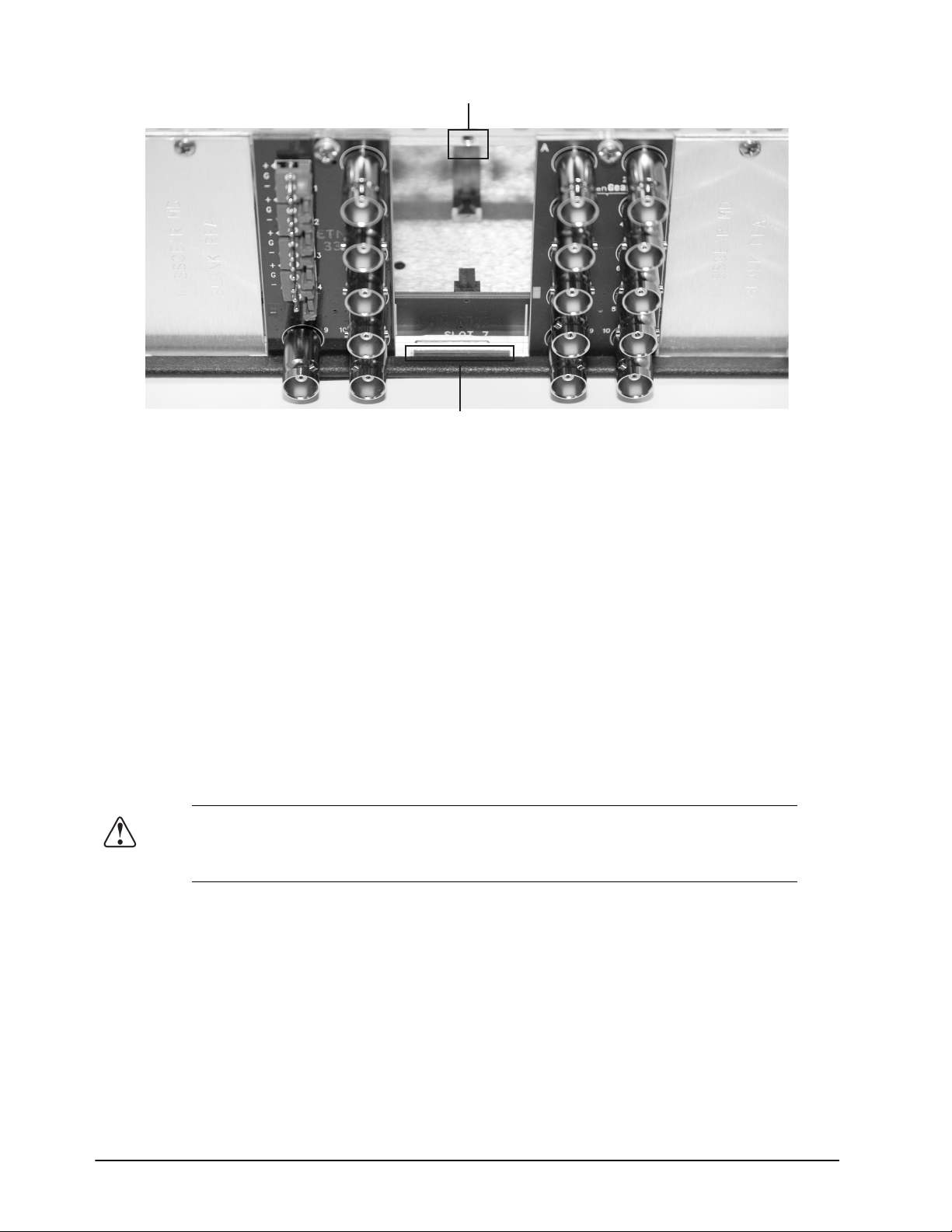

Installing a Rear Module ....................................................................................... 2-3

Installing the UDA-8705A .................................................................................... 2-4

DFR-8310 Series Frame Cabling Overview.......................................................... 2-5

DFR-8321 Series Frame Cabling Overview.......................................................... 2-5

User Controls 3

Card Overview..................................................................................................................... 3-2

Control and Monitoring Features......................................................................................... 3-3

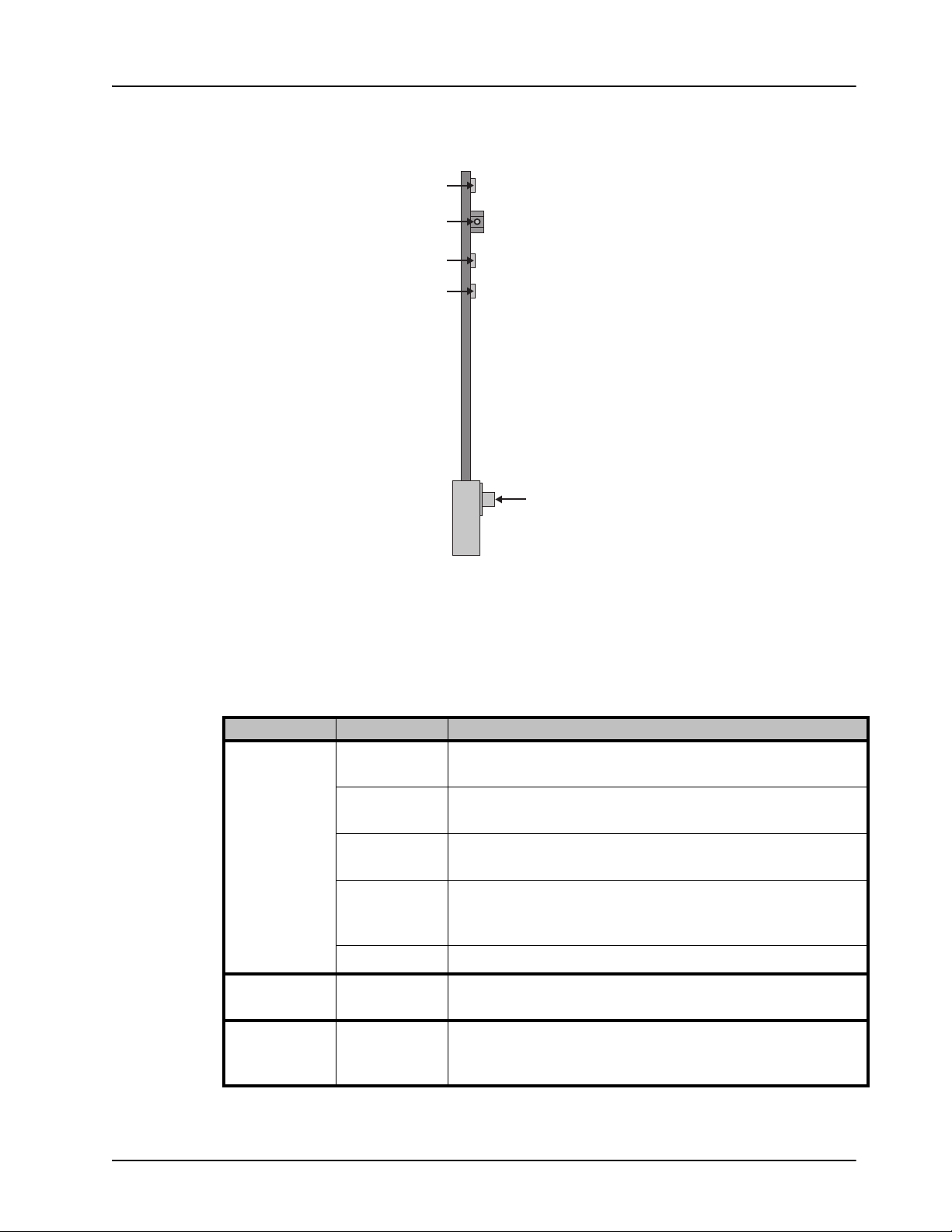

Status LEDs on the UDA-8705A .......................................................................... 3-3

Menus 4

SNMP Monitoring and Control ........................................................................................... 4-2

DashBoard Menus for the UDA-8705A .............................................................................. 4-3

Status Tabs ............................................................................................................ 4-3

Setup Menus .......................................................................................................... 4-4

Specifications 5

Technical Specifications ...................................................................................................... 5-2

Service Information 6

Troubleshooting Checklist................................................................................................... 6-2

Bootload Button .................................................................................................... 6-2

Warranty and Repair Policy................................................................................................. 6-3

UDA-8705A User Manual (Iss. 02) Contents • i

ii • Contents UDA-8705A User Manual (Iss. 02)

Introduction

In This Chapter

This chapter contains the following sections:

• Overview

• Functional Block Diagrams

• Documentation Terms and Conventions

A Word of Thanks

Congratulations on choosing an openGear UDA-8705A Analog Utility Distribution Amplifier.
Your UDA-8705A is part of a full line of Analog Products within the openGear Terminal
Equipment family of products, backed by Ross Video’s experience in engineering and design
expertise since 1974.

You will be pleased at how easily your new UDA-8705A fits into your overall working
environment. Equally pleasing is the product quality, reliability and functionality. Thank you for
joining the group of worldwide satisfied Ross Video customers!

Should you have a question pertaining to the installation or operation of your UDA-8705A,
please contact us at the numbers listed on the back cover of this manual. Our technical support
staff is always available for consultation, training, or service.

UDA-8705A User Manual (Iss. 02) Introduction • 1–1

Overview

Features

The UDA-8705A is an analog general-purpose distribution amplifier. It is very useful in digital
systems when there is a requirement for the distribution of a few analog signals, such as a color
black reference.

The UDA-8705A is a general-purpose amplifier for use in the distribution of analog SD-video,
Tri-level sync or AES3id audio. It is intended for use in situations where cable equalization and
differential input are not needed, and clamping is not required. Gain is adjustable over a wide
range of 3dB.

This amplifier is DC-coupled and will faithfully provide all aspects of a video input signal to
eight identical output copies with very low distortion. The use of new generation integrated
circuits and innovative engineering has resulted in excellent performance combined with
economy.

The UDA-8705A is designed for use in the openGear DFR-8300 series frames.

The following features make the UDA-8705A the best solution for general analog distribution:

• 8 analog video outputs

• DC Coupled

• Wide adjustable gain range of 3dB

• Low distortion

• Excellent isolation between outputs

• Power to each card is individually fused

• Reports status and configuration remotely via the DashBoard Control System™

• Fits DFR-8300 series frames

• Fully compliant with openGear specifications

• 5-year transferable warranty
