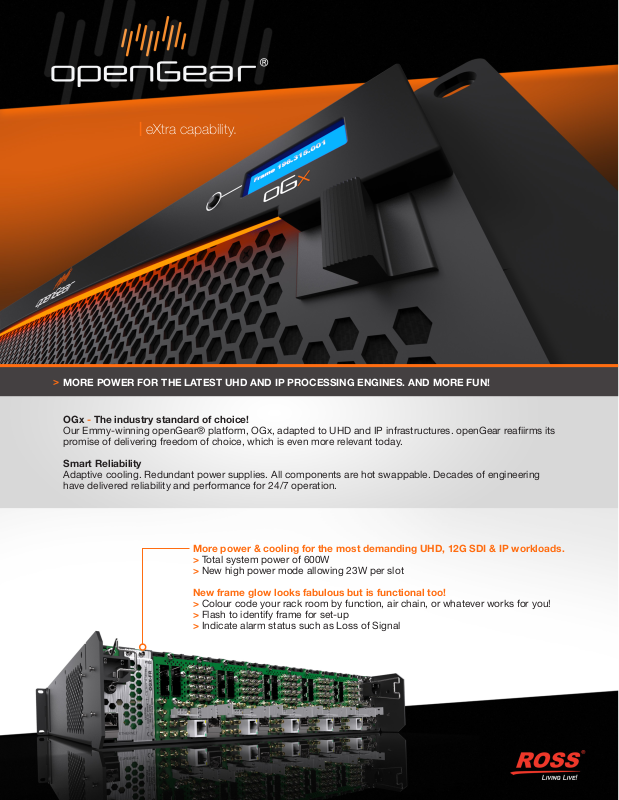

Ross Video OGXFRC Data Sheet

|

eXtra capability.

>

MORE POWER FOR THE LATEST UHD AND IP PROCESSING ENGINES. AND MORE FUN!

OGx - The industry standard of choice!

Our Emmy-winning openGear® platform, OGx, adapted to UHD and IP infrastructures. openGear reairms its

promise of delivering freedom of choice, which is even more relevant today.

Smart Reliability

Adaptive cooling. Redundant power supplies. All components are hot swappable. Decades of engineering
have delivered reliability and performance for 24/7 operation.

More power & cooling for the most demanding UHD, 12G SDI & IP workloads.
> Total system power of 600W
> New high power mode allowing 23W per slot

New frame glow looks fabulous but is functional too!
> Colour code your rack room by function, air chain, or whatever works for you!
> Flash to identify frame for set-up
> Indicate alarm status such as Loss of Signal

Smart Modular Design

Up to 20 independent slots enable an array of possible
cards and interfaces such as BNC, twisted-pair audio,

and ber, supporting analog to UHD and IP.

Smart Power

oGx accommodates 2 front-loaded, hot-swappable
power supplies. Each power supply contains an
independent cooling fan, status LED, and a front
mounted power switch.

Smart Front Panel

Know the status of your frame at a glance. Integrated
LCD display provides frame name, IP address and
reports any alarms. Customize the look of your
installation with the bold, programmable FrameGlow
feature.

Smart Control

One control system unites all openGear suppliers:
DashBoard for setup, real-time control, monitoring,

and tools for creating customized workow through

CustomPanels. The optional Advanced Networking
controller features DataSafe, which automatically saves
and restores settings if a module is swapped.

> Feature Summary

• 2RU frame houses up to 20 openGear® cards.

• Robust 600 watt redundant power supply with integral cooling.

• Front LCD display for name, IP address and fault identication.

• FrameGlow customized identication and alarming.

• Supports any mix of analog, digital, video, audio, SDI and IP modules in the same frame.

• Removable front door for easy fan servicing.

• Easily removable air lter for periodic maintenance.

• Standard DashBoard control system for setup, control and monitoring.

• Optional SNMP control and monitoring.

• Optional DataSafe card backup and restore.

DS_180406-openGear oGx_a_EN_HR

www.rossvideo.com/ogx
