Rosemount Smart Wireless THUM Adapter Quick Start Guide

Quick Start Guide

00825-0100-4075, Rev GE

September 2020

Emerson Wireless THUM™ Adapter

Quick Start Guide September 2020

Safety Messages

NOTICE

This guide provides basic guidelines for the Emerson Wireless THUM™ Adapter. It does not provide
instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or
installations. Refer to the THUM Adapter Reference Manual for more instruction. The manual and this
guide are also available electronically on Emerson.com/Rosemount.

Equipment Damage

During normal operation, or in fault condition, the THUM Adapter will cause a 2.5 V drop in the
connected loop. It is important to ensure that the power supply can provide at least 2.5 V more than
the minimum operating voltage of the wired device to make sure it works properly with the THUM
Adapter installed. To determine the minimum operating voltage for the wired device, review the wired
device operation and installation manual.

NOTICE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions:

This device may not cause harmful interference.This device must accept any interference received,
including interference that may cause undesired operation.

WARNING

Explosions could result in death or serious injury.

Installation of this transmitter in an explosive environment must be in accordance with the appropriate
local, national, and international standards, codes, and practices. Review the approvals section of this
manual for any restrictions associated with a safe installation.Before connecting a handheld
communicator in an explosive atmosphere, ensure the instruments are installed in accordance with
intrinsically safe or non-incendive field wiring practices.

Electrical shock could cause death or serious injury.

Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.Device must be installed to ensure a minimum antenna separation distance of 8 in. (20
cm) from all persons.

Contents

Wireless considerations................................................................................................................5

Bench top configuration...............................................................................................................7

Physical installation...................................................................................................................... 8

Direct mount................................................................................................................................9

Remote mount...........................................................................................................................10

Wiring diagrams.........................................................................................................................11

Device network configuration.................................................................................................... 27

2 Emerson.com/Rosemount

September 2020 Quick Start Guide

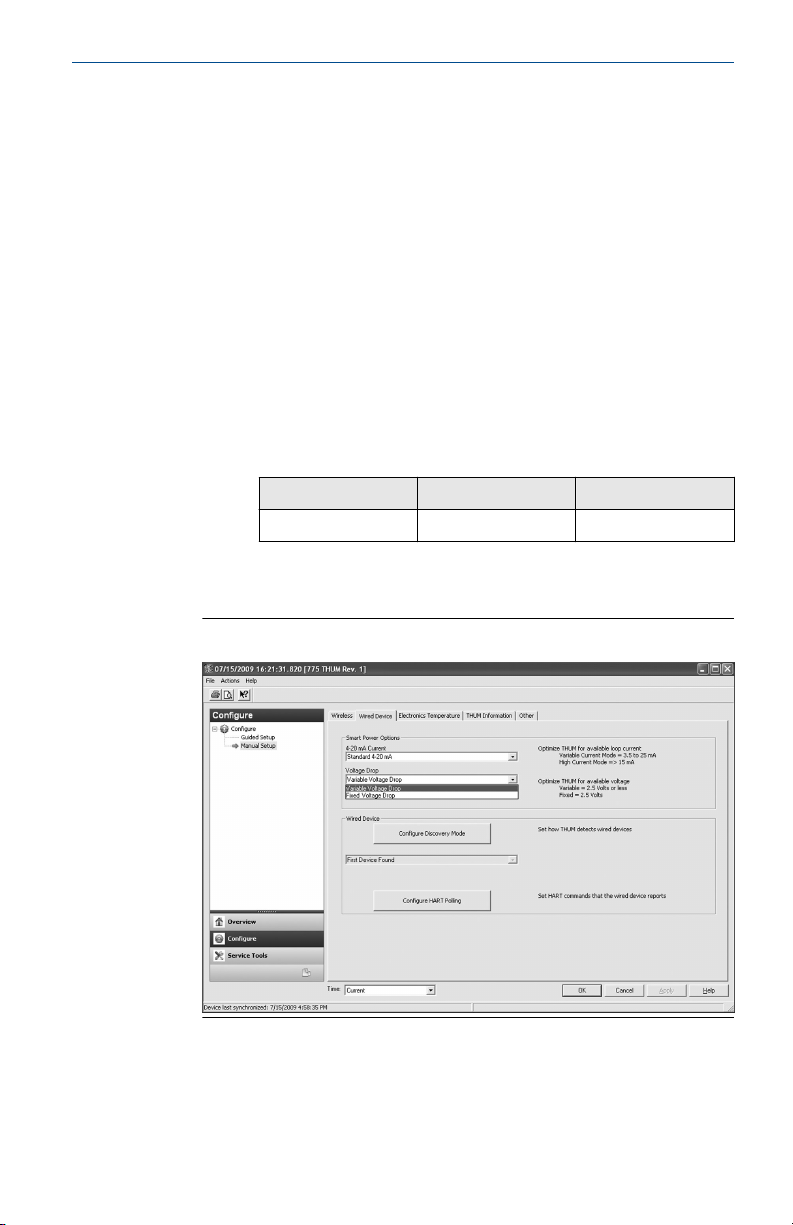

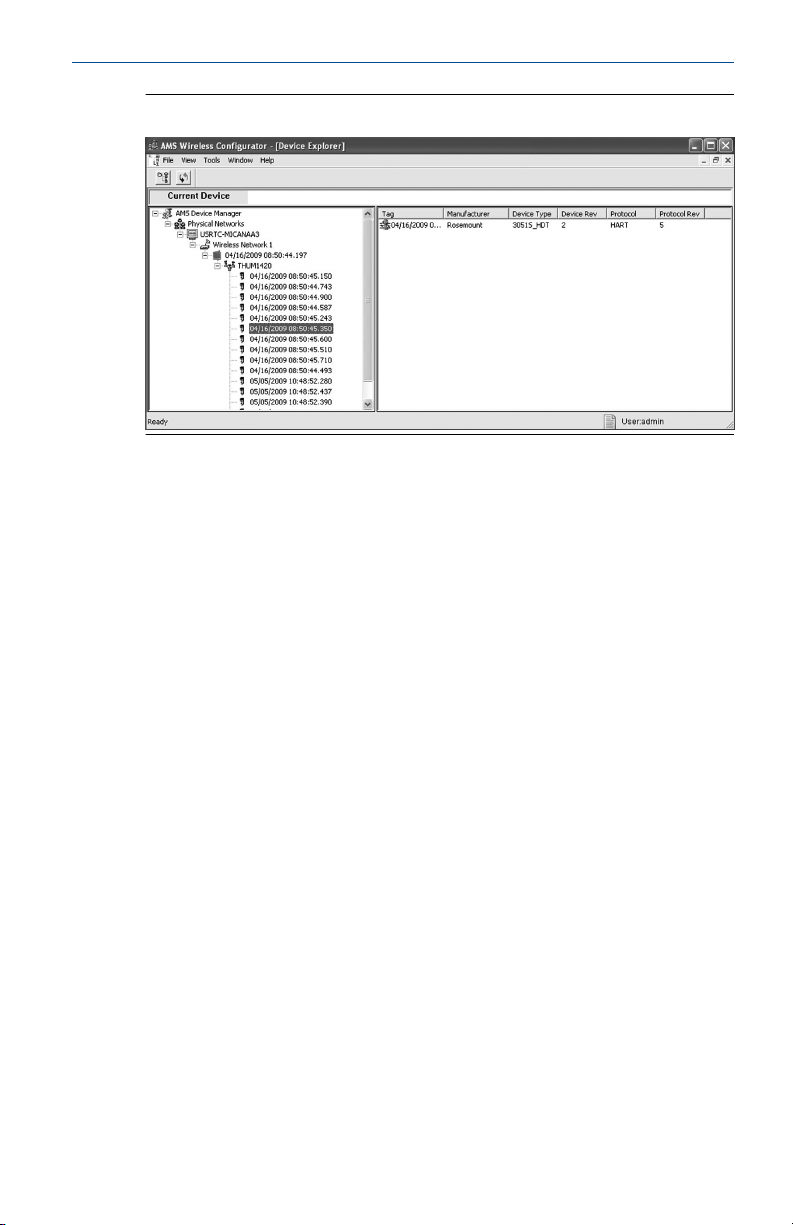

AMS Device Manager................................................................................................................. 28

Field Communicator...................................................................................................................29

Perform loop current test........................................................................................................... 30

Verify operation......................................................................................................................... 32

Troubleshooting........................................................................................................................ 34

Reference information............................................................................................................... 35

Product Certifications.................................................................................................................36

Quick Start Guide 3

Quick Start Guide September 2020

4 Emerson.com/Rosemount

September 2020 Quick Start Guide

1 Wireless considerations

1.1 Power up sequence

The power module should not be installed on any wireless device until the
Emerson Wireless Gateway (Gateway) is installed and functioning properly.
Wireless devices should also be powered up in order of proximity from the
Gateway, beginning with the closest. This will result in a simpler and faster
network installation. Enable Active Advertising on the Gateway to ensure
that new devices join the network faster. For more information see the
Wireless Gateway Reference Manual.

1.2 THUM Adapter position

THUM Adapter should be positioned vertically straight up, and should be
approximately 3 ft. (1 m) from any large structure, building or conductive
surface to allow for clear communication to other devices. If the THUM
Adapter is mounted horizontally, wireless communication range may be
decreased. The THUM Adapter should not be mounted vertically straight
down. See Wireless THUM Adapter Reference Manual for more information.

Figure 1-1: THUM Adapter Position

1.3 Conduit entry

When installing the THUM Adapter into the conduit entry of a wired device,
use an approved thread sealant. Thread sealant provides a water tight seal.
The thread sealant also provides lubrication to ensure easy removal of the
THUM Adapter.

1.4

Quick Start Guide 5

M20 conduit adapter

When using the M20 Conduit Adapter on the THUM Adapter, use an
approved thread sealant and tighten wrench tight to the THUM Adapter.
When installing the M20 conduit adapter into a conduit, tighten to 32.5 N­m/25 ft-lb to ensure watertight seal.

Quick Start Guide September 2020

Field Communicator connections

In order for the Field Communicator to interface with the THUM Adapter,
the wired device must be powered. The Field Communicator must be put
into poll mode and should use the THUM Adapter address of 63.

1.5 Power supply

• Minimum loop load of 250 Ohms.

• The THUM Adapter communicates via and derives power from a

standard 4–20 mA/HART® loop. The THUM Adapter causes a small
voltage drop on the loop which is linear from 2.25 V at 3.5 mA to 1.2 V at
25 mA. Under fault conditions, the maximum voltage drop is 2.5 V. The
THUM Adapter will not affect the 4–20 mA signal under normal or fault
conditions as long as the loop has at least a 2.5 V margin at the
maximum loop current (25 mA for a typical 4–20 mA/HART device).

• Limit the power supply to 0.5 Amps maximum and voltage to 55 Vdc.

Loop current THUM Adapter voltage drop

3.5 mA 2.25 V

25 mA 1.2 V

1.6 Load resistor

If required, add a load resistor as shown in Figure 8 on page 10, Figure 12 on
page 13, and Figure 16 on page 15. The resistor should be adequately rated
for the application (1 W minimum) and be compatible with the supplied
splice connector which accepts wire sizes from 14 to 22 AWG.

1.7

6 Emerson.com/Rosemount

Loop

To ensure proper operation, the THUM Adapter should not be installed on a
HART loop with other active HART masters. HART masters that are active
periodically, such as a field communicator can be used on a loop with a
THUM Adapter.

A

Green

Red

Black

White

Yellow

B

C

D

+

-

Green

Red

Black

White

Yellow

A

B

C

+

-

D

September 2020 Quick Start Guide

2 Bench top configuration

When performing bench top configuration it is suggested that you connect
the THUM Adapter to a wired device. If this is not possible, the following
wiring diagrams can be used. For bench top configuration, ensure the power
supply used is limited to 0.5 A maximum.

Figure 2-1: THUM Adapter Only, Powered by a Current Source

A. THUM Adapter
B. Ground
C. 20 mA current source

D. HART Modem

Figure 2-2: THUM Adapter Only, Powered by a 24 V Power Supply with
1200 Ohm Resistor to Limit Current to 20 mA

Quick Start Guide 7

Quick Start Guide September 2020

3 Physical installation

The THUM Adapter can be installed in one of two configurations:

1. Direct mount: The THUM Adapter is connected directly to the
conduit entry of the wired device.

2. Remote mount: The THUM Adapter is mounted separate from the
wired device housing and then connected to the wired device using
conduit or other suitable means.

8 Emerson.com/Rosemount

September 2020 Quick Start Guide

4 Direct mount

Prerequisites

Install the HART device according to standard installation practices and the
manufacturer’s instructions, being sure to use an approved thread sealant
on all connections.

Procedure

1. Attach the THUM Adapter to the wired device as shown in Figure 4-1.

Figure 4-1: Direct Mount

2. Connect the THUM Adapter to the HART wired device using the

Wiring diagrams.

3. Close the housing cover on the HART wired device, so that metal
touches metal, but do not overtighten to prevent damaging the unit.

Note

Two splice connectors are included with the THUM Adapter. The first
is a two connection splice. The second is a three connection splice for
use with a resistor, if there is not enough resistance in the loop. Both
of these splice connectors can accept 14 to 22 gauge wire. See wired
device reference manual for information on the required loop
resistance.

Quick Start Guide 9

Quick Start Guide September 2020

5 Remote mount

Prerequisites

Install the HART device according to standard installation practices and the
manufacturer’s instructions, being sure to use an approved thread sealant
on all connections.

Procedure

1. The THUM Adapter should be mounted as shown in Figure 5-1.

Figure 5-1: Remote Mount

2. Ground the Remote Mount Kit per local practices.

3. Connect the THUM Adapter to the wired device using standard
practices. Wire running from the THUM Adapter to the wired device
should be shielded or in conduit when installed in electrically noisy
environments.

4. Connect the THUM Adapter to the HART wired device using the

Wiring diagrams.

5. Close the housing cover on the HART wired device, so that metal
touches metal, but do not overtighten to prevent damaging the unit.

Note

Two splice connectors are included with the THUM Adapter. The first
is a two connection splice. The second is a three connection splice for
use with a resistor, if there is not enough resistance in the loop. Both
of these splice connectors can accept 14 to 22 gauge wire. See wired
device reference manual for information on the required loop
resistance.

10 Emerson.com/Rosemount

A

Green

Red

Black

White

Yellow

4 -20 mA Loop +

4 -20 mA Loop -

B

C

D

E

F

- PWR/COMM

+ PWR/COMM

September 2020 Quick Start Guide

6 Wiring diagrams

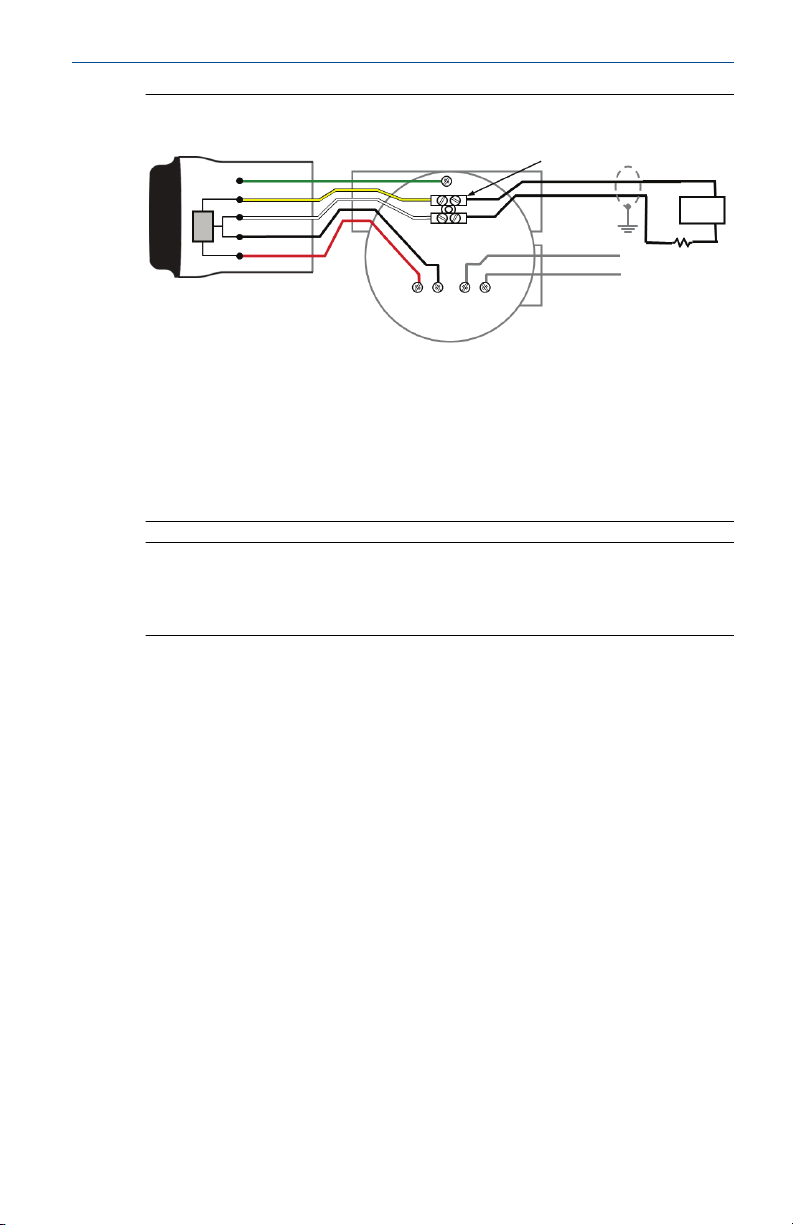

Figure 6-1: Direct Mount Wiring Diagram for 2-Wire Device

A. THUM Adapter
B. Wired device
C. Ground

D. Splice connector

E. Load resistor ≥ 250 W
F. Power supply

Note

In order for the THUM Adapter to function properly there must be at least
250 Ohms resistance in the loop. If the 4–20 mA loop does not have the
required resistance, wire a resistor as shown in Figure 6-3,Figure 6-7, or

Figure 6-11 as applicable.

Quick Start Guide 11

A

B

Green

C

Red

Black

White

Yellow

D

+ COMM

- COMM

To Wired Device

4 -20 mA Loop +

4 -20 mA Loop -

E

F

Quick Start Guide September 2020

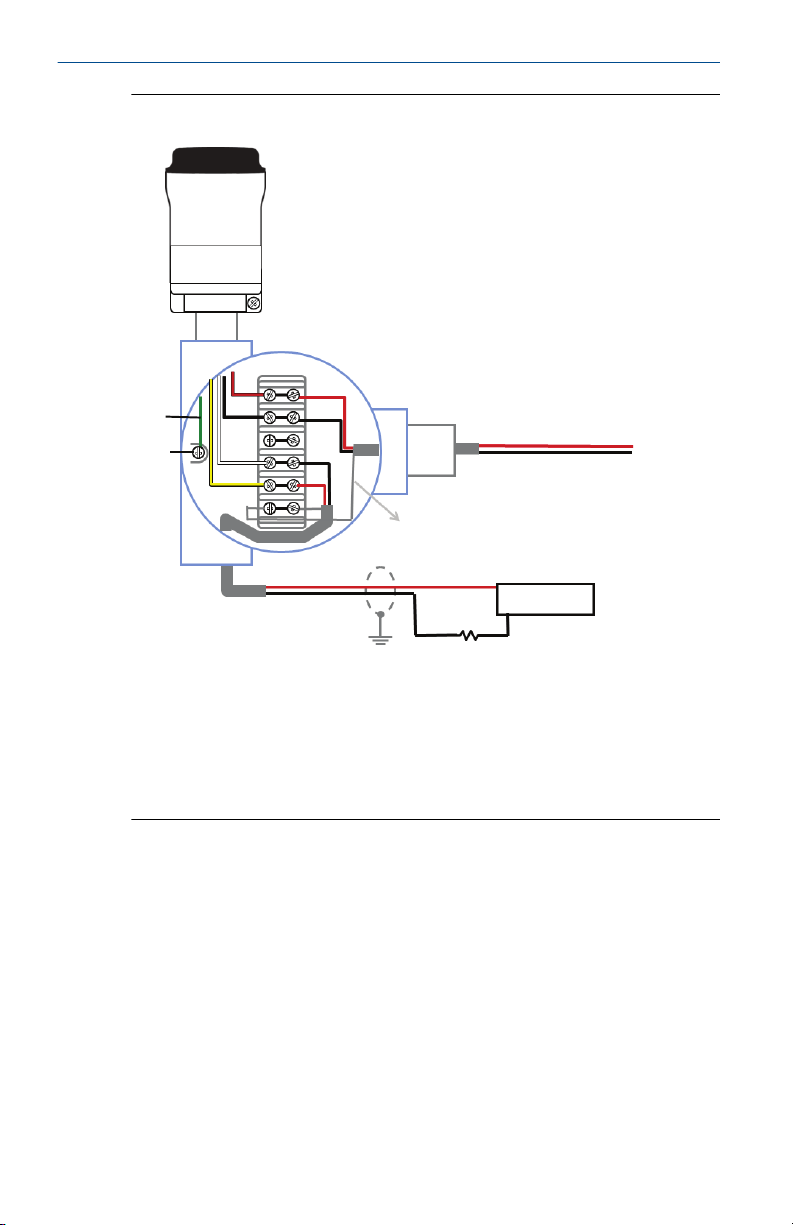

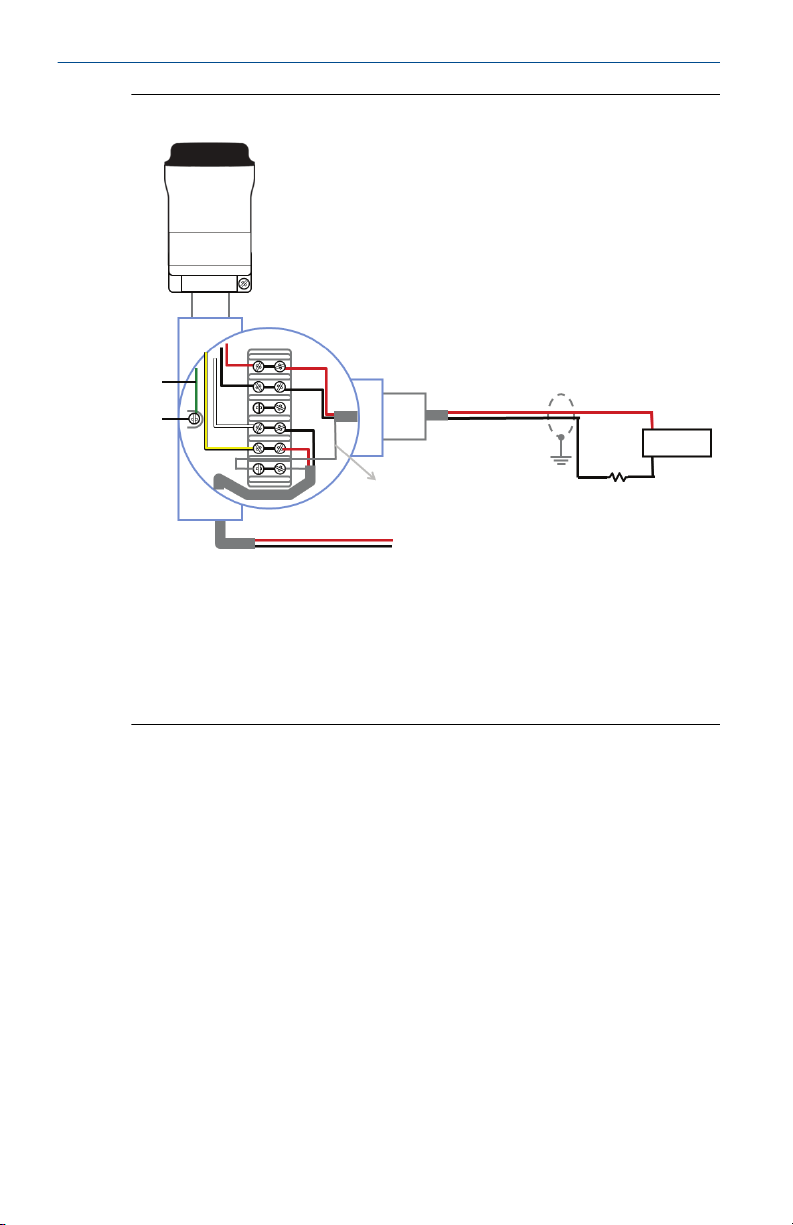

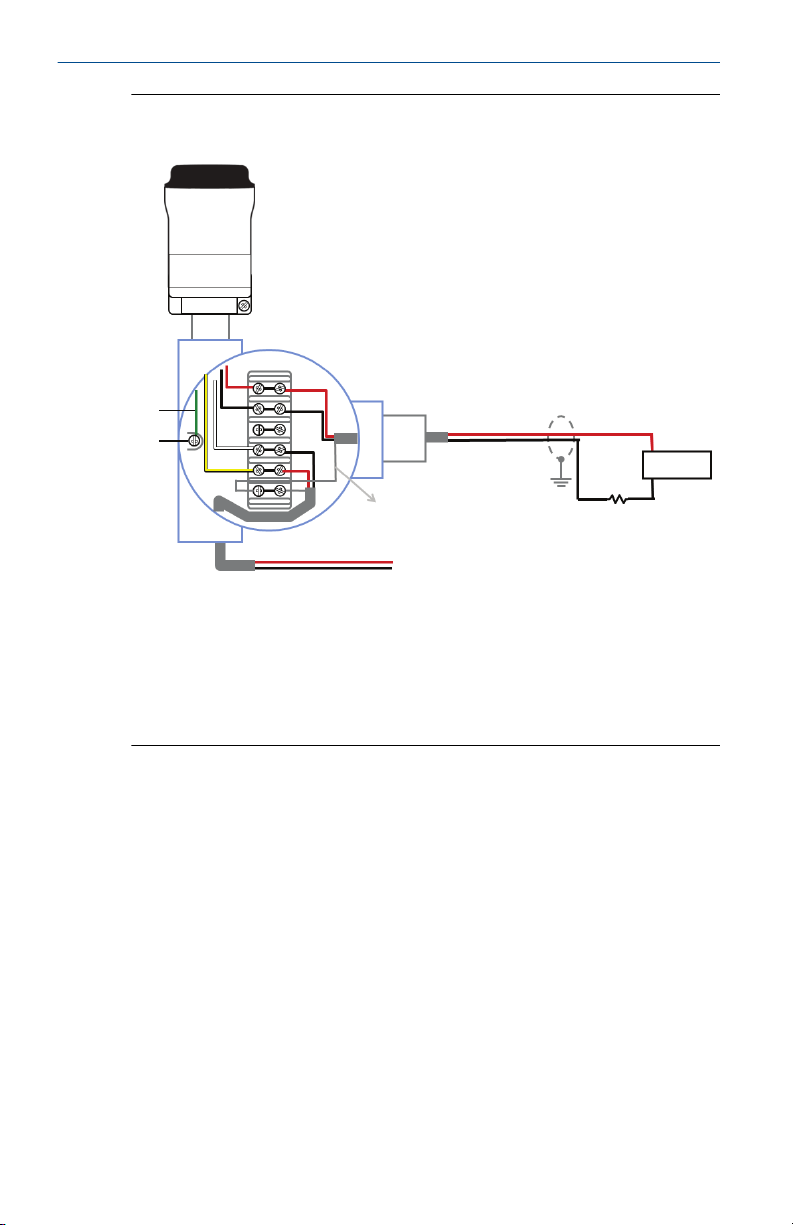

Figure 6-2: Remote Mount Wiring Diagram for 2-Wire Device

A. THUM Adapter
B. Remote mount housing
C. Ground

D. Shield wire

E. Load resistor ≥ 250 Ω
F. Power supply

12 Emerson.com/Rosemount

A

Green

Red

Black

White

Yellow

4 -20 mA Loop -

F

B

C

E

D

- PWR/COMM

+ PWR/COMM

4 -20 mA Loop +

September 2020 Quick Start Guide

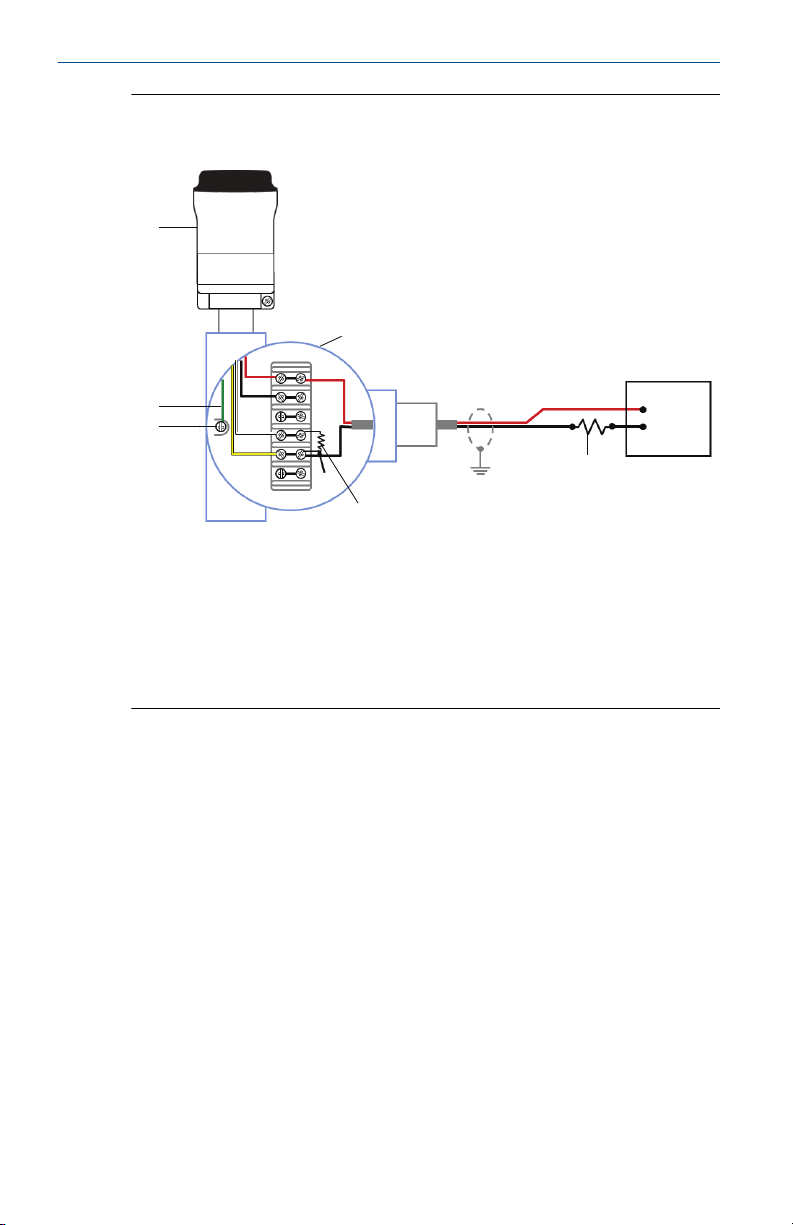

Figure 6-3: Direct Mount Diagram for 2-Wire Device with Resistor

A. THUM Adapter
B. Wired device
C. Ground

D. Splice connector

E. Load resistor ≥ 250 Ω
F. Power supply

Quick Start Guide 13

A

B

C

Green
White

Yellow

Red

Black

D

E

+ COMM

- COMM

To Wired Device

4 - 20 mA Loop +

4 - 20 mA Loop -

+

-

F

Quick Start Guide September 2020

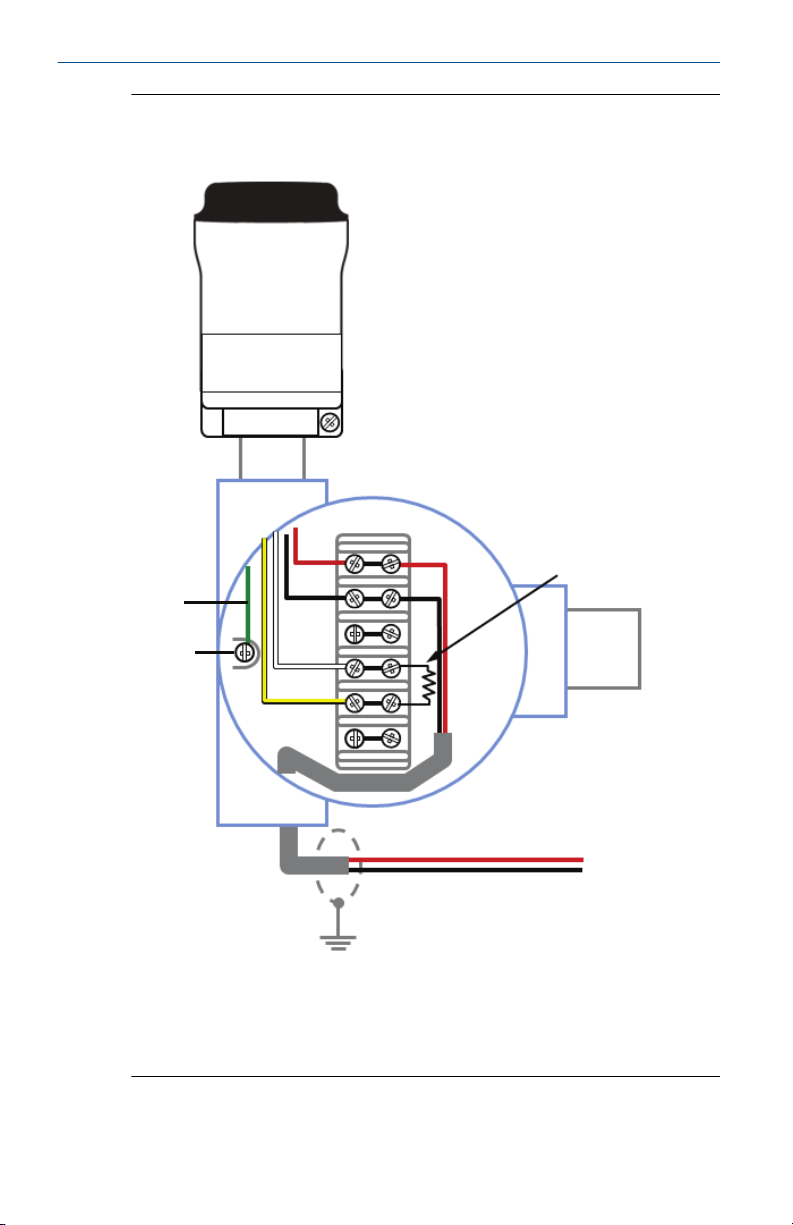

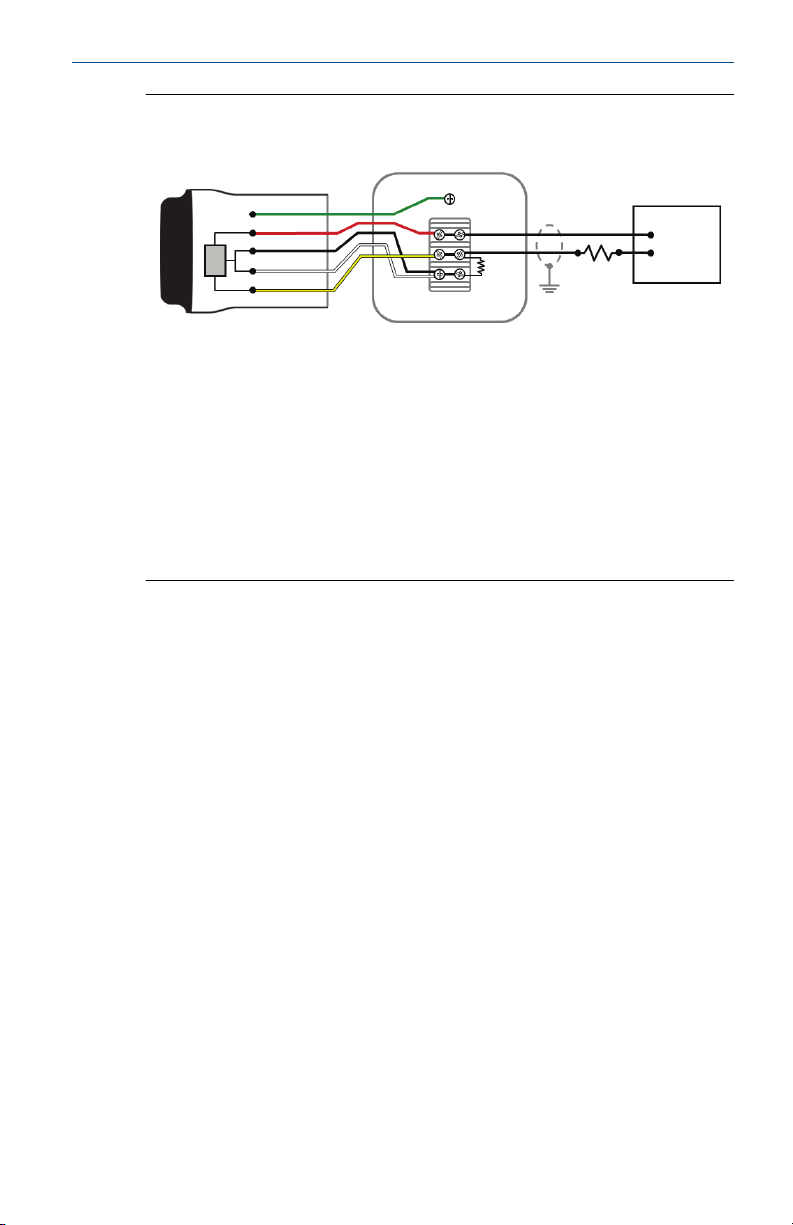

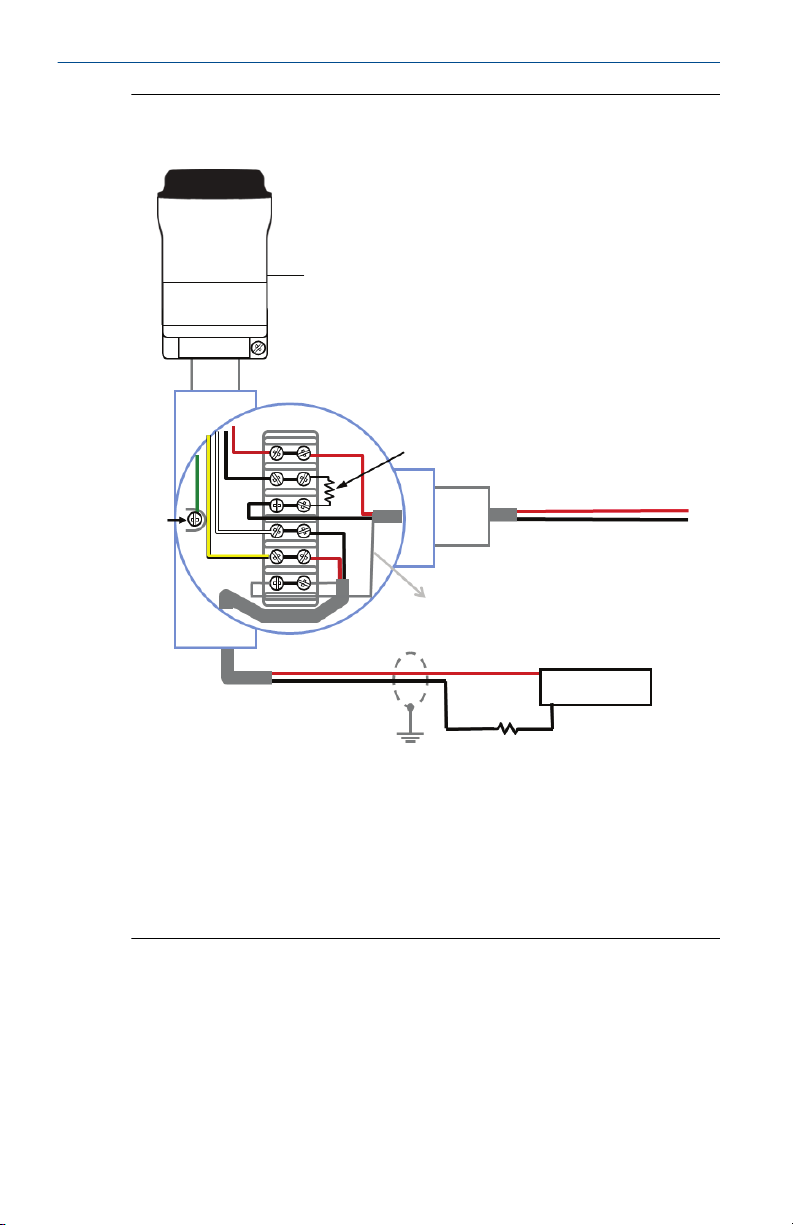

Figure 6-4: Direct Mount Wiring Diagram for 2-Wire Device with
Resistor

A. THUM Adapter
B. Remote mount housing
C. Ground

D. Shield wire

E. Load resistor ≥ 250 Ω
F. Power supply

14 Emerson.com/Rosemount

A

Green

Red

Black

White

Yellow

B

C

COMM +

COMM -

Power -

Power +

D

E

4 - 20 mA Loop +

4 -20 mA Loop -

F

September 2020 Quick Start Guide

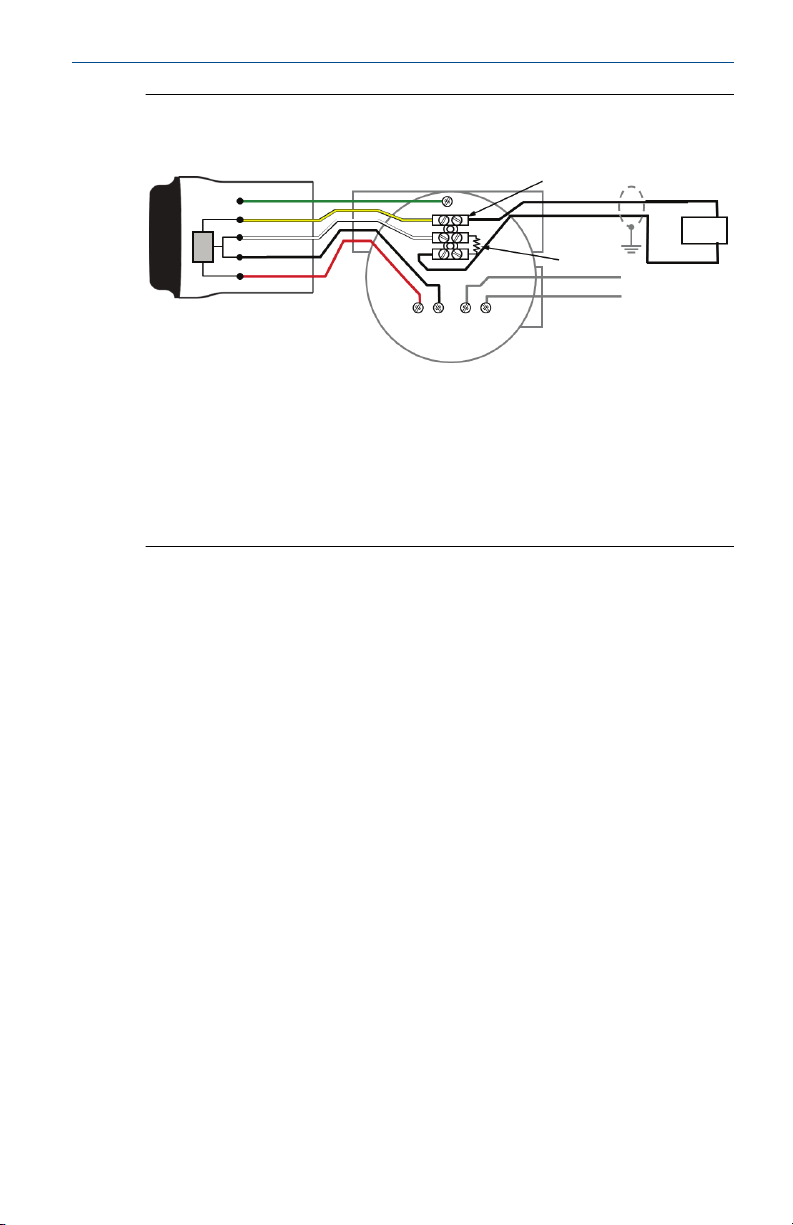

Figure 6-5: Direct Mount Wiring Diagram for 4-Wire Passive Device

A. THUM Adapter
B. Wired device
C. Ground

D. Splice connector

E. Load resistor ≥ 250 Ω
F. Power supply

Note

A passive loop exists when the wired device is not supplying power to the 4–
20 mA loop. It is important to verify if the wired device is operating in active
or passive mode.

Quick Start Guide 15

A

B

Green

C

D

+ COMM

- COMM

4 -20 mA Loop +

4 -20 mA Loop -

To Wired Device

E

F

+

-

Quick Start Guide September 2020

Figure 6-6: Remote Mount Wiring Diagram for 4-Wire Passive Device

A. THUM Adapter
B. Remote mount housing
C. Ground

D. Shield wire

E. Load resistor ≥ 250 Ω
F. Power supply

16 Emerson.com/Rosemount

A

Green

Red

Black

White

Yellow

B

C

COMM +

COMM -

Power +

Power -

4 - 20 mA Loop +

4 -20 mA Loop -

D

E

+

-

F

September 2020 Quick Start Guide

Figure 6-7: Direct Mount Wiring Diagram for 4-Wire Passive Device with
Resistor

A. THUM Adapter
B. Wired device
C. Ground

D. Splice connector

E. Load resistor ≥ 250 Ω
F. Power supply

Quick Start Guide 17

Green

A

C

B

D

+ COMM

- COMM

To Wired Device

4 - 20 mA Loop +

4 - 20 mA Loop -

E

+

-

F

Quick Start Guide September 2020

Figure 6-8: Remote Mount Wiring Diagram for 4-Wire Passive Device
with Resistor

A. THUM Adapter
B. Remote mount housing
C. Ground

D. Shield wire

E. Load resistor ≥ 250 Ω
F. Power supply

18 Emerson.com/Rosemount

A

Green

Yellow

White

Black

Red

B

COMM +

COMM -

Power +

Power -

C

D

E

F

+

-

September 2020 Quick Start Guide

Figure 6-9: Direct Mount Wiring Diagram for 4-Wire Active Device

A. THUM Adapter
B. Wired device
C. Ground

D. Splice connector

E. Load resistor ≥ 250 Ω
F. Input card

Note

An active loop exists when the wired device is supplying the power to the 4–
20 mA loop. It is important to verify if the wired device is operating in active
or passive mode.

Quick Start Guide 19

A

B

Green

C

D

+ COMM

- COMM

To Wired Device

4-20 mA Loop +

4-20 mA Loop -

E

F

Quick Start Guide September 2020

Figure 6-10: Remote Mount Wiring Diagram for 4-Wire Active Device

A. THUM Adapter
B. Remote mount housing
C. Ground

D. Shield wire

E. Load resistor ≥ 250 Ω
F. Input card

20 Emerson.com/Rosemount

A

B

C

D

E

F

+
_

Green

Yellow
White

Black
Red

Comm +

Comm -

Power +

Power -

September 2020 Quick Start Guide

Figure 6-11: Direct Mount Wiring Diagram for 4-Wire Active Device
with Resistor

A. THUM Adapter
B. Wired device
C. Ground

D. Splice connector

E. Load resistor ≥ 250 Ω
F. Input card

Quick Start Guide 21

A

B

C

D

E

E

F

4 - 20 mA Loop +

4 - 20 mA Loop -

COMM +

COMM -

G

Quick Start Guide September 2020

Figure 6-12: Remote Mount Wiring Diagram for 4-Wire Active Device
with Resistor

A. THUM Adapter
B. Remote mount housing
C. Ground

D. Shield wire

E. Load resistor ≥ 250 Ω
F. Input card

G. To wired device

22 Emerson.com/Rosemount

Green

Yellow

White

Black

Red

A

B

C

COMM +

COMM -

Power -

Power +

D

E

September 2020 Quick Start Guide

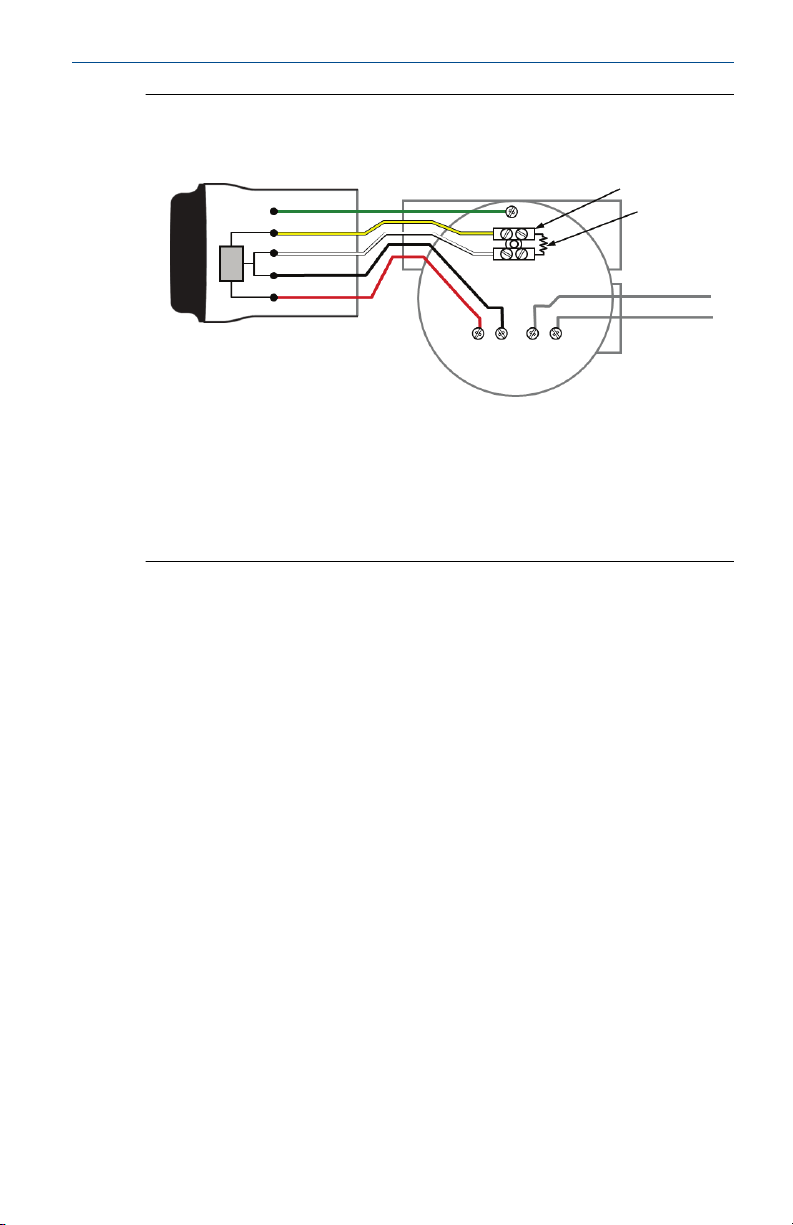

Figure 6-13: Direct Mount Wiring Diagram for 4-Wire Active Device
with No 4-20 mA Loop

A. THUM Adapter
B. Wired device
C. Ground

D. Splice connector

E. Load resistor ≥ 250 Ω

Quick Start Guide 23

A

Green

C

B

D

Red

Black

White

Yellow

+ COMM

- COMM

To Wired Device

Quick Start Guide September 2020

Figure 6-14: Remote Mount Wiring Diagram for 4-Wire Active Device
with No 4–20 mA Loop

A. THUM Adapter
B. Remote mount housing
C. Ground

D. Load resistor ≥ 250 Ω

24 Emerson.com/Rosemount

A

Green

Red

Black

White

Yellow

B

C

D

E

F

+

-

September 2020 Quick Start Guide

Figure 6-15: THUM Adapter only, Powered by a 24 V Power Supply with
1200 Ohm resistor to limit current to 20 mA

A. THUM Adapter
B. Junction box
C. Ground

D. 250 Ω resistor

E. 1200 Ohm resistor required
F. 24 V power supply

Quick Start Guide 25

A

B

Green

C

Red

Black

White

Yellow

D

E

F

+

-

Quick Start Guide September 2020

Figure 6-16: THUM Adapter only, Powered by a 24 V Power Supply with
1200 Ohm Resistor to Limit Current to 20 mA

A. THUM Adapter
B. Remote mount housing
C. Ground

D. 250 Ω resistor

E. 1200 ohm resistor required
F. 24 V power supply

26 Emerson.com/Rosemount

September 2020 Quick Start Guide

7 Device network configuration

In order to communicate with the Emerson Wireless Gateway, and
ultimately the Information System, the transmitter must be configured to
communicate with the wireless network. This step is the wireless equivalent
of connecting wires from a transmitter to the information system. Using a
Field Communicator or AMS Device Manager, enter the Network ID and Join
Key so that they match the Network ID and Join Key of the gateway and
other devices in the network. If the Network ID and Join Key are not identical,
the THUM Adapter will not communicate with the network. The Network ID
and Join Key may be obtained from the Gateway on the Setup → Network
→ Settings page on the web server, shown in Figure 7-1.

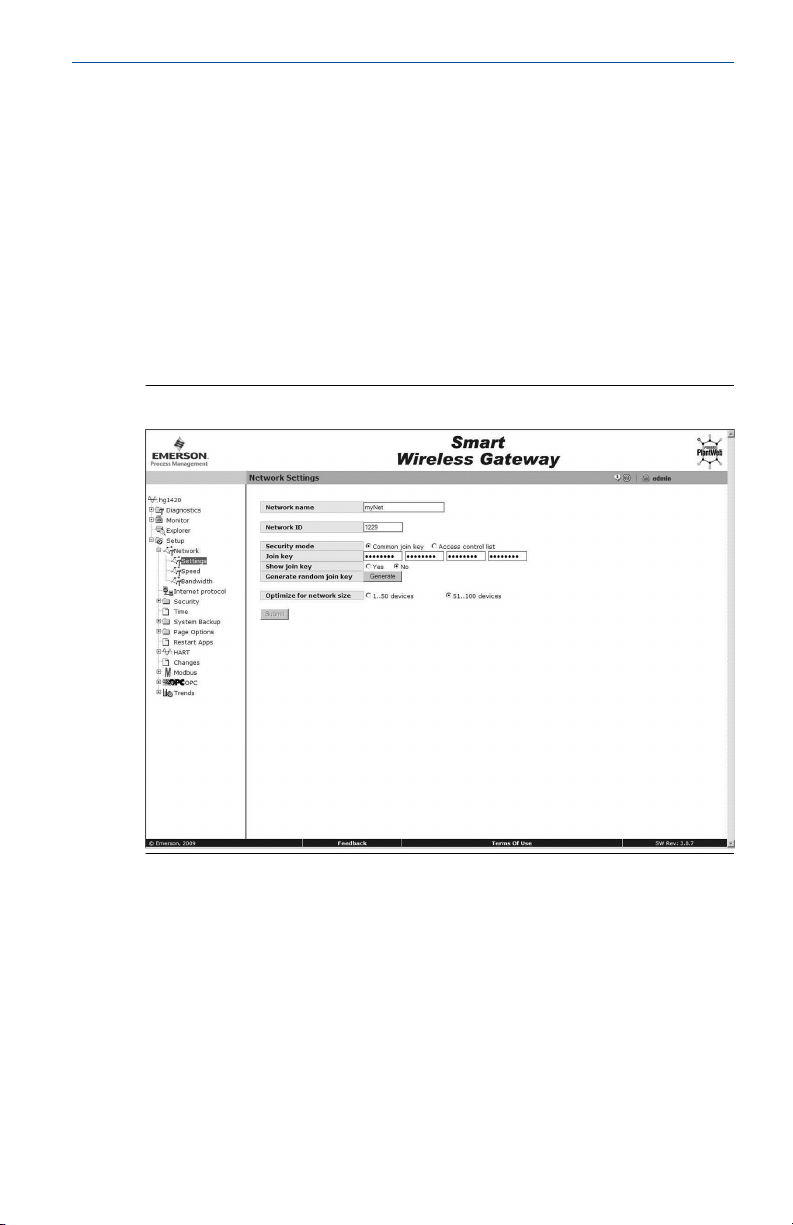

Figure 7-1: Gateway Network Settings

Quick Start Guide 27

Quick Start Guide September 2020

8 AMS Device Manager

Right click on the THUM Adapter and select Configure. When the menu
opens, select Join Device to Network and follow the method to enter the
Network ID and Join Key.

28 Emerson.com/Rosemount

September 2020 Quick Start Guide

9 Field Communicator

The Network ID and Join Key may be changed in the wireless device by using
the following Fast Key sequence. Set both Network ID and Join Key.

Function Fast Key seques Menu Items

Wireless Setup 1, 4 Smart Power, Network ID, Set Join Key,

Radio State

Quick Start Guide 29

Quick Start Guide September 2020

10 Perform loop current test

To verify the THUM Adapter will work under all conditions, a loop current
test should be performed. This test will exercise the loop under the highest
possible voltage drop conditions.

Procedure

1. Place loop in manual control.

2. Drive loop to high alarm level. For details, see wired device
instruction manual.

• When the THUM Adapter is connected to a valve, this will need to

be done at the current source and not from the valve.

• When the THUM Adapter is connected to a transmitter, this will

need to be performed at the transmitter.

3. Place the THUM Adapter into fixed voltage drop mode.

Configuring fixed voltage drop mode using AMS Device Manager

a) Right click on the THUM Adapter and select Configure.

b) When the menu opens, select Manual Setup from the window

on the left and select the Wired Device tab on the top.

c) Make sure the Time drop down menu at the bottom of the

page has Current selected.

d) Under the Voltage Drop drop down menu in the Smart Power

Options box, select Fixed Voltage Drop.

e) Select the Apply button to make any changes. See Figure 10-1

Configuring fixed voltage drop mode using Field Communicator

a) When communicating to the THUM Adapter select:

Configure → Manual setup → Wired Device → Voltage
Drop Mode

b) In the method select Fixed Voltage Drop.

Function

Voltage Drop 2, 2, 2, 2 Voltage Drop

4. Verify the current on the loop reaches the high alarm levels.

5. Place the THUM Adapter into variable voltage drop mode.

Configuring variable voltage drop mode using AMS Device
Manager

30 Emerson.com/Rosemount

Fast Key sequence Menu items

September 2020 Quick Start Guide

a) Right click on the THUM Adapter and select Configure.

b) When the menu opens, select Manual Setup from the window

on the left and select the Wired Device tab on the top.

c) Make sure the Time drop down menu at the bottom of the

page has Current selected.

d) Under the Voltage Drop drop down menu in the Smart Power

Options box, select Variable Voltage Drop.

e) Select the Apply button to make any changes. See Figure 10-1

Configuring fixed voltage drop mode using Field Communicator

a) When communicating to the THUM Adapter select:

Configure → Manual setup → Wired Device → Voltage
Drop Mode.

b) In the method select Variable Voltage Drop.

Function Fast Key sequence Menu items

Voltage Drop 2, 2, 2, 2 Voltage Drop

6. Remove loop from high alarm value.

Figure 10-1: AMS Device Manager Configure Screen

Quick Start Guide 31

Quick Start Guide September 2020

11 Verify operation

Operation can be verified using one of three methods: Field Communicator,
the Wireless Gateway’s integrated web interface, or via AMS Device
Manager.

11.1 Verify operation using Field Communicator

For HART Wireless transmitter communication, a THUM Adapter DD is
required.The Field Communicator must be put into poll mode using the
THUM Adapter address of 63. Use the wired device documentation to
connect the Field Communicator to the THUM Adapter.

Table 11-1: Field Communicator Connections

Function Fast Key sequence Menu items

Communications 3, 3 Join Status, Wireless Mode, Join Mode,

11.2 Verify operation using Emerson Wireless Gateway

If the THUM Adapter was configured with the Network ID and Join Key, and
sufficient time has passed for network polling, the transmitter will be
connected to the network. To verify device operation and connection to the
network with the Gateway’s integrated web server, open the Gateway’s
integral web interface and navigate to the Explorer page.

Number of Available Neighbors, Number
of Advertisements Heard, Number of
Join Attempts

Note

It may take several minutes for the device to join the network.

11.3

32 Emerson.com/Rosemount

Verify operation using AMS Device Manager

When the device has joined the network, it will appear in the AMS Device
Manager as illustrated below.

September 2020 Quick Start Guide

Figure 11-1: AMS Device Manger

Quick Start Guide 33

Quick Start Guide September 2020

12 Troubleshooting

If the device is not operating properly, refer to the troubleshooting section
of the manual. The most common cause of incorrect operation is the
Network ID and Join Key. The Network ID and Join Key in the device must
match that of the Gateway.

The Network ID and Join Key may be obtained from the Gateway on the
Setup → Network → Settings page on the web server. The Network ID and
Join Key may be changed in the wireless device by using the following Fast
Key sequence.

Function Fast Key sequence Menu items

Wireless Setup 1, 4 Smart Power, Network ID, Set Join Key,

Radio State

34 Emerson.com/Rosemount

September 2020 Quick Start Guide

13 Reference information

Note

In order to communicate with a Field Communicator, the wired device must
be powered.

Table 13-1: THUM Adapter Fast Key Sequence

Function Fast Key sequence Menu items

Device Info 2, 2, 4, 3 Manufacturer, Model, Final Assembly

Guided Setup 2, 1 Configure, Guided Setup, Join Device to

Manual Setup 2, 2 Configure, Manual Setup, Wireless,

Wireless 2, 2, 1 Network ID, Join Device to Network,

Number, Universal, Field Device,
Software, Hardware, Descriptor,
Message, Date, Model Number I, II, III, SI
Unit Restriction, Country

Network, Configure Update Rate, Zero
Trim, Configure Device Display,
Configure Process Alarms

Pressure, Device Temperatures, Device
Information, Display, Other

Configure Update Rate, Configure
Broadcast Power Level, Power Mode,
Power Source

Quick Start Guide 35

Quick Start Guide September 2020

14 Product Certifications

Rev 2.6

14.1 European directive information

A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.

14.2 Ordinary location certification from FM Approvals

As standard, the transmitter has been examined and tested to determine
that the design meets the basic electrical, mechanical, and fire protection
requirements by FM Approvals, a nationally recognized test laboratory
(NRTL) as accredited by the Federal Occupational Safety and Health
Administration (OSHA).

14.3 Telecommunication compliance (for wireless products only)

All wireless devices require certification to ensure that they adhere to
regulations regarding the use of the RF spectrum. Nearly every country
requires this type of product certification.

Emerson is working with governmental agencies around the world to supply
fully compliant products and remove the risk of violating country directives
or laws governing wireless device usage.

14.4

14.5

36 Emerson.com/Rosemount

FCC and IC (for wireless products only)

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following conditions: This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation. This device must be installed to ensure
a minimum antenna separation distance of 20 cm from all persons.

Installing equipment in North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code
(CEC) permit the use of Division marked equipment in Zones and Zone
marked equipment in Divisions. The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined
in the respective codes.

September 2020 Quick Start Guide

14.6 USA

14.6.1 E5 USA Explosionproof

Certificate

Standards

Markings

CSA 2174201

FM Class 3600 - 2011, FM Class 3615 - 2006, ANSI/UL 61010-1
3rd Edition

Class I, Division 1, Groups A, B, C and D; T5, T6; Type 4X and
IP66 (–50 °C≤ Ta ≤ +70 °C)

14.6.2 I5 USA Intrinsically Safe (IS) and Non-incendive

Certificate

Standards

Markings

3036224

FM Class 3600 - 1998, FM Class 3610 - 2007, FM Class
3611 - 2004, FM Class 3810 - 2005, NEMA 250 - 2003,
IEC 60529 - 2004

IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class
III; Class 1, Zone 0, AEx ia IIC T4; NI CL I, DIV 2, GP A, B, C,
D T4; T4(–50 °C≤ Ta ≤ +70 °C) when connected per
Rosemount drawing 00775-0010; Type 4X/IP66

14.7 Canada

14.7.1 E6 Canada Explosionproof

Certificate

Standards

Markings

CSA 2174201

CAN/CSA C22.2 No. 0-M91, CSA Std. C22.2 No. 30-M1986,
CAN/CSA-C22.2 No. 94-M91, CAN/CSA-C22.2 No.
61010-1-12, CSA Std. C22.2 No. 60529

Class I, Division 1, Groups A, B, C and D; T5, T6; Type 4X and
IP66 (–50 °C≤ Ta ≤ +70 °C)

14.7.2 I6 Canada Intrinsically Safe

Certificate

Standards

Markings

Quick Start Guide 37

2174201

CAN/CSA C22.2 No. 0-M91 (R2001), CAN/CSA C22.2
No. 94-M91 (R2001), CSA Std C22.2 No. 142-M1987,
CAN/CSA C22.2 No.157-92, CSA Std C22.2 No. 213­M1987, C22.2 No. 60529

Intrinsically Safe Class I, Division 1, Groups A, B, C, D
T3C; Suitable for use in Class I, Division 2, Groups A, B,
C, D T3C; T3C(–50 °C≤ Ta ≤ +70 °C) when installed per
Rosemount drawing 00775-0012; Type 4X/IP66

Quick Start Guide September 2020

14.8 Europe

14.8.1 I1 ATEX Intrinsic Safety

Certificate

Standards

Markings

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1GΩ. To avoid
electrostatic charge build-up, it must not be rubbed or cleaned with
solvents or dry cloth.

2. The Rosemount 775 enclosure may be made of aluminum alloy and
given a protective polyurethane paint finish; however, care should be
taken to protect it from impact or abrasion if located in zone 0.

Baseefa09ATEX0125X

IEC 60079-0:2011; EN60079-11:2012;

II 1G Ex ia IIC T4 Ga, T4(–50 °C≤ Ta ≤ +70 °C)

14.8.2 N1 ATEX Type n

Certificate

Standards

Markings

Baseefa09ATEX0131

IEC 60079-0:2012 + A11:2013, EN 60079-15:2010;

II 3G Ex nA IIC T4 Gc, T4(–50 °C≤ Ta ≤ +70 °C) IP66

14.9 International

14.9.1 I7 IECEx Intrinsic Safety

Certificate

Standards

Markings

IECEx BAS 09.0050X

IEC 60079-0:2011, IEC 60079-11:2011

Ex ia IIC T4 Ga, T4(–50 °C≤ Ta ≤ +70 °C) IP66

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid
electrostatic charge build-up, it must not be rubbed or cleaned with
solvents or dry cloth.

2. The Rosemount 775 enclosure may be made of aluminum alloy and
given a protective polyurethane paint finish; however, care should be
taken to protect it from impact or abrasion if located in zone 0.

14.9.2 N7 IECEx Type n

Certificate

Standards

38 Emerson.com/Rosemount

IECEx BAS 09.0058

IEC 60079-0:2011, IEC 60079-15:2010;

September 2020 Quick Start Guide

Markings

Ex nA IIC T4 Gc, T4(–50 °C≤ Ta ≤ +70 °C) IP66

14.10 Brazil

14.10.1 I2 INMETRO Intrinsic Safety

Certificate

Standards

Markings

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid
electrostatic charge build-up, it must not be rubbed or cleaned with
solvents or dry cloth.

2. The enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; special care must be taken to minimize the
risk of impact or friction of the housing which can cause the
generation of sparks.

14.10.2 N2 INMETRO Type n

Certificate

Standards

Markings

UL-BR 15.0089X

ABNT NBR IEC 60079-0:2013, ABNT NBR IEC
60079-11:2013

Ex ia IIC T4 Ga (–50 °C≤ Ta ≤ +70 °C), IP66

UL-BR 15.0027

ABNT NBR IEC 60079-0:2008 + Errata 1:2011, IEC
60079-15:2012

Ex nA IIC T4 Gc (–50 °C≤ Ta ≤ +70 °C) IP66

14.11 Japan

14.11.1 I4 TIIS Intrinsically Safe

Certificate

Markings

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

14.12

EAC - Belarus, Kazakhstan, Russia

14.12.1 IM Technical Regulation Customs Union (EAC) Intrinsic Safety

Certificate

Markings

Quick Start Guide 39

TC22150X

Ex ia IIB T4 Ga, –50 ~ +70 °C

TC RU C-US.AA87.B.00993

0Ex ia IIC T4 Ga X; T4 (–50 °C≤ Ta ≤ +70 °C) IP66

Quick Start Guide September 2020

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

14.12.2 NM Technical Regulation Customs Union (EAC) Type n

Certificate

Markings

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

TC RU C-US.AA87.B.00993

2Ex nA IIC T4 Gc X; T4 (–50 °C≤ Ta ≤ +70 °C) IP66

14.13 Republic of Korea

14.13.1 IP Korea (KOSHA) Intrinsic Safety

Certificate

Markings

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

10-KB4BO-0010X

Ex ia IIC T4

14.14 India

14.14.1 IW India (CCOE) Intrinsic Safety

Certificates

Markings

A/P/HQ/MH/104/4259(P366317)

Ex ia IIC T4

14.15 China

14.15.1 I3 NEPSI 本质安全

证书

所用标准

标志

特殊使用条件(X):

1. 产品外壳含有轻金属，用于 0 区时需注意防止由于冲击或摩擦产生
的点燃危险。

2. 产品天线部分表面电阻大于 1GΩ，使用时须防止产生静电火花，只
能用湿布清理。

使用注意事项

1. 产品使用环境温度为： -50 ~ +70 °C

40 Emerson.com/Rosemount

GYJ20.1388X（CCC 认证）

GB3836.1 – 2010, GB3836.4 – 2010, GB3836.20-2010

Ex ia IIC T4 Ga, -50 ~ +70 °C

September 2020 Quick Start Guide

2. 本安电气参数：

最高输入电
压 Ui (V)

30 200 1 0 0

3. 该产品必须与已通过防爆认证的关联设备配套共同组成本安防爆系

统方可使用于爆炸性气体环境。其系统接线必须同时遵守本产品和
所配关联设备的使用说明书要求，接线端子不得接错。

4. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运
行中出现的故障，以杜绝损坏现象的发生。

5. 产品的安装、使用和维护应同时遵守产品使用说明书、
GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、修

复和改造”、GB/T3836.15-2017“爆炸性环境 第 15 部分：电气装置
的设计、选型和安装”、GB/T3836.16-2017“爆炸性环境 第 16 部
分：电气装置的检查与维护”、GB/T 3836.18-2017“爆炸性环境 第
18 部分：本质安全电气系统”、GB50257-2014“电气装置安装工程
爆炸和火灾危险环境电力装置施工及验收规范”的有关规定。

14.16 Combinations

KM

Combination of IM and NM

最大输入电
流 Ii (mA)

最大输入功
率 Pi (W)

最大内部等效参数

Ci(nF) Li(mH)

Quick Start Guide 41

Quick Start Guide September 2020

14.17 Declaration of Conformity

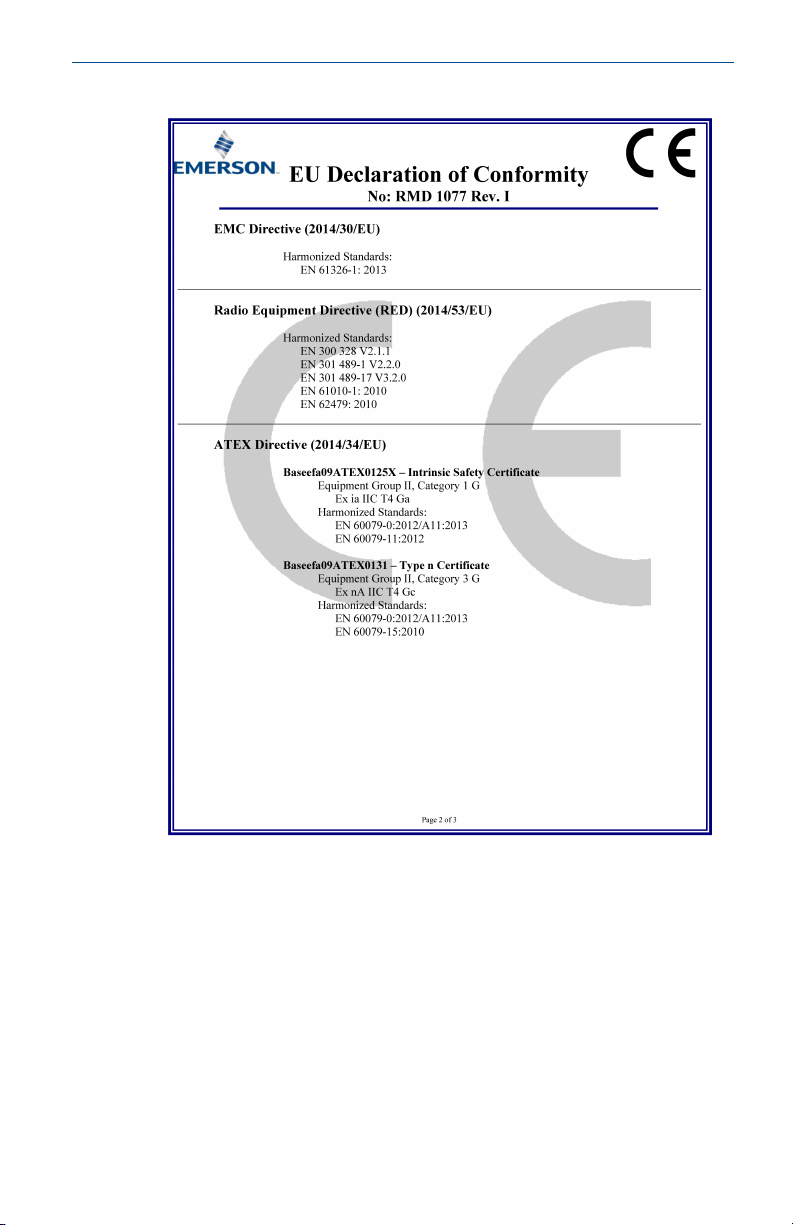

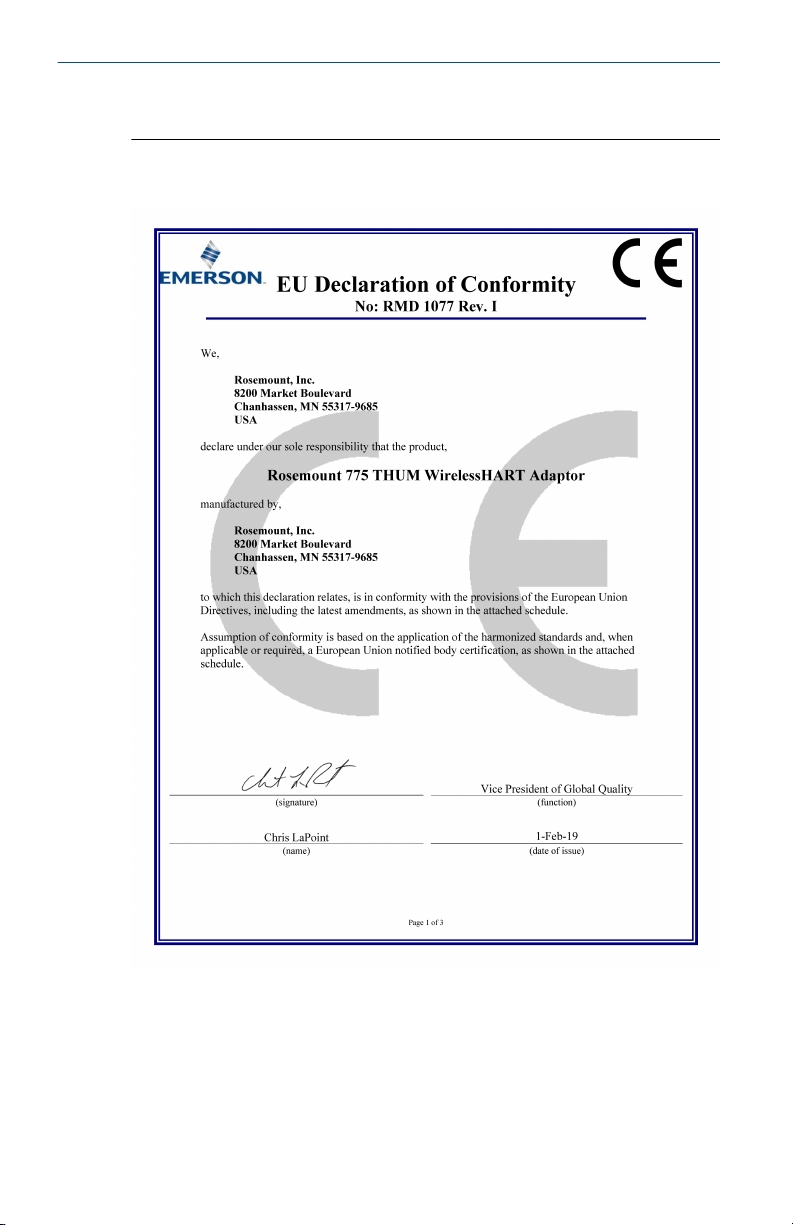

Figure 14-1: Emerson THUM Wireless Adapter Declaration of
Conformity

42 Emerson.com/Rosemount

September 2020 Quick Start Guide

Quick Start Guide 43

Quick Start Guide September 2020

44 Emerson.com/Rosemount

ᴹ

China RoHS

㇑᧗⢙䍘䎵䗷ᴰབྷ⎃ᓖ䲀٬Ⲵ䜘Ԧරࡇ㺘

List of Parts with China RoHS Concentration above MCVs

䜘Ԧ〠

Part Name

ᴹᇣ⢙䍘/ Hazardous Substances 

䫵

Lead
(Pb)

⊎

Mercury

(Hg)

䭹

Cadmium

(Cd)

ޝԧ䬜

Hexavalent
Chromium

(Cr +6)

ཊⓤ㚄㤟

Polybrominated

biphenyls

(PBB)

ཊⓤ㚄㤟䟊

Polybrominated

diphenyl ethers

(PBDE)

⭥ᆀ㓴Ԧ

Electronics

Assembly

X O O O O

O

༣փ㓴Ԧ

Housing

Assembly

O O X O

O

ᵜ㺘Ṭ㌫׍ᦞ

SJ/T11364

Ⲵ㿴ᇊ㘼ࡦ֌

This table is proposed in accordance with the provision of SJ/T11364.

O:

᜿Ѫ䈕䜘ԦⲴᡰᴹ൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿൷վҾ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of
GB/T 26572.

X:

᜿Ѫ൘䈕䜘Ԧᡰ֯⭘Ⲵᡰᴹ൷䍘ᶀᯉ䟼ˈ㠣ቁᴹа㊫൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿儈Ҿ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above
the limit requirement of GB/T 26572.

Rosemount 775

Rosemount 775

O

September 2020 Quick Start Guide

14.18

Quick Start Guide 45

Quick Start Guide September 2020

46 Emerson.com/Rosemount

September 2020 Quick Start Guide

Quick Start Guide 47

*00825-0100-4075*

00825-0100-4075, Rev. GE

Quick Start Guide

September 2020

Emerson Automation Solutions

6021 Innovation Blvd.
Shakopee, MN 55379, USA

[phone] or [phone]
[phone]
[e-mail]

Latin America Regional Office

Emerson Automation Solutions
1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA

[phone]
[phone]
[e-mail]

Asia Pacific Regional Office

Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461

[phone]
[phone]
[e-mail]

North America Regional Office

Emerson Automation Solutions
8200 Market Blvd.
Chanhassen, MN 55317, USA

[phone] or [phone]
[phone]
[e-mail]

Europe Regional Office

Emerson Automation Solutions Europe
GmbH
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland

[phone]
[phone]
[e-mail]

Middle East and Africa Regional Office

Emerson Automation Solutions
Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates

[phone]
[phone]
[e-mail]

Linkedin.com/company/Emerson-

Automation-Solutions

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/user/

RosemountMeasurement

©

2020 Emerson. All rights reserved.

Emerson Terms and Conditions of Sale are
available upon request. The Emerson logo is a
trademark and service mark of Emerson Electric
Co. Rosemount is a mark of one of the Emerson
family of companies. All other marks are the
property of their respective owners.
