1 General description
The Pole Mount is suitable for use with all optical flame detectors.
Optical flame detectors often require mounting in areas where there is not a
flat surface to mount on. In these cases, the operator can use the Pole Mount
to affix the detector to a pole.
The Pole Mount is available in three sizes for different pole diameters, as
detailed in Table 1-1.
Table 1-1: Pole Mount Options
Pole diameter Part number
2 in (51 mm) 00975-9000-0007
3 in (76 mm) 00975-9000-0008
Quick Start Guide 3
Page 4
Quick Start Guide October 2021
2 Installation
2.1 Prepare the Pole Mount
Procedure
Unscrew all four sets of nuts and spring washers.

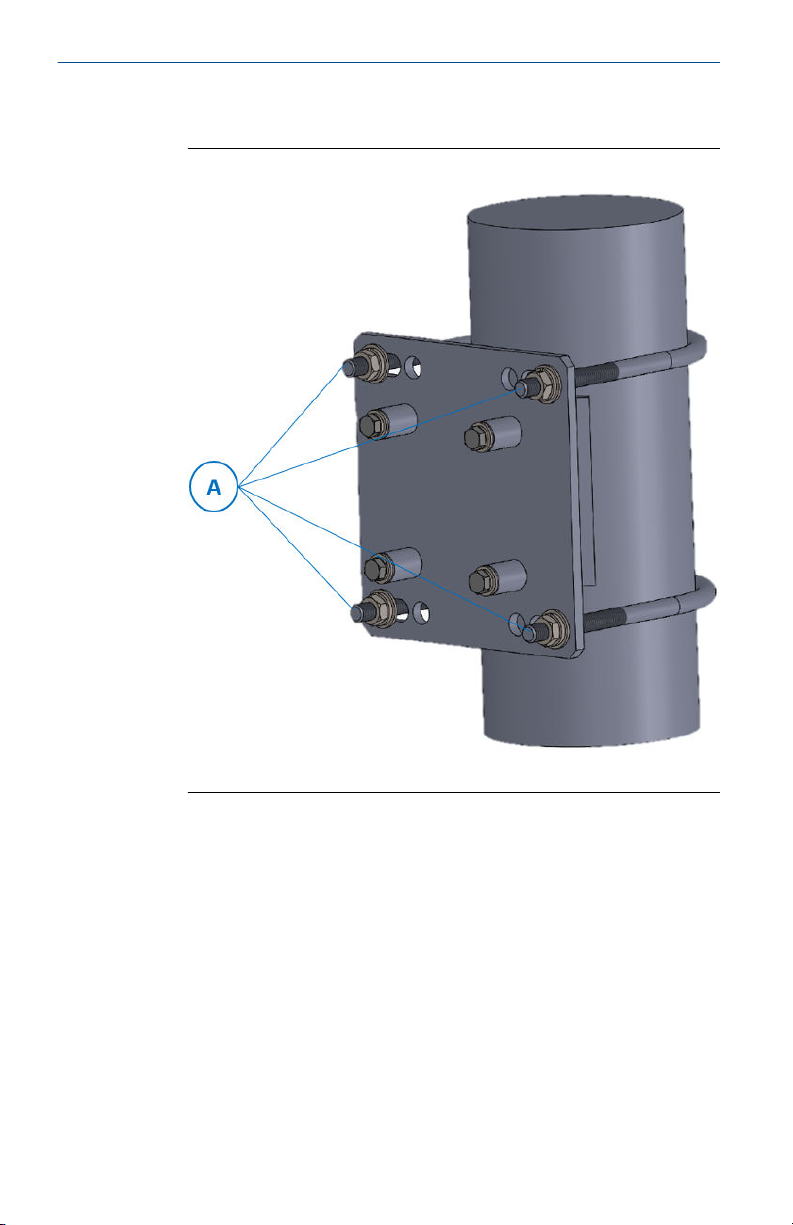

Figure 2-1: Preparing the Pole Mount
A. Nuts and spring washers
4 Emerson.com/Rosemount
Page 5
October 2021 Quick Start Guide
2.2 Affix the Pole Mount to the pole
Procedure
1. Place the U-bolts around the pole.

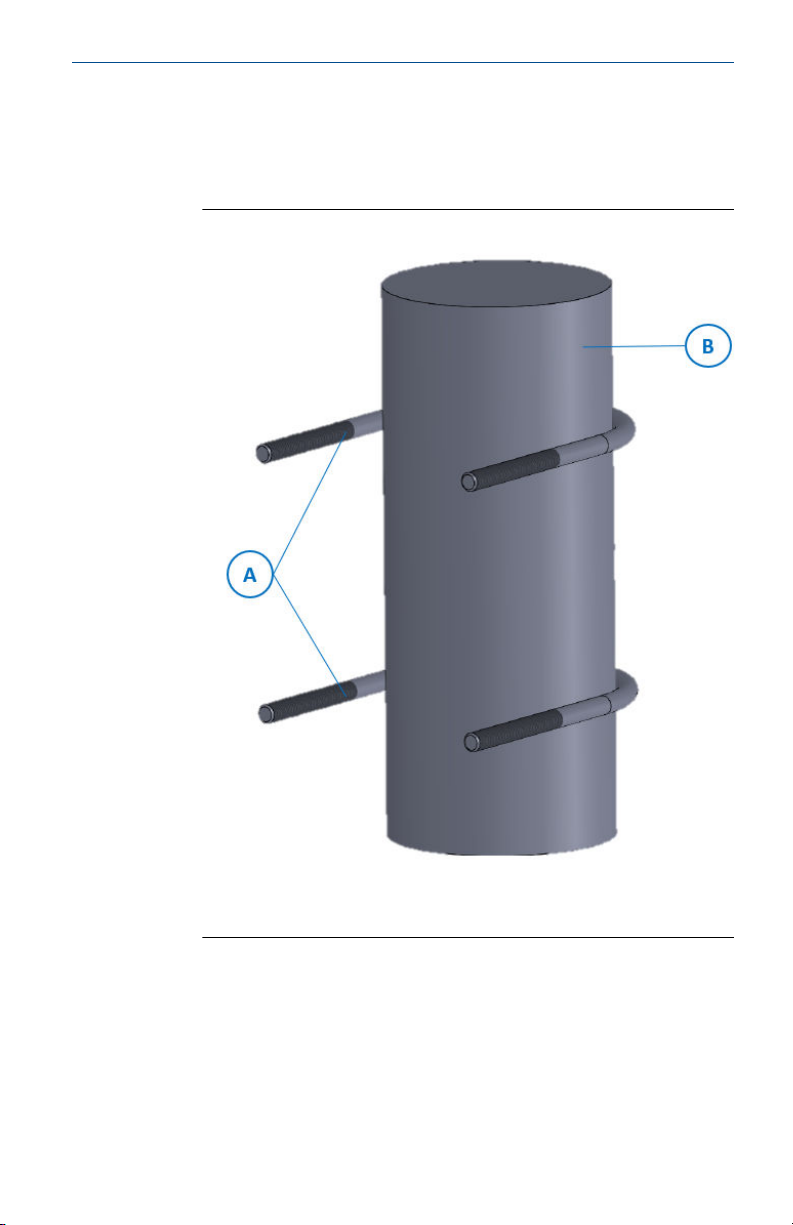

Figure 2-2: Affixing the Pole Mount to the Pole
A. U-bolts
B. Pole
Quick Start Guide 5
Page 6
Quick Start Guide October 2021
2. Attach the closing plate to the U-bolts and tighten the nuts and
spring washers.

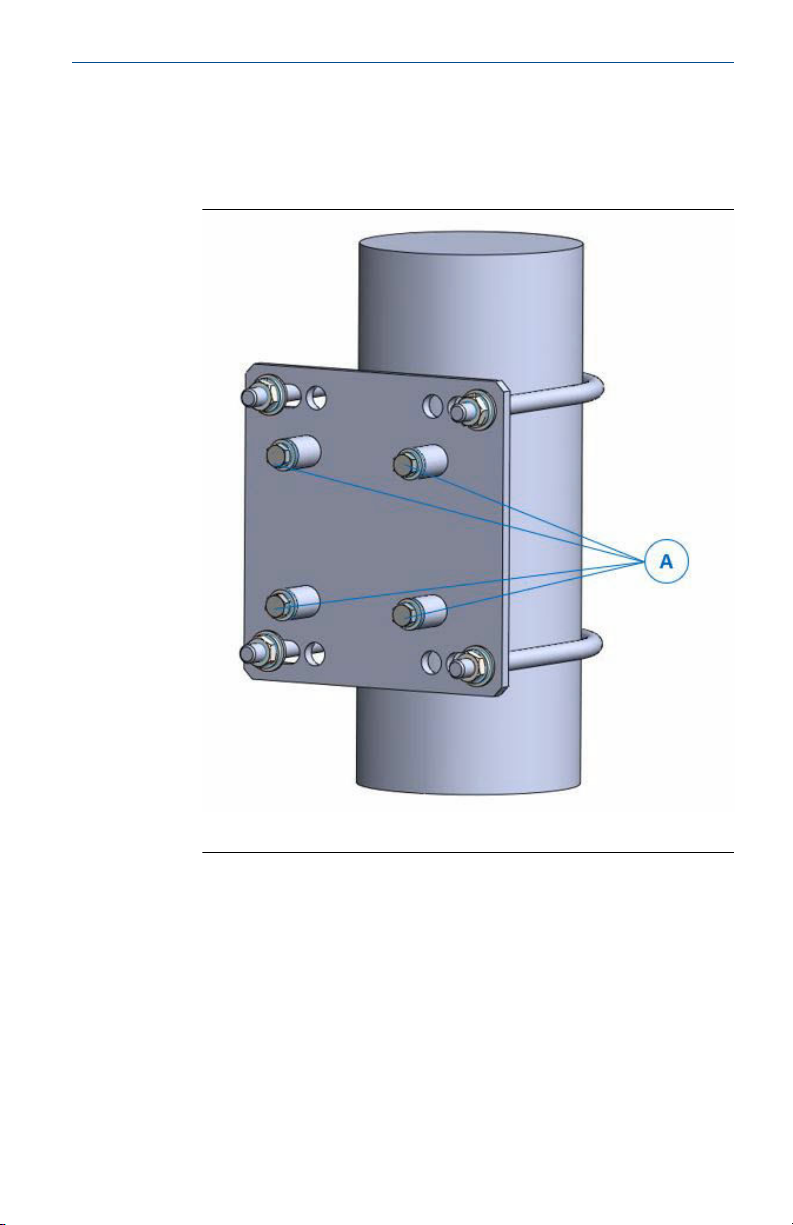

Figure 2-3: Securing the Pole Mount
A. Nuts and spring washers
6 Emerson.com/Rosemount
Page 7
October 2021 Quick Start Guide
2.3 Affix the Tilt Mount to the Pole Mount
Procedure
1. Loosen the four screws.
A. Four screws
Quick Start Guide 7
Page 8
Quick Start Guide October 2021

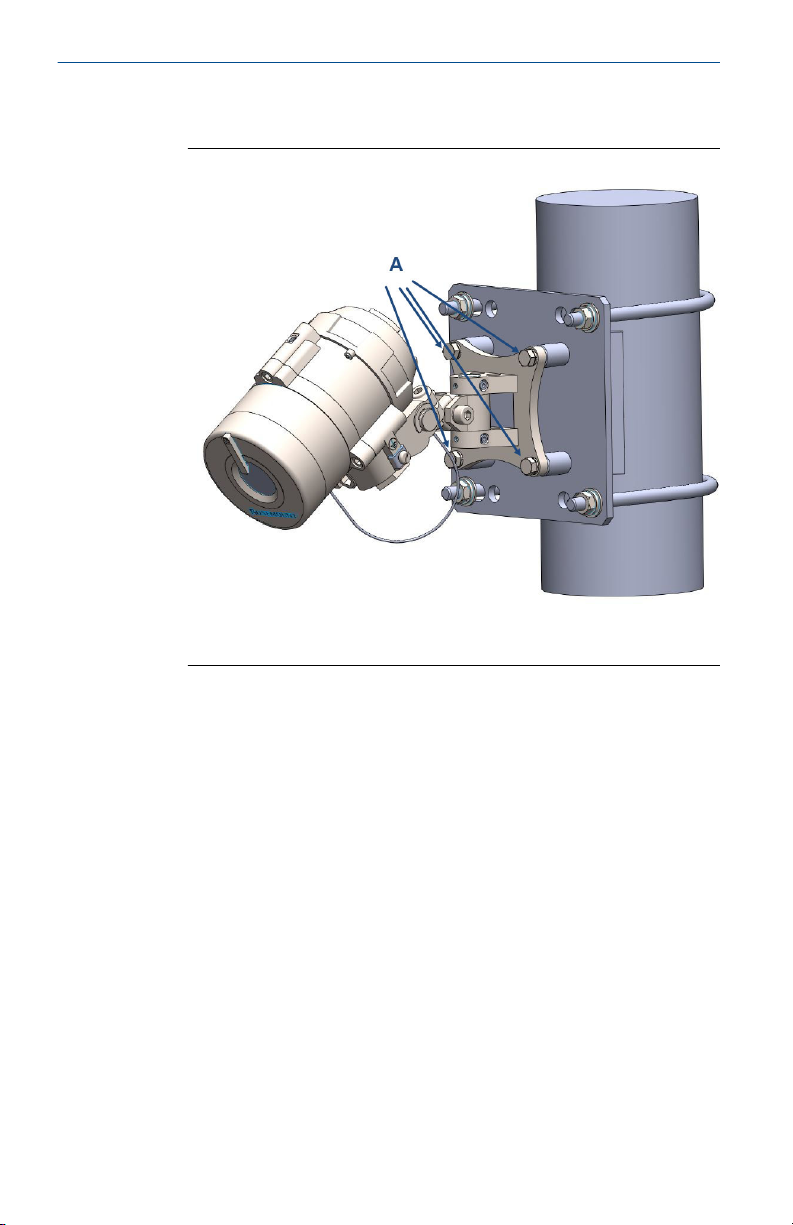

2. Place the Tilt Mount on top of the Pole Mount and affix by tightening
the four screws.
A. Four screws
8 Emerson.com/Rosemount
Page 9
October 2021 Quick Start Guide
3 Specifications
Dimensions
Weight
Material
00975-9000-0007: 3.66 in (93 mm) x 2.40 in (61 mm)
00975-9000-0008: 5.04 in (128 mm) x 3.54 in (90 mm)
4.85 lb (2.2 kg)
Stainless steel 316L
