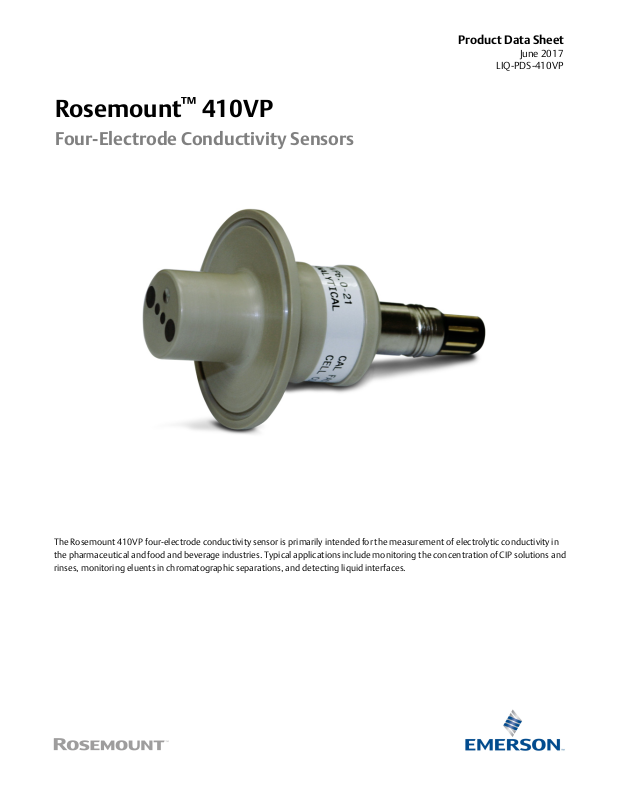

Page 1
Rosemount™ 410VP
Four-Electrode Conductivity Sensors
Product Data Sheet
June 2017
LIQ-PDS-410VP
The Rosemount 410VP four-electrode conductivity sensor is primarily intended for the measurement of electrolytic conductivity in
the pharmaceutical and food and beverage industries. Typical applications include monitoring the concentration of CIP solutions and
rinses, monitoring eluents in chromatographic separations, and detecting liquid interfaces.
Page 2
Rosemount 410VP Four-Electrode Conductivity Sensor
Overview
Meet Various Sanitary Requirements
Sensor body and elastomers are compliant with 21CFR177; a
certificate of conformance is supplied with each sensor.
3-A Sanitary Standard 74-06 compliant.
Wetted surfaces (except electrodes) have a 16 micro inch
(0.4 micrometer) Ra finish.
Available in Tri-Clamp, Varivent N, and G 1-¼ fittings.
Animal-derived Ingredient (ADI) free optional.
High Performance and Robust Sensor Design
Four-electrode design provides exceptional linearity between
1 μS/cm and 1400 mS/cm.
June 2017
Unfilled PEEK sensor body.
Steam sterilization (SIP) tolerant up to 284 °F (140 °C).
Rapid response to temperature changes with a Pt-1000 RTD.
Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Engineering Specification . . . . . . . . . . . . . . . . . . . . . . . . . . 7
www.Emerson.com/RosemountLiquidAnalysis
Page 3
June 2017
Rosemount 410VP Four-Electrode Conductivity Sensor
Ordering Information
The Rosemount 410VP four-electrode conductivity sensor is intended for measuring
conductivity in a variety of pharmaceutical and food and beverage applications. All
wetted plastics and elastomers are compliant with 21CFR177, and all wetted surfaces
except the electrodes have a 16 micro-inch (0.4 micrometer) Ra surface finish. A
certificate of conformance is provided with each sensor. Interconnecting VP8 cable
must be ordered separately and is required for all first time installations.
Additional Information
Specifications: see “Specifications” on page 3
Dimensional drawings: see “Installation” on page 5
Accessories: see “Accessories” on page 7
Engineering Specifications: see “Engineering Specification” on page 7
Table 1. Rosemount 410VP Four-Electrode Conductivity Sensor ordering information
Model Sensor type
410VP Four-electrode conductivity sensor
Process Connection
20 1½ in. Tri-clamp
21 2 in. Tri-clamp
22 G 1¼
23 Varivent N
Material Specification
_ No selection
40 Free of Animal-Derived Ingredients (ADI-Free)
Special Option
99Q8 Supplier material traceability certificates
Typical Model Number: 410VP-20-40
Specifications
Table 2. Rosemount 410VP Four-Electrode Conductivity Sensor specifications
Wetted Materials
Electrodes 316L stainless steel
Sensor body unfilled PEEK; compliant with 21CFR177.2415
O-ring (option -22 only) EP; compliant with 21CFR177.2600
Conformance to 3-A Sanitary Standards
Sensors with option -20 and -21 meet 3-A sanitary standards for sensors and sensor fittings and connections used on milk and milk
products equipment (74-06)
www.Emerson.com/RosemountLiquidAnalysis
3
Page 4
Rosemount 410VP Four-Electrode Conductivity Sensor
Table 2. Rosemount 410VP Four-Electrode Conductivity Sensor specifications
Surface Finish
All wetted surfaces except electrodes have 16 micro inch (0.4 micrometer) Ra surface finish.
Cable
VP8 connector cable (sold separately; see “Accessories” on page 7)
Maximum Cable Length
100 ft (30.5 m)
Range
1 μS/cm to 1400 mS/cm
Accuracy
Within ±4% of the expected conductivity
Steam Sterilization
Tolerates SIP to 284 °F (140 °C)
Weight/Shipping Weight
June 2017
1lb (0.5kg) / 1lb (0.5kg) Weight and shipping weight are rounded up to the nearest 1lb or 0.5kg.

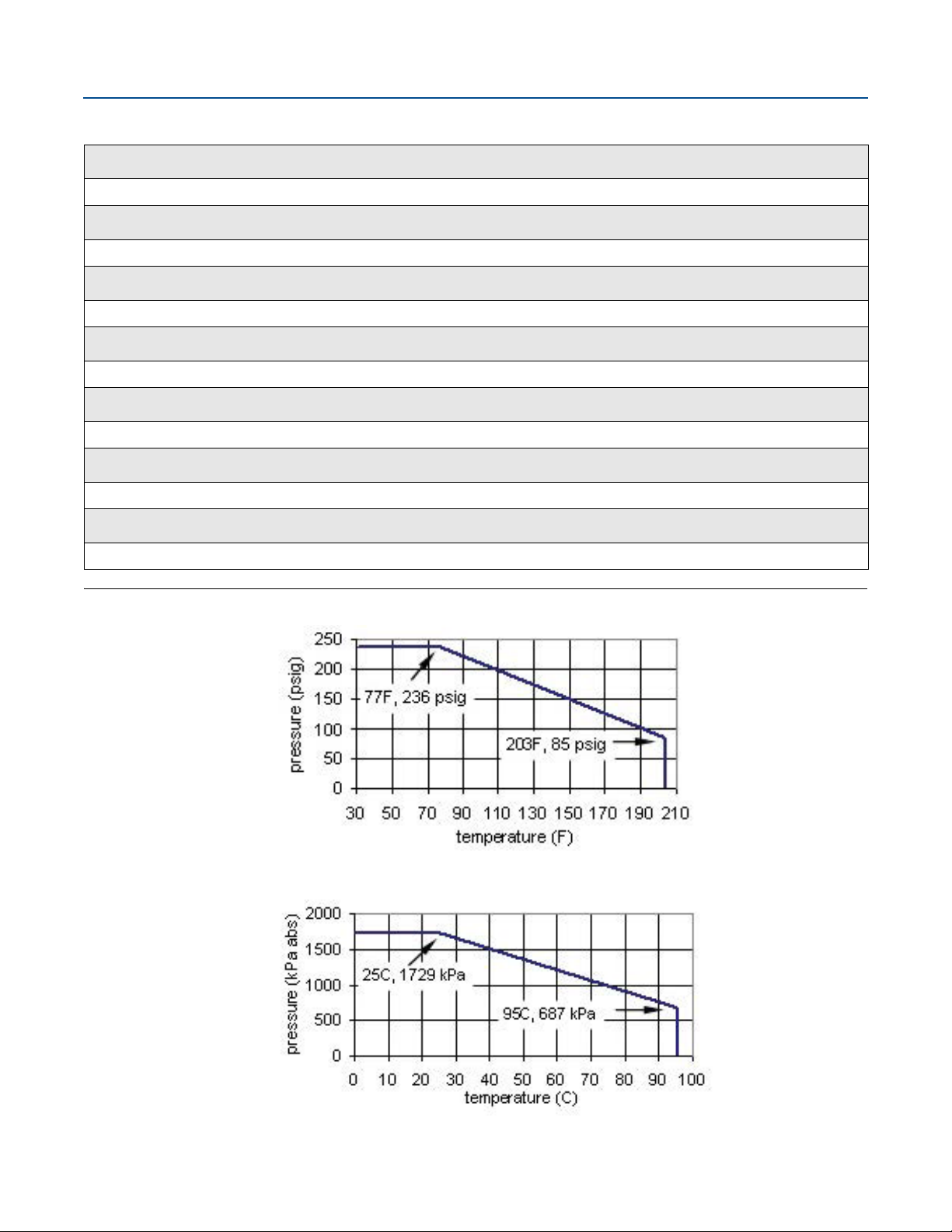

Figure 1. Temperature and pressure
4
www.Emerson.com/RosemountLiquidAnalysis
Page 5
June 2017
(2 inch Tri-Clamp connection)
Millimeter
Inch
Rosemount 410VP Four-Electrode Conductivity Sensor
Installation
Install the sensor in the process piping so that the electrodes are completely immersed in the liquid. Generally, mounting the sensor
in a vertical pipe is best. If the sensor must be installed in a horizontal pipe, place the sensor in the three o’clock position. Keep at least
0.75 inch (19 mm) clearance between the end of the sensor and the opposite pipe wall. Clamps and gaskets (if necessary) must be
supplied by the user.
Dimensional Drawings

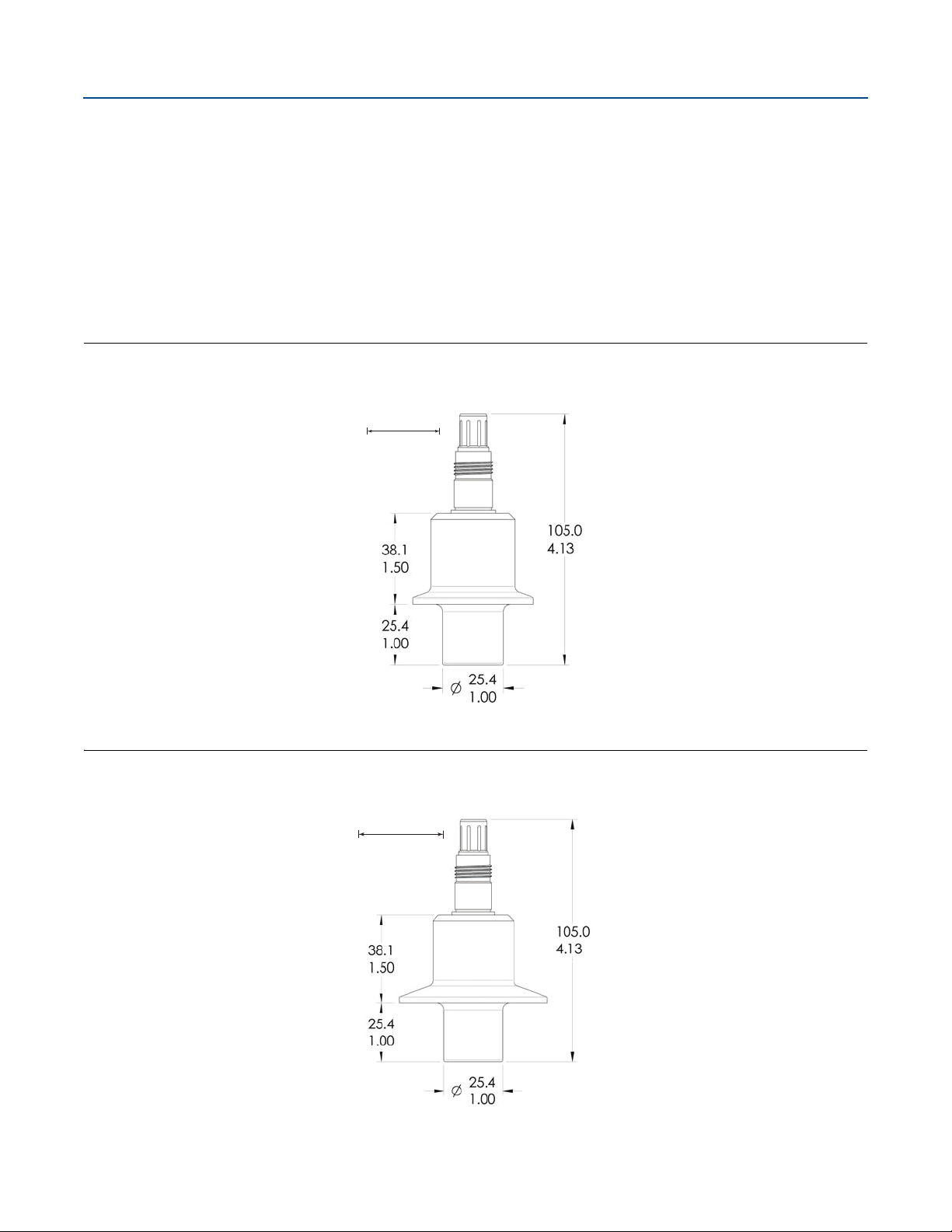

Figure 2. Rosemount 410VP-20 Conductivity Sensor dimensional drawing
Millimeter
Inch
(1½ inch Tri-Clamp connection)
Figure 3. Rosemount 410VP-21 Conductivity Sensor dimensional drawing
www.Emerson.com/RosemountLiquidAnalysis
5
Page 6
Rosemount 410VP Four-Electrode Conductivity Sensor
(G 1¼ connection)
Millimeter
Inch

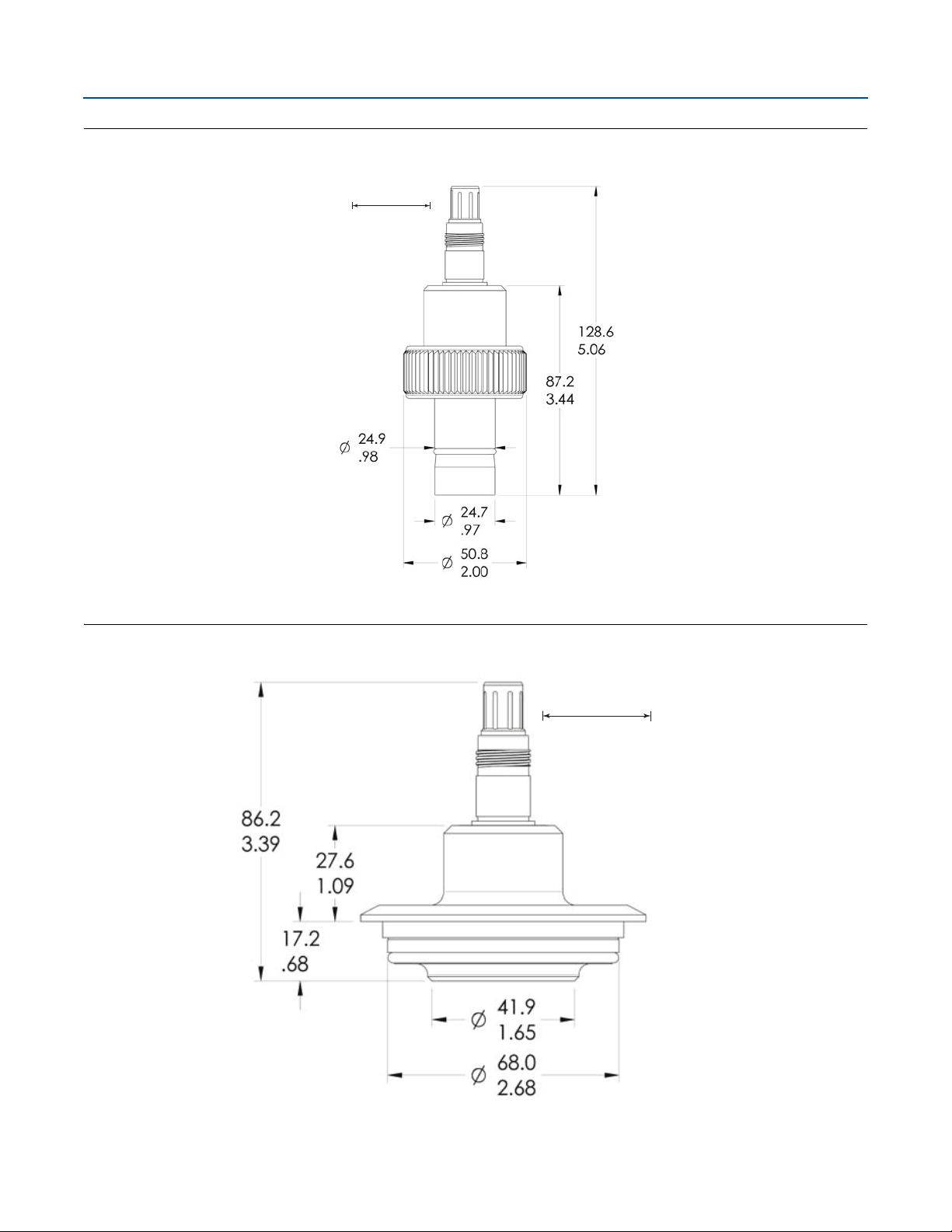

Figure 4. Rosemount 410VP-22 Conductivity Sensor dimensional drawing
June 2017
Figure 5. Rosemount 410VP-23 Conductivity Sensor dimensional drawing
Millimeter
Inch
6
(Varivent N connection)
www.Emerson.com/RosemountLiquidAnalysis
Page 7
June 2017
Rosemount 410VP Four-Electrode Conductivity Sensor
Accessories
Table 3. Rosemount 410VP Four-Electrode Conductivity Sensor accessories information
Part number Description
24287-00 10 ft VP8 connector cable for Rosemount 410VP sensor
24287-01 50 ft VP8 connector cable for Rosemount 410VP sensor
23550-00 Remote junction box, without preamplifier
24289-00 Interconnect cable for Rosemount 410VP sensor, prepped
9200334 Interconnect cable for Rosemount 410VP sensor, unprepped
9210004 Conductivity standard, 2000 μS/cm, 16 oz
2001492 Stainless steel tag
Engineering Specification
The sensor shall be suitable for the determination of electrolytic conductivity between 1 μS/cm and 1400 mS/cm.
Measurement accuracy shall be ±4% of reading.
The sensor shall be available in 1½-inch and 2-inch Tri-Clamp, Varivent N, and G 1¼ process connections.
Electrodes shall be 316L stainless steel and the sensor body shall be unfilled PEEK. O-rings, if used, shall be EP. All plastics and
elastomers shall be compatible with 21CFR177.
All wetted surfaces shall except electrodes have a 16 micro-inch (0.4 micrometer) Ra finish.
The sensor shall tolerate steam sterilization up to 284 °F (140 °C).
The sensor shall be available with a Variopol VP8.0 quick-disconnect fitting.
The sensor shall have an integral Pt 1000 RTD for temperature measurement.
The sensor shall be Rosemount 410VP or equivalent.
www.Emerson.com/RosemountLiquidAnalysis
7
