Rosemount 3051 Pressure Transmitter and 3051CF Series Flowmeter with FOUNDATION fieldbus Protocol (Rev. 8) Quick Start Guide

Download

Quick Start Guide

00825-0200-4774, Rev DA

March 2020

Rosemount™ 3051 Pressure Transmitter and Rosemount 3051CF Series Flow Meters

with FOUNDATION™ Fieldbus Protocol

Quick Start Guide March 2020

Contents

About this guide...........................................................................................................................3

System readiness......................................................................................................................... 5

Transmitter installation................................................................................................................ 7

Product certifications................................................................................................................. 31

2 Emerson.com/Rosemount

March 2020 Quick Start Guide

1 About this guide

This guide provides basic guidelines for Rosemount 3051 Pressure Transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. Refer to Rosemount 3051 Reference

Manual for more instructions. This guide is also available electronically at Emerson.com/Rosemount.

1.1 Safety messages

WARNING

Explosions

Explosions could result in death or serious injury.

Installation of device in an explosive environment must be in accordance with appropriate local, national, and international standards, codes, and practices. Review the approvals section of the Rosemount 3051 Reference Manual for any restrictions associated with a safe installation.

In an explosion-proof/flameproof installation, do not remove the transmitter covers when power is applied to the unit.

Process leaks

Process leaks may cause harm or result in death.

To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.

Electrical shock

Electrical shock can result in death or serious injury.

Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.

Conduit/cable entries

Unless otherwise marked, the conduit/cable entries in the housing enclosure use a ½–14 NPT form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these entries.

Entries marked M20 are M20 x 1.5 thread form. On devices with multiple conduit entries, all entries will have the same thread form.

When installing in a hazardous location, use only appropriately listed or Ex certified plugs, glands, or adapters in cable/conduit entries.

Quick Start Guide 3

Quick Start Guide March 2020

WARNING

Physical access

Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This could be intentional or unintentional and needs to be protected against.

Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility.

4 Emerson.com/Rosemount

March 2020 Quick Start Guide

2 System readiness

2.1 Confirm correct device driver

• Verify the correct device driver (DD/DTM™) is loaded on your systems to

ensure proper communications.

• Download the correct device driver at your host vendor download site,

Emerson.com/Rosemount or Fieldbus.org.

2.1.1 Rosemount 3051 device revisions and drivers

Table 2-1 provides the information necessary to ensure you have the correct

device driver and documentation for your device.

Table 2-1: Rosemount 3051 FOUNDATION Fieldbus Device Revisions and Files

Device Revision

8 All DD4: DD Rev 1 Emerson.com Rosemount

7 All DD4: DD Rev 3

Host Device driver (DD)

(1)

All DD5: DD Rev 1

Emerson AMS Device Manager

Emerson Field Communicator:

All DD5: NA

Emerson AMS Device Manager

Emerson Field Communicator:

V 10.5 or higher: DD Rev 2

V 8 to 10.5: DD Rev 1

DD Rev 2

V 10.5 or higher: DD Rev 6

V 8 to 10.5: DD Rev 4

DD Rev 6

(2)

Device driver (DTM)

Document

3051 Pressure Transmitter

with FOUNDATION Fieldbus

Reference Manual

(1) FOUNDATION Fieldbus device revision can be read using a FOUNDATION Fieldbus

capable configuration tool.

(2) Device driver file names use device and DD revision. To access functionality, the

correct device driver must be installed on your control and asset management hosts, and on your configuration tools.

Quick Start Guide 5

Start

1. Transmitter installation (Section 3)

2. Commissioning tag (Section 3.4)

Done

Locate device

7. Zero trim the transmitter (Section 5.4)

3. Housing rotation (Section 3.5.1)

5. Grounding, wiring and power up (Section 4.6)

6. Configuration (Section 2.7.1, 2.8)

4. Set switches and software write lock (Section 4.4)

Quick Start Guide March 2020

Figure 2-1: Installation Flowchart

6 Emerson.com/Rosemount

March 2020 Quick Start Guide

3 Transmitter installation

3.1 Mount the transmitter

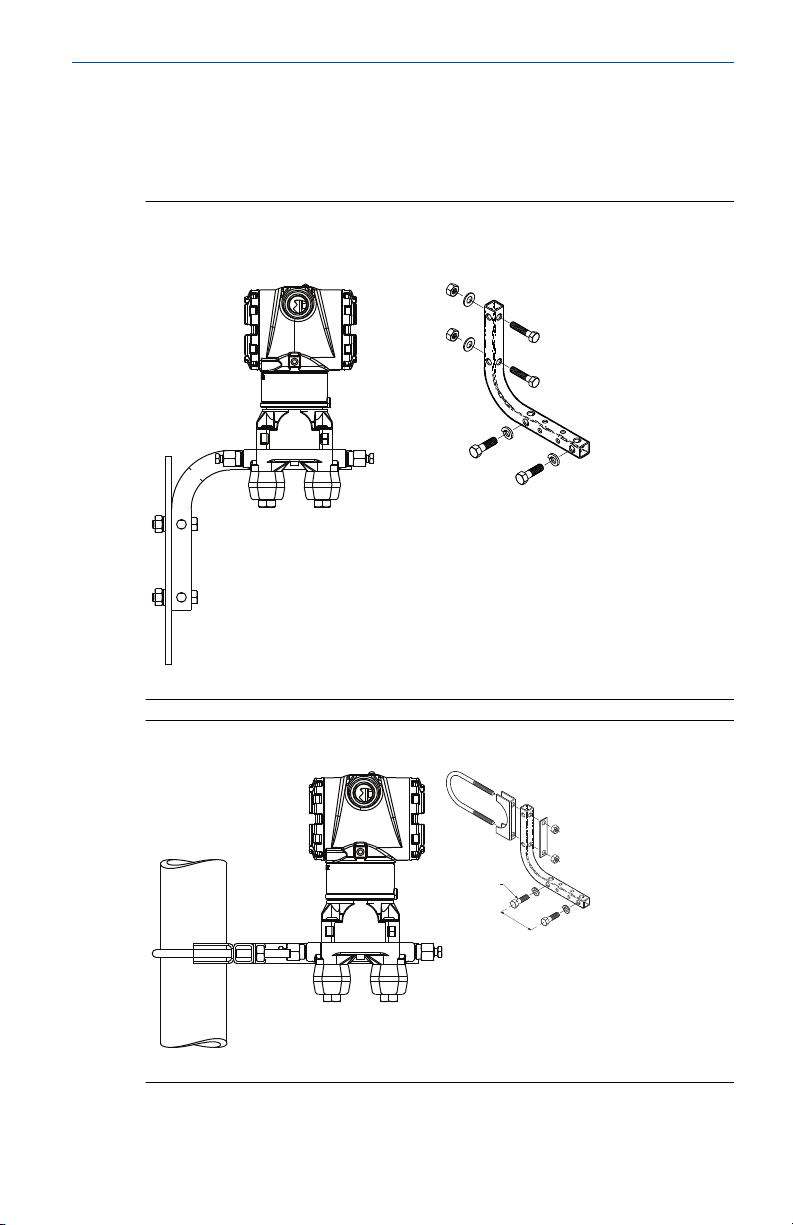

Figure 3-1: Panel Mount Coplanar Flange

5/16 x 1½ panel bolts are customer supplied.

Figure 3-2: Pipe Mount Coplanar Flange

Quick Start Guide 7

Quick Start Guide March 2020

Figure 3-3: Panel Mount Traditional Flange

Figure 3-4: Pipe Mount Traditional Flange

Figure 3-5: Panel Mount Rosemount 3051T

8 Emerson.com/Rosemount

March 2020 Quick Start Guide

Figure 3-6: Pipe Mount Rosemount 3051T

Quick Start Guide 9

Quick Start Guide March 2020

3.1.1 Mount the transmitter in liquid applications

Procedure

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Mount the transmitter so the drain/vent valves are oriented upward.

Figure 3-7: Mounting the Transmitter in Liquid Applications

In-line

3.1.2 Mount the transmitter in gas applications

Procedure

1. Place taps in the top or side of the line.

2. Mount beside or above the taps.

Figure 3-8: Mounting the Transmitter in Gas Applications

In-line

10 Emerson.com/Rosemount

March 2020 Quick Start Guide

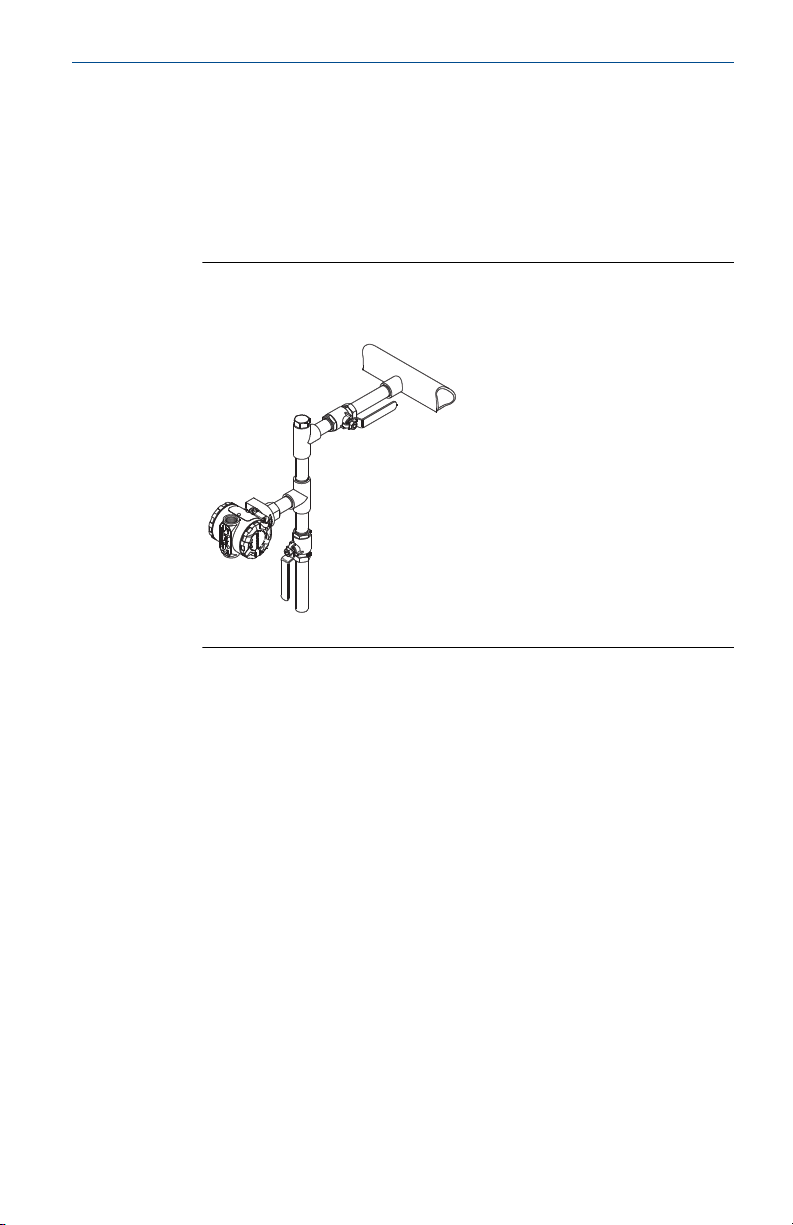

3.1.3 Mount the transmitter in steam applications

Procedure

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Fill impulse lines with water.

Figure 3-9: Mounting the Transmitter in Steam Applications

In-line

3.1.4 Bolting considerations

If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow these assembly guidelines to ensure a tight seal for optimal performance characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by Emerson as spare parts.

Figure 3-10 illustrates common transmitter assemblies with the bolt length

required for proper transmitter assembly.

Quick Start Guide 11

4 × 2.88-in. (73 mm)

4 × 1.75-in. (44 mm)

4 × 1.75-in.

(44 mm)

4 × 1.75-in.

(44 mm)

4 × 1.75-in. (44 mm)

4 × 2.25-in. (57 mm)

Quick Start Guide March 2020

Figure 3-10: Common Transmitter Assemblies

A. Transmitter with coplanar flange B. Transmitter with coplanar flange and optional flange adapters C. Transmitter with traditional flange and optional flange adapters

D. Transmitter with coplanar flange and optional manifold and flange

adapters

Bolts are typically carbon steel (CS) or stainless steel (SST). Confirm the material by viewing the markings on the head of the bolt and referencing . If bolt material is not shown in Table 3-1, contact a local Emerson representative for more information.

Procedure

1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation. However, no additional lubricant should be applied when installing either type of bolt.

2. Finger-tighten the bolts.

3. Torque the bolts to the initial torque value using a crossing pattern. See Table 3-1 for initial torque value.

12 Emerson.com/Rosemount

4. Torque the bolts to the final torque value using the same crossing pattern. See Table 3-1 for final torque value.

5. Verify the flange bolts are protruding through the isolator plate before applying pressure.

B7M

316

STM

316

B8M

March 2020 Quick Start Guide

Table 3-1: Torque Values for the Coplanar Flange and Flange Adapter Bolts

Bolt material Head markings Initial

torque

300 in-lb 650 in-lb

SST

150 in-lb 300 in-lb

Final torque

Quick Start Guide 13

C D

Rosemount 3051S/3051/2051

Quick Start Guide March 2020

3.1.5 O-rings with flange adapters

WARNING

Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring that is designed for its specific flange adapter, as shown below.

Figure 3-11: O-ring Location

A. Flange adapter B. O-ring C. PFTE-based profile (square)

D. Elastomer profile (round)

Whenever the flanges or adapters are removed, visually inspect the O-rings. Replace them if there are any signs of damage, such as nicks or cuts. If you replace the O-rings, re-torque the flange bolts and alignment screws after installation to compensate for seating of the PTFE O-ring.

3.1.6 Environmental seal for housing

Thread sealing (PFTE) tape or paste on male threads of conduit is required to provide a water/dust tight conduit seals and meets requirements of NEMA Type 4X, IP66, and IP68. Consult factory if other Ingress Protection ratings are required.

For M20 threads, install conduit plugs to full thread engagement or until mechanical resistance is met.

14 Emerson.com/Rosemount

March 2020 Quick Start Guide

3.1.7 In-line gage transmitter orientation

The low side pressure port (atmospheric reference) on the in-line gage transmitter is located in the neck of the transmitter, behind the housing. The vent path is between the housing and sensor of the transmitter (see Figure

3-12).

Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by mounting the transmitter so that the process can drain away.

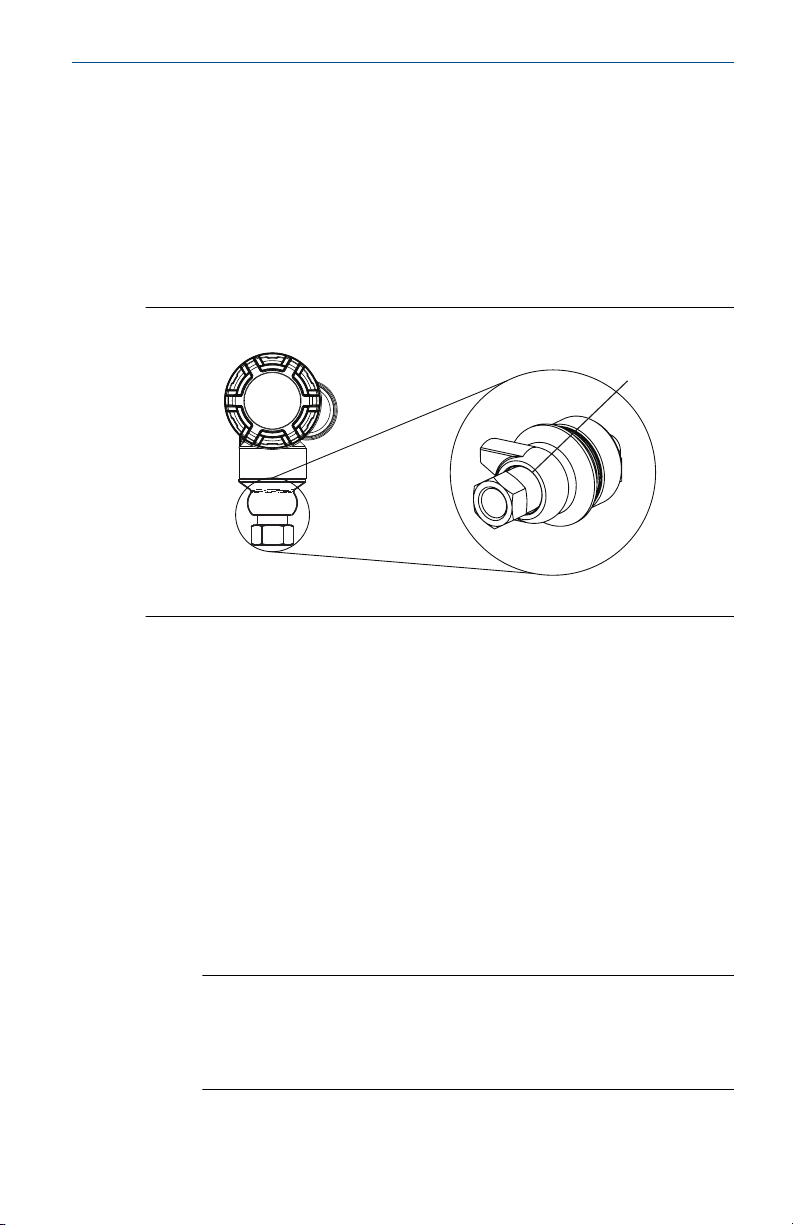

Figure 3-12: In-line Gage Low Side Pressure Port

A. Low side pressure port (atmospheric reference)

3.1.8 Installing high pressure coned and threaded connection

The transmitter comes with an autoclave connection designed for high pressure applications. Follow the steps below to properly connect the transmitter to your process:

Procedure

1. Apply a process-compatible lubricant to the gland nut threads.

2. Slip the gland nut onto the tube, then thread the collar onto the tube end (the collar is reverse threaded).

3. Apply a small amount of process-compatible lubricant applied to the tube cone to help prevent galling and facilitate sealing. Insert the tubing into the connection and tighten finger tight.

4. Tighten the gland nut to a torque of 25 ft-lb.

Note

A weep hole has been designed into the transmitter for safety and leak detection. If fluid begins to leak from the weep hole, isolate the process pressure, disconnect the transmitter, and reseal until the leak is resolved.

Quick Start Guide 15

Commissioning Tag

DEVICE ID:

0011513051010001440-12169809172 5

DEVICE REVISION: 7.2

PHYSICAL DEVICE TAG

DEVICE ID:

0011513051010001440-12169809172 5

DEVICE REVISION: 7.2

S / N :

PHYSICAL DEVICE TAG

Device Barcode

Commissioning Tag

DEVICE ID:

001151AC00010001440-1216980917 25

DEVICE REVISION: 8.1

PHYSICAL DEVICE TAG

DEVICE ID:

001151AC00010001440-121698091725

DEVICE REVISION: 8.1

S / N :

PHYSICAL DEVICE TAG

Device Barcode

Quick Start Guide March 2020

3.2 Tagging

3.2.1 Commissioning (paper) tag

To identify which device is at a particular location, use the removable tag provided with the transmitter. Ensure the physical device tag (PD tag field) is properly entered in both places on the removable commissioning tag and tear off the bottom portion for each transmitter.

Note

The device description loaded in the host system must be at the same revision as this device.

Figure 3-13: Commissioning Tag

A. Device revision

Note

The device description loaded in the host system must be at the same revision as this device. You can download the device description from the host system website or Emerson.com/Rosemount by selecting Device

Drivers under Resources. You can also visit Fieldbus.org and select End User Resources.

3.3

16 Emerson.com/Rosemount

Consider housing rotation

To improve visibility of optional LCD display:

Procedure

1. Loosen the housing rotation screw.

March 2020 Quick Start Guide

2. First rotate the housing clockwise to the desired location. If the desired location cannot be achieved due to thread limit, rotate the housing counter clockwise to the desired location (up to 360° from thread limit).

3. Re-tighten the housing rotation screw (see Figure 3-14).

Figure 3-14: Housing Rotation

A. Housing rotation screw (5/64-in. hex wrench required)

3.4 Set the switches

Set simulate and security switch configuration before installation as shown in Figure 3-15.

• The simulate switch enables or disables simulated alerts and simulated

AI Block status and values. The default simulate switch position is enabled.

• The security switch allows (unlocked symbol) or prevents (locked

symbol) any configuration of the transmitter.

• Default security is off (unlocked symbol).

• The security switch can be enabled or disabled in software.

Use the following procedure to change the switch configuration:

Procedure

1. If the transmitter is installed, secure the loop, and remove power.

2. Remove the housing cover opposite the field terminal side. Do not remove the instrument cover in explosive atmospheres when the circuit is live.

3. Slide the security and simulate switches into the preferred position.

4. Replace the housing cover.

Quick Start Guide 17

Quick Start Guide March 2020

Note

It is recommended the cover be tightened until there is no gap between the cover and the housing.

Figure 3-15: Simulate and Security Switches

A. Simulate disabled position B. Simulate switch C. Simulate enabled position

D. Security locked position

E. Security switch F. Security unlocked position

3.5 Connect wiring and power up

Use copper wire of sufficient size to ensure that the voltage across the transmitter power terminals does not drop below 9 Vdc. Power supply voltage can be variable, especially under abnormal conditions, such as when operating on battery backup. Emerson recommends a minimum of 12 Vdc under normal operating conditions and shielded twisted pair Type A cable.

Procedure

1. To power the transmitter, connect the power leads to the terminals indicated on the terminal block label.

18 Emerson.com/Rosemount

March 2020 Quick Start Guide

Figure 3-16: Wiring Terminals

A. Minimize distance B. Trim shield and insulate C. Protective grounding terminal (do not ground cable shield at the

transmitter)

D. Insulate shield

E. Connect shield back to the power supply ground

Note

The Rosemount 3051 power terminals are polarity insensitive, which means the electrical polarity of the power leads does not matter when connecting to the power terminals. If polarity sensitive devices are connected to the segment, follow terminal polarity. When wiring to the screw terminals, Emerson recommends using crimped legs.

2. Ensure full contact with terminal block screw and washer. When using a direct wiring method, wrap wire clockwise to ensure it is in place when tightening the terminal block screw.

Note

Emerson does not recommend using a pin or ferrule wire terminal, as the connection may be more susceptible to loosening over time or under vibration.

Quick Start Guide 19

Quick Start Guide March 2020

3.5.1 Signal wiring grounding

Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment. Grounding terminations are provided on the outside of the electronics housing and inside the terminal compartment. These grounds are used when transient protect terminal blocks are installed or to fulfill local regulations.

Procedure

1. Remove the field terminals housing cover. a) Trim the cable shield as short as practical and insulate from

touching the transmitter housing.

Note

Do NOT ground the cable shield at the transmitter; if the cable shield touches the transmitter housing, it can create ground loops and interfere with communications.

b) Continuously connect the cable shields to the power supply

ground.

c) Connect the cable shields for the entire segment to a single

good earth ground at the power supply.

Note

Improper grounding is the most frequent cause of poor segment communications.

2. Connect the wiring pair and ground as indicated in Figure 3-16.

3. Replace the housing cover. It is recommended that the cover be

tightened until there is no gap between the cover and the housing.

4. Plug and seal unused conduit connections.

3.5.2 Power supply

The transmitter requires between 9 and 32 Vdc (9 and 30 Vdc for intrinsic safety and 9 and 17.5 Vdc for FISCO intrinsic safety) to operate and provide complete functionality.

3.5.3 Power conditioner

A Fieldbus segment requires a power conditioner to isolate the power supply filter and decouple the segment from other segments attached to the same power supply.

20 Emerson.com/Rosemount

March 2020 Quick Start Guide

3.5.4 Grounding

Signal wiring of the Fieldbus segment cannot be grounded. Grounding out one of the signal wires will shut down the entire Fieldbus segment.

3.5.5 Shield wire ground

To protect the Fieldbus segment from noise, grounding techniques for shield wire require a single grounding point for shield wire to avoid creating a ground loop. Connect the cable shields for the entire segment to a single good earth ground at the power supply.

3.5.6 Signal termination

For every Fieldbus segment a terminator should be installed at the beginning and at the end of each segment.

3.5.7 Locating devices

Frequently, different personnel install, configure, and commission devices over time. A Locate Device capability uses the LCD display (when installed) to assist personnel in finding the desired device.

From the device Overview screen, select the Locate Device button. This launches a method allowing you to display a Find me message or enter a custom message to display on the device LCD display.

When you exit the Locate Device method, the device LCD display automatically returns to normal operation.

Note

Some hosts do not support Locate Device in the DD.

3.6

Configure

Each Foundation Fieldbus host or configuration tool has a different way of displaying and performing configurations. Some use device descriptions (DD) or DD methods for configuration and to display data consistently across platforms. There is no requirement that a host or configuration tool support these features. Use the following block examples to do basic configuration to the transmitter. For more advanced configurations, see the Rosemount 3051 Foundation Fieldbus Reference Manual.

Note

DeltaV™ users should use DeltaV Explorer for the resource and transducer blocks and control studio for the function blocks.

3.6.1 Configure the AI block

Navigation instructions for each step are provided below. In addition, the screens used for each step are shown in Figure 3-18.

Quick Start Guide 21

Start

Device Configuration

here

1. Verify device tag:

PD_TAG

7. Set damping:

PRIMARY_VALUE_

DAMPING

8. Set up LCD display

6. Set low cutoff: LOW_CUT

9. Review transmitter configuration

3. Set signal

conditioning:

L_TYPE

5. Set scaling OUT_SCALE

2. Check switches and software write lock

Done

10. Set switches and software write lock

4. Set scaling XD_SCALE

Quick Start Guide March 2020

Figure 3-17: Configuration Flowchart

22 Emerson.com/Rosemount

(Overview) Pressure Calibration Device Information

Locate Device Scale Gauges

(Calibration) Primary Value Sensor Trim Sensor Limits

Restore Factory Calibration

Last Calibration Points Calibration Details

(Device Information) Identification

( 1)

Revisions Materials of Construction Security & Simulation

(Materials of Construction) Sensor Sensor Range Flange Remote Seal

(Configure) Guided Setup Manual Setup Alert Setup

(Manual Setup)

Process Variable Materials of Construction Display

( )

Display Options Advanced Configuration

(Classic View)( 9 ) View All Parameters Mode Summary AI Blocks Channel Mapping

Master Reset

(Process Variable ) Pressure Pressure Damping Sensor Temperature Change Damping (8, 10)

(Security & Simulation)

Write Lock Setup

(Guided Setup)

Zero Trim Change Damping Local Display Setup Configure Analog Input Blocks (3, 4, 5, 9)

(8, 9)

(7, 9)

Class

ic View

Display

(2, 10)

March 2020 Quick Start Guide

Figure 3-18: Basic Configuration Menu Tree

• Standard text – navigation selections available

• (Text) – name of selection used on parent menu screen to access this

screen

• Bold text – automated methods

• Underlined text – configuration task numbers from configuration flow

chart

3.6.2 Before you begin

Quick Start Guide 23

See Figure 3-17 to graphically view the step by step process for basic device configuration. Before beginning configuration, you may need to verify the device tag or deactivate hardware and software write protection on the

Quick Start Guide March 2020

transmitter. To do this follow Step 1 and Step 2 below. Otherwise continue at “AI block configuration”.

Procedure

1. To verify the device tag: a) Navigation: from the Overview screen, select Device

Information to verify the device tag.

2. To check the switches (see Figure 3-15): a) The write lock switch must be in the unlocked position if the

switch has been enabled in software.

b) To disable the software write lock (devices ship from the

factory with the software write lock disabled):

• Navigation: from the Overview screen, select Device Information

and then select the Security and Simulation tab.

• Perform Write Lock Setup to disable software write lock.

Example

Note

Place the control loop in “Manual” mode before beginning analog input block configuration.

3.6.3 AI block configuration

To use guided setup:

• Navigate to Configure → Guided Setup.

• Select AI Block Unit Setup.

Note

Guided setup will automatically go through each step in the proper order.

Note

For convenience, AI block 1 is pre-linked to the transmitter primary variable and should be used for this purpose. AI block 2 is pre-linked to the transmitter sensor temperature. The channel must be selected for AI blocks 3 and 4.

• Channel 1 is the primary variable.

• Channel 2 is the sensor temperature.

If the FOUNDATION Fieldbus Diagnostics Suite Option Code D01 is enabled, these additional channels are available.

• Channel 12 is the SPM mean.

24 Emerson.com/Rosemount

March 2020 Quick Start Guide

• Channel 13 is the SPM standard deviation.

To configure SPM, refer to the Rosemount 3051 FOUNDATION Fieldbus

Reference Manual.

Note

Step 1 through step 4 are all performed in a single step by step method under guided setup, or on a single screen using manual setup.

Note

If the L_TYPE selected in Step 1 is “Direct”, step 2, step 3, and step 4 are not needed. If the L_TYPE selected is “Indirect”, step 4 is not needed. Any unneeded steps will automatically be skipped.

Procedure

1. To select the signal conditioning “L_TYPE” from the drop down menu:

a) Select L_TYPE: "Direct" for pressure measurements using the

device default units.

b) Select L_TYPE: "Indirect" for other pressure or level units.

c) Select L_TYPE: "Indirect Square Root" for flow units.

2. To set XD_SCALE to the 0% and 100% scale points (the transmitter range):

a) Select the XD_SCALE_UNITS from the drop down menu.

b) Enter the XD_SCALE 0% point. This may be elevated or

suppressed for level applications.

c) Enter the XD_SCALE 100% point. This may be elevated or

suppressed for level applications.

d) If L_TYPE is “Direct”, the AI block may be placed in AUTO

mode to return the device to service. Guided setup does this automatically.

3. If L_TYPE is “Indirect” or “Indirect Square Root”, set OUT_SCALE to change engineering units.

a) Select the OUT_SCALE UNITS from the drop down menu.

b) Set the OUT_SCALE low value. This may be elevated or

suppressed for level applications.

c) Set the OUT_SCALE high value. This may be elevated or

suppressed for level applications.

Quick Start Guide 25

Quick Start Guide March 2020

d) If L_TYPE is “Indirect”, the AI Block may be placed in AUTO

mode to return the device to service. Guided setup does this automatically.

4. If L_TYPE is “Indirect Square Root”, a LOW FLOW CUTOFF function is available.

a) Enable LOW FLOW CUTOFF.

b) Set the LOW_CUT VALUE in XD_SCALE UNITS.

c) The AI block may be placed in AUTO mode to return the

device to service. Guided setup does this automatically.

5. Change damping.

a) To use guided setup:

• Navigate to Configure → Guided Setup.

• Select Change Damping.

Note

Guided setup will automatically go through each step in the proper order.

• Enter the desired damping value in seconds. The

permitted range of values is 0.4 to 60 seconds.

b) To use manual setup:

• Navigate to Configure → Manual Setup → Process

Variable.

• Select Change Damping.

• Enter the desired damping value in seconds. The

permitted range of values is 0.4 to 60 seconds.

6. Configure optional LCD display (if installed). a) To use guided setup:

• Navigate to Configure → Guided Setup.

• Select Local Display Setup.

Note

Guided setup will automatically go through each step in the proper order.

26 Emerson.com/Rosemount

March 2020 Quick Start Guide

• Check the box next to each parameter to be displayed to a

maximum of four parameters. The LCD display will continuously scroll through the selected parameters.

b) To use manual setup:

• Navigate to Configure → Guided Setup.

• Select Local Display Setup.

• Check each parameter to be displayed. The LCD display

will continuously scroll through the selected parameters.

7. Review transmitter configuration and place in service. a) To review the transmitter configuration, navigate using the

manual setup navigation sequences for “AI Block Unit Setup”, “Change Damping”, and “Set up LCD Display”.

b) Change any values as necessary.

c) Return to the Overview screen.

d) If mode is “Not in Service”, select the Change button, and

then select Return All to Service.

Note

If hardware or software write protection is not needed, Step 10 can be skipped.

8. Set switches and software write lock. a) Check switches (see Figure 3-17).

Note

The write lock switch can be left in the locked or unlocked position. The simulate enable/disable switch may be in either position for normal device operation.

3.6.4 Enable software write lock

Procedure

1. Navigate from the Overview screen. a) Select Device Information.

b) Select the Security and Simulation tab.

2. Perform Write Lock Setup to enable software write lock.

Quick Start Guide 27

Quick Start Guide March 2020

3.6.5 AI block configuration parameters

Use the pressure, DP flow, and DP level examples for guides.

Parameters Enter data

Channel 1 = Pressure, 2 = Sensor temp, 12 = SPM mean, 13 = SPM standard

L-Type Direct, indirect, or square root

XD_Scale Scale and engineering units

Note

Select only the units that are supported by the device.

Out_Scale Scale and engineering units

deviation

Pa bar torr at 0 °C ft H2O at 4 °C m H2O at 4 °C

kPa mbar kg/cm

mPa psf kg/m

hPa Atm in H2O at 4 °C mm H2O at 4°Cin Hg at 0 °C

°C psi in H2O at 60 °F mm H2O at 68°Cm Hg at 0 °C

°F g/cm2in H2O at 68 °F cm H2O at 4°C

ft H2O at 60 °F mm Hg at 0 °C

ft H2O at 68 °F cm Hg at 0 °C

Pressure example

Parameters

Channel 1

L_Type Direct

XD_Scale See list of supported engineering units.

Note

Select only the units that are supported by the device.

Out_Scale Set values outside operating range.

Enter data

DP Flow example

Parameters

Channel 1

L_Type Square root

XD_Scale 0–100 inH2O at 68 °F

28 Emerson.com/Rosemount

Enter data

March 2020 Quick Start Guide

Parameters Enter data

Note

Select only the units that are supported by the device.

Out_Scale 0–20 GPM

Low_Cut inH2O at 68 °F

DP Level example

Parameters Enter data

Channel 1

L_Type Indirect

XD_Scale 0–300 inH2O at 68 °F

Note

Select only the units that are supported by the device.

Out_Scale 0–25 ft.

3.6.6 Display pressure on the LCD display

Procedure

Select the Pressure check box on the Display Configuration screen.

3.7

Zero trim the transmitter

Note

Transmitters are shipped fully calibrated per request or by the factory default of full scale (span = upper range limit).

A zero trim is a single-point adjustment used for compensating mounting position and line pressure effects. When performing a zero trim, ensure the equalizing valve is open and all wet legs are filled to the correct level.

The transmitter will only allow 3–5 percent URL zero error to be trimmed. For greater zero errors, compensate for the offset by using the XD_Scaling, Out_Scaling and Indirect L_Type which are part of the AI block.

Procedure

1. To use guided setup: a) Navigate to Configure → Guided Setup.

b) Select Zero Trim.

Quick Start Guide 29

Quick Start Guide March 2020

c) The method will execute the zero trim.

2. To use manual setup: a) Navigate to Overview → Calibration → Sensor Trim.

b) Select Zero Trim.

c) The method will execute the zero trim.

30 Emerson.com/Rosemount

March 2020 Quick Start Guide

4 Product certifications

Rev 2.9

4.1 European Directive Information

A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount.

4.2 Ordinary Location Certification

As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).

4.3 North America

E5 USA Explosionproof (XP) and Dust-Ignitionproof (DIP)

Range 1–5 (HART®)

Certificate:

Standards:

Markings:

Range 1–6 (HART/Fieldbus/PROFIBUS®)

Certificate:

Standards:

Markings:

I5 USA Intrinsic Safety (IS) and Nonincendive (NI)

Range 1–5 (HART)

Certificate:

FM16US0121

FM Class 3600 – 2018, FM Class 3615 – 2018, FM Class 3616 – 2011, FM Class 3810 – 2005, ANSI/NEMA 250 – 2008

XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III; T5(–50 °C ≤ Ta ≤ +85 °C); Factory Sealed; Type 4X

1053834

ANSI/ISA 12.27.01–2003, CSA Std. C22.2 No. 30–M1986, CSA Std. C22.2 No.142–M1987, CSA Std. C22.2 No. 213– M1987

XP Class I, Division 1, Groups B, C and D, T5, (–50 °C ≤ Ta ≤ +85 °C) Suitable for Class I, Zone 1, Group IIB+H2, T5; DIP Class II and Class III, Division 1, Groups E, F and G, T5, (–50 °C ≤ Ta ≤ +85 °C); Type 4X; Factory Sealed; Single Seal (See drawing 03031-1053)

FM16US0120X

Quick Start Guide 31

Quick Start Guide March 2020

Standards:

FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004, FM Class 3810 – 2005, ANSI/NEMA 250 – 2008

Markings:

IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; DIV 1 when connected per Rosemount drawing 03031-1019; NI CL 1, DIV 2, GP A, B, C, D; T4 (–50 °C ≤ Ta ≤ +70 °C) [HART], T5(–50 °C ≤ Ta ≤ +60 °C)[Fieldbus/PROFIBUS]; Type 4x

Special Conditions for Safe Use (X):

1. The Rosemount 3051 transmitter housing contains aluminum and is

considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.

2. The Rosemount 3051 transmitter with the transient terminal block

(option code T1) will not pass the 500 Vrms dielectric strength test and this must be taken into account during installation.

Range 1-6 (HART/Fieldbus/PROFIBUS)

Certificate:

Standards:

1053834

ANSI/ISA 12.27.01 – 2003, CSA Std. C22.2 No.142 – M1987, CSA Std. C22.2. No.157 – 92

Markings:

IS Class I, II, III, Division 1 Groups A, B, C, D, E, F, and G when connected in accordance with Rosemount drawing 03031– 1024, Suitable for Class I, Zone 0 Group IIC; Class I, Division 2, Groups A, B, C and D; NIFW; Suitable for Class I Zone 2, Group IIC; HART: T4 (–60 °C ≤ Ta ≤ +70 °C); T5 (–60 °C ≤ Ta ≤ +40 °C) Fieldbus/Profibus: T4 (–60 °C ≤ Ta ≤ +60 °C) Type 4X

IE USA FISCO

Range 1–5 (HART)

Certificate:

Standards:

FM16US0120X

FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004, FM Class 3810 – 2005

Markings:

IS CL I, DIV 1, GP A, B, C, D when connected per Rosemount drawing 03031-1019 (–50 °C ≤ Ta ≤ +60 °C); Type 4x

Special Conditions for Safe Use (X):

1. The Rosemount 3051 transmitter housing contains aluminum and is

considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.

32 Emerson.com/Rosemount

March 2020 Quick Start Guide

2. The Rosemount 3051 transmitter with the transient terminal block (option code T1) will not pass the 500 Vrms dielectric strength test and this must be taken into account during installation.

Range 1-6 (HART/Fieldbus/PROFIBUS)

Certificate:

Standards:

1053834

ANSI/ISA 12.27.01 – 2003, CSA Std. C22.2 No.142 – M1987, CSA Std. C22.2. No.157–92

Markings:

IS Class I, Division 1 Groups A, B, C, D, T4 (–60 °C ≤ Ta ≤ +60 °C) when connected in accordance with Rosemount drawing 03031-1024, Suitable for Class I, Zone 0 Group IIC; Type 4X; Factory Sealed; Single Seal (See drawing 03031-1053)

C6 Canada Explosionproof, Dust-Ignitionproof, Intrinsic Safety and Nonincendive

Certificate:

Standards:

1053834

ANSI/ISA 12.27.01-2003, CSA Std. C22.2 No. 30 -M1986, CSA Std. C22.2 No.142-M1987, CSA Std. C22.2. No.157-92, CSA Std. C22.2 No. 213 - M1987

Markings:

Explosionproof for Class I, Division 1, Groups B, C and D; Suitable for Class I, Zone 1, Group IIB+H2, T5 (–50 °C ≤ Ta ≤ +85 °C); Dust-Ignitionproof Class II, III Division 1, Groups E, F, G; T5 (–50 °C ≤ Ta ≤ +85 °C); Intrinsically Safe Class I, Division 1 Groups A, B, C, D when connected in accordance with Rosemount drawing 03031-1024, Temperature Code T4; Suitable for Class I, Zone 0; Class I Division 2 Groups A, B, C and D, T5 (–50 °C ≤ Ta ≤ +85 °C); Intrinsically Safe Class I, Division 1 Groups A, B, C, D when connected in accordance with Rosemount drawing 03031-1024, Temperature Code T4; Suitable for Class I, Zone 0; Class I Division 2 Groups A, B, C, and D, T5; Suitable for Class I Zone 2, Group IIC; Type 4X; Factory Sealed; Single Seal (See drawing 03031-1053)

E6 Canada Explosionproof, Dust-Ignitionproof and Division 2

Certificate:

Standards:

1053834

ANSI/ISA 12.27.01-2003, CSA Std. C22.2 No. 30 -M1986, CSA Std. C22.2 No.142-M1987, CSA Std. C22.2 No. 213 - M1987

Markings:

Explosionproof Class I, Division 1, Groups B, C and D; Suitable for Class I, Zone 1, Group IIB+H2, T5; Dust-Ignitionproof for Class II and Class III, Division 1, Groups E, F and G; T5 (–50 °C ≤ Ta ≤ +85 °C); Dust-Ignitionproof for Class II and Class III, Division 1, Groups E, F and G; T5 (–50 °C ≤ Ta ≤ +85 °C); Class I,

Quick Start Guide 33

Quick Start Guide March 2020

Division 2, Groups A, B, C and D; T5 (–50 °C ≤ Ta ≤ +85 °C); Class I, Division 2, Groups A, B, C and D; T5; Suitable for Class I Zone 2, Group IIC; Type 4X; Factory Sealed; Single Seal (See drawing 03031-1053)

4.4 Europe

E8 ATEX Flameproof and Dust

Certificate:

Standards:

KEMA00ATEX2013X; Baseefa11ATEX0275X

EN60079-0:2012 + A11:2013, EN60079-1:2014, EN60079-26:2015, EN60079-31:2009

Markings:

Ex II 1/2 G Ex db IIC T6…T4 Ga/Gb T6(–60 °C ≤ Ta ≤ +70 °C), T4/T5(–60 °C ≤ Ta ≤ +80 °C); Ex II 1 D Ex ta IIIC T95 °C T °C Da (–20 °C ≤ Ta ≤ +85 °C)

Table 4-1: Process Temperature

Temperature class Process temperature

T6 –60 to +70 °C

T5 –60 to +80 °C

T4 –60 to +120 °C

Special Conditions for Safe Use (X):

1. This device contains a thin wall diaphragm less than 1 mm thick that forms a boundary between Category 1 (process connection) and Category 2 (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material. During installation, maintenance, and use the environmental conditions to which the diaphragm will be subjected shall be taken into account. The manufacturer’s instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

500

105

2. Flameproof joints are not intended for repair.

3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information.

4. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

34 Emerson.com/Rosemount

March 2020 Quick Start Guide

I1 ATEX Intrinsic Safety and Dust

Certificate:

Standards:

BAS97ATEX1089X; Baseefa11ATEX0275X

EN60079-0:2012 + A11:2013, EN60079-11:2012, EN60079-31:2014

Markings:

HART: Ex II 1 G Ex ia IIC T5/T4 Ga, T5(–60 °C ≤ Ta ≤ +40 °C), T4(–60 °C ≤ Ta ≤ +70 °C) Fieldbus/PROFIBUS: Ex II 1 G Ex ia IIC Ga T4(–60 °C ≤ Ta ≤ +60 °C)

DUST: Ex II 1 D Ex ta IIIC T95 °C T

105 °C Da (–20 °C ≤ Ta ≤

500

+85 °C)

Table 4-2: Input Parameters

Parameter HART Fieldbus/PROFIBUS

Voltage U

Current I

Power P

Capacitance C

Inductance L

30 V 30 V

200 mA 300 mA

0.9 W 1.3 W

0.012 μF 0 μF

0 mH 0 mH

Special Conditions for Safe Use (X):

1. The apparatus is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of EN60079-11:2012. This must be taken into account when installing the apparatus.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however care should be taken to protect it from impact or abrasion if located in Zone 0.

3. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

IA ATEX FISCO

Certificate:

Standards:

Markings:

BAS97ATEX1089X

EN60079-0:2012 + A11:2013, EN60079-11:2012

Ex II 1 G Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +60 °C)

Table 4-3: Input Parameters

Parameter Fieldbus/PROFIBUS

Voltage U

Quick Start Guide 35

17.5 V

Quick Start Guide March 2020

Table 4-3: Input Parameters (continued)

Parameter Fieldbus/PROFIBUS

Current I

Power P

Capacitance C

Inductance L

380 mA

5.32 W

≤ 5 nF

≤ 10 μH

Special Conditions for Safe Use (X):

1. The apparatus is not capable of withstanding the 500 V insulation test required by EN60079-11. This must be taken into account when installing the apparatus.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however care should be taken to protect it from impact or abrasion if located in Zone 0.

N1 ATEX Type n and Dust

4.5

Certificate:

Standards:

BAS00ATEX3105X; Baseefa11ATEX0275X

EN60079-0:2012 + A11:2013, EN60079-15:2010, EN60079-31:2014

Markings:

Ex II 3 G Ex nA IIC T5 Gc (–40 °C ≤ Ta ≤ +70 °C); Ex II 1 D Ex ta IIIC T95 °C T

105 °C Da (–20 °C ≤ Ta ≤ +85 °C)

500

Special Conditions for Safe Use (X):

1. This apparatus is not capable of withstanding the 500 V insulation test that is required by clause 6.8.1 of EN60079-15. This must be taken into account when installing the apparatus.

2. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

International

E7 IECEx Flameproof and Dust

Certificate:

Standards:

Markings:

IECEx KEM 09.0034X; IECEx BAS 10.0034X

IEC60079-0:2011, IEC60079-1:2014-06, IEC60079-26:2014-10, IEC60079-31:2013

Ex db IIC T6…T4 Ga/Gb T6(–60 °C ≤ Ta ≤ +70 °C), T4/T5(–60 °C ≤ Ta ≤ +80 °C); Ex ta IIIC T95 °C T

105 °C Da (–20 °C ≤ Ta ≤

500

+85 °C)

36 Emerson.com/Rosemount

March 2020 Quick Start Guide

Table 4-4: Process Temperature

Temperature class Process temperature

T6 –60 to +70 °C

T5 –60 to +80 °C

T4 –60 to +80 °C

Special Conditions for Safe Use (X):

1. This device contains a thin wall diaphragm less than 1 mm thick that forms a boundary between EPL Ga (process connection) and EPL Gb (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material. During installation, maintenance, and use the environmental conditions to which the diaphragm will be subjected shall be taken into account. The manufacturer’s instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

2. Flameproof joints are not intended for repair.

4. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

I7 IECEx Intrinsic Safety

Certificate:

Standards:

Markings:

IECEx BAS 09.0076X

IEC60079-0:2011, IEC60079-11:2011

HART: Ex ia IIC T5/T4 Ga, T5(–60 °C ≤ Ta ≤ +40 °C), T4(–60 °C ≤ Ta ≤ +70 °C) Fieldbus/PROFIBUS: Ex ia IIC T4(–60 °C ≤ Ta ≤ +60 °C)

Table 4-5: Input Parameter

Parameter HART Fieldbus/PROFIBUS

Voltage U

Current I

Power P

Capacitance C

Quick Start Guide 37

30 V 30 V

200 mA 300 mA

0.9 W 1.3 W

0.012 μF 0 μF

Quick Start Guide March 2020

Table 4-5: Input Parameter (continued)

Parameter HART Fieldbus/PROFIBUS

Inductance L

0 mH 0 mH

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of IEC60079-11. This must be taken into account when installing the apparatus.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in Zone 0.

IECEx Mining (Special A0259)

Certificate:

Standards:

Markings:

IECEx TSA 14.0001X

IEC60079-0:2011, IEC60079-11:2011

Ex ia I Ma (–60 °C ≤ Ta ≤ +70 °C)

Table 4-6: Input Parameter

Parameter HART Fieldbus/PROFIBUS FISCO

Voltage U

Current I

Power P

Capacitance C

Inductance L

30 V 30 V 17.5 V

200 mA 300 mA 380 mA

0.9 W 1.3 W 5.32 W

0.012 μF 0 μF < 5 nF

0 mH 0 mH < 10 μH

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by IEC60079-11. This must be taken into account when installing the apparatus.

2. It is a condition of safe use that the above input parameters shall be taken into account during installation.

3. It is a condition of manufacture that only the apparatus fitted with housing, covers and sensor module housing made out of stainless steel are used in Group I applications.

38 Emerson.com/Rosemount

March 2020 Quick Start Guide

IG IECEx FISCO

Certificate:

Standards:

Markings:

IECEx BAS 09.0076X

IEC60079-0:2011, IEC60079-11:2011

Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +60 °C)

Special Conditions for Safe Use (X):

Table 4-7: Input Parameter

Parameter Fieldbus/PROFIBUS

Voltage U

Current I

Power P

Capacitance C

Inductance L

17.5 V

380 mA

5.32 W

≤ 5 nF

≤ 10 μH

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of IEC 60079-11. This must be taken into account when installing the apparatus.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in Zone 0.

N7 IECEx Type n

Certificate:

Standards:

Markings:

IECEx BAS 09.0077X

IEC60079-0:2011, IEC60079-15:2010

Ex nA IIC T5 Gc (–40 °C ≤ Ta ≤ +70 °C)

Special Condition for Safe Use (X):

1. The apparatus is not capable of withstanding the 500 V insulation test required by clause 6.5.1 of IEC 60079-15. This must be taken into account when installing the apparatus.

4.6

Brazil

E2 INMETRO Flameproof

Certificate:

Quick Start Guide 39

UL-BR 13.0643X

Quick Start Guide March 2020

Standards:

ABNT NBR IEC 60079-0:2013; ABNT NBR IEC 60079-1:2016; ABNT NBR IEC 60079-26:2016

Markings:

Ex db IIC T6…T4 Ga/Gb, T6(–60 °C ≤ Ta ≤ +70 °C), T4/T5(–60 °C ≤ Ta ≤ +80 °C)

Special Conditions for Safe Use (X):

1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a boundary between zone 0 (process connection) and zone 1 (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected. The manufacturer's instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

2. Flameproof joints are not intended for repair.

I2 INMETRO Intrinsic Safety

Certificate:

Standards:

Markings:

UL-BR 13.0584X

ABNT NBR IEC60079-0:2013, ABNT NBR IEC60079-11:2013

HART: Ex ia IIC T5/T4 Ga, T5(–60 °C ≤ Ta ≤ +40 °C), T4(–60 °C ≤ Ta ≤ +70 °C) Fieldbus/PROFIBUS: Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +60 °C)

Table 4-8: Input Parameter

Parameter HART Fieldbus/PROFIBUS

Voltage U

Current I

Power P

Capacitance C

Inductance L

40 Emerson.com/Rosemount

30 V 30 V

200 mA 300 mA

0.9 W 1.3 W

0.012 μF 0 μF

0 mH 0 mH

March 2020 Quick Start Guide

Special Conditions for Safe Use (X):

1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IRC 60079-11. This must be taken into account when installing the equipment.

2. The enclosure may be made of aluminum alloy and given protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if equipment requires EPL Ga.

IB INMETRO FISCO

Certificate:

Standards:

Markings:

UL-BR 13.0584X

ABNT NBR IEC60079-0:2013, ABNT NBR IEC60079-11:2013

Ex ia IIC T4 Ga (–60 °C ≤ Ta ≤ +60 °C)

Table 4-9: Input Parameter

Parameter FISCO

Voltage U

Current I

Power P

Capacitance C

Inductance L

Special Conditions for Safe Use (X):

1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IEC 60079-11. This must be taken into account when installing the equipment.

2. The enclosure may be made of aluminum alloy and given protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if equipment requires EPL Ga.

4.7

China

4.7.1 E3 China Flameproof

17.5 V

380 mA

5.32 W

≤ 5 nF

≤ 10 μH

Certificate

Standards

GYJ19.1056X [Transmitters]; GYJ15.1368X [Flow meters]

GB3836.1-2010, GB3836.2-2010, GB3836.20-2010, GB12476.1-2013, GB12476.5-2013

Markings

3051 Series: Ex d IIC T6 ~ T4 Ga/Gb, Ex tD A20 IP66 T95 °C T

500

105 °C (-20 °C ≤ Ta ≤ +85 °C)

Quick Start Guide 41

Quick Start Guide March 2020

3051CF Series: Ex d IIC T5/T6 Ga/Gb

一、产品安全使用特殊条件

证书编号后缀“X”表明产品具有安全使用特殊条件：涉及隔爆接合面的维修须联系产品制造商。

1. 涉及隔爆接合面的维修须联系产品制造商。.

2. 产品使用厚度小于 1mm 的隔膜作为 0 区（过程连接）和 1 区（产

品其他部分）的隔离，安装和维护时需严格遵守制造商提供的说明书，以确保安全性。

3. 产品外部涂层可能产生静电危险，使用时须防止产生静电火花，只能用湿布清理。.

二、产品使用注意事项

1. 用于爆炸性气体环境中，产品温度组别和使用环境温度之间的关系为：（变送器）

温度组别环境温度过程温度

T6 -60 °C ~ +70 °C -60 °C ~ +70 °C

T5 -60 °C ~ +80 °C -60 °C ~ +80 °C

T4 -60 °C ~ +80 °C -60 °C ~ +120 °C

用于爆炸性气体环境中，产品温度组别和使用环境温度之间的关系为：（流量计）

温度组别

T6 -50 °C ~ +65 °C

T5 -50 °C ~ +80 °C

使用环境温度

2. 产品外壳设有接地端子，用户在使用时应可靠接地; -20 °C ≤ Ta ≤ +85 °C

3. 产品外壳设有接地端子，用户在使用时应可靠接地

4. 安装现场应不存在对产品外壳有腐蚀作用的有害气体。

5. 现场安装时，电缆引入口须选用国家指定的防爆检验机构按检验认

可、具有 Ex dⅡC，Ex tD A20 IP66 防爆等级的电缆引入装置或堵封件，冗余电缆引入口须用堵封件有效密封。

6. 用于爆炸性气体环境中，现场安装、使用和维护必须严格遵守“断电后开盖！”的警告语。用于爆炸性粉尘环境中，现场安装、使用和维护必须严格遵守“爆炸性粉尘场所严禁开盖！”的警告语。

42 Emerson.com/Rosemount

March 2020 Quick Start Guide

7. 用于爆炸性粉尘环境中，产品外壳表面需保持清洁，以防粉尘堆

积，但严禁用压缩空气吹扫。

8. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运行中出现的故障，以杜绝损坏现象的发生。

9. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境第 13 部分：设备的修理、检修、修

复和改造”、GB/T3836.15-2017“爆炸性环境第 15 部分：电气装置的设计、选型和安装”、GB/T3836.16-2017“爆炸性环境第 16 部分：电气装置的检查与维护”、GB50257-2014“电气装置安装工程爆炸和火灾危险环境电力装置施工及验收规范”和 GB15577-2007“粉尘防爆安全规程” GB12476.2-2010“可燃性粉尘环境用电气设备第 1 部分：用外壳和限制表面温度保护的电气设备第 2 节电气设备的选择、安装和维护”的有关规定。

4.7.2 I3 China Intrinsic Safety

Certificate

Standards

GYJ13.1362X; GYJ15.1367X [Flow meters]

GB3836.1-2010, GB3836.4-2010, GB3836.20-2010, GB12476.1-2000

Markings

3051 Series: Ex ia IIC T4/T5 Ga, DIP A20 TA 80 °C IP66 3051 CF Series: Ex ia IIC T4/T5 Ga

• 产品安全使用特殊条件:

证书编号后缀“X”表明产品具有安全使用特殊条件：

1. 产品（选用铝合金外壳）外壳含有轻金属，用于 0 区时需注意

防止由于冲击或摩擦产生的点燃危险。

2. 当选择 T1 瞬态抑制端子时,此设备不能承受 GB3836.4-2010 标准中第 6.3.12 条规定的 500V 交流有效值试验电压的介电强度试验。

3. Transmitter output 为 X 时，需使用由厂家提供的型号为 701PG 的 Smart Power Green Power Module 电池。

4. 产品外壳含有非金属部件，使用时须防止产生静电火花，只能用湿布清理。

• 产品使用注意事项:

1. 产品使用环境温度范围：

气体

/粉尘 Transmitter

output

气体 A, M T5 -60 °C ~ +40 °C

气体 A, M T4 -60 °C ~ +70 °C

气体 F, W T4 -60 °C ~ +60 °C

温度组别环境温度范围

Quick Start Guide 43

Quick Start Guide March 2020

气体/粉尘 Transmitter

output

气体 X T4 -40 °C ~ +70 °C

粉尘 A, F, W T80 °C -20 °C ~ +40 °C

温度组别环境温度范围

2. 本安电气参数：

Transmit ter output

A, M 30 200 0.9 12 0

F, W 30 300 1.3 0 0

F, W (FISCO)

最高输入

电压 Ui

（V）

17.5 380 5.32 5 10

最大输入

电流 Ii

（mA）

最大输入

功率 Pi （W）

最大内部等效参数

Ci (nF) Li (µH)

注：Transmitter Output 为 F、W（FISCO）时，本安电气参数符合 GB3836.19-2010 对 FISCO 现场仪表的参数要求。

3. 该产品必须与已通过防爆认证的关联设备配套共同组成本安防爆系统方可使用于爆炸性气体环境。其系统接线必须同时遵守本产品和所配关联设备的使用说明书要求，接线端子不得接错。

4. 该产品与关联设备的连接电缆应为带绝缘护套的屏蔽电缆，其屏蔽层应在安全场所接地。

5. 对于爆炸性粉尘环境，最大输入电压为：

Transmitter output

A 55 V

F, W 40 V

最高输入电压

6. 安装现场应不存在对产品外壳有腐蚀作用的有害气体。

7. 现场安装时，电缆引入口须选用国家指定的防爆检验机构按检

验认可、具有 DIP A20 IP66 防爆等级的电缆引入装置、转接头或堵封件，冗余电缆引入口须用堵封件有效密封。

8. 对于爆炸性粉尘环境，现场安装、使用和维护必须严格遵守“爆炸性粉尘场所严禁开盖！”的警告语。

9. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运行中出现的故障，以杜绝损坏现象的发生。

10. 安装现场确认无可燃性粉尘存在时方可维修。

44 Emerson.com/Rosemount

March 2020 Quick Start Guide

11. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013 “爆炸性环境第 13 部分：设备的修理、检修、修复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备第 15 部分：危险场所电气安装（煤矿除外）”、GB3836.16-2006 “爆炸性气体环境用电气设备第 16 部分：电气装置的检查和维

护（煤矿除外）”、GB3836.18-2010“爆炸性环境第 18 部分：本质安全系统”和 GB50257-2014“电气装置安装工程爆炸和火灾危险环境电力装置施工及验收规范”, GB50527-1996 “电气装置安装工程爆炸和火灾危险环境电气装置施工验收规范”以及 GB15577-2007 “粉尘防爆安全规程”、GB12476.2-2006 “可燃性粉尘环境用电气设备第 1 部分：用外壳和限制表面温度保护的电气设备第 2 节：电气设备的选择、安装和维护”的有关规定。

4.7.3 N3 China Type n

Certificate

Standards

Markings

GYJ15.1105X

GB3836.1-2010, GB3836.8-2003

Ex nA nL IIC T5 Gc (-40 °C ≤ Ta ≤ +70 °C)

• 产品安全使用特殊条件

产品防爆合格证号后缀“X”代表产品安全使用有特殊条件：产品不能承受 GB3836.8-2003 标准第 8.1 条中规定的 500V 对地电压试验 1 分钟，安装时需考虑在内。

• 产品使用注意事项

1. 产品使用环境温度范围为： -40 °C ≤ Ta ≤ 70 °C

2. 最高输入电压：

Transmitter output

A, M (3051 Enhanced & 3051 Low Power HART)

F, W 40 Vdc

最高输入电压

55 Vdc

3. 现场安装时，电缆引入口须选用经国家指定的防爆检验机构检

验认可的、具有 Ex e 或 Ex n 型的电缆引入装置或堵封件，冗余电缆引入口须用堵封件有效密封。

4. 安装现场确认无可燃性气体存在时方可维修。

5. 用户不得自行更换该产品的零部件，应会同产品制造商共同解

决运行中出现的故障，以杜绝损坏现象的发生。

6. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境第 13 部分：设备的修理、检修、修复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备第

Quick Start Guide 45

Quick Start Guide March 2020

15 部分：危险场所电气安装（煤矿除外）”、GB3836.16-2006 “爆炸性气体环境用电气设备第 16 部分：电气装置的检查和维

护（煤矿除外）” 、GB50257-1996“电气装置安装工程爆炸和火灾危险环境电力装置施工及验收规范”的有关规定。

4.8 Japan

E4 Japan Flameproof

Certificate:

Markings:

TC20577, TC20578, TC20583, TC20584 [HART]; TC20579, TC20580, TC20581, TC20582 [Fieldbus]

Ex d IIC T5

4.9 Republic of Korea

EP Republic of Korea Flameproof

Certificate:

Markings:

IP Republic of Korea Intrinsic Safety

Certificate:

Markings:

11-KB4BO-0188X [Mfg Singapore], 19-KA4BO-079X [Mfg USA]

Ex d IIC T6…T4 Ga/Gb

13-KB4BO-0203X [HART – Mfg USA], 13-KB4BO-0204X [Fieldbus – Mfg USA], 10-KB4BO-0138X [HART – Mfg Singapore], 13-KB4BO-0206X [Fieldbus – Mfg Singapore], 18KA4BO-0354X [HART – Mfg USA], 18-KA4BO-0355X [Fieldbus – Mfg USA]

Ex ia IIC T5/T4 (HART); Ex ia IIC T4 (Fieldbus)

4.10 Technical Regulations Customs Union (EAC)

EM EAC Flameproof

Markings:

Ga/Gb Ex db IIC T4…T6 X, T4/T5(–60 °C ≤ Ta ≤ +80 °C), T6(–60 °C ≤ Ta ≤ +70 °C)

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

IM EAC Intrinsically Safe

Markings:

46 Emerson.com/Rosemount

HART: 0Ex ia IIC T4/T5 Ga X, T4(–60 °C ≤ Ta ≤ +70 °C), T5(–60 °C ≤ Ta ≤ +40 °C) Fieldbus/PROFIBUS: 0Ex ia IIC T4 Ga X (–60 °C ≤ Ta ≤ +60 °C)

March 2020 Quick Start Guide

Special Conditions for Safe Use (X):

1. See certificate for special conditions.

4.11 Combinations

Combination of E2 and I2

Combination of E5 and I5

Combination of C6, E8, and I1

Combination of E7, I7, and N7

Combination of E8, I1, and N1

Combination of E5, I5, and C6

Combination of E8, I1, E5, I5, and C6

Combination of EM and IM

Combination of EP and IP

4.12 Conduit plugs and adapters

IECEx Flameproof and Increased Safety

Certificate:

Standards:

Markings:

ATEX Flameproof and Increased Safety

Certificate:

Standards:

Markings:

IECEx FMG 13.0032X

IEC60079-0:2011, IEC60079-1:2007, IEC60079-7:2006-2007

Ex de IIC Gb

FM13ATEX0076X

EN60079-0:2012, EN60079-1:2007, IEC60079-7:2007

Ex II 2 G Ex de IIC Gb

Table 4-10: Conduit Plug Thread Sizes

Thread Identification mark

M20 x 1.5 M20

½–14 NPT ½ NPT

Table 4-11: Thread Adapter Thread Sizes

Male thread Identification mark

M20 x1.5–6H M20

Quick Start Guide 47

Quick Start Guide March 2020

Table 4-11: Thread Adapter Thread Sizes (continued)

½–14 NPT ½–14 NPT

¾–14 NPT ¾–14 NPT

Female thread Identification mark

M20 x 1.5–6H M20

½–14 NPT ½–14 NPT

G½ G½

Special Conditions for Safe Use (X):

1. When the thread adapter or blanking plug is used with an enclosure in type of protection increased safety “e” the entry thread shall be suitably sealed in order to maintain the ingress protection rating (IP) of the enclosure.

2. The blanking plug shall not be used with an adapter.

3. Blanking Plug and Threaded Adapter shall be either NPT or Metric thread forms. G½ thread forms are only acceptable for existing (legacy) equipment installations.

4.13 Additional certifications

SBS Americaan Bureau of Shipping (ABS) Type Approval

Certificate:

Intended:

09-HS446883A-5-PDA

Marine & Offshore Applications — Measurement of either gauge or absolute pressure for liquid, gas, and vapor.

SBV Bureau Veritas (BV) Type Approval

Certificate:

Requirements:

Application:

23155

Bureau Veritas Rules for the Classification of Steel Ships

Class notations: AUT-UMS, AUT-CCS, AUT-PORT and AUTIMS; Pressure transmitter type 3051 cannot be installed on diesel engines

SDN Det Norske Veritas (DNV) Type Approval

Certificate:

Intended Use:

48 Emerson.com/Rosemount

TAA000004F

DNV GL Rules for Classification — Ships and offshore units

March 2020 Quick Start Guide

Application:

Location classes

Temperature D

Humidity B

Vibration A

EMC B

Enclosure D

SLL Lloyds Register (LR) Type Approval

Certificate:

Application:

11/60002

Environmental categories ENV1, ENV2, ENV3, and ENV5

C5 Custody Transfer - Measurement Canada Accuracy Approval

Certificate:

AG-0226; AG-0454; AG-0477

Quick Start Guide 49

Quick Start Guide March 2020

4.14 Declaration of Conformity

50 Emerson.com/Rosemount

March 2020 Quick Start Guide

Quick Start Guide 51

Quick Start Guide March 2020

52 Emerson.com/Rosemount

March 2020 Quick Start Guide

Quick Start Guide 53

Quick Start Guide March 2020

Figure 4-1: China ROHS

54 Emerson.com/Rosemount

March 2020 Quick Start Guide

Quick Start Guide 55

*00825-0200-4774*

00825-0200-4774, Rev. DA

Quick Start Guide

March 2020

Global Headquarters

Emerson Automation Solutions 6021 Innovation Blvd. Shakopee, MN 55379, USA

+1 800 999 9307 or +1 952 906 8888 +1 952 204 8889 RFQ.RMD-RCC@Emerson.com

Latin America Regional Office

Emerson Automation Solutions 1300 Concord Terrace, Suite 400 Sunrise, FL 33323, USA

+1 954 846 5030 +1 954 846 5121 RFQ.RMD-RCC@Emerson.com

Asia Pacific Regional Office

Emerson Automation Solutions 1 Pandan Crescent Singapore 128461

+65 6777 8211 +65 6777 0947 Enquiries@AP.Emerson.com

North America Regional Office

Emerson Automation Solutions 8200 Market Blvd. Chanhassen, MN 55317, USA

+1 800 999 9307 or +1 952 906 8888 +1 952 204 8889 RMT-NA.RCCRFQ@Emerson.com

Europe Regional Office

Emerson Automation Solutions Europe GmbH Neuhofstrasse 19a P.O. Box 1046 CH 6340 Baar Switzerland

+41 (0) 41 768 6111 +41 (0) 41 768 6300 RFQ.RMD-RCC@Emerson.com

Middle East and Africa Regional Office

Emerson Automation Solutions Emerson FZE P.O. Box 17033 Jebel Ali Free Zone - South 2 Dubai, United Arab Emirates

+971 4 8118100 +971 4 8865465 RFQ.RMTMEA@Emerson.com

Linkedin.com/company/Emerson-

Automation-Solutions

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/user/

RosemountMeasurement

Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.

Rosemount 3051 Pressure Transmitter and 3051CF Series Flowmeter with FOUNDATION fieldbus Protocol (Rev. 8) Quick Start Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1 About this guide

1.1 Safety messages

2 System readiness

2.1 Confirm correct device driver

2.1.1 Rosemount 3051 device revisions and drivers

3 Transmitter installation

3.1 Mount the transmitter

3.1.1 Mount the transmitter in liquid applications

3.1.2 Mount the transmitter in gas applications

3.1.3 Mount the transmitter in steam applications

3.1.4 Bolting considerations

3.1.5 O-rings with flange adapters

3.1.6 Environmental seal for housing

3.1.7 In-line gage transmitter orientation

3.1.8 Installing high pressure coned and threaded connection

3.2 Tagging

3.2.1 Commissioning (paper) tag

Consider housing rotation

3.4 Set the switches

3.5 Connect wiring and power up

3.5.1 Signal wiring grounding

3.5.2 Power supply

3.5.3 Power conditioner

3.5.4 Grounding

3.5.5 Shield wire ground

3.5.6 Signal termination

3.5.7 Locating devices

Configure

3.6.1 Configure the AI block

3.6.2 Before you begin

3.6.3 AI block configuration

3.6.4 Enable software write lock

3.6.5 AI block configuration parameters

3.6.6 Display pressure on the LCD display

Zero trim the transmitter

4 Product certifications

4.1 European Directive Information

4.2 Ordinary Location Certification

4.3 North America

4.4 Europe

International

Brazil

China

4.7.1 E3 China Flameproof

4.7.2 I3 China Intrinsic Safety

4.7.3 N3 China Type n

4.8 Japan

4.9 Republic of Korea

4.10 Technical Regulations Customs Union (EAC)

4.11 Combinations

4.12 Conduit plugs and adapters

4.13 Additional certifications

4.14 Declaration of Conformity
