Rosemount 248 Wireless Temperature Transmitter Quick Start Guide

Download
Quick Start Guide
00825-0200-4248, Rev GA
February 2021

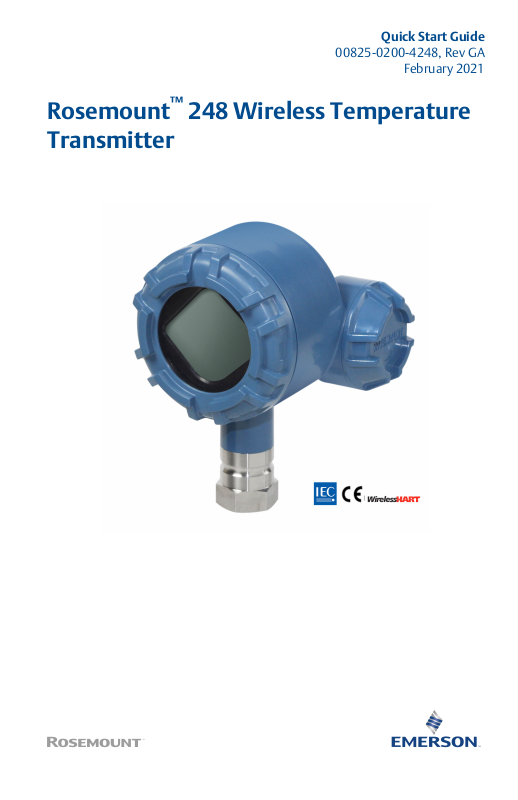

Rosemount™ 248 Wireless Temperature Transmitter
Contents

1 About this guide

This guide provides basic guidelines to install the Rosemount 248 Wireless Temperature Transmmitter. It does not provide instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the Rosemount 248 Temperature Transmitter
Reference Manual for more instruction. The manual and this guide are also
available electronically at Emerson.com/Rosemount.

1.1 Safety messages

WARNING
Failure to follow these installation guidelines could result in death or serious injury.
Ensure only qualified personnel perform the installation.
Explosions
Explosions could result in death or serious injury.
Installation of device in an explosive environment must be in accordance with appropriate local, national, and international standards, codes, and practices.
Review the Hazardous Locations Certifications for any restrictions associated with a safe installation.
Process leaks
Process leaks could result in death or serious injury.
Install and tighten thermowells and sensors before applying pressure. Do not remove the thermowell while in operation.
Electrical shock
Electrical shock could cause death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.
Unless marked, the conduit/cable entries in the housing use a ½–14 NPT thread form. Entries marked “M20” are M20 × 1.5 thread form. On devices with multiple conduit entries, all entries will have the same thread form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these entries.
When installing in a hazardous location, use only appropriately listed or Ex certified plugs, glands, or adapters in cable/conduit entries.
Quick Start Guide 3
WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
This device may not cause harmful interference. This device must accept any interference received, including
interference that may cause undesired operation. This device must be installed to ensure a minimum antenna separation
distance of 8-in. (20 cm) from all persons. The power module may be replaced in a hazardous area. The power
module has surface resistivity greater than one gigaohm and must be properly installed in the wireless device enclosure. Care must be taken during transportation to and from the point of installation to prevent electrostatic charge build-up.
Physical access
Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This could be intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility.
NOTICE
Power module considerations (Green Power Module, model number 701PGNKF)
The green power module with the wireless unit contains one “D” size primary lithium-thionyl chloride battery (model number 701PGNKF). Each battery contains approximately 5.0 grams of lithium. Under normal conditions, the battery materials are self-contained and are not reactive as long as the batteries and the pack integrity are maintained. Care should be taken to prevent thermal, electrical or mechanical damage. Contacts should be protected to prevent premature discharge.
Battery hazards remain when cells are discharged. Power modules should be stored in a clean and dry area. For maximum
battery life, storage temperature should not exceed 86 °F (30 °C).
NOTICE
Shipping considerations for wireless products (lithium batteries: Green Power Module, model number 701PGNKF)
The unit was shipped to you without the power module installed. Remove the power module prior to shipping.
Each power module contains one “D” size primary lithium battery. Primary lithium batteries are regulated in transportation by the U.S. Department of Transportation, and are also covered by IATA (International Air Transport Association), ICAO (International Civil Aviation Organization), and ARD (European Ground Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure compliance with these or any other local requirements. Consult current regulations and requirements before shipping.
Quick Start Guide 5

2 Wireless considerations

2.1 Power up sequence

The Rosemount 248 Wireless Transmitter and all other devices should be installed only after the Wireless Gateway (“Gateway”) has been installed and is functioning properly. Wireless devices should also be powered up in order of proximity from the Gateway, beginning with the closest. This will result in a simpler and faster network installation. Enable Active Advertising on the Gateway to ensure new devices join the network faster. For more information see the Emerson Wireless Gateway Reference Manual.

2.2 Antenna position

The internal antenna is designed for multiple mounting orientations. The transmitter should be mounted according to best practices for your temperature measurement application. The transmitter should be approximately 3 ft. (1 m) from any large structure or building to allow clear communication to other devices.

2.3 Field Communicator connections

The power module must be installed in the device for the Field Communicator to interface with the transmitter. The Field Communicator connections are located on the Green Power Module. To communicate to the transmitter, begin by removing the power module cover. This will expose the HART® communication terminals located on the Green Power Module. Next, connect the Field Communicator leads to the COMM port connections on the Green Power Module.
This transmitter uses the Green Power Module; order model number 701PGNKF. The power module is keyed and can only be inserted in one orientation. Field communication with this device requires a HART-based Field Communicator. Refer to Figure 2-1 for instructions on connecting the Field Communicator to the transmitter.
Figure 2-1: Field Communicator Connection

3 Physical installation

The transmitter can be installed in one of two configurations: Direct Mount, where the sensor is connected directly to the transmitter conduit entry, or Remote Mount, where the sensor is mounted separately from the transmitter housing, then connected to the transmitter via conduit. Choose the installation sequence that corresponds to the mounting configuration.
Upon installation of the transmitter, ensure that the conduit entry has an installed conduit fitting or cable gland with approved thread sealant.

3.1 Direct mount

The direct mount installation should not be used when installing with a Swagelok® fitting.
Procedure
1. Remove the transmitter enclosure cover.
2. Remove the LCD display (if applicable).
3. Loosen the captive screws and remove LCD display adapter plate (if applicable).

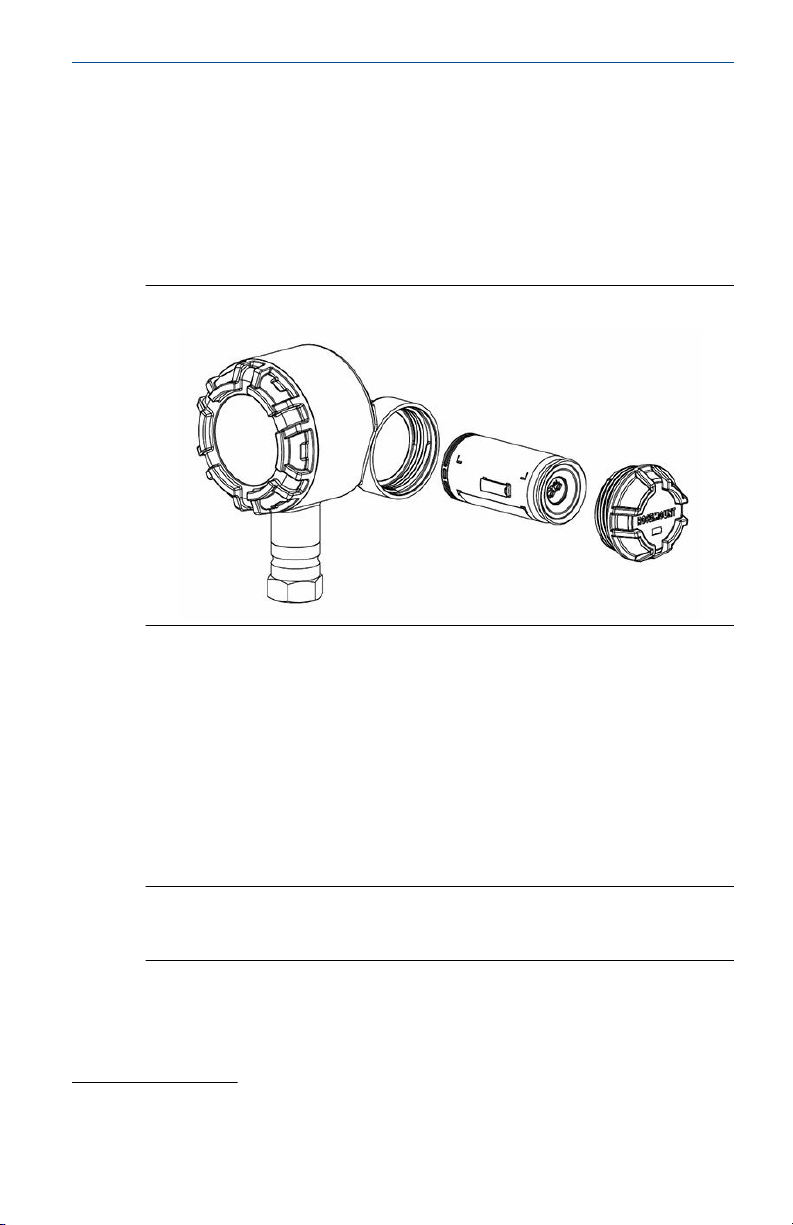

Figure 3-1: Exploded View of LCD Display Assembly
4. Attach the sensor to the transmitter housing using the threaded conduit entry. Be sure to use an approved thread sealant on all connections.
5. Attach the sensor wiring to the terminals as indicated on Figure 5-1.
6. Reattach and secure LCD display adapter plate to 5 in-lb of torque (if applicable).
7. Reattach the LCD display (if applicable).
8. Reattach and tighten the transmitter enclosure cover.
9. Remove the power module cover.
10. Connect the Green Power Module.
11. Reattach and tighten the power module cover.
Quick Start Guide 7
12. Always ensure a proper seal by installing the electronics housing cover(s) so that polymer contacts polymer (i.e. no O-ring visible). Use Rosemount O-rings.
13. Provide 1.75-in. (45 mm) of clearance for units without an LCD display. Provide 3-in. (76 mm) of clearance for units with an LCD display for cover removal.

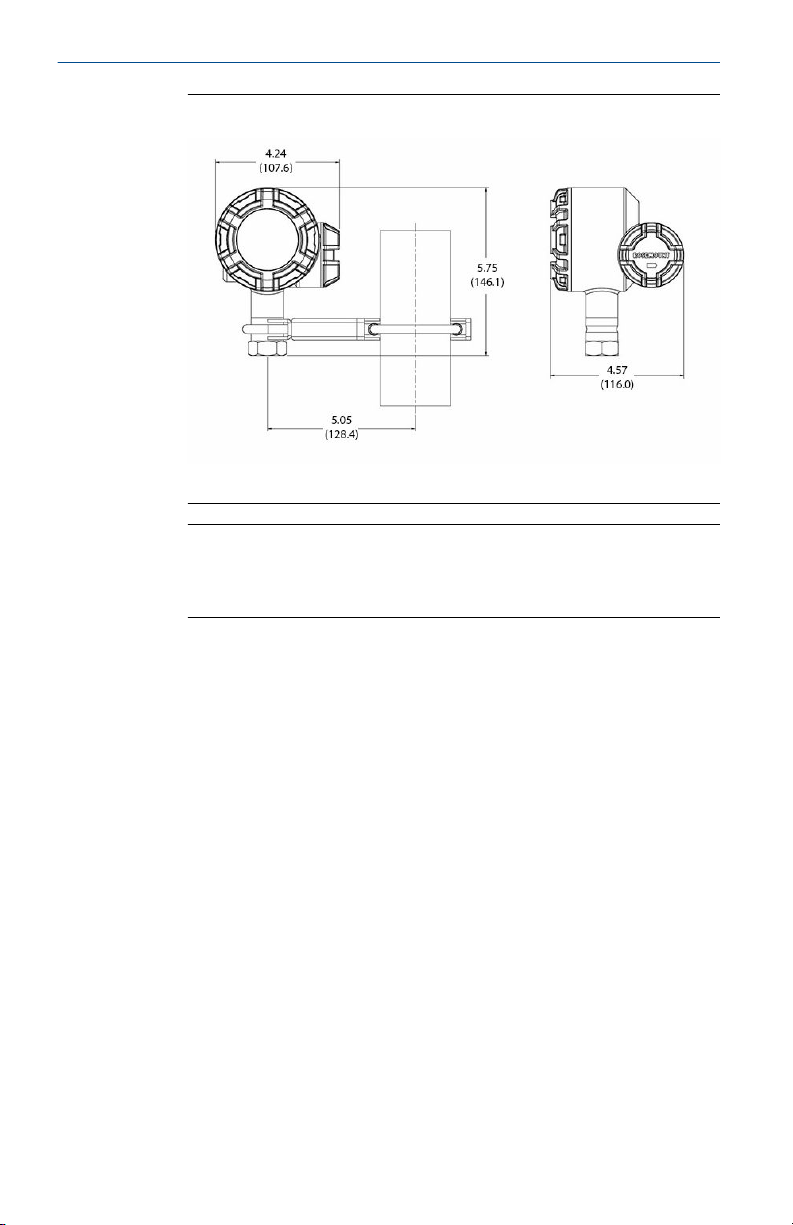

Figure 3-2: Direct Mount
Dimensions are in inches (millimeters).
Note
Wireless devices should be powered up in order of proximity from the Gateway, beginning with the closest device to the Gateway. This will result in a simpler and faster network installation.
3.2

Remote mount

Procedure
1. Remove the transmitter enclosure cover.
2. Remove the LCD display (if applicable).
3. Loosen the captive screws and remove LCD display adapter plate (if applicable). Refer to Figure 3-3.
Figure 3-3: Exploded View of LCD Display Assembly
4. Run wiring (and conduit, if necessary) from the sensor to the transmitter.
Note
Use an ½-in. NPT when mating conduit to the transmitter.
5. Pull the wiring through the threaded conduit entry of the transmitter.
6. Attach the sensor wiring to the terminals as indicated on Figure 5-1.
7. Reattach and secure LCD display adapter plate to 5 in-lb of torque (if applicable).
8. Reattach the LCD display (if applicable).
9. Reattach and tighten the transmitter enclosure cover.
10. Remove the power module cover.
11. Connect the Green Power Module.
12. Reattach and tighten the power module cover.
13. Always ensure a proper seal by installing the electronics housing cover(s) so that polymer contacts polymer (i.e. no O-ring visible). Use Rosemount O-rings.
14. Provide 1.75-in. (45 mm) of clearance for units without an LCD display. Provide 3-in. (76 mm) of clearance for units with an LCD display for cover removal.
Quick Start Guide 9
Figure 3-4: Remote Mount
Dimensions are in inches (millimeters).
Note
Wireless devices should be powered up in order of proximity from the Wireless Gateway, beginning with the closest device to the Gateway. This will result in a simpler and faster network installation.

4 Verify operations

Operations can be verified in four locations:
• at the device via the Local Display
• using the Field Communicator
• at the Gateway's integrated web interface
• using AMS Wireless Configurator or AMS Device Manager

4.1 Local display

During normal operation, the LCD display will display the PV value at the configured update rate.
For Device Status screens, see LCD display screen messages on Rosemount 248 Wireless Reference Manual.

4.2 Field Communicator

For HART® communication, a Rosemount 248 Wireless DD is required. To obtain the latest DD, visit the Emerson Easy Upgrade site at:
Emerson.com/Rosemount/Device-Install-Kits
The communication status may be verified in the wireless device using the following Fast Key sequence.
Table 4-1: Fast Key Sequence
Function Key sequence Menu items
Communications 3, 4 Comm Status, Join Mode, Available
Neighbors, Advertisement, Join Attempts

4.3 Emerson Wireless Gateway

In the integrated web interface from the Gateway, navigate to the Explorer → Status page. This page shows whether the device has joined the network and if it is communicating properly.
Note
It may take several minutes for the device to join the network. If the device joins the network and immediately has an alarm present, it is likely due to sensor configuration. Check the sensor wiring (see Figure 5-1) and configuration table (Table 5-1).
Quick Start Guide 11

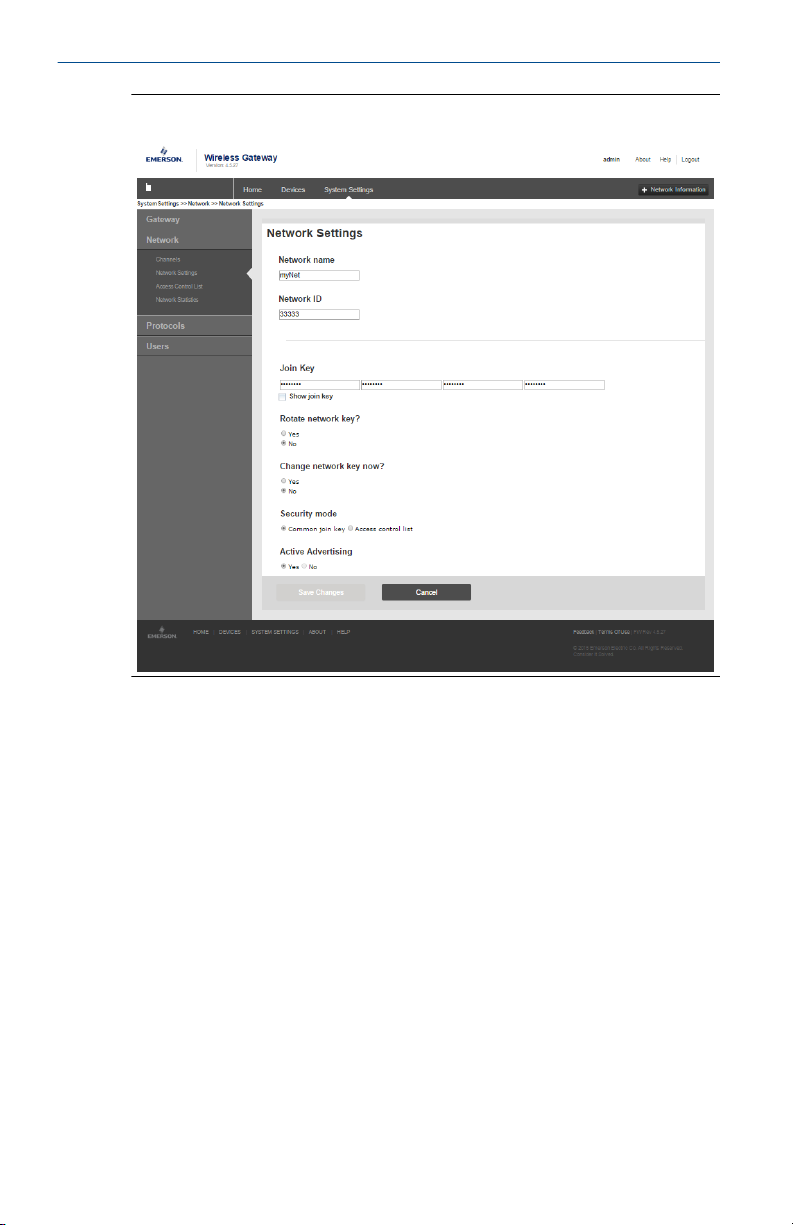

Figure 4-1: Wireless Gateway Network Settings

4.4 AMS Wireless Configurator

When the device has joined the network, it will appear in the Wireless Configurator window as illustrated in figure below. For HART communication, a Rosemount 248 Wireless DD is required. To obtain the latest DD, visit the Emerson Easy Upgrade site at:
Emerson.com/Rosemount/Device-Install-Kits
®

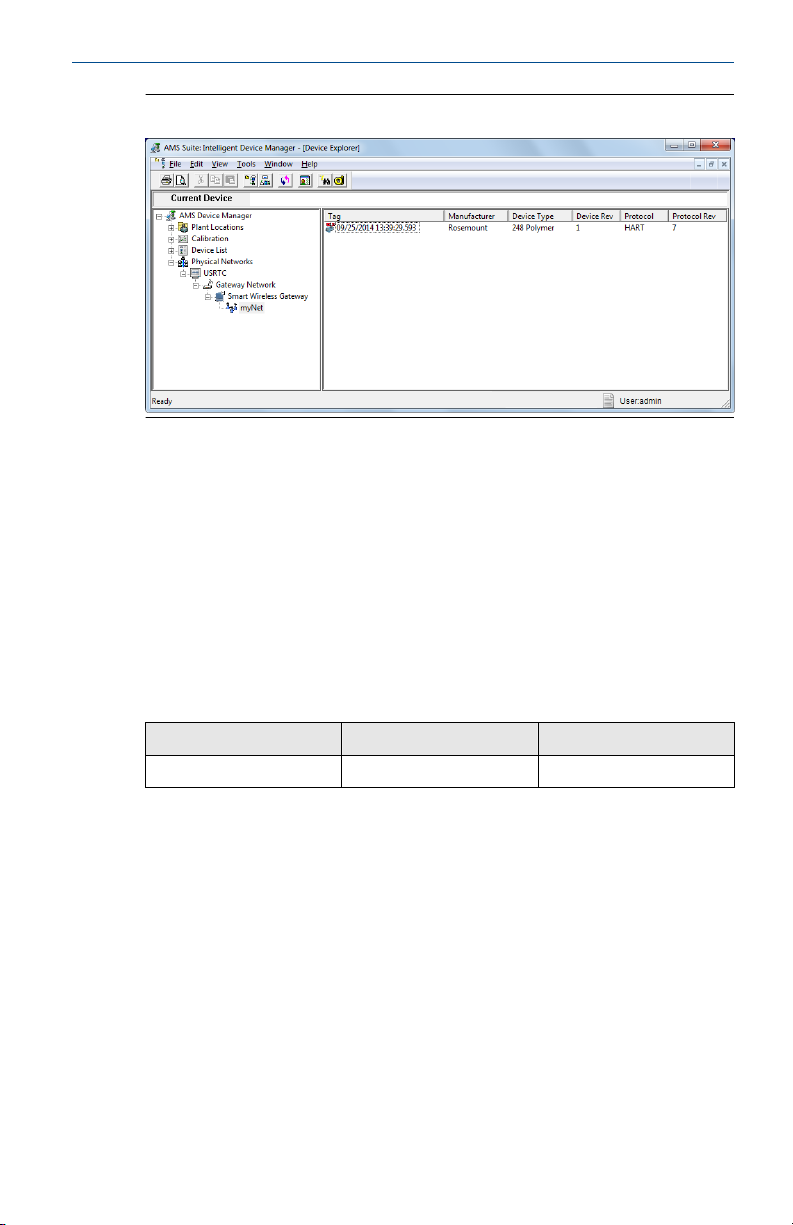

Figure 4-2: AMS Wireless Configurator

4.5 Troubleshooting

If the device is not joining to the network, check to make sure that you have a power supply in your device. If the device is not joined to the network after power up, verify the correct configuration of the Network ID and Join Key, and verify that Active Advertising has been enabled on the Wireless Gateway. The Network ID and Join Key in the device must match the Network ID and Join Key of the Gateway.
The Network ID and Join Key may be obtained from the Gateway on the Setup → Network → Settings page on the web server (see Figure 4-1). The Network ID and Join Key may be changed in the wireless device by using the following Fast Key sequence.
Function
Join Device to Network 2,1,1 Join to Network
Quick Start Guide 13
Key sequence Menu items

5 Reference information

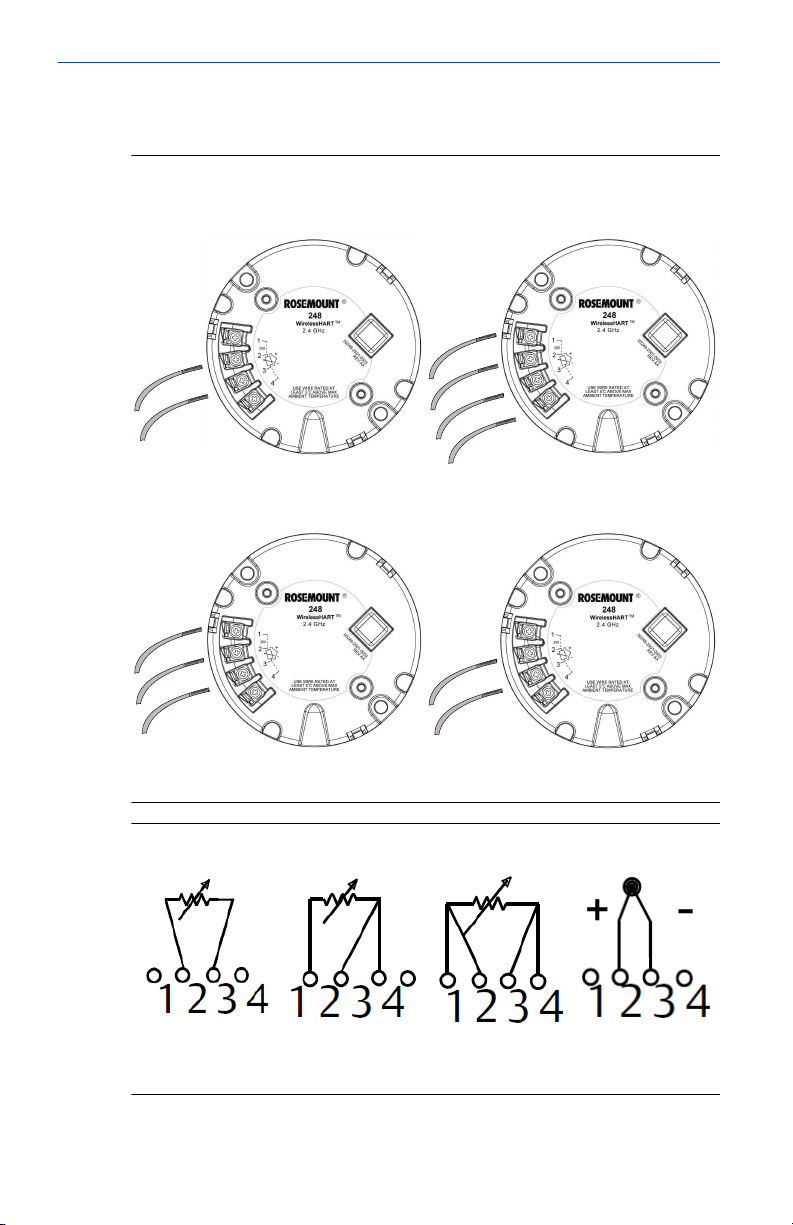

Figure 5-1: Sensor Wiring
Thermocouple and mV 4-Wire RTD and Ω
3-Wire RTD and Ω 2-Wire RTD and Ω
Figure 5-2: Sensor Connections
2-wire RTD and Ω
3-wire RTD and Ω 4-wire RTD and Ώ T/C and mV
Note
Emerson provides 4-wire sensors for all single element RTDs. Use these RTDs in 3- or 2-wire configurations by leaving the unneeded leads disconnected and insulated with electrical tape.
Table 5-1: WirelessHART® Fast Key Sequences
Function Key sequence Menu items
Device Information 1, 7 Identification, Revisions, Radio,
Guided Setup 2, 1 Join Device to Network, Configure
Manual Setup 2, 2 Wireless, Process Sensor, Percent of
Wireless Configuration 2, 2, 1 Network ID, Join to Network,
Sensor Calibration 3, 5, 2 Sensor Value, Sensor Status,
Security
Update Rate, Configure Sensor, Calibrate Sensor
Range, Device Temperatures, Device Information, Other
Broadcast Info
Current Lower Trim, Current Upper Trim, Lower Sensor Trim, Upper Sensor Trim, Recall Factory Trim

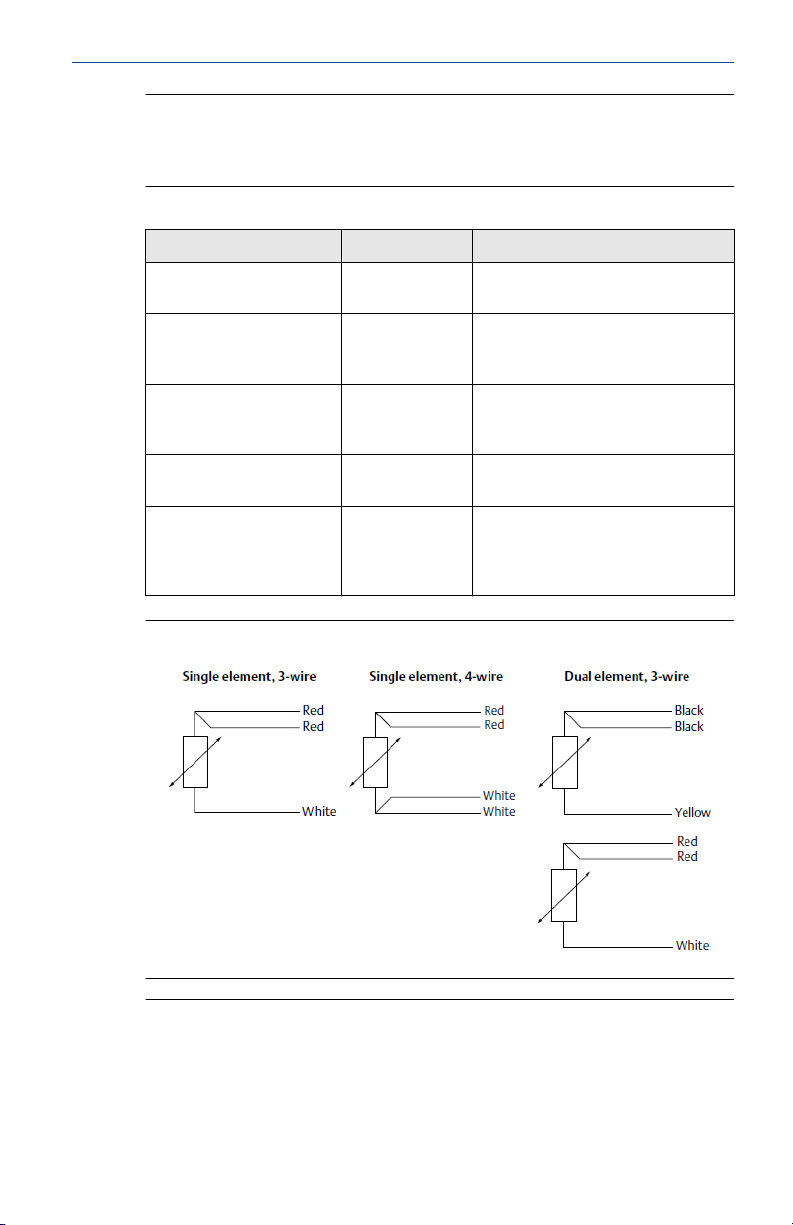

Figure 5-3: RTD Lead Wire Configuration per IEC 60751
Note
To configure a single element, 4-wire RTD as a 3-wire system, connect only one white lead.
Insulate or terminate the unused white lead in a manner that prevents shorting to the ground.
Quick Start Guide 15
To configure a single element, 4-wire RTD as a 2-wire system, connect matching colored wires first and then connect the paired wires to the terminal.

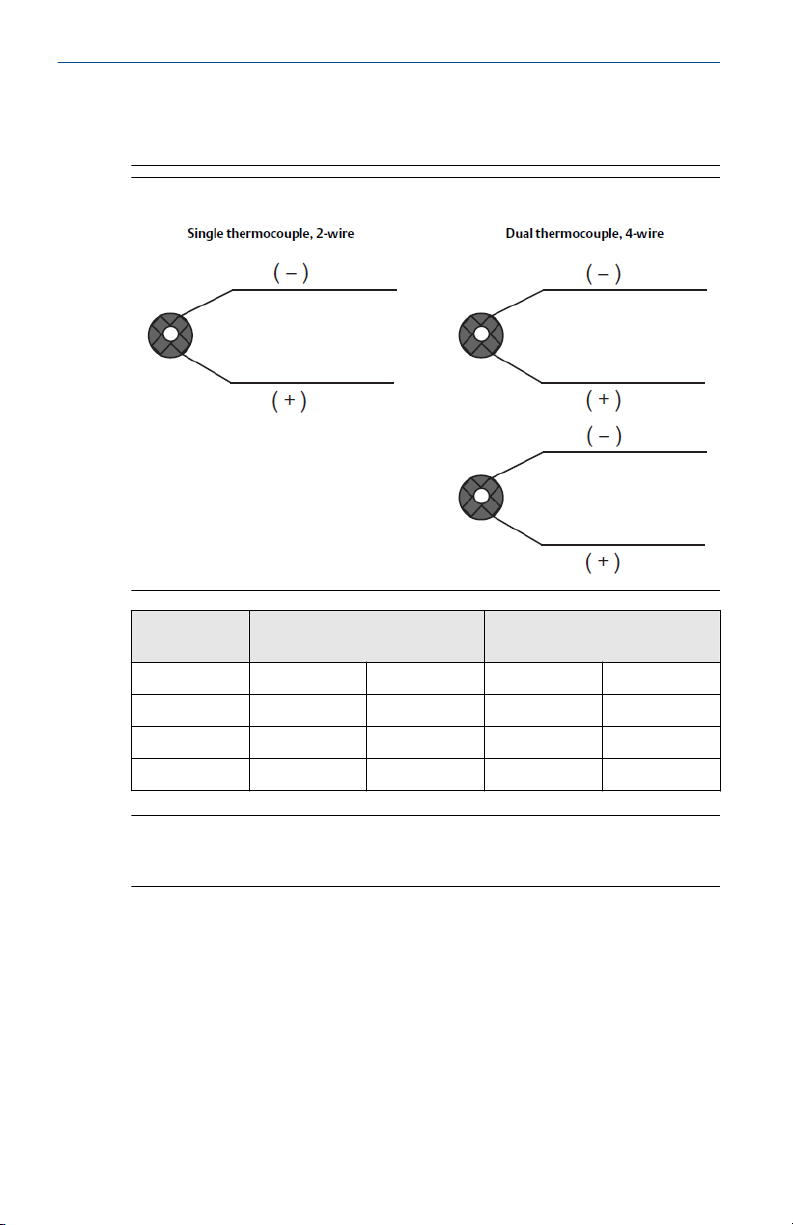

Figure 5-4: Thermocouple Lead Wire Configurations
IEC 60584 thermocouple colors
Type POS(+) NEG(-) POS(+) NEG(-)
J Black White White Red
K Green White Yellow Red
T Brown White Blue Red
ASTM E-230 thermocouple colors
Note
Dual thermocouple sensors are shipped with one pair of the wires shrink wrapped together.

6 Power module replacement

Expected power module life is 10 years at reference conditions.
When power module replacement is required, remove the cover and remove the Green Power Module. Replace the Green Power Module (part number 701PGNKF) and replace the cover. Tighten to specification and verify operation.
Figure 6-1: Exploded Power Module View

6.1 Handling considerations

The Green Power Module with the wireless unit contains one “D” size primary lithium-thionyl chloride battery (Green Power Module, model number 701PGNKF). Each battery contains approximately 5.0 grams of lithium. Under normal conditions, the battery materials are self-contained and are not reactive as long as the batteries and the pack integrity are maintained. Care should be taken to prevent thermal, electrical or mechanical damage.
Contacts should be protected to prevent premature discharge.
(1)
Note
Power modules should be stored in a clean and dry area. For maximum power module life, storage temperature should not exceed 86 °F (30 °C).
(1)
Reference conditions are 70° F (21° C), transmit rate of once per minute, and routing data for three additional network devices.
Quick Start Guide 17
CAUTION
Use caution when handling the power module, it may be damaged if dropped from heights in excess of 20 feet.
WARNING
Battery hazards remain when cells are discharged.

6.2 Environmental considerations

As with any battery, local environmental rules and regulations should be consulted for proper management of spent batteries. If no specific requirements exist, recycling through a qualified recycler is encouraged. Consult the material’s safety data sheet for battery specific information.

6.3 Shipping considerations

The unit was shipped to you without the power module installed. Remove the power module prior to shipping the unit.

7 Product certifications

Rev 1.12

7.1 European Directive Information

A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount.

7.2 Ordinary Location Certification

As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).

7.3 Telecommunication compliance

All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.

7.4 FCC and IC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This device must be installed to ensure a minimum antenna separation distance of 20 cm from all persons.
7.5

7.5.1 USA

Quick Start Guide 19

North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code (CEC) permit the use of Division marked equipment in Zones and Zone marked equipment in Divisions. The markings must be suitable for the area classification, gas, and temperature class. This information is clearly defined in the respective codes.
I5 USA Intrinsically Safe
Certificate
70008071
Standards
Markings
Special Condition for Safe Use (X)
Battery exchange: The battery module can be changed inside hazardous gas­explosive locations. During battery change it must be assured that the connections are free from dust or dirt.

7.5.2 Canada

I6 Canada Intrinsically Safe
Certificate
Standards
Markings
FM 3600: 2011; FM 3610: 2010; FM 3611: 2004; UL 61010-1: 2012; UL 50E: 2012; ANSI/IEC 60529:2004
Intrinsically Safe: CL I, DIV 1, GP A, B, C, D; CL I, DIV 2, GP A, B, C, D; Class I, Zone 0, AEx ia IIC T4/T5 Ga; T4 (-50 °C ≤ Ta ≤ +70 °C); T5 (-50 °C ≤ Ta ≤ +40 °C); WHEN INSTALLED PER ROSEMOUNT DWG 00249-2020; TYPE 4X, IP66/67
See Table 7-1 for entity parameters.
70008071
CSA C22.2 No. 0-10; CSA C22.2 No. 94.2-07 (R2012); CSA C22.2 No. 213-M1987 (R2013); CAN/CSA-60079-0-11; CAN/ CSA-60079-11-14; CAN/CSA C22.2 No. 60529-05; CAN/CSA­C22.2 No. 61010-1-12
Intrinsically Safe: CL I, DIV 1, GP A, B, C, D; CL I, DIV 2, GP A, B, C, D; Ex ia IIC T4/T5 Ga; T4 (–50 °C ≤ Ta ≤ +70 °C); T5 (–50 °C ≤ Ta ≤ +40 °C); WHEN INSTALLED PER ROSEMOUNT DWG 00249-2020; TYPE 4X, IP66/67
See Table 7-1 for entity parameters.
Special Condition for Safe Use (X)
Battery exchange: The battery module can be changed inside hazardous gas­explosive locations. During battery change it must be assured that the connections are free from dust or dirt.
7.6

Europe

I1 ATEX Intrinsic Safety
Certificate
Standards
Markings
Baseefa14ATEX0359X
EN IEC 60079-0: 2018; EN 60079-11: 2012
II 1 G Ex ia IIC T4/T5 Ga; T4 (–60 °C ≤ Ta ≤ +70 °C); T5 (–60
°C ≤ Ta ≤ +40 °C) See Table 7-1 for entity parameters.
Special Condition for Safe Use (X)
The plastic enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth.

7.7 International

I7 IECEx Intrinsic Safety
Certificate
Standards
Markings
Special Condition for Safe Use (X)
The plastic enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth.

7.8 Brazil

I2 INMETRO Intrinsic Safety
Certificate
Standards
Markings
Special Condition for Safe Use (X)
The plastic enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth.
IECEx BAS 14.0158X
IEC 60079-0: 2017; IEC 60079-11: 2011
Ex ia IIC T4/T5 Ga; T4 (-60 °C ≤ Ta ≤ +70 °C); T5 (-60 °C ≤ Ta ≤ +40 °C)
See Table 7-1 for entity parameters.
UL-BR 15.0222X
ABNT NBR IEC 60079-0: 2008 + Corrigendum 1:2011; ABNT NBR IEC 60079-11: 2009
Ex ia IIC T4/T5 Ga; T4 (–60 °C ≤ Ta ≤ +70 °C); T5 (–60 °C ≤ Ta ≤ +40 °C)
See Table 7-1 for entity parameters.
7.9
Quick Start Guide 21

China

I3 NEPSI Intrinsic Safety
Certificate
Standards
Markings
GYJ20.1147X
GB3836.1-2010, GB3836.4-2010, GB3836.20-2010
Ex ia IIC T4/T5 Ga; T4 (–60 °C≤ Ta ≤ +70 °C); T5 (–60 °C ≤ Ta ≤ +40 °C)
See Table 7-1 for entity parameters.
Special Conditions for Safe Use (X)
1. Non-metallic parts incorporated in the enclosure of the product shall only be cleaned with a damp cloth to avoid electrostatic charge.
2. Must use Rosemount Model 701PGNKF SmartPower Green Power Module provided by the manufacture.

7.10 Japan

I4 TIIS Intrinsic Safety
Certificate
Markings
Special Conditions for Safe Use (X)

7.11 EAC

IM Technical Regulation Customs Union (EAC) Intrinsic Safety
Markings
Specific Condition for Safe Use (X)
See certificate for special conditions.
Table 7-1: Entity Parameters
Voltage U
Current I
Power P
Capacitance C
Inductance L
CML 20JPN2243X
Ex ia IIC T4, T5 Ga (-60 °C ~ +40/70 °C) See Table 7-1 for entity parameters.
1. The plastic enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth.
2. Power shall be provided only by a Model 701PGNKF SmartPower Green Power Module.
0Ex ia IIC T4,T5 Ga X, T5 (–60 °C ≤ Ta ≤+40 °C), T4 (–60 °C ≤ Ta ≤ +70 °C); IP66/IP68
O
O
O
O
O
6.6 V
26.2 mA
42.6 mW
11 μF
25 mH
EU Declaration of Conformity
No: RMD 1082 Rev. L
Page 1 of 3
We,
Ros emount, Inc. 8200 Market Boulevard Chanhass en, MN 55317-9685 USA
declare under our sole responsibility that the product,
Rosemount™ 248 Wireless Te mperature Transmitter
manufactured by,
Ros emount, Inc. 8200 Market Boulevard Chanhass en, MN 55317-9685 USA
to which this declaration relates, is in conformity with the provisions of the European Union Directives, including the latest amendments, as shown in the attached schedule.
Assumption of conformity is based on the application of the harmonized standards and, when applicable or required, a European Union notified body ce rtification, as shown in the attached schedule.
(signature)
Vice President of Global Quality
(function)
Chris LaPoint
(name)
24-Feb-2020
(date of iss ue)

8 Declaration of Conformity

Quick Start Guide 23
EU Declaration of Conformity
No: RMD 1082 Rev. L
Page 2 of 3
EMC Directive (2014/30/EU)
Harmonized Standards:
EN 61326-1: 2013 EN 61326-2-3: 2013
Radio Equipment Directive (RED) (2014/53/EU)
Harmonized Standards:
EN 300 328 V2.1.1 EN 301 489-1 V2.2.0 EN 301 489-17 V 3.2.0 EN 61010-1: 2010 EN 62479: 2010
ATEX Directive (2014/34/EU)
Ros emount 248 Wireles s Temperature Transmitte r (Polymer housing)
Baseefa14ATEX0359X – Intrinsic Safety Ce rtificate
Equipment Group II, Category 1 G
Ex ia IIC T4/T5 Ga
Harmonized Standards:
EN IEC 60079-0: 2018, EN60079-11: 2012
EU Declaration of Conformity
No: RMD 1082 Rev. L
Page 3 of 3
ATEX Notified Body
SGS FIMCO OY [Notified Body Number: 0598]
P.O. Box 30 (Särkiniementie 3) 00211 HELSINKI Finland
ATEX Notified Body for Quality Assurance
SGS FIMCO OY [Notified Body Number: 0598]
P.O. Box 30 (Särkiniementie 3) 00211 HELSINKI Finland
Quick Start Guide 25

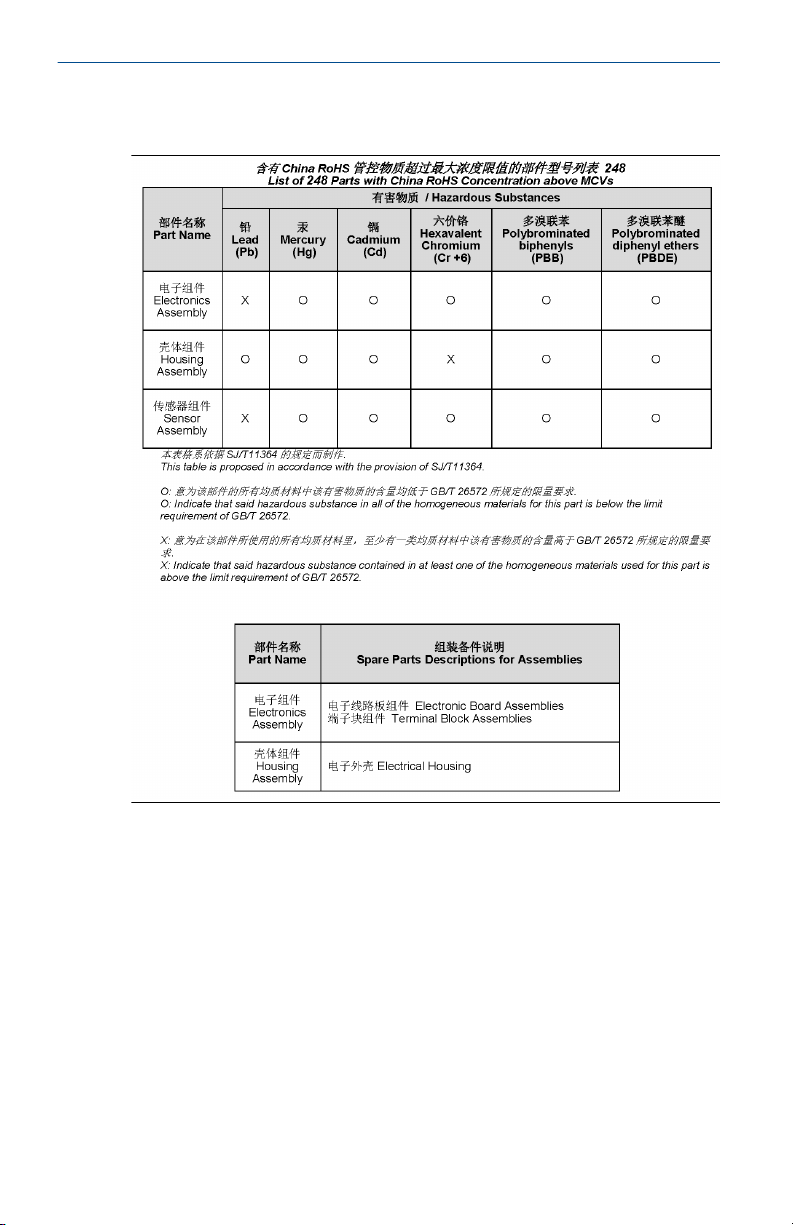

9 China RoHS

Quick Start Guide 27
*00825-0200-4248*
00825-0200-4248, Rev. GA
Quick Start Guide
February 2021
Emerson Automation Solutions
6021 Innovation Blvd. Shakopee, MN 55379, USA
+1 800 999 9307 or +1 952 906 8888 +1 952 949 7001 RFQ.RMD-RCC@Emerson.com
Latin America Regional Office
Emerson Automation Solutions 1300 Concord Terrace, Suite 400 Sunrise, FL 33323, USA
+1 954 846 5030 +1 954 846 5121 RFQ.RMD-RCC@Emerson.com
Asia Pacific Regional Office
Emerson Automation Solutions 1 Pandan Crescent Singapore 128461
+65 6777 8211 +65 6777 0947 Enquiries@AP.Emerson.com
North America Regional Office
Emerson Automation Solutions 8200 Market Blvd. Chanhassen, MN 55317, USA
+1 800 999 9307 or +1 952 906 8888 +1 952 949 7001 RMT-NA.RCCRFQ@Emerson.com
Europe Regional Office
Emerson Automation Solutions Europe GmbH Neuhofstrasse 19a P.O. Box 1046 CH 6340 Baar Switzerland
+41 (0) 41 768 6111 +41 (0) 41 768 6300 RFQ.RMD-RCC@Emerson.com
Middle East and Africa Regional Office
Emerson Automation Solutions Emerson FZE P.O. Box 17033 Jebel Ali Free Zone - South 2 Dubai, United Arab Emirates
+971 4 8118100 +971 4 8865465 RFQ.RMTMEA@Emerson.com
Linkedin.com/company/Emerson-
Automation-Solutions
Twitter.com/Rosemount_News
Facebook.com/Rosemount
Youtube.com/user/
RosemountMeasurement
©
2021 Emerson. All rights reserved.
Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
