Rose electronic CRK-2DFSUD2D, CRK-2DFMPD1D, CRK-2DFSPD2D, CRK-2DFSPD1D, CRK-2DFMPD2D User Manual

™

CrystalView

DIGITAL FIBER KVM EXTENDER

DVI Fiber

INSTALLATION AND OPERATIONS

MANUAL

Single or Dual video / USB or PS/2 / Singlemode or Multimode models

10707 Stancliff Road Phone: [phone]
Houston, Texas 77099 WWW.ROSE.COM

LIMITED WARRANTY

Rose Electronics warrants the CrystalView DVI Fiber to be in good working order for one year from the
date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good
working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair
or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or
new. All replaced parts become the property of Rose Electronics. This limited warranty does not include
service to repair damage to the Unit resulting from accident, disaster, abuse, or unauthorized
modification of the Unit, including static disch ar ge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to
Rose Electronics or an authorized repair cent er pr oviding a proof of purchase date. If this Unit is
delivered by mail, you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay
shipping charges to the warranty service location, and to use the original shipping container or its
equivalent. You must call for a return authorization number first. Under no circumstances will a unit be
accepted without a return authorization number. Contact an authorized repair center or Rose
Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE
REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL
ROSE ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS,
LOST SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTI AL DAMAGES ARISING OUT OF THE
USE OF OR THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN
AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR
ANY CLAIM BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCI DENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

IBM, AT, and PS/2 are trademarks of International Business Machines Corp. Microsoft and Microsoft
Windows are registered trademarks of Microsoft Corp. Any other trademarks mentioned in this manual
are acknowledged to be the property of the trademark owner.

Copyright  Rose Electronics 2002. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any
means, electronic or mechanical, including photocopying and recording, without the prior written permission of
Rose Electronics.

Rose Electronics Part # MAN-CRVDVIF
Printed In the United States of America – Revision 1.3

FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY

FEDERAL COMMUNICATIONS COMMISSION

AND INDUSTRY CANADA

RADIO-FREQUENCY INTERFERENCE STATEMENTS

Models:

CRK-2DFMPD1D CRK-2DFMPD2D CRK-2DFMUD1D CRK-2DFMUD2D
CRK-2DFSPD1D CRK-2DFSUD1D CRK-2DFSPD2D CRK-2DFSUD2D
CRK-2DFMPD1D/3.2 (3.2 GBit model)

This equipment generates, uses and can radiate radio frequency energy and
if not installed and used properly, that is in strict accordance with the
manufacturer’s instructions may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class B digital
device in accordance with the specifications of Part 15 of FCC rules, which
are designed to provide reasonable protection against such interference whe n
the equipment is operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may
be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class B limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation of
Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriqu es
dépassant les limites applicables aux appareils numériques de la classe A
prescrites dans le Règlement sur le brouillage radioélectrique publié par
Industrie Canada.

CE DECLARATION OF CONFORMITY

This equipment is in conformity with the
Council Directives 89/336/EEC
The Declaration of Conformity is based upon
compliance of the product with the following
standards:
EN55022 1999 Class B
EN55024 1999
IEC61000-4-2: 2001
IEC61000-4-3: 2001
IEC61000-4.4: 2001
IEC61000-4-5: 2001
EN61000-3-2 2001
EN61000-3-3 2002

TABLE OF CONTENTS

Contents

Disclaimer.........................................................................................................1

System introduction..........................................................................................1

Features............................................................................................................2

Compatibility.....................................................................................................2

Package contents.............................................................................................2

Models / Connectors (Single Video).................................................................3

Models (Dual Video).........................................................................................4

Cables...............................................................................................................5

Installation.........................................................................................................6

Applying power............................................................................................7

Figures

Figure 1. Typical cabling configurations...........................................................6

Tables

Table 1.transmitter to receiver cabling .............................................................7

Appendices

Appendix A. General specifications................................................................14

Appendix B. Parts and cables ........................................................................15

INTRODUCTION

Disclaimer

While every precaution has been taken in the preparation of this manual, the
manufacturer assumes no responsibility for errors or omissions. Neither does
the manufacturer assume any liability for damages resulting from the use of
the information contained herein. The manufacturer reserves the right to
change the specifications, functions, or circuitry of the product without notice.

The manufacturer cannot accept liability for damages due to misuse of the
product or other circumstances outside the manufacturer’s control. The
manufacturer will not be responsible for any loss, damage, or injury arising
directly or indirectly from the use of this product.

System introduction

Thank you for choosing the Rose Electronics CrystalView DVI Fiber KVM
station extender. The CrystalView DVI Fiber is the KVM extender of choice for
businesses that need to extend and operate a computer, server, or KVM
switch from a great distance. The CrystalView DVI Fiber makes this possible
by the use of singlemode or multimode fiber cable. You can fully operate and
control a computer or server from as far away as 6 miles using 9µm
singlemode fiber. The CrystalView DVI Fiber supports all combinations of
DVI-D monitors and video cards. Models are available with PS/2 or USB
keyboard and mouse connectors, single video, dual video, singlemode, or
multimode fiber.

The system consists of two Units, a transmitter and a receiver. The
transmitter connects to your CPUs keyboard, DVI monitor, and mouse
connectors, or to a Rose KVM switch*. The receiver connects to a keyboard,
DVI video monitor and mouse or KVM station. The transmitter and receiver
are connected together with fiber optic cable. The receiver can be up to
33,000 feet from the transmitter using 9.0µm Singlemode-Fiber.

All models are available with transmitter and receiver KVM access. With
transmitter KVM access, an additional KVM station to be connected to the
transmitter unit.

Using the CrystalView DVI Fiber to remotely access your computer has
several advantages over conventional extenders. The CrystalView DVI Fiber
transmits data digitally which provides a clear, sharp picture. Computers
used in hazardous industrial environments can be accessed remotely,
keeping the users safe and unexposed to any hazards. Unlike extenders
using CAT5 cable, fiber optic cable protects the data integrity from EMI
interference.

* DVI to VGA converter required

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

1

Features

 Perfect image quality at resolutions up to 1920 x 1200 @ 60Hz using

fiber optic cable

 Extend a KVM station from a CPU up to 33,000 feet (10,000m)

(6,500 feet, 2,000m for the 3.2 GBit model)

 Supports PS/2 or USB keyboard and mouse (Depending on mode l)
 Supports all DVI graphic cards and monitors
 Ideal for use with today’s digital flat panel monitors
 24 Bit Color
 Single and dual video models available
 The CrystalView DVI Fiber uses a microproce ssor to emulate the

keyboard and mouse. The keyboard and mouse on the receiver do not
have to be connected for the PC to boot; only the transmitter Unit must be
connected to the PC

 Compatible with all operating systems
 Fully automatic KVM sharing on a first-come first-serve basis using the

dual access model

 The computer’s video is displayed on both KVM stations monitors.
 Rack mount kits available

Compatibility

Computers PCs (all operating systems)
Monitors Digital DVI-D
Keyboards PS/2 or USB type keyboards
Mouse PS/2 or USB

NOTE: Devices with PS/2 connectors are not compatible with devices
with USB connectors.

DDC Information

The CrystalView DVI Fiber uses its own internal DC table and in most cases it
is not necessary to make any adjustments to the units. If your system
equipment requires the DDC information to be redefined, please refer to
Attachment C for detailed instructions on how to change the DDC information.

Package contents

The package contents consist of the following:

 The transmitter and receiver Units
 2-Power adapters for transmitter/receiver units.
 “Y” cable, CPU adapter cable, (2) power cords

 Installation and operations manual.

CPU adapter cables and fiber cables are usually ordered separately.

2

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

MODELS

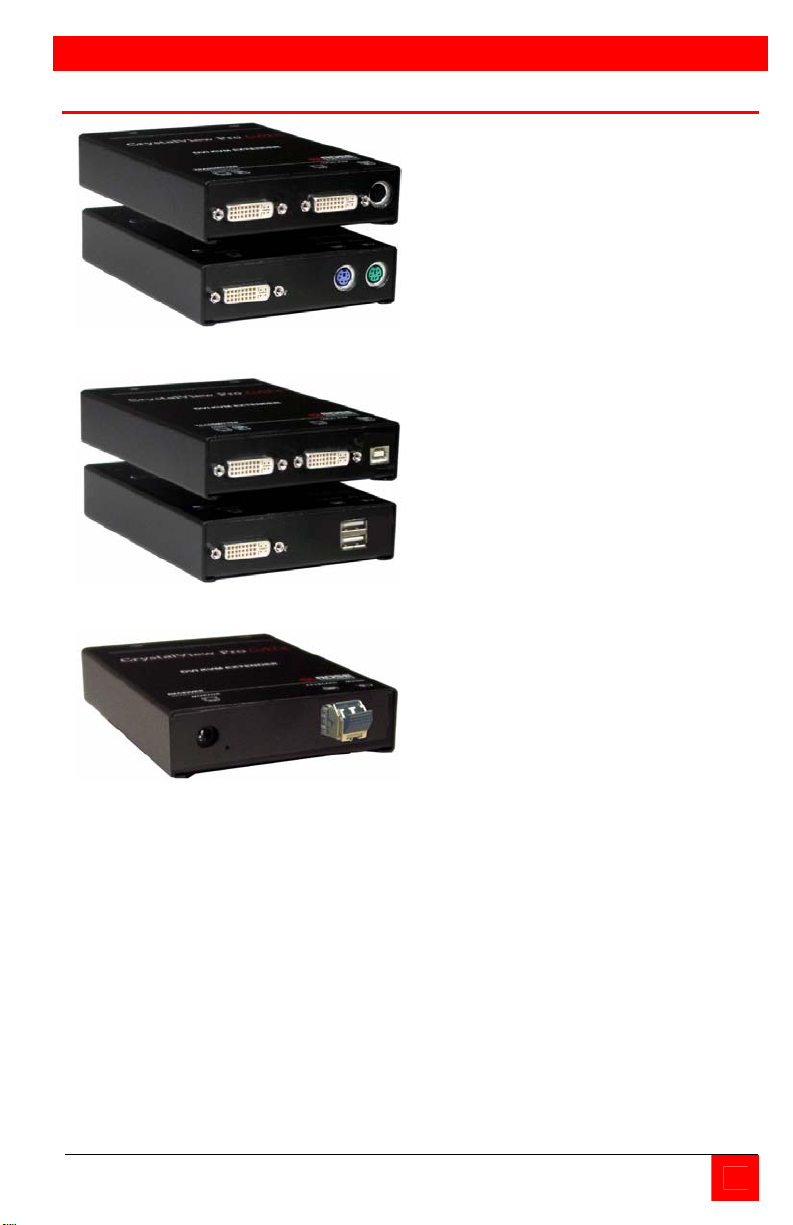

Models / Connectors (Single Video)

PS/2 Transmitter
(2-DVI-I / 1-MiniDin6 –
“Y” cable needed)

PS/2 Receiver
(1-DVI-I / 2-MiniDin6)

USB Transmitter
(2-DVI-I / 1-USB type B)

USB Receiver
(1-DVI-I / 2-USB type A)

Transmitter / Receiver
(1-Power / 1-Fiber type LC)

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

3

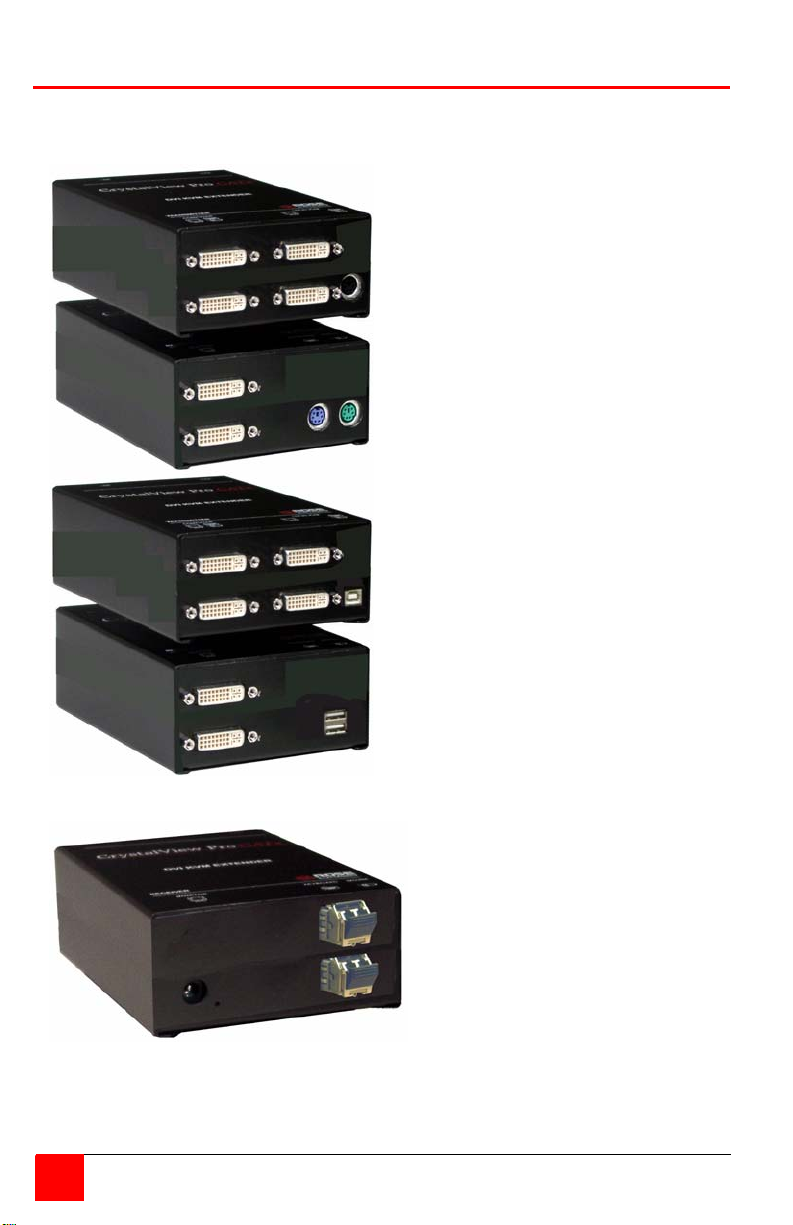

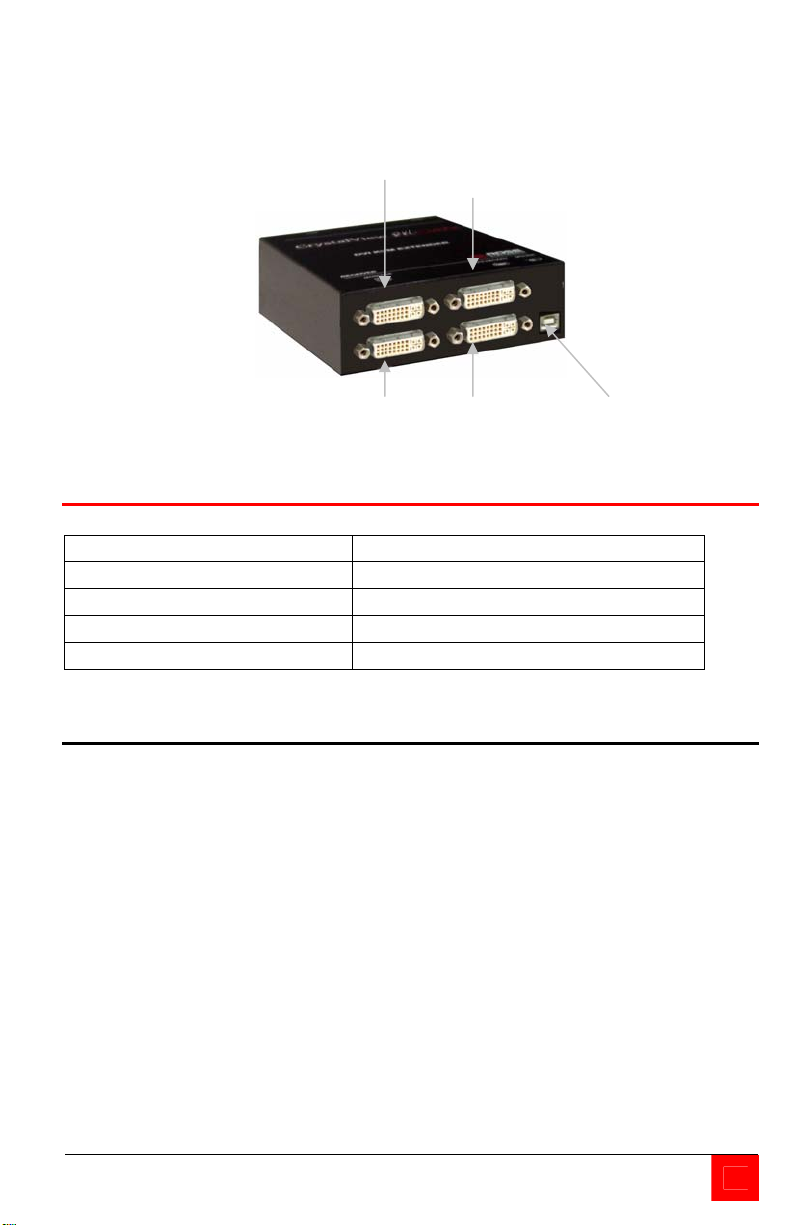

Models (Dual Video)

REAR

FRONT

PS/2 Transmitter
(4-DVI-I / 1-MiniDin6)

PS/2 Receiver
(2-DVI-I / 2-MiniDin6)

USB Transmitter
(4-DVI-I / 1-USB Type B)

USB Receiver
(2-DVI-I / 2-USB Type A)

Transmitter (Front-All)
(1-Power / 2-Fiber type LC)
Bottom connector carries video
1 and keyboard/mouse data,
top connector carries video 2.

4

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

CABLES

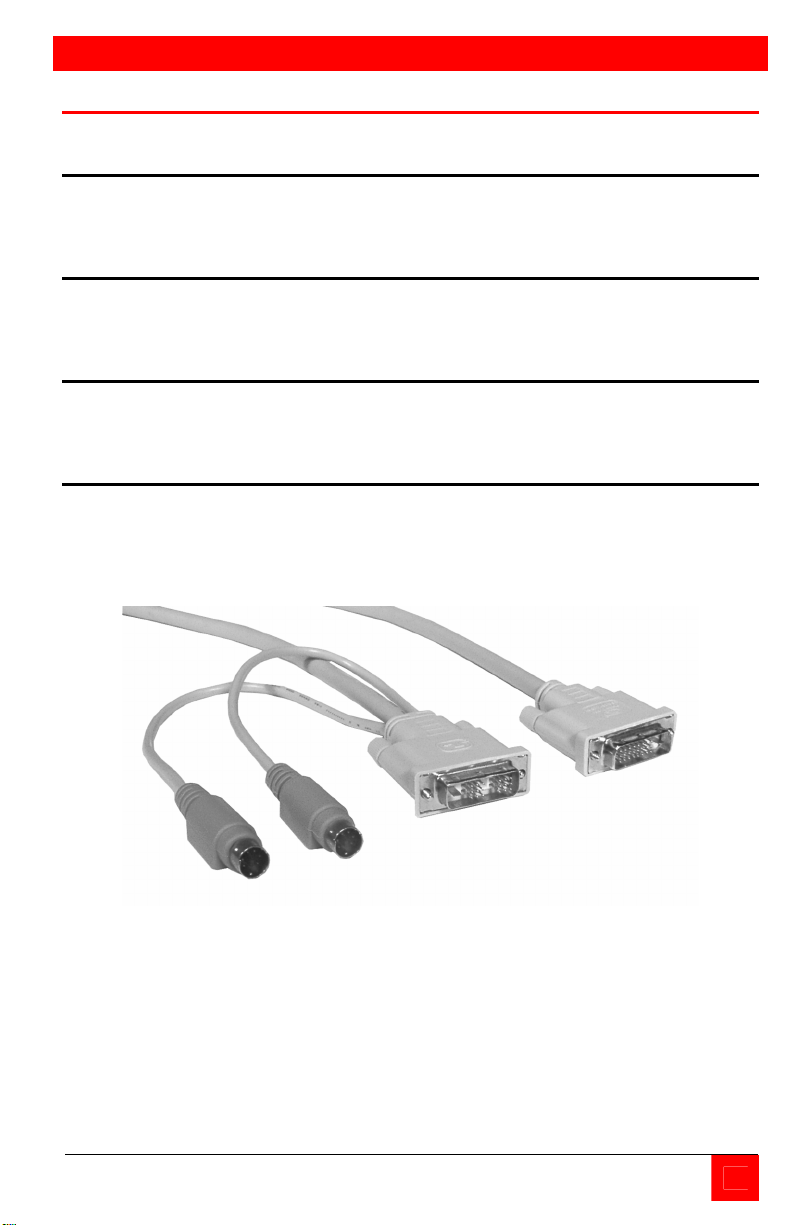

Cables

(See Attachment B for cable part numbers)
Transmitter unit to CPU cable

CPU cables connect from the transmitter to a CPUs keyboard, video monitor
and mouse ports. A “Y” PS/2 cable for the keyboard and mouse are needed.

Receiver to KVM station cable

The keyboard, video monitor, and mouse cables on a KVM station can
connect directly to the receiver or a transmitter with local KVM access.

CrystalView DVI Fiber to Rose switch cable

To connect a transmitter to a Rose switch such as a ServeView, UltraMatrix
or UltraView, use a CPU adapter cable.

Transmitter unit to Receiver unit cable

the transmitter is connected to the receiver with up to 33,000 feet of fiber
cable

CrystalView DVI Fiber to PC cable

(PS/2 or USB connectors)

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

5

INSTALLATION

Installation

Please refer to the safety section first before proceeding with any installation
or configuration of the CrystalView DVI Fiber.

When installing the CrystalView DVI Fiber, locate the transmitter as close as
possible to the CPU or switch. Keep the cables as short as possible but still
give some freedom of movement. You can mount the CrystalView DVI Fiber
in a CPU rack with the optional rack mount kit. When mounting the units in a
rack, follow the instructions in Appendix D and Appendix E. Provide adequate
air circulation to assure that the maximum operating temperature is not
exceeded.
For dual video models, connect a second DVI monitor and additional fiber
cable from the transmitter to the receiver. The bottom Fiber connector on the
Dual video models carries Video 1 and data, top fiber connector carries only
Video 2.

Wherever the transmitter and receiver units are located, they should be on a
secure surface and free from obstructions and objects that may cause
damage to the units.

Fiber cable

TRANSMITTER RECEIVER

“Y” PS/2
Cable

LOCAL KVM REMOTE KVM
ACCESS ACCESS

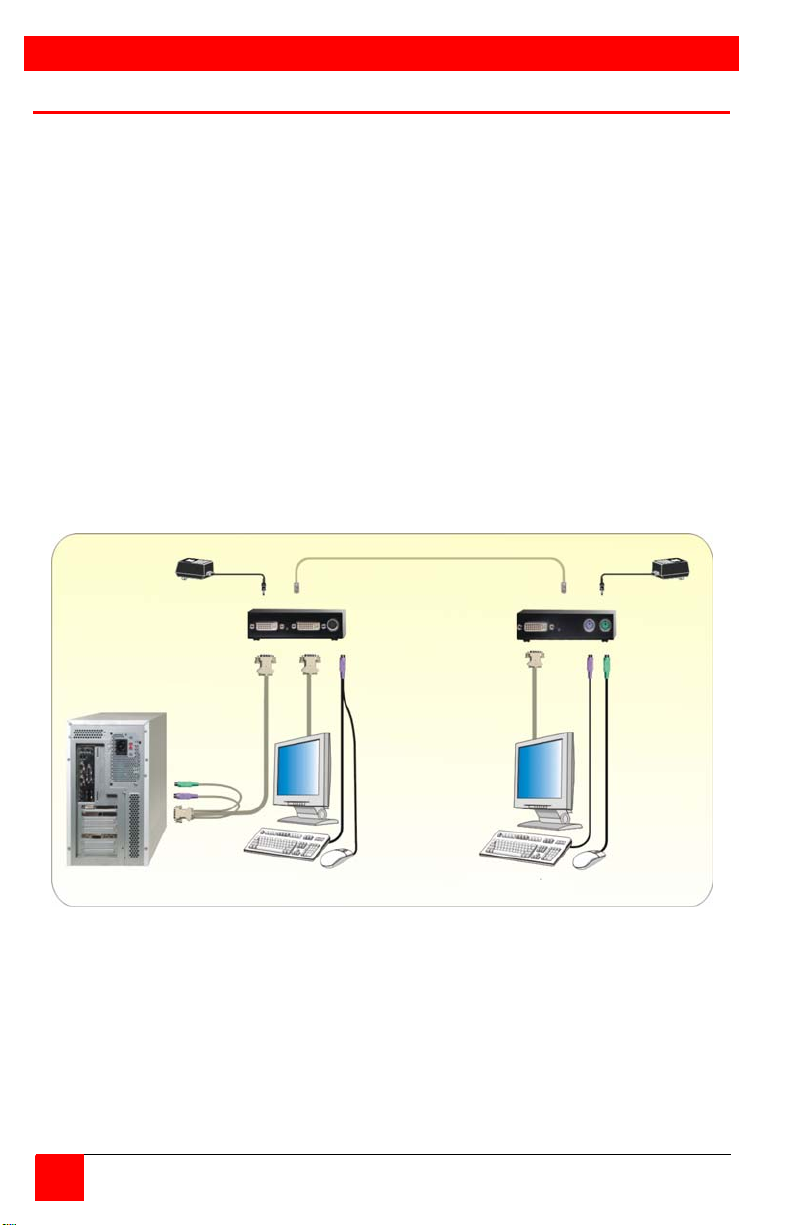

Figure 1. Typical cabling configurations

(See Figure 1 for the connector locations for your model)

NOTE: Using the local access model, a second KVM station can be
connected to the transmitter.

Refer to Figure 1 for the set-up for your system application.

6

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

d

d

Connect the local USB model transmitter as shown below (single or dual
video). A USB hub is used for local keyboard and mouse connections to the
computer.

n

To 2

DVI To 2

Graphic card local monitor

n

DVI

st

DVI To 1stDVI To CPU USB or USB hub

To 1
Graphic card local monitor for keyboard and mouse

Transmitter to Receiver cabling

Cable type Maximum distance

62,5µm Multimode-Fiber 650 ft / 200 m

50.0µm Multimode-Fiber 1300ft / 400m

9.0µm Singlemode-Fiber 33,000ft / 10,000m

9.0µm Singlemode-Fiber 6,500 ft / 2,000m (3.2 GBit model)

Table 1.transmitter to receiver cabling

Applying power

With all cable connections made, plug in the provided power adapters to a
110/220-volt source and to the power connector on the transmitter and
receiver Unit. Only use the power adapter provided. The red LED next to
the power connector indicates power is applied to the unit.

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

7

INSTALLATION

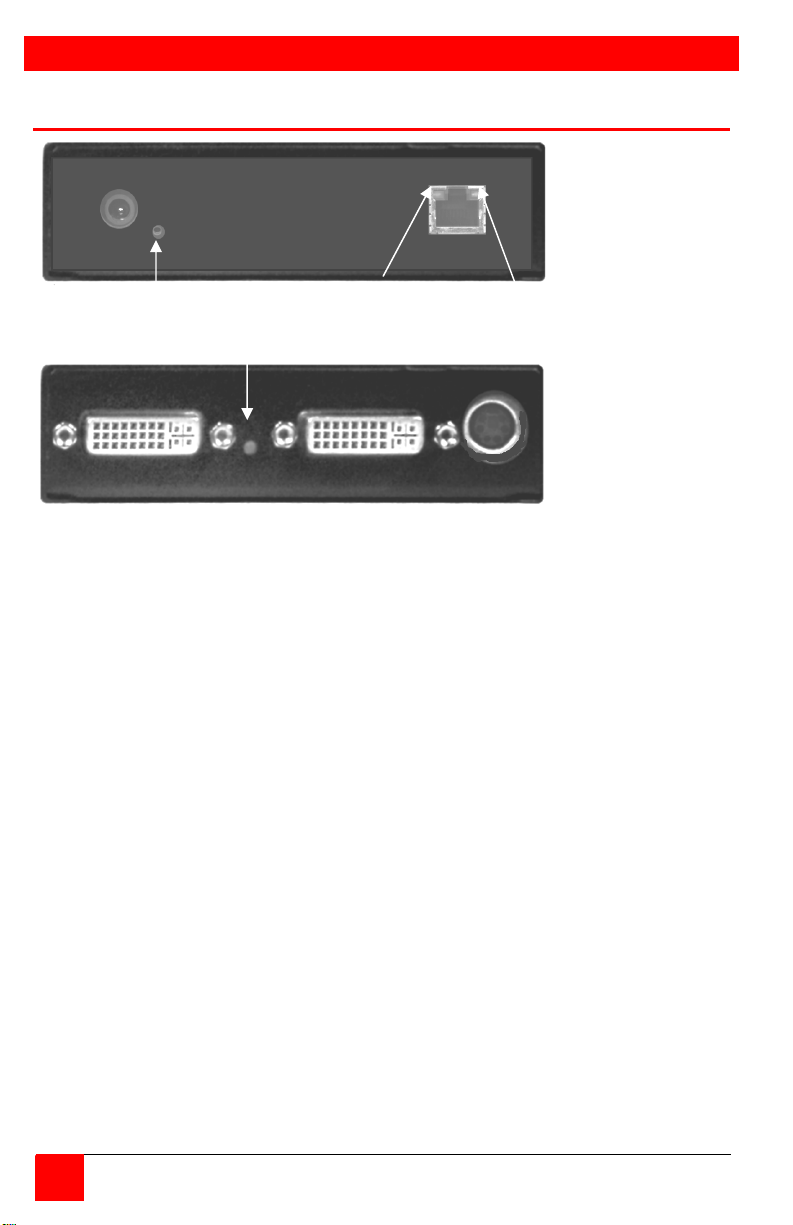

Diagnostic LED Indicators

POWER DATA ERROR STATUS
VIDEO OK

Power (Red)

 Off – No power applied, device not ready
 On- Power applied, device ready

Data Error (Green)

• Off - No errors, device ready

• Blinking / On – Transmitter / Receiver communication not established

Link Status (Green)

• Blinking – No Fiber cable connection detected

• On – Transmitter / Receiver communication established, device ready

Video OK (Green)

• Off – No video signal detected

• On – Video signal detected, device ready

8

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

OPERATION INSTRUCTIONS

Operating instructions

Operation of your computer is no different than having your keyboard,
monitor, and mouse connected directly to the computer. All functions,
applications, upgrades and other items can be done normally. The only
difference is the computer can be up to 33,000 feet away (6,500 feet using
the 3.2 GBit model)

Local access on the CrystalView DVI Fiber allows an additional KVM station
to be connected to the transmitter. The CPU can easily be operated from the
remote KVM station or the local KVM station but not simultaneously.

The transmitter or local unit is active during boot-up and the connected CP Us
video is displayed on both the local and remote KVM stations monitor. To
activate the remote KVM station, simply press any key on the remote KVM
stations keyboard. Control is passed to the remote KVM station. To activate
the local KVM station, press any key on the KVM station’s keyboard.

The dual video models have the capability of connecting the transmitter to two
video sources. The two video sources are sent to the receiver and displayed
on its two video monitors. Video source one should be connected to the
computer’s primary DVI video port that is associated with the keyboard and
mouse.

The USB models only support USB keyboards and mice. Other USB devices
such as Touch Screen, graphic tablets, Barcode readers or similar devices
are supported but not guaranteed. Scanners, web cams, USB drives, etc are
not supported. The CrystalView DVI Fiber (USB models) will only support two
USB devices at the same time.

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

9

TROUBLESHOOTING

Troubleshooting

The troubleshooting section is used as a guide to understanding the
capabilities of the CrystalView DVI Fiber and for general troubleshooting. If
you have any problems or questions concerning the installation, operation or
usage of the CrystalView DVI Fiber that is not covered in this manual, please
contact Rose Electronics for technical support.

There isn’t a picture.

• Check the power supply connection at the Local unit. Is the Power (Red

LED) at the Local unit illuminated? If not, the internal power-supply may
be damaged or there may be an internal error.

• Check the power supply connection at the remote unit. Is the Power

(Red LED) at the Remote unit illuminated? If not, the internal power­supply may be damaged or there may be an internal error.

• Check that the Interconnection cable is connected at the Local Unit and

the Remote Unit. Is the Link Status LED illuminated? If not, there may
be a problem with the Interconnection cable:

• Are there Errors through data transmission over fiber Cable? Is the Data

Error LED illuminated or blinking? If yes, check cable length and
environment.

• Video Okay LED is dark: CPU does not provide a video signal – Check

settings of the graphic card. Try connecting a monitor to the local output,

to see, whether there is a signal or not.
Keyboard
The PC boots fine with no error messages but the keyboard does not work

• Wrong cable plugged in, keyboard and mouse cables reversed.

• Try a different model of keyboard. If the new keyboard works then

original one may be incompatible

• Check that the Interconnection cable is connected at the Local Unit and

the Remote Unit. Is the Link Status LED illuminated (see page 23)?
PS2-Mouse
A mouse cursor appears on the screen, but the mouse does not work

• Wrong cable plugged in, keyboard and mouse cables reversed.

• Try a different model of mouse

• The system does not detect a PS/2 mouse, or the application cannot

find the mouse.

• Ensure that the Local Unit is connected to the PC keyboard port to

provide power

10

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

SERVICE AND SUPPORT

Service Information

Maintenance and Repair

This Unit does not contain any internal user-serviceable parts. In the event a
Unit needs repair or maintenance, you must first obtain a Return Authorization
(RA) number from Rose Electronics or an authorized repair center. This
Return Authorization number must appear on the outside of the shipping
container. See Limited Warranty for more information.

When returning a Unit, it should be double-packed in the original container or
equivalent, insured and shipped to:
Rose Electronics
Attn: RA__________
10707 Stancliff Road
Houston, Texas 77099 USA

Technical Support

If you are experiencing problems, or need assistance in setting up,
configuring or operating your unit, consult the appropriate sections of this
manual. If, however, you require additional information or assistance, please
contact the Rose Electronics Technical Support Department at:

Phone: [phone]
E-Mail: [email protected]
Web: www.rose.com

Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday
through Friday.

Please report any malfunctions in the operation of this Unit or any
discrepancies in this manual to the Rose Electronics Technical Support
Department.

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

11

SAFETY

Safety

The CrystalView DVI Fiber KVM extender has been tested for conformance to
safety regulations and requirements, and has been certified for international
use. Like all electronic equipment, the CrystalView DVI Fiber should be used
with care. To protect yourself from possible injury and to minimize the risk of
damage to the Unit, read and follow these safety instructions.

 Follow all instructions and warnings marked on this Unit.
 Except where explained in this manual, do not attempt to service this Unit

yourself.

 Do not use this Unit near water.
 Assure that the placement of this Unit is on a stable surface or rack

mounted.

 Provide proper ventilation and air circulation.
 Keep power cord and connection cables clear of obstructions that might

cause damage to them.

 Use only power cords, power adapter a nd connection cables designed for

this Unit.

 Use only a grounded (three-wire) electrical outlet.
 Use only the power adapter provided with the units.
 Keep objects that might damage this Unit and liquids that may spill, clear

from this Unit. Liquids and foreign objects might come in contact with
voltage points that could create a risk of fire or electrical shock.

 Operate this Unit only when the cover is in place.
 Do not use liquid or aerosol cleaners to clean this Unit. Always unplug

this Unit from its electrical outlet before cleaning.

 Unplug this Unit from the electrical outlet and refer servicing to a qualified

service center if any of the following conditions occur:

 The power cord or connection cables is damaged or frayed.
 The Unit has been exposed to any liquids.
 The Unit does not operate normally when all operating instructions

have been followed.

 The Unit has been dropped or the case has been damaged.
 The Unit exhibits a distinct change in performance, indicating a need

for service.

12

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

Safety and EMC Regulatory Statements

Safety information

Documentation reference symbol. If the product is marked with
this symbol, refer to the product

documentation to get more information about the product.

WARNING

CAUTION A CAUTION in the manual denotes a hazard that can

Do not proceed beyond a WARNING or CAUTION notice until you have
understood the hazardous conditions and have taken appropriate steps.

Grounding

These are Safety Class I products and have protective earthing terminals.
There must be an un-interruptible safety earth ground from the main power
source to the product’s input wiring terminals, power cord, or supplied power
cord set. Whenever it is likely that the protection has been impaired,
disconnect the power cord until the ground has been restored.

Servicing

There are no user-serviceable parts inside these products. Only service­trained personnel must perform any servicing, maintenance, or repair.

The user may adjust only items mentioned in this manual.

A WARNING in the manual denotes a hazard that can cause

injury or death.

damage equipment.

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

13

APPENDICES

Appendix A. General specifications

Maximum resolution 1920 x 1200 @ 60Hz
Video compatibility DVI-D
Keyboard PS/2 or USB

Mouse PS/2 or USB

Power adapter
Transmitter power
Receiver power

Connectors Video to PC – DVI-D

Fiber cable length

Temp/Humidity

Indicators (LEDs)

Weight
Dimensions H: 1.375 in / 3.0 mm

14

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

90-240 VAC adapter to 5VDC / app. 10W
750 mA
750 mA

Video to KVM – DVI-D
Keyboard: PS/2 or USB
Mouse: PS/2 or USB
Interconnect: Fiber type LC

62,5µm Multimode-Fiber 650 ft / 200m

50.0µm Multimode-Fiber 1300ft / 400m

9.0µm Singlemode-Fiber 33,000ft / 10,000m

9.0µm Singlemode-Fiber 6,500 ft / 2,000m
for the 3.2GBit model

5˚C – 45˚C / 41˚F – 113˚F – 80% non­condensing max

Front panel – power
Video check - LED
Data error / status - LEDs

App. 1.3lbs each (0.6kg each)

W: 4.125 in / 10.0 mm
D: 5.625in / 14.4 mm

APPENDICES

Appendix B. Parts and cables

Part Number (Multimode) Description

CRV-DLDFMPD1D
CRV-SRDFMPD1D
CRV-DLDFMPD2D
CRV-SRDFMPD2D
CRV-DLDFMUD1D
CRV-SRDFMUD1D
CRV-DLDFMUD2D
CRV-SRDFMUD2D

Part Number (Singlemode)
CRV-DLDFSPD1D
CRV-SRDFSPD1D
CRV-DLDFSPD2D
CRV-SRDFSPD2D
CRV-DLDFSUD1D
CRV-SRDFSUD1D
CRV-DLDFSUD2D
CRV-SRDFSUD2D

/AUD part number suffix = serial and audio option
/3.2 part number suffix = 3.2 GBit model option

Part Number (ACC / Cables)
TFR-05D240FSUB Power Adapter
CAB-MD6M2MD6Mnnn “Y” adapter cable

nnn = length in feet

DVI-D / PS/2 Single video (Transmitter)
DVI-D / PS/2 Single video (Receiver)
DVI-D / PS/2 Dual video (Transmitter)
DVI-D / PS/2 Dual video (Receiver)
DVI-D / USB Single video (Transmitter)
DVI-D / USB Single video (Receiver)
DVI-D / USB Dual video (Transmitter)
DVI-D / USB Dual video (Receiver)

Description

DVI-D / PS/2 Single video (Transmitter)
DVI-D / PS/2 Single video (Receiver)
DVI-D / PS/2 Dual video (Transmitter)
DVI-D / PS/2 Dual video (Receiver)
DVI-D / USB Single video (Transmitter)
DVI-D / USB Single video (Receiver)
DVI-D / USB Dual video (Transmitter)
DVI-D / USB Dual video (Receiver)

Description

CRYSTALVIEW DVI FIBER INSTALLATION AND OPERATIO NS MANUAL

15

10707 Stancliff Road Phone: [phone]
Houston, Texas 77099 WWW.ROSE.COM
