Roper X10002f00, X10002g0, X12002f00, X12002g0, Ar1200xf0 Owner's Manual

ROOM AIR CONDITIONERS

Use & Care Guide

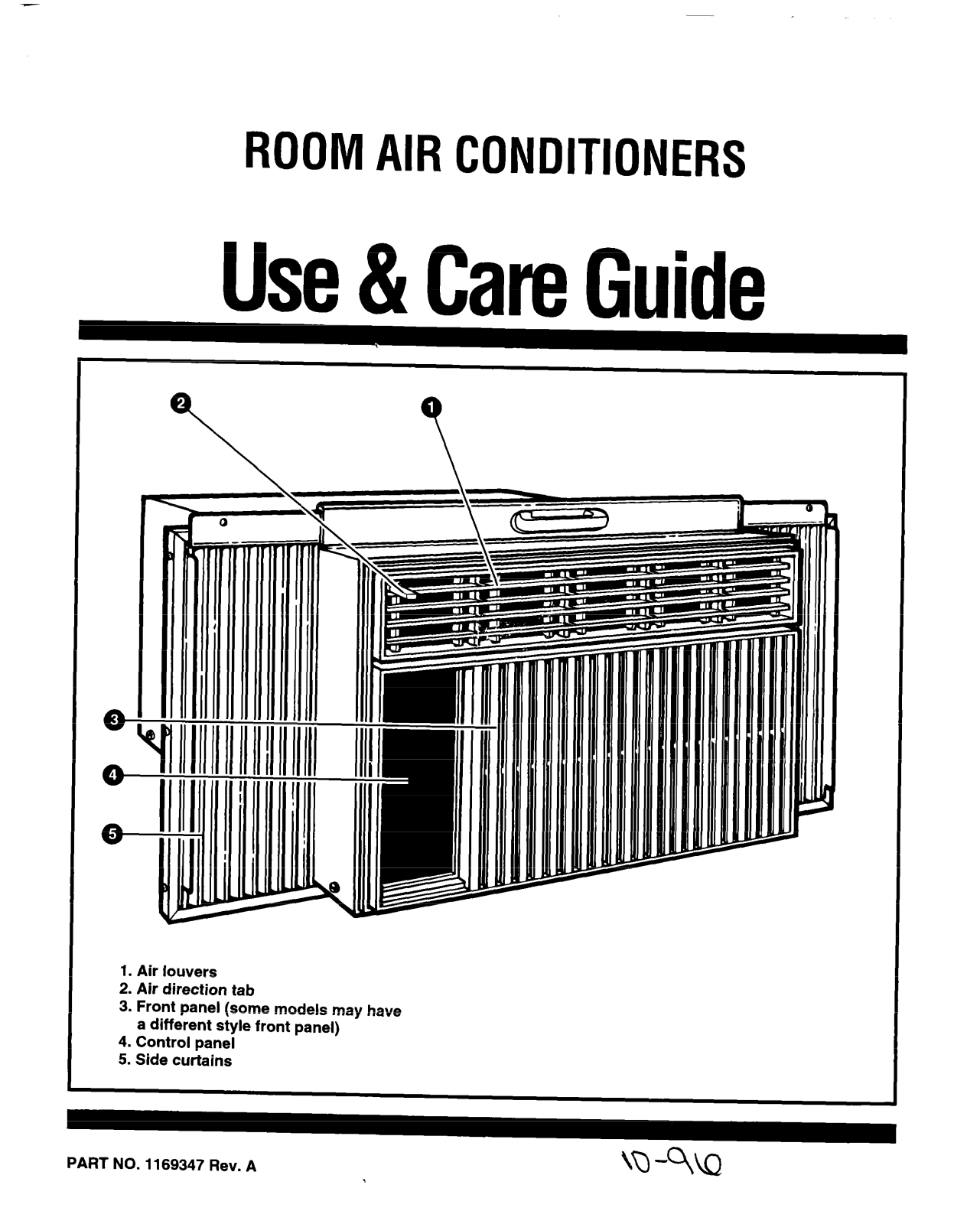

1. Air louvers

2. Air direction tab

3. Front panel (some models may have
a different style front panel)

4. Control panel

5. Side curtains

PART NO. 1169347 Rev. A

.

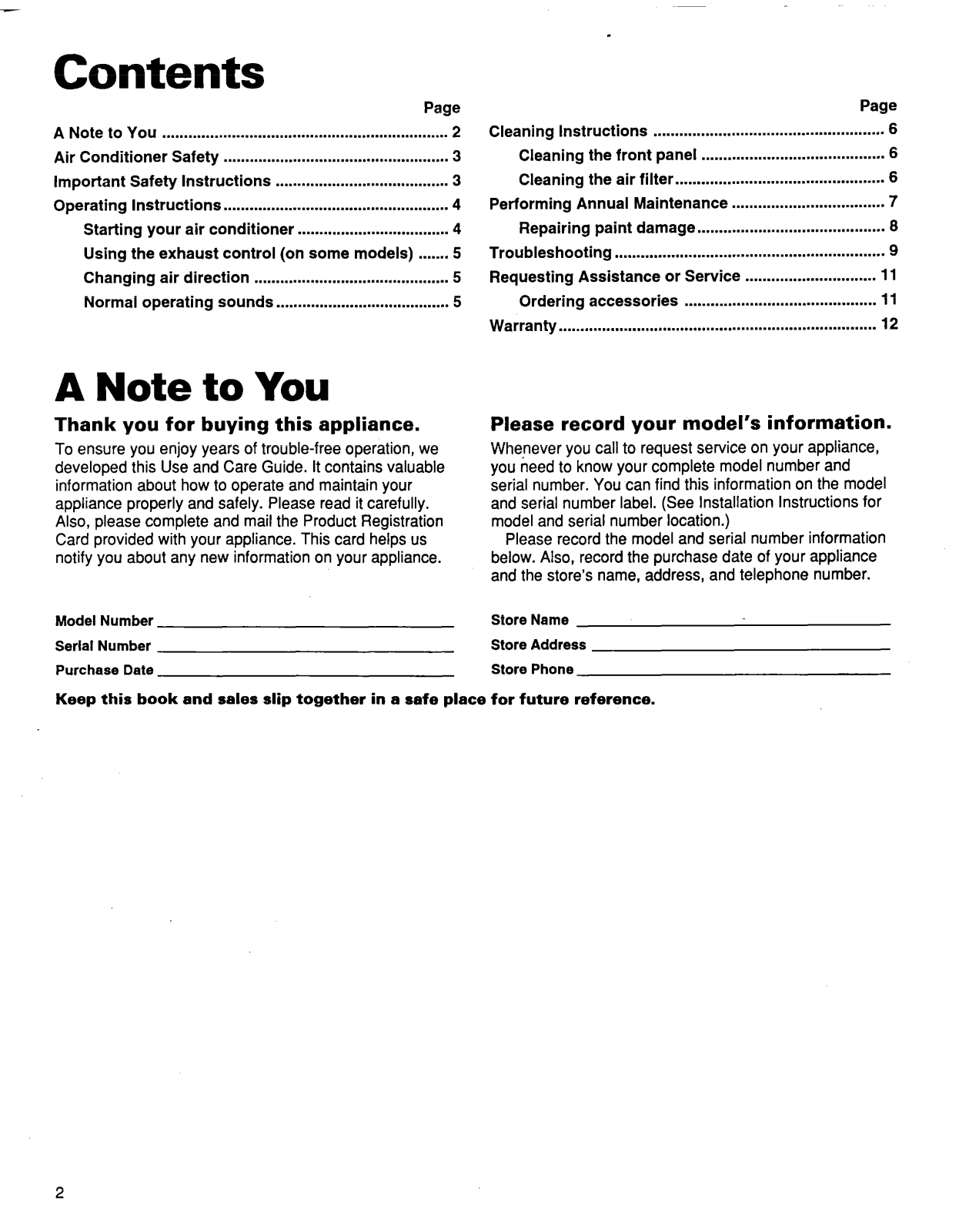

Contents

A Note to You
Air Conditioner Safety
Important Safety Instructions
Operating Instructions

Starting your air conditioner ................................... 4

Using the exhaust control (on some models)

Changing air direction ............................................. 5

Normal operating sounds ........................................

A Note to You

..................................................................

.................................................... 3

........................................ 3

.................................................... 4

Page

...... .5

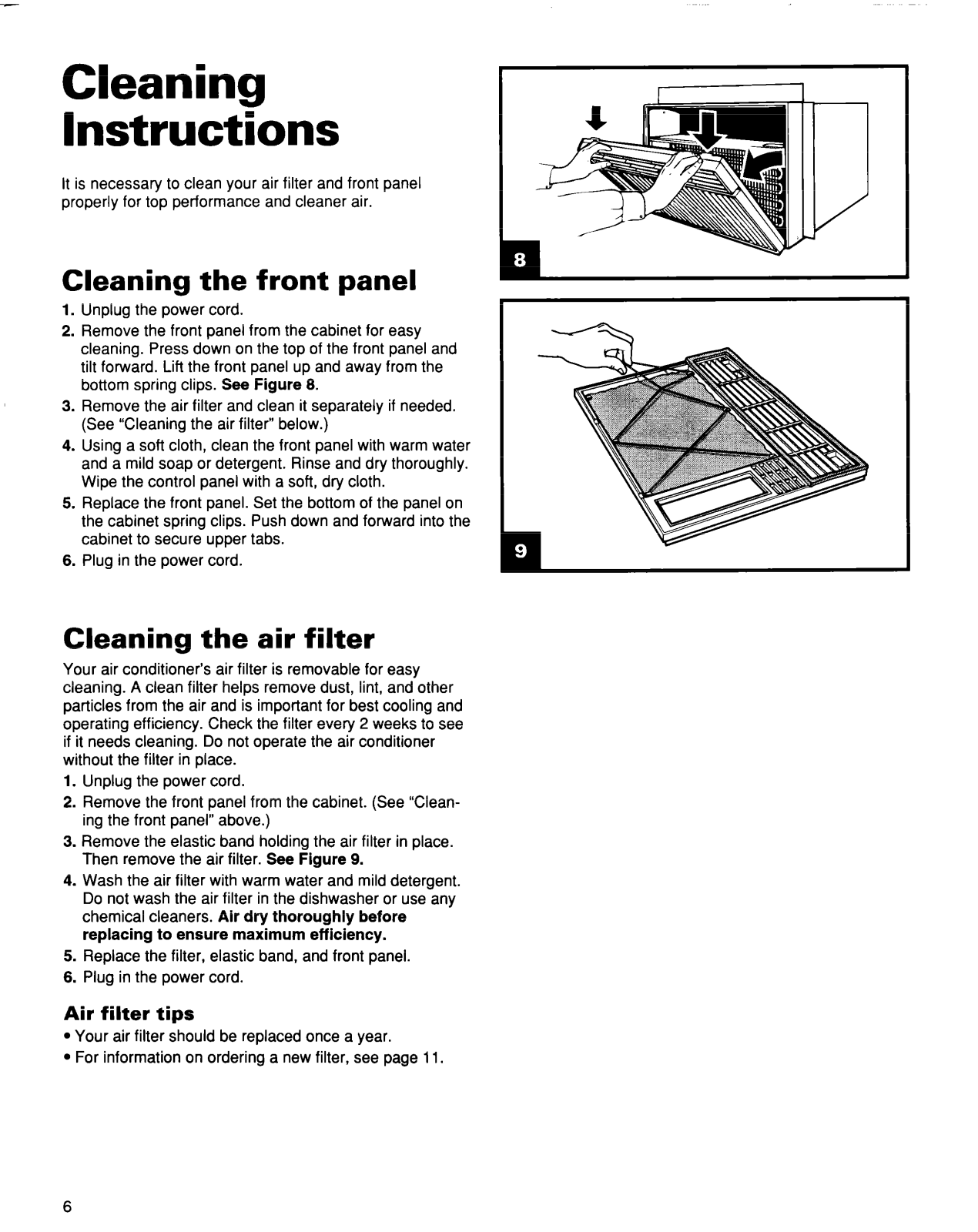

Cleaning Instructions

2

Cleaning the front panel
Cleaning the air filter

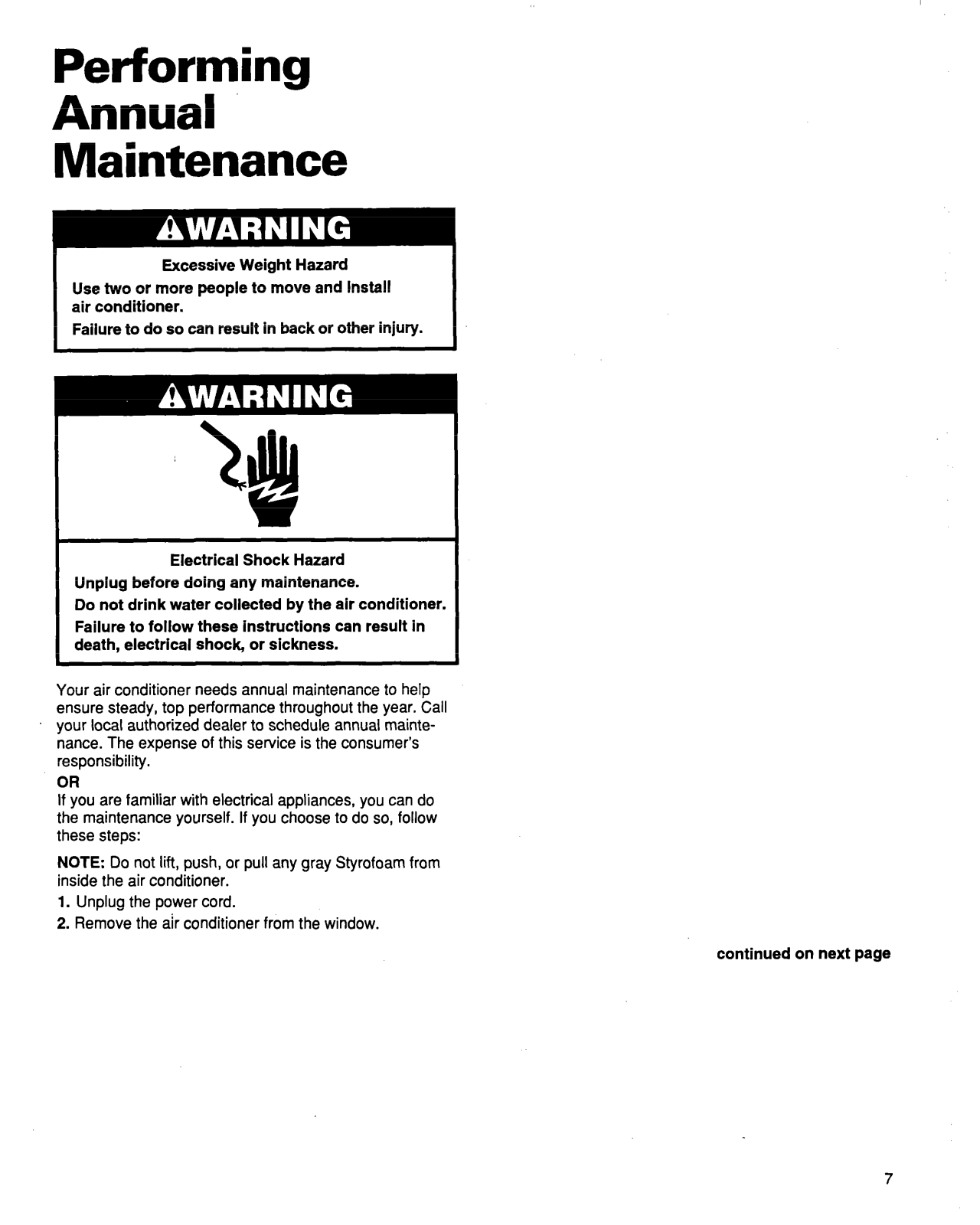

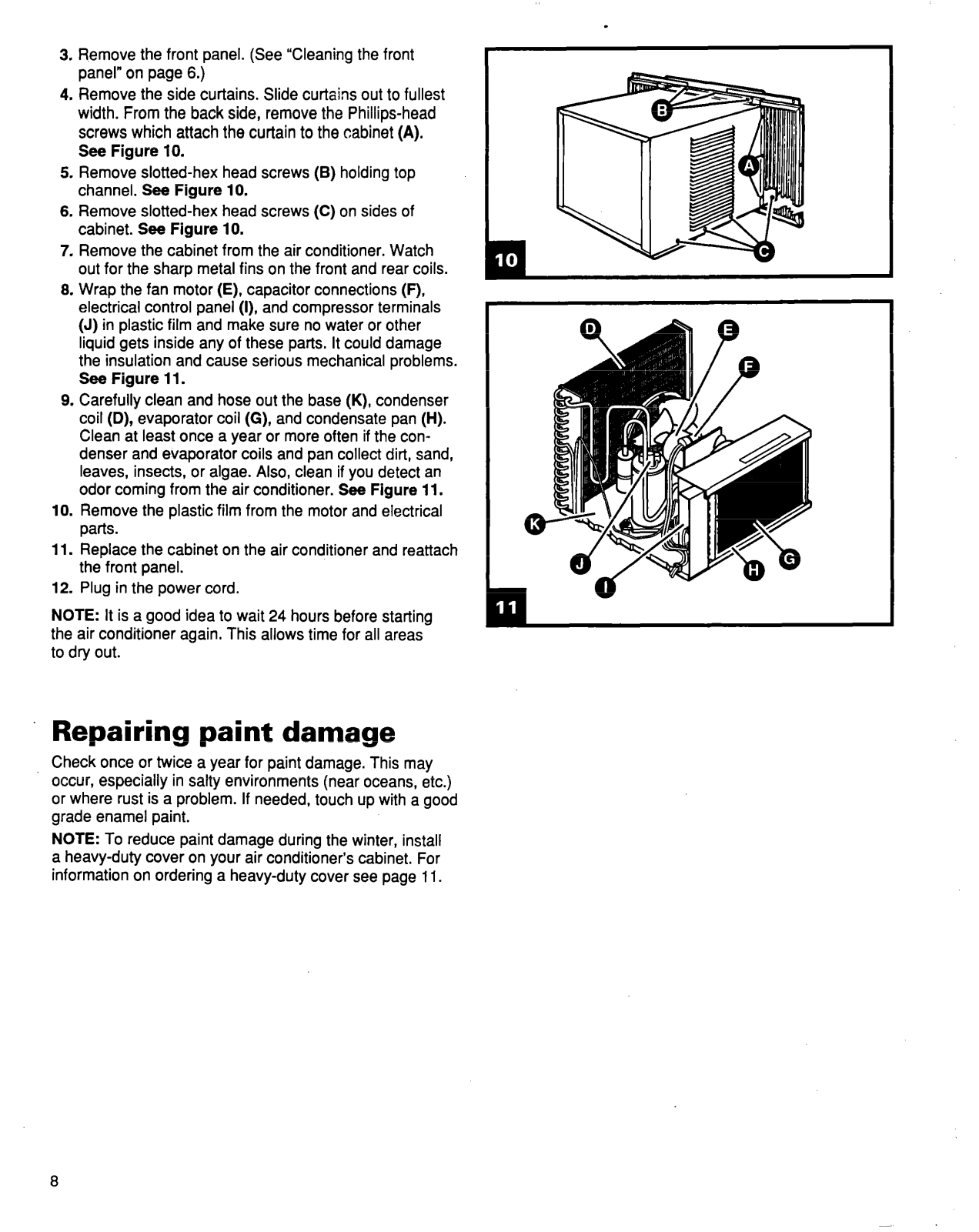

Performing Annual Maintenance

Repairing paint damage

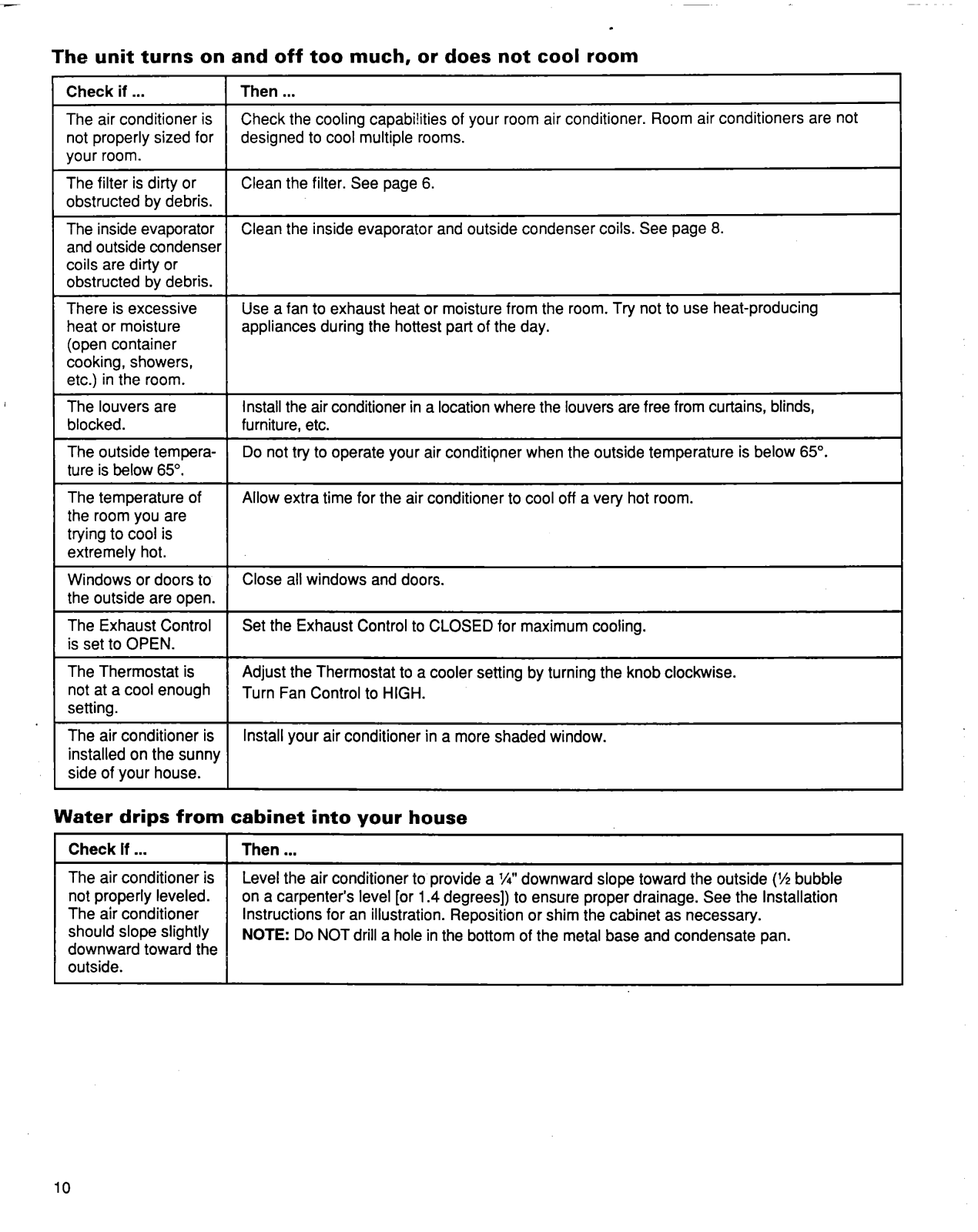

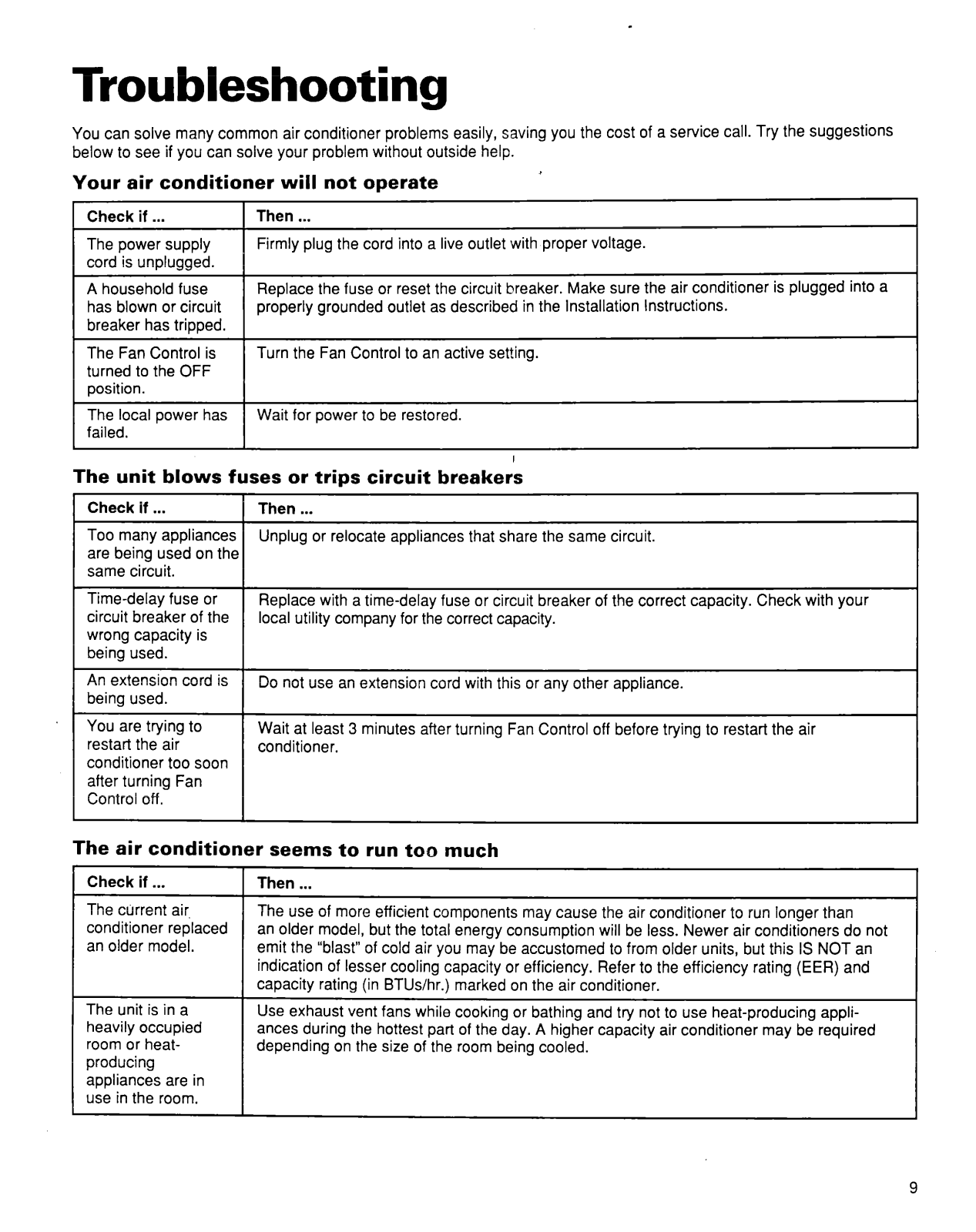

Troubleshooting

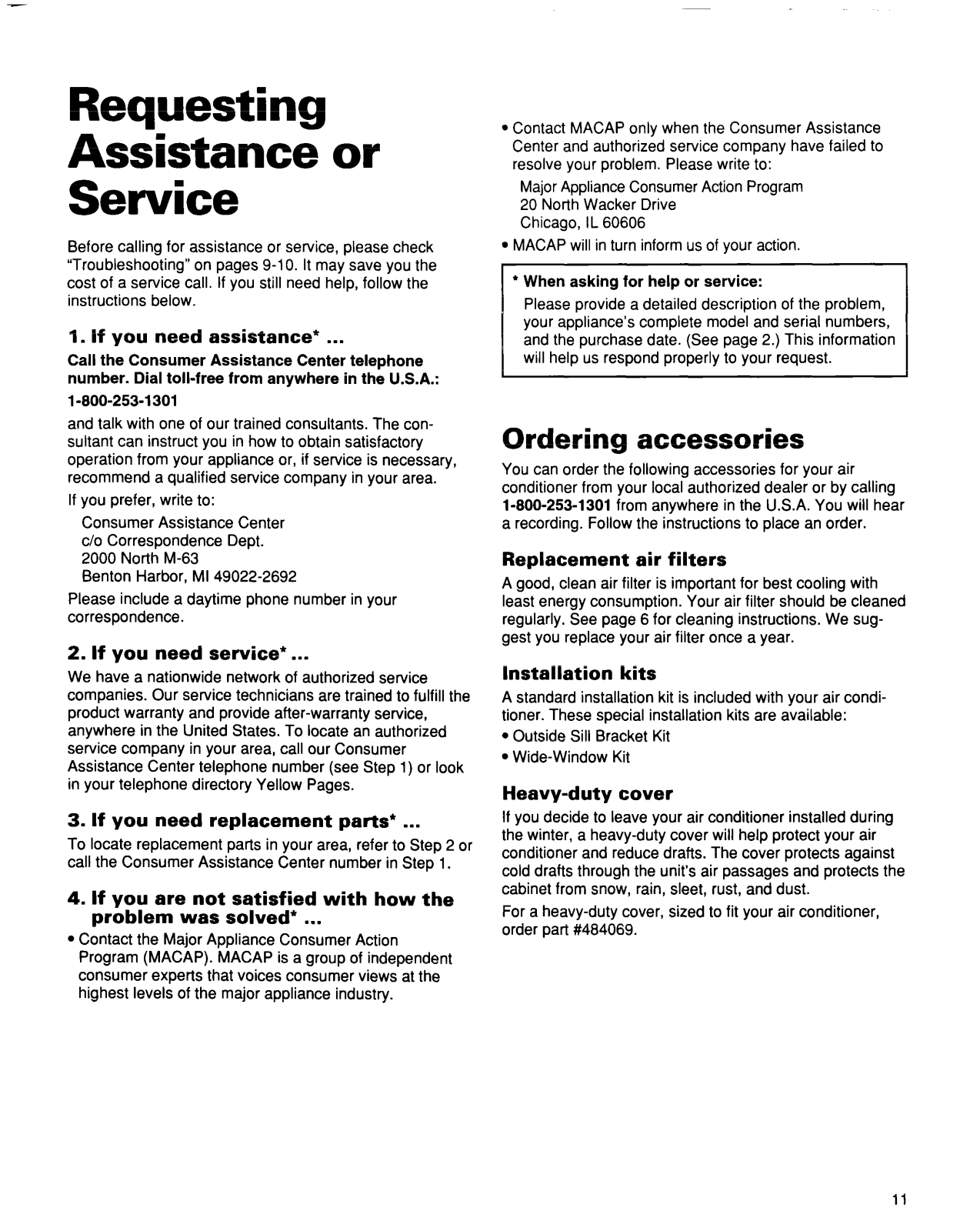

Requesting Assistance or Service

5

Ordering accessories

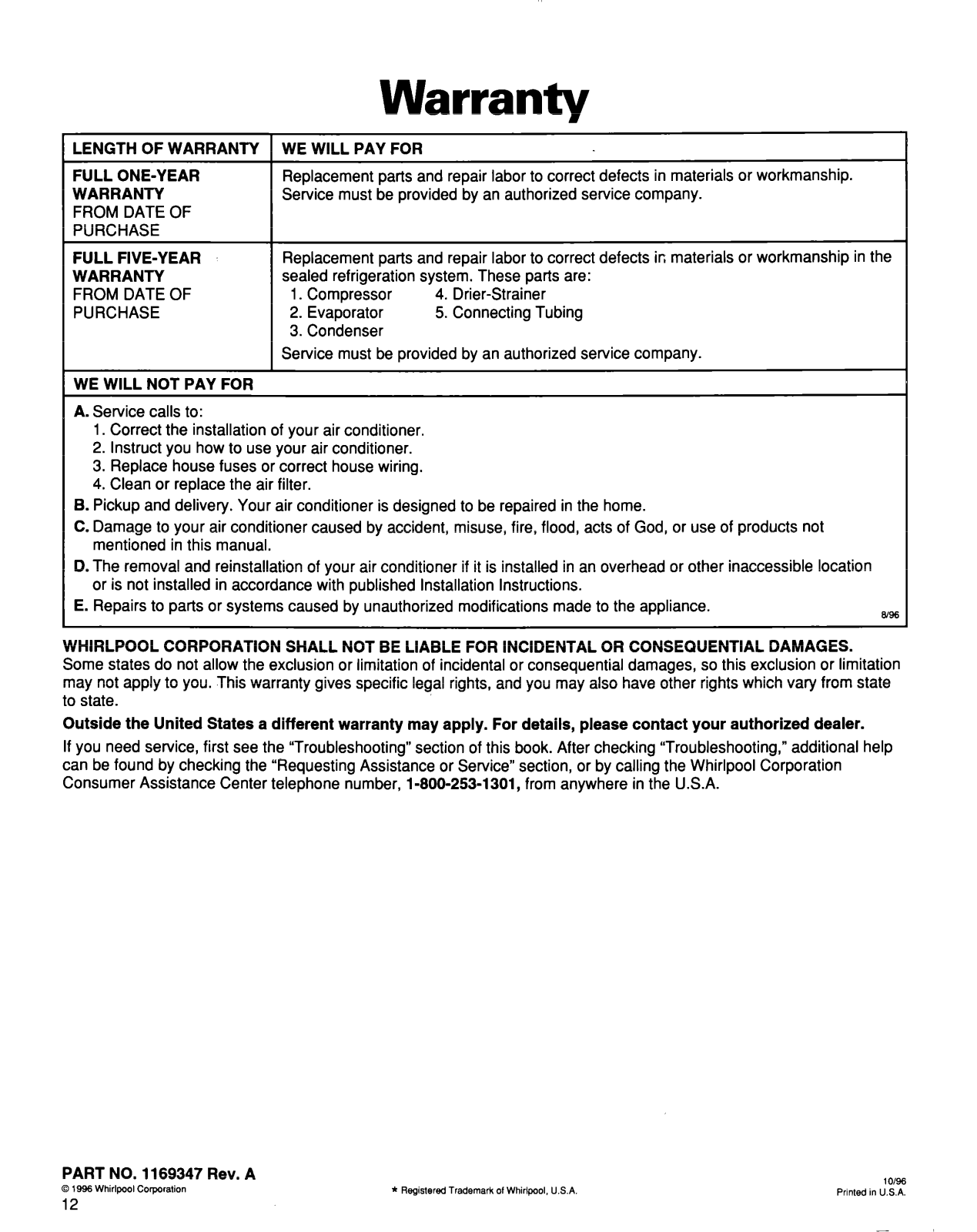

Warranty

.........................................................................

..............................................................

Page

.....................................................

..........................................

................................................

...................................

...........................................

..............................

............................................

6
6
6
7

8

9
11
11
12

Thank you for buying this appliance.

To ensure you enjoy years of trouble-free operation, we

developed this Use and Care Guide. It contains valuable
information about how to operate and maintain your
appliance properly and safely. Please read it carefully.
Also, please complete and mail the Product Registration
Card provided with your appliance. This card helps us
notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on your appliance,
you need to know your complete model number and
serial number. You can find this information on the model
and serial number label. (See Installation Instructions for
model and serial number location.)

Please record the model and serial number information
below. Also, record the purchase date of your appliance
and the store’s name, address, and telephone number.

Model Number
Serial Number

Purchase Date

Keep this book and sales slip together in a safe place for future reference.

Store Name

Store Address
Store Phone

2

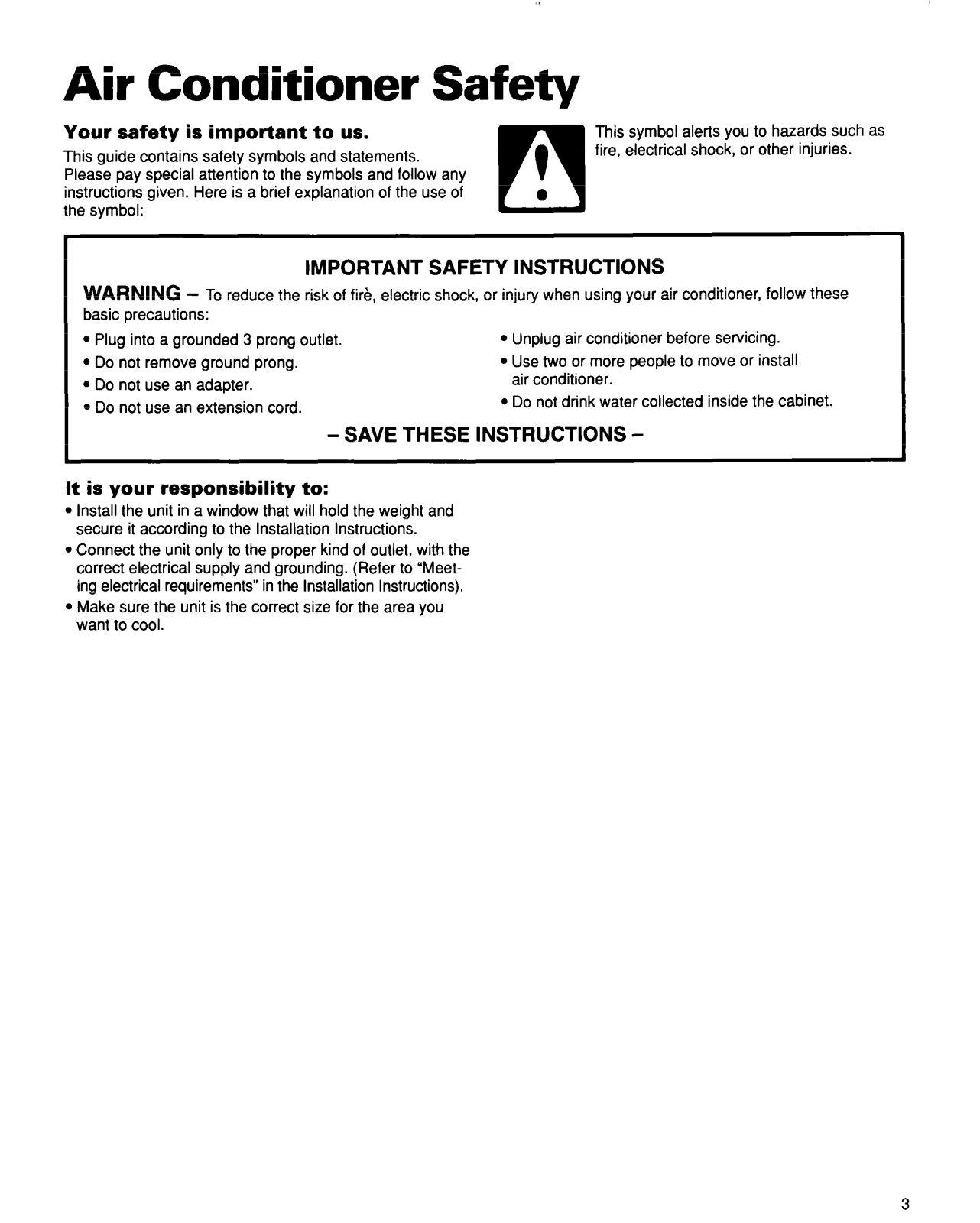

Air Conditioner Safety

Your safety is important to us.

This guide contains safety symbols and statements.

Please pay special attention to the symbols and follow any
instructions given. Here is a brief explanation of the use of

the symbol:

IMPORTANT SAFETY INSTRUCTIONS

WARNING

basic precautions:

l

Plug into a grounded 3 prong outlet.

l

Do not remove ground prong.

l

Do not use an adapter.

l

Do not use an extension cord.

- To reduce the risk of fire, electric shock, or injury when using your air conditioner, follow these

-SAVE THESE INSTRUCTIONS -

It is your responsibility to:

l

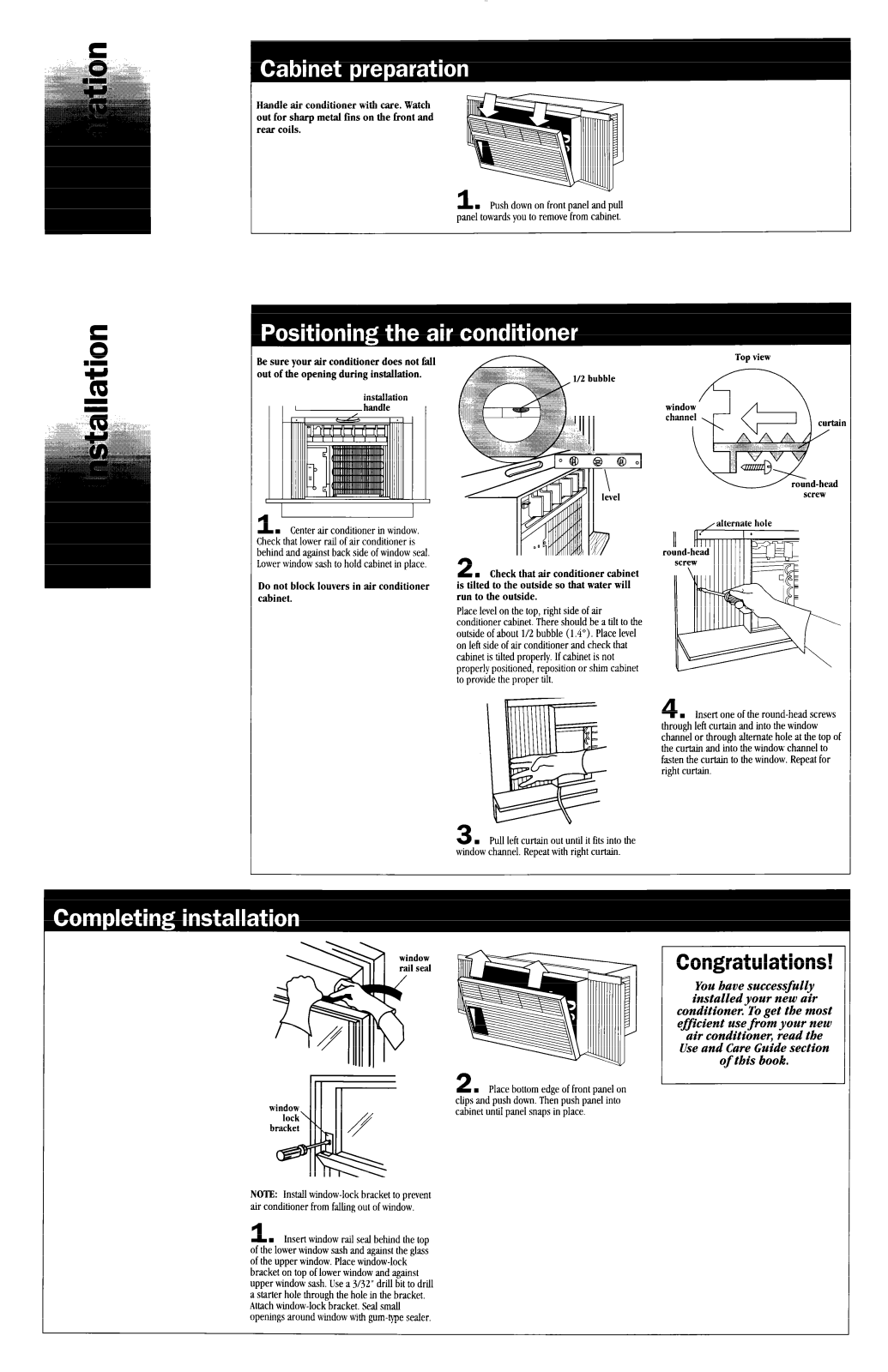

Install the unit in a window that will hold the weight and
secure it according to the Installation Instructions.

l

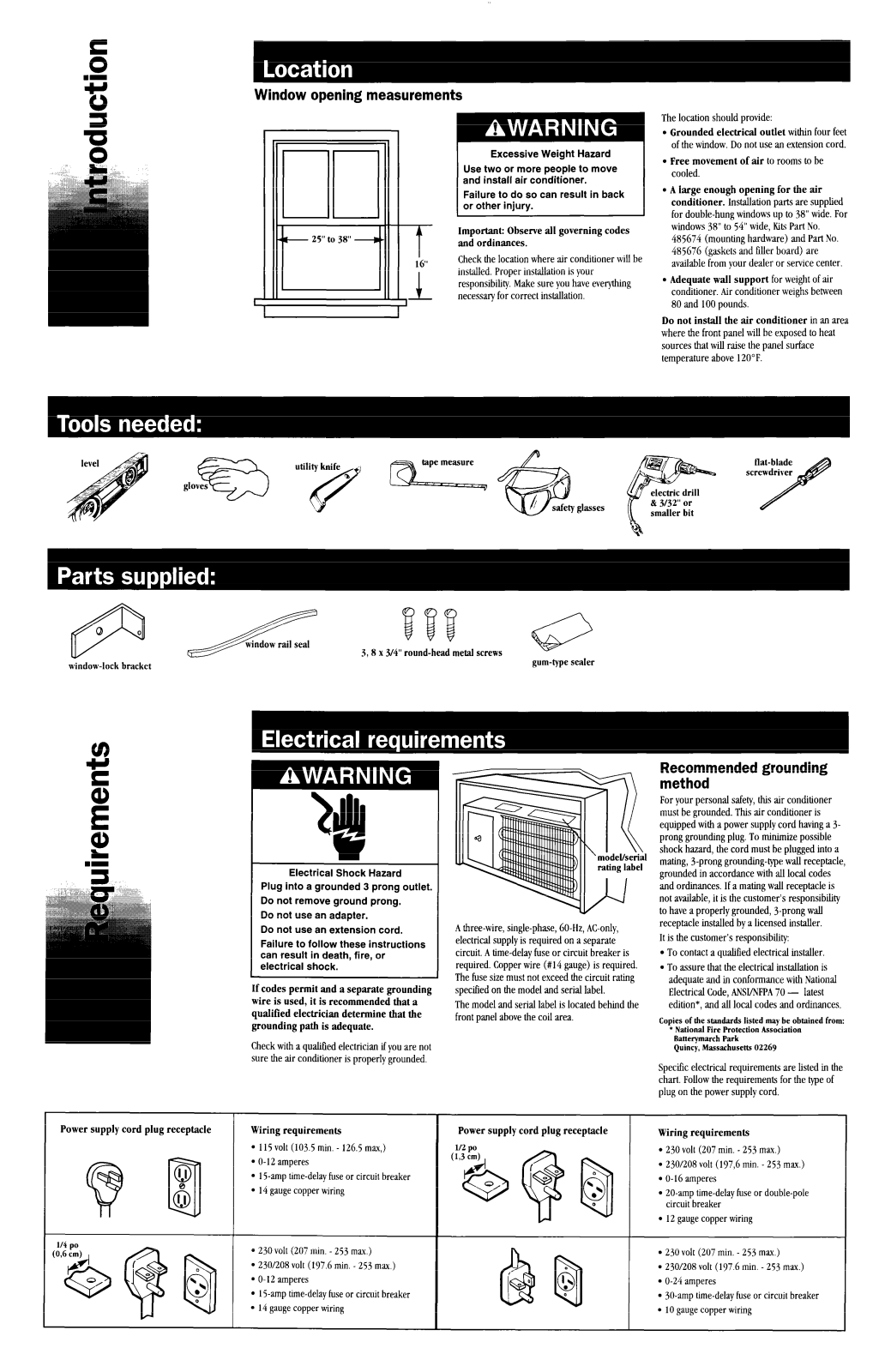

Connect the unit only to the proper kind of outlet, with the
correct electrical supply and grounding. (Refer to “Meet­ing electrical requirements” in the Installation Instructions).

l

Make sure the unit is the correct size for the area you
want to cool.

This symbol alerts you to hazards such as
fire, electrical shock, or other injuries.

l

Unplug air conditioner before servicing.

l

Use two or more people to move or install
air conditioner.

l

Do not drink water collected inside the cabinet.

Operating

Instructions

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

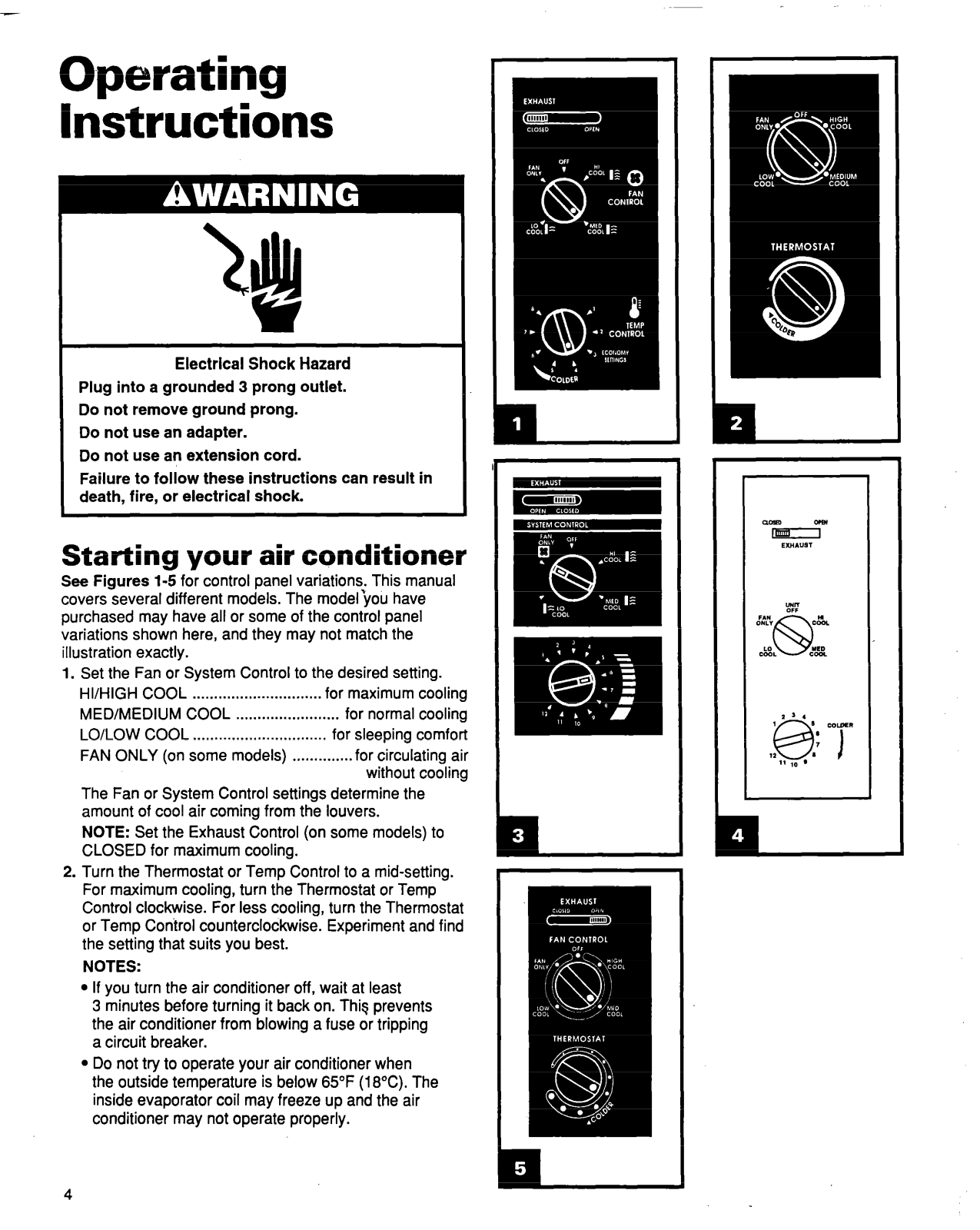

Starting your air conditioner

See Figures l-5

covers several different models. The model‘you have
purchased may have all or some of the control panel
variations shown here, and they may not match the

illustration exactly.

1.

Set the Fan or System Control to the desired setting.

HI/HIGH COOL

MED/MEDIUM COOL

LO/LOW COOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FAN ONLY (on some models)

The Fan or System Control settings determine the
amount of cool air coming from the louvers.

NOTE:

CLOSED for maximum cooling.

2. Turn the Thermostat or Temp Control to a mid-setting.
For maximum cooling, turn the Thermostat or Temp
Control clockwise. For less cooling, turn the Thermostat
or Temp Control counterclockwise. Experiment and find

the setting that suits you best.

NOTES:

l

If you turn the air conditioner off, wait at least

3 minutes before turning it back on. This prevents
the air conditioner from blowing a fuse or tripping
a circuit breaker.

l

Do not try to operate your air conditioner when
the outside temperature is below 65°F (18%). The

inside evaporator coil may freeze up and the air
conditioner may not operate properly.

for control panel variations. This manual

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . for

. . . . . . . . . . . . . . . . . . . . . . . . for normal

.,............ for circulating air

Set the Exhaust Control (on some models) to

maximum

for sleeping comfort

without cooling

cooling
cooling

4

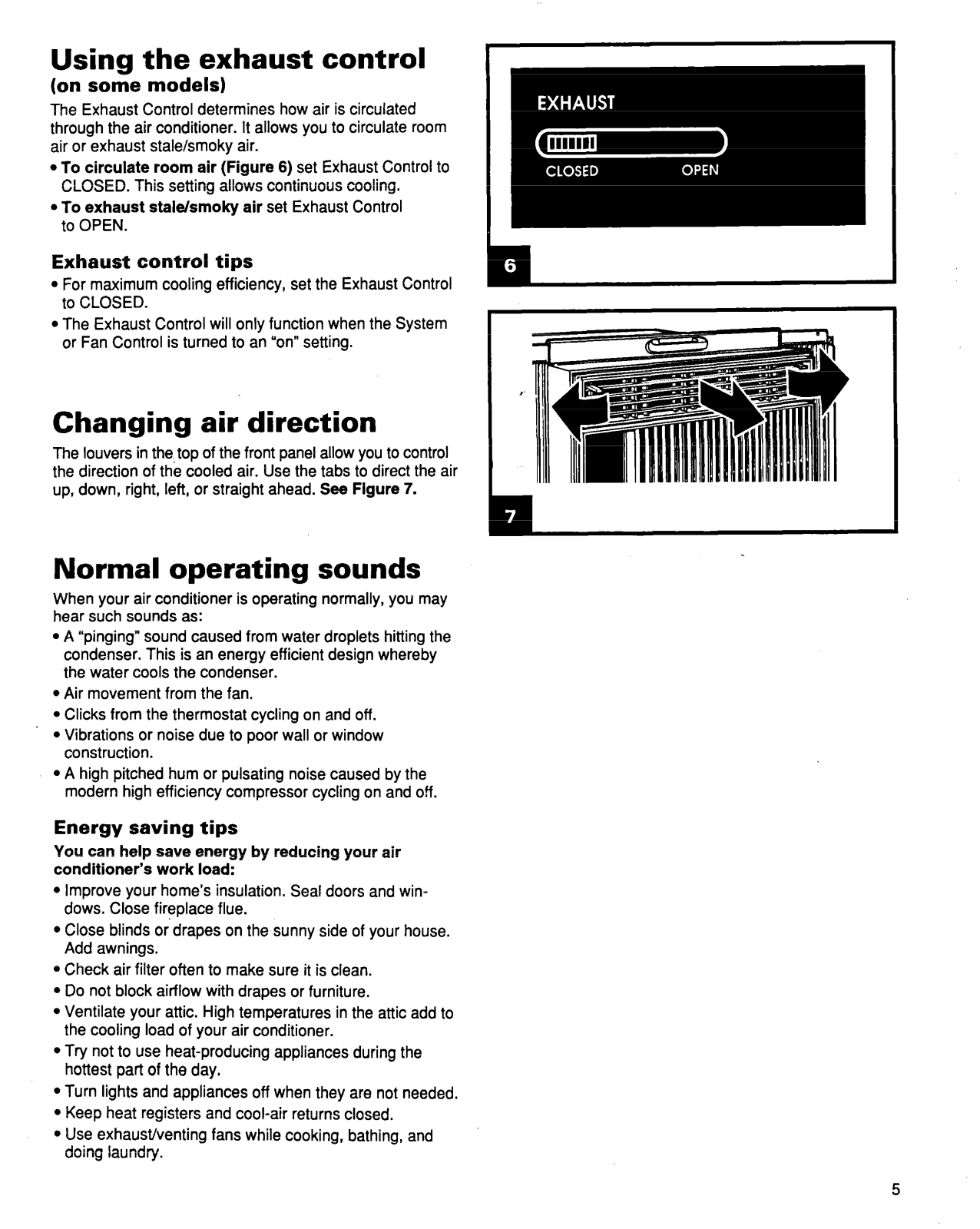

Using the exhaust control

(on some models)

The Exhaust Control determines how air is circulated
through the air conditioner. It allows you to circulate room
air or exhaust stale/smoky air.

l

To circulate room air (Figure 6)

set Exhaust Control to

CLOSED. This setting allows continuous cooling.

l

To exhaust stale/smoky air

set Exhaust Control

to OPEN.

Exhaust control tips

l

For maximum cooling efficiency, set the Exhaust Control

to CLOSED.

l

The Exhaust Control will only function when the System
or Fan Control is turned to an “on” setting.

Changing air direction

The louvers in the,, top of the front panel allow you to control
the direction of the cooled air. Use the tabs to direct the air
up, down, right, left, or straight ahead.

See Figure 7.

Normal operating sounds

When your air conditioner is operating normally, you may
hear such sounds

l

A “pinging” sound caused from water droplets hitting the
condenser. This is an energy efficient design whereby
the water cools the condenser.

l

Air movement from the fan.

l

Clicks from the thermostat cycling on and off.

l

Vibrations or noise due to poor wall or window

construction.

l

A high pitched hum or pulsating noise caused by the
modern high efficiency compressor cycling on and off.

Energy saving tips

You can help save energy by reducing your air

conditioner’s work load:

l

Improve your home’s insulation. Seal doors and win-

dows. Close fireplace flue.

l

Close blinds or drapes on the sunny side of your house.

Add awnings.

l

Check air filter often to make sure it is clean.

l

Do not block airflow with drapes or furniture.

l

Ventilate your attic. High temperatures in the attic add to

the cooling load of your air conditioner.

l

Try not to use heat-producing appliances during the
hottest part of the day.

l

Turn lights and appliances off when they are not needed.

. Keep heat registers and cool-air returns closed.

l

Use exhaust/venting fans while cooking, bathing, and
doing laundry.

as:

5
