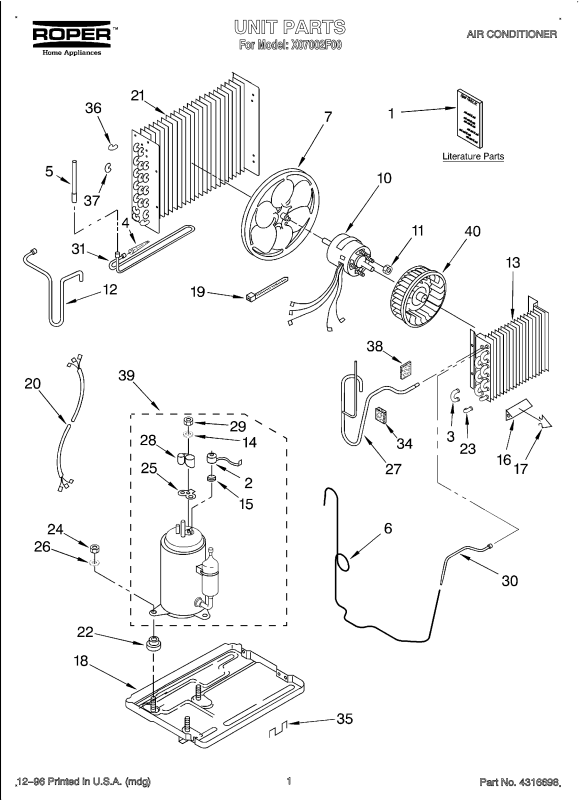

1 Literature Parts
LIT1168258 Tech Sheet
LIT1165173 Wiring Diagram
LIT1168978 Guide, Operation
2 Overload
1157040 Production
3 855199 Bend, Return (6)
4 1162526 Strainer
5 1168423 Tube, Process
6 1169380 Tube, Restrictor
7 1158524 Blade, Fan
10 1166120 Motor, Fan
11 488130 Nut, Hex 8-32 (4)
12 1159370 Tube, Discharge
13 1164540 Evaporator
14 950037 Gasket
15 950032 Spring, Overload
16 996773 Anticipator
17 475577 Clip, Anticipator
18 1157926 Base
19 857547 Cable, Tie
20 484136 Harness, Wiring
21 1169245 Condenser
22 950212 Grommet (3)
23 1169761 Bend, Return
24 858122 Locknut (3)
25 950035 Gasket, Terminal Cover
26 489108 Washer (3)
27 1166117 Tube, Suction
28 Cover, Terminal
950213 Production
29 950027 Nut Hex5-8mm.
30 1165066 Tube, Feeder (Restrictor)
31 1169000 Tube, Condenser Extension
34 1159443 Seal, Foam
35 949634 Clip, Mtg (2) (Cabinet-Front)
36 708532 Bend, Return (4)
37 708531 Bend, Return (13)
38 1164551 Sealer, Tube
39 1157026 Compressor Assembly
40 1164650 Wheel, Blower
REFRIGERANT CHARGE 16.5 OZ.
Page 3
Page 4
2 852451 Clamp, Wiring
3 488480 Screw,8x1/2
4 1157908 Shroud, Condenser
5 649879 Support, Unit
6 1162595 Capacitor, Running
7 1167611 Bracket, Capacitor
8 950403 Control, Temp.
10 1162616 Seal, Strip
13 1158451 Wall, Dividing
15 1168622 Insulation, Motor
16 1164674 Cord, Appliance
17 1159222 Screw, ST 8-32 x 3/8
18 856094 Wire, Ground
20 1164655 Shroud, Evaporator
23 1164671 Pan, Evaporator
25 488734 Screw 6-32 x .175
26 1164670 Hood, Air Housing
28 1165251 Switch, Rotary
29 1159409 Panel, Control
30 1159222 Screw, 3/8
31 859600 Seal, Condensate
32 1158850 Seal, Side
33 1164648 Housing, Air
35 1160302 Wire, Lead
38 488624 Screw8x3/8
42 475841 Sleeve, Insul.
43 1164680 Seal (2)
Page 5
Page 6

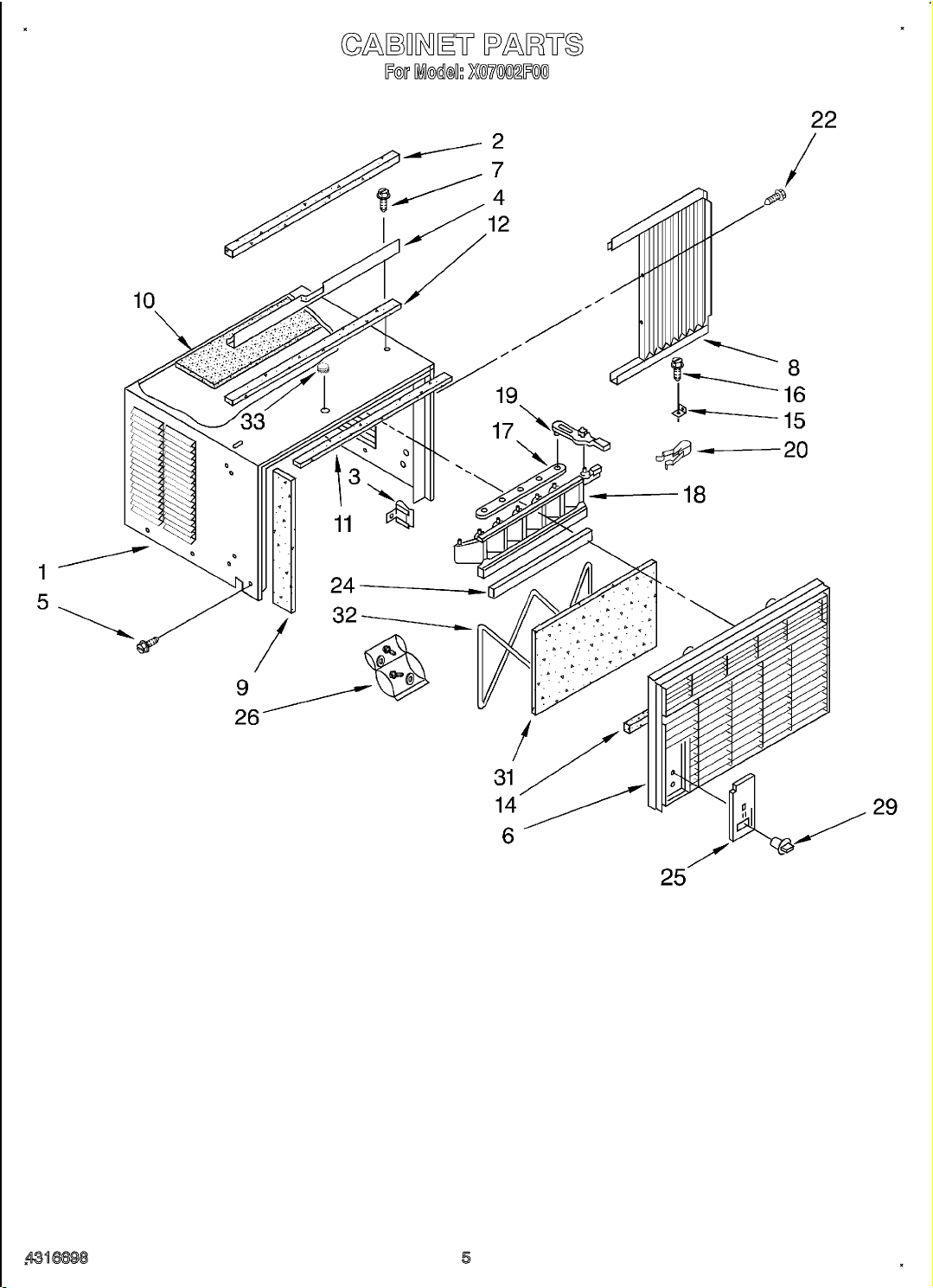

1 1157939 Cabinet
2 469877 Gasket, Meeting Rail
3 1158294 Clip
4 1168393 Channel, Top
5 1157158 Screw, ST 8 x 3/8 (6)
6 1158195 Front, Cabinet Assembly
7 488720 Screw (2)
8 1162963 Curtain (L.S.)
1162961 Curtain (R.S.)
9 1168285 Insulation, Side
10 1157942 Insulation, Top
11 1159283 Seal
12 856990 Seal, Strip
14 949090 Seal, Cabinet Front
15 644228 Bracket, Window
16 488255 Screw,8x3/4
17 645684 Link, Louver
18 1158325 Louver, Vertical
19 648626 Handle, Louver
20 641484 Spring, Detent
22 1161561 Screw
24 855238 Seal, Vertical Louver
25 1159407 Escutcheon
26 476180 Bag, Accessory
29 1158639 Knob, Control (2)
31 852344 Filter
32 646963 Retainer, Filter
33 1157126 Cover, Hole
Page 7
Page 8

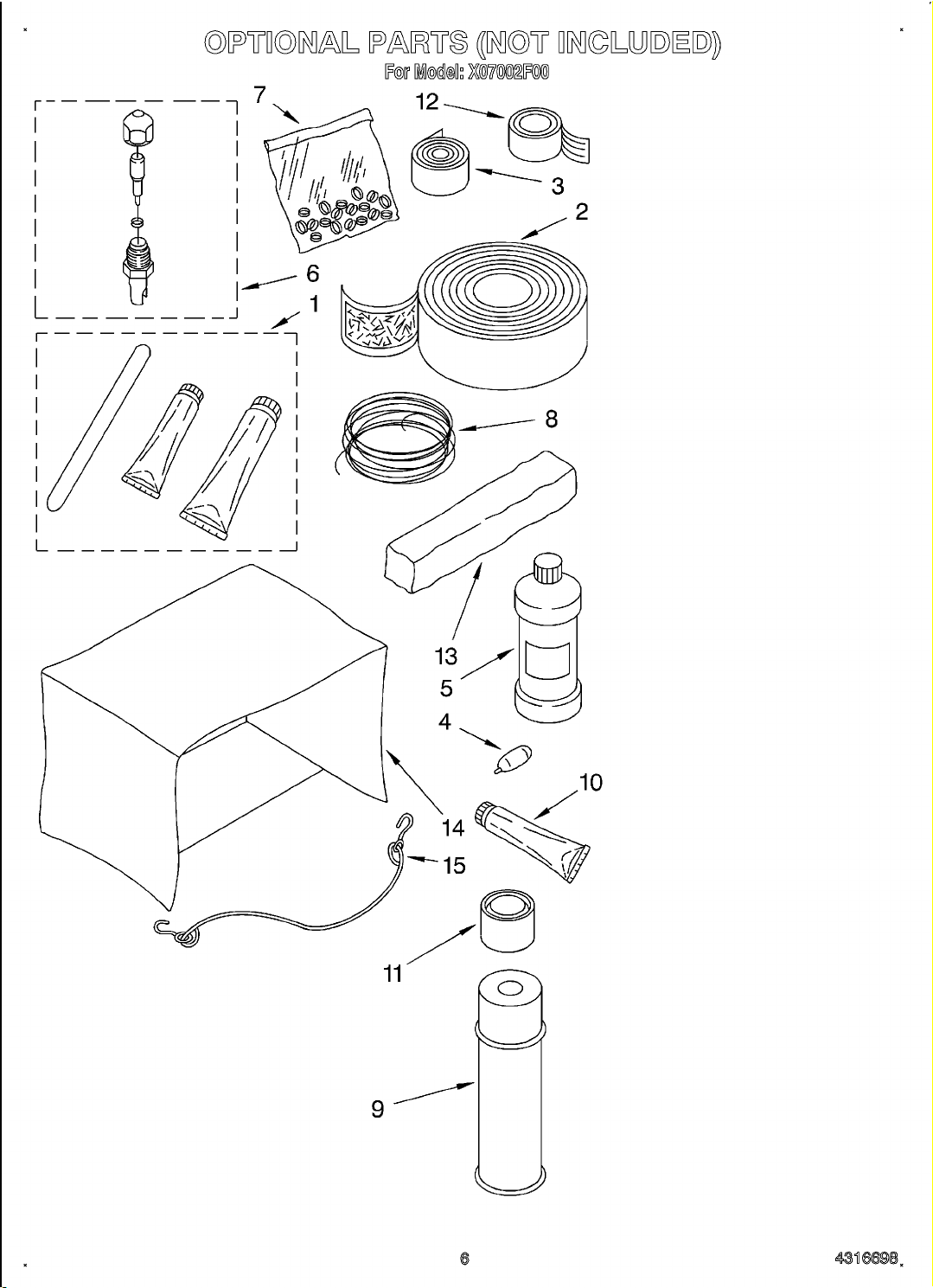

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access valve (20-Pack)
8 Wire, 25' Roll
10875 Blue 16 Ga.
242820 Black 14Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19x6to27"
484184 22 x 15x3to18"
15 813610 Retainer, Cord (Winter Cover)
Page 9
Page 10

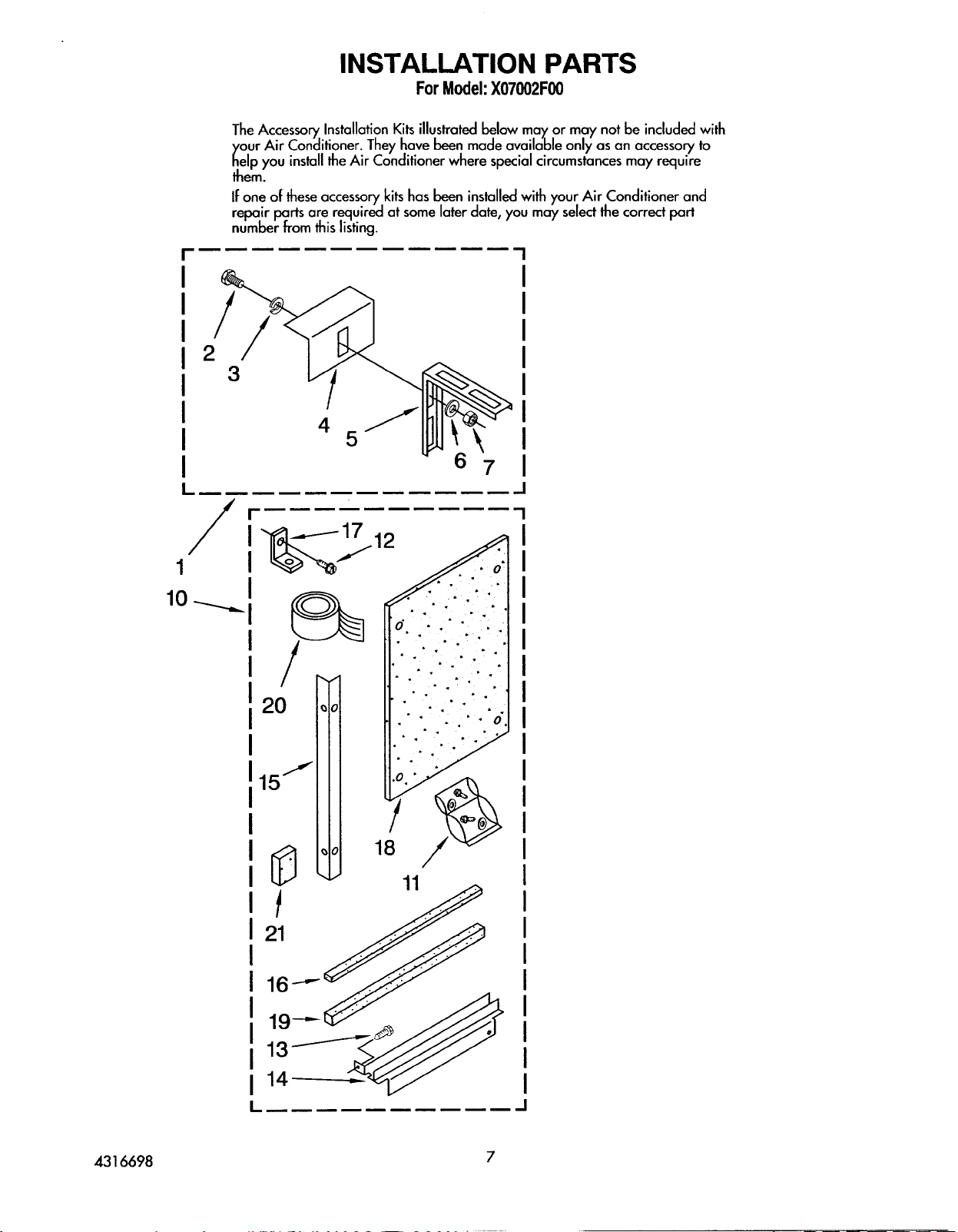

1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt, 1/4-20 x 3/4 (6)
3 488808 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 486035 Nut, 1/4-20 (6)
10 994818 Kit, Window Installation
11 858358 Bag, Accessory
12 488255 Screw, Wood #8 x 3/8 (3)
13 488017 Screw, S.M. #8 x 3/8 (8)
14 Bracket, Mounting
645562 Right Side
645563 Left Side
15 646988 Angle, Side
16 856979 Seal, Strip
17 644228 Bracket, Window Lock
18 648854 Board, Filler (2)
19 469877 Seal, Meeting Rail
20 470168 Sealer, Gum
21 995274 Spacer, Block
LITERATURE PARTS
LIT485706 Instructions, Installation (Outside Sill Kit)
