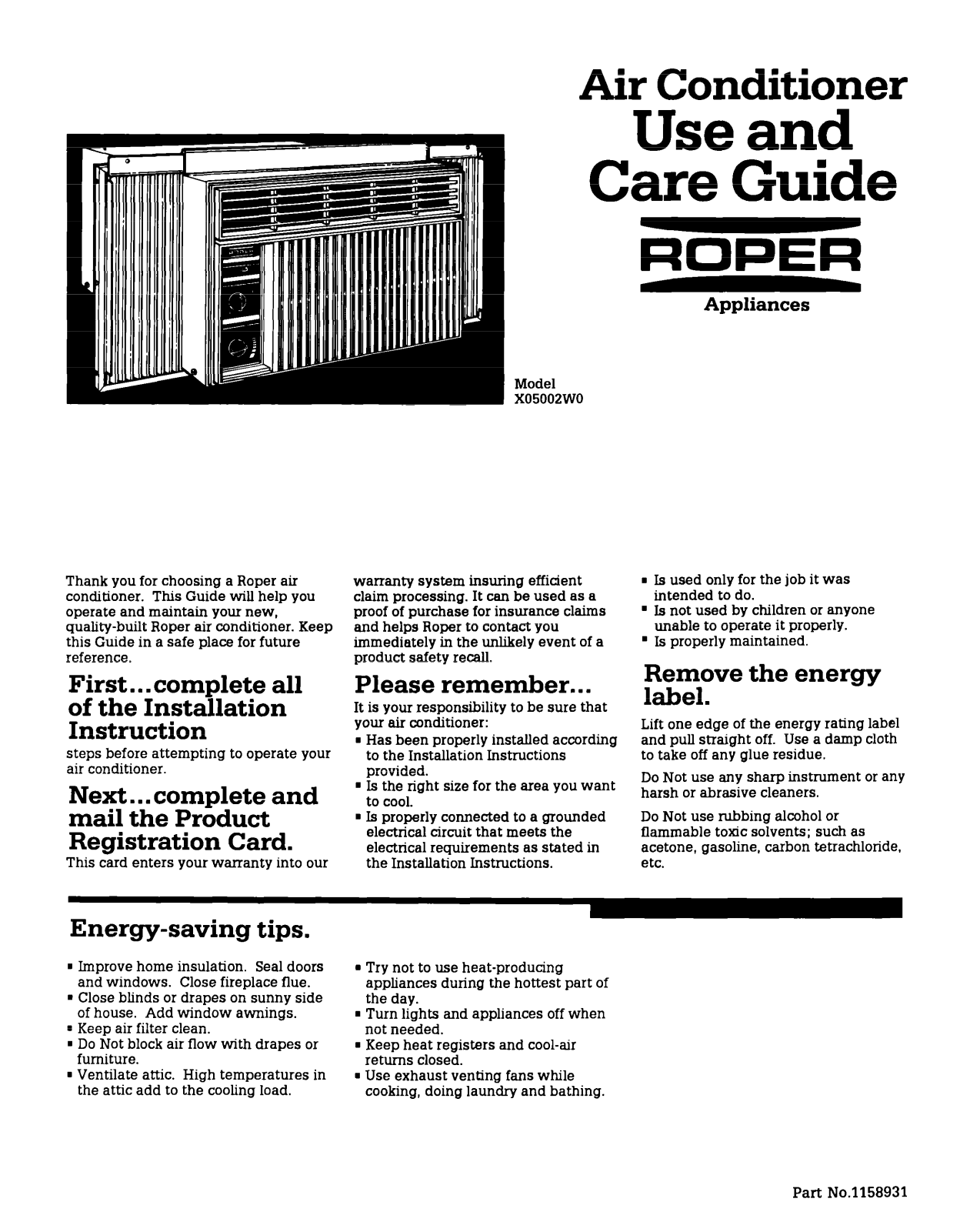

Roper X05002W0 User Manual

Thank you for choosing a Roper air
conditioner. This Guide will help you
operate and maintain your new,
quality-built Roper air conditioner. Keep
this Guide in a safe place for future
reference.

First.. . complete all
of the Installation
Instruction

steps before attempting to operate your

air conditioner.

Next.. . complete and
mail the Product
Registration Card.

This card enters your warranty into our

Care Guide

Model

x05002w0

warranty system insuring efficient
claim processing. It can be used as a
proof of purchase for insurance claims
and helps Roper to contact you
immediately in the unlikely event of a
product safety recall.

Please remember.. .

It is your responsibility to be sure that

your air conditioner:

n

Has been properly installed according
to the Installation Instructions
provided.

n

Is the right size for the area you want
to cool.

. Is properly connected to a grounded

electrical circuit that meets the
electrical requirements as stated in
the Installation Instructions.

Use and

ROPER

Appliances

n

Is used only for the job it was
intended to do.

. Is not used by children or anyone

unable to operate it properly.

n

Is properly maintained.

Remove the energy
label.

Lift one edge of the energy rating label
and pull straight off. Use a damp cloth
to take off any glue residue.

Do Not use any sharp instrument or any
harsh or abrasive cleaners.

Do Not use rubbing alcohol or
flammable toxic solvents; such as
acetone, gasoline, carbon tetrachloride,
etc.

Energy-saving tips.

m Improve home insulation. Seal doors

and windows. Close fireplace flue.

n

Close blinds or drapes on sunny side

of house. Add window awnings.
m Keep air filter clean.
. Do Not block air flow with drapes or

furniture.

m Ventilate attic. High temperatures in

the attic add to the cooling load.

. Try not to use heat-producing

appliances during the hottest part of
the day.

. Turn lights and appliances off when

not needed.

n

Keep heat registers and cool-air
returns closed.

n

Use exhaust venting fans while
cooking, doing laundry and bathing.

Part No.1158931

I

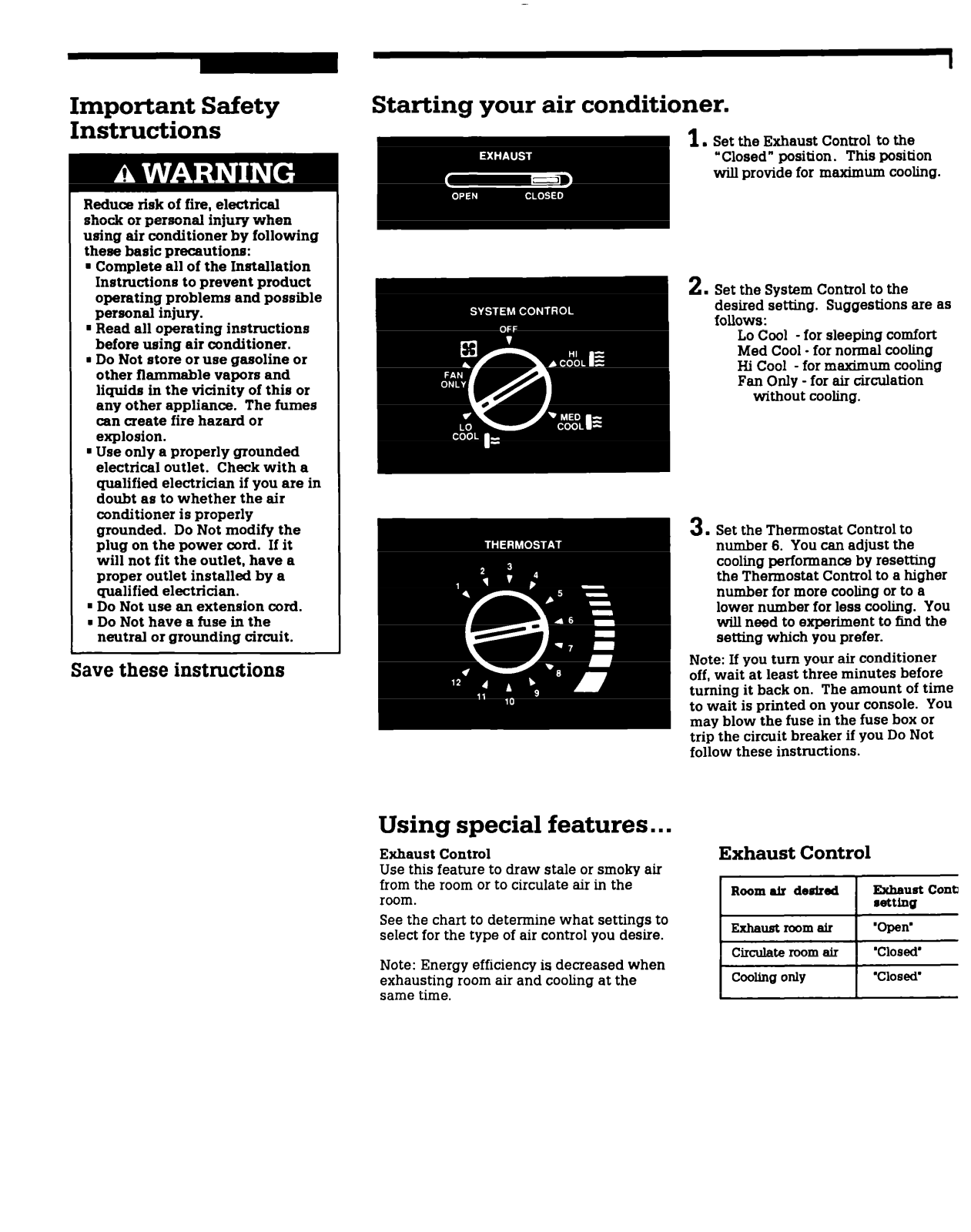

Important Safety Instructions

Reduce risk of fire, electrical
shock or personal injury when
using air conditioner by following
these basic precautions:

. Complete all of the Installation

Instructions to prevent product
operating problems and possible
personal injury.

m Read all operating instructions

before using air conditioner.

I Do Not store or use gasoline or

other flammable vapors and
liquids in the vicinity of this or
any other appliance. The fumes
can create fire hazard or
explosion.

m Use only a properly grounded

electrical outlet. Check with a

qualified electrician if you are in
doubt as to whether the air
conditioner is properly
grounded. Do Not modify the

plug on the power cord. If it

will not fit the outlet, have a
proper outlet installed by a
qualified electrician.

. Do Not use an extension cord.

I Do Not have a fuse in

neutral or grounding circuit.

Save these instructions

the

Starting your air conditioner.

1.

2.

3.

Note: If you turn your air conditioner
off, wait at least three minutes before
turning it back on. The amount of time
to wait is printed on your console.
may blow the fuse in the fuse box or
trip the circuit breaker if you Do Not
follow these instructions.

Set the Exhaust Control to the

“Closed” position. This position

will provide for maximum cooling.

Set the System Control to the
desired setting. Suggestions are as
follows:

Lo Cool - for sleeping comfort
Med Cool - for normal cooling
Hi Cool - for maximum cooling

Fan

Only - for air circulation

without cooling.

Set the Thermostat Control to
number 6. You can adjust the
cooling performance by resetting
the Thermostat Control to a higher
number for more cooling or to a
lower number for less cooling. You
will need to experiment to find the
setting which you prefer.

YOU

Using special features.. .

Exhaust Control
Use this feature to draw stale or smoky air
from the room or to circulate air in the
room.

See the chart to determine what settings to
select for the type of air control you desire.

Note: Energy efficiency is decreased when
exhausting room air and cooling at the
same time.

Exhaust Control

Roomairdesir~

Exhaust

Circulate room air
cooling only

rOOm air

Exhaust corn

retting
‘Open’
‘Closed

‘Closed
