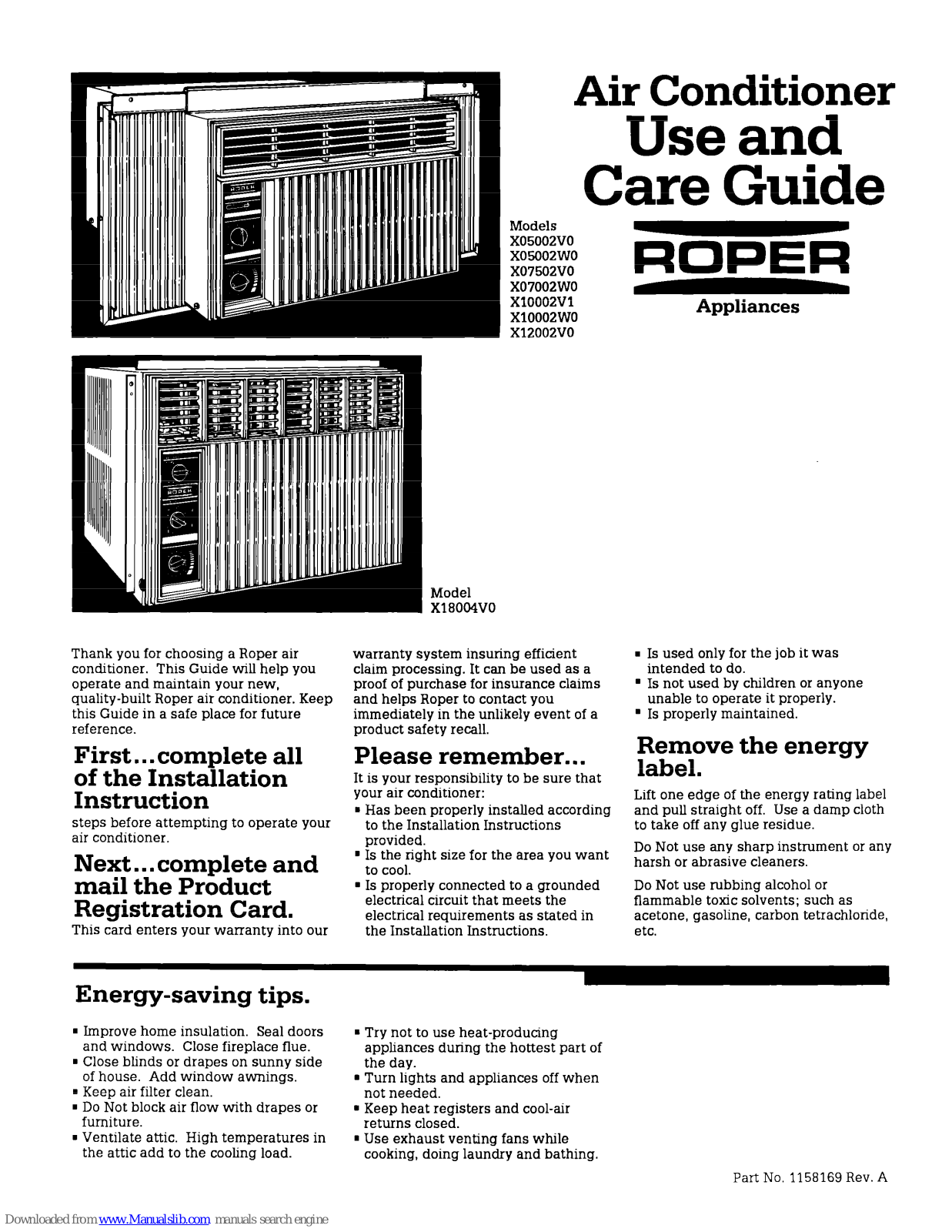

Air Conditioner

Use and

Care Guide

Thank you for choosing a Roper air
conditioner. This Guide will help you
operate and maintain your new,
quality-built Roper air conditioner. Keep

this Guide in a safe place for future

reference.

First.. . complete all
of the Installation
Instruction

steps before attempting to operate your
air conditioner.

Next.. . complete and
mail the Product
Registration Card.

This card enters your warranty into our

Models
x05002v0
x05002w0
XO7502VO
XO7002WO
x10002v1
x10002w0
x12002v0

Model
X18004VO

warranty system insuring efficient
claim processing. It can be used as a
proof of purchase for insurance claims
and helps Roper to contact you
immediately in the unlikely event of a
product safety recall.

Please remember.. .

It is your responsibility to be sure that

your air conditioner:
. Has been properly installed according

to the Installation Instructions
provided.

n

Is the right size for the area you want
to cool.

. Is properly connected to a grounded

electrical circuit that meets the
electrical requirements as stated in
the Installation Instructions.

ROPER

Appliances

n

Is used only for the job it was
intended to do.

. Is not used by children or anyone

unable to operate it properly.

. Is properly maintained.

pbtnlove the energy

.

Lift one edge of the energy rating label
and pull straight off. Use a damp cloth
to take off any glue residue.

Do Not use any sharp instrument or any
harsh or abrasive cleaners.

Do Not use rubbing alcohol or
flammable toxic solvents; such as
acetone, gasoline, carbon tetrachloride,
etc.

Energy-saving tips.

. Improve home insulation. Seal doors

and windows. Close fireplace flue.

. Close blinds or drapes on sunny side

of house. Add window awnings.
. Keep air filter clean.
. Do Not block air flow with drapes or

furniture.

. Ventilate attic. High temperatures in

the attic add to the cooling load.

. Try not to use heat-producing

appliances during the hottest part of

the day.

. Turn lights and appliances off when

not needed.

. Keep heat registers and cool-air

returns closed.

m Use exhaust venting fans while

cooking, doing laundry and bathing.

Part No. 1158169 Rev. A

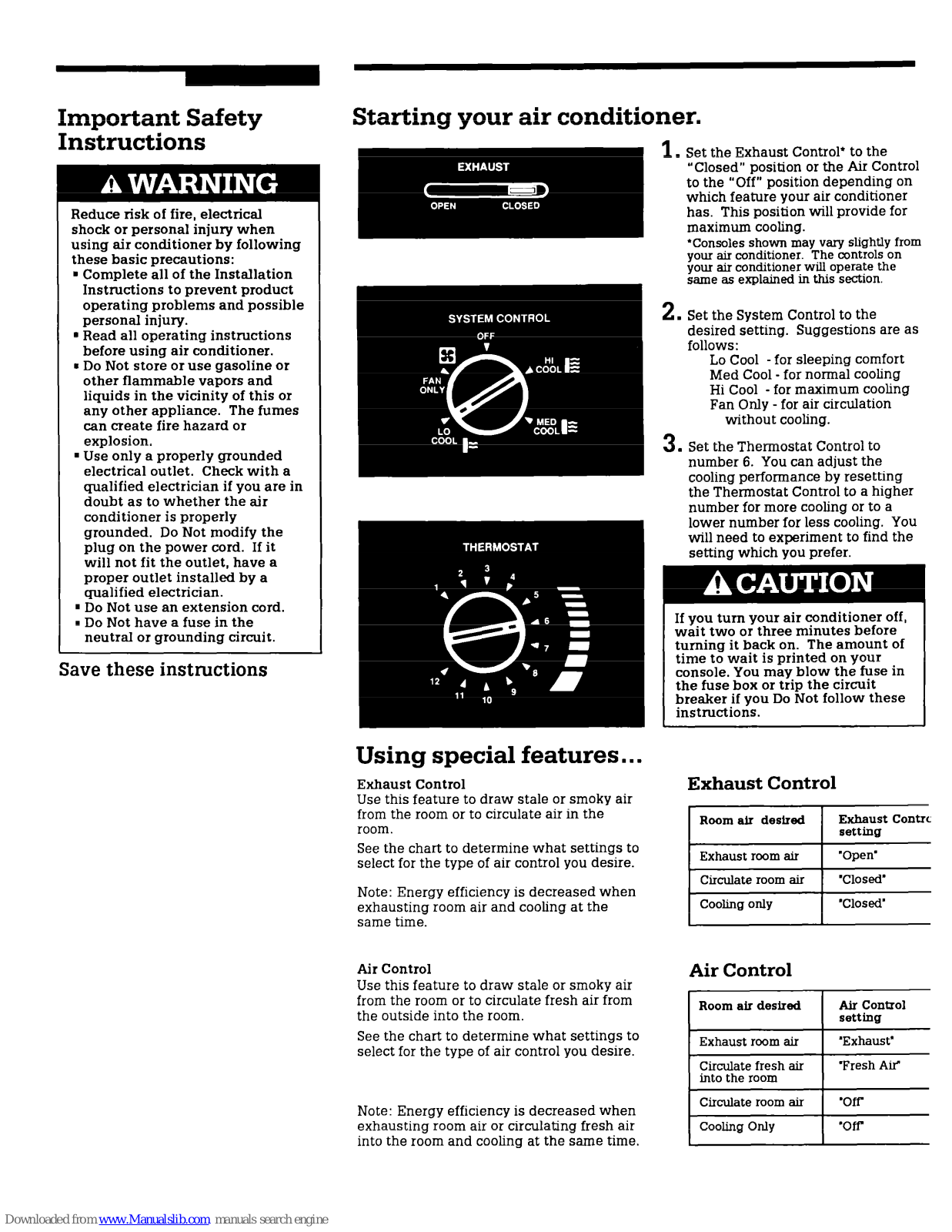

Important Safety
Instructions

Reduce risk of fire, electrical
shock or personal injury when
using air conditioner by following
these basic precautions:

. Complete all of the Installation

Instructions to prevent product

operating problems and possible

personal injury.

m Read all operating instructions

before using air conditioner.

I Do Not store or use gasoline or

other flammable vapors and

liquids in the vicinity of this or

any other appliance. The fumes

can create fire hazard or

explosion.

. Use only a properly grounded

electrical outlet. Check with a

qualified electrician if you are in

doubt as to whether the air
conditioner is properly
grounded. Do Not modify the
plug on the power cord. If it
will not fit the outlet, have a
proper outlet installed by a

qualified electrician.
1 Do Not use an extension cord.
I Do Not have a fuse in the

neutral or grounding circuit.

Starting your air conditioner.

1.

Set the Exhaust Control’ to the

“Closed” position or the Air Control

to

the “Off” position depending on

which

feature your air conditioner

has. This

position will provide for

maximum cooling.

*Consoles shown may vary slightly from
vour air conditioner. The controls on
jr0u.r air conditioner will operate the

same as explained in this section.

Save these instructions

Using special features.. .

Exhaust Control

Use this feature to draw stale or smoky air

from the room or to circulate air in the
room.

See the chart to determine what settings to
select for the type of air control you desire.

Note: Energy efficiency is decreased when
exhausting room air and cooling at the
same time.

Air Control

Use this feature to draw stale or smoky air
from the room or to circulate fresh air from

the outside into the room.
See the chart to determine what settings to

select for the type of air control you desire.

Note: Energy efficiency is decreased when
exhausting room air or circulating fresh air
into the room and cooling at the same time.

2.

Set the System Control to the

desired setting. Suggestions are as

follows:

Lo Cool - for sleeping comfort
Med Cool

- for normal cooling

Hi Cool - for maximum

cooling

Fan Only - for air circulation

without cooling.

3.

Set the Thermostat Control to

number 6. You can adjust the

cooling performance by resetting

the Thermostat Control to a higher

number for more cooling or to a
lower number

for less cooling. You

will need to experiment to find the

setting which you prefer.

If you turn your air conditioner off,
wait two or three minutes before
turning it back on. The amount of
time to wait is printed on your
console. You may blow the fuse in
the fuse box or trip the circuit
breaker if you Do Not follow these

instructions.

Exhaust Control

Room air desired

I

Exhaust Contrc
setting

Exhaust room air

“Open’

Circulate room air

‘Closed

I

cooling only

I

‘Closed

Air Control

I

Room air desired

I

Air Conlzol

setting
Exhaust room air
Circulate fresh air

into the room
Circulate room air
cooling only

‘Exhaust”

‘Fresh Air”

-off

‘Off
