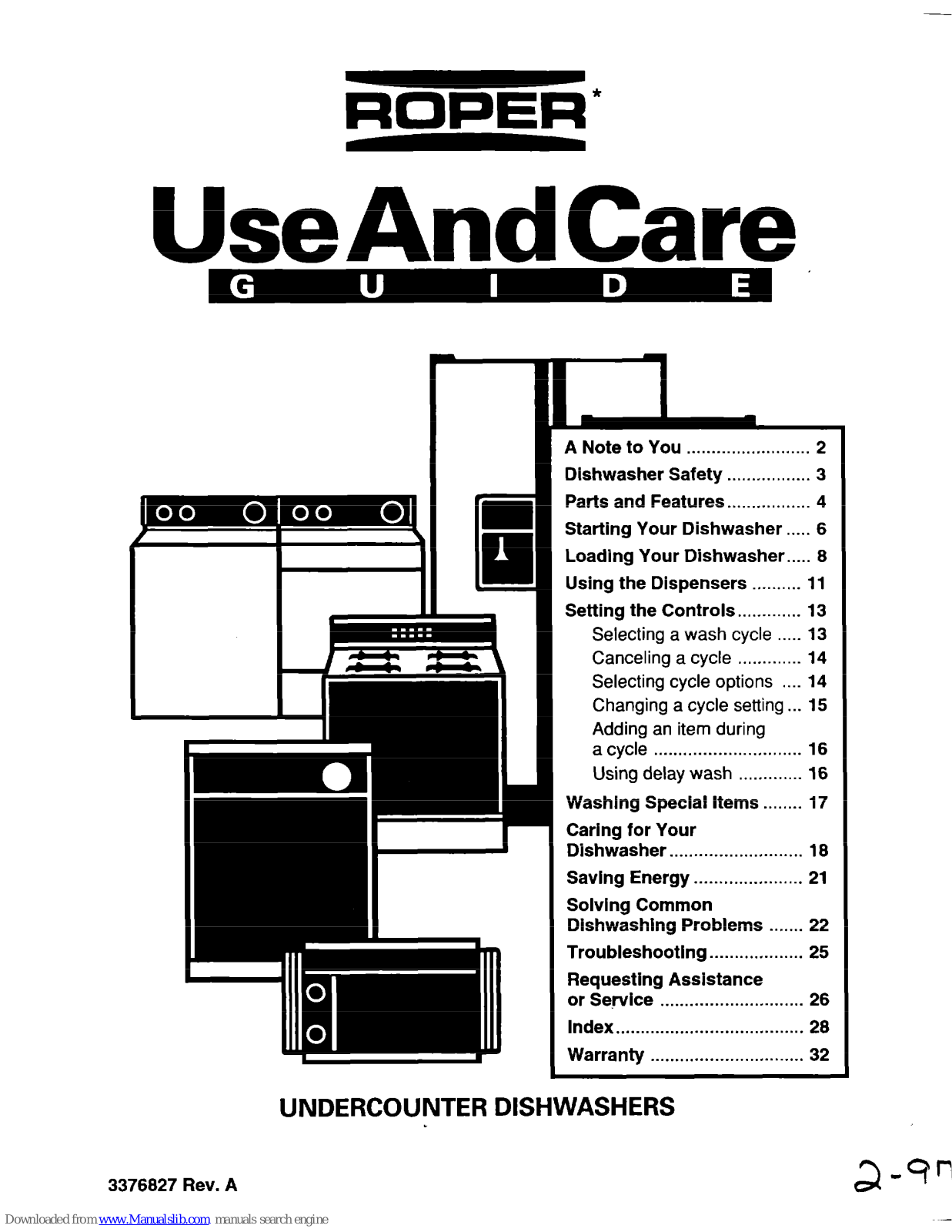

Roper UNDERCOUNTER DISHWASHERS User And Care Manual
ROPER*
r
A Note to You
Dishwasher Safety
Parts and Features..
Starting Your Dishwasher..

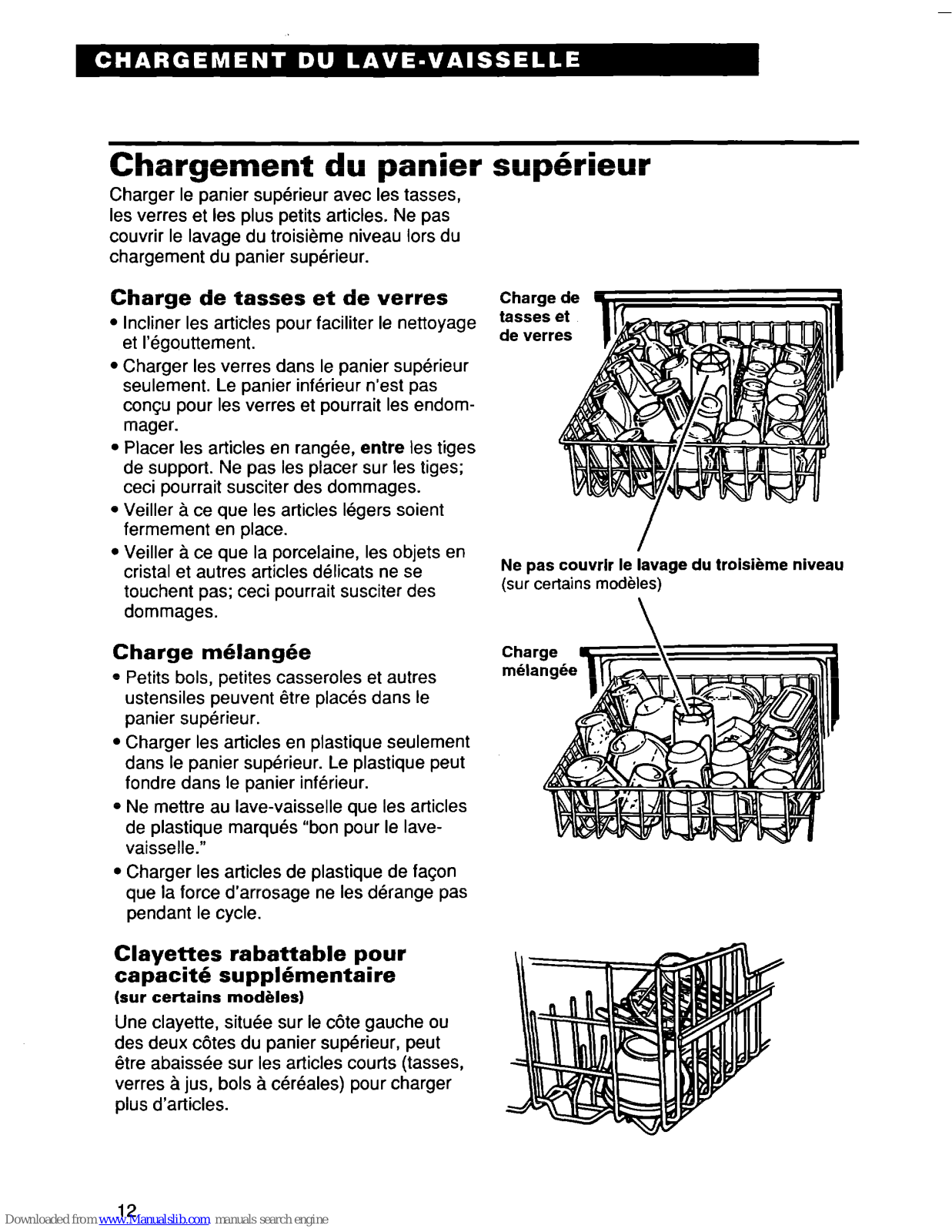

Loading Your Dishwasher

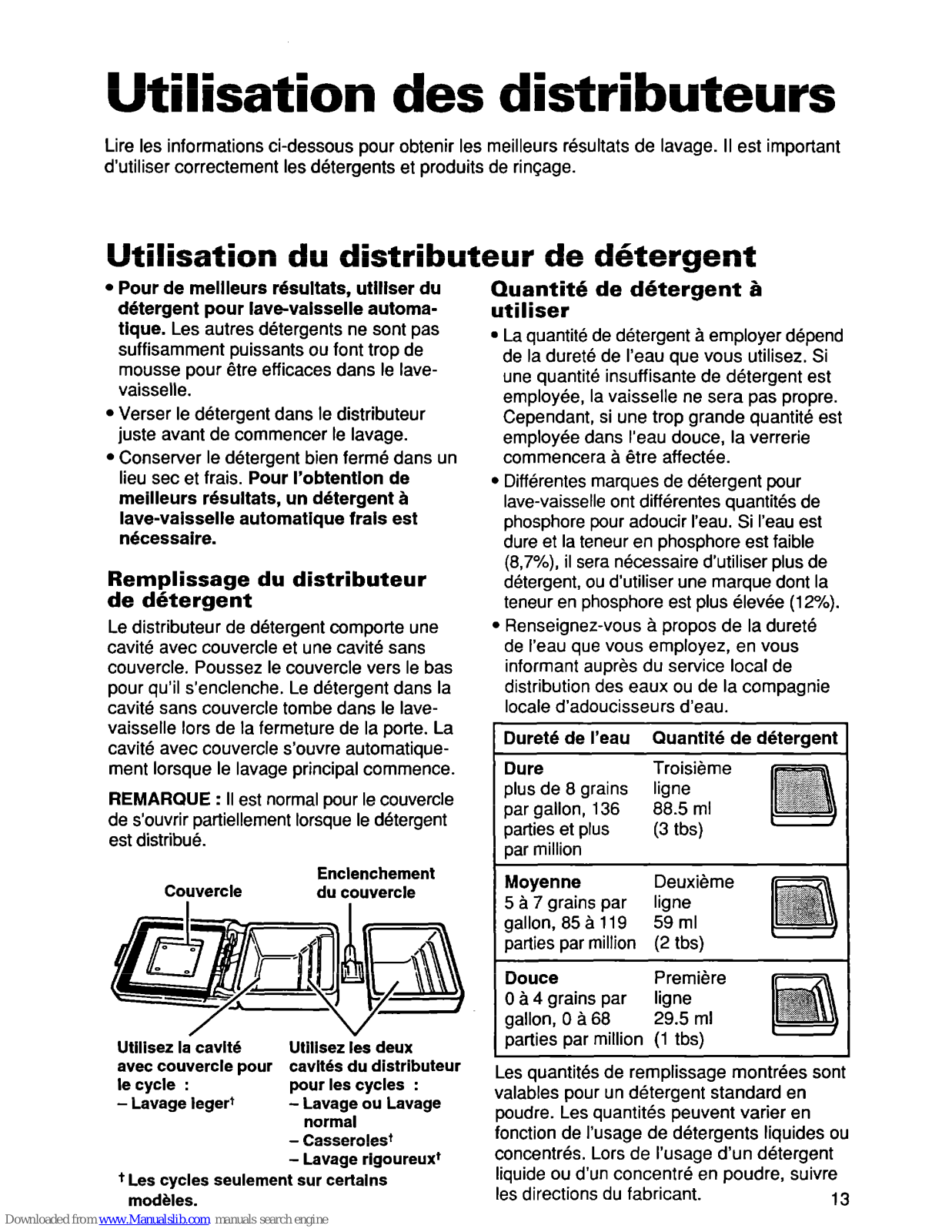

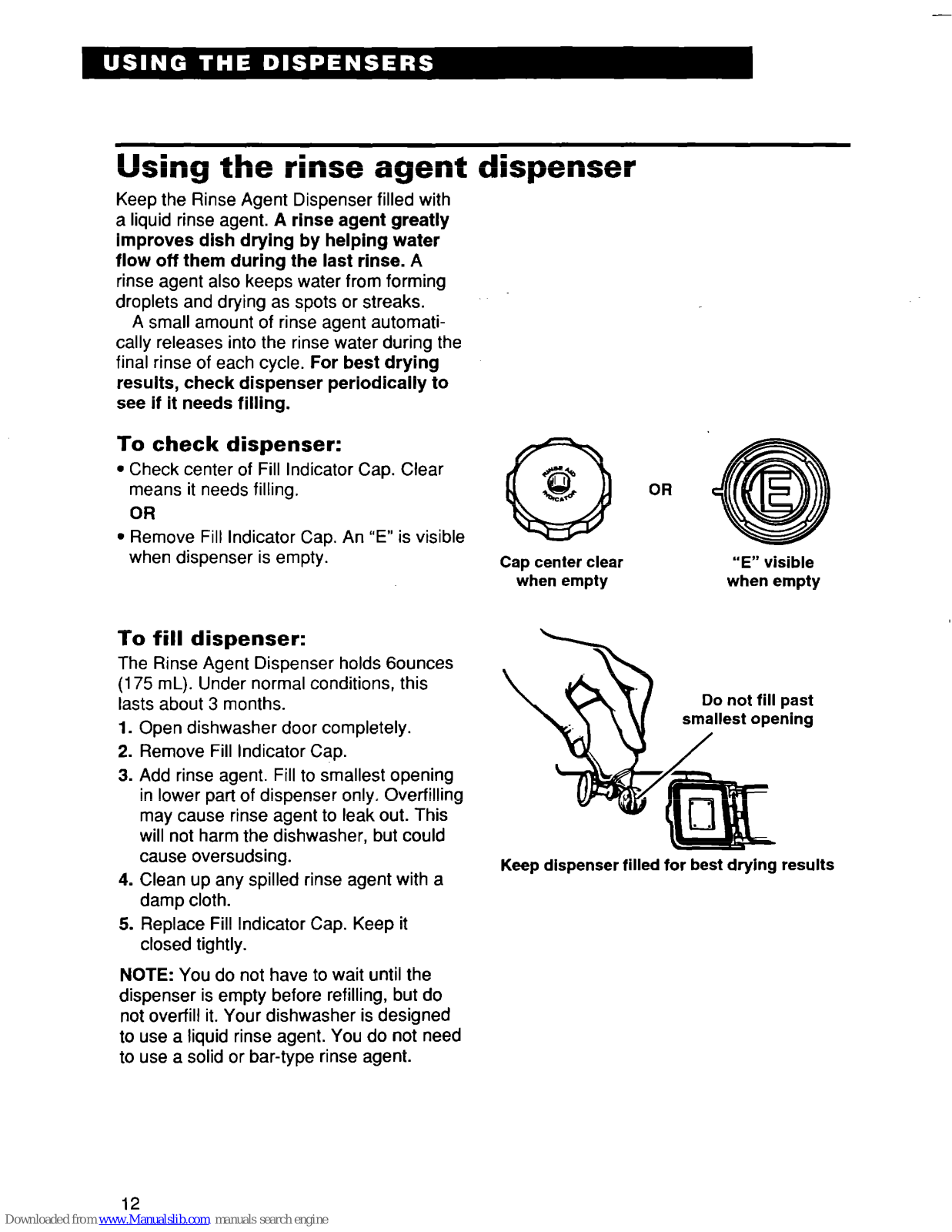

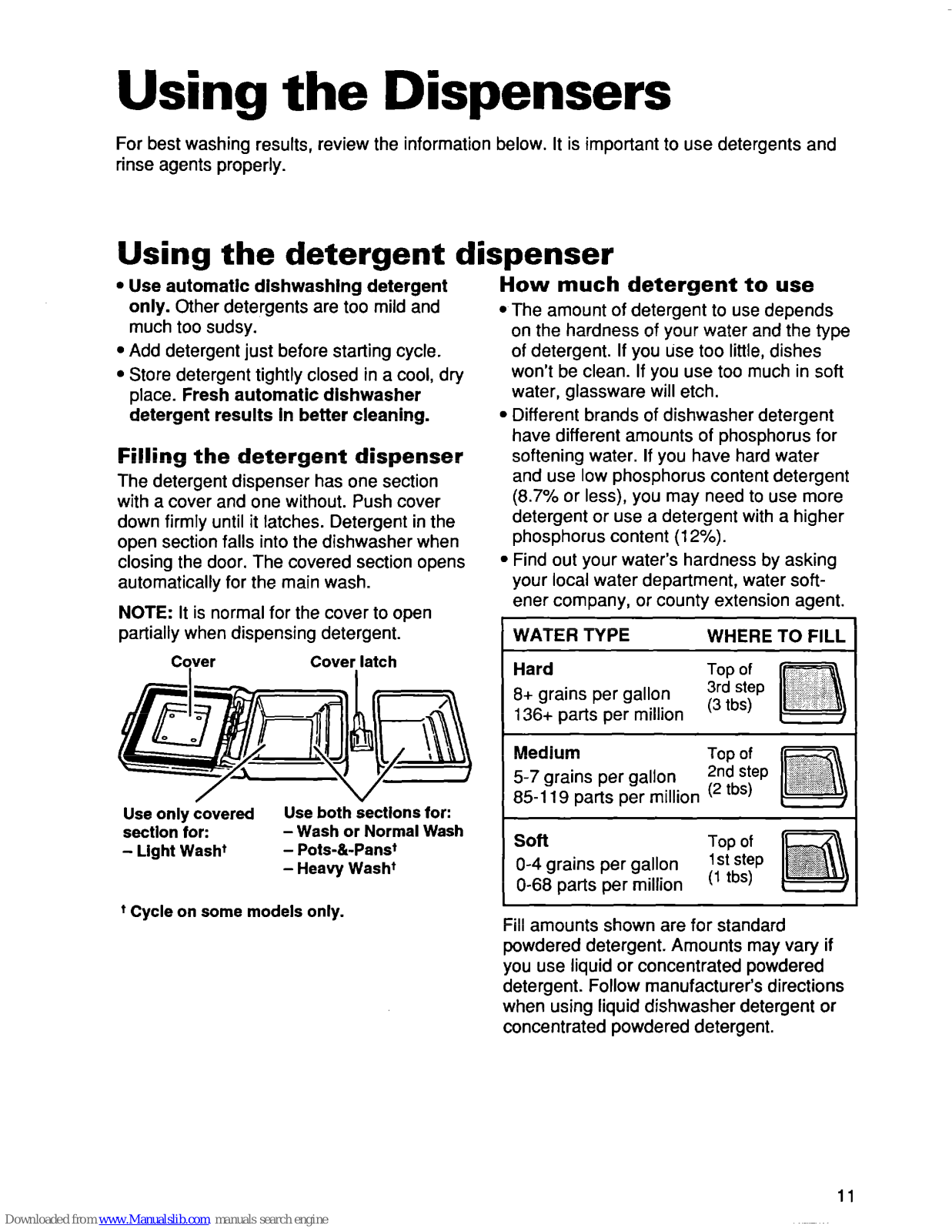

Using the Dispensers
Setting the Controls..
Selecting a wash cycle

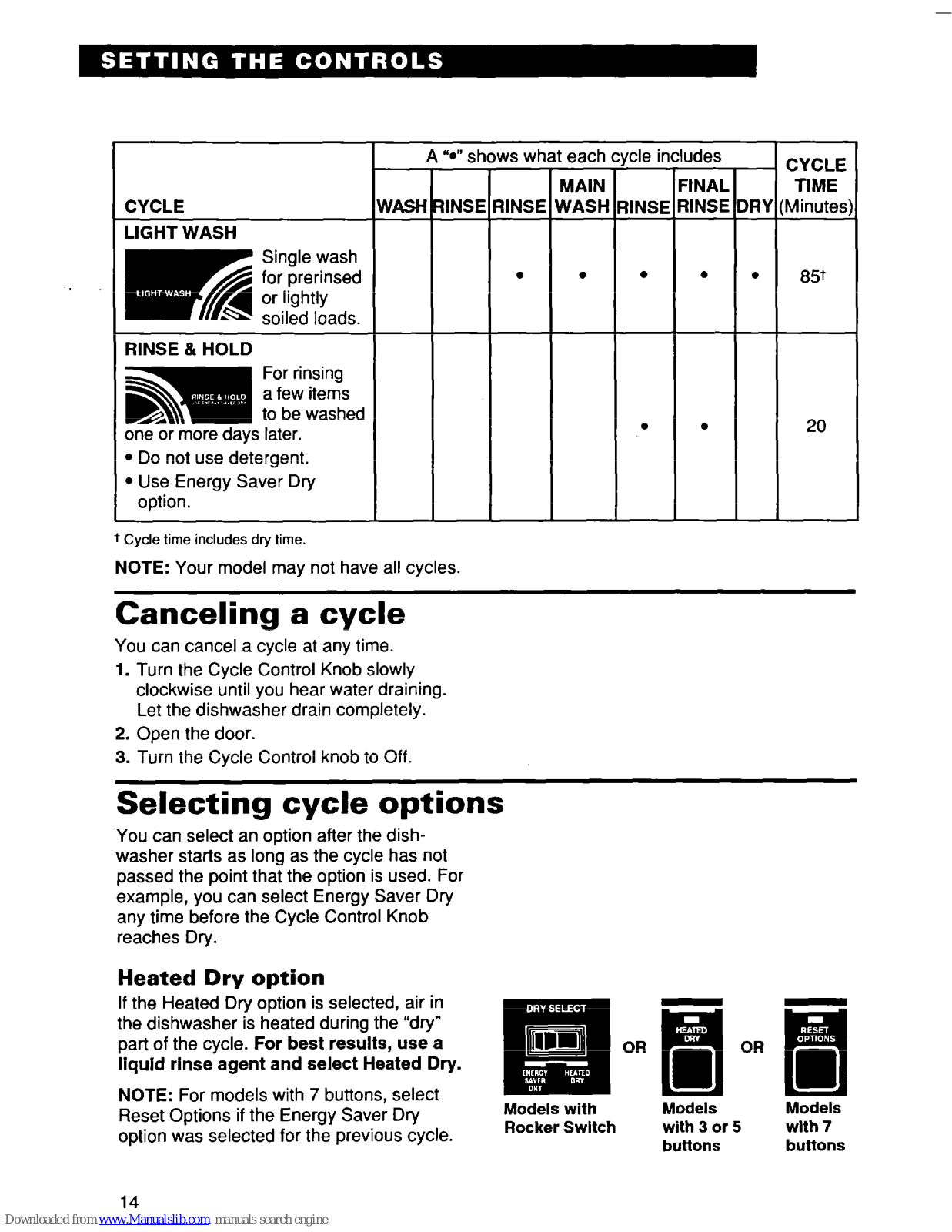

Canceling a cycle

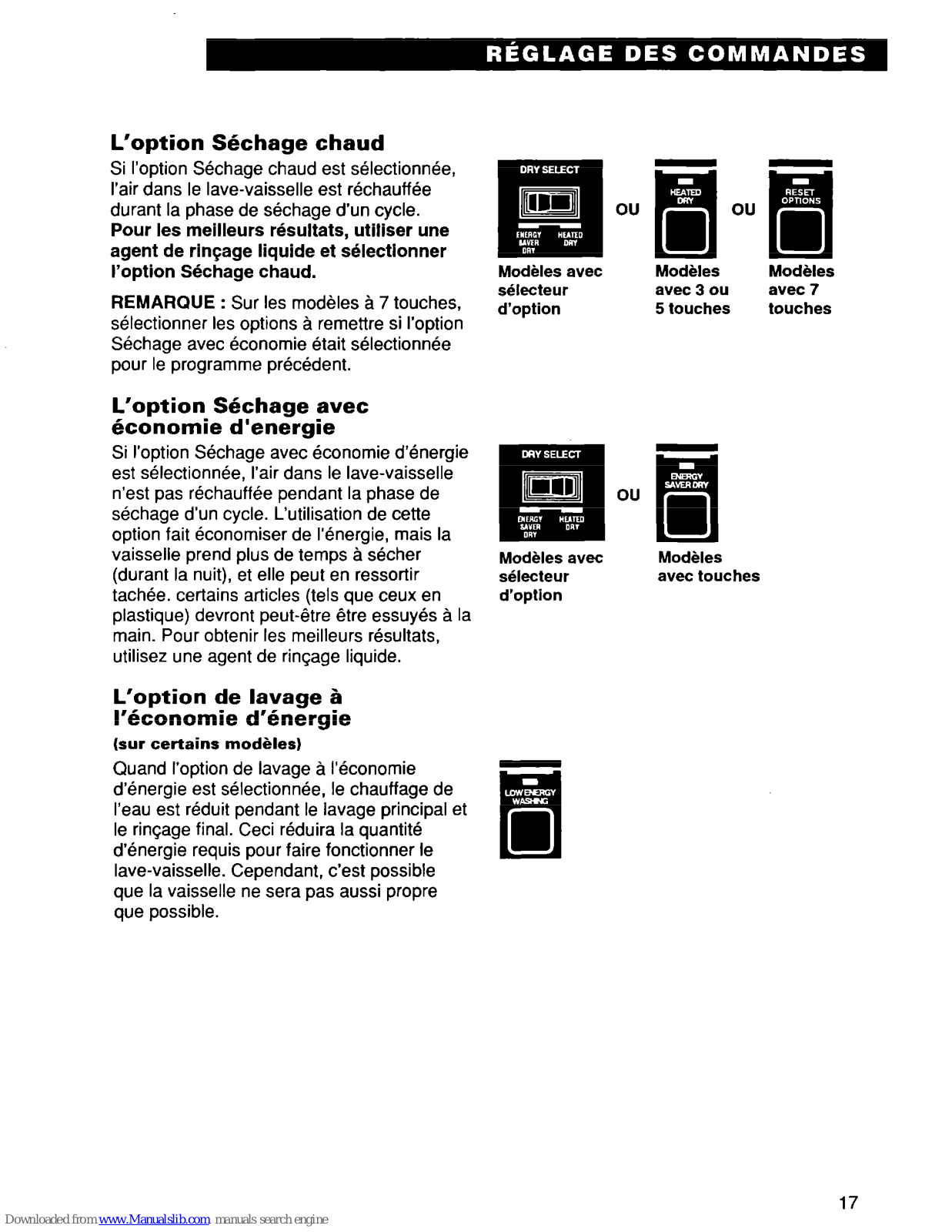

Selecting cycle options

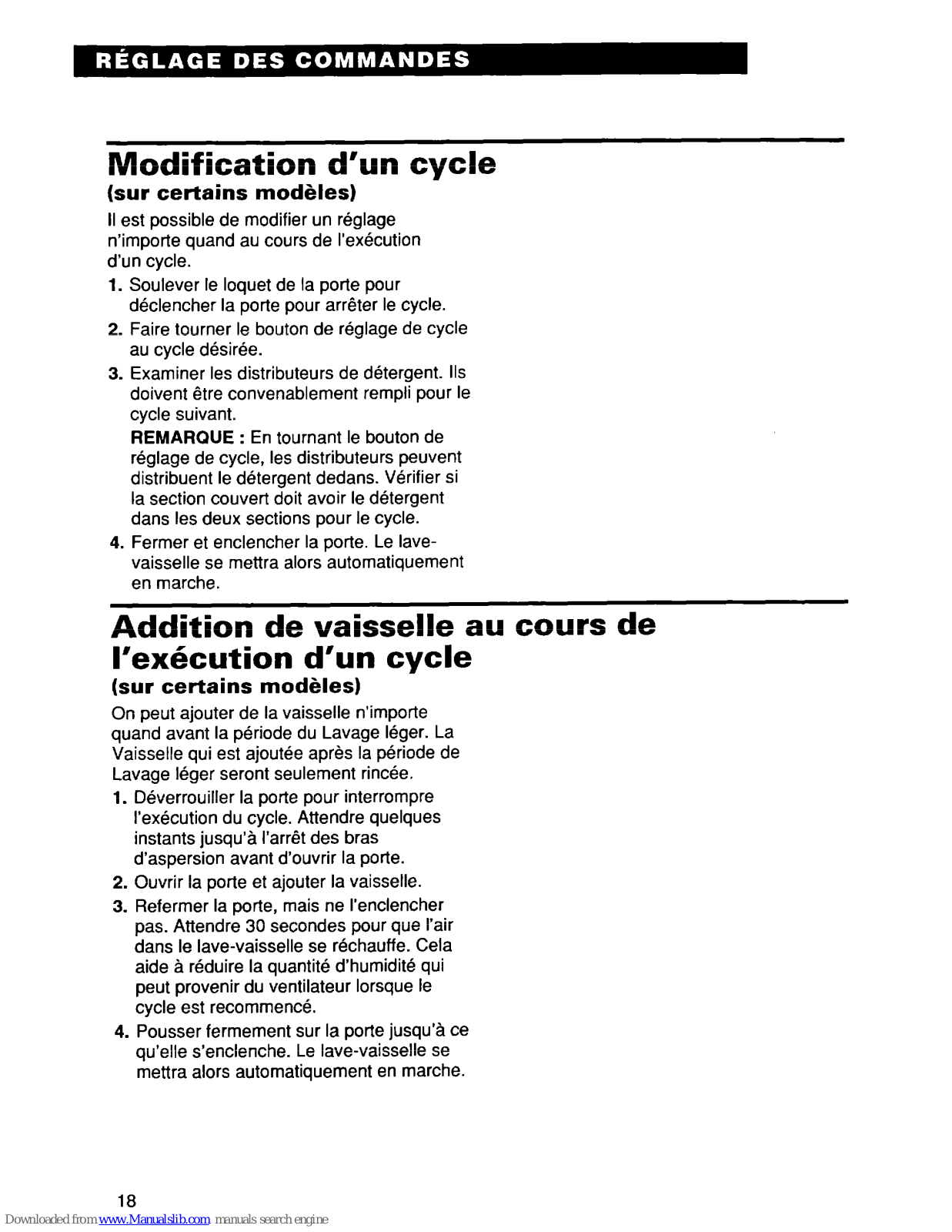

Changing a cycle setting..

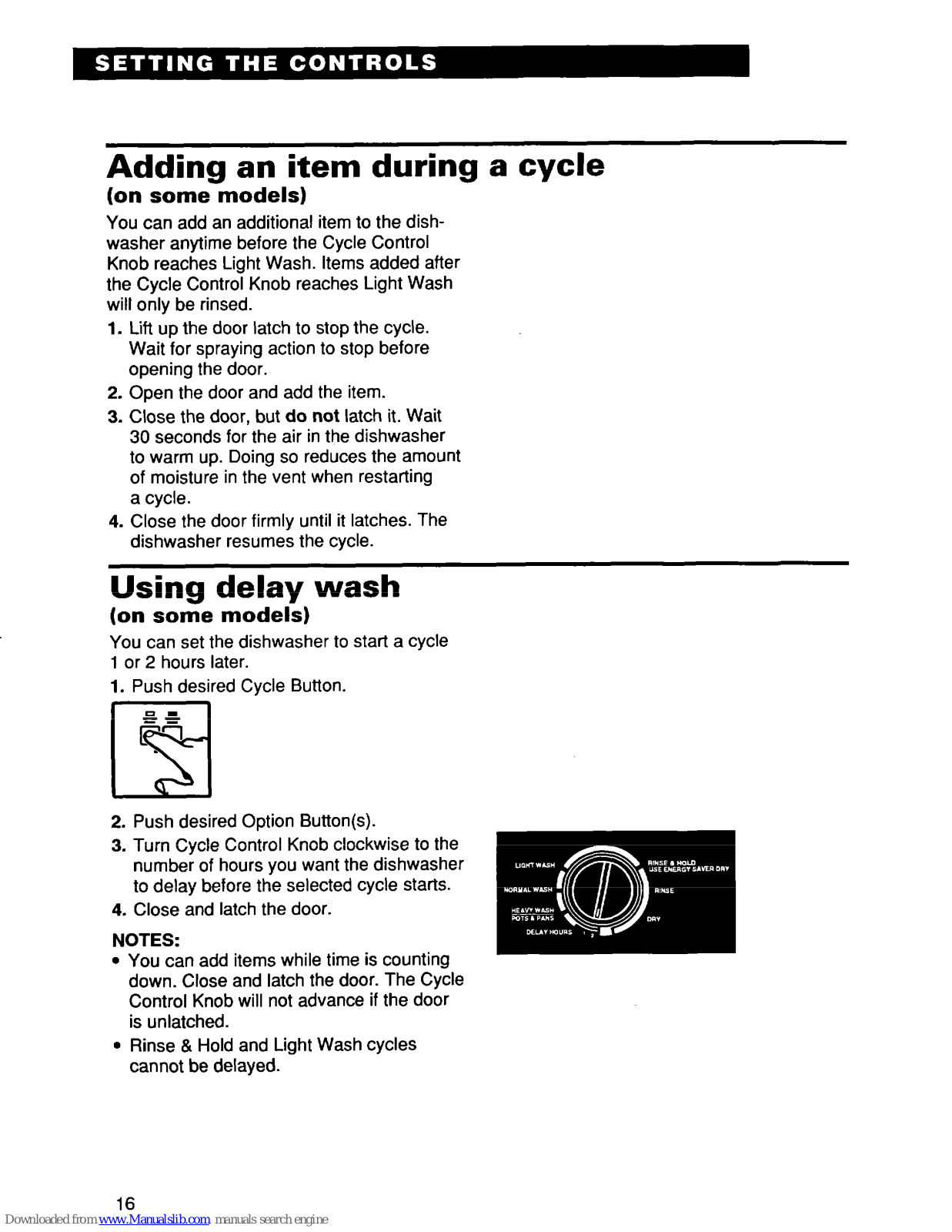

Adding an item during
a cycle

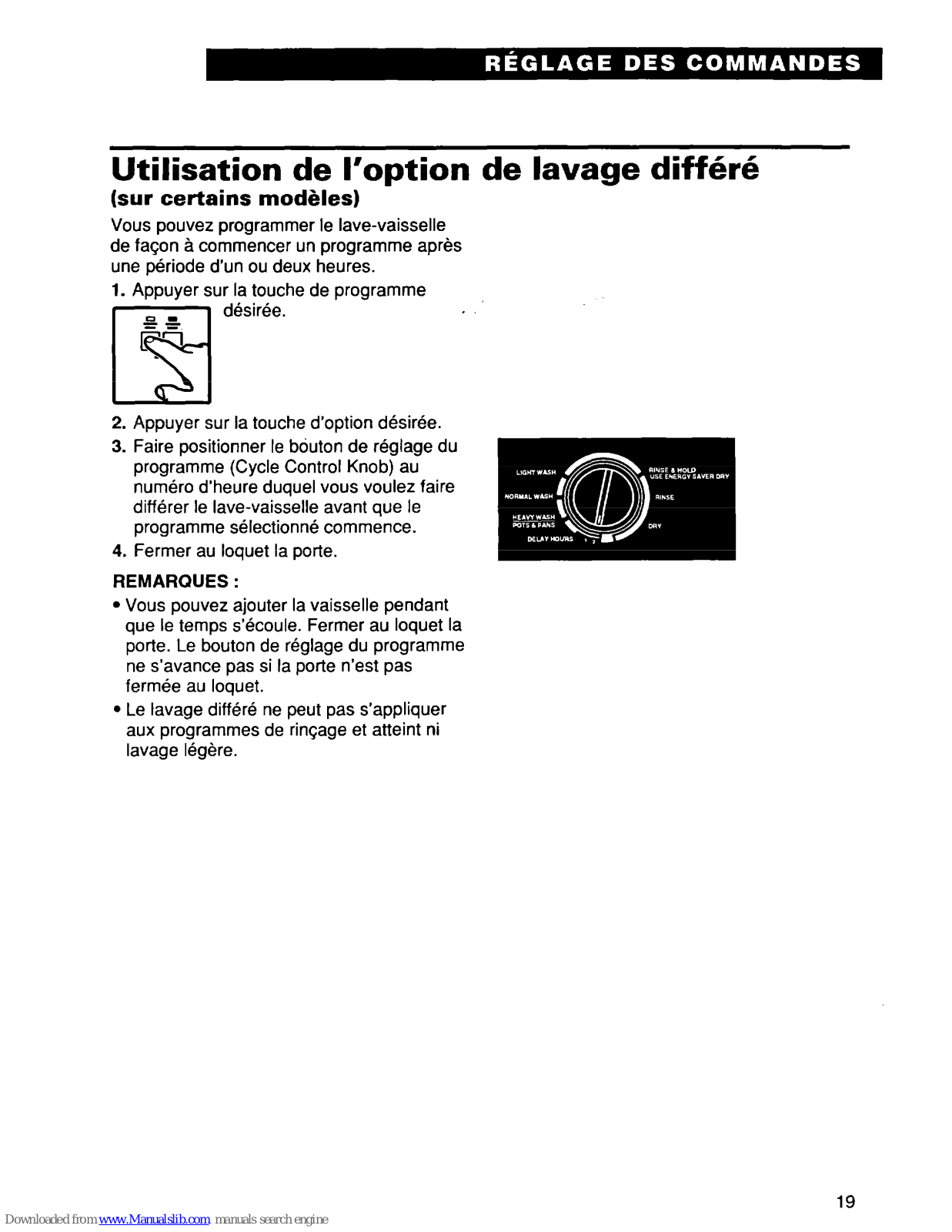

Using delay wash

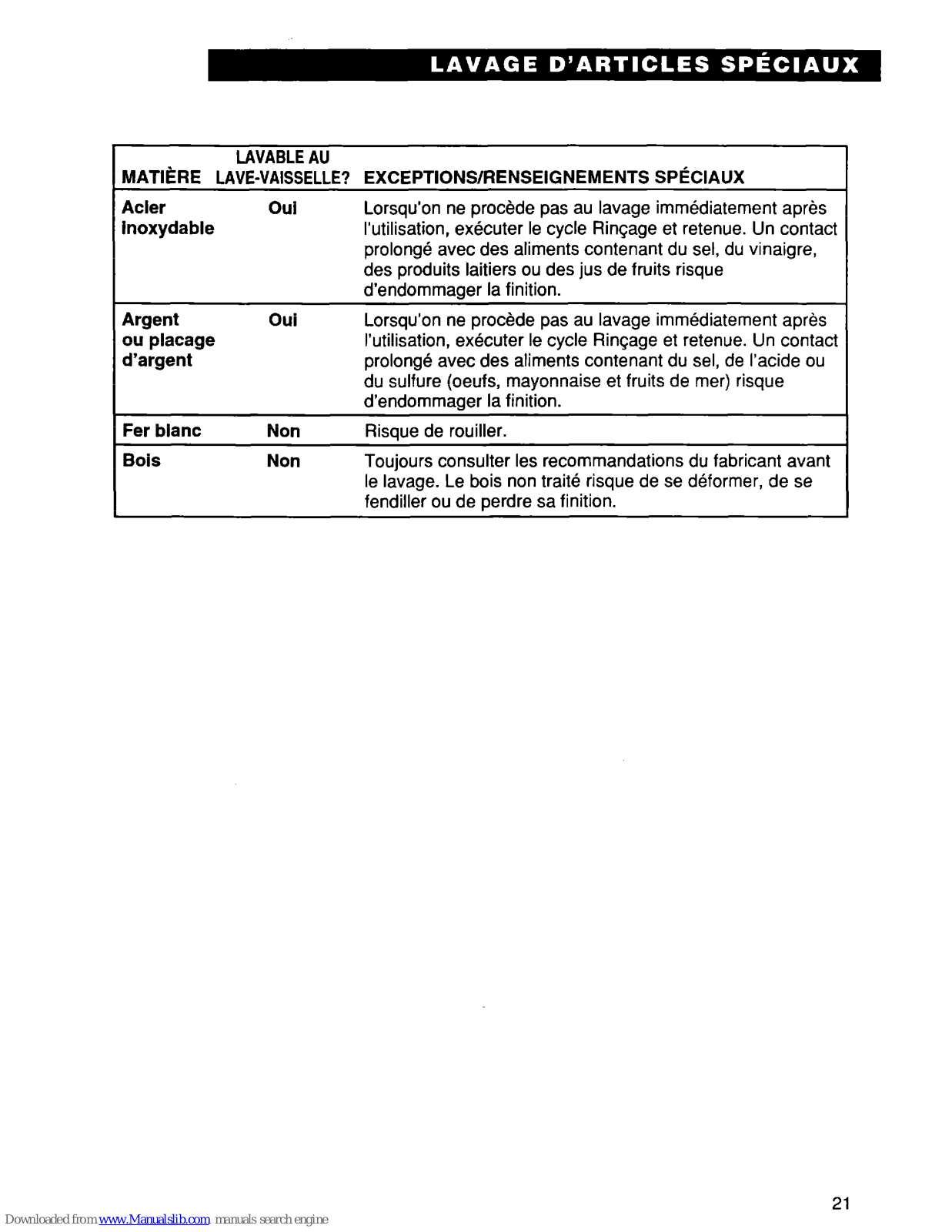

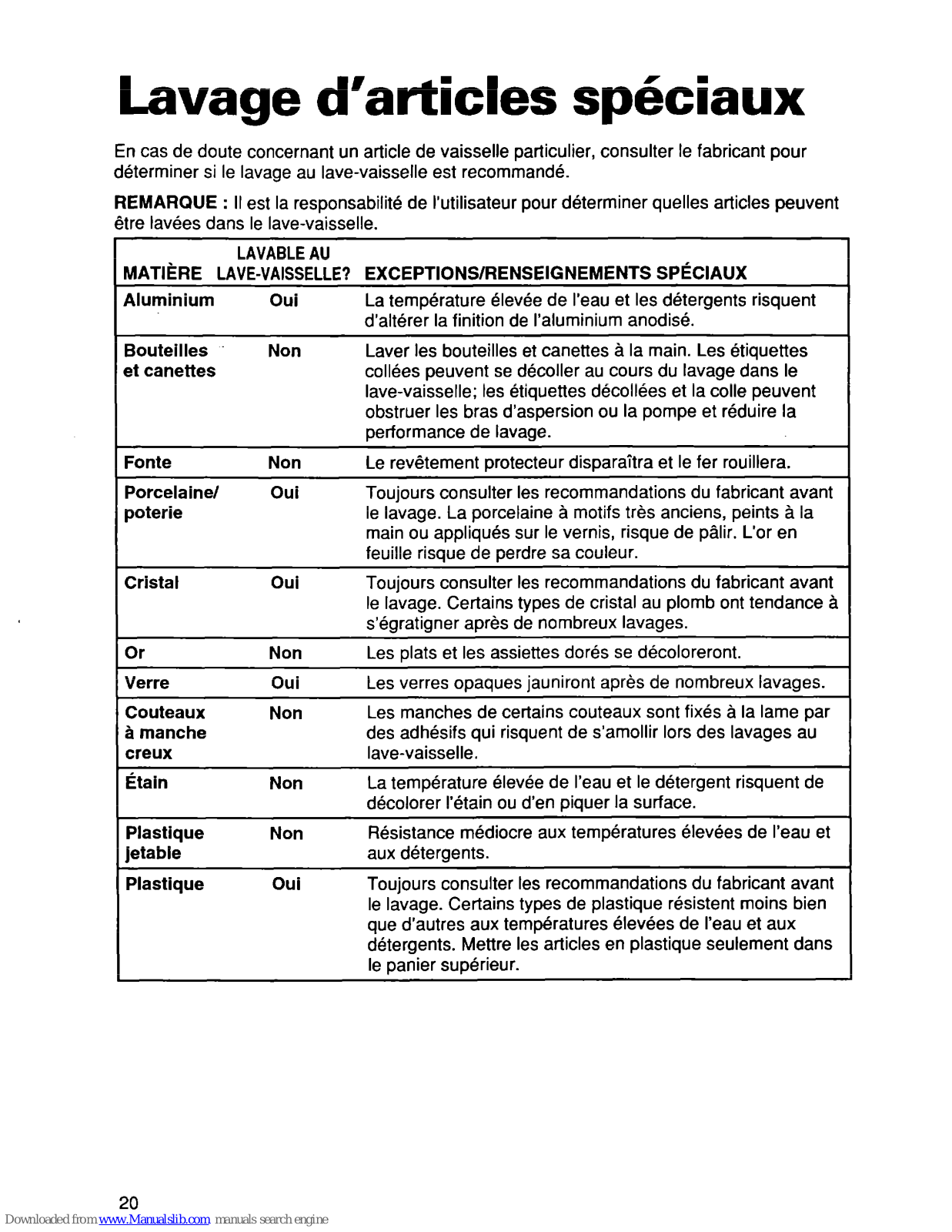

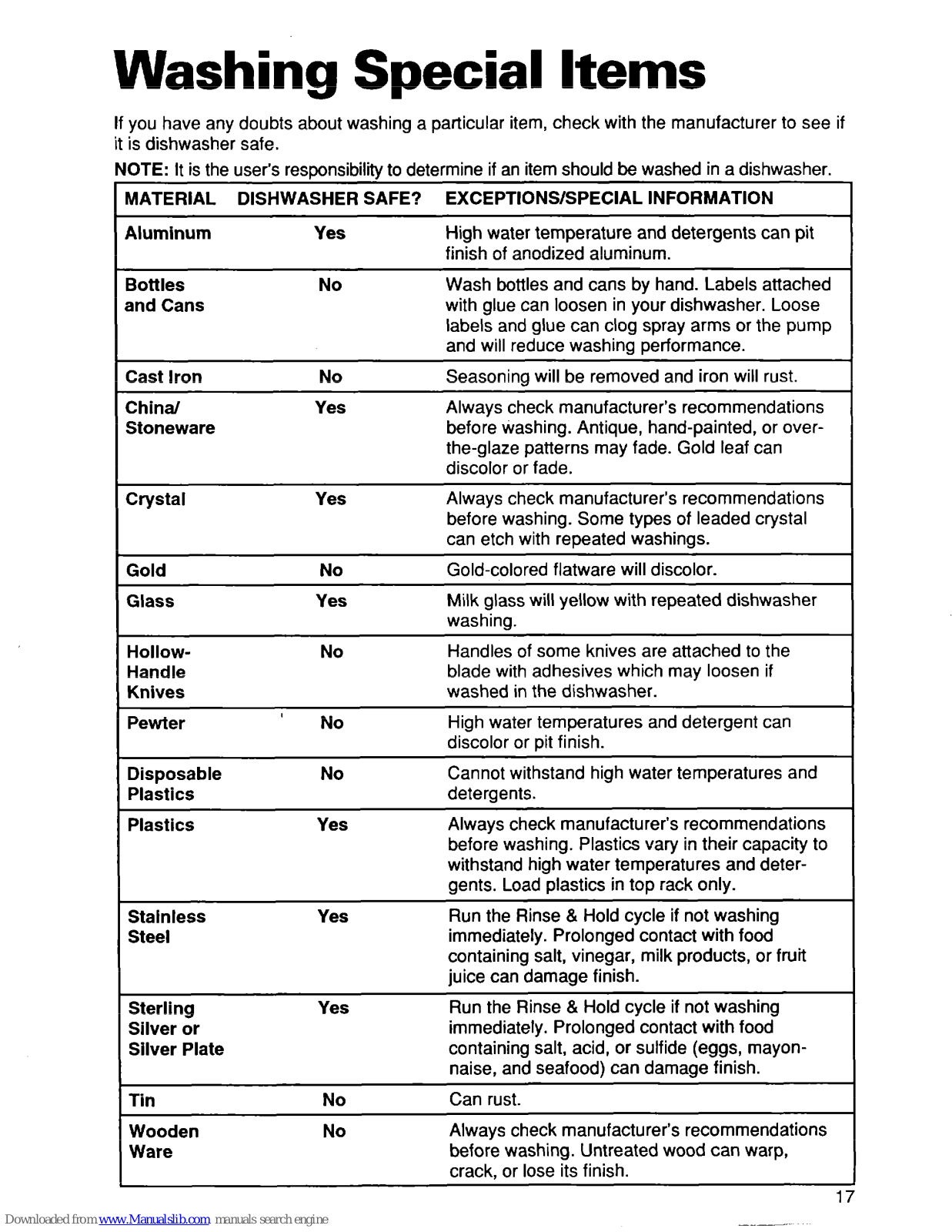

Washing Special Items

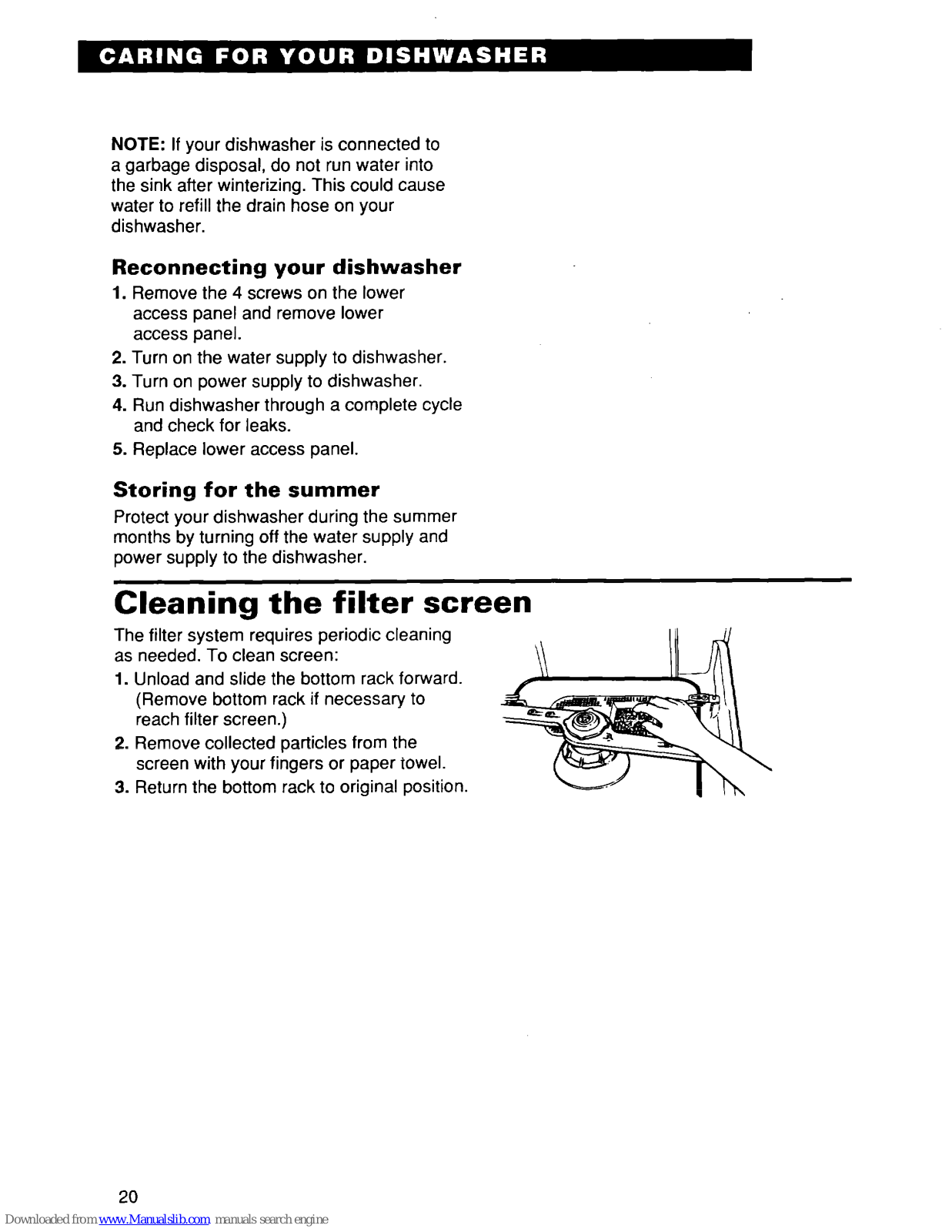

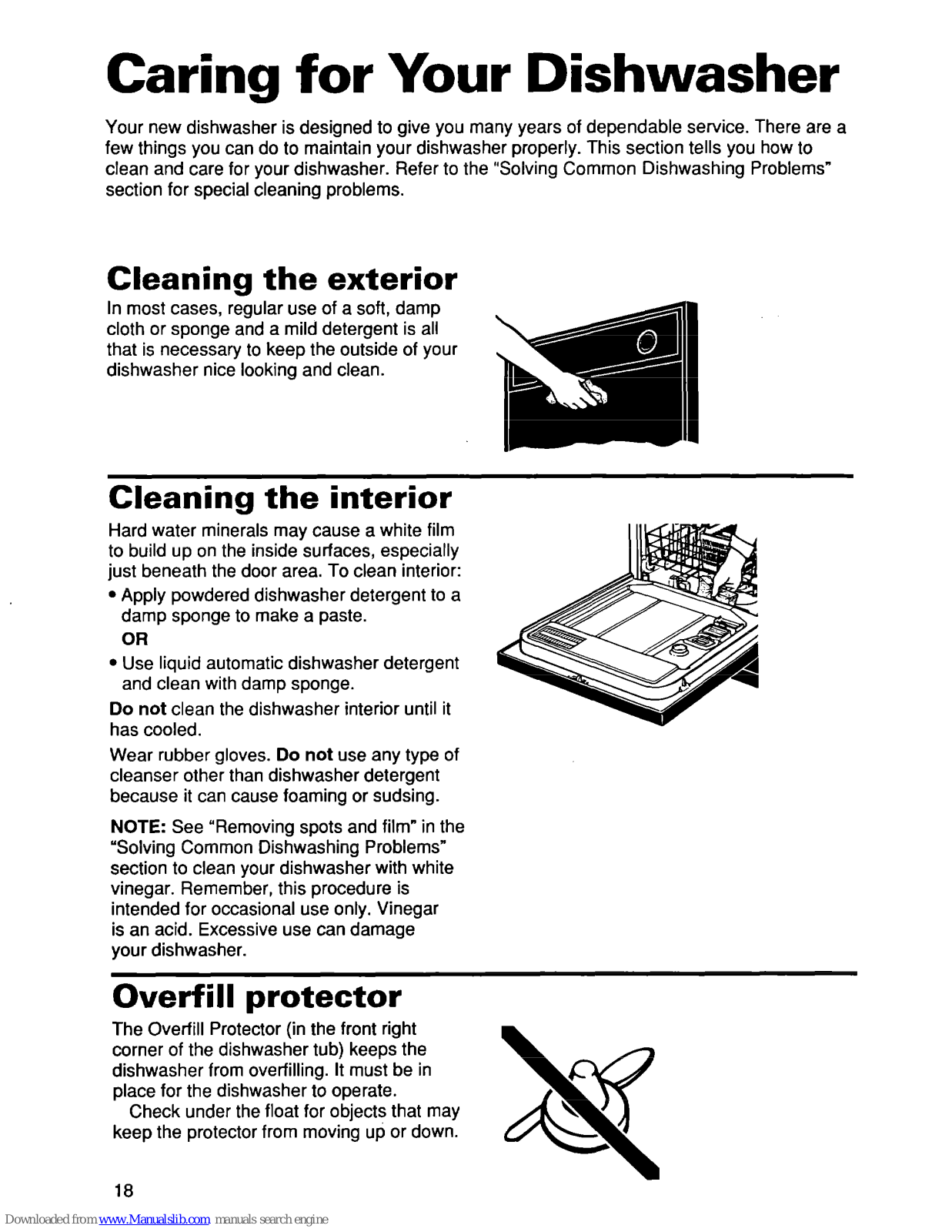

Carfng for Your
Dishwasher..

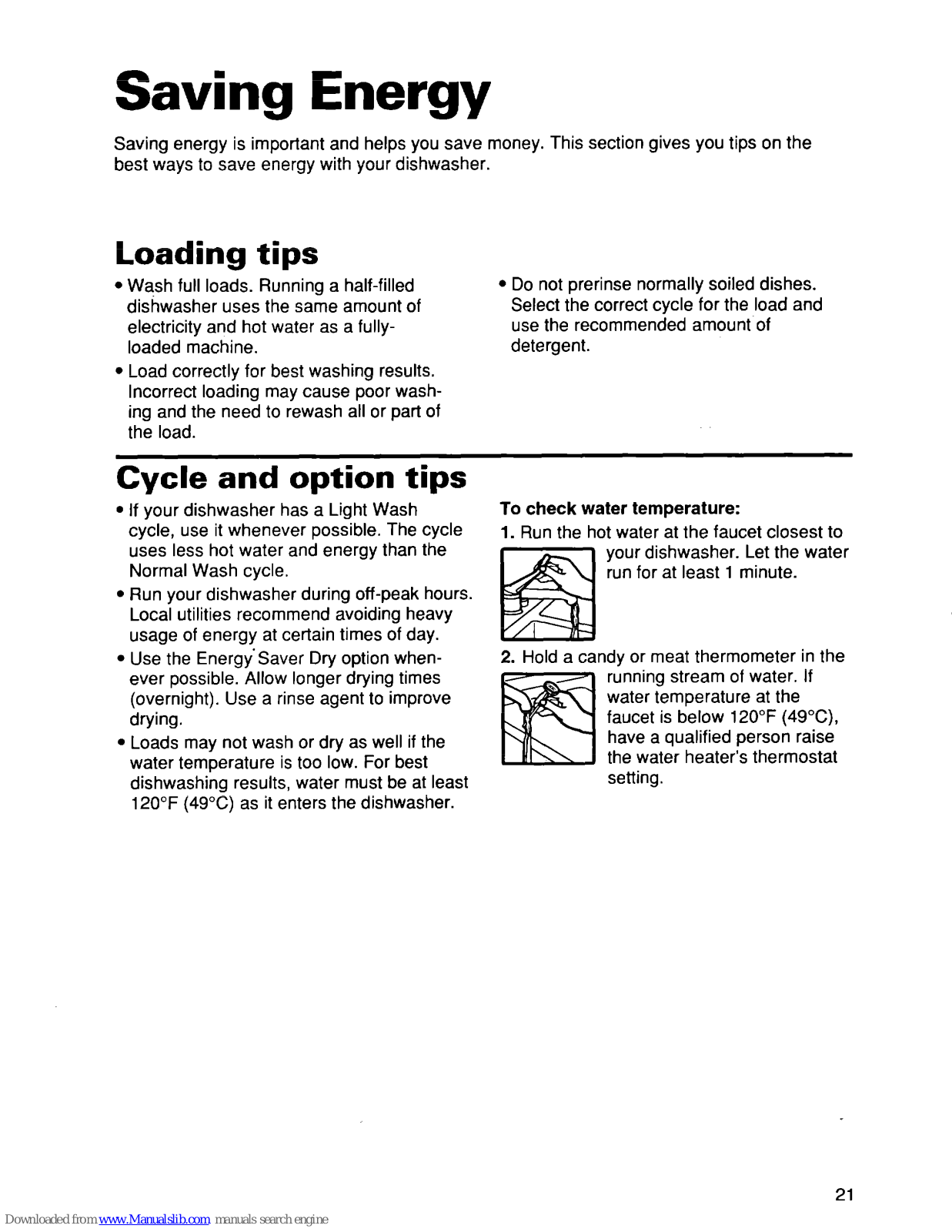

Savlng
Energy ......................
.........................
.................
...............
..........
...........
..... 13
.............
..............................
.............
........ 17
.........................
2
3
4
... 6
..... 8
11
13
14
.... 14
. 15
16
16
18
21
UNDERCOUNTER DISHWASHERS
3376827 Rev. A

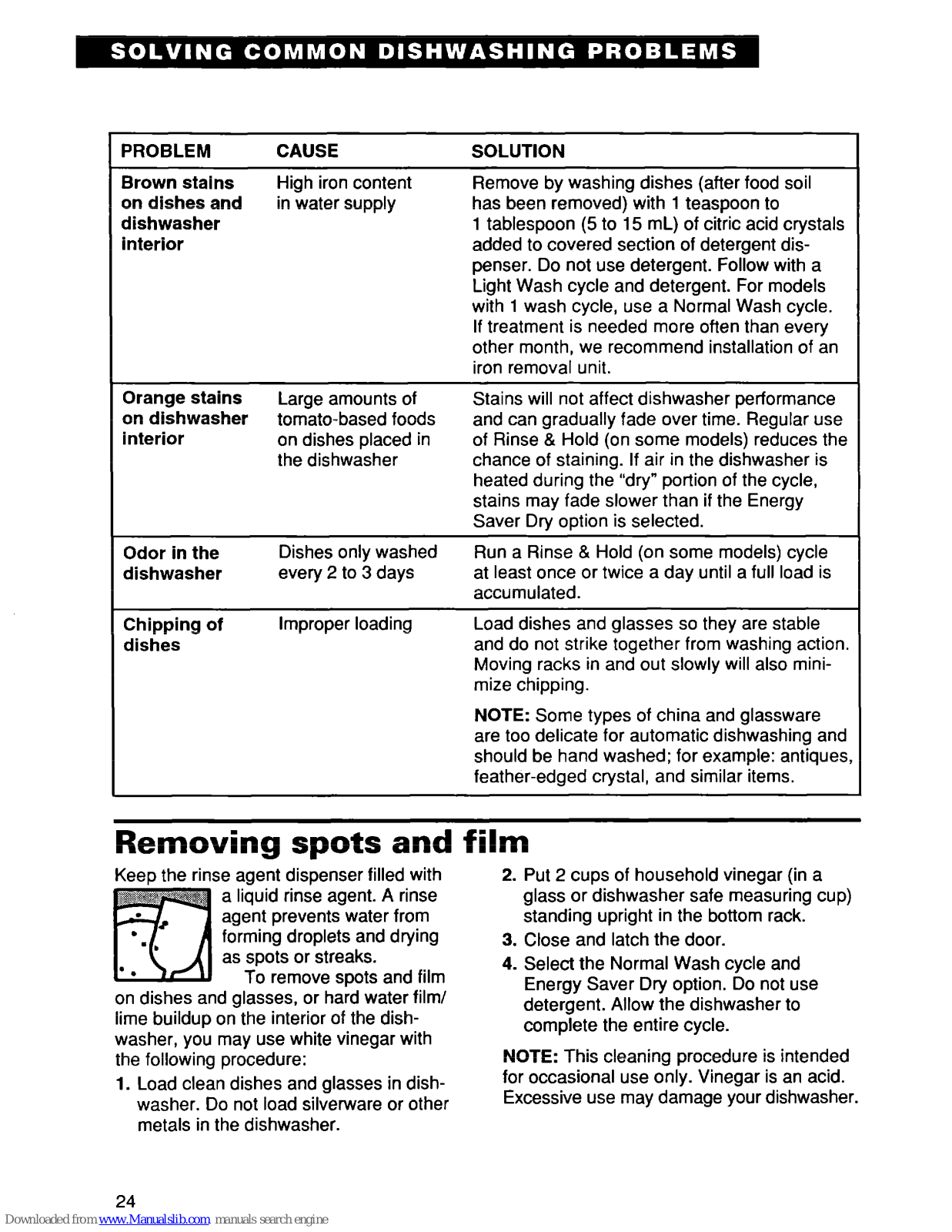

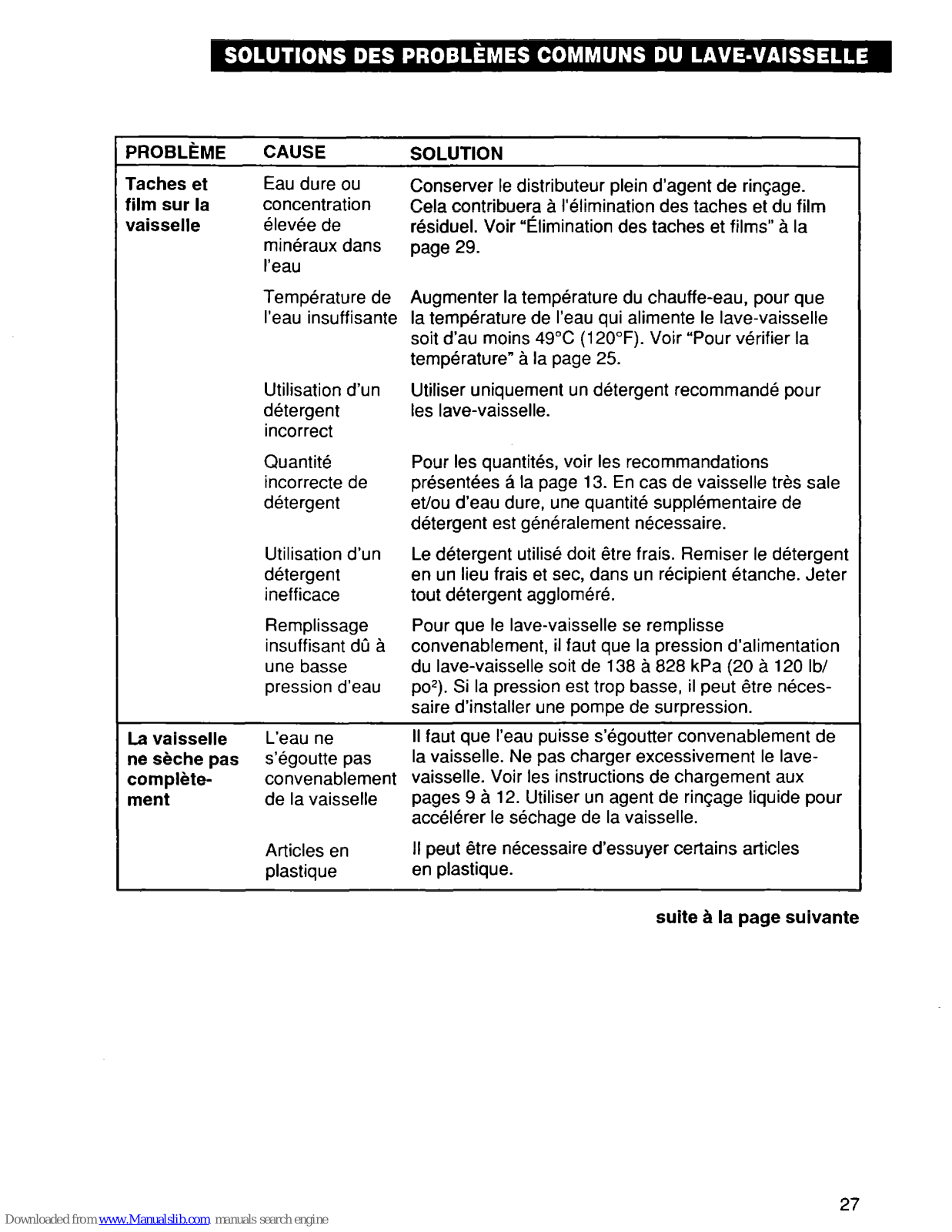

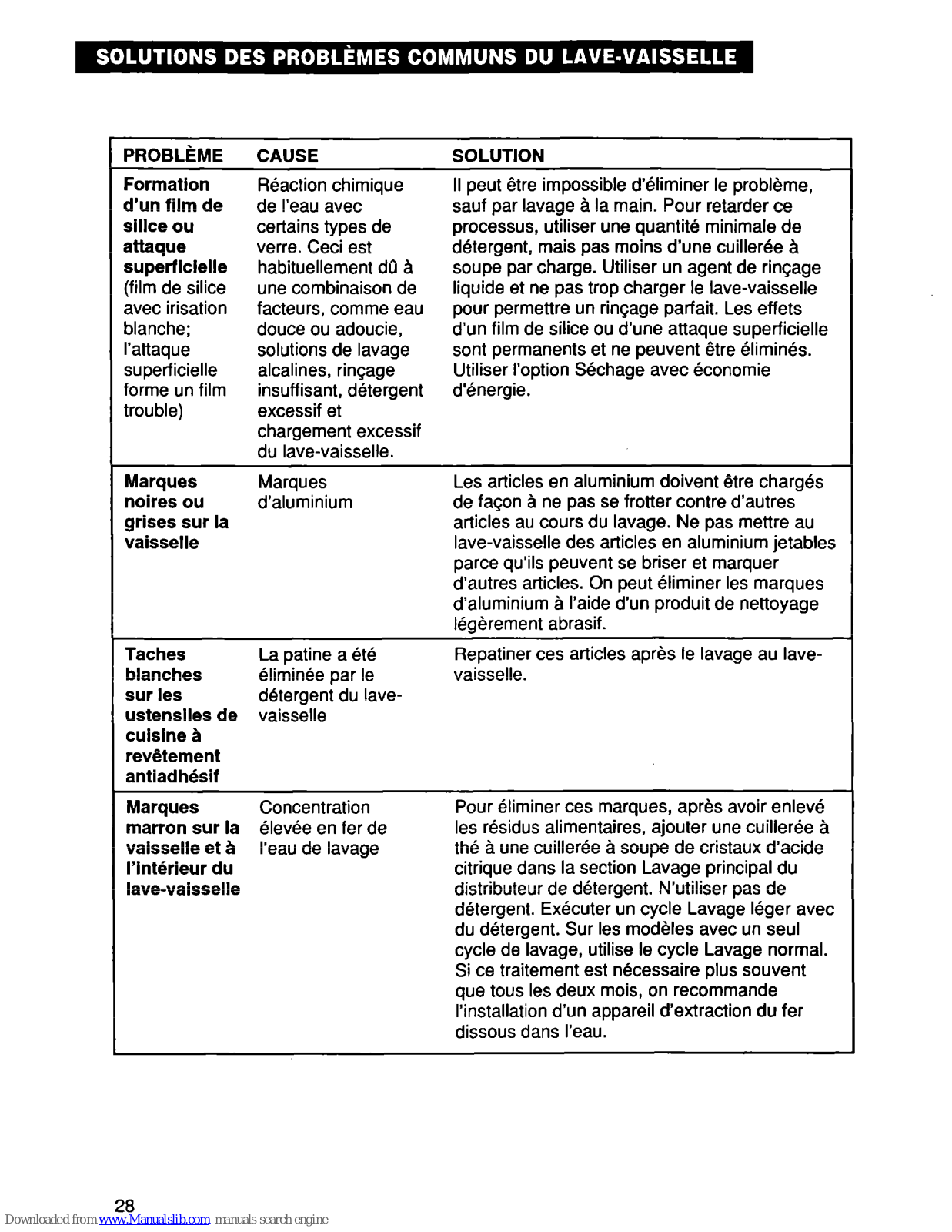

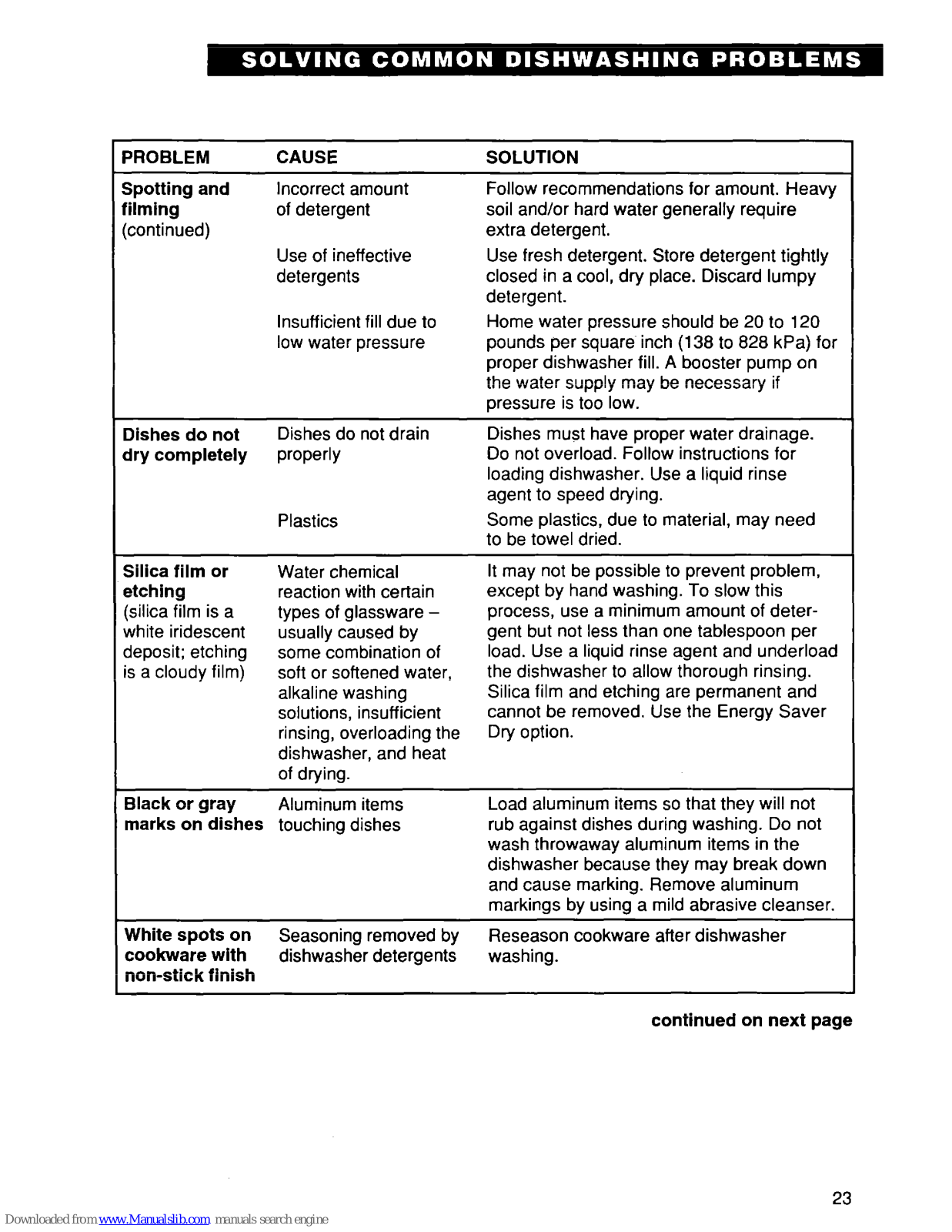

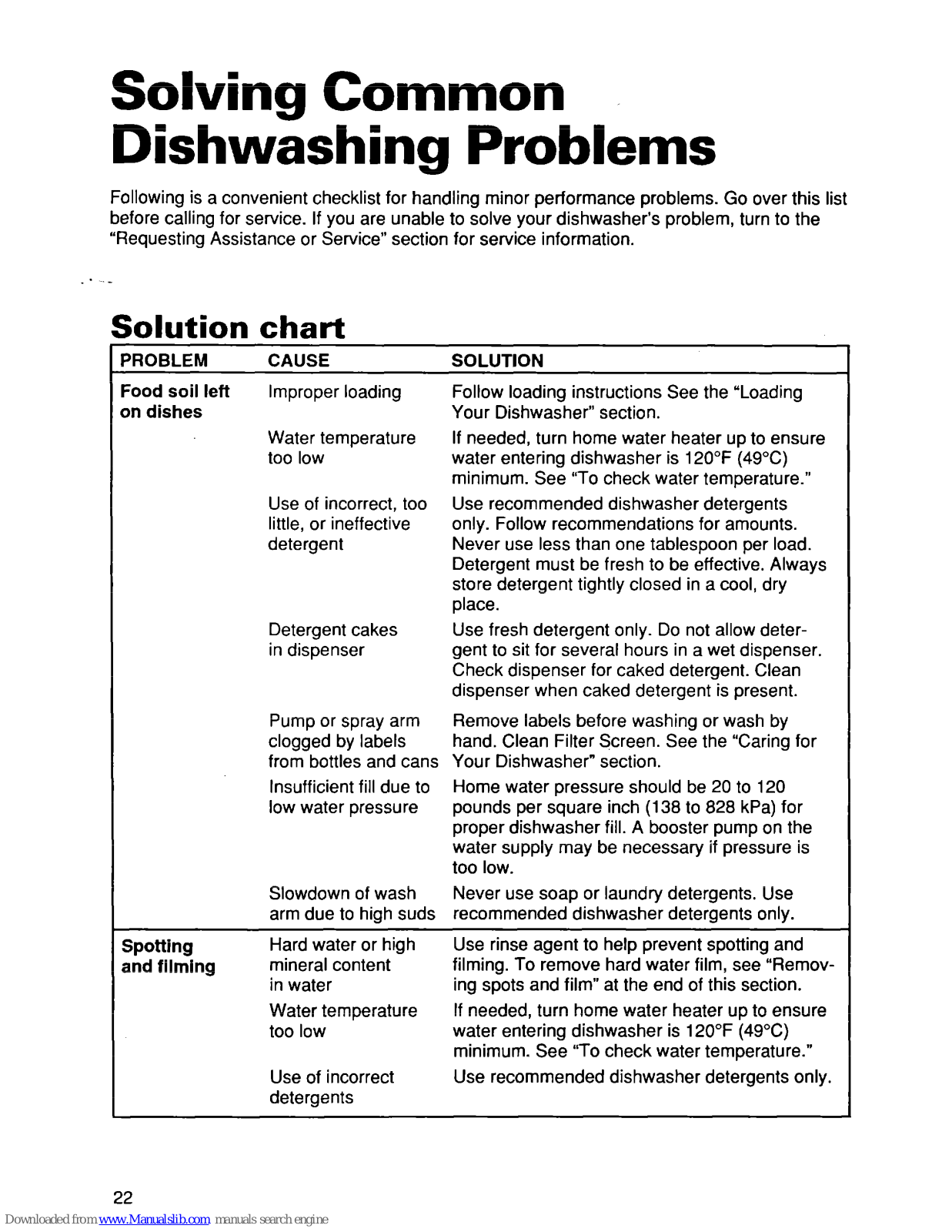

Solving Common
Dishwashing Problems

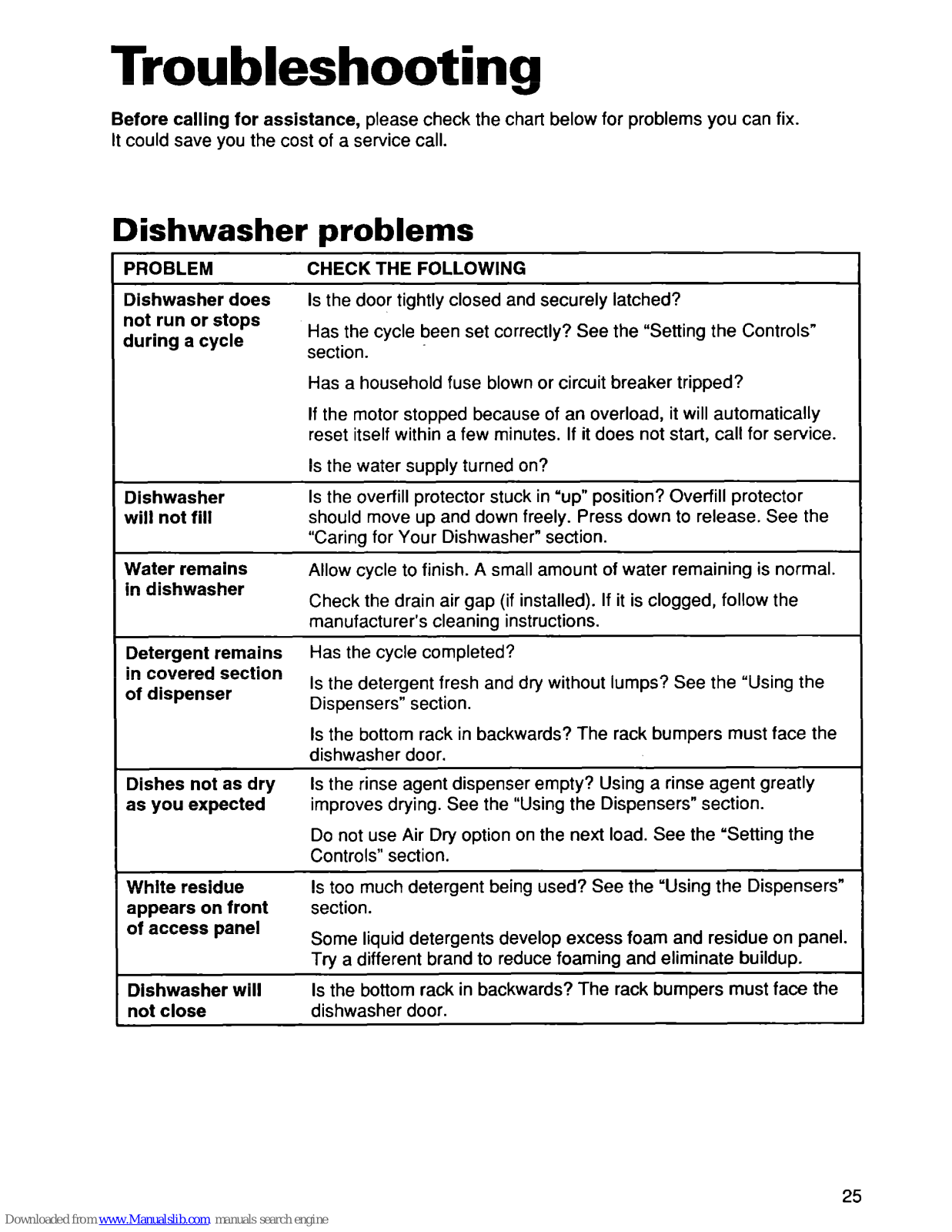

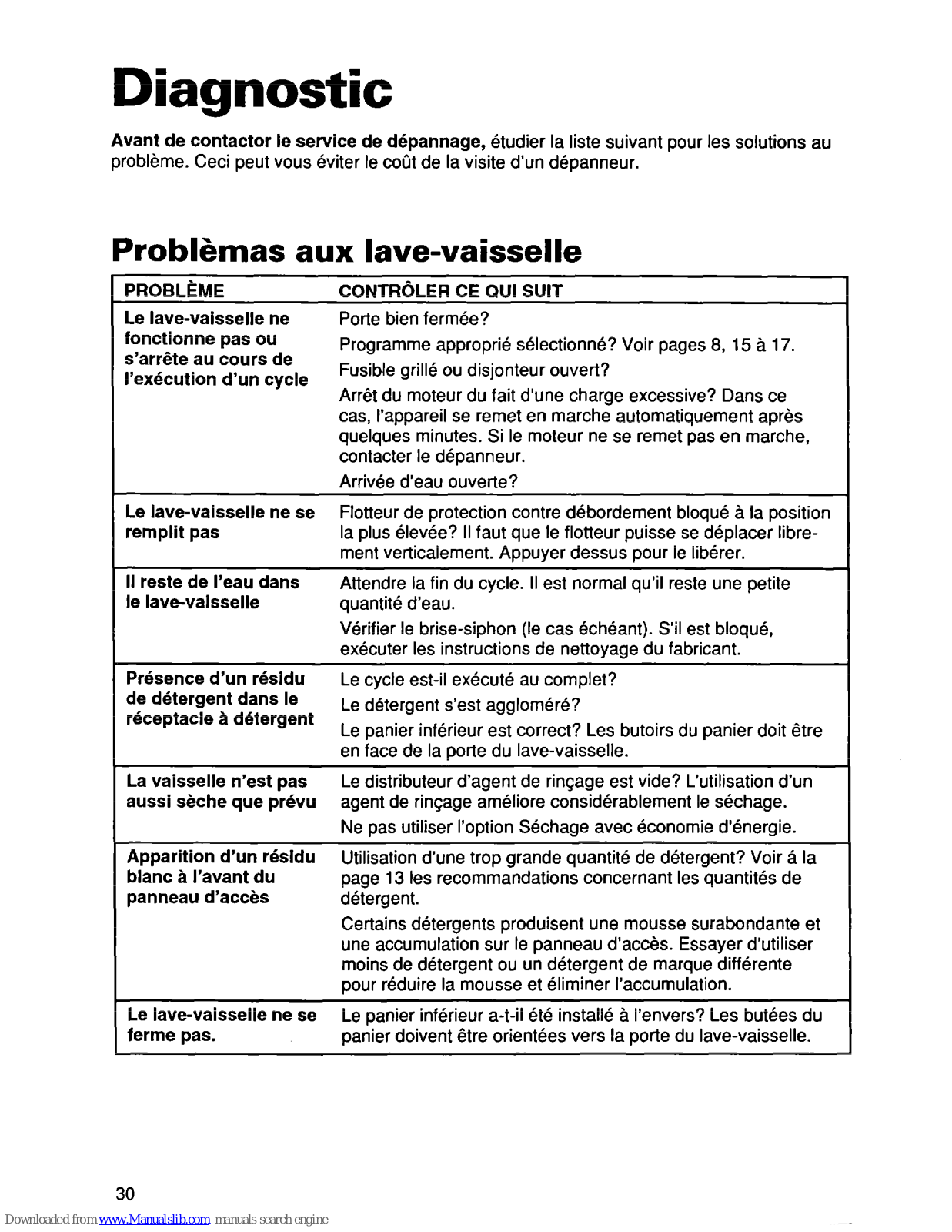

Troubleshootlng..

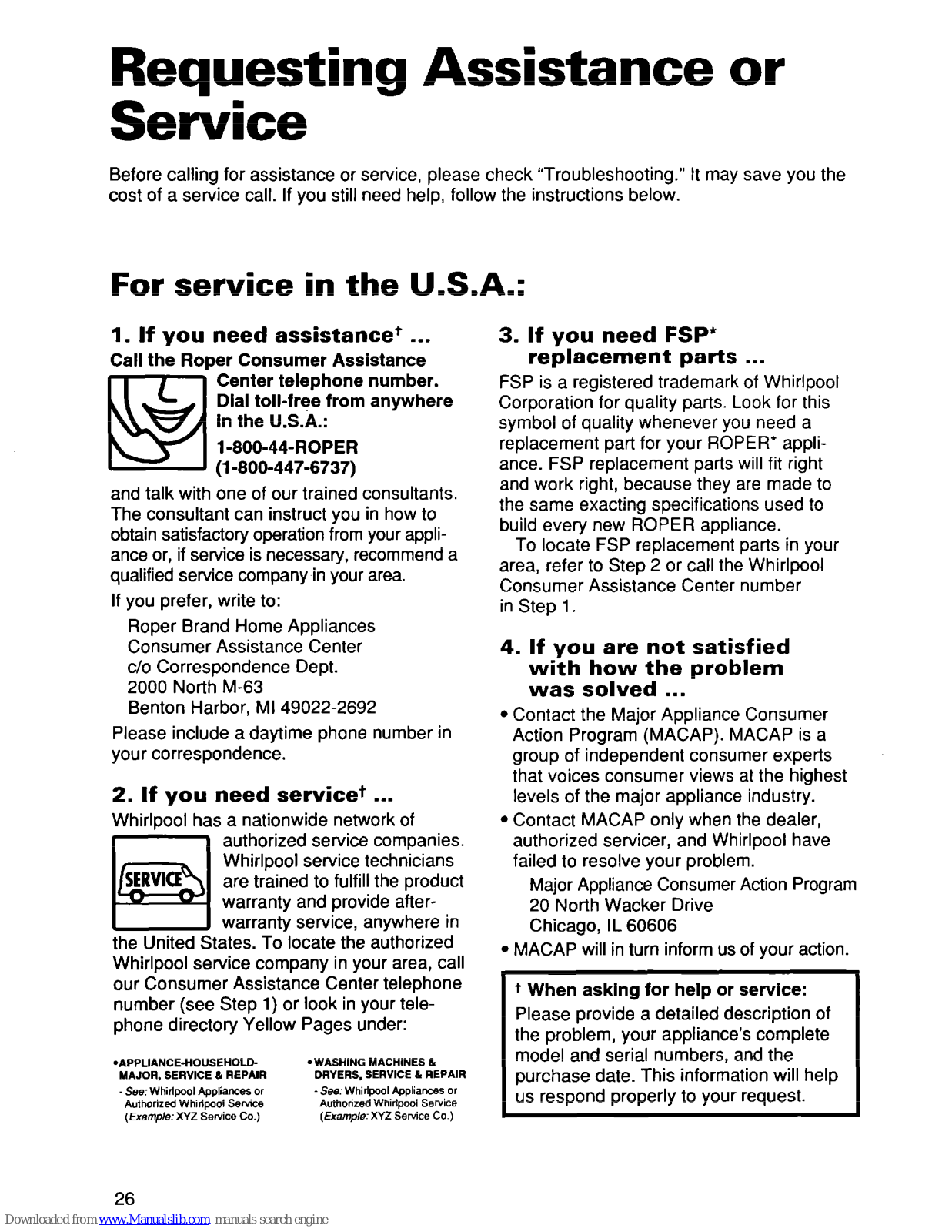

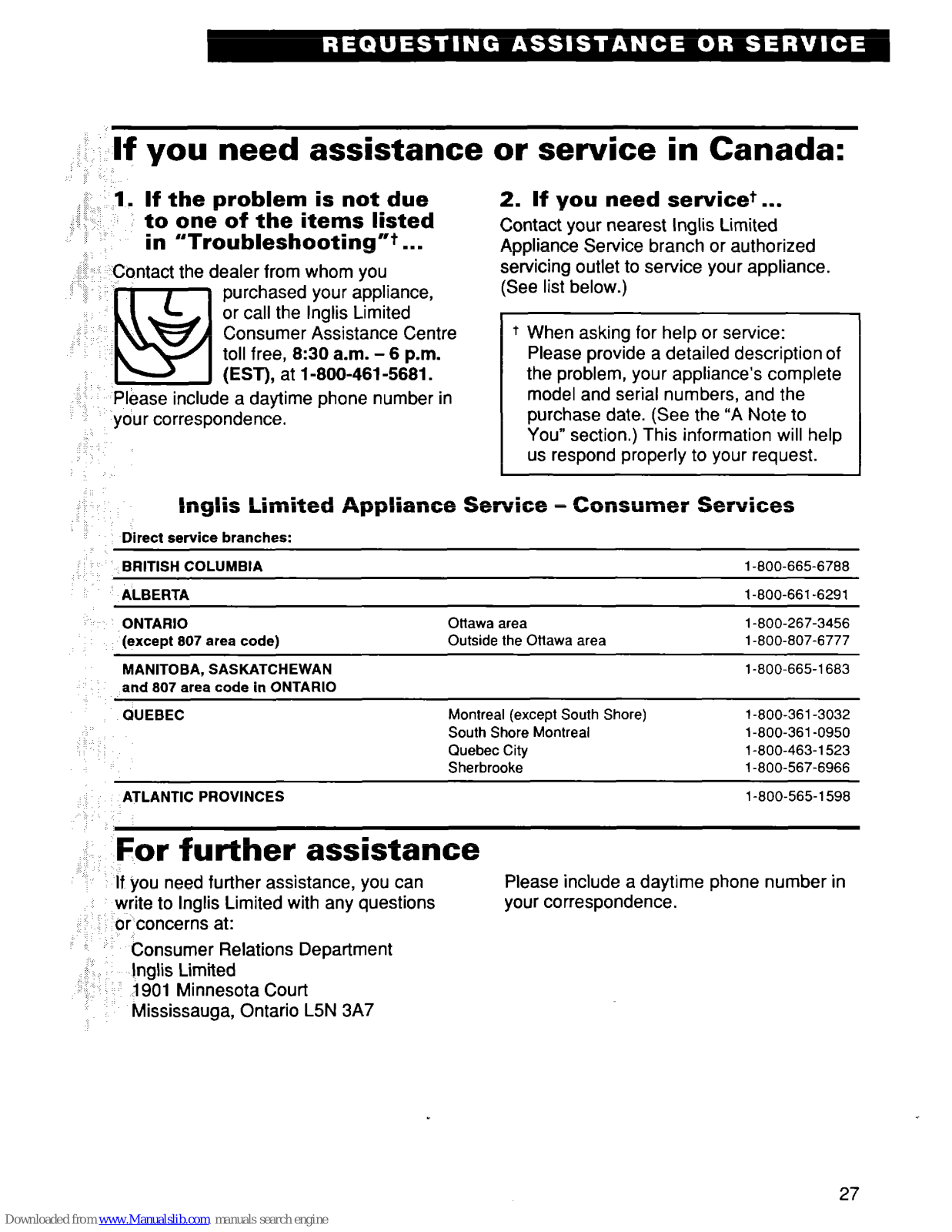

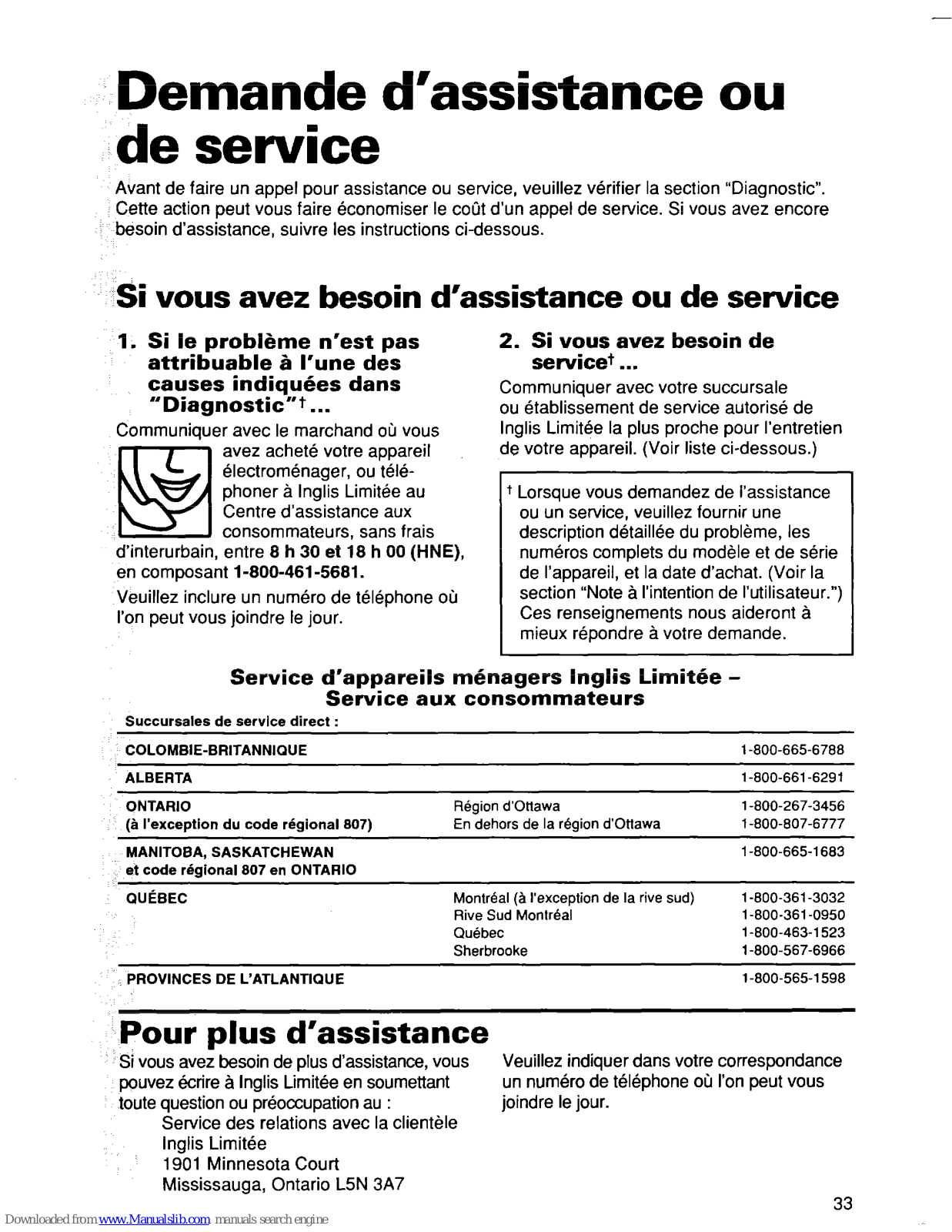

Requesting Assistance
or Service

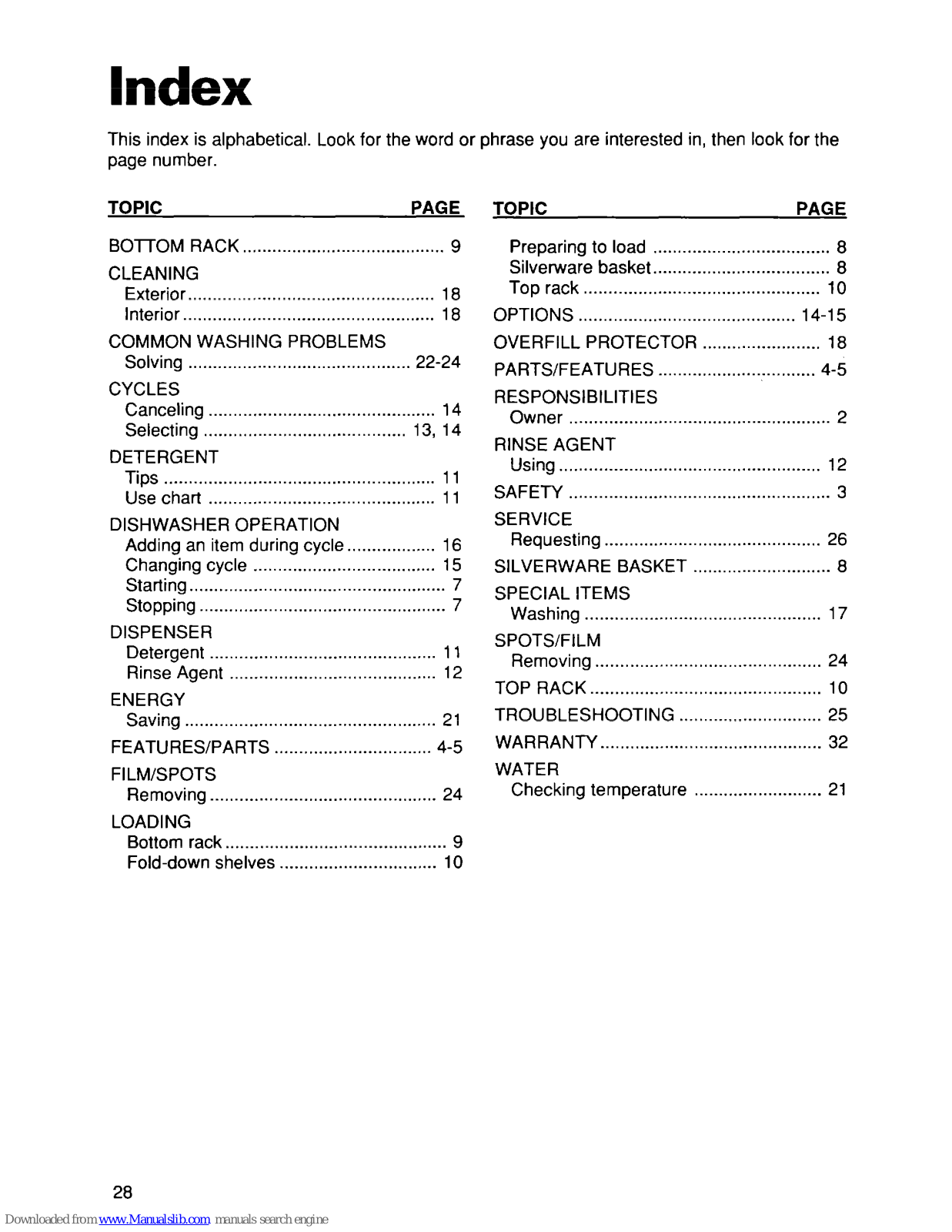

Index..

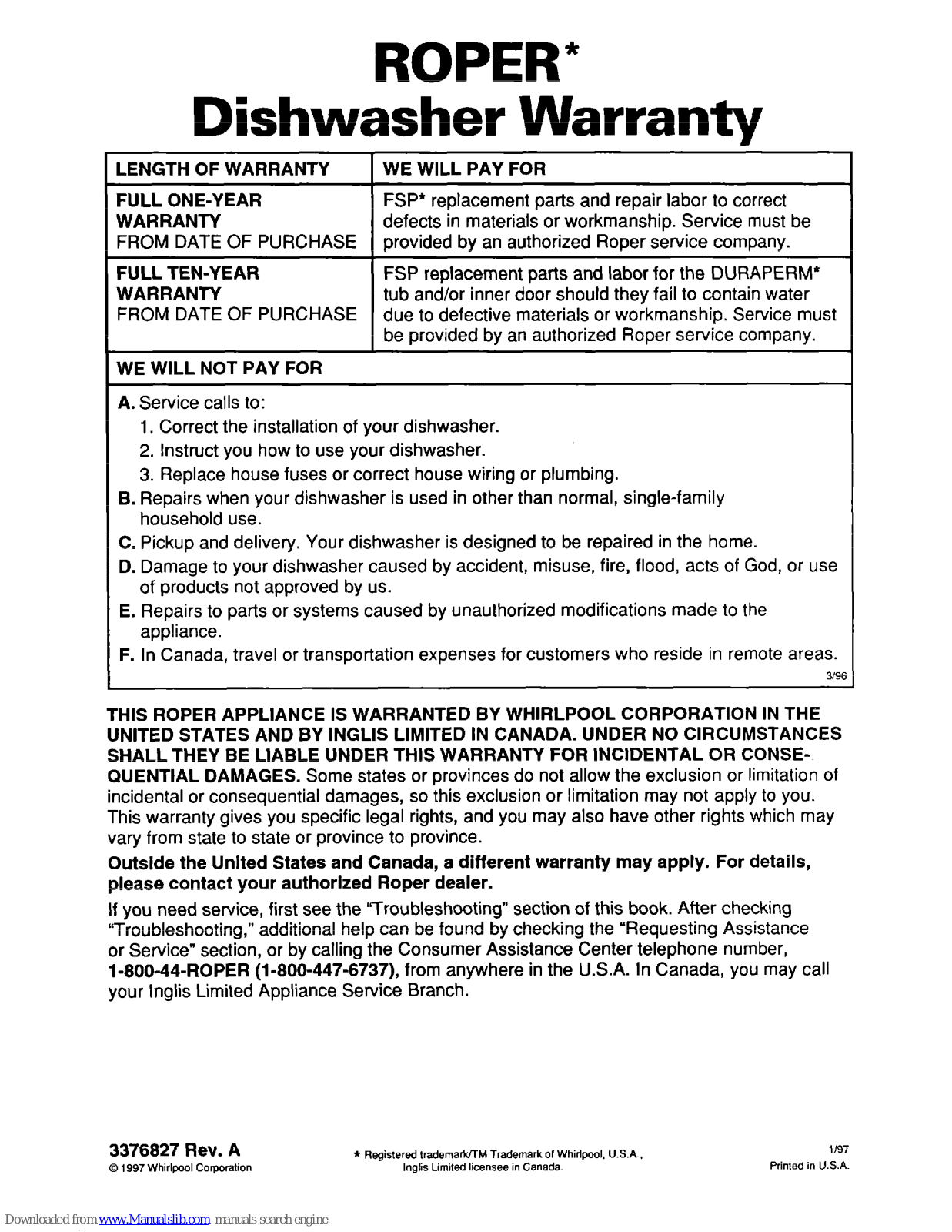

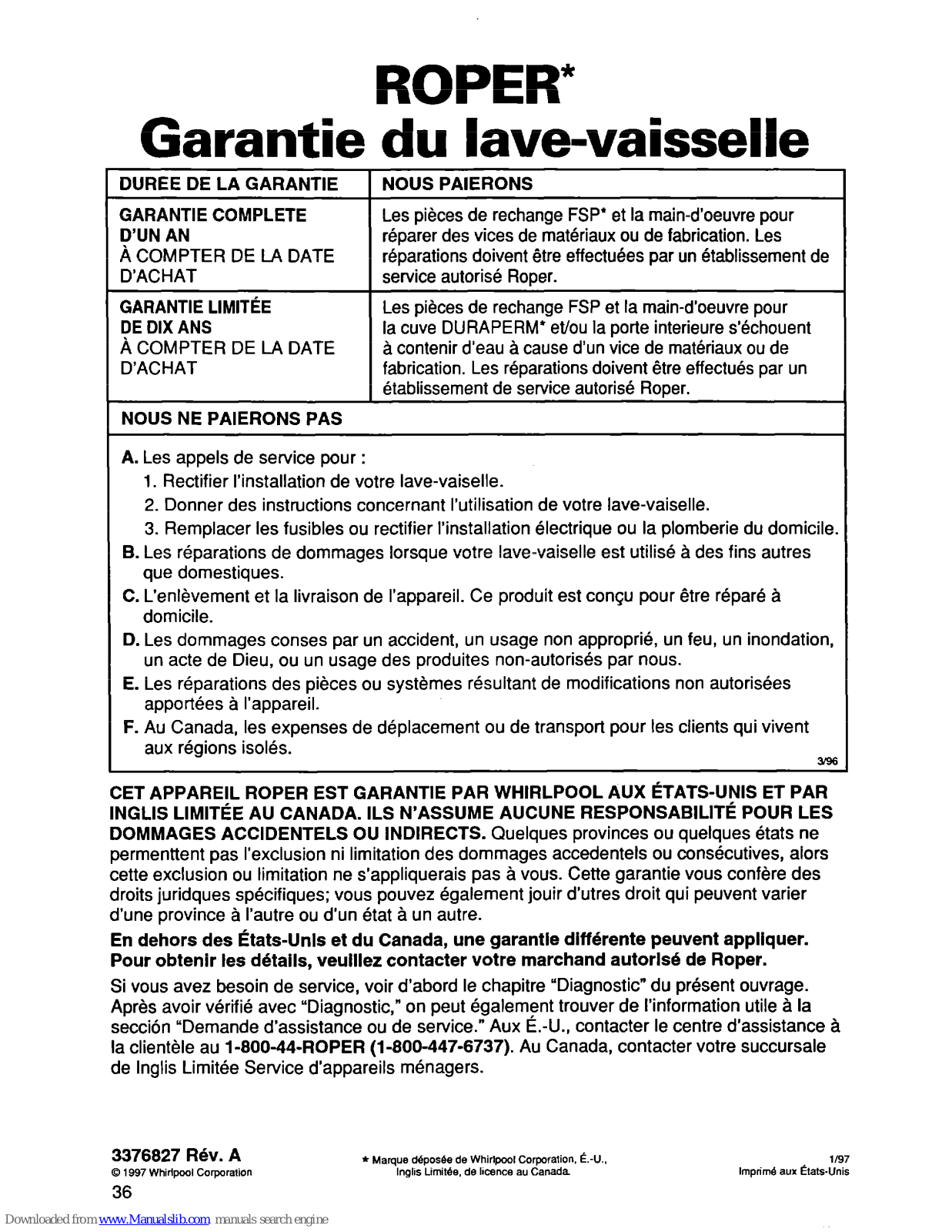

Warranty
.............................
....................................
...............................
.................
....... 22
25
26
28
32

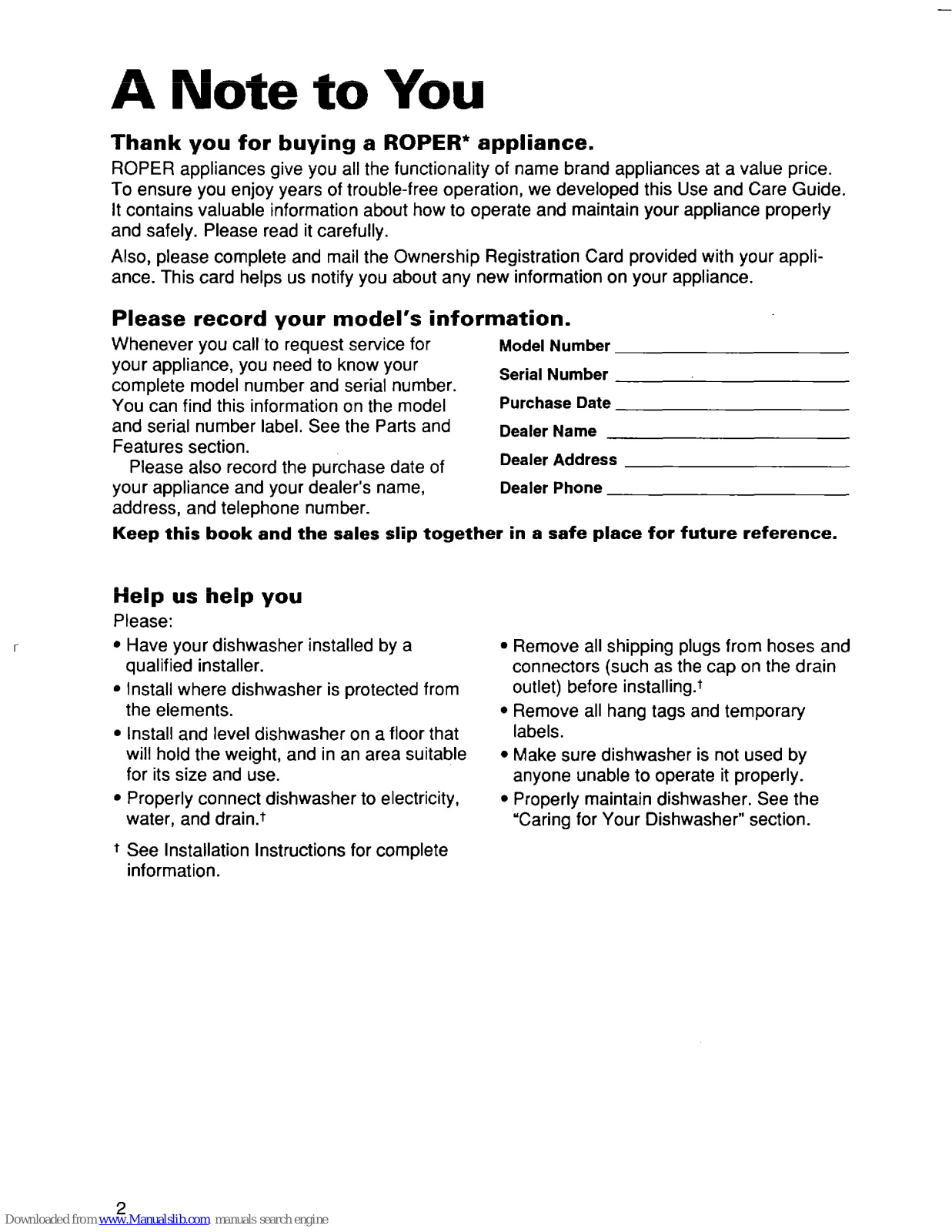

A Note to You
Thank you for buying a ROPER* appliance.
ROPER appliances give you all the functionality of name brand appliances at a value price.
To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It contains valuable information about how to operate and maintain your appliance properly
and safely. Please read it carefully.
Also, please complete and mail the Ownership Registration Card provided with your appli-
ance. This card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number label. See the Parts and
Features section.
Please also record the purchase date of
your appliance and your dealer’s name,
address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Help us help you
Please:
l Have your dishwasher installed by a
qualified installer.
l Install where dishwasher is protected from
the elements.
l Install and level dishwasher on a floor that
will hold the weight, and in an area suitable
for its size and use.
. Properly connect dishwasher to electricity,
water, and drain.+
+ See Installation Instructions for complete
information.
l Remove all shipping plugs from hoses and
connectors (such as the cap on the drain
outlet) before installing.+
l Remove all hang tags and temporary
labels.
l Make sure dishwasher is not used by
anyone unable to operate it properly.
l Properly maintain dishwasher. See the
“Caring for Your Dishwasher” section.

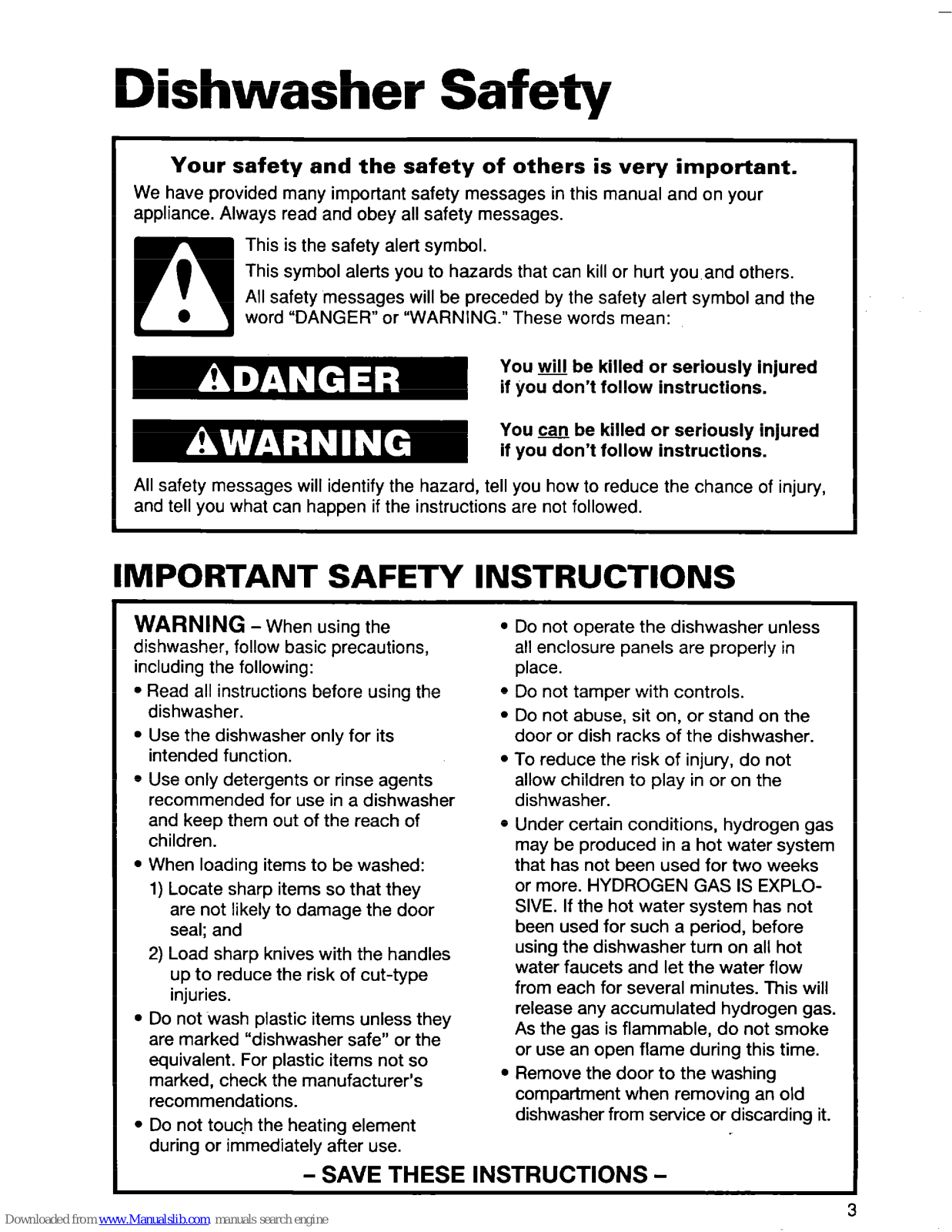

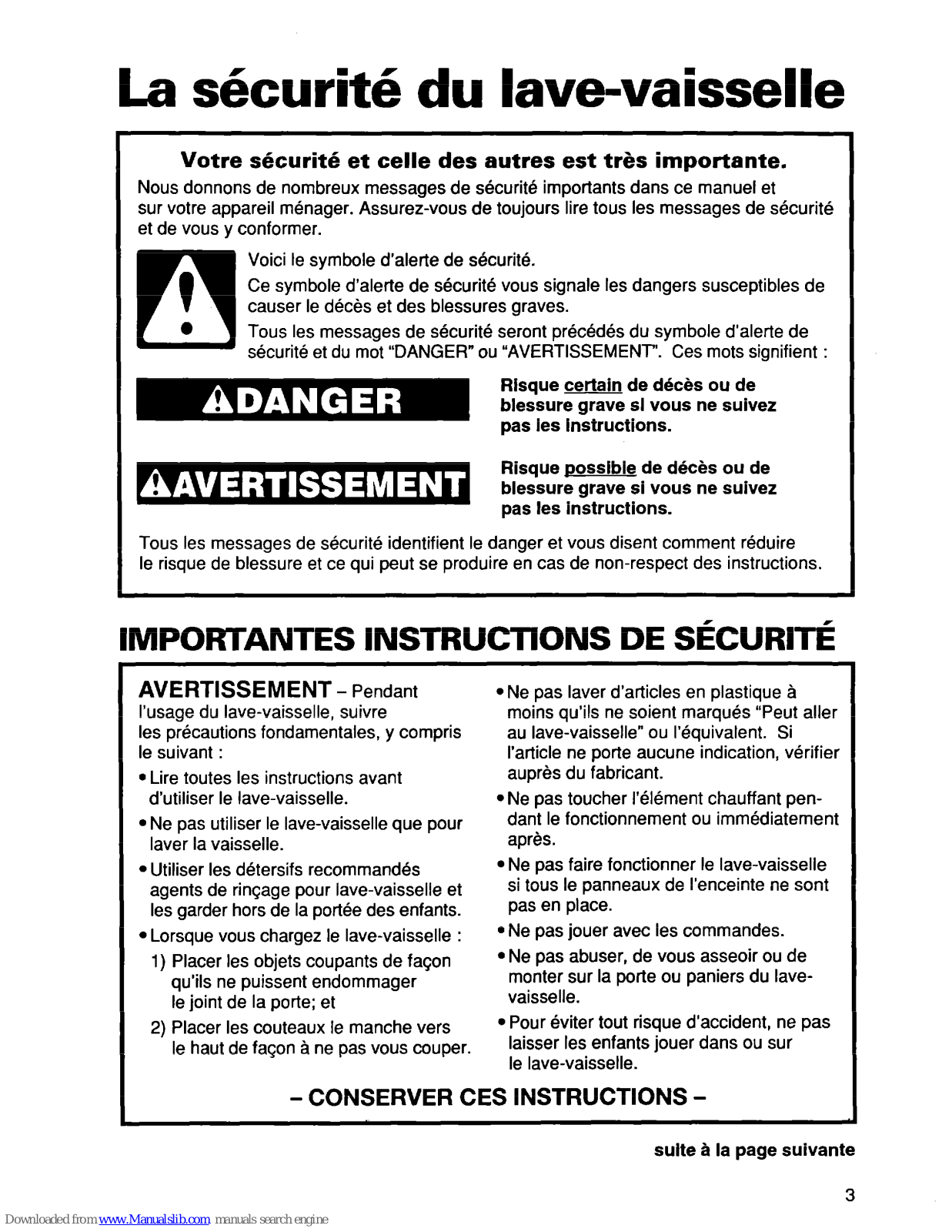

Dishwasher Safety
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you,and others.
All safety messages will be preceded by the safety alert symbol and the
word “DANGER” or “WARNING.” These words mean:
You will be killed or seriously injured
if you don’t follow instructions.
You can be killed or seriously injured
if you don’t follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
dishwasher, follow basic precautions,
including the following:
l Read all instructions before using the
dishwasher.
l Use the dishwasher only for its
intended function.
l Use only detergents or rinse agents
recommended for use in a dishwasher
and keep them out of the reach of
children.
l When loading items to be washed:
1) Locate sharp items so that they
are not likely to damage the door
seal; and
2) Load sharp knives with the handles
up to reduce the risk of cut-type
injuries.
l Do not wash plastic items unless they
are marked “dishwasher safe” or the
equivalent. For plastic items not so
marked, check the manufacturer’s
recommendations.
l Do not touch the heating element
during or immediately after use.
-When using the
l Do not operate the dishwasher unless
all enclosure panels are properly in
place.
l Do not tamper with controls.
l Do not abuse, sit on, or stand on the
door or dish racks of the dishwasher.
l To reduce the risk of injury, do not
allow children to play in or on the
dishwasher.
l Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not
been used for such a period, before
using the dishwasher turn on all hot
water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas.
As the gas is flammable, do not smoke
or use an open flame during this time.
l Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
- SAVE THESE INSTRUCTIONS -

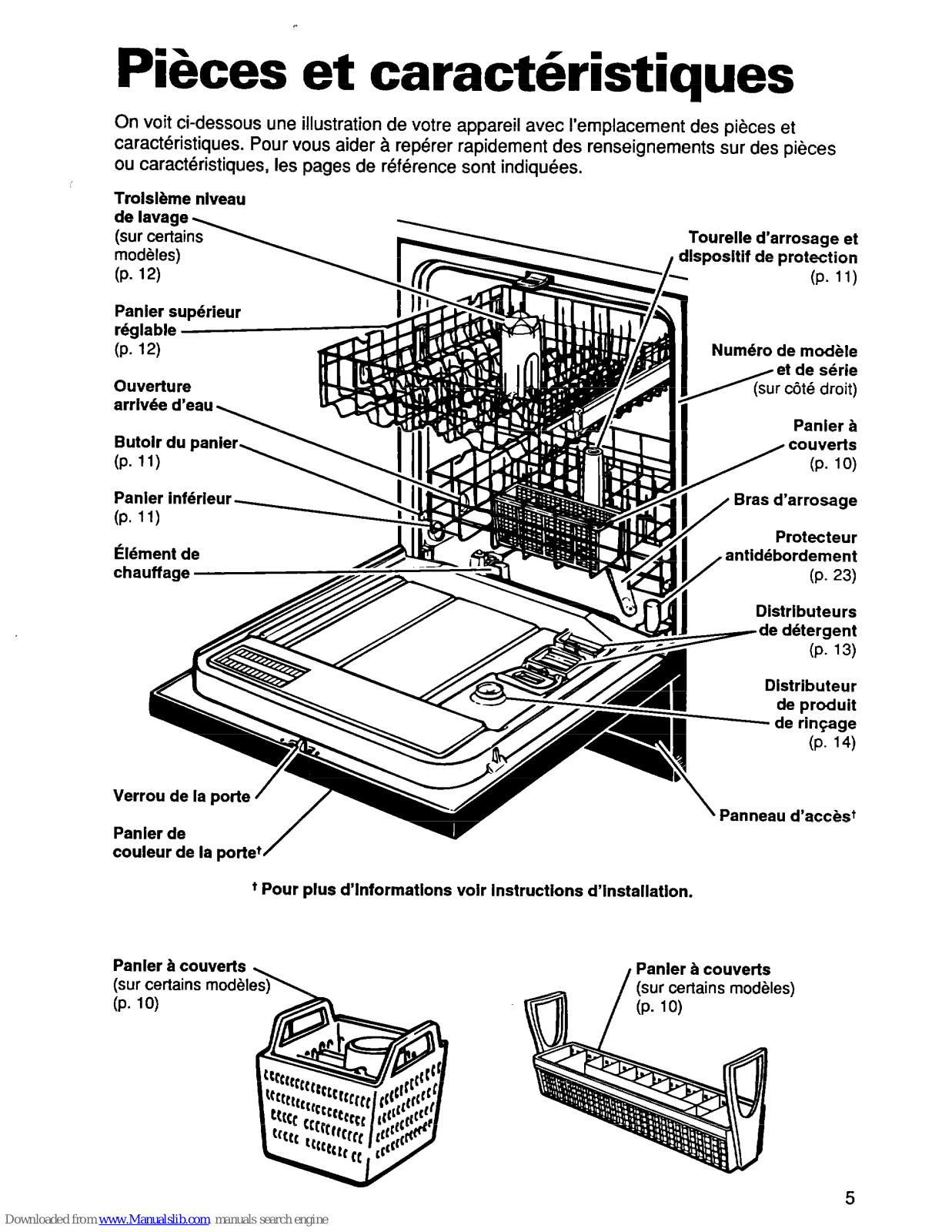

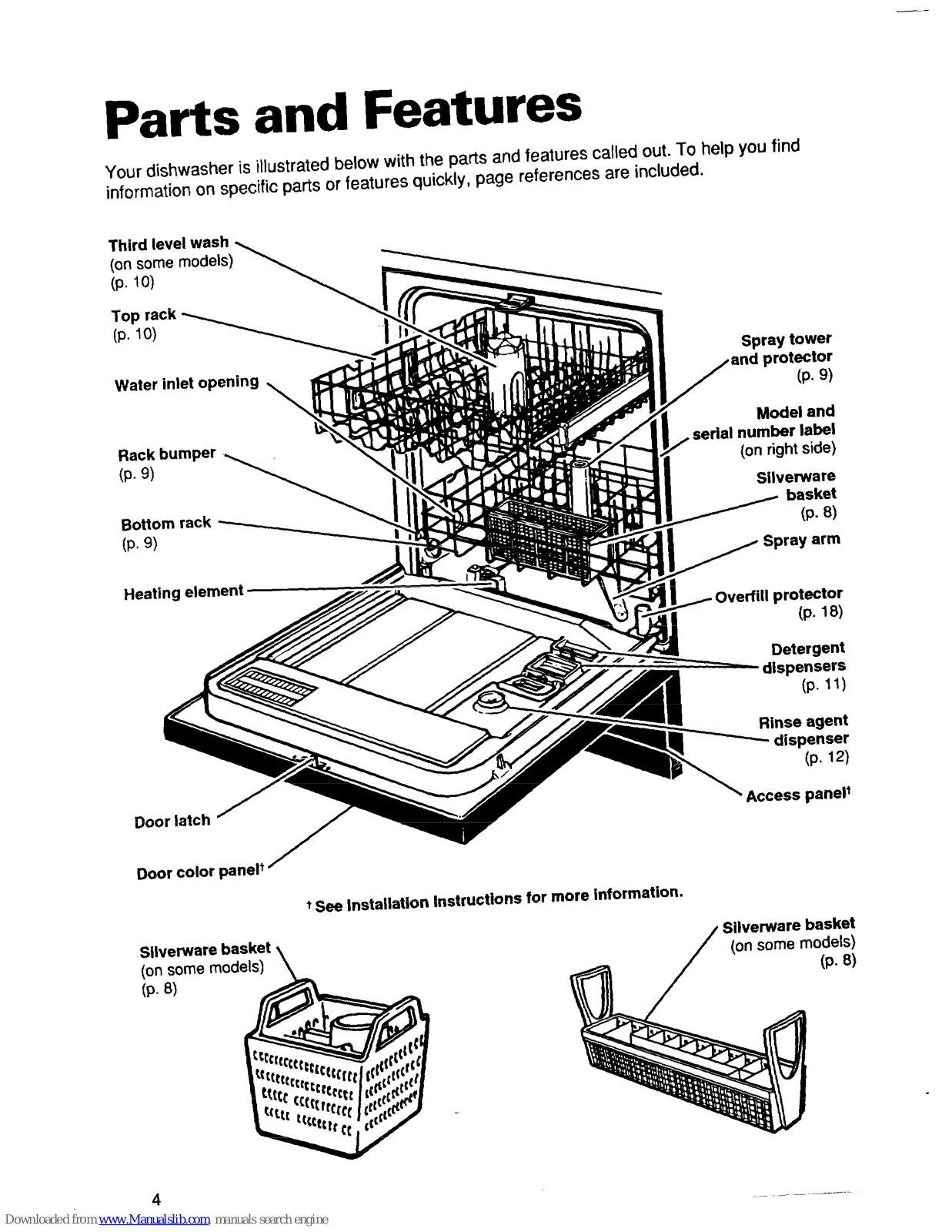

Parts
your dishwasher is illustrated below with the parts and features called Out. TO help YOU find
information on specific parts or features quickly, page references are included.
and
Features
Third level wash 1
(on some models)
igg\\E
Water inlet opening
Rack bumper
(P. 9)
Bottom rack
(P. 9)
Heating element
-
Spray tower
I
a\
, Overfill protector
I
I
,a& pr&ctor
serial number label
Silverware
/ Spray arm
(P. 18)
Detergent
- dlspensers
(p. 11)
Door latch-e
Door color panel+ ’
Silverware basket
t see installation instructions for more information.
Rinse agent
- dispenser
(P. 121
\
Access panel+
4
--

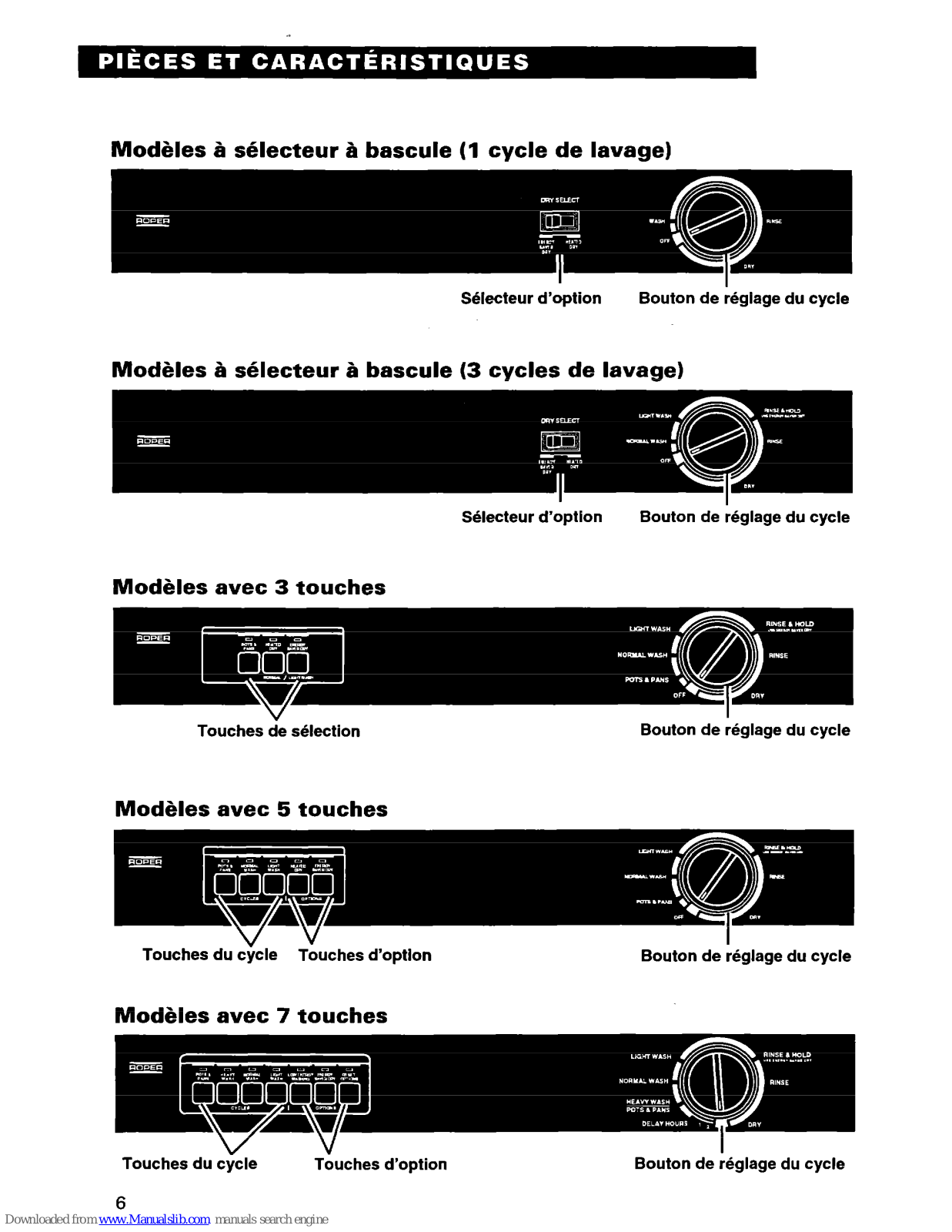

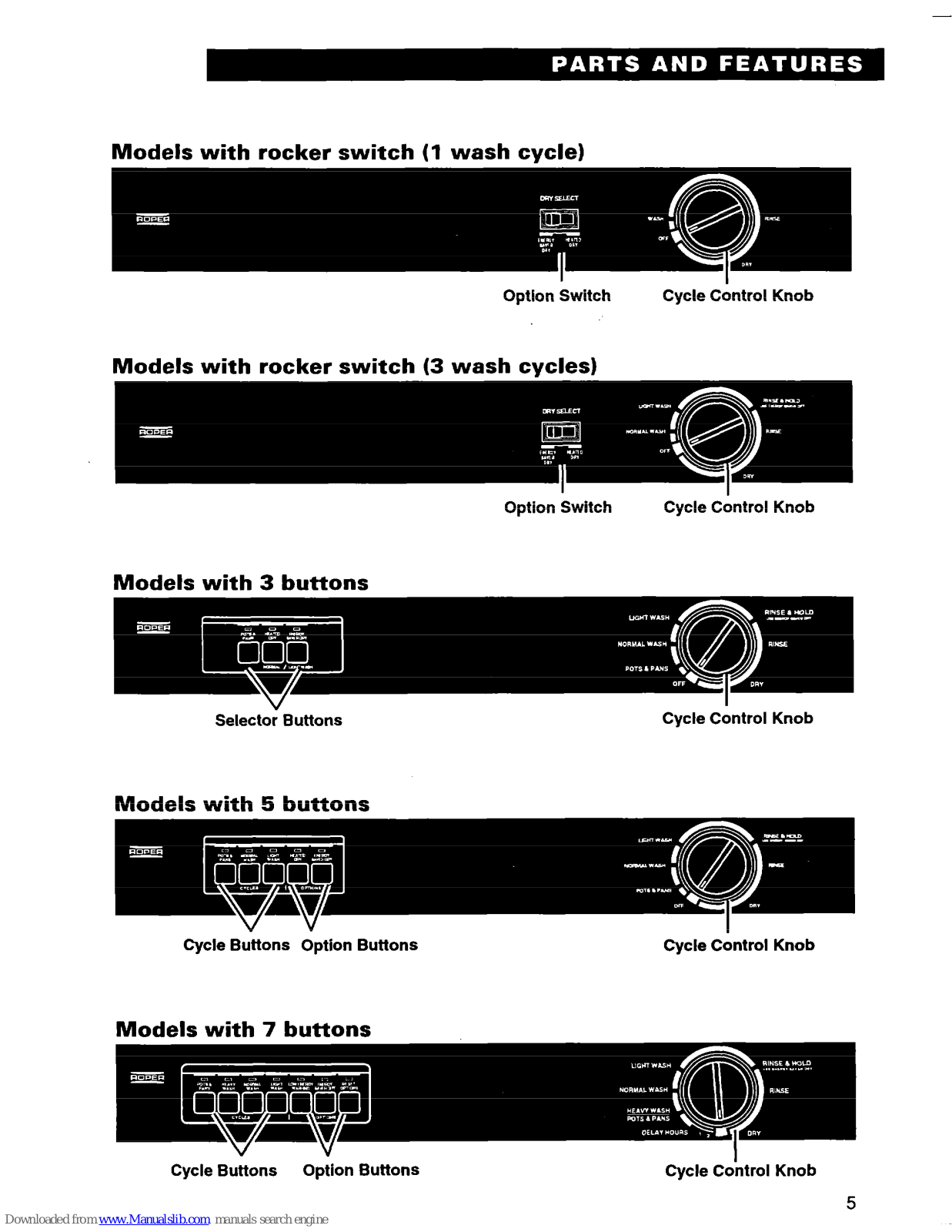

Models with rocker switch (1 wash cycle)
I
I
Optlon Switch Cycle Control Knob
Models with rocker switch (3 wash cvclesl
Models with 3 buttons
Option Switch
I
Cycle Control Knob
Selector Buttons
I
Cycle Control Knob
Models with 5 buttons
v v
I
Cycle Buttons Option Buttons CycleControl Knob
Models with 7 buttons
V
I
Cycle Buttons
Option Buttons
Cycle Control Knob

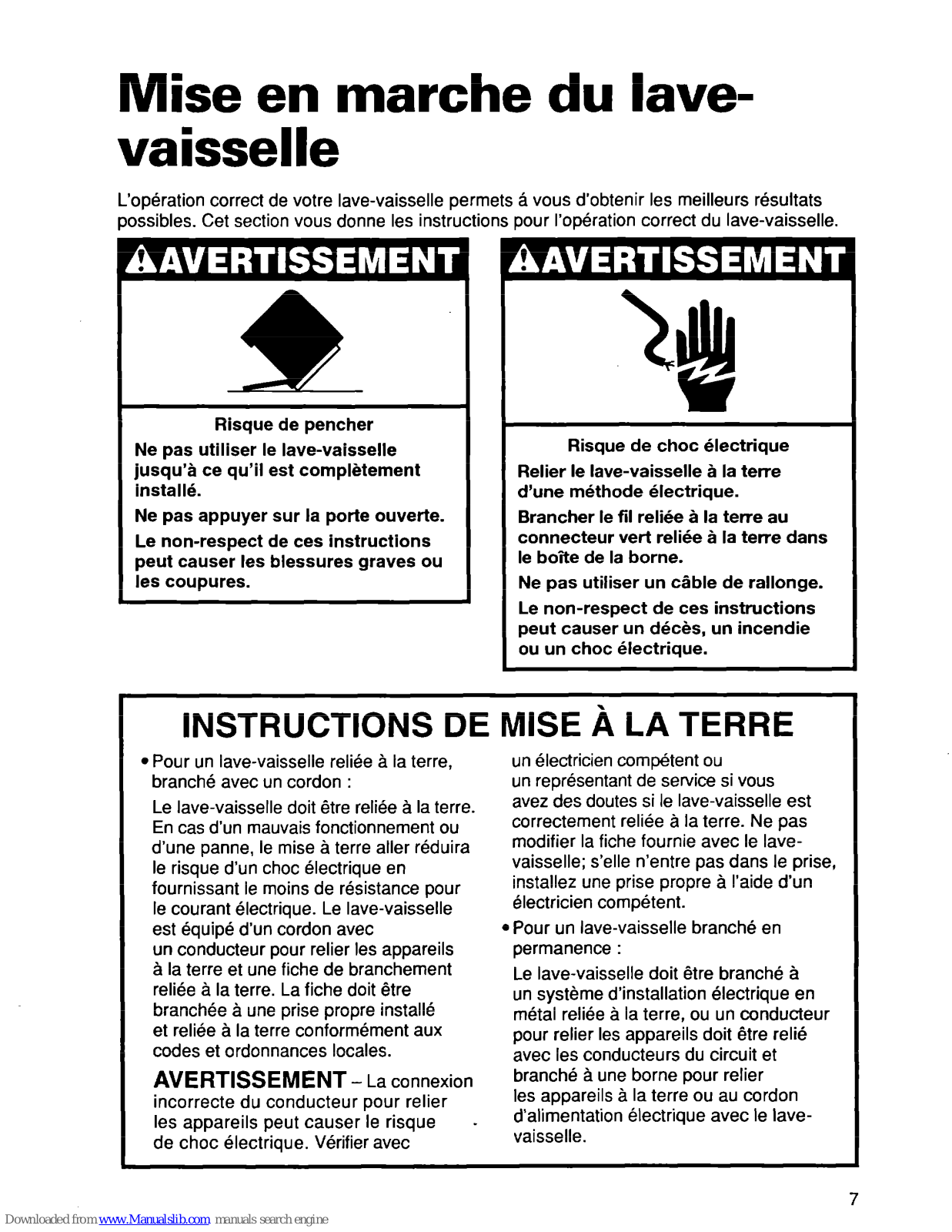

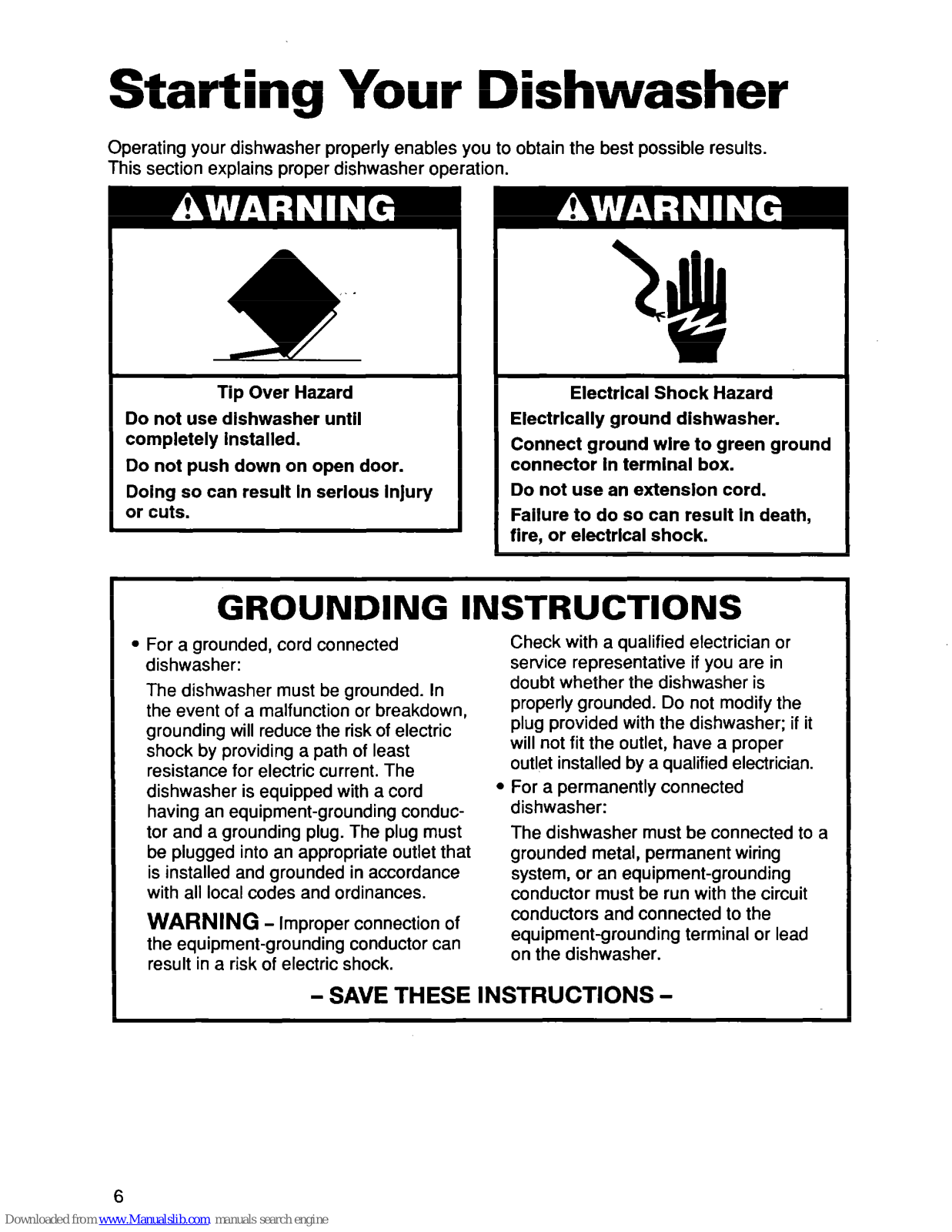

Starting Your Dishwasher
Operating your dishwasher properly enables you to obtain the best possible results.
This section explains proper dishwasher operation.
,. .
2,
Tip Over Hazard
Do not use dlshwasher until
completely installed.
Do not push down on open door.
Doing so can result In serious injury
or cuts.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground
connector in terminal box.
Do not use an extension cord.
Failure to do so can result In death,
fire, or electrical shock.
GROUNDING INSTRUCTIONS
l For a grounded, cord connected
dishwasher:
The dishwasher must be grounded. In
the event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. The
dishwasher is equipped with a cord
having an equipment-grounding conduc-
tor and a grounding plug. The plug must
be plugged into an appropriate outlet that
is installed and grounded in accordance
with all local codes and ordinances.
Check with a qualified electrician or
service representative if you are in
doubt whether the dishwasher is
properly grounded. Do not modify the
plug provided with the dishwasher; if it
will not fit the outlet, have a proper
outlet installed by a qualified electrician.
l For a permanently connected
dishwasher:
The dishwasher must be connected to a
grounded metal, permanent wiring
system, or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the dishwasher.
WARNING
- Improper connection of
the equipment-grounding conductor can
result in a risk of electric shock.
- SAVE THESE INSTRUCTIONS -
6

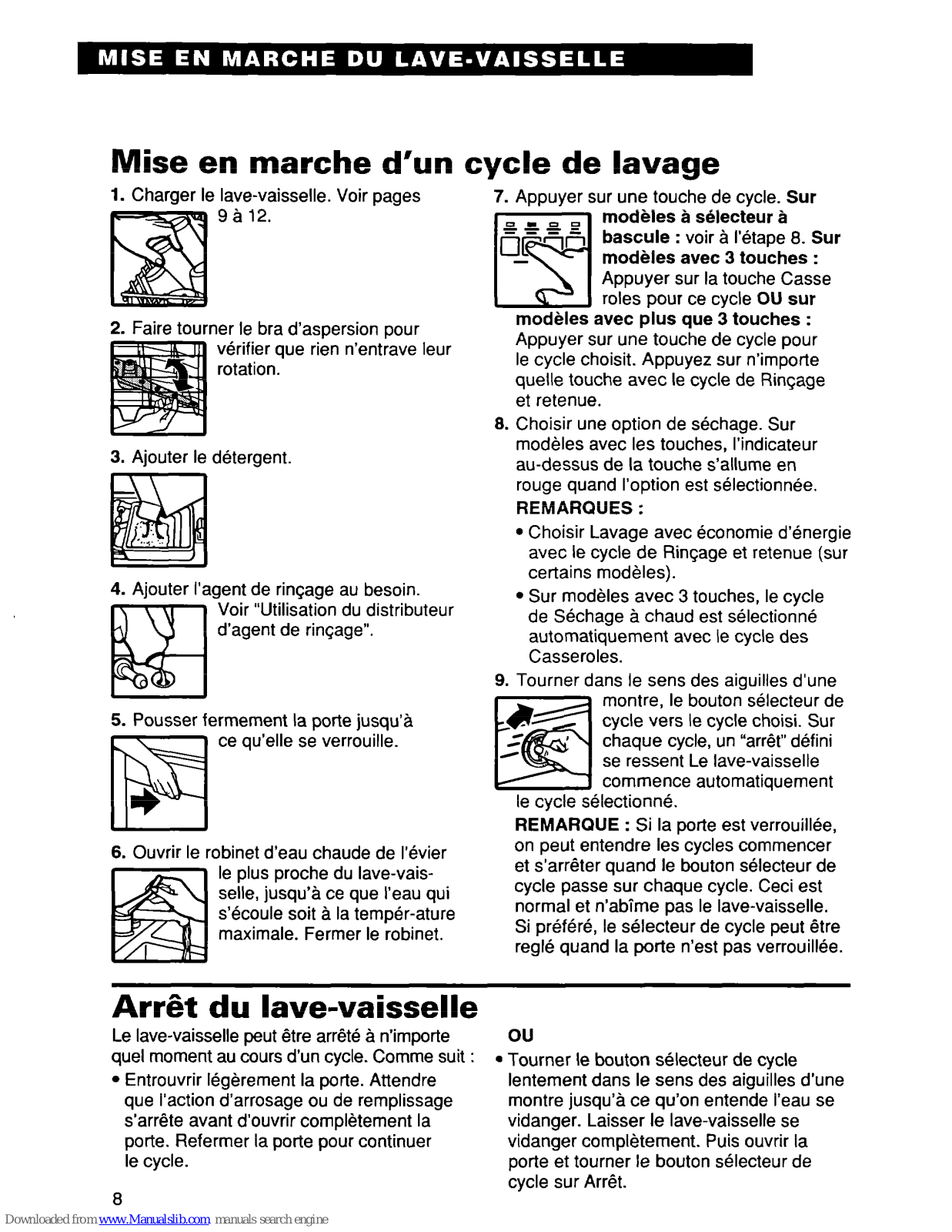

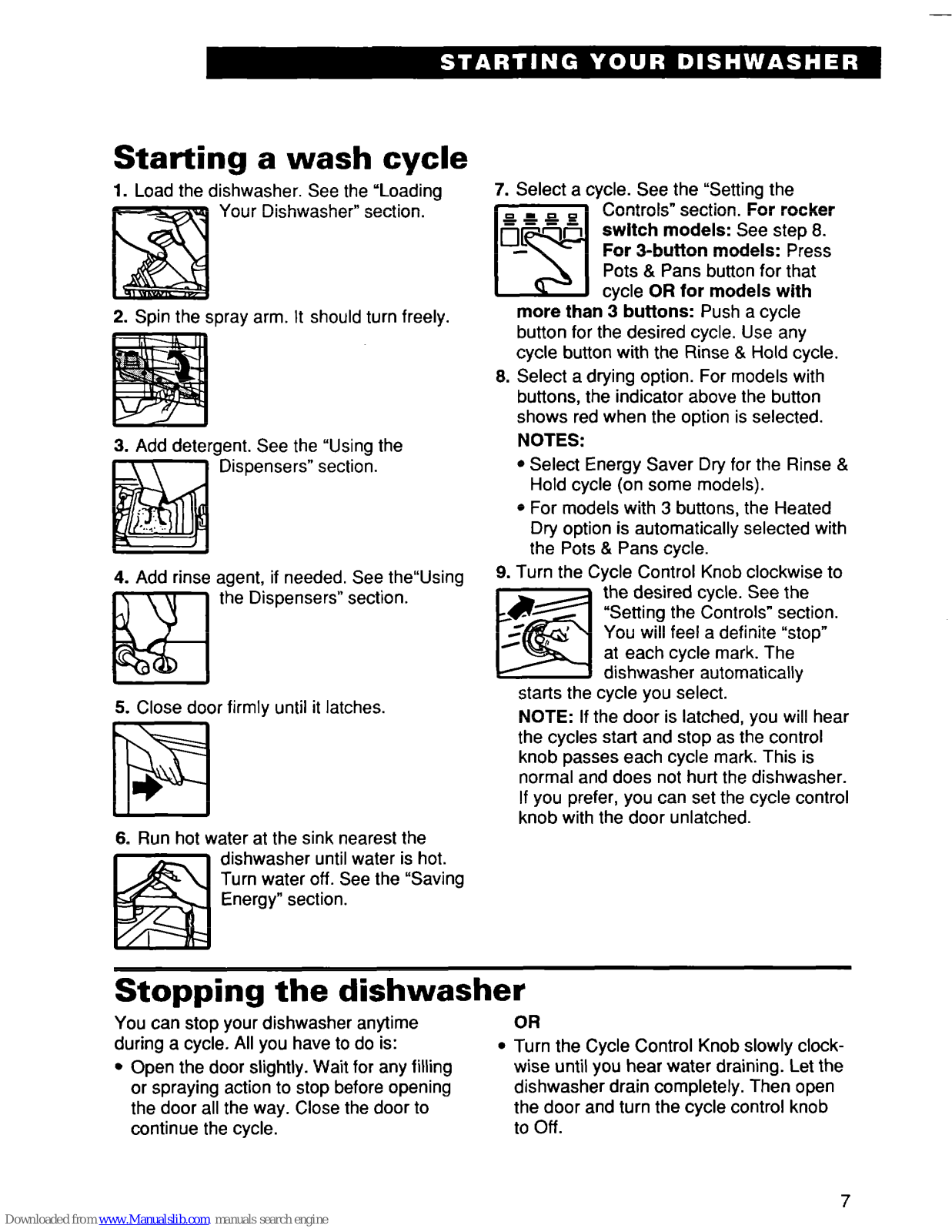

Starting a wash cycle
1. Load the dishwasher. See the “Loadina
7. Select a cycle. See the “Setting the
Your Dishwasher” section. -
2. Spin the spray arm. It should turn freely.
3. Add detergent. See the “Using the
Dispensers” section.
4. Add rinse agent, if needed. See the”Using
the Dispensers” section.
5. Close door firmly until it latches.
I ’
I
6. Run hot water at the sink nearest the
dishwasher until water is hot.
Turn water off. See the “Saving
Energy” section.
EF a fi
Ed
Controls” section.
For rocker
switch models: See
step 8.
For 3-button models:
Press
Pots & Pans button for that
cycle
OR for models with
more than 3 buttons:
Push a cycle
button for the desired cycle. Use any
cycle button with the Rinse & Hold cycle.
8. Select a drying option. For models with
buttons, the indicator above the button
shows red when the option is selected.
NOTES:
l
Select Energy Saver Dry for the Rinse &
Hold cycle (on some models).
l
For models with 3 buttons, the Heated
Dry option is automatically selected with
the Pots & Pans cycle.
9. Turn the Cycle Control Knob clockwise to
the desired cycle. See the
“Setting the Controls” section.
You will feel a definite “stop”
at each cycle mark. The
dishwasher automatically
starts the cycle you select.
NOTE:
If the door is latched, you will hear
the cycles start and stop as the control
knob passes each cycle mark. This is
normal and does not hurt the dishwasher.
If you prefer, you can set the cycle control
knob with the door unlatched.
Stopping the dishwasher
You can stop your dishwasher anytime
during a cycle. All you have to do is:
* Open the door slightly. Wait for any filling
or spraying action to stop before opening
the door all the way. Close the door to
continue the cycle.
OR
l
Turn the Cycle Control Knob slowly clockwise until you hear water draining. Let the
dishwasher drain completely. Then open
the door and turn the cycle control knob
to off.
7

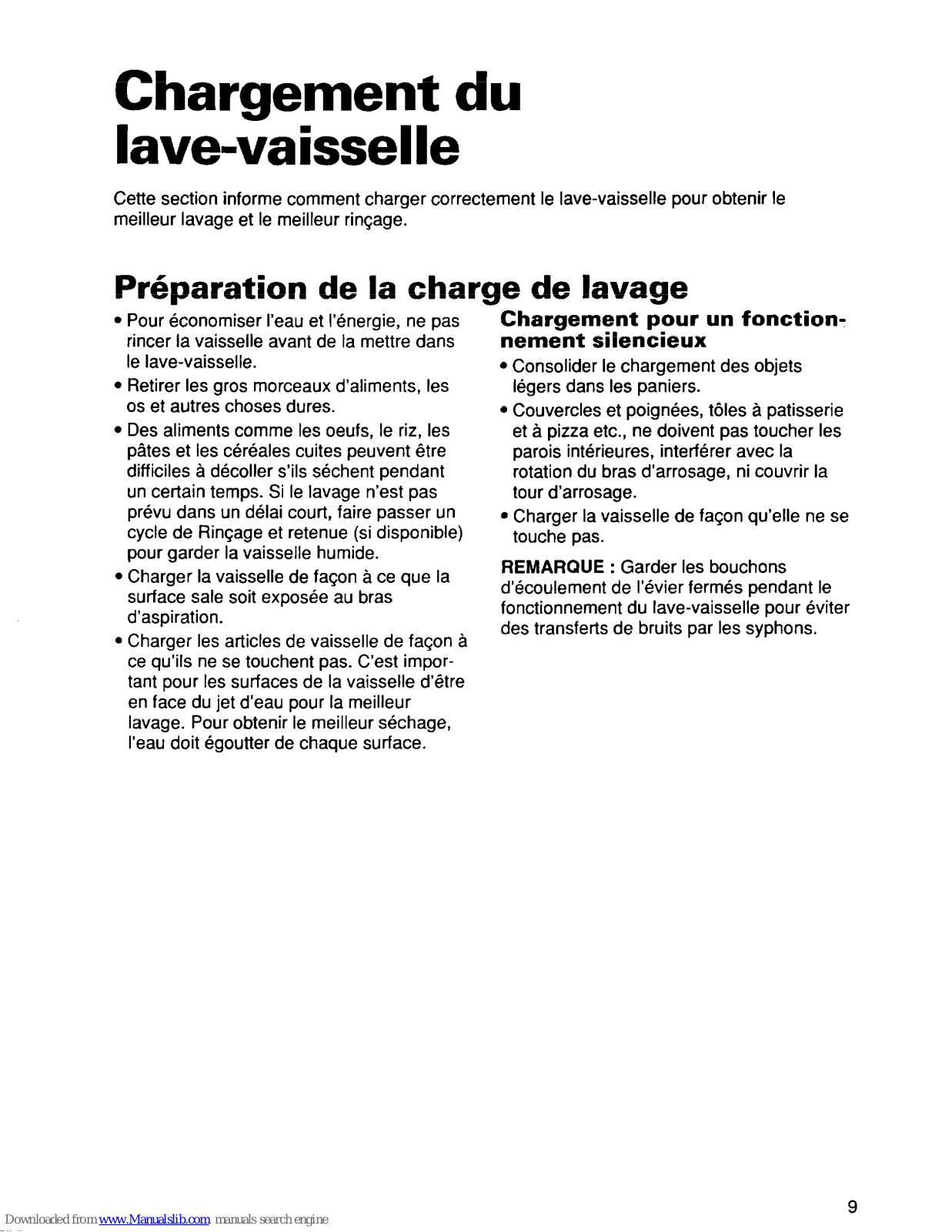

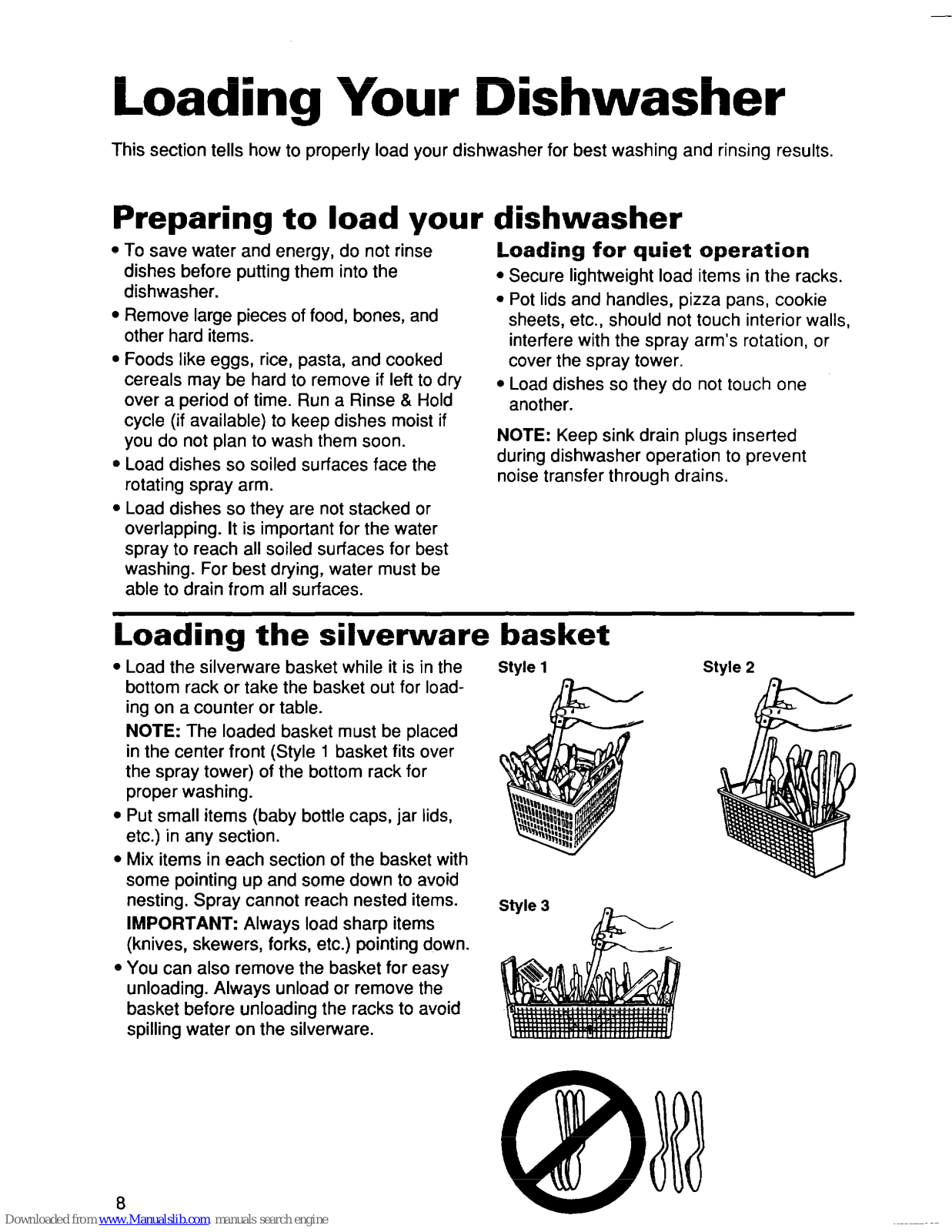

Loading Your Dishwasher
This section tells how to properly load your dishwasher for best washing and rinsing results.
Preparing to load your dishwasher
l To save water and energy, do not rinse
dishes before putting them into the
dishwasher.
l Remove large pieces of food, bones, and
other hard items.
l Foods like eggs, rice, pasta, and cooked
cereals may be hard to remove if left to dry
over a period of time. Run a Rinse & Hold
Loading for quiet operation
l Secure lightweight load items in the racks.
l Pot lids and handles, pizza pans, cookie
sheets, etc., should not touch interior walls,
interfere with the spray arm’s rotation, or
cover the spray tower.
l Load dishes so they do not touch one
another.
cycle (if available) to keep dishes moist if
you do not plan to wash them soon.
l Load dishes so soiled surfaces face the
rotating spray arm.
l Load dishes so they are not stacked or
NOTE:
during dishwasher operation to prevent
noise transfer through drains.
Keep sink drain plugs inserted
overlapping. It is important for the water
spray to reach all soiled
surfaces
for best
washing. For best drying, water must be
able to drain from all surfaces.

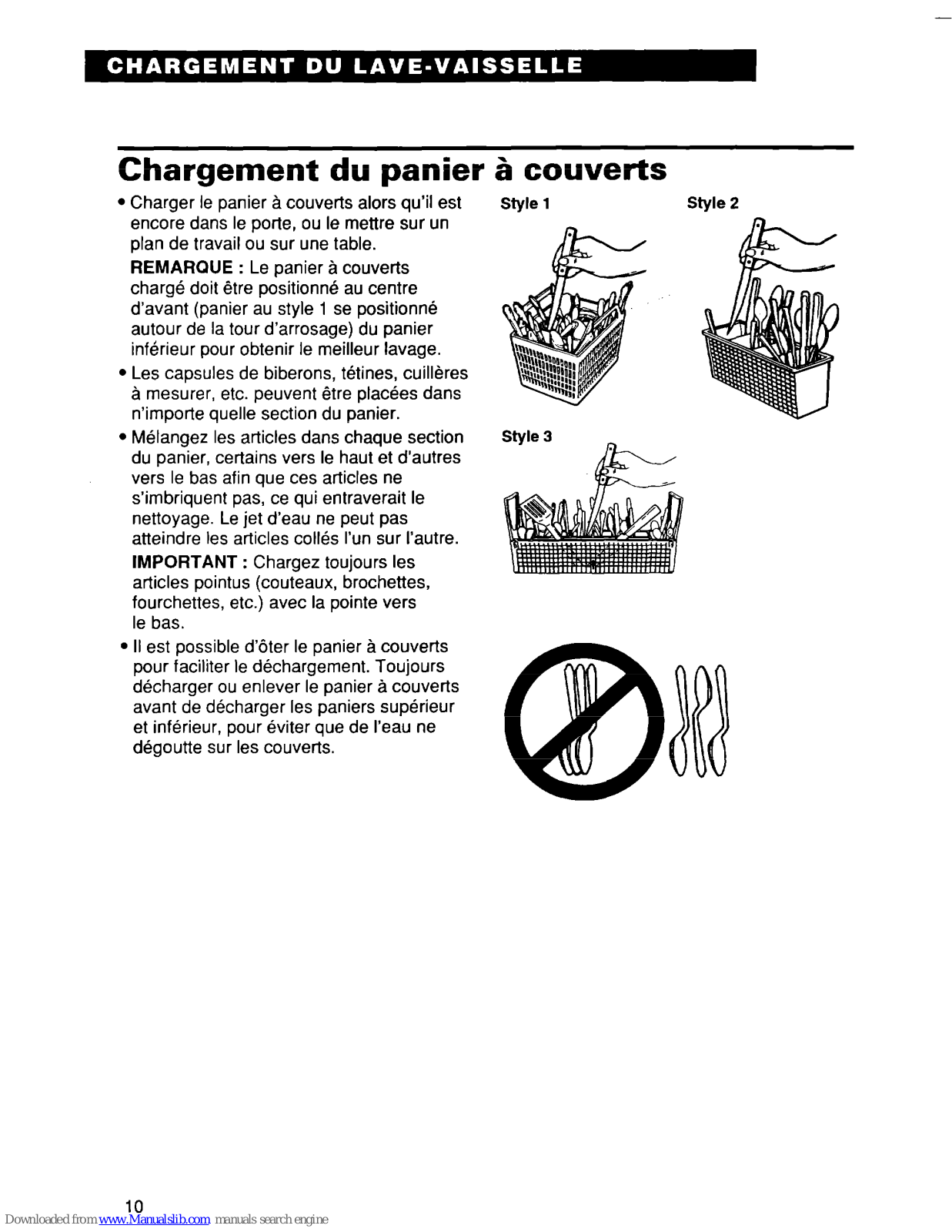

Loading the siIverware basket
l Load the silverware basket while it is in the
bottom rack or take the basket out for loading on a counter or table.
NOTE:
The loaded basket must be placed
in the center front (Style 1 basket fits over
the spray tower) of the bottom rack for
proper washing.
l Put small items (baby bottle caps, jar lids,
etc.) in any section.
l Mix items in each section of the basket with
some pointing up and some down to avoid
nesting. Spray cannot reach nested items.
IMPORTANT:
Always load sharp items
(knives, skewers, forks, etc.) pointing down.
l You can also remove the basket for easy
unloading. Always unload or remove the
basket before unloading the racks to avoid
spilling water on the silverware.
Stvle 1
Style3 .
.
c!Ex
Stvle 2

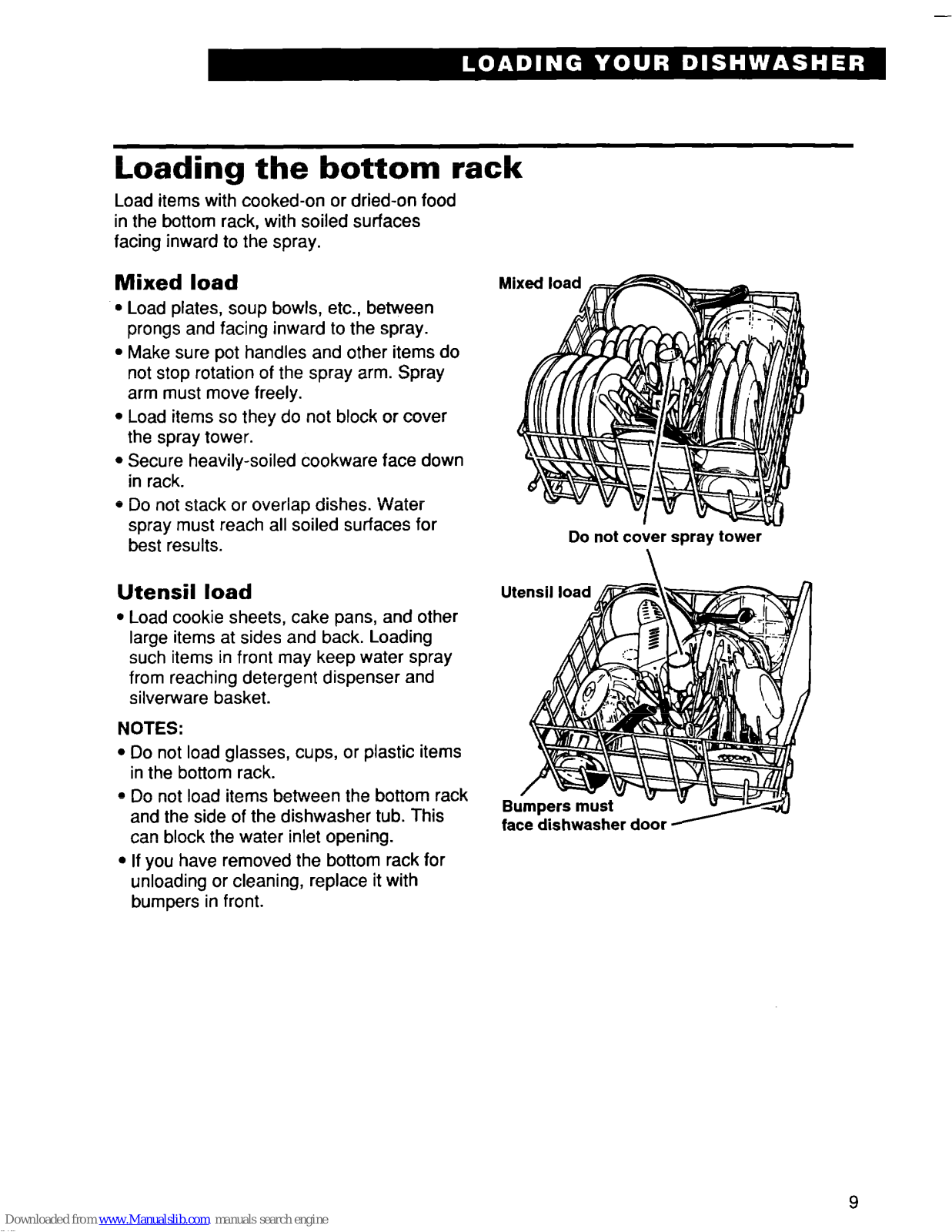

Loading the bottom rack
Load items with cooked-on or dried-on food
in the bottom rack, with soiled surfaces
facing inward to the spray.
Mixed load
l Load plates, soup bowls, etc., between
prongs and facing inward to the spray.
l Make sure pot handles and other items do
not stop rotation of the spray arm. Spray
arm must move freely.
l Load items so they do not block or cover
the spray tower.
l Secure heavily-soiled cookware face down
in rack.
l Do not stack or overlap dishes. Water
spray must reach all soiled surfaces for
best results.
Utensil load
l Load cookie sheets, cake pans, and other
large items at sides and back. Loading
such items in front may keep water spray
from reaching detergent dispenser and
silverware basket.
NOTES:
l Do not load glasses, cups, or plastic items
in the bottom rack.
l Do not load items between the bottom rack
and the side of the dishwasher tub. This
can block the water inlet opening.
l If you have removed the bottom rack for
unloading or cleaning, replace it with
bumpers in front.
Do not cover spray tower
face hishwasher door ’

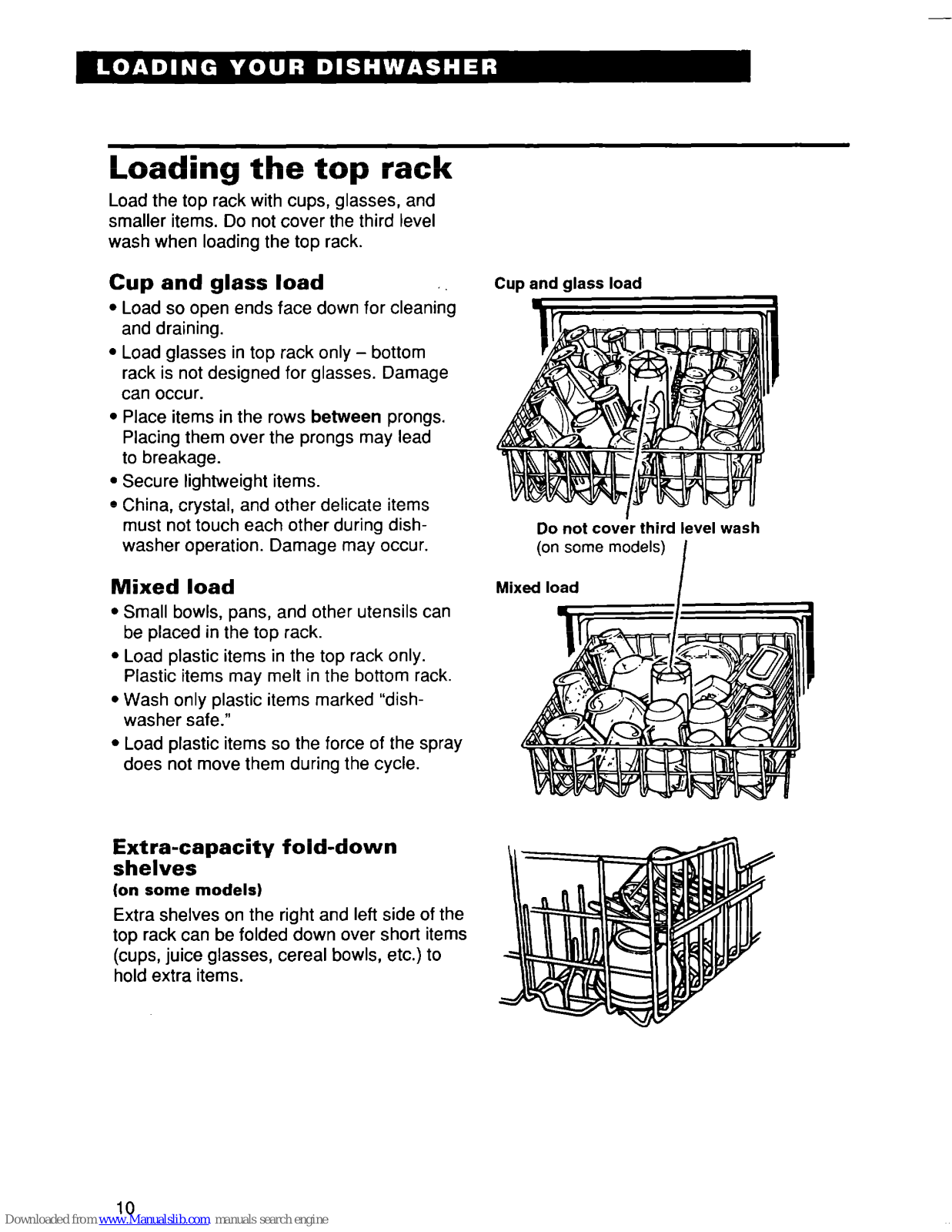

Loading the top rack
Load the top rack with cups, glasses, and
smaller items. Do not cover the third level
wash when loading the top rack.
Cup and glass load
l Load so open ends face down for cleaning
and draining.
l Load glasses in top rack only - bottom
rack is not designed for glasses. Damage
can occur.
. Place items in the rows
Placing them over the prongs may lead
to breakage.
l Secure lightweight items.
l China, crystal, and other delicate items
must not touch each other during dishwasher operation. Damage may occur.
between
prongs.
CUD
and alass load
Do not co&r third level wash
(on some models)
Mixed load
l Small bowls, pans, and other utensils can
be placed in the top rack.
l Load plastic items in the top rack only.
Plastic items may melt in the bottom rack.
l Wash only plastic items marked “dish-
washer safe.”
l Load plastic items so the force of the spray
does not move them during the cycle.
Extra-capacity fold-down
shelves
(on some models)
Extra shelves on the right and left side of the
top rack can be folded down over short items
(cups, juice glasses, cereal bowls, etc.) to
hold extra items.
Mixed load
10
Using the Dispensers
For best washing results, review the information below. It is important to use detergents and
rinse agents properly.
Using the detergent dispenser
l
Use automatic dishwashing detergent
only.
Other detergents are too mild and
much too sudsy.
l Add detergent just before starting cycle.
l Store detergent tightly closed in a cool, dry
place.
Fresh automatic dishwasher
detergent results in better cleaning.
Filling the detergent dispenser
The detergent dispenser has one section
with a cover and one without. Push cover
down firmly until it latches. Detergent in the
open section falls into the dishwasher when
closing the door. The covered section opens
automatically for the main wash.
NOTE:
It is normal for the cover to open
partially when dispensing detergent.
Cover Cover latch
How much detergent to use
l The amount of detergent to use depends
on the hardness of your water and the type
of detergent. If you use too little, dishes
won’t be clean. If you use too much in soft
water, glassware will etch.
l Different brands of dishwasher detergent
have different amounts of phosphorus for
softening water. If you have hard water
and use low phosphorus content detergent
(8.7% or less), you may need to use more
detergent or use a detergent with a higher
phosphorus content (12%).
l Find out your water’s hardness by asking
your local water department, water softener company, or county extension agent.
Use only covered
Use both sections for:
section for:
-Wash or Normal Wash
- Light Wash+
- Pots-&-Pans+
- Heavy Wash+
+ Cycle on some models only.
I
WATER TYPE
WHERE TO FILL
Hard
8+ grains per gallon
136+ parts per million
Medium
5-7 grains per gallon
85119 parts per million (2 tbs)
soft
Top of
O-4 grains per gallon
1 st step
O-68 parts per million (’ tbs)
Fill amounts shown are for standard
powdered detergent. Amounts may vary if
you use liquid or concentrated powdered
detergent. Follow manufacturer’s directions
when using liquid dishwasher detergent or
concentrated powdered detergent.
11

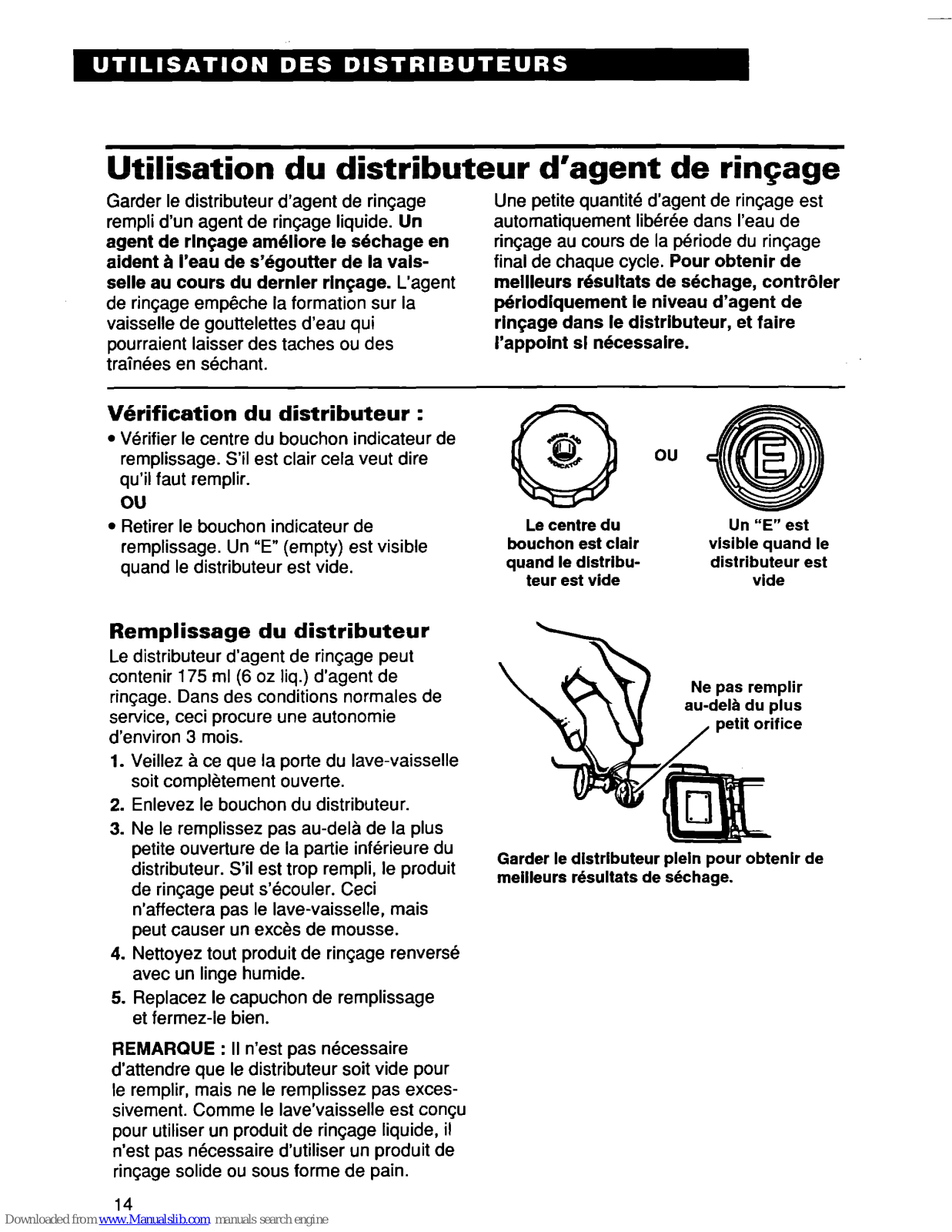

Using the rinse agent dispenser
Keep the Rinse Agent Dispenser filled with
a liquid rinse agent.
improves dish drying by helping water
flow off them during the last rinse.
rinse agent also keeps water from forming
droplets and drying as spots or streaks.
A small amount of rinse agent automatically releases into the rinse water during the
final rinse of each cycle.
results, check dispenser periodlcally to
see if it needs filling.
To check dispenser:
l Check center of Fill Indicator Cap. Clear
means it needs filling.
OR
l Remove Fill Indicator Cap. An “E” is visible
when dispenser is empty.
A rinse agent greatly
A
For best drying
Cap center clear
when empty
OR
“E” visible
when empty
To fill dispenser:
The Rinse Agent Dispenser holds 6ounces
(175 mL). Under normal conditions, this
lasts about 3 months.
1.
Open dishwasher door completely.
2. Remove Fill Indicator Cap.
3. Add rinse agent. Fill to smallest opening
in lower part of dispenser only. Overfilling
may cause rinse agent to leak out. This
will not harm the dishwasher, but could
cause oversudsing.
4. Clean up any spilled rinse agent with a
damp cloth.
5. Replace Fill Indicator Cap. Keep it
closed tightly.
NOTE:
dispenser is empty before refilling, but do
not overfill it. Your dishwasher is designed
to use a liquid rinse agent. You do not need
to use a solid or bar-type rinse agent.
You do not have to wait until the
Do not fill past
smallest opening
Keep dispenser filled for best drying results
12

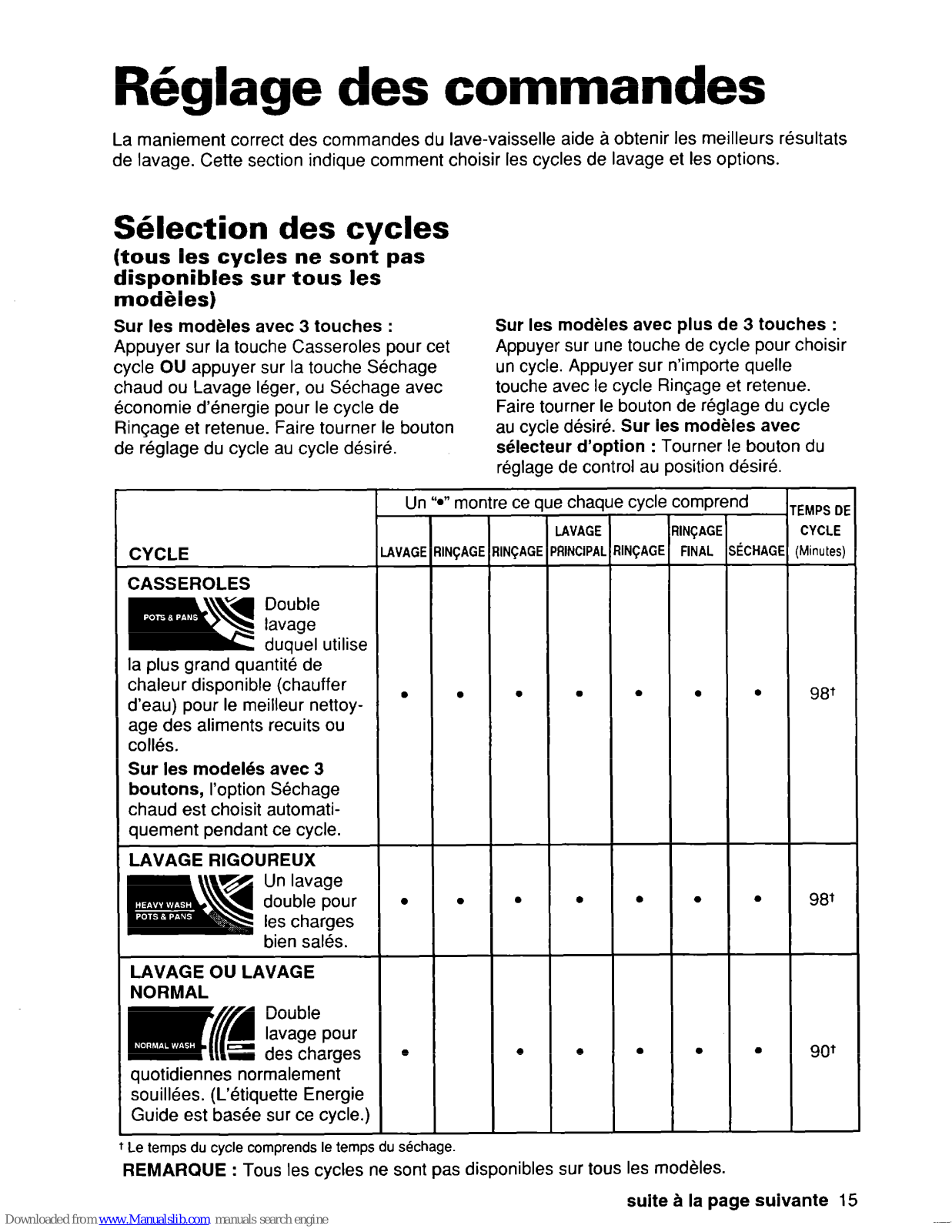

Setting the Controls
Operating your dishwasher’s controls properly helps you obtain the best possible washing
results. This section tells you how to select wash cycles and options.
Selecting a wash cycle
(All cycles are not available on
all models.)
For 3-button models:
button for that cycle OR press either Heated
Dry or Energy Saver Dry for Normal Wash Use any Cycle Button with the Rinse & Hold
and Light Wash cycles, or Energy Saver
Dry for Rinse & Hold cycle. Turn Cycle
Control Knob to desired cycle.
Press Pots & Pans
For models with more than 3 buttons:
Push a Cycle Button for the desired cycle.
cycle. Turn Cycle Control Knob to desired
cycle. For models with rocker switches:
Turn Cycle Control Knob to desired cycle.
A “*” shows what each cycle includes
CYCLE
WASH RINSE RINSE WASH RINSE RINSE DRY
POTS & PANS
mv Double wash
. . :..
heat available (to heat water) l l
for maximum cleaning of
cooked-on or baked-on foods.
which uses
the most
For models with 3 buttons,
Heat Dry is automatically
selected during this cycle.
HEAVY WASH
Double wash
for heavily
soiled loads.
WASH OR NORMAL WASH
ma ~~~~~~” .
. .
CYCLE
.
TIME
(Minutes
98+
9e+
MAIN FINAL
.
. . .
. . . . . go+
.
.
.
. .
soiled loads. (Energy Guide
label is based on this cycle.)
+ Cycle time includes dry time.
NOTE:
Your model
may
not have all cycles.
continued on next page
13

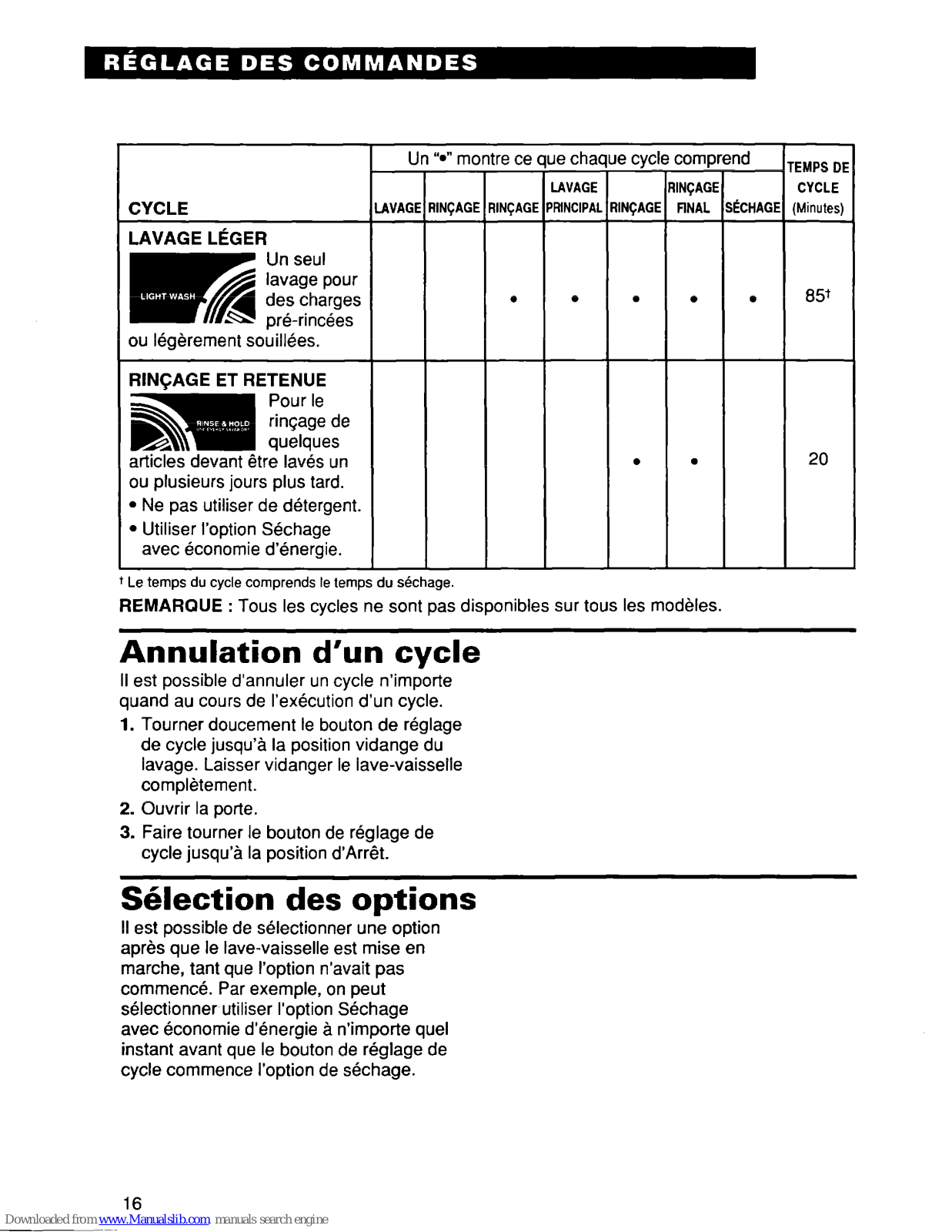

A “mm shows what each cycle includes
CYCLE
MAIN
FINAL
TIME
CYCLE
WASH RINSE RINSE WASH RINSE RINSE
DRY (Minutes
LIGHT WASH
w
Single wash
. .
. .
.
85+
4
for prerinsed
or lightly
hd soiled loads.
RINSE & HOLD
For rinsing
a few items
to be washed
one or more days later.
l Do not use detergent.
l Use Energy Saver Dry
option.
. .
20
t Cycle time includes dry time.
NOTE:
Your model may not have all cycles.
Canceling a cycle
You can cancel a cycle at any time.
1.
Turn the Cycle Control Knob slowly
clockwise until you hear water draining.
Let the dishwasher drain completely.
2. Open the door.
3. Turn the Cycle Control knob to Off.
Selecting cycle options
You can select an option after the dishwasher
starts as
long as the cycle has not
passed the point that the option is used. For
example, you can select Energy Saver Dry
any time before the Cycle Control Knob
reaches Dry.
Heated Dry option
If the Heated Dry option is selected, air in
the dishwasher is heated during the “dry”
part of the cycle.
For best results, use a
liquid rinse agent and select Heated Dry.
NOTE:
For models with 7 buttons, select
Reset Options if the Energy Saver Dry
option was selected for the previous cycle.
Models with
Rocker Switch
Models
Models
with 3 or 5 with 7
buttons buttons
. . .
lili
14
Energy
Saver Dry option
If the Energy Saver Dry option is selected,
air in the dishwasher is not heated during
the dry part of the cycle. Using this option
helps save energy, but dishes take longer to
dry (overnight) and some water spotting may
result. Some items (such as plastics) may
need towel drying. For best results, use a
liquid rinse agent.
Low Energy Washing option
(on some models)
When the Low Energy Washing option is
selected, water heating is reduced during
the main wash and final rinse. This will
reduce the amount of electricity needed to
run the dishwasher. However, dishes may
not wash as well.
Models wlth Models with
Rocker Switch buttons
Changing a cycle setting
(on some models)
You can change a cycle setting anytime
during any cycle.
1.
Lift up the door latch to stop the cycle.
2. Turn the Cycle Control Knob clockwise to
the desired cycle.
3. Check the detergent dispensers. They
must be filled properly for the new cycle.
NOTE:
Turning the Cycle Control Knob
can cause the covered section of the
Detergent Dispenser to open and release
the detergent. Check the covered section
if the cycle uses detergent in both
sections.
4. Close the door firmly until it latches. The
dishwasher starts the new cycle.
15
Adding an item during a
cycle
(on some models)
You can add an additional item to the dishwasher anytime before the Cycle Control
Knob reaches Light Wash. Items added after
the Cycle Control Knob reaches Light Wash
will only be rinsed.
1.
Lift up the door latch to stop the cycle.
Wait for spraying action to stop before
opening the door.
2. Open the door and add the item.
3. Close the door, but do
not
latch it. Wait
30 seconds for the air in the dishwasher
to warm up. Doing so reduces the amount
of moisture in the vent when restarting
a cycle.
4. Close the door firmly until it latches. The
dishwasher resumes the cycle.
Using delay wash
(on some models)
You can set the dishwasher to start a cycle
1 or 2 hours later.
1. Push desired Cycle Button.
I *
2. Push desired Option Button(s).
3. Turn Cycle Control Knob clockwise to the
number of hours you want the dishwasher
to delay before the selected cycle starts.
4. Close and latch the door.
NOTES:
l You can add items while time is counting
down. Close and latch the door. The Cycle
Control Knob will not advance if the door
is unlatched.
l Rinse & Hold and Light Wash cycles
cannot be delayed.
16
Washing Special Items
If you have any doubts about washing a particular item, check with the manufacturer to see if
it is dishwasher safe.
NOTE:
It is the user’s resoonsibilitv to determine if an item should be washed in a dishwasher.
.
I MATERIAL DISHWASHER SAFE? EXCEPTIONS/SPECIAL INFORMATION
1 Mumlnum Yes
High water temperature and detergents can pit
finish of anodized aluminum.
3ottles
and Cans
No
Wash bottles and cans by hand. Labels attached
with glue can loosen in your dishwasher. Loose
labels and glue can clog spray arms or the pump
and will reduce washing performance.
Cast Iron
China/
Stoneware
No
Yes
Seasoning will be removed and iron will rust.
Always check manufacturer’s recommendations
before washing. Antique, hand-painted, or overthe-glaze patterns may fade. Gold leaf can
discolor or fade.
Crystal Yes
Always check manufacturer’s recommendations
before washing. Some types of leaded crystal
can etch with repeated washings.
Gold No
Glass Yes
Gold-colored flatware will discolor.
Milk glass will yellow with repeated dishwasher
washing.
HollowHandle
Knives
Pewter
No
No
Handles of some knives are attached to the
blade with adhesives which may loosen if
washed in the dishwasher.
High water temperatures and detergent can
discolor or pit finish.
Disposable
Plastics
Plastics
No
Yes
Cannot withstand high water temperatures and
detergents.
Always check manufacturer’s recommendations
before washing. Plastics vary in their capacity to
withstand high water temperatures and deter-
gents. Load plastics in top rack only.
Stalnless
Steel
Yes
Run the Rinse & Hold cycle if not washing
immediately. Prolonged contact with food
containing salt, vinegar, milk products, or fruit
juice can damage finish.
Sterling
Silver or
Silver Plate
Yes
Run the Rinse & Hold cycle if not washing
immediately. Prolonged contact with food
containing salt, acid, or sulfide (eggs, mayon-
naise, and seafood) can damage finish.
Tin
Wooden
Ware
No
No
Can rust.
Always check manufacturer’s recommendations
before washing. Untreated wood can warp,
crack, or lose its finish.
1’
Caring for Your Dishwasher
Your new dishwasher is designed to give you many years of dependable service. There are a
few things you can do to maintain your dishwasher properly. This section tells you how to
clean and care for your dishwasher. Refer to the “Solving Common Dishwashing Problems”
section for special cleaning problems.

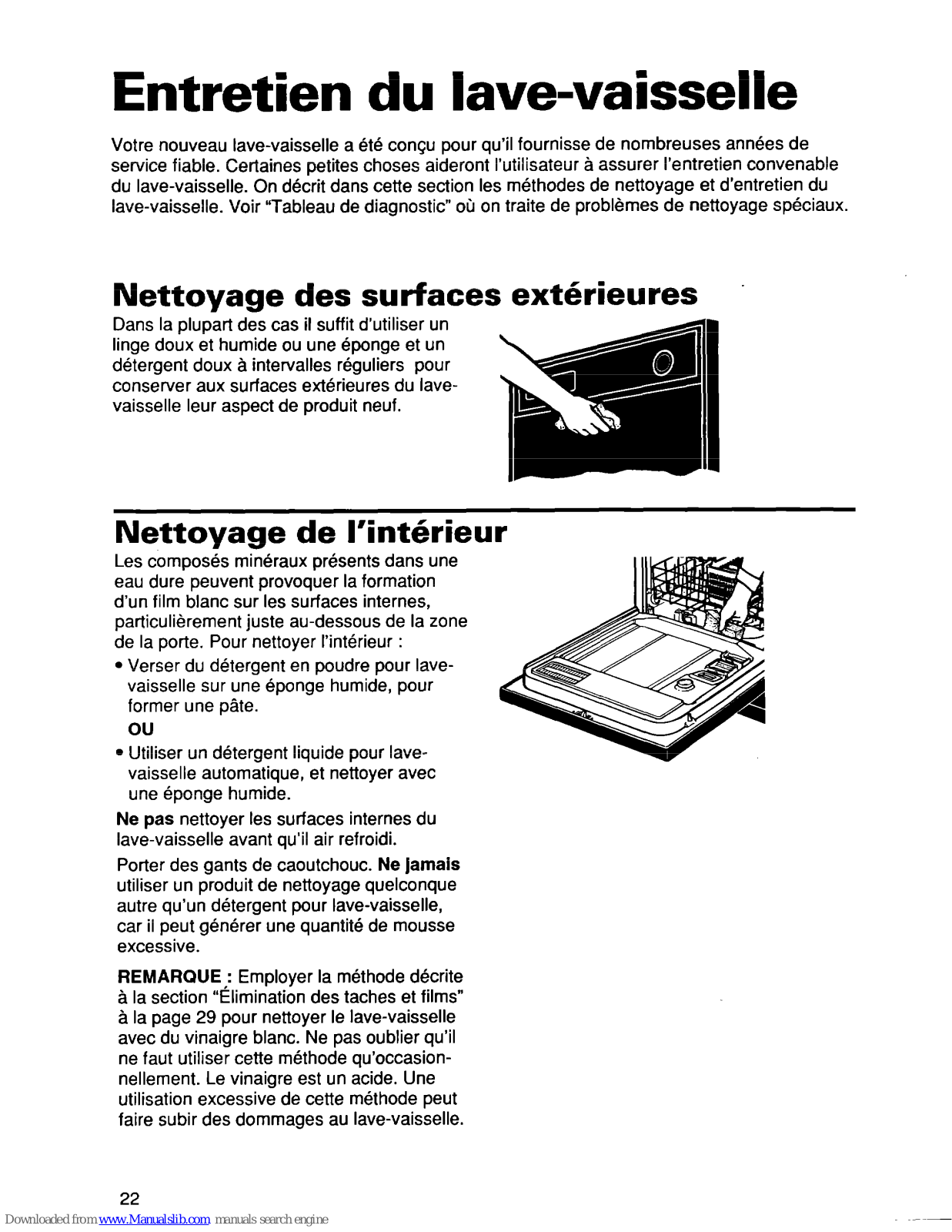

Cleaning the interior
Hard water minerals may cause a white film
to build up on the inside surfaces, especially
just beneath the door area. To clean interior:
l Apply powdered dishwasher detergent to a
damp sponge to make a paste.
OR
l Use liquid automatic dishwasher detergent
and clean with damp sponge.
Do
not
clean the dishwasher interior until it
has cooled.
Wear rubber gloves. Do
cleanser other than dishwasher detergent
because it can cause foaming or sudsing.
not
use any type of
NOTE: See “Removing spots and film” in the
“Solving Common Dishwashing Problems”
section to clean your dishwasher with white
vinegar. Remember, this procedure is
intended for occasional use only. Vinegar
is an acid. Excessive use can damage
your dishwasher.

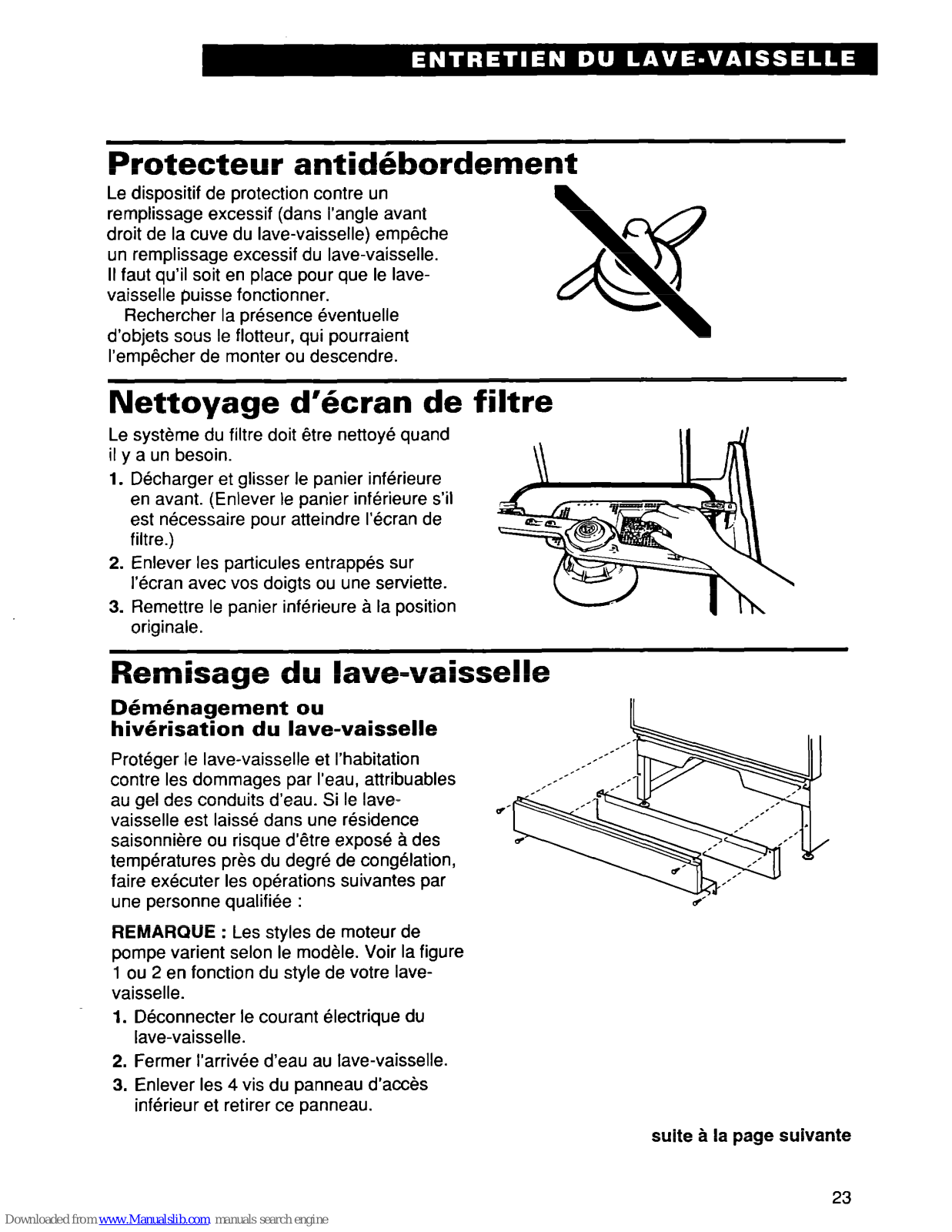

Overfill protector
The Overfill Protector (in the front right
corner of the dishwasher tub) keeps the
dishwasher from overfilling. It must be in
place for the dishwasher to operate.
Check under the float for objects that may
keep the protector from moving up or down.
18
\
a
\

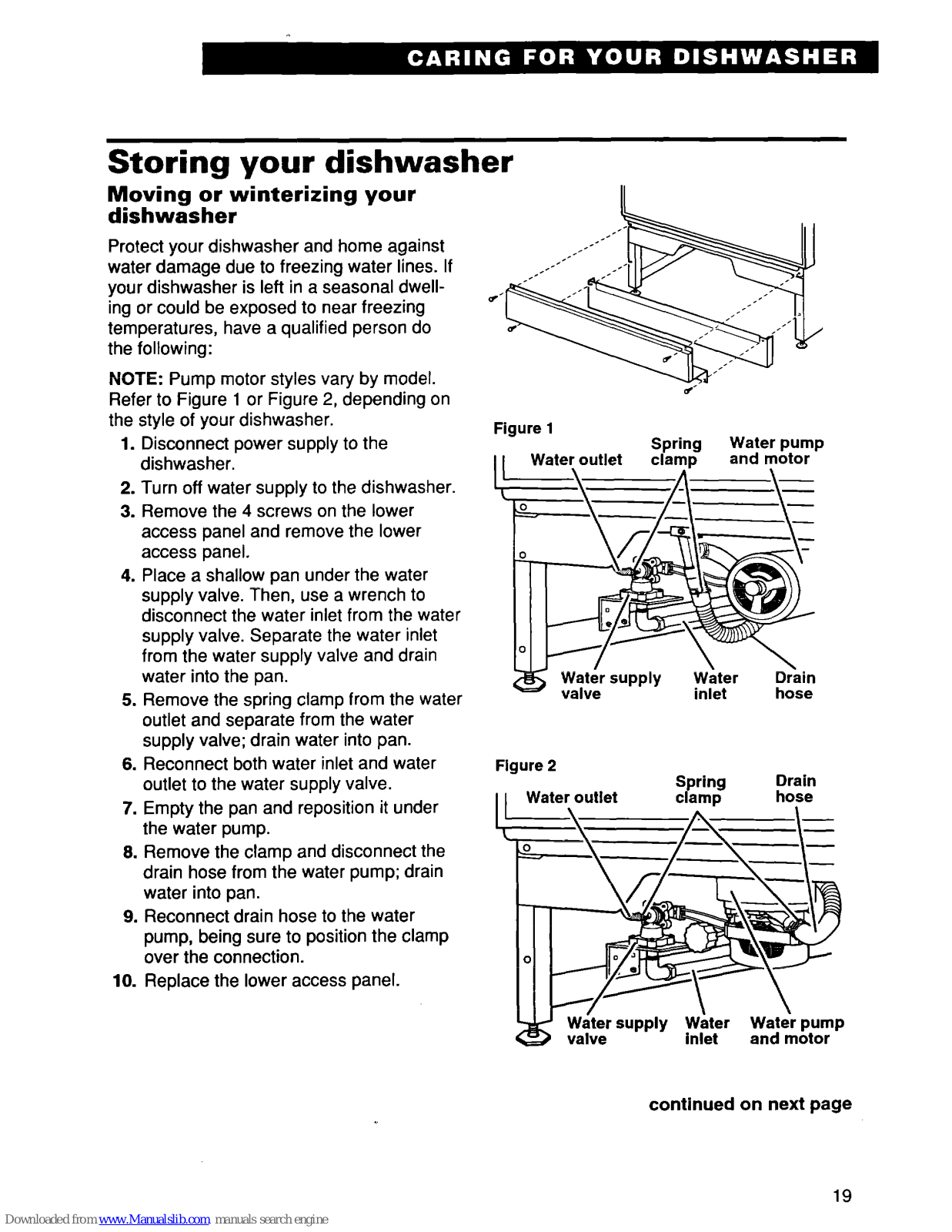

Storing your dishwasher
Moving or winterizing your
dishwasher
Protect your dishwasher and home against
water damage due to freezing water lines. If
your dishwasher is left in a seasonal dwelling or could be exposed to near freezing
temperatures, have a qualified person do
the following:
NOTE:
Pump motor styles vary by model.
Refer to Figure 1 or Figure 2, depending on
the style of your dishwasher.
1.
Disconnect power supply to the
dishwasher.
2. Turn off water supply to the dishwasher.
3.
Remove the 4 screws on the lower
access panel and remove the lower
access panel.
4. Place a shallow pan under the water
supply valve. Then, use a wrench to
disconnect the water inlet from the water
supply valve. Separate the water inlet
from the water supply valve and drain
water into the pan.
5. Remove the spring clamp from the water
outlet and separate from the water
supply valve; drain water into pan.
6. Reconnect both water inlet and water
outlet to the water supply valve.
7. Empty the pan and reposition it under
the water pump.
8. Remove the clamp and disconnect the
drain hose from the water pump; drain
water into pan.
9. Reconnect drain hose to the water
pump, being sure to position the clamp
over the connection.
10.
Replace the lower access panel.

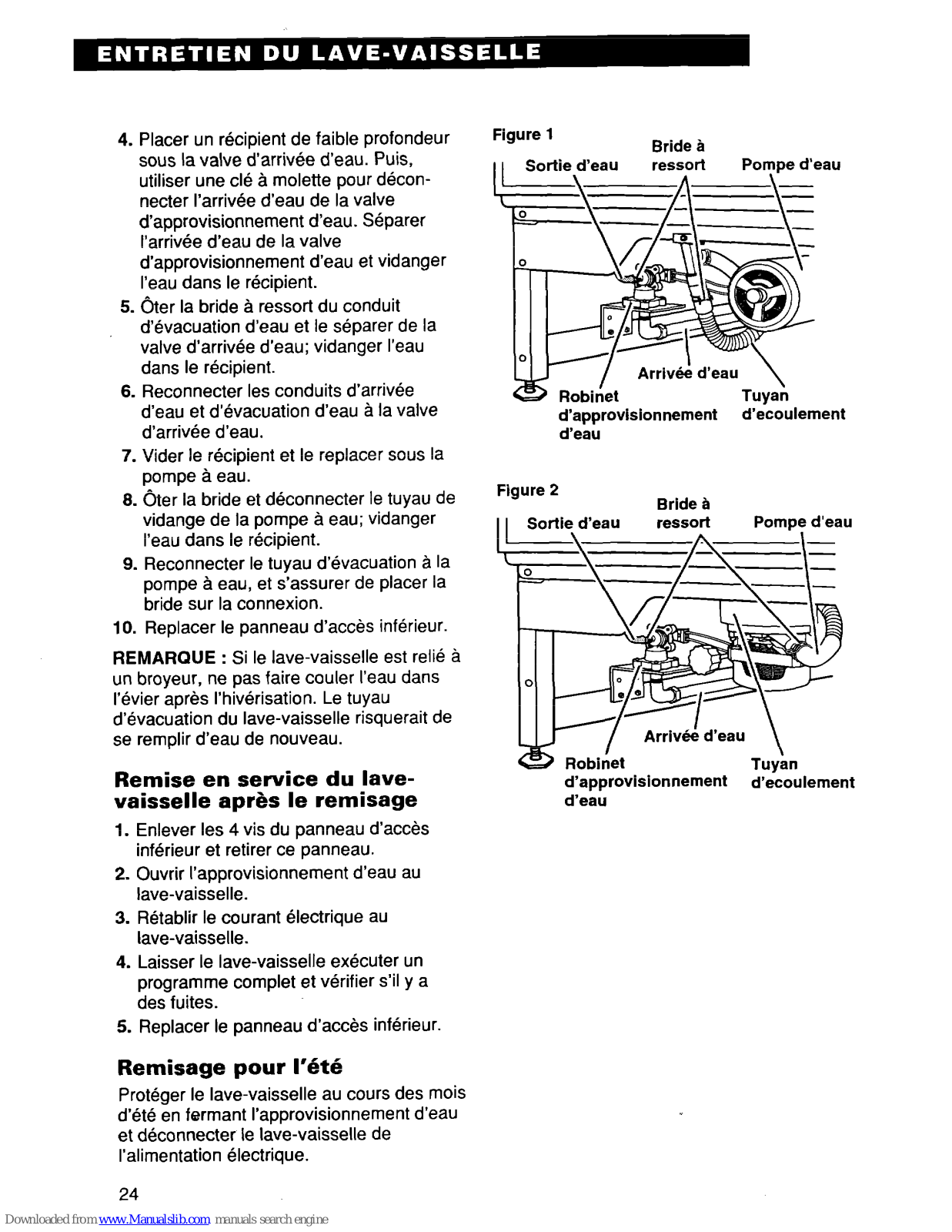

Figure 1
Spring
Water pump
Water outlet
clamp
and motor
.
Figure 2
continued on next page
19
NOTE: If your dishwasher is connected to
a garbage disposal, do not run water into
the sink after winterizing. This could cause
water to refill the drain hose on your
dishwasher.
Reconnecting your dishwasher
1.
Remove the 4 screws on the lower
access panel and remove lower
access panel.
2. Turn on the water supply to dishwasher.
3. Turn on power supply to dishwasher.
4. Run dishwasher through a complete cycle
and check for leaks.
5. Replace lower access panel.
Storing for the summer
Protect your dishwasher during the summer
months by turning off the water supply and
power supply to the dishwasher.
Cleaning the filter screen
The filter system requires periodic cleaning
as needed. To clean screen:
1. Unload and slide the bottom rack forward.
(Remove bottom rack if necessary to
reach filter screen.)
2. Remove collected particles from the
screen with your fingers or paper towel.
3. Return the bottom rack to original position.
20
Loading...
